- 1. © All rightsreserved | wwww.shiratech-solutions.com 96Boards Open Hours July 2018 • info@shiratech- solutions.com www.shiratech-solution.com
- 2. © All rightsreserved | wwww.shiratech-solutions.com Slide 2 ABOUT SHIRATECH SOLUTIONS • Based in Israel • Focused on: – System-on-Module & IoT Gateways – 96Boards community ecosystem • Deep technology expertise • Longevity plan • In-house production – ISO9001, ISO13485, AS9100C • Complete hardware and software design services. • Part of A.Y Electronics group.
- 3. © All rightsreserved | wwww.shiratech-solutions.com Slide 3 SHIRATECH OFFERING • To get you started • Get there at minimized effort Community Boards • To get you there even faster Development Services • For fast time to-market System-on-Modules & IoT Gateways
- 4. © All rightsreserved | wwww.shiratech-solutions.com Slide 4 Spark” Product line • Integrated into other vendors products • Standard SMARC form factor • Spark-100 and Spark-102 based on Intel PSG Cyclone V SoC • Spark-501 based on Microchip SAMA5D3, Cortex-A5 • SparkGate-7 IoT Gateway
- 5. © All rightsreserved | wwww.shiratech-solutions.com Slide 5 SparkGate IoT Gateway Enabling device manufacturers fast time to market using a ready-to-use IoT Gateway Devices SparkGate • Building • City • Transportation • Industry • Agriculture • Home SparkGate connects devices to the Cloud “Smart” applications:
- 6. © All rightsreserved | wwww.shiratech-solutions.com 96Boards Product Line
- 7. © All rightsreserved | wwww.shiratech-solutions.com Slide 7 96BOARDS PRODUCTS • LTE & Sensor Mezzanine – Release July 2018, • Max10 Mezzanine – Release August 2018 • LTE CAT-M Mezzanine – Release September 2018 • Bosch Sensor Mezzanine – Release September 2018

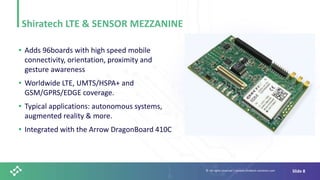

- 8. © All rightsreserved | wwww.shiratech-solutions.com Slide 8 Shiratech LTE & SENSOR MEZZANINE • Adds 96boards with high speed mobile connectivity, orientation, proximity and gesture awareness • Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage. • Typical applications: autonomous systems, augmented reality & more. • Integrated with the Arrow DragonBoard 410C

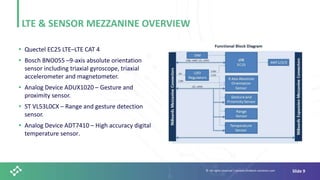

- 9. © All rightsreserved | wwww.shiratech-solutions.com Slide 9 LTE & SENSOR MEZZANINE OVERVIEW • Quectel EC25 LTE–LTE CAT 4 • Bosch BNO055 –9-axis absolute orientation sensor including triaxial gyroscope, triaxial accelerometer and magnetometer. • Analog Device ADUX1020 – Gesture and proximity sensor. • ST VL53L0CX – Range and gesture detection sensor. • Analog Device ADT7410 – High accuracy digital temperature sensor.

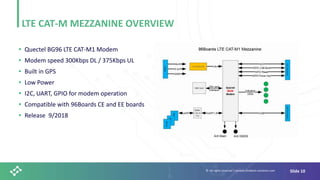

- 10. © All rightsreserved | wwww.shiratech-solutions.com Slide 10 LTE CAT-M MEZZANINE OVERVIEW • Quectel BG96 LTE CAT-M1 Modem • Modem speed 300Kbps DL / 375Kbps UL • Built in GPS • Low Power • I2C, UART, GPIO for modem operation • Compatible with 96Boards CE and EE boards • Release 9/2018

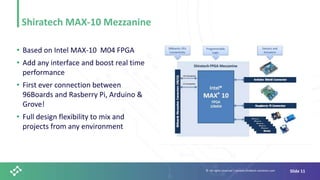

- 11. © All rightsreserved | wwww.shiratech-solutions.com Slide 11 Shiratech MAX-10 Mezzanine • Based on Intel MAX-10 M04 FPGA • Add any interface and boost real time performance • First ever connection between 96Boards and Rasberry Pi, Arduino & Grove! • Full design flexibility to mix and projects from any environment
- 12. © All rightsreserved | wwww.shiratech-solutions.com Slide 12 MAX 10 MEZZANINE BOARD System • 256 FBGA package • 4K Logic Elements • 189Kb Block memory • Up to 156KB user FLASH memory • Dual internal configuration • 178 GPIO Interfaces • 1 x Raspberry Pi expansion connector • 1 x Arduino expansion connector • 6 x Grove expansions: 4 digital and 2 analog
- 13. © All rightsreserved | wwww.shiratech-solutions.com Slide 13 Bosch sensor MEZZANINE • Highly accurate sensors for IoT and autonomous applications • Sensors – BMP388 digital pressure and temperature sensor – BMA456 - An16 bit , digital triaxial acceleration sensor with on-chip motion-triggered interrupt – BME680 - A digital 4 in 1 sensor with gas, humidity pressure and temperature measurement – BHI160 – Smart-hub with an integrated three axis gyroscope , an integrated three axis accelerometer plus a programmable microcontroller. – BMM150 - A stand alone geomagnetic sensor, allows measurements of the magnetic field in three perpendicular axes
- 14. © All rightsreserved | wwww.shiratech-solutions.com Thank You For Your Attention
