The Vigor2860L series is a versatile VDSL2/ADSL2+ router with built-in LTE and cellular connectivity, supporting 32 simultaneous VPN tunnels and offering load balancing features. It includes comprehensive DSL compatibility, advanced firewall security, and central management for various networking devices. Additionally, the device supports up to 150 Mbps download speeds and is equipped with various ports for extensive connectivity options.

1. Products
Vigor2860L Series
2017-02-26

2. Products

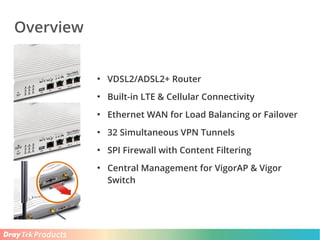

Overview
●
VDSL2/ADSL2+ Router
●
Built-in LTE & Cellular Connectivity
●
Ethernet WAN for Load Balancing or Failover
●
32 Simultaneous VPN Tunnels
●
SPI Firewall with Content Filtering
●
Central Management for VigorAP & Vigor
Switch

3. Products

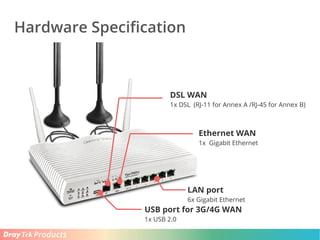

Hardware Specification
Ethernet WAN
1x Gigabit Ethernet
DSL WAN
1x DSL (RJ-11 for Annex A /RJ-45 for Annex B)
USB port for 3G/4G WAN
1x USB 2.0
LAN port
6x Gigabit Ethernet

4. Products
Hardware Specification

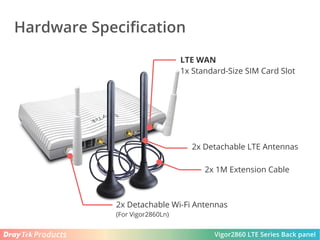

Vigor2860 LTE Series Back panel
LTE WAN
1x Standard-Size SIM Card Slot
2x Detachable LTE Antennas
2x Detachable Wi-Fi Antennas
(For Vigor2860Ln)
2x 1M Extension Cable

5. Products

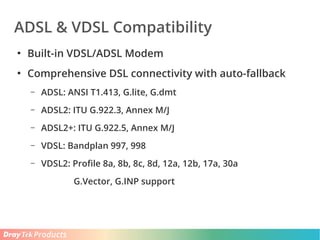

ADSL & VDSL Compatibility
●
Built-in VDSL/ADSL Modem
●
Comprehensive DSL connectivity with auto-fallback
– ADSL: ANSI T1.413, G.lite, G.dmt
– ADSL2: ITU G.922.3, Annex M/J
– ADSL2+: ITU G.922.5, Annex M/J
– VDSL: Bandplan 997, 998
– VDSL2: Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
G.Vector, G.INP support

6. Products
Built-in LTE & Cellular Connectivity
●
Max. Speed (Mbps): 150 Download, 50 Upload
●
3G/4G/LTE Compatibility
– LTE Bands: 1, 3, 7, 8, 20
– WCDMA Bands: 1, 8
– GSM Bands: 900, 1800 MHz
●
SMS Services
– Receiving & Sending SMS messages
– Alerts & Status Report via SMS
– Router Reboot on SMS

7. Products

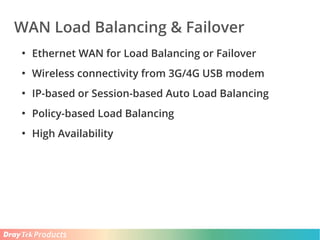

WAN Load Balancing & Failover
●
Ethernet WAN for Load Balancing or Failover
●
Wireless connectivity from 3G/4G USB modem
●
IP-based or Session-based Auto Load Balancing
●
Policy-based Load Balancing
●
High Availability

8. Products

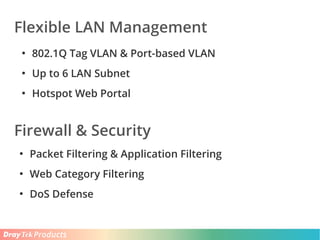

Flexible LAN Management
●
802.1Q Tag VLAN & Port-based VLAN
●
Up to 6 LAN Subnet
●
Hotspot Web Portal
Firewall & Security
●
Packet Filtering & Application Filtering
●
Web Category Filtering
●
DoS Defense

9. Products

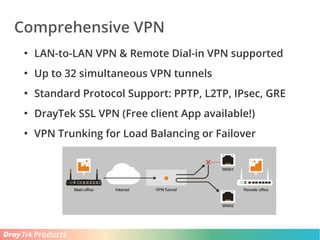

Comprehensive VPN
●
LAN-to-LAN VPN & Remote Dial-in VPN supported
●
Up to 32 simultaneous VPN tunnels
●
Standard Protocol Support: PPTP, L2TP, IPsec, GRE
●
DrayTek SSL VPN (Free client App available!)
●
VPN Trunking for Load Balancing or Failover

10. Products

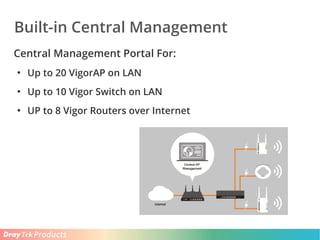

Built-in Central Management
Central Management Portal For:
●
Up to 20 VigorAP on LAN
●
Up to 10 Vigor Switch on LAN
●
UP to 8 Vigor Routers over Internet

11. Products
Models
Vigor2860L Vigor2860Ln
2.4G Wireless LAN

12. Products

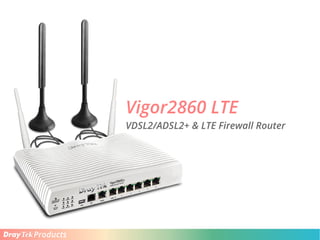

Vigor2860 LTE
VDSL2/ADSL2+ & LTE Firewall Router
