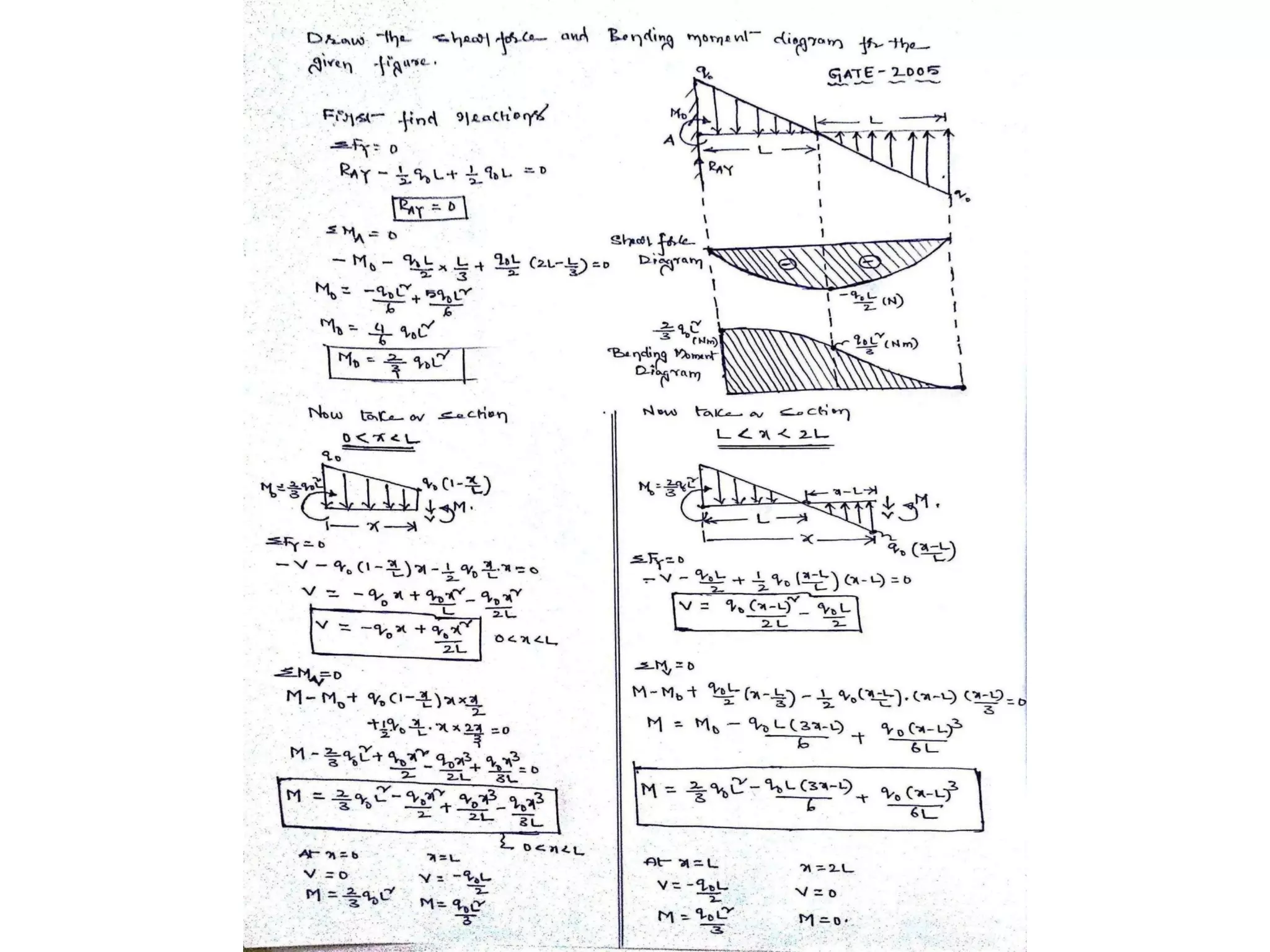

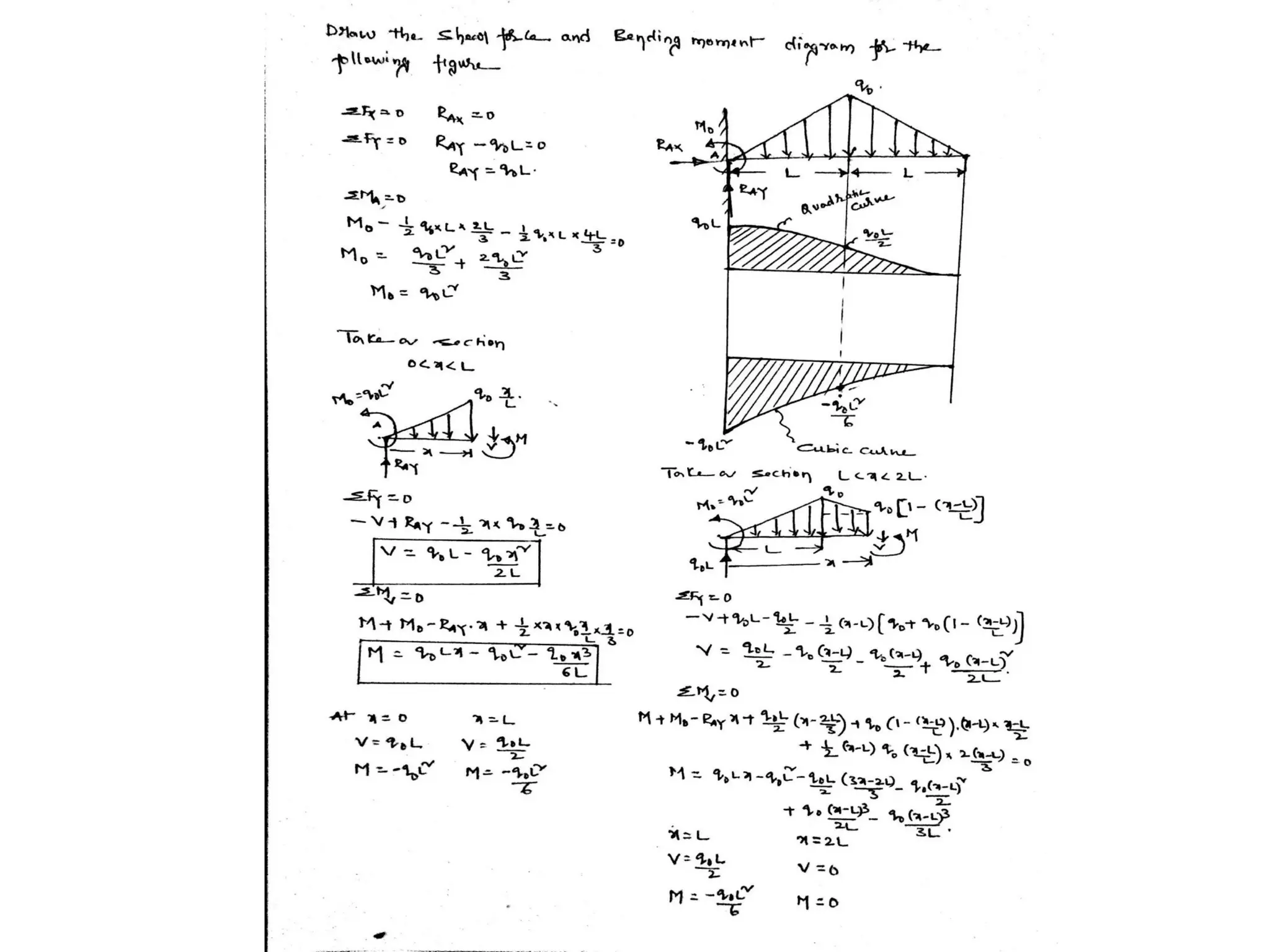

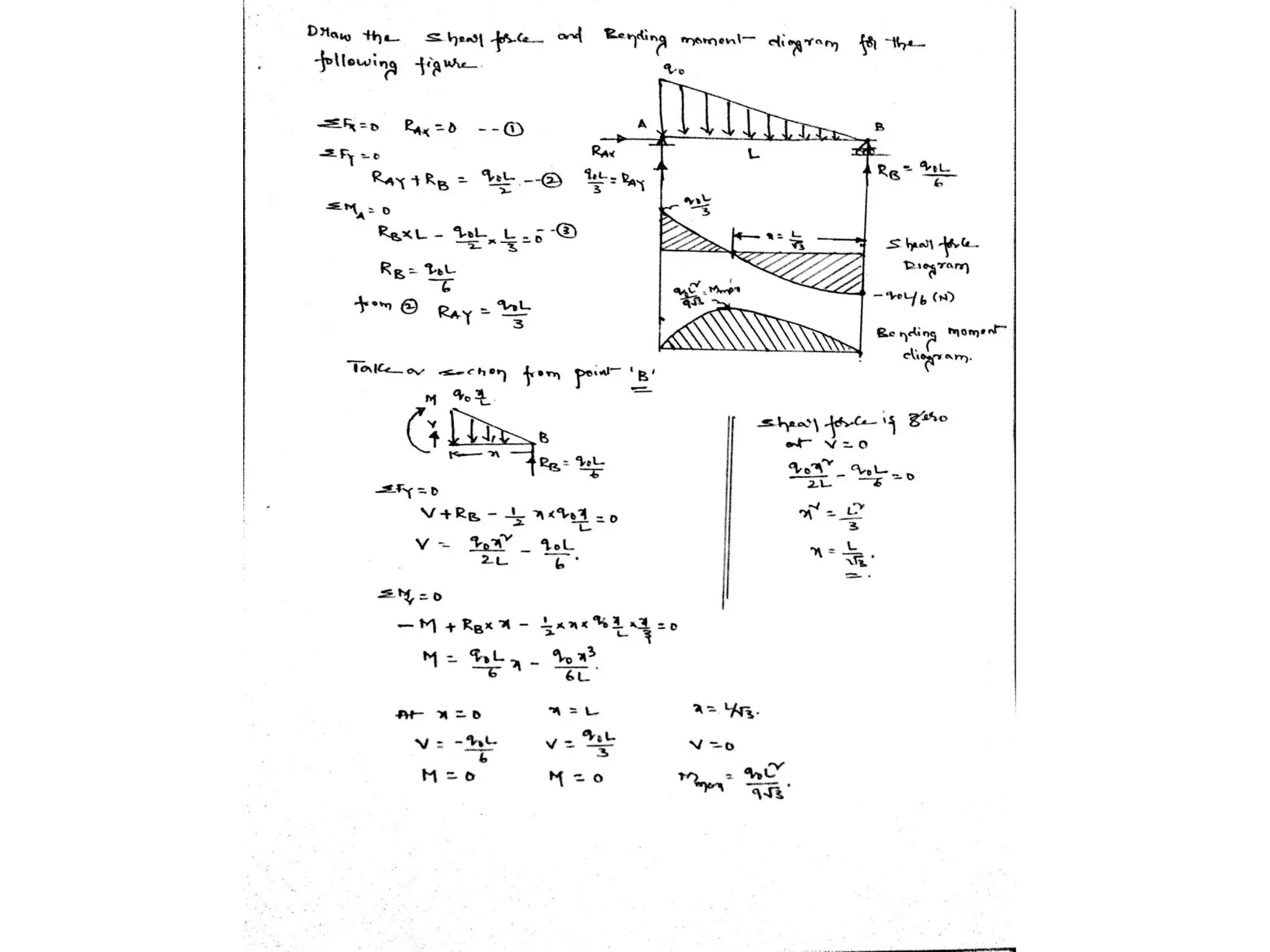

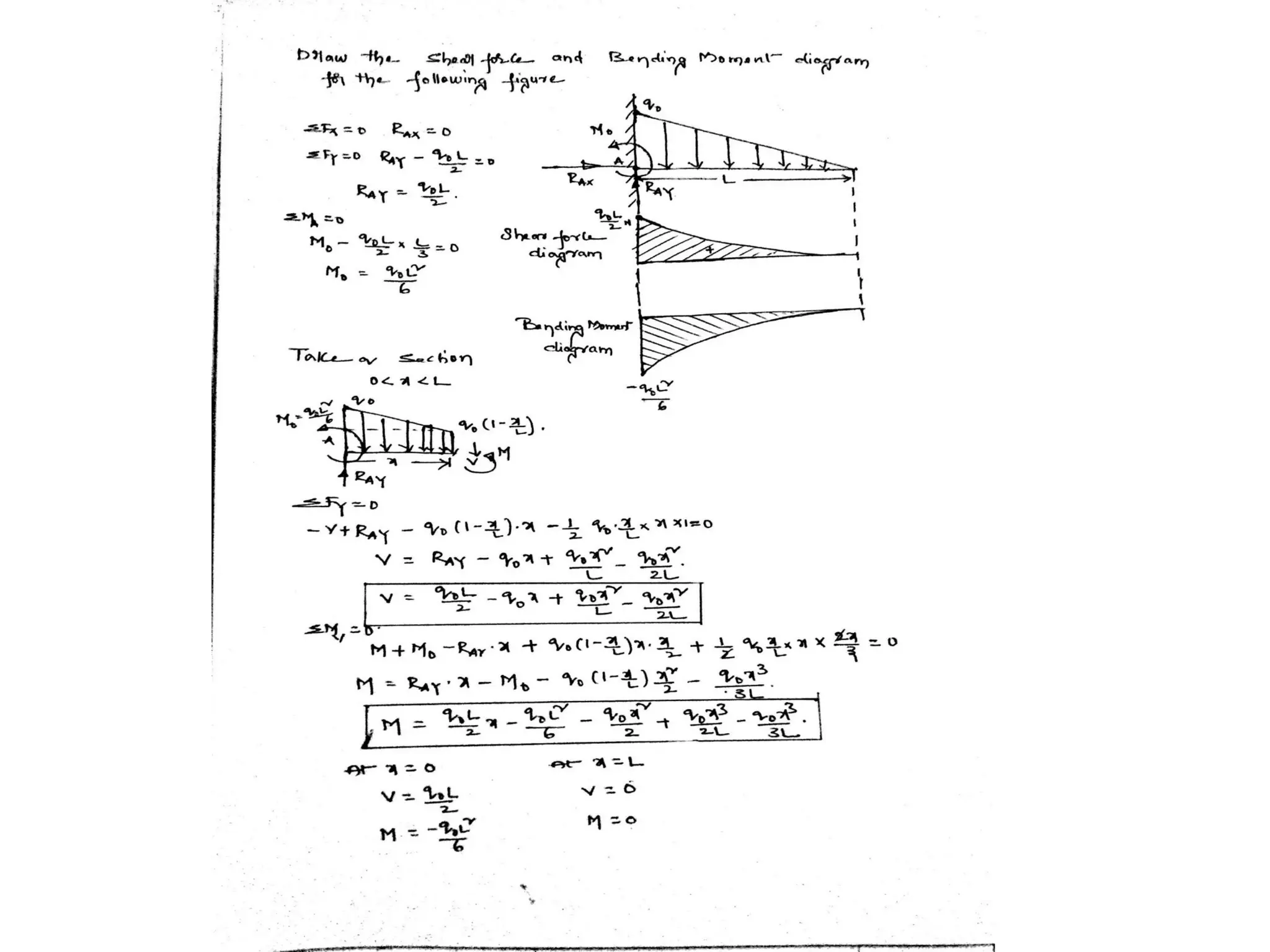

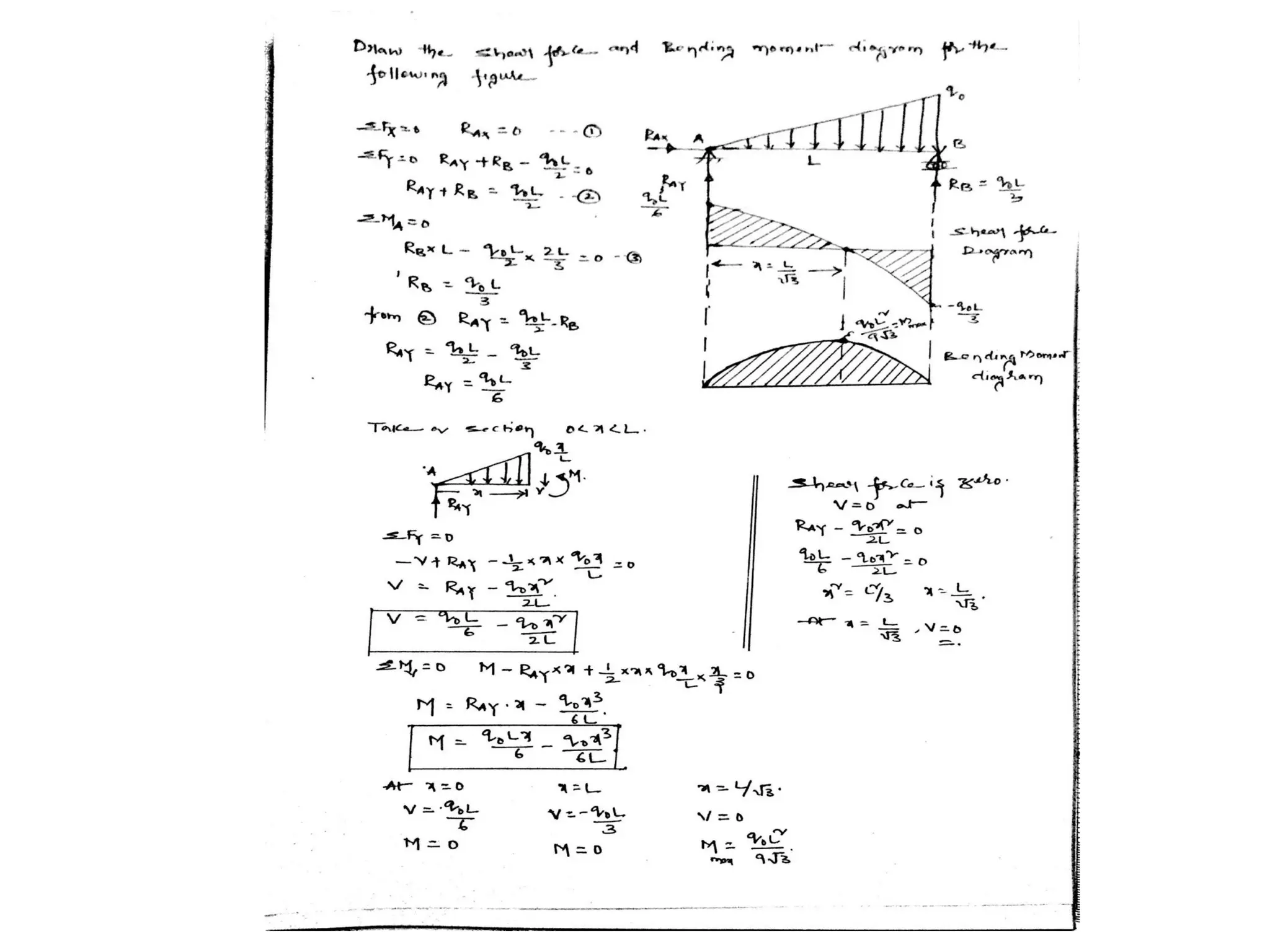

This document discusses shear force and bending moment diagrams. It explains the concepts of shear force and bending moment and how to draw shear force and bending moment diagrams for beams subjected to different types of loading. The document is intended as a guide for students to understand shear force and bending moment diagrams.

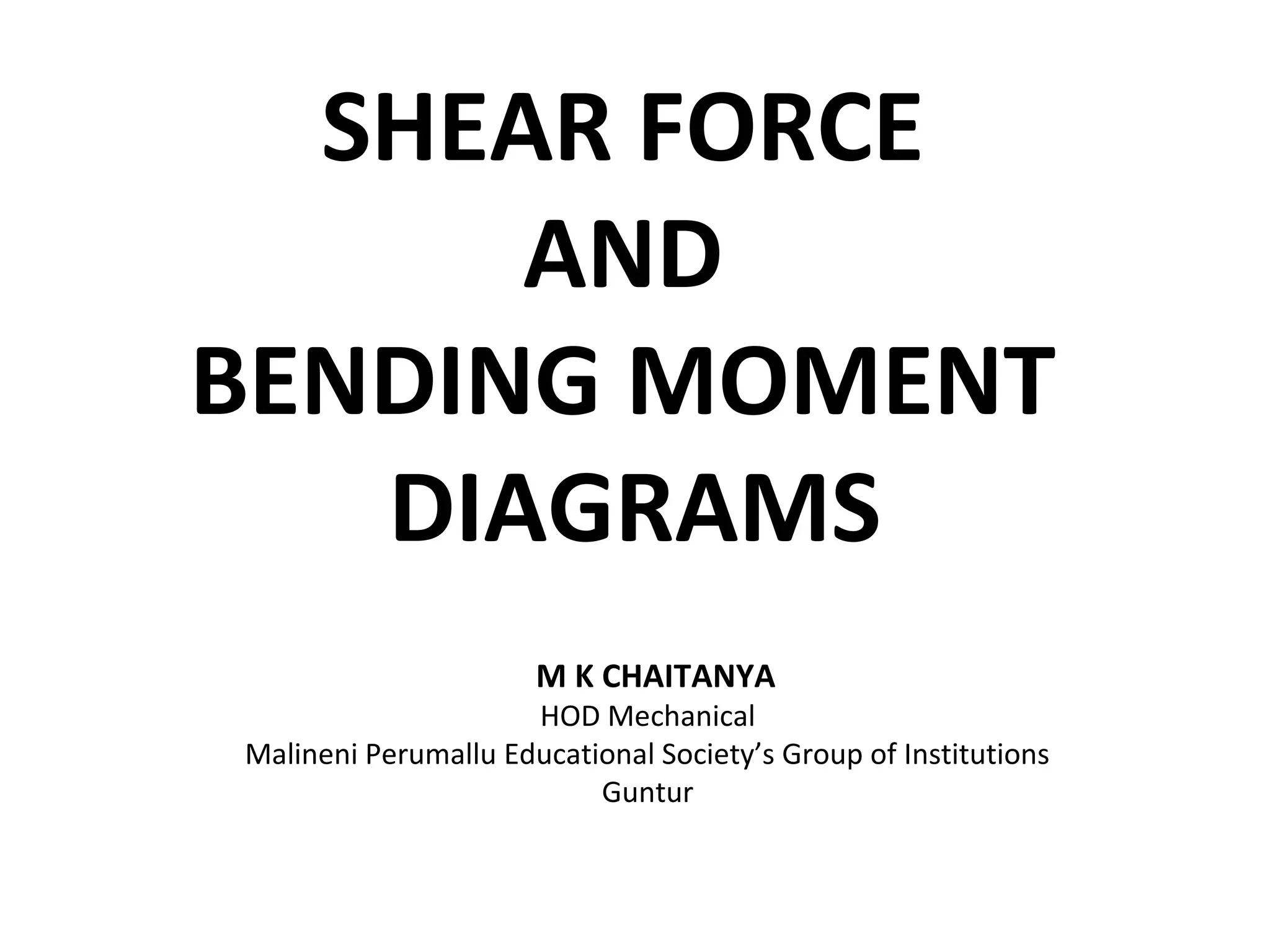

1. SHEAR FORCE
AND
BENDING MOMENT
DIAGRAMS
M K CHAITANYA
HOD Mechanical
Malineni Perumallu Educational Society’s Group of Institutions
Guntur

9. THANK YOU

10. THANK YOU
