We work in green technologies and services which includes:
• Lighting (Electrical Design, Mechanical Design, Optical Design, Customized Leds, Light
Planning)
• Hardware & Software Solutions (Smart Displays)
• Security & Surveillance (CCTV, Access Controls)
• Renewable Energy (On-Grid, Off-Grid, Hybrid Solutions)
• Energy Assessment ( Audit, Model, Strategic Planning)
– We provide consultancy and customized design as per client requirements
– We are working with leading brands such as
ABOUT US
1
WHY SHAJIM
1
• Staff qualified and competent in rendering customized indigenous sustainable solutions
• Deal in products of advance European technology.
• Provide reliable follow up maintenance and up gradation services. Remain competitive
despite definite edge in quality of products and services
Master City
Consultancy of 20.000 Lights
PROJECTS
2
Lighting Consultancy
Al-Riaz Rice Mills
Retrofitting:
• Lighting Consultancy
• 100kW Solar PV Plant
OHUD Engineering
Lighting Consultancy
3
4.17
4.7
1.825
1.175
3.33
2.23
0
3.525

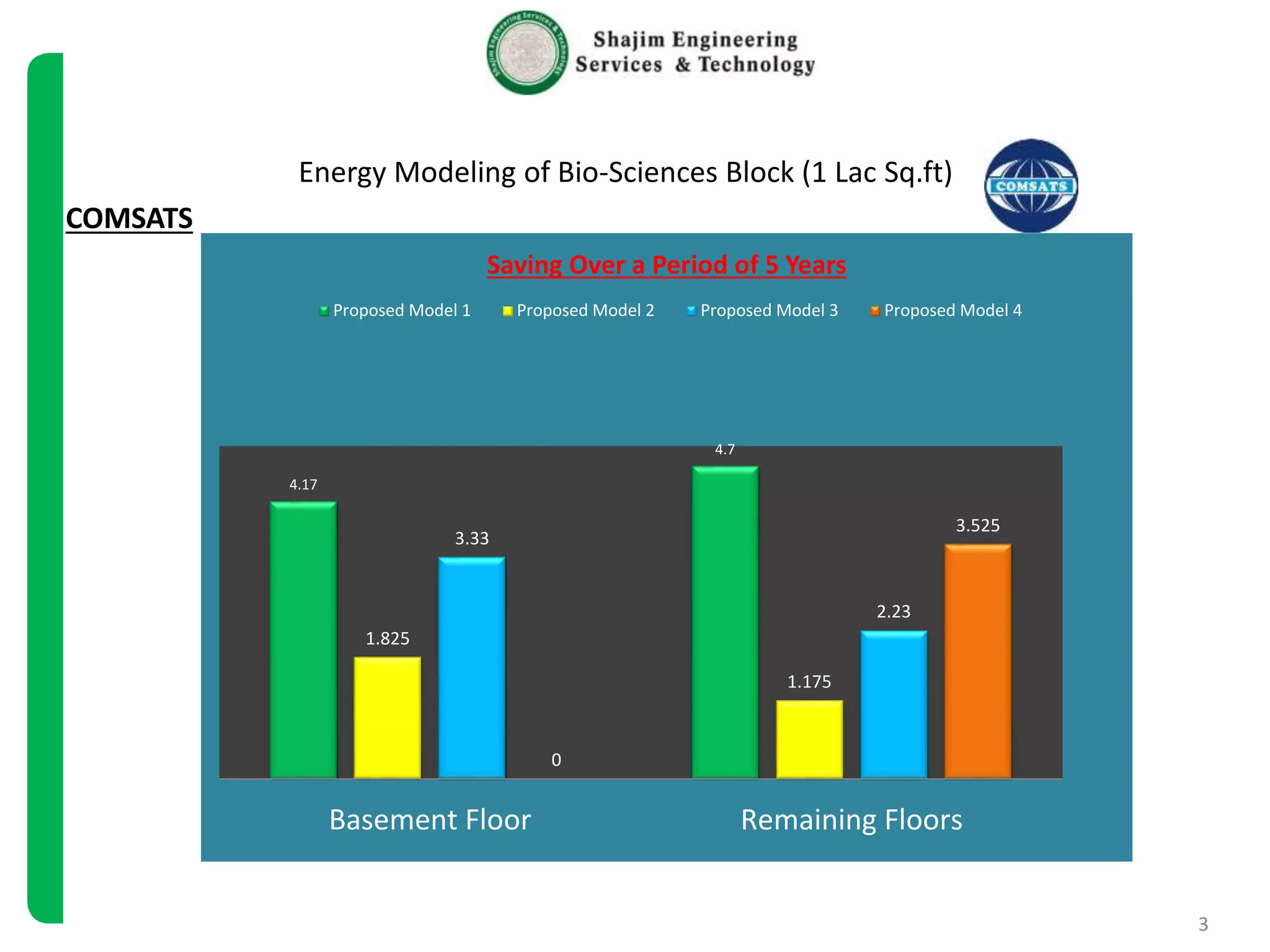

Basement Floor Remaining Floors
Saving Over a Period of 5 Years
Proposed Model 1 Proposed Model 2 Proposed Model 3 Proposed Model 4
Energy Modeling of Bio-Sciences Block (1 Lac Sq.ft)
COMSATS

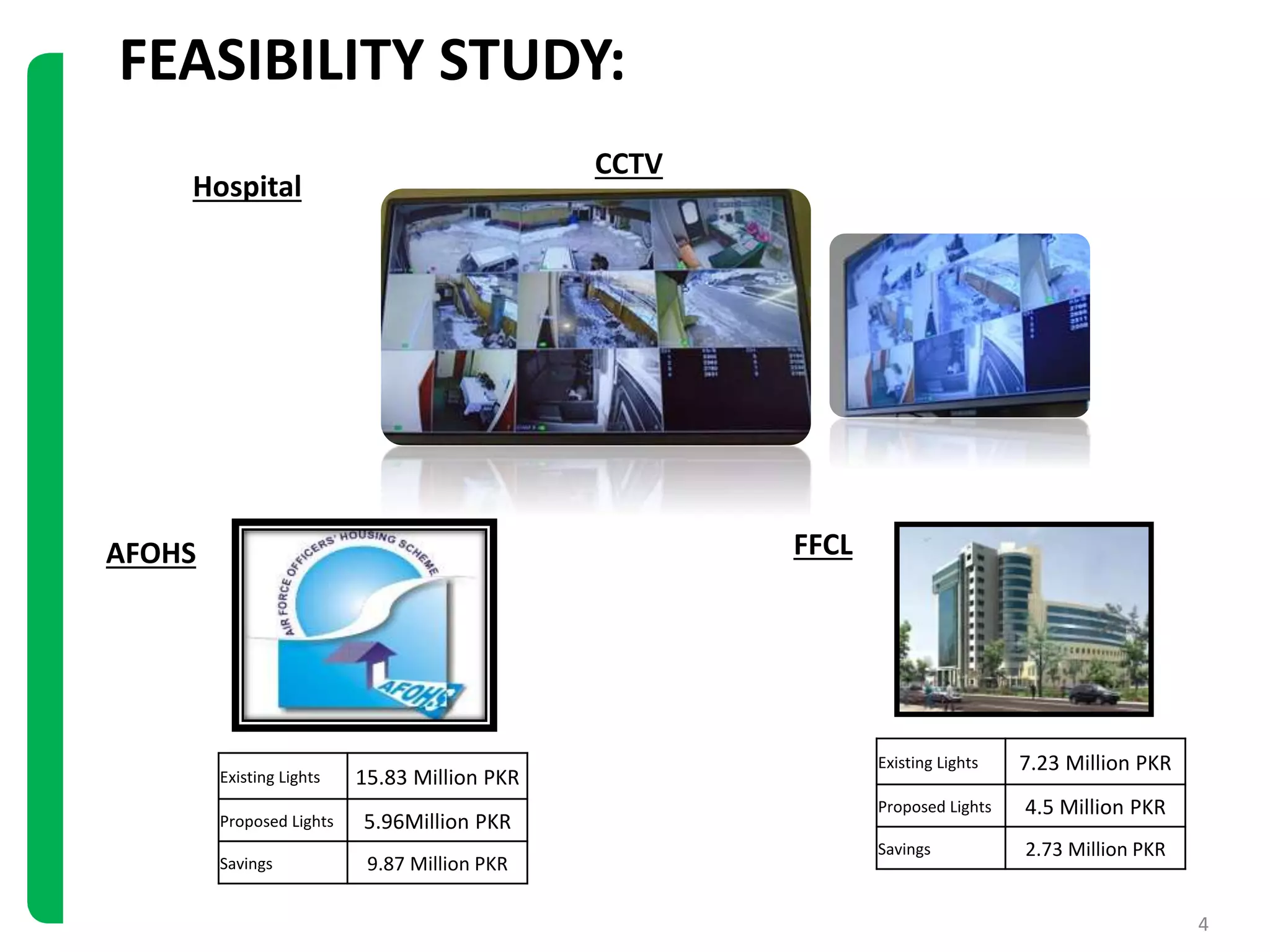

FEASIBILITY STUDY:
4
AFOHS
Existing Lights 15.83 Million PKR
Proposed Lights 5.96Million PKR
Savings 9.87 Million PKR
Existing Lights 7.23 Million PKR
Proposed Lights 4.5 Million PKR
Savings 2.73 Million PKR
FFCL
Hospital
CCTV
FEASIBILITY STUDY: MES
• 600kW Solar Park Quetta
• 1MW Solar Park Gwader
Solar Park
Water Management
400kW 169kW
26.28
Million
11.1
Million
15.18 Million
Lighting Load
5
Lighting
Interactive White Board
Video Wall
Security & Surveillance
Renewable Energy
Energy Modeling
CONTENTS
6
WHY IS GOOD LIGHTING DESIGN IMPORTANT
Economics &
Environment
•Installation
•Maintenance
•Operation
•Energy
•Environment
Architecture
•Form
•Composition
•Style
•Codes & Standards
Human Needs
•Visibility
•Task Performance
•Visual Comfort
•Social Environment
•Mood & Atmosphere
•Health, Safety
•Aesthetic Judgment
• The Human visibility
• Architecture
• Economics
• Environment
Light Quality
7
Lighting Quality
• Light where needed,
when needed, and
matched to task
• Recommended
illumination levels
SHAJIM LIGHTING - DESIGN CONSIDERATION
8
Saving energy requires efficient lighting audit, design and
technology
Save Energy,
+
+
Lighting
Audit
Lighting
Design
Lighting
Technology
LIGHT SAVING METHODOLOGY
9
COMPUTER AIDED DESIGN & ENGINEERING
• Electrical Design • Mechanical Design
• Optics Design
10
13

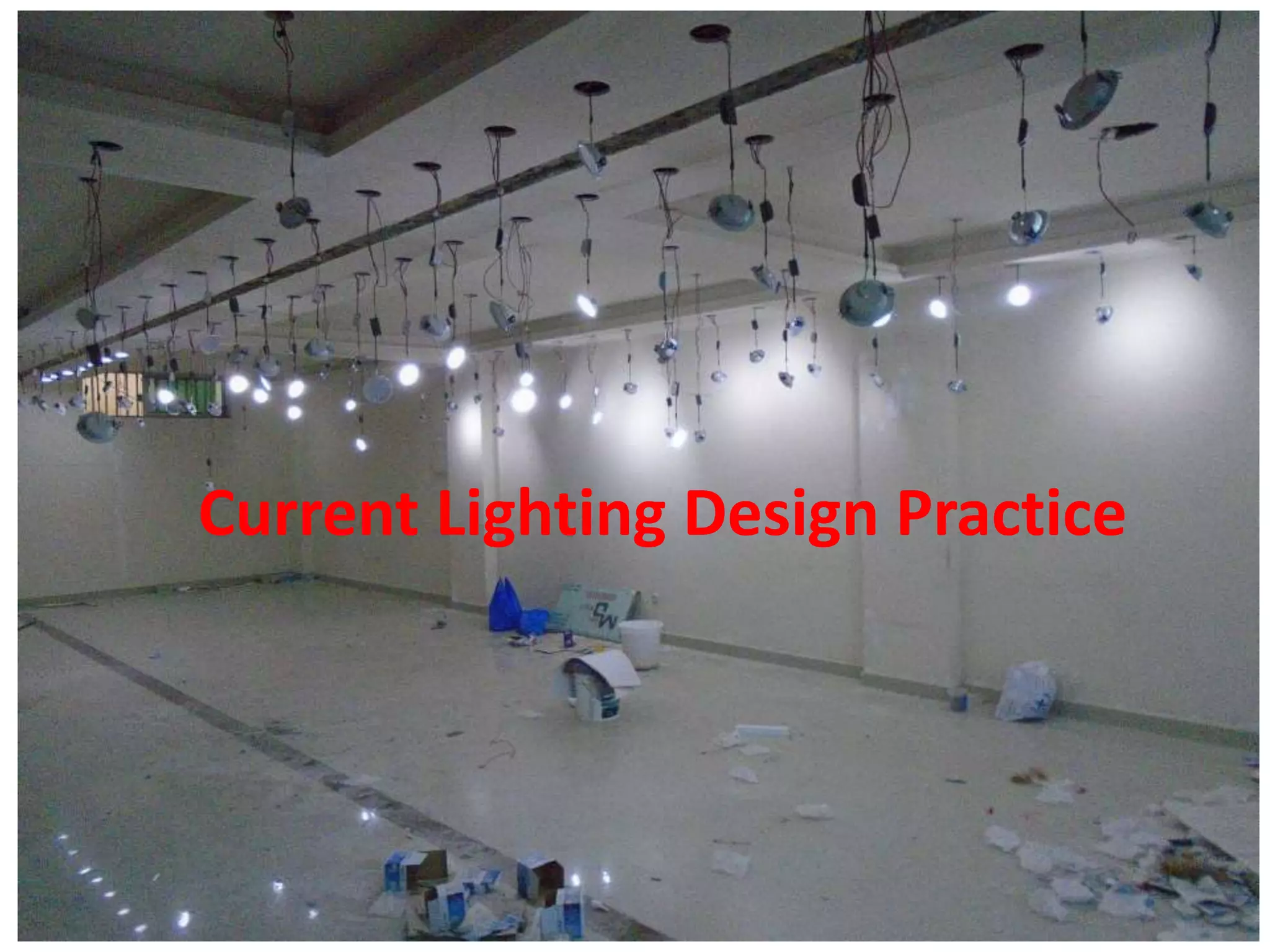

Current Lighting Design Practice
COMPUTER SIMULATION TOOLS
Software is used to optimize the lighting quality before installing
at the site
12
COMPUTER SIMULATION- Road Design
Road Light=24w
Photometric Results
Color Representation
13

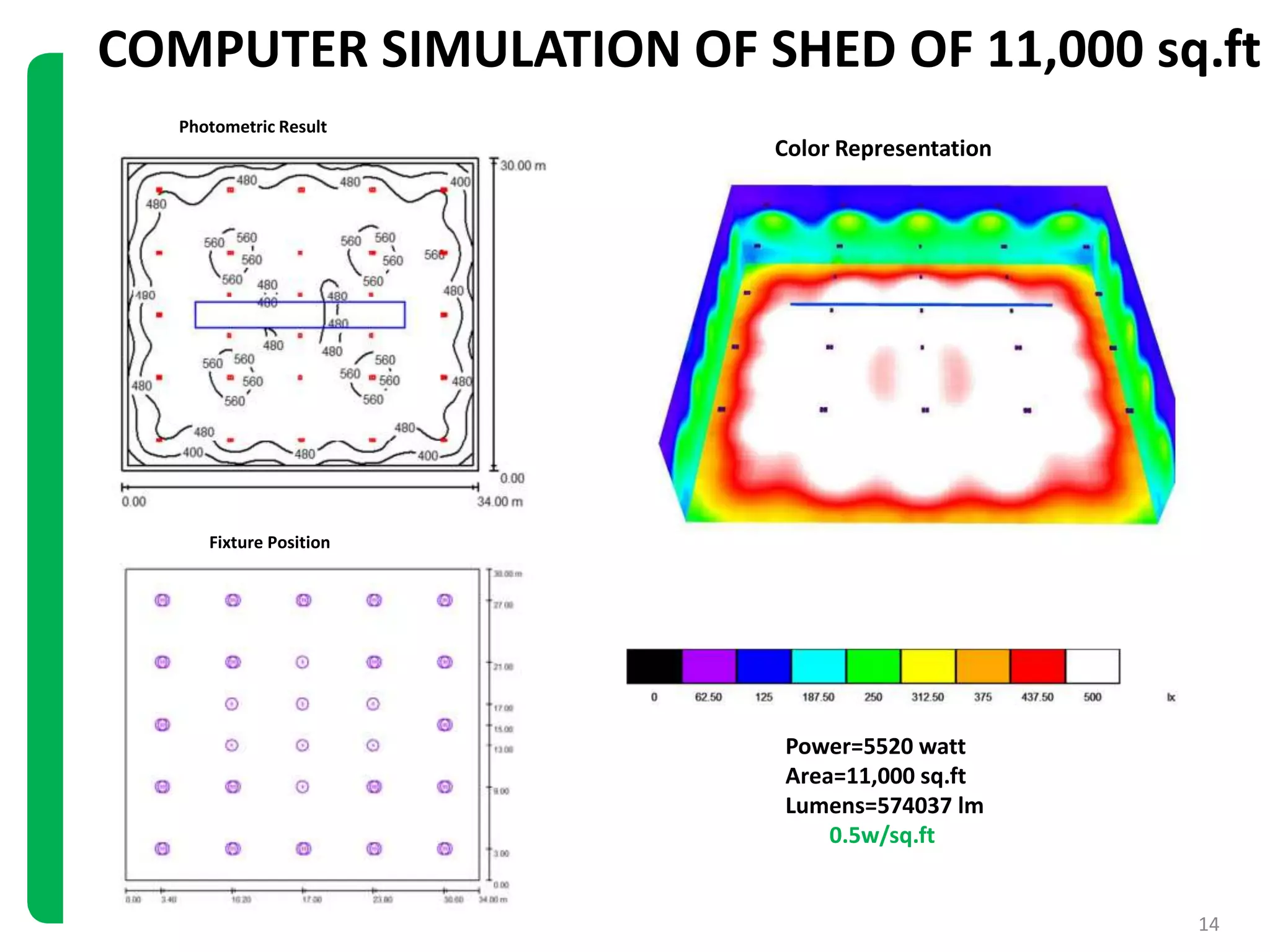

COMPUTER SIMULATION OF SHED OF 11,000 sq.ft
Fixture Position
Photometric Result
Color Representation
Power=5520 watt
Area=11,000 sq.ft
Lumens=574037 lm
0.5w/sq.ft
14
SHAJIM R&D
Shajim partners are focused on constantly developing new technologies, and
to fully integrate them into products to achieve optimum performance.
15
LIGHTS APPLICATIONS
16

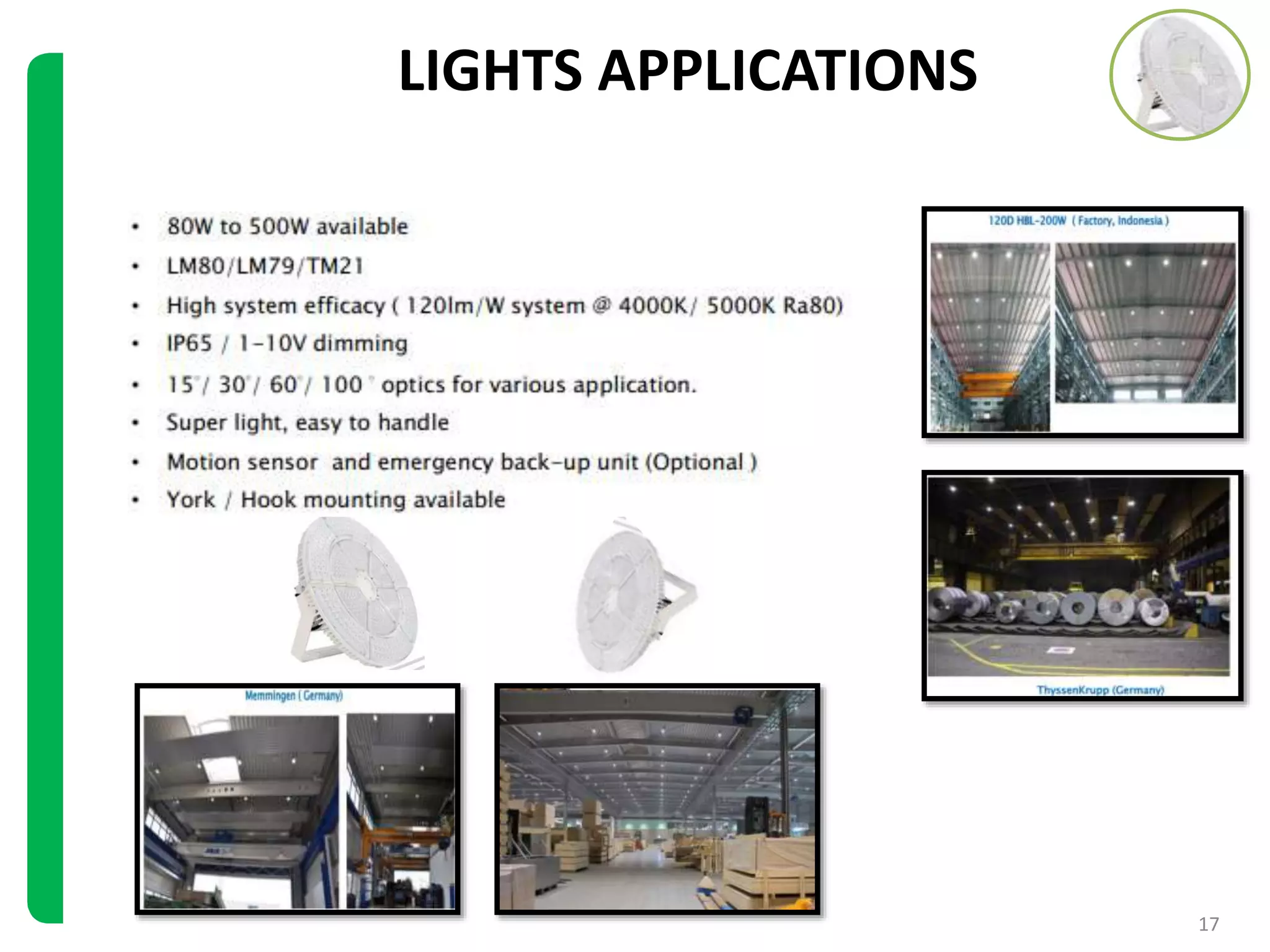

LIGHTS APPLICATIONS
17

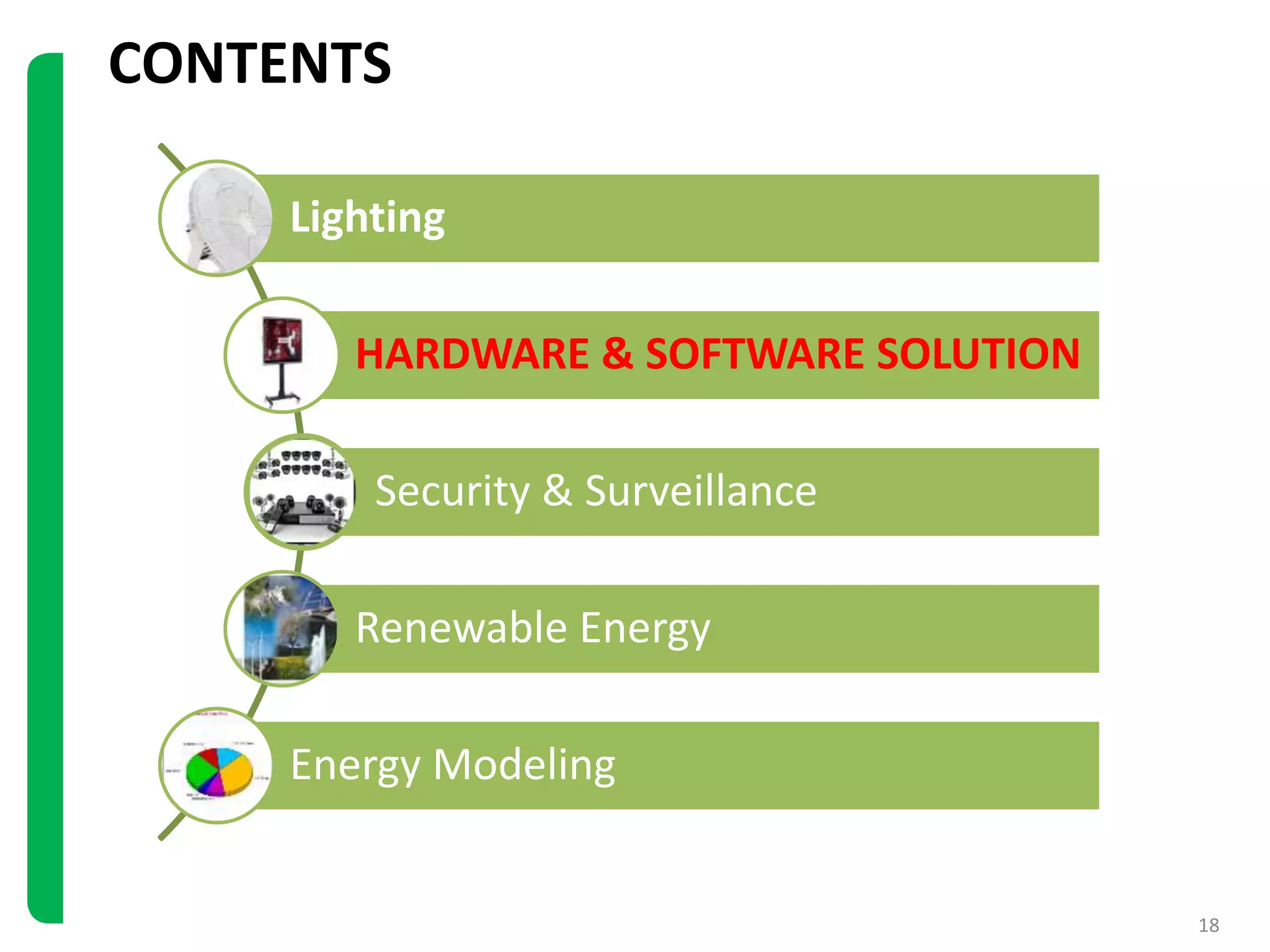

Lighting
HARDWARE & SOFTWARE SOLUTION
Security & Surveillance
Renewable Energy
Energy Modeling
CONTENTS
18
• Screen Size :65”, 80”
• HD Resolution
• Core i3 Processor
• Multi-Touch Capability
Shajim Engineering is a Vestel's system solution providers for Pakistan
VESTEL INTERACTIVE WHITE
19
Vestel Group is comprised of 29
companies, Ranking among the
world's leading manufacturers of
consumer electronics, household
appliances, multimedia
communication, LED lighting and
defense industries,
20
Interactive Presentations
VESTEL INTERACTIVE WHITE
Shajim Engineering is Vestel's system solution providers for Pakistan
21

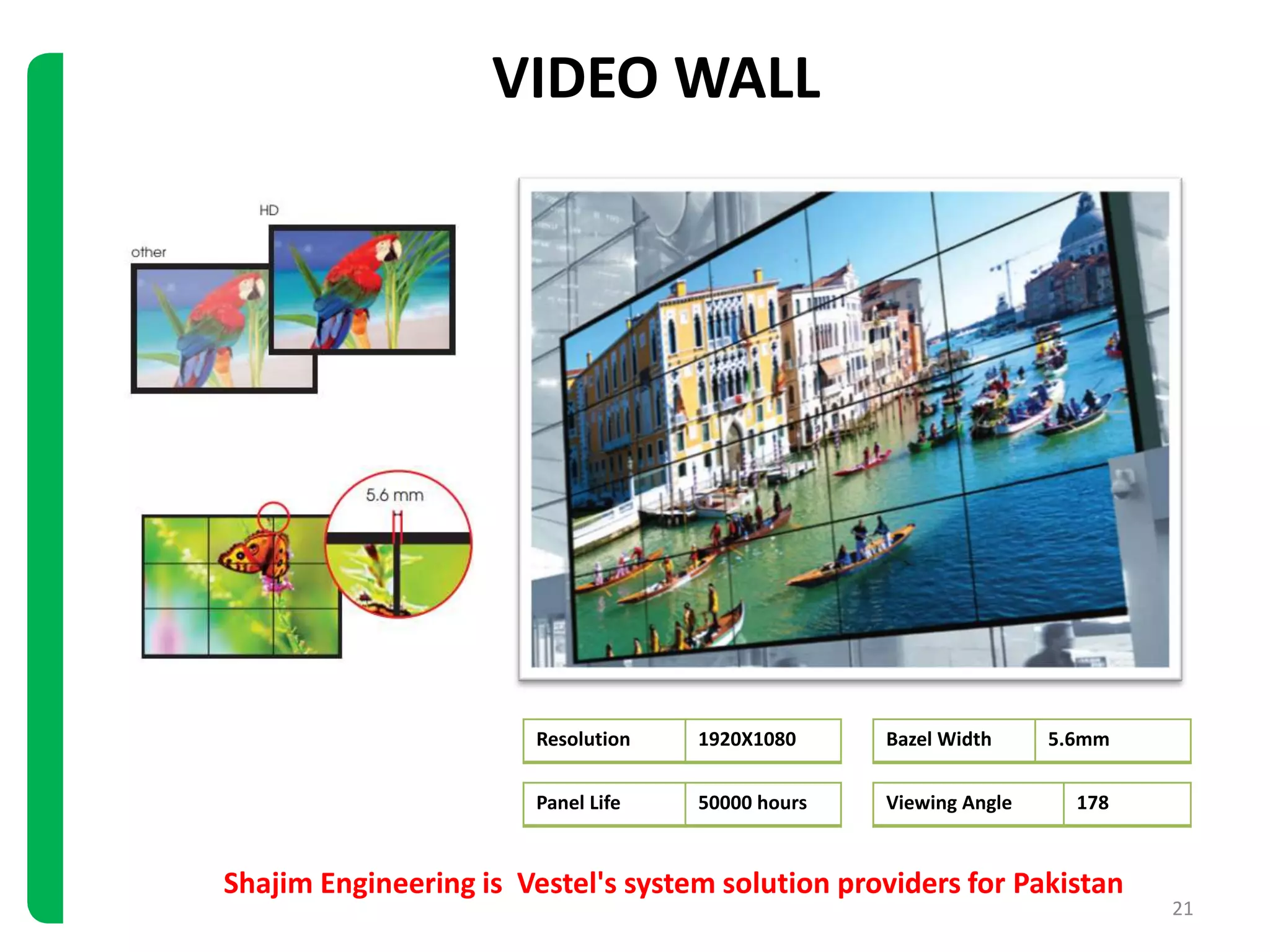

VIDEO WALL
Resolution 1920X1080 Bazel Width 5.6mm
Panel Life 50000 hours Viewing Angle 178
Lighting
Interactive White Board
Video Wall
Security & Surveillance
Renewable Energy
Energy Modeling
CONTENTS
22
SECURITY & SURVEILLANVCE
Customized CCTV Design
23
Lighting
Interactive White Board
Video Wall
Security & Surveillance
Renewable Energy
Energy Modeling
CONTENTS
24
We are generating electricity by Solar
SOLAR ENERGY
3 25
OFF Grid
Hybrid
On Grid
FRONIOUS ON-GRID INVERTER
EASY TO INSTALL
EASY TO MAINTAIN
ONLINE MONITOR YOUR GENERATION
26
Fronius Sole System Solution
Provider for Pakistan
Lighting
Interactive White Board
Video Wall
Security & Surveillance
Renewable Energy
Energy Modeling
CONTENTS
27
ENERGY CONSERVATION
We provide energy audit /modeling services
which enable verification, monitoring and
analysis of the
use of energy. Our technical reports and
recommendations with action plan helps in
reducing energy consumption
28

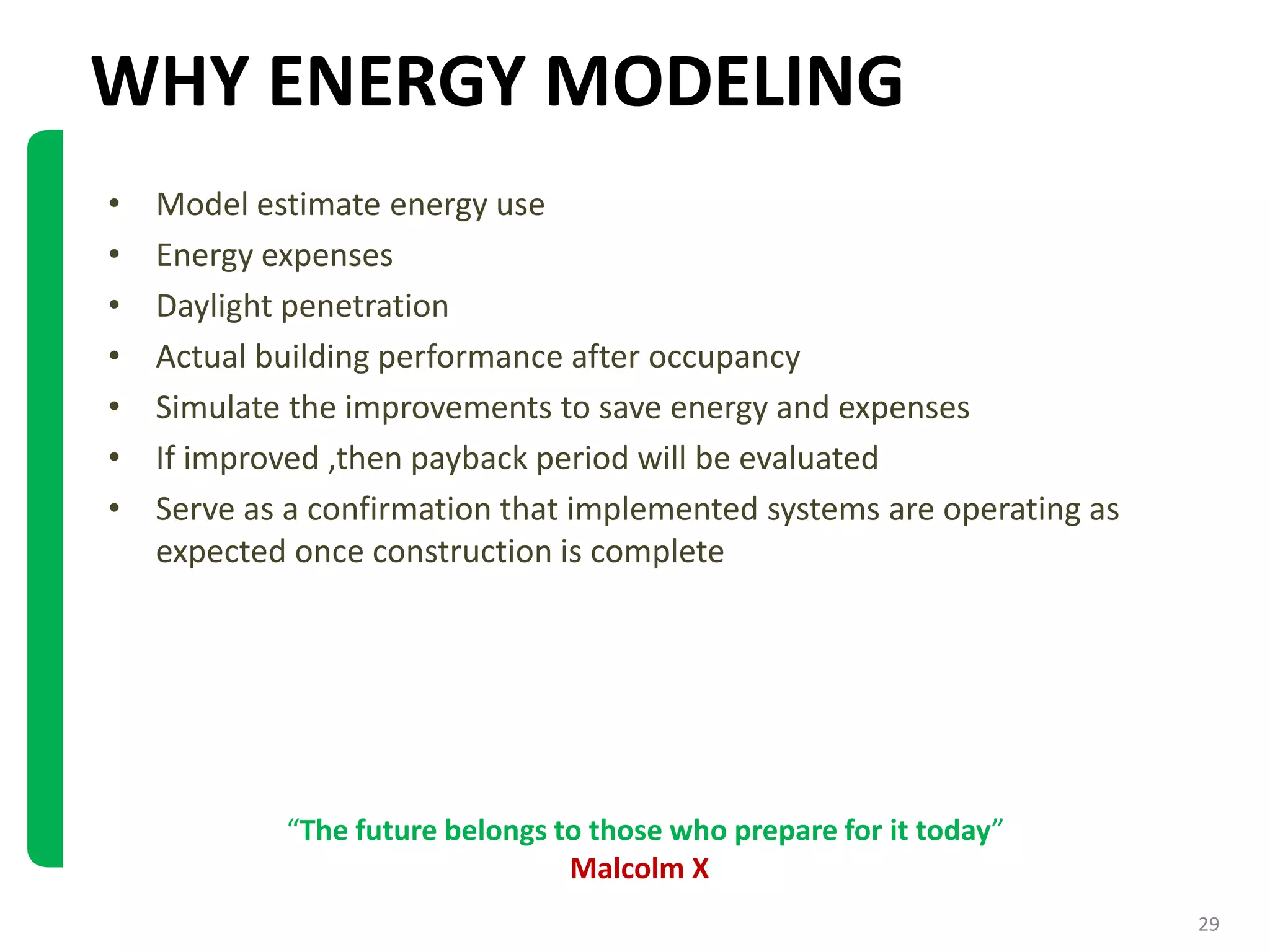

WHY ENERGY MODELING
• Model estimate energy use
• Energy expenses
• Daylight penetration
• Actual building performance after occupancy
• Simulate the improvements to save energy and expenses
• If improved ,then payback period will be evaluated
• Serve as a confirmation that implemented systems are operating as
expected once construction is complete
“The future belongs to those who prepare for it today”
Malcolm X
29
30
THANK YOU

Shajim Engineering
