Philosophy for denture occlusion Rationale for Dalhousie approach Occlusal schemes Denture occlusion approach Balanced lingualised occlusion No- balanced lingualized occlusion Monoplane occlusion

1. Setting Posterior Teeth
Set for Function

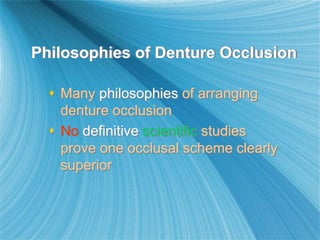

2. Philosophies of Denture Occlusion
 Many philosophies of arranging
denture occlusion
 No definitive scientific studies
prove one occlusal scheme clearly
superior

3. Rationale for Dalhousie Approach
 Principals to choose an occlusal scheme
 Based on clinical experience
 Dalhousie: two occlusal schemes :
• Lingualized Occlusion
• Monoplane Occlusion

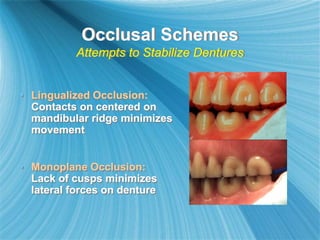

4. Occlusal Schemes
Attempts to Stabilize Dentures
 Lingualized Occlusion:
Contacts on centered on
mandibular ridge minimizes
movement
 Monoplane Occlusion:
Lack of cusps minimizes
lateral forces on denture

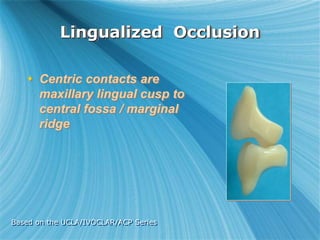

5. Based on the UCLA/IVOCLAR/ACP Series
Lingualized Occlusion
 Centric contacts are
maxillary lingual cusp to
central fossa / marginal
ridge

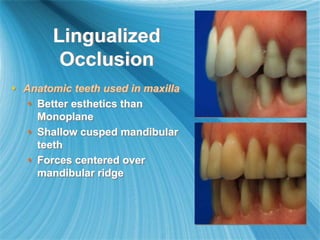

6. Lingualized
Occlusion
 Anatomic teeth used in maxilla
 Better esthetics than
Monoplane
 Shallow cusped mandibular
teeth
 Forces centered over
mandibular ridge

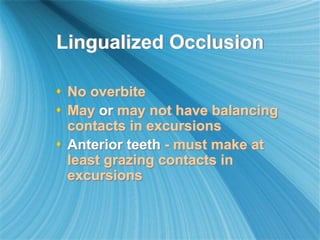

7. Lingualized Occlusion
 No overbite
 May or may not have balancing
contacts in excursions
 Anterior teeth - must make at
least grazing contacts in
excursions

8. Lingualized Occlusion
 Maxillary anatomic (33°)
 Mandibular Teeth
 Steep Condylar Guidance
 Shallow cusped (Anatoline)
 Shallow Condylar Guidance
 Non-anatomic (Portrait 0°)

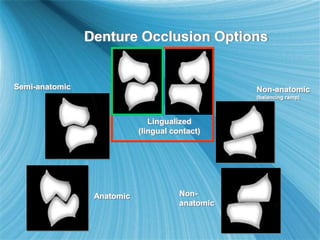

9. Denture Occlusion Options
Anatomic
Semi-anatomic
Lingualized
(lingual contact)
Non-anatomic
(balancing ramp)
Non-
anatomic

10. Set mandibular premolars &
1st molar :
• Level with occl plane
• Centered over ridge
Occlusal plane
Line indicating the crest of the ridge

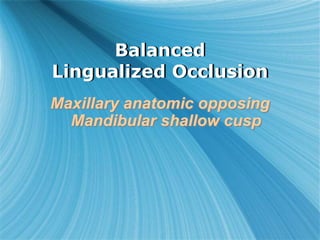

11. Balanced
Lingualized Occlusion
Maxillary anatomic opposing
Mandibular shallow cusp

12. If using a lingualized posterior
tooth form (Dentsply Anatoline)
• little or no Curve of Wilson
• lingual and buccal cusps of
level with plane of occlusion

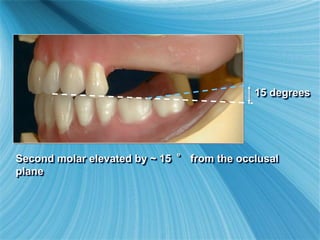

13. Second molar elevated by ~ 15 ° from the occlusal
plane
15 degrees

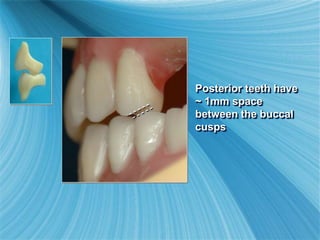

14. Posterior teeth have
~ 1mm space
between the buccal
cusps

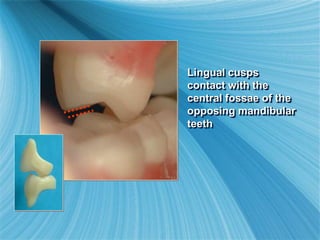

15. Lingual cusps
contact with the
central fossae of the
opposing mandibular
teeth

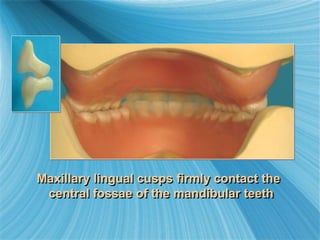

16. Maxillary lingual cusps firmly contact the
central fossae of the mandibular teeth

17. Verify centric
No buccal cusp contacts
• Centric
• Lateral excursions
Centric Position

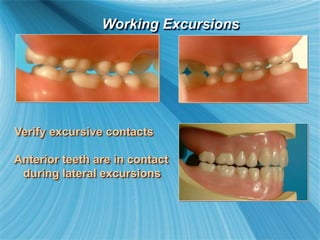

18. Verify excursive contacts
Anterior teeth are in contact
during lateral excursions
Working Excursions

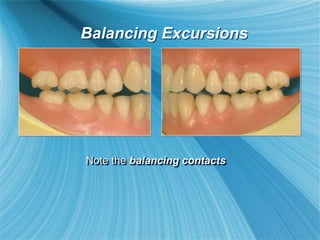

19. Note the balancing contacts
Balancing Excursions

20. Effect of Mandible Moving
Downward During Excursions

23. Maintaining Balancing
Contacts
 Change occlusal plane angle
 Increase compensating curves
 Increase cusp angles

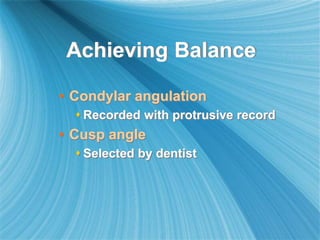

24. Achieving Balance
• Condylar angulation
 Recorded with protrusive record
• Cusp angle
 Selected by dentist

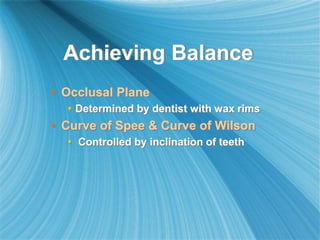

25. Achieving Balance
• Occlusal Plane
 Determined by dentist with wax rims
• Curve of Spee & Curve of Wilson
 Controlled by inclination of teeth

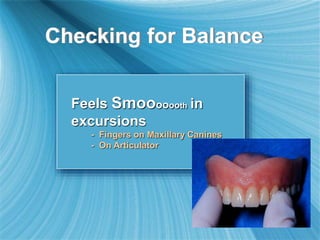

26. Checking for Balance
Feels Smooooooth in
excursions
- Fingers on Maxillary Canines
- On Articulator

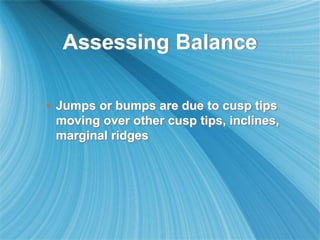

27. Assessing Balance
• Jumps or bumps are due to cusp tips
moving over other cusp tips, inclines,
marginal ridges

28. Occlusal Refinement
Occlusal Adjustment, Selective Grinding
 Set teeth as close to:
 Maximum intercuspation
 Balance
 All setups will need some adjustment

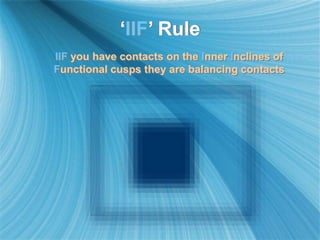

29. ‘IIF’ Rule
IIF you have contacts on the Inner Inclines of
Functional cusps they are balancing contacts

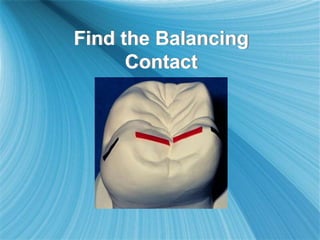

30. Find the Balancing
Contact

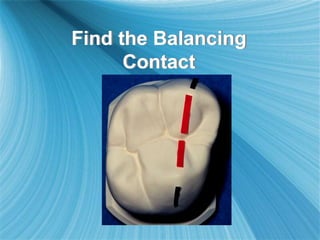

31. Find the Balancing
Contact

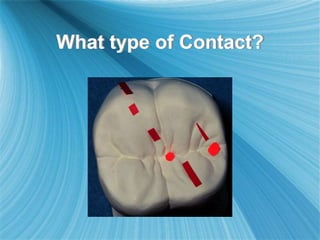

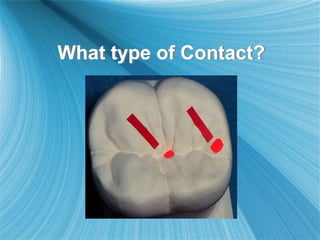

32. What type of Contact?

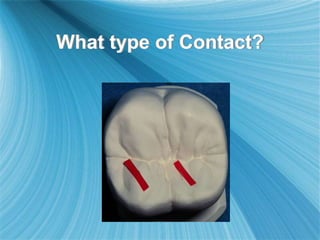

33. What type of Contact?

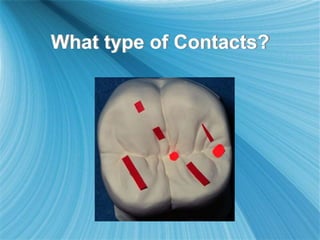

34. What type of Contacts?

35. What type of Contact?

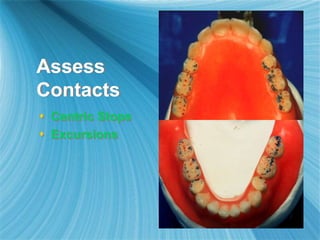

36. Assess
Contacts
 Centric Stops
 Excursions

37. Non-Balanced
Lingualized Occlusion
Maxillary anatomic opposing
mandibular non-anatomic

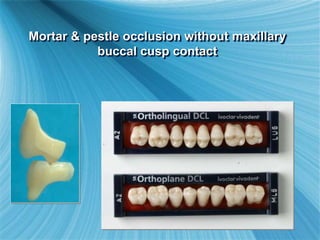

38. Mortar & pestle occlusion without maxillary
buccal cusp contact

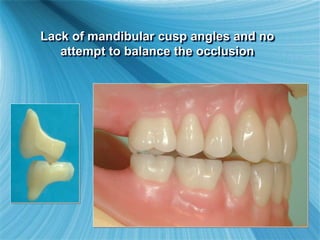

39. Lack of mandibular cusp angles and no
attempt to balance the occlusion

40. No compensating curves
No overbite

41. No overbite

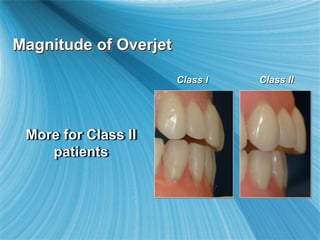

42. Magnitude of Overjet
More for Class II
patients
Class I Class II

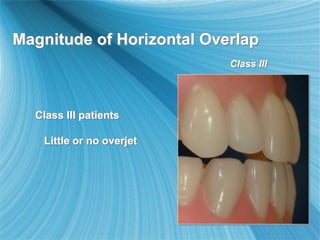

43. Magnitude of Horizontal Overlap
Class III patients
Little or no overjet
Class III

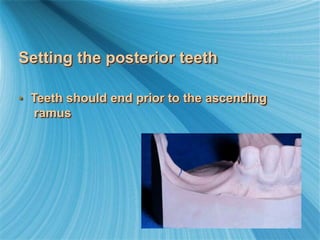

44. Setting the posterior teeth
• Teeth should end prior to the ascending
ramus

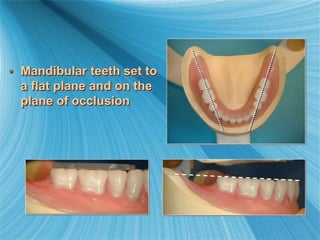

45. • Mandibular teeth set to
a flat plane and on the
plane of occlusion

46. • Maxillary lingual
cusps should contact
the central groove of
the opposing teeth

47. The horizontal
overlap
should be
ideal and
should be
sufficient to
prevent biting
of the cheek
and corner of
the mouth Horizontal
overlap

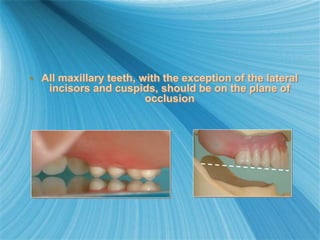

48. • All maxillary teeth, with the exception of the lateral
incisors and cuspids, should be on the plane of
occlusion

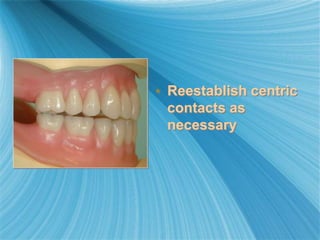

49. • Reestablish centric
contacts as
necessary

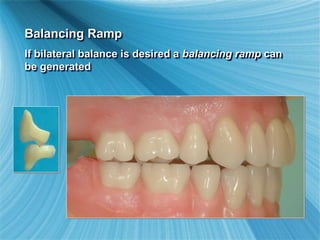

50. Balancing Ramp
If bilateral balance is desired a balancing ramp can
be generated

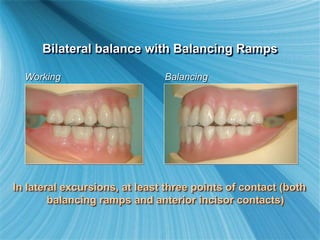

51. In lateral excursions, at least three points of contact (both
balancing ramps and anterior incisor contacts)
Bilateral balance with Balancing Ramps
Working Balancing

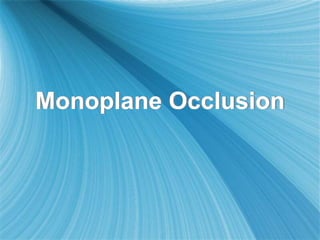

52. Monoplane Occlusion

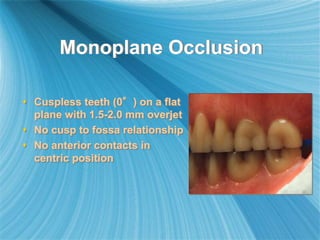

53. Monoplane Occlusion
 Cuspless teeth (0°) on a flat
plane with 1.5-2.0 mm overjet
 No cusp to fossa relationship
 No anterior contacts in
centric position

54. Monoplane Occlusion
 Eliminate cusps
 lateral forces reduced
 improves stability
 Simplifies tooth arrangement

55. Monoplane Occlusion
 No overbite
(would cause
tilting)
 Overjet of 2 mm is
used to create an
illusion of overbite

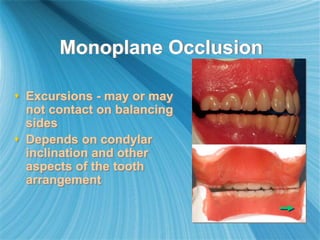

56. Monoplane Occlusion
 Excursions - may or may
not contact on balancing
sides
 Depends on condylar
inclination and other
aspects of the tooth
arrangement

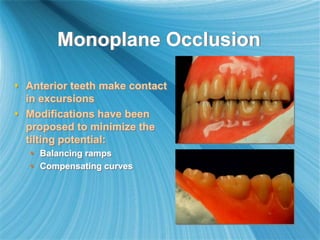

57. Monoplane Occlusion
 Anterior teeth make contact
in excursions
 Modifications have been
proposed to minimize the
tilting potential:
 Balancing ramps
 Compensating curves

58. Monoplane Occlusion
without condylar influence

59. Monoplane Occlusion

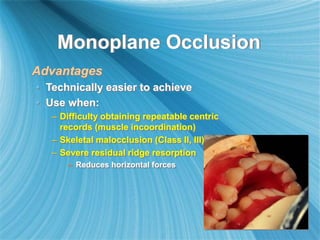

61. Monoplane Occlusion
Advantages
• Technically easier to achieve
• Use when:
– Difficulty obtaining repeatable centric
records (muscle incoordination)
– Skeletal malocclusion (Class II, III)
– Severe residual ridge resorption
– Reduces horizontal forces

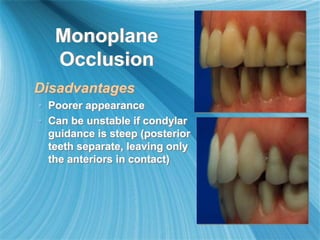

62. Monoplane
Occlusion
Disadvantages
• Poorer appearance
• Can be unstable if condylar
guidance is steep (posterior
teeth separate, leaving only
the anteriors in contact)

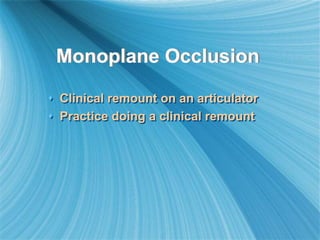

63. Monoplane Occlusion
 Clinical remount on an articulator
 Practice doing a clinical remount

64. Adjusting Monoplane
Occlusion
 Main adjustment is flat
 If heavy prematurity near
fossa, slightly shallow
fossa
