1. Implementation of
MCA approach for optimal
Minimum Instream Flow determination
with mitigation measures planning
mag. Sašo Šantl, Saša Erlih, Tina Mazi, dr. Nataša Žvanut Smolar
Institute
for Water of
the Republic
of Slovenia
Aosta –5/30/2012 2012
24th May

2. page 2

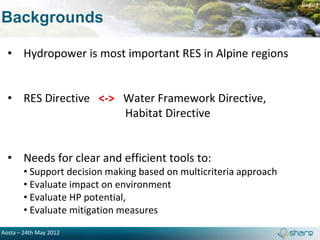

Backgrounds
• Hydropower is most important RES in Alpine regions
• RES Directive <-> Water Framework Directive,
Habitat Directive
• Needs for clear and efficient tools to:
• Support decision making based on multicriteria approach
• Evaluate impact on environment
• Evaluate HP potential,
• Evaluate mitigation measures
Aosta – 24th May 2012

3. page 3

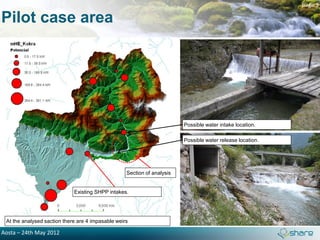

Pilot case area
Possible water intake location.
Possible water release location.
Section of analysis
Existing SHPP intakes.
At the analysed saction there are 4 impasable weirs
Aosta – 24th May 2012

4. page 4

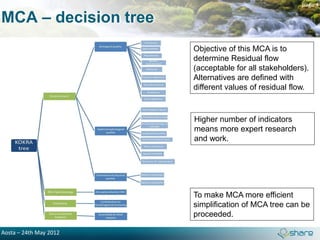

MCA – decision tree
Objective of this MCA is to
determine Residual flow
(acceptable for all stakeholders).
Alternatives are defined with
different values of residual flow.
Higher number of indicators
means more expert research
and work.
To make MCA more efficient
simplification of MCA tree can be
proceeded.
Aosta – 24th May 2012

5. page 5
MCA – decision tree
Example of criteria/indicators reduction according to the main conflict of interests,
indicator causal trends and their similarity.
Determination of trends of indicators (rising falling and neutral)
Indicator score
Residual flow
Aosta – 24th May 2012

6. page 6
MCA – decision tree

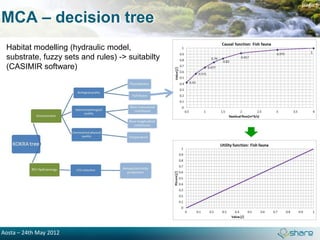

Habitat modelling (hydraulic model,
substrate, fuzzy sets and rules) -> suitabilty
(CASIMIR software)
Aosta – 24th May 2012

7. page 7
MCA – decision tree

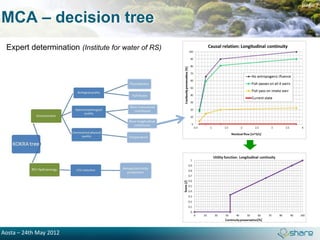

Expert determination (Institute for water of RS)
Aosta – 24th May 2012

8. page 8
MCA – decision tree

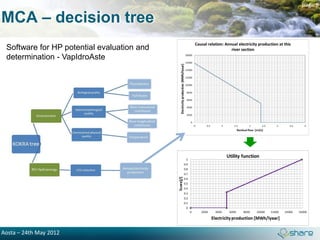

Software for HP potential evaluation and
determination - VapIdroAste
Aosta – 24th May 2012

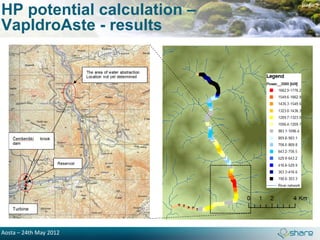

9. HP potential calculation –
page 9
VapIdroAste - results
Aosta – 24th May 2012

10. HP potential calculation –
page 10
VapIdroAste - results

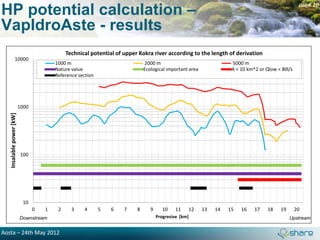

Technical potential of upper Kokra river according to the length of derivation
10000
1000 m 2000 m 5000 m
Nature value Ecological important area A < 10 km^2 or Qlow < 80l/s
Reference section
1000
Insalable power [kW]
100
10
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Downstream Progresive [km] Upstream
Aosta – 24th May 2012

11. HP potential calculation –
page 11
VapIdroAste - results

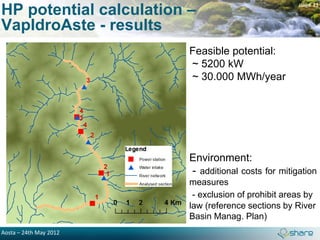

Feasible potential:
~ 5200 kW
~ 30.000 MWh/year
Environment:
- additional costs for mitigation
measures
- exclusion of prohibit areas by
law (reference sections by River
Basin Manag. Plan)
Aosta – 24th May 2012

12. page 12
MCA model

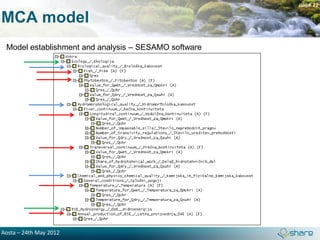

Model establishment and analysis – SESAMO software
Aosta – 24th May 2012

13. page 13
MCA model
Criteria and indicator weighting
Nature 3/8 Phytobenthos 30
Ecology value
preservation
Fish 30
2/3 3/4 9/16 Temperature 20
Good water 3/8 Lateral connectivity 10
status Longitudinal connectivity 10
Increase of
1/6
RES objective
RES
1/4 1/4 7/16
Efficient energy 1/6
use
Weights Weights Ann. Electr. Production 100
WECOLOGY = 9/16 ÷ 3/4 = 0.5625 + 0.1875 * (Lnatura/Lwater body)
WRES = 1/4 ÷ 7/16 = 0.4375 - 0.1875 * (Lnatura/Lwater body)
Aosta – 24th May 2012

14. page 14
Results

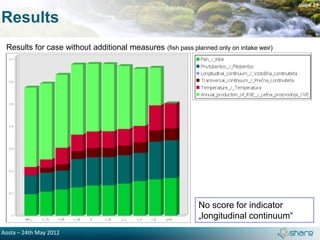

Results for case without additional measures (fish pass planned only on intake weir)
No score for indicator
„longitudinal continuum“
Aosta – 24th May 2012

15. page 15
Results

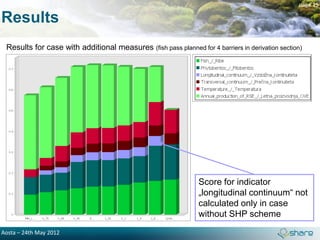

Results for case with additional measures (fish pass planned for 4 barriers in derivation section)
Score for indicator
„longitudinal continuum“ not
calculated only in case
without SHP scheme
Aosta – 24th May 2012

16. page 16
Results

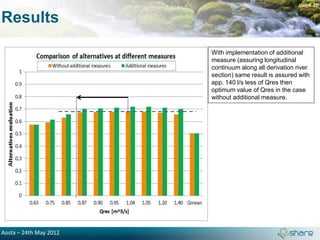

With implementation of additional
measure (assuring longitudinal
continuum along all derivation river
section) same result is assured with
app. 140 l/s less of Qres then
optimum value of Qres in the case
without additional measure.
Aosta – 24th May 2012

17. page 17

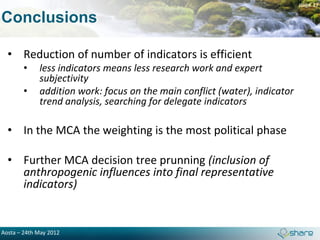

Conclusions
• Reduction of number of indicators is efficient
• less indicators means less research work and expert
subjectivity
• addition work: focus on the main conflict (water), indicator
trend analysis, searching for delegate indicators
• In the MCA the weighting is the most political phase
• Further MCA decision tree prunning (inclusion of
anthropogenic influences into final representative
indicators)
Aosta – 24th May 2012

18. page 18
Conclusions

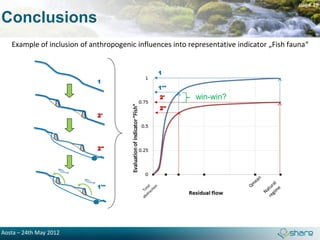

Example of inclusion of anthropogenic influences into representative indicator „Fish fauna“
1
1
1'''
2' win-win?
2''
2'
2''
1'''
Aosta – 24th May 2012
