Service Virtualization: Delivering Complex Test Environments on Demand
- 1. Service Virtualization DeliveringComplex Test Environments on Demand Frank Jennings; Director, Performance Test & Engineering, TQM, Comcast 2014-11-12 Mark Lambert; VP Products and Support, Parasoft Corporation Parasoft Proprietary and Confidential 1
- 2. Drivers of theSDLC SDLC Speed is the difference between a first mover and a follower Damages associated with software failure are increasing and very real Brand equity is critical and Quality drives brand loyalty Parasoft Proprietary and Confidential 2

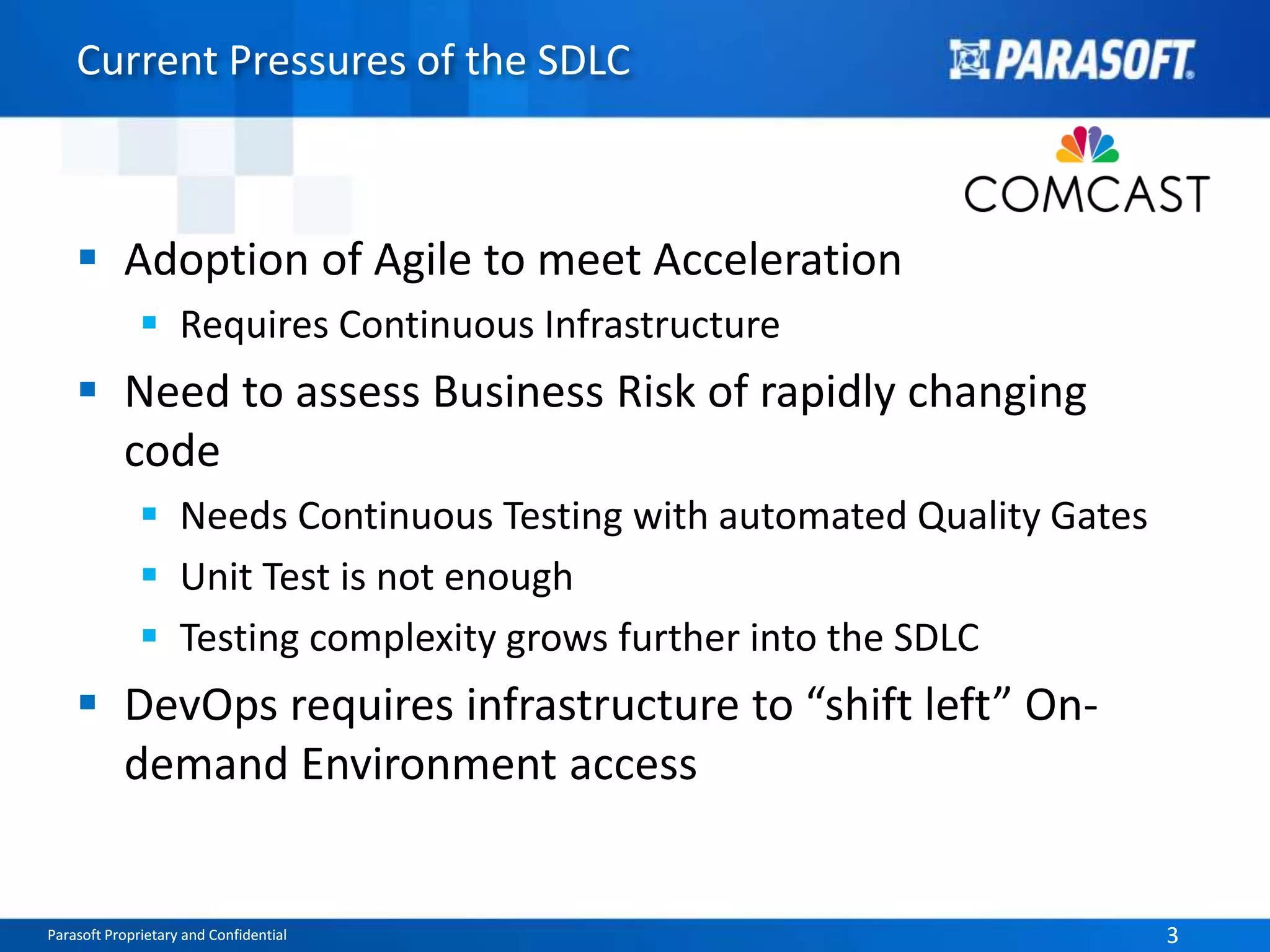

- 3. Current Pressures ofthe SDLC Adoption of Agile to meet Acceleration Requires Continuous Infrastructure Need to assess Business Risk of rapidly changing code Needs Continuous Testing with automated Quality Gates Unit Test is not enough Testing complexity grows further into the SDLC DevOps requires infrastructure to “shift left” On-demand Environment access Parasoft Proprietary and Confidential 3

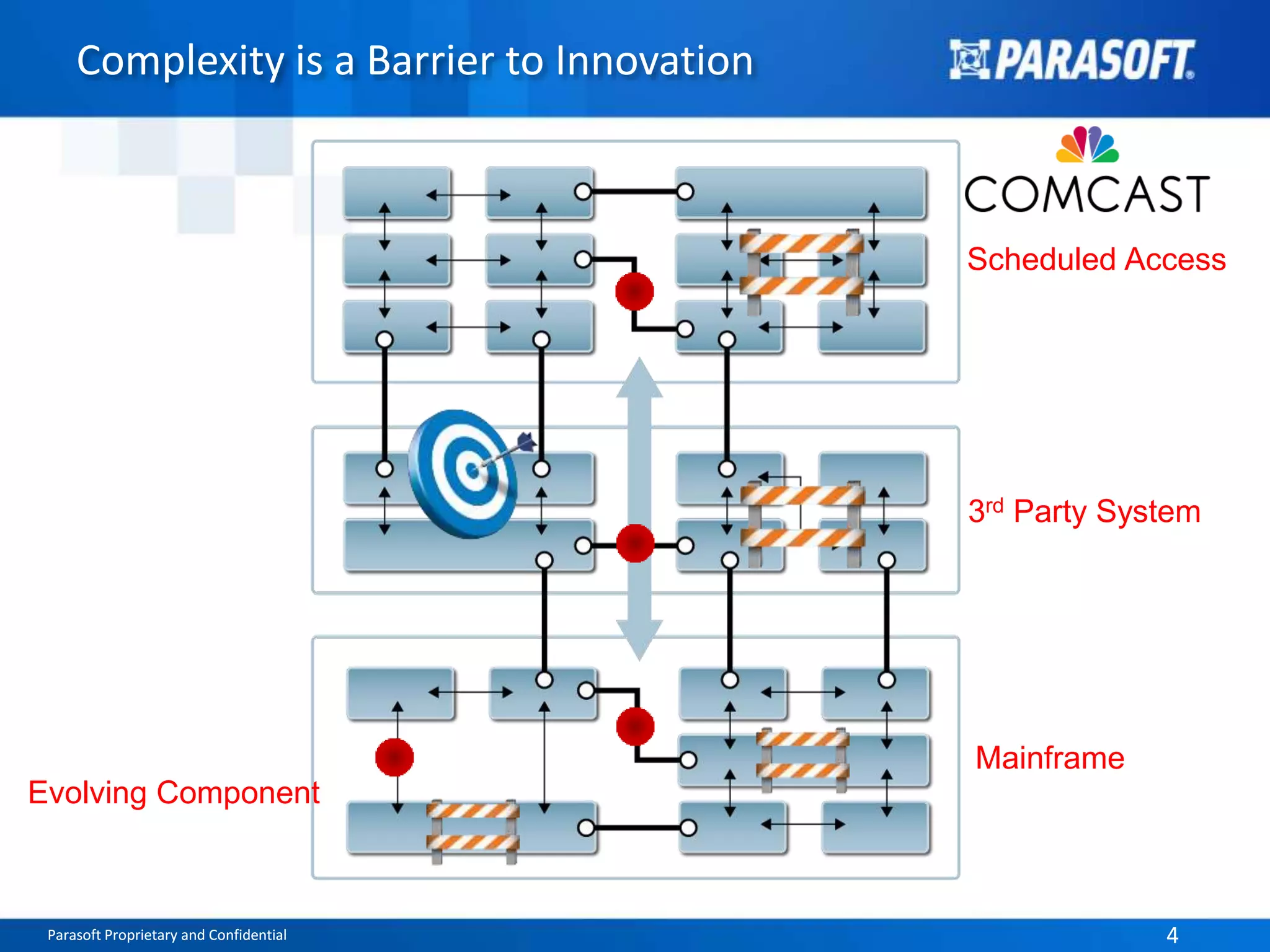

- 4. Complexity is aBarrier to Innovation Scheduled Access 3rd Party System Evolving Component Mainframe Parasoft Proprietary and Confidential 4

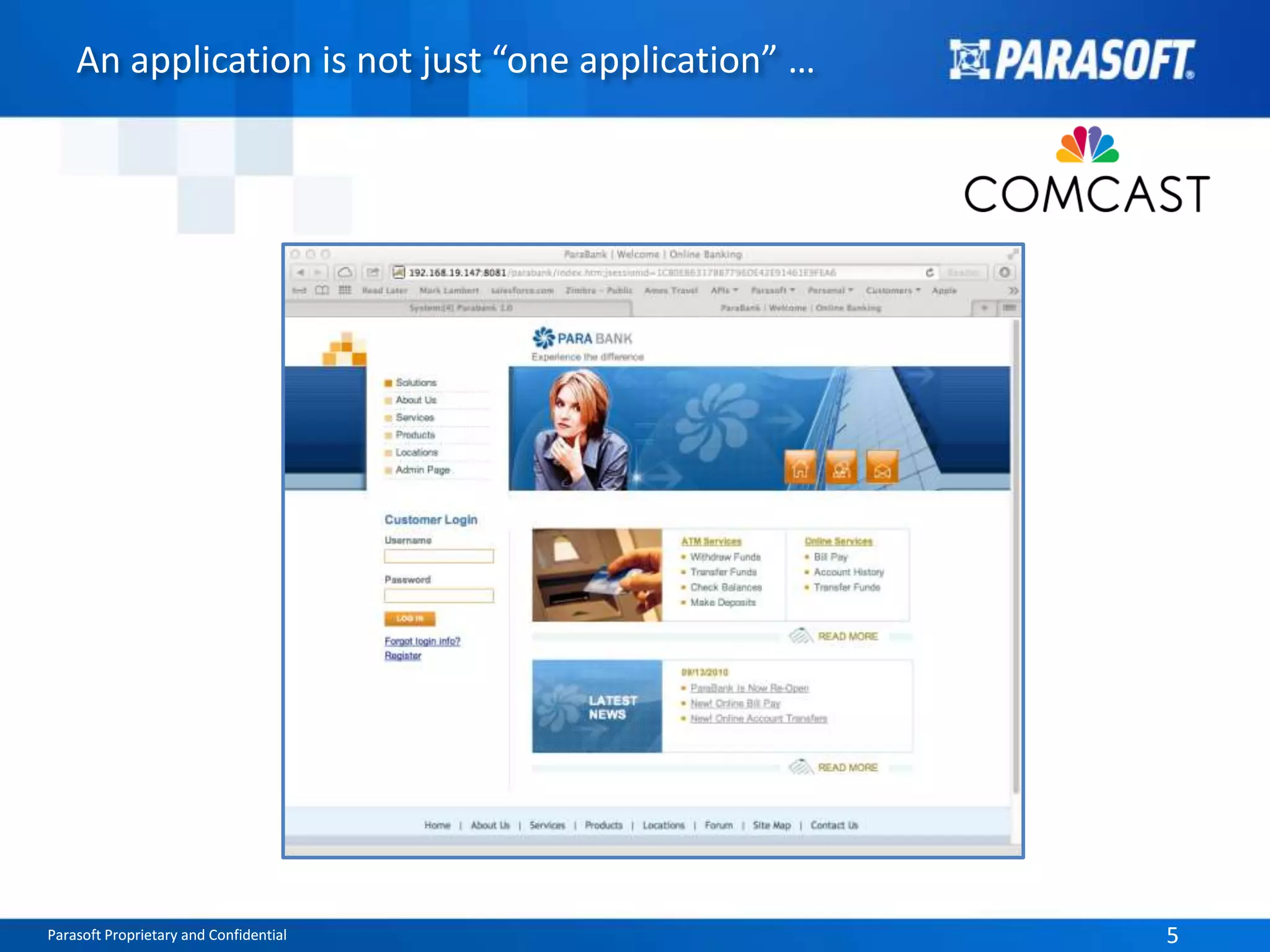

- 5. An application isnot just “one application” … Parasoft Proprietary and Confidential 5

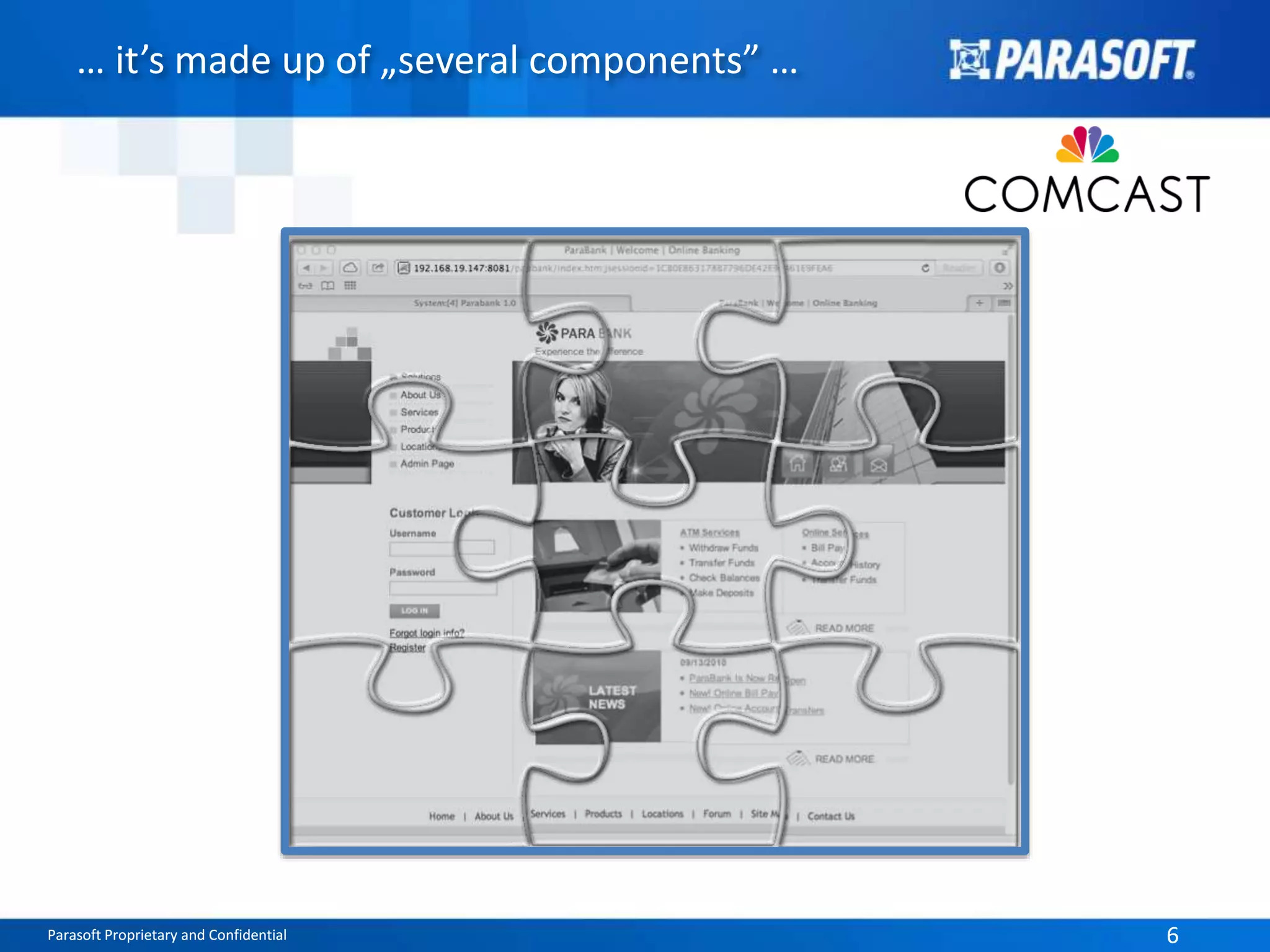

- 6. … it’s madeup of „several components” … Parasoft Proprietary and Confidential 6
- 7. … and theyare not all ready at the same time. Parasoft Proprietary and Confidential 7

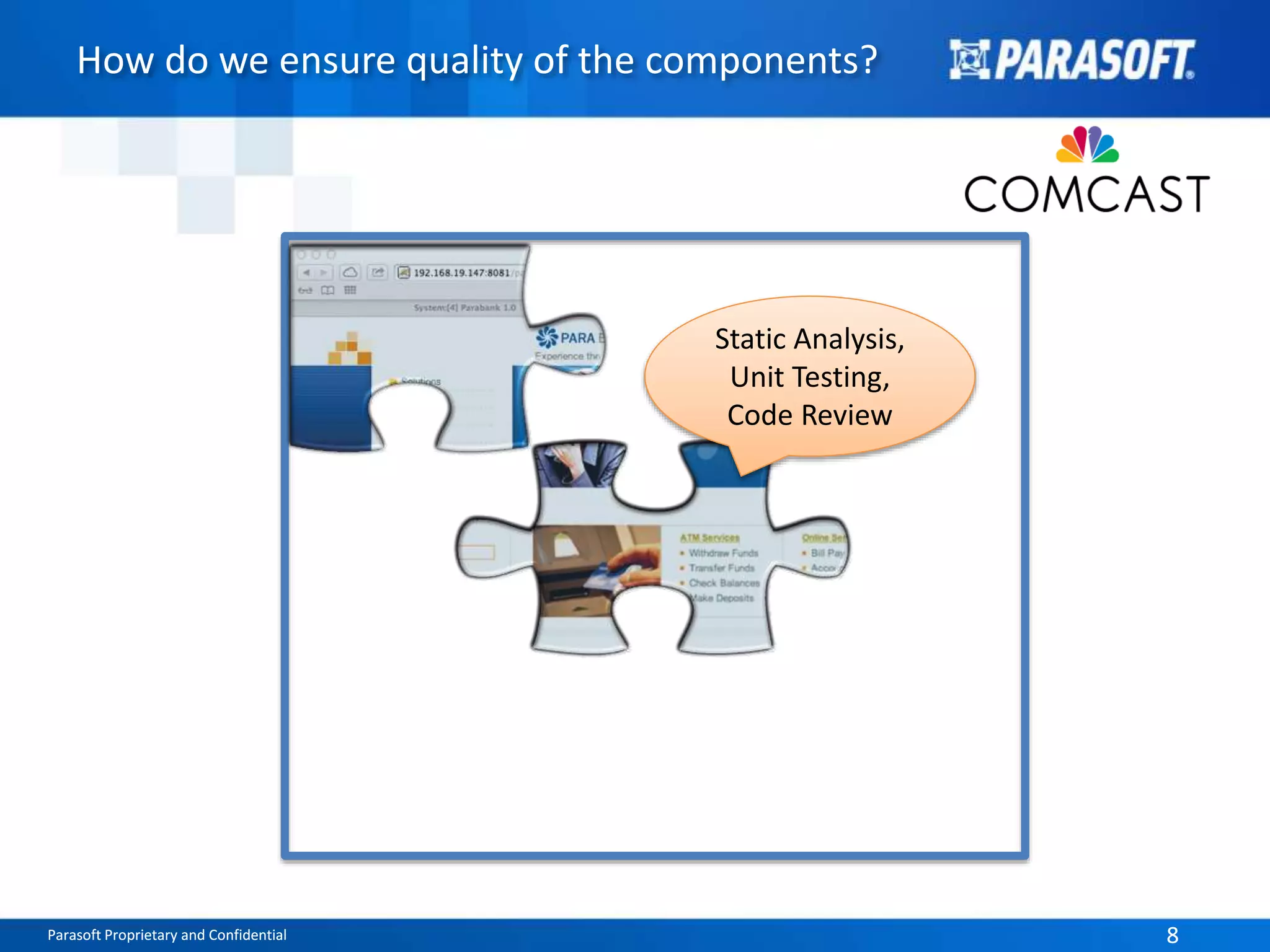

- 8. How do weensure quality of the components? Static Analysis, Unit Testing, Code Review Parasoft Proprietary and Confidential 8

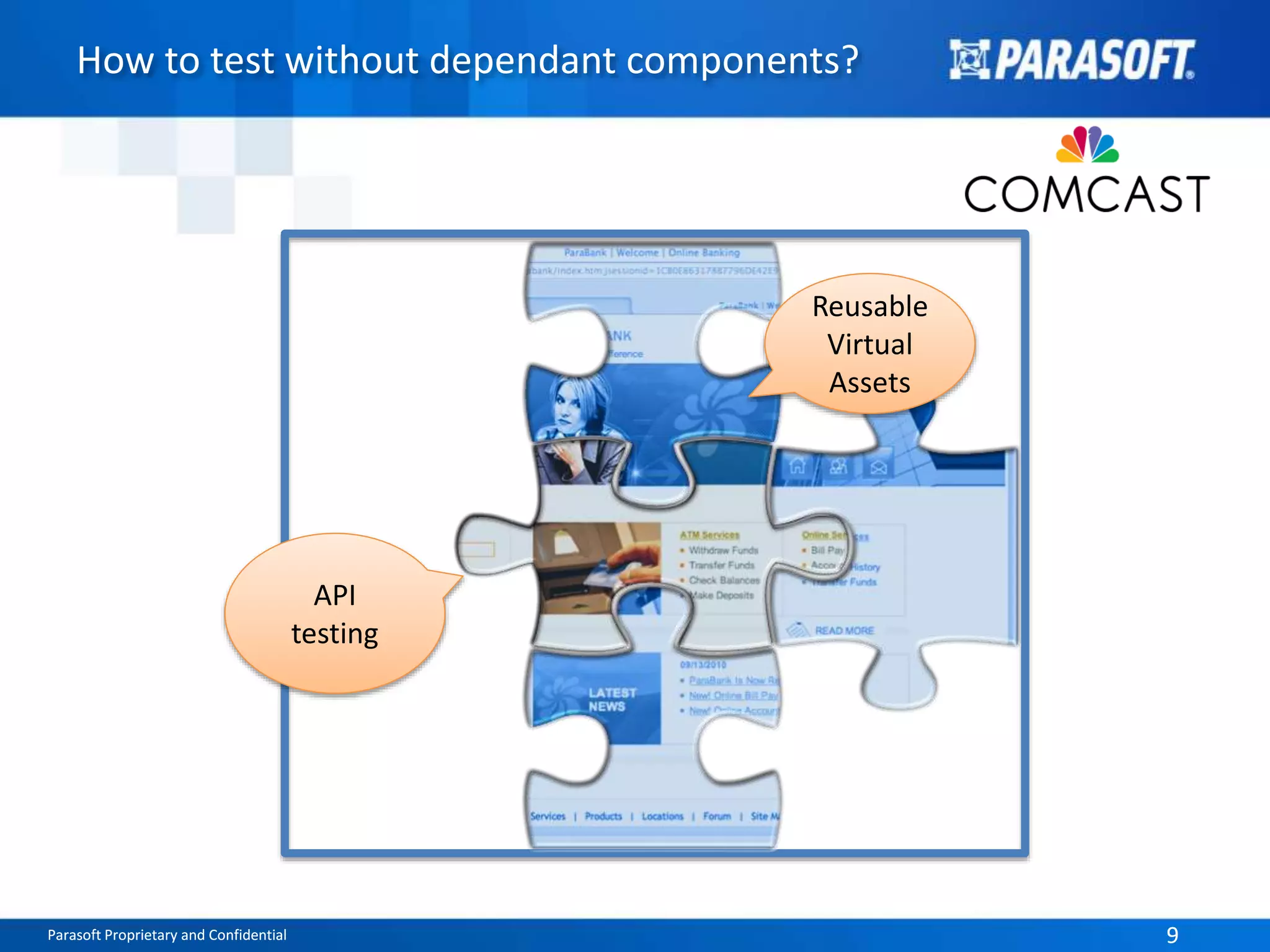

- 9. How to testwithout dependant components? API testing Reusable Virtual Assets Parasoft Proprietary and Confidential 9

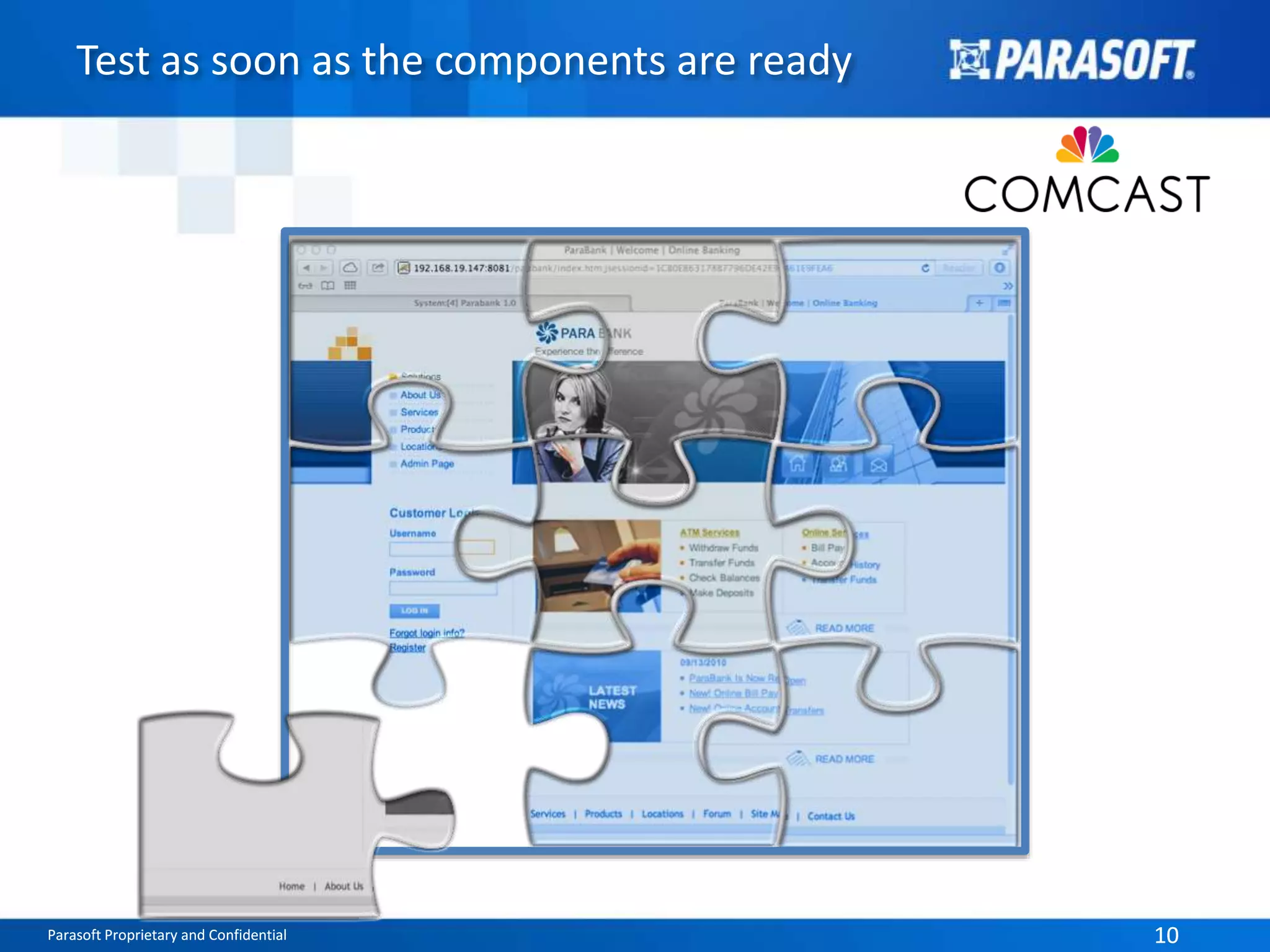

- 10. Test as soonas the components are ready Parasoft Proprietary and Confidential 10

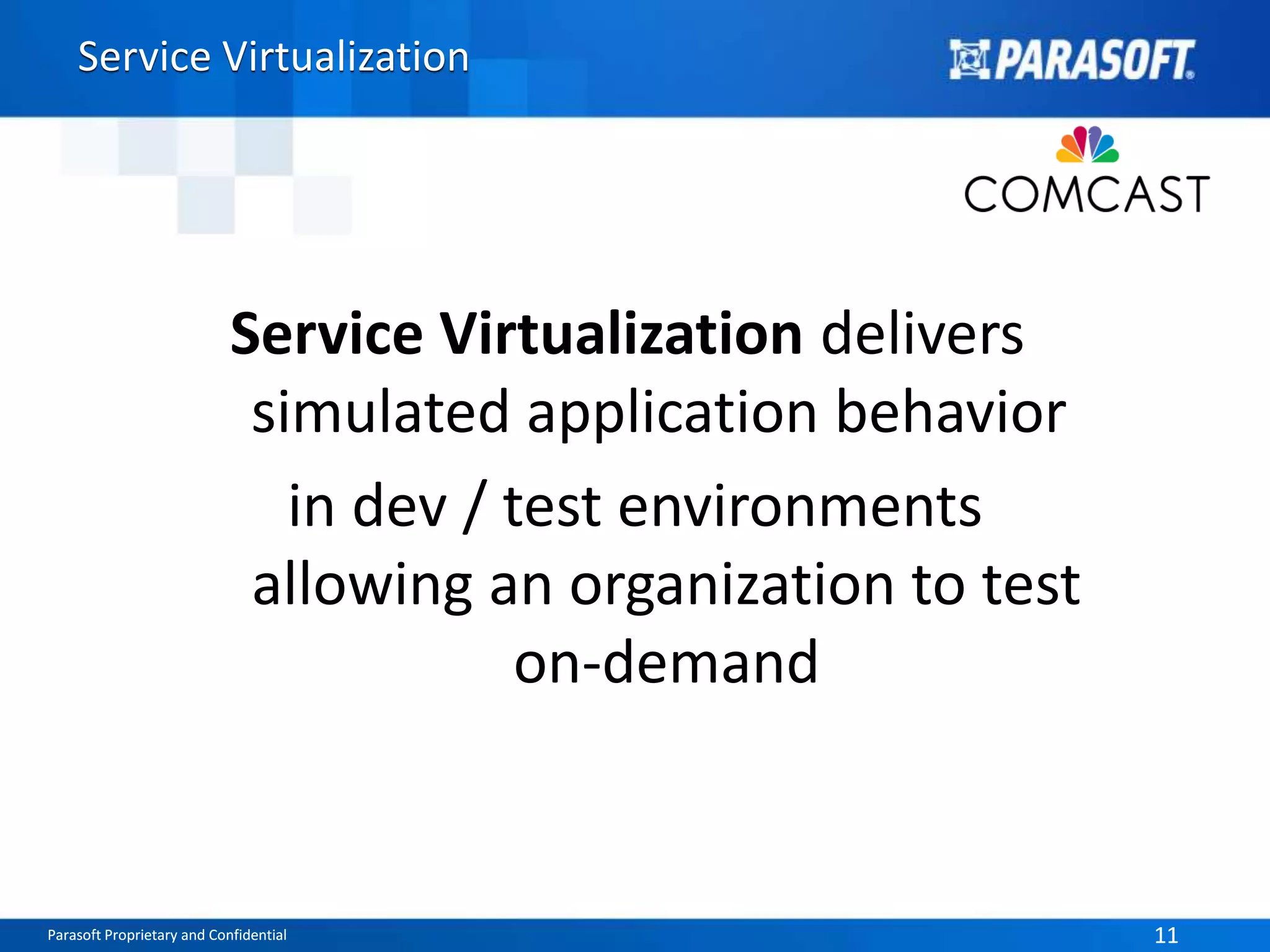

- 11. Service Virtualization ServiceVirtualization delivers simulated application behavior in dev / test environments allowing an organization to test on-demand Parasoft Proprietary and Confidential 11

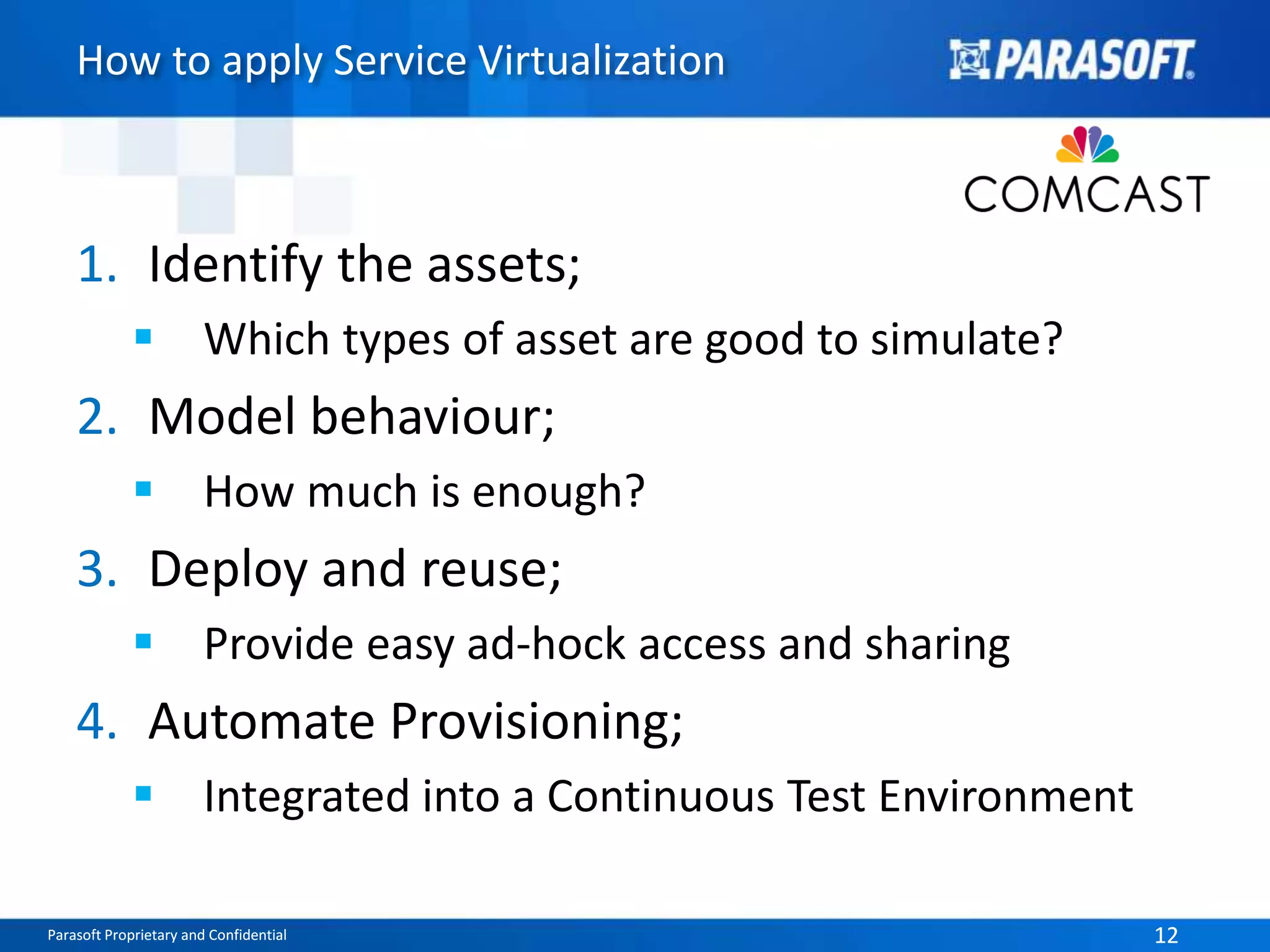

- 12. How to applyService Virtualization 1. Identify the assets; Which types of asset are good to simulate? 2. Model behaviour; How much is enough? 3. Deploy and reuse; Provide easy ad-hock access and sharing 4. Automate Provisioning; Integrated into a Continuous Test Environment Parasoft Proprietary and Confidential 12

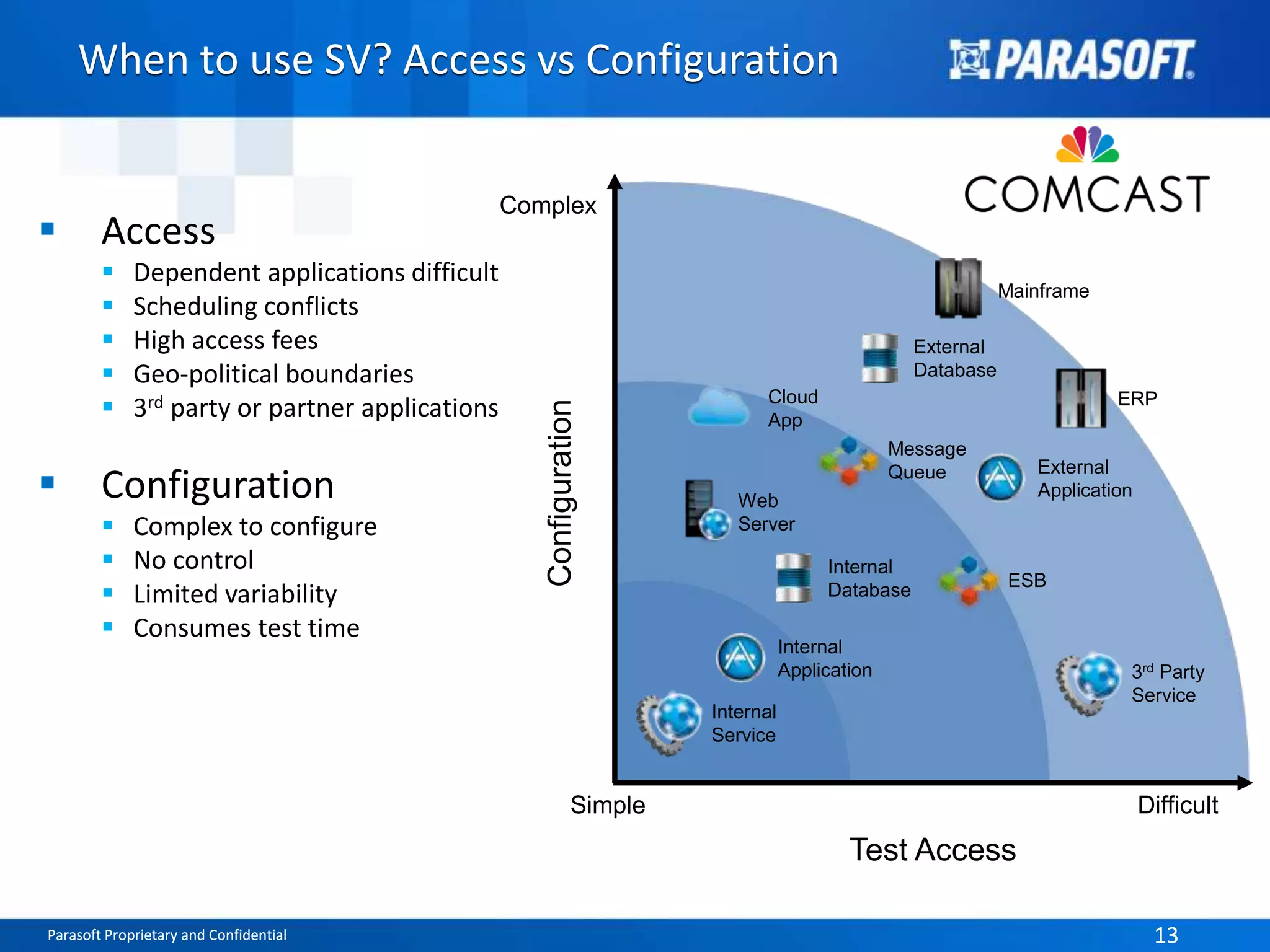

- 13. When to useSV? Access vs Configuration Access Dependent applications difficult Scheduling conflicts High access fees Geo-political boundaries 3rd party or partner applications Configuration Complex to configure No control Limited variability Consumes test time Complex Configuration Cloud App Web Server Internal Service ERP Mainframe External Application External Database Message Queue Internal Database ESB Internal Application 3rd Party Service Simple Difficult Test Access Parasoft Proprietary and Confidential 13

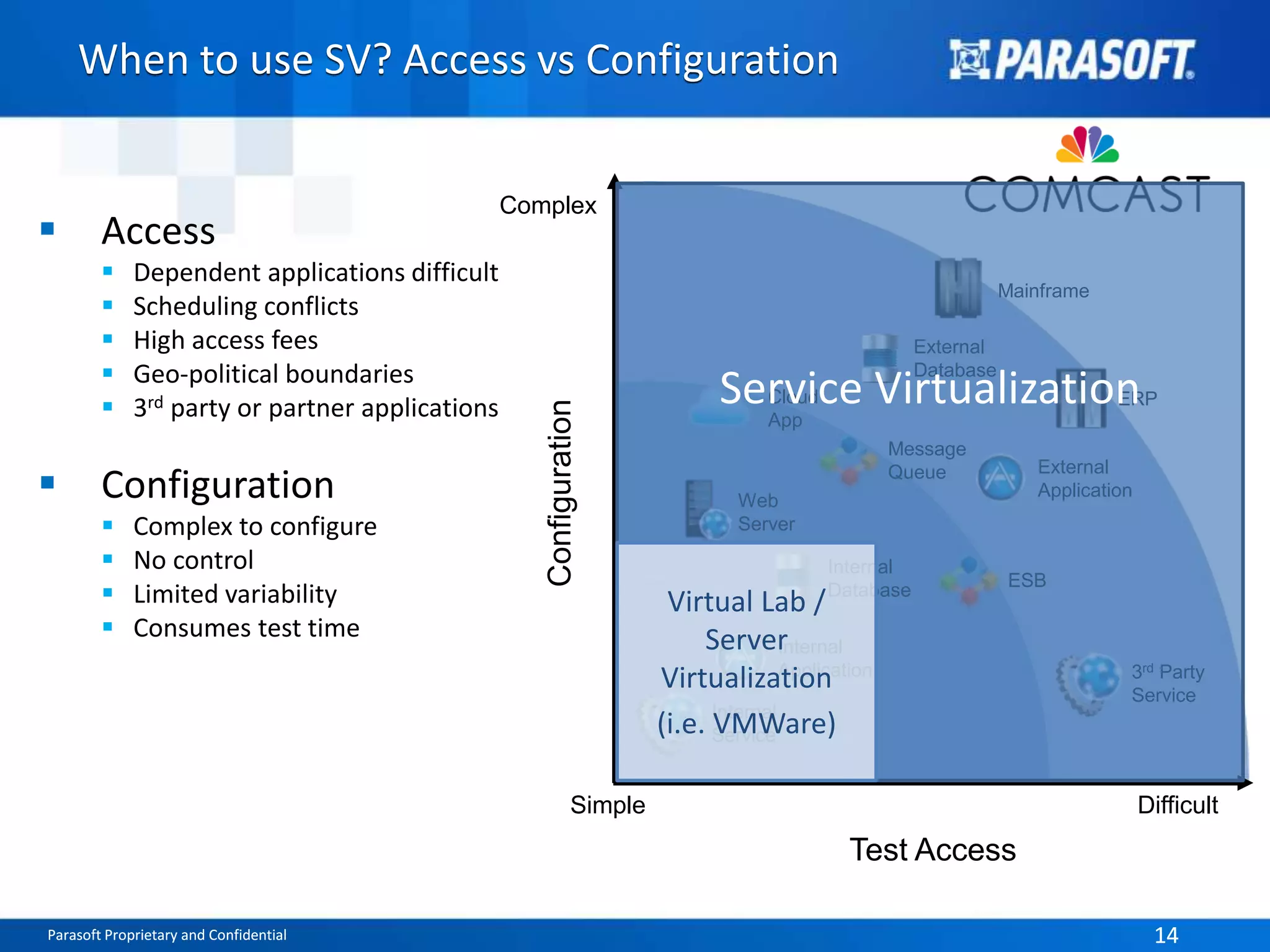

- 14. When to useSV? Access vs Configuration Access Dependent applications difficult Scheduling conflicts High access fees Geo-political boundaries 3rd party or partner applications Configuration Complex to configure No control Limited variability Consumes test time Complex Configuration Service Virtualization Cloud App Web Server Virtual Lab / Server Virtualization (i.e. VMWare) Internal Service ERP Mainframe External Application External Database Message Queue Internal Database ESB Internal Application 3rd Party Service Simple Difficult Test Access Parasoft Proprietary and Confidential 14

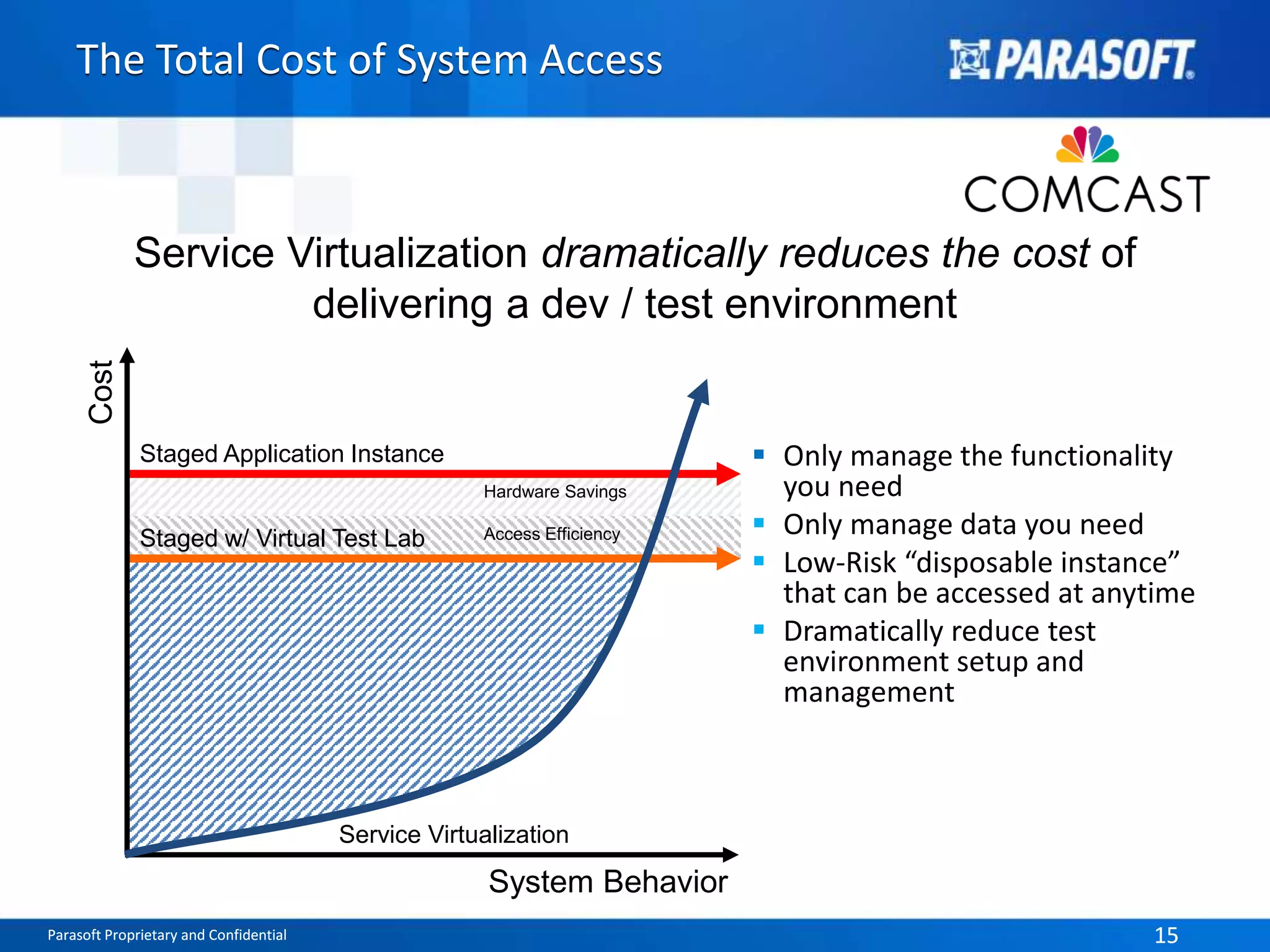

- 15. The Total Costof System Access Service Virtualization dramatically reduces the cost of delivering a dev / test environment Hardware Savings Staged Application Instance Staged w/ Virtual Test Lab Access Efficiency Service Virtualization System Behavior Cost Only manage the functionality you need Only manage data you need Low-Risk “disposable instance” that can be accessed at anytime Dramatically reduce test environment setup and management Parasoft Proprietary and Confidential 15

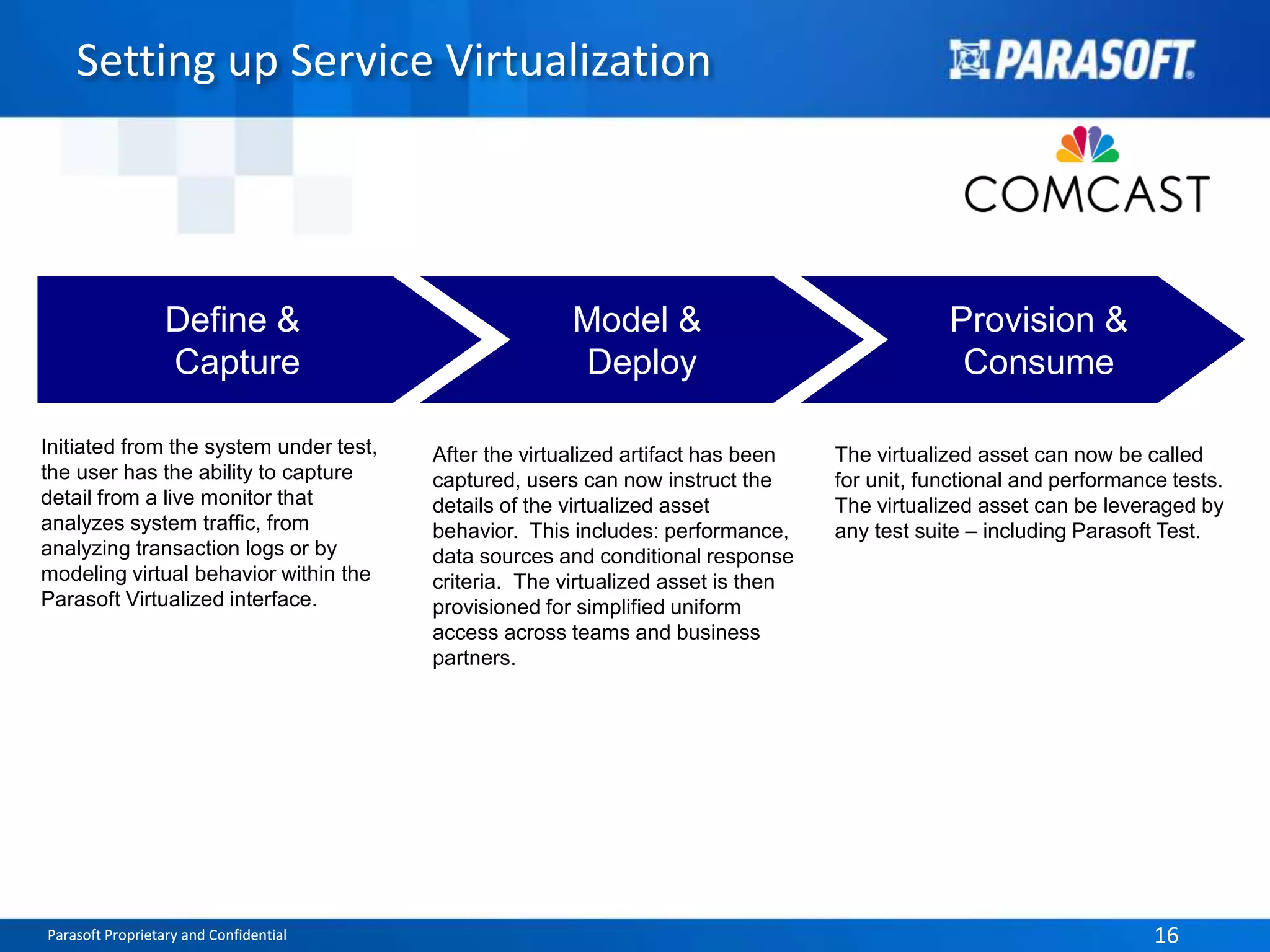

- 16. Setting up ServiceVirtualization Define & Capture Initiated from the system under test, the user has the ability to capture detail from a live monitor that analyzes system traffic, from analyzing transaction logs or by modeling virtual behavior within the Parasoft Virtualized interface. Model & Deploy After the virtualized artifact has been captured, users can now instruct the details of the virtualized asset behavior. This includes: performance, data sources and conditional response criteria. The virtualized asset is then provisioned for simplified uniform access across teams and business partners. Provision & Consume The virtualized asset can now be called for unit, functional and performance tests. The virtualized asset can be leveraged by any test suite – including Parasoft Test. Parasoft Proprietary and Confidential 16

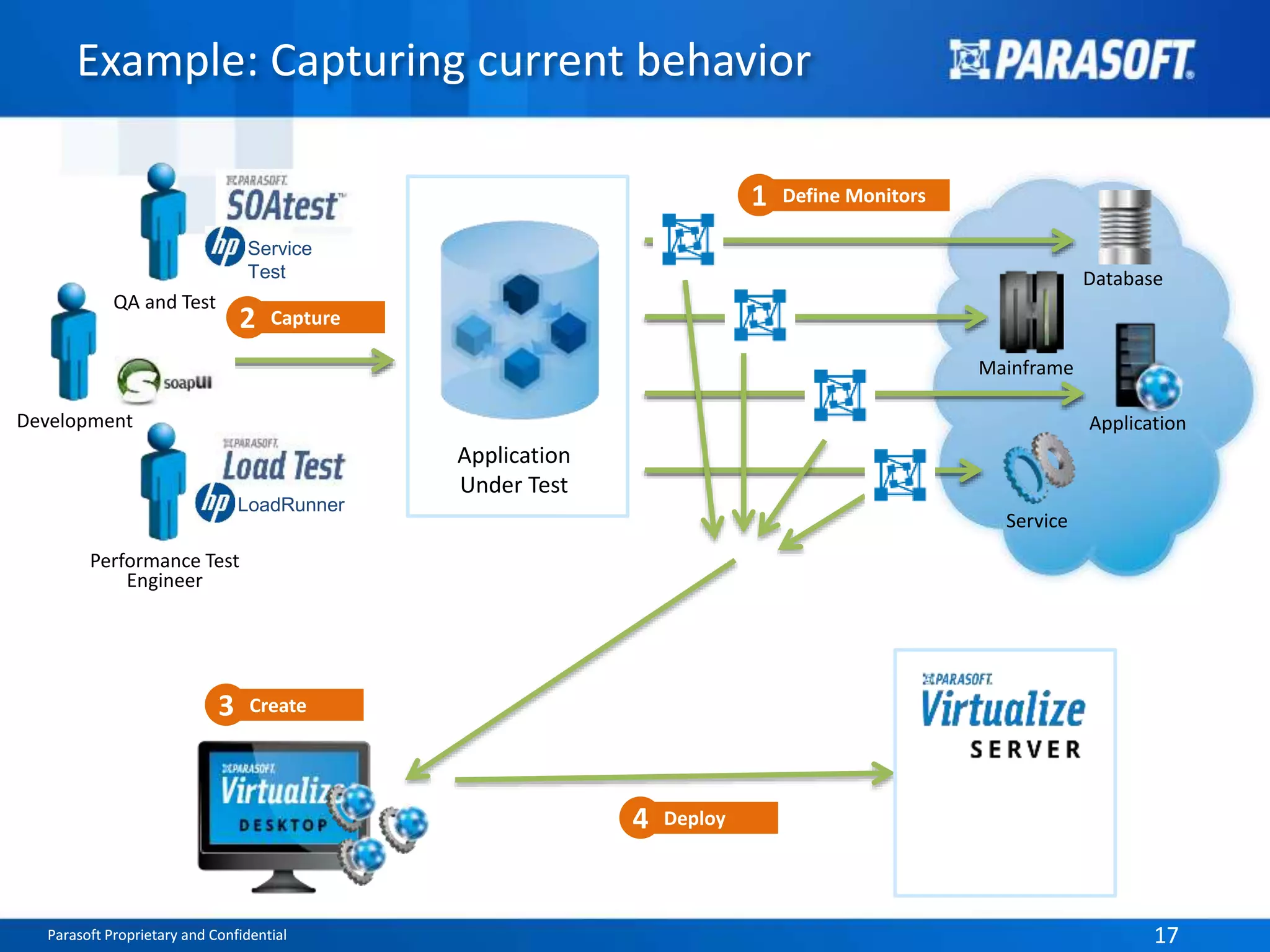

- 17. Example: Capturing currentbehavior Application Under Test Service Test 2 Capture 4 Deploy Development LoadRunner Performance Test 3 Create Database Application Mainframe Service QA and Test Engineer 1 Define Monitors Parasoft Proprietary and Confidential 17

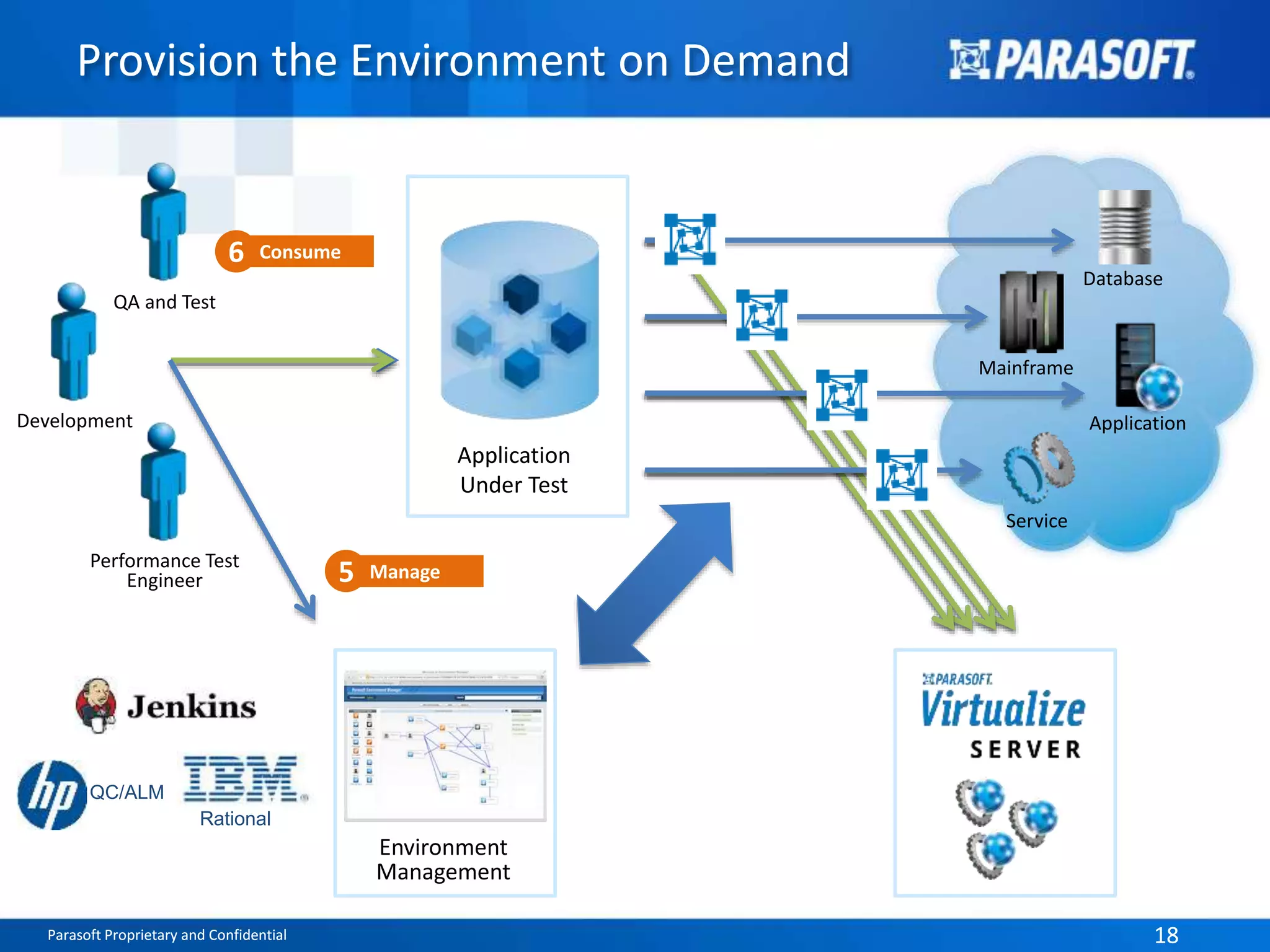

- 18. Provision the Environmenton Demand Application Under Test Database Application Mainframe Service 6 Consume 5 Manage Environment Management QA and Test Development Performance Test Engineer QC/ALM Rational Parasoft Proprietary and Confidential 18

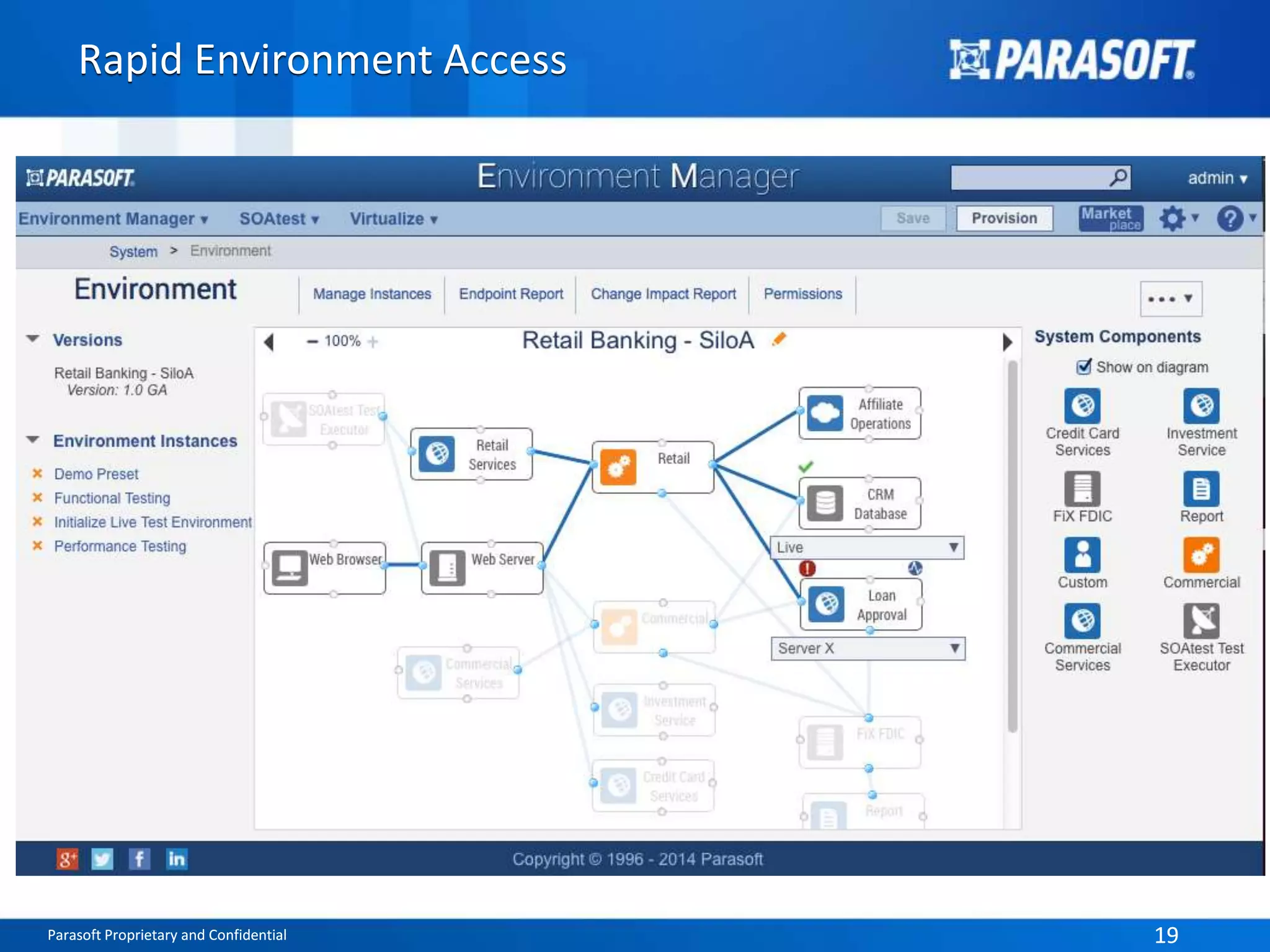

- 19. Rapid Environment Access Parasoft Proprietary and Confidential 19

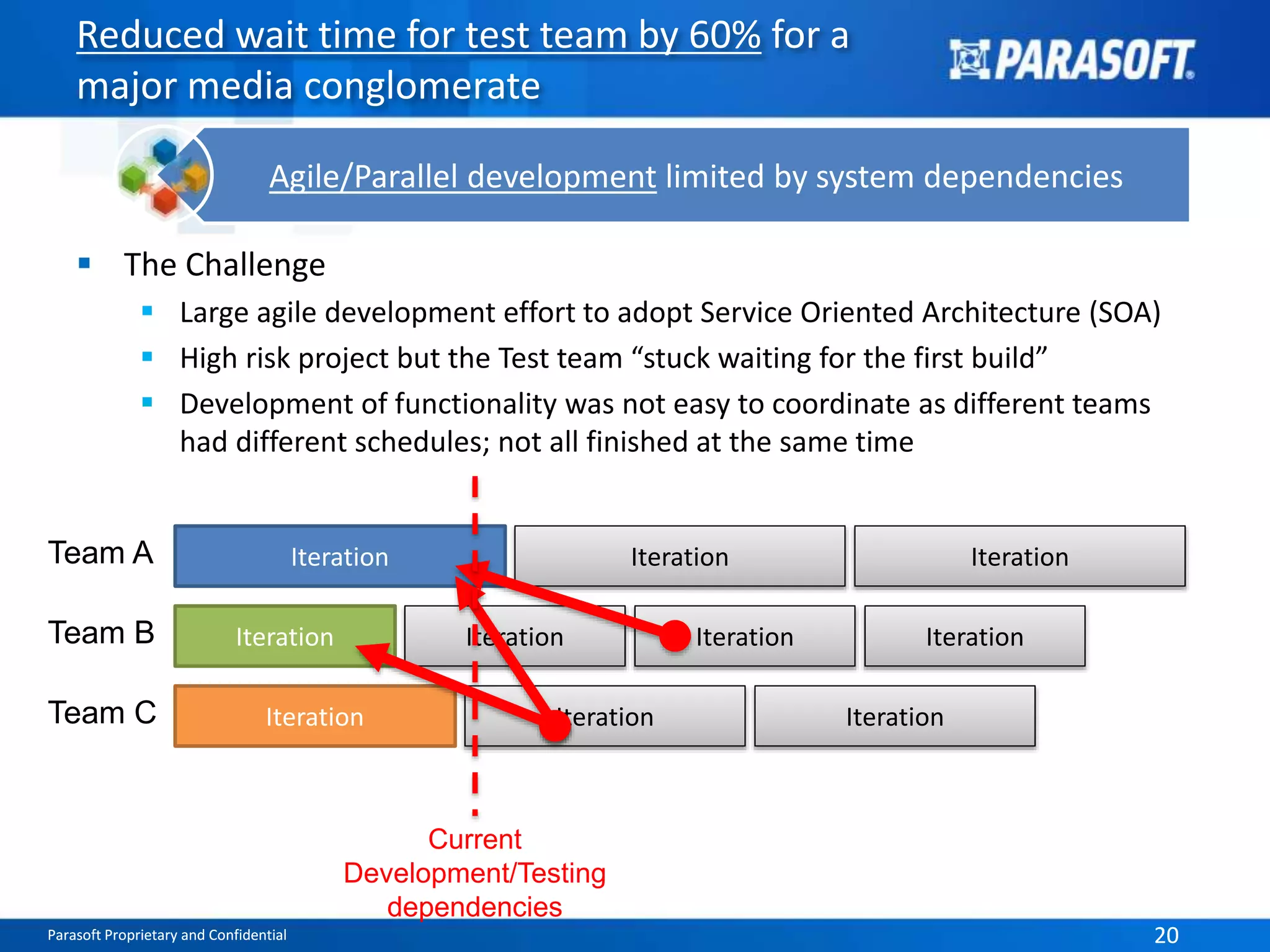

- 20. Reduced wait timefor test team by 60% for a major media conglomerate Agile/Parallel development limited by system dependencies The Challenge Large agile development effort to adopt Service Oriented Architecture (SOA) High risk project but the Test team “stuck waiting for the first build” Development of functionality was not easy to coordinate as different teams had different schedules; not all finished at the same time Iteration Iteration Iteration Team A Team B Team C Iteration Iteration Iteration Iteration Iteration Iteration Iteration Current Development/Testing dependencies Parasoft Proprietary and Confidential 20

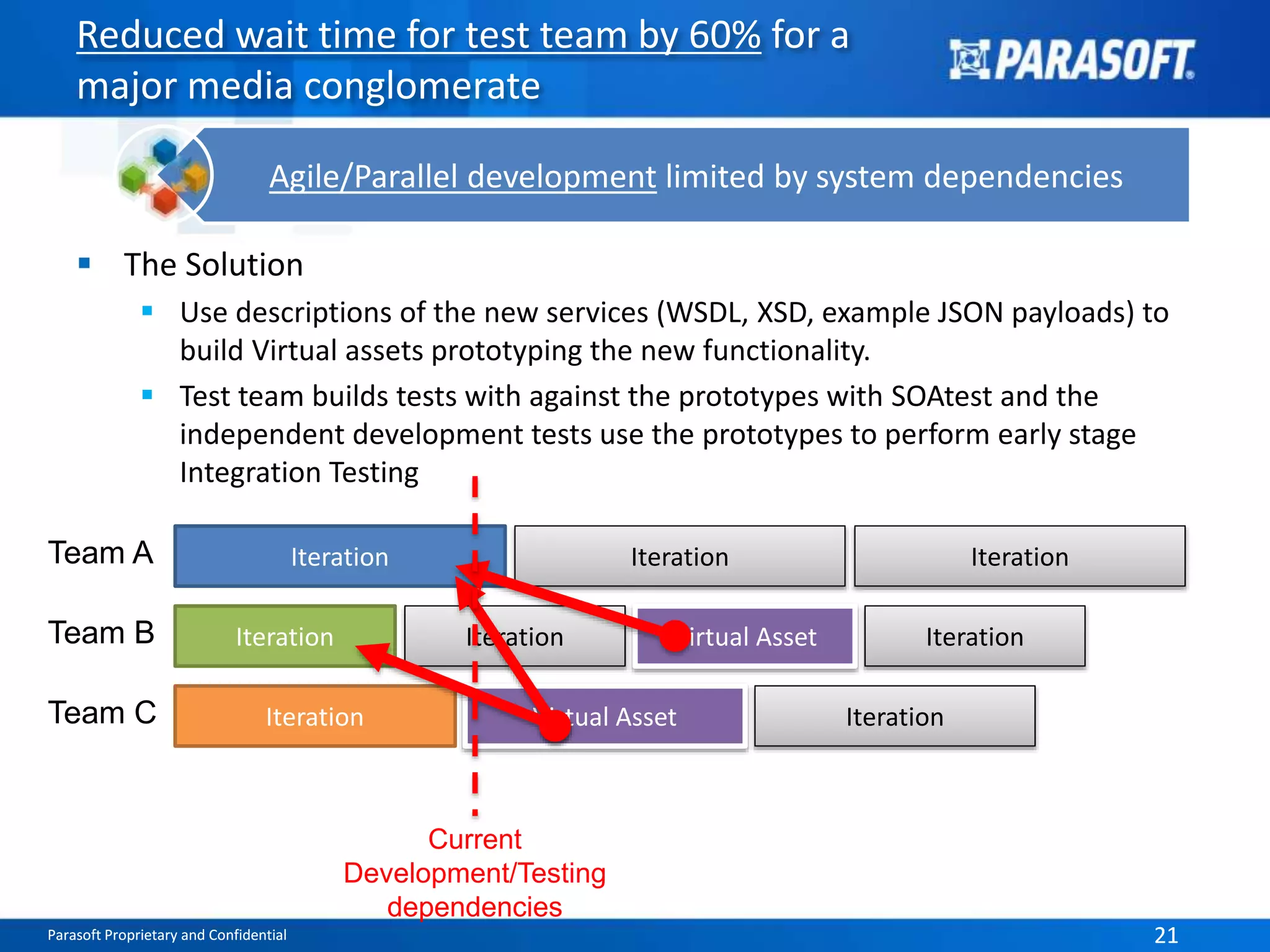

- 21. Reduced wait timefor test team by 60% for a major media conglomerate Agile/Parallel development limited by system dependencies The Solution Use descriptions of the new services (WSDL, XSD, example JSON payloads) to build Virtual assets prototyping the new functionality. Test team builds tests with against the prototypes with SOAtest and the independent development tests use the prototypes to perform early stage Integration Testing Iteration Iteration Iteration Team A Team B Team C Iteration Iteration Iteration Virtual Asset Iteration Virtual Asset Iteration Current Development/Testing dependencies Parasoft Proprietary and Confidential 21

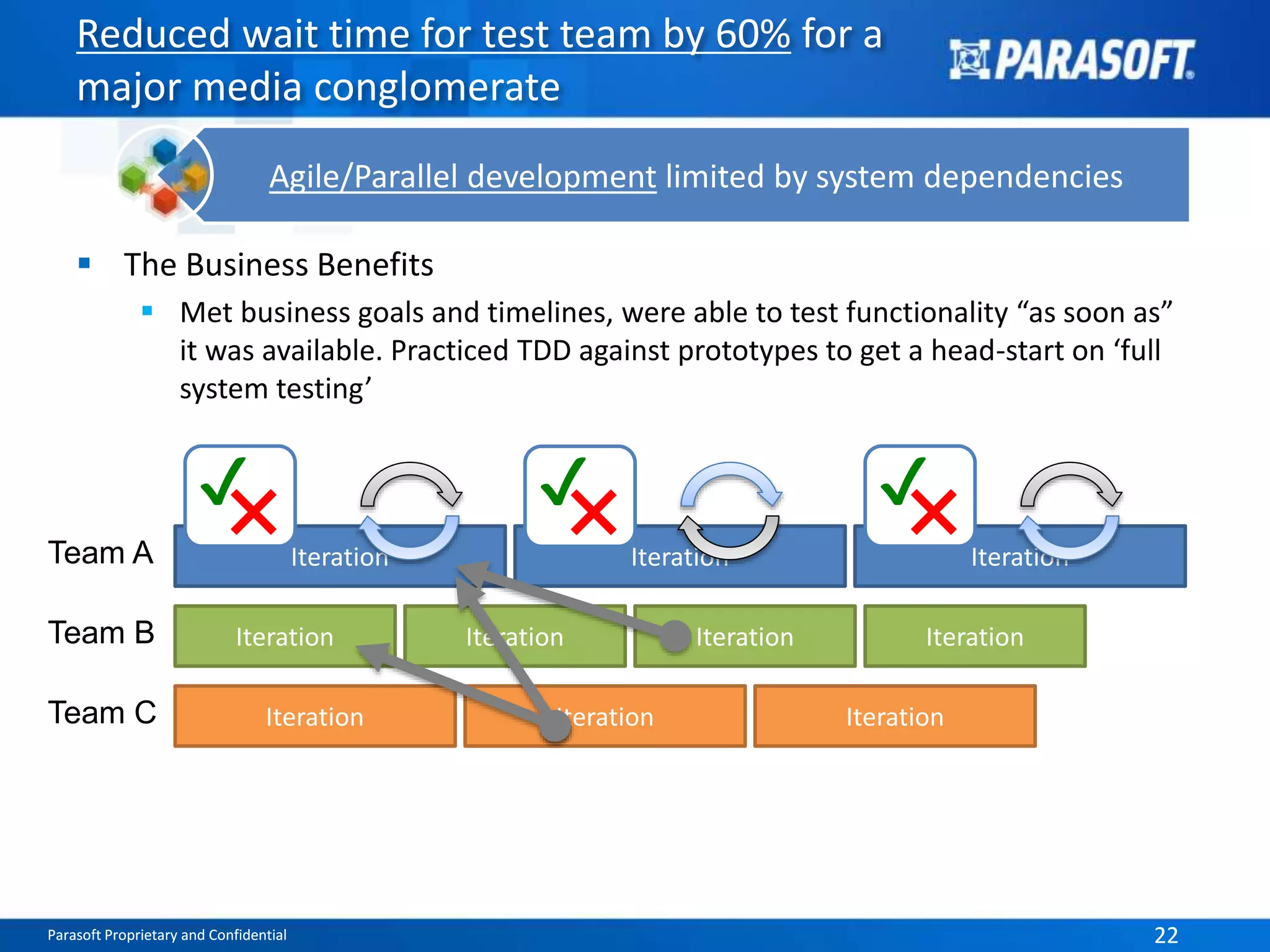

- 22. Reduced wait timefor test team by 60% for a major media conglomerate Agile/Parallel development limited by system dependencies The Business Benefits Met business goals and timelines, were able to test functionality “as soon as” it was available. Practiced TDD against prototypes to get a head-start on ‘full system testing’ Iteration ✔ ✖ Iteration Iteration Team A Team B Team C ✔ ✔ ✖ ✖ Iteration Iteration Iteration Iteration Iteration Iteration Iteration Parasoft Proprietary and Confidential 22

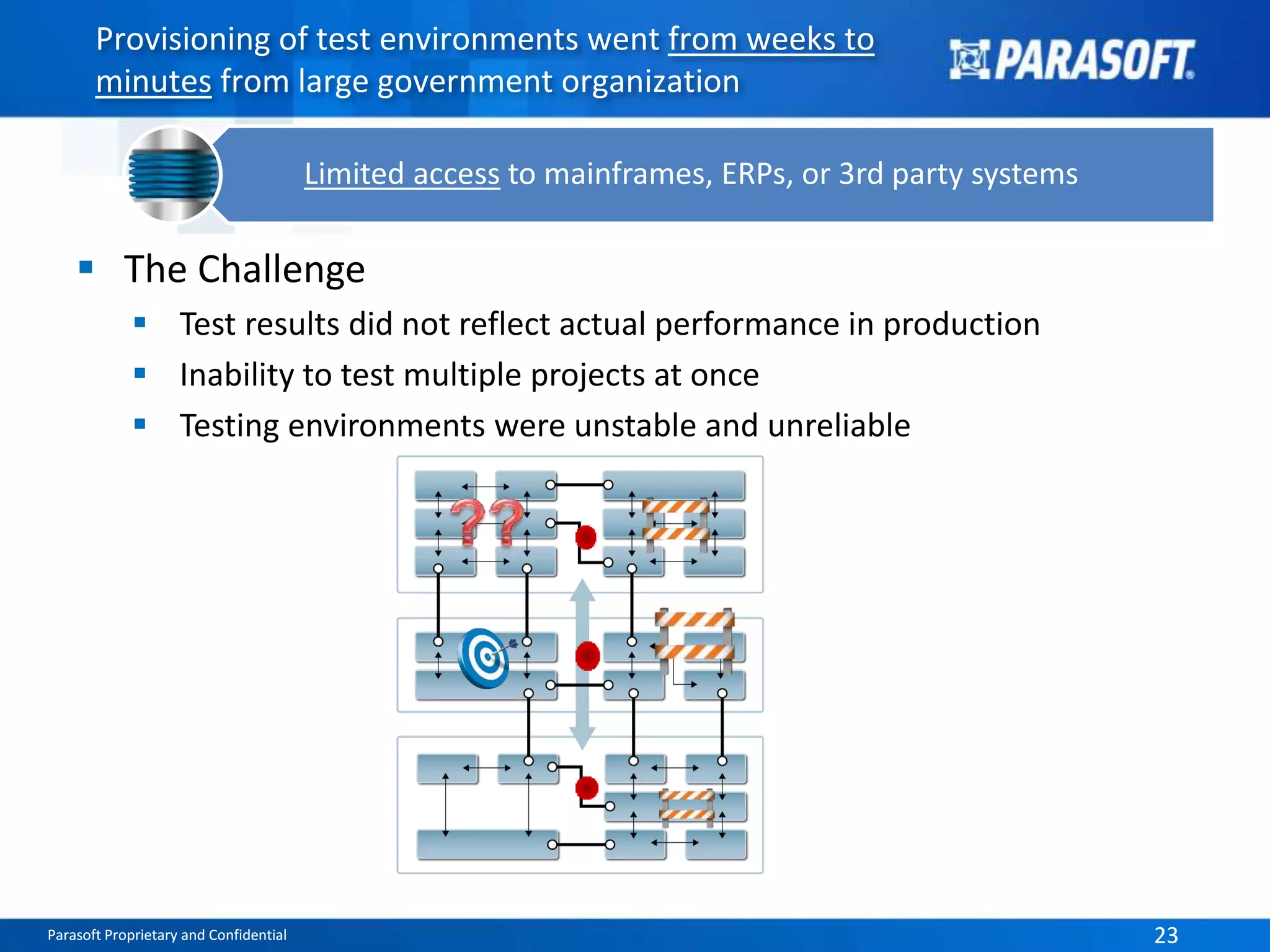

- 23. Provisioning of testenvironments went from weeks to minutes from large government organization Limited access to mainframes, ERPs, or 3rd party systems The Challenge Test results did not reflect actual performance in production Inability to test multiple projects at once Testing environments were unstable and unreliable Parasoft Proprietary and Confidential 23

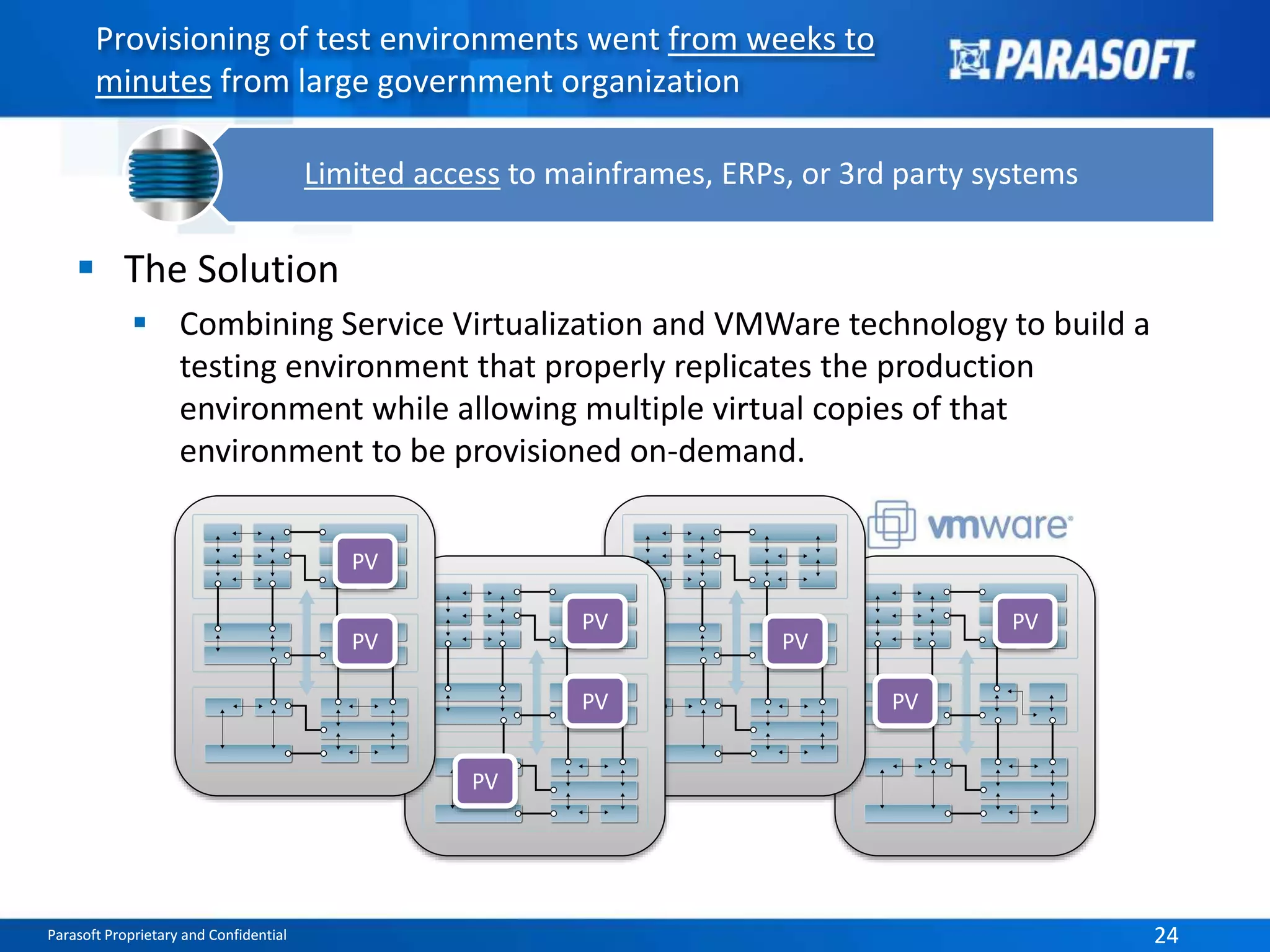

- 24. Provisioning of testenvironments went from weeks to minutes from large government organization Limited access to mainframes, ERPs, or 3rd party systems The Solution Combining Service Virtualization and VMWare technology to build a testing environment that properly replicates the production environment while allowing multiple virtual copies of that environment to be provisioned on-demand. PV PV PV PV PV PV PV PV Parasoft Proprietary and Confidential 24

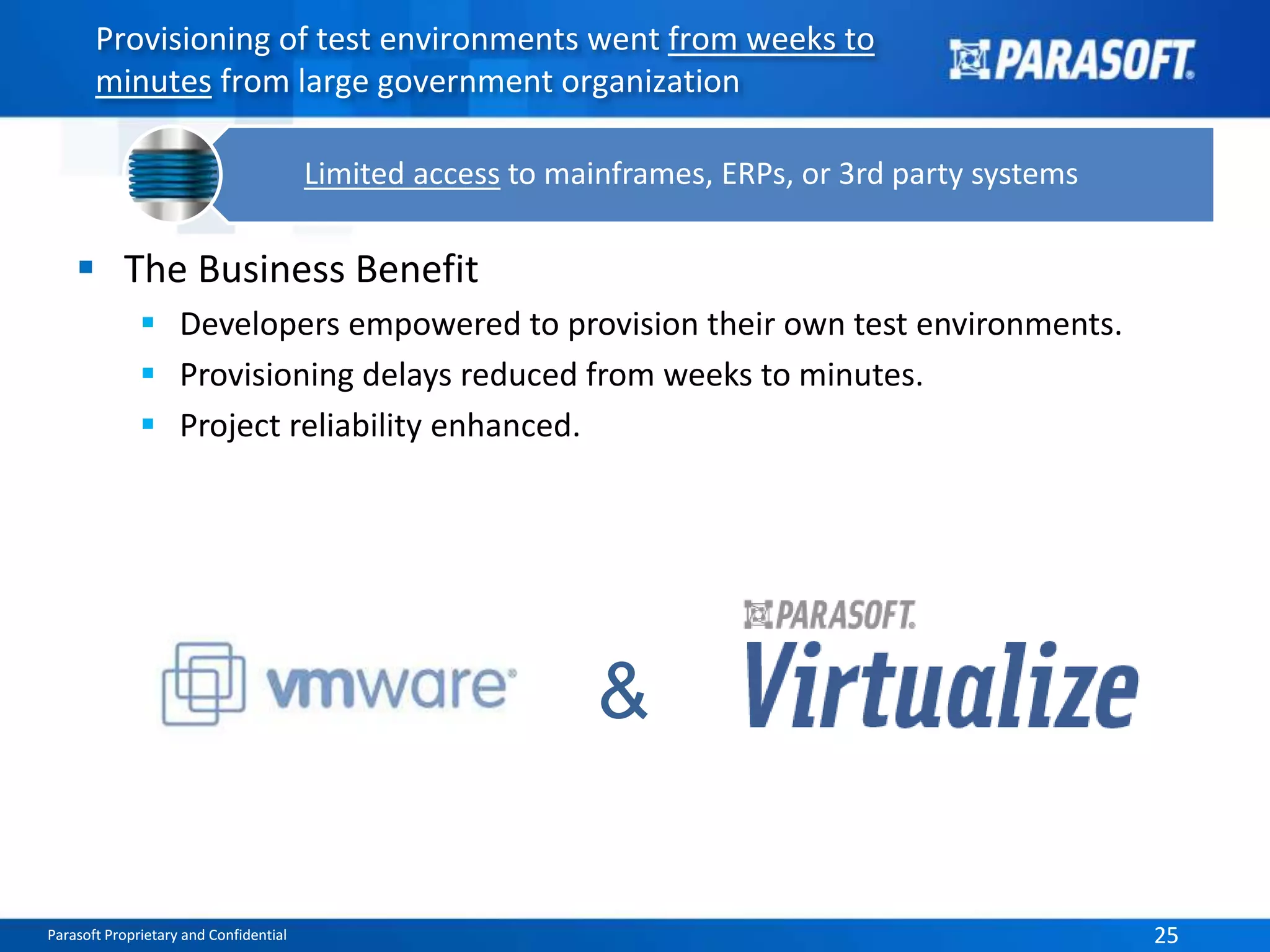

- 25. Provisioning of testenvironments went from weeks to minutes from large government organization Limited access to mainframes, ERPs, or 3rd party systems The Business Benefit Developers empowered to provision their own test environments. Provisioning delays reduced from weeks to minutes. Project reliability enhanced. & Parasoft Proprietary and Confidential 25

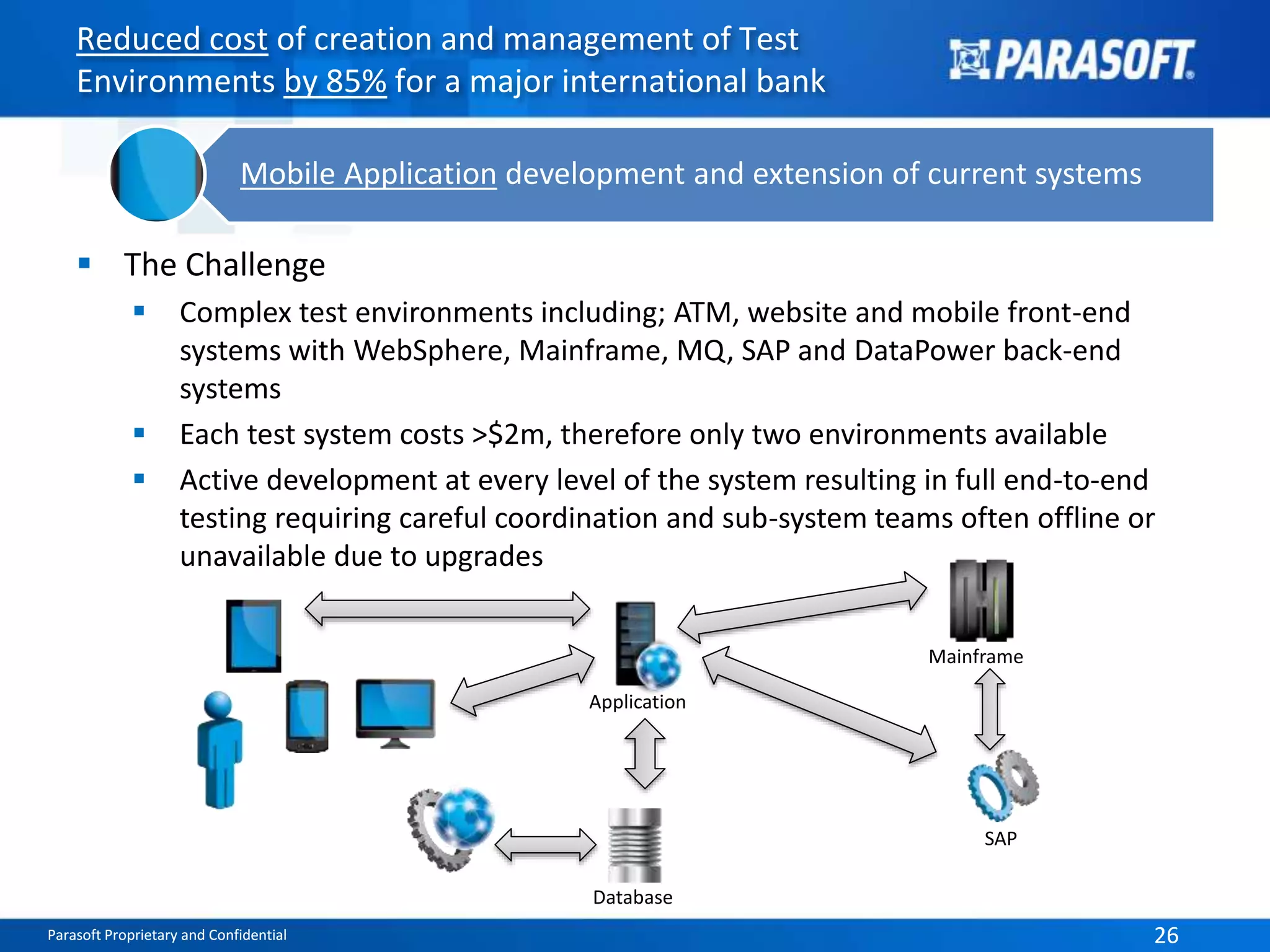

- 26. Reduced cost ofcreation and management of Test Environments by 85% for a major international bank Mobile Application development and extension of current systems The Challenge Complex test environments including; ATM, website and mobile front-end systems with WebSphere, Mainframe, MQ, SAP and DataPower back-end systems Each test system costs >$2m, therefore only two environments available Active development at every level of the system resulting in full end-to-end testing requiring careful coordination and sub-system teams often offline or unavailable due to upgrades Application Database Mainframe SAP Parasoft Proprietary and Confidential 26

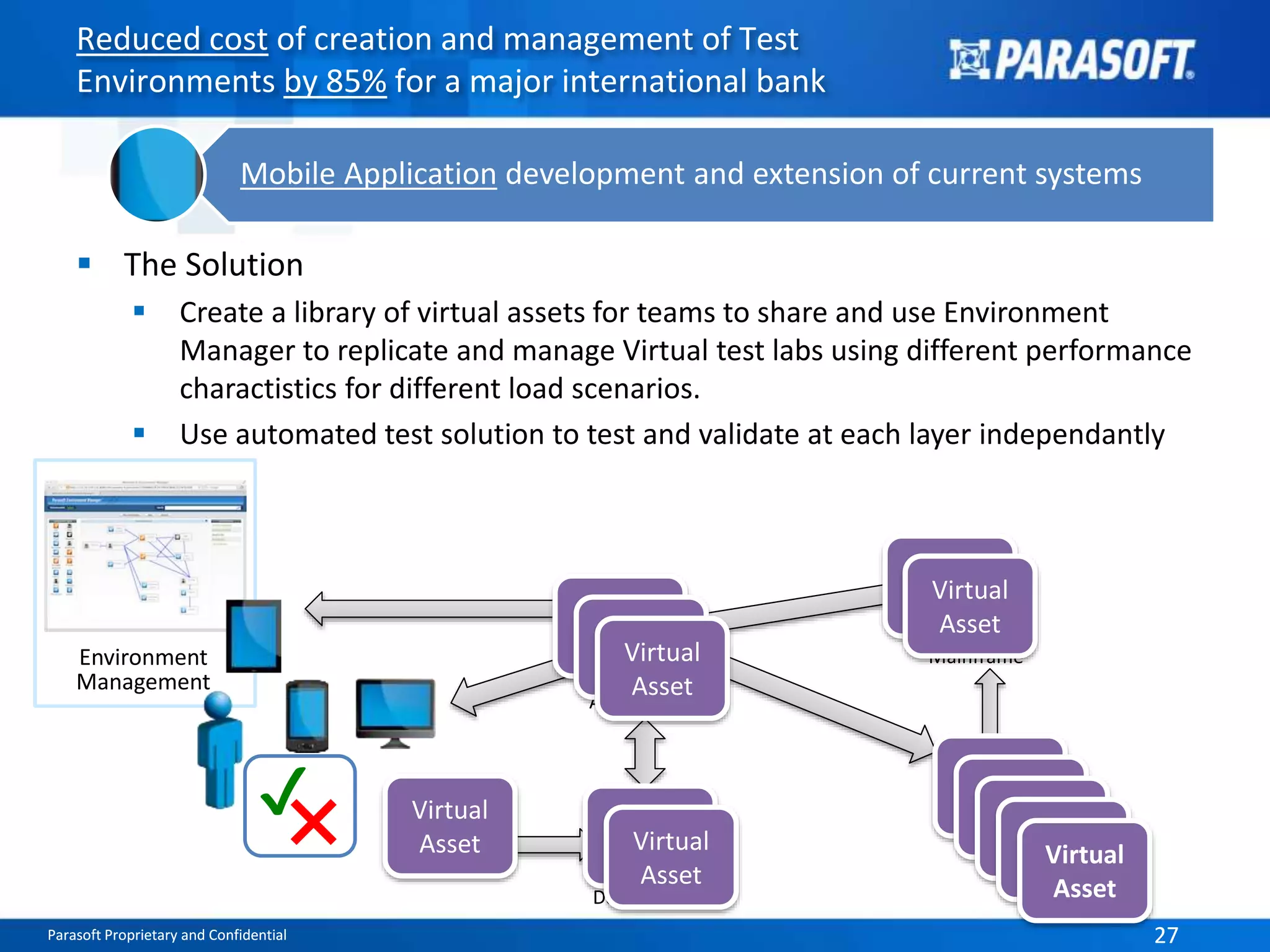

- 27. Reduced cost ofcreation and management of Test Environments by 85% for a major international bank Mobile Application development and extension of current systems The Solution Create a library of virtual assets for teams to share and use Environment Manager to replicate and manage Virtual test labs using different performance charactistics for different load scenarios. Use automated test solution to test and validate at each layer independantly Environment Management Virtual AVssirettual AVssirettual Asset Application Virtual Asset Virtual Virtual Asset Database Virtual AVssirettual Asset Mainframe Virtual AVssirettual AVssirettual AVssirettual Asset SAP Virtual Asset Asset ✔ ✖ Parasoft Proprietary and Confidential 27

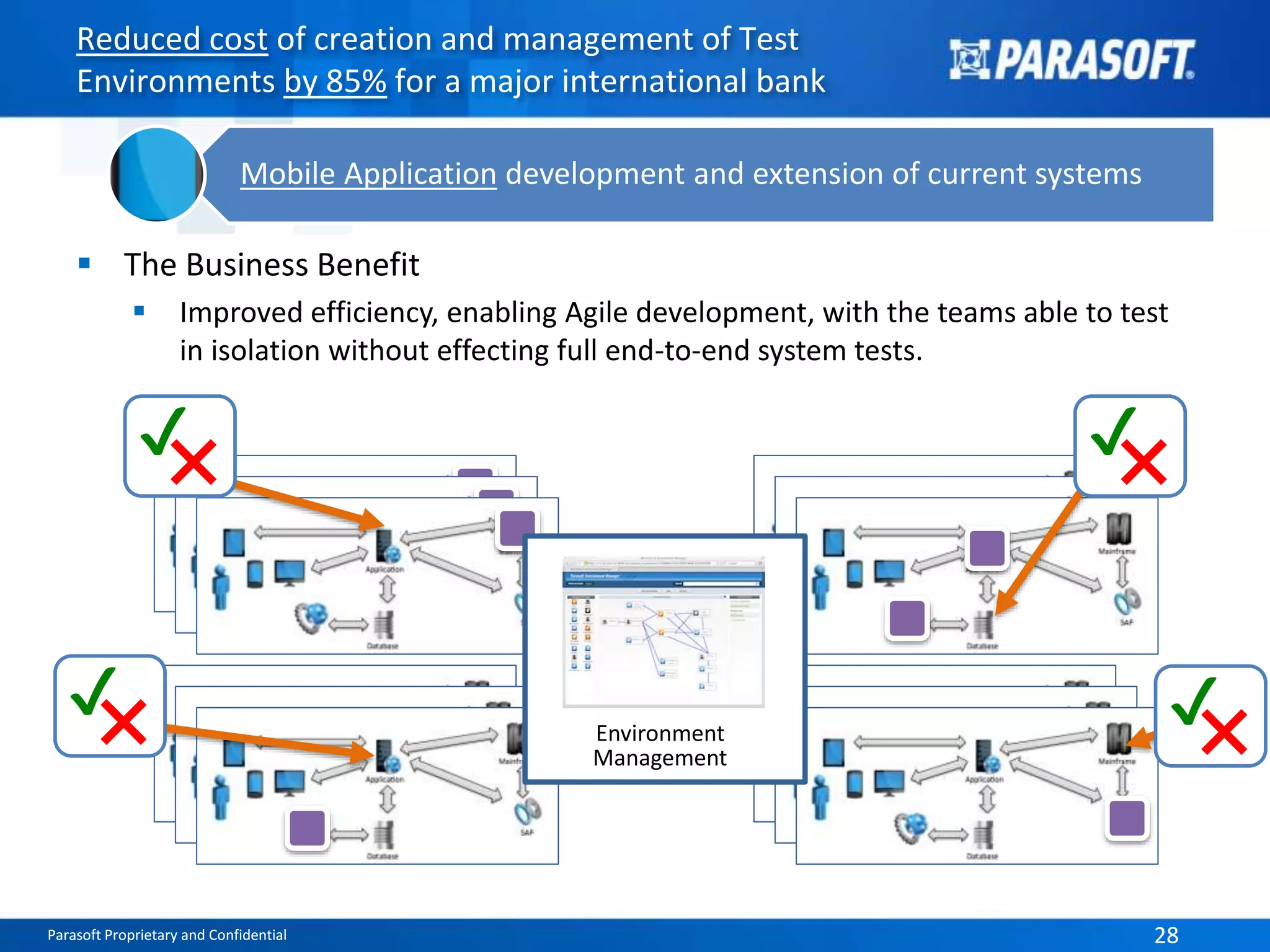

- 28. Reduced cost ofcreation and management of Test Environments by 85% for a major international bank Mobile Application development and extension of current systems The Business Benefit Improved efficiency, enabling Agile development, with the teams able to test in isolation without effecting full end-to-end system tests. Environment Management ✔ ✖ ✔ ✖ ✔ ✖ ✔ ✖ Parasoft Proprietary and Confidential 28

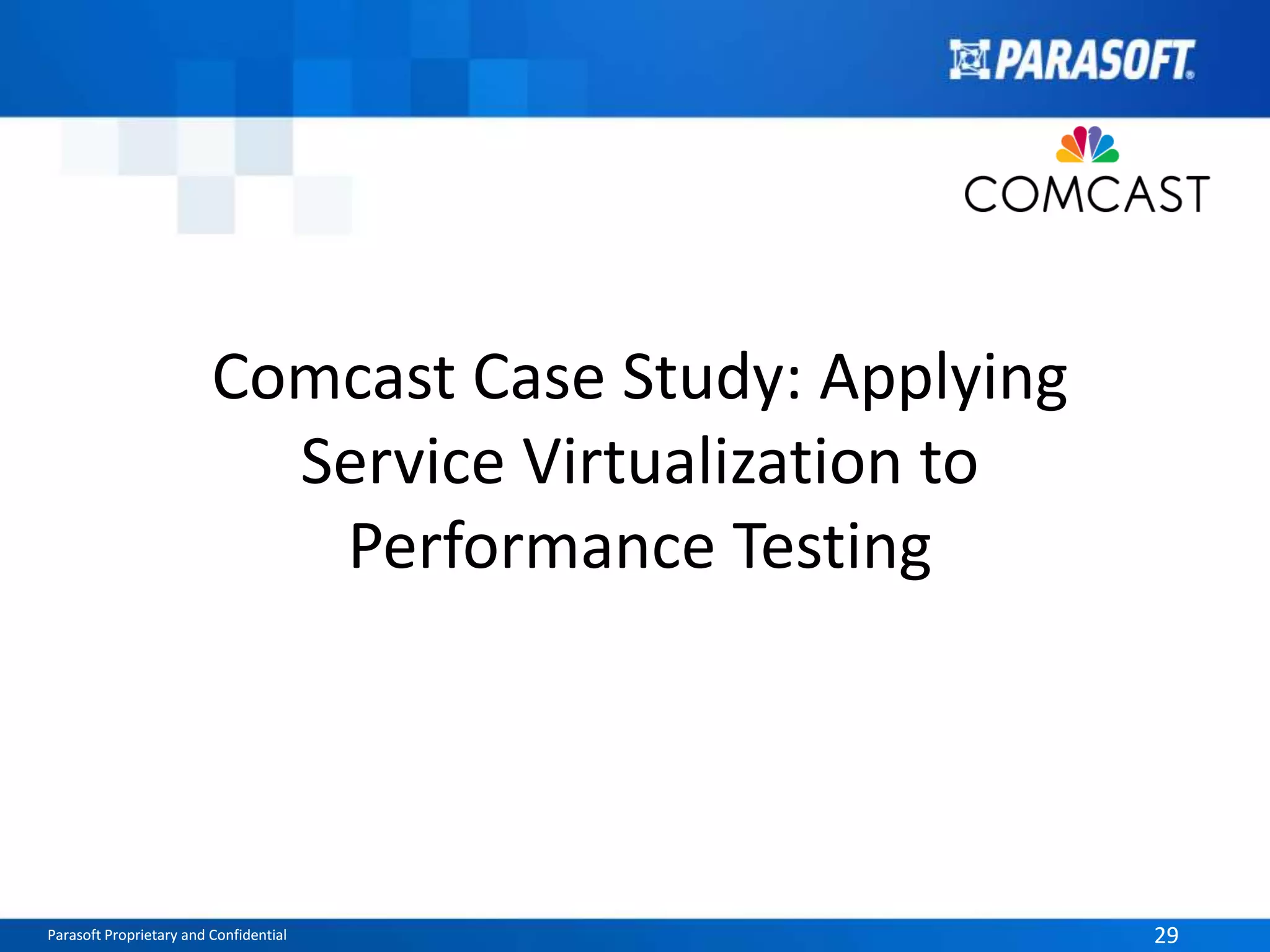

- 29. Comcast Case Study:Applying Service Virtualization to Performance Testing Parasoft Proprietary and Confidential 29

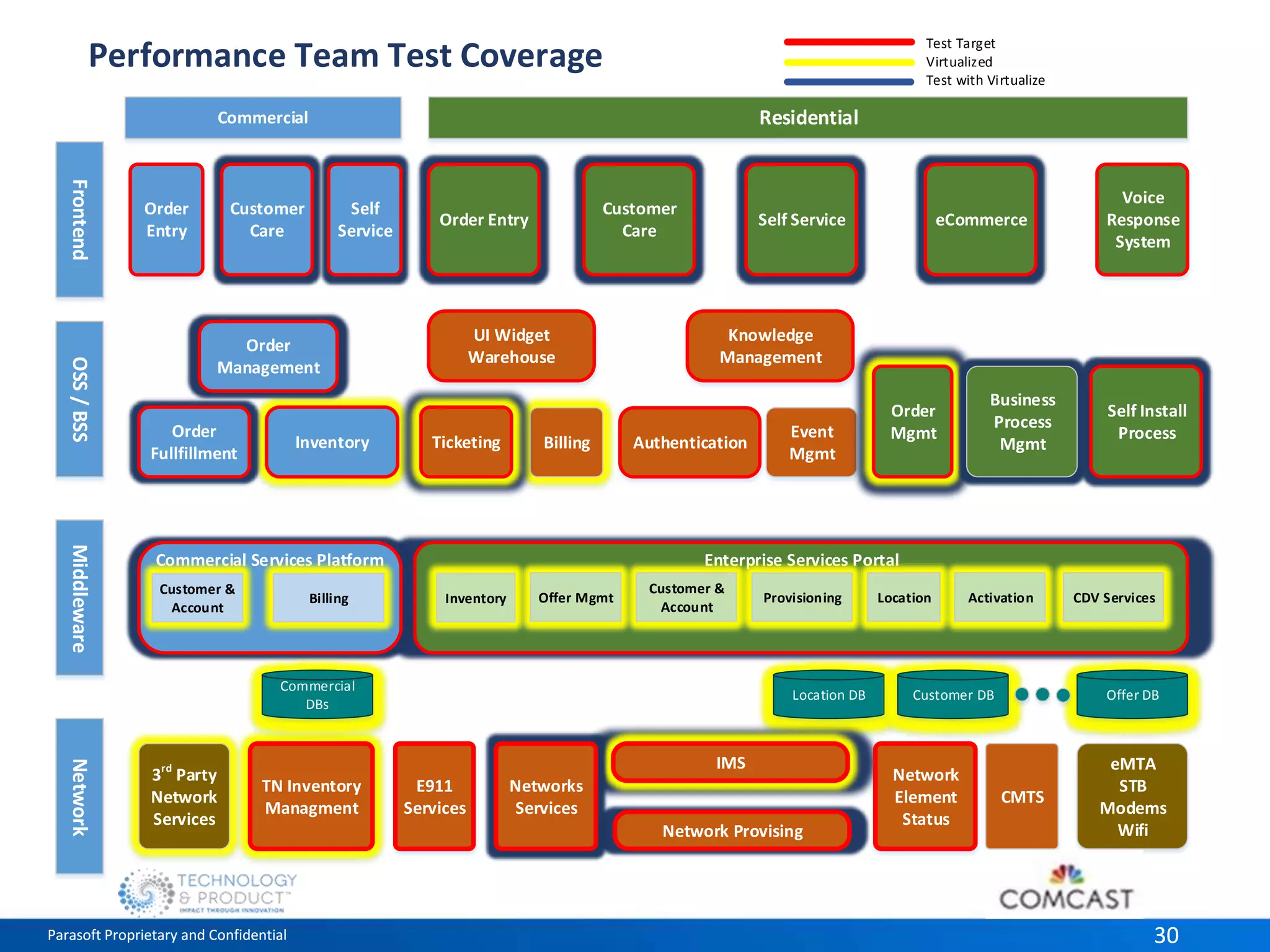

- 30. Performance Team TestCoverage Test Target Commercial Residential Virtualized Test with Virtualize Self Service eCommerce Knowledge Management Authentication Event Mgmt Order Mgmt Enterprise Services Portal Business Process Mgmt Self Install Process Provisioning Location CDV Services Location DB Customer Customer & Account IMS Network Provising Customer Self Service Order Entry Management UI Widget Warehouse Inventory Billing Frontend OSS / BSS Middleware Network Order Entry Care Care Voice Response System Order Fullfillment Order Commercial Services Platform Ticketing Inventory Offer Mgmt Customer & Account Activation Billing 3rd Party Network Services Customer DB Offer DB eMTA STB Modems Wifi CMTS Network Element Status Networks Services Commercial DBs TN Inventory Managment E911 Services Parasoft Proprietary and Confidential 30

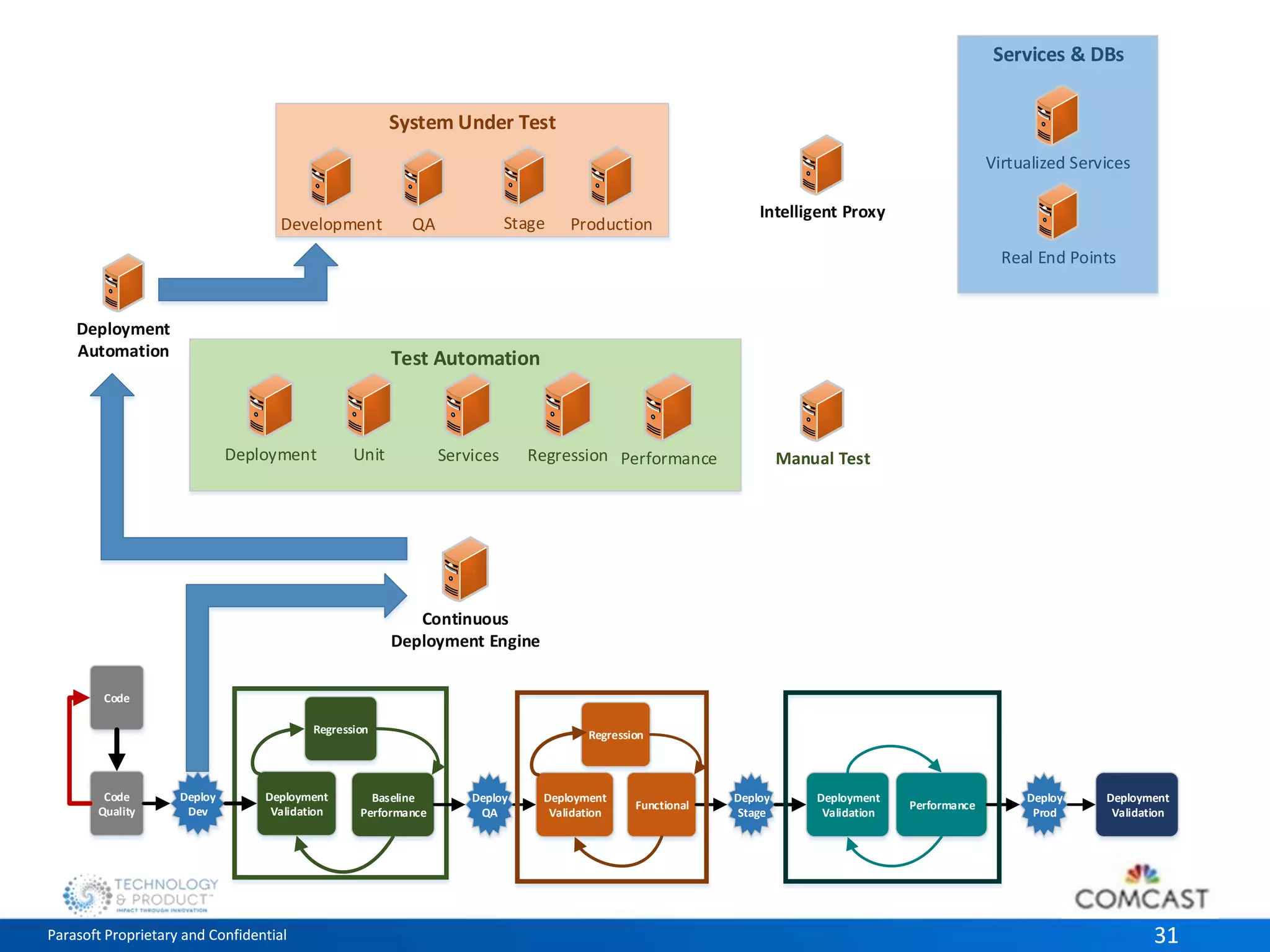

- 31. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 31

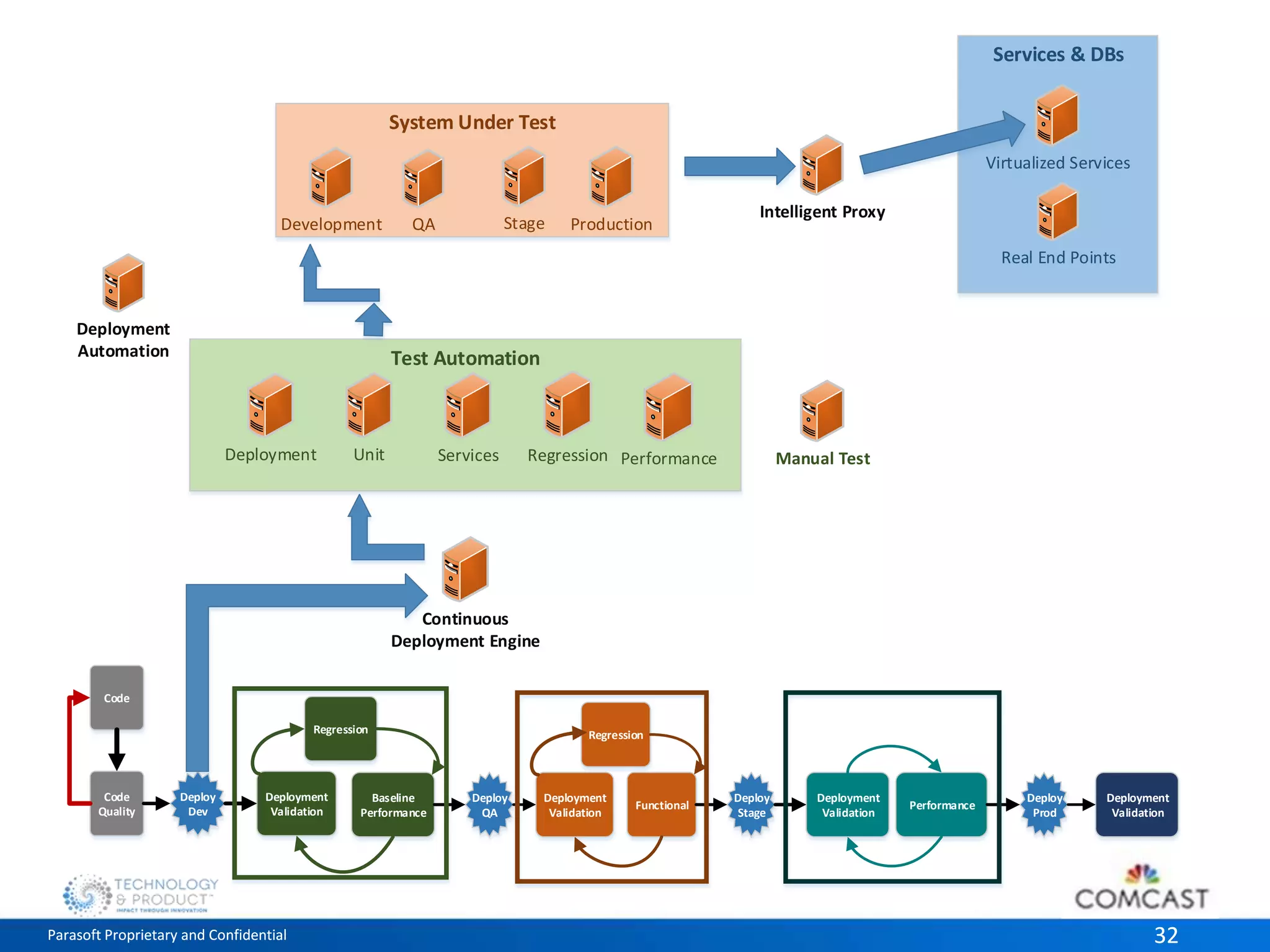

- 32. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 32

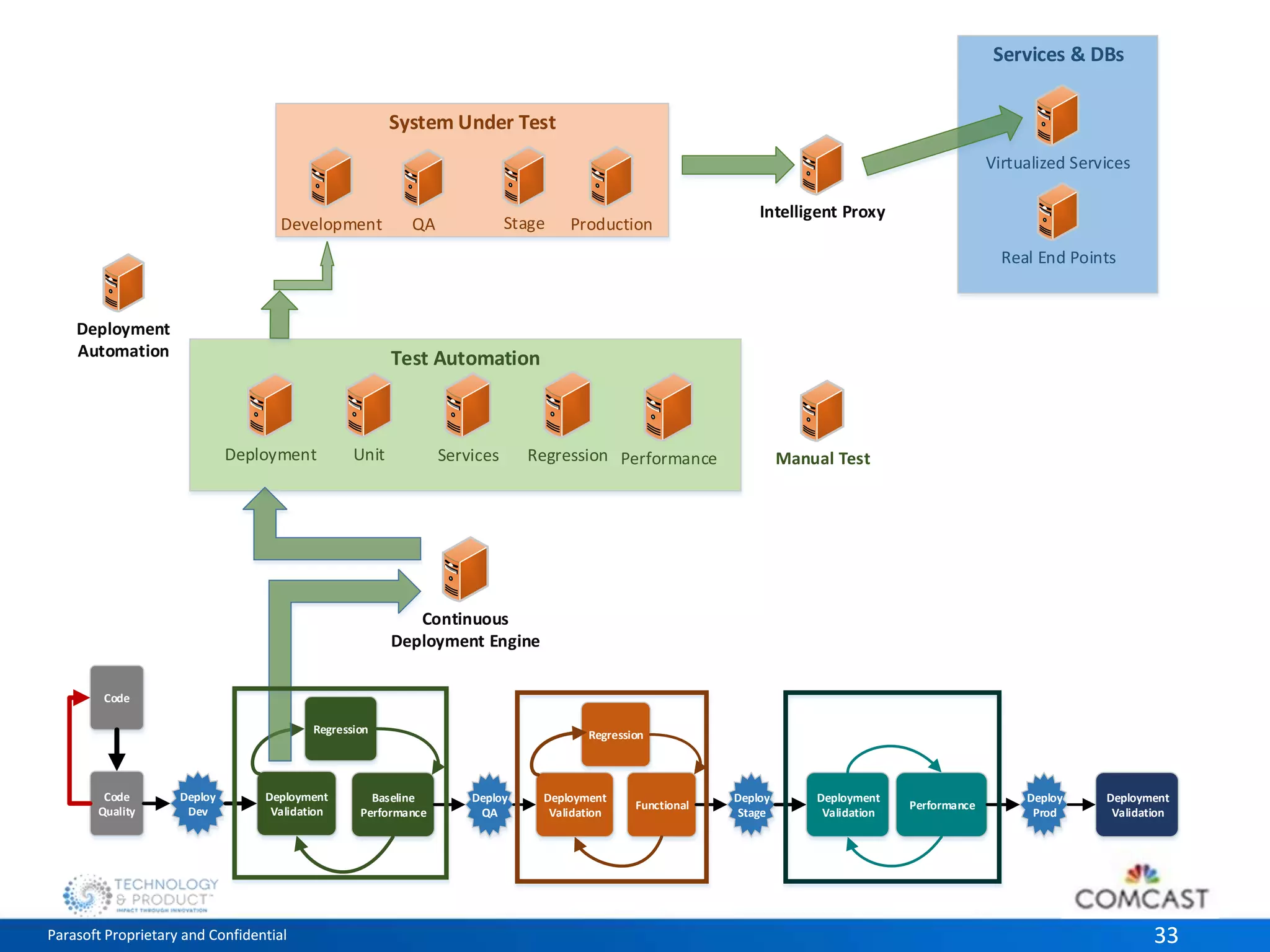

- 33. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 33
- 34. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 34

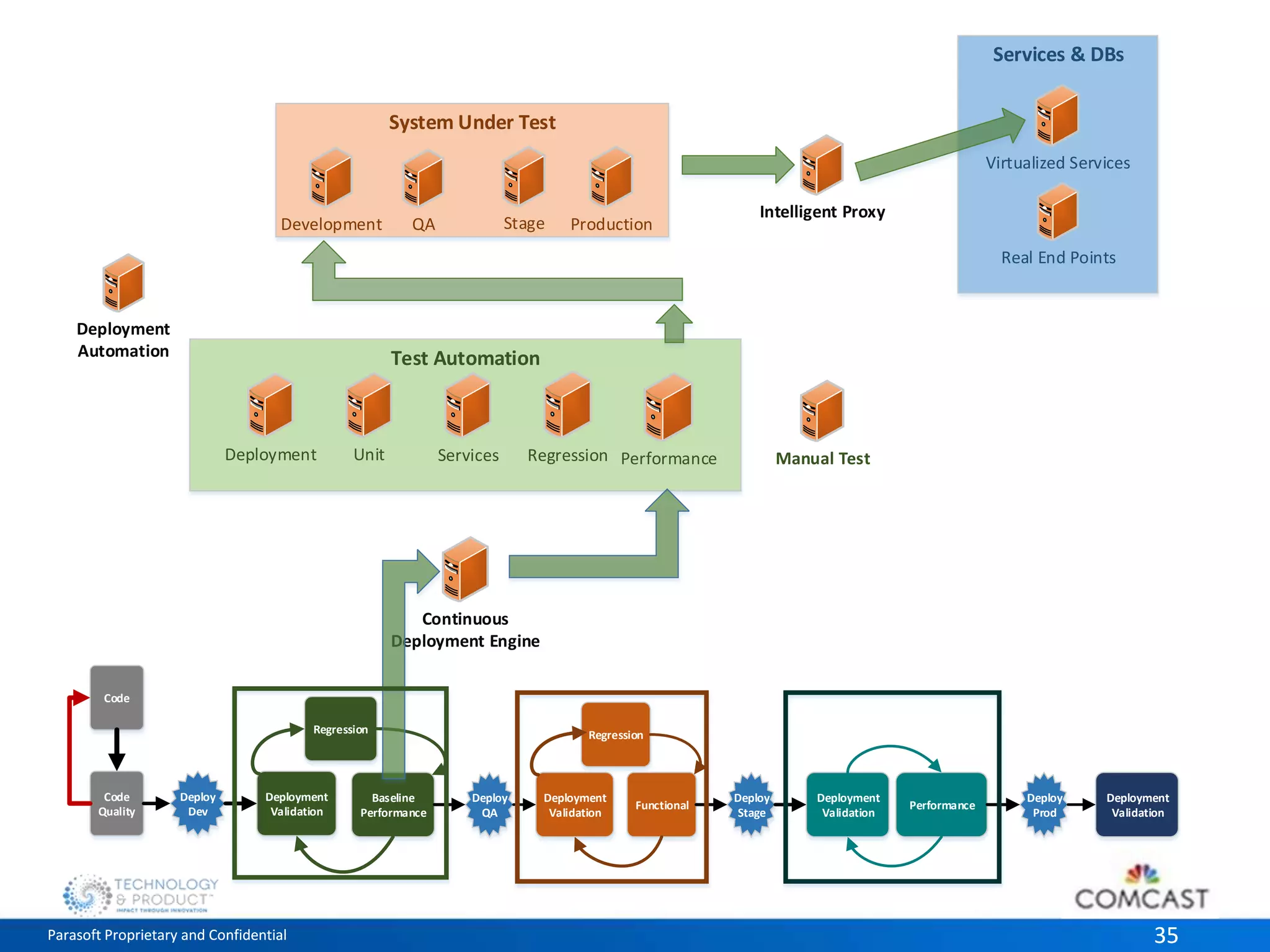

- 35. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 35

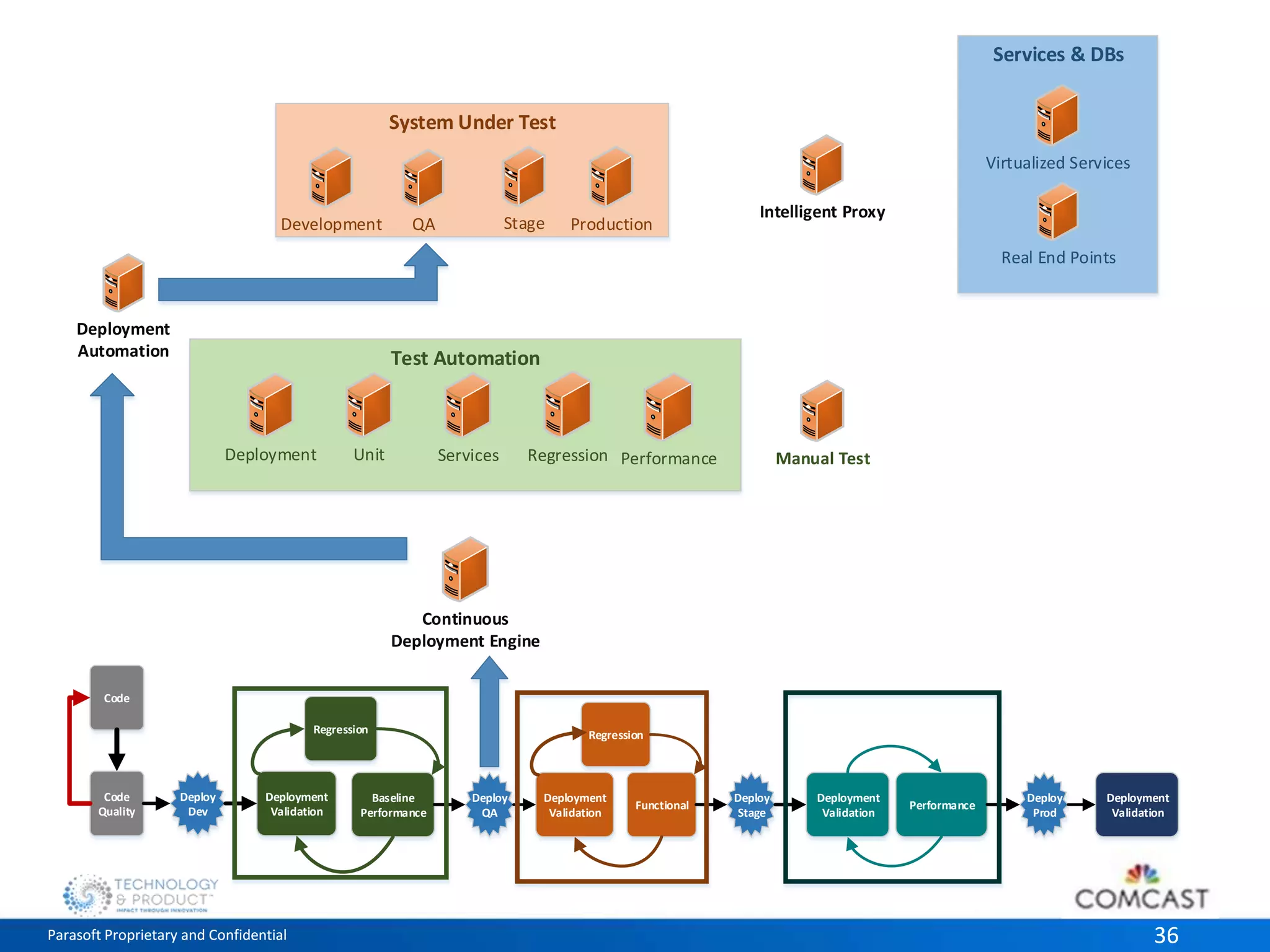

- 36. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 36

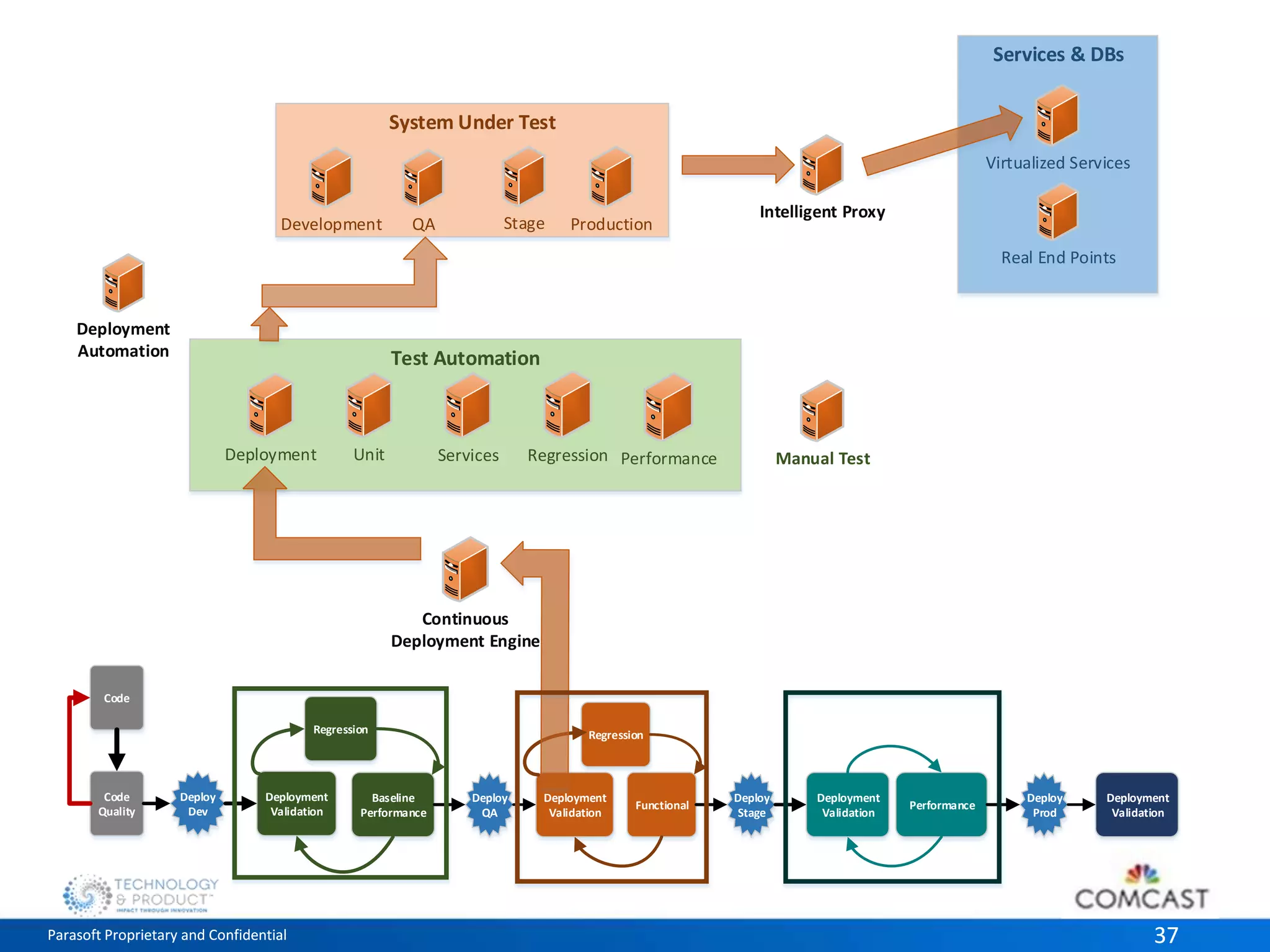

- 37. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 37

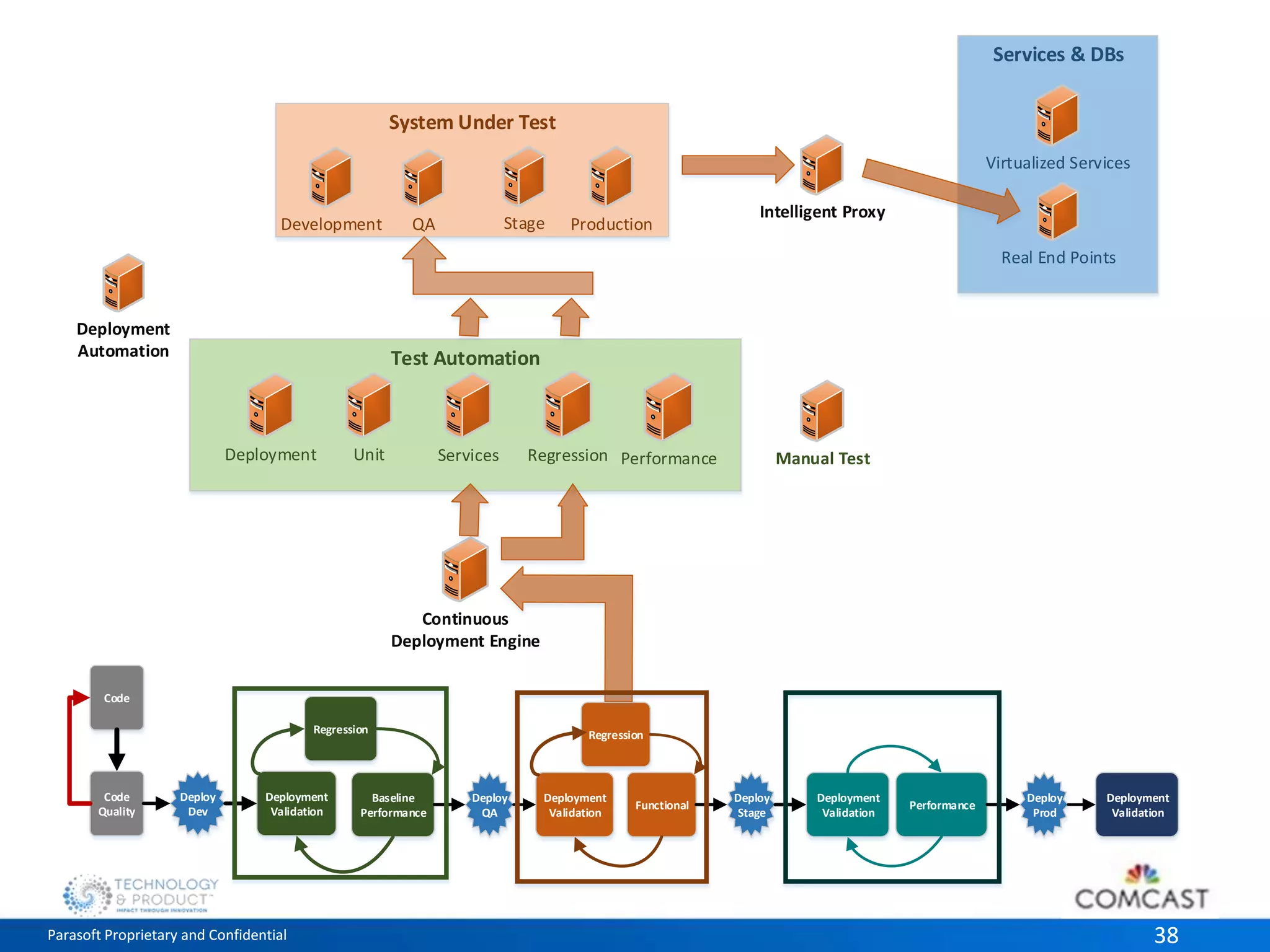

- 38. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 38

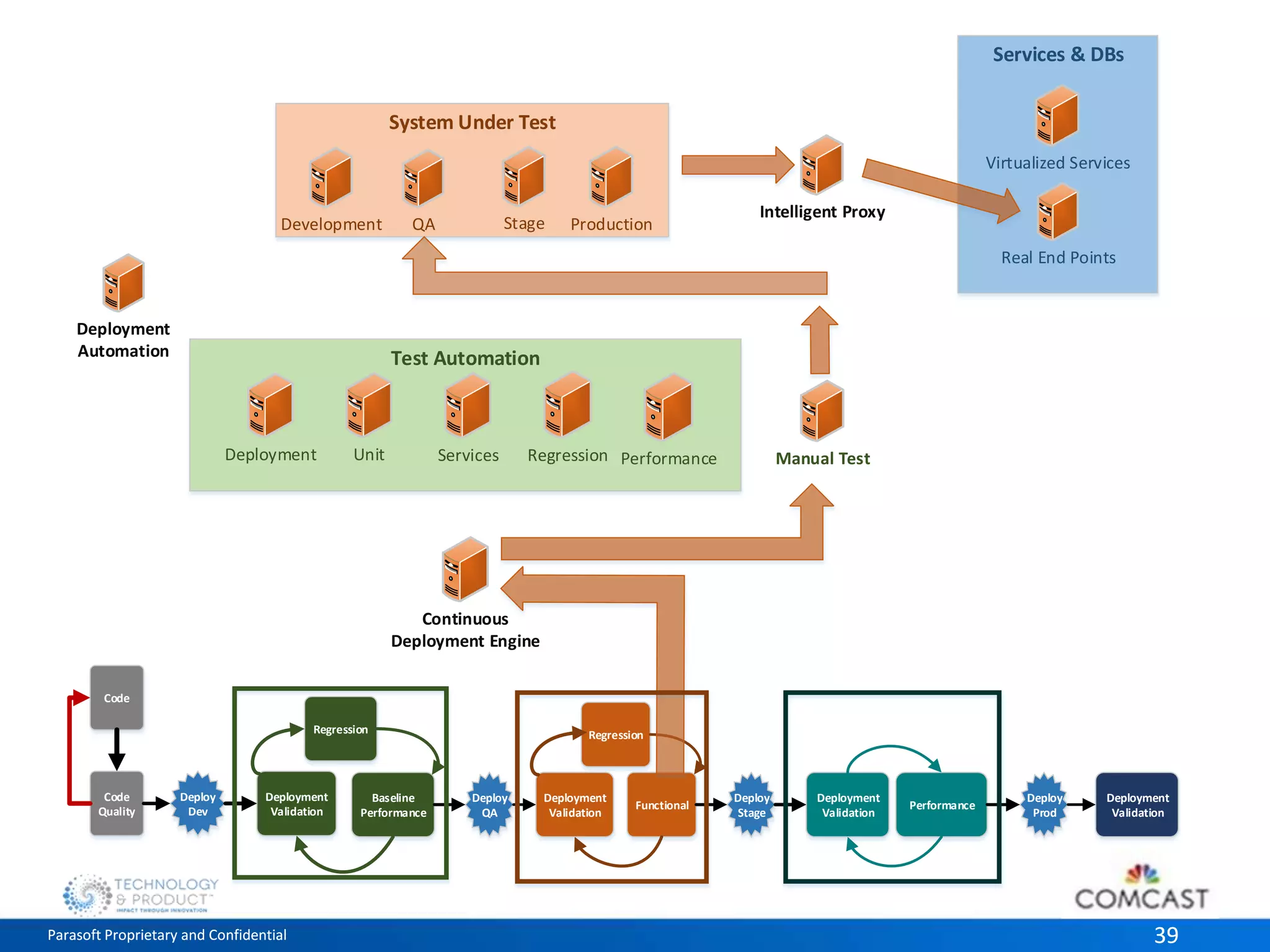

- 39. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 39

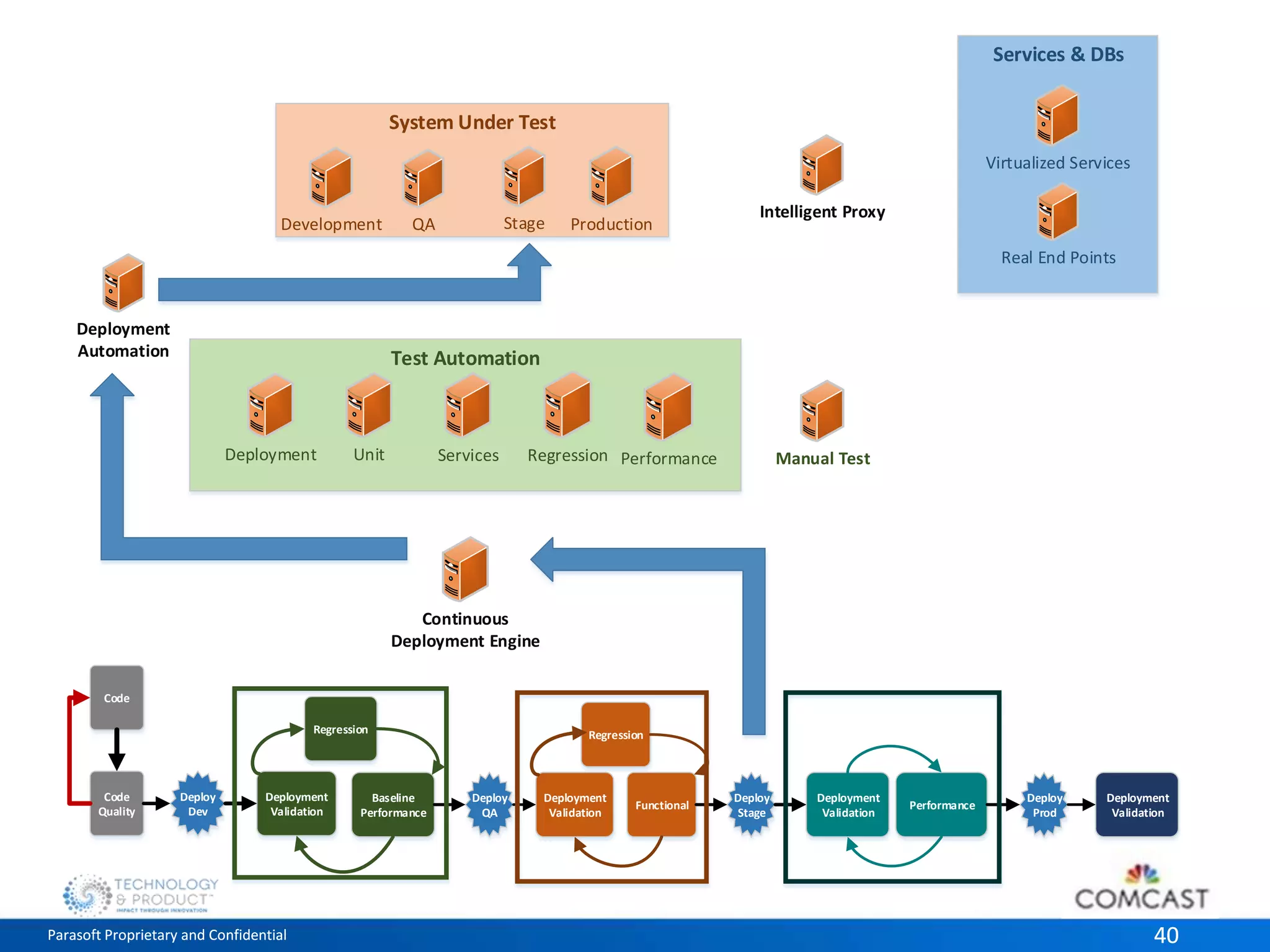

- 40. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 40

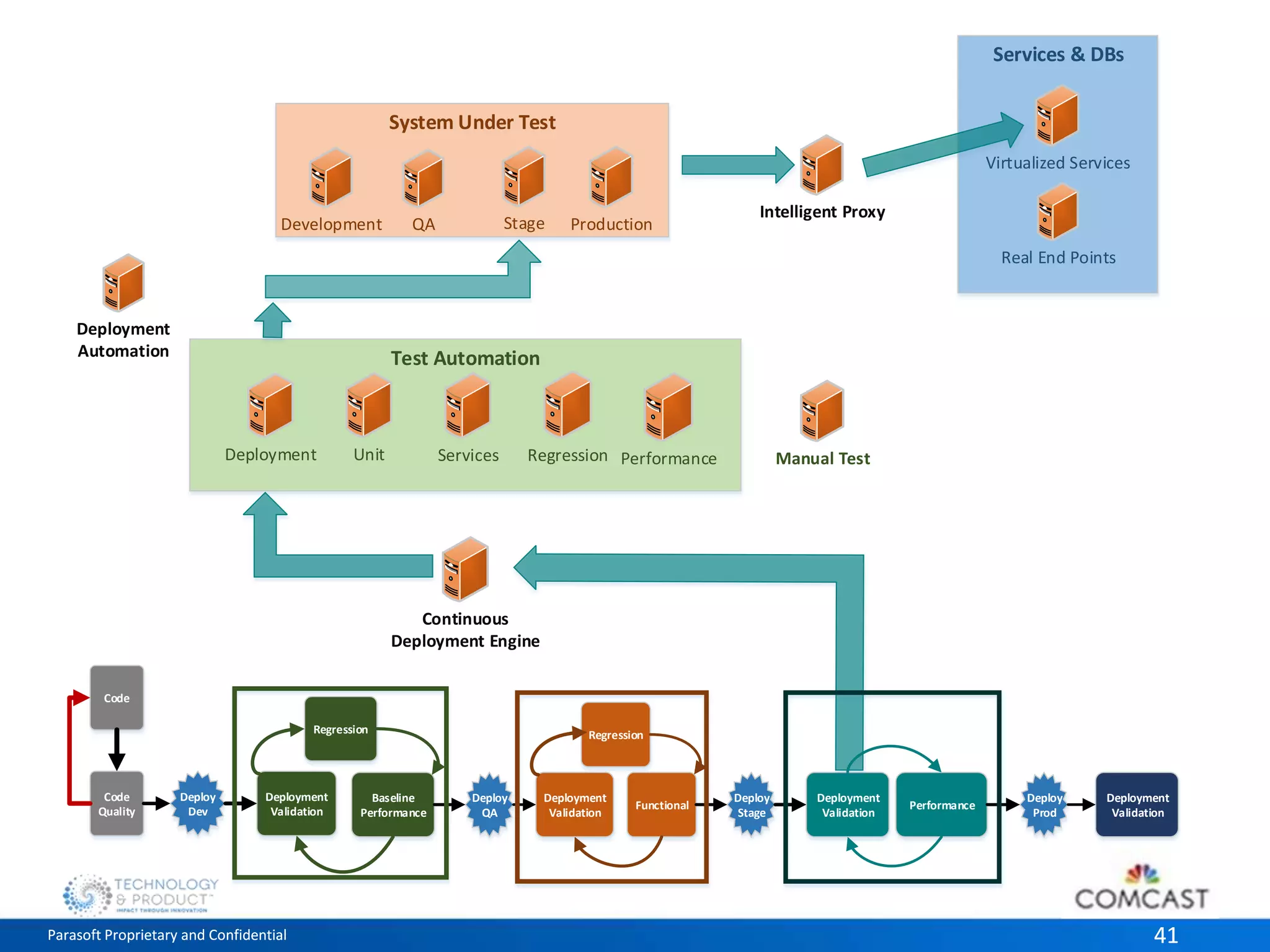

- 41. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 41

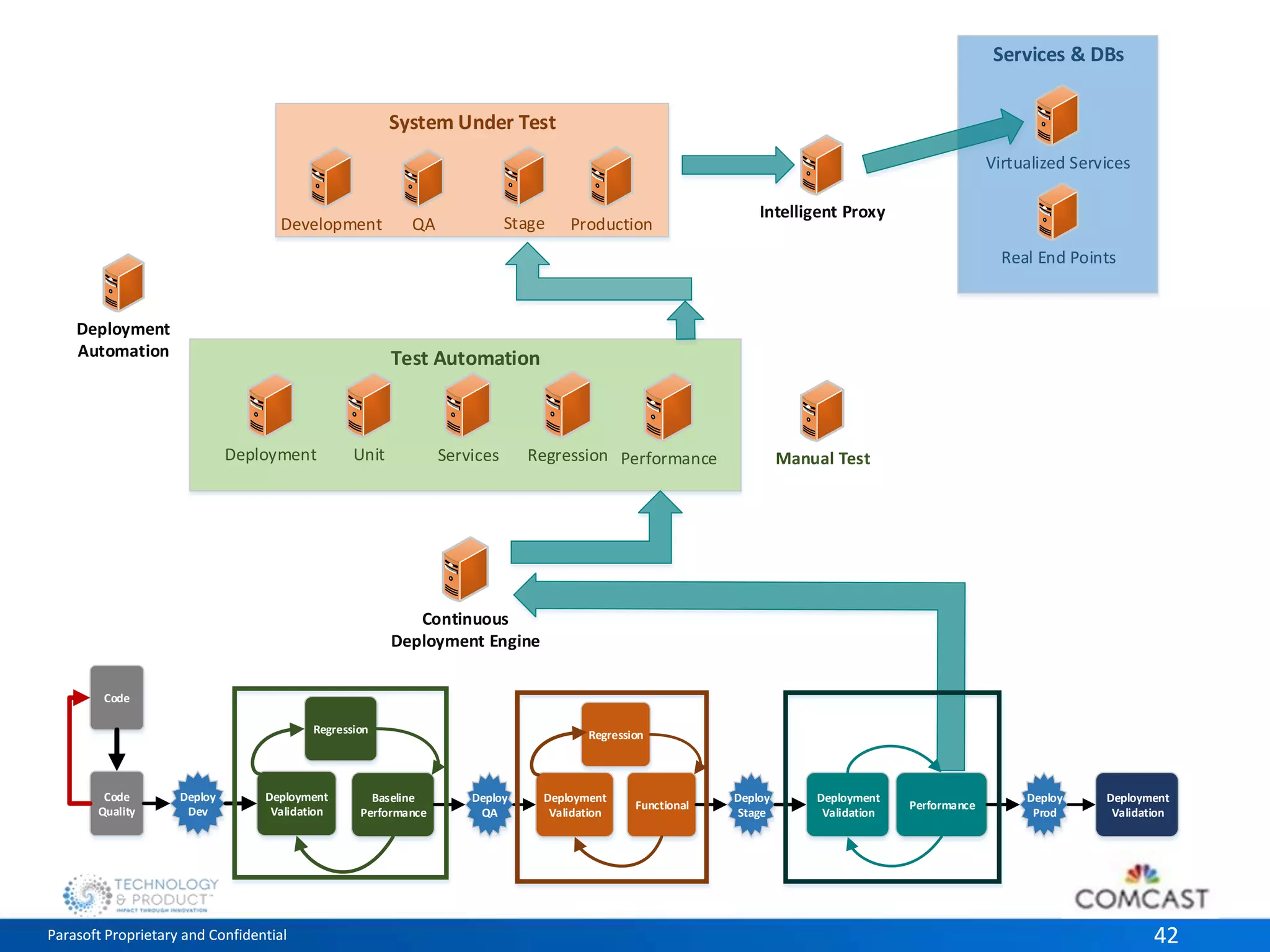

- 42. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 42

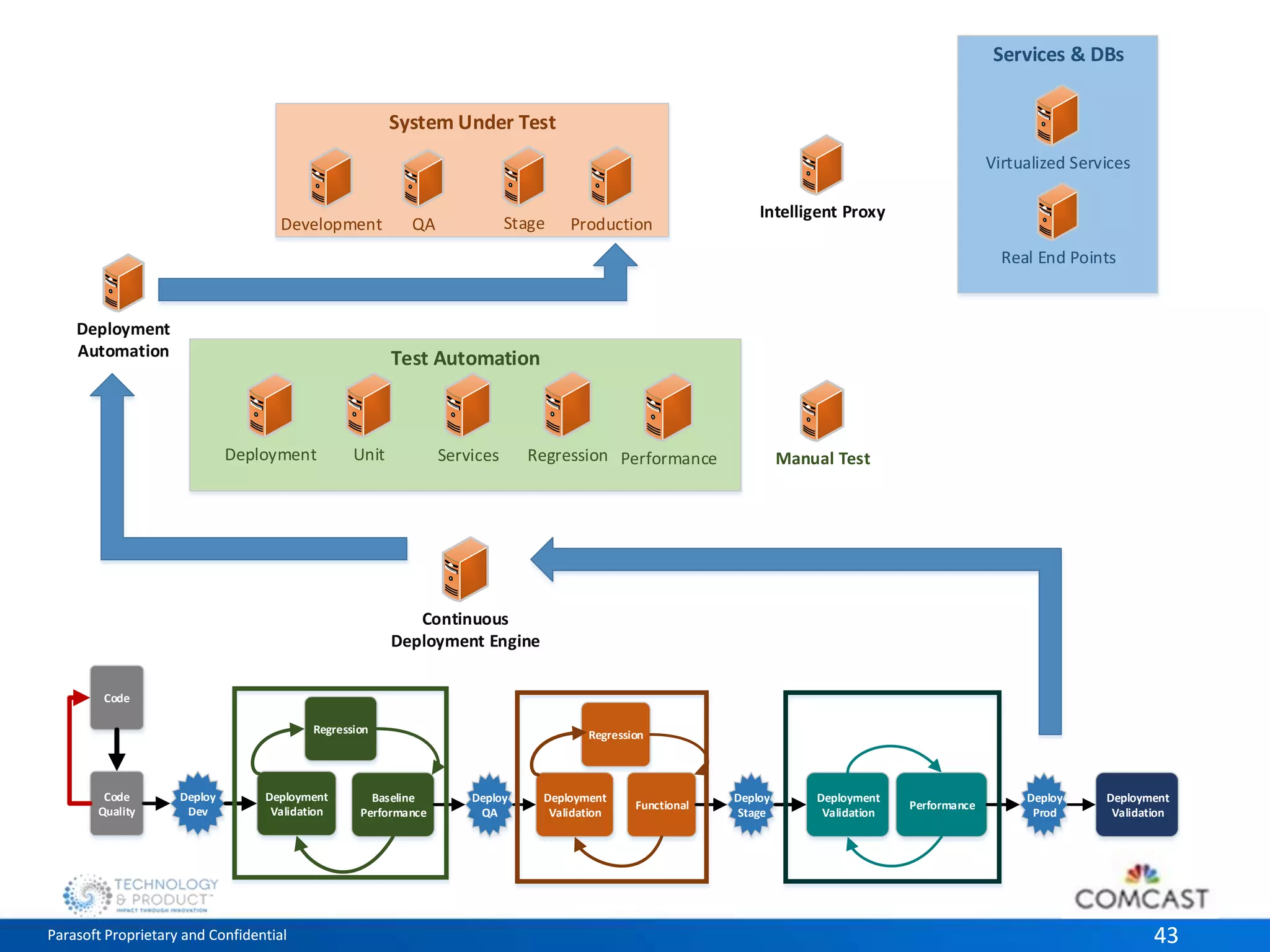

- 43. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 43

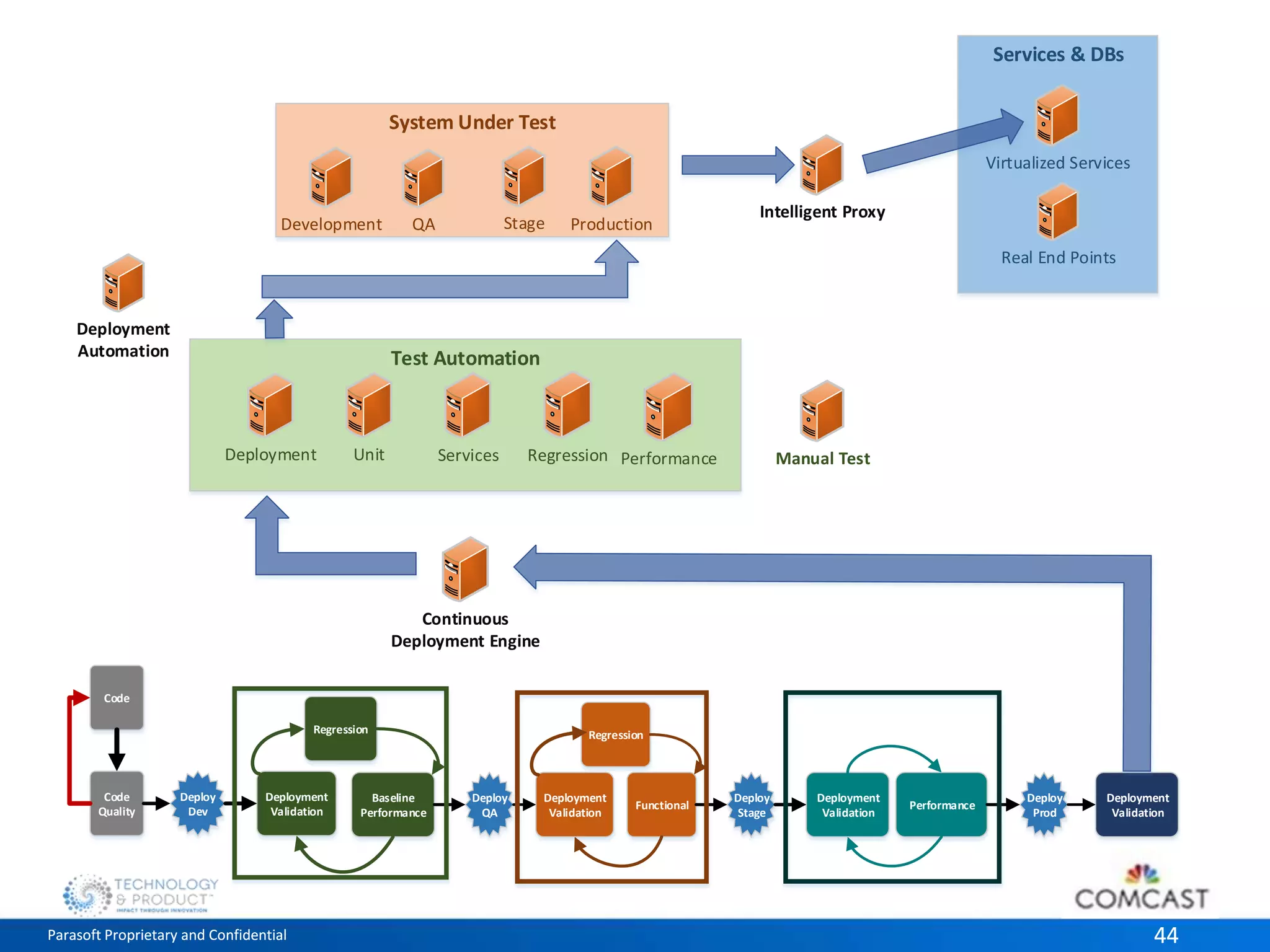

- 44. System Under Test QA Stage Production Test Automation Services & DBs Virtualized Services Real End Points Development Intelligent Proxy Deployment Unit Services Regression Performance Manual Test Deployment Automation Continuous Deployment Engine Code Deploy Dev Regression Deployment Validation Code Quality Regression Baseline Performance Deploy QA Deploy Stage Deploy Prod Deployment Validation Functional Deployment Validation Performance Deployment Validation Parasoft Proprietary and Confidential 44

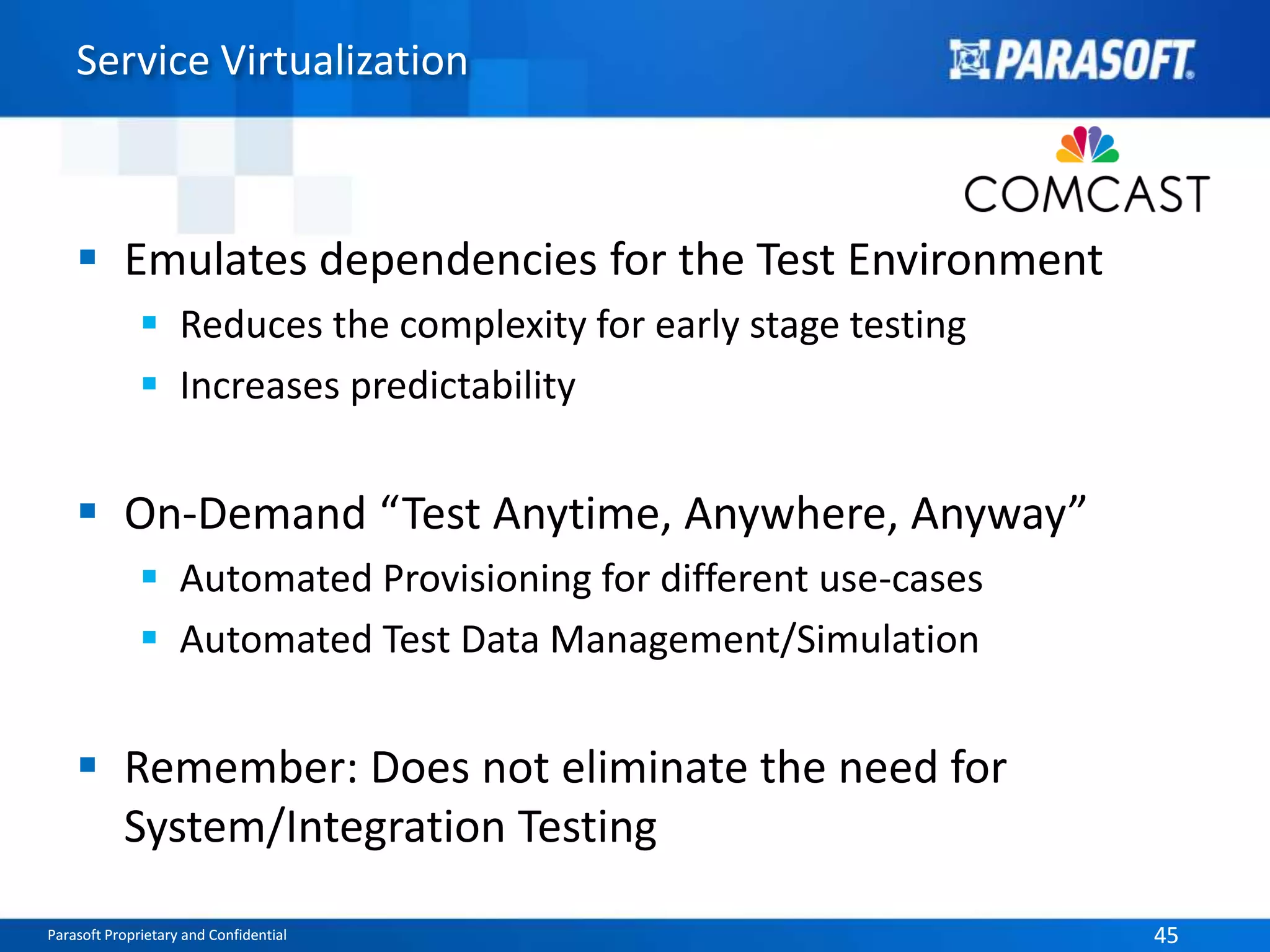

- 45. Service Virtualization Emulates dependencies for the Test Environment Reduces the complexity for early stage testing Increases predictability On-Demand “Test Anytime, Anywhere, Anyway” Automated Provisioning for different use-cases Automated Test Data Management/Simulation Remember: Does not eliminate the need for System/Integration Testing Parasoft Proprietary and Confidential 45
- 46. Thank you Questions? 2014-11-12 Parasoft Proprietary and Confidential 46
