Serverless Stream Processing with Bill Bejeck
- 1.

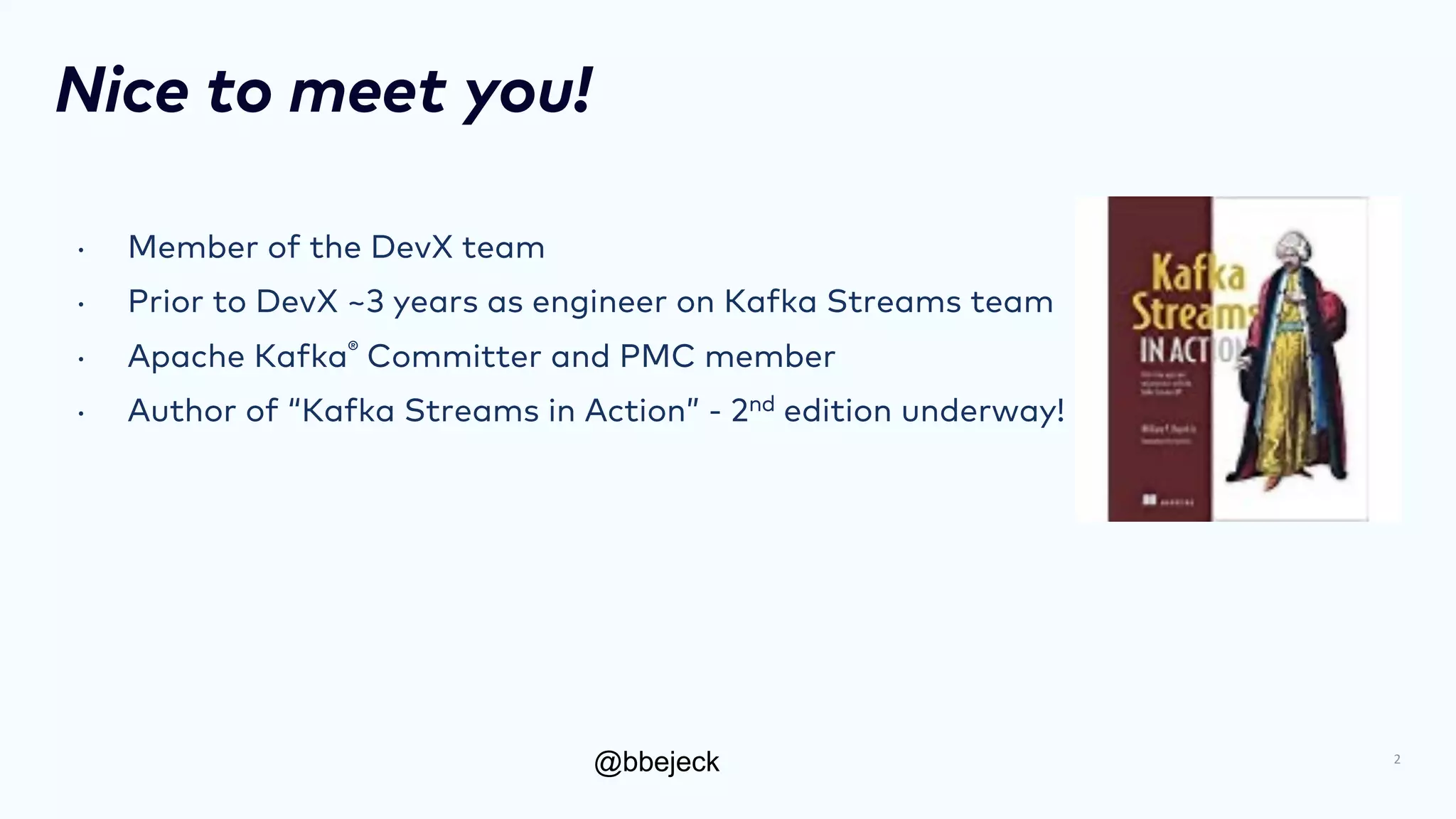

- 2. @bbejeck Nice to meetyou! • Member of the DevX team • Prior to DevX ~3 years as engineer on Kafka Streams team • Apache Kafka® Committer and PMC member • Author of “Kafka Streams in Action” - 2nd edition underway! 2

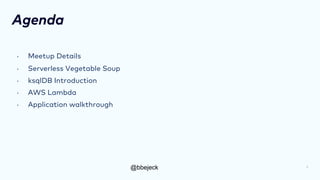

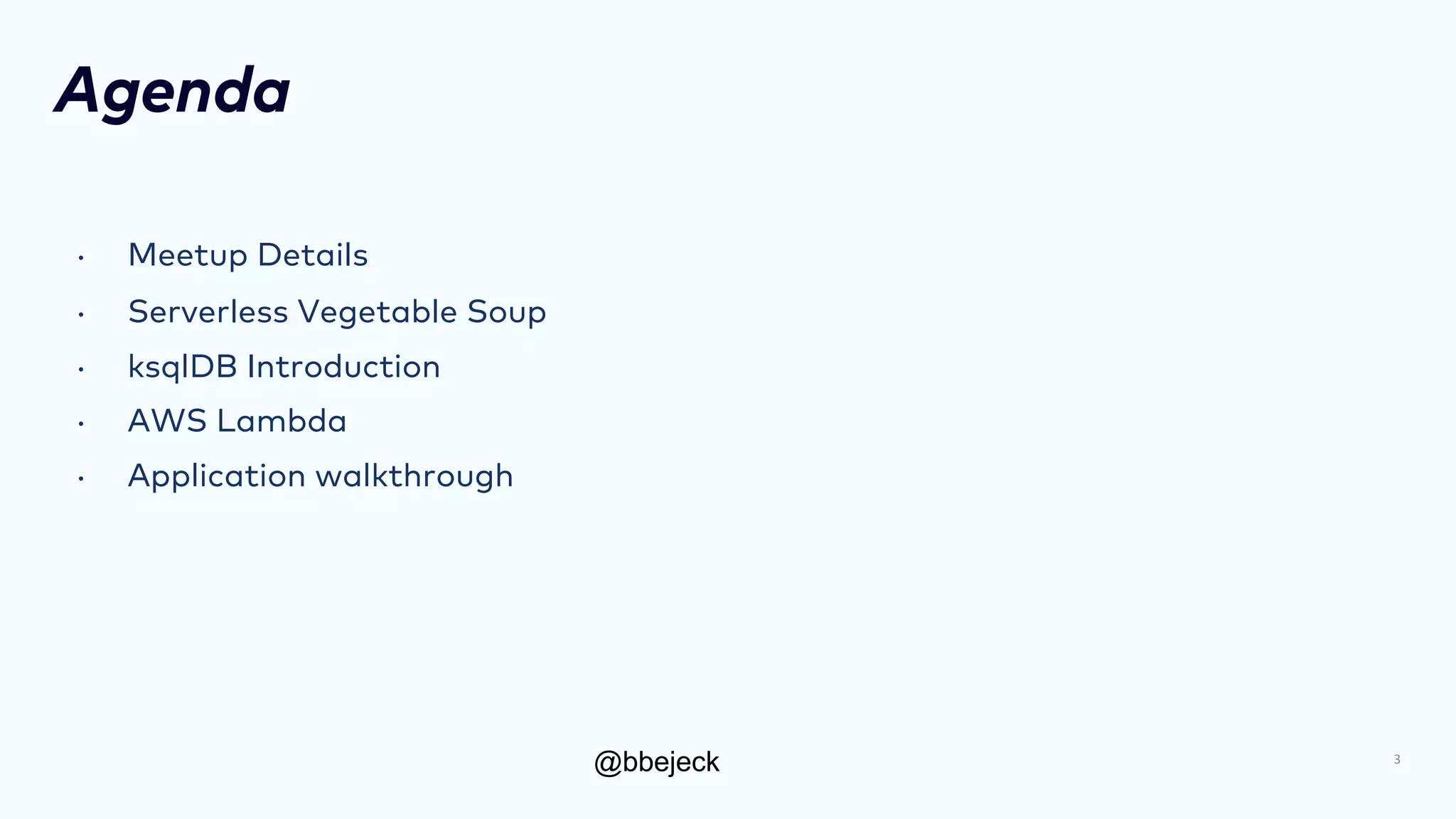

- 3. @bbejeck Agenda • Meetup Details •Serverless Vegetable Soup • ksqlDB Introduction • AWS Lambda • Application walkthrough 3
- 4.

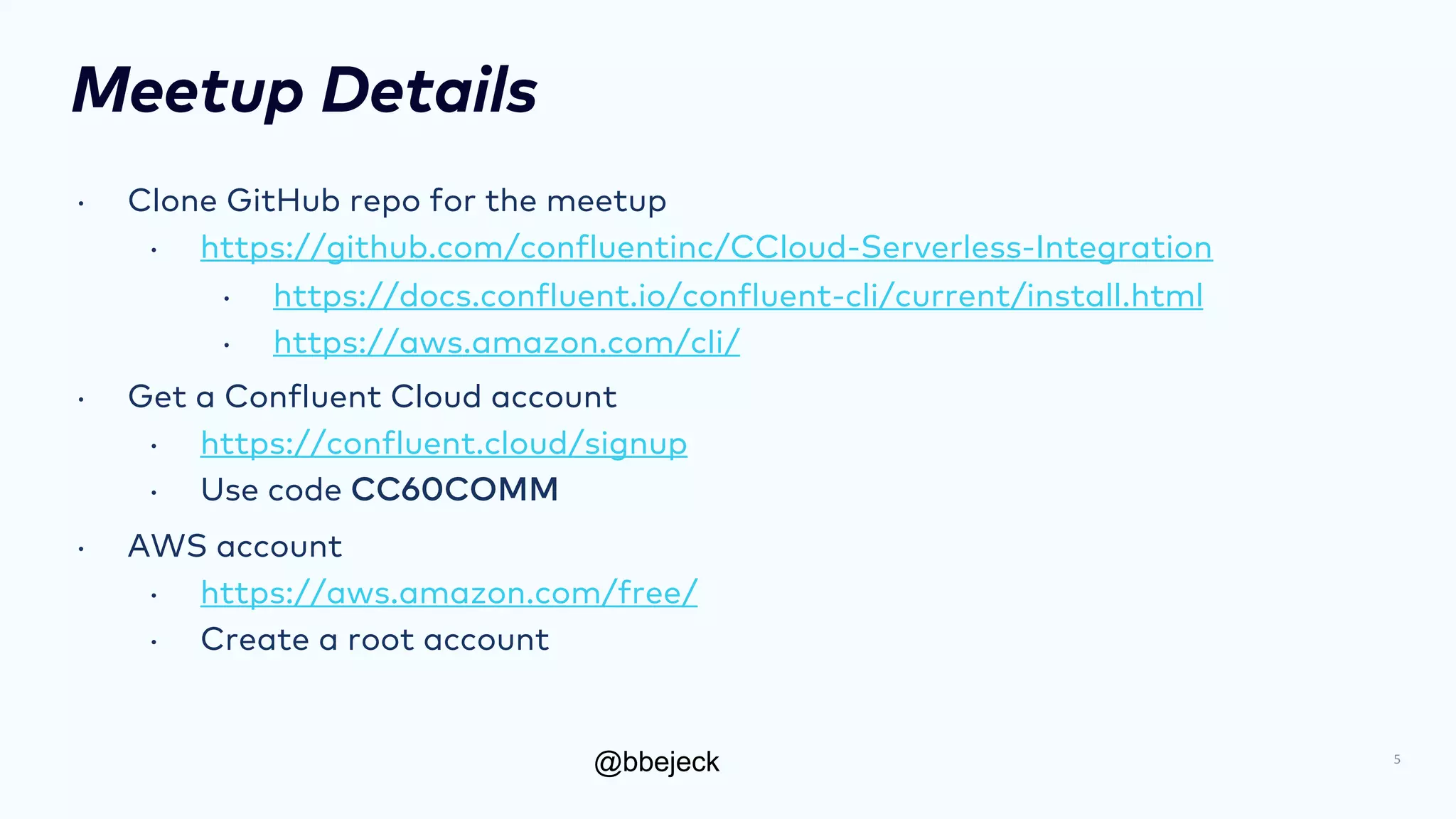

- 5. @bbejeck Meetup Details • CloneGitHub repo for the meetup • https://github.com/confluentinc/CCloud-Serverless-Integration • https://docs.confluent.io/confluent-cli/current/install.html • https://aws.amazon.com/cli/ • Get a Confluent Cloud account • https://confluent.cloud/signup • Use code CC60COMM • AWS account • https://aws.amazon.com/free/ • Create a root account 5

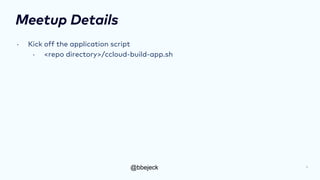

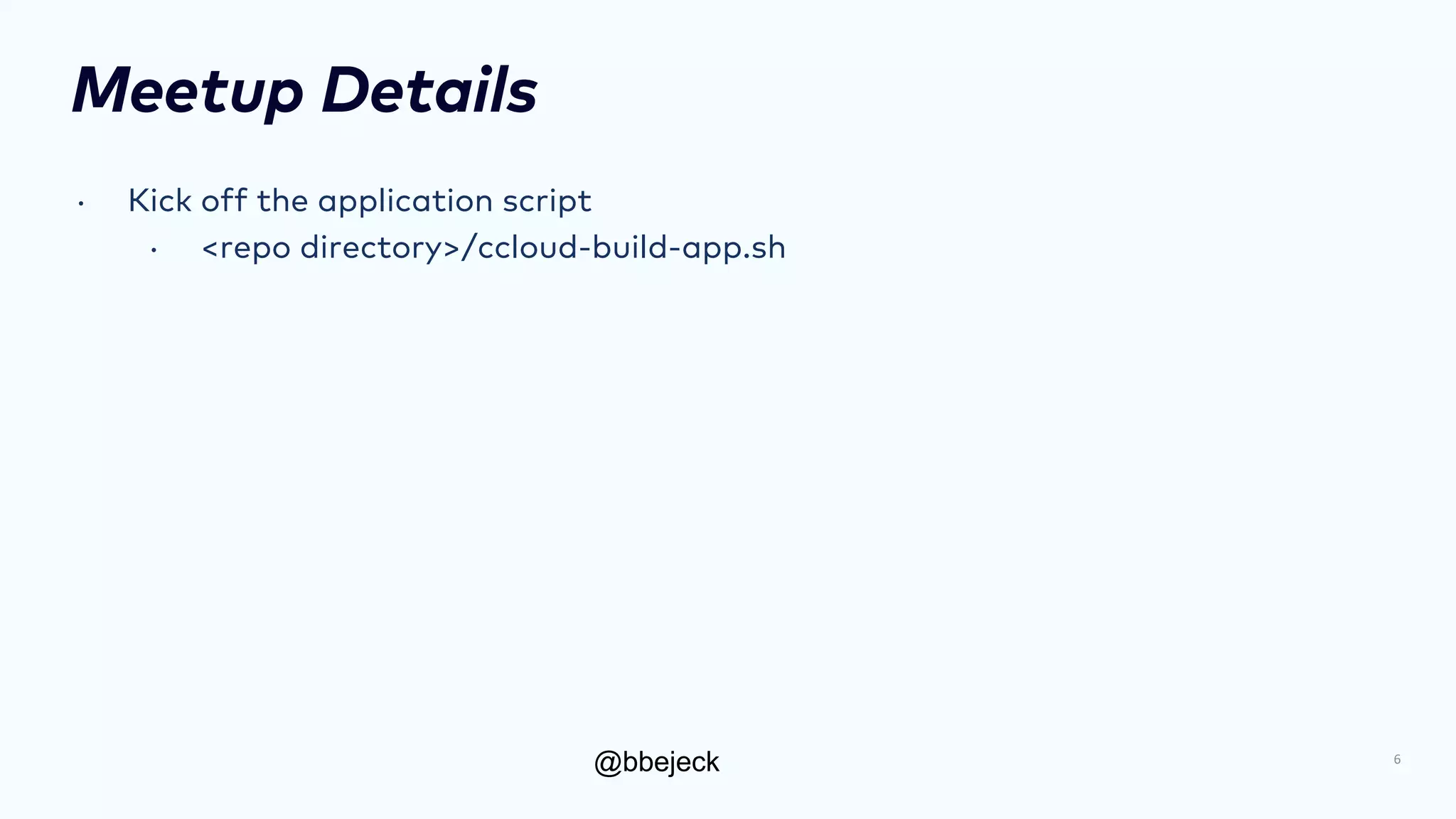

- 6. @bbejeck Meetup Details • Kickoff the application script • <repo directory>/ccloud-build-app.sh 6
- 7.

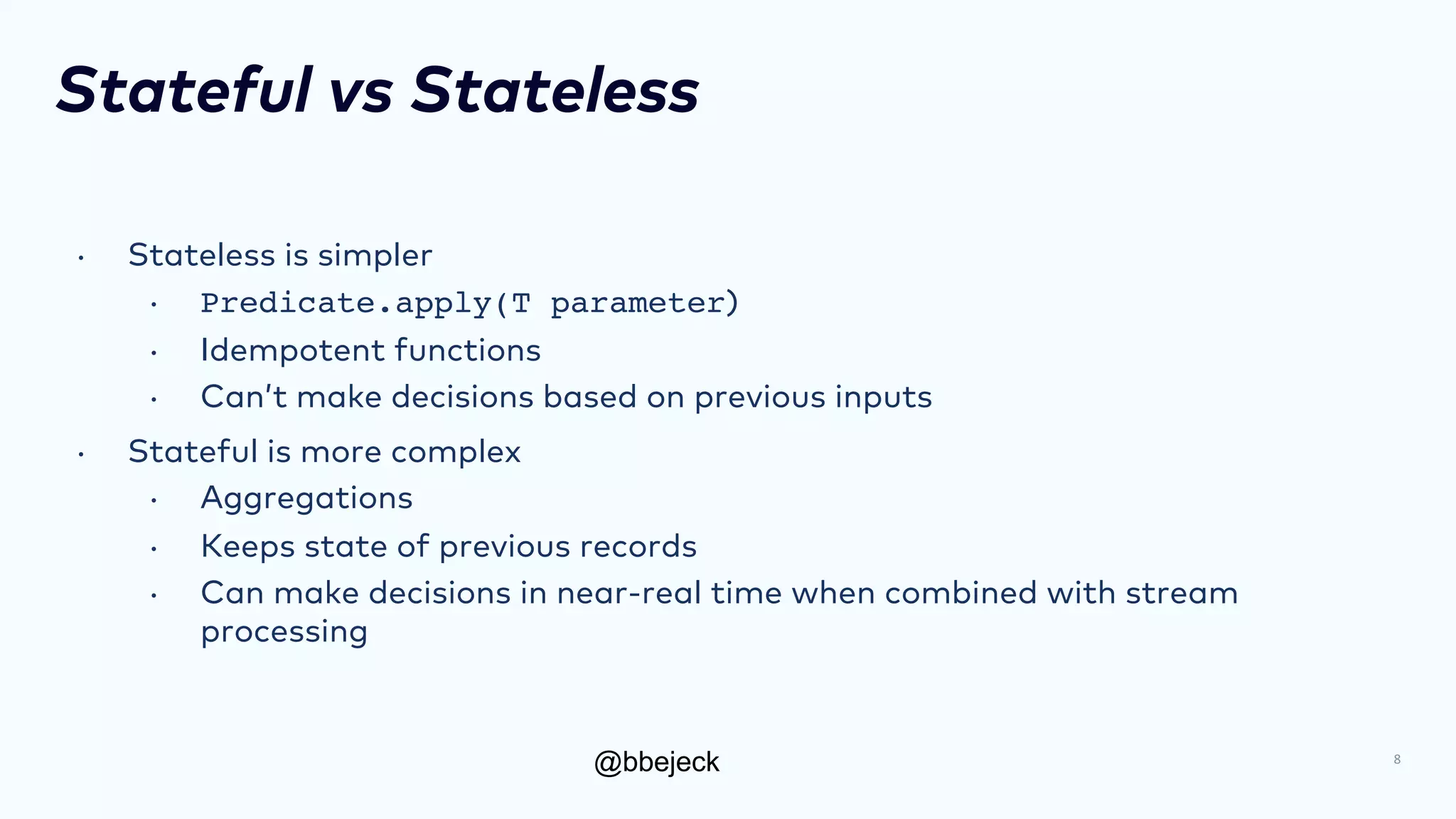

- 8. @bbejeck Stateful vs Stateless •Stateless is simpler • Predicate.apply(T parameter) • Idempotent functions • Can’t make decisions based on previous inputs • Stateful is more complex • Aggregations • Keeps state of previous records • Can make decisions in near-real time when combined with stream processing 8

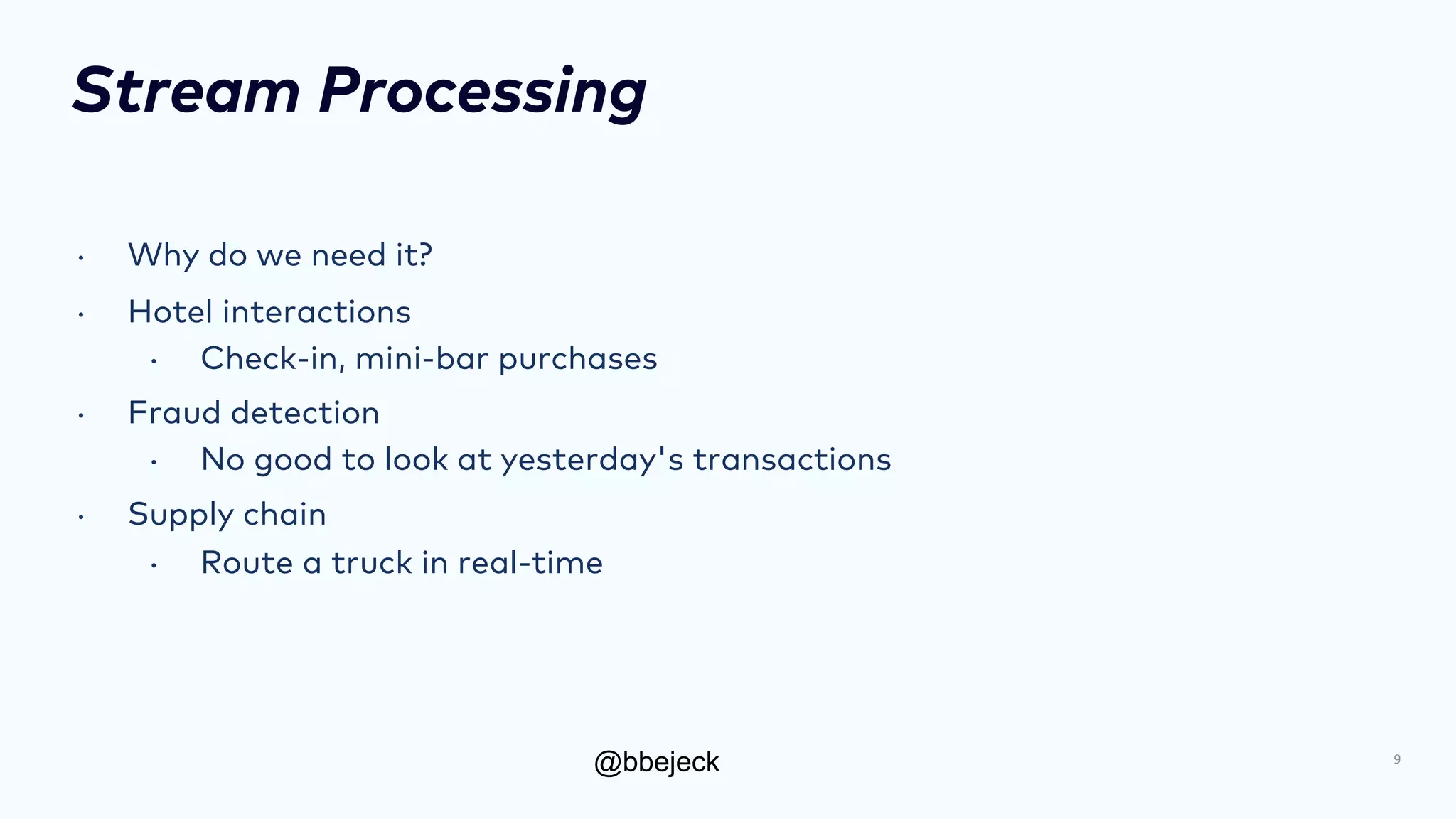

- 9. @bbejeck Stream Processing • Whydo we need it? • Hotel interactions • Check-in, mini-bar purchases • Fraud detection • No good to look at yesterday's transactions • Supply chain • Route a truck in real-time 9

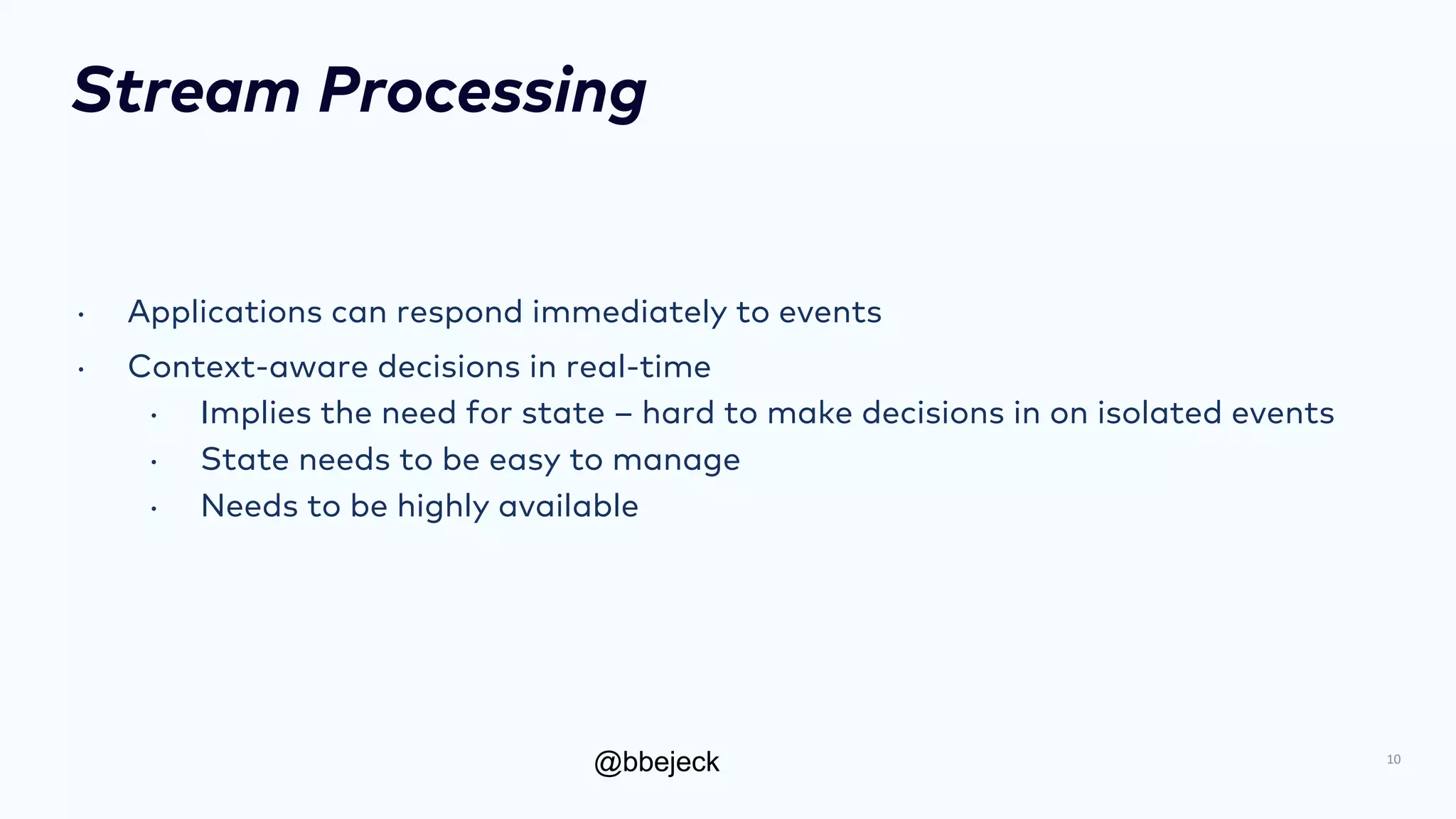

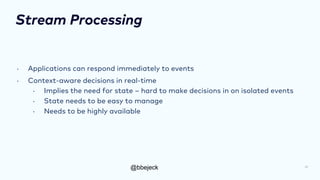

- 10. @bbejeck Stream Processing • Applicationscan respond immediately to events • Context-aware decisions in real-time • Implies the need for state – hard to make decisions in on isolated events • State needs to be easy to manage • Needs to be highly available 10

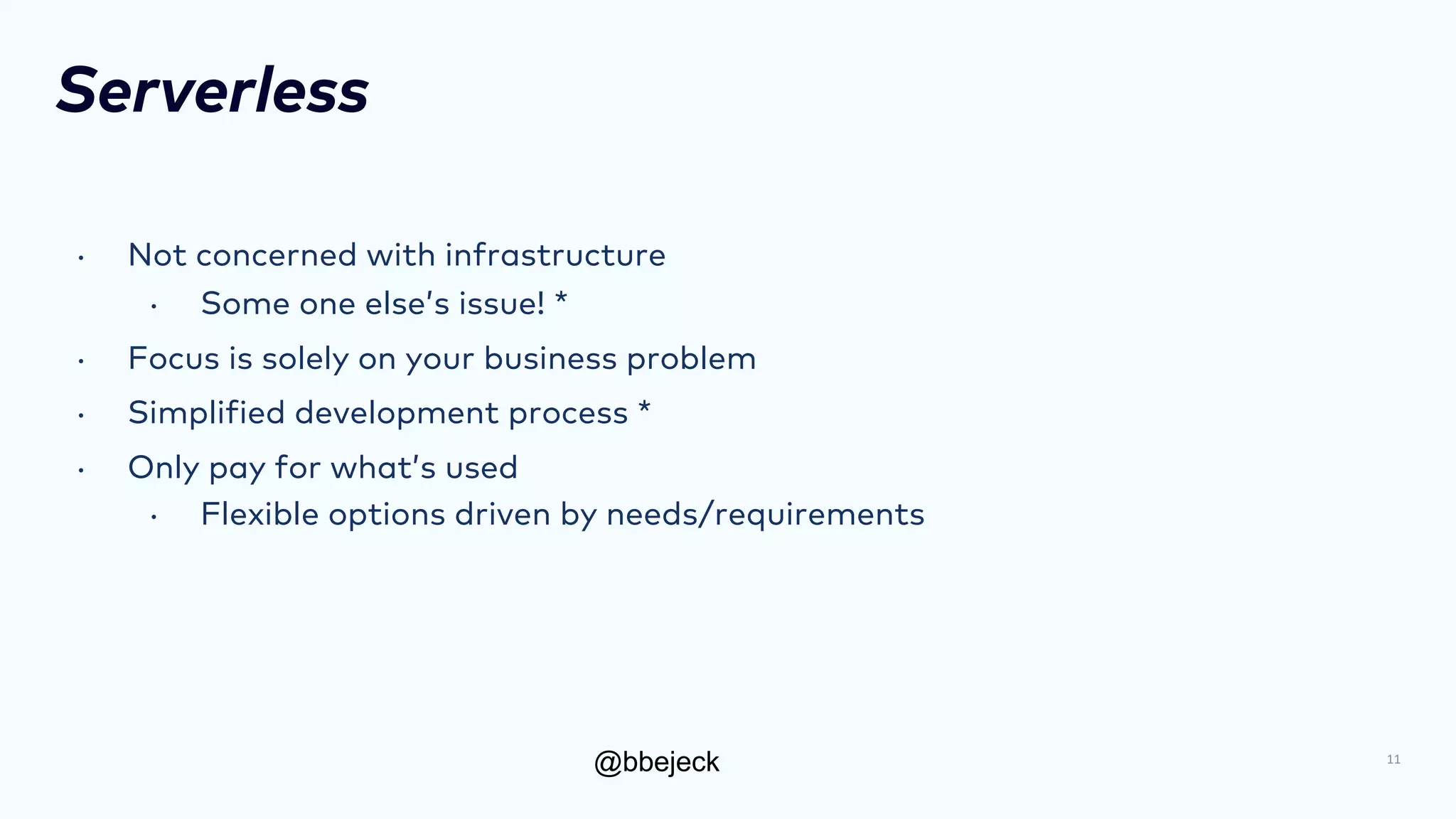

- 11. @bbejeck Serverless • Not concernedwith infrastructure • Some one else’s issue! * • Focus is solely on your business problem • Simplified development process * • Only pay for what’s used • Flexible options driven by needs/requirements 11

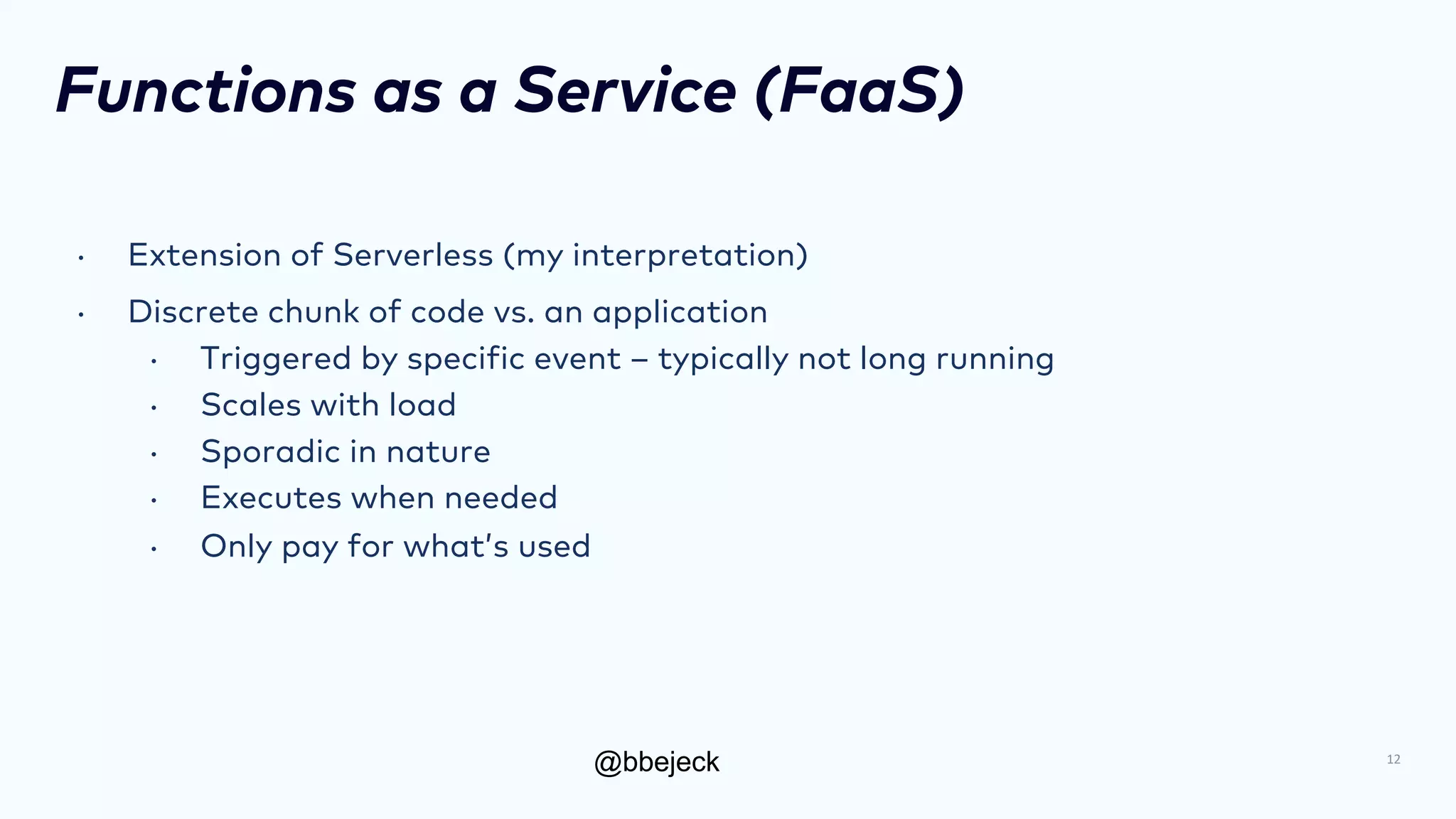

- 12. @bbejeck Functions as aService (FaaS) • Extension of Serverless (my interpretation) • Discrete chunk of code vs. an application • Triggered by specific event – typically not long running • Scales with load • Sporadic in nature • Executes when needed • Only pay for what’s used 12
- 13.

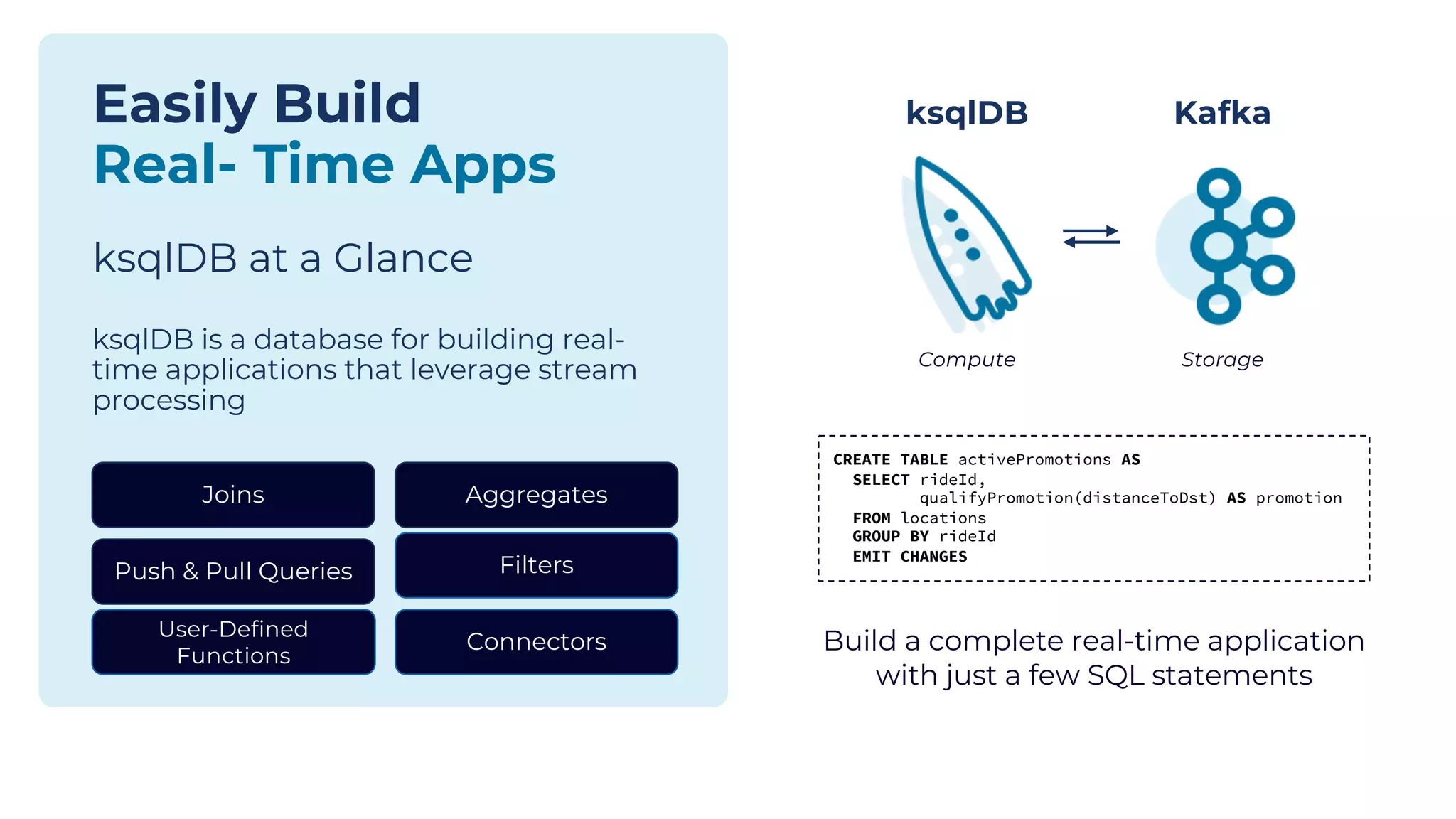

- 14. Compute Storage CREATE TABLEactivePromotions AS SELECT rideId, qualifyPromotion(distanceToDst) AS promotion FROM locations GROUP BY rideId EMIT CHANGES ksqlDB Kafka Build a complete real-time application with just a few SQL statements Easily Build Real- Time Apps ksqlDB at a Glance ksqlDB is a database for building real- time applications that leverage stream processing Joins Aggregates Push & Pull Queries Filters User-Defined Functions Connectors

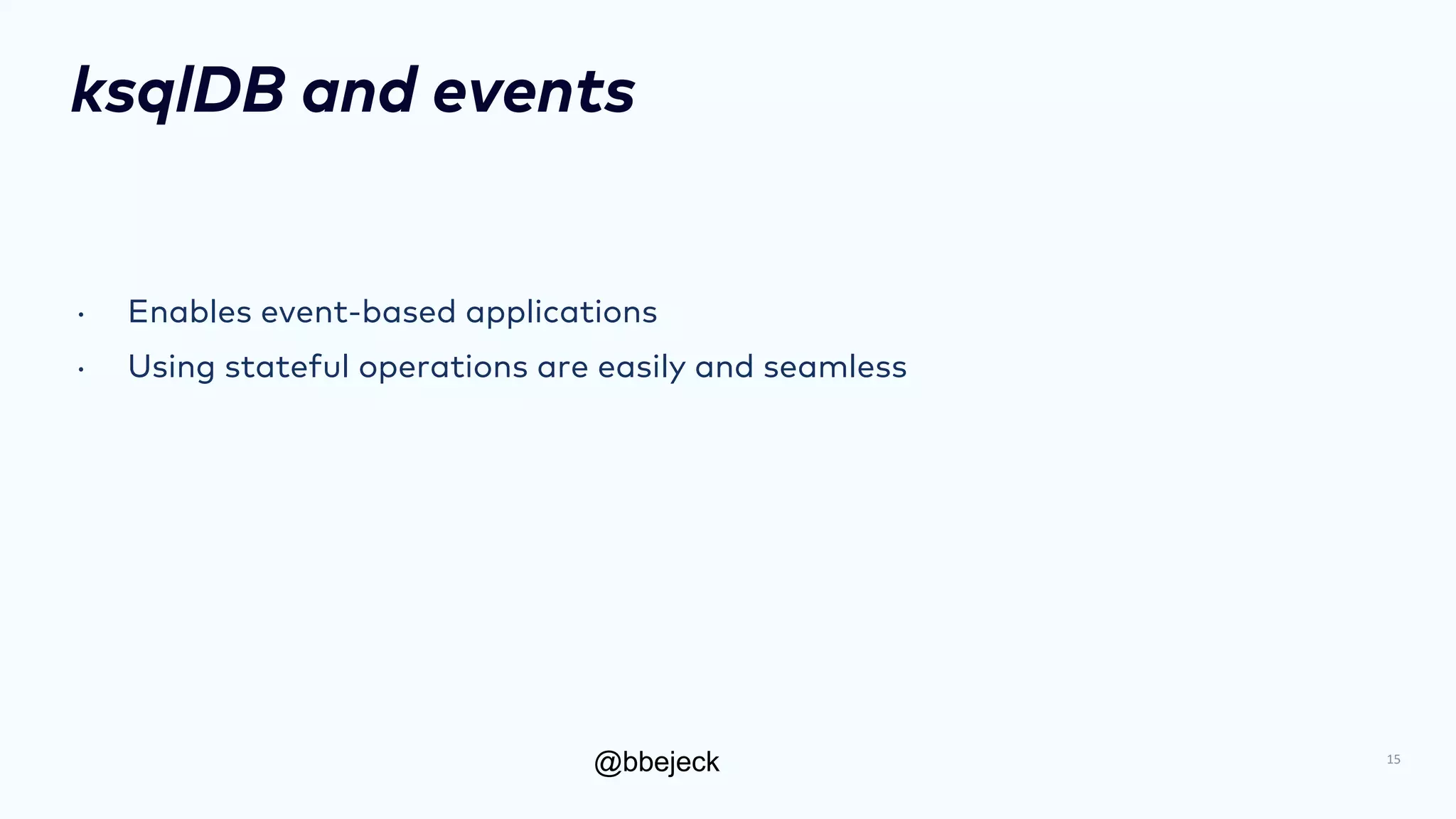

- 15. @bbejeck ksqlDB and events •Enables event-based applications • Using stateful operations are easily and seamless 15
- 16. @bbejeck ksqlDB Input Data { ”side":”BUY", ”quantity": 2000, ”symbol": ”CFLT", ”price": 100, ”account": “Vandeley”, "userid": 100 } 16

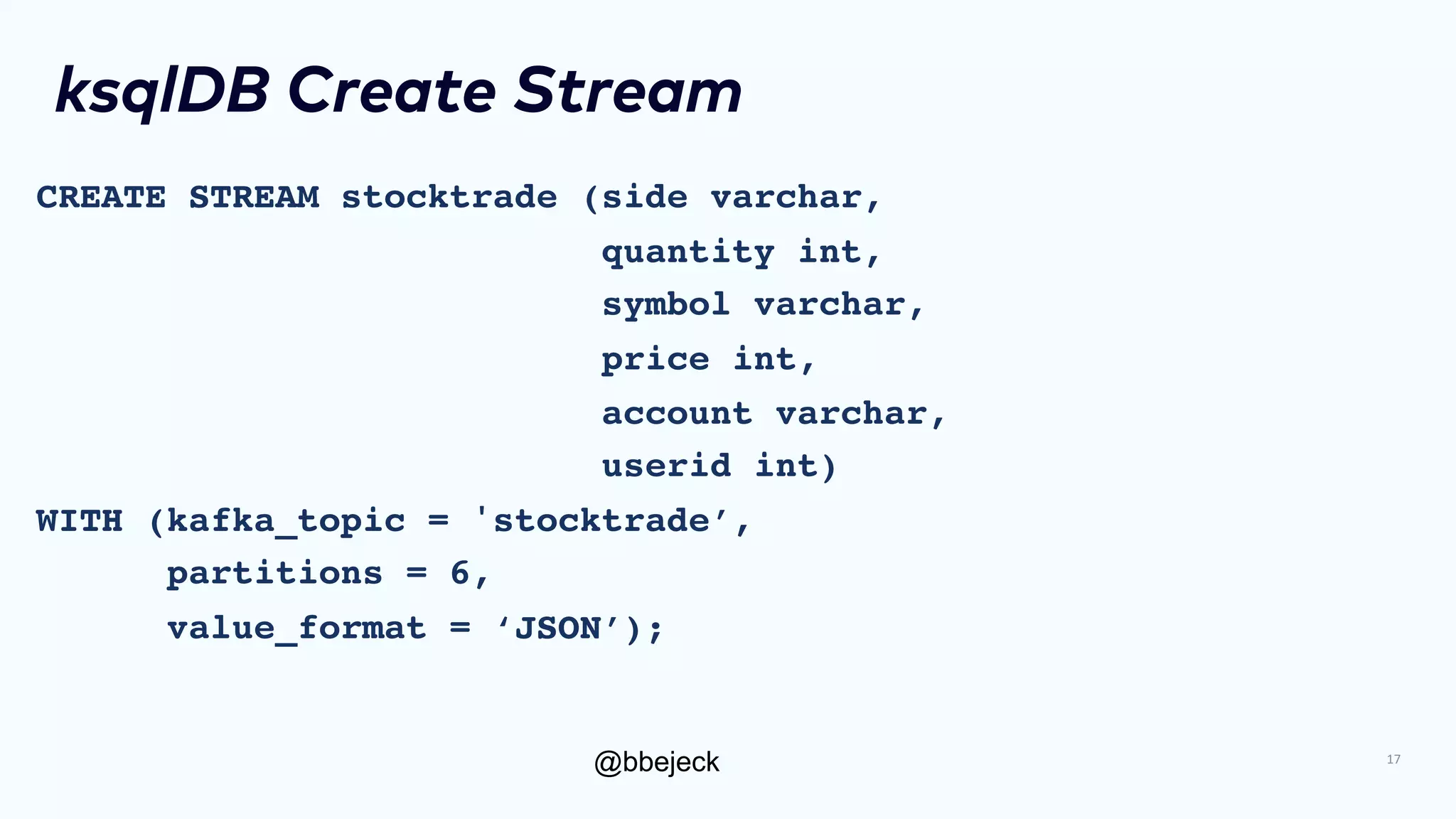

- 17. @bbejeck ksqlDB Create Stream CREATESTREAM stocktrade (side varchar, quantity int, symbol varchar, price int, account varchar, userid int) WITH (kafka_topic = 'stocktrade’, partitions = 6, value_format = ‘JSON’); 17

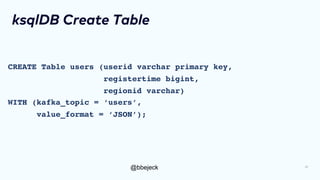

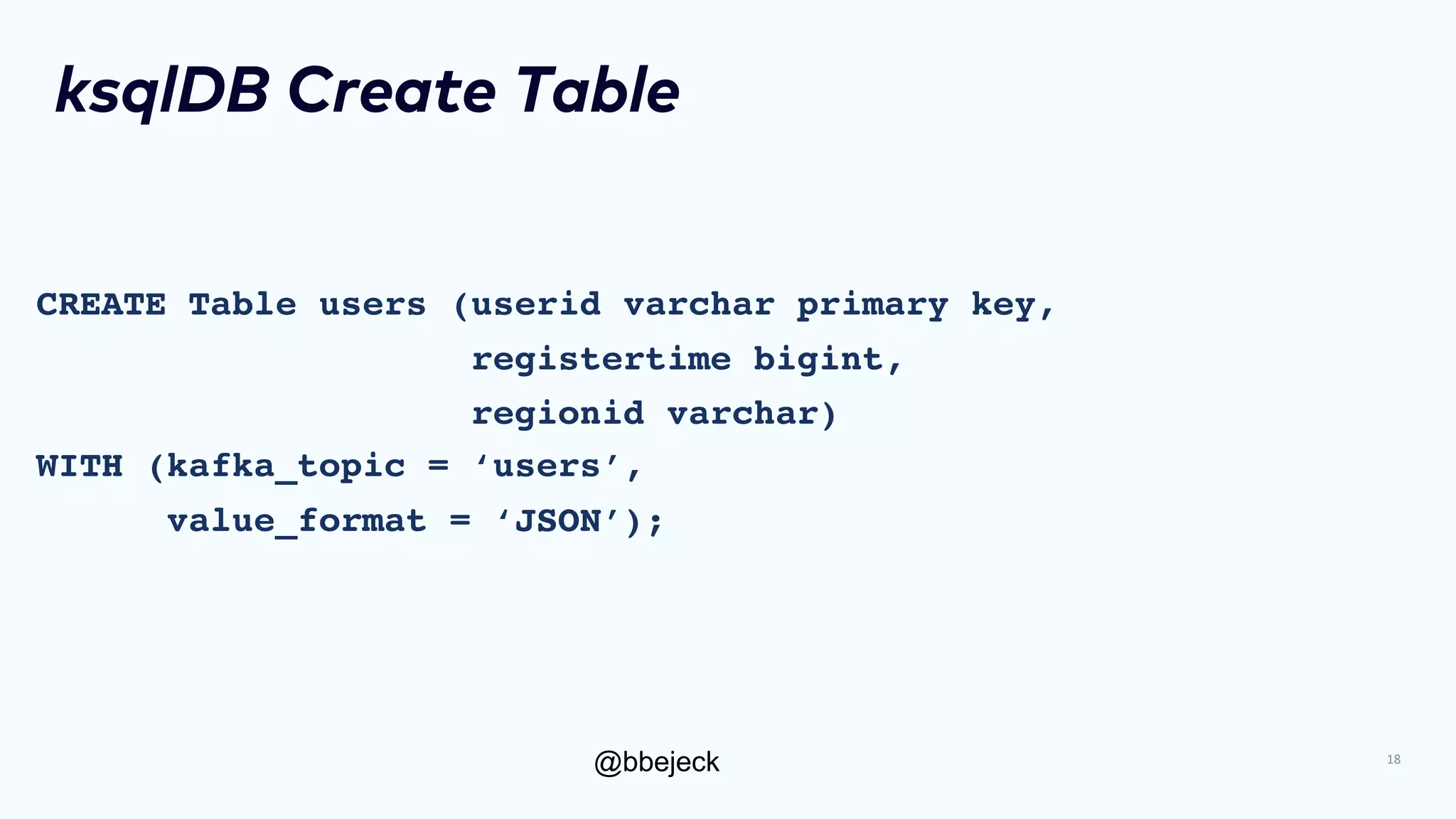

- 18. @bbejeck ksqlDB Create Table CREATETable users (userid varchar primary key, registertime bigint, regionid varchar) WITH (kafka_topic = ‘users’, value_format = ‘JSON’); 18

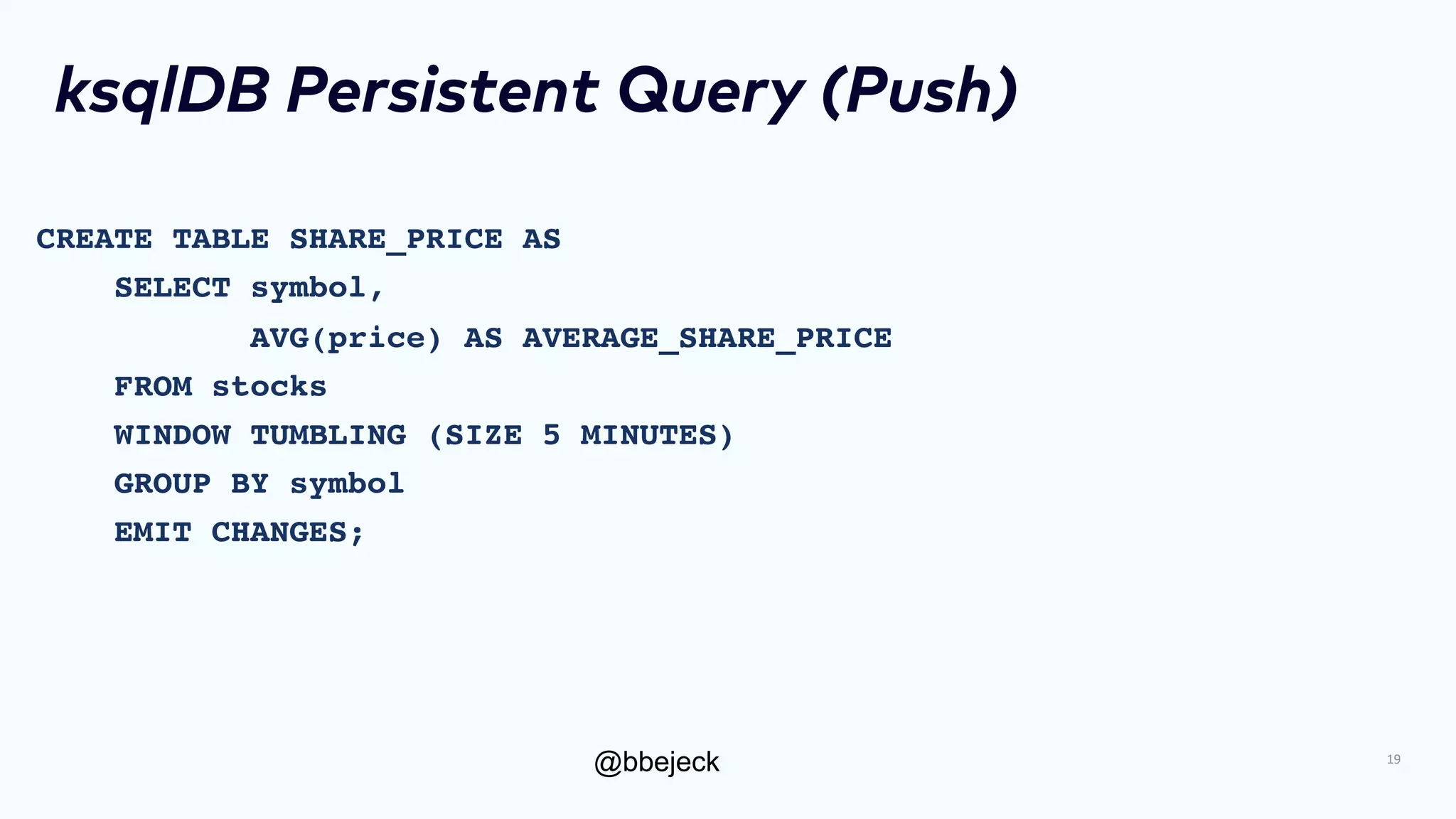

- 19. @bbejeck ksqlDB Persistent Query(Push) CREATE TABLE SHARE_PRICE AS SELECT symbol, AVG(price) AS AVERAGE_SHARE_PRICE FROM stocks WINDOW TUMBLING (SIZE 5 MINUTES) GROUP BY symbol EMIT CHANGES; 19

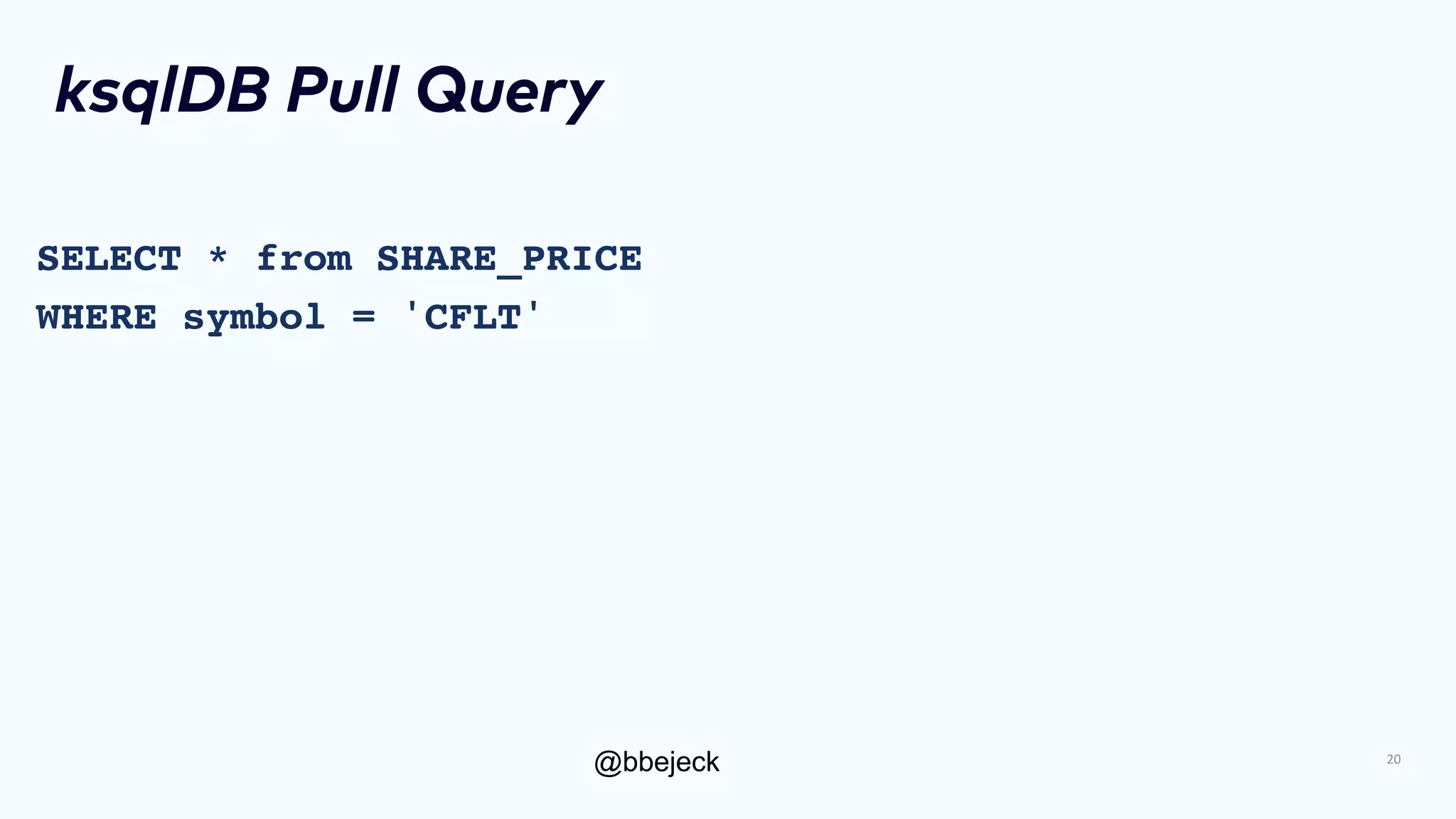

- 20. @bbejeck ksqlDB Pull Query SELECT* from SHARE_PRICE WHERE symbol = 'CFLT' 20
- 21.
- 22.
- 23.
- 24.

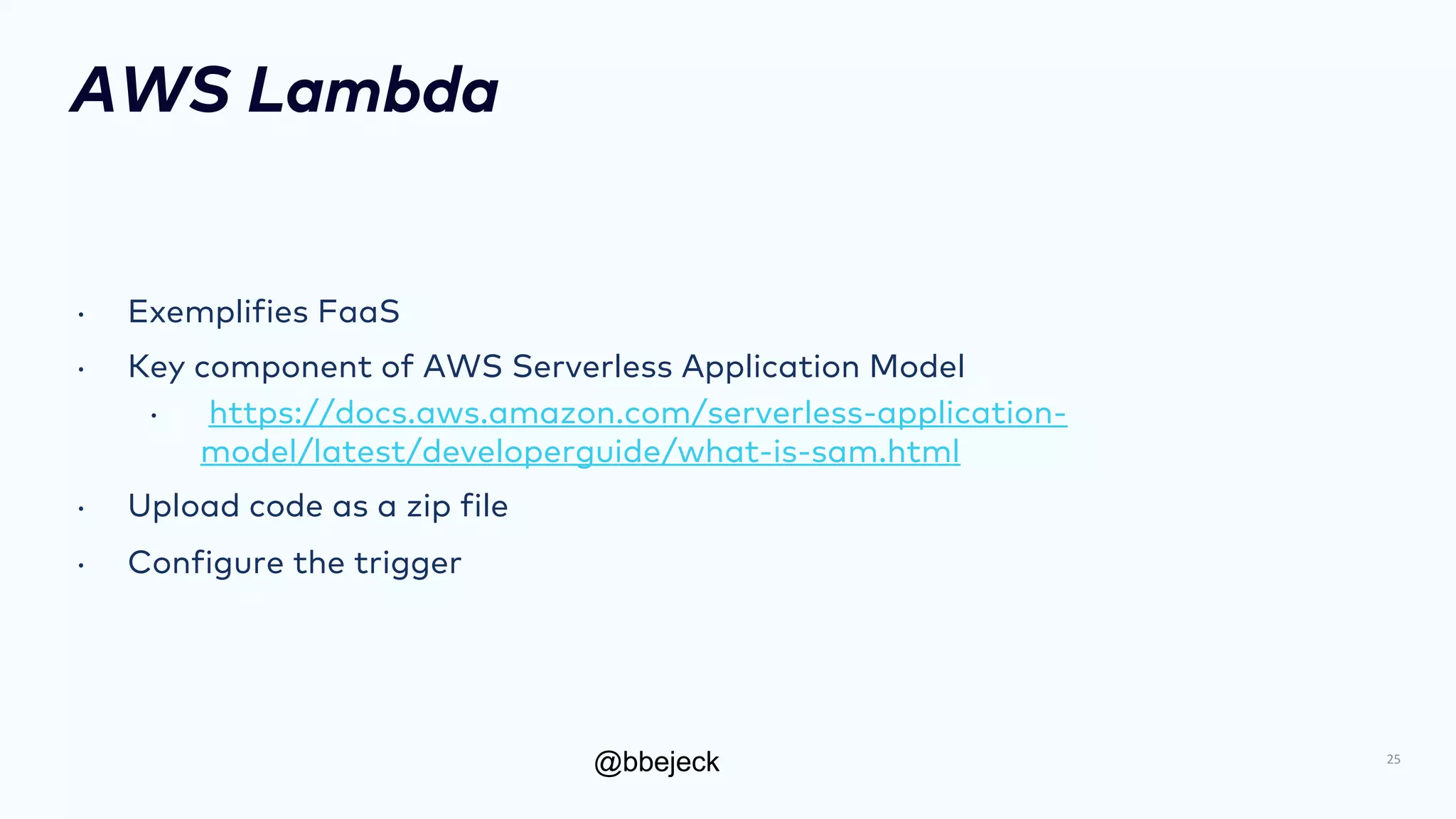

- 25. @bbejeck AWS Lambda • ExemplifiesFaaS • Key component of AWS Serverless Application Model • https://docs.aws.amazon.com/serverless-application- model/latest/developerguide/what-is-sam.html • Upload code as a zip file • Configure the trigger 25
- 26.
- 27.

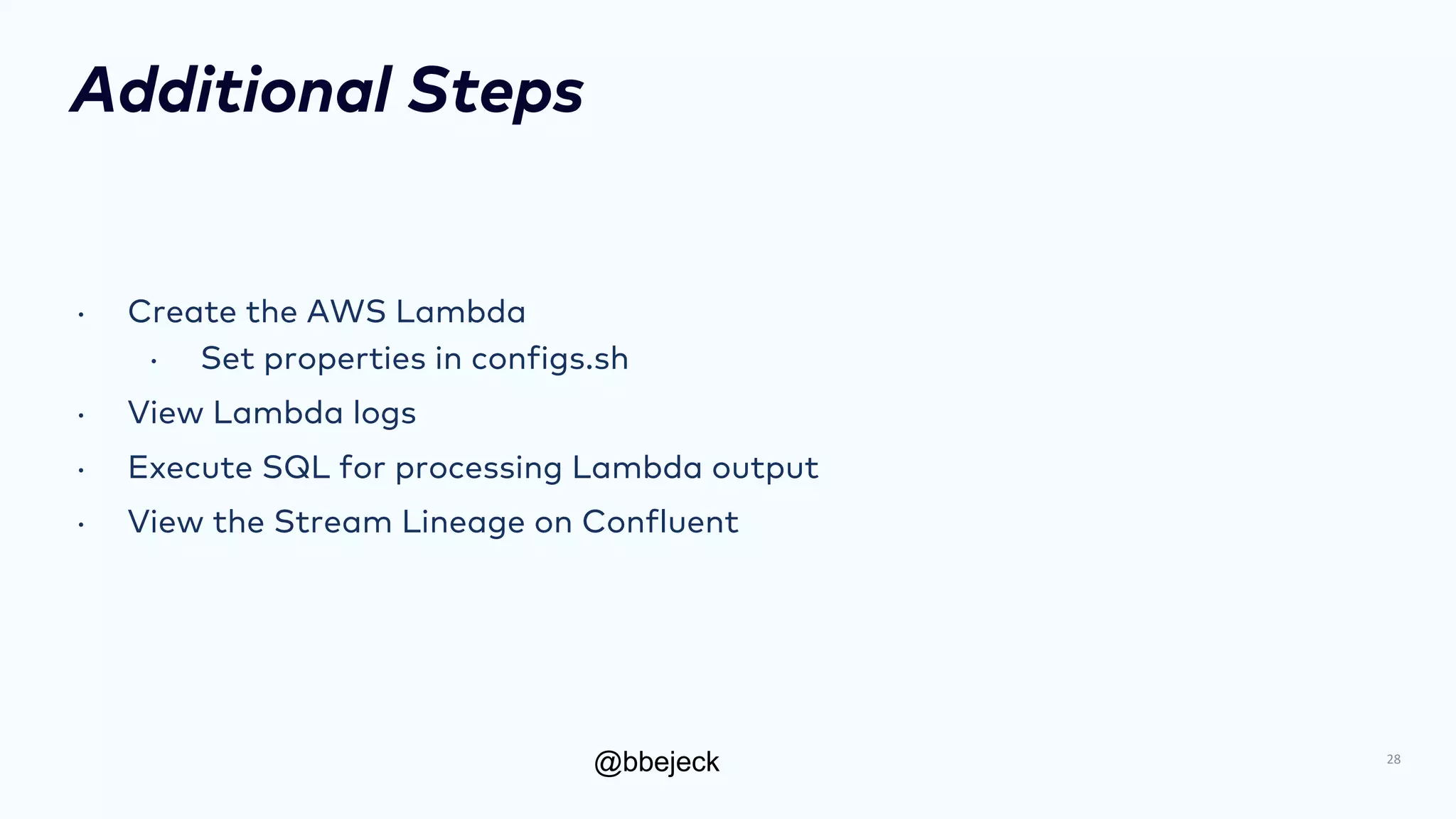

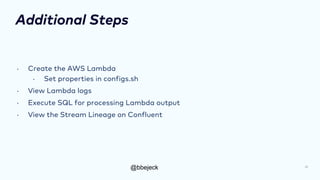

- 28. @bbejeck Additional Steps • Createthe AWS Lambda • Set properties in configs.sh • View Lambda logs • Execute SQL for processing Lambda output • View the Stream Lineage on Confluent 28

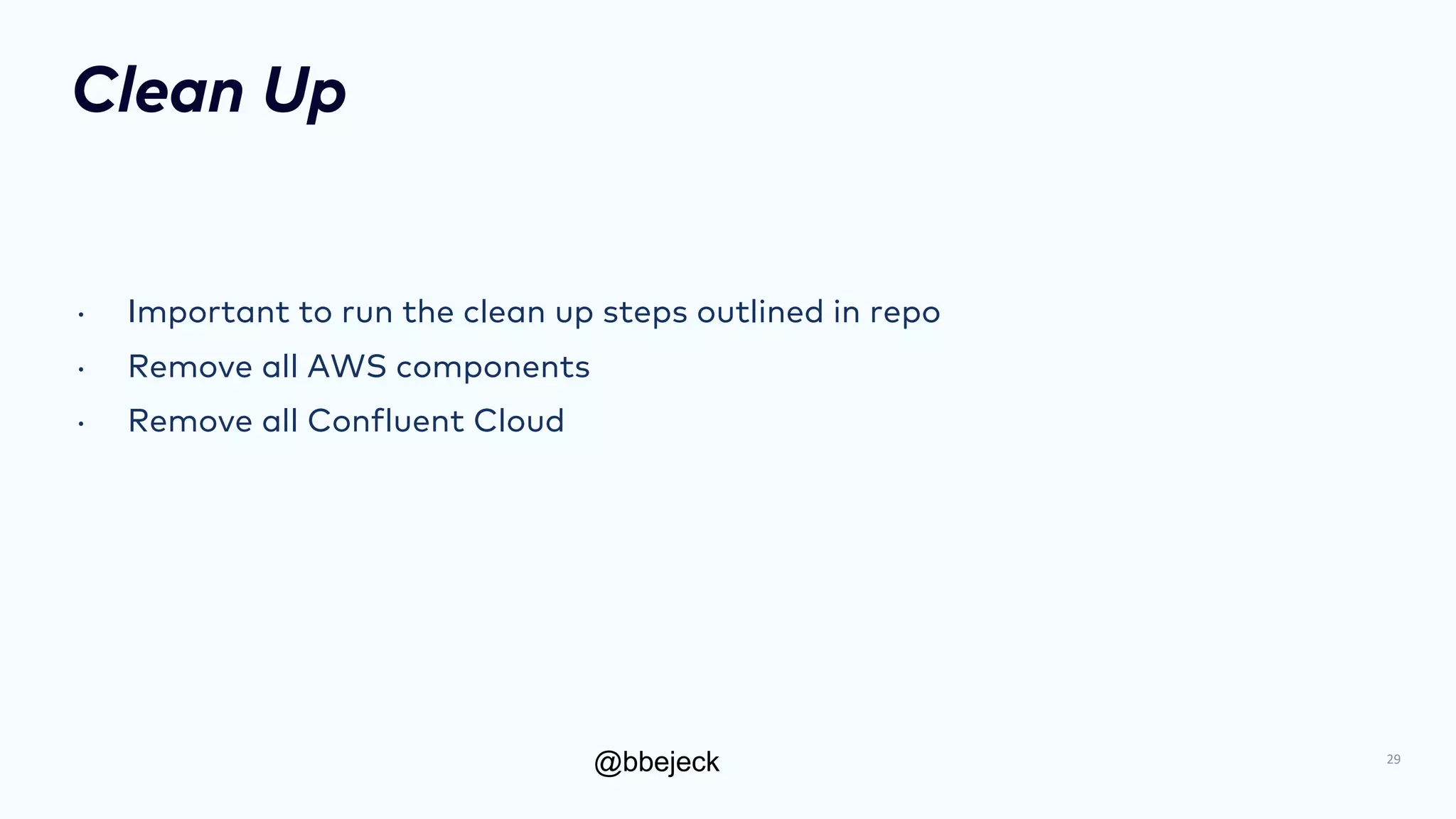

- 29. @bbejeck Clean Up • Importantto run the clean up steps outlined in repo • Remove all AWS components • Remove all Confluent Cloud 29

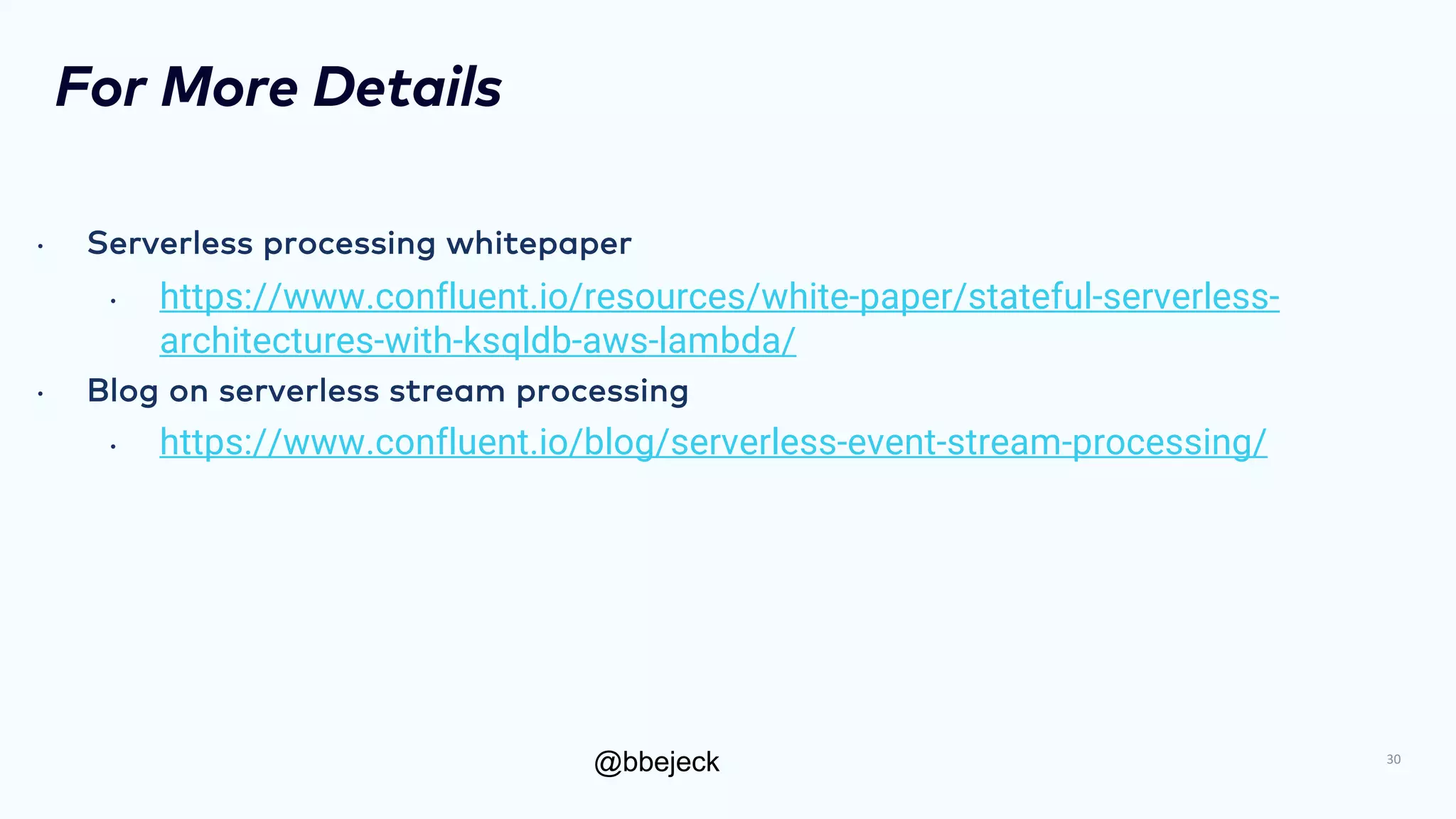

- 30. @bbejeck For More Details •Serverless processing whitepaper • https://www.confluent.io/resources/white-paper/stateful-serverless- architectures-with-ksqldb-aws-lambda/ • Blog on serverless stream processing • https://www.confluent.io/blog/serverless-event-stream-processing/ 30

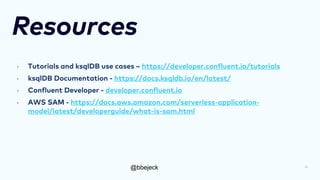

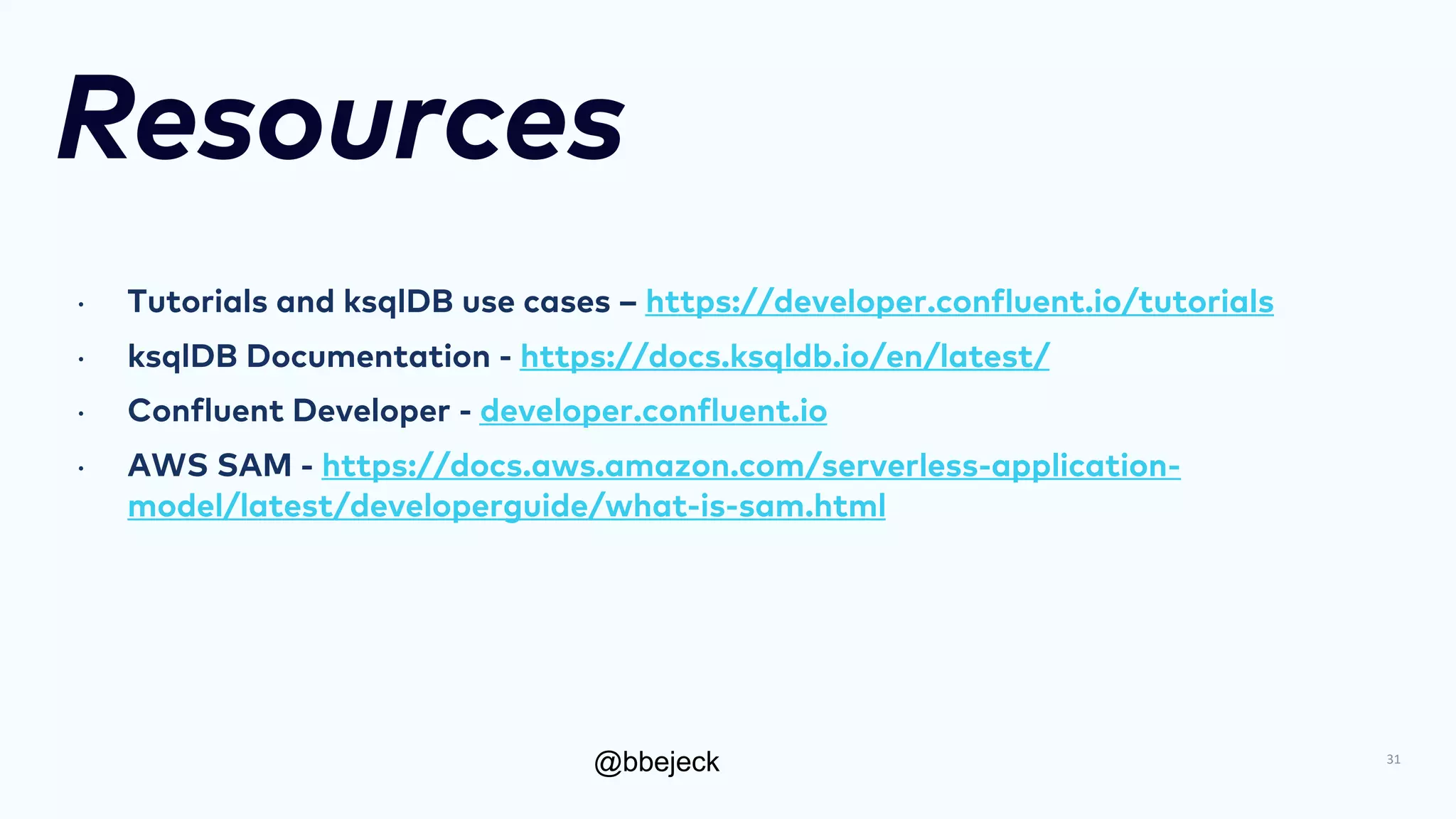

- 31. @bbejeck Resources • Tutorials andksqlDB use cases – https://developer.confluent.io/tutorials • ksqlDB Documentation - https://docs.ksqldb.io/en/latest/ • Confluent Developer - developer.confluent.io • AWS SAM - https://docs.aws.amazon.com/serverless-application- model/latest/developerguide/what-is-sam.html 31
