- 1. Sponsored by Serverless iPaaS inAzure Dan Toomey
- 2. Dan Toomey • PrincipalConsultant, Mexia • Microsoft Azure MVP • MCSE, MCT, MCPD, MCTS BizTalk & Azure • Pluralsight Author • www.mindovermessaging.com • @daniel2me Who Am I?
- 3. Acknowledgements Paco de laCruz @PacoDeLaCruz

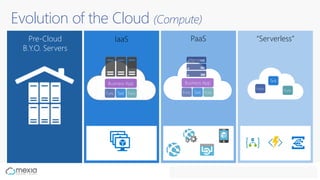

- 4. Evolution of theCloud (Compute) Pre-Cloud B.Y.O. Servers IaaS PaaS “Serverless”

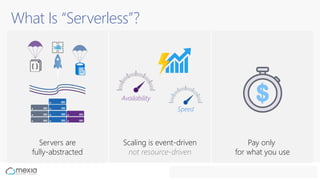

- 5. What Is “Serverless”? Serversare fully-abstracted Scaling is event-driven not resource-driven Pay only for what you use Availability Speed

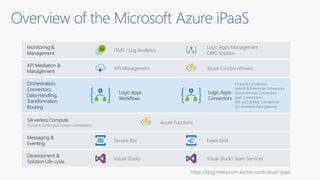

- 6. Overview of theMicrosoft Azure iPaaS API Management Azure Function Proxies API Mediation & Management Messaging & Eventing Service Bus Event Grid Development & Solution Life-cycle Visual Studio Visual Studio Team Services Monitoring & Management OMS / Log Analytics Logic Apps Management OMS Solution Logic Apps Workflows Orchestration, Connectors, Data Handling, Transformation Routing Logic Apps Connectors Protocol Connectors Hybrid & Enterprise Connectors Azure Services Connectors SaaS Connectors EDI, AS2 & XML Connectors On-premises data gateway Serverless Compute (Custom Code and Custom Connectors) Azure Functions https://blog.mexia.com.au/microsoft-azure-ipaas

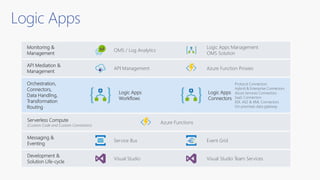

- 7. Logic Apps API ManagementAzure Function Proxies API Mediation & Management Messaging & Eventing Service Bus Event Grid Development & Solution Life-cycle Visual Studio Visual Studio Team Services Monitoring & Management OMS / Log Analytics Logic Apps Management OMS Solution Logic Apps Workflows Orchestration, Connectors, Data Handling, Transformation Routing Logic Apps Connectors Protocol Connectors Hybrid & Enterprise Connectors Azure Services Connectors SaaS Connectors EDI, AS2 & XML Connectors On-premises data gateway Serverless Compute (Custom Code and Custom Connectors) Azure Functions

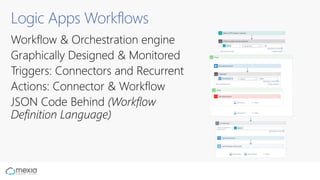

- 8. Logic Apps Workflows Workflow& Orchestration engine Graphically Designed & Monitored Triggers: Connectors and Recurrent Actions: Connector & Workflow JSON Code Behind (Workflow Definition Language)

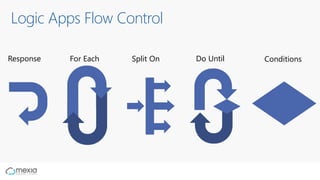

- 9. Logic Apps FlowControl Response For Each Split On Do Until Conditions

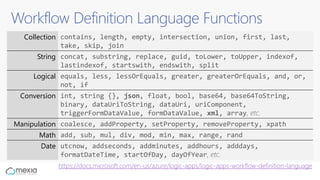

- 10. Workflow Definition LanguageFunctions Collection contains, length, empty, intersection, union, first, last, take, skip, join String concat, substring, replace, guid, toLower, toUpper, indexof, lastindexof, startswith, endswith, split Logical equals, less, lessOrEquals, greater, greaterOrEquals, and, or, not, if Conversion int, string {}, json, float, bool, base64, base64ToString, binary, dataUriToString, dataUri, uriComponent, triggerFormDataValue, formDataValue, xml, array, etc. Manipulation coalesce, addProperty, setProperty, removeProperty, xpath Math add, sub, mul, div, mod, min, max, range, rand Date utcnow, addseconds, addminutes, addhours, adddays, formatDateTime, startOfDay, dayOfYear, etc. https://docs.microsoft.com/en-us/azure/logic-apps/logic-apps-workflow-definition-language

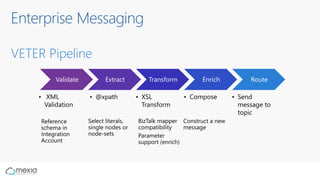

- 11. Enterprise Messaging VETER Pipeline Validate •XML Validation Extract • @xpath Transform • XSL Transform Enrich • Compose Route • Send message to topic

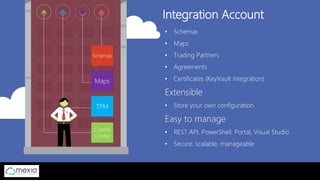

- 12. Integration Account • Schemas •Maps • Trading Partners • Agreements • Certificates (KeyVault integration) Extensible • Store your own configuration Easy to manage • REST API, PowerShell, Portal, Visual Studio • Secure, scalable, manageable Schemas Maps TPM Custom Config

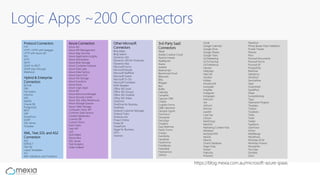

- 13. Logic Apps ~200Connectors Azure Connectors Azure AD Azure API Management Azure App Services Azure Application Insights Azure Automation Azure Blob Storage Azure Container Instance Azure Data Lake Azure Data Factory Azure Event Grid Azure File Storage Azure Functions Azure Kusto Azure Logic Apps Azure ML Azure Resource Manager Azure Security Center Azure SQL Data Warehouse Azure Storage Queues Azure Table Storage Computer Vision API Common Data Service Content Moderator Cosmos DB Custom Vision Event Hubs Face API LUIS QnA Maker Service Bus SQL Server Text Analytics Video Indexer Other Microsoft Connectors Bing Maps Bing Search Dynamics 365 Dynamics 365 for Financials Dynamics Nav Microsoft Forms Microsoft Kaizala Microsoft StaffHub Microsoft Teams Microsoft To-Do Microsoft Translator MSN Weather Office 365 Excel Office 365 Groups Office 365 Outlook Office 365 Video OneDrive OneDrive for Business OneNote Outlook Customer Manager Outlook Tasks Outlook.com Project Online Power BI SharePoint Skype for Business VSTS Yammer 3rd-Party SaaS Connectors 10to8 Adobe Creative Cloud Apache Impala Appfigures Asana Aweber Basecamp3 Benchmark Email Bitbucket Bitly Blogger Box Buffer Calendly Campfire Capsule CRM Chatter Cognito Forms D&B Optimizer Derdack Signl4 DocFusion Docparser DocuSign Dropbox Easy Redmine Elastic Forms Enadoc Eventbrite Facebook FlowForma FreshBooks Freshdesk Freshservice GitHub Gmail Google Calendar Google Drive Google Sheets Google Tasks GoToMeeting GoToTraining GoToWebinar Harvest HelloSign HipChat iAuditor Infobip Infusionsoft Inoreader insightly Instagram Instapaper Intercom Jira JotForm Kintone LeanKit LiveChat Lithium MailChimp Mandrill Marketing Content Hub Metatask Muhimbi PDF MySQL Nexmo Oracle Database Pager Duty Parserr Paylocity Pinterest Pipedrive Pitney Bowes Data Validation Pivotal Tracker Planner Plivo Plumsail Documents Plumsail Forms Plumsail SP PostgreSQL Redmine Salesforce SendGrid ServiceNow Slack Smartsheet SparkPost Stripe SurveyMonkey Tago Teamwork Projects Teradata Todoist Toodledo Trello Twilio Twitter Typeform UserVoice Vimeo WebMerge WordPress Workday HCM Workday Finance Wunderlist YouTube Zendesk Zoho Protocol Connectors FTP HTTP / HTTP with Swagger HTTP with Azure AD RSS SFTP SMTP SOAP-to-REST SOAP pass-through Webhook Hybrid & Enterprise Connectors BizTalk DB2 File System Informix MQ MySQL Oracle DB PostgreSQL REST SAP SharePoint SOAP SQL Server Teradata XML, Text, EDI, and AS2 Connectors AS2 EDIFACT Flat File Liquid Templates X12 XML Validation and Transform https://blog.mexia.com.au/microsoft-azure-ipaas

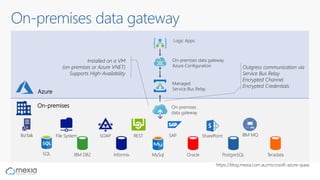

- 14. On-premises data gateway On-premisesOn-premises data gateway SQL File System SOAP REST SharePointSAPBizTalk Managed Service Bus Relay On-premises data gateway Azure Configuration Logic Apps Installed on a VM (on-premises or Azure VNET) Supports High-Availability Azure Outgress communication via Service Bus Relay Encrypted Channel Encrypted Credentials https://blog.mexia.com.au/microsoft-azure-ipaas IBM MQ MySql Oracle PostgreSQL TeradataInformixIBM DB2

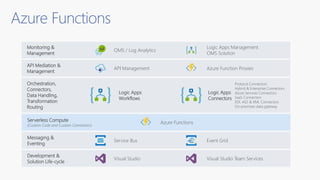

- 15. Azure Functions API ManagementAzure Function Proxies API Mediation & Management Messaging & Eventing Service Bus Event Grid Development & Solution Life-cycle Visual Studio Visual Studio Team Services Monitoring & Management OMS / Log Analytics Logic Apps Management OMS Solution Logic Apps Workflows Orchestration, Connectors, Data Handling, Transformation Routing Logic Apps Connectors Protocol Connectors Hybrid & Enterprise Connectors Azure Services Connectors SaaS Connectors EDI, AS2 & XML Connectors On-premises data gateway Serverless Compute (Custom Code and Custom Connectors) Azure Functions

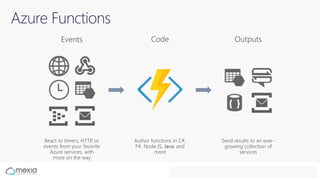

- 16. Serverless Compute: AzureFunctions Custom code for the integration solutions (complex logic) Code-based custom connectors Access resources on-prem when hosted on a VNET Sync calls via HTTPS Async calls via Service Bus or Event Grid
- 17.
- 18. Logic Apps vsAzure Functions Serverless workflows / integration orchestrations Graphically implemented (WDL / JSON) ~200 Connectors No VNET Support (ATM) Stateful Azure-hosted only Serverless code-based nanoservices C#, F#, Node.js, PowerShell, Python, etc Different Trigger, Input and Output bindings VNET support and also Private PaaS (ASE) Stateless + Stateful with Durable Functions Azure + Azure Stack + portable runtime

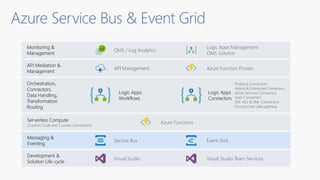

- 19. Azure Service Bus& Event Grid API Management Azure Function Proxies API Mediation & Management Messaging & Eventing Service Bus Event Grid Development & Solution Life-cycle Visual Studio Visual Studio Team Services Monitoring & Management OMS / Log Analytics Logic Apps Management OMS Solution Logic Apps Workflows Orchestration, Connectors, Data Handling, Transformation Routing Logic Apps Connectors Protocol Connectors Hybrid & Enterprise Connectors Azure Services Connectors SaaS Connectors EDI, AS2 & XML Connectors On-premises data gateway Serverless Compute (Custom Code and Custom Connectors) Azure Functions

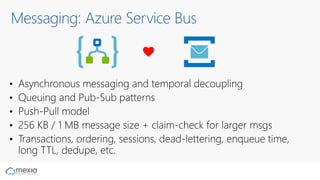

- 20.

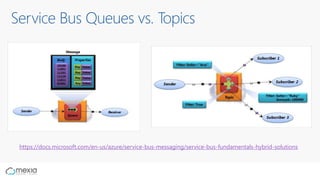

- 21. Service Bus Queuesvs. Topics https://docs.microsoft.com/en-us/azure/service-bus-messaging/service-bus-fundamentals-hybrid-solutions

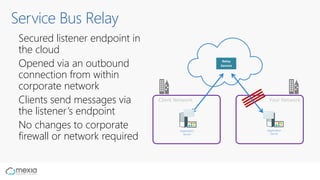

- 22. Application Server Client Network YourNetwork Application Server Relay Service Service Bus Relay Secured listener endpoint in the cloud Opened via an outbound connection from within corporate network Clients send messages via the listener’s endpoint No changes to corporate firewall or network required
- 23.

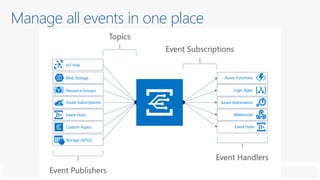

- 24. Manage all eventsin one place

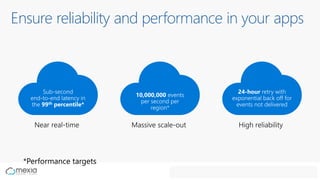

- 25. Ensure reliability andperformance in your apps

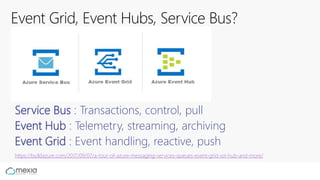

- 26. https://buildazure.com/2017/09/07/a-tour-of-azure-messaging-services-queues-event-grid-iot-hub-and-more/ Service Bus :Transactions, control, pull Event Hub : Telemetry, streaming, archiving Event Grid : Event handling, reactive, push

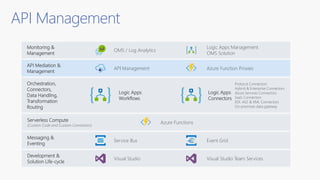

- 27. API Management API ManagementAzure Function Proxies API Mediation & Management Messaging & Eventing Service Bus Event Grid Development & Solution Life-cycle Visual Studio Visual Studio Team Services Monitoring & Management OMS / Log Analytics Logic Apps Management OMS Solution Logic Apps Workflows Orchestration, Connectors, Data Handling, Transformation Routing Logic Apps Connectors Protocol Connectors Hybrid & Enterprise Connectors Azure Services Connectors SaaS Connectors EDI, AS2 & XML Connectors On-premises data gateway Serverless Compute (Custom Code and Custom Connectors) Azure Functions

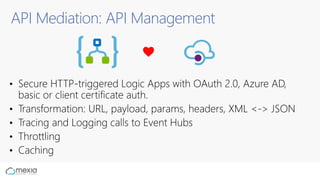

- 28. API Mediation: APIManagement

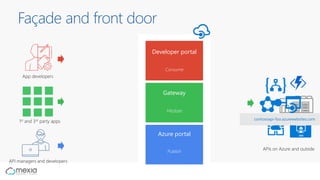

- 29. Façade and frontdoor Developer portal Azure portal Gateway Publish Mediate Consume contosoapi-foo.azurewebsites.com

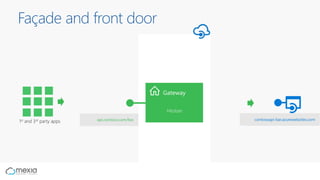

- 30. contosoapi-foo.azurewebsites.comcontosoapi-bar.azurewebsites.com Façade and frontdoor Gateway Mediate contoso.azure-api.net/fooapi.contoso.com/foo
- 31. • Username/Password • Microsoftaccount • Google account • Facebook account • Twitter account • Azure AD (Premium) • Azure AD B2C (Premium) • Delegated • Key • OAuth 2 • OpenID Connect • Client certificate • IP filter • Rate limits and quotas • Azure account • RBAC • HTTP Basic • Mutual certificate • Shared secret • IP filter • VNET/NSG Developer portal Azure portal Gateway Publish Mediate Consume Security and Protection

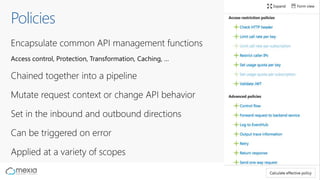

- 32.
- 33. Development and CI/CD:Visual Studio & VSTS https://blog.mexia.com.au/preparing-azure-logic-apps-for-cicd

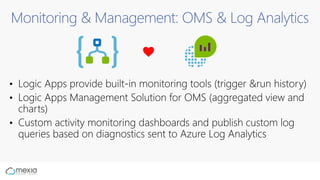

- 34. Monitoring & Management:OMS & Log Analytics

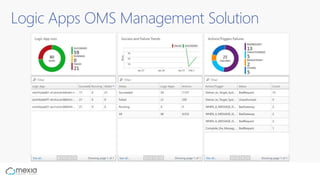

- 35. Logic Apps OMSManagement Solution

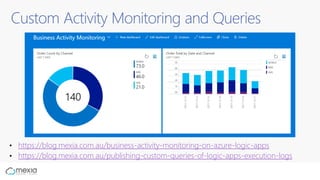

- 36. Custom Activity Monitoringand Queries https://blog.mexia.com.au/business-activity-monitoring-on-azure-logic-apps https://blog.mexia.com.au/publishing-custom-queries-of-logic-apps-execution-logs

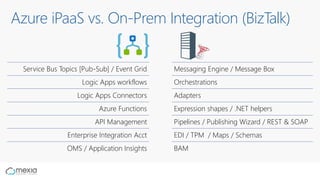

- 37. Azure iPaaS vs.On-Prem Integration (BizTalk) Service Bus Topics [Pub-Sub] / Event Grid Logic Apps workflows Logic Apps Connectors Azure Functions API Management Enterprise Integration Acct OMS / Application Insights Messaging Engine / Message Box Orchestrations Adapters Expression shapes / .NET helpers Pipelines / Publishing Wizard / REST & SOAP EDI / TPM / Maps / Schemas BAM

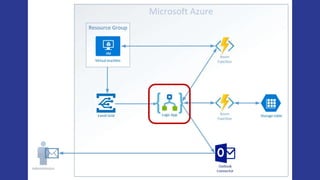

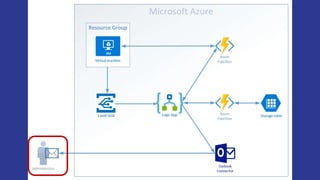

- 38.

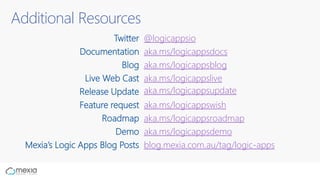

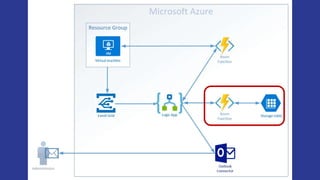

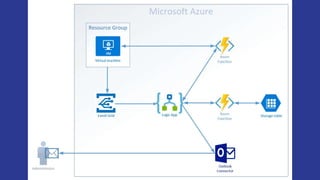

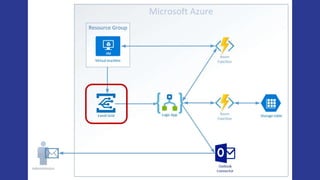

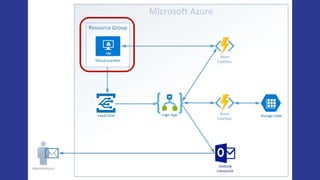

- 47. Additional Resources Twitter @logicappsio Documentationaka.ms/logicappsdocs Blog aka.ms/logicappsblog Live Web Cast aka.ms/logicappslive Release Update aka.ms/logicappsupdate Feature request aka.ms/logicappswish Roadmap aka.ms/logicappsroadmap Demo aka.ms/logicappsdemo Mexia’s Logic Apps Blog Posts blog.mexia.com.au/tag/logic-apps
- 48. Have a conversationwith one of our integration experts! enquiries@mexia.com.au
