- 1. Fast rendering with Starling BAFPUG2015 Sergey Gonchar http://gonchar.me

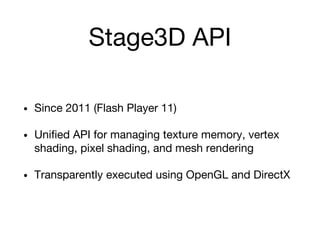

- 2. Stage3D API • Since2011 (Flash Player 11) • Unified API for managing texture memory, vertex shading, pixel shading, and mesh rendering • Transparently executed using OpenGL and DirectX
- 3. Each frame — clearbackbuffer by calling Context3D.clear — set gpu state through Context3D API — call drawTriangles() — repeat until the scene is entirely rendered — call the present() method to display the rendered scene on the stage. It copies the backbuffer to a framebuffer

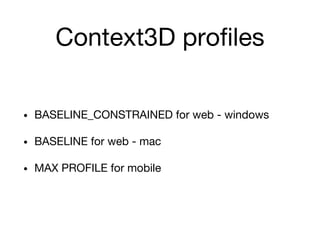

- 4. Context3D profiles • BASELINE_CONSTRAINEDfor web - windows • BASELINE for web - mac • MAX PROFILE for mobile

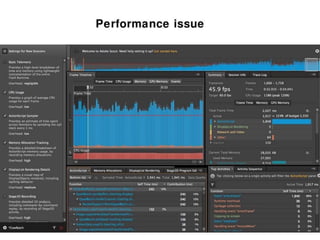

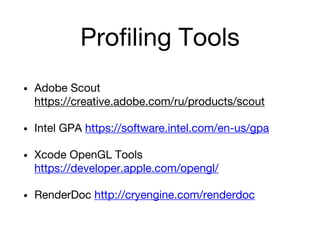

- 6. Profiling Tools • AdobeScout https://creative.adobe.com/ru/products/scout • Intel GPA https://software.intel.com/en-us/gpa • Xcode OpenGL Tools https://developer.apple.com/opengl/ • RenderDoc http://cryengine.com/renderdoc
- 7.
- 8. How does QuadBatchwork? • Collects quads with the same state(same texture, blendMode, shader) • Transforms all vertices to one space and upload to VertexBuffer • Render

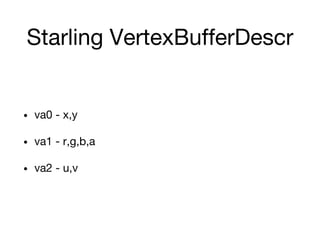

- 10. Starling VertexBufferDescr • va0- x,y • va1 - r,g,b,a • va2 - u,v

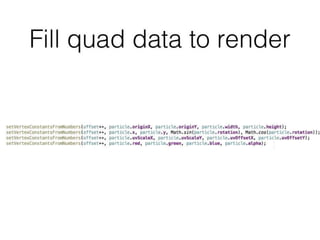

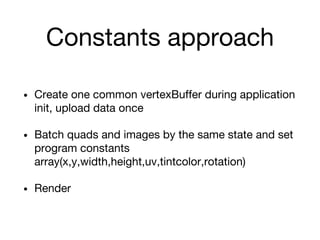

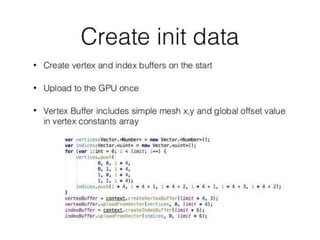

- 11. Constants approach • Createone common vertexBuffer during application init, upload data once • Batch quads and images by the same state and set program constants array(x,y,width,height,uv,tintcolor,rotation) • Render

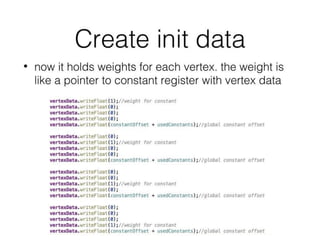

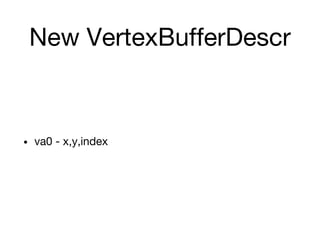

- 12. New VertexBufferDescr • va0- x,y,index

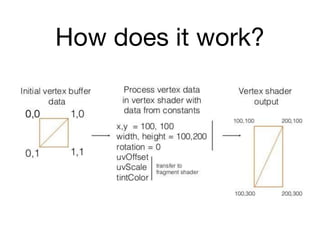

- 13. How does itwork?

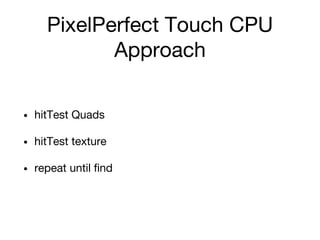

- 24. PixelPerfect Touch CPU Approach •hitTest Quads • hitTest texture • repeat until find
- 25. PixelPerfect Touch GPU! •Use simple shader which renders images with single color • Optimization: collect candidates by bounds • Render targets to 1x1 texture on desktop or 4x4 texture on mobile • Read back & sample color from texture
- 26.
- 27.
- 28.

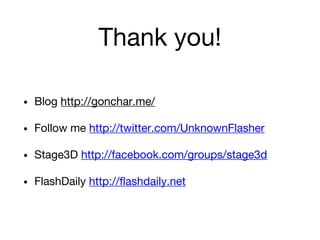

- 29. Thank you! • Bloghttp://gonchar.me/ • Follow me http://twitter.com/UnknownFlasher • Stage3D http://facebook.com/groups/stage3d • FlashDaily http://flashdaily.net
