1. Flávio Clésio
August, 2020
PyCon Africa 2020
Security in Machine Learning
Adversarial attacks, model failures and
countermeasures

2. ABOUT
FLÁVIO CLÉSIO
flavioclesio
● Machine Learning Engineer @ Germany
● MSc. in Production Engineering (Computational Intelligence)
● Blog: flavioclesio.com
● Some conferences that I attended (Strata Hadoop World, Spark
Summit, PAPIS.io, The Developers Conference, (Now, PyCon Africa
2020 🎉!)

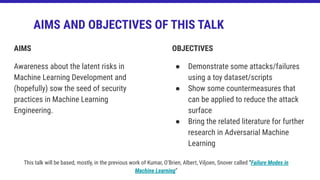

3. AIMS
Awareness about the latent risks in
Machine Learning Development and
(hopefully) sow the seed of security
practices in Machine Learning
Engineering.
AIMS AND OBJECTIVES OF THIS TALK
OBJECTIVES
● Demonstrate some attacks/failures
using a toy dataset/scripts
● Show some countermeasures that
can be applied to reduce the attack
surface
● Bring the related literature for further
research in Adversarial Machine
Learning
This talk will be based, mostly, in the previous work of Kumar, O’Brien, Albert, Viljoen, Snover called “Failure Modes in
Machine Learning”

4. DISCLAIMER

5. DISCLAIMER
References: [29] - The effectiveness of car security devices and their role in the crime drop, [30] - Reviewing the effectiveness of electronic vehicle immobilisation: Evidence from four countries, [31] - Do car
alarms do any good?, [32] - Adventures in Automotive Networks and Control Units, [33] - Regulating crime prevention design into consumer products: Learning the lessons from electronic vehicle immobilisation,
[34] - Does locking your car doors reduce theft?

6. DISCLAIMER

7. DISCLAIMER

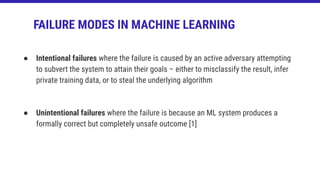

8. ● Intentional failures where the failure is caused by an active adversary attempting
to subvert the system to attain their goals – either to misclassify the result, infer
private training data, or to steal the underlying algorithm
● Unintentional failures where the failure is because an ML system produces a
formally correct but completely unsafe outcome [1]
FAILURE MODES IN MACHINE LEARNING

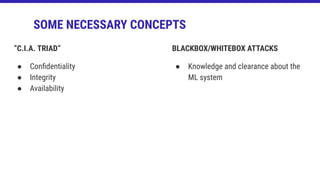

9. “C.I.A. TRIAD”
● Confidentiality
● Integrity
● Availability
SOME NECESSARY CONCEPTS
BLACKBOX/WHITEBOX ATTACKS
● Knowledge and clearance about the
ML system

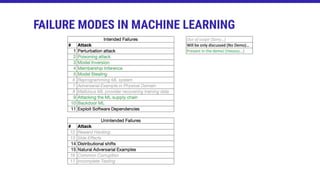

10. FAILURE MODES IN MACHINE LEARNING

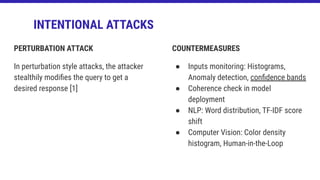

11. COUNTERMEASURES
● Inputs monitoring: Histograms,
Anomaly detection, confidence bands
● Coherence check in model
deployment
● NLP: Word distribution, TF-IDF score
shift
● Computer Vision: Color density
histogram, Human-in-the-Loop
INTENTIONAL ATTACKS
PERTURBATION ATTACK
In perturbation style attacks, the attacker
stealthily modifies the query to get a
desired response [1]

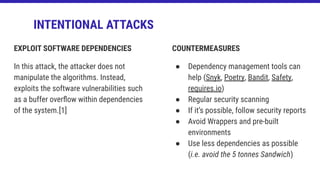

12. INTENTIONAL ATTACKS
COUNTERMEASURES
● Dependency management tools can
help (Snyk, Poetry, Bandit, Safety,
requires.io)
● Regular security scanning
● If it’s possible, follow security reports
● Avoid Wrappers and pre-built
environments
● Use less dependencies as possible
(i.e. avoid the 5 tonnes Sandwich)
EXPLOIT SOFTWARE DEPENDENCIES
In this attack, the attacker does not
manipulate the algorithms. Instead,
exploits the software vulnerabilities such
as a buffer overflow within dependencies
of the system.[1]

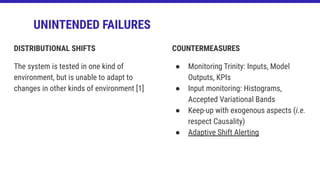

13. UNINTENDED FAILURES
COUNTERMEASURES
● Monitoring Trinity: Inputs, Model
Outputs, KPIs
● Input monitoring: Histograms,
Accepted Variational Bands
● Keep-up with exogenous aspects (i.e.
respect Causality)
● Adaptive Shift Alerting
DISTRIBUTIONAL SHIFTS
The system is tested in one kind of
environment, but is unable to adapt to
changes in other kinds of environment [1]

14. UNINTENDED FAILURES
COUNTERMEASURES
● Extra layers of checking
● Diversity in labeled data
● Good Data Augmentation strategy
● If it’s possible, check the model
behavior against corner cases to
understand the limits
● Error analysis
NATURAL ADVERSARIAL EXAMPLES
The system misrecognizes an input that
was found using hard negative mining
[1][2]

15. DEMO TIME

16. CLOSING THOUGHTS
● Security/Failure awareness it’s the first step for change
● Countermeasures are practices to minimize the attack vectors, and consequently,
reduce the attack surface
● Adjust your countermeasures according to a realistic exposure surface [2]

17. THANKS!
@flavioclesio
fclesio flavioclesio
flavioclesio.com

18. REFERENCES
[1] - Kumar, Ram Shankar Siva et al. Failure modes in machine learning systems. arXiv preprint arXiv:1911.11034, 2019.
[2] - Gilmer, Justin et al. Motivating the rules of the game for adversarial example research. arXiv preprint arXiv:1807.06732,
2018
[3] - A Complete List of All (arXiv) Adversarial Example Papers by Nicholas Carlini
[4] - Adversarial Machine Learning Reading List by Nicholas Carlini
[5] - 600,000 Images Removed from AI Database After Art Project Exposes Racist Bias
[6] - Xiao, Qixue, et al. "Security risks in deep learning implementations." 2018 IEEE Security and Privacy Workshops (SPW). IEEE,
2018.
[7] - TextAttack - Generating adversarial examples for NLP models
[8] - Xie, Cihang, et al. "Smooth Adversarial Training." arXiv preprint arXiv:2006.14536 (2020)
[9] - Vial, Daniel, Sanjay Shakkottai, and R. Srikant. "Robust Multi-Agent Multi-Armed Bandits." arXiv preprint arXiv:2007.03812
(2020)
[10] - Goodfellow, Ian, et al. "Generative adversarial nets." Advances in neural information processing systems. 2014.

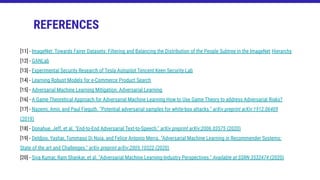

19. REFERENCES
[11] - ImageNet: Towards Fairer Datasets: Filtering and Balancing the Distribution of the People Subtree in the ImageNet Hierarchy
[12] - GANLab
[13] - Experimental Security Research of Tesla Autopilot Tencent Keen Security Lab
[14] - Learning Robust Models for e-Commerce Product Search
[15] - Adversarial Machine Learning Mitigation: Adversarial Learning
[16] - A Game Theoretical Approach for Adversarial Machine Learning How to Use Game Theory to address Adversarial Risks?
[17] - Nazemi, Amir, and Paul Fieguth. "Potential adversarial samples for white-box attacks." arXiv preprint arXiv:1912.06409
(2019)
[18] - Donahue, Jeff, et al. "End-to-End Adversarial Text-to-Speech." arXiv preprint arXiv:2006.03575 (2020)
[19] - Deldjoo, Yashar, Tommaso Di Noia, and Felice Antonio Merra. "Adversarial Machine Learning in Recommender Systems:
State of the art and Challenges." arXiv preprint arXiv:2005.10322 (2020)
[20] - Siva Kumar, Ram Shankar, et al. "Adversarial Machine Learning-Industry Perspectives." Available at SSRN 3532474 (2020)

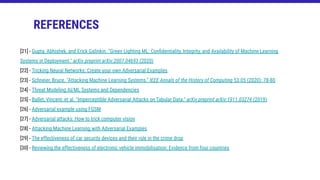

20. [21] - Gupta, Abhishek, and Erick Galinkin. "Green Lighting ML: Confidentiality, Integrity, and Availability of Machine Learning
Systems in Deployment." arXiv preprint arXiv:2007.04693 (2020)
[22] - Tricking Neural Networks: Create your own Adversarial Examples
[23] - Schneier, Bruce. "Attacking Machine Learning Systems." IEEE Annals of the History of Computing 53.05 (2020): 78-80
[24] - Threat Modeling AI/ML Systems and Dependencies
[25] - Ballet, Vincent, et al. "Imperceptible Adversarial Attacks on Tabular Data." arXiv preprint arXiv:1911.03274 (2019)
[26] - Adversarial example using FGSM
[27] - Adversarial attacks: How to trick computer vision
[28] - Attacking Machine Learning with Adversarial Examples
[29] - The effectiveness of car security devices and their role in the crime drop
[30] - Reviewing the effectiveness of electronic vehicle immobilisation: Evidence from four countries
REFERENCES

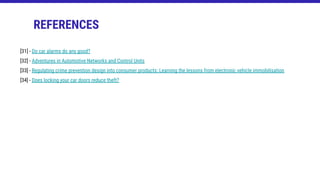

21. [31] - Do car alarms do any good?
[32] - Adventures in Automotive Networks and Control Units
[33] - Regulating crime prevention design into consumer products: Learning the lessons from electronic vehicle immobilisation
[34] - Does locking your car doors reduce theft?
REFERENCES

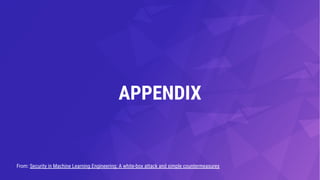

22. APPENDIX
From: Security in Machine Learning Engineering: A white-box attack and simple countermeasures

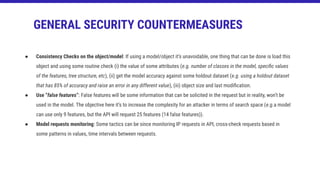

23. ● Consistency Checks on the object/model: If using a model/object it’s unavoidable, one thing that can be done is load this
object and using some routine check (i) the value of some attributes (e.g. number of classes in the model, specific values
of the features, tree structure, etc), (ii) get the model accuracy against some holdout dataset (e.g. using a holdout dataset
that has 85% of accuracy and raise an error in any different value), (iii) object size and last modification.
● Use “false features”: False features will be some information that can be solicited in the request but in reality, won’t be
used in the model. The objective here it’s to increase the complexity for an attacker in terms of search space (e.g.a model
can use only 9 features, but the API will request 25 features (14 false features)).
● Model requests monitoring: Some tactics can be since monitoring IP requests in API, cross-check requests based in
some patterns in values, time intervals between requests.
GENERAL SECURITY COUNTERMEASURES

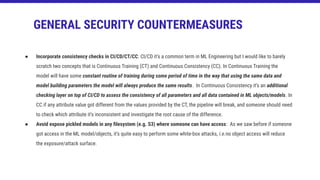

24. ● Incorporate consistency checks in CI/CD/CT/CC: CI/CD it’s a common term in ML Engineering but I would like to barely
scratch two concepts that is Continuous Training (CT) and Continuous Consistency (CC). In Continuous Training the
model will have some constant routine of training during some period of time in the way that using the same data and
model building parameters the model will always produce the same results. In Continuous Consistency it’s an additional
checking layer on top of CI/CD to assess the consistency of all parameters and all data contained in ML objects/models. In
CC if any attribute value got different from the values provided by the CT, the pipeline will break, and someone should need
to check which attribute it’s inconsistent and investigate the root cause of the difference.
● Avoid expose pickled models in any filesystem (e.g. S3) where someone can have access: As we saw before if someone
got access in the ML model/objects, it’s quite easy to perform some white-box attacks, i.e.no object access will reduce
the exposure/attack surface.
GENERAL SECURITY COUNTERMEASURES

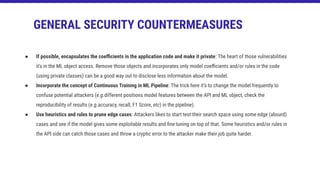

25. ● If possible, encapsulates the coefficients in the application code and make it private: The heart of those vulnerabilities
it’s in the ML object access. Remove those objects and incorporates only model coefficients and/or rules in the code
(using private classes) can be a good way out to disclose less information about the model.
● Incorporate the concept of Continuous Training in ML Pipeline: The trick here it’s to change the model frequently to
confuse potential attackers (e.g.different positions model features between the API and ML object, check the
reproducibility of results (e.g.accuracy, recall, F1 Score, etc) in the pipeline).
● Use heuristics and rules to prune edge cases: Attackers likes to start test their search space using some edge (absurd)
cases and see if the model gives some exploitable results and fine tuning on top of that. Some heuristics and/or rules in
the API side can catch those cases and throw a cryptic error to the attacker make their job quite harder.
GENERAL SECURITY COUNTERMEASURES

26. ● Talk its silver, silence its gold: One of the things that I learned in security it’s less you talk about what you’re doing in
production, less you give free information to attackers. This can be harsh but its a basic countermeasure regarding social
engineering. I saw in several conferences people giving details about the training set in images like image sizing in the
training, augmentation strategies, pre-checks in API side, and even disclosing the lack of strategies to deal with
adversarial examples. This information itself can be very useful to attackers in order to give a clear perspective of model
limitations. If you want to talk about your solution talk more about reasons (why) and less in terms of implementation
(how). Telling in Social Media that I keep all my money underneath my pillow, my door has only a single lock and I’ll arrive
from work only after 8PM do not make my house safer. Remember: Less information = less exposure.
GENERAL SECURITY COUNTERMEASURES
