This document contains architectural plans and drawings for a mixed urban development project in Old Town Mombasa, Kenya. The plans include floor plans, elevations, and sections showing the layout and design of the buildings, which include a basement, bedrooms, lounge, dining area, swimming pool, and other features. Dimensions and specifications are provided for structural elements like walls, floors, windows, doors, and other architectural components.
Sections and details

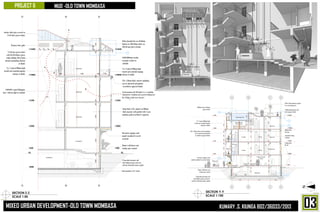

- 1. GSPublisherVersion 0.0.100.100 N MIXED URBANDEVELOPMENT-OLD TOWN MOMBASA 03KUMARY .S. KIUNGA B02/36033/2013 PROJECT 6 MUD -OLD TOWN MOMBASA A A B B C C D D D-01 D-02 D-03 D-04 D-05 4,650 6,150 3,050 2,4503001502,6503001503,0004501503,4501503,450150 1502,4503001502,6503001503,4503,1504501504,450150 1506002,2506004502,7004502,450 2,3002002,000 1500mm high parapet wall with coping to details 150mm thick RC slab 600mm deep RC beam Planter with flower and seating space around suspended ceiling to details Decorative mpingo wood mould varnished & curved to details 250 x 120mm thick concrete moulding curved ,plastered and painted to architects approval details 2000mm deep swimming pool to details 75x 75 mm by900mm high treated and varnished mpingo balcony to details 100x175mm mangrove pergola over sun basking area 175mm thick basement wall with 100mm masonry protective wall and 25mm thick mastic asphalt Swimming Pool Bedroom Basement Coffee & Snack Lounge Balcony Balcony Swimming pool machine Room Bedroom Bedroom WC/shwr NDIA KUU +500 +3600 +7200 +10800 +14400 +3600 +7200 +10800 +14400 +500 Lounge Dining Lounge Dining Pv Pv Pv PvPv Pv Pv Pv Pv Pv A A B B C C D-06 2,0001503,4501503,0004501507,0501501,650 1,200 4,900 200 1,100 900 30deg Spanish tiles on 50x50mm battens on 100x50mm rafters on 100x50 mm joist to details 1600X3000mm wooden casement window to schedule 75x 75 mm by900mm high treated and varnished mpingo balcony to details 250 x 120mm thick concrete moulding curved ,plastered and painted to architects approval details Decorative mpingo wood mould varnished & curved to details Planter with flower and seating space around 175mm thick basement wall with 100mm masonry protective wall and 25mm thick mastic asphalt Arched opening with 100x50mm 1:4 c/s moulding all round for ventilation and to gel the building into the existing swahili street character 4inches thick glass screwed to 75x50 mm cypress frames Wooden Vents grills 75x50 mm cypress frame with 50x50x50mm cypress wedge holding 200 x25mm internal sunshading element to details 75x 75 mm by900mm high treated and varnished mpingo balcony to details 2100x900 4 panel Mahogany door with fan light to schedule 12mm thick 1:3C/s plaster on 200mm thick masonry wall painted with 3 coats emulsion paint to architect's approval Raft foundation to SE's details BASEMENT ENTRANCE BEDROOM BEDROOM BEDROOM +500 +3600 +7200 +10800 +14400 +7200 +500 +3600 +10800 +14400 VOID -2000 GL GL SECTION Z-Z SCALE 1:50 SECTION Y-Y SCALE 1:100
