Season 7 Episode 1 - Tools for Data Scientists
The document outlines the agenda for an OSS Meetup on February 11, 2020, focused on productivity tools for data scientists, featuring talks on Metaflow, Polynote, and Papermill. It highlights the benefits of using these tools, such as improved editing, reproducibility, and multi-language support in notebooks. The event also includes networking and demo stations to engage participants further in these tools.
More Related Content
Similar to Season 7 Episode 1 - Tools for Data Scientists
Season 7 Episode 1 - Tools for Data Scientists
- 1. OSS Meetup 11 Feb2020 Tools for Data Scientists
- 2. 6:00 pm Registration,Food, Networking Faisal Siddiqi 7:00 (5m) Welcome Ville Tuulos 7:05 pm (20m) Metaflow Jeremy Smith 7:25 pm (20m) Polynote Matthew Seal 7:45 pm (15m) Papermill 8:00 pm Demo Stations, Networking, Food Agenda
- 16.
- 20.
- 21.

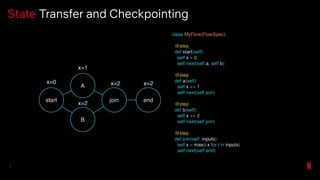

- 22. State Transfer andCheckpointing

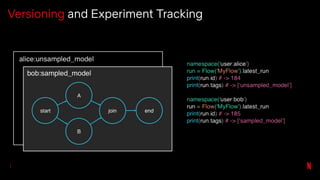

- 23. Versioning and ExperimentTracking
- 24.
- 25.
- 26.
- 27.
- 28. ...and much more! Seemetaflow.org for details
- 29.
- 30.

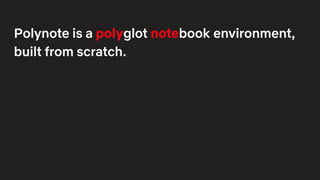

- 31. Polynote is apolyglot notebook environment, built from scratch.

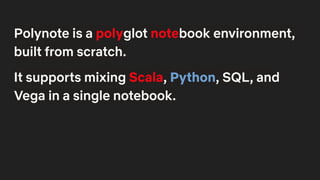

- 32. Polynote is apolyglot notebook environment, built from scratch. It supports mixing Scala, Python, SQL, and Vega in a single notebook.

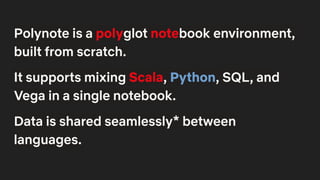

- 33. Polynote is apolyglot notebook environment, built from scratch. It supports mixing Scala, Python, SQL, and Vega in a single notebook. Data is shared seamlessly* between languages.
- 34. Why did webuild it? Scientists were avoiding Scala notebooks for experimentation.

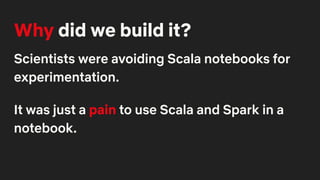

- 35. Why did webuild it? Scientists were avoiding Scala notebooks for experimentation. It was just a pain to use Scala and Spark in a notebook.
- 36. Scala + Sparkpain points ● Interactive autocomplete is practically a necessity ● Difficult to find compiler errors ● Dependencies are many and varied ● Spark clashes with dependencies – constantly building shaded JARs
- 37.

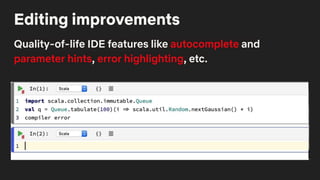

- 38. Editing improvements Quality-of-life IDEfeatures like autocomplete and parameter hints, error highlighting, etc.
- 39. Reproducibility Cells see onlythe state derived from cells above, no matter what order they ran in.

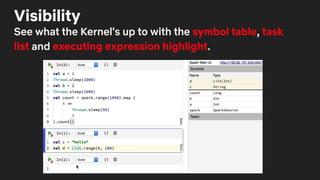

- 40. Visibility See what theKernel's up to with the symbol table, task list and executing expression highlight.

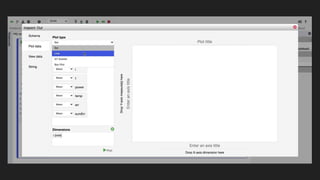

- 41. Data Visualization Use thebuilt-in Data Inspector to browse tabular data and inspect schema. Plot data with the plot editor, or use Vega or matplotlib directly.

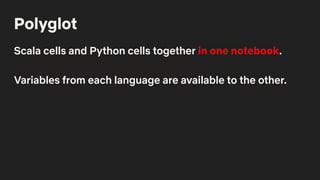

- 43. Polyglot Scala cells andPython cells together in one notebook. Variables from each language are available to the other.

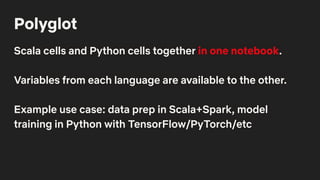

- 44. Polyglot Scala cells andPython cells together in one notebook. Variables from each language are available to the other. Example use case: data prep in Scala+Spark, model training in Python with TensorFlow/PyTorch/etc
- 45. Questions? (stop by ourdemo station!)
- 46.
- 47. Matthew Seal Backend Engineeron the Big Data Platform Orchestration Team @ Netflix @codeseal Speaker Details

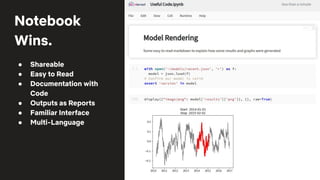

- 48. Notebook Wins. ● Shareable ● Easyto Read ● Documentation with Code ● Outputs as Reports ● Familiar Interface ● Multi-Language

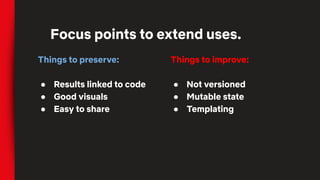

- 49. Things to preserve: ●Results linked to code ● Good visuals ● Easy to share Focus points to extend uses. Things to improve: ● Not versioned ● Mutable state ● Templating

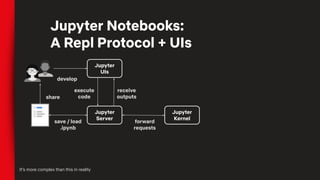

- 50. Jupyter Notebooks: A ReplProtocol + UIs Jupyter UIs Jupyter Server Jupyter Kernel execute code receive outputs forward requests save / load .ipynb It’s more complex than this in reality develop share

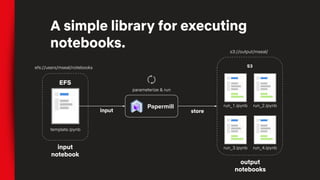

- 51. A simple libraryfor executing notebooks. EFS S3 Papermill template.ipynb run_1.ipynb run_3.ipynb output notebooks parameterize & run run_2.ipynb run_4.ipynbinput notebook input store s3://output/mseal/ efs://users/mseal/notebooks

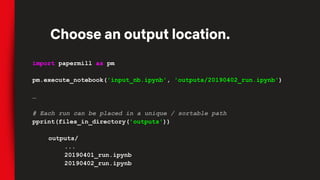

- 52. import papermill aspm pm.execute_notebook('input_nb.ipynb', 'outputs/20190402_run.ipynb') … # Each run can be placed in a unique / sortable path pprint(files_in_directory('outputs')) outputs/ ... 20190401_run.ipynb 20190402_run.ipynb Choose an output location.

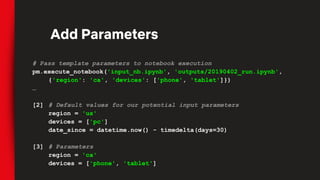

- 53. # Pass templateparameters to notebook execution pm.execute_notebook('input_nb.ipynb', 'outputs/20190402_run.ipynb', {'region': 'ca', 'devices': ['phone', 'tablet']}) … [2] # Default values for our potential input parameters region = 'us' devices = ['pc'] date_since = datetime.now() - timedelta(days=30) [3] # Parameters region = 'ca' devices = ['phone', 'tablet'] Add Parameters

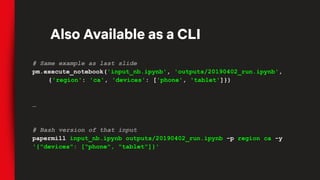

- 54. # Same exampleas last slide pm.execute_notebook('input_nb.ipynb', 'outputs/20190402_run.ipynb', {'region': 'ca', 'devices': ['phone', 'tablet']}) … # Bash version of that input papermill input_nb.ipynb outputs/20190402_run.ipynb -p region ca -y '{"devices": ["phone", "tablet"]}' Also Available as a CLI

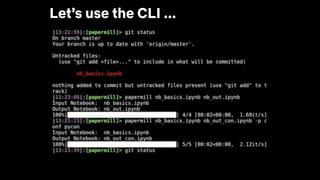

- 55. Let’s use theCLI ...

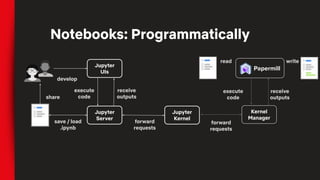

- 56. Notebooks: Programmatically Jupyter UIs Jupyter Server Jupyter Kernel execute code receive outputs forward requests save /load .ipynb develop share Papermill receive outputs Kernel Manager forward requests read write execute code

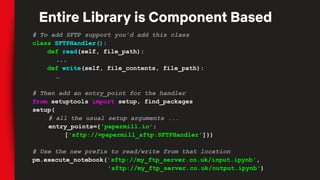

- 57. # To addSFTP support you’d add this class class SFTPHandler(): def read(self, file_path): ... def write(self, file_contents, file_path): … # Then add an entry_point for the handler from setuptools import setup, find_packages setup( # all the usual setup arguments ... entry_points={'papermill.io': ['sftp://=papermill_sftp:SFTPHandler']}) # Use the new prefix to read/write from that location pm.execute_notebook('sftp://my_ftp_server.co.uk/input.ipynb', 'sftp://my_ftp_server.co.uk/output.ipynb') Entire Library is Component Based
- 58. Failed Notebooks A betterway to review outcomes

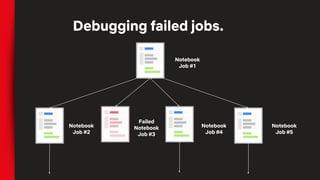

- 59. Debugging failed jobs. Notebook Job#1 Notebook Job #2 Failed Notebook Job #3 Notebook Job #4 Notebook Job #5

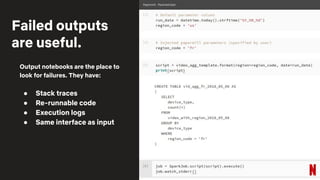

- 60. Output notebooks arethe place to look for failures. They have: ● Stack traces ● Re-runnable code ● Execution logs ● Same interface as input Failed outputs are useful.

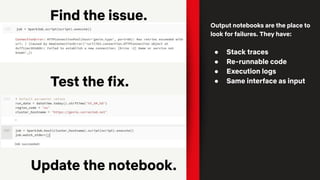

- 61. Find the issue. Testthe fix. Update the notebook. Output notebooks are the place to look for failures. They have: ● Stack traces ● Re-runnable code ● Execution logs ● Same interface as input

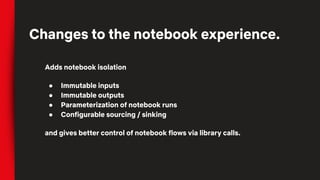

- 62. Adds notebook isolation ●Immutable inputs ● Immutable outputs ● Parameterization of notebook runs ● Configurable sourcing / sinking and gives better control of notebook flows via library calls. Changes to the notebook experience.

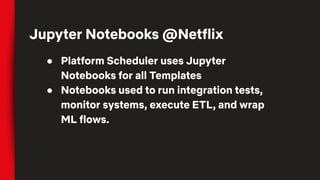

- 63. ● Platform Scheduleruses Jupyter Notebooks for all Templates ● Notebooks used to run integration tests, monitor systems, execute ETL, and wrap ML flows. Jupyter Notebooks @Netflix
