Scientific Programming Using
Excel VBA for Beginners
Dr. RIZAuddin bin Saian
Faculty of Computer & Mathematical Sciences
Universiti Teknologi MARA (Perlis)
Venue: LT1, UiTM Perlis
27 September 2019 (Friday)
3pm
Problem
• We want to find the root for .
227/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

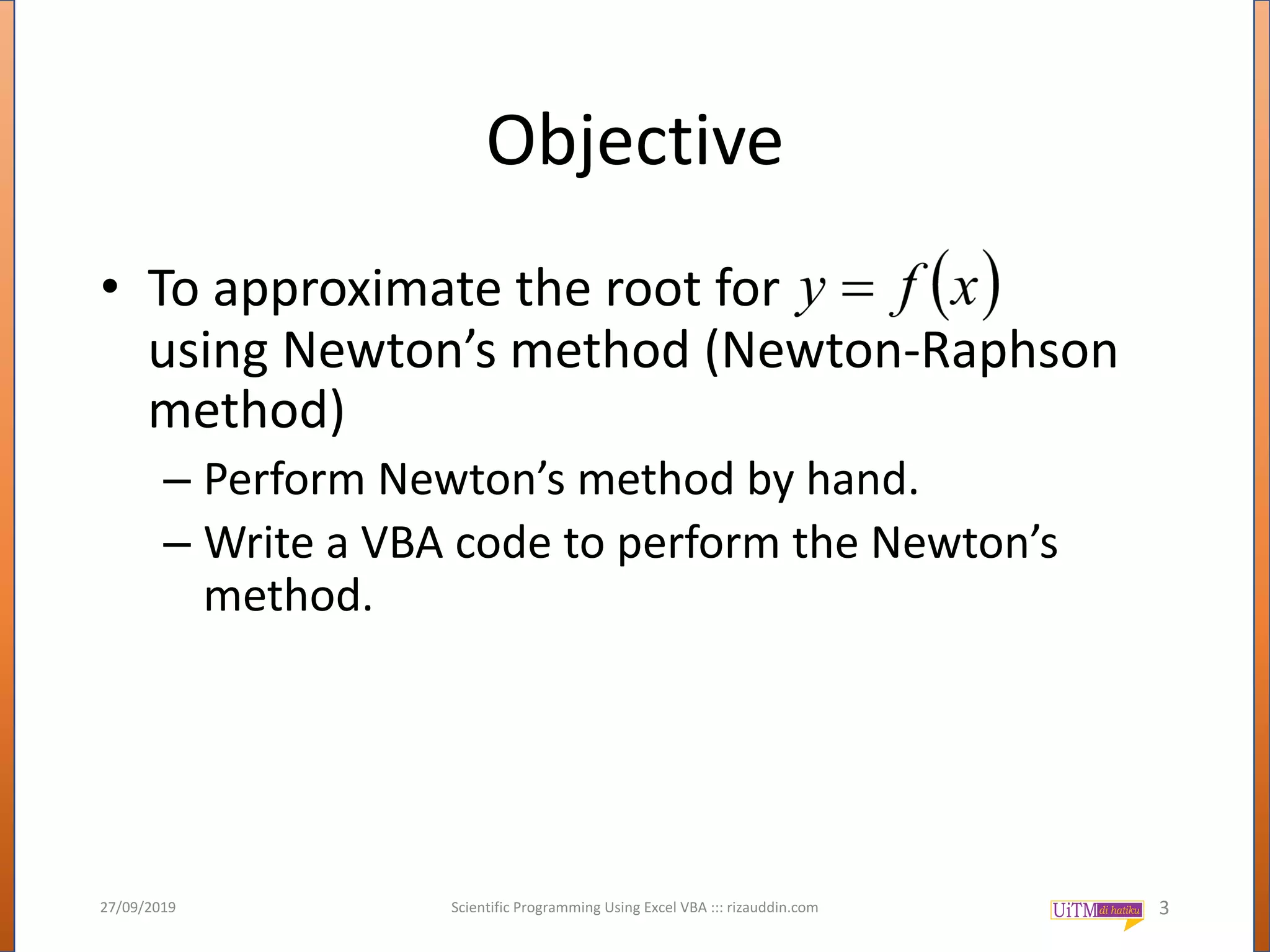

Objective
• To approximate the root for
using Newton’s method (Newton-Raphson
method)
– Perform Newton’s method by hand.
– Write a VBA code to perform the Newton’s
method.
327/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com
Newton’s Method
427/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

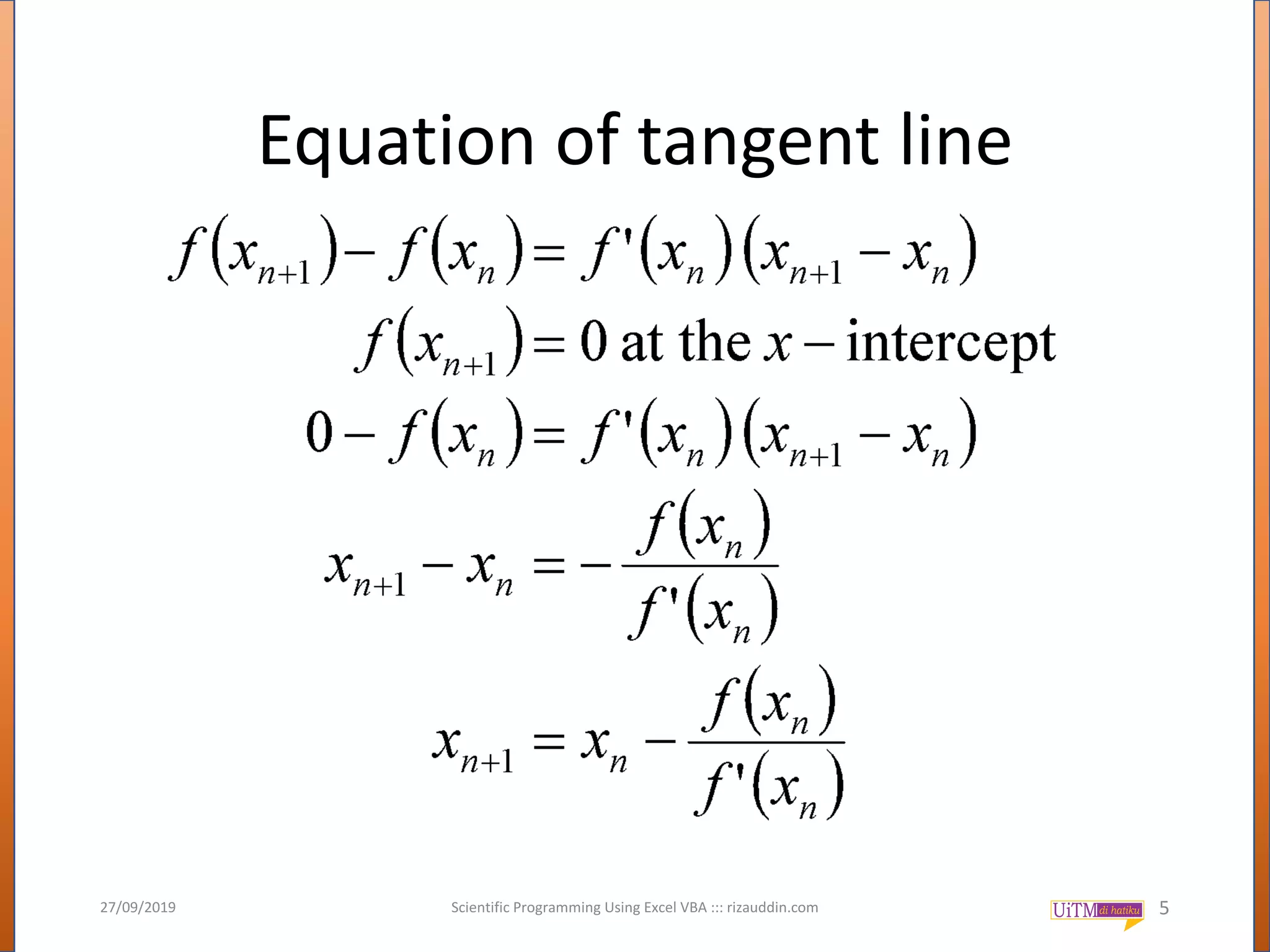

Equation of tangent line
527/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

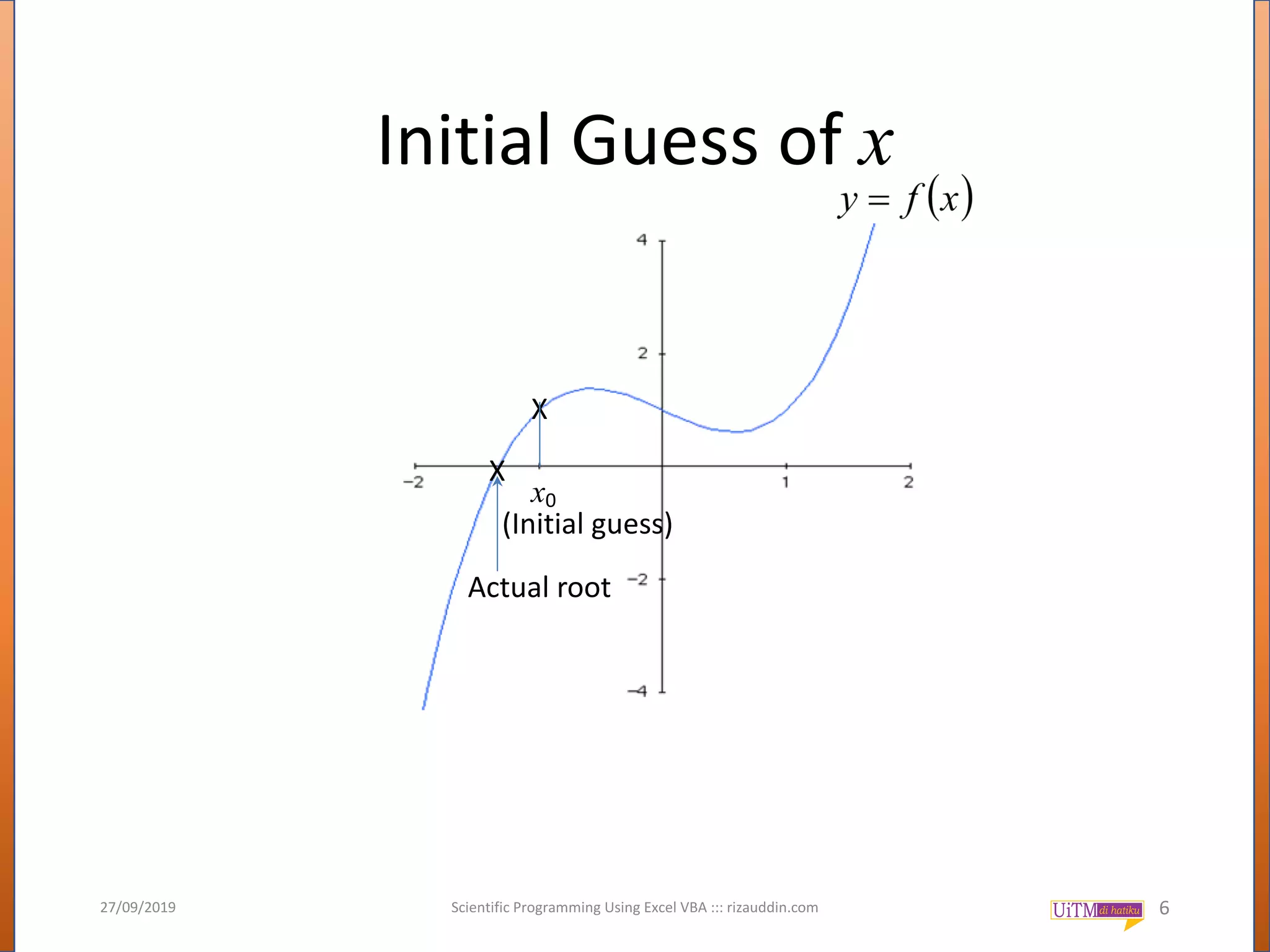

Initial Guess of x
6
Actual root
X
X
x0
(Initial guess)
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

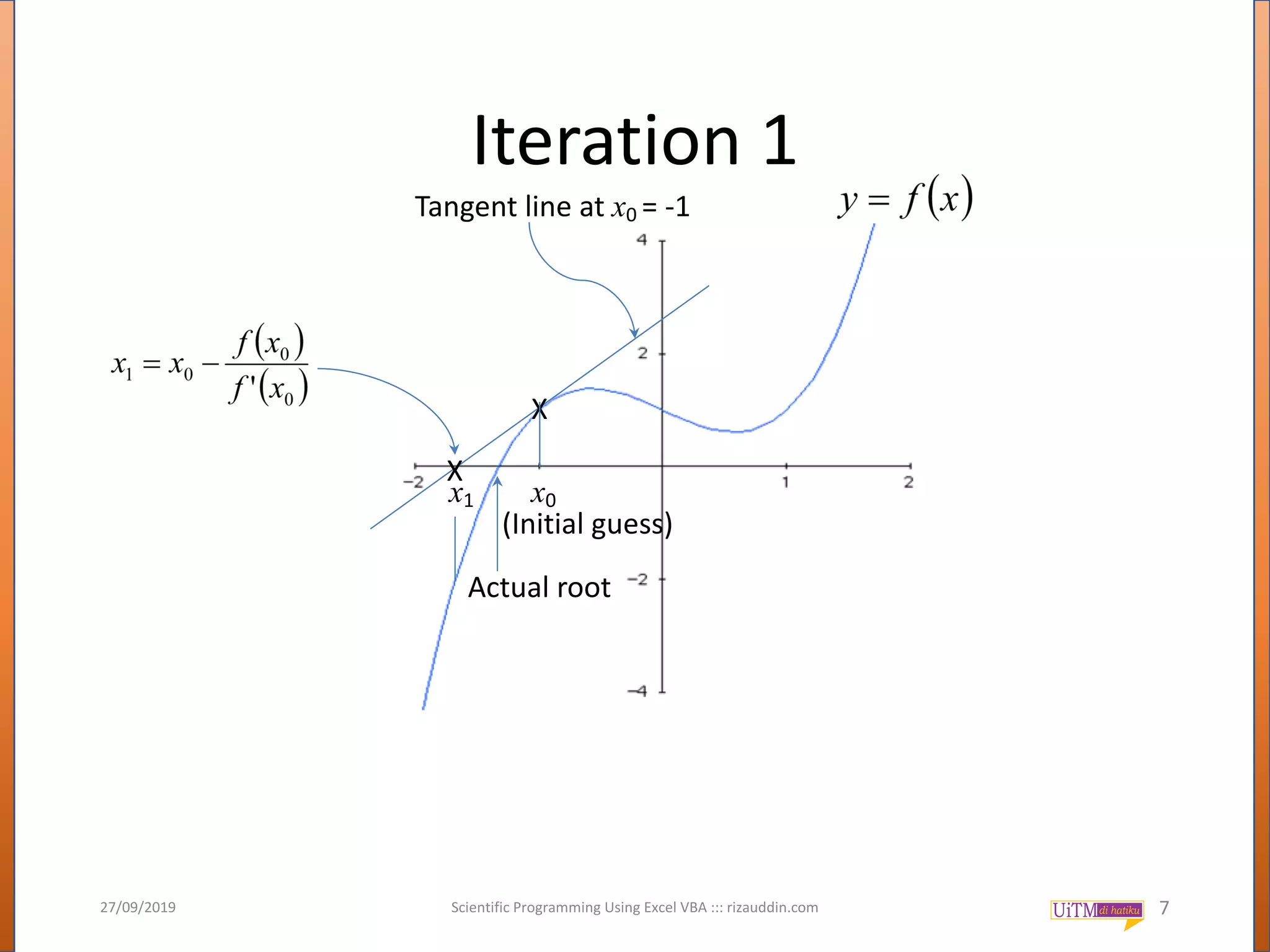

Iteration 1
7
X
Tangent line at x0 = -1
X
x0x1
Actual root
(Initial guess)
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com
Iteration 2
8
x1
Tangent line at x1
X X
x0
Actual root
(Initial guess)
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

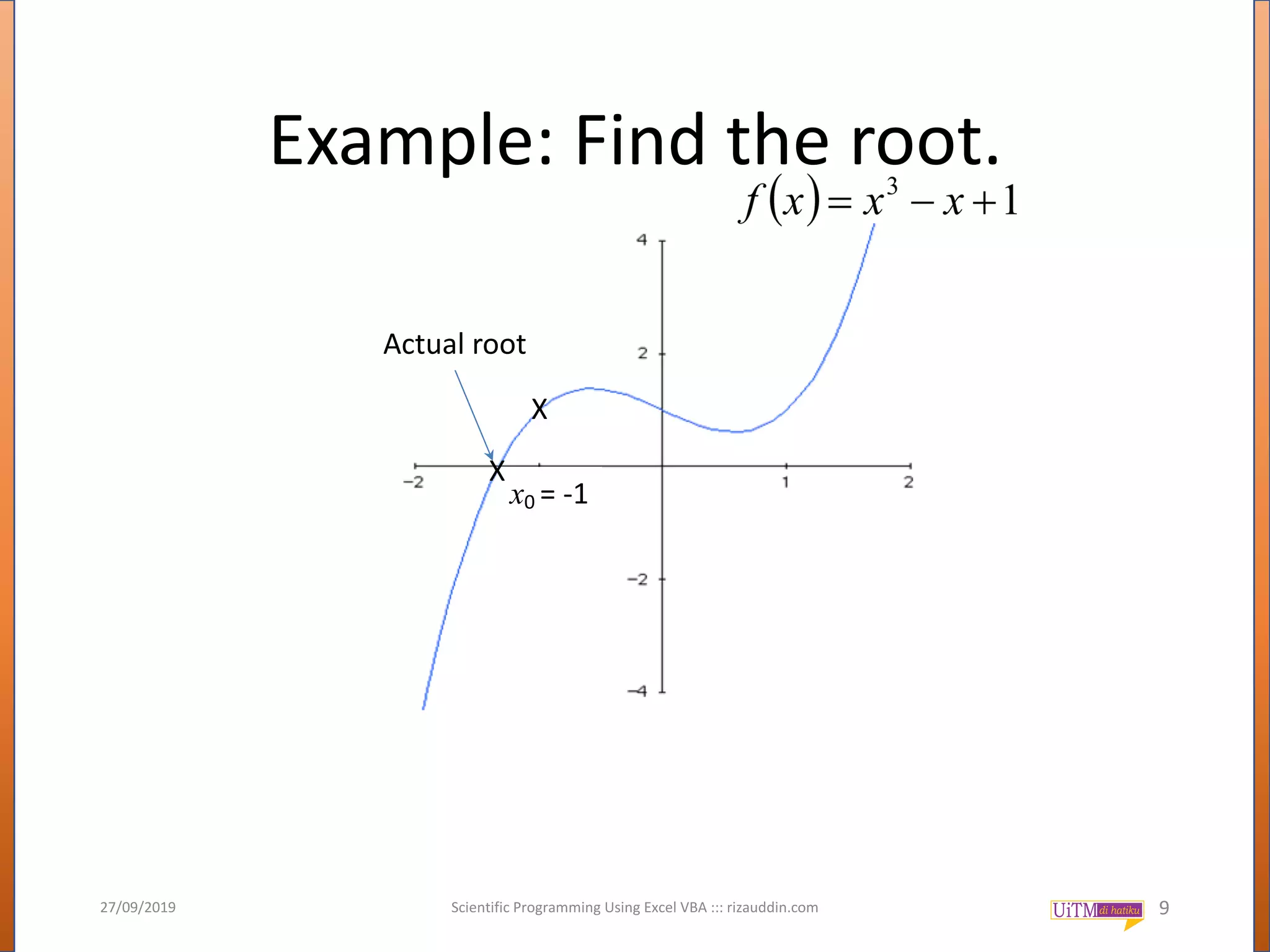

Example: Find the root.
9
Actual root
X
x0 = -1
X
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

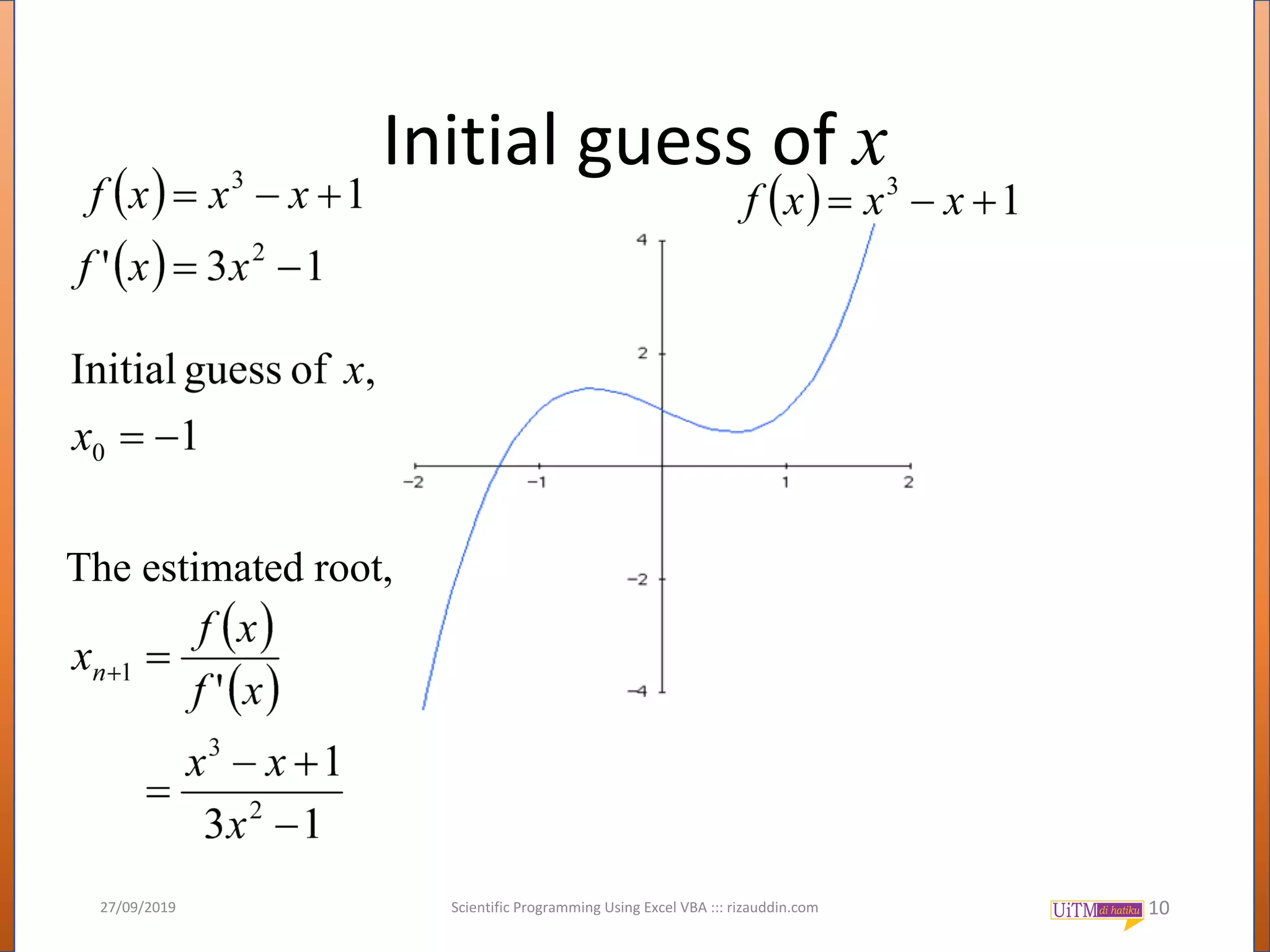

Initial guess of x
10
The estimated root,
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

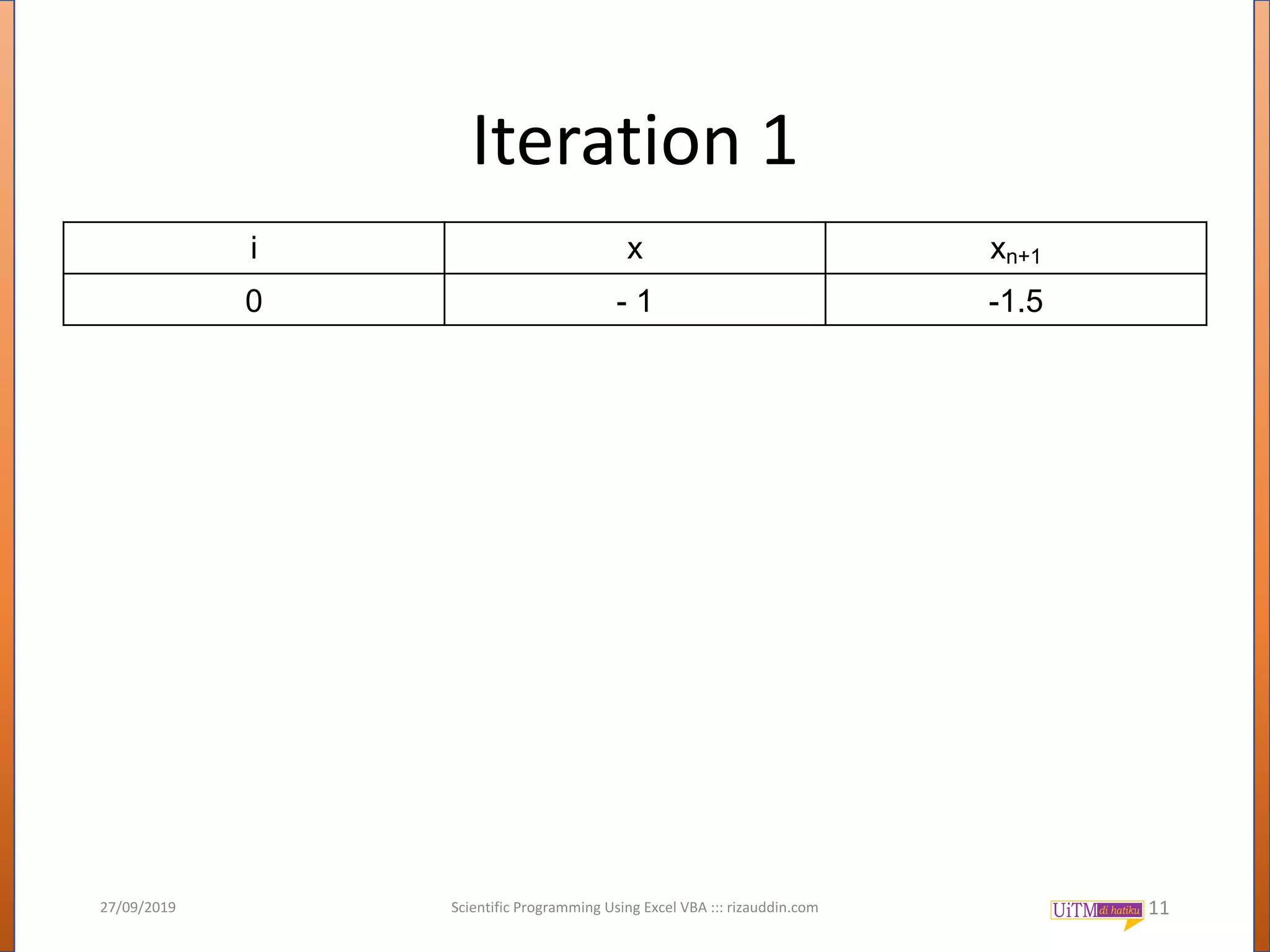

Iteration 1
11
i x xn+1
0 - 1 -1.5
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

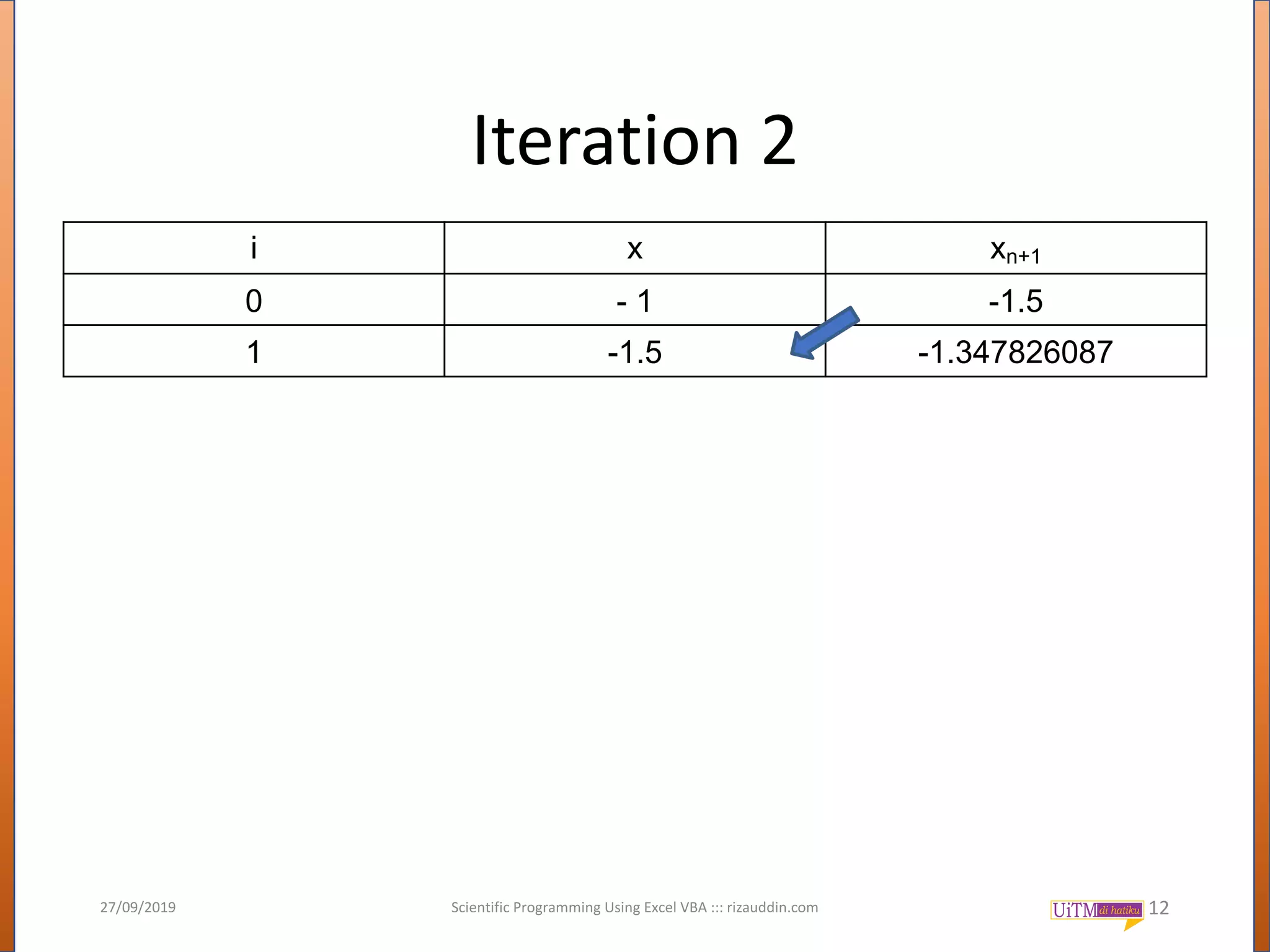

Iteration 2
12
i x xn+1
0 - 1 -1.5
1 -1.5 -1.347826087
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

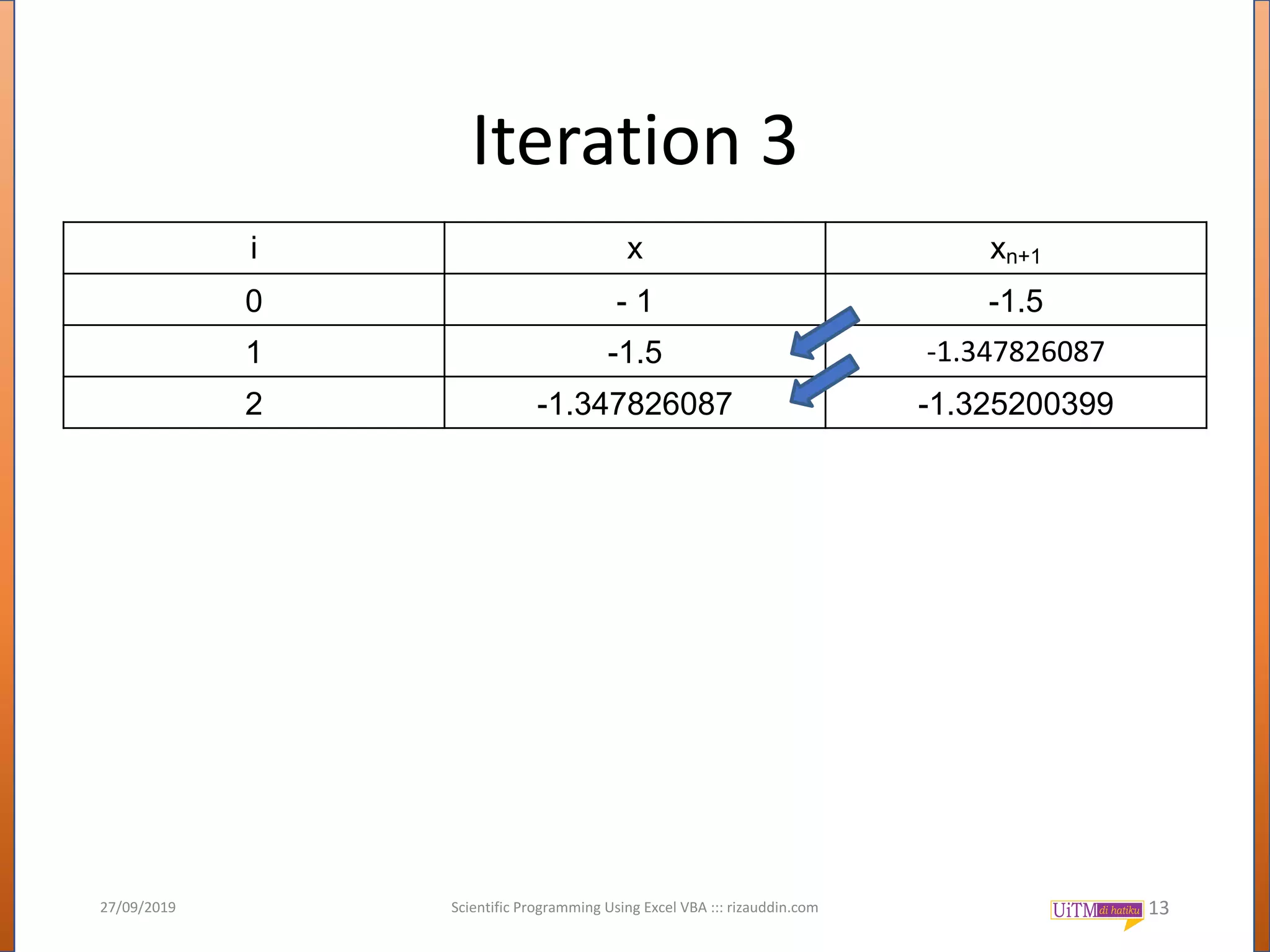

Iteration 3
13
i x xn+1
0 - 1 -1.5
1 -1.5 -1.347826087
2 -1.347826087 -1.325200399
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

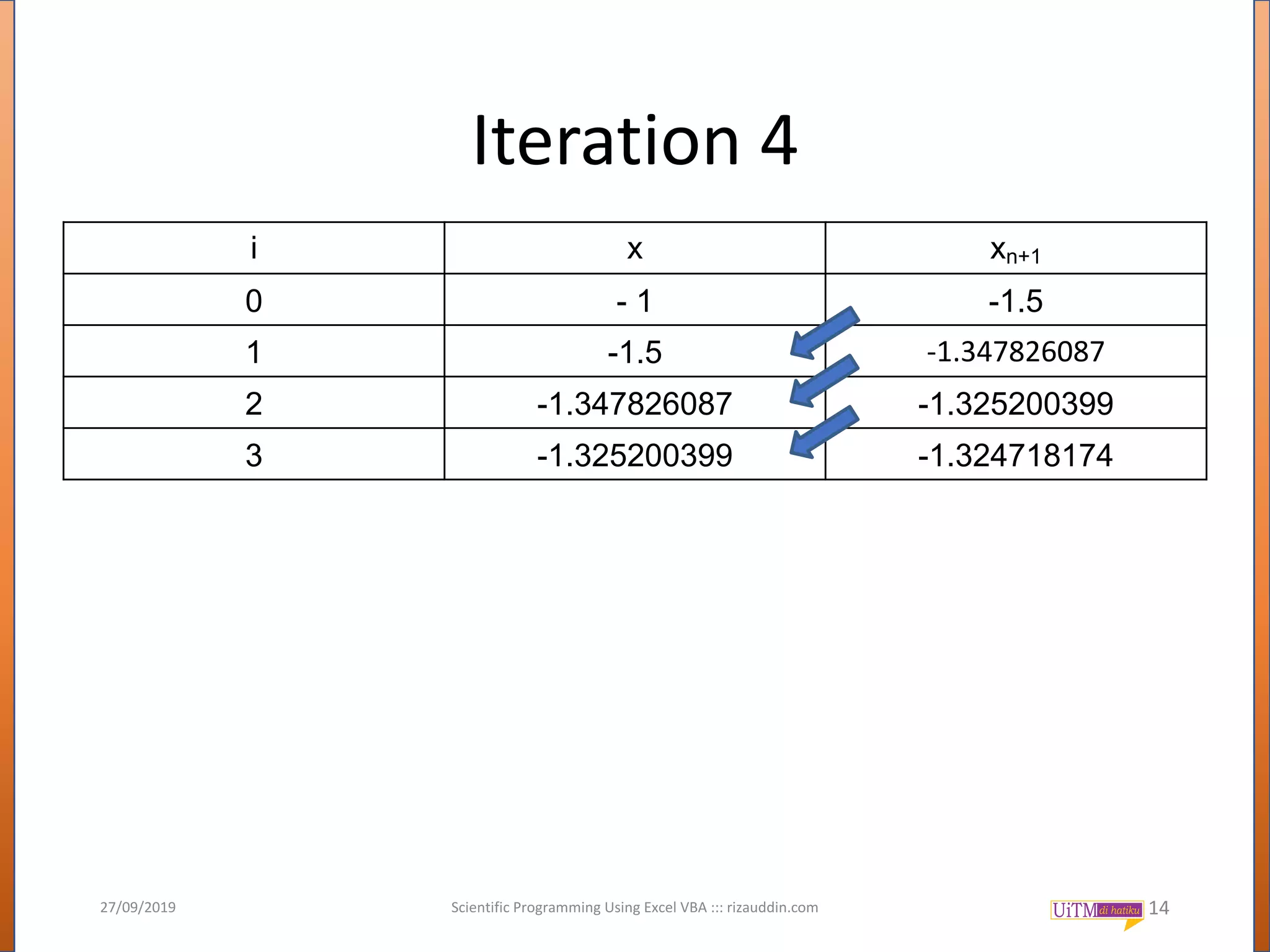

Iteration 4
14
i x xn+1
0 - 1 -1.5
1 -1.5 -1.347826087
2 -1.347826087 -1.325200399
3 -1.325200399 -1.324718174
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

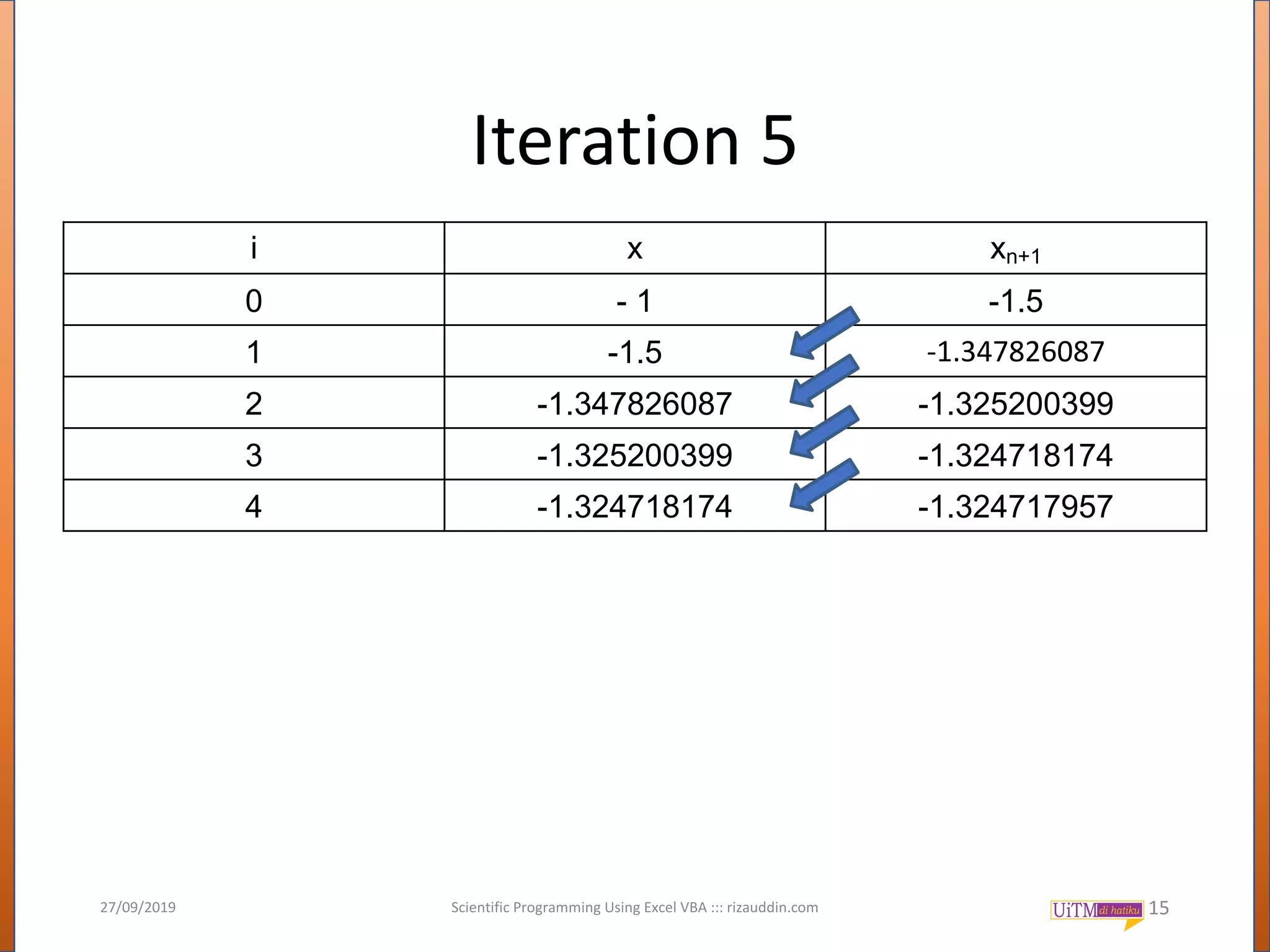

Iteration 5
15
i x xn+1
0 - 1 -1.5
1 -1.5 -1.347826087
2 -1.347826087 -1.325200399
3 -1.325200399 -1.324718174
4 -1.324718174 -1.324717957
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

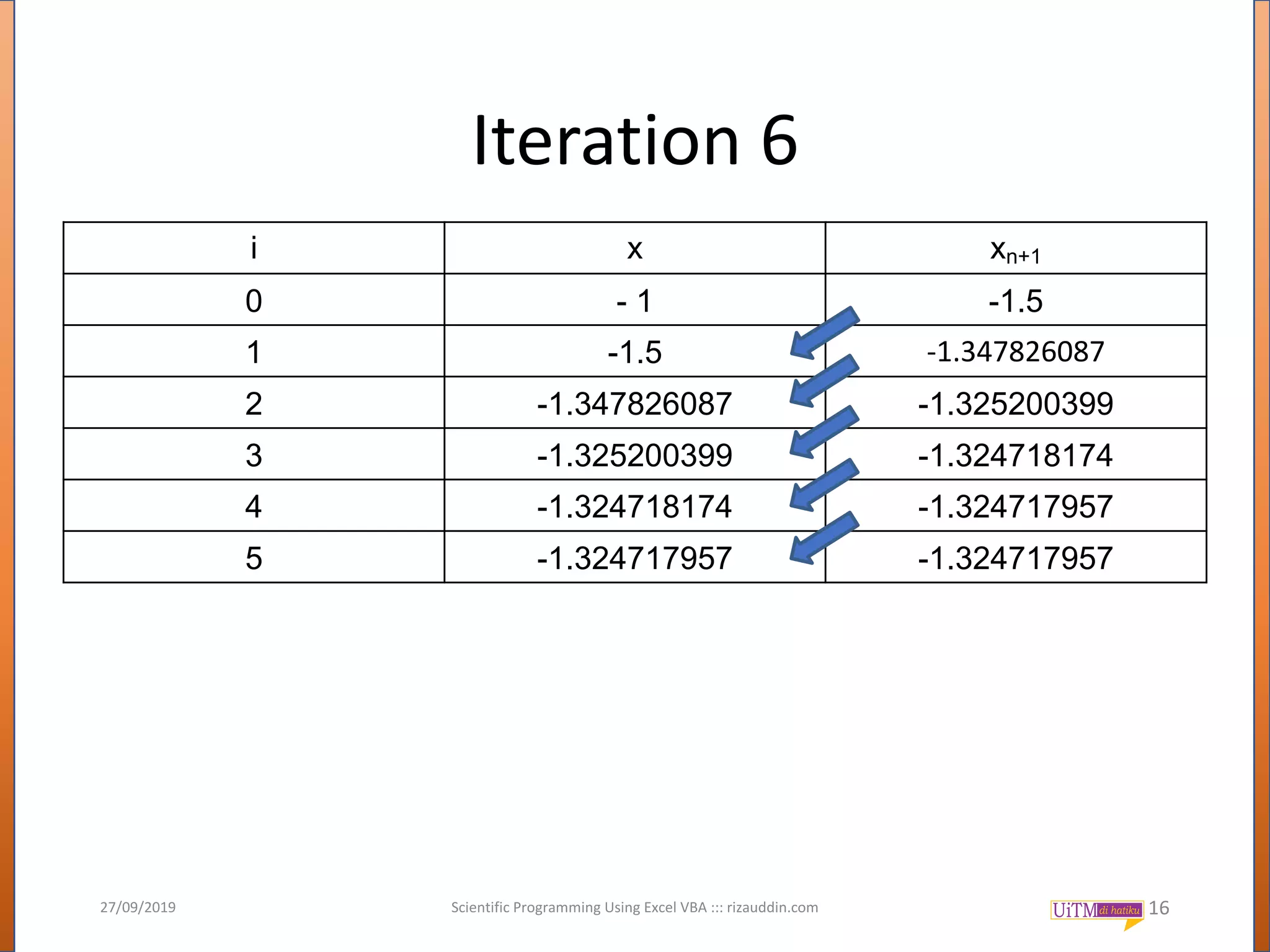

Iteration 6
16
i x xn+1
0 - 1 -1.5
1 -1.5 -1.347826087
2 -1.347826087 -1.325200399
3 -1.325200399 -1.324718174
4 -1.324718174 -1.324717957
5 -1.324717957 -1.324717957
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

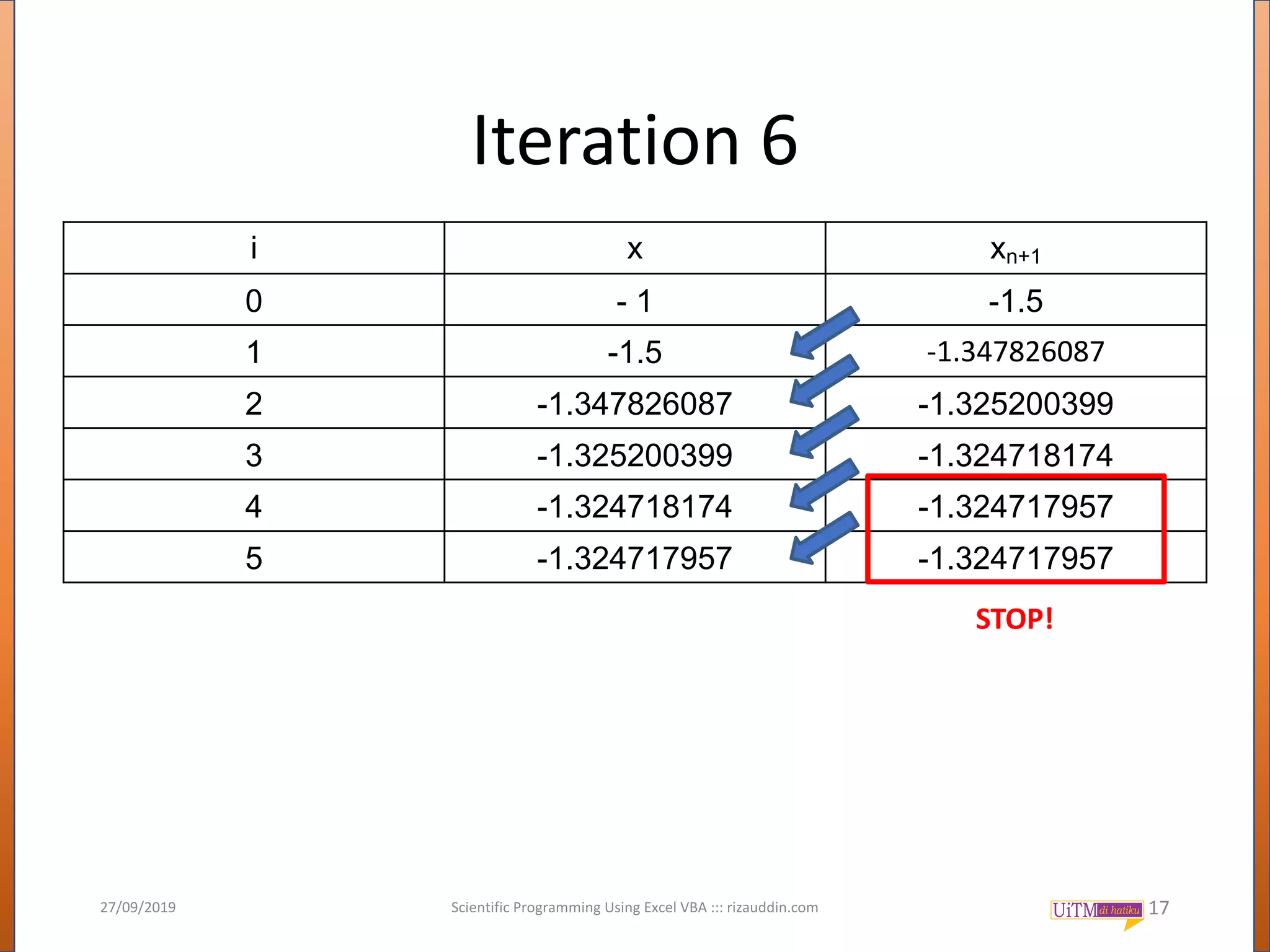

Iteration 6
17
i x xn+1
0 - 1 -1.5
1 -1.5 -1.347826087
2 -1.347826087 -1.325200399
3 -1.325200399 -1.324718174
4 -1.324718174 -1.324717957
5 -1.324717957 -1.324717957
STOP!
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

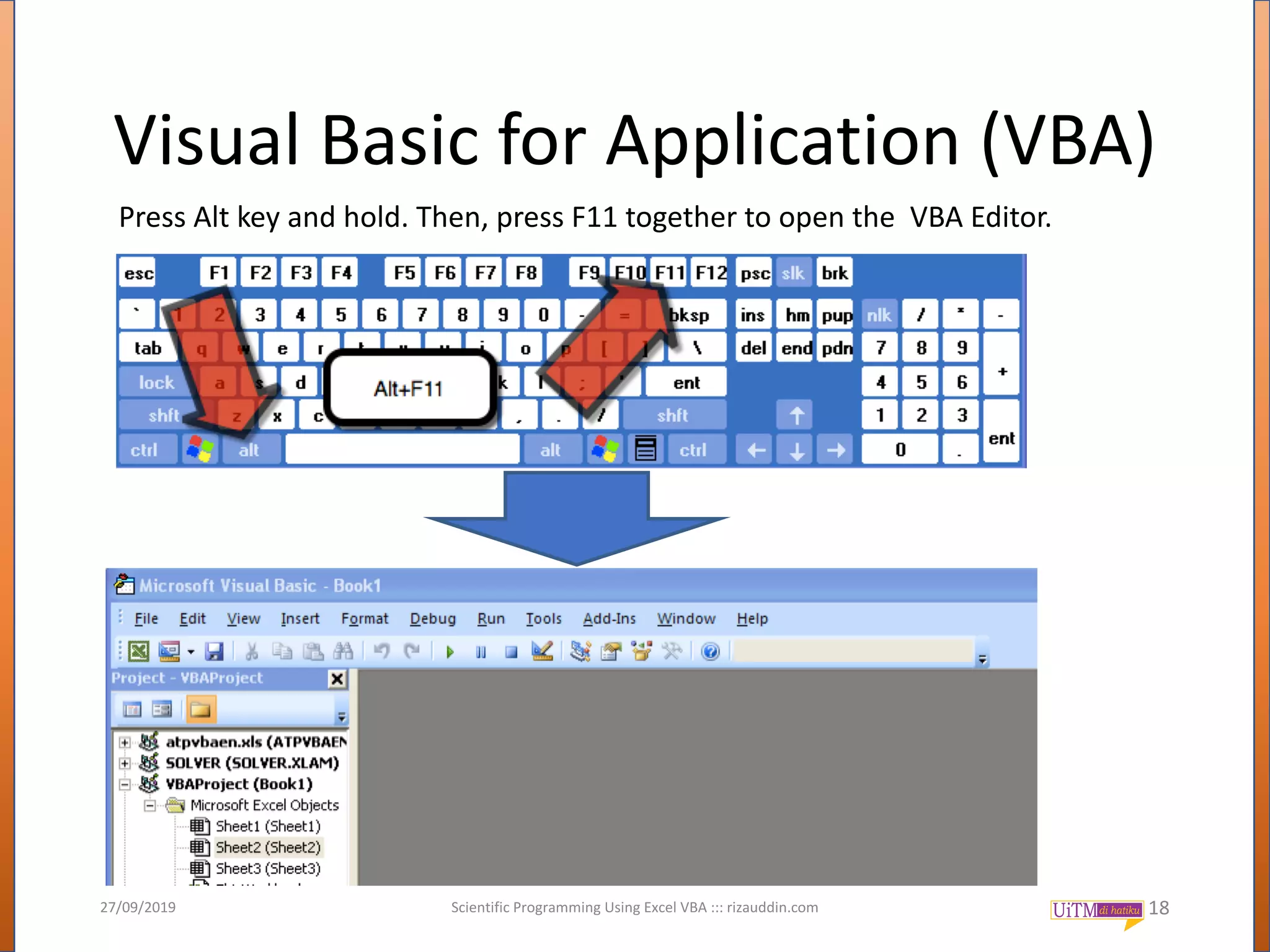

Visual Basic for Application (VBA)
18
Press Alt key and hold. Then, press F11 together to open the VBA Editor.
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

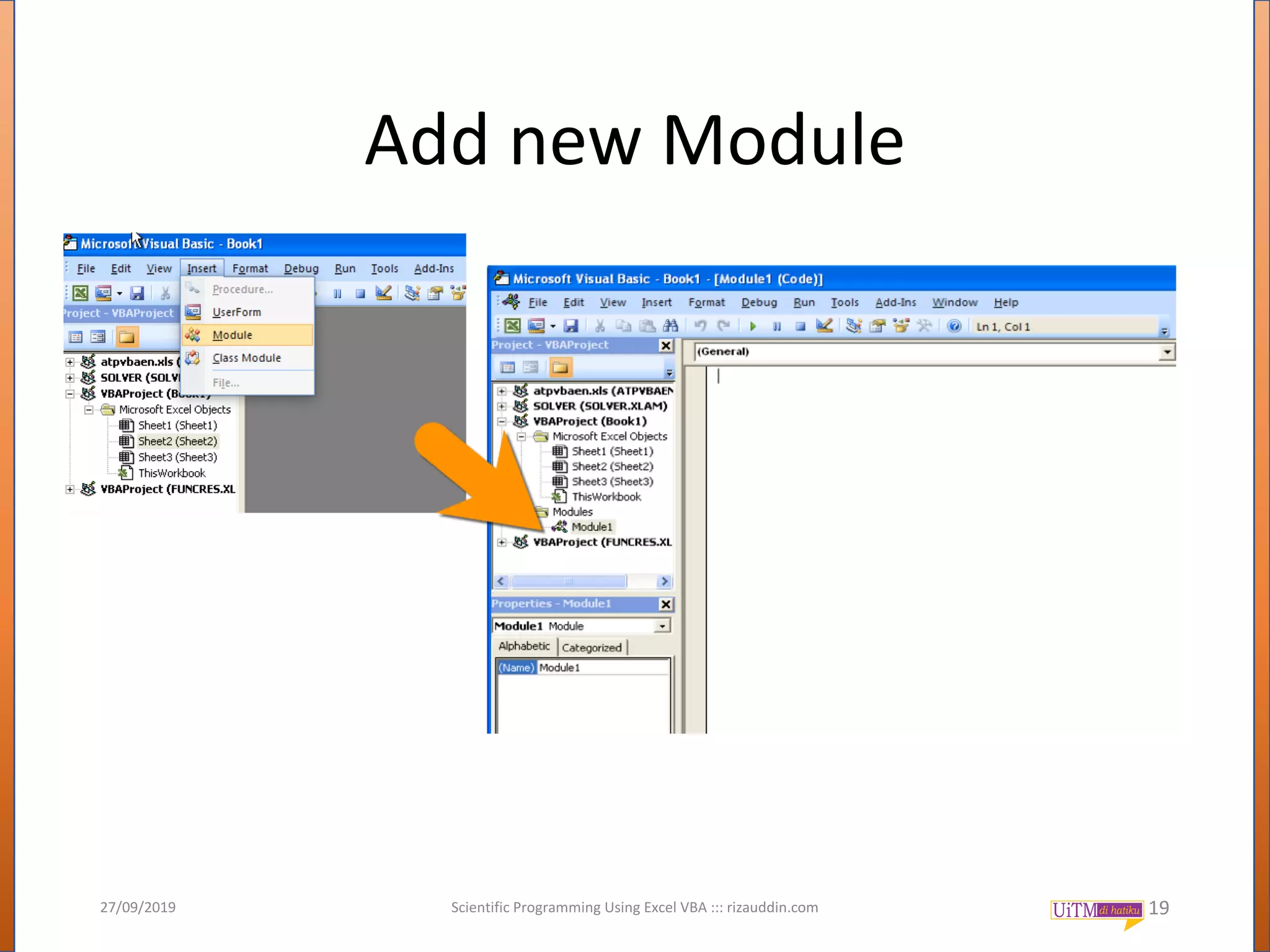

Add new Module
1927/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

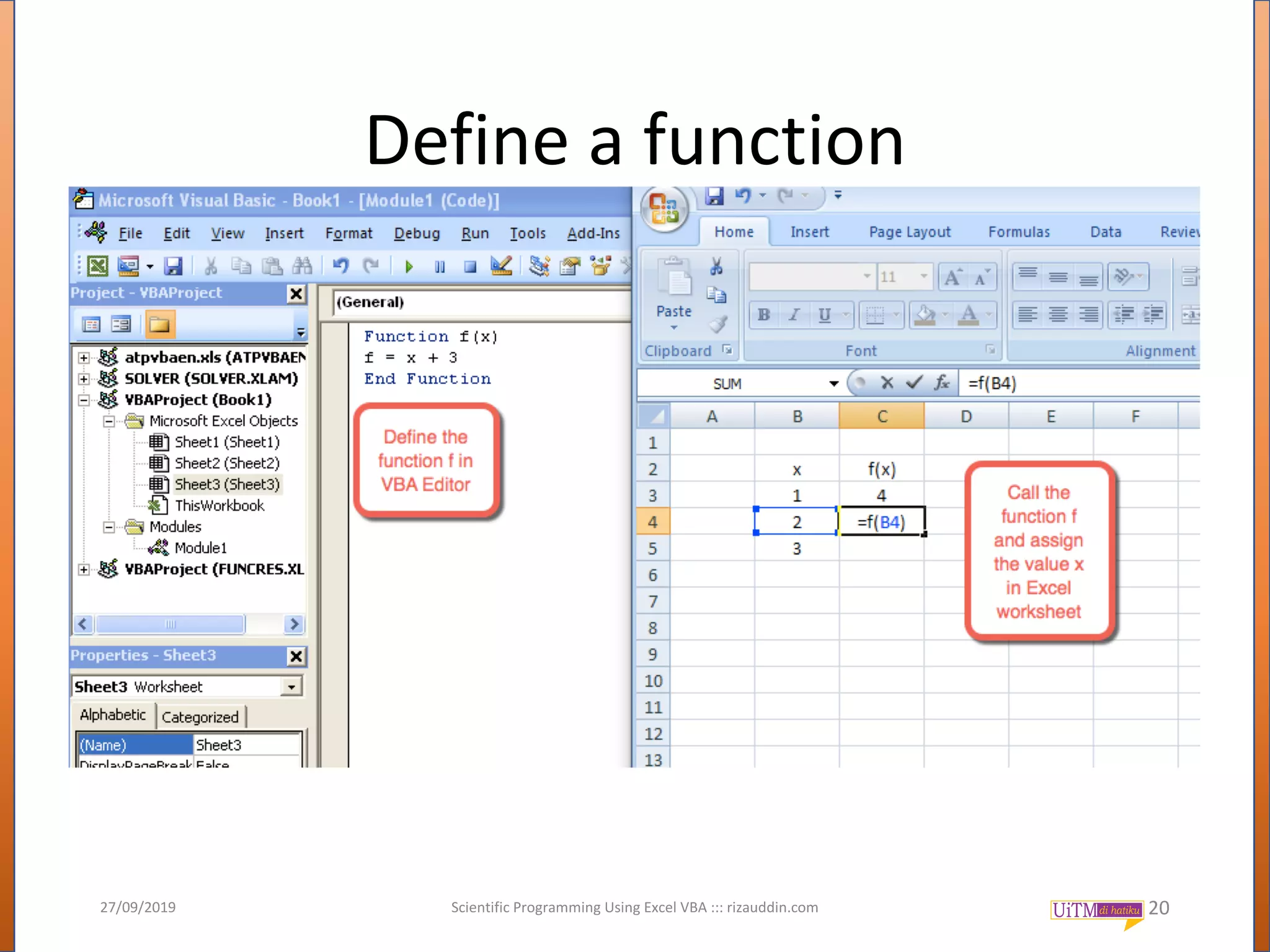

Define a function
2027/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

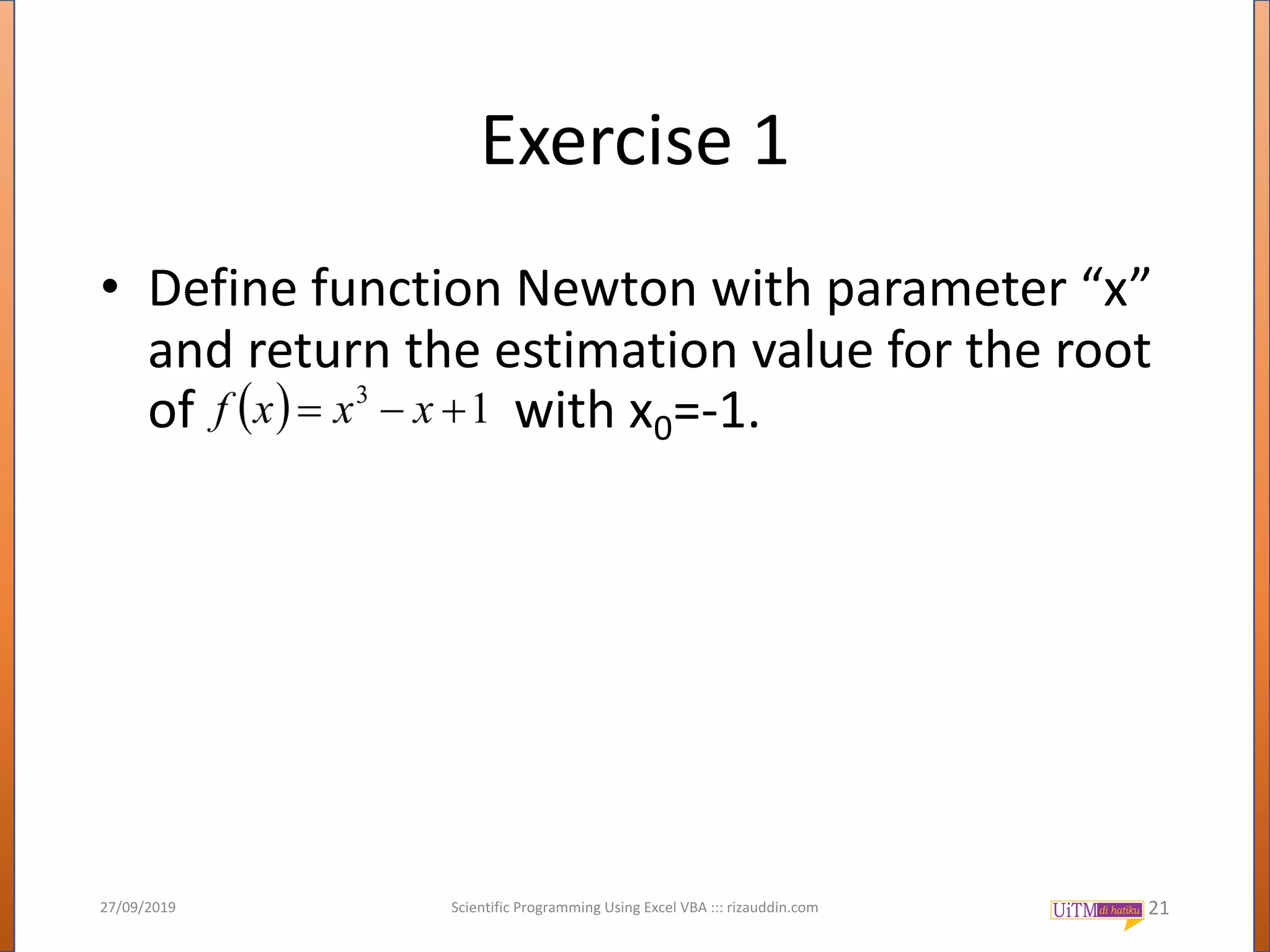

Exercise 1
• Define function Newton with parameter “x”
and return the estimation value for the root
of with x0=-1.
2127/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

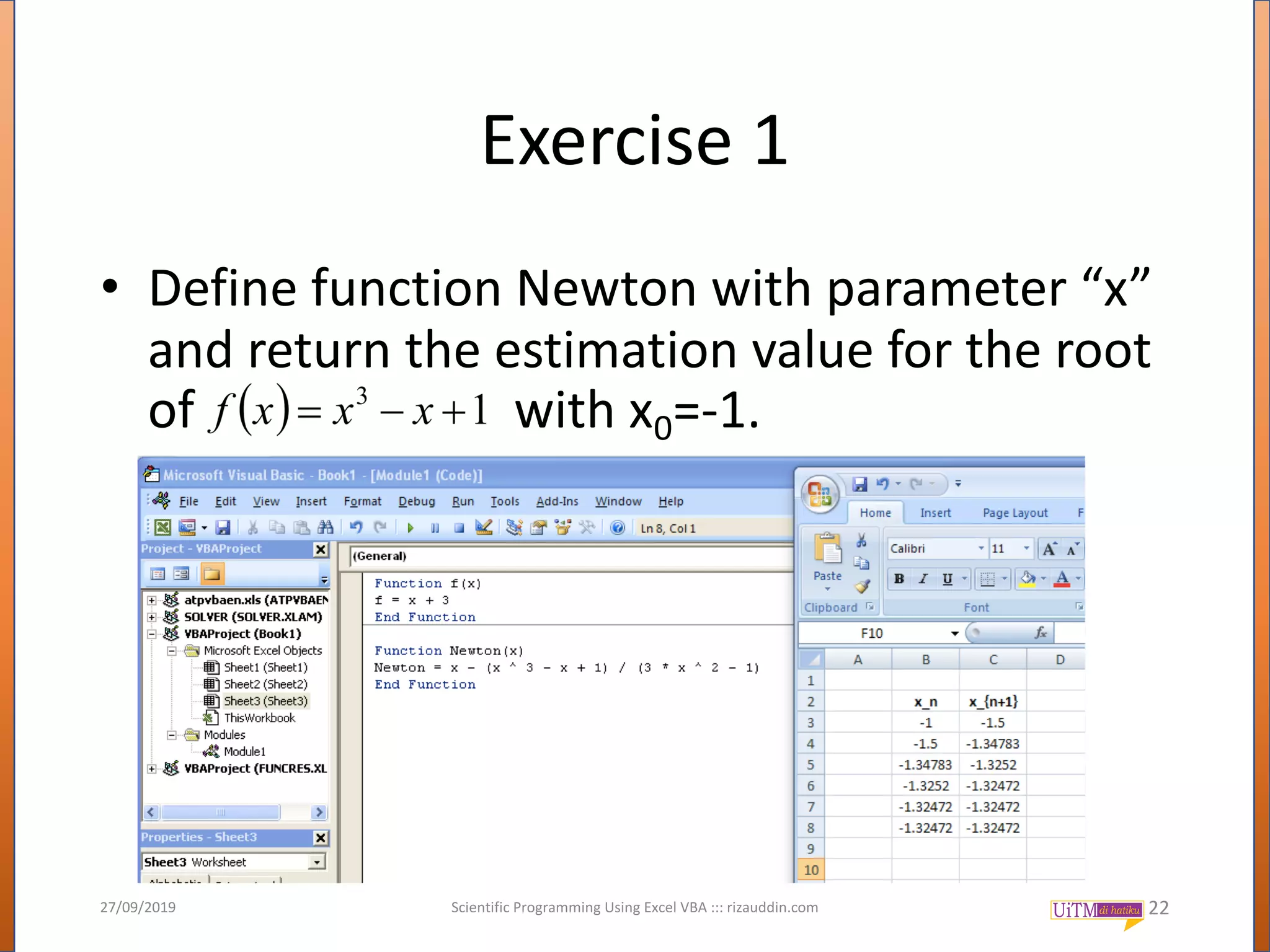

Exercise 1
• Define function Newton with parameter “x”
and return the estimation value for the root
of with x0=-1.
2227/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

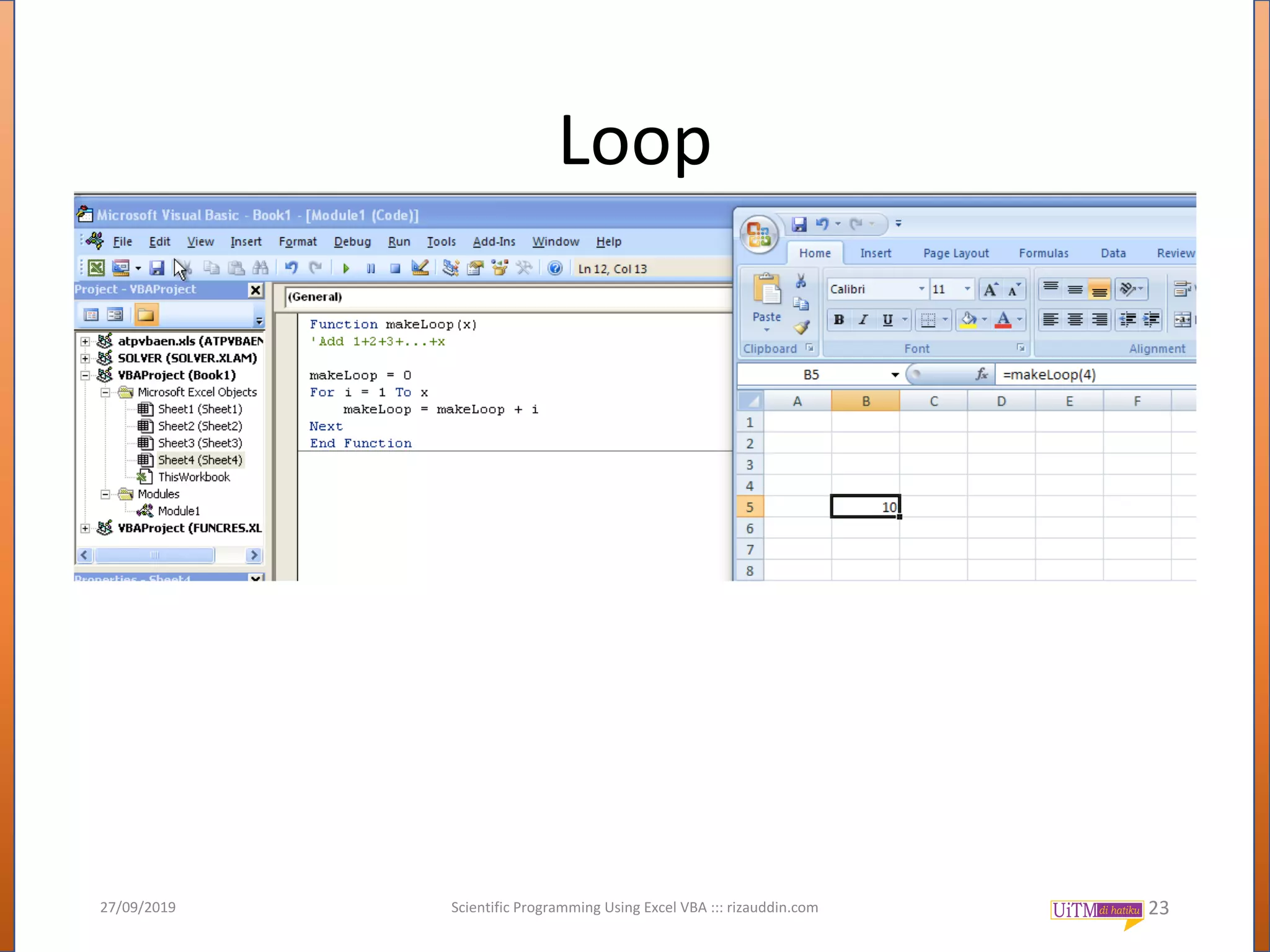

Loop
2327/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com

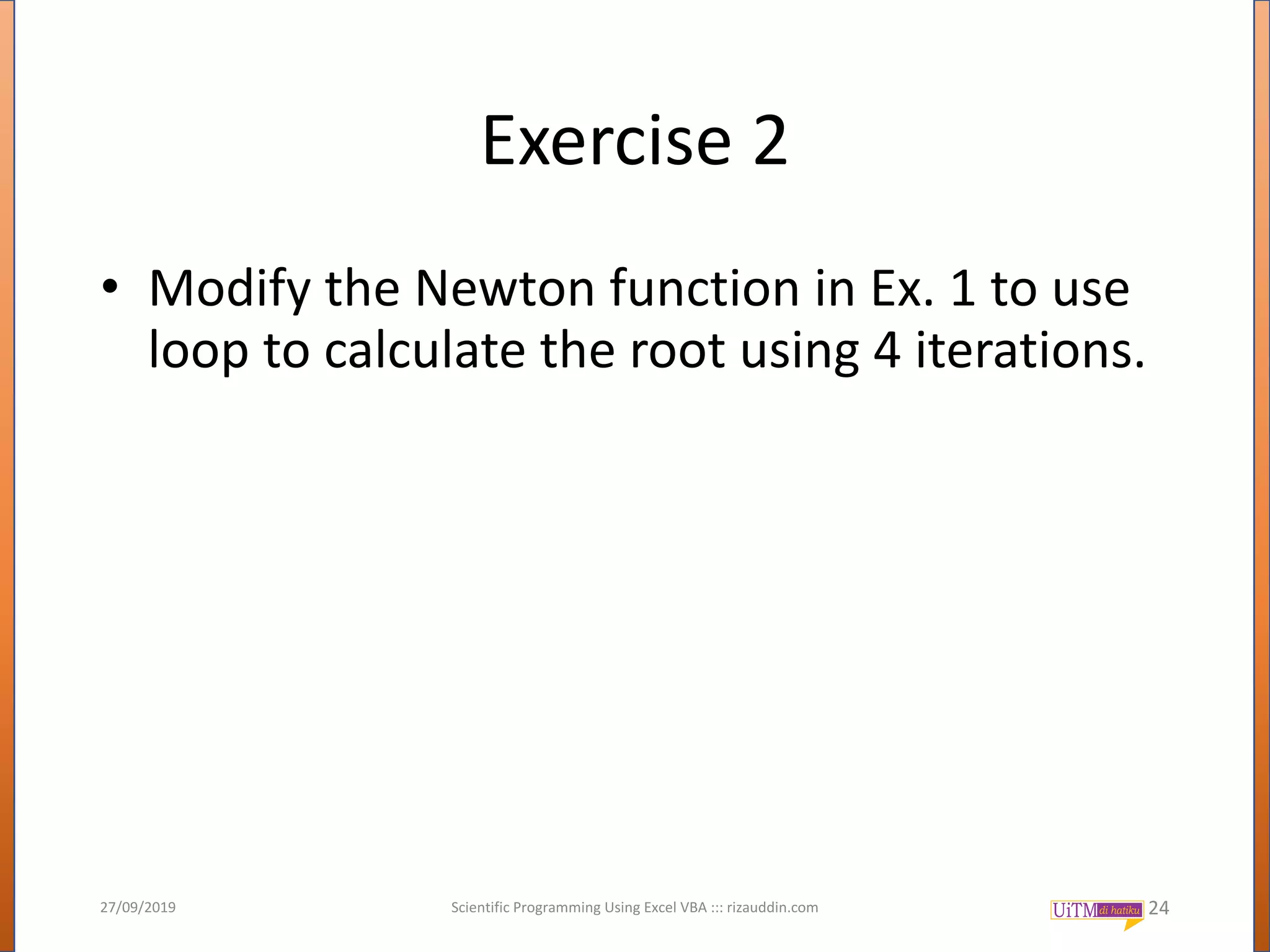

Exercise 2
• Modify the Newton function in Ex. 1 to use
loop to calculate the root using 4 iterations.
2427/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com
Exercise 2
• Modify the Newton function in Ex. 1 to use
loop to calculate the root using 4 iterations.
2527/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com
THANK YOU
www.rizauddin.com
27/09/2019 Scientific Programming Using Excel VBA ::: rizauddin.com 26
