The document outlines design procedures for a weather monitoring system, including definitions, objectives, and requirements such as mission specifications and critical design reviews. It details the design flow, mechanical and electrical systems, and sensor specifications, emphasizing factors like power supply, structural integrity, and data handling. Additionally, it covers integration and testing procedures to ensure operational reliability and performance of the system.

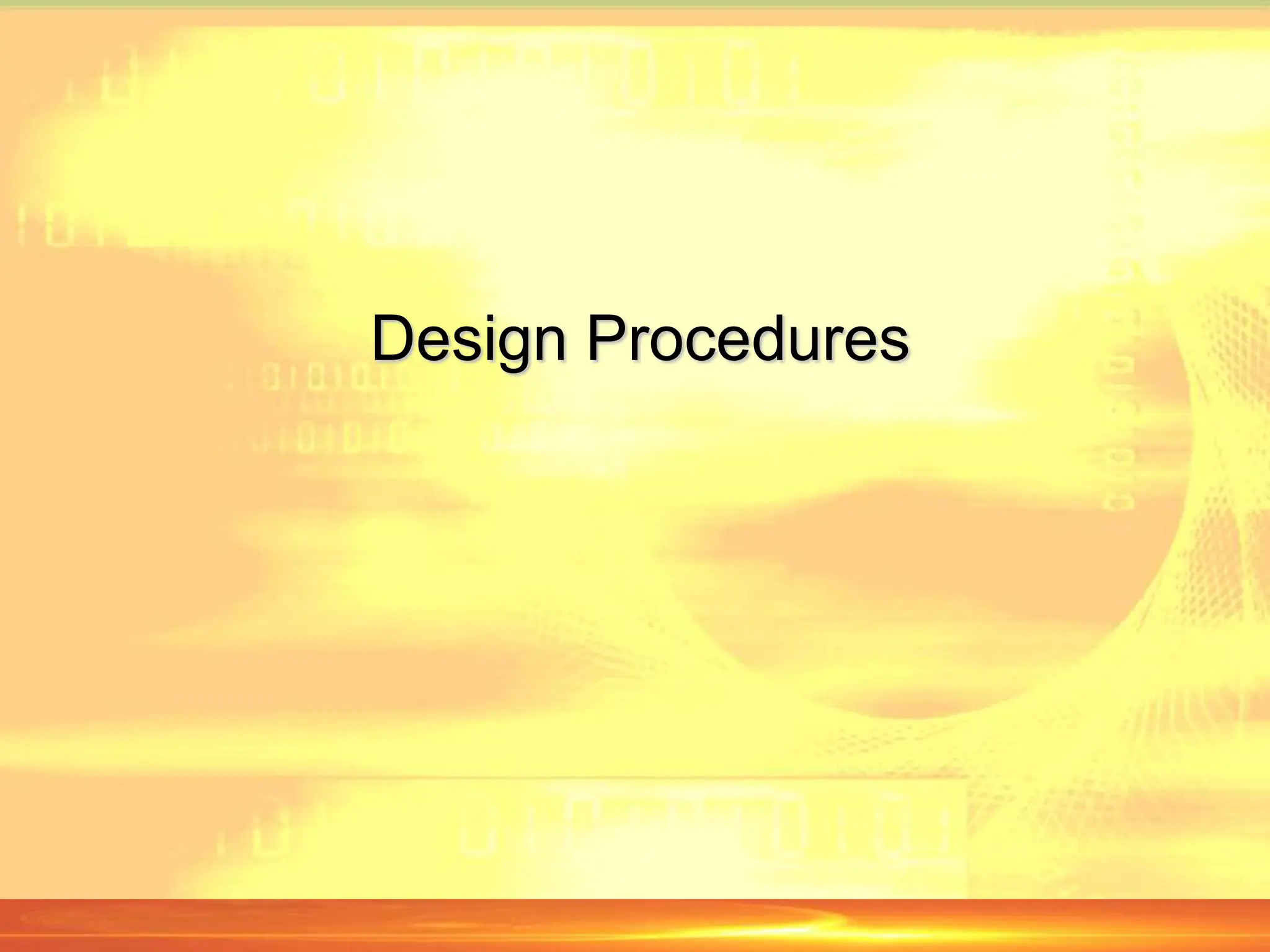

1. Design Procedures

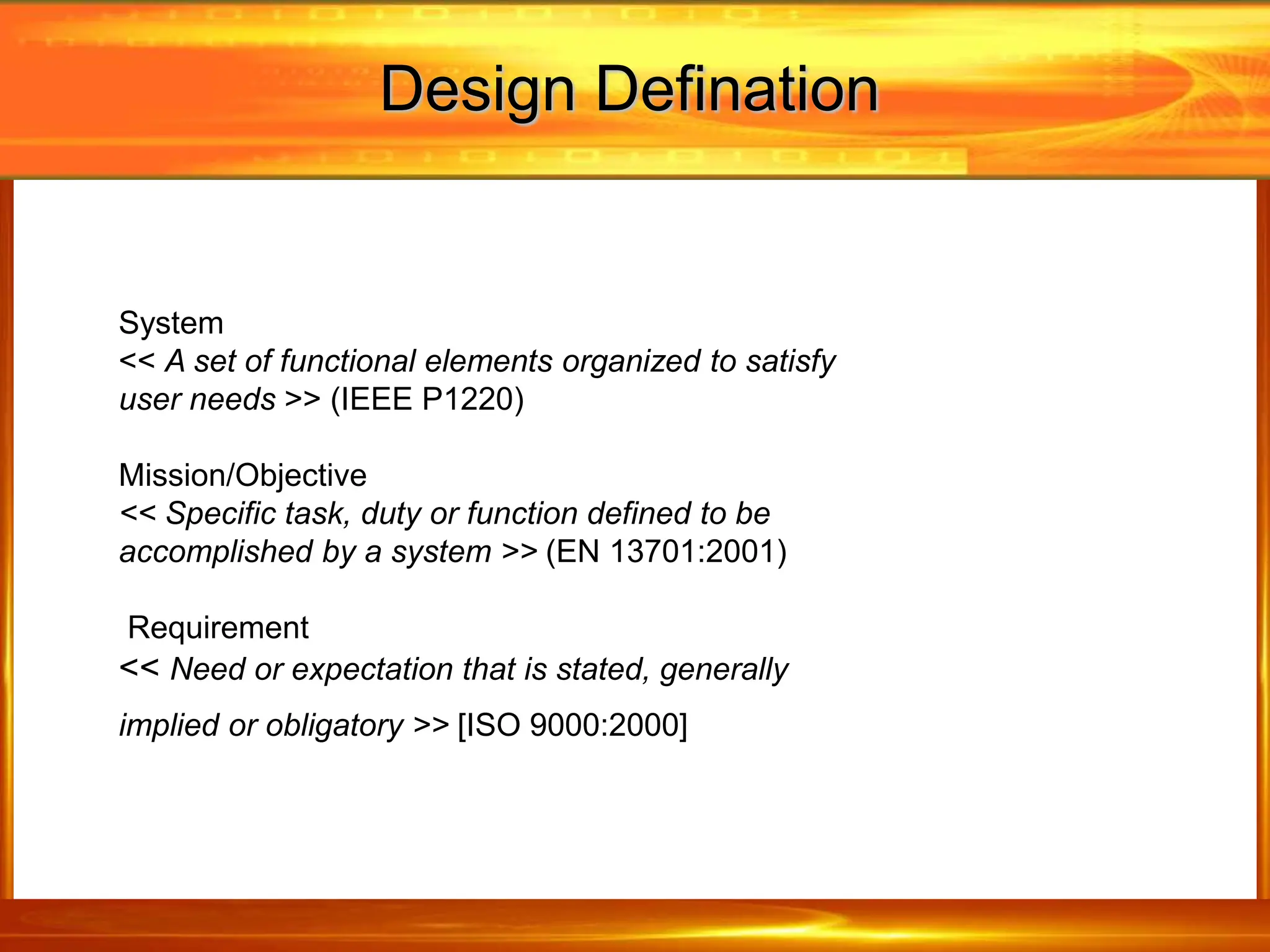

2. Design Defination
System
<< A set of functional elements organized to satisfy
user needs >> (IEEE P1220)
Mission/Objective
<< Specific task, duty or function defined to be
accomplished by a system >> (EN 13701:2001)
Requirement
<< Need or expectation that is stated, generally
implied or obligatory >> [ISO 9000:2000]

3. CRITICAL DESIGN REVIEW (CDR)
Design Objectives

4. Design Objectives
Design Objectives
Primary objective…… States the mission of
your design
The secondary Objective ….. Other
capabilities of your design

5. CRITICAL DESIGN REVIEW (CDR)

6. Design Requirements

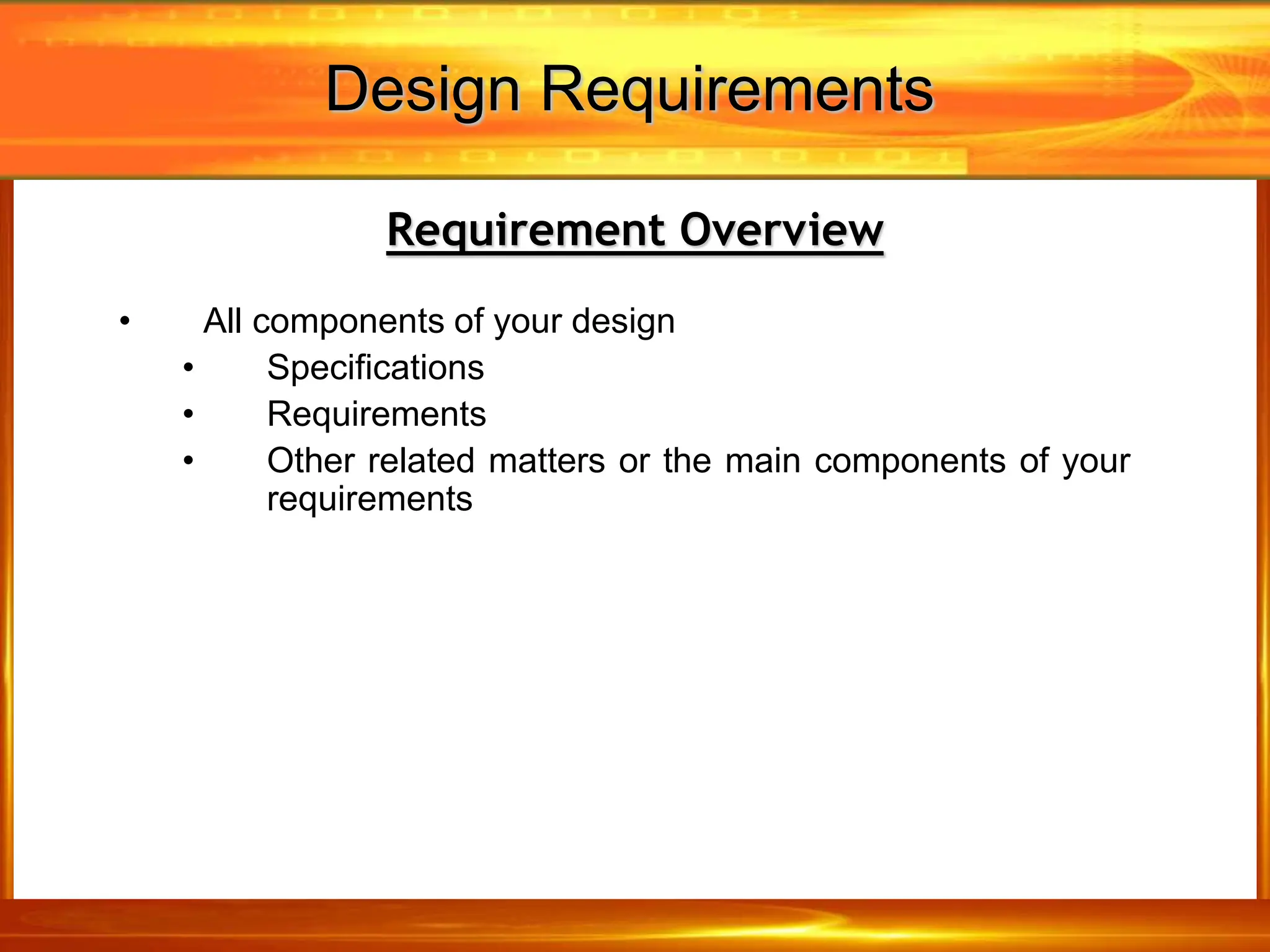

Requirement Overview
• All components of your design
• Specifications
• Requirements
• Other related matters or the main components of your
requirements

7. Design Requirements

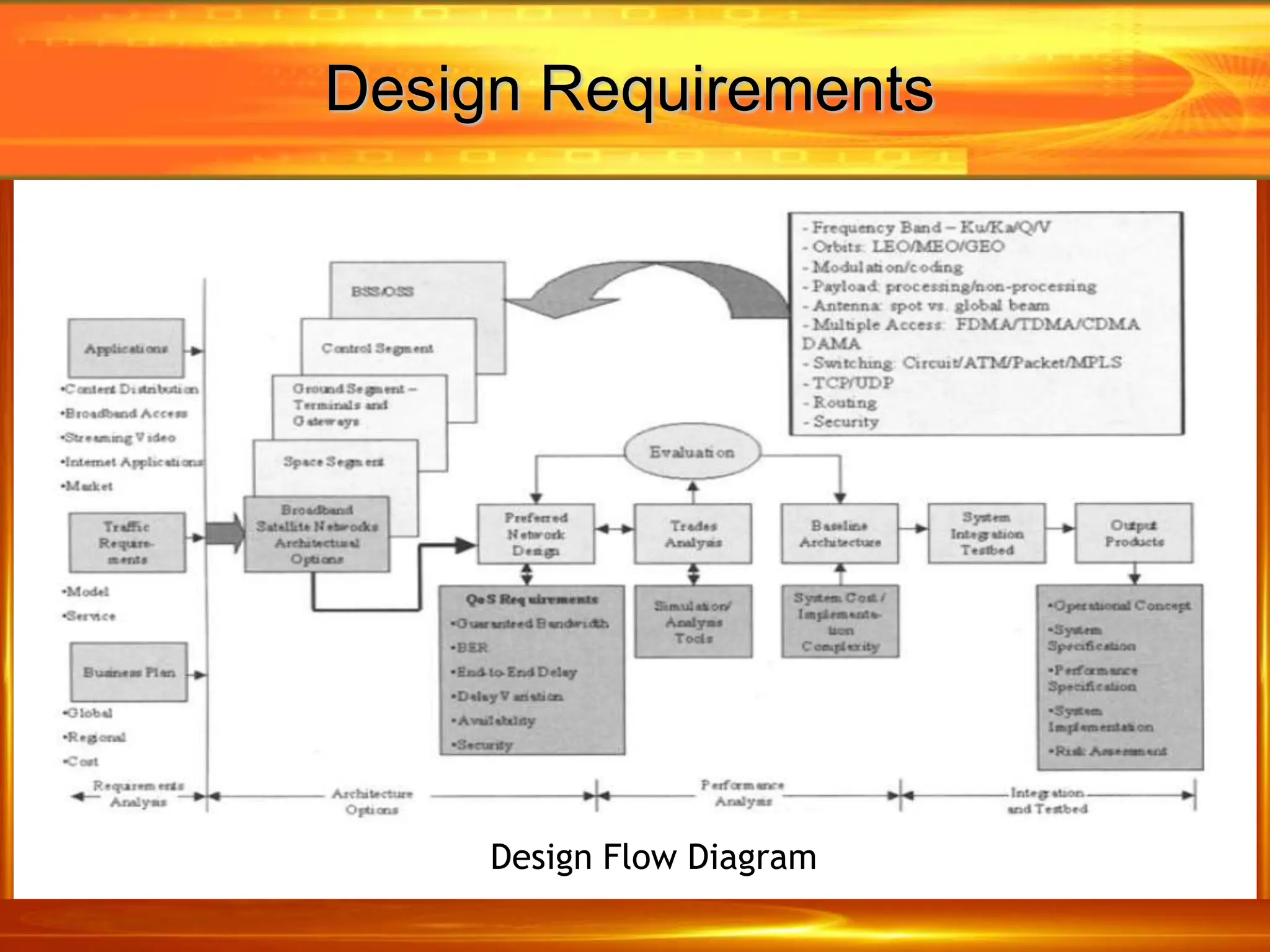

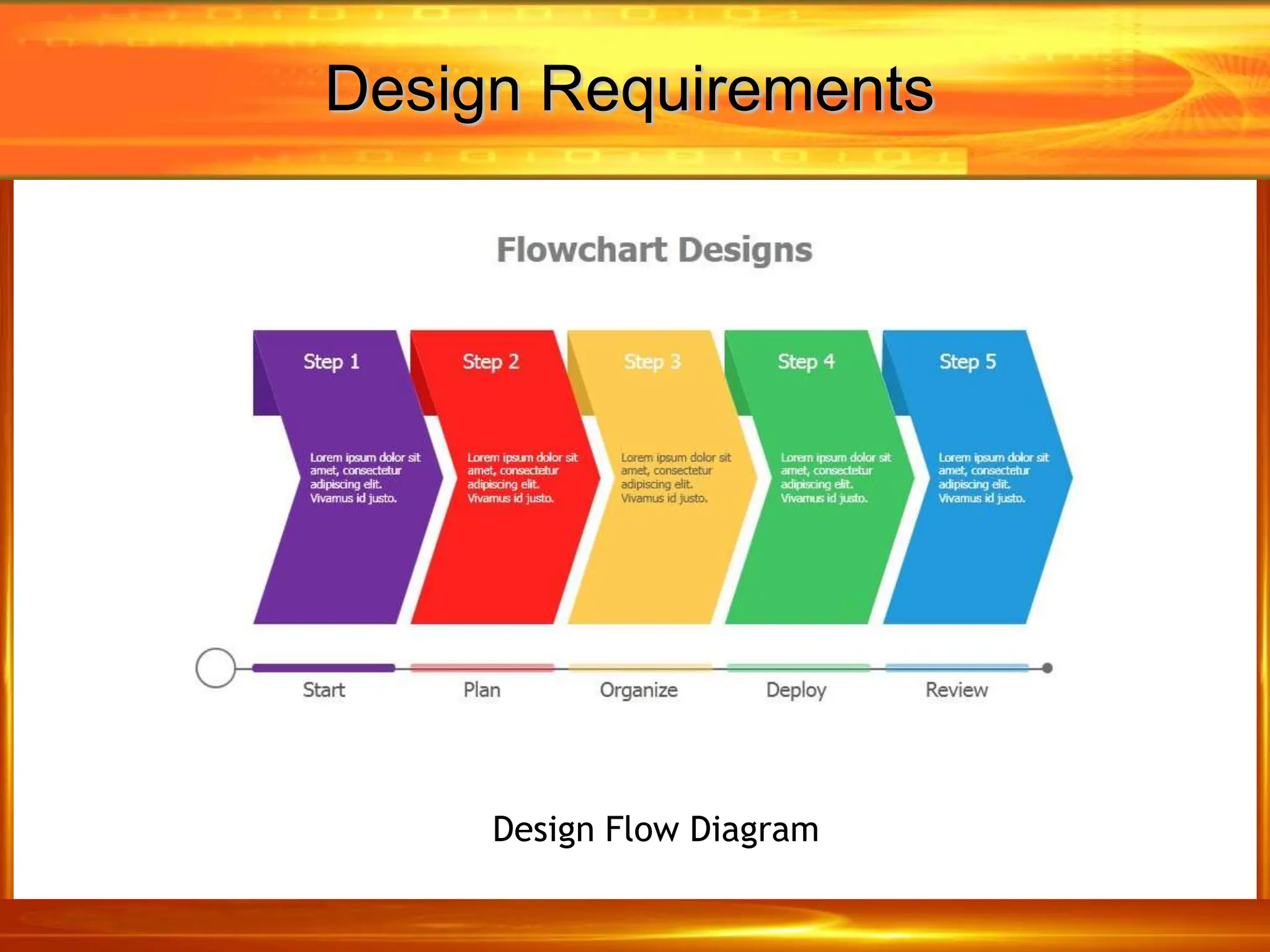

Design Flow Diagram

8. Design Requirements
Design Flow Diagram

9. Design Requirements

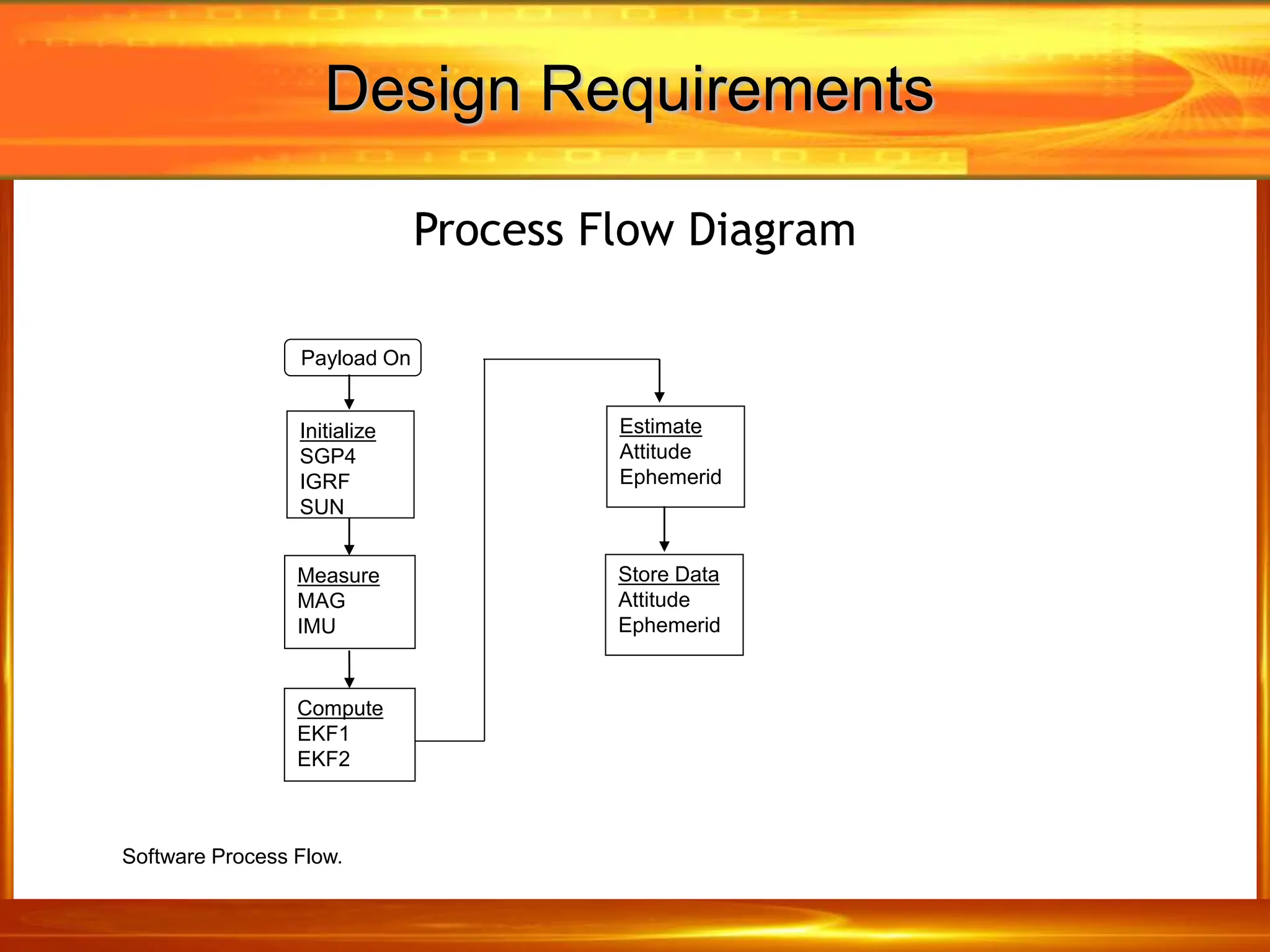

Process Flow Diagram
Initialize
SGP4
IGRF
SUN
Payload On
Measure
MAG
IMU
Compute
EKF1
EKF2
Estimate
Attitude
Ephemerid
Store Data
Attitude
Ephemerid
Software Process Flow.

10. Design Requirements
Process Flow Diagram

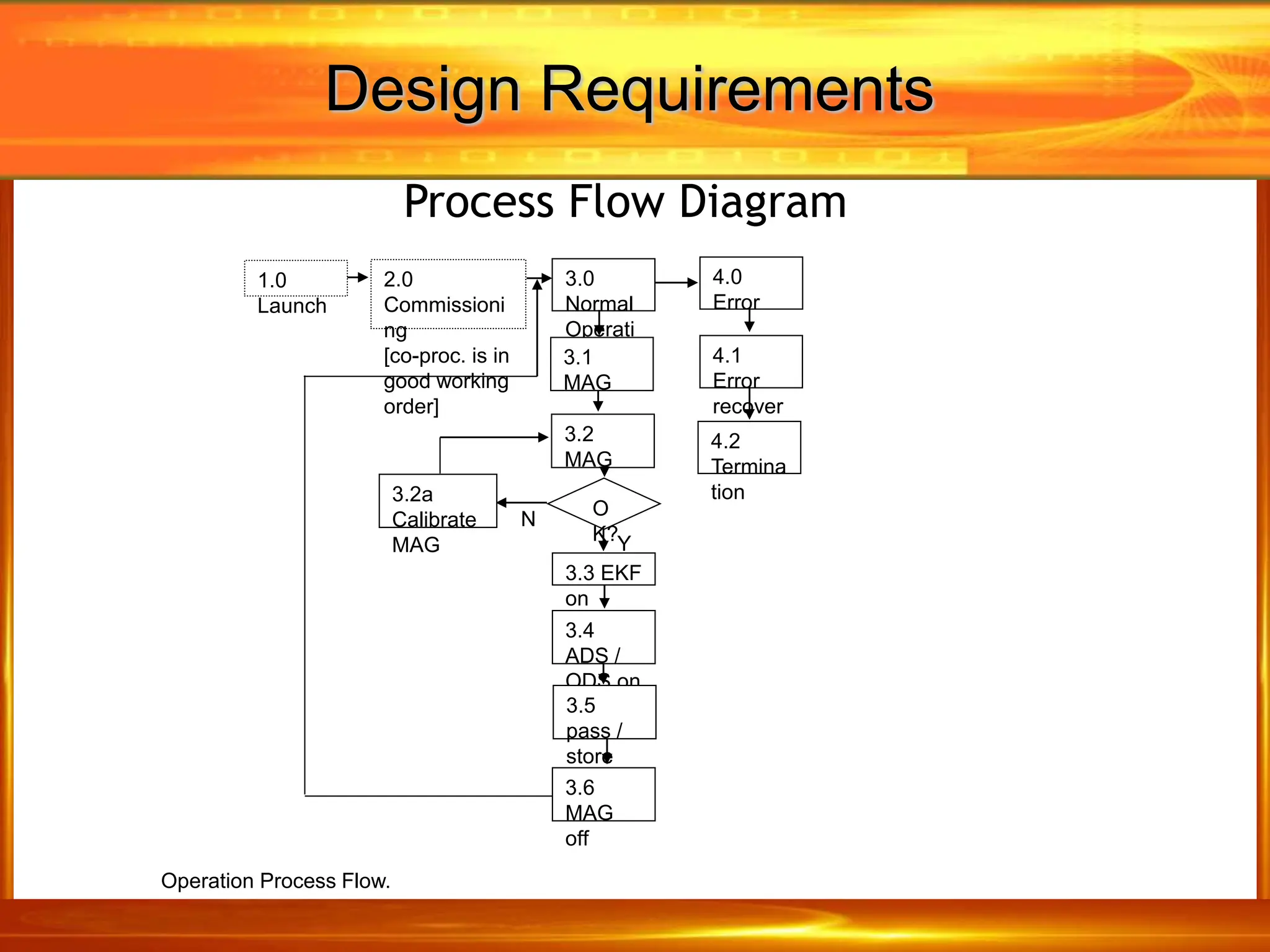

Operation Process Flow.
1.0
Launch
2.0
Commissioni
ng
[co-proc. is in
good working
order]
3.0
Normal
Operati
on
3.1
MAG
3.2
MAG
3.3 EKF
on
3.4
ADS /
ODS on
3.5
pass /
store
data
3.6
MAG
off
3.2a
Calibrate
MAG
O
K?
N
Y
4.0
Error
4.1
Error
recover
y
4.2
Termina
tion

11. Design Requirements

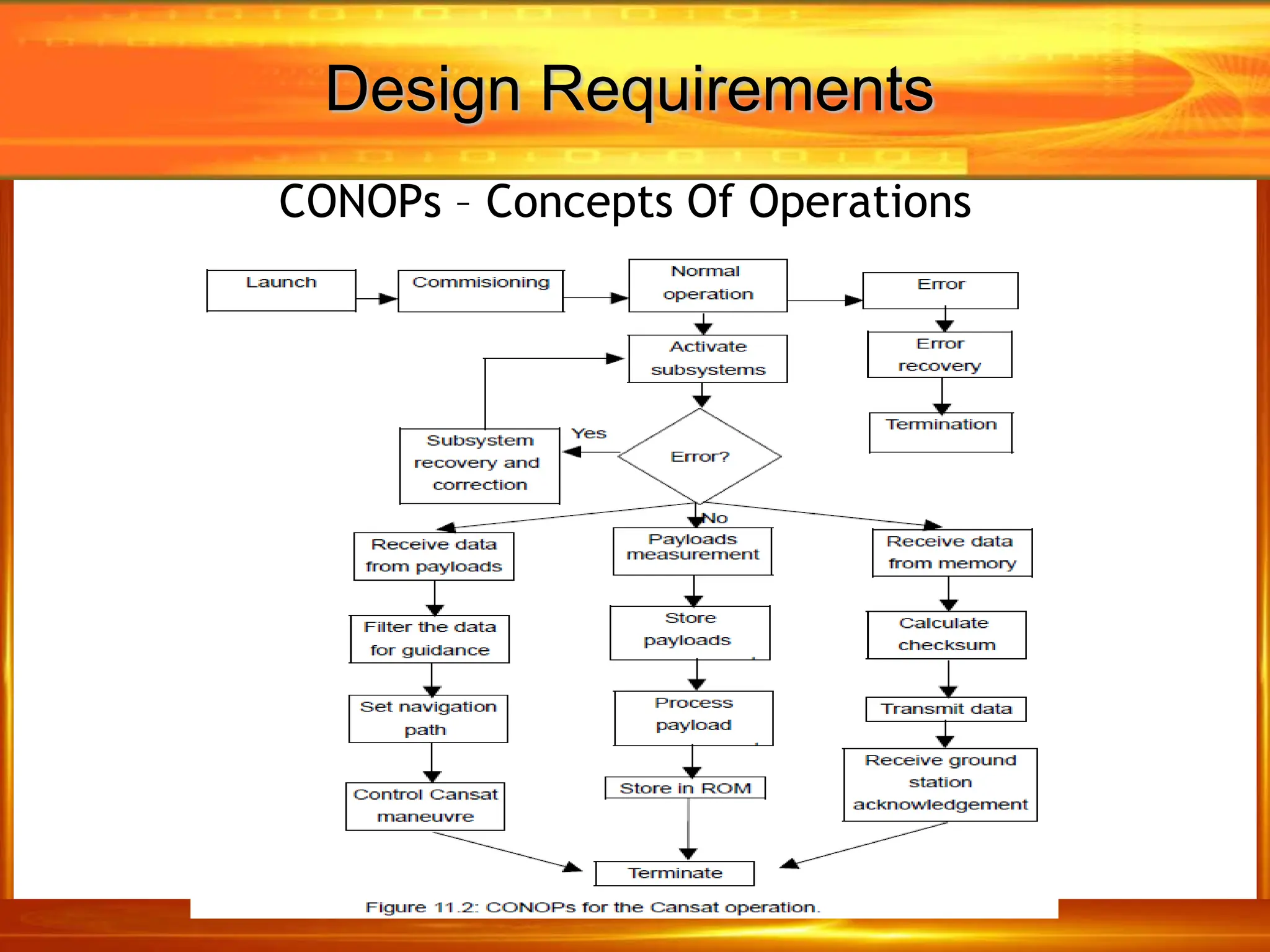

CONOPs – Concepts Of Operations

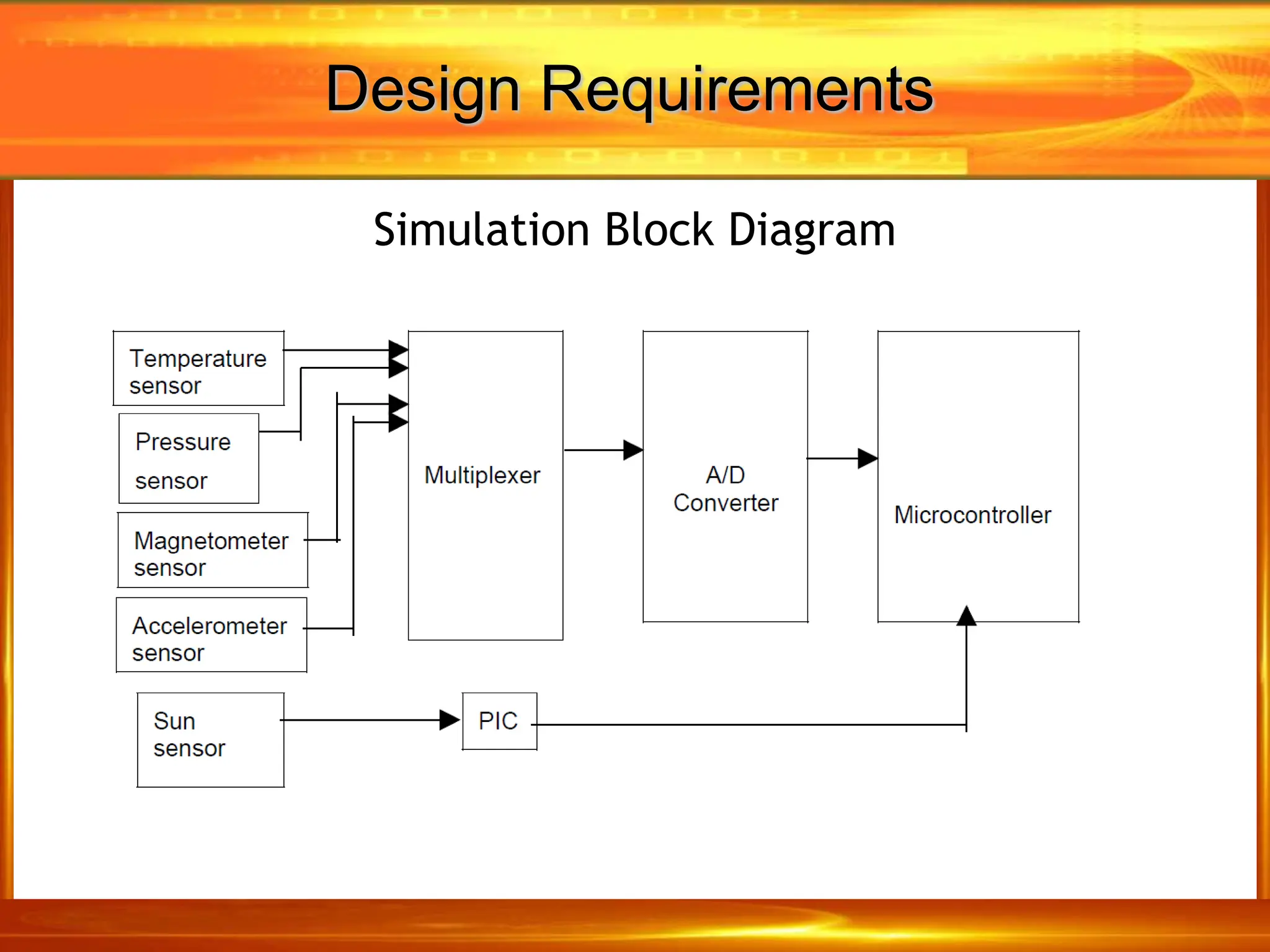

12. Design Requirements
Simulation Block Diagram

13. Design Requirements

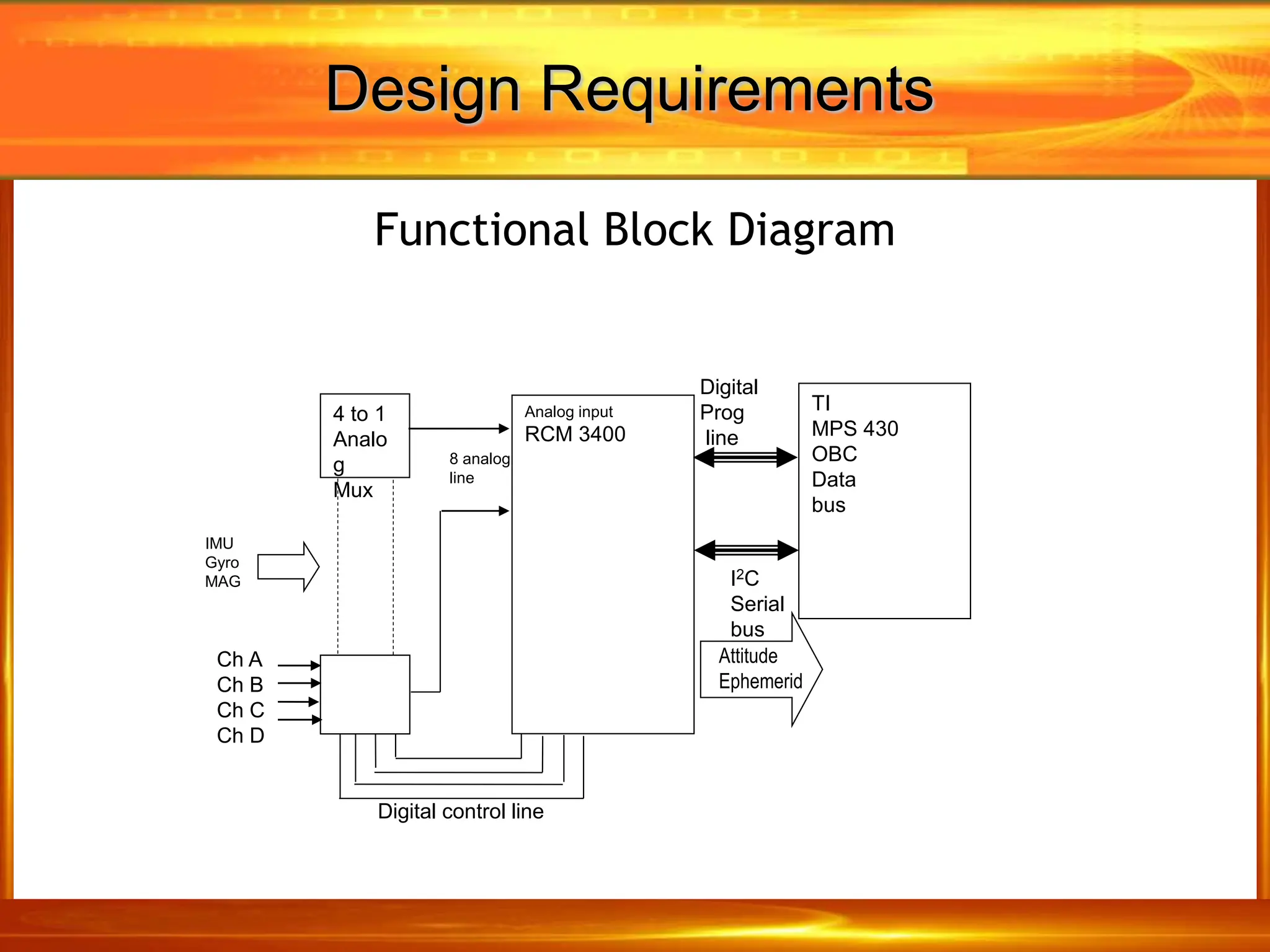

Functional Block Diagram
Analog input
RCM 3400
4 to 1
Analo
g
Mux
Digital control line
Ch A
Ch B
Ch C
Ch D
Digital
Prog
line
TI
MPS 430
OBC
Data
bus
I2C
Serial
bus
8 analog
line
IMU
Gyro
MAG
Attitude
Ephemerid

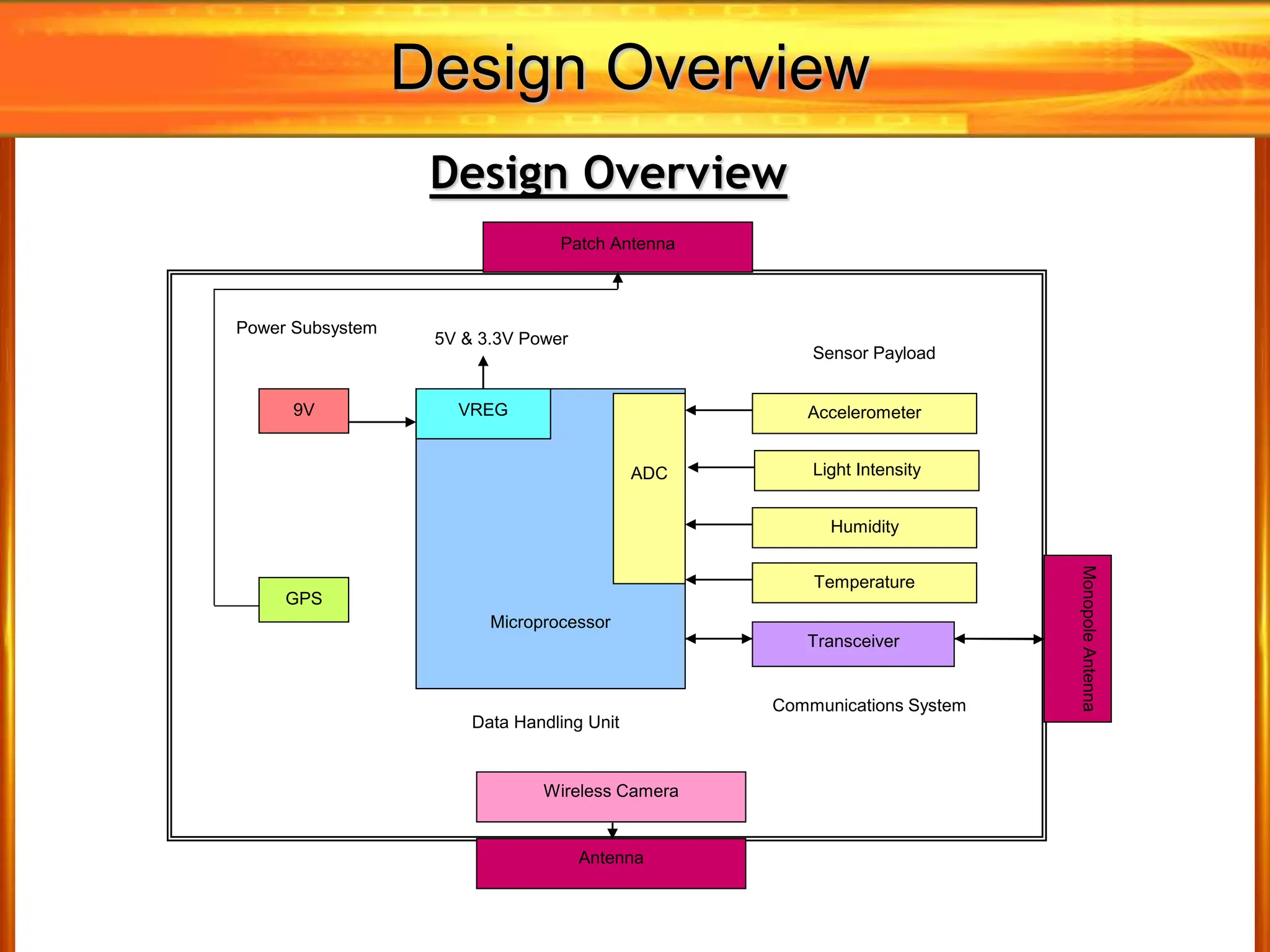

14. Design Overview
Design Overview
9V
Power Subsystem
Transceiver
Communications System
Sensor Payload
VREG
ADC
Microprocessor
Data Handling Unit
Humidity
5V & 3.3V Power
GPS
Temperature
Accelerometer
Wireless Camera
Antenna
Patch Antenna
Monopole
Antenna
Light Intensity

15. CRITICAL DESIGN REVIEW (CDR)

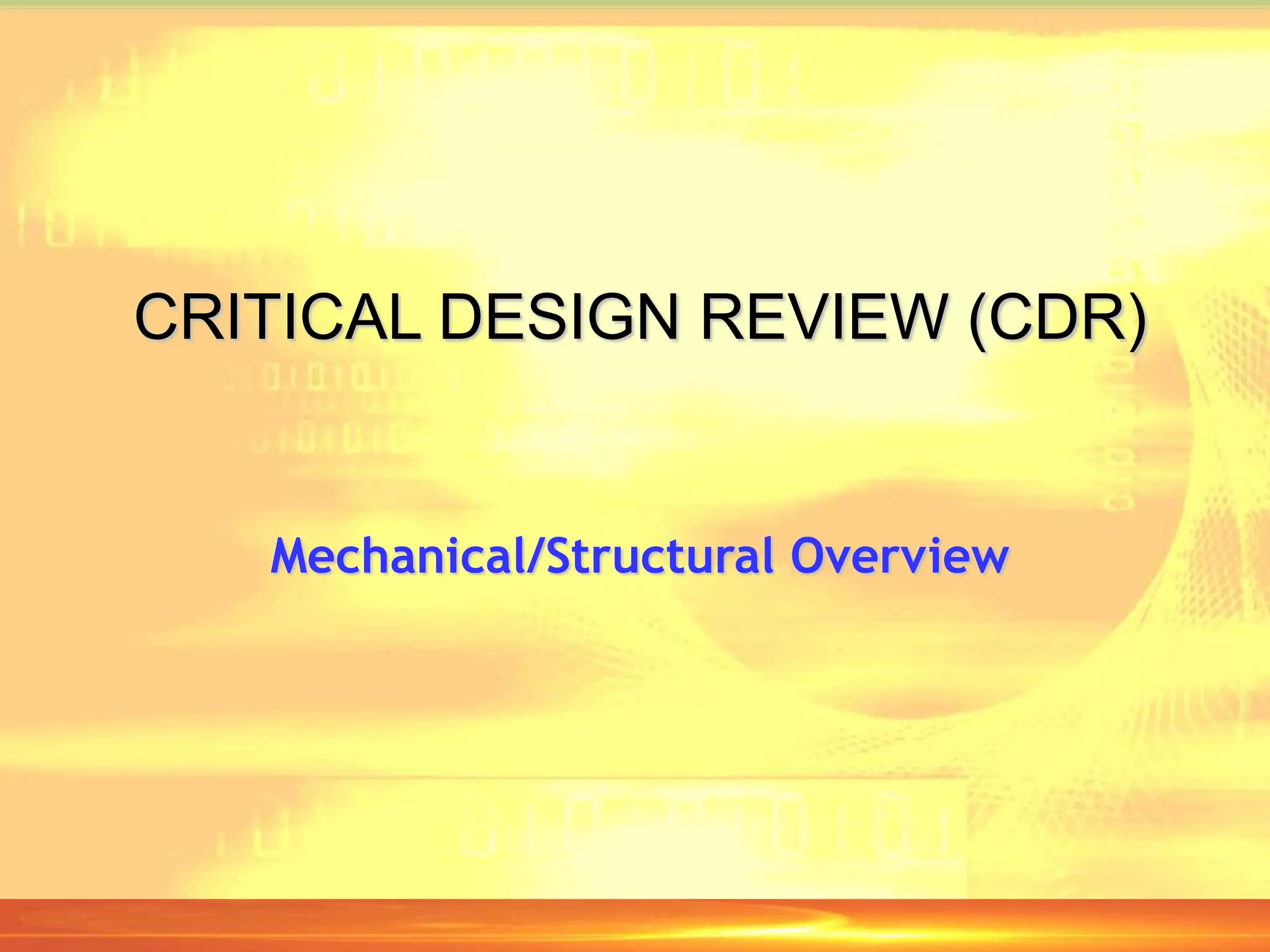

Mechanical/Structural Overview

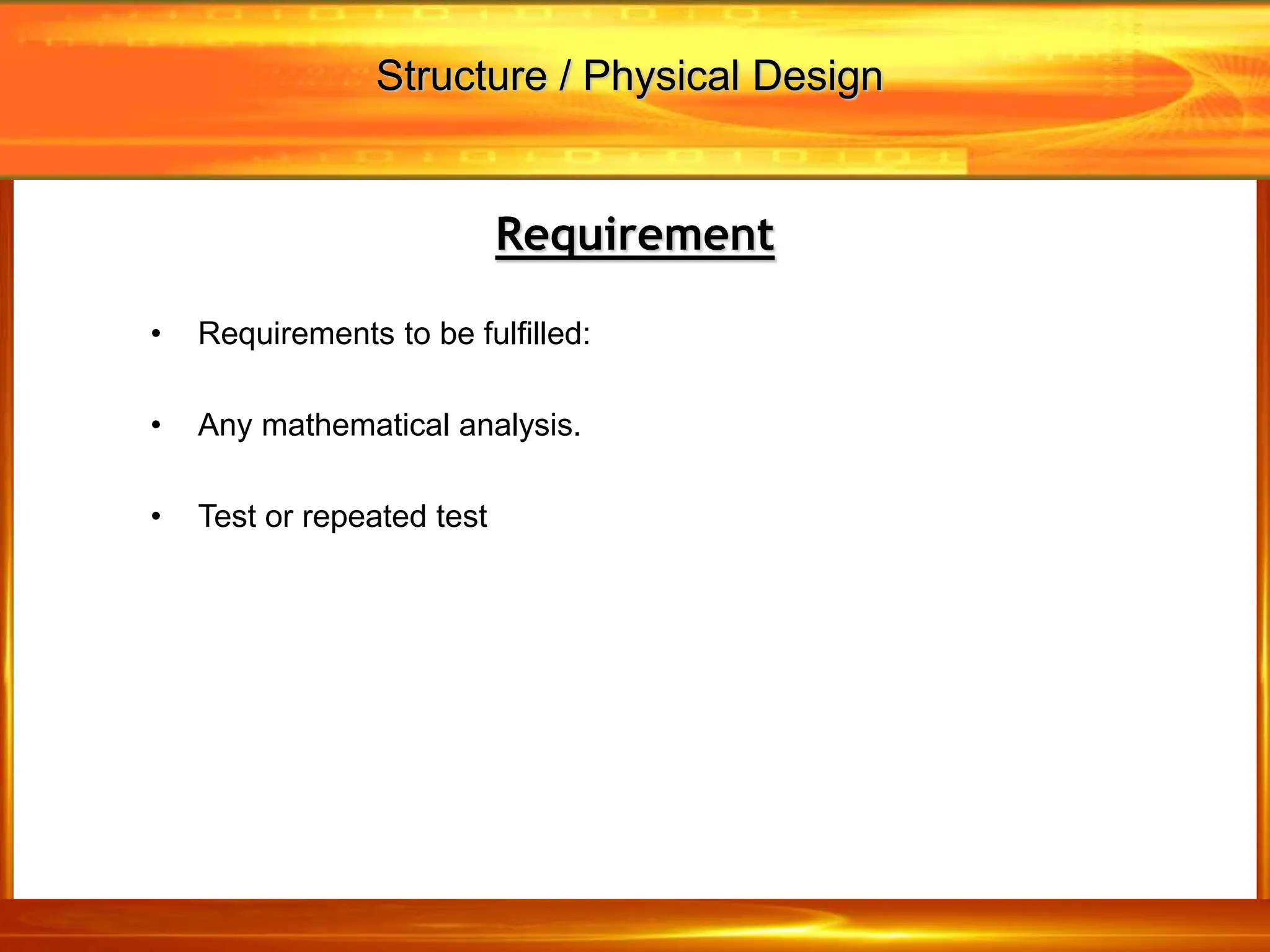

16. Requirement
• Requirements to be fulfilled:
• Any mathematical analysis.
• Test or repeated test
Structure / Physical Design

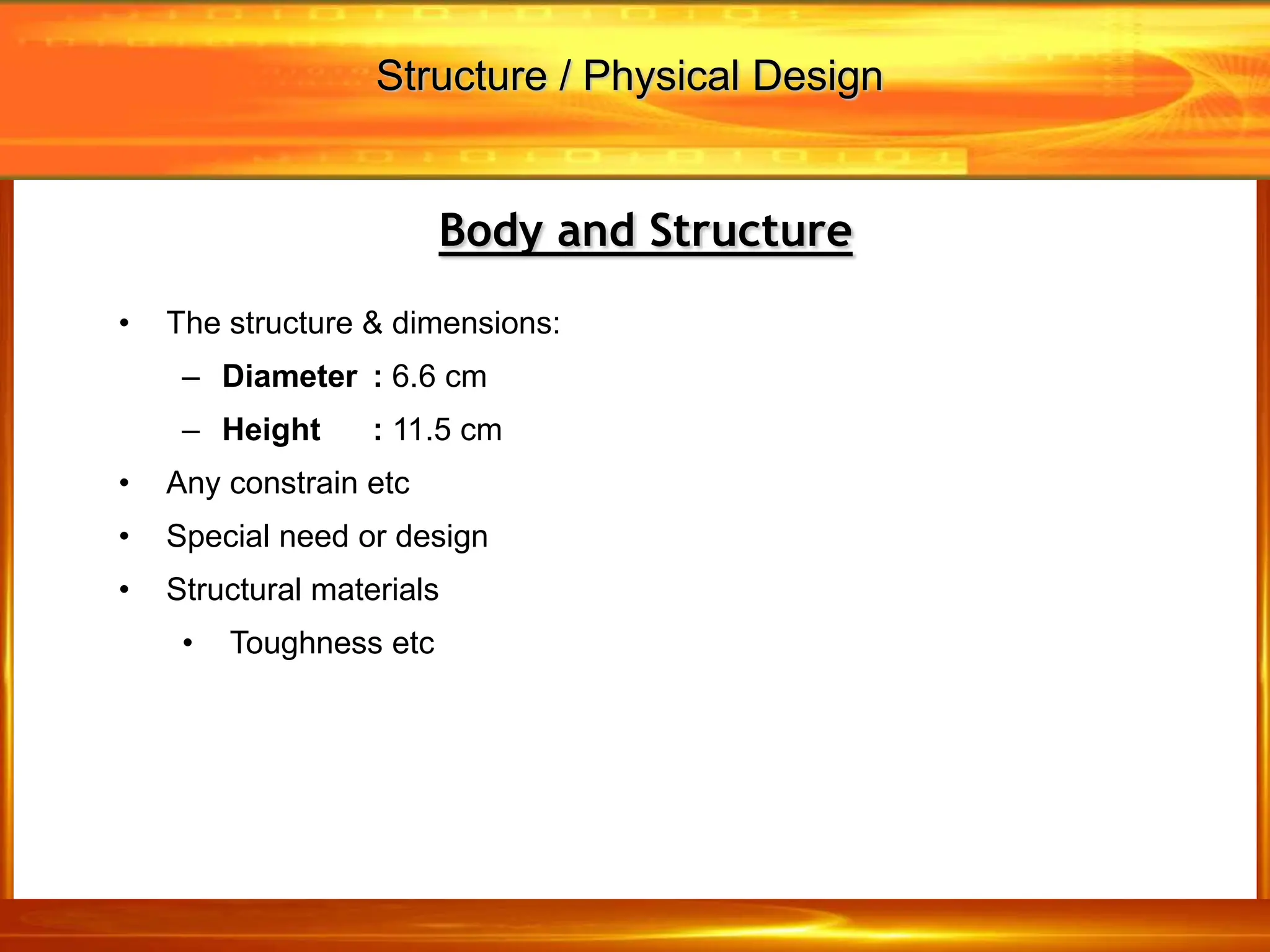

17. • The structure & dimensions:
– Diameter : 6.6 cm
– Height : 11.5 cm
• Any constrain etc
• Special need or design
• Structural materials
• Toughness etc
Body and Structure
Structure / Physical Design

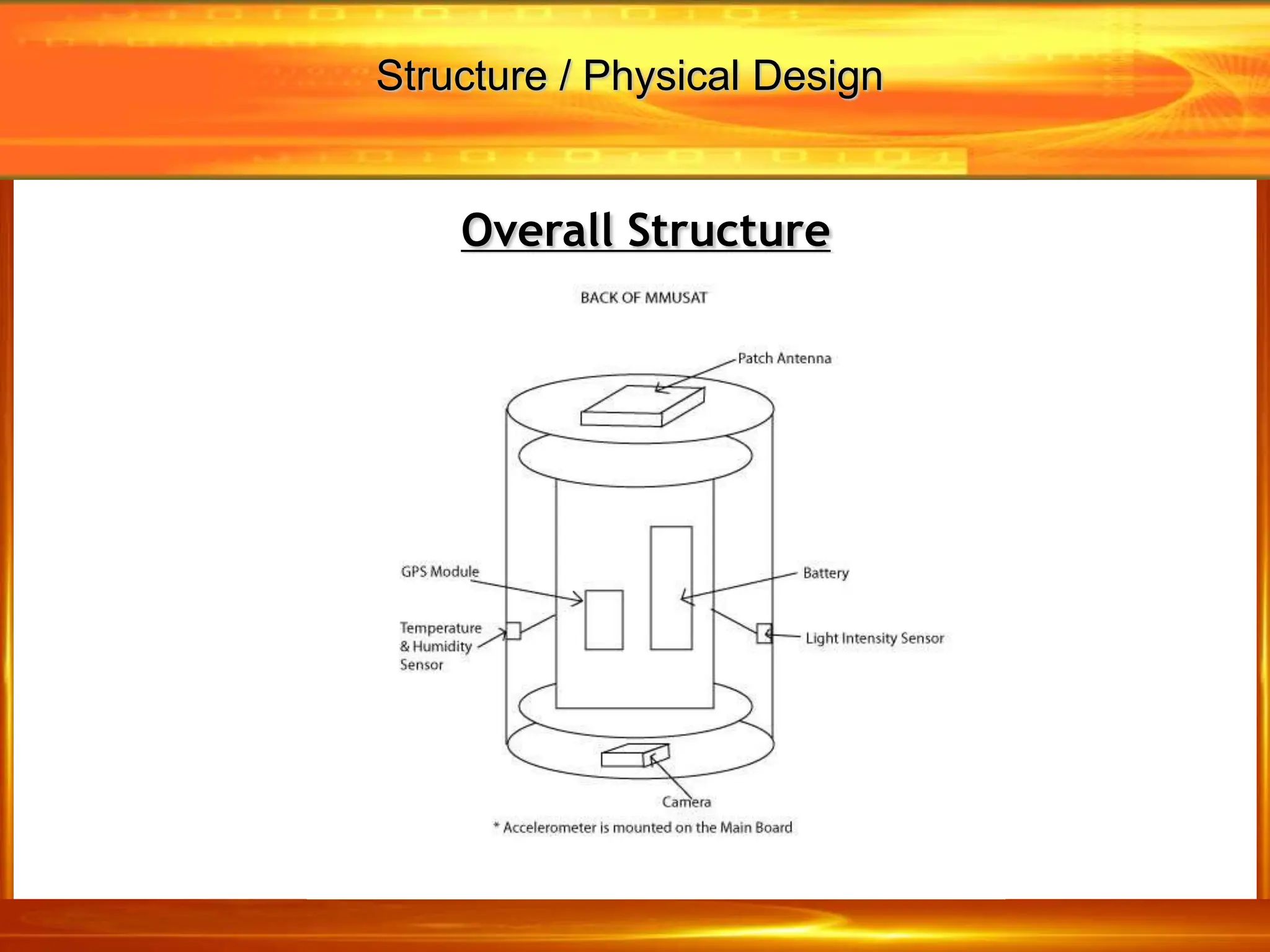

18. Overall Structure
Structure / Physical Design

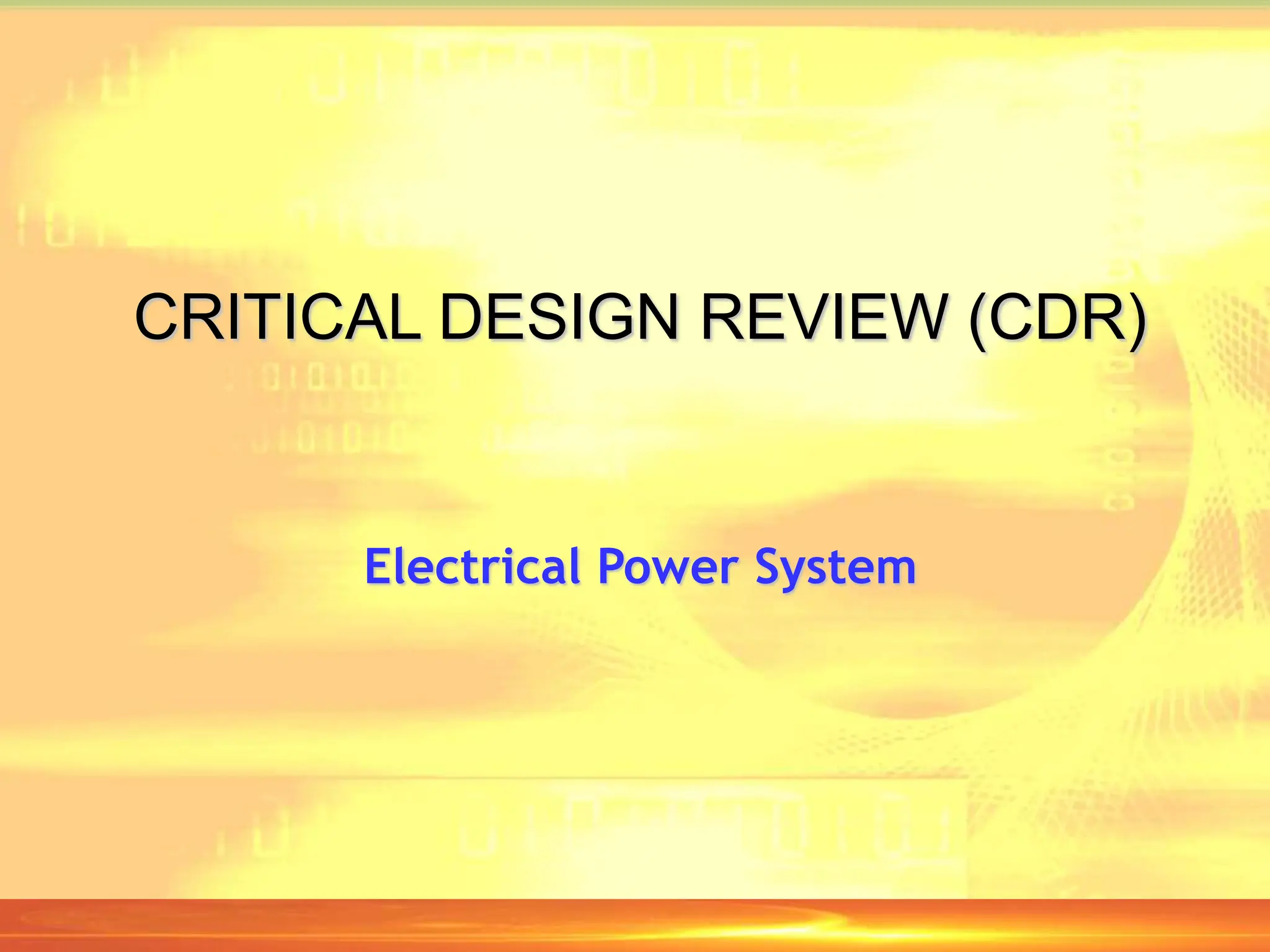

19. CRITICAL DESIGN REVIEW (CDR)
Electrical Power System

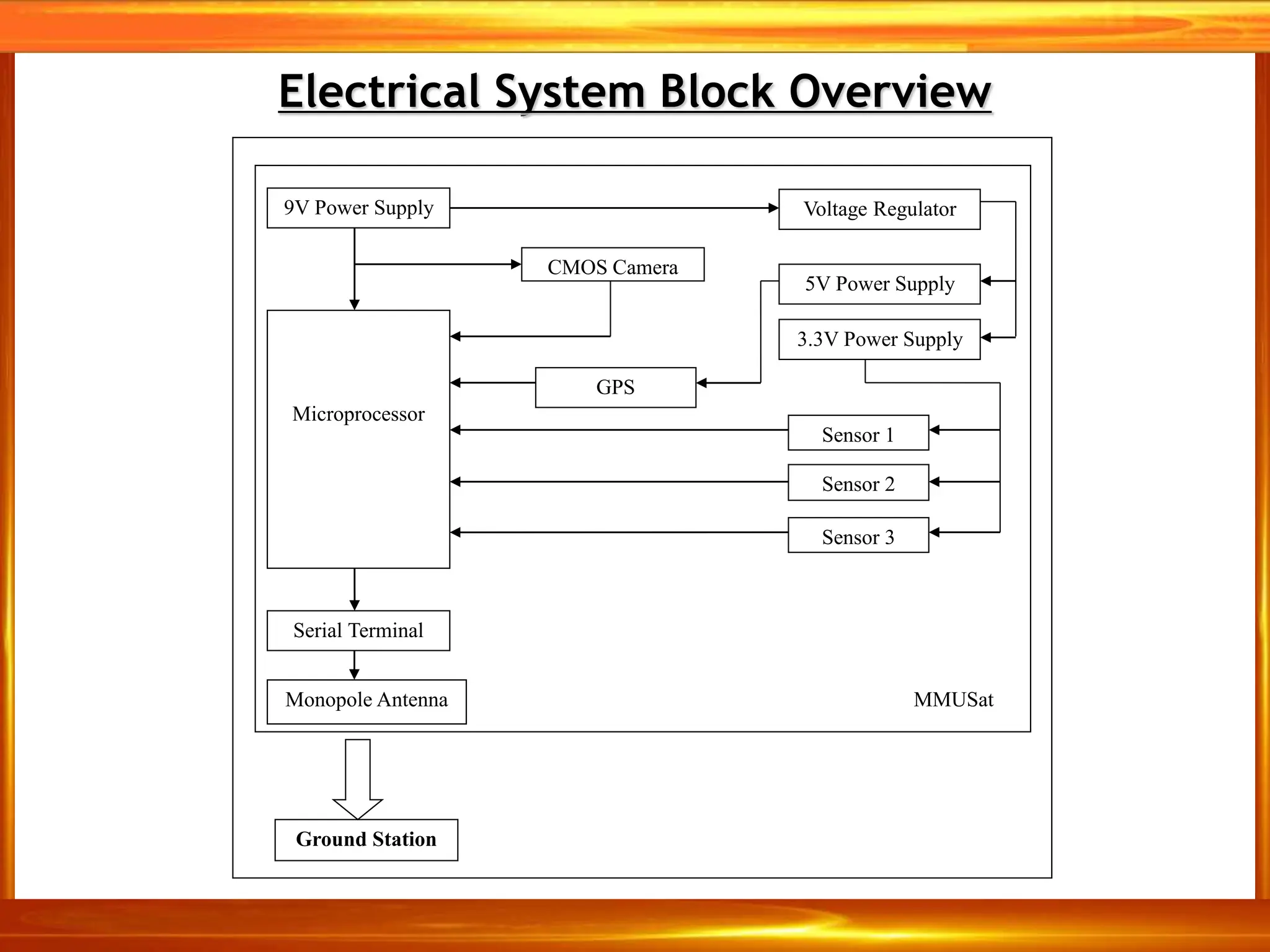

20. Electrical System Block Overview
Serial Terminal
Microprocessor
9V Power Supply Voltage Regulator
5V Power Supply
3.3V Power Supply
GPS
CMOS Camera
Sensor 1
Sensor 2
Sensor 3
Monopole Antenna
Ground Station
MMUSat

21. • Power source
• Battery
• mAH or AH
• Weight/mass/size ?
• Portability?
• Power budget
• Requirement per hour of use
• Connectivity
• Constraint??
Electrical Power Requirements

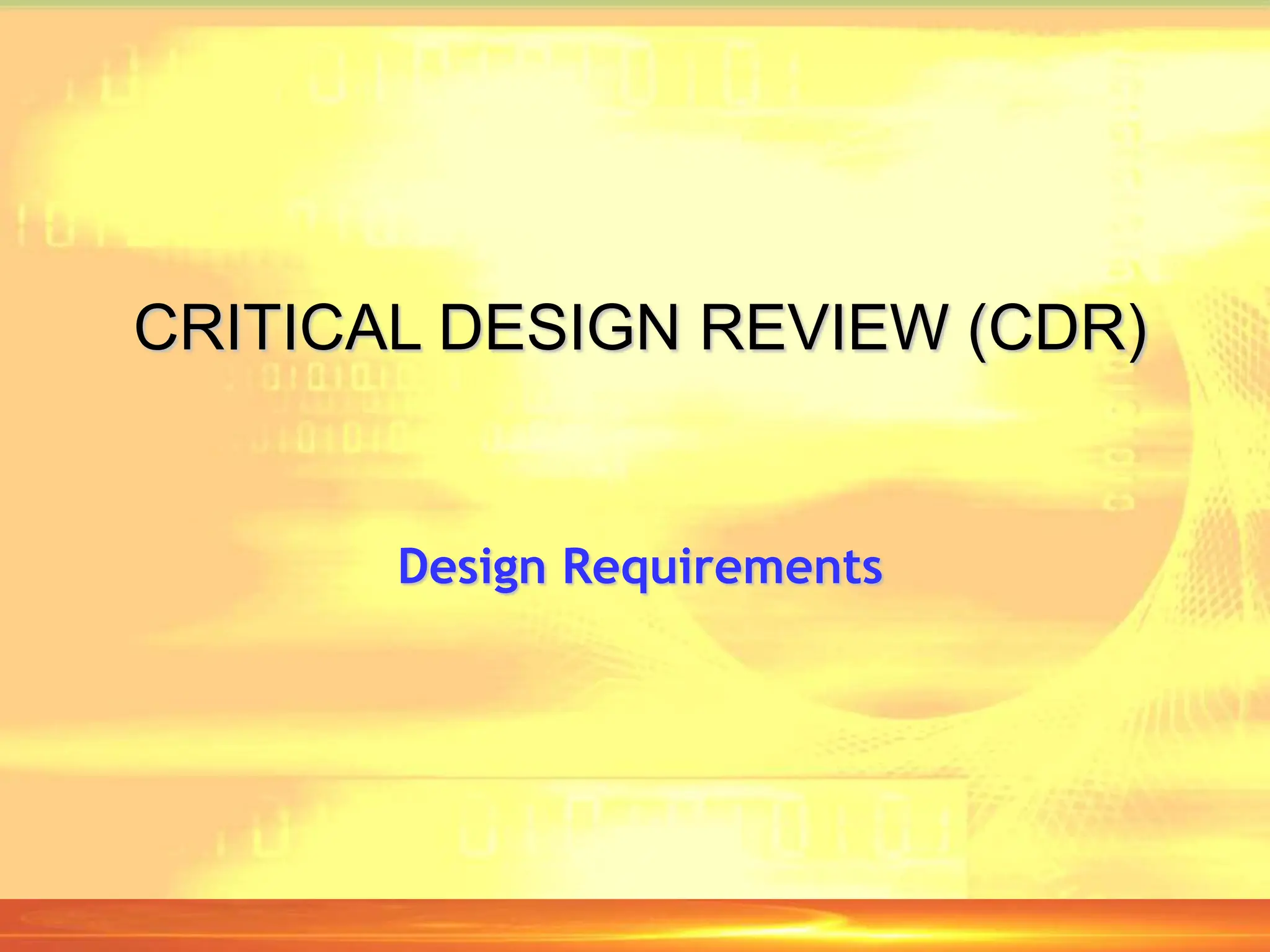

22. CRITICAL DESIGN REVIEW (CDR)
Design Requirements

23. Design Requirements
MMUSat : Weather Monitoring System

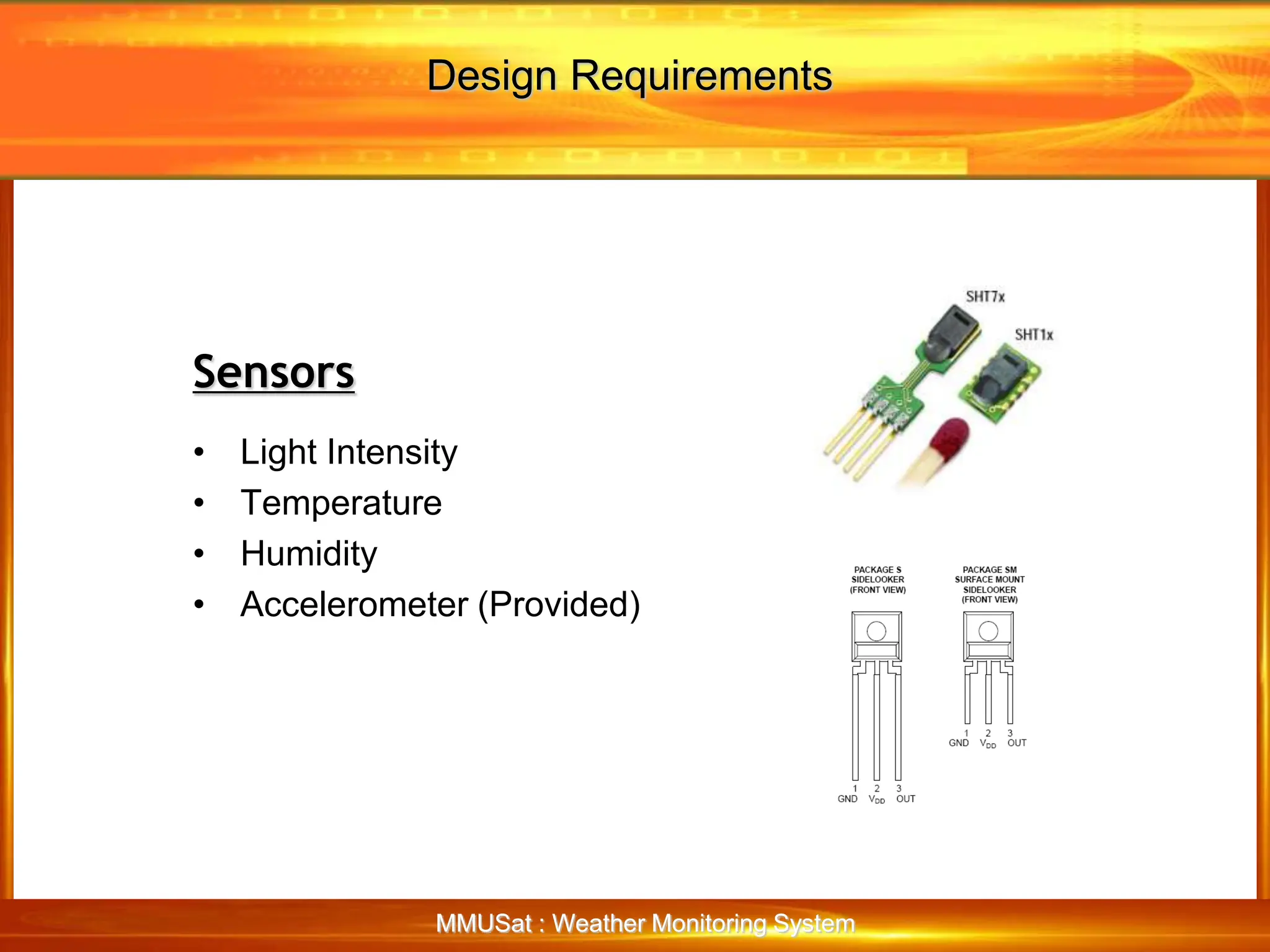

• Light Intensity
• Temperature
• Humidity
• Accelerometer (Provided)
Sensors

24. • Temperature
• Humidity
Reason:
• Small
• Light
• High Accuracy
• Inexpensive
Sensors analyis:

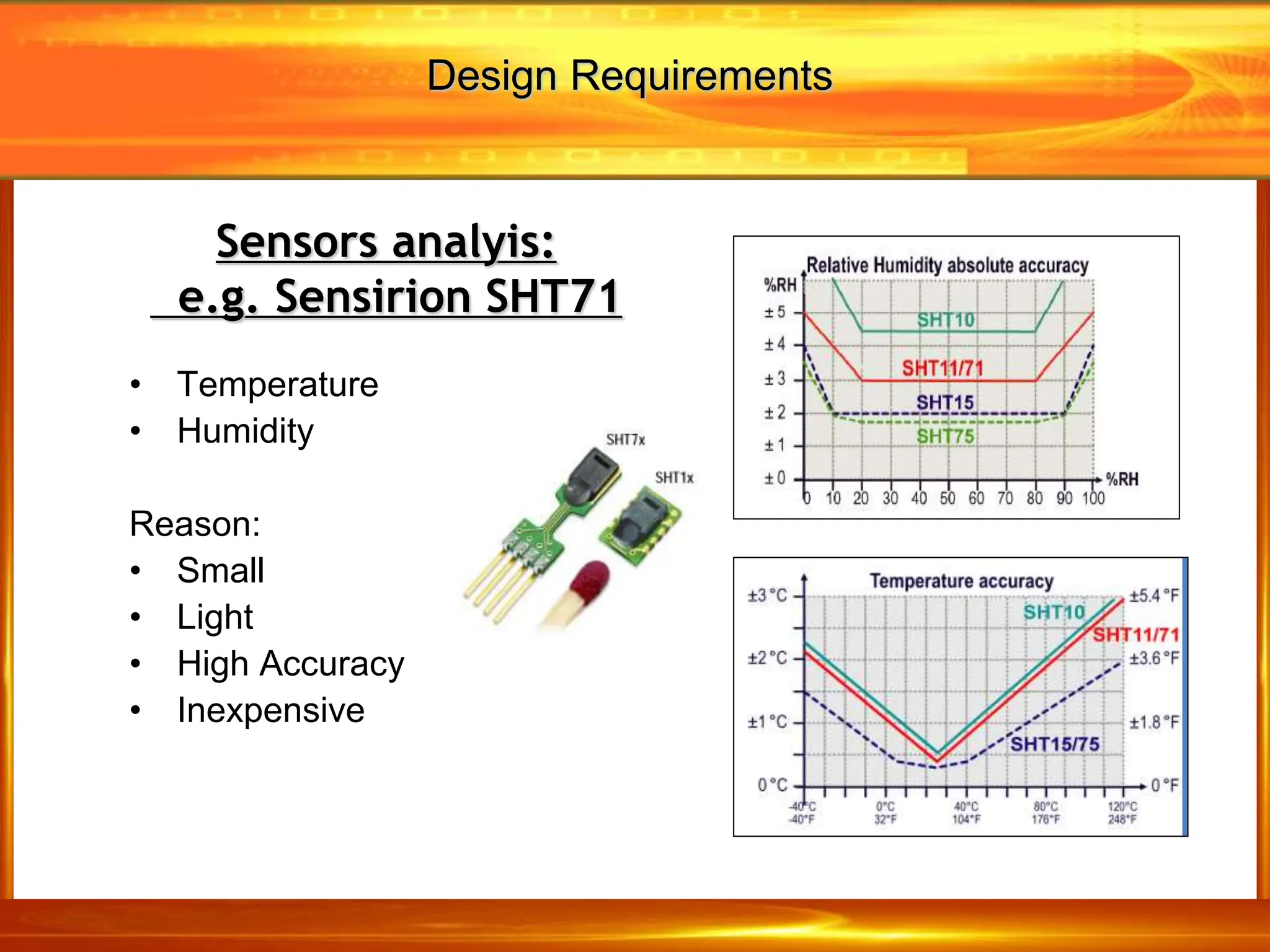

e.g. Sensirion SHT71
Design Requirements

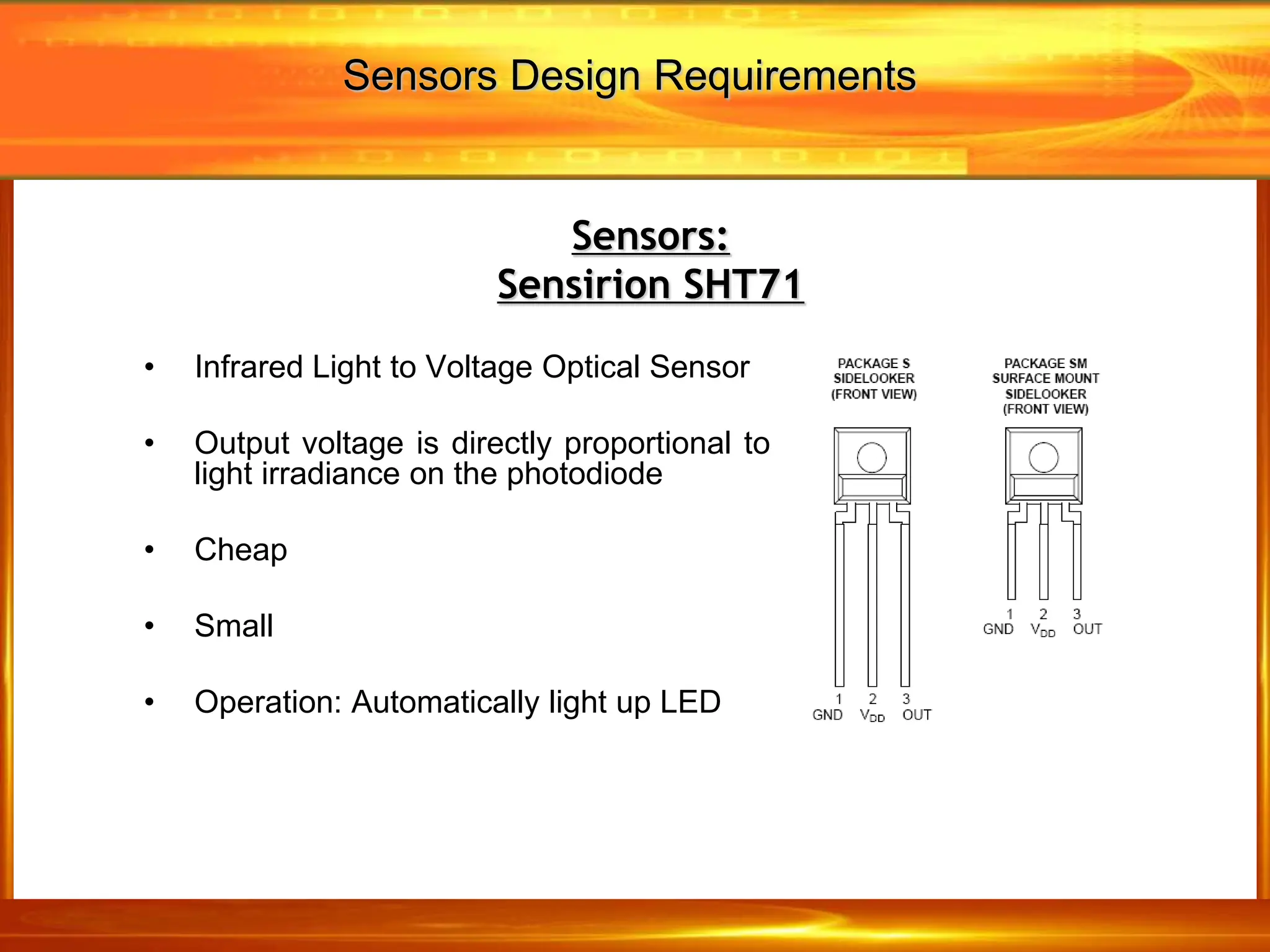

25. • Infrared Light to Voltage Optical Sensor
• Output voltage is directly proportional to
light irradiance on the photodiode
• Cheap
• Small
• Operation: Automatically light up LED
Sensors:
Sensirion SHT71
Sensors Design Requirements

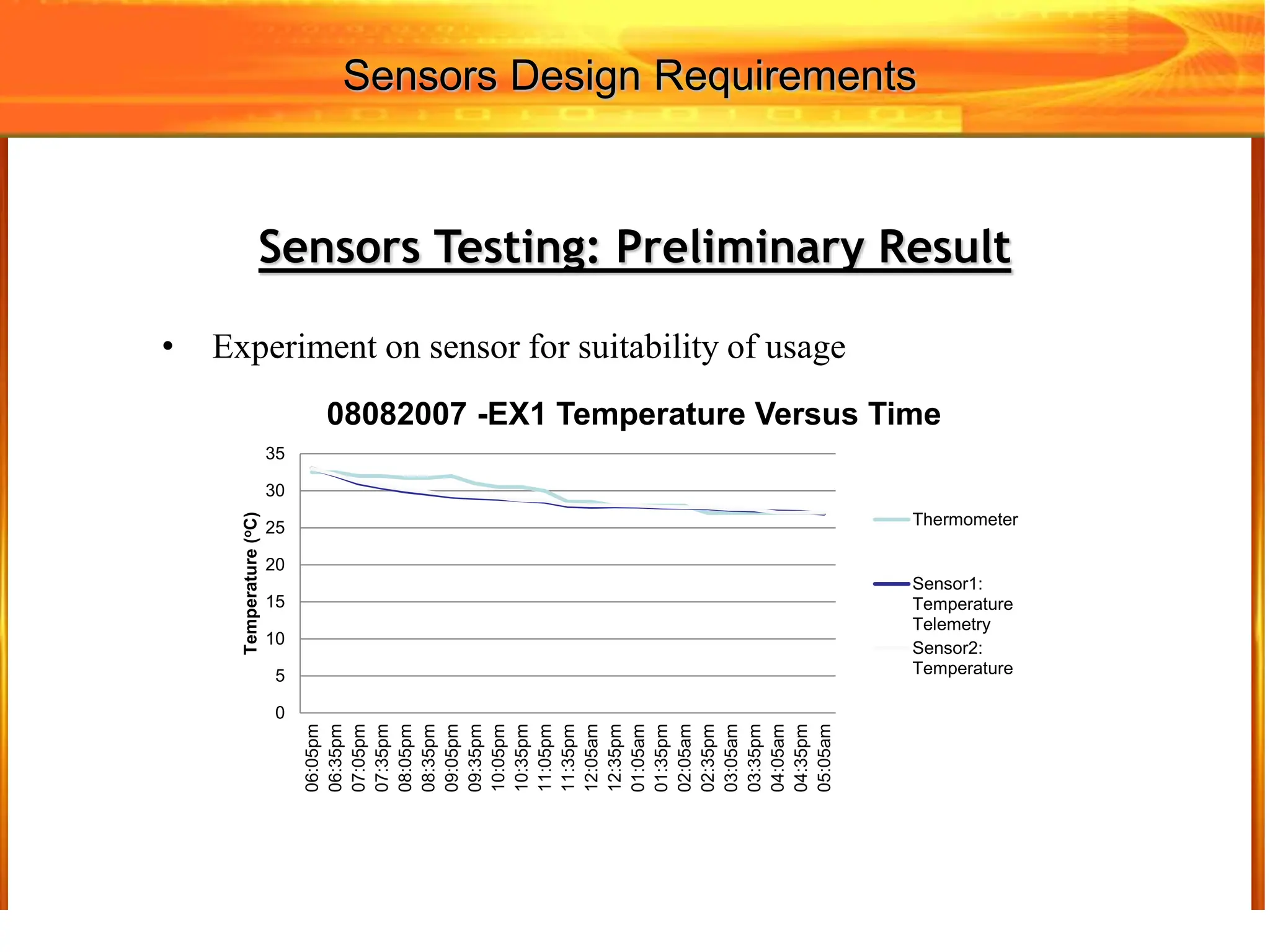

26. Sensors Testing: Preliminary Result
• Experiment on sensor for suitability of usage
0
5
10
15
20
25
30
35
06:05pm
06:35pm
07:05pm
07:35pm
08:05pm
08:35pm
09:05pm
09:35pm
10:05pm
10:35pm
11:05pm
11:35pm
12:05am
12:35pm
01:05am
01:35pm
02:05am
02:35pm
03:05am
03:35pm
04:05am
04:35pm
05:05am
Temperature
(
o
C)
08082007 -EX1 Temperature Versus Time
Thermometer
Sensor1:
Temperature
Telemetry
Sensor2:
Temperature
Sensors Design Requirements

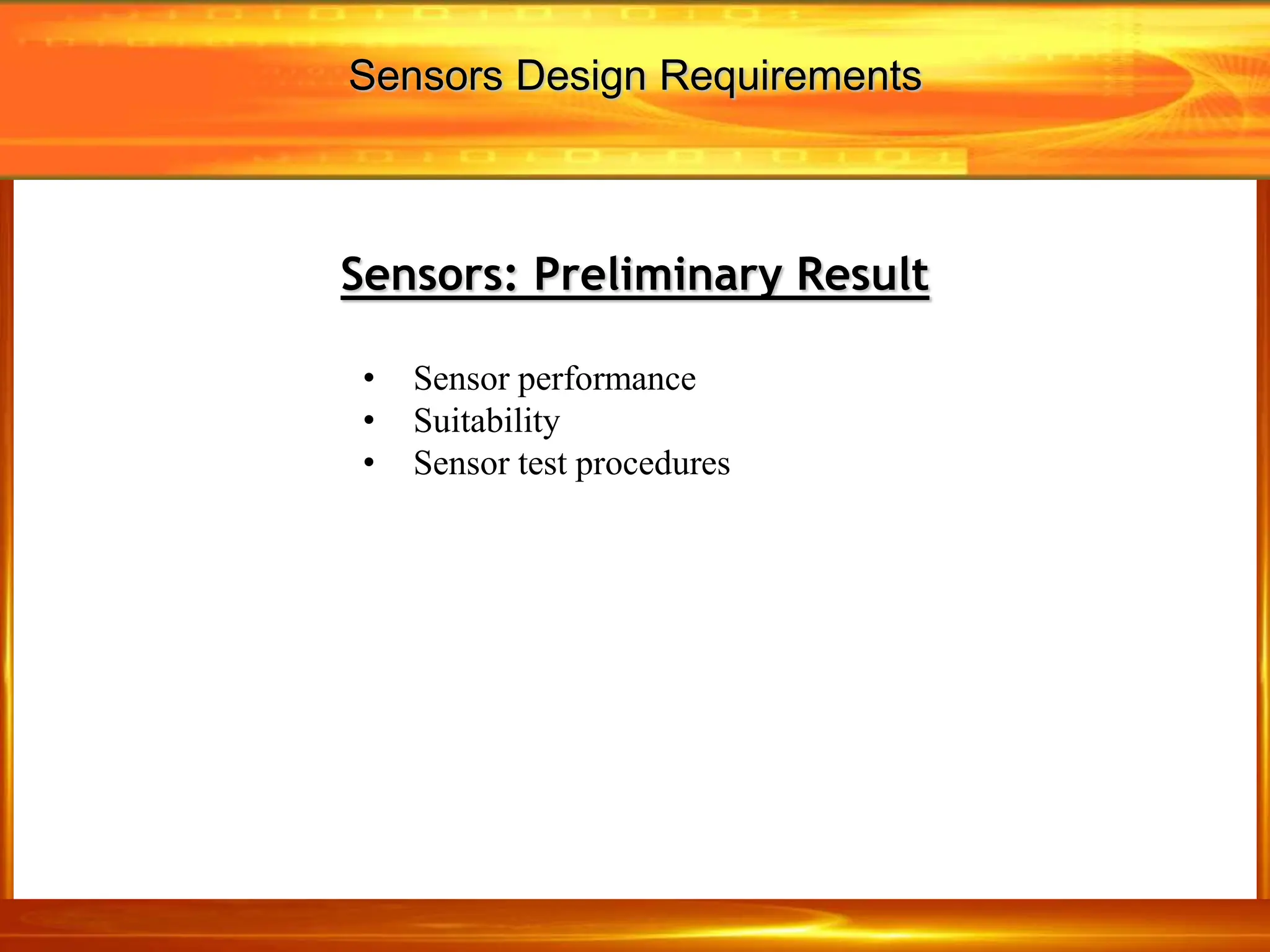

27. Sensors: Preliminary Result
• Sensor performance
• Suitability
• Sensor test procedures
Sensors Design Requirements

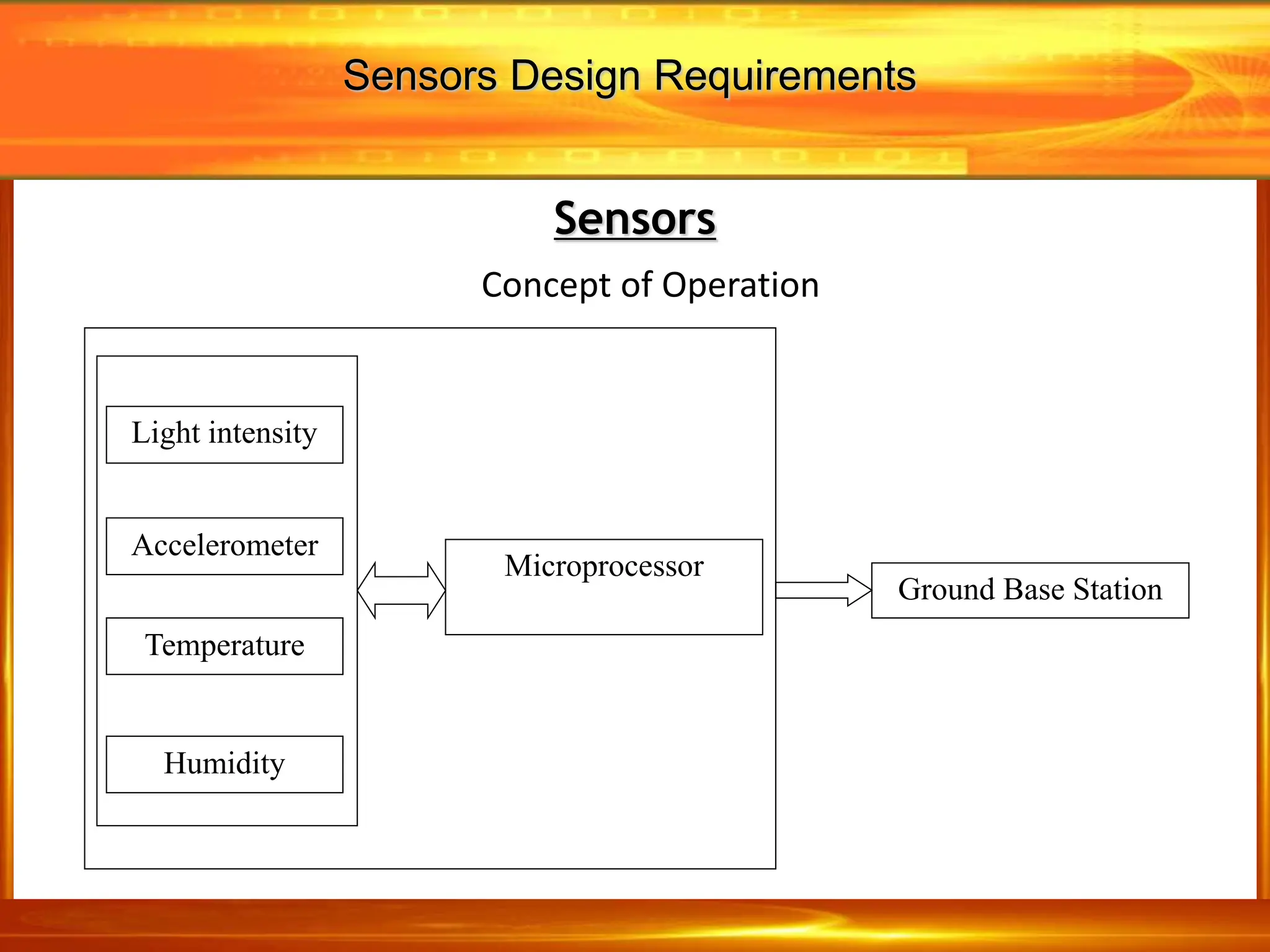

28. Sensors
Light intensity
Accelerometer
Temperature
Humidity
Microprocessor
Ground Base Station
Concept of Operation
Sensors Design Requirements

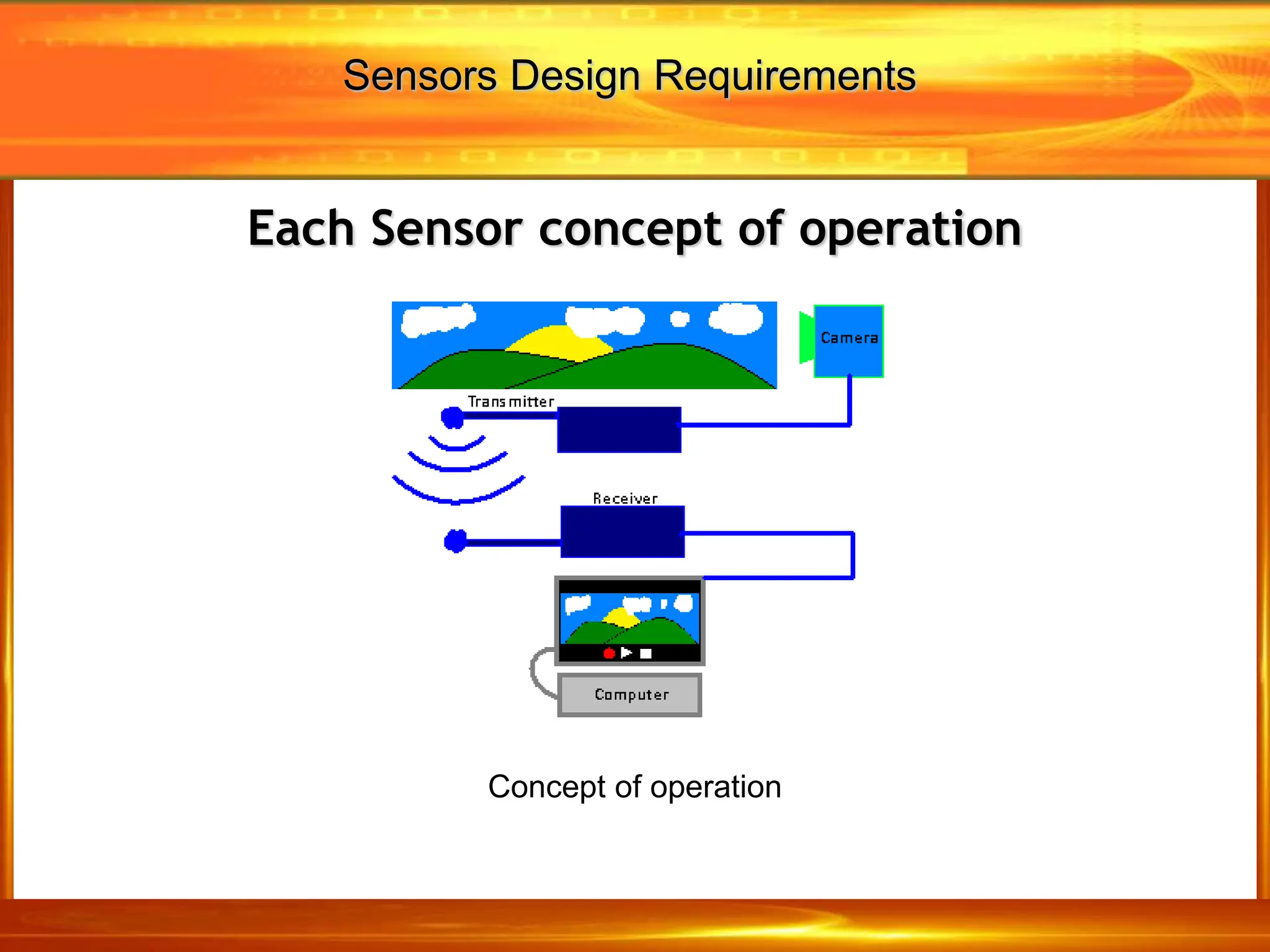

29. Each Sensor concept of operation
Concept of operation
Sensors Design Requirements

30. CRITICAL DESIGN REVIEW (CDR)
MMUSat : Weather Monitoring System

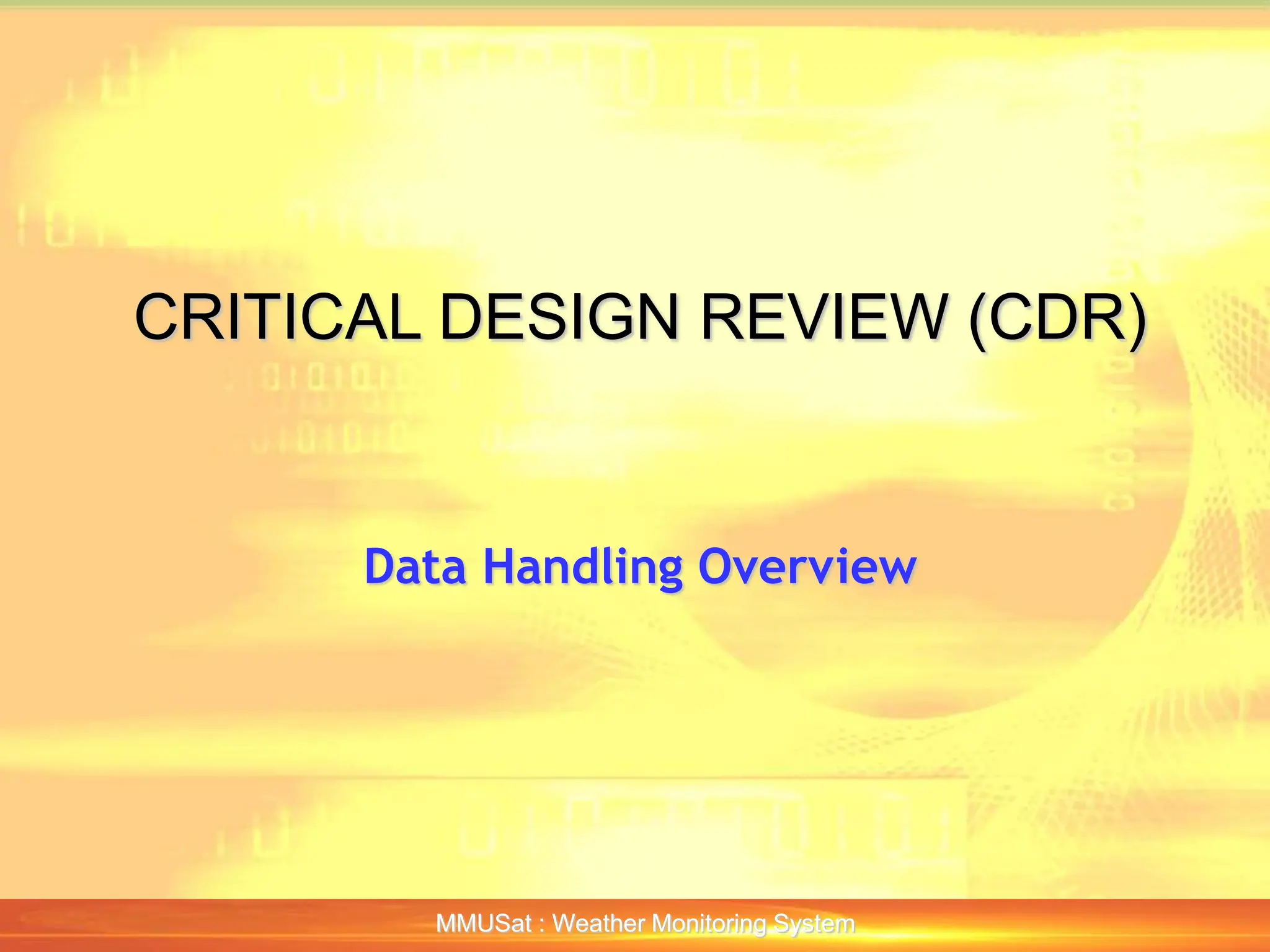

Data Handling Overview

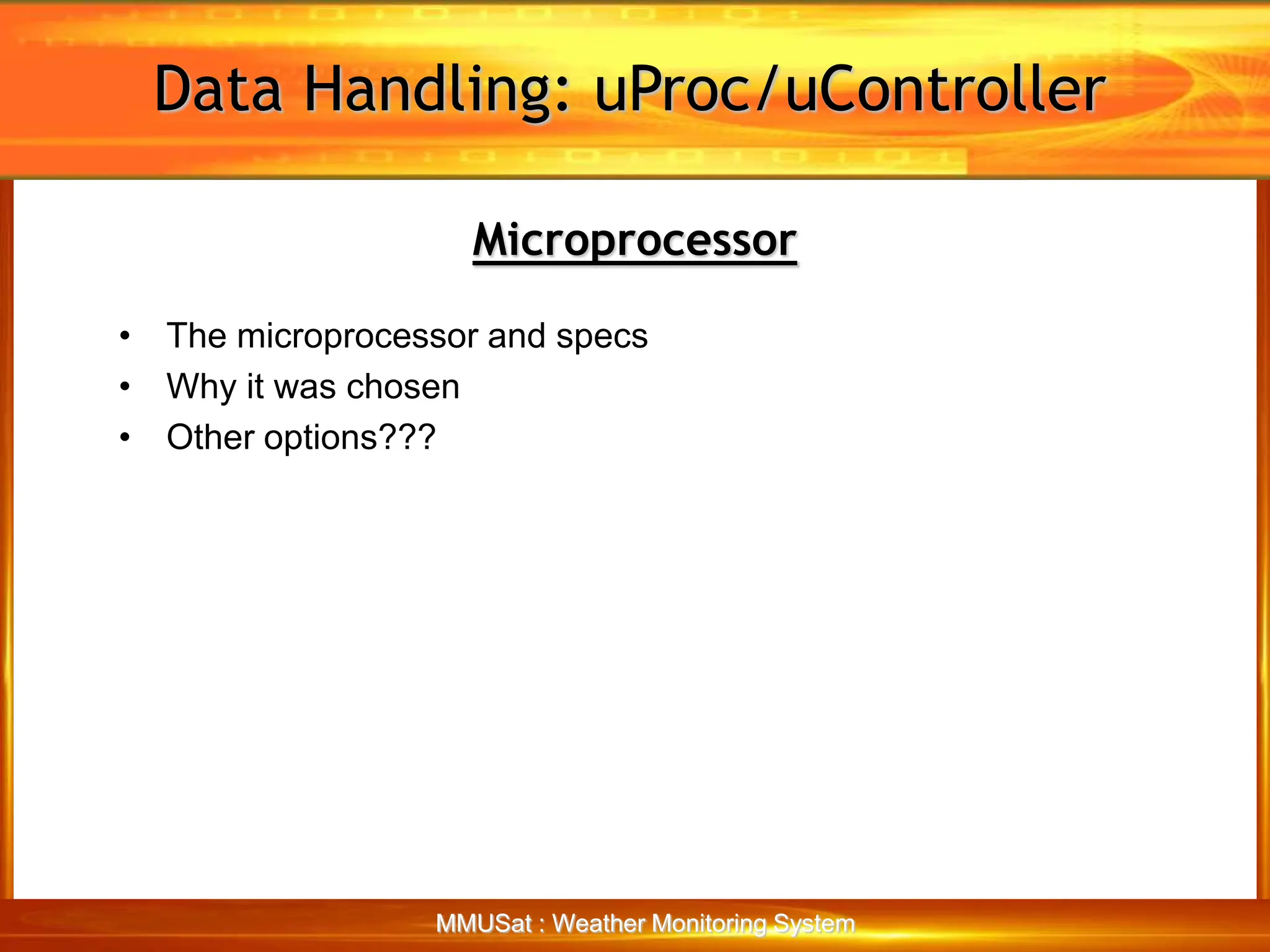

31. Data Handling: uProc/uController
MMUSat : Weather Monitoring System
Microprocessor
• The microprocessor and specs
• Why it was chosen
• Other options???

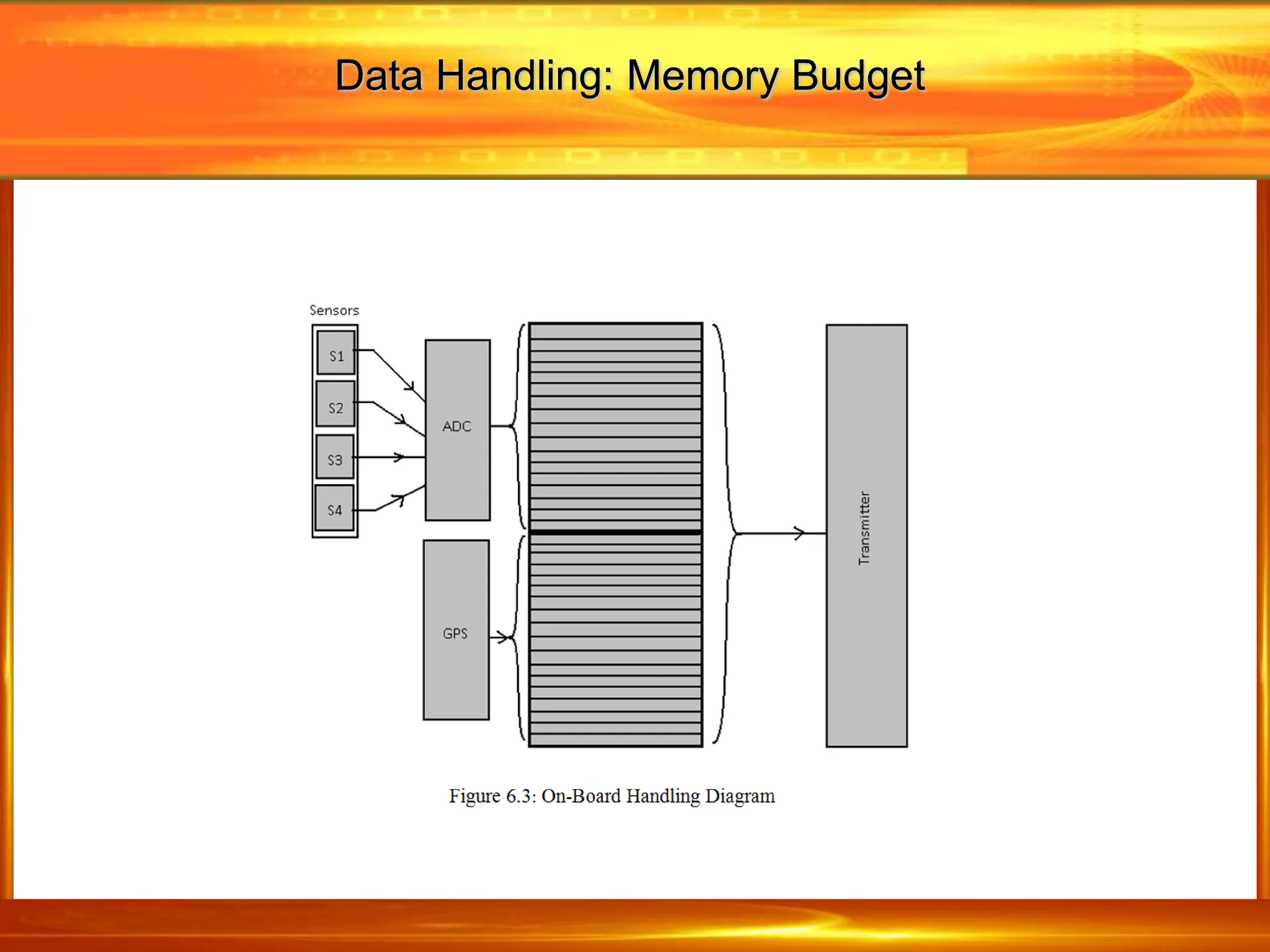

32. Data Handling: Memory Budget

33. RCM 3400
Master
Bus
controlle
r
Memory
Allocation
(SRAM)
SPI
Serial
Bus
SLAVE
nIMU
&
Sensors
OBC MSP 430
Other
Peripherals,
(Sensors,
Actuator)
MASTER
RS232
Programming
Bus
Modem
I2C
SPI

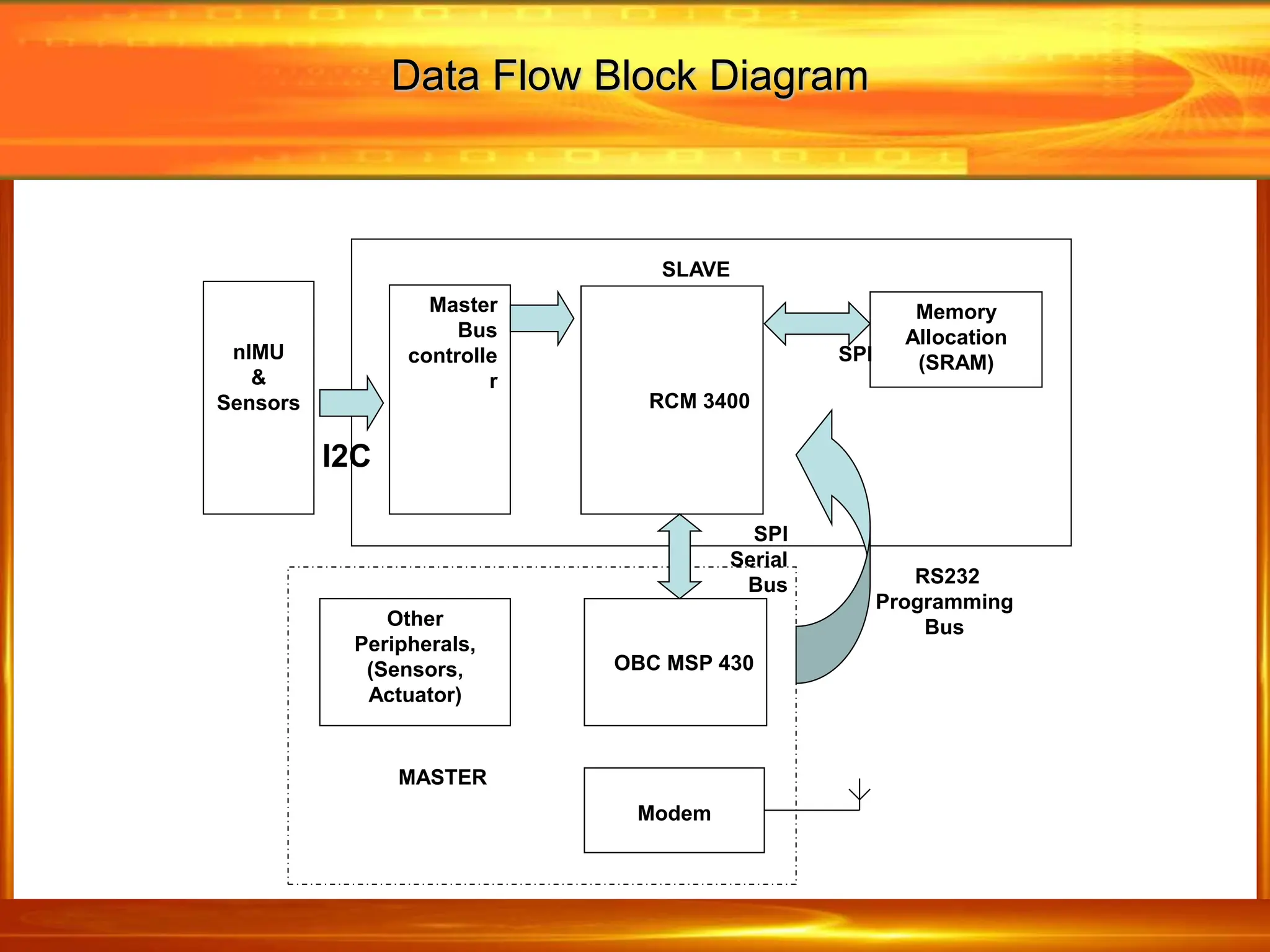

Data Flow Block Diagram

34. Design Procedures
Integration and Test Overview

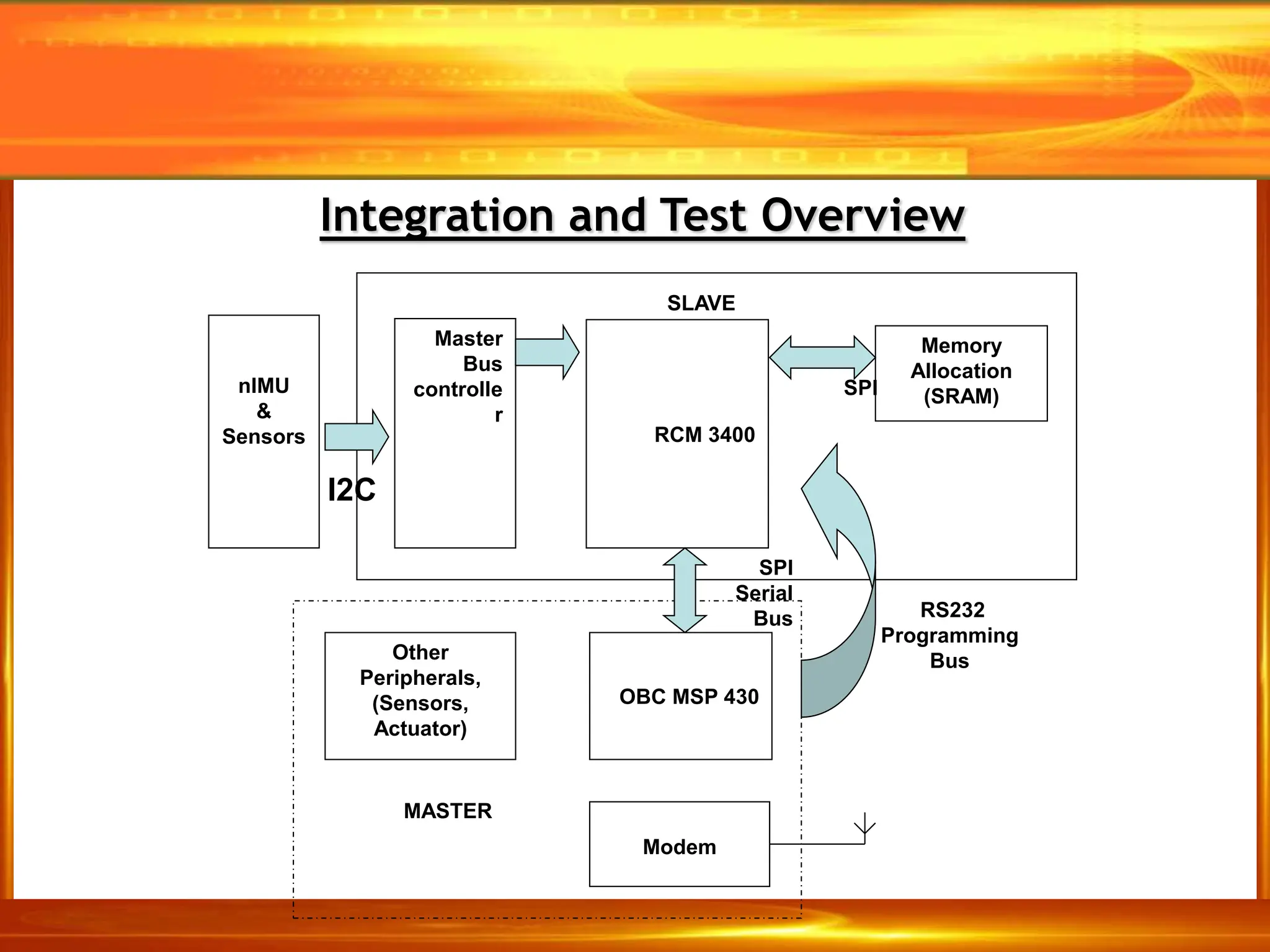

35. Integration and Test Overview
RCM 3400
Master
Bus
controlle
r
Memory
Allocation
(SRAM)
SPI
Serial
Bus
SLAVE
nIMU
&
Sensors
OBC MSP 430
Other
Peripherals,
(Sensors,
Actuator)
MASTER
RS232
Programming
Bus
Modem
I2C
SPI

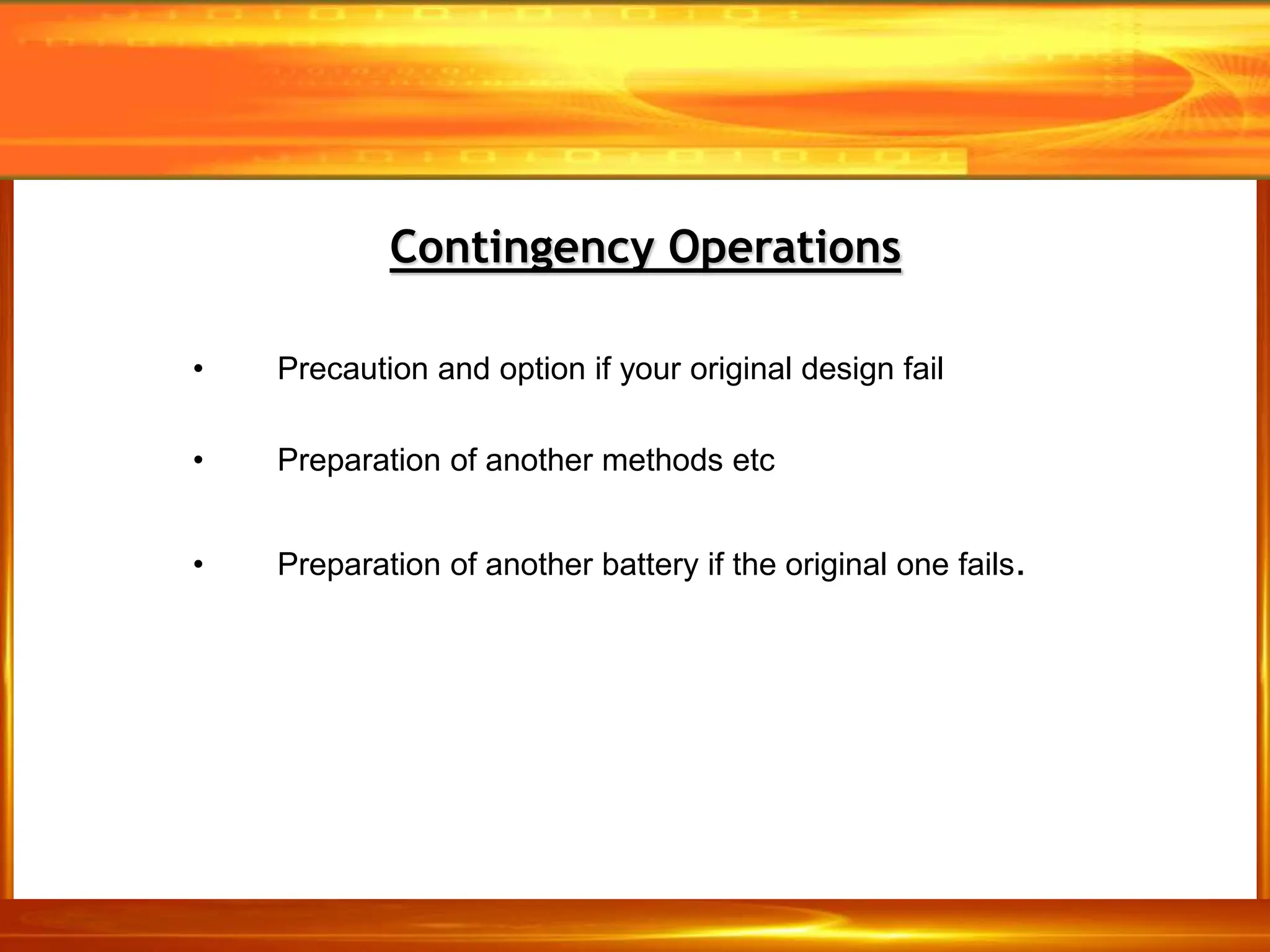

36. • Precaution and option if your original design fail
• Preparation of another methods etc
• Preparation of another battery if the original one fails.
Contingency Operations
