SAP integration with Excel -

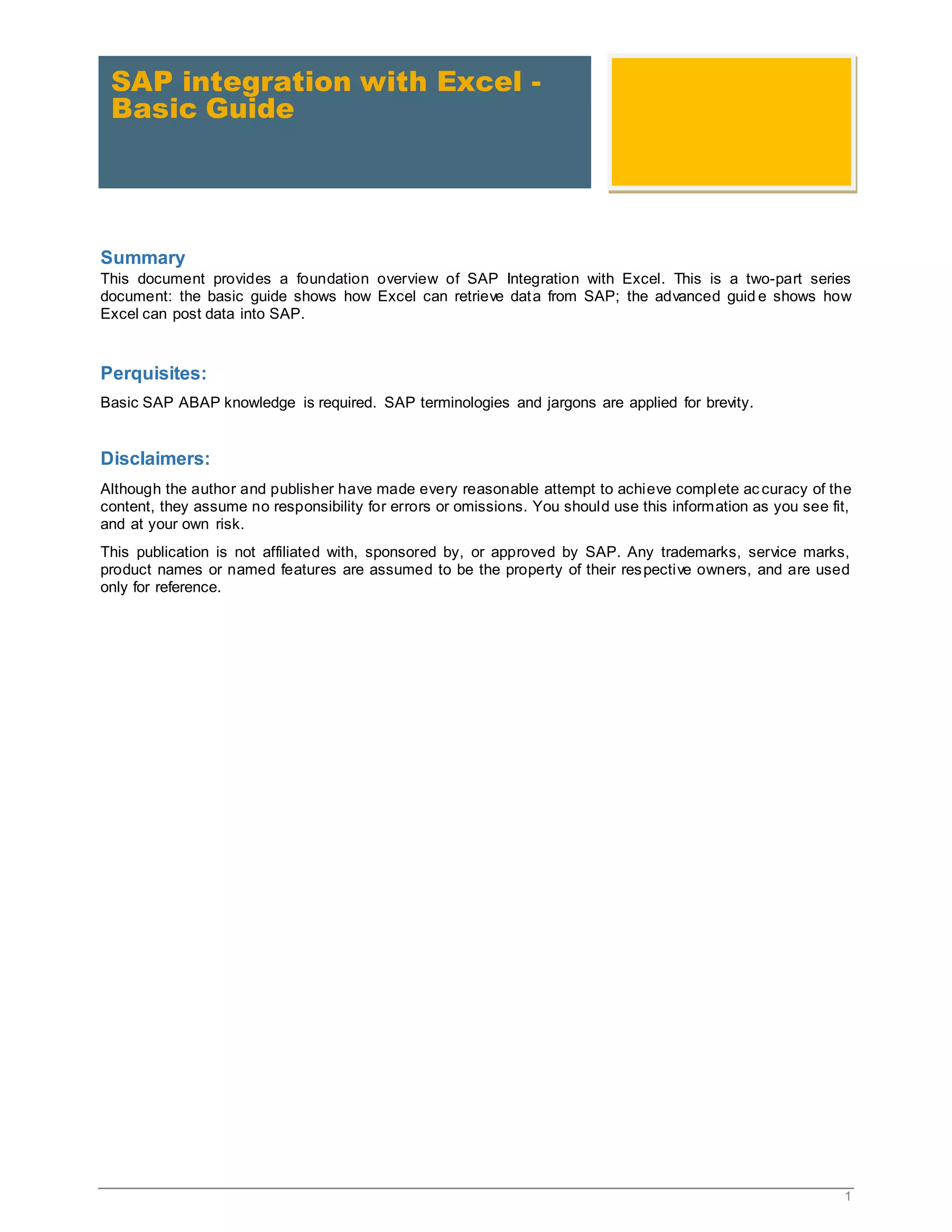

Basic Guide
Summary
This document provides a foundation overview of SAP Integration with Excel. This is a two-part series
document: the basic guide shows how Excel can retrieve data from SAP; the advanced guid e shows how
Excel can post data into SAP.
Perquisites:
Basic SAP ABAP knowledge is required. SAP terminologies and jargons are applied for brevity.
Disclaimers:
Although the author and publisher have made every reasonable attempt to achieve complete ac curacy of the
content, they assume no responsibility for errors or omissions. You should use this information as you see fit,
and at your own risk.
This publication is not affiliated with, sponsored by, or approved by SAP. Any trademarks, service marks,
product names or named features are assumed to be the property of their respective owners, and are used
only for reference.

2. SAP Excel Integration
2

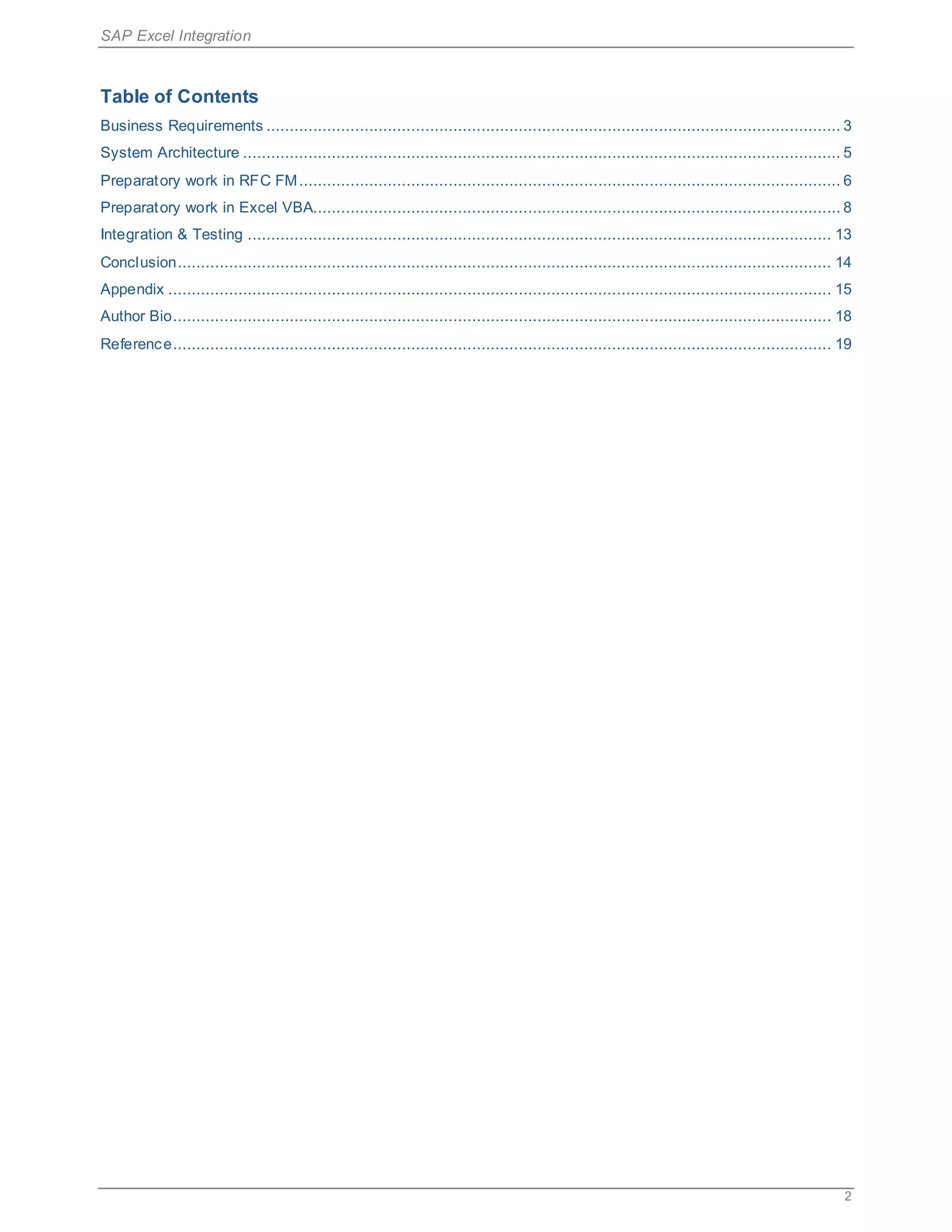

Table of Contents
Business Requirements ........................................................................................................................... 3
System Architecture ................................................................................................................................ 5
Preparatory work in RFC FM.................................................................................................................... 6
Preparatory work in Excel VBA................................................................................................................. 8
Integration & Testing ............................................................................................................................. 13
Conclusion............................................................................................................................................ 14
Appendix .............................................................................................................................................. 15
Author Bio............................................................................................................................................. 18
Reference............................................................................................................................................. 19

3. SAP Excel Integration
3
Business Requirements
In an enterprise with SAP, there can be business units where sales order creation is minimal. Hence, there is
a requirement to create a streamlined user entry/retrieval interface.
It will be a dream come true to have sales order data input in Excel and have these data posted into SAP at
a click of a button and review them back again in Excel. In this document, we will go through how to create a
SAP RFC Function Module that can be called by an Excel VBA.
Base on the above, we will design a simple proof of concept.
Step 1: This is the Sales Order in SAP screen that will be retrieved into Excel format.
Step 2: This is the Excel Sales Order Retrieval screen, to be populated with Sales Order information.

4. SAP Excel Integration
4
Step 3: This is the Excel Screen after Sales Order information has retrieved from SAP.

5. SAP Excel Integration
5
System Architecture
As the Excel Integration process comprises of various components and interactions, a 3-Tier Model-View-
Controller Framework should be applied to manage the complexity.
3-Tier Model-View-Controller Framework
In the 3-Tier MVC Framework, there are
 View/ Interface:The role focuseson userinteraction;collectinganddisplayinginformation. Inour
specificcase,thiswill be ourExcel anditsembeddedVBA.
 Controller:The role focusesontransmittingandmanipulationof information. Inourspecificcase,
thiswill be ourSAPRFC FunctionModule.
 Model:The role focusesondata storage and itsrelatedprocesses. Inourspecificcase,thiswillbe
the underlyingDatabase.
This document will now be divided into 2 sections:
 Preparatory work in RFC FM – this explains how the Controller of the architecture is coded.
 Preparatory work in Excel VBA – this explains how the View/Interface of the architecture is
scripted.

6. SAP Excel Integration
6
Preparatory work in RFC FM
The purpose of RFC FM/BAPI is to read sales header and line items data from SAP backend.
This can be achieved by creating a wrapper RFC FM as “ZZZ_SO_BAPI”. This RFC FM will perform
appropriate coordination and relay information to/from the standard BAPI
“BAPI_SALESORDER_GETDETAILBOS”. (It is a good practice to create a wrapper RFC FM, instead of having
the invoking interface calling the standard BAPI directly)
Note: the FM must be “Remote-Enabled”
Note: full code at appendix.

7. SAP Excel Integration
7
Function Module Unit Testing is as per expectation.
Sales Order 401004151 is retrieved with its header information and 3 line items.

8. SAP Excel Integration
8
Preparatory work in Excel VBA
To be able to perform scripting in Excel VBA, the Developer Tab needs to be turned on.
Once turned on, user interface controls such as buttons, checkbox, text field can be used.

9. SAP Excel Integration
9
This is the layout we will be using for Sales Order Retrieval. User will input the Sales Order to be retrieved
and press the “Retrieve SO” button. Information such as customer, customer reference PO# and the line
items will be displayed.

10. SAP Excel Integration
10
To attach VBA codes to the button, we need to access the “Assign Macro” context menu item.
Once selected, the VBA editor will be accessible.

11. SAP Excel Integration
11
SAP ActiveX components needs to be referenced by MS VBA, via the Tools menu.
Typically the ActiveX files (.OCX) are found in SAP frontend folder.

12. SAP Excel Integration
12
The start of the script is to instantiate ActiveX Components “SAP LogonControl.1” and “SAP.Functions”.
The actual function call to “ZZZ_SO_BAPI” is as per below.
Note: full script at appendix.

13. SAP Excel Integration
13
Integration & Testing
With both the Excel VBA scripting and SAP RFC FM coding completed, we can perform end-to-end testing.
Testing within SAP end Testing at Excel end

14. SAP Excel Integration
14
Conclusion
The standard way of access SAP is via SAP GUI. However, it is technically possible to access SAP using
ActiveX control delivered by SAP. This greatly enriches the developer toolset to provide user a wide array of
connectivity options (such as Excel VBA, JAVA, C++, ASP/C#, JavaScript). From a business perspective,
an intuitive user interface greatly enhances user experiences and potentially reduces user training cost.
Kindly look out for ‘SAP integration with Excel - Advanced Guide, by Benedict Yong’ for part II (last part) of
this two-part series.

15. SAP Excel Integration
15
Appendix
Full RFC FM ABAP
FUNCTION zzz_so_bapi.
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" VALUE(SALESDOCUMENT) LIKE BAPIVBELN-VBELN
*" EXPORTING
*" VALUE(ORDERHEADER) LIKE BAPISDHD STRUCTURE BAPISDHD
*" TABLES
*" ORDERITEMS STRUCTURE BAPISDITBOS OPTIONAL
*"----------------------------------------------------------------------
CALL FUNCTION 'BAPI_SALESORDER_GETDETAILBOS'
EXPORTING
salesdocument = salesdocument
IMPORTING
orderheader = orderheader
TABLES
orderitems = orderitems.
SELECT SINGLE name1 FROM kna1 INTO orderheader-sold_to
WHERE kunnr = orderheader-sold_to.
ENDFUNCTION.

16. SAP Excel Integration
16
Full Excel VBA Scripting
Sub Button1_Click()
'---------------------------------
' Declaration.
'---------------------------------
Dim LogonControl As SAPLogonCtrl.SAPLogonControl
Dim R3Connection As SAPLogonCtrl.Connection
Dim TableFactory As SAPTableFactory
Dim Functions As SAPFunctionsOCX.SAPFunctions
Dim objBAPIControl As Object
Dim oWB As Workbook
Dim oST As Worksheet
Set oWB = Application.ActiveWorkbook
Set oST = oWB.Worksheets(1)
'---------------------------------
' Initialize SAP ActiveX Control.
'---------------------------------
Set LogonControl = CreateObject("SAP.LogonControl.1")
Set R3Connection = LogonControl.NewConnection
Dim objBAPIControl As Object
Set objBAPIControl = CreateObject("SAP.Functions")
'--------------------
' Logon with prompt.
'--------------------
R3Connection.Client = "100" 'as per SAP Logon Pad
R3Connection.System = "SID" 'as per SAP Logon Pad
R3Connection.SystemNumber = "00" 'as per SAP Logon Pad
R3Connection.ApplicationServer = "XX.XX.XX.XX" 'as per SAP Logon Pad
R3Connection.User = "sapidx" 'as per SAP Logon Pad
R3Connection.Password = "sapid-passwdx" 'as per SAP Logon Pad
Application.StatusBar = "Start of Logging in"
SY_Subrc = R3Connection.Logon(0, SilentLogon)
If SY_Subrc <> True Then MsgBox "Logon failed": Exit Sub
Application.StatusBar = "Login Successful"
Set objBAPIControl.Connection = R3Connection
'---------------------------------
' Retrieve a sales order.
'---------------------------------

17. SAP Excel Integration
17
Dim vRow, vCol As Integer
Dim vStr As Integer
Dim vMax, vIdx As Integer
Dim oSearch As String
Dim oInfo As Object
Dim oTabl As Object
oSearch = Cells(4, 4).Value
Set oBAPI = objBAPIControl.Add("ZZZ_SO_BAPI")
oBAPI.Exports("SALESDOCUMENT") = oSearch
Set oInfo = oBAPI.Imports("ORDERHEADER")
Set oTabl = oBAPI.Tables("ORDERITEMS")
Application.StatusBar = "Perform SAP Call"
SY_Subrc = oBAPI.Call
If SY_Subrc <> True Then MsgBox "Call failed": Exit Sub
Application.StatusBar = "Perform SAP Call Successful"
oST.Cells(6, 4).Value = oInfo.Value("SOLD_TO")
oST.Cells(7, 4).Value = Trim(oInfo.Value("PURCH_NO"))
vMax = oTabl.Rows.Count
vCol = 3: vStr = 9
For vIdx = 1 To vMax
vRow = vStr + vIdx
oST.Cells(vRow, vCol + 0) = oTabl.Value(vIdx, "ITM_NUMBER")
oST.Cells(vRow, vCol + 1) = oTabl.Value(vIdx, "MATERIAL")
oST.Cells(vRow, vCol + 2) = Trim(oTabl.Value(vIdx, "NET_VALUE"))
oST.Cells(vRow, vCol + 3) = Trim(oTabl.Value(vIdx, "SHORT_TEXT"))
Next vIdx
'-----------------------------------
' Logoff SAP and close the control.
'-----------------------------------
R3Connection.Logoff
Set LogonControl = Nothing
Set objBAPIControl = Nothing
End Sub
