Applies to:
SAP ERP 6.0, Enhancement Package 4, Sub-module of FSCM (Financial Supply Chain Management). For
more information, visit the Supply Chain Management homepage.
Summary
The purpose of this document is:
To provide an overview of the Bank Communication Management (BCM) and the various
functionality offered
To list the configuration steps needed to activate BCM.
To explain how a payment file is generated.
However this document does not deal with Swift Integration, as the payment mechanism varies from
business to business.
Author: Srinivasan Ravichandran
Company: Infosys Technologies Limited
Created on: 19 June, 2011
Author Bio
Srinivasan is a Chartered Accountant and working as a SAP FICO Functional Consultant in Infosys
Technologies Limited, with domain experience of over 4 years.

Bank Communication Management
© 2011 SAP AG 2
Table of Contents
Basic Process .....................................................................................................................................................3
Implementing Payment Medium Workbench (PMW) .........................................................................................3
Maintain payment medium formats.................................................................................................................4
Maintain Variants for payment medium formats: ............................................................................................4
Assign payment medium format to payment method: ....................................................................................4
Reserve identification for Cross Payment Run Payment Media: ....................................................................5
Configuring BCM ................................................................................................................................................5
Basic settings: .................................................................................................................................................6
Payment grouping...........................................................................................................................................6
Payment status management .........................................................................................................................7
Bank statement monitor ..................................................................................................................................7
Release strategy .............................................................................................................................................8
Automatic payments: ...................................................................................................................................................8
Change and Release: ..................................................................................................................................................9
Additional Release: ....................................................................................................................................................10
Digital signatures: ......................................................................................................................................................12
End-User Manual ..........................................................................................................................................13
End-User Process flow..................................................................................................................................13
a. Posting Payment Entry:.............................................................................................................................14
b. Create Batches .........................................................................................................................................14
c. Reset Batches...........................................................................................................................................15
d. Process Batches .......................................................................................................................................16
APPROVE:.................................................................................................................................................................17
REJECT/ RESUBMIT: ...............................................................................................................................................19
RETURN BY APPROVER: ........................................................................................................................................21
e. Report for BCM Batches ...........................................................................................................................24
Summary of Configuration ............................................................................................................................26
List of T Codes used in BCM: .......................................................................................................................27
Related Content................................................................................................................................................28
Disclaimer and Liability Notice..........................................................................................................................29

© 2011 SAP AG 3
Basic Process
BCM is implemented to enable different levels of approval for outgoing payments using the Workflow
methodology. For instance, based on approval limits available with finance managers, the payment shall be
routed to different approving authority. With BCM, the approval action is being shifted from bank web
applications to SAP ECC.
The following are the benefits derived from implementing BCM process:
Reduction of manual efforts; ensures the payment process is automated
Reduce cycle time of payment processing
Common interface of payment processing, when there are dealing with multiple banks.
Payment runs are batched based on various criteria predefined in the system configuration.
Workflow based approval system ensures that payments are routed through a proper channel with
minimum of manual efforts.
Payment file is generated upon the final authorization and can be sent to bank directly using BCM.
Single point of reporting tool for the status of payments, showing clear visibility to the stake-holders.
The scope of implementation of BCM covers
Implementing Payment Medium Workbench (PMW). PMW is a tool to configure and created payment
media sent by organizations to house banks. The tool replaces the classic payment media programs
(RFFO*).
Configuring BCM workflows providing double / treble / quadruple levels of payment approvals
Implementing Payment Medium Workbench (PMW)
As discussed earlier, implementing PMW is one of the prerequisites for BCM functionality. The basic
concepts of PMW that are relevant for BCM alone are covered in this BoK.
PMW is a tool used to create payment file formats for transferring to banks. The payment medium formats
can be either a classic payment medium program or through the PMW.
There are few SAP standard PMW file formats for various countries. A new format can also be created if
there is a need for custom file format or if there are no other formats available for that bank/ country. This
customization can be either done through modifying the standard function modules of an existing PMW
format or through developing via Data Medium Exchange Engine (DMEE). (However this document does not
deal with customizing through DMEE).
Path: SPRO IMG Financial Accounting (New) Accounts Receivable and Accounts Payable
Business Transactions Outgoing Payments Automatic Outgoing Payments Payment Media Make
Settings for Payment Medium Formats from Payment Medium Workbench
The above path can also be accessed through the T. Codes OBPM1 / OBPM2 / OBPM3 / OBPM4.
Let us briefly go through the steps in implementing PMW:
Create/ change payment medium formats
Assign variant to the format
Assign the format to payment method

© 2011 SAP AG 4
Maintain payment medium formats
The payment medium formats can be changed according to the user needs in TA OBPM1. Also the user can
create new format by using .
In our illustration, the standard SAP format ACH has been used.
The formats have been defined using function modules in the form of events.
SAP has predefined the following events and any customizations to the codes have to be routed through the
Sample Function Modules 01, 06, 11, 21 etc. For instance, if there are some changes in Event 20, the same
has to be incorporated in Sample Function module in Event 21. Once event 20 is reached, event 21 will also
be triggered.
Maintain Variants for payment medium formats:
The variant for the payment medium format have to be maintained for the combination of Company Code &
House Bank. This has to be done in the TA OBPM4.
Assign payment medium format to payment method:
In the T Code OBVCU, select the payment method for the country & assign the payment medium format as
per PMW:
This setting is a pre-requisite for BCM functionality.

© 2011 SAP AG 5
Reserve identification for Cross Payment Run Payment Media:
For the purpose of batch creation, we should also configure the unique identifiers. This is done in T Code
OBPM5.
The payment runs, with the run ID (in F110) beginning with the identifiers reserved above, are alone
considered for batching in the BCM process.
For the payment module, select FI AP/AR Payment Program for customers and vendors, and create new
entries.
The above illustration means that any run ID starting with RB & ZB alone is considered for BCM batching
purposes.
Configuring BCM
Before looking into the basic configurations relevant for BCM, we have to first activate BCM using T Code
SFW5.
Ensure the bulb is turned ON .
Configuration:
The relevant settings for BCM can be configured in the following path:
SPRO IMG Financial Supply Chain Management Bank Communication Management
The above path is referred in future sections as SPRO BCM
The individual steps are given in detail below:

© 2011 SAP AG 6
Basic settings:

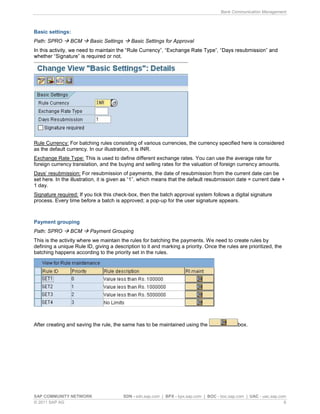

Path: SPRO BCM Basic Settings Basic Settings for Approval
In th
Rule Currency: For batching rules consisting of various currencies, the currency specified here is considered
as the default currency. In our illustration, it is INR.
Exchange Rate Type: This is used to define different exchange rates. You can use the average rate for
foreign currency translation, and the buying and selling rates for the valuation of foreign currency amounts.
Days resubmission: For resubmission of payments, the date of resubmission from the current date can be
1 day.
Signature required: If you tick this check-box, then the batch approval system follows a digital signature
process. Every time before a batch is approved; a pop-up for the user signature appears.
Payment grouping
Path: SPRO BCM Payment Grouping
This is the activity where we maintain the rules for batching the payments. We need to create rules by
defining a unique Rule ID, giving a description to it and marking a priority. Once the rules are prioritized, the
batching happens according to the priority set in the rules.
After creating and saving the rule, the same has to be maintained using the box.

© 2011 SAP AG 7
Then we need to maintain the Attributes to define rules for batches. The attributes can be selected from any
of the given fields like, Amount, vendor, business area etc, depending upon the requirements of the user.
In our illustration, Amount in Local currency has been used. This means that any payment run amount falling
within the given rang will form part of a single batch.
The same way, any number of rules can be framed to fit the user requirements.
We can also set additional criteria apart from the attributes mentioned above. Two grouping fields can be
added which will ensure further batching.
s are first batched on the basis of
Payment status management
Path: SPRO BCM Payment Status Management
Map external status to internal status: In this activity, we can interpret the status codes from the external
world. Any incoming status message has a code which can be mapped to an internal status based on a
company code and house bank. If an alert needs to be triggered for an external status code, we must define
the alert.
Timeout for Batch Status update: In this activity we can specify a maximum allowed time interval between
two status updates. An alert will be triggered after the allowed time elapses.
Bank statement monitor
Path: SPRO BCM Bank Statement Monitor Settings for Bank Statement Monitor
In this activity, we define the settings for bank statement monitor, particular to various house banks.
The above fields are discussed below:
Company code, House Bank, Account ID for which the bank monitor settings are required are to be entered.
Process Status: The processing status indicates whether the bank statement has been processed correctly.
It may be Red, Green or Yellow depending upon the status. To set this status, tick the check box.

© 2011 SAP AG 8

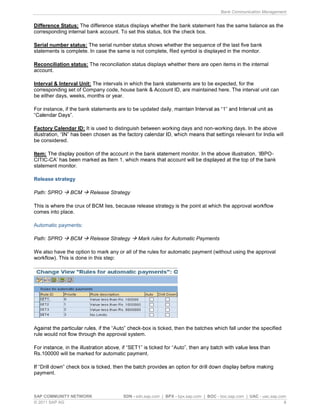

Difference Status: The difference status displays whether the bank statement has the same balance as the
corresponding internal bank account. To set this status, tick the check box.
Serial number status: The serial number status shows whether the sequence of the last five bank
statements is complete. In case the same is not complete, Red symbol is displayed in the monitor.
Reconciliation status: The reconciliation status displays whether there are open items in the internal
account.
Interval & Interval Unit: The intervals in which the bank statements are to be expected, for the
corresponding set of Company code, house bank & Account ID, are maintained here. The interval unit can
be either days, weeks, months or year.
For instance, if the bank statements are to be updated da
Factory Calendar ID: It is used to distinguish between working days and non-working days. In the above
ings relevant for India will
be considered.
Item: -
CITIC-
statement monitor.
Release strategy
Path: SPRO BCM Release Strategy
This is where the crux of BCM lies, because release strategy is the point at which the approval workflow
comes into place.
Automatic payments:
Path: SPRO BCM Release Strategy Mark rules for Automatic Payments
We also have the option to mark any or all of the rules for automatic payment (without using the approval
workflow). This is done in this step:
-box is ticked, then the batches which fall under the specified
rule would not flow through the approval system.
Rs.100000 will be marked for automatic payment.
payment.

© 2011 SAP AG 9
Change and Release:
Path: SPRO BCM Release Strategy Change and Release
The workflow comes into use at this stage. Basically, the workflow system uses two types of objects for the
approval mechanism BNK_INI and BNK_COM.
The change and release procedure makes use of the first object (BNK_INI) while the additional release
procedure uses the other object (BNK_COM).

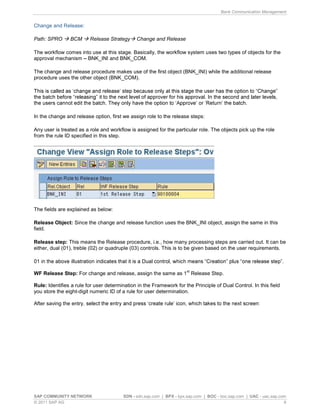

In the change and release option, first we assign role to the release steps:
Any user is treated as a role and workflow is assigned for the particular role. The objects pick up the role
from the rule ID specified in this step.
The fields are explained as below:
Release Object: Since the change and release function uses the BNK_INI object, assign the same in this
field.
Release step: This means the Release procedure, i.e., how many processing steps are carried out. It can be
either, dual (01), treble (02) or quadruple (03) controls. This is to be given based on the user requirements.
WF Release Step: For change and release, assign the same as 1
st
Release Step.
Rule: Identifies a rule for user determination in the Framework for the Principle of Dual Control. In this field
you store the eight-digit numeric ID of a rule for user determination.
After saving the entr

© 2011 SAP AG 10
The objects are created using icon, while
Next step is to assign user to the new responsibility.
Select the responsibility, Right-click on , and mention the User ID to map the users to
the responsibility.
The following additional points are to be noted in creating responsibilities:
Many users can be assigned to one responsibility
take any effect.
Priority can be assigned to similar objects
Users/ responsibilities can be deleted after creation
Apart from users, the object can also be assigned to Work center, job, position, etc.
Additional Release:
Path: SPRO BCM Release Strategy Additional Release Steps
release procedure is Dual, treble or quadruple and how the release workflow will be run.

© 2011 SAP AG 11
for all release objects.
ase objects according to release
procedures and release reasons.
Once the settings are saved, in the main screen of Assign release procedure, choose option to
view all the conditions specified.
The above illustration means that the Principle of Dual control is adopted.
And if the batch value falls between Rs.1 lakh and Rs.10 Lakhs, then its flown to Release reason 1. If the
value is between Rs.10 Lakhs and Rs. 50 Lakhs, batch flows to Release reason 2.
Assign Role to release steps in the additional release steps function is the same as explained in Change and
release function.
Assign workflow to release procedure: In this activity, you can assign a release workflow and a release
procedure workflow to every release procedure of a release object. The release workflow realizes the
technical processing of the release in the system. The release procedure workflows realize the technical
processing of the various release procedures (such as the principle of treble control) in the system.

© 2011 SAP AG 12
With this, we come to the end of all necessary configurations for BCM.
Digital signatures:
In case there is a need for digital signatures, then customize these relevant settings.
Path: SPRO BCM Basic settings Basic settings for approval
Under Basic settings, tick the check box
Then, make necessary settings as below:
Under Basis settings, give necessary authorization to the users who will form part of the BCM approval
process.
Then, the next step is to specify signature method:
SAP offers 2 signature methods:
System Signature: After the user has authenticated himself or herself with logon data, the system uses a
digital signature.
User Signature: The user writes the digital signature with his or her own personal key. An external security
product must be installed that implements the SAP SSF interface.
For our illustration purposes, system signature with authorization by SAP user ID/ password is considered.
This means that the same SAP user ID password which is considered at the time of login by the user is used
as transaction ID/ password at the time of approving batches.
Once the user approves & presses the save icon, the digital signature is prompted:

© 2011 SAP AG 13
End-User Manual
Disclaimer:
It is assumed that the reader is aware of the relevant settings for Vendor Invoice creation, Automatic
payment program configurations (relevant to F110 transaction) and House bank set-up (FBZP
configurations).
Note: Document is filled with useful hints. Refer sign.
End-User Process flow
BANK COMMUNICATION MANAGEMENT
Create payment runs for
vendor invoices
Do not create
payment media in
F110 transaction
Payment runs are
batched using Cross
Payment Run Media
Batches edited by User
and sent for approval
Batches approved at
various levels using Dual /
Treble / Quadruple
controls
Batch returned at any of
the levels
Batches return to Initiator
Payment posting gets
reversed & closed
APPROVED
REJECTED
Payment media file
created
Can approve or reject
whole batch / few
payment runs alone
File sent to Bank
RESUBMIT
Batch rejected
Let us run through the entire BCM process with the help of an illustration:

© 2011 SAP AG 14
a. Posting Payment Entry:
Ensure that the Identifiers reserved for BCM are used in payment run.
Create Payment Medium check box ( ) should not be ticked.
Once liability is posted, next step is to clear the same via Automatic Payment Program. T Code for the same
is F110.
Please note that we cannot batch those payments that are manually posted. Hence F110 is a
mandatory step for BCM.
Run ID used for illustration starts with prefix ZB*.
Maintain all the relevant parameters in Parameters tab. Then run the Proposal run. After proposal is created
without any error, process the payment run as well.
b. Create Batches
Batches will be created based on the logical grouping maintained in the configuration.
Batch to be created using this Path: Path: Environment Payment Medium Cross-Payment-Run-
Payment Medium Create Payment Medium
You can filter for various conditions by using the FURTHER SELECTIONS option in the batch
creation screen.
You can maintain variant for regular processes.

© 2011 SAP AG 15
Mention the Run Date and Run ID of the F110 and execute (Press F8) the above screen.
The following dialog box pops up, intimating that the batch has been created using the above 3 payments:
c. Reset Batches
Batch can be reset in case you find some error.
This will remove the merge and bring it back to F110 stage. Payment document will not be reversed.
Use only MERGE DATE AND MERGE ID in the fields.
This is most preferably to be used by System administrator.
To Reset a batch already created, SAP advises to use this program: RBNK_MERGE_RESET.
Call this program from back-end SE38 RBNK_MERGE_RESET.
Fields are explained below:
Run Date: Enter the MERGE RUN DATE (date on which batch was created). DO NOT ENTER THE F110
RUN DATE. To find the Merge Date of a F110 run, please check in T Code BNK_MONIP.
Identification: Enter the MERGE ID (For every batch creation, SAP generates unique merge ID). DO NOT
ENTER THE F110 RUN ID. To find the Merge ID of a F110 run, please check in T Code BNK_MONIP.
Test Run Indicator: It is always better to do a test run before doing a live run.
Strict Check Indicator: If this indicator is TICKED, then batch which is IN APPROVAL CANNOT BE
RESET. Only a NEW BATCH can be reset. If this indicator is NOT TICKED, any batch can be reset.

© 2011 SAP AG 16
Once it is executed with relevant inputs, the following screen is generated:
When live run is done, then it says Payment Medium is reset.
d. Process Batches
The following are the batch processing modes available under BCM:
- Approve & proceed with payment: Done by all the levels of users.
- Reject & reverse the entry: Can be done only by verifier.
- Resubmit to a later date: Can be done only by verifier.
- Return the batch to verifier for further action (any of the above 3). Can be done only by approvers.
We will see in detail about each of the procedures below (Illustration list attached for easy reference)
Illustration Batch Reference Remarks
Approve 873 Whole batch approved.
Reject 926 Part of the batch being rejected.
Resubmit 926 Part of the batch being resubmitted.
Return 927 Returned by 1
st
Approver

© 2011 SAP AG 17
APPROVE:
st
/ 2
nd
Called as verification step since this is the only step where you can edit the batches at line item level.
Can do Rejection/ Approve/ Resubmit for part of a batch. For instance, if there are 10 payments in a
batch, you can approve 5, reject 3 and resubmit 2 payments.
Note that without pressing SAVE button, the transaction will not have any effect
Once all the approvals for the batch are completed, File will be generated. The same can be viewed
in FDTA transaction/ the same can be navigated from BNK_MONI also.
Let us consider batch 873 as an example and proceed.
Code BNK_APP. The verifier will be able to see only his batches.
In the above scenario, batch 873 alone lie
st
approver (BNK_APP).

© 2011 SAP AG 18
In our example, batch 873 is fully approved.
Select the batch and Click on .
After pressing the Save button, the following dialog box appears:
Click on OK to proceed, It will prompt for a transaction password:
Once it is adhered, the batch is approved by the user and passed on the First approver for his approval.
The status after verification step is as follows:
Detailed release history can be viewed using icon:
Whoever is eligible to approve this batch as per the company policy, they have to login to their inbox and
approve the batch as explained above. For app
After all the approvals are completed, the status of batch will be displayed as BATCH APPROVED.

© 2011 SAP AG 19
REJECT/ RESUBMIT:
Rejection can be done both at Batch level and Document level
Resubmit can be done only at document level.
Rejection in BNK_APP will reverse payment document automatically.
Both Reject & Resubmit can be done only by Verifier (Change and Release tab) for a new batch.
.
Double click on the batch to drill down to payment document level:
In the above batch, there are 3 payments. Assume that the first payment had some error, which needs to be
rejected. The vendor for 2
nd
payment has asked us to hold the payment for 2 more days. So only the third
needs to be processed.
To summarize, We will reject the first payment, resubmit the second and approve the third.
Select the first line item.
Press

© 2011 SAP AG 20
Same way, resubmit the second one: Once the icon is clicked, the calendar pops up. Click on the date you
want this payment to be postponed. Status will show the corresponding date.
Once this is done, press back button (F3) to come to the header screen.
Now select this batch and click approve. This means we are approving the one left over payment in this
batch.
After pressing the SAVE button, the following pop up appears:
BNK_MONI will show only one item for approval

© 2011 SAP AG 21
RETURN BY APPROVER:
An approver can return only the Whole batch. He cannot modify any part of a batch.
Batch returned by any level of approver (1
st
/. 2
nd
/ 3
rd
) returns the batch to Verifier for further action.
Adding attachment for reason of return of batch is mandatory
We will use batch 927 for this purpose
Select the batch and do the approval process as explained above.
Status changed to In Approval and batch is removed from the verifier screen.
By clicking on list of approvers for the batch, we get the list:

© 2011 SAP AG 22

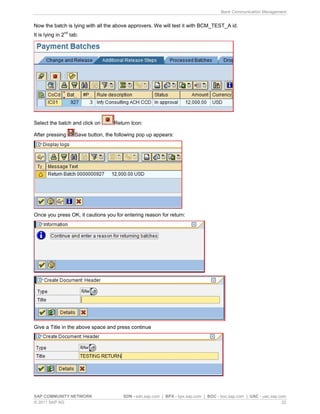

Now the batch is lying with all the above approvers. We will test it with BCM_TEST_A id.
It is lying in 2
nd
tab:
Select the batch and click on Return Icon:
After pressing Save button, the following pop up appears:
Once you press OK, it cautions you for entering reason for return:
Give a Title in the above space and press continue

© 2011 SAP AG 23

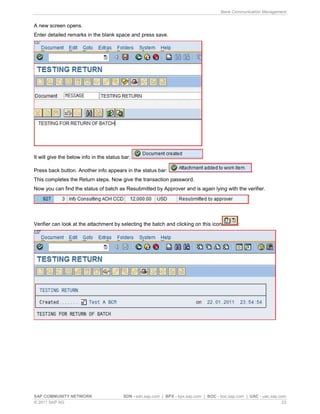

A new screen opens.
Enter detailed remarks in the blank space and press save.
It will give the below info in the status bar:
Press back button. Another info appears in the status bar: .
This completes the Return steps. Now give the transaction password.
Now you can find the status of batch as Resubmitted by Approver and is again lying with the verifier.
Verifier can look at the attachment by selecting the batch and clicking on this icon :

© 2011 SAP AG 24

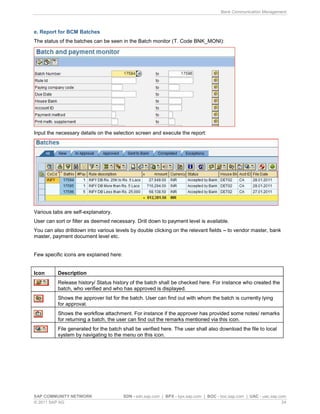

e. Report for BCM Batches
The status of the batches can be seen in the Batch monitor (T. Code BNK_MONI):
Input the necessary details on the selection screen and execute the report:
Various tabs are self-explanatory.
User can sort or filter as deemed necessary. Drill down to payment level is available.
You can also drilldown into various levels by double clicking on the relevant fields to vendor master, bank
master, payment document level etc.
Few specific icons are explained here:
Icon Description
Release history/ Status history of the batch shall be checked here. For instance who created the
batch, who verified and who has approved is displayed.
Shows the approver list for the batch. User can find out with whom the batch is currently lying
for approval.
Shows the workflow attachment. For instance if the approver has provided some notes/ remarks
for returning a batch, the user can find out the remarks mentioned via this icon.
File generated for the batch shall be verified here. The user shall also download the file to local
system by navigating to the menu on this icon.

© 2011 SAP AG 25

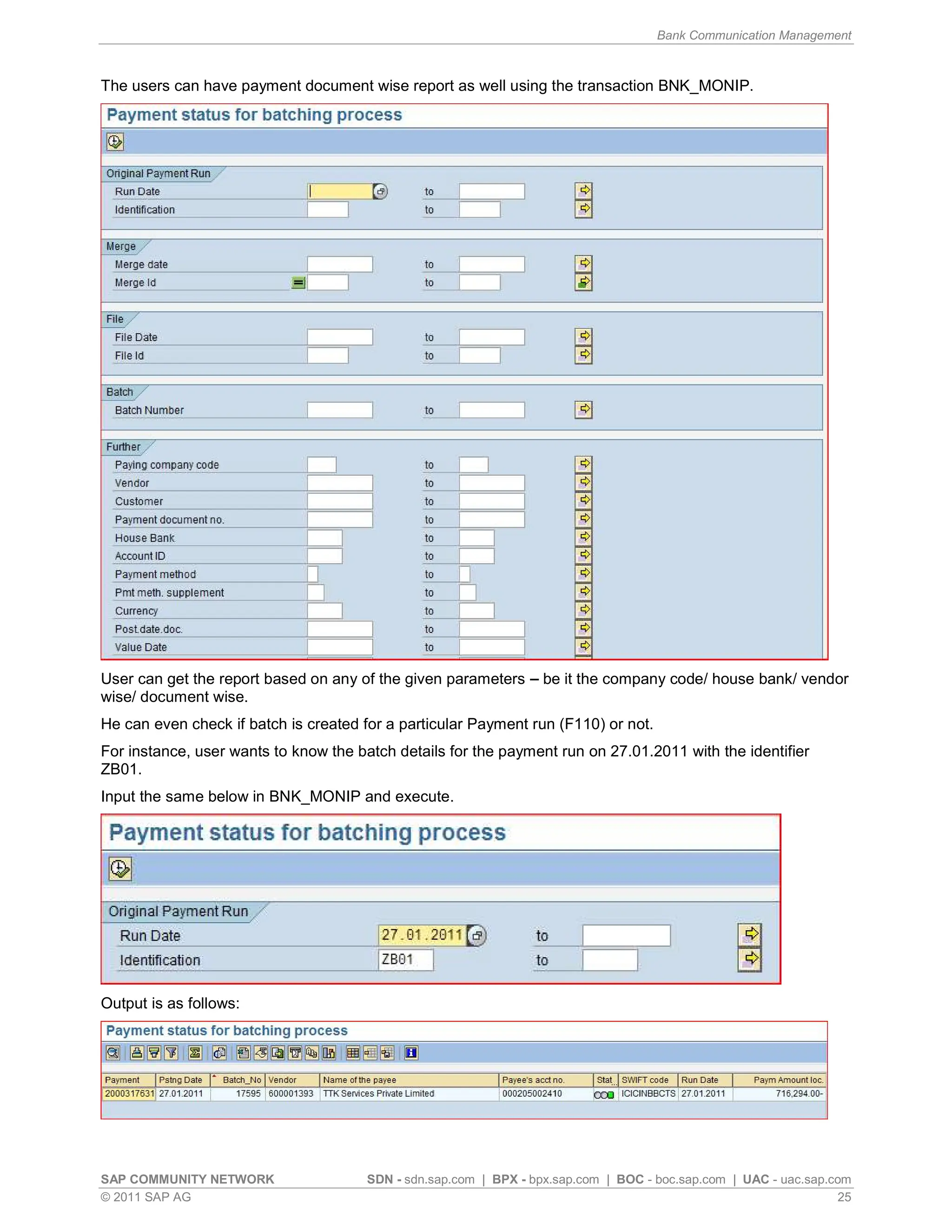

The users can have payment document wise report as well using the transaction BNK_MONIP.
User can get the report based on any of the given parameters be it the company code/ house bank/ vendor
wise/ document wise.
He can even check if batch is created for a particular Payment run (F110) or not.
For instance, user wants to know the batch details for the payment run on 27.01.2011 with the identifier
ZB01.
Input the same below in BNK_MONIP and execute.
Output is as follows:

© 2011 SAP AG 26
You can find that the Status of batch is shown in Green. And batch number is populated (17595 in the above
example).
This report also allows meaningful drilldowns. For instance, double-clicking on the Batch number field, it
takes you to the report BNK_MONI for the particular batch.
Summary of Configuration
The below table summarizes the list of configurations required for BCM functionality:
S No Activity T Code
1 Activate BCM in Switch framework customizing SWF5
2 Activate PMW for payment methods in country OBVCU
3 Maintain variant for the payment medium format OBPM4
4 Reserve Identifiers for cross-payment-run-media OBPM5
5 Bank Determination FBZP
6 Assign Company Number in DME data of House Bank FBZP
7 Basic Settings for approval in BCM SPRO
8 Payment Grouping - Rule Maintenance SPRO
9 Payment Grouping - Additional criteria for grouping SPRO
10 Map External Status to Internal Status SPRO
11 Mark Rules for automatic payments SPRO
12 Change & Release - Assign Role to release steps SPRO
13 Additional release steps - Define Release Procedure SPRO
14 Additional release steps - Assign Role to release steps SPRO
15 Assign workflow template to release procedure SPRO
16 Digital signature - specify signature method SPRO

© 2011 SAP AG 27
List of T Codes used in BCM:
Transaction Code Transaction Details
BNK_APP Approve Payments
BNK_BATCH Create Batches
BNK_BNK_COM_REL01 Assign Release Object to Release Pro
BNK_BNK_INI_REL01 Payment approval-First step
BNK_INCMNG_MSG_MONI Incoming status message monitor
BNK_LG_SGN Digital Signature Logs for Approval
BNK_MERGE_RESET Reset a Payment Media Batch run
BNK_MONI Batch and payment monitor
BNK_MONIA Batch Approver list
BNK_MONIP Payment status (batching)
BNK_MSG_TYPE Define default rule currency
BNK_PAYMED_OPT Define paymedium creation options
BNK_POWL_APPR_LST Bank payment approver list
BNK_POWL_BUPA Bank payment business partner
BNK_POWL_BUPA_FK03 Business partner
BNK_POWL_CLRD_ITEMS Bank payment cleared items
BNK_POWL_FILE Bank payment batch file
BNK_POWL_MSG Bank payment incoming message
BNK_POWL_REL_HIST Bank payment release history
BNK_POWL_STAT_HIST Bank payment status history
BNK_POWL_WF_ATTMT Bank payment workflow attachments
BNK_RUL_CUST Rule customizing
BNK_RULE_CURR Global data
BNK_SET_HMAC_KEY Set HMAC Key
BNK_SIGN_CONFIRM Confirm signature user
BNK_SIGN_MAINTAIN Maintain signature user

© 2011 SAP AG 29

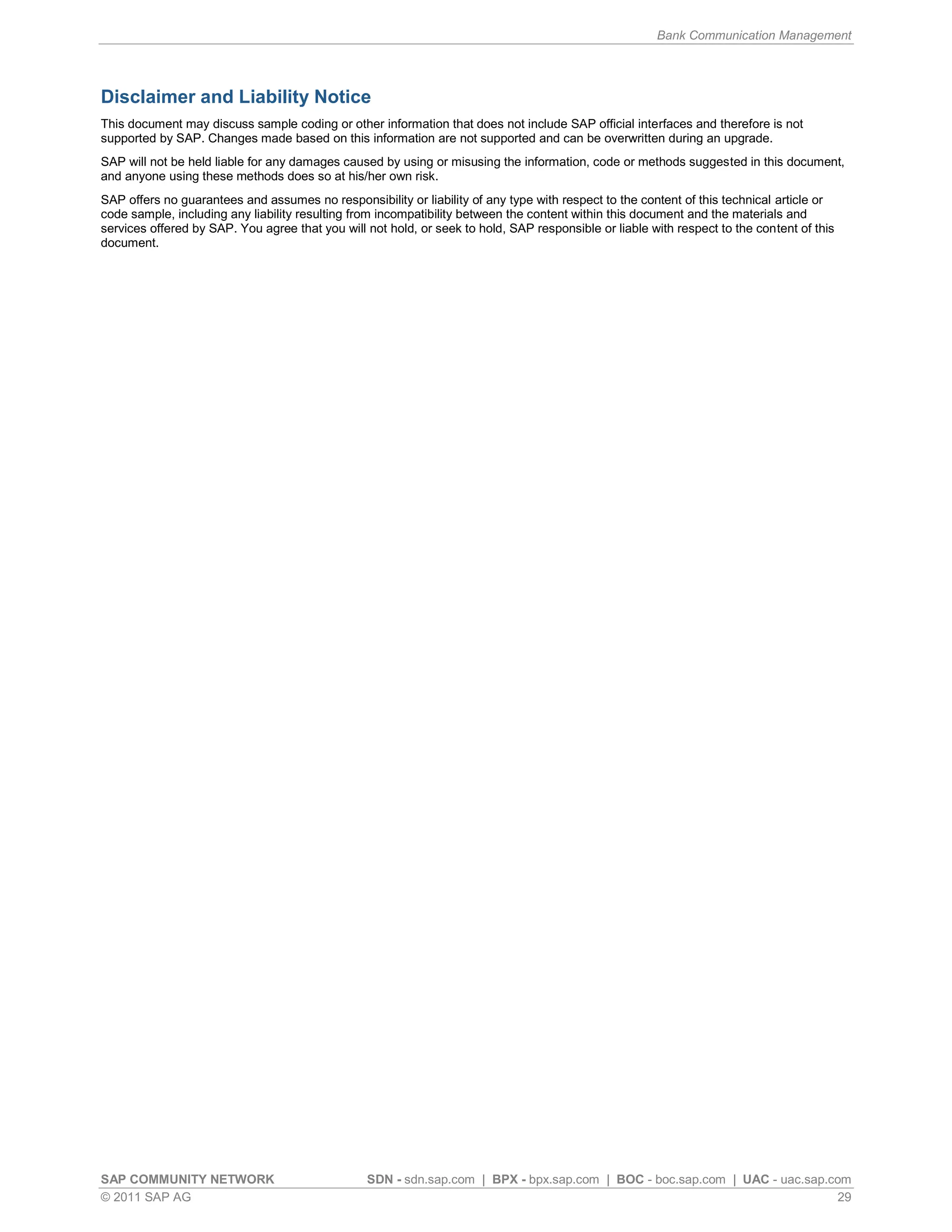

Disclaimer and Liability Notice
This document may discuss sample coding or other information that does not include SAP official interfaces and therefore is not
supported by SAP. Changes made based on this information are not supported and can be overwritten during an upgrade.
SAP will not be held liable for any damages caused by using or misusing the information, code or methods suggested in this document,
and anyone using these methods does so at his/her own risk.
SAP offers no guarantees and assumes no responsibility or liability of any type with respect to the content of this technical article or
code sample, including any liability resulting from incompatibility between the content within this document and the materials and
services offered by SAP. You agree that you will not hold, or seek to hold, SAP responsible or liable with respect to the content of this
document.

SAP BCM.pdf

More Related Content

What's hot

Similar to SAP BCM.pdf

Recently uploaded

SAP BCM.pdf
