Numerical Simulation of Buckling of Thin Cylindrical Shells ppt file

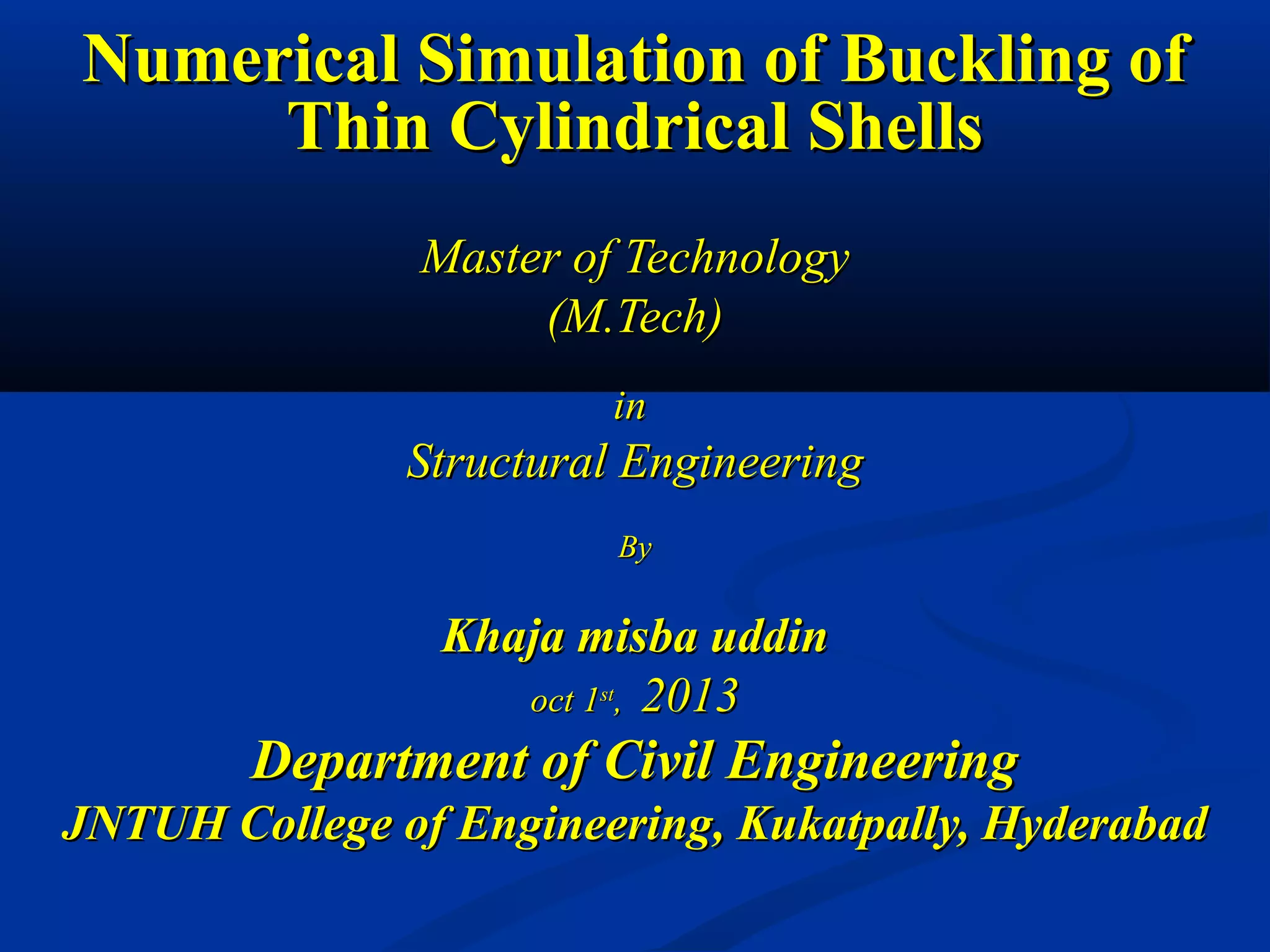

1. Numerical Simulation of Buckling of
Thin Cylindrical Shells
Master of Technology
(M.Tech)
in
Structural Engineering
By
Khaja misba uddin
oct 1st, 2013
Department of Civil Engineering
JNTUH College of Engineering, Kukatpally, Hyderabad

2. Outline of the Presentation
•
•
•
•
•
•
•
•
•
•
•
Introduction
Importance
Literature Review
Lacuna in the field
Present work
Numerical modeling and analysis
Results
Conclusions
Scope for future work
References
Acknowledgement

3. Introduction

It is well known that thin walled cylinders are
proven efficient structures with a variety of
applications in
- construction
- chemical
&
- aero-space industry.

4. 
The strength of these structures is limited to
their buckling strength when subjected to axial
compressive loads and external pressures.

Failure of these thin cylindrical shells under
buckling loads is a matter of concern for
engineers, while predicting the reliability of these
structures.

5. 
Definition -Thin Shells

If the wall thickness of the shell is less that 10%
of the diameter of the shell then it can be treated a
thin shell.

When the shell is subjected to internal Pressure
the stresses developed are assumed to be uniform
throughout the wall thickness.

6. Importance

Knowledge of
- Stress distribution
- Vibration Pattern
- Buckling Behaviour
is very important in the design of thin cylindrical
shells.

7. Thin cylinder subjected to
external pressure
(Vacuum inside the cylinder)

8. Literature Review

There are several research papers and technical
reports published in this field.

Euler’s research in 18th century gave birth to
classical theory of buckling.

Successful applications of a variety of the structures
is well documented in Theory of Elastic Stability by
Timoshenko and Gere.

9. 
A very pertinent literature survey has been
conducted in this field.

Certain gaps are identified in the open published
literature.

Some of these gaps are detailed hereunder.

10. 
According to the classical theory of buckling, for
axially-loaded thin cylindrical shells, buckling
stress is directly proportional to the wall thickness
‘t’, other things being equal.
t 
σ cr =
 
2
3(1 − υ )  R 
E

Where, “σ” is critical compressive stress, “E” is
Young’s modulus, “υ” is Poisson ratio of isotropic material, “t” is the uniform thickness and
“R” is the radius of the shell.

11. 
However, from the experimental investigations
of the several researchers the empirical data
show clearly that the buckling stress is actually
proportional to t1.5, other things being equal.
1.5
σ mean
t 
= 5 
E
R

12. Lacuna in the Field



It is well known that there is wide scatter in the
buckling-stress data, ranging from one half to twice
the mean value.
Current theories of shell buckling attribute both
the scatter and the low buckling stress – in
comparison with the classical – to “imperfectionsensitive”, non-linear structural behaviour.
All those theories considered classical shell theory
as their ideal reference and treated as perfect.

13. Present Work

The present work deals with the investigation of
1. The stress distribution – Static Analysis
2. Buckling Behaviour
using FEM when thin cylindrical shells are
subjected to axial compressive loads and
external pressures.

14. NUMERICAL MODELING AND
ANALYSIS
A complete ABAQUS analysis flow chart usually
consists of three distinct stages:
1) Preprocessing,
2) Simulation,
3) Post-Processing.
These three stages are linked together by the
corresponding files.

15. FLOW CHART

16. MODELING AND MESHING

17. MESHING
(Four node shell element)

18. Applying loads and boundary
conditions

19. RESULTS AND DISCUSSIONS

20. Buckling pattern of thin walled
(0.1mm) cylindrical shell subjected
to axial compression

21. Stress distribution in thin cylinder (0.3mm)
subjected to axial compression.

22. DEFORMATION PATTERN OF THIN WALLED SHORT CYLINDRICAL
SHELL SUBJECTED TO EXTERNAL PRESSURE

24. Buckling pattern of thin cylindrical shell
subjected to external pressure

25. Deformed shape of the cylindrical shell
under axial compression

26. Deformed shape of the cylindrical shell

27. Deformed shape of the cylindrical shell

28. Deformed shape of the cylindrical shell

29. Deformed shape of the cylindrical shell

30. Shell subjected to axial compression of 100 N
and varying the thickness of the shell the
buckling load is calculated.
Length
in
mm
Thickness
mm
Radius
mm
Eigen value
for
Mode 1
Buckling
Load in
N
6000
0.1
500
31.592
3159.2
6000
0.3
500
237.24
23724
6000
0.5
500
618.9
61890

31. CONCLUSIONS
The following are the important conclusions drawn from
the present study on numerical simulation of buckling of
thin cylindrical shells.

During buckling, half sine waves will be formed along the
generator and along the circumference.

The number of half sine waves formed along the generator
and along the circumference are independent of the length
of the cylindrical shell.

The number of half sine waves formed along the generator
and along the circumference are dependent on the radius
and thickness of the shell.

32. SCOPE FOR FUTURE WORK
As an extension to the present work:

A number of variations of the problem
specifications can be tried with the available soft
wares in estimating the critical buckling loads.

There is always a need for the experimental data to
be generated to validate the numerical results.

In these endeavors an experimental test facility can
be built with data acquisition and recording systems.

33. There is a wide scope to further investigate the
effect of geometric nonlinearity and material
nonlinearity on the critical buckling loads.
Buckling of thin shells, made of functionally
graded materials, subjected to internal/
external loads.
Vibration behaviour and impact resistance of
thin cylindrical shells.

34. References
1.
2.
3.
4.
