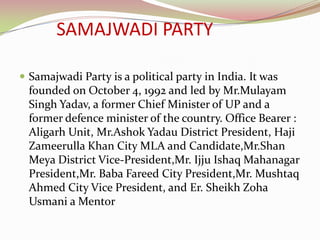

2. SAMAJWADI PARTY
 Samajwadi Party is a political party in India. It was
founded on October 4, 1992 and led by Mr.Mulayam
Singh Yadav, a former Chief Minister of UP and a
former defence minister of the country. Office Bearer :
Aligarh Unit, Mr.Ashok Yadau District President, Haji
Zameerulla Khan City MLA and Candidate,Mr.Shan
Meya District Vice-President,Mr. Ijju Ishaq Mahanagar
President,Mr. Baba Fareed City President,Mr. Mushtaq
Ahmed City Vice President, and Er. Sheikh Zoha
Usmani a Mentor

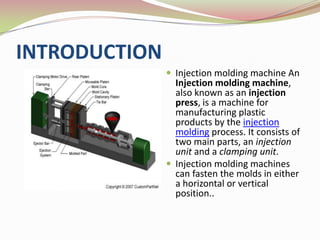

4. INTRODUCTION
 Injection molding machine An
Injection molding machine,
also known as an injection
press, is a machine for
manufacturing plastic
products by the injection
molding process. It consists of
two main parts, an injection
unit and a clamping unit.
 Injection molding machines
can fasten the molds in either
a horizontal or vertical
position..

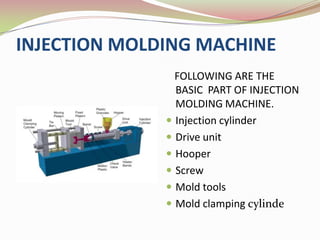

5. INJECTION MOLDING MACHINE
FOLLOWING ARE THE
BASIC PART OF INJECTION
MOLDING MACHINE.
 Injection cylinder
 Drive unit
 Hooper
 Screw
 Mold tools
 Mold clamping cylinde

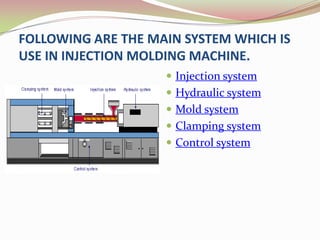

6. FOLLOWING ARE THE MAIN SYSTEM WHICH IS
USE IN INJECTION MOLDING MACHINE.
 Injection system
 Hydraulic system
 Mold system
 Clamping system
 Control system

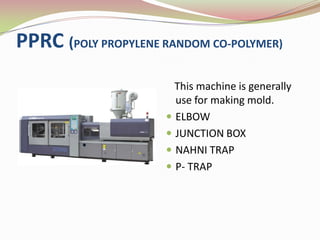

7. PPRC (POLY PROPYLENE RANDOM CO-POLYMER)
This machine is generally
use for making mold.
 ELBOW
 JUNCTION BOX
 NAHNI TRAP
 P- TRAP

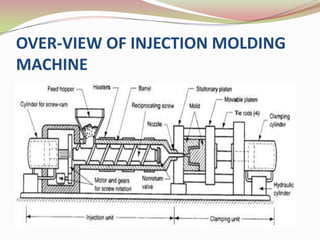

8. OVER-VIEW OF INJECTION MOLDING
MACHINE

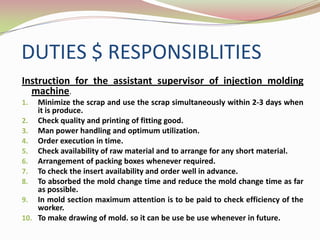

9. DUTIES $ RESPONSIBLITIES
Instruction for the assistant supervisor of injection molding
machine.
1. Minimize the scrap and use the scrap simultaneously within 2-3 days when
it is produce.
2. Check quality and printing of fitting good.
3. Man power handling and optimum utilization.
4. Order execution in time.
5. Check availability of raw material and to arrange for any short material.
6. Arrangement of packing boxes whenever required.
7. To check the insert availability and order well in advance.
8. To absorbed the mold change time and reduce the mold change time as far
as possible.
9. In mold section maximum attention is to be paid to check efficiency of the
worker.
10. To make drawing of mold. so it can be use be use whenever in future.

10. APPLICATION OF INJECTION MOLDING
MACHINE
 Injection molding is used to create many things such as
wire spools, packaging, automotive dashboards, and
most other plastic products available today. Injection
molding is the most common method of part
manufacturing. It is ideal for producing high volumes of
the same object. Some advantages of injection molding are
high production rates, repeatable high tolerances, the
ability to use a wide range of materials, low labor cost,
minimal scrap losses, and little need to finish parts after
molding. Some disadvantages of this process are expensive
equipment investment, potentially high running costs, and
the need to design moldable parts.

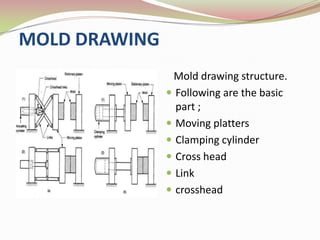

11. MOLD DRAWING
Mold drawing structure.
 Following are the basic
part ;
 Moving platters
 Clamping cylinder
 Cross head
 Link
 crosshead

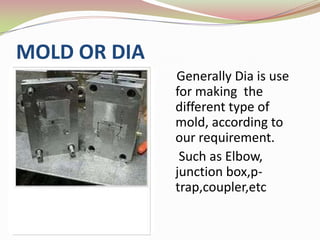

12. MOLD OR DIA
Generally Dia is use
for making the
different type of
mold, according to
our requirement.
Such as Elbow,
junction box,p-
trap,coupler,etc

13. ORGANIC STRUCTURE
POLYVINYL CHLORIDE
Poly(chloroethanediy)co
mmonly abbreviated PVC,
is a thermoplastic
polymer. It is a vinyl
polymer constructed of
repeating vinyl groups
(ethenyls) having one of
their hydrogens replaced
with a chloride group

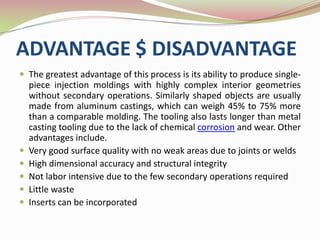

14. ADVANTAGE $ DISADVANTAGE
 The greatest advantage of this process is its ability to produce single-
piece injection moldings with highly complex interior geometries
without secondary operations. Similarly shaped objects are usually
made from aluminum castings, which can weigh 45% to 75% more
than a comparable molding. The tooling also lasts longer than metal
casting tooling due to the lack of chemical corrosion and wear. Other
advantages include.
 Very good surface quality with no weak areas due to joints or welds
 High dimensional accuracy and structural integrity
 Not labor intensive due to the few secondary operations required
 Little waste
 Inserts can be incorporated

15. MOLDING DEFECTS
 Molding defects
 Injection molding is a complex technology with possible
production problems. They can be caused either by defects
in the molds or more often by part processing (molding)
 Once the equipment is set to successfully create the
molded part, modern monitoring systems can save a
reference curve of the cavity pressure.
 Molding Defects
 Ununiformly
 Burn mark
 Colour less

16. END OF PRESENTATION
THANK YOU FOR YOUR VALUABLE TIME
