1. Safecast Class @ GSC,AGU
“Mapping”
@mapconcierge

2. http://safecast.org

3. Data License

4. Creative Commons
ZERO

5. Public Domain
Fact Data

6. - 2nd Use OK
- Commercial Use OK
- Duplicate/Publish OK

7. Safecast Contents
on the web.
CC BY-NC 4.0

9. http://guides.cuny.edu/c.php?g=318026&p=2575196

10. http://guides.cuny.edu/c.php?g=318026&p=2575196

11. - bGeigie nano
- nGeigie
Devices

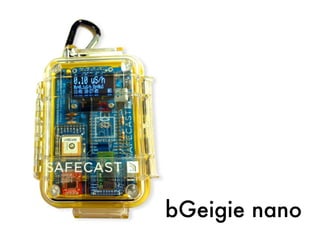

12. bGeigie nano

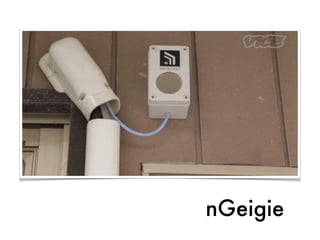

13. nGeigie

14. - Base Maps as Tiles
- Thematic Map
Tiles / Raw data
Maps

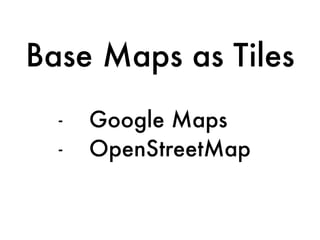

15. - Google Maps
- OpenStreetMap
Base Maps as Tiles

16. Tilemaps
http://safecast.org/tilemap/

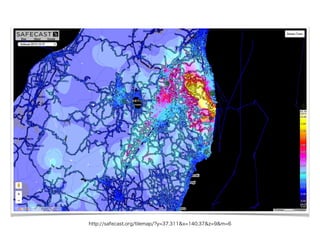

17. http://safecast.org/tilemap/?y=37.311&x=140.37&z=9&m=6

18. http://safecast.org/tilemap/?y=37.311&x=140.37&z=9&m=6

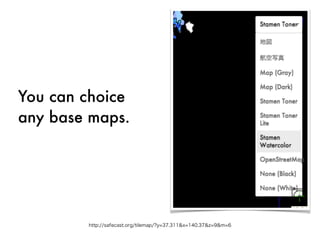

You can choice
any base maps.

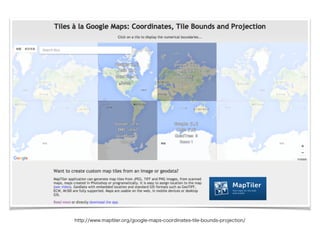

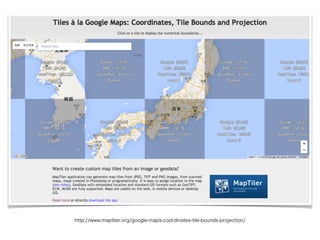

19. http://www.maptiler.org/google-maps-coordinates-tile-bounds-projection/

20. http://www.maptiler.org/google-maps-coordinates-tile-bounds-projection/

21. - Safecast Tilemap
- Original NMEA data
- API
Thematic Maps

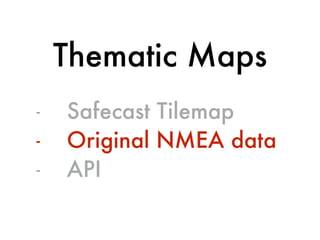

22. - Safecast Tilemap
- Original NMEA data
- API
Thematic Maps

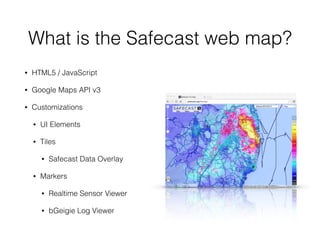

23. What is the Safecast web map?
• HTML5 / JavaScript
• Google Maps API v3
• Customizations
• UI Elements
• Tiles
• Safecast Data Overlay
• Markers
• Realtime Sensor Viewer
• bGeigie Log Viewer

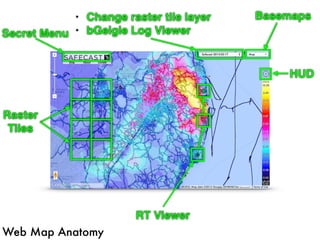

24. Raster
Tiles
HUD
RT Viewer
• Change raster tile layer
• bGeigie Log Viewer
Basemaps• Change raster tile layer
• bGeigie Log Viewer
Basemaps
HUD
RT Viewer
Raster
Tiles
Web Map Anatomy
Secret MenuSecret Menu

25. index.html
safemap.js bitstore.js
bgeigie_viewer.js
bgeigie_viewer_worker.js
hud.js
hud_worker.js
png_zlib_worker.js
rt_viewer.js
bgeigie_viewer_inline.html
bgeigie_viewer_inline.css
about_inline.html
Google Maps API
(images)
(fonts)
Web Map Files

26. Safecast Web Map
Safecast API Serverbgeigie_imports.jsonSafecast Amazon S3
ios13_32.sqlite
Safecast MIT Server
Safecast App (OS X)
Tiles
Points
bgeigie_log_viewer.js
safemap.js
bitstore.js
hud.js
Safecast MT Server
*.log
Data Paths to Map 1/2
Query

27. Safecast Web Map
Safecast RT Server
Points
rt_viewer.js
Safecast MT Server
devices.json

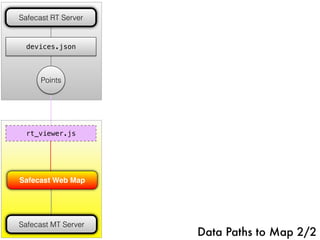

Data Paths to Map 2/2

28. Realtime map
http://realtime.safecast.org/map/

29. http://realtime.safecast.org/map/

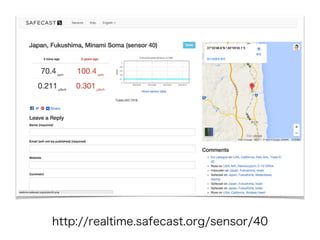

30. http://realtime.safecast.org/sensor/40

31. Tilemaps
http://safecast.org/tilemap/

32. http://safecast.org/tilemap/?y=37.311&x=140.37&z=9&m=6

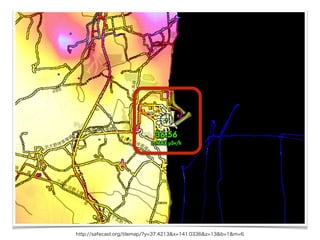

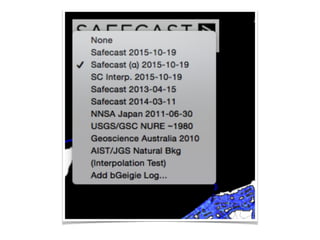

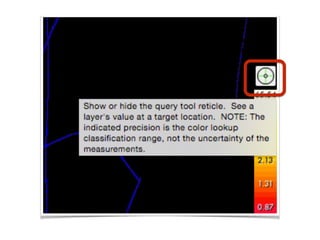

35. http://safecast.org/tilemap/?y=37.4213&x=141.0336&z=13&b=1&m=6

36. Please confirm
Radiation value
around the
Sagamihara Campus

37. http://safecast.org/tilemap/?y=35.56921&x=139.40039&z=16&l=1&b=1&m=9
Sagamihara Campus

38. - Safecast Tilemap
- Original NMEA data
- API
Thematic Maps

39. - Safecast Tilemap
- Original NMEA data
- API
Thematic Maps

40. https://api.safecast.org/en-US/bgeigie_imports/10766

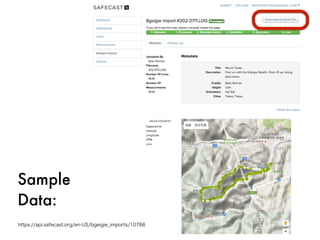

Sample
Data:

41. https://api.safecast.org/en-US/bgeigie_imports/10766
Sample
Data:

42. $BNRDD,202,2012-07-11T01:44:22Z,37,5,37,V,
3537.9858,N,13916.2530,E,0.00,A,680,4*6C
$BNRDD,202,2012-07-11T01:44:27Z,38,1,38,V,
3538.0022,N,13916.2560,E,0.00,A,680,4*6B
$BNRDD,202,2012-07-11T01:44:32Z,38,0,38,V,
3538.0129,N,13916.2520,E,0.00,A,670,4*6F

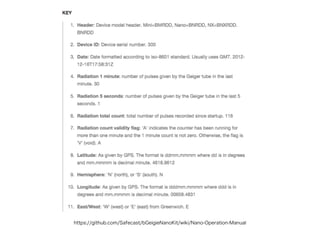

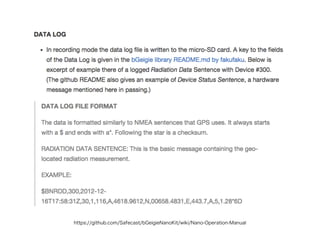

43. https://github.com/Safecast/bGeigieNanoKit/wiki/Nano-Operation-Manual

44. https://github.com/Safecast/bGeigieNanoKit/wiki/Nano-Operation-Manual

45. https://github.com/Safecast/bGeigieNanoKit/wiki/Nano-Operation-Manual

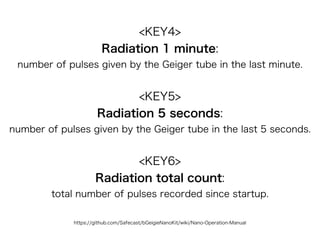

<KEY4>
Radiation 1 minute:
number of pulses given by the Geiger tube in the last minute.
<KEY5>
Radiation 5 seconds:
number of pulses given by the Geiger tube in the last 5 seconds.
<KEY6>
Radiation total count:
total number of pulses recorded since startup.

46. https://github.com/Safecast/bGeigieNanoKit/wiki/Nano-Operation-Manual

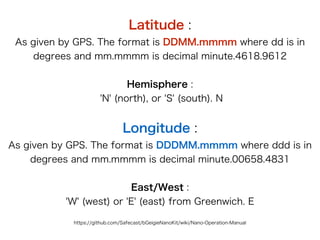

Latitude :
As given by GPS. The format is DDMM.mmmm where dd is in
degrees and mm.mmmm is decimal minute.4618.9612
Hemisphere :
'N' (north), or 'S' (south). N
Longitude :
As given by GPS. The format is DDDMM.mmmm where ddd is in
degrees and mm.mmmm is decimal minute.00658.4831
East/West :
'W' (west) or 'E' (east) from Greenwich. E

47. Please make
own radiation map
using by
Sample data in Mt.Takao
