1. S1000D Data Modules
Presented by Absolute Data Group (ADG)
A global provider of S1000D and SCORM, DITA, STE, ShipDex
and RailDex products and services
Also available:
S1000D Training
S1000D software videos
S1000D R4i Product Suite
www.absolutedata.com

2. R4i S1000D Product Suite
R4i CSDB – Create, manage and publish critical content to
IETP/IETM, HTML and other Electronic Delivery
R4i Viewer – Royalty-free online and offline IETM Viewer for
an advanced Interactive Electronic Technical Manual
R4i Workbench – Easy to use, web-based S1000D Authoring
tool for faster authoring
R4i Binder – Powerful ‘drag & drop’ tool for creating manuals,
handbooks and large technical books from S1000D
R4i IPD Manager – Illustrated Parts Data Manager automates
the process of parts creation
Virasec Pty Ltd – Commercial In Confidence

3. Data Modules

4. What is a Data Module?
 Reusable building blocks of information.
 Each Data Module is assigned a DMC which does the
following:
 Uniquely identifies the data module’s position, and
 Describes the information contained in the Data Module.
Virasec Pty Ltd – Commercial In Confidence

5. Benefits Of Using Data Modules?
 Share information
 Use data more effectively
Virasec Pty Ltd – Commercial In Confidence
 Reduce errors
 Save money
 Increase usability of documents
 Use the latest technology in your publications

6. Components of a Data Module
Virasec Pty Ltd – Commercial In Confidence

7. ID Status
 <idstatus> section.
 Contains all the management information.
 <idstatus> can be considered to be metadata.
 The <idstatus> is comprised of two parts:
 <DMAddress>
Virasec Pty Ltd – Commercial In Confidence
 <Status>

8.  Content section is second part.
 Contains text and illustrations.
 Governed by one of eleven DTD’s Schema’s:
Virasec Pty Ltd – Commercial In Confidence
Content
Descriptive
Procedural
Fault information
Maintenance Planning
Crew/Operator
Parts Information
Battle Damage Assessment and
Repair
Wiring Data Information
Process Module Information
Data module list
Data dispatch note
Technical Information Repository
Container Data Module

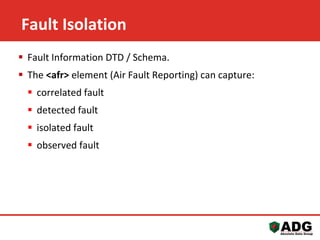

9. Fault Isolation
 Fault Information DTD / Schema.
 The <afr> element (Air Fault Reporting) can capture:
 correlated fault
 detected fault
 isolated fault
 observed fault
Virasec Pty Ltd – Commercial In Confidence

10. Correlated Fault
Virasec Pty Ltd – Commercial In Confidence

11. Virasec Pty Ltd – Commercial In Confidence

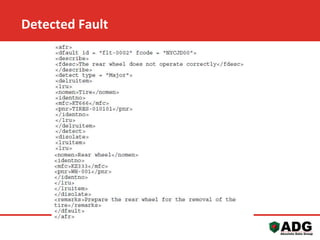

12. Detected Fault
Virasec Pty Ltd – Commercial In Confidence

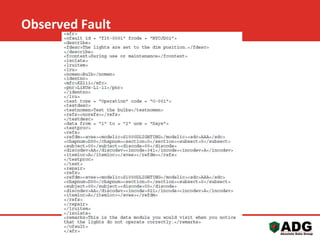

13. Observed Fault
Virasec Pty Ltd – Commercial In Confidence

14. Isolated Fault
Virasec Pty Ltd – Commercial In Confidence

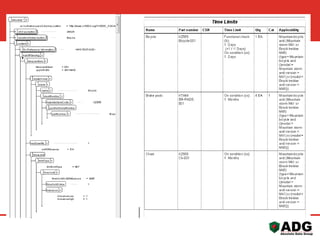

15. Maintenance Planning Information
 Schedule DTD / Schema.
 The elements used to capture maintenance planning
information are:
 <definspec> — Inspection Information.
 deftask — System Task Information
 timelim — Time Limit Information.
Virasec Pty Ltd – Commercial In Confidence

16. Virasec Pty Ltd – Commercial In Confidence

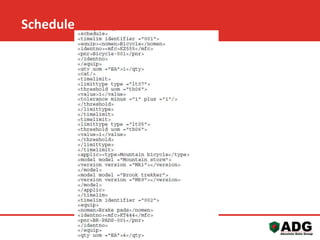

Schedule

17. Virasec Pty Ltd – Commercial In Confidence

18. Virasec Pty Ltd – Commercial In Confidence

19. Parts Information
 IPD DTD / Schema.
 Contain illustrations or graphics.
 Considered to be a component of a main Data Module.
 The items relative to an assembly are organised in IPD figures
and supported by the appropriate illustration.
Virasec Pty Ltd – Commercial In Confidence

20. Virasec Pty Ltd – Commercial In Confidence

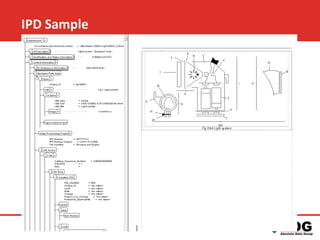

IPD Sample

21. Virasec Pty Ltd – Commercial In Confidence

22. Virasec Pty Ltd – Commercial In Confidence

23. Wiring Data Information
 WRNGDATA DTD / Schema.
 Contain information describing the electrical circuits to enable
fault isolation and maintenance of electrical systems.
 <wires> element.
 Wiring data modules will cover the following topics:
Virasec Pty Ltd – Commercial In Confidence

24. Wiring Data Information
Virasec Pty Ltd – Commercial In Confidence
 Introduction
 Standard practices
 Wiring diagrams
 Numeric index
 Alphabetic index
 Harness routing
 Equipment and panel locations
 Electrical standard parts
data
 Electrical equipment
information
 Wire data
 Harness data
 Generated information
 Interactive WP
functionalities

25. Wiring Data Information
 The wiring DTD (W DTD) consists of two DTDs:
 Wiring Data DTD (WD DTD)
 Wiring Data Description DTD (WDD DTD).
 There are two types of Wiring Data that can be output using
this DTD:
 Page-oriented Wiring Publications.
 Interactive Wiring Publications.
Virasec Pty Ltd – Commercial In Confidence

26. WD DTD/Schema basic rules
Virasec Pty Ltd – Commercial In Confidence

27. V3 vs V4 Structure
Virasec Pty Ltd – Commercial In Confidence

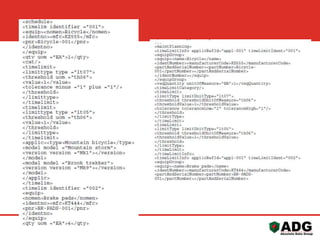

28. Virasec Pty Ltd – Commercial In Confidence

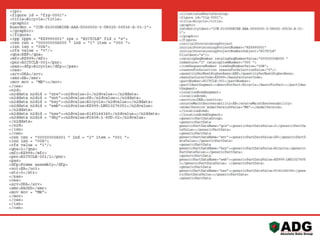

29. Virasec Pty Ltd – Commercial In Confidence

30. Virasec Pty Ltd – Commercial In Confidence

31. Thank you for viewing ADG’s education
session about S1000D Data Modules
To learn more about S1000D, visit the ADG website:
www.absolutedata.com
