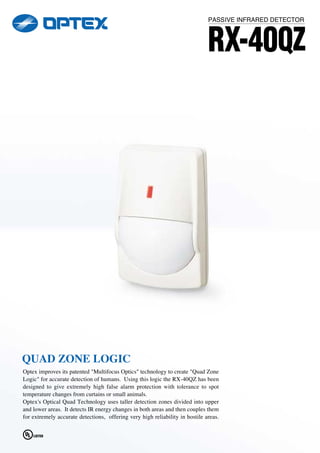

1. PASSIVE INFRARED DETECTOR
RX-40QZ
QUAD ZONE LOGIC
Optex improves its patented "Multifocus Optics" technology to create "Quad Zone
Logic" for accurate detection of humans. Using this logic the RX-40QZ has been
designed to give extremely high false alarm protection with tolerance to spot
temperature changes from curtains or small animals.
Optex's Optical Quad Technology uses taller detection zones divided into upper
and lower areas. It detects IR energy changes in both areas and then couples them
for extremely accurate detections, offering very high reliability in hostile areas.

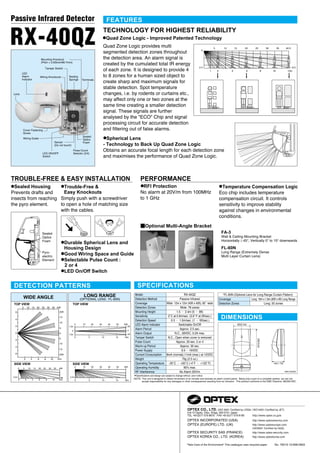

2. Passive Infrared Detector FEATURES
RX-40QZ
TECHNOLOGY FOR HIGHEST RELIABILITY
Quad Zone Logic - Improved Patented Technology
Quad Zone Logic provides multi 5 10 15 20 25 30 35 40 ft.
0
segmented detection zones throughout
Mounting Knockout the detection area. An alarm signal is
(Pitch = 2.63inch/66.7mm)
created by the cumulated total IR energy
2.4 8 ft.
Tamper Switch
of each zone. It is designed to provide 4 1 2 4 6 8 10 12m
LED
Alarm Wiring Knockouts Sealing to 8 zones for a human sized object to
Indicator Sponge Terminals
create sharp and maximum signals for
stable detection. Spot temperature
Lens changes, i.e. by rodents or curtains etc.,
may affect only one or two zones at the
same time creating a smaller detection
signal. These signals are further
analysed by the "ECO" Chip and signal
processing circuit for accurate detection
Cover Fastening and filtering out of false alarms.
Screw
Sealed
Wiring Guide
Optics Spherical Lens
Sensor Foam
(Do not touch) - Technology to Back Up Quad Zone Logic
Pulse Count Obtains an accurate focal length for each detection zone
LED ON/OFF Selector (2/4)
Switch and maximises the performance of Quad Zone Logic.
TROUBLE-FREE & EASY INSTALLATION PERFORMANCE
Sealed Housing Trouble-Free & RFI Protection Temperature Compensation Logic
Prevents drafts and Easy Knockouts No alarm at 20V/m from 100MHz Eco chip includes temperature
insects from reaching Simply push with a screwdriver to 1 GHz compensation circuit. It controls
the pyro element. to open a hole of matching size sensitivity to improve stability
with the cables. against changes in environmental
conditions.
Optional Multi-Angle Bracket
Sealed FA-3
Optics Wall & Ceiling Mounting Bracket
Foam Horizontally 45¡, Vertically 0¡ to 15¡ downwards
Durable Spherical Lens and
Housing Design FL-60N
Pyro- Long Range (Extremely Dense
electric
Good Wiring Space and Guide Multi Layer Curtain Lens)
Element Selectable Pulse Count :
2 or 4
LED On/Off Switch
DETECTION PATTERNS SPECIFICATIONS
Model RX-40QZ *FL-60N (Optional Lens for Long Range Curtain Pattern)
WIDE ANGLE LONG RANGE
(OPTIONAL LENS : FL-60N) Detection Method Passive Infrared Coverage Long: 18m x 1.8m (60ft x 6ft) Long Range
TOP VIEW TOP VIEW Coverage Wide: 12m x 12m (40ft x 40ft), 85 wide Detection Zones Long: 20 zones
5 10 15 20 25 30 35 40ft Detection Zones Wide: 78 zones
6 20ft Mounting Height 1.5 2.4m (5 8ft)
4
15
Sensitivity
Detection Speed
2 C at 0.6m/sec. (3.6 F at 2ft/sec.)
0.3 1.5m/sec. (1 5ft/sec.)
DIMENSIONS
10
0 10 20 30 40 50 60ft LED Alarm Indicator Switchable On/Off 62(2.44)
2 1.5m 5ft
5
Alarm Period Approx. 2.5 sec.
0 0
0 0
1.5m 5ft Alarm Output N.C., 28VDC, 0.2A max.
5
0 5 10 15 18m Tamper Switch N.C., Open when cover is removed
97(3.82)
2
Pulse Count Approx. 20 sec. 2 or 4
10
4 Warm-up Period Approx. 30 sec.
15
Power Supply 9.5 16VDC
6 20ft Current Consumption 8mA (normal),11mA (max.) at 12VDC
2 4 6 8 10 12m Weight 70g (2.5 oz.)
SIDE VIEW SIDE VIEW Operating Temperature -20 C +50 C (-4 F +122 F) 44(1.73)
0 10 20 30 40 50 60ft
0 5 10 15 20 25 30 35 40ft Operating Humidity 95% max.
RF Interference No Alarm 20V/m mm (inch)
Specifications and design are subject to change without prior notice.
2.4m 8ft 2.4m
NOTE: This unit is designed to detect movement of an intruder and activate an alarm control panel. Being only a part of a complete system, we can not
0 2 4 6 8 10 12m 0 5 10 15 18m
accept responsibility for any damages or other consequences resulting from an intrusion. This product conforms to the EMC Directive. 89/336 EEC.
