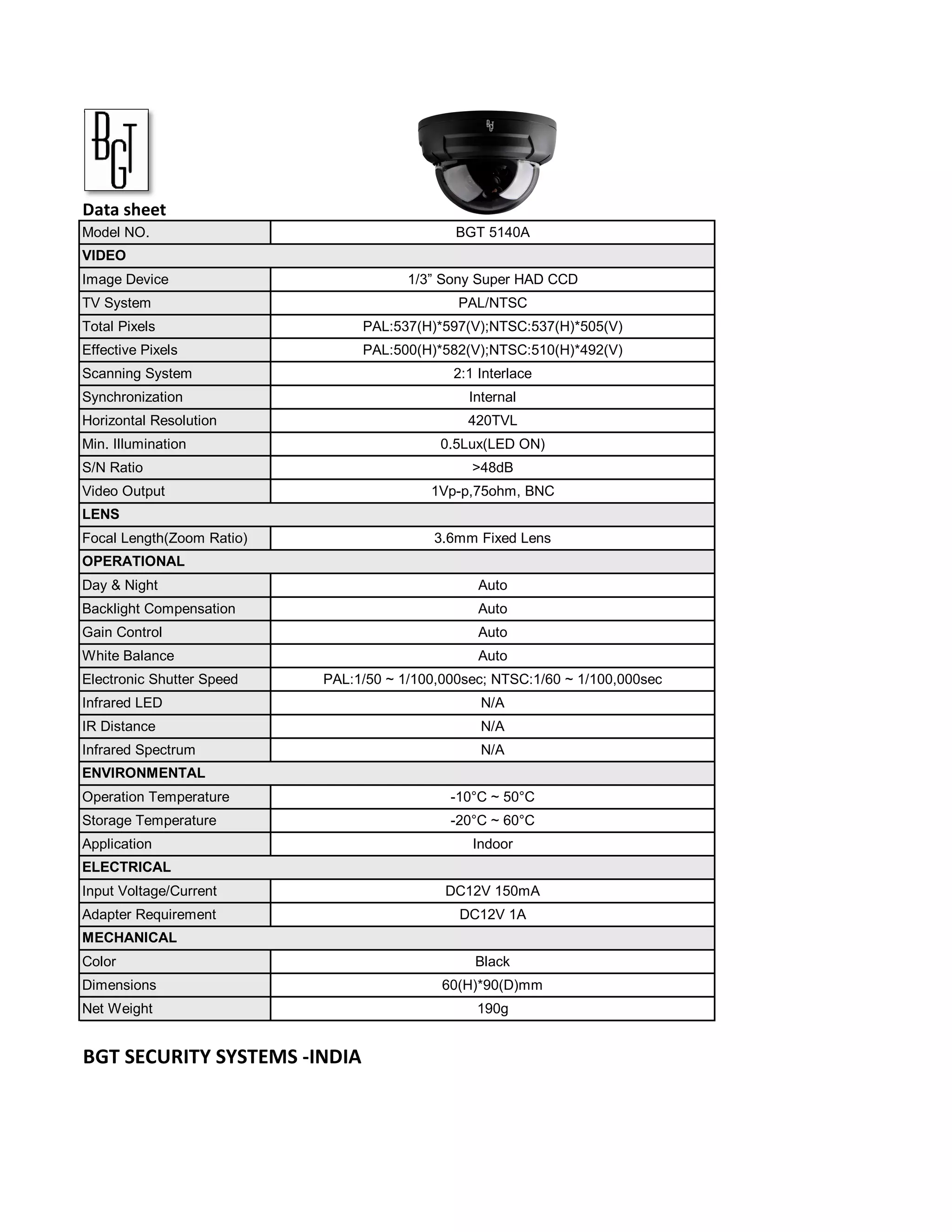

1. Data sheet
Model NO. BGT 5140A
VIDEO
Image Device 1/3” Sony Super HAD CCD
TV System PAL/NTSC
Total Pixels PAL:537(H)*597(V);NTSC:537(H)*505(V)
Effective Pixels PAL:500(H)*582(V);NTSC:510(H)*492(V)
Scanning System 2:1 Interlace
Synchronization Internal
Horizontal Resolution 420TVL
Min. Illumination 0.5Lux(LED ON)
S/N Ratio >48dB
Video Output 1Vp-p,75ohm, BNC
LENS
Focal Length(Zoom Ratio) 3.6mm Fixed Lens
OPERATIONAL
Day & Night Auto
Backlight Compensation Auto
Gain Control Auto
White Balance Auto
Electronic Shutter Speed PAL:1/50 ~ 1/100,000sec; NTSC:1/60 ~ 1/100,000sec
Infrared LED N/A
IR Distance N/A
Infrared Spectrum N/A
ENVIRONMENTAL
Operation Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Application Indoor
ELECTRICAL
Input Voltage/Current DC12V 150mA
Adapter Requirement DC12V 1A
MECHANICAL
Color Black
Dimensions 60(H)*90(D)mm
Net Weight 190g
BGT SECURITY SYSTEMS -INDIA
