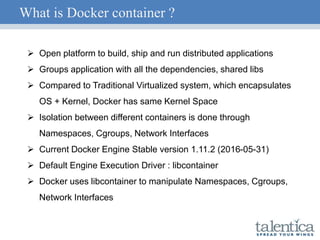

2. What is Docker container ?
Open platform to build, ship and run distributed applications
Groups application with all the dependencies, shared libs
Compared to Traditional Virtualized system, which encapsulates
OS + Kernel, Docker has same Kernel Space
Isolation between different containers is done through
Namespaces, Cgroups, Network Interfaces
Current Docker Engine Stable version 1.11.2 (2016-05-31)
Default Engine Execution Driver : libcontainer
Docker uses libcontainer to manipulate Namespaces, Cgroups,
Network Interfaces

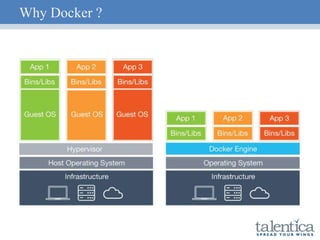

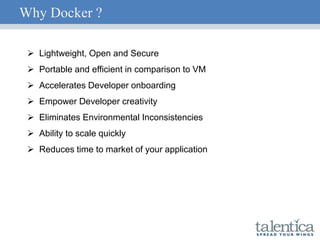

3. Why Docker ?
Lightweight, Open and Secure
Portable and efficient in comparison to VM
Accelerates Developer onboarding
Empower Developer creativity
Eliminates Environmental Inconsistencies
Ability to scale quickly
Reduces time to market of your application

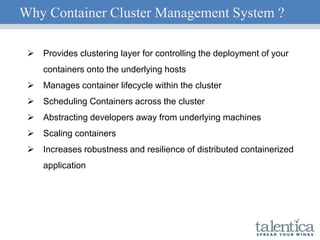

5. Why Container Cluster Management System ?
Provides clustering layer for controlling the deployment of your
containers onto the underlying hosts
Manages container lifecycle within the cluster
Scheduling Containers across the cluster
Abstracting developers away from underlying machines
Scaling containers
Increases robustness and resilience of distributed containerized
application

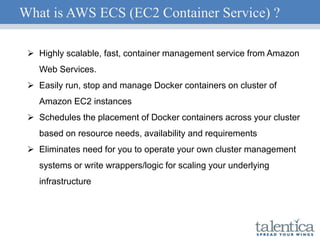

6. What is AWS ECS (EC2 Container Service) ?
Highly scalable, fast, container management service from Amazon
Web Services.
Easily run, stop and manage Docker containers on cluster of
Amazon EC2 instances
Schedules the placement of Docker containers across your cluster
based on resource needs, availability and requirements
Eliminates need for you to operate your own cluster management
systems or write wrappers/logic for scaling your underlying
infrastructure

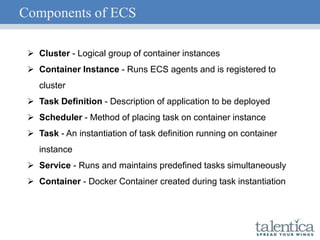

7. Components of ECS
Cluster - Logical group of container instances
Container Instance - Runs ECS agents and is registered to
cluster
Task Definition - Description of application to be deployed
Scheduler - Method of placing task on container instance
Task - An instantiation of task definition running on container
instance
Service - Runs and maintains predefined tasks simultaneously
Container - Docker Container created during task instantiation

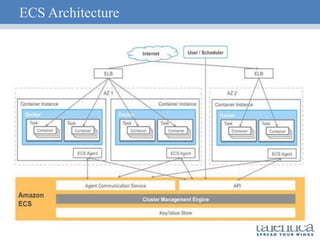

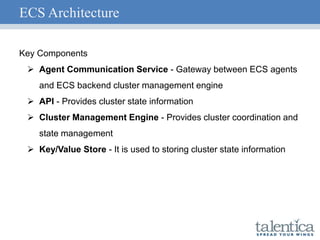

9. ECS Architecture
Key Components
Agent Communication Service - Gateway between ECS agents
and ECS backend cluster management engine
API - Provides cluster state information
Cluster Management Engine - Provides cluster coordination and
state management
Key/Value Store - It is used to storing cluster state information

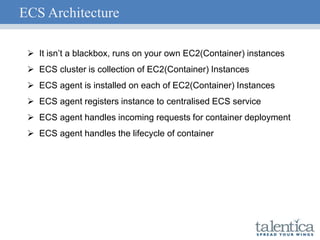

10. ECS Architecture
It isn’t a blackbox, runs on your own EC2(Container) instances
ECS cluster is collection of EC2(Container) Instances
ECS agent is installed on each of EC2(Container) Instances
ECS agent registers instance to centralised ECS service
ECS agent handles incoming requests for container deployment
ECS agent handles the lifecycle of container

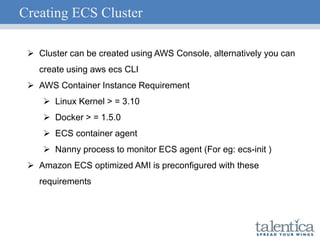

11. Creating ECS Cluster
Cluster can be created using AWS Console, alternatively you can
create using aws ecs CLI
AWS Container Instance Requirement
Linux Kernel > = 3.10
Docker > = 1.5.0
ECS container agent
Nanny process to monitor ECS agent (For eg: ecs-init )
Amazon ECS optimized AMI is preconfigured with these
requirements

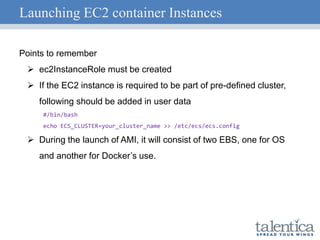

12. Launching EC2 container Instances
Points to remember
ec2InstanceRole must be created
If the EC2 instance is required to be part of pre-defined cluster,
following should be added in user data
#/bin/bash
echo ECS_CLUSTER=your_cluster_name >> /etc/ecs/ecs.config
During the launch of AMI, it will consist of two EBS, one for OS
and another for Docker’s use.

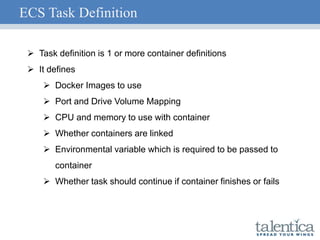

13. ECS Task Definition
Task definition is 1 or more container definitions
It defines
Docker Images to use
Port and Drive Volume Mapping
CPU and memory to use with container
Whether containers are linked
Environmental variable which is required to be passed to
container
Whether task should continue if container finishes or fails
14. ECS Scheduler
By default, AWS supports two ways for scheduling
Running Tasks
Services
Apart from the above, StartTask API of ECS can be used to write
custom scheduler. Currently Amazon has developed PoC scheduler
for Mesos

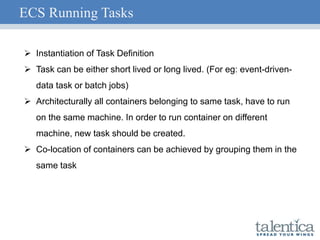

15. ECS Running Tasks
Instantiation of Task Definition
Task can be either short lived or long lived. (For eg: event-driven-
data task or batch jobs)
Architecturally all containers belonging to same task, have to run
on the same machine. In order to run container on different
machine, new task should be created.
Co-location of containers can be achieved by grouping them in the
same task

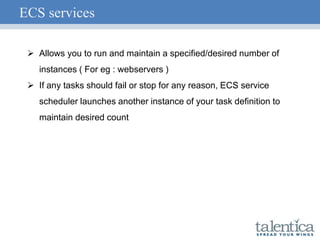

16. ECS services
Allows you to run and maintain a specified/desired number of
instances ( For eg : webservers )
If any tasks should fail or stop for any reason, ECS service
scheduler launches another instance of your task definition to
maintain desired count
17. Deploying ECS Cluster
Create a Load Balancer
Create a Launch configuration
Create a Autoscaling group, which specifies the desired number of
instances
Create a task definition
Create a service

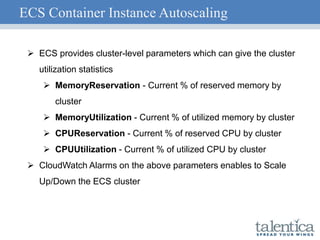

18. ECS Container Instance Autoscaling
ECS provides cluster-level parameters which can give the cluster
utilization statistics
MemoryReservation - Current % of reserved memory by
cluster
MemoryUtilization - Current % of utilized memory by cluster
CPUReservation - Current % of reserved CPU by cluster
CPUUtilization - Current % of utilized CPU by cluster
CloudWatch Alarms on the above parameters enables to Scale
Up/Down the ECS cluster
19. ECS Task Autoscaling
ECS also provides the facility to scale up the tasks in the service.
Tasks can be autoscaled on following ECS service parameters
CPUUtilization - Current % CPU utilization by ECS service
MemoryUtilization - Current % Memory Utilization by ECS
service

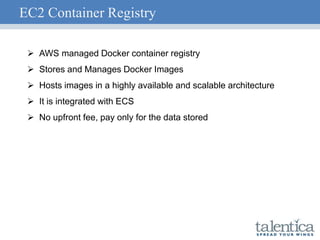

20. EC2 Container Registry
AWS managed Docker container registry
Stores and Manages Docker Images
Hosts images in a highly available and scalable architecture
It is integrated with ECS
No upfront fee, pay only for the data stored
21. Key Advantages of ECS Service
ECS is monitoring status of Docker containers, so if it goes down it
will be deployed automatically
ASG is monitoring your EC2 instances, if one instance goes down,
it will spawn new instance
ECS can do zero-downtime deployments of new version ( Blue -
Green deployments )
Updation requires two things
Create new revision of task
Update the revision in the service

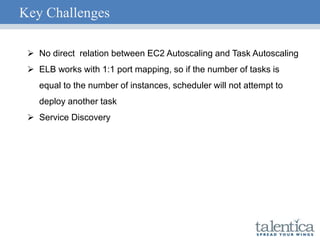

22. Key Challenges
No direct relation between EC2 Autoscaling and Task Autoscaling
ELB works with 1:1 port mapping, so if the number of tasks is
equal to the number of instances, scheduler will not attempt to
deploy another task
Service Discovery

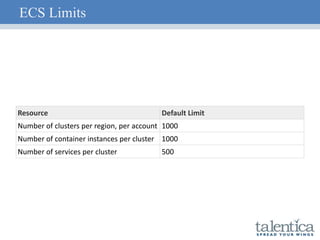

23. ECS Limits
Resource Default Limit
Number of clusters per region, per account 1000
Number of container instances per cluster 1000
Number of services per cluster 500

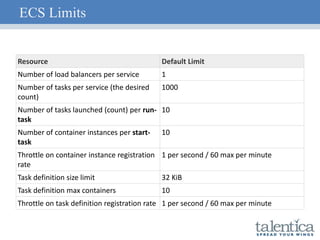

24. ECS Limits
Resource Default Limit
Number of load balancers per service 1
Number of tasks per service (the desired
count)
1000
Number of tasks launched (count) per run-
task
10
Number of container instances per start-
task
10
Throttle on container instance registration
rate
1 per second / 60 max per minute
Task definition size limit 32 KiB
Task definition max containers 10
Throttle on task definition registration rate 1 per second / 60 max per minute
Apart from the libcontainer, docker is compatible with
Openvz
Systemd-nspawn
Libvirt-lxc
Libvirt-sandbox
qemu/kvm
BSD jails
Solaris zones
LXC
What does a driver do ?
Provides a way to manipulate namespaces, control groups, network interfaces, firewall rules, apparmor profilesWhy libcontainer ?
Can manipulate the above mentioned things in a consistent and predictable way, without depending on userland packages.
AMI US-WEST-2 : amzn-ami-2016.03.c-amazon-ecs-optimized
1 core = 1,024 CPU units
Calculation
Memory
MemoryReservation = ( Total MB of memory reserved by tasks in cluster * 100 )/ Total MB registered by container instances in cluster
MemoryUtilization = ( Total MB of memory used by tasks in cluster * 100 ) / Total MB of memory registered by container instances in cluster
CPU
CPUReservavtion = ( Total CPU units reserved by tasks in cluster * 100 )/ Total CPU units registered by containers instances in cluster
CPUUtilization = (Total CPU units used by tasks in cluster * 100)/ Total CPU units registered by container instances in cluster in cluster
CPU
Service CPU Utilization = ( Total CPU units used by tasks in service * 100 ) / ( Total CPU units reserved in task definition * number of tasks in service )
Memory
Service Memory Utilization = ( Total MB of memory used by tasks in service * 100)/(Total MB of memory reserved in task definition * number of tasks)
First point : Set tasks much higher than EC2 instances, so if the EC2 Instance scaling happens, it will automatically schedule the tasks
Second point : Use HAProxy or Traefik LB
