Less-Dumb Fuzzing and Ruby Metaprogramming

Less-Dumb Fuzzing &
Ruby Metaprogramming
Nephi Johnson

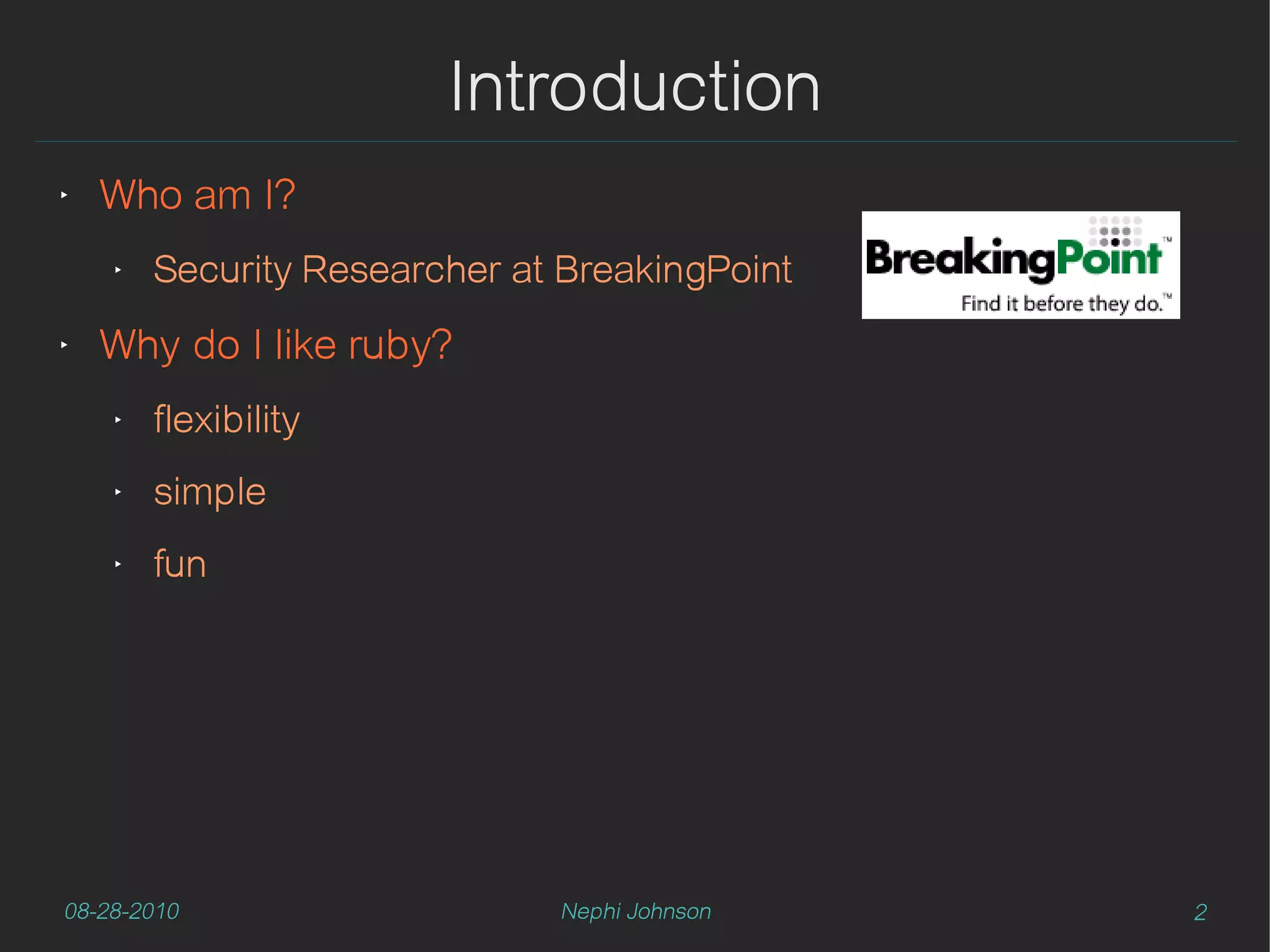

Introduction
‣ Who am I?
‣ Security Researcher at BreakingPoint
‣ Why do I like ruby?
‣ flexibility
‣ simple
‣ fun

08-28-2010 Nephi Johnson 2

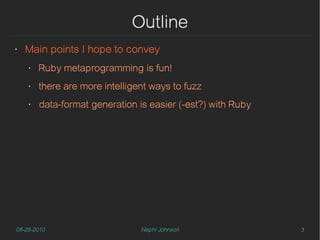

Outline
‣ Main points I hope to convey
‣ Ruby metaprogramming is fun!
‣ there are more intelligent ways to fuzz
‣ data-format generation is easier (-est?) with Ruby

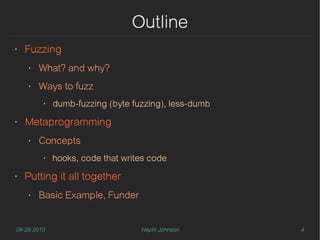

Outline
‣ Fuzzing
‣ What? and why?
‣ Ways to fuzz
‣ dumb-fuzzing (byte fuzzing), less-dumb
‣ Metaprogramming
‣ Concepts
‣ hooks, code that writes code
‣ Putting it all together
‣ Basic Example, Funder


Fuzzing

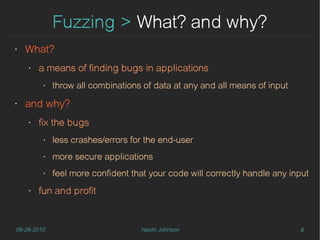

Fuzzing > What? and why?
‣ What?
‣ a means of finding bugs in applications
‣ throw all combinations of data at any and all means of input
‣ and why?
‣ fix the bugs
‣ less crashes/errors for the end-user
‣ more secure applications
‣ feel more confident that your code will correctly handle any input
‣ fun and profit

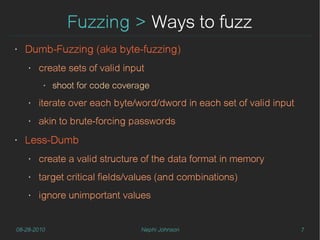

Fuzzing > Ways to fuzz
‣ Dumb-Fuzzing (aka byte-fuzzing)
‣ create sets of valid input
‣ shoot for code coverage
‣ iterate over each byte/word/dword in each set of valid input
‣ akin to brute-forcing passwords
‣ Less-Dumb
‣ create a valid structure of the data format in memory
‣ target critical fields/values (and combinations)
‣ ignore unimportant values

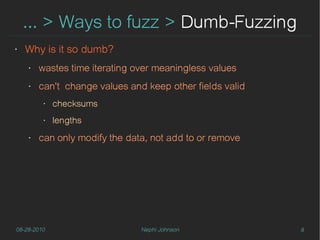

… > Ways to fuzz > Dumb-Fuzzing
‣ Why is it so dumb?
‣ wastes time iterating over meaningless values
‣ can't change values and keep other fields valid
‣ checksums
‣ lengths
‣ can only modify the data, not add to or remove

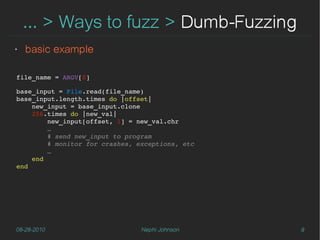

… > Ways to fuzz > Dumb-Fuzzing
‣ basic example

file_name = ARGV[0]

base_input = File.read(file_name)
base_input.length.times do |offset|
    new_input = base_input.clone
    256.times do |new_val|
        new_input[offset, 1] = new_val.chr
        …
        # send new_input to program
        # monitor for crashes, exceptions, etc
        …
    end
end

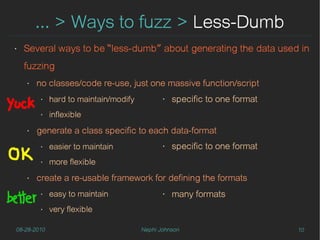

… > Ways to fuzz > Less-Dumb
‣ Several ways to be “less-dumb” about generating the data used in
fuzzing
‣ no classes/code re-use, just one massive function/script
‣ hard to maintain/modify ‣ specific to one format
‣ inflexible
‣ generate a class specific to each data-format
‣ easier to maintain ‣ specific to one format
‣ more flexible
‣ create a re-usable framework for defining the formats
‣ easy to maintain ‣ many formats
‣ very flexible


Metaprogramming

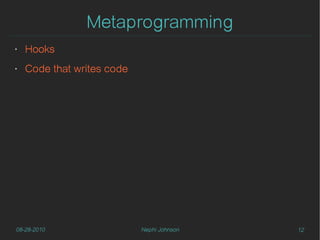

Metaprogramming
‣ Hooks
‣ Code that writes code

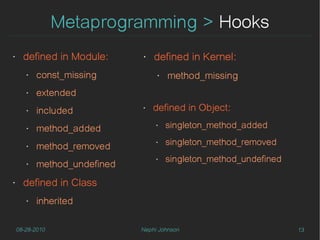

Metaprogramming > Hooks
‣ defined in Module: ‣ defined in Kernel:
‣ const_missing ‣ method_missing
‣ extended
‣ included ‣ defined in Object:
‣ method_added
‣ singleton_method_added

‣ method_removed
‣ singleton_method_removed
singleton_method_undefined
method_undefined
‣
‣

‣ defined in Class
‣ inherited

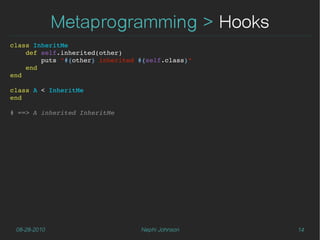

class InheritMe
    def self.inherited(other)
        puts "#{other} inherited #{self.class}"
    end
end

class A < InheritMe
end

# ==> A inherited InheritMe

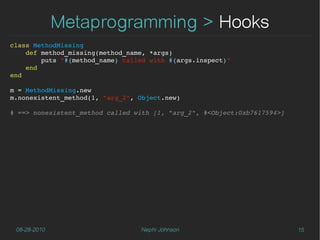

class MethodMissing
    def method_missing(method_name, *args)
        puts "#{method_name} called with #{args.inspect}"
    end
end

m = MethodMissing.new
m.nonexistent_method(1, "arg_2", Object.new)

# ==> nonexistent_method called with [1, "arg_2", #<Object:0xb7617594>]

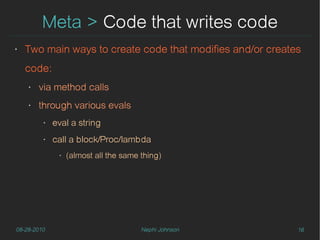

Meta > Code that writes code
‣ Two main ways to create code that modifies and/or creates
code:
‣ via method calls
‣ through various evals
‣ eval a string
‣ call a block/Proc/lambda
‣ (almost all the same thing)


… > Code that ... > via method calls
‣ Available method calls:
‣ defined in Module: ‣ defined in Object:
‣ alias_method ‣ instance_variable_get/set
‣ class_variable_get/set ‣ remove_instance_variable
‣ remove_class_variable ‣ send
‣ const_get/set
‣ remove_const
‣ extend_object
‣ define_method
‣ remove_method
‣ undef_method

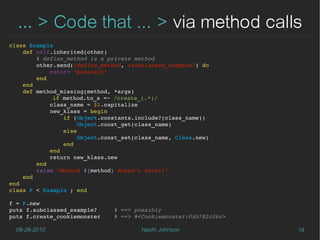

… > Code that ... > via method calls
class Example
        # define_method is a private method
        other.send(:define_method, :subclassed_example?) do
            return "possibly"
        end
    end
    def method_missing(method, *args)
if method.to_s =~ /create_(.*)/
            class_name = $1.capitalize
            new_klass = begin
                if (Object.constants.include?(class_name))
                    Object.const_get(class_name)
                else
                    Object.const_set(class_name, Class.new)
                end
            end
            return new_klass.new
        end
        raise "Method #{method} doesn't exist!"
    end
end
class F < Example ; end

f = F.new
puts f.subclassed_example?     # ==> possibly
puts f.create_cookiemonster    # ==> #<Cookiemonster:0xb782c26c>

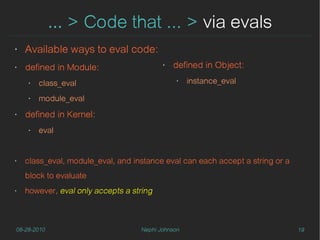

… > Code that ... > via evals
‣ Available ways to eval code:
‣ defined in Module: ‣ defined in Object:
‣ class_eval ‣ instance_eval

‣ module_eval
‣ defined in Kernel:
‣ eval

‣ class_eval, module_eval, and instance eval can each accept a string or a
block to evaluate
‣ however, eval only accepts a string

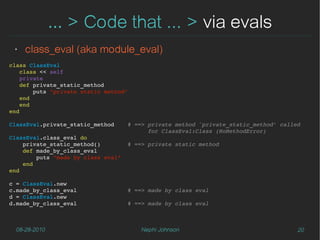

‣ class_eval (aka module_eval)
class ClassEval
   class << self
   private
   def private_static_method
       puts "private static method"
   end
   end
end

ClassEval.private_static_method    # ==> private method `private_static_method' called
                                         for ClassEval:Class (NoMethodError)
ClassEval.class_eval do
    private_static_method()        # ==> private static method
    def made_by_class_eval
        puts "made by class eval"
    end
end

c = ClassEval.new
c.made_by_class_eval               # ==> made by class eval
d = ClassEval.new
d.made_by_class_eval               # ==> made by class eval

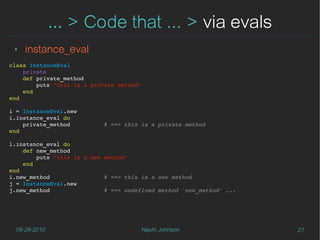

‣ instance_eval
class InstanceEval
    private
    def private_method
        puts "this is a private method"
    end
end

i = InstanceEval.new
i.instance_eval do
    private_method          # ==> this is a private method
end

i.instance_eval do
    def new_method
        puts "this is a new method"
    end
end
i.new_method                # ==> this is a new method
j = InstanceEval.new
j.new_method                # ==> undefined method `new_method' ...

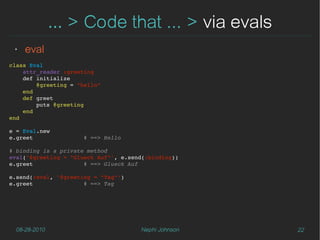

‣ eval
class Eval
    attr_reader :greeting
    def initialize
        @greeting = "hello"
    end
    def greet
        puts @greeting
    end
end

e = Eval.new
e.greet               # ==> Hello

# binding is a private method
eval('@greeting = "Glueck Auf"', e.send(:binding))
e.greet               # ==> Glueck Auf

e.send(:eval, '@greeting = "Tag"')
e.greet               # ==> Tag

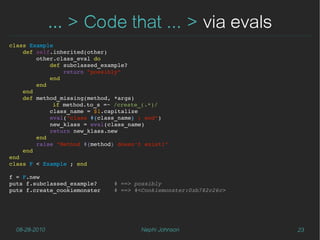

class Example
        other.class_eval do
            def subclassed_example?
                return "possibly"
            end
        end
    end
    def method_missing(method, *args)
if method.to_s =~ /create_(.*)/
            class_name = $1.capitalize
            eval("class #{class_name} ; end")
            new_klass = eval(class_name)
            return new_klass.new
        end
        raise "Method #{method} doesn't exist!"
    end
end
class F < Example ; end

f = F.new
puts f.subclassed_example?     # ==> possibly
puts f.create_cookiemonster    # ==> #<Cookiemonster:0xb782c26c>


Putting it all Together


Putting it all Together
‣ Basic
‣ functionality
‣ usability
‣ fuzzing
‣ Funder
‣ highlights
‣ actions, sections, arrays, binding
‣ fuzzing with Funder
‣ static inheritance, options

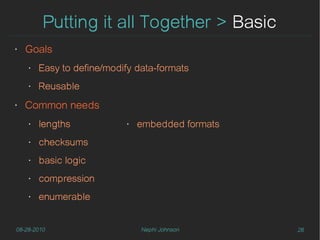

Putting it all Together > Basic
‣ Goals
‣ Easy to define/modify data-formats
‣ Reusable
‣ Common needs
‣ lengths ‣ embedded formats
‣ checksums
‣ basic logic
‣ compression
‣ enumerable

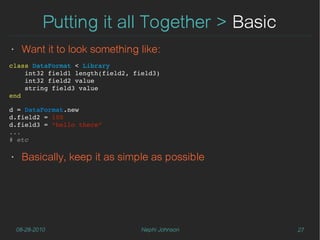

‣ Want it to look something like:
class DataFormat < Library
    int32 field1 length(field2, field3)
    int32 field2 value
    string field3 value
end

d = DataFormat.new
d.field2 = 100
d.field3 = “hello there”
...
# etc

‣ Basically, keep it as simple as possible

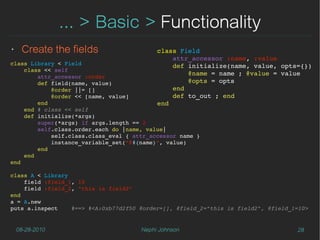

... > Basic > Functionality
‣ Create the fields class Field
    attr_accessor :name, :value
class Library < Field     def initialize(name, value, opts={})
    class << self
        attr_accessor :order
        @name = name ; @value = value
        def field(name, value)         @opts = opts
            @order ||= []     end
            @order << [name, value]     def to_out ; end
        end end
    end # class << self
    def initialize(*args)
        super(*args) if args.length == 2
        self.class.order.each do |name, value|
            self.class.class_eval { attr_accessor name }
            instance_variable_set("@#{name}", value)
        end
    end
end

class A < Library
    field :field_1, 10
    field :field_2, "this is field2"
end
a = A.new
puts a.inspect    #==> #<A:0xb77d2f50 @order=[], @field_2="this is field2", @field_1=10>

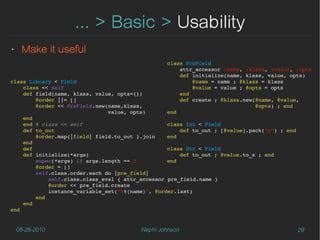

... > Basic > Usability
‣ Make it useful
class PreField
    attr_accessor :name, :klass, :value, :opts
    def initialize(name, klass, value, opts)
class Library < Field         @name = name ; @klass = klass
    class << self         @value = value ; @opts = opts
    def field(name, klass, value, opts={})     end
        @order ||= []     def create ; @klass.new(@name, @value,
        @order << PreField.new(name,klass,                             @opts) ; end
                               value, opts) end
    end
    end # class << self class Int < Field
    def to_out     def to_out ; [@value].pack(“n”) ; end
        @order.map{|field| field.to_out }.join end
    end
    def class Str < Field
    def initialize(*args)     def to_out ; @value.to_s ; end
        super(*args) if args.length == 2 end
        @order = []
        self.class.order.each do |pre_field|
            self.class.class_eval { attr_accessor pre_field.name }
            @order << pre_field.create
            instance_variable_set("@#{name}", @order.last)
        end
    end
end

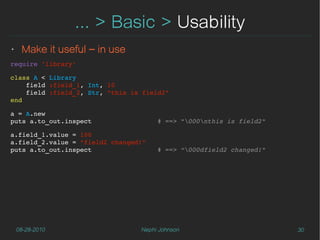

... > Basic > Usability
‣ Make it useful – in use
require 'library'

class A < Library
    field :field_1, Int, 10
    field :field_2, Str, "this is field2"
end

a = A.new
puts a.to_out.inspect                 # ==> "000nthis is field2"

a.field_1.value = 100
a.field_2.value = "field2 changed!"
puts a.to_out.inspect                 # ==> “000dfield2 changed!"

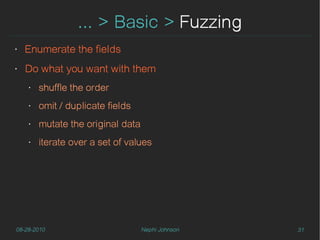

... > Basic > Fuzzing
‣ Enumerate the fields
‣ Do what you want with them
‣ shuffle the order
‣ omit / duplicate fields
‣ mutate the original data
‣ iterate over a set of values


require 'library'

class Fuzzer
    def initialize(field) ; @field = field ; end
    def fuzz(&block)
        @field.get_all_fields.each do |child|
            child.snapshot
            child.get_fvals.each do |new_val|
                child.value = new_val
                block.call(@field) class Int < Field
            end     def get_fvals
            child.reset         (0..3).to_a
        end     end
    end end
end class Str < Field
class Field     def get_fvals
    def snapshot ; @cache = @value ; end         (1..4).map {|i| "A"*(2**i) }
    def reset ; @value = @cache ; end     end
    def get_all_fields end
        return [self] unless @order
        @order.each.map {|field| field.get_all_fields }.flatten
    end
end


‣ Fuzzer – in use
require 'library'

class A < Library
    field :field_1, Int, 0xffff
    field :field_2, Str, "this is field2"
end

a = A.new
f = Fuzzer.new(a)       "000000this is field2"
f.fuzz do |new_a|       "000001this is field2"
    puts new_a.to_out.inspect # ==> "000002this is field2"
end       "000003this is field2"
      "377377AA"
      "377377AAAA"
      "377377AAAAAAAA"
      "377377AAAAAAAAAAAAAAAA"

‣ 100 total lines of code!
‣ (see next slide)

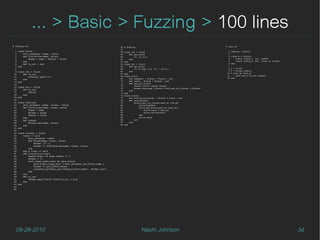

... > Basic > Fuzzing > 100 lines
# library.rb 56 # FUZZing # test.rb
57
  1 class Field 58 class Int < Field   1 require 'library'
  2     attr_accessor :name, :value 59     def get_fvals   2
  3     def initialize(name, value) 60         (0..3).to_a   3 class A < Library
  4         @name = name ; @value = value 61     end   4     field :field_1, Int, 0xffff
  5     end 62 end   5     field :field_2, Str, "this is field2"
  6     def to_out ; end 63 class Str < Field   6 end
  7 end 64     def get_fvals   7
  8 65         (1..4).map {|i| "A" * (2**i) }   8 a = A.new
66     end   9 f = Fuzzer.new(a)
  9 class Int < Field
67 end 10 f.fuzz do |new_a|
10     def to_out
68 class Field 11     puts new_a.to_out.inspect
11         [@value].pack("n")
69     def snapshot ; @cache = @value ; end 12 end
12     end
13 end 70     def reset ; @value = @cache ; end
71     def get_all_fields
14
72         return [self] unless @order
15 class Str < Field
73         @order.each.map {|field| field.get_all_fields }.flatten
16     def to_out 74     end
17         @value 75 end
18     end 76 class Fuzzer
19 end 77     def initialize(field) ; @field = field ; end
20 78     def fuzz(&block)
21 class PreField 79         @field.get_all_fields.each do |child|
22     attr_accessor :name, :klass, :value 80             child.snapshot
23     def initialize(name, klass, value) 81             child.get_fvals.each do |new_val|
24         @name = name 82                 child.value = new_val
25         @klass = klass 83                 block.call(@field)
26         @value = value 84             end
27     end 85             child.reset
28     def create 86         end
29         @klass.new(name, value) 87     end
30     end 88 end
31 end
32
33 class Library < Field
34     class << self
35         attr_accessor :order
36         def field(name, klass, value)
37             @order ||= []
38             @order << PreField.new(name, klass, value)
39         end
40     end # class << self
41     def initialize(*args)
42         super(*args) if args.length == 2
43         @order = []
44         self.class.order.each do |pre_field|
45             self.class.class_eval { attr_accessor pre_field.name }
46             @order << pre_field.create
47             instance_variable_set("@#{pre_field.name}", @order.last)
48         end
49     end
50     def to_out
51         @order.map{|field| field.to_out }.join
52     end
53 end
54
55

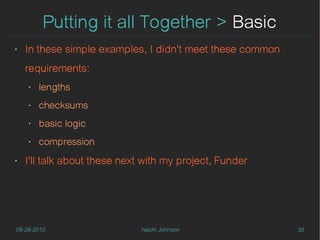

‣ In these simple examples, I didn't meet these common
requirements:
‣ lengths
‣ checksums
‣ basic logic
‣ compression
‣ I'll talk about these next with my project, Funder

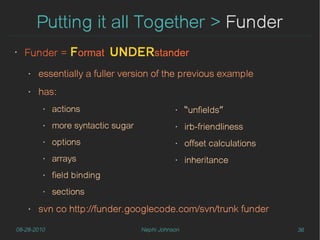

Putting it all Together > Funder
‣
Funder = Format UNDERstander
‣ essentially a fuller version of the previous example
‣ has:
‣ actions ‣ “unfields”
‣ more syntactic sugar ‣ irb-friendliness
‣ options ‣ offset calculations
‣ arrays ‣ inheritance
‣ field binding
‣ sections
‣ svn co http://funder.googlecode.com/svn/trunk funder

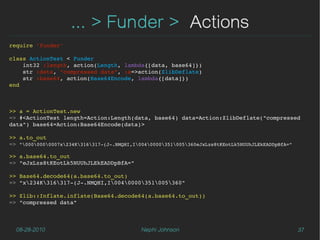

... > Funder > Actions
require 'funder'

class ActionTest < Funder
    int32 :length, action(Length, lambda{[data, base64]})
    str :data, "compressed data", :a=>action(ZlibDeflate)
    str :base64, action(Base64Encode, lambda{[data]})
end

>> a = ActionTest.new
=> #<ActionTest length=Action:Length(data, base64) data=Action:ZlibDeflate("compressed
data") base64=Action:Base64Encode(data)>

>> a.to_out
=> "0000000007x234K316317(J.NMQHI,I0040000351005360eJxLzs8tKEotLk5NUUhJLEkEADDpBfA="

>> a.base64.to_out
=> "eJxLzs8tKEotLk5NUUhJLEkEADDpBfA="

>> Base64.decode64(a.base64.to_out)
=> "x234K316317(J.NMQHI,I0040000351005360"

>> Zlib::Inflate.inflate(Base64.decode64(a.base64.to_out))
=> "compressed data"

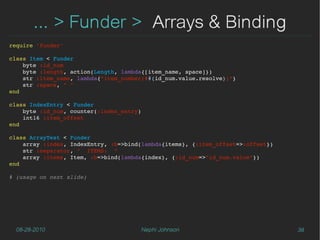

... > Funder > Arrays & Binding
require 'funder'

class Item < Funder
    byte :id_num
    byte :length, action(Length, lambda{[item_name, space]})
    str :item_name, lambda{"item_number(##{id_num.value.resolve})"}
    str :space, " "
end

class IndexEntry < Funder
    byte :id_num, counter(:index_entry)
    int16 :item_offset
end

class ArrayTest < Funder
    array :index, IndexEntry, :b=>bind(lambda{items}, {:item_offset=>:offset})
    str :separator, "  ITEMS:  "
    array :items, Item, :b=>bind(lambda{index}, {:id_num=>"id_num.value"})
end

# (usage on next slide)

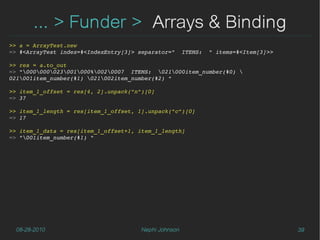

... > Funder > Arrays & Binding
>> a = ArrayTest.new
=> #<ArrayTest index=#<IndexEntry[3]> separator=" ITEMS: " items=#<Item[3]>>

>> res = a.to_out
=> "000000023001000%0020007 ITEMS: 021000item_number(#0)
021001item_number(#1) 021002item_number(#2) "

>> item_1_offset = res[4, 2].unpack("n")[0]
=> 37

>> item_1_length = res[item_1_offset, 1].unpack("c")[0]
=> 17

>> item_1_data = res[item_1_offset+1, item_1_length]
=> "001item_number(#1) "

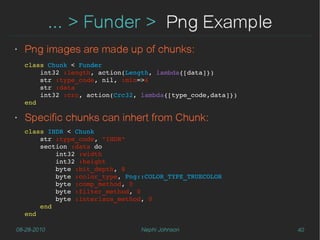

... > Funder > Png Example
‣ Png images are made up of chunks:
class Chunk < Funder
    int32 :length, action(Length, lambda{[data]})
    str :type_code, nil, :min=>4
    str :data
    int32 :crc, action(Crc32, lambda{[type_code,data]})
end

‣ Specific chunks can inhert from Chunk:
class IHDR < Chunk
    str :type_code, "IHDR"
    section :data do
        int32 :width
        int32 :height
        byte :bit_depth, 8
        byte :color_type, Png::COLOR_TYPE_TRUECOLOR
        byte :comp_method, 0
        byte :filter_method, 0
        byte :interlace_method, 0
    end
end

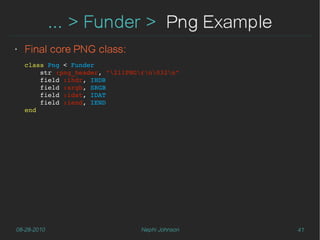

... > Funder > Png Example
‣ Final core PNG class:
class Png < Funder
    str :png_header, "211PNGrn032n"
    field :ihdr, IHDR
    field :srgb, SRGB
    field :idat, IDAT
    field :iend, IEND
end


... > Funder > Png – In Use
>> require 'formats/png'
=> true

>> p = Png.new
=> #<Png png_header="211PNGrn032n" ihdr=#<IHDR> srgb=#<SRGB> idat=#<IDAT>
iend=#<IEND>>

>> p.ihdr.data.width.value = p.ihdr.data.height.value = 200
=> 200

>> p.idat.data.red.value = 0xff
=> 255

>> p.idat.data.green.value = 0
=> 0

>> p.idat.data.blue.value = 0
=> 0

>> File.open("test.png", "w"){|f| f.write p.to_out }
=> 696


... > Funder > Fuzzing
‣ My fuzzing code is similar to the example code, but has
‣ more options, control
‣ a form static inheritance to propagate options from classes to
subclass instances
‣ random and deterministic fuzzing
‣ svn checkout the source or browse it online
‣ (I'm probably desperately out of time by the time I reach this
slide)

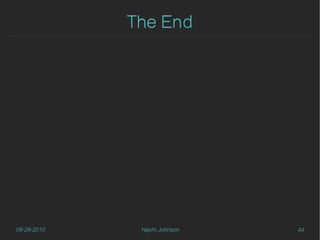

The End


Less-Dumb Fuzzing and Ruby Metaprogramming

More Related Content

Viewers also liked

Similar to Less-Dumb Fuzzing and Ruby Metaprogramming

Recently uploaded

Less-Dumb Fuzzing and Ruby Metaprogramming
