ROBOT
FRAMEWORK
Onur Baskirt
Who am I?
▪ I am Onur Başkırt
▪ Currently, Head of SW Testing at Kariyer.net
▪ Co-owner of www.swtestacademy.com and a Test Hive Member 
▪ Formerly, Teknosa, Ericsson, Huawei, ST-Ericsson, Bahçeşehir University
Table of Contents
▪ What is Robot Framework?
▪ Robot Framework Architecture and Test Flow
▪ Libraries
▪ Tools
▪ How to install Robot Framework on Windows?
▪ Robot Framework Usage with an Example

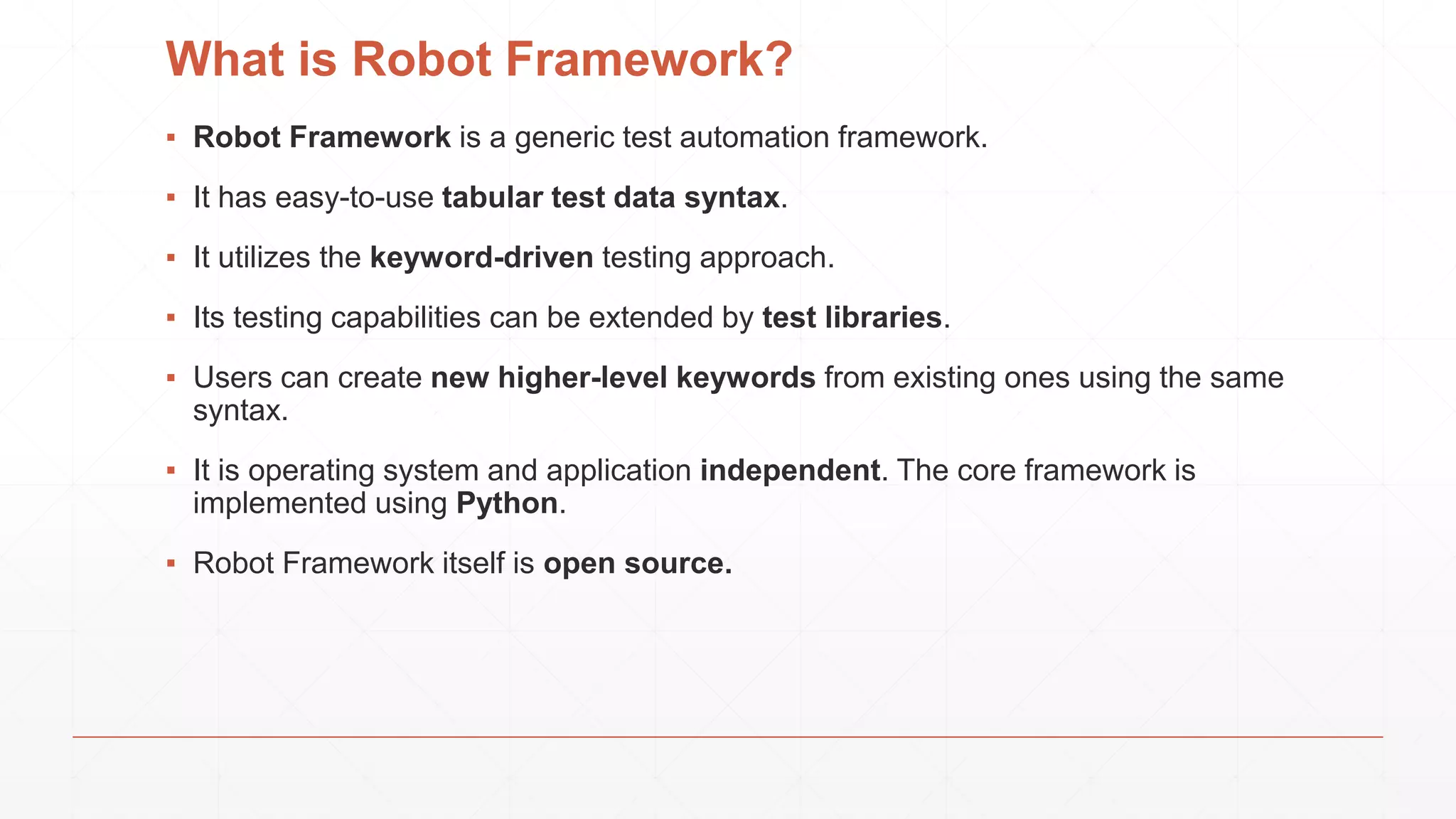

What is Robot Framework?
▪ Robot Framework is a generic test automation framework.
▪ It has easy-to-use tabular test data syntax.
▪ It utilizes the keyword-driven testing approach.
▪ Its testing capabilities can be extended by test libraries.
▪ Users can create new higher-level keywords from existing ones using the same
syntax.
▪ It is operating system and application independent. The core framework is
implemented using Python.
▪ Robot Framework itself is open source.

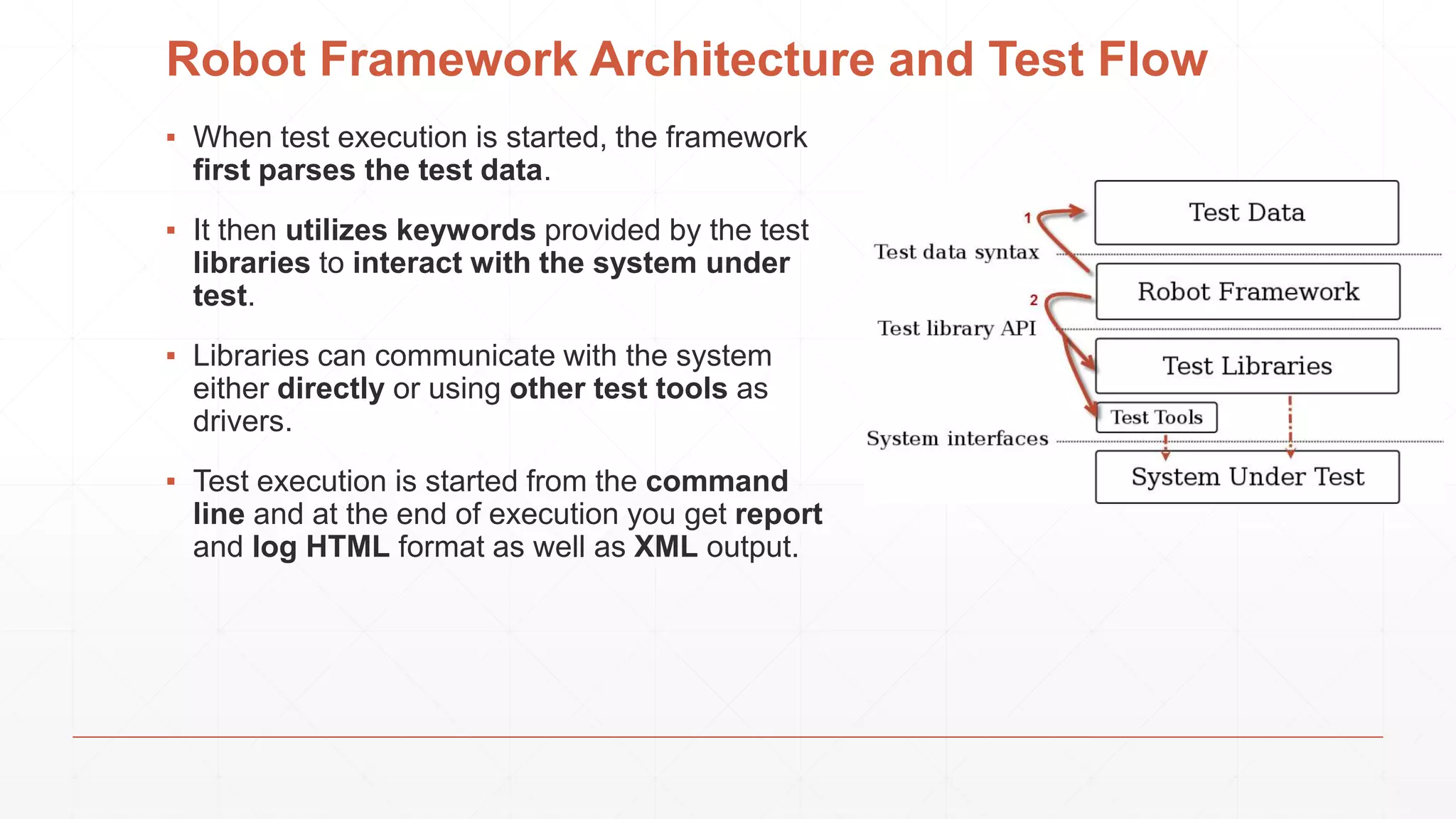

Robot Framework Architecture and Test Flow
▪ When test execution is started, the framework
first parses the test data.
▪ It then utilizes keywords provided by the test
libraries to interact with the system under
test.
▪ Libraries can communicate with the system
either directly or using other test tools as
drivers.
▪ Test execution is started from the command
line and at the end of execution you get report
and log HTML format as well as XML output.

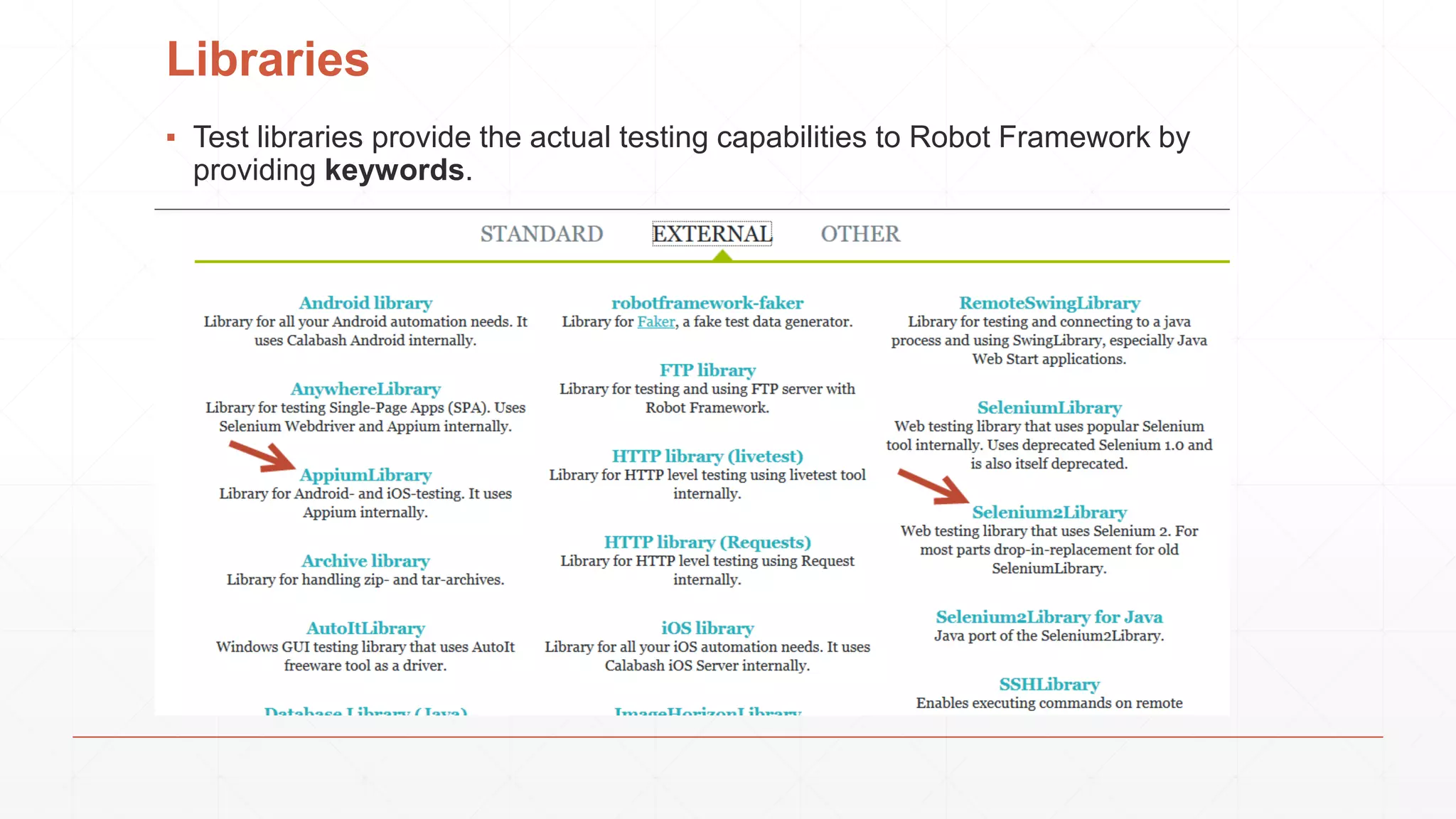

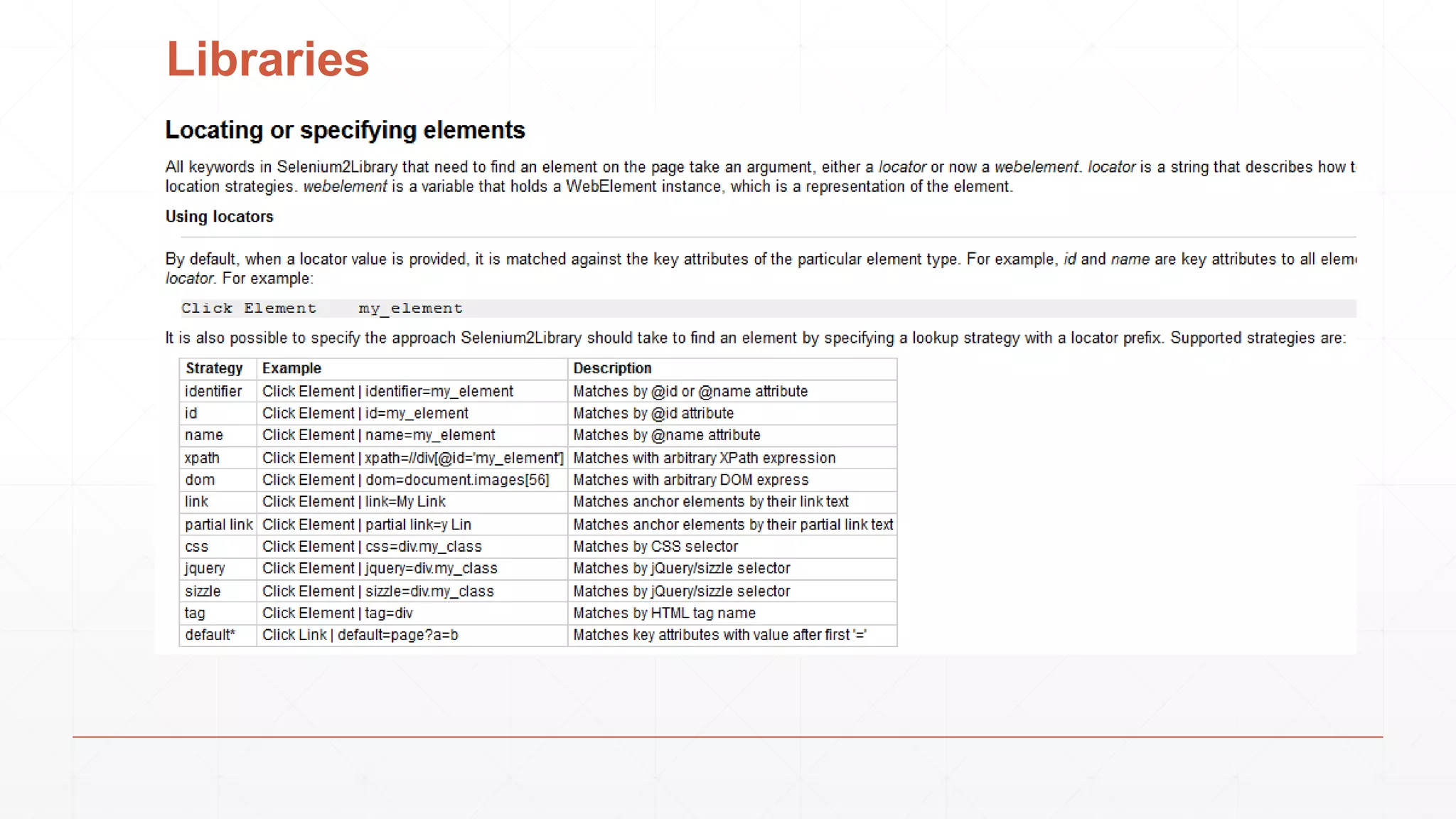

Libraries
▪ Test libraries provide the actual testing capabilities to Robot Framework by
providing keywords.

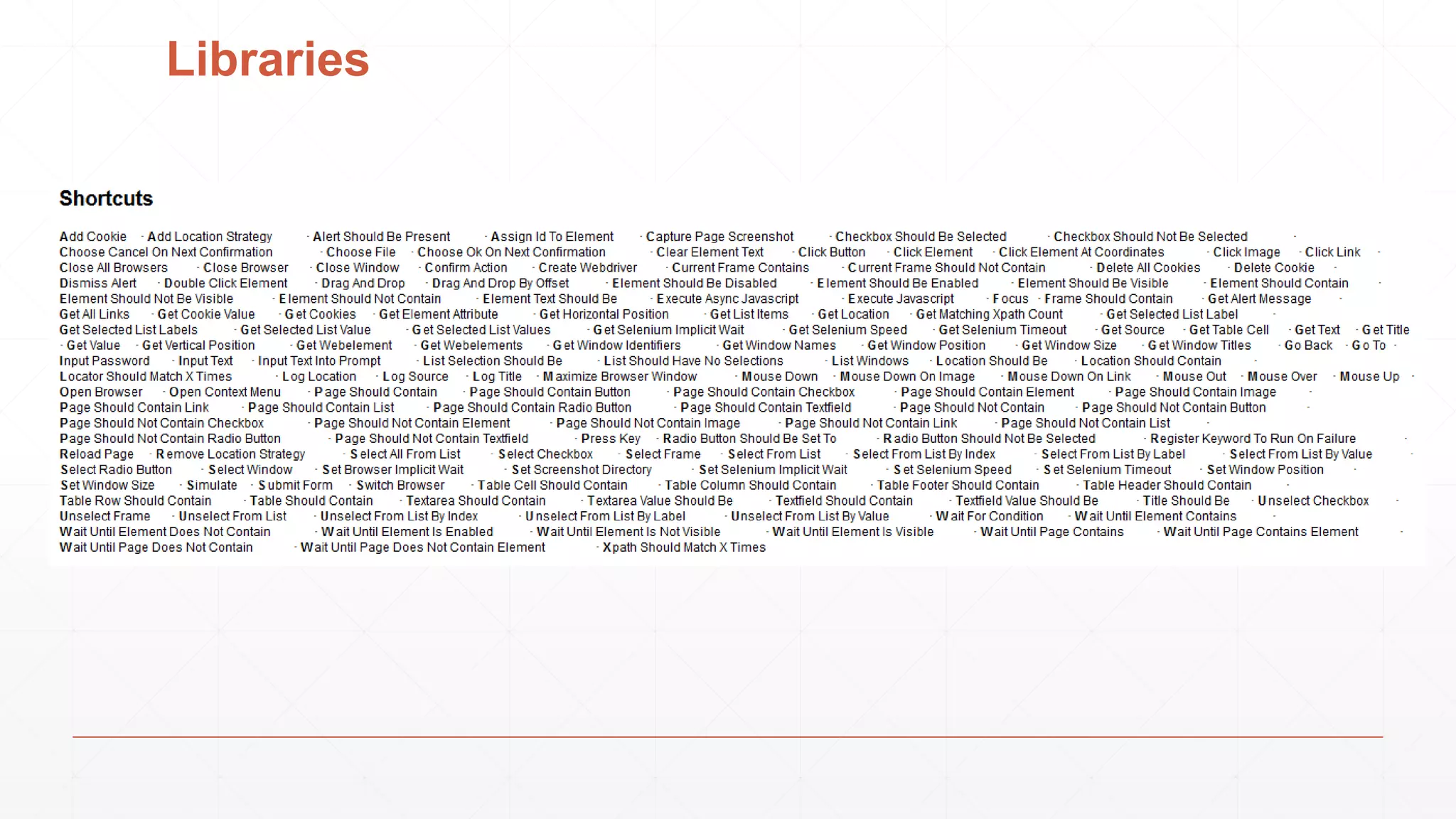

Libraries
Libraries

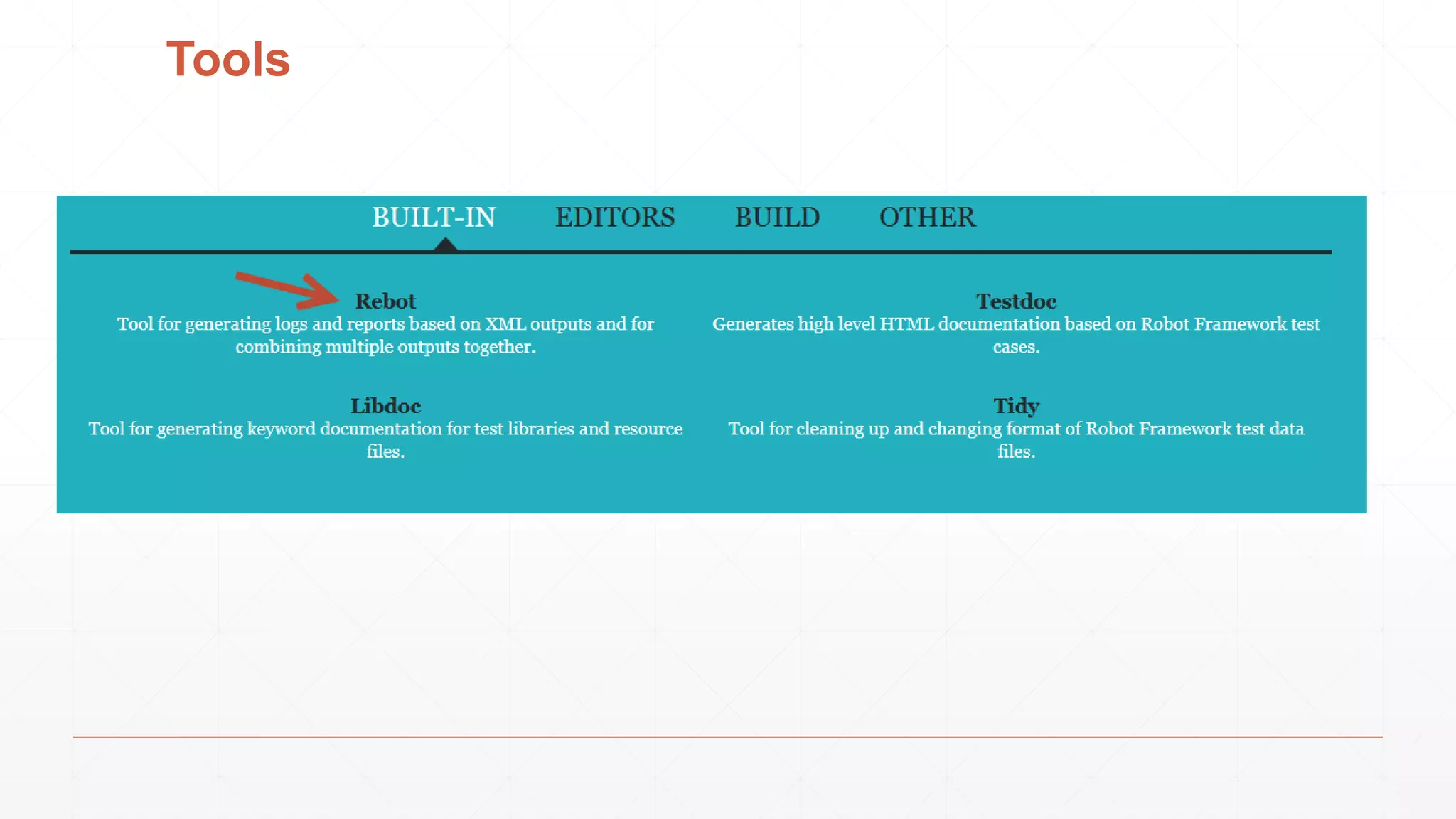

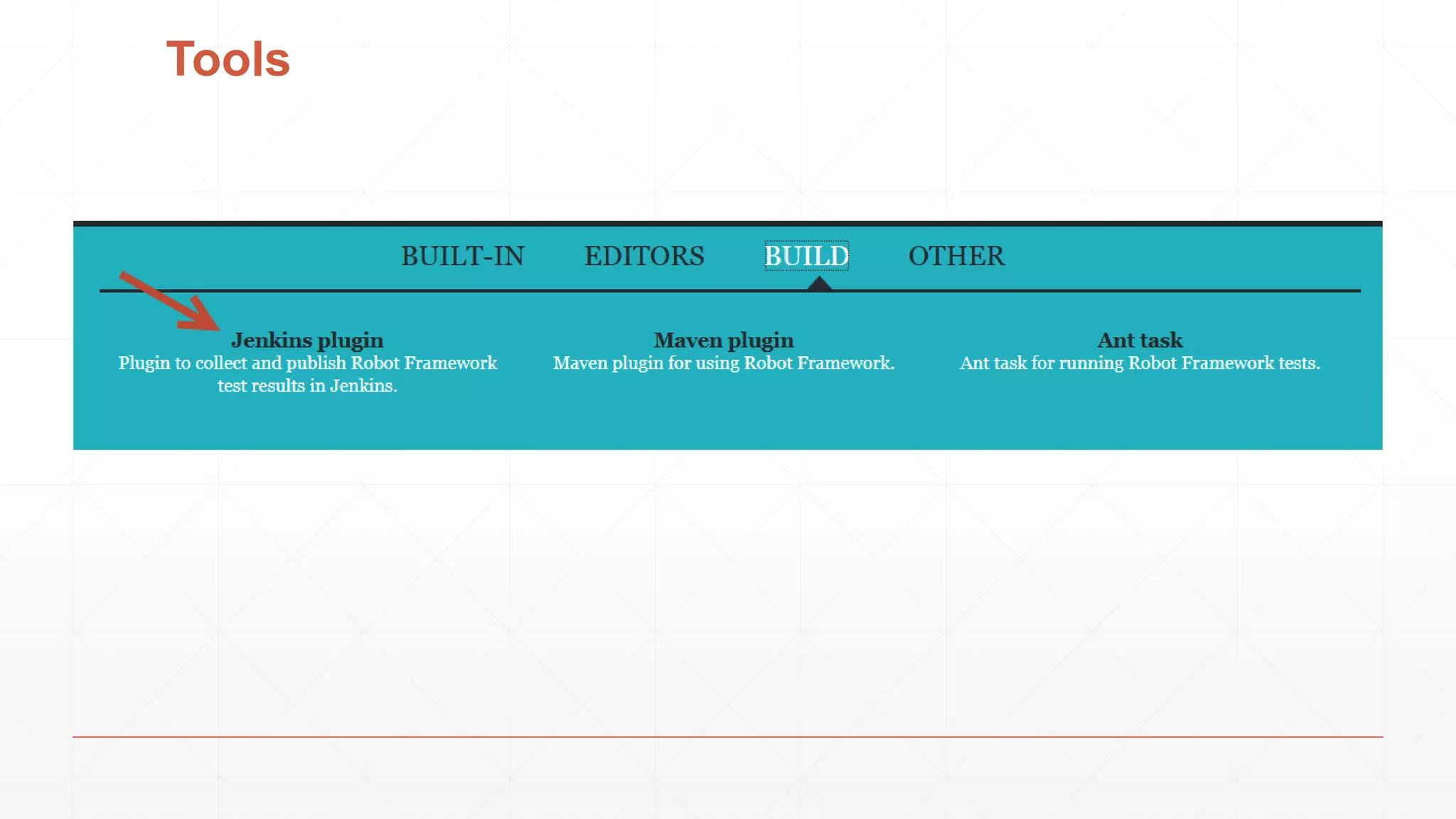

Tools

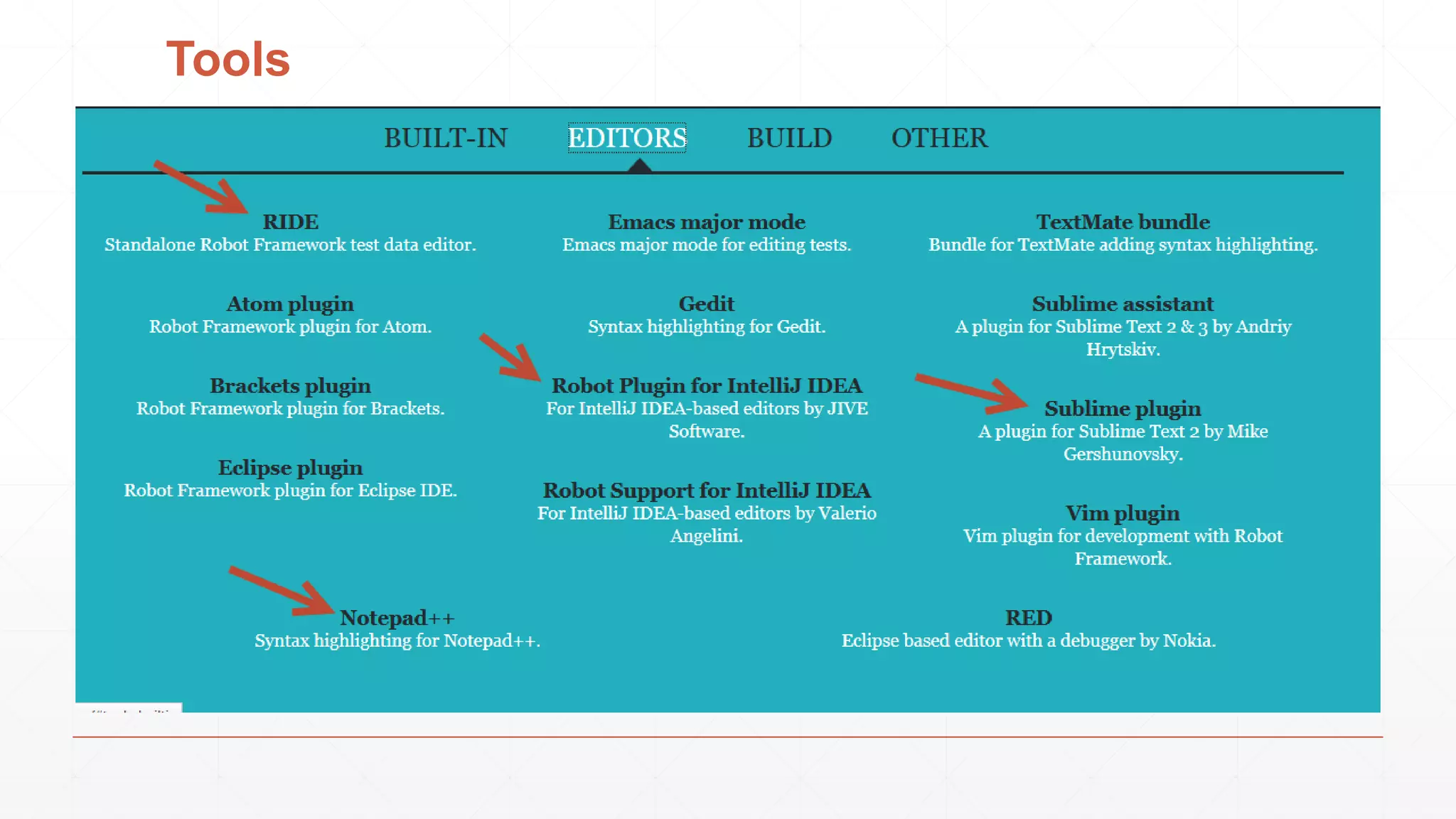

Tools
Tools
How to install Robot Framework on Windows?
▪ We will install Robot Framework with pip.
▪ Pip is the standard Python package manager and is already installed if you’re
using Python 2 >=2.7.9 or Python 3 >=3.4
How to install Robot Framework on Windows?

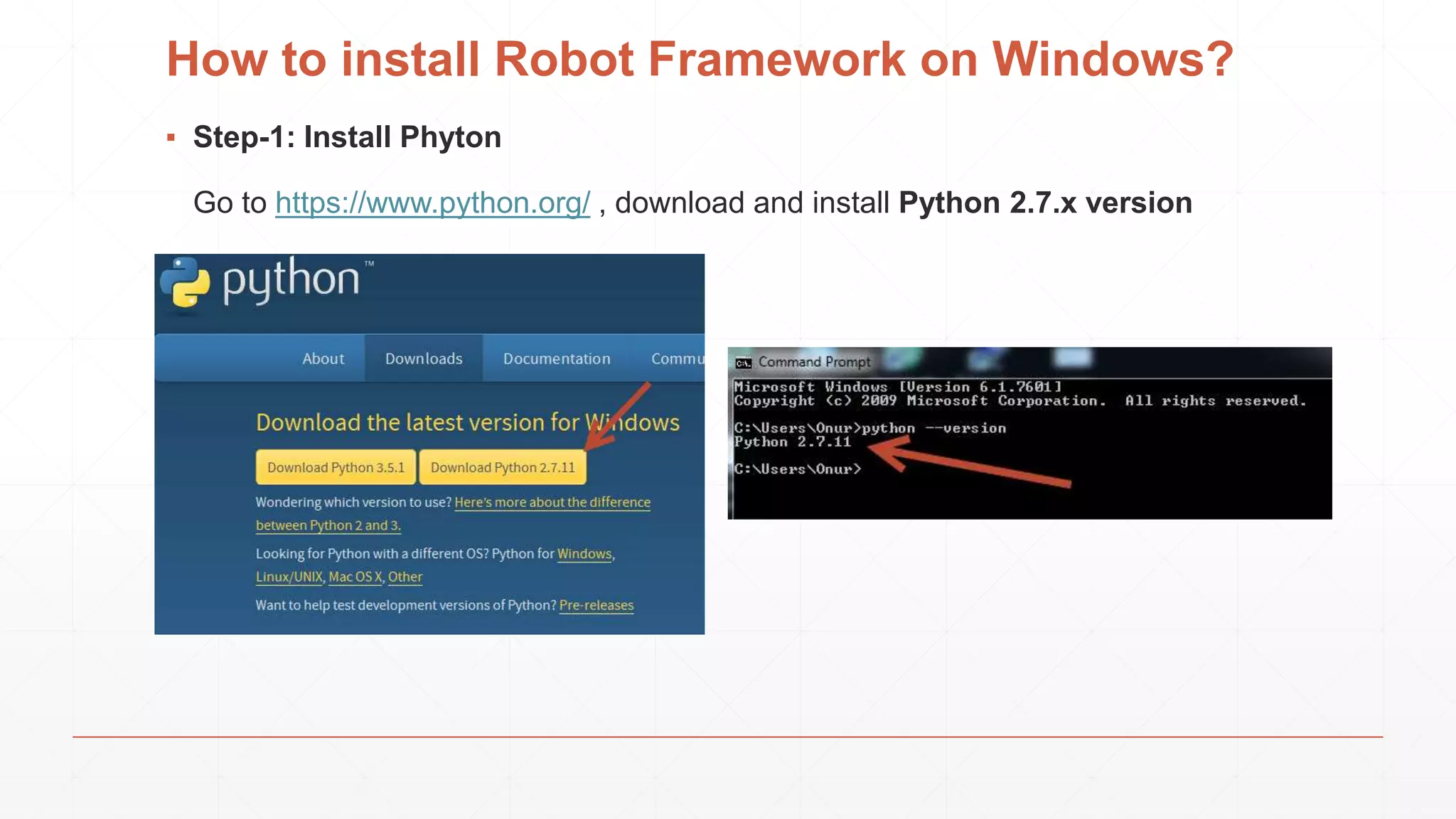

▪ Step-1: Install Phyton
Go to https://www.python.org/ , download and install Python 2.7.x version
How to install Robot Framework on Windows?

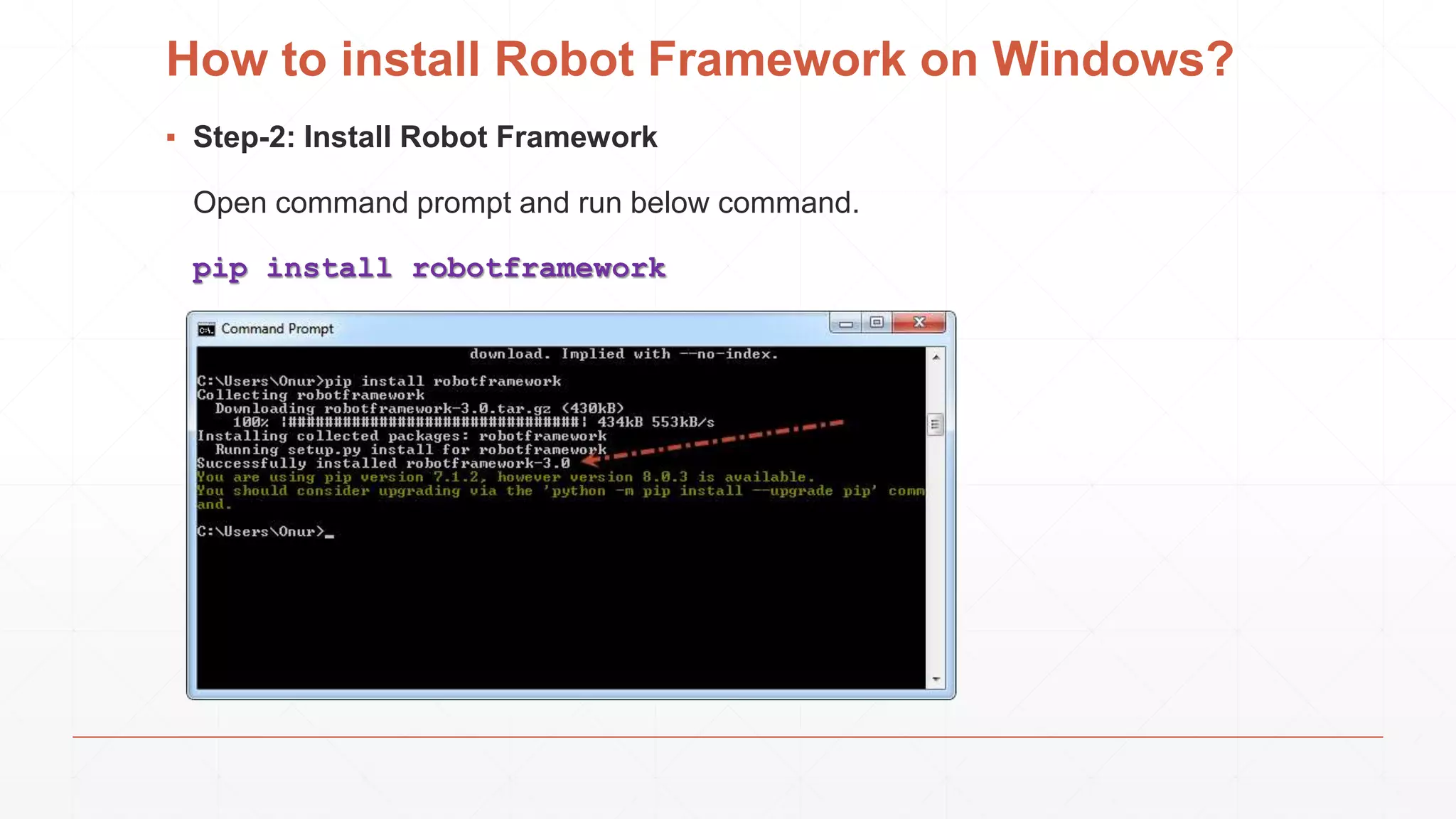

▪ Step-2: Install Robot Framework
Open command prompt and run below command.
pip install robotframework
How to install Robot Framework on Windows?
▪ Step-3: Upgrade pip
Upgrade the pip with below command.
python -m pip install -U pip
How to install Robot Framework on Windows?
▪ Step-4: Verifying Installation
After a successful installation, you should be able to execute below commands
and get both Robot Framework and interpreter versions.
robot --version
rebot --version
How to install Robot Framework on Windows?
▪ Note: If you have any problem please check Path configuration and restart
your PC. Path configuration must be as same as below figure.
How to install Robot Framework on Windows?
▪ Step-5: Upgrade Robot Framework
Upgrading to a new version required either using the –upgrade option:
pip install --upgrade robotframework
or specifying the version to use explicitly:
pip install robotframework==2.9.2
Note: You can uninstall Robot Framework anytime with below command.
pip uninstall robotframework
How to install Robot Framework on Windows?
▪ Step-6: Installing RIDE (Robot Framework Test Data Editor)
▪ Python 2.6 is the minimum version.
▪ Notice that similarly as Robot Framework, RIDE does not yet support Python 3.
▪ Notice also that on OS X RIDE requires 32-bit Python version.
How to install Robot Framework on Windows?
▪ Step-6: Installing RIDE (Robot Framework Test Data Editor)
▪ Step-6.1: Python must be installed. (We installed it)
How to install Robot Framework on Windows?
▪ Step-6: Installing RIDE (Robot Framework Test Data Editor)
▪ Step-6.2: wxPyhton must be installed.
We need to install “wxPyhton2.8-win32-unicode-2.8.12.1-py27.exe” 32-bit version.
WARNING!
If you install latest version, you will get below error!
How to install Robot Framework on Windows?
▪ Step-6: Installing RIDE (Robot Framework Test Data Editor)
▪ Step-6.3: Install RIDE with below pip command
pip install robotframework-ride
How to install Robot Framework on Windows?
▪ Step-6: Installing RIDE (Robot Framework Test Data Editor)
▪ Step-6.4: After a successful installation, RIDE can be started from the command
line by running ride.py.
How to install Robot Framework on Windows?
▪ Step-7: Install Selenium 2 (WebDriver) Library
Selenium2Library is a web testing library for Robot Framework that leverages
the Selenium 2 (WebDriver) libraries from the Selenium project.
Installation Command:
pip install robotframework-selenium2library
How to install Robot Framework on Windows?
▪ Step-8: Upgrade Selenium 2 (WebDriver) Library
Upgrade Command:
pip install --upgrade robotframework-selenium2library

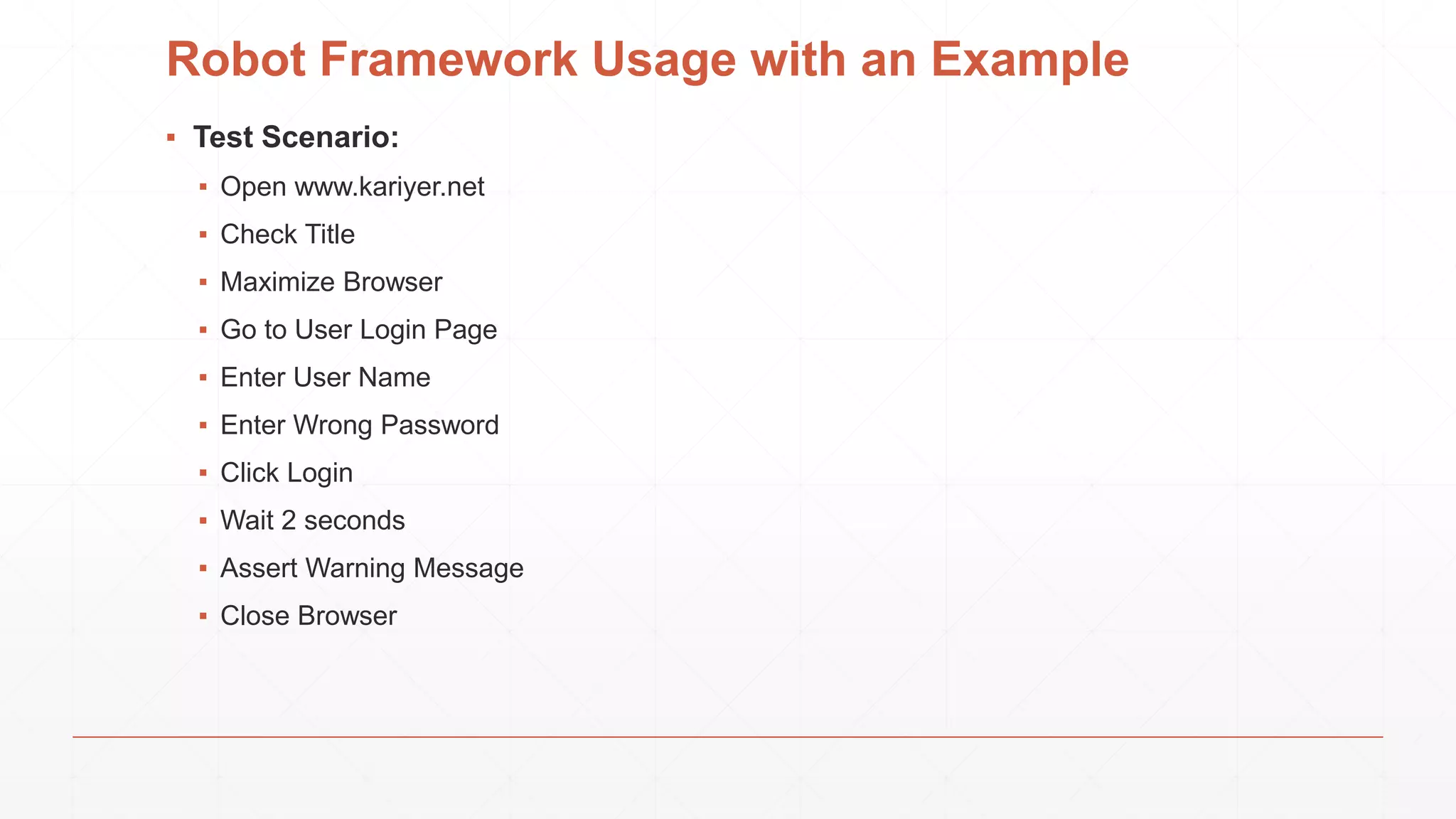

Robot Framework Usage with an Example
▪ Test Scenario:
▪ Open www.kariyer.net
▪ Check Title
▪ Maximize Browser
▪ Go to User Login Page
▪ Enter User Name
▪ Enter Wrong Password
▪ Click Login
▪ Wait 2 seconds
▪ Assert Warning Message
▪ Close Browser
Robot Framework Usage with an Example
▪ Directory Structure:
▪ setup.robot file holds Settings, Variables, Keywords information
▪ KariyerLoginTest.robot file contains Test Cases which are using our High
Level Keywords
Robot Framework Usage with an Example
▪ Setup.robot:
▪ KariyerLoginTest.robot:
Robot Framework Usage with an Example

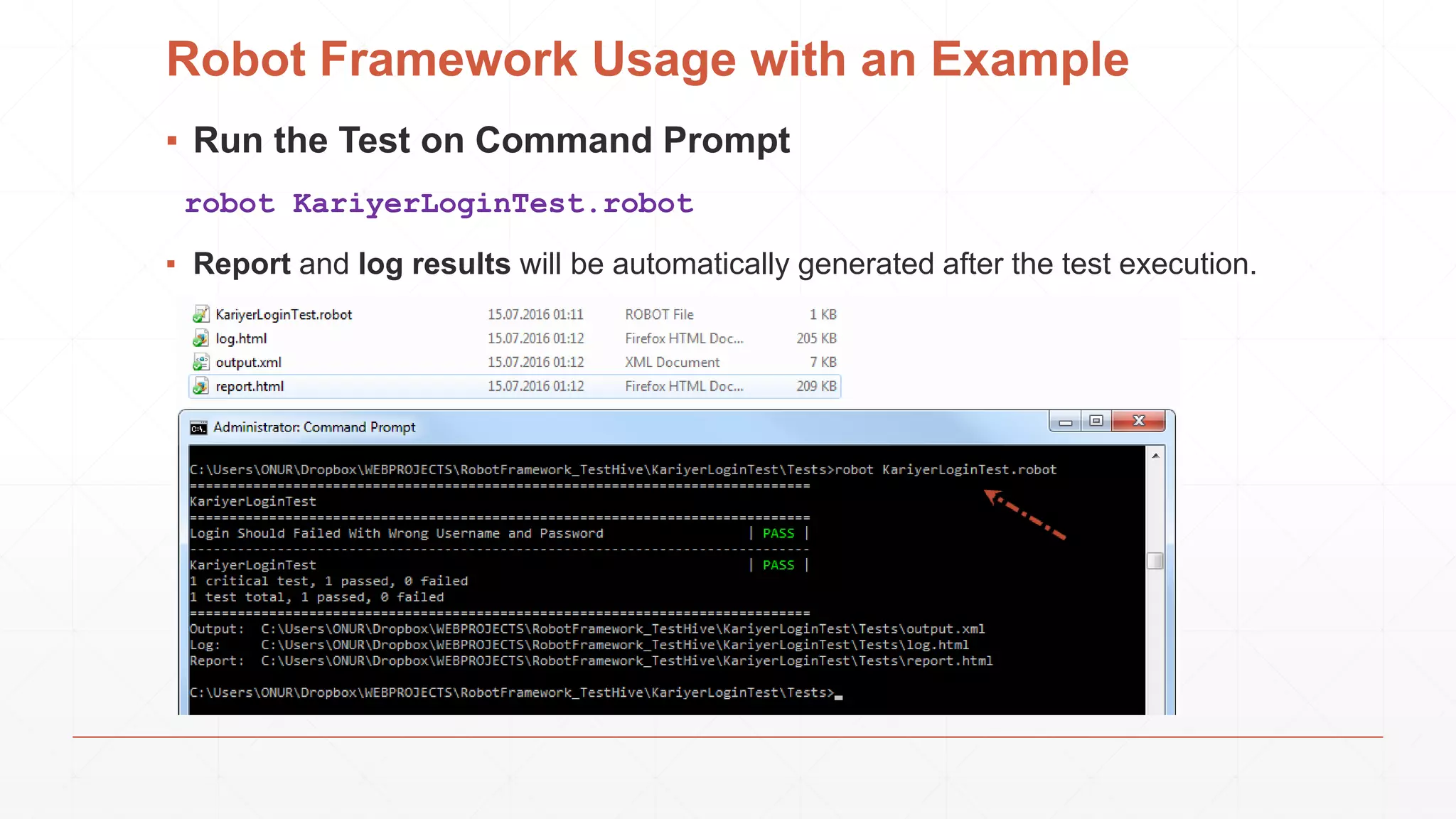

▪ Run the Test on Command Prompt
robot KariyerLoginTest.robot
▪ Report and log results will be automatically generated after the test execution.
Robot Framework Usage with an Example

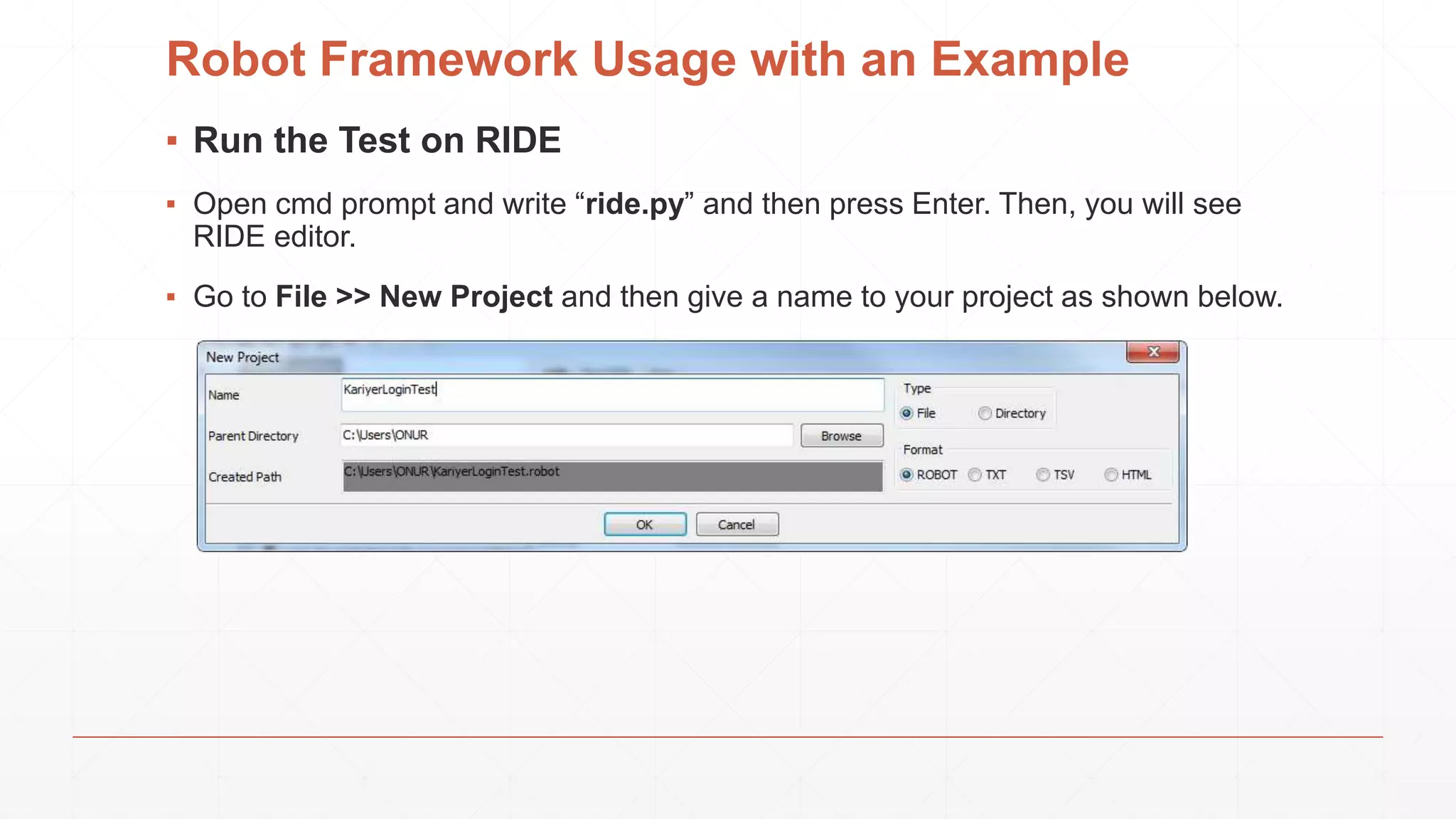

▪ Run the Test on RIDE
▪ Open cmd prompt and write “ride.py” and then press Enter. Then, you will see
RIDE editor.
▪ Go to File >> New Project and then give a name to your project as shown below.
Robot Framework Usage with an Example
▪ Add Resource File
Robot Framework Usage with an Example

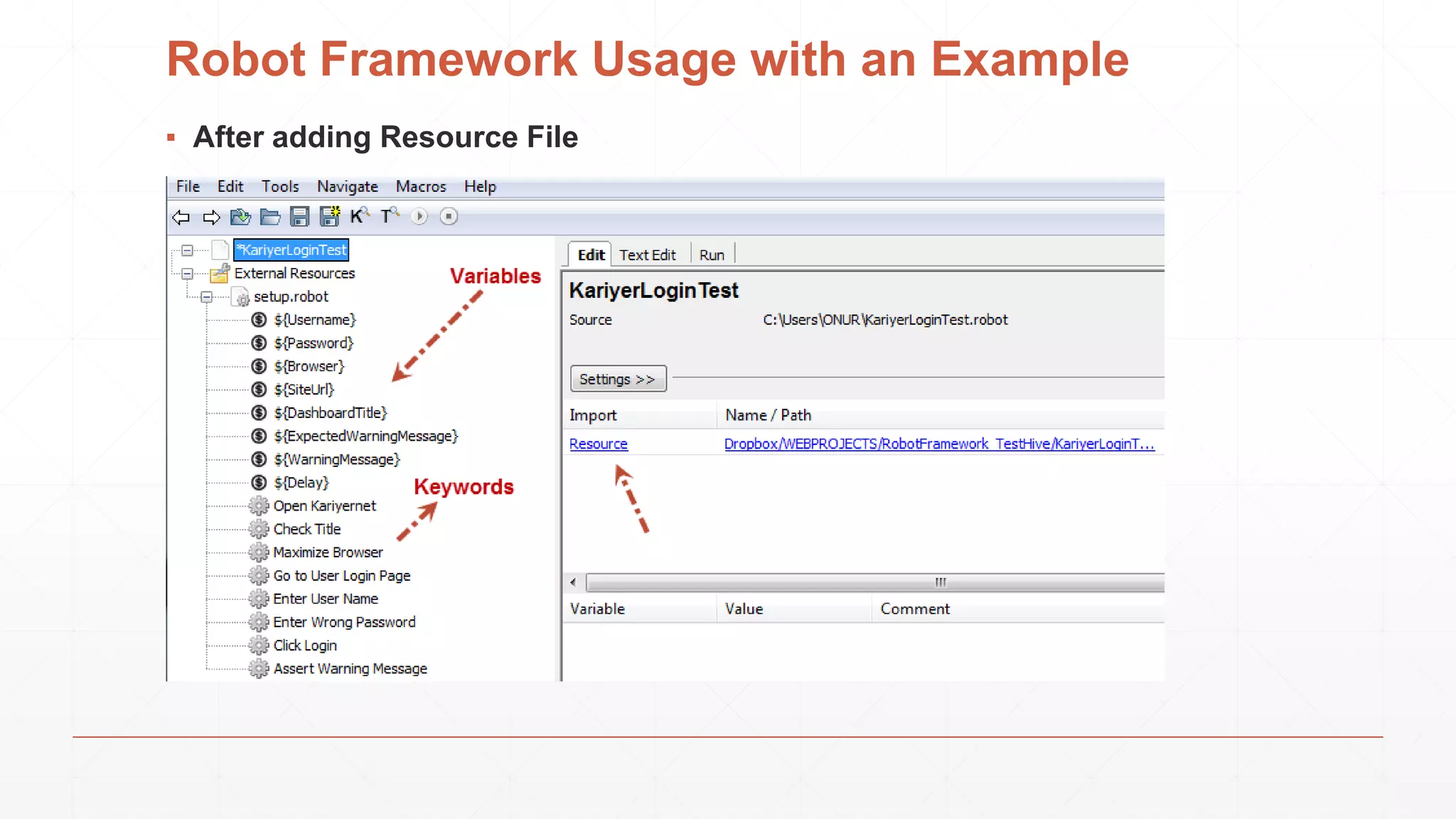

▪ After adding Resource File
Robot Framework Usage with an Example
▪ Write your robot test
Robot Framework Usage with an Example
▪ Write your robot test
Robot Framework Usage with an Example
▪ Run The Test
Robot Framework Usage with an Example
▪ While Test is Running
Robot Framework Usage with an Example
▪ When Test finished.
Robot Framework Usage with an Example

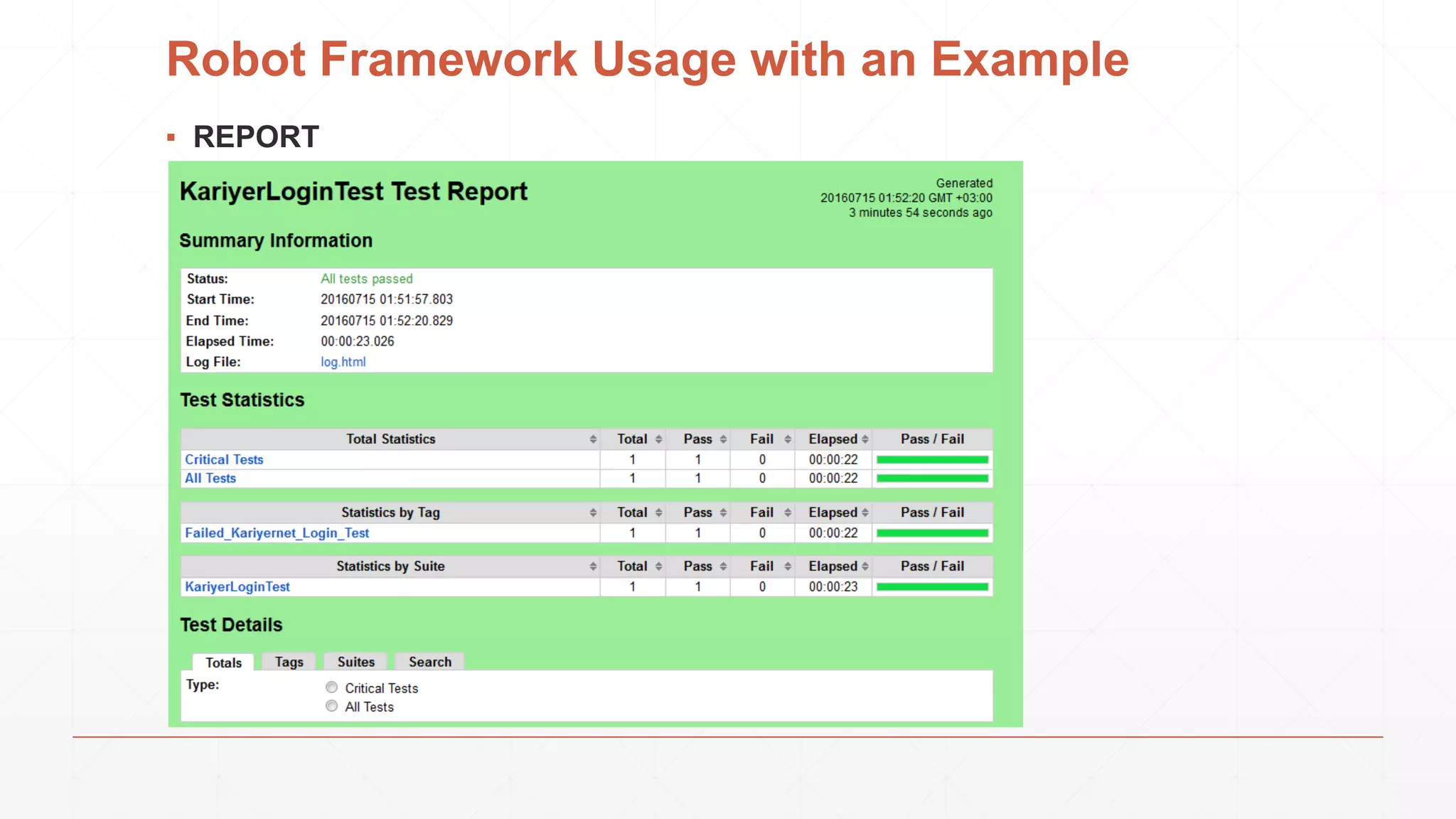

▪ REPORT
Robot Framework Usage with an Example
▪ LOG

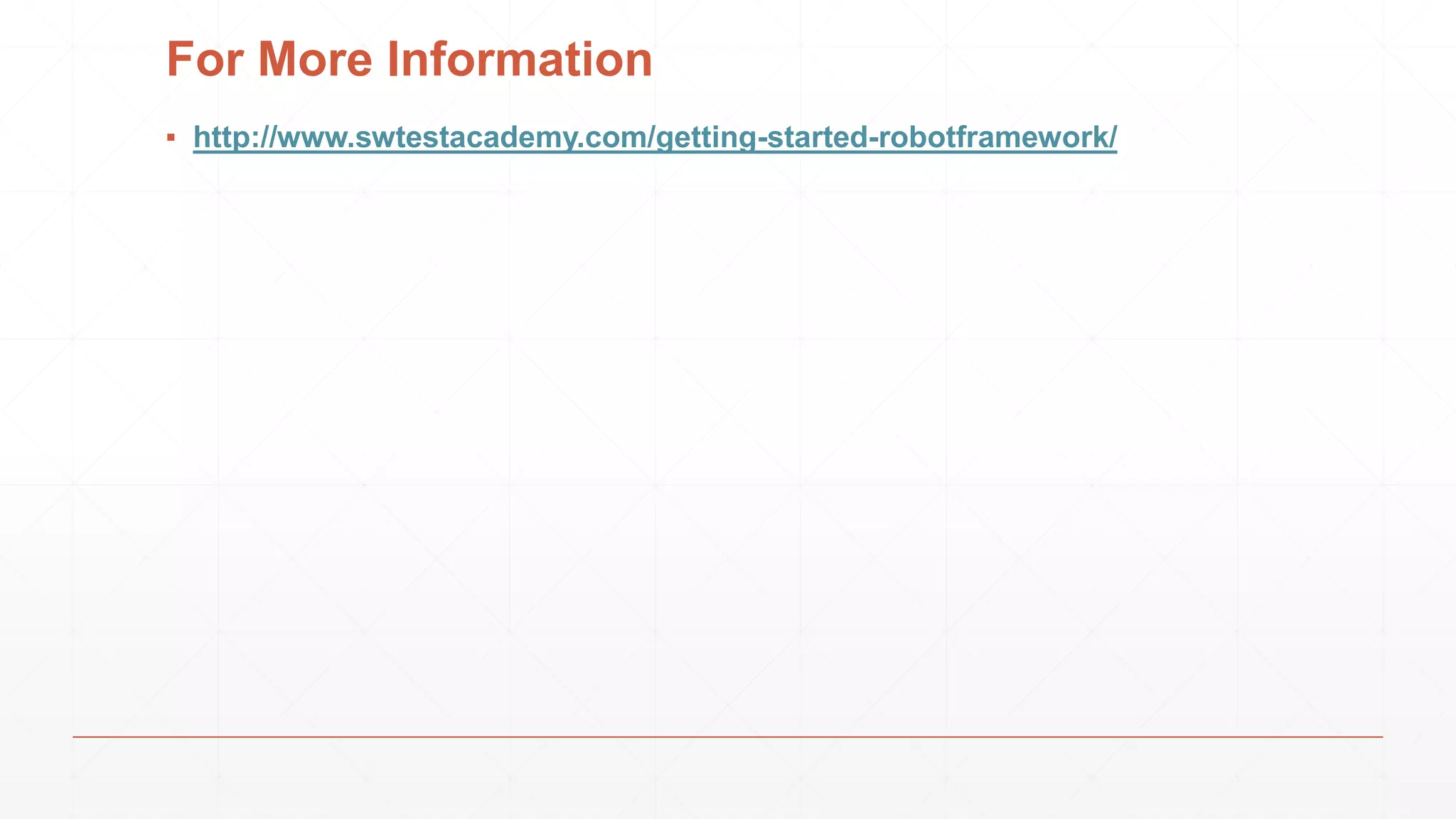

For More Information
▪ http://www.swtestacademy.com/getting-started-robotframework/
QUESTIONS?
