  • Robot framework

    1. 1. Robot Framework 2.5<br />Robot Framework is a generic test automation framework for acceptance testing and acceptance test-driven development (ATDD).<br />by Usov Borys<br />
    2. 2. Features:<br />Enables easy-to-use tabular syntax for creating test cases in a uniform way.<br />Allows using keyword-driven, data-driven and behavior-driven (BDD) approaches.<br />Provides easy-to-read reports and logs in HTML format.<br />Is platform and application independent.<br />Provides a simple library API for creating customized test libraries.<br />Implemented with Python.<br />Provides support for Selenium for web testing.<br />
    3. 3. Test application: login.py<br />Command<br />> pythonsut/login.pyloginnobody P4ssw0rd<br />Access Denied<br />> pythonsut/login.pycreate fredinvalid<br />Creatinguserfailed: Passwordmustbe a combinationoflowercase anduppercase letters and numbers<br />> pythonsut/login.pycreate fred P4ssw0rd<br />SUCCESS<br />> pythonsut/login.pyloginfred P4ssw0rd<br />Logged In<br />Status<br />

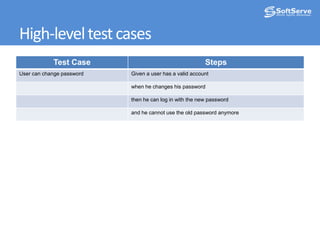

    4. 4. High-level test cases<br />
    5. 5. Simple tabular syntax for test cases<br />Keyword<br />

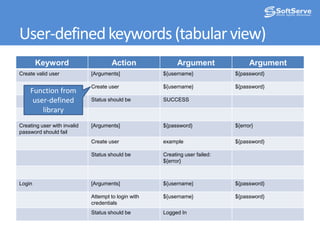

    6. 6. User-defined keywords (tabular view)<br />Function from user-defined library<br />
    7. 7. Robot Framework Libraries<br /><ul><li>BuiltIn Libraries
    8. 8. Adding Libraries</li></ul>***Settings***<br />Library /testlib/LoginLibrary.py<br />Library OperatingSystem<br />Library Screenshot<br />#Test Setup Create File <br />#Test Teardown Take Screenshot<br />

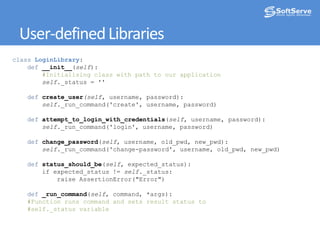

    9. 9. User-defined Libraries<br />classLoginLibrary:<br />def__init__(self):<br />#Initialising class with path to our application<br />self._status = ''<br /> <br />defcreate_user(self, username, password):<br />self._run_command('create', username, password)<br /> <br />defattempt_to_login_with_credentials(self, username, password):<br />self._run_command('login', username, password)<br /> <br />defchange_password(self, username, old_pwd, new_pwd):<br />self._run_command('change-password', username, old_pwd, new_pwd)<br /> <br />defstatus_should_be(self, expected_status):<br /> if expected_status != self._status:<br /> raise AssertionError("Error")<br /> <br />def_run_command(self, command, *args):<br />#Function runs command and sets result status to<br /> #self._status variable<br />

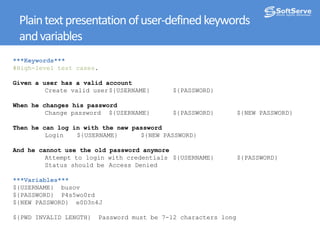

    10. 10. Plain text presentation of user-defined keywordsand variables<br />***Keywords***<br />#High-level test cases.<br />Given a user has a valid account<br /> Create valid user ${USERNAME} ${PASSWORD}<br />When he changes hispassword<br /> Change password ${USERNAME} ${PASSWORD} ${NEW PASSWORD}<br />Then he can log in with the new password<br /> Login ${USERNAME} ${NEW PASSWORD}<br />And he cannot use the old password anymore <br /> Attempt to login with credentials ${USERNAME} ${PASSWORD}<br /> Status should be Access Denied<br />***Variables***<br />${USERNAME} busov<br />${PASSWORD} P4s5wo0rd<br />${NEW PASSWORD} e0D3n4J<br />${PWD INVALID LENGTH} Password must be 7-12 characters long<br />

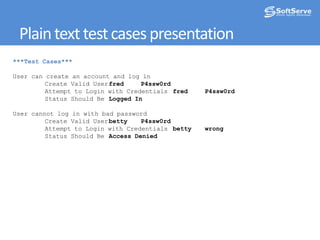

    11. 11. Plain text test cases presentation<br />***Test Cases***<br />User can create an account and log in<br /> Create Valid User fred P4ssw0rd<br /> Attempt to Login with Credentials fred P4ssw0rd<br /> Status Should Be Logged In<br />User cannot log in with bad password<br /> Create Valid User betty P4ssw0rd<br /> Attempt to Login with Credentials betty wrong<br /> Status Should Be Access Denied<br />
    12. 12. Report in html format<br />
    13. 13. Log file in html format<br />

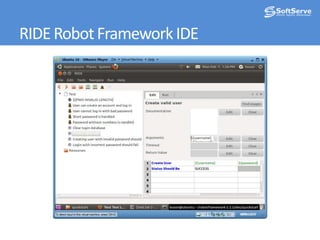

    14. 14. RIDE Robot Framework IDE<br />
    15. 15. For more information<br />Project Pages<br />The main information hub<br />http://code.google.com/p/robotframework<br />User Guide<br />Detailed information about all features of the framework<br />http://code.google.com/p/robotframework/wiki/UserGuide<br />
    16. 16. Thanks. Questions<br />

    ×
