Incorporating structured data in the Linked Data cloud is still complicated, despite the numerous existing tools. In particular, hierarchical structured data (e.g., JSON) are underrepresented, due to their processing complexity. A uniform mapping formalisation for data in different formats, which would enable reuse and exchange between tools and applied data, is missing. This paper describes a novel approach of mapping heterogeneous and hierarchical data sources into RDF using the RML mapping language, an extension over R2RML (the W3C standard for mapping relational databases into RDF). To facilitate those mappings, we present a toolset for producing RML mapping files using the Karma data modelling tool, and for consuming them using a prototype RML processor. A use case shows how RML facilitates the mapping rules’ definition and execution to map several heterogeneous sources. http://rml.io https://github.com/mmlab/RMLProcessor

1. Mapping Hierarchical Sources into
RDF using the RML Mapping Language
Anastasia Dimou1, Miel Vander Sande1,
Jason Slepicka2, Pedro Szekely2,
Erik Mannens1, Craig Knoblock2, Rik Van de Walle1
1Ghent University – iMinds – Multimedia Lab
2University of Southern California – Information Science Institute –
Department of Computer Science
http://rml.io
IEEE-ICSC14
Newport beach, California, 18th June 2014

2. Most of the data that we would like to
be able to query as Linked Open Data
exists in formats other than RDF

3. There are…
over 11,000 APIs according to
ProgrammableWeb.org
only 74 of which return results in RDF
But more than 5000
return results in JSON or XML

4. Many
languages, tools and approaches
were proposed
to convert data
from relational databases to RDF

5. Relational Database to RDF (R2RML W3C)
R2RML mappings R2RML processor
Data OWNER / PUBLISHER
defines
RDF
DB

7. R2RML mappings R2RML processor
Data OWNER / PUBLISHER
defines
RDF
DB CSV JSONXML
RDF RDF RDF

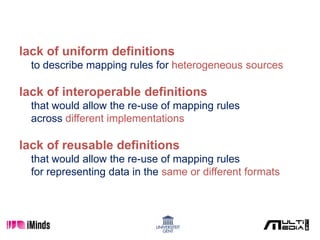

8. lack of uniform definitions
to describe mapping rules for heterogeneous sources
lack of interoperable definitions
that would allow the re-use of mapping rules
across different implementations
lack of reusable definitions
that would allow the re-use of mapping rules
for representing data in the same or different formats

9. mapping data
on a per-source and per-format basis
or on case-specific basis
Uniform way of defining mappings
for heterogeneous sources
that can be re-used across data
in the same or different formats
and be interoperable
across different implementations

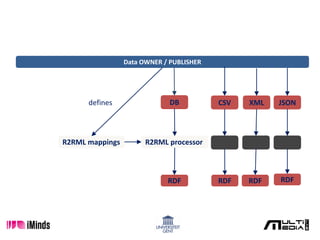

10. R2RML mappings R2RML processor
Data OWNER / PUBLISHER
defines
RDF
DB CSV JSONXML
RDF RDF RDF

11. Mappings definitions processor
Data OWNER / PUBLISHER
defines
RDF
DB CSV JSONXML
any format to RDF

12. RDF Mapping Language (RML)
generic scalable mapping language
for mapping heterogeneous resources into RDF
in an integrable and interoperable fashion
superset of the W3C standardized
R2RML mapping language
http://semweb.mmlab.be/ns/rml

13. Relational Database to RDF
Mapping Language
(R2RML)

14. R2RML mapping document
NAME BIRTH_DATE DEATH_DATE
Robert Theodore McCall 1919-12-23 2010-02-26
Ronald Anderson 1929-12-06
Triples Map
Logical Table
Table Name
<#ArtistMapping>
rr:logicalTable
[
rr:tableName “ARTISTS”
].

15. R2RML mapping definition
Table Name
Triples
Map
Logical Table
Subject Map
Predicate-Object Map
Predicate-Object Map
Predicate-Object Map
Predicate Map
Object Map

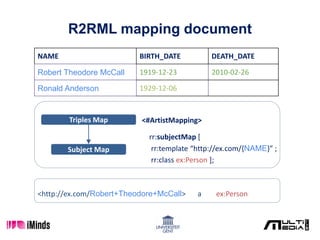

16. R2RML mapping document
Triples Map
Subject Map
NAME BIRTH_DATE DEATH_DATE
Robert Theodore McCall 1919-12-23 2010-02-26
Ronald Anderson 1929-12-06
<#ArtistMapping>
rr:subjectMap [
rr:template “http://ex.com/{NAME}” ;
rr:class ex:Person ];
<http://ex.com/Robert+Theodore+McCall> a ex:Person

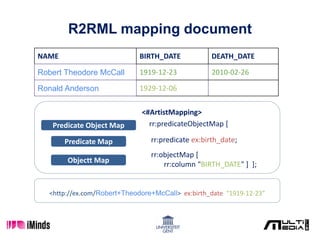

17. R2RML mapping document
Predicate Map
NAME BIRTH_DATE DEATH_DATE
Robert Theodore McCall 1919-12-23 2010-02-26
Ronald Anderson 1929-12-06
<#ArtistMapping>
rr:predicateObjectMap [
rr:predicate ex:birth_date;
rr:objectMap [
rr:column "BIRTH_DATE" ] ];
<http://ex.com/Robert+Theodore+McCall> ex:birth_date “1919-12-23”
Predicate Object Map
Objectt Map

18. RDF Mapping Language
(RML)

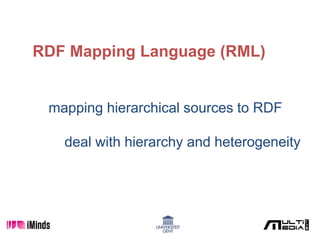

19. RDF Mapping Language (RML)
mapping hierarchical sources to RDF
deal with hierarchy and heterogeneity

20. R2RML: each row is a self-contained
that can be processed independently
R2RML: the columns in each row
can be referred to unambiguously
R2RML: for each reference to a column in a single row
a unique value is returned

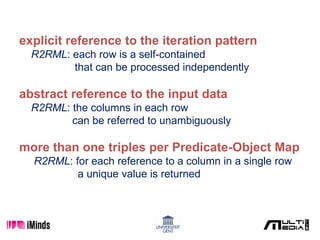

21. explicit reference to the iteration pattern
R2RML: each row is a self-contained
that can be processed independently
abstract reference to the input data
R2RML: the columns in each row
can be referred to unambiguously
more than one triples per Predicate-Object Map
R2RML: for each reference to a column in a single row
a unique value is returned

22. RDF Mapping Language
(RML)
For hierarchical sources

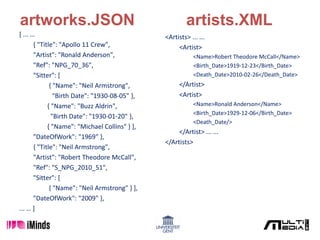

23. [ ... …
{ "Title": "Apollo 11 Crew",
"Artist": "Ronald Anderson",
"Ref": "NPG_70_36",
"Sitter": [
{ "Name": "Neil Armstrong",
"Birth Date": "1930-08-05" },
{ "Name": "Buzz Aldrin",
"Birth Date": "1930-01-20" },
{ "Name": "Michael Collins" } ],
"DateOfWork": "1969" },
{ "Title": "Neil Armstrong",
"Artist": "Robert Theodore McCall",
"Ref": "S_NPG_2010_51",
"Sitter": [
{ "Name": "Neil Armstrong" } ],
"DateOfWork": "2009" },
... … ]
<Artists> ... ...
<Artist>
<Name>Robert Theodore McCall</Name>
<Birth_Date>1919-12-23</Birth_Date>
<Death_Date>2010-02-26</Death_Date>
</Artist>
<Artist>
<Name>Ronald Anderson</Name>
<Birth_Date>1929-12-06</Birth_Date>
<Death_Date/>
</Artist> ... ...
</Artists>
artworks.JSON artists.XML

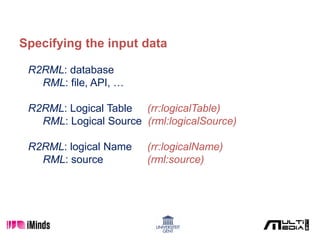

24. Specifying the input data
R2RML: database
RML: file, API, …
R2RML: Logical Table (rr:logicalTable)
RML: Logical Source (rml:logicalSource)
R2RML: logical Name (rr:logicalName)
RML: source (rml:source)

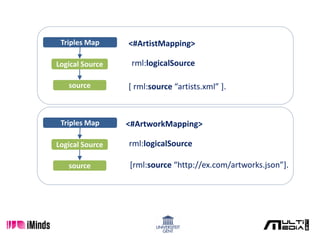

25. Triples Map
Logical Source
source
<#ArtworkMapping>
rml:logicalSource
[rml:source “http://ex.com/artworks.json”].
Triples Map
Logical Source
source
<#ArtistMapping>
rml:logicalSource
[ rml:source “artists.xml” ].

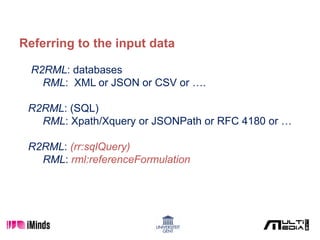

26. Referring to the input data
R2RML: databases
RML: XML or JSON or CSV or ….
R2RML: (SQL)
RML: Xpath/Xquery or JSONPath or RFC 4180 or …
R2RML: (rr:sqlQuery)
RML: rml:referenceFormulation

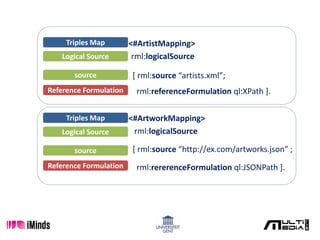

27. <#ArtworkMapping>
rml:logicalSource
[ rml:source “http://ex.com/artworks.json” ;
rml:rererenceFormulation ql:JSONPath ].
Triples Map
Logical Source
source
<#ArtistMapping>
rml:logicalSource
[ rml:source “artists.xml”;
rml:referenceFormulation ql:XPath ].Reference Formulation
Triples Map
Logical Source
source
Reference Formulation

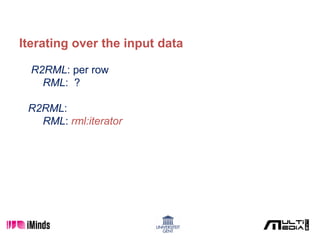

28. Iterating over the input data
R2RML: per row
RML: ?
R2RML:
RML: rml:iterator

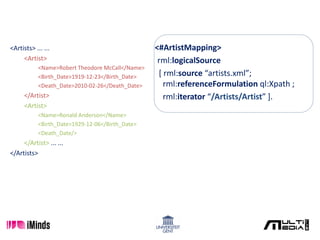

29. <#ArtistMapping>
rml:logicalSource
[ rml:source “artists.xml”;
rml:referenceFormulation ql:Xpath ;
rml:iterator “/Artists/Artist” ].
<Artists> ... ...
<Artist>
<Name>Robert Theodore McCall</Name>
<Birth_Date>1919-12-23</Birth_Date>
<Death_Date>2010-02-26</Death_Date>
</Artist>
<Artist>
<Name>Ronald Anderson</Name>
<Birth_Date>1929-12-06</Birth_Date>
<Death_Date/>
</Artist> ... ...
</Artists>

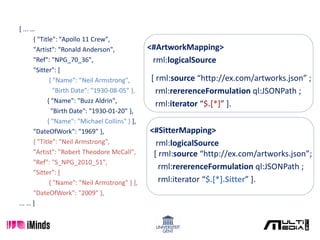

30. [ ... …
{ "Title": "Apollo 11 Crew",
"Artist": "Ronald Anderson",
"Ref": "NPG_70_36",
"Sitter": [
{ "Name": "Neil Armstrong",
"Birth Date": "1930-08-05" },
{ "Name": "Buzz Aldrin",
"Birth Date": "1930-01-20" },
{ "Name": "Michael Collins" } ],
"DateOfWork": "1969" },
{ "Title": "Neil Armstrong",
"Artist": "Robert Theodore McCall",
"Ref": "S_NPG_2010_51",
"Sitter": [
{ "Name": "Neil Armstrong" } ],
"DateOfWork": "2009" },
... … ]
<#ArtworkMapping>
rml:logicalSource
[ rml:source “http://ex.com/artworks.json” ;
rml:rererenceFormulation ql:JSONPath ;
rml:iterator “$.[*]” ].
<#SitterMapping>
rml:logicalSource
[ rml:source “http://ex.com/artworks.json”;
rml:rererenceFormulation ql:JSONPath ;
rml:iterator “$.[*].Sitter” ].

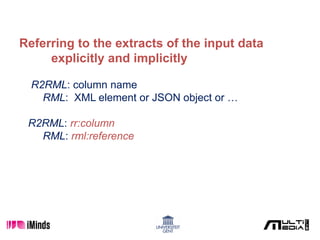

31. Referring to the extracts of the input data
explicitly and implicitly
R2RML: column name
RML: XML element or JSON object or …
R2RML: rr:column
RML: rml:reference

32. <#ArtistMapping>
rml:logicalSource
[ rml:source “http://ex.com/artists.xml”;
rml:rererenceFormulation ql:XPath ;
rml:iterator “/Artists/Artist” ] ;
rr:subjectMap [
rr:template
“http://ex.com/{Name}”
];
rr:predicateObjectMap [
rr:predicate ex:death_date ;
rr:objectMap [
rml:reference
“/Artists/Artist/Death_Date”] ].
<Artists> ... ...
<Artist>
<Name>Robert Theodore McCall</Name>
<Birth_Date>1919-12-23</Birth_Date>
<Death_Date>2010-02-26</Death_Date>
</Artist>
<Artist>
<Name>Ronald Anderson</Name>
<Birth_Date>1929-12-06</Birth_Date>
<Death_Date/>
</Artist> ... ...
</Artists>
<http://ex.com/Robert+Theodore+McCall>
ex:death_date “1929-12-06”.

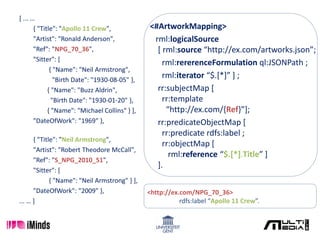

33. [ ... …
{ "Title": "Apollo 11 Crew",
"Artist": "Ronald Anderson",
"Ref": "NPG_70_36",
"Sitter": [
{ "Name": "Neil Armstrong",
"Birth Date": "1930-08-05" },
{ "Name": "Buzz Aldrin",
"Birth Date": "1930-01-20" },
{ "Name": "Michael Collins" } ],
"DateOfWork": "1969" },
{ "Title": "Neil Armstrong",
"Artist": "Robert Theodore McCall",
"Ref": "S_NPG_2010_51",
"Sitter": [
{ "Name": "Neil Armstrong" } ],
"DateOfWork": "2009" },
... … ]
<#ArtworkMapping>
rml:logicalSource
[ rml:source “http://ex.com/artworks.json”;
rml:rererenceFormulation ql:JSONPath ;
rml:iterator “$.[*]” ] ;
rr:subjectMap [
rr:template
“http://ex.com/{Ref}”];
rr:predicateObjectMap [
rr:predicate rdfs:label ;
rr:objectMap [
rml:reference “$.[*].Title” ]
].
<http://ex.com/NPG_70_36>
rdfs:label “Apollo 11 Crew”.

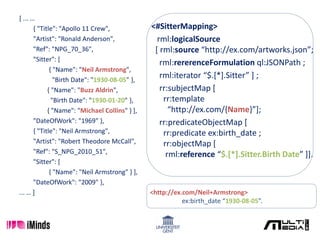

34. [ ... …
{ "Title": "Apollo 11 Crew",
"Artist": "Ronald Anderson",
"Ref": "NPG_70_36",
"Sitter": [
{ "Name": "Neil Armstrong",
"Birth Date": "1930-08-05" },
{ "Name": "Buzz Aldrin",
"Birth Date": "1930-01-20" },
{ "Name": "Michael Collins" } ],
"DateOfWork": "1969" },
{ "Title": "Neil Armstrong",
"Artist": "Robert Theodore McCall",
"Ref": "S_NPG_2010_51",
"Sitter": [
{ "Name": "Neil Armstrong" } ],
"DateOfWork": "2009" },
... … ]
<#SitterMapping>
rml:logicalSource
[ rml:source “http://ex.com/artworks.json”;
rml:rererenceFormulation ql:JSONPath ;
rml:iterator “$.[*].Sitter” ] ;
rr:subjectMap [
rr:template
“http://ex.com/{Name}”];
rr:predicateObjectMap [
rr:predicate ex:birth_date ;
rr:objectMap [
rml:reference “$.[*].Sitter.Birth Date” ]].
<http://ex.com/Neil+Armstrong>
ex:birth_date “1930-08-05”.

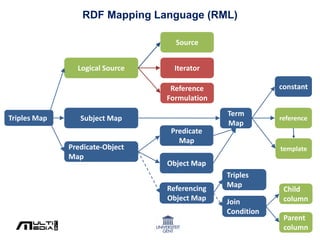

35. RDF Mapping Language (RML)
Source
Triples Map
Logical Source
Subject Map
Predicate-Object
Map
Predicate
Map
Object Map
Term
Map
template
constant
reference
Iterator
Reference
Formulation
Referencing
Object Map
Triples
Map
Join
Condition
Parent
column
Child
column

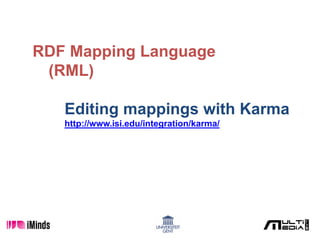

36. RDF Mapping Language
(RML)

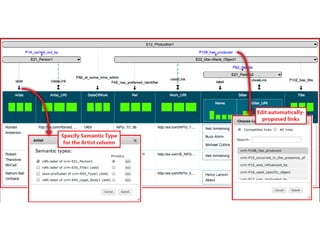

Editing mappings with Karma
http://www.isi.edu/integration/karma/

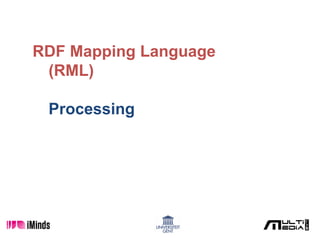

38. RDF Mapping Language
(RML)
Processing

39. mapping-driven processing:
processing driven by the mapping module
data-driven processing:
processing driven by the extraction module

40. Extraction Module Mapping Module
RML Processor

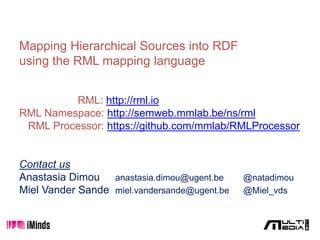

41. Mapping Hierarchical Sources into RDF
using the RML mapping language
RML: http://rml.io
RML Namespace: http://semweb.mmlab.be/ns/rml
RML Processor: https://github.com/mmlab/RMLProcessor
Contact us
Anastasia Dimou anastasia.dimou@ugent.be @natadimou
Miel Vander Sande miel.vandersande@ugent.be @Miel_vds
