Review On Parametric Study Of Performance Of Different Types Of
Trusses For Pune Railway Bridge Across Bhima River
Miss. Chavan Simran Anil1, Prof. Mrs. S. N. Patil2
Student, MTech Structural Engineering, Dept. of Civil Engineering, Rajarambapu Institute of Technology,
Rajaramnagar1
Professor, Dept. of Civil Engineering, Rajarambapu Institute Of Technology, Rajaramnagar.2
--------------------------------------------------------------------------***---------------------------------------------------------------------
Abstract— A bridge must be constructed to resist all
reasonable loads and forces that may occur over its
lifespan. In India, a general form of steel bridge is now
being developed, albeit the mild steel bridge pattern will
need to be elevated over time owing to increased train
traffic and short distance routes. A bridge is a structure
that carries a road, railway, or other service across a
barrier such as a river, valley, or other road or railway line,
either without intermediate support or with a limited
number of supports at appropriate locations. Steel is
frequently employed in the building of bridges of different
sizes all around the globe. It is a flexible and efficient
substance that offers efficient and long-term solutions. It is
suggested in this dissertation to conduct analysis and
design of several kinds of trusses for a steel bridge in Pune.
The present research entails analysing and designing the
truss using STAAD PRO software. A length of 366 m and a
width of 7.6 m are taken into account. The number of bays
is 30 by 12.2 m, the number of tracks is two, the track
gauge is broad gauge, and the track width is 1.676 m. For
seismic analysis, seismic zone III is used, and IS 1893 (Part
III) 2016 is used. Wind analysis is performed using IS 875
(Part III). For static and dynamic analysis, Warren trusses,
Pratt trusses, and Howe trusses are compared. And create
the most cost-effective structure for the Bhima River.
Keyword: Steel bridge, STAAD PRO, IS 875, IS 1893, static
and dynamic analysis
1. INTRODUCTION
A bridge is an essential structure that is required for a
transportation network. Traditional bridges have been
replaced with a cost-effective structural system as a result
of fast technological advancement. In India, a general form
of steel bridge is now being developed, while the mild steel
bridge pattern is expected to grow over time owing to
increased train traffic and short distance routes. A bridge
is a structure that carries a road, railway, or other service
across a barrier such as a river, valley, or other road or
railway line, either without intermediate support or with a
limited number of supports at appropriate locations. The
primary benefit of structural steel over other structural
materials is its strength and ductility. When compared to
concrete, it has a greater strength-to-cost ratio in tension
and a slightly lower strength-to-cost ratio in compression.
Steel has a substantially greater stiffness-to-weight ratio
than concrete.
1.1. Advantages of Steel Bridge
Steel bridges are quite common in India and other modern
nations for several good reasons..
1. They could support more weight over greater
distances with less material loss, allowing for
shallower footings.
2. If time is of the essence during the building
process, steel is a good choice since it may be
partially constructed off-site before being
assembled in its final location.
3. Constructing steel bridges in congested
metropolitan areas with little room to manoeuvre
causes little interruption to local residents and
businesses.
4. Steel bridges last longer in operation than their
concrete counterparts.
5. Steel bridges, because to their shallow profile, are
visually pleasing.
6. When compared to other types of bridges, steel
truss spans may save you money.
7. Steel truss bridges are quick to assemble and save
building times.
8. The architecture of this bridge exemplifies
adaptability.
9. Dynamic loads are no match for the steel bridge's
strength.
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072
© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page 2779
10. A steel truss bridge has Reduced effort required
for upkeep
2. STATE OF DEVELOPMENT
Shubhank Gupta (2017) The study and design of a 50-
meter long steel truss railroad bridge is shown here.
Different truss sections were tested with the identical
32.5-ton rail load to find the most stable and cost-effective
one. Optimizing the section and identifying the most stable
portions for comparison are analysed and designed using
STAAD PRO. The truss's structural members are designed
in compliance with the requirements of the Indian Railway
Standard Code and the Indian Road Congress Code. This
form of truss bridge was determined to have the lowest
values among the four examples studied, which suggests
that for the same load, it would need less weight of
building material, making it more cost-effective. [1]
T.Pramod Kumar (2015) The article analyses and
designs the road and rail bridge that crosses the Krishna
river. The programme STAAD PRO is used for the analysis
of the upper story, truss, and lower story components.
Indian Railway Standard and Indian Road Congress Code
are taken into account throughout the design process of
the truss structural parts. Their research indicated that by
combining a road and rail bridge into a single structure,
construction costs could be reduced. The issue of land
acquisition is also addressed by this plan. [2]
Sumit V. Bajare (2016) The loads outlined in IRC
Appendix: 6-2014 are taken into account as the author
designs a steel beam with a span of 24 metres. A total of
385 tonnes can be carried in the 30 metre long vehicle. For
the purposes of analysis and design only, the IRC live load
for a given vehicle type will be taken into account.
R.D.S.O.'s standard design will be compared to the special
vehicle's load, and the feasibility of the section will be
evaluated for a new IRC load, in this case the special
vehicle. For this project, we will be comparing the R.D.S.O.
design span of 36.0 m to other available span lengths (ie
36.0 m). Wind, earthquake, braking force, and the dynamic
influence on live load will be taken into account in addition
to the RDSO-required characteristics, since they were
largely ignored by IRC 6 -2014. While the cross-section is
secure under shear and deflection control, it was
determined that it would fail under the unique vehicle load
and that its characteristics would need to be modified to
accommodate the bending moment of the design. [3]
V. R. Shinde (2021) A steel truss bridge, measuring 70
metres in length, 7.5 metres in width, and 6 metres in
height, is the subject of this article's analysis and design.
STAAD PRO is used to conduct the analysis. Maximum axial
forces, shear forces, torsional values, and moments are
taken into account as comparison criteria. Howe, Pratt, and
Warren trusses are all taken into account for this analysis.
The conclusion is that a truss bridge can withstand up to
690.141 mm of displacement. When compared to the Pratt
truss bridge and the Howe truss bridge, this is an increase
of 15% and 5%, respectively. [4]
Ghassan Shaker Abd (2019) With the help of (ANSYS
Workbench) and boundary conditions, a 3D bridge truss
made entirely of steel is designed and analysed in this
paper. Analyses of static factors like axial force, stress,
shear stress, and deformation are performed. To see which
material combination would be most effective, the bridge
floor was switched from steel to concrete. As a result, the
axial force and stress values in a concrete floor are much
lower than those in a steel floor. [5]
Anjali Verma (2019) In this study, we use the STAAD PRO
software to perform a parametric analysis of the critical
vehicle load position on a 200.00 m span railway steel
bridge, taking into account railway criteria and load norm.
The Howe truss, the Pratt truss, the rectangular truss, and
the X truss are the four trusses examined. They found that
this truss bridge type had the lowest values of deflection
and displacement out of the four cases studied, meaning
that it could support the same load with a smaller amount
of structural material. [6]
Gopal Dayaram Pal (2021) There was an attempt to
create a steel truss bridge design in this paper. Optimal
cross-sections and material qualities were prioritised in
order to reduce the total deformation of the structural
element. Since truss trusses are the most commonly used
in steel bridges for railways and pedestrian crossings,
analysis of the truss bridge structure under IZS loading is
given primary attention. Different truss sections were
tested on a bridge carrying the same rail load. [7]
Santosh Kumar Suman (2018) The focus of this study is
on the planning and evaluation of interchangeable bridge
constructions for rail networks. Steel is used to construct
many truss designs, and each one is analysed in order to
draw comparisons with the others. The research takes into
account four different forms of truss architecture: the
rectangular truss, the X-type truss, the V-type truss, and
the K-type truss. STAAD PRO is used for the calculations to
provide the findings. Both the software and the ideals are
held in high regard. The results are compared in terms of
the responsiveness of the supports, the amount of
movement, the shear force, and the amount of twisting.
After looking at the amount of possible critical values in a
maximum displacement analysis, they found that the X-
Type bridge consistently produced the lowest estimates
across all four scenarios studied. For the four scenarios
considered here, the K-type truss bridge has the lightest
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072
© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page 2780
values, indicating that it can support the same load with a
less quantity of structural material. [8]
3. CONCLUSION
This research is solely discussed in terms of a literature
review. The study's findings suggest that several scholars
have looked at various truss types in their pursuit of
knowledge about steel railway bridge design and analysis.
Software like STAAD Pro, ETABS, and ANSYS are used for
analysis. In a small scale analysis, we accounted for wind
and seismic impacts of a bridge with a greater span.
Although the articles only evaluate one lane of traffic on
the bridge, two lanes may be taken into account in the
future.
REFRENCES
[1] Shubhank Gupta, Prof. Sudhir S. Bhadauria, Prof.
Suresh S. Kushwaha (2017), “Comparative Analysis
of Different Truss Type Railway Steel Bridge
Considering Railway Loadings”, International
Journal of Engineering Sciences & Research
Technology (IJESRT),6(10), 82-89.
[2] T. Pramod Kumar, G. Phani Ram (2015), “Analysis
And Design Of Superstructure Of Road Cum Railway
Bridge Across Krishna River”, International Journal
of Engineering Sciences & Research (IJESR), Vol-5,
Issue-7, July-2015.
[3] Sumit V. Bajare, Sanjay K. Bhadke, Vikrant Vairagade
(2016), “Investigating in Analysis and Design Of
24m Long Span Steel Girder Considering the Load Of
Special Vehicle.”
[4] V. R. Shinde, Prof. A. S. Patil, Prof. U. A. Mahadik

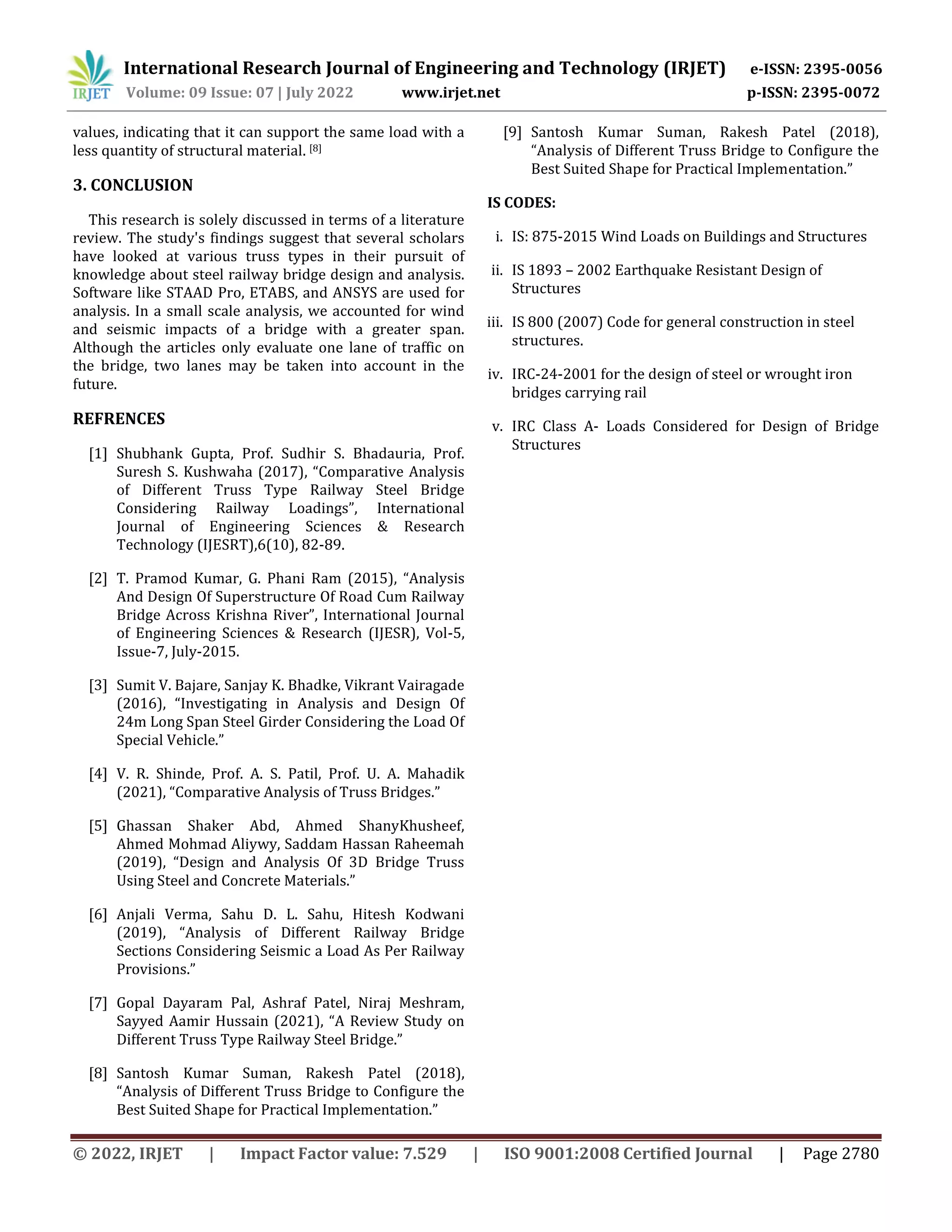

(2021), “Comparative Analysis of Truss Bridges.”
[5] Ghassan Shaker Abd, Ahmed ShanyKhusheef,
Ahmed Mohmad Aliywy, Saddam Hassan Raheemah
(2019), “Design and Analysis Of 3D Bridge Truss
Using Steel and Concrete Materials.”
[6] Anjali Verma, Sahu D. L. Sahu, Hitesh Kodwani
(2019), “Analysis of Different Railway Bridge
Sections Considering Seismic a Load As Per Railway
Provisions.”
[7] Gopal Dayaram Pal, Ashraf Patel, Niraj Meshram,
Sayyed Aamir Hussain (2021), “A Review Study on
Different Truss Type Railway Steel Bridge.”
[8] Santosh Kumar Suman, Rakesh Patel (2018),
“Analysis of Different Truss Bridge to Configure the
Best Suited Shape for Practical Implementation.”
[9] Santosh Kumar Suman, Rakesh Patel (2018),
“Analysis of Different Truss Bridge to Configure the
Best Suited Shape for Practical Implementation.”
IS CODES:
i. IS: 875-2015 Wind Loads on Buildings and Structures
ii. IS 1893 – 2002 Earthquake Resistant Design of
Structures
iii. IS 800 (2007) Code for general construction in steel
structures.
iv. IRC-24-2001 for the design of steel or wrought iron
bridges carrying rail
v. IRC Class A- Loads Considered for Design of Bridge
Structures
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072

More Related Content

Similar to Review On Parametric Study Of Performance Of Different Types Of Trusses For Pune Railway Bridge Across Bhima River

Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...
Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...
Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...
IRJET Journal

IRJET- Analysis and Design of a Bridge at Bhoothathankettu Barrage
IRJET- Analysis and Design of a Bridge at Bhoothathankettu BarrageIRJET- Analysis and Design of a Bridge at Bhoothathankettu Barrage
IRJET- Analysis and Design of a Bridge at Bhoothathankettu Barrage
IRJET Journal

IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...
IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...
IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...
IRJET Journal

Comparative study on Time period and Frequency of Full Arch and Vierendeel T...
Comparative study on Time period and Frequency of  Full Arch and Vierendeel T...Comparative study on Time period and Frequency of  Full Arch and Vierendeel T...
Comparative study on Time period and Frequency of Full Arch and Vierendeel T...
IRJET Journal

Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...
Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...
Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...
IRJET Journal

IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...
IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...
IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...
IRJET Journal

IRJET- Study on Cable Stayed Bridge using Csibridge Software
IRJET- Study on Cable Stayed Bridge using Csibridge SoftwareIRJET- Study on Cable Stayed Bridge using Csibridge Software
IRJET- Study on Cable Stayed Bridge using Csibridge Software
IRJET Journal

“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...
“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...
“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...
IRJET Journal

IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...
IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...
IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...
IRJET Journal

Comparative Study of Girders for Bridge by Using Software
Comparative Study of Girders for Bridge by Using SoftwareComparative Study of Girders for Bridge by Using Software
Comparative Study of Girders for Bridge by Using Software
IJERA Editor

IRJET - Analysis and Design of Steel Box Girder Bridge using Tekla Structures
IRJET - Analysis and Design of Steel Box Girder Bridge using Tekla StructuresIRJET - Analysis and Design of Steel Box Girder Bridge using Tekla Structures
IRJET - Analysis and Design of Steel Box Girder Bridge using Tekla Structures
IRJET Journal

Analysis of performance of various skew angles of deck slab bridges in MIDAS ...
Analysis of performance of various skew angles of deck slab bridges in MIDAS ...Analysis of performance of various skew angles of deck slab bridges in MIDAS ...
Analysis of performance of various skew angles of deck slab bridges in MIDAS ...
IRJET Journal

IRJET- Analysis of CFST Column to Precast Cap Beam Connection for Bridge
IRJET- Analysis of CFST Column to Precast Cap Beam Connection for BridgeIRJET- Analysis of CFST Column to Precast Cap Beam Connection for Bridge
IRJET- Analysis of CFST Column to Precast Cap Beam Connection for Bridge
IRJET Journal

Rail Structure Interaction Analysis of Steel Composite Metro Bridge
Rail Structure Interaction Analysis of Steel Composite Metro BridgeRail Structure Interaction Analysis of Steel Composite Metro Bridge
Rail Structure Interaction Analysis of Steel Composite Metro Bridge
IRJET Journal

Analysis of PSC Bridge for Highway Structures using Software
Analysis of PSC Bridge for Highway Structures using SoftwareAnalysis of PSC Bridge for Highway Structures using Software
Analysis of PSC Bridge for Highway Structures using Software
ijtsrd

A Study on Application of Passive Control Techniques to RC Bridges through No...
A Study on Application of Passive Control Techniques to RC Bridges through No...A Study on Application of Passive Control Techniques to RC Bridges through No...
A Study on Application of Passive Control Techniques to RC Bridges through No...
IRJET Journal

STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...
STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...
STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...
IAEME Publication

The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch BridgeThe Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
IJERA Editor

The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch BridgeThe Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
IJERA Editor

Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000
Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000
Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000
ijtsrd


Similar to Review On Parametric Study Of Performance Of Different Types Of Trusses For Pune Railway Bridge Across Bhima River (20)

Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...
Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...
Review Paper on Analysis and Design of Steel Truss by using Angle and Tube Se...

IRJET- Analysis and Design of a Bridge at Bhoothathankettu Barrage
IRJET- Analysis and Design of a Bridge at Bhoothathankettu BarrageIRJET- Analysis and Design of a Bridge at Bhoothathankettu Barrage
IRJET- Analysis and Design of a Bridge at Bhoothathankettu Barrage

IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...
IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...
IRJET- Numerical Investigation on the Seismic Response of a Steel Girder Brid...

Comparative study on Time period and Frequency of Full Arch and Vierendeel T...
Comparative study on Time period and Frequency of  Full Arch and Vierendeel T...Comparative study on Time period and Frequency of  Full Arch and Vierendeel T...
Comparative study on Time period and Frequency of Full Arch and Vierendeel T...

Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...
Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...
Research Paper on Analysis and Design of Steel Truss by using Angle and Tube ...

IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...
IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...
IRJET- Comparing the Load Pattern on Box Concrete Gridder with Consideration ...

IRJET- Study on Cable Stayed Bridge using Csibridge Software
IRJET- Study on Cable Stayed Bridge using Csibridge SoftwareIRJET- Study on Cable Stayed Bridge using Csibridge Software
IRJET- Study on Cable Stayed Bridge using Csibridge Software

“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...
“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...
“Comparative Analysis And Design Of Pratt Truss Bridge And Warren Truss Bridg...

IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...
IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...
IRJET - Dynamic Analysis of Steel Truss Bridge under Various Combinational Mo...

Comparative Study of Girders for Bridge by Using Software
Comparative Study of Girders for Bridge by Using SoftwareComparative Study of Girders for Bridge by Using Software
Comparative Study of Girders for Bridge by Using Software

IRJET - Analysis and Design of Steel Box Girder Bridge using Tekla Structures
IRJET - Analysis and Design of Steel Box Girder Bridge using Tekla StructuresIRJET - Analysis and Design of Steel Box Girder Bridge using Tekla Structures
IRJET - Analysis and Design of Steel Box Girder Bridge using Tekla Structures

Analysis of performance of various skew angles of deck slab bridges in MIDAS ...
Analysis of performance of various skew angles of deck slab bridges in MIDAS ...Analysis of performance of various skew angles of deck slab bridges in MIDAS ...
Analysis of performance of various skew angles of deck slab bridges in MIDAS ...

IRJET- Analysis of CFST Column to Precast Cap Beam Connection for Bridge
IRJET- Analysis of CFST Column to Precast Cap Beam Connection for BridgeIRJET- Analysis of CFST Column to Precast Cap Beam Connection for Bridge
IRJET- Analysis of CFST Column to Precast Cap Beam Connection for Bridge

Rail Structure Interaction Analysis of Steel Composite Metro Bridge
Rail Structure Interaction Analysis of Steel Composite Metro BridgeRail Structure Interaction Analysis of Steel Composite Metro Bridge
Rail Structure Interaction Analysis of Steel Composite Metro Bridge

Analysis of PSC Bridge for Highway Structures using Software
Analysis of PSC Bridge for Highway Structures using SoftwareAnalysis of PSC Bridge for Highway Structures using Software
Analysis of PSC Bridge for Highway Structures using Software

A Study on Application of Passive Control Techniques to RC Bridges through No...
A Study on Application of Passive Control Techniques to RC Bridges through No...A Study on Application of Passive Control Techniques to RC Bridges through No...
A Study on Application of Passive Control Techniques to RC Bridges through No...

STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...
STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...
STATIC AND DYNAMIC ANALYSIS OF CABLE-STAYED SUSPENSION HYBRID BRIDGE & VALIDA...

The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch BridgeThe Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge

The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch BridgeThe Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge
The Performance Evaluation of Concrete Filled Steel Tubular Arch Bridge

Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000
Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000
Design and Analysis of a Girder Bridge for Highway Structures Using Sap 2000


More from IRJET Journal

TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
IRJET Journal

STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURESTUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
IRJET Journal

A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
IRJET Journal

Effect of Camber and Angles of Attack on Airfoil Characteristics
Effect of Camber and Angles of Attack on Airfoil CharacteristicsEffect of Camber and Angles of Attack on Airfoil Characteristics
Effect of Camber and Angles of Attack on Airfoil Characteristics
IRJET Journal

A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
IRJET Journal

Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
IRJET Journal

Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
IRJET Journal

A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
IRJET Journal

A REVIEW ON MACHINE LEARNING IN ADAS
A REVIEW ON MACHINE LEARNING IN ADASA REVIEW ON MACHINE LEARNING IN ADAS
A REVIEW ON MACHINE LEARNING IN ADAS
IRJET Journal

Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
IRJET Journal

P.E.B. Framed Structure Design and Analysis Using STAAD Pro
P.E.B. Framed Structure Design and Analysis Using STAAD ProP.E.B. Framed Structure Design and Analysis Using STAAD Pro
P.E.B. Framed Structure Design and Analysis Using STAAD Pro
IRJET Journal

A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
IRJET Journal

Survey Paper on Cloud-Based Secured Healthcare System
Survey Paper on Cloud-Based Secured Healthcare SystemSurvey Paper on Cloud-Based Secured Healthcare System
Survey Paper on Cloud-Based Secured Healthcare System
IRJET Journal

Review on studies and research on widening of existing concrete bridges
Review on studies and research on widening of existing concrete bridgesReview on studies and research on widening of existing concrete bridges
Review on studies and research on widening of existing concrete bridges
IRJET Journal

React based fullstack edtech web application
React based fullstack edtech web applicationReact based fullstack edtech web application
React based fullstack edtech web application
IRJET Journal

A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
IRJET Journal

A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
IRJET Journal

Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
IRJET Journal

Multistoried and Multi Bay Steel Building Frame by using Seismic Design
Multistoried and Multi Bay Steel Building Frame by using Seismic DesignMultistoried and Multi Bay Steel Building Frame by using Seismic Design
Multistoried and Multi Bay Steel Building Frame by using Seismic Design
IRJET Journal

Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
IRJET Journal


More from IRJET Journal (20)

TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...

STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURESTUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE

A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...

Effect of Camber and Angles of Attack on Airfoil Characteristics
Effect of Camber and Angles of Attack on Airfoil CharacteristicsEffect of Camber and Angles of Attack on Airfoil Characteristics
Effect of Camber and Angles of Attack on Airfoil Characteristics

A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...

Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...

Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...

A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...

A REVIEW ON MACHINE LEARNING IN ADAS
A REVIEW ON MACHINE LEARNING IN ADASA REVIEW ON MACHINE LEARNING IN ADAS
A REVIEW ON MACHINE LEARNING IN ADAS

Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...

P.E.B. Framed Structure Design and Analysis Using STAAD Pro
P.E.B. Framed Structure Design and Analysis Using STAAD ProP.E.B. Framed Structure Design and Analysis Using STAAD Pro
P.E.B. Framed Structure Design and Analysis Using STAAD Pro

A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...

Survey Paper on Cloud-Based Secured Healthcare System
Survey Paper on Cloud-Based Secured Healthcare SystemSurvey Paper on Cloud-Based Secured Healthcare System
Survey Paper on Cloud-Based Secured Healthcare System

Review on studies and research on widening of existing concrete bridges
Review on studies and research on widening of existing concrete bridgesReview on studies and research on widening of existing concrete bridges
Review on studies and research on widening of existing concrete bridges

React based fullstack edtech web application
React based fullstack edtech web applicationReact based fullstack edtech web application
React based fullstack edtech web application

A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...

A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.

Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...

Multistoried and Multi Bay Steel Building Frame by using Seismic Design
Multistoried and Multi Bay Steel Building Frame by using Seismic DesignMultistoried and Multi Bay Steel Building Frame by using Seismic Design
Multistoried and Multi Bay Steel Building Frame by using Seismic Design

Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...


Recently uploaded

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
thanhdowork

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation & Control

Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdfHybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
fxintegritypublishin

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
bakpo1

Investor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptxInvestor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptx
AmarGB2

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
AJAYKUMARPUND1

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx
SupreethSP4

space technology lecture notes on satellite
space technology lecture notes on satellitespace technology lecture notes on satellite
space technology lecture notes on satellite
ongomchris

AP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specificAP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specific
BrazilAccount1

在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
obonagu

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
R&R Consult

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdfTop 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Teleport Manpower Consultant

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf
Kamal Acharya

Immunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary AttacksImmunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary Attacks
gerogepatton

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Sreedhar Chowdam

block diagram and signal flow graph representation
block diagram and signal flow graph representationblock diagram and signal flow graph representation
block diagram and signal flow graph representation
Divya Somashekar

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Dr.Costas Sachpazis

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.
ankuprajapati0525

Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
MdTanvirMahtab2

DESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docxDESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docx
FluxPrime1


Recently uploaded (20)

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf

Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdfHybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理

Investor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptxInvestor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptx

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx

space technology lecture notes on satellite
space technology lecture notes on satellitespace technology lecture notes on satellite
space technology lecture notes on satellite

AP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specificAP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specific

在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdfTop 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf

Immunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary AttacksImmunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary Attacks

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B

block diagram and signal flow graph representation
block diagram and signal flow graph representationblock diagram and signal flow graph representation
block diagram and signal flow graph representation

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.

Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)

DESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docxDESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docx


Review On Parametric Study Of Performance Of Different Types Of Trusses For Pune Railway Bridge Across Bhima River

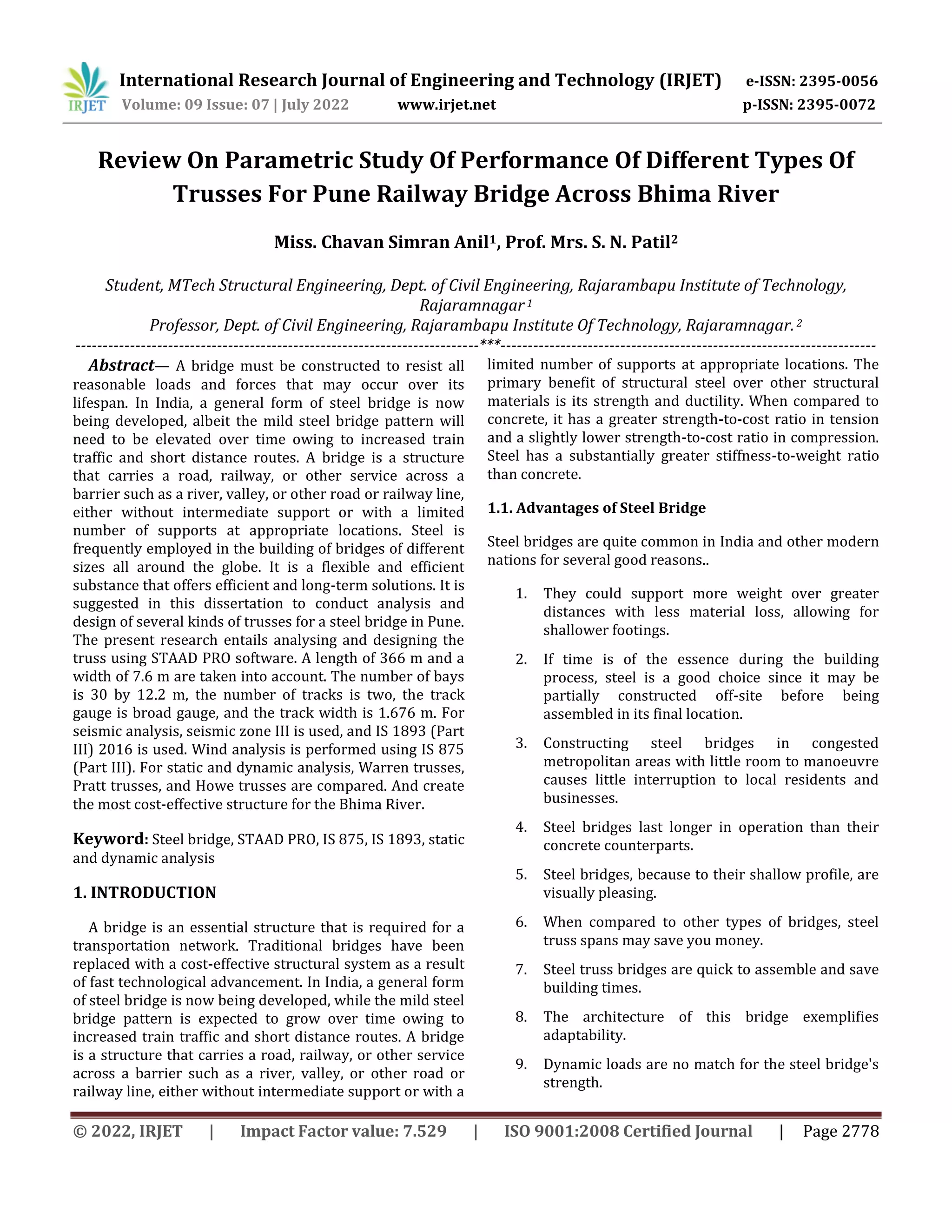

  • 1. © 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page 2778 Review On Parametric Study Of Performance Of Different Types Of Trusses For Pune Railway Bridge Across Bhima River Miss. Chavan Simran Anil1, Prof. Mrs. S. N. Patil2 Student, MTech Structural Engineering, Dept. of Civil Engineering, Rajarambapu Institute of Technology, Rajaramnagar1 Professor, Dept. of Civil Engineering, Rajarambapu Institute Of Technology, Rajaramnagar.2 --------------------------------------------------------------------------***--------------------------------------------------------------------- Abstract— A bridge must be constructed to resist all reasonable loads and forces that may occur over its lifespan. In India, a general form of steel bridge is now being developed, albeit the mild steel bridge pattern will need to be elevated over time owing to increased train traffic and short distance routes. A bridge is a structure that carries a road, railway, or other service across a barrier such as a river, valley, or other road or railway line, either without intermediate support or with a limited number of supports at appropriate locations. Steel is frequently employed in the building of bridges of different sizes all around the globe. It is a flexible and efficient substance that offers efficient and long-term solutions. It is suggested in this dissertation to conduct analysis and design of several kinds of trusses for a steel bridge in Pune. The present research entails analysing and designing the truss using STAAD PRO software. A length of 366 m and a width of 7.6 m are taken into account. The number of bays is 30 by 12.2 m, the number of tracks is two, the track gauge is broad gauge, and the track width is 1.676 m. For seismic analysis, seismic zone III is used, and IS 1893 (Part III) 2016 is used. Wind analysis is performed using IS 875 (Part III). For static and dynamic analysis, Warren trusses, Pratt trusses, and Howe trusses are compared. And create the most cost-effective structure for the Bhima River. Keyword: Steel bridge, STAAD PRO, IS 875, IS 1893, static and dynamic analysis 1. INTRODUCTION A bridge is an essential structure that is required for a transportation network. Traditional bridges have been replaced with a cost-effective structural system as a result of fast technological advancement. In India, a general form of steel bridge is now being developed, while the mild steel bridge pattern is expected to grow over time owing to increased train traffic and short distance routes. A bridge is a structure that carries a road, railway, or other service across a barrier such as a river, valley, or other road or railway line, either without intermediate support or with a limited number of supports at appropriate locations. The primary benefit of structural steel over other structural materials is its strength and ductility. When compared to concrete, it has a greater strength-to-cost ratio in tension and a slightly lower strength-to-cost ratio in compression. Steel has a substantially greater stiffness-to-weight ratio than concrete. 1.1. Advantages of Steel Bridge Steel bridges are quite common in India and other modern nations for several good reasons.. 1. They could support more weight over greater distances with less material loss, allowing for shallower footings. 2. If time is of the essence during the building process, steel is a good choice since it may be partially constructed off-site before being assembled in its final location. 3. Constructing steel bridges in congested metropolitan areas with little room to manoeuvre causes little interruption to local residents and businesses. 4. Steel bridges last longer in operation than their concrete counterparts. 5. Steel bridges, because to their shallow profile, are visually pleasing. 6. When compared to other types of bridges, steel truss spans may save you money. 7. Steel truss bridges are quick to assemble and save building times. 8. The architecture of this bridge exemplifies adaptability. 9. Dynamic loads are no match for the steel bridge's strength. International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072

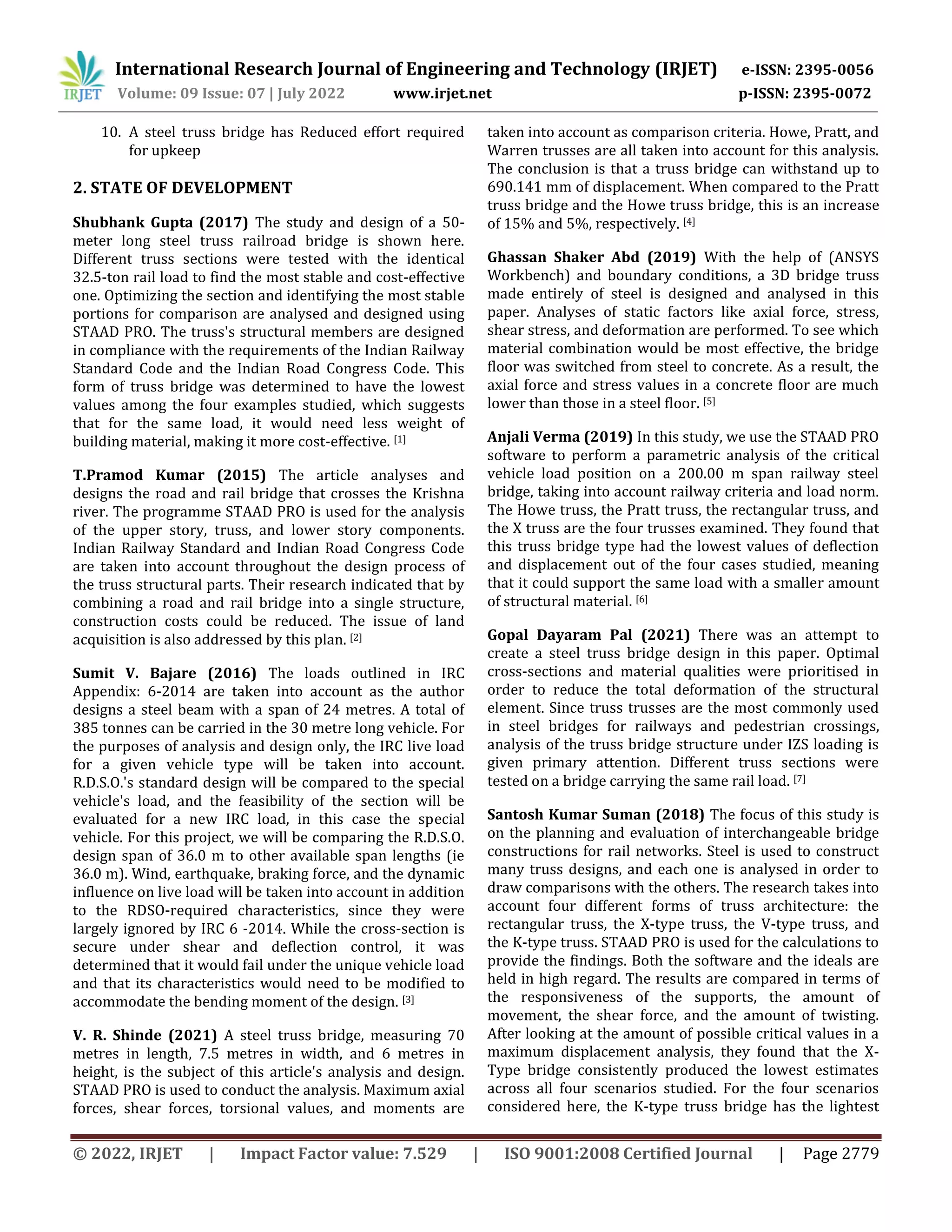

  • 2. © 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page 2779 10. A steel truss bridge has Reduced effort required for upkeep 2. STATE OF DEVELOPMENT Shubhank Gupta (2017) The study and design of a 50- meter long steel truss railroad bridge is shown here. Different truss sections were tested with the identical 32.5-ton rail load to find the most stable and cost-effective one. Optimizing the section and identifying the most stable portions for comparison are analysed and designed using STAAD PRO. The truss's structural members are designed in compliance with the requirements of the Indian Railway Standard Code and the Indian Road Congress Code. This form of truss bridge was determined to have the lowest values among the four examples studied, which suggests that for the same load, it would need less weight of building material, making it more cost-effective. [1] T.Pramod Kumar (2015) The article analyses and designs the road and rail bridge that crosses the Krishna river. The programme STAAD PRO is used for the analysis of the upper story, truss, and lower story components. Indian Railway Standard and Indian Road Congress Code are taken into account throughout the design process of the truss structural parts. Their research indicated that by combining a road and rail bridge into a single structure, construction costs could be reduced. The issue of land acquisition is also addressed by this plan. [2] Sumit V. Bajare (2016) The loads outlined in IRC Appendix: 6-2014 are taken into account as the author designs a steel beam with a span of 24 metres. A total of 385 tonnes can be carried in the 30 metre long vehicle. For the purposes of analysis and design only, the IRC live load for a given vehicle type will be taken into account. R.D.S.O.'s standard design will be compared to the special vehicle's load, and the feasibility of the section will be evaluated for a new IRC load, in this case the special vehicle. For this project, we will be comparing the R.D.S.O. design span of 36.0 m to other available span lengths (ie 36.0 m). Wind, earthquake, braking force, and the dynamic influence on live load will be taken into account in addition to the RDSO-required characteristics, since they were largely ignored by IRC 6 -2014. While the cross-section is secure under shear and deflection control, it was determined that it would fail under the unique vehicle load and that its characteristics would need to be modified to accommodate the bending moment of the design. [3] V. R. Shinde (2021) A steel truss bridge, measuring 70 metres in length, 7.5 metres in width, and 6 metres in height, is the subject of this article's analysis and design. STAAD PRO is used to conduct the analysis. Maximum axial forces, shear forces, torsional values, and moments are taken into account as comparison criteria. Howe, Pratt, and Warren trusses are all taken into account for this analysis. The conclusion is that a truss bridge can withstand up to 690.141 mm of displacement. When compared to the Pratt truss bridge and the Howe truss bridge, this is an increase of 15% and 5%, respectively. [4] Ghassan Shaker Abd (2019) With the help of (ANSYS Workbench) and boundary conditions, a 3D bridge truss made entirely of steel is designed and analysed in this paper. Analyses of static factors like axial force, stress, shear stress, and deformation are performed. To see which material combination would be most effective, the bridge floor was switched from steel to concrete. As a result, the axial force and stress values in a concrete floor are much lower than those in a steel floor. [5] Anjali Verma (2019) In this study, we use the STAAD PRO software to perform a parametric analysis of the critical vehicle load position on a 200.00 m span railway steel bridge, taking into account railway criteria and load norm. The Howe truss, the Pratt truss, the rectangular truss, and the X truss are the four trusses examined. They found that this truss bridge type had the lowest values of deflection and displacement out of the four cases studied, meaning that it could support the same load with a smaller amount of structural material. [6] Gopal Dayaram Pal (2021) There was an attempt to create a steel truss bridge design in this paper. Optimal cross-sections and material qualities were prioritised in order to reduce the total deformation of the structural element. Since truss trusses are the most commonly used in steel bridges for railways and pedestrian crossings, analysis of the truss bridge structure under IZS loading is given primary attention. Different truss sections were tested on a bridge carrying the same rail load. [7] Santosh Kumar Suman (2018) The focus of this study is on the planning and evaluation of interchangeable bridge constructions for rail networks. Steel is used to construct many truss designs, and each one is analysed in order to draw comparisons with the others. The research takes into account four different forms of truss architecture: the rectangular truss, the X-type truss, the V-type truss, and the K-type truss. STAAD PRO is used for the calculations to provide the findings. Both the software and the ideals are held in high regard. The results are compared in terms of the responsiveness of the supports, the amount of movement, the shear force, and the amount of twisting. After looking at the amount of possible critical values in a maximum displacement analysis, they found that the X- Type bridge consistently produced the lowest estimates across all four scenarios studied. For the four scenarios considered here, the K-type truss bridge has the lightest International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072
  • 3. © 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page 2780 values, indicating that it can support the same load with a less quantity of structural material. [8] 3. CONCLUSION This research is solely discussed in terms of a literature review. The study's findings suggest that several scholars have looked at various truss types in their pursuit of knowledge about steel railway bridge design and analysis. Software like STAAD Pro, ETABS, and ANSYS are used for analysis. In a small scale analysis, we accounted for wind and seismic impacts of a bridge with a greater span. Although the articles only evaluate one lane of traffic on the bridge, two lanes may be taken into account in the future. REFRENCES [1] Shubhank Gupta, Prof. Sudhir S. Bhadauria, Prof. Suresh S. Kushwaha (2017), “Comparative Analysis of Different Truss Type Railway Steel Bridge Considering Railway Loadings”, International Journal of Engineering Sciences & Research Technology (IJESRT),6(10), 82-89. [2] T. Pramod Kumar, G. Phani Ram (2015), “Analysis And Design Of Superstructure Of Road Cum Railway Bridge Across Krishna River”, International Journal of Engineering Sciences & Research (IJESR), Vol-5, Issue-7, July-2015. [3] Sumit V. Bajare, Sanjay K. Bhadke, Vikrant Vairagade (2016), “Investigating in Analysis and Design Of 24m Long Span Steel Girder Considering the Load Of Special Vehicle.” [4] V. R. Shinde, Prof. A. S. Patil, Prof. U. A. Mahadik (2021), “Comparative Analysis of Truss Bridges.” [5] Ghassan Shaker Abd, Ahmed ShanyKhusheef, Ahmed Mohmad Aliywy, Saddam Hassan Raheemah (2019), “Design and Analysis Of 3D Bridge Truss Using Steel and Concrete Materials.” [6] Anjali Verma, Sahu D. L. Sahu, Hitesh Kodwani (2019), “Analysis of Different Railway Bridge Sections Considering Seismic a Load As Per Railway Provisions.” [7] Gopal Dayaram Pal, Ashraf Patel, Niraj Meshram, Sayyed Aamir Hussain (2021), “A Review Study on Different Truss Type Railway Steel Bridge.” [8] Santosh Kumar Suman, Rakesh Patel (2018), “Analysis of Different Truss Bridge to Configure the Best Suited Shape for Practical Implementation.” [9] Santosh Kumar Suman, Rakesh Patel (2018), “Analysis of Different Truss Bridge to Configure the Best Suited Shape for Practical Implementation.” IS CODES: i. IS: 875-2015 Wind Loads on Buildings and Structures ii. IS 1893 – 2002 Earthquake Resistant Design of Structures iii. IS 800 (2007) Code for general construction in steel structures. iv. IRC-24-2001 for the design of steel or wrought iron bridges carrying rail v. IRC Class A- Loads Considered for Design of Bridge Structures International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 07 | July 2022 www.irjet.net p-ISSN: 2395-0072
