1. Scaling Asterisk Installations Olle E. Johansson Oej@edvina.net * Twitter: oej Copyright Edvina AB, Sollentuna, Sweden 2010. All rights reserved.

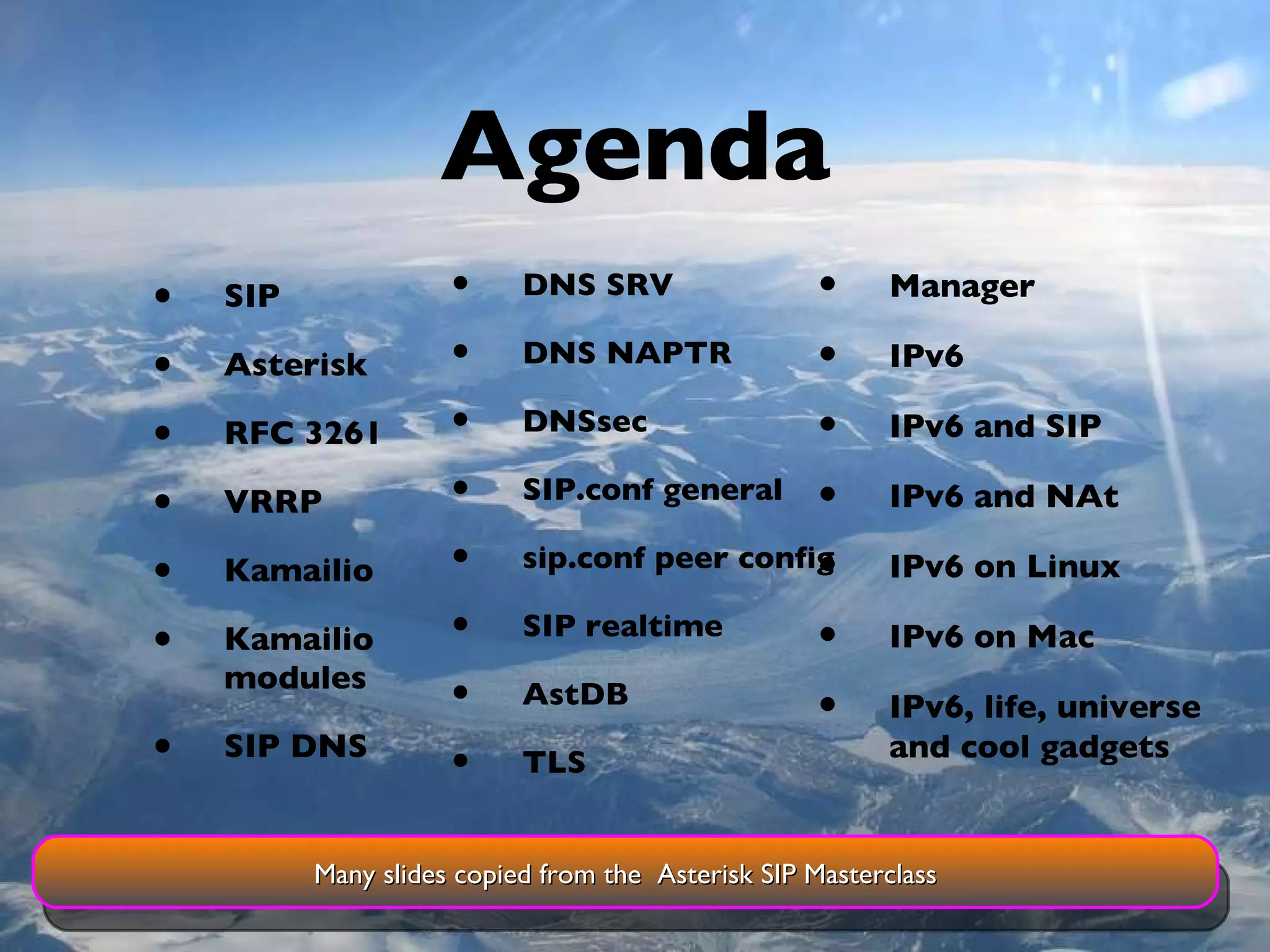

2. Agenda SIP Asterisk RFC 3261 VRRP Kamailio Kamailio modules SIP DNS Many slides copied from the Asterisk SIP Masterclass DNS SRV DNS NAPTR DNSsec SIP.conf general sip.conf peer config SIP realtime AstDB TLS Manager IPv6 IPv6 and SIP IPv6 and NAt IPv6 on Linux IPv6 on Mac IPv6, life, universe and cool gadgets

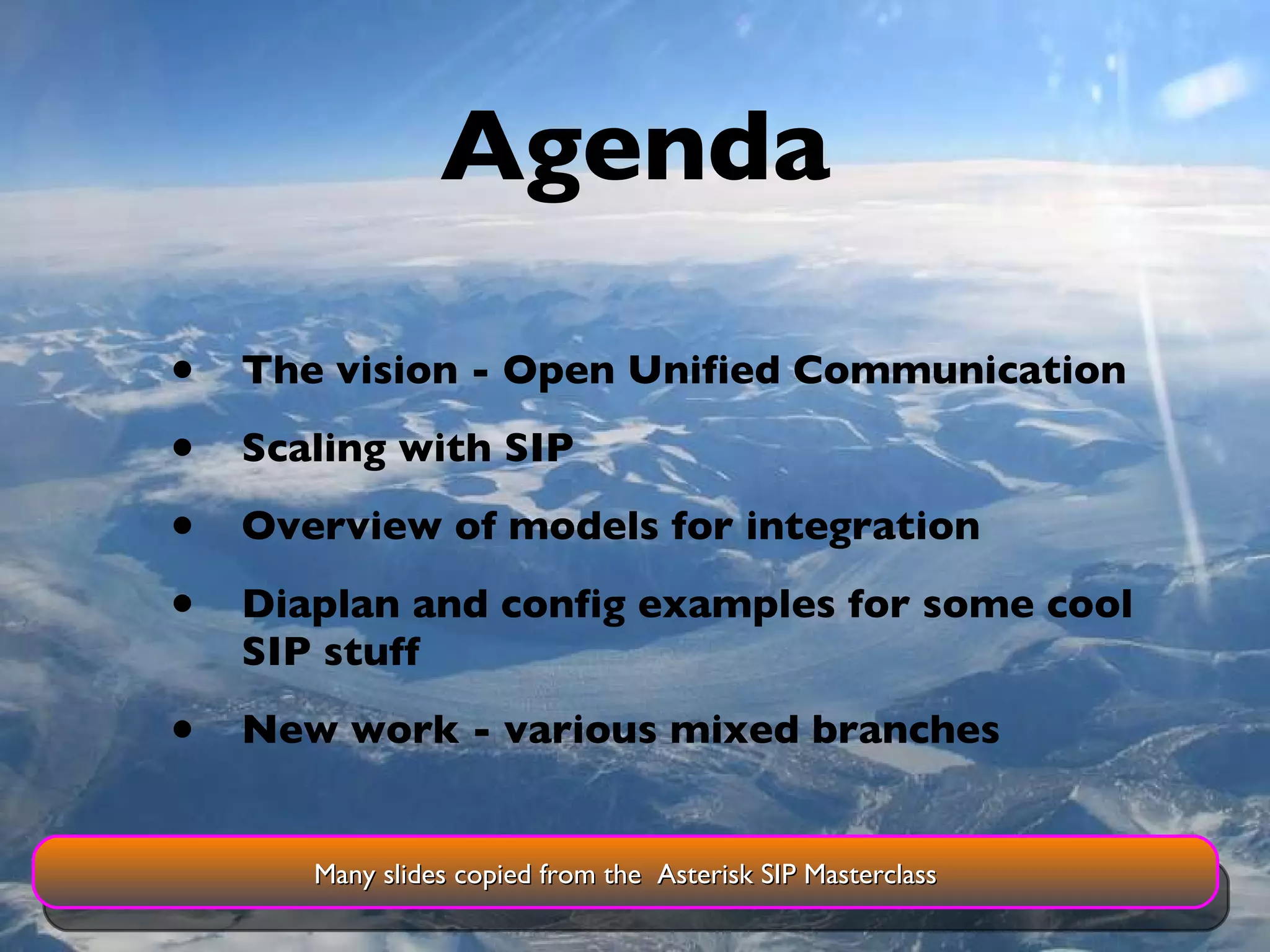

3. Agenda The vision - Open Unified Communication Scaling with SIP Overview of models for integration Diaplan and config examples for some cool SIP stuff New work - various mixed branches Many slides copied from the Asterisk SIP Masterclass

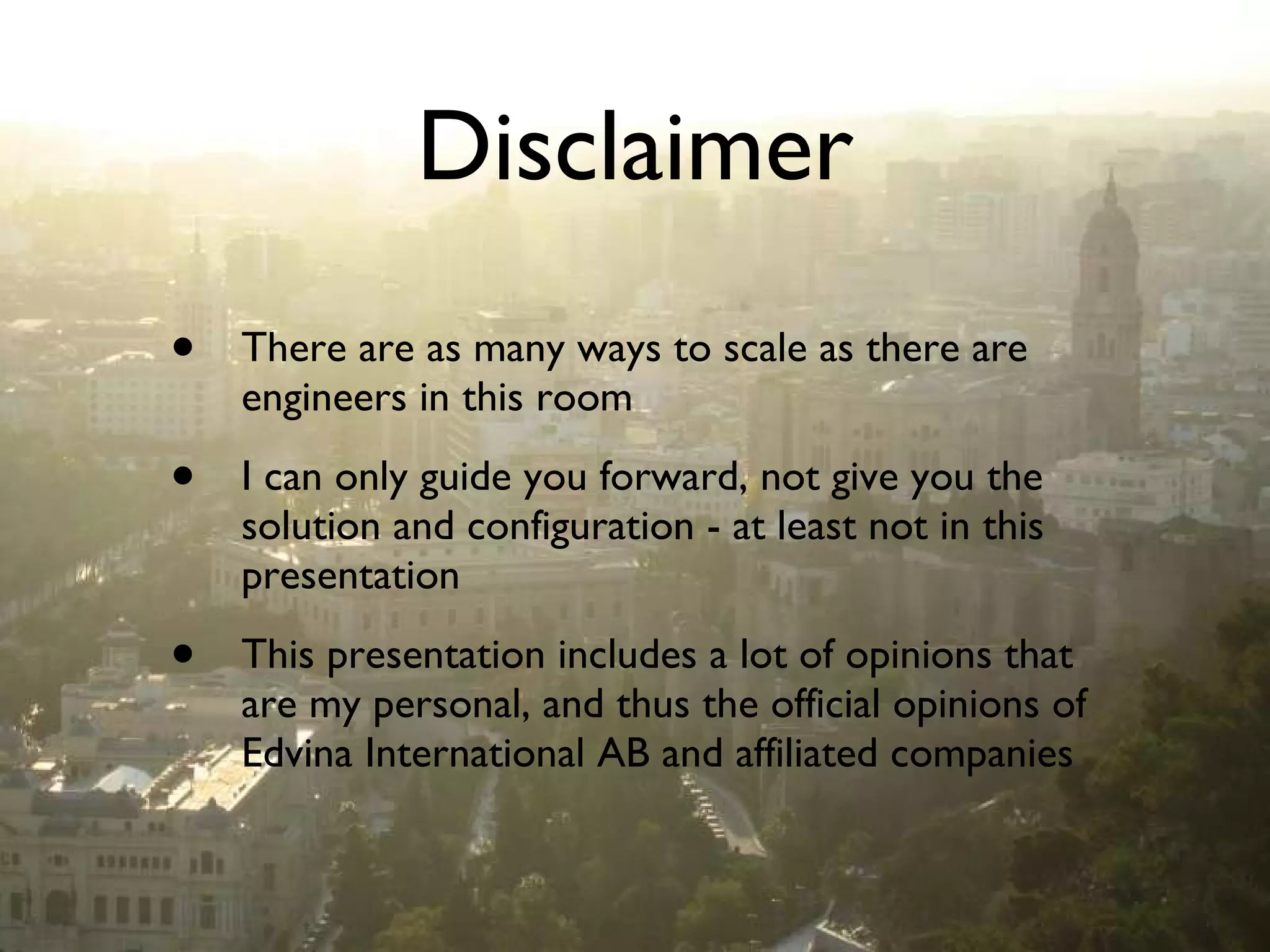

4. Disclaimer There are as many ways to scale as there are engineers in this room I can only guide you forward, not give you the solution and configuration - at least not in this presentation This presentation includes a lot of opinions that are my personal, and thus the official opinions of Edvina International AB and affiliated companies

5. The big question What do you want to do today?

6. Realtime OPEN IP Communication Audio Video Text White-board 3D Hologr ????

7. What’s pushing us forward?

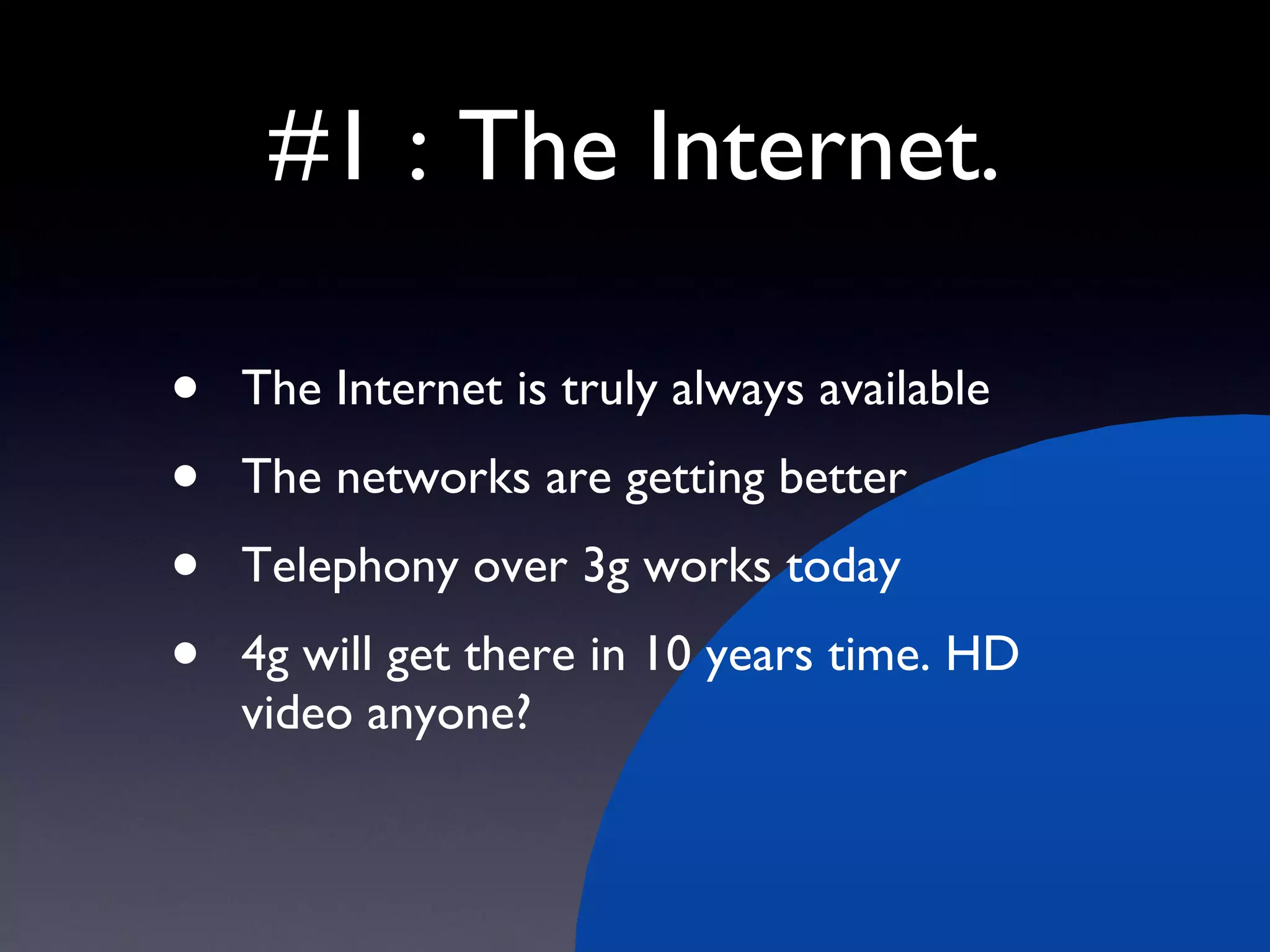

8. #1 : The Internet. The Internet is truly always available The networks are getting better Telephony over 3g works today 4g will get there in 10 years time. HD video anyone?

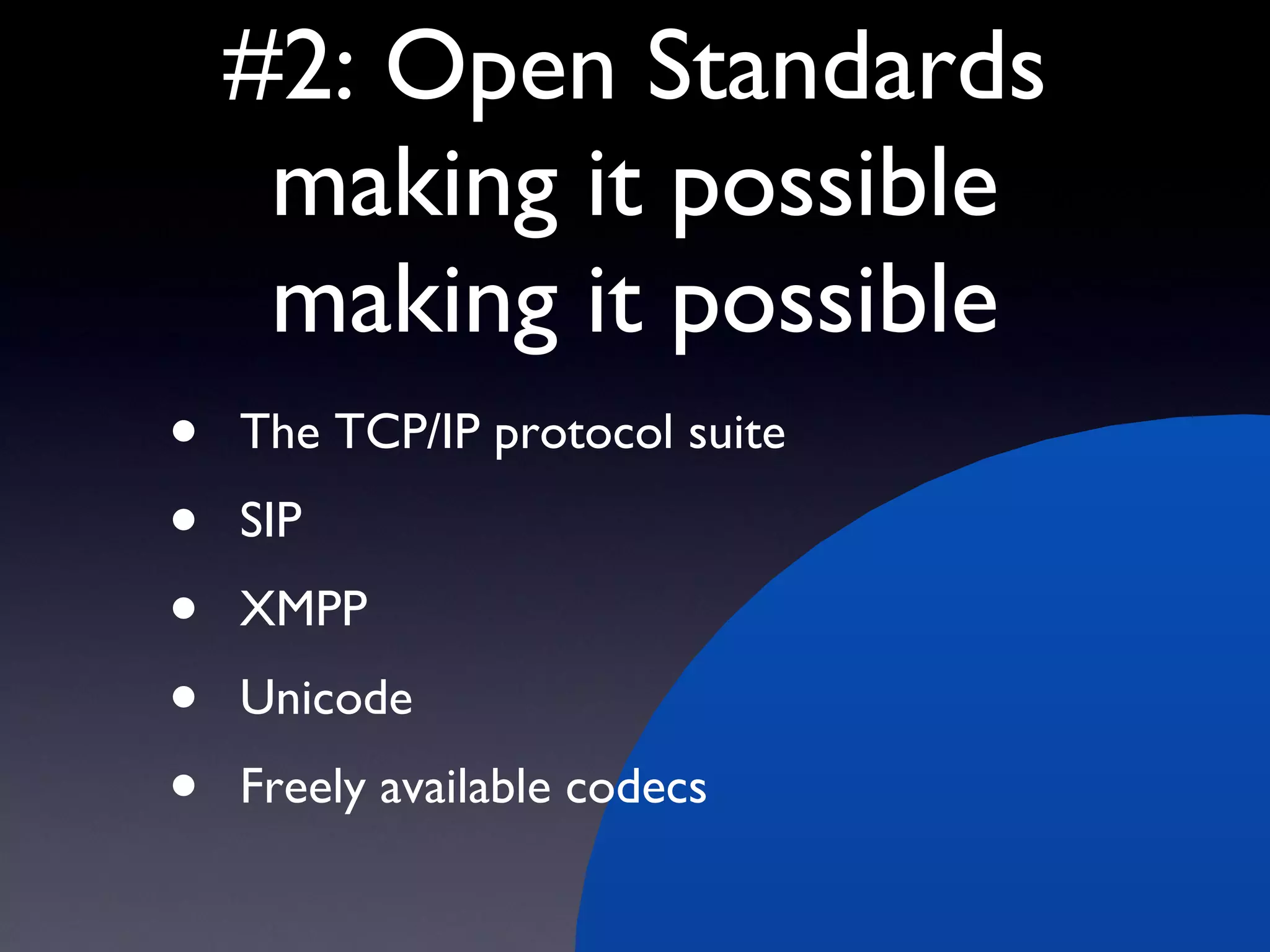

9. #2: Open Standards making it possible making it possible The TCP/IP protocol suite SIP XMPP Unicode Freely available codecs

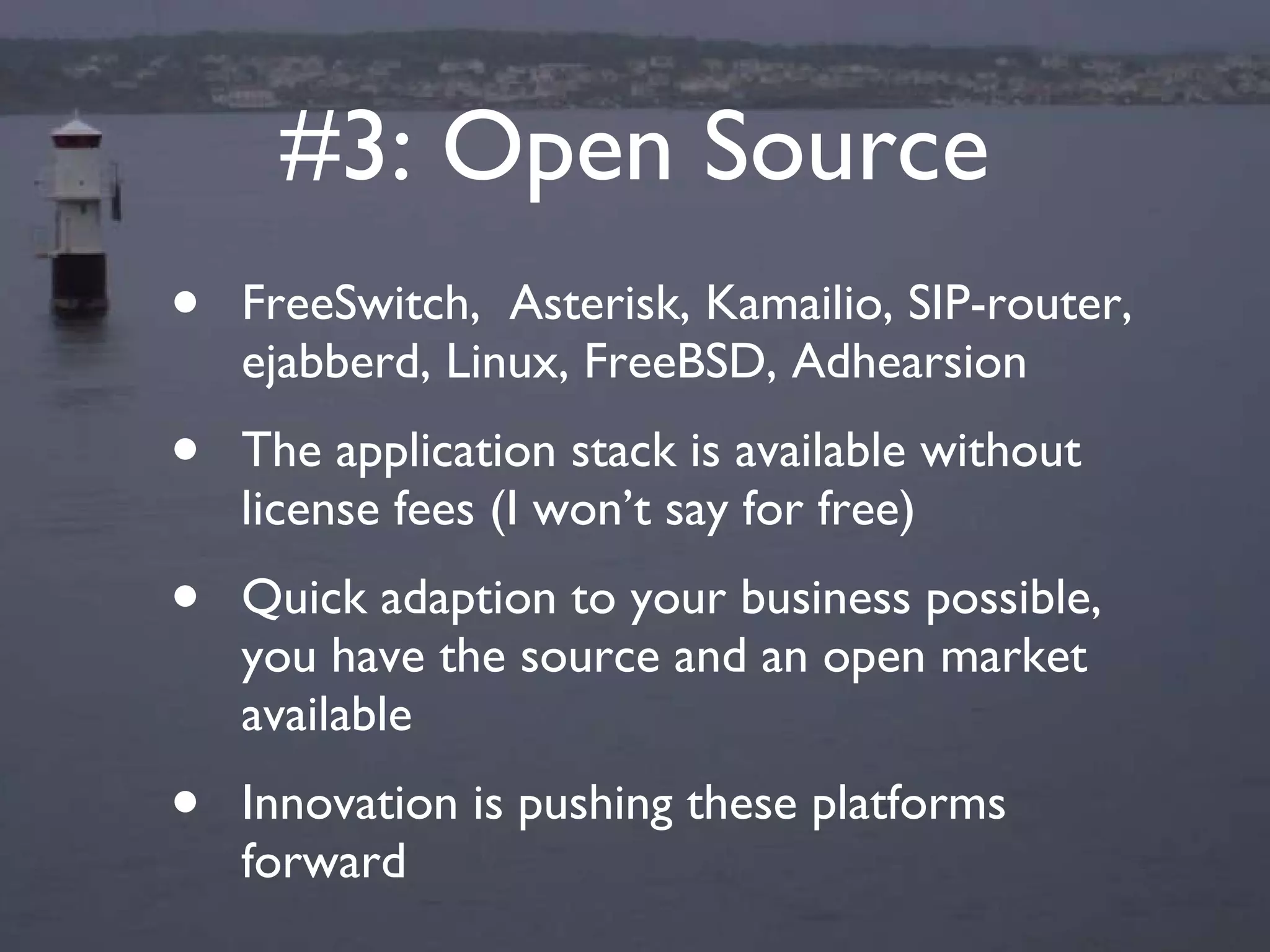

10. #3: Open Source FreeSwitch, Asterisk, Kamailio, SIP-router, ejabberd, Linux, FreeBSD, Adhearsion The application stack is available without license fees (I won’t say for free) Quick adaption to your business possible, you have the source and an open market available Innovation is pushing these platforms forward

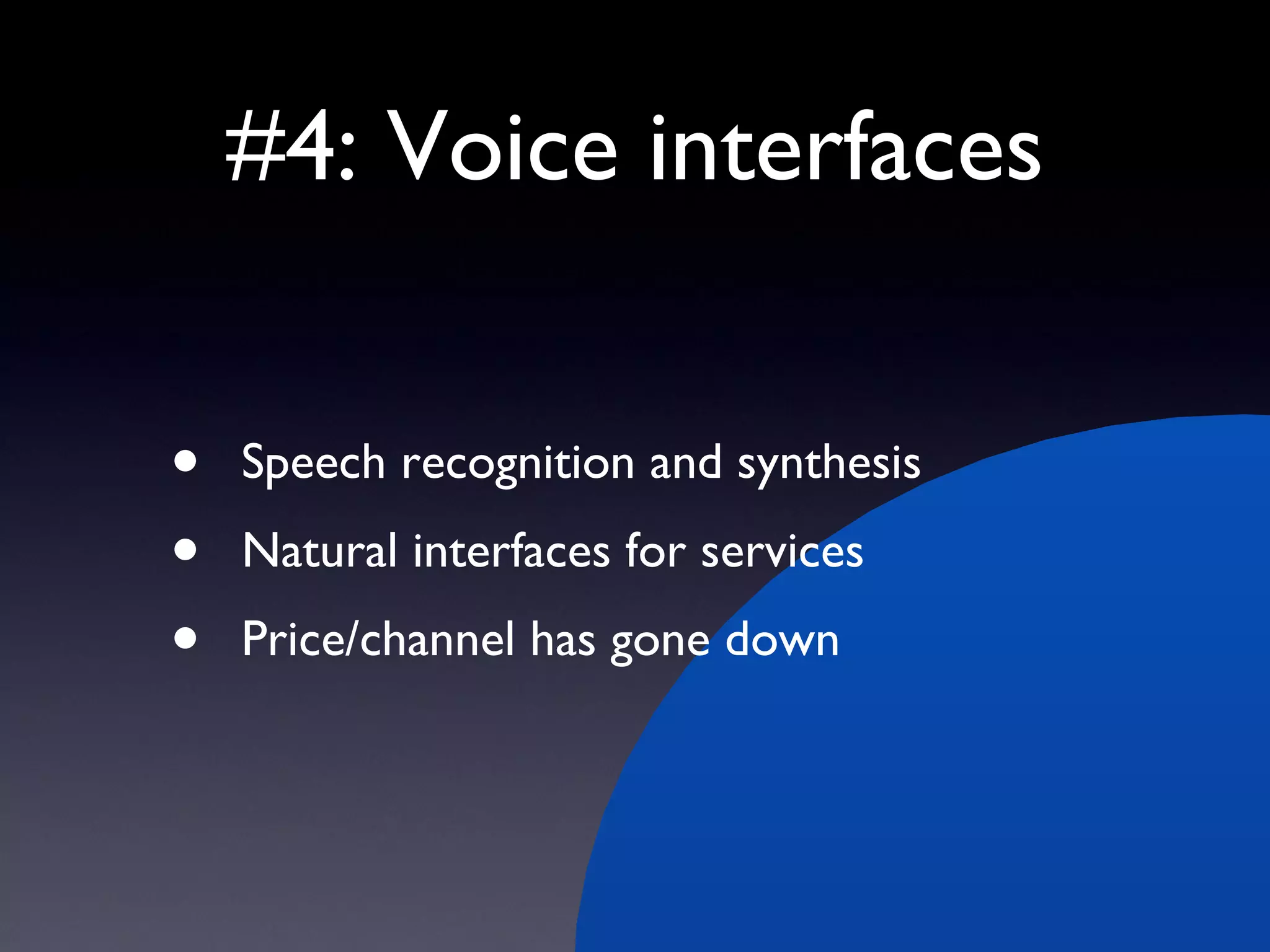

11. #4: Voice interfaces Speech recognition and synthesis Natural interfaces for services Price/channel has gone down

12. #5: Commodity hardware Standard PC servers can run 10.000 audio channels - over 5.000 calls. Today. Investment/call is going down

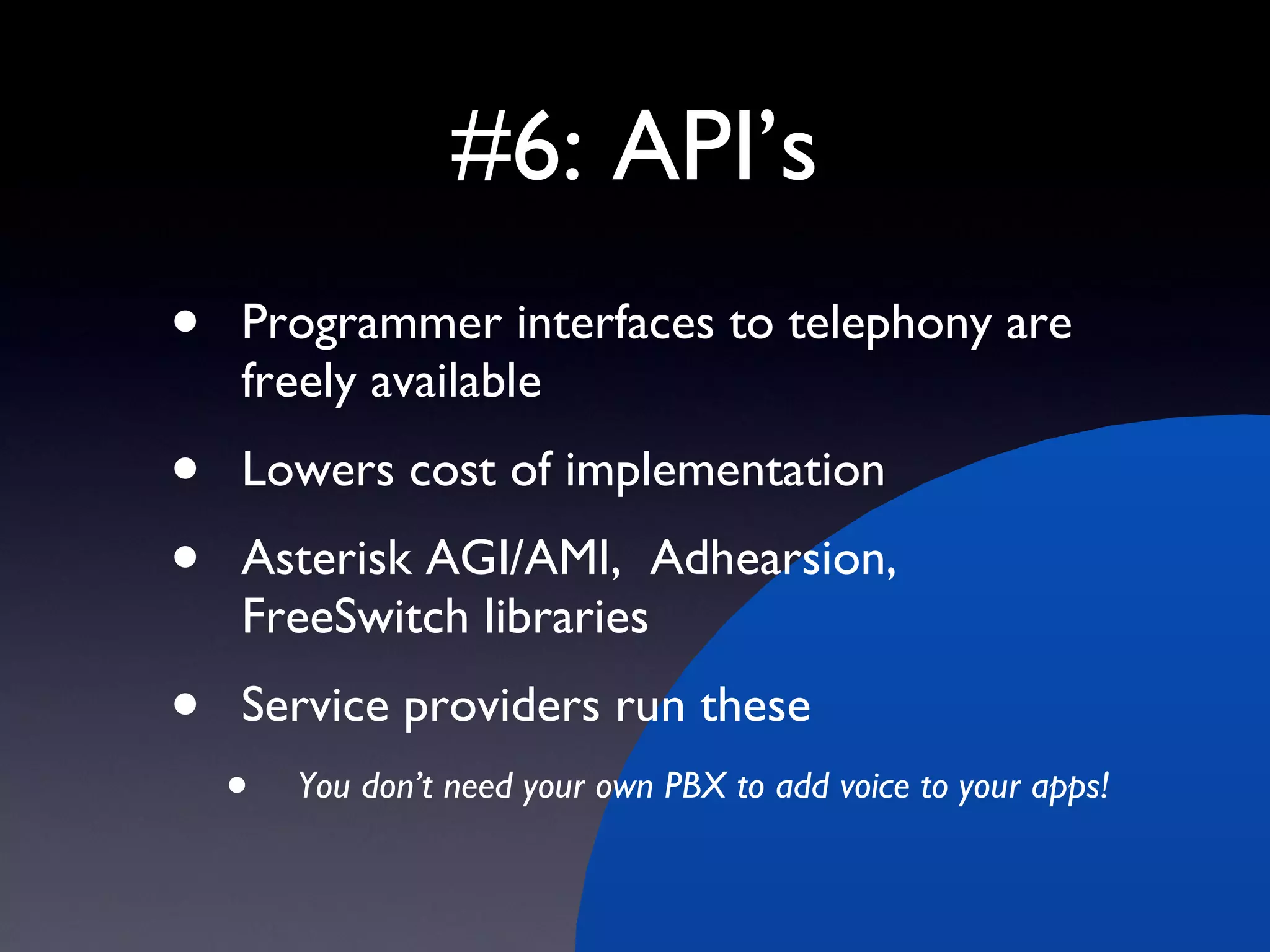

13. #6: API’s Programmer interfaces to telephony are freely available Lowers cost of implementation Asterisk AGI/AMI, Adhearsion, FreeSwitch libraries Service providers run these You don’t need your own PBX to add voice to your apps!

14. #7: Unified, federated identity [email_address] LDAP OpenID SAML 2.0 Oauth

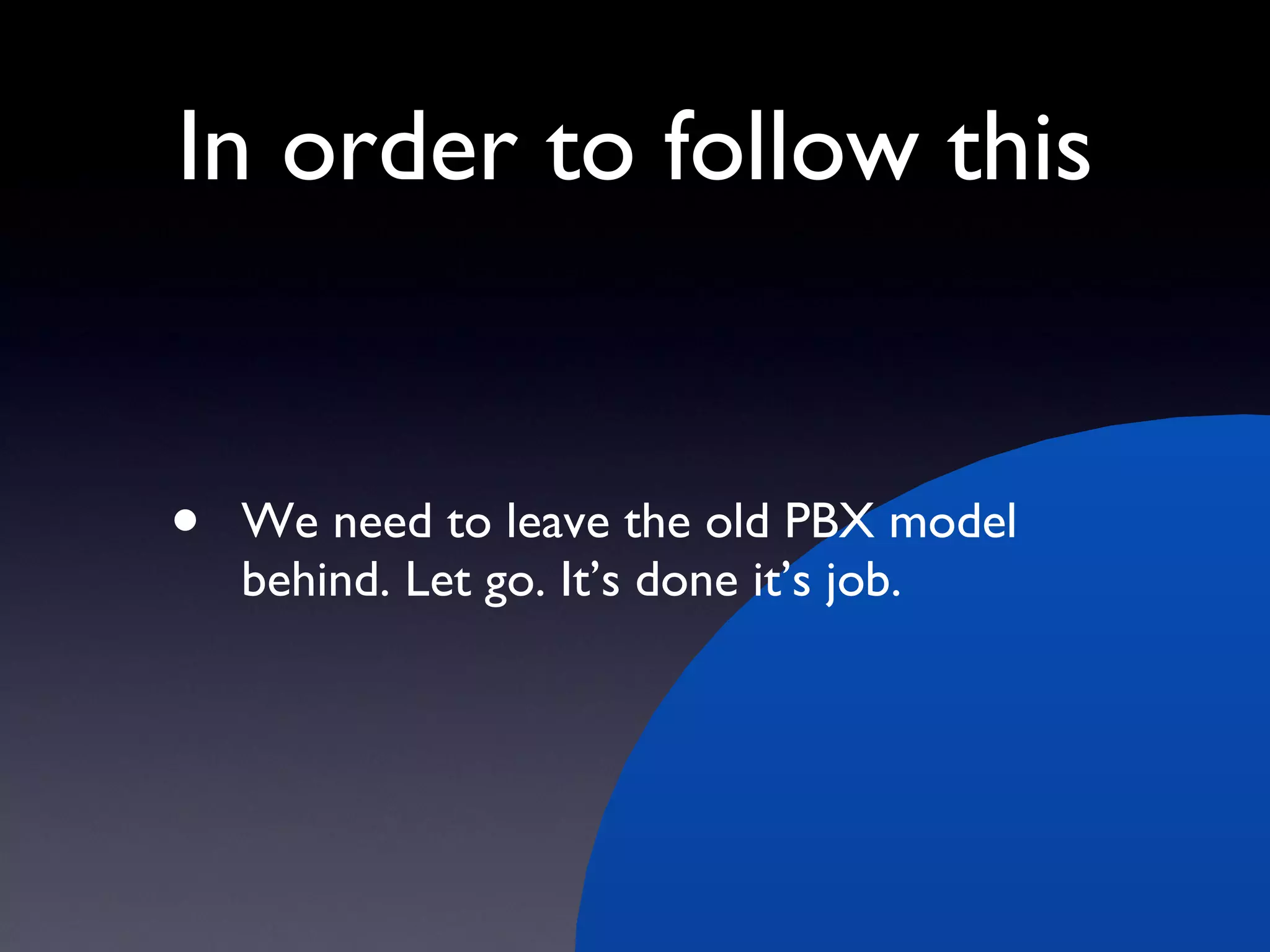

15. In order to follow this We need to leave the old PBX model behind. Let go. It’s done it’s job.

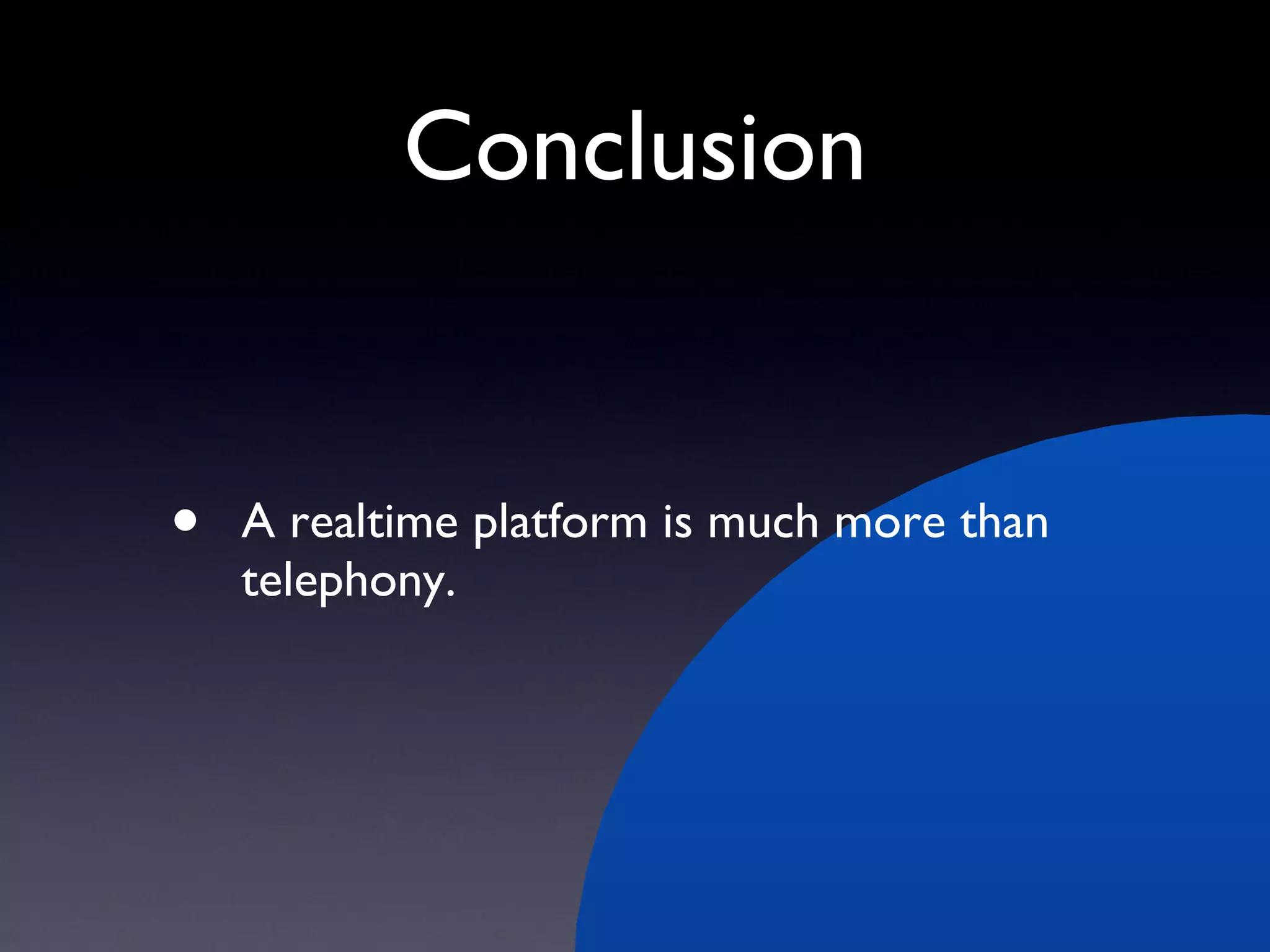

16. Conclusion A realtime platform is much more than telephony.

17. Consider If you invest in a unified communication network today and design it for voice/PBX services only, it won’t work for future services

18. Without the Internet you still have an old telephony PBX. an old telephony PBX. an old telephony PBX.

19. Without the Internet you are on an isolated island. isolated island. isolated island. So how do we get away from it?

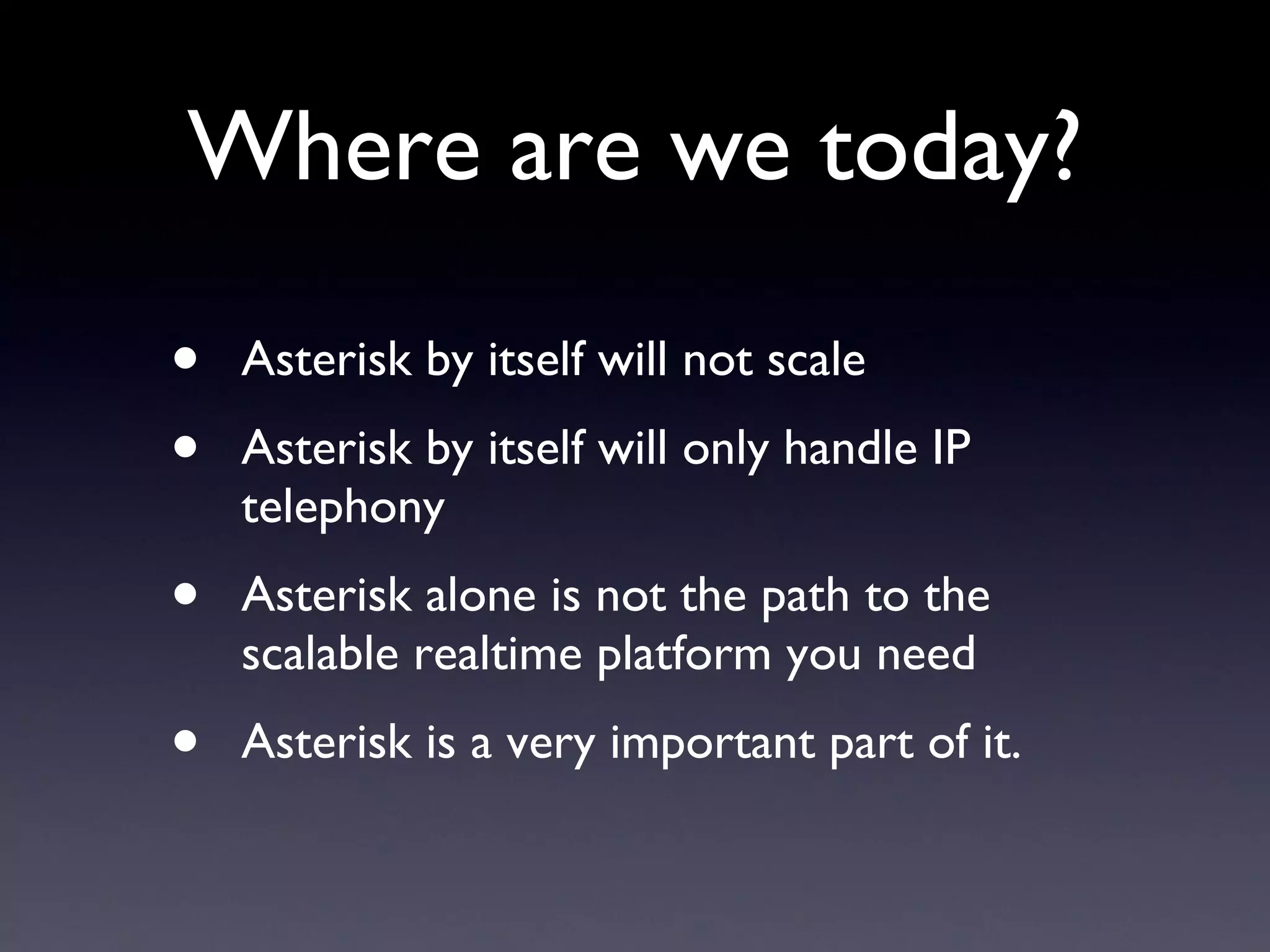

20. Where are we today? Asterisk by itself will not scale Asterisk by itself will only handle IP telephony Asterisk alone is not the path to the scalable realtime platform you need Asterisk is a very important part of it.

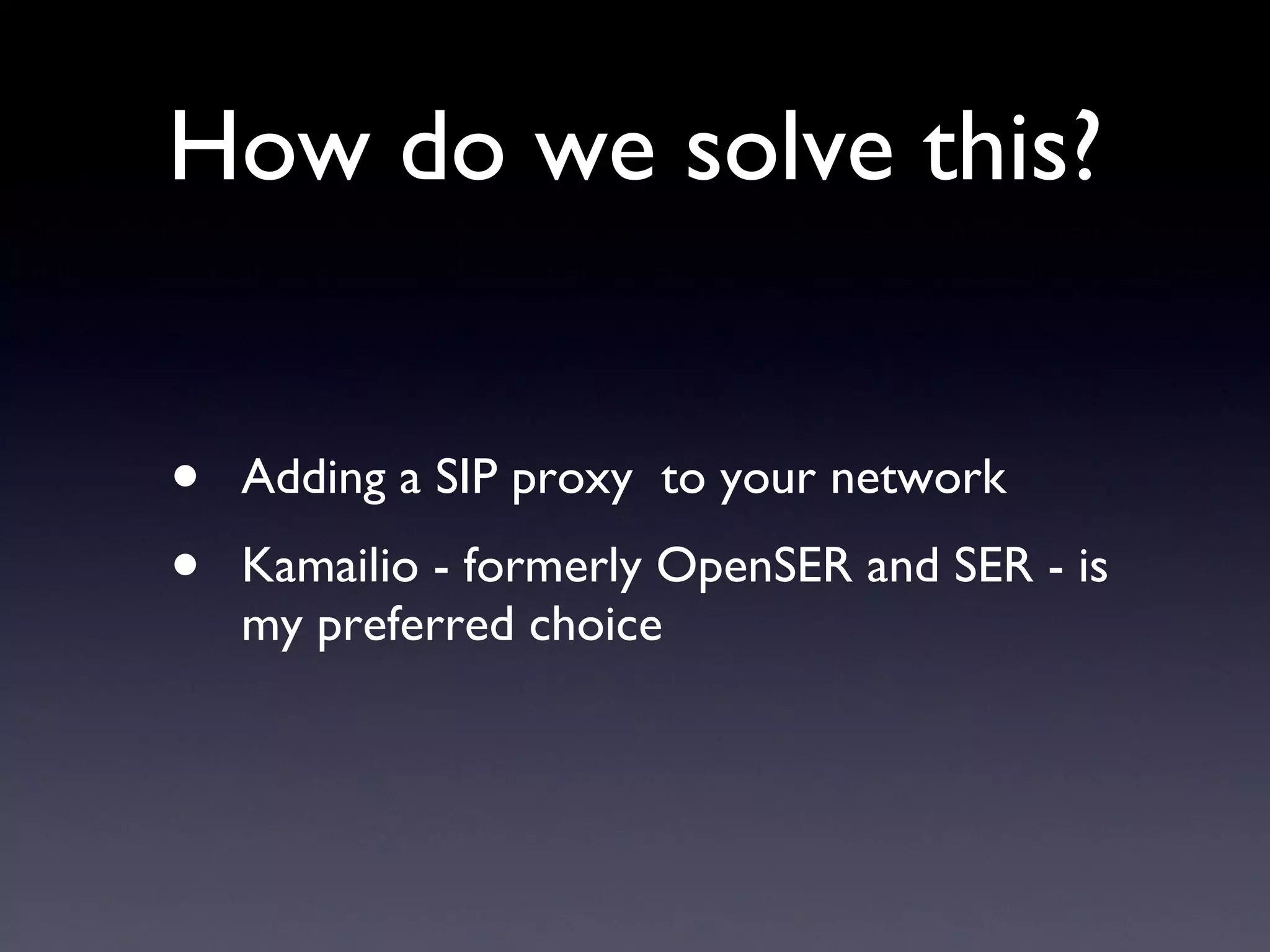

21. How do we solve this? Adding a SIP proxy to your network Kamailio - formerly OpenSER and SER - is my preferred choice

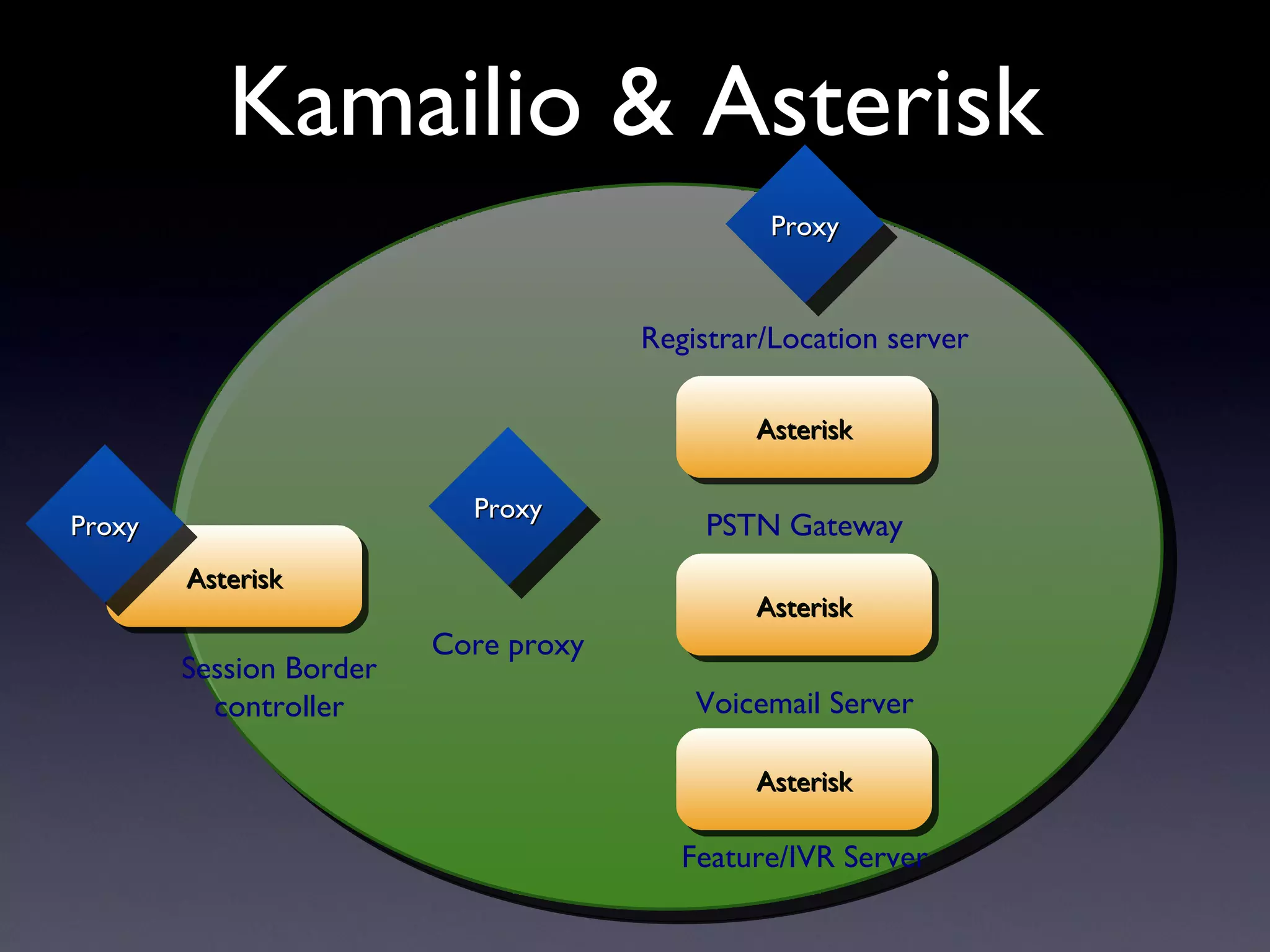

22. Kamailio & Asterisk Session Border controller Proxy Core proxy Proxy Registrar/Location server Asterisk PSTN Gateway Asterisk Voicemail Server Asterisk Feature/IVR Server Asterisk Proxy

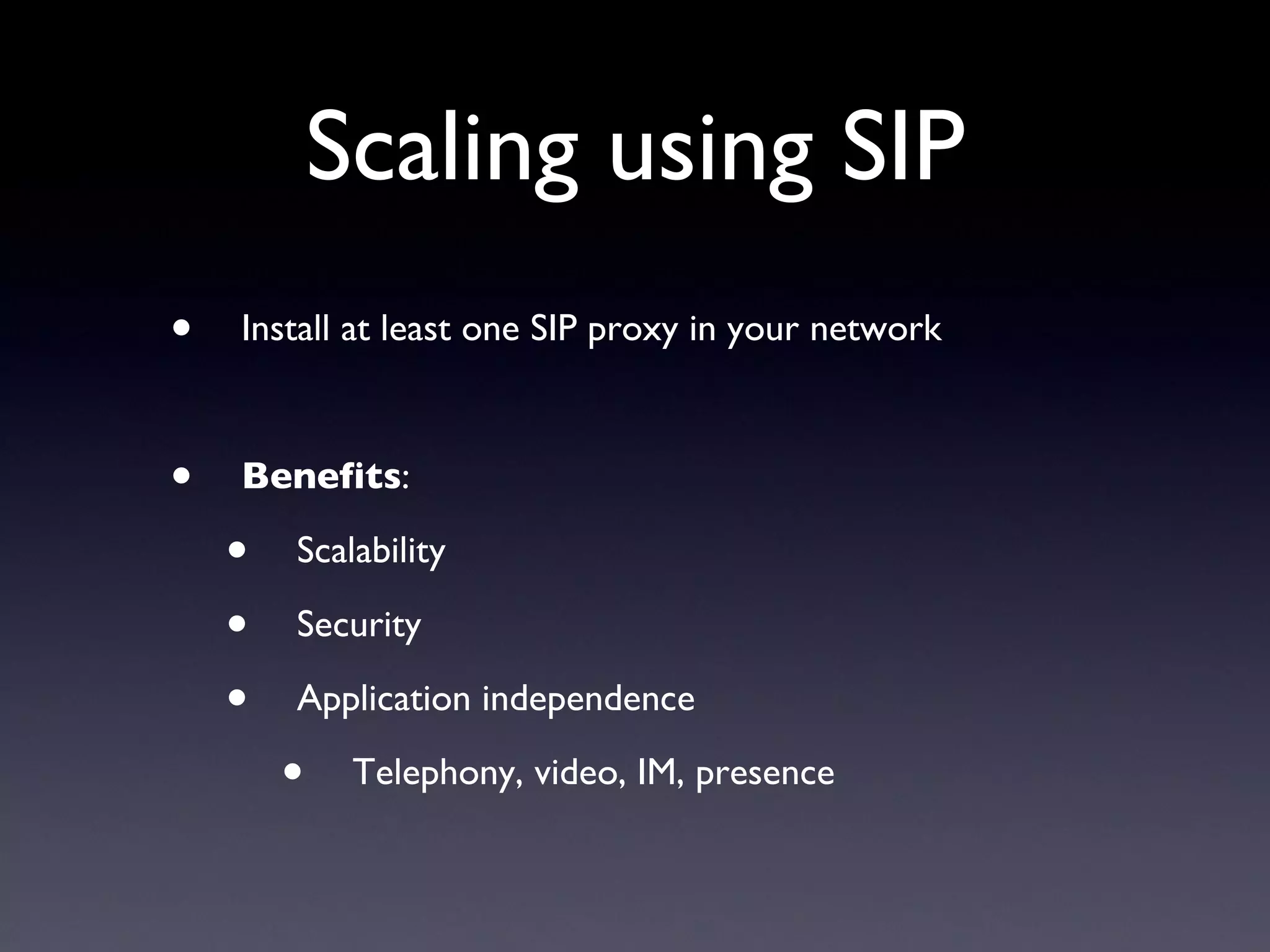

23. Scaling using SIP Install at least one SIP proxy in your network Benefits : Scalability Security Application independence Telephony, video, IM, presence

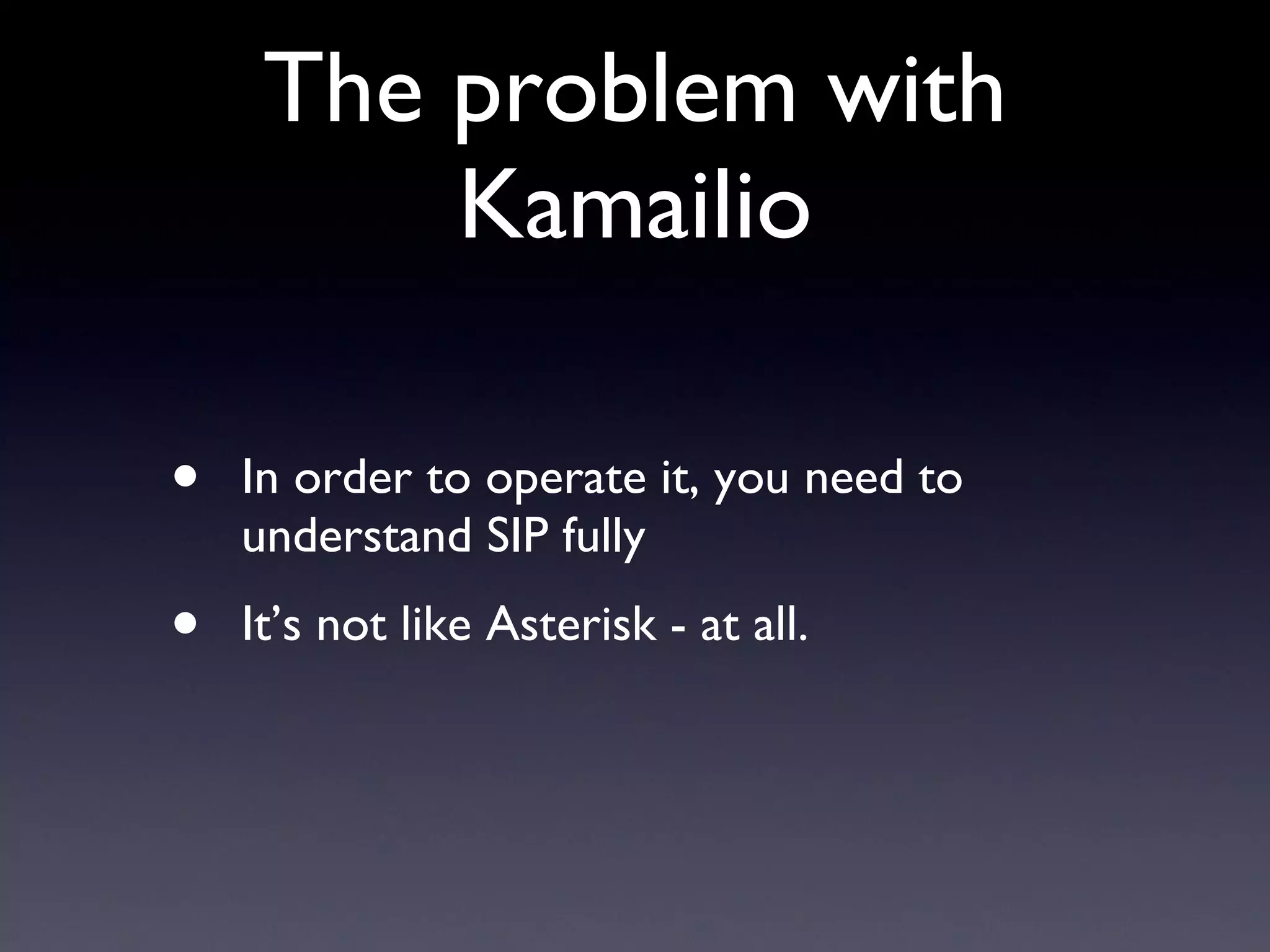

24. The problem with Kamailio In order to operate it, you need to understand SIP fully It’s not like Asterisk - at all.

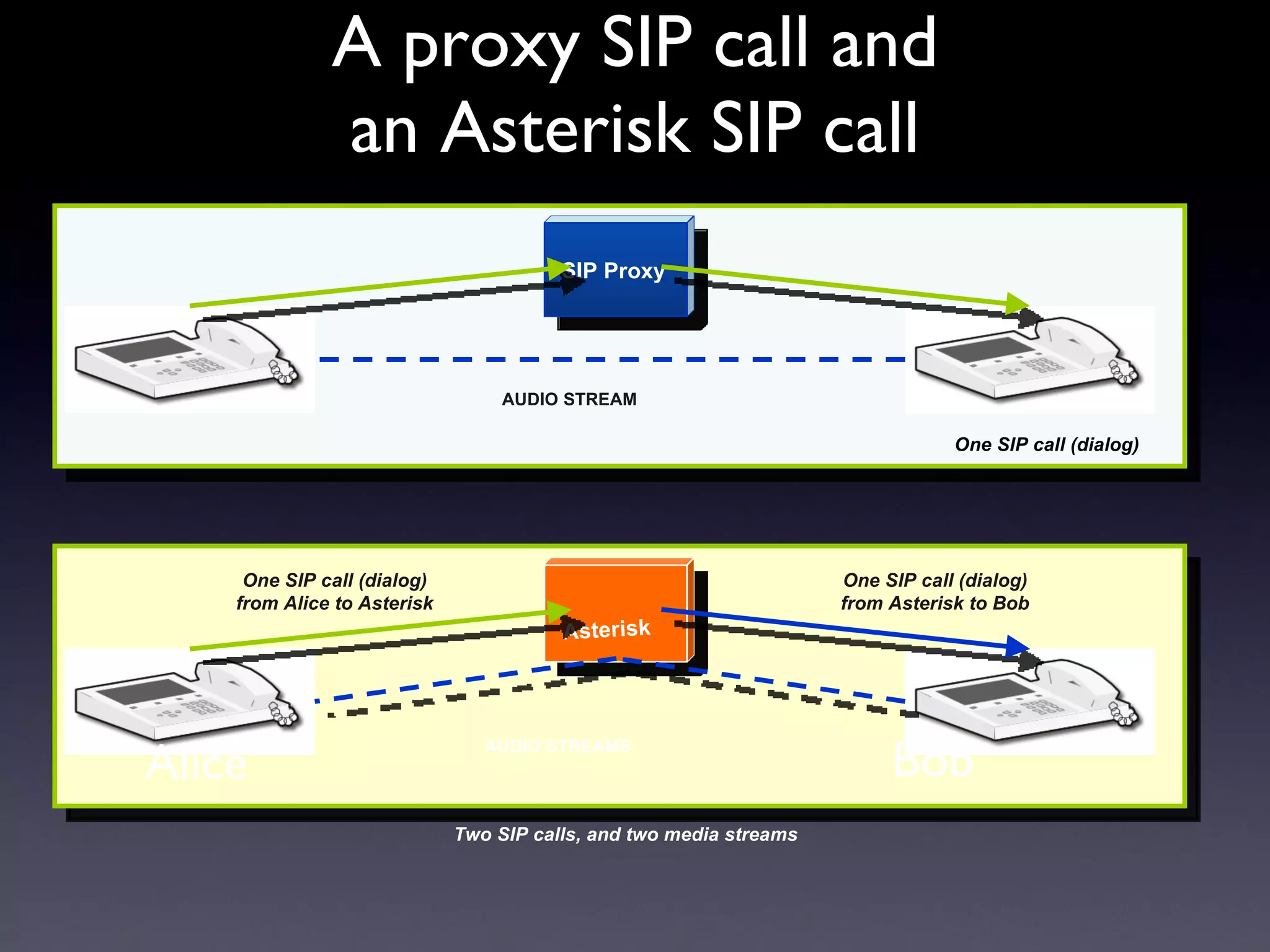

25. A proxy SIP call and an Asterisk SIP call AUDIO STREAM AUDIO STREAMS One SIP call (dialog) One SIP call (dialog) from Alice to Asterisk One SIP call (dialog) from Asterisk to Bob Alice Bob Two SIP calls, and two media streams SIP Proxy Asterisk

26. SIP proxy & b2bua working together ...in harmony?

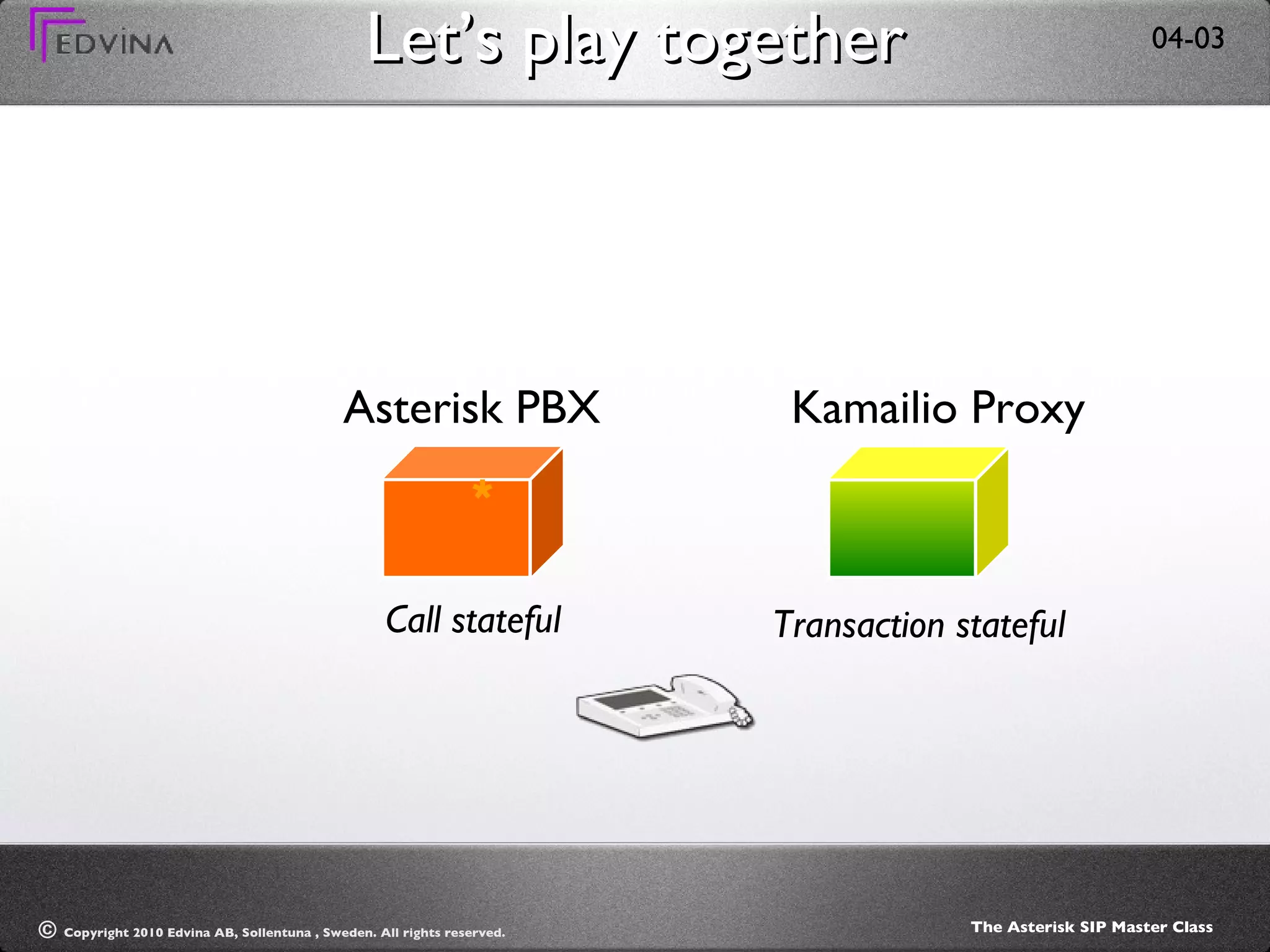

27. Let’s play together Kamailio Proxy Asterisk PBX Call stateful Transaction stateful *

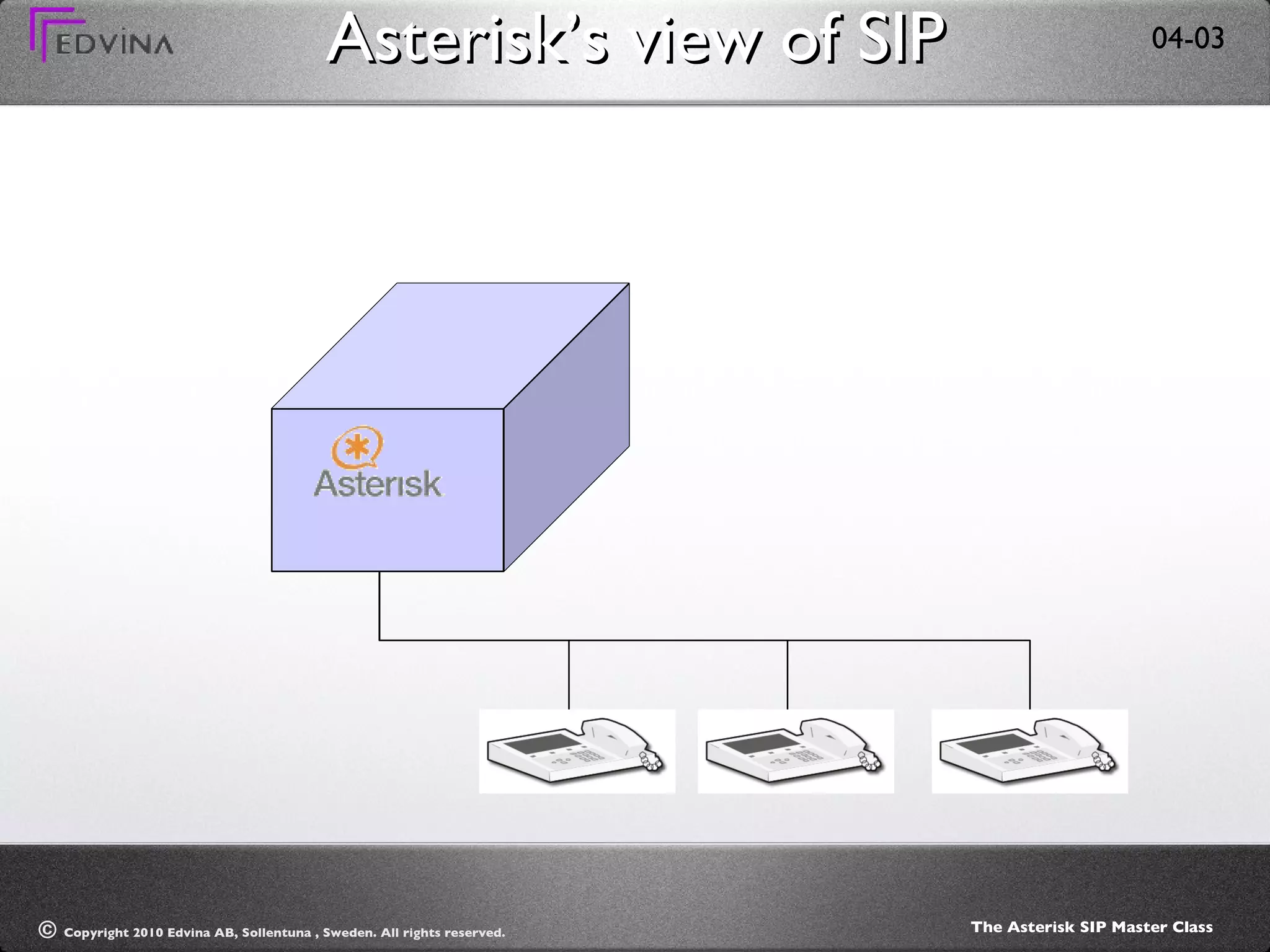

28. Asterisk’s view of SIP

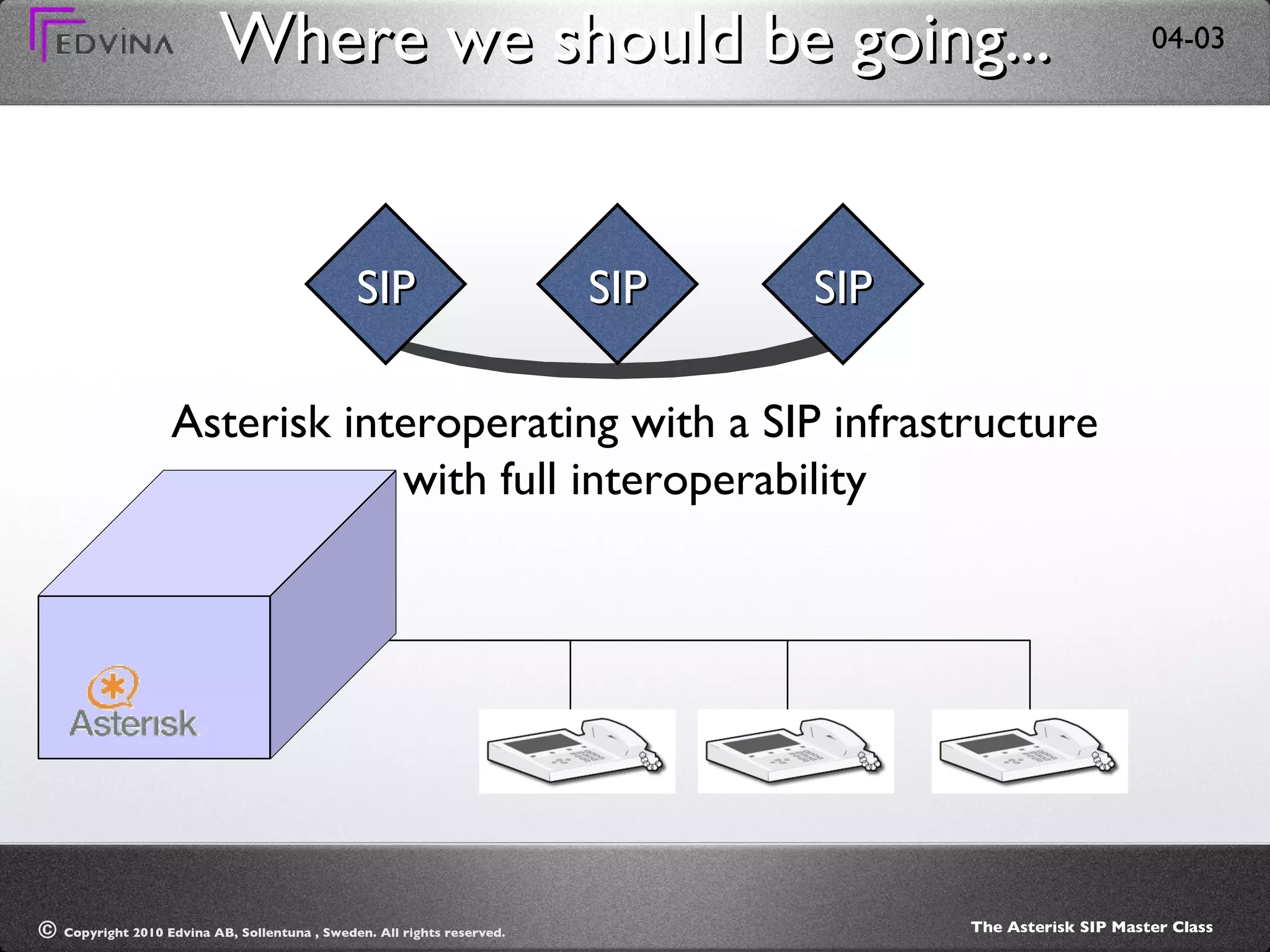

29. Where we should be going... SIP SIP SIP Asterisk interoperating with a SIP infrastructure with full interoperability

30. SuperQuick Intro to Kamailio

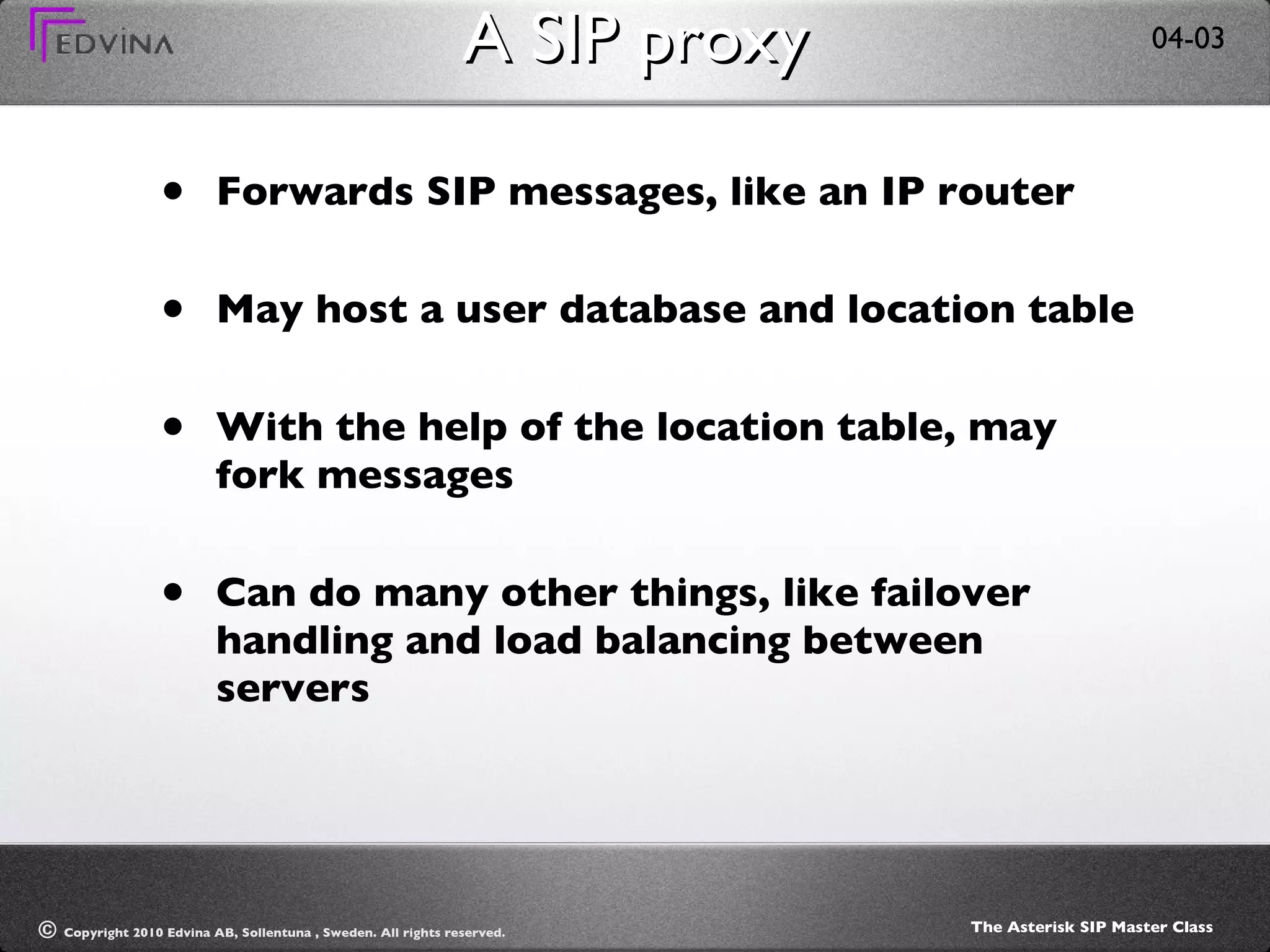

31. A SIP proxy Forwards SIP messages, like an IP router May host a user database and location table With the help of the location table, may fork messages Can do many other things, like failover handling and load balancing between servers

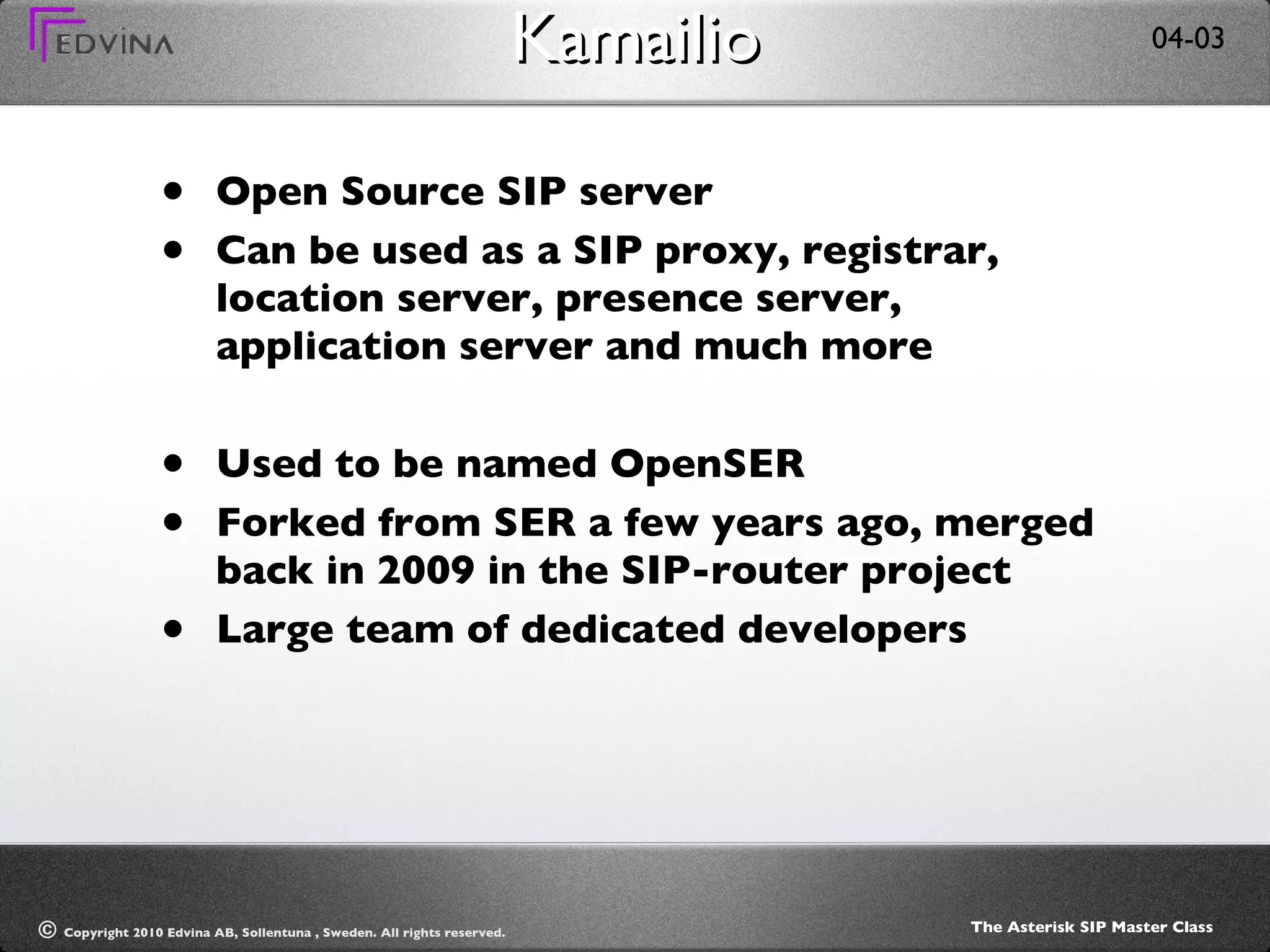

32. Kamailio Open Source SIP server Can be used as a SIP proxy, registrar, location server, presence server, application server and much more Used to be named OpenSER Forked from SER a few years ago, merged back in 2009 in the SIP-router project Large team of dedicated developers

33. Step 1 Adding a SIP proxy between Asterisk and the phones

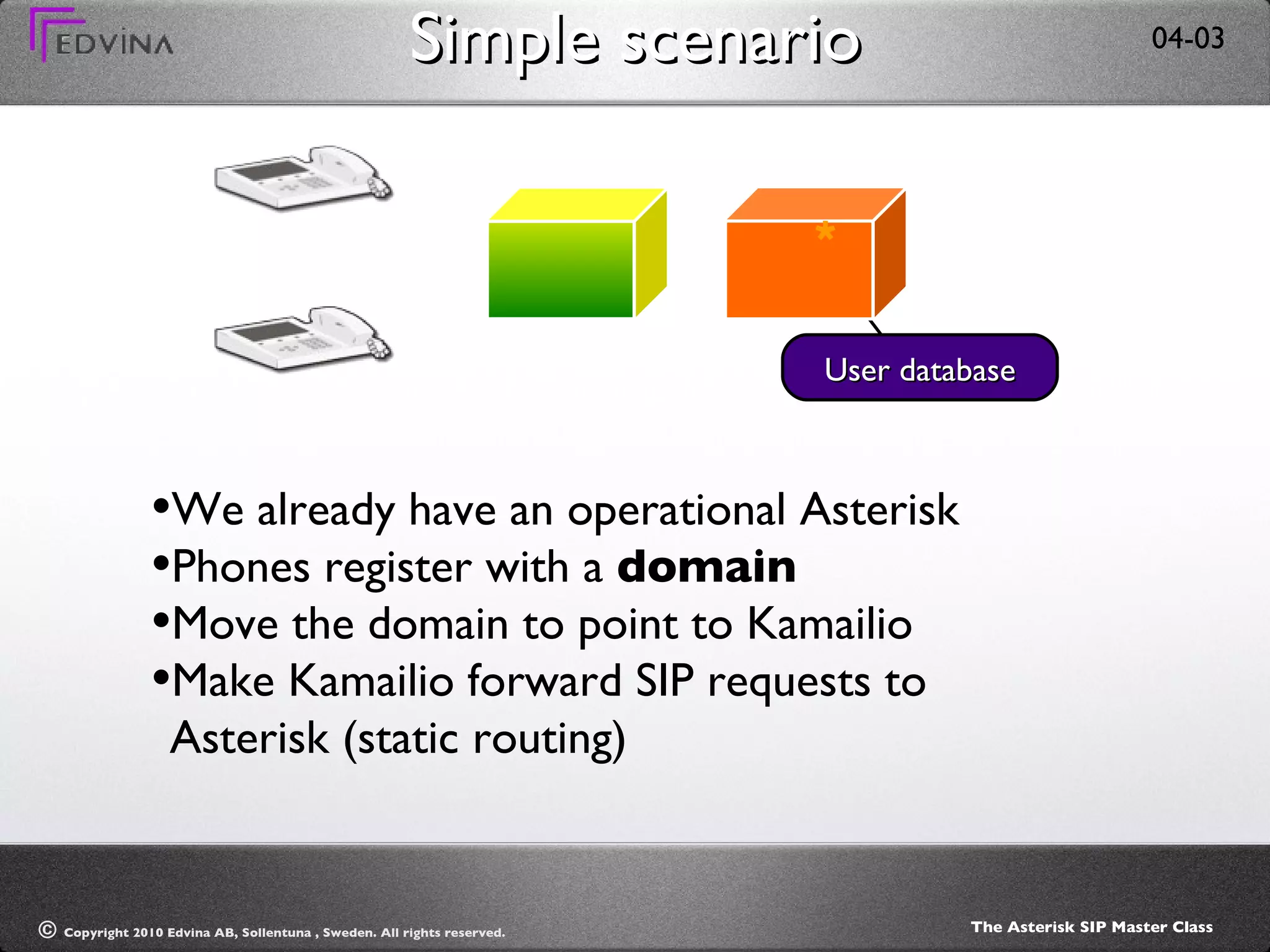

34. Simple scenario We already have an operational Asterisk Phones register with a domain Move the domain to point to Kamailio Make Kamailio forward SIP requests to Asterisk (static routing) User database *

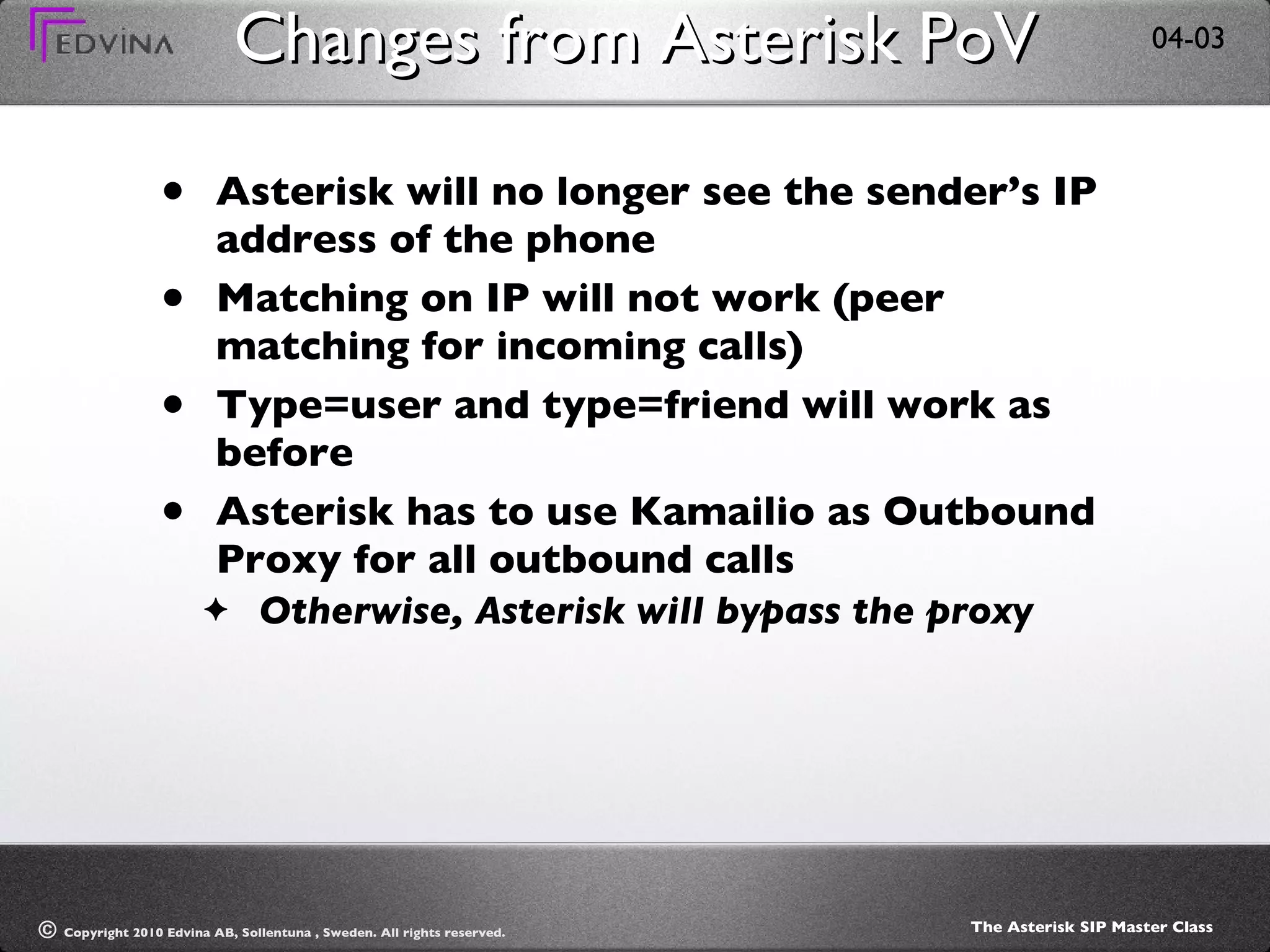

35. Changes from Asterisk PoV Asterisk will no longer see the sender’s IP address of the phone Matching on IP will not work (peer matching for incoming calls) Type=user and type=friend will work as before Asterisk has to use Kamailio as Outbound Proxy for all outbound calls Otherwise, Asterisk will bypass the proxy

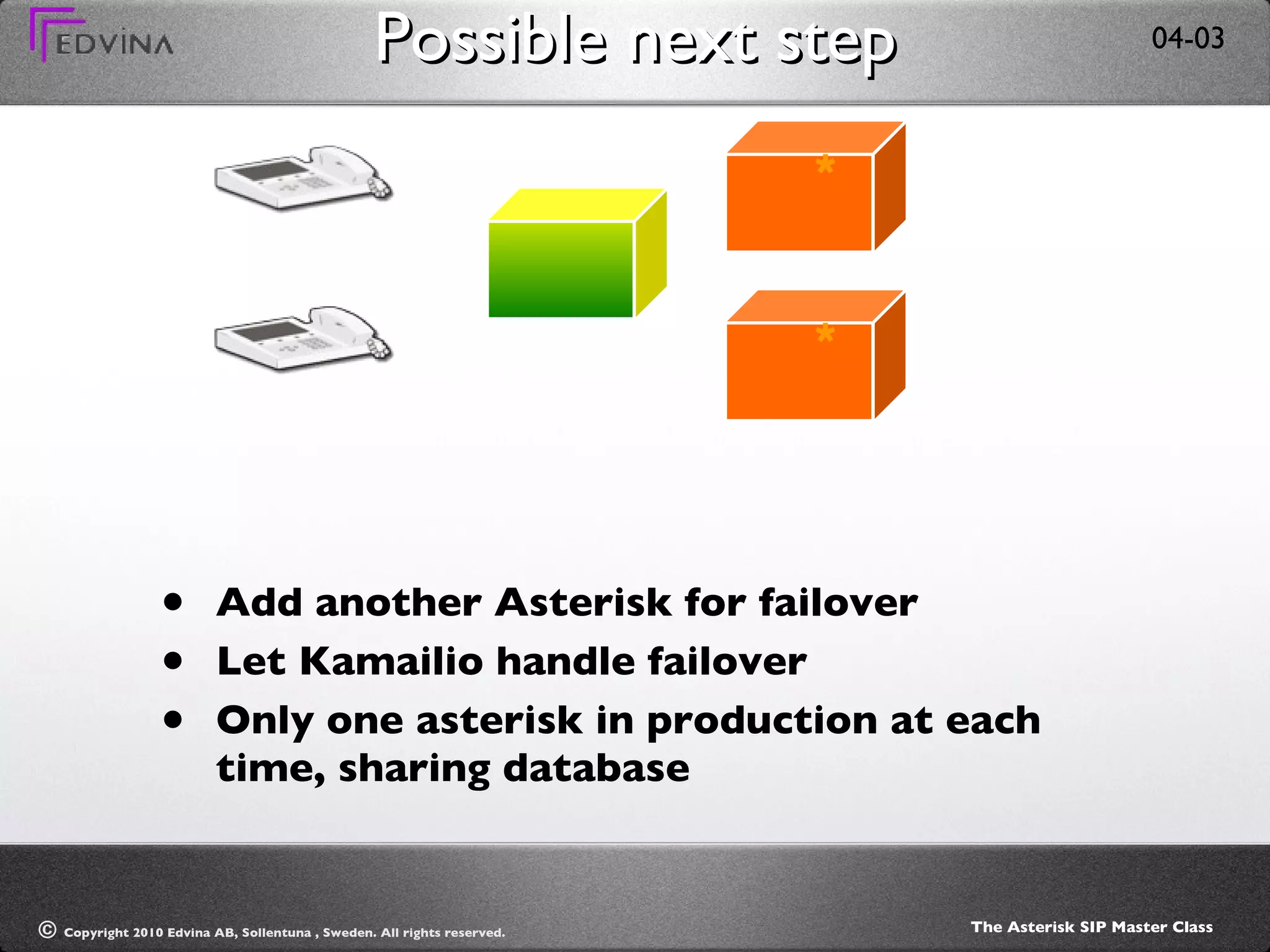

36. Possible next step Add another Asterisk for failover Let Kamailio handle failover Only one asterisk in production at each time, sharing database * *

37. Stage 2 Power struggle

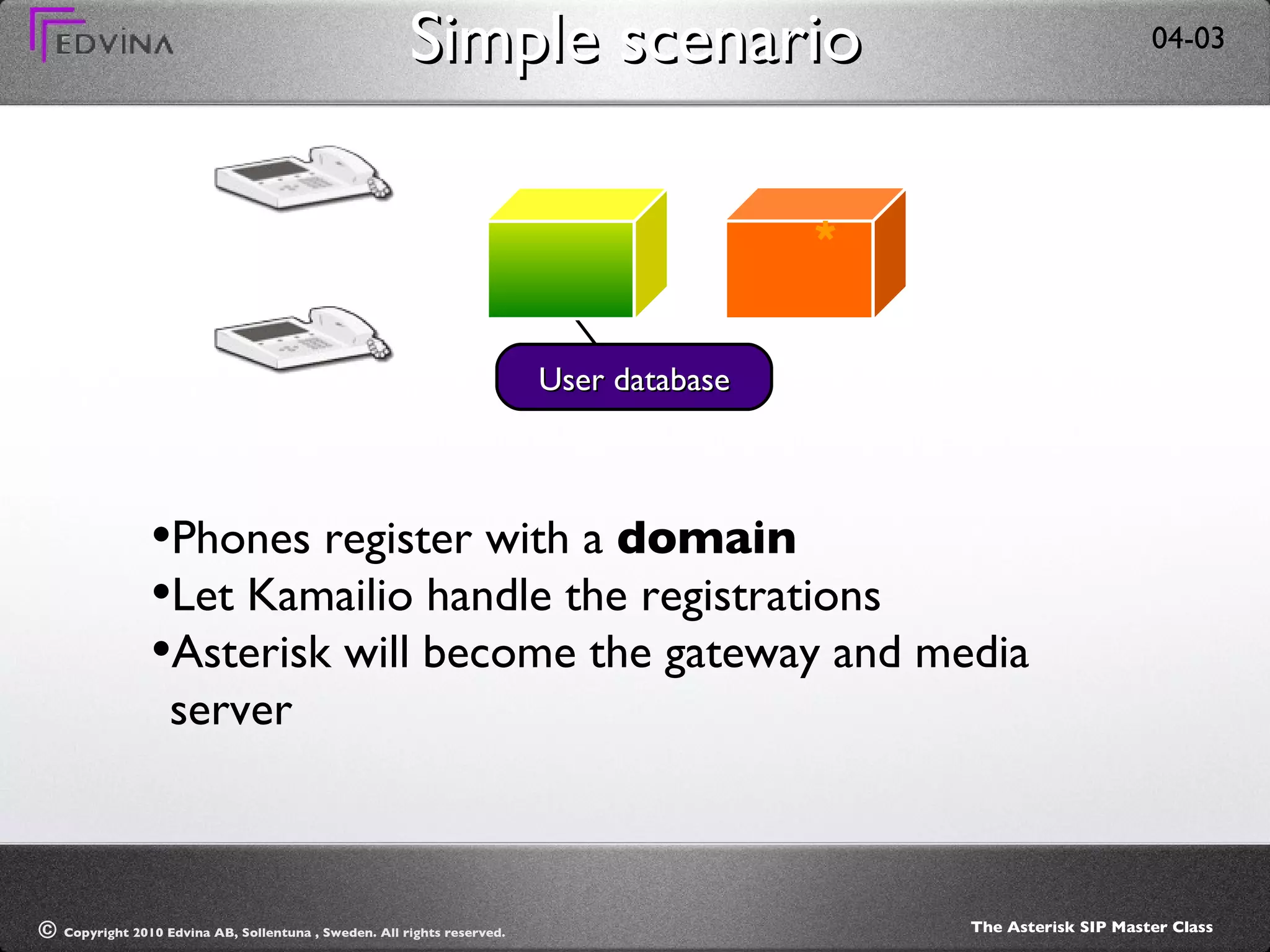

38. Simple scenario User database Phones register with a domain Let Kamailio handle the registrations Asterisk will become the gateway and media server *

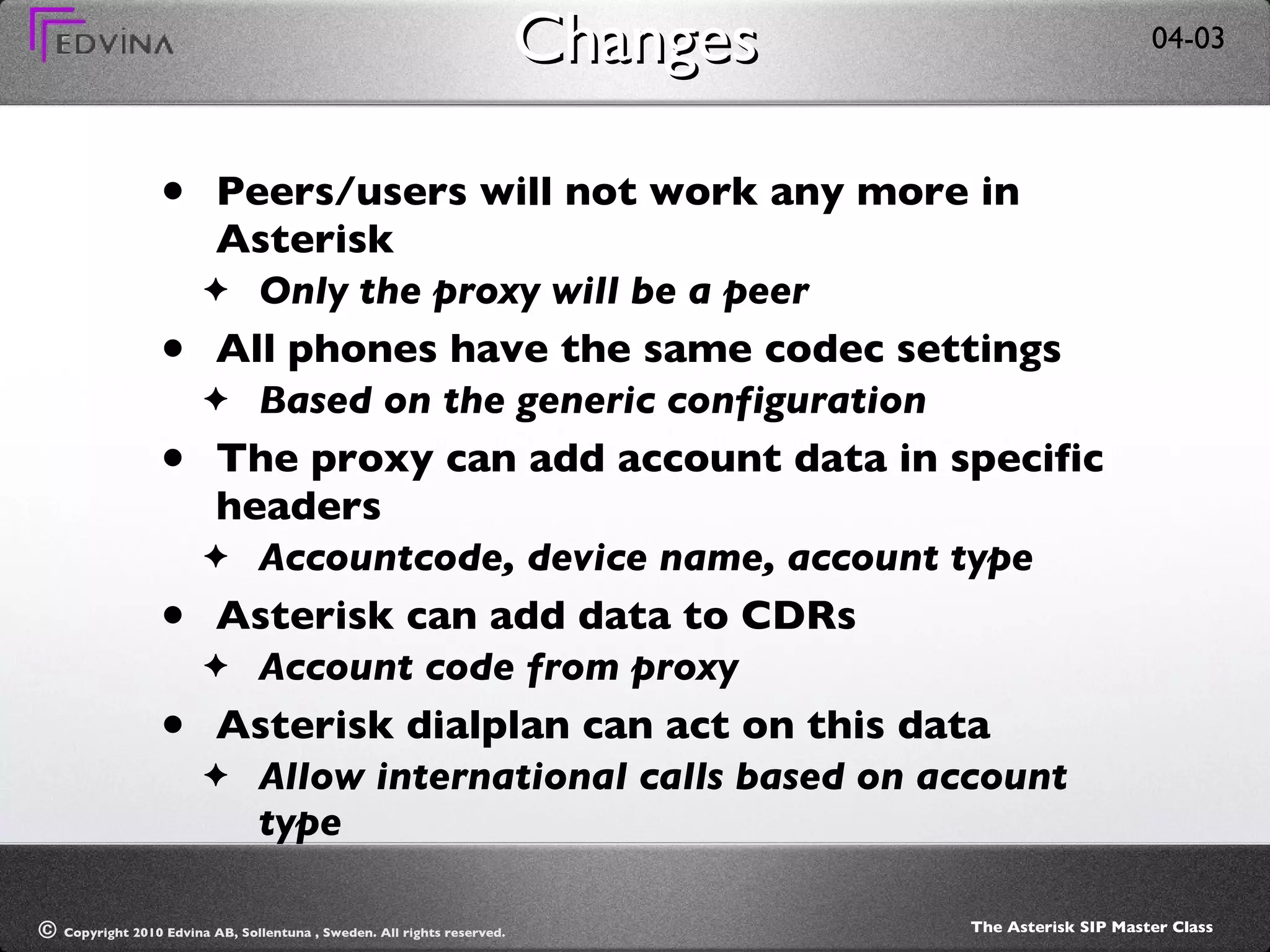

39. Changes Peers/users will not work any more in Asterisk Only the proxy will be a peer All phones have the same codec settings Based on the generic configuration The proxy can add account data in specific headers Accountcode, device name, account type Asterisk can add data to CDRs Account code from proxy Asterisk dialplan can act on this data Allow international calls based on account type

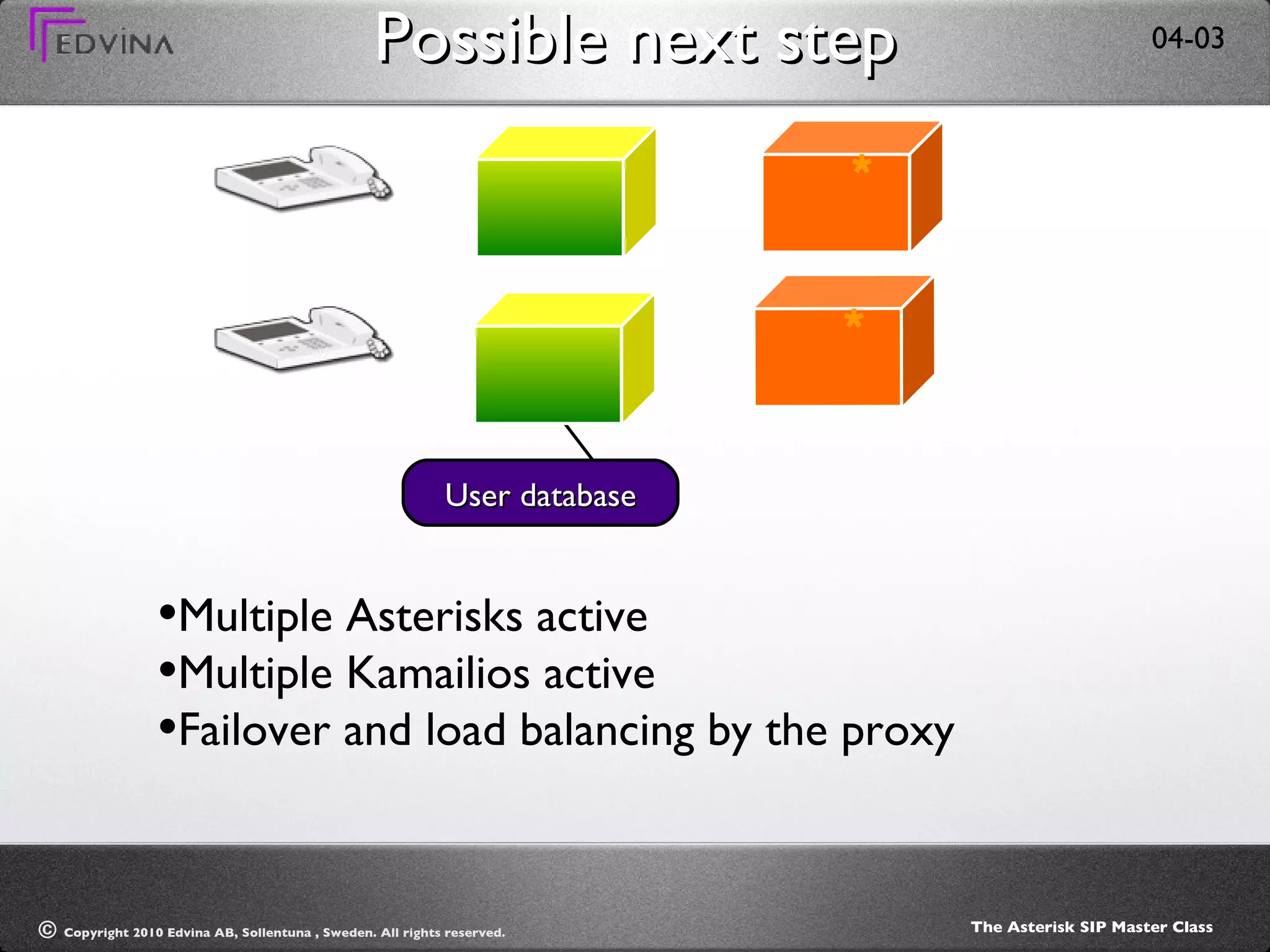

40. Possible next step User database Multiple Asterisks active Multiple Kamailios active Failover and load balancing by the proxy * *

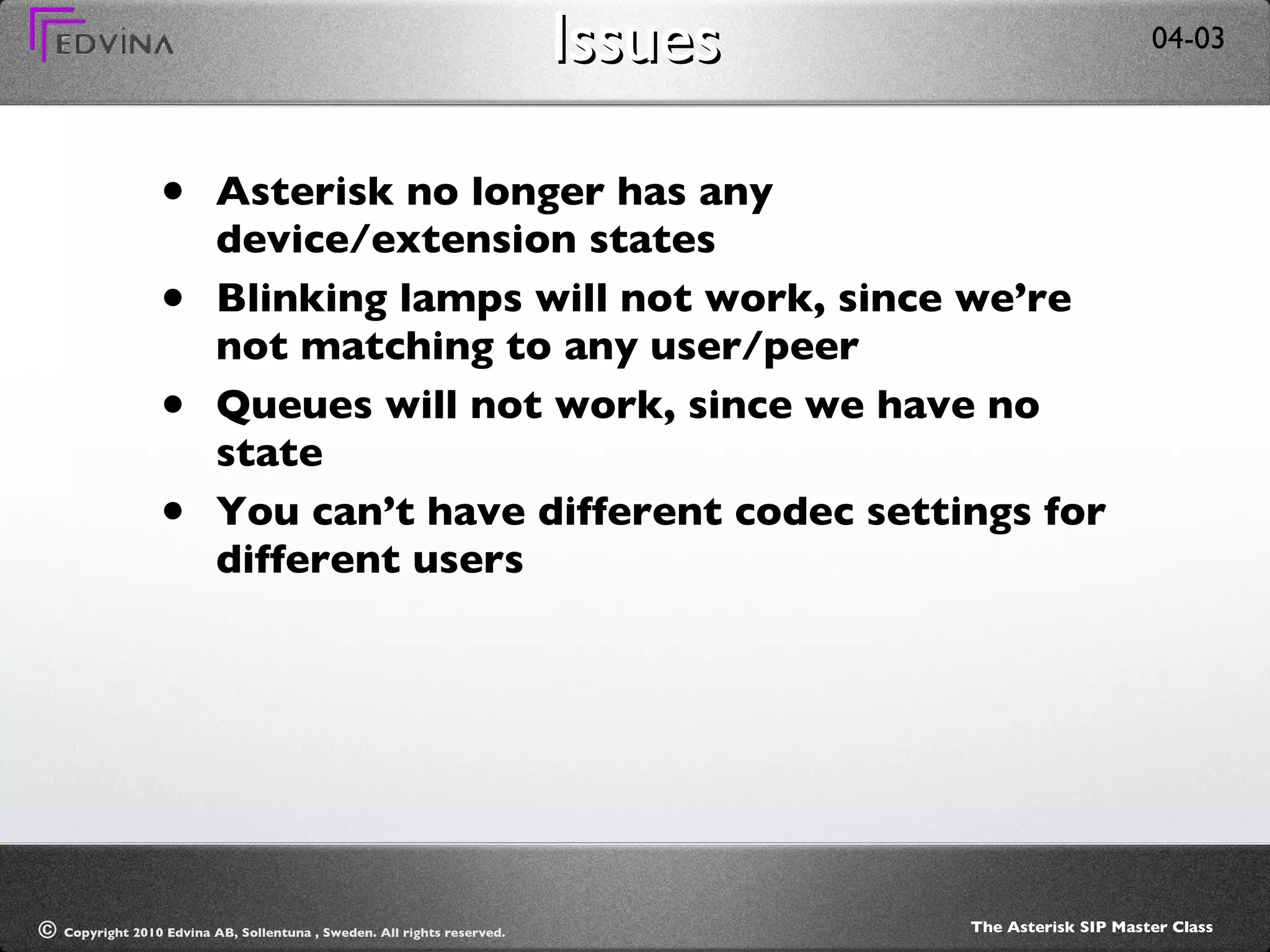

41. Issues Asterisk no longer has any device/extension states Blinking lamps will not work, since we’re not matching to any user/peer Queues will not work, since we have no state You can’t have different codec settings for different users

42. Using Realtime Real Time, what realtime? Give me more time.

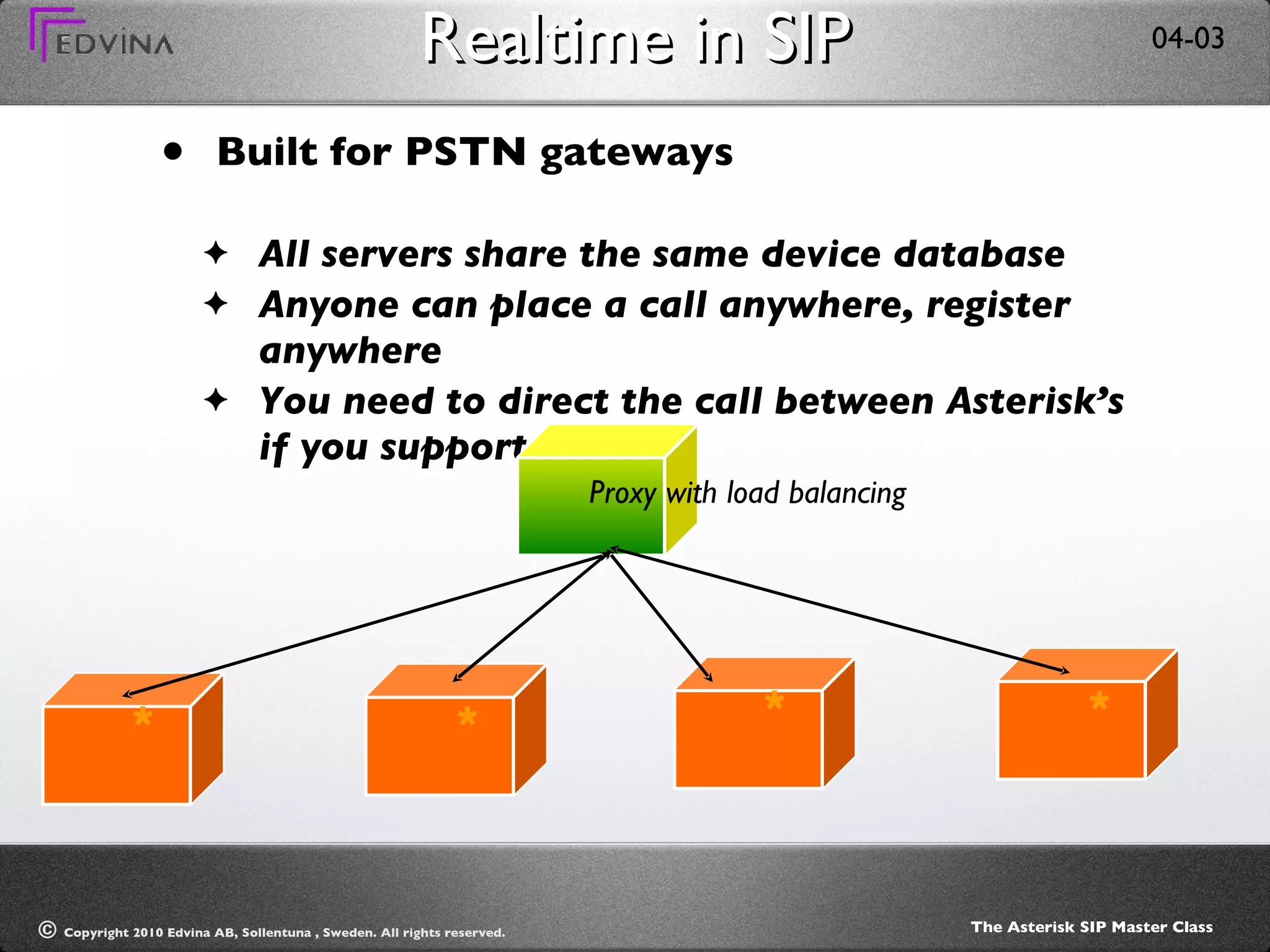

43. Realtime in SIP Built for PSTN gateways All servers share the same device database Anyone can place a call anywhere, register anywhere You need to direct the call between Asterisk’s if you support NAT Proxy with load balancing * * * *

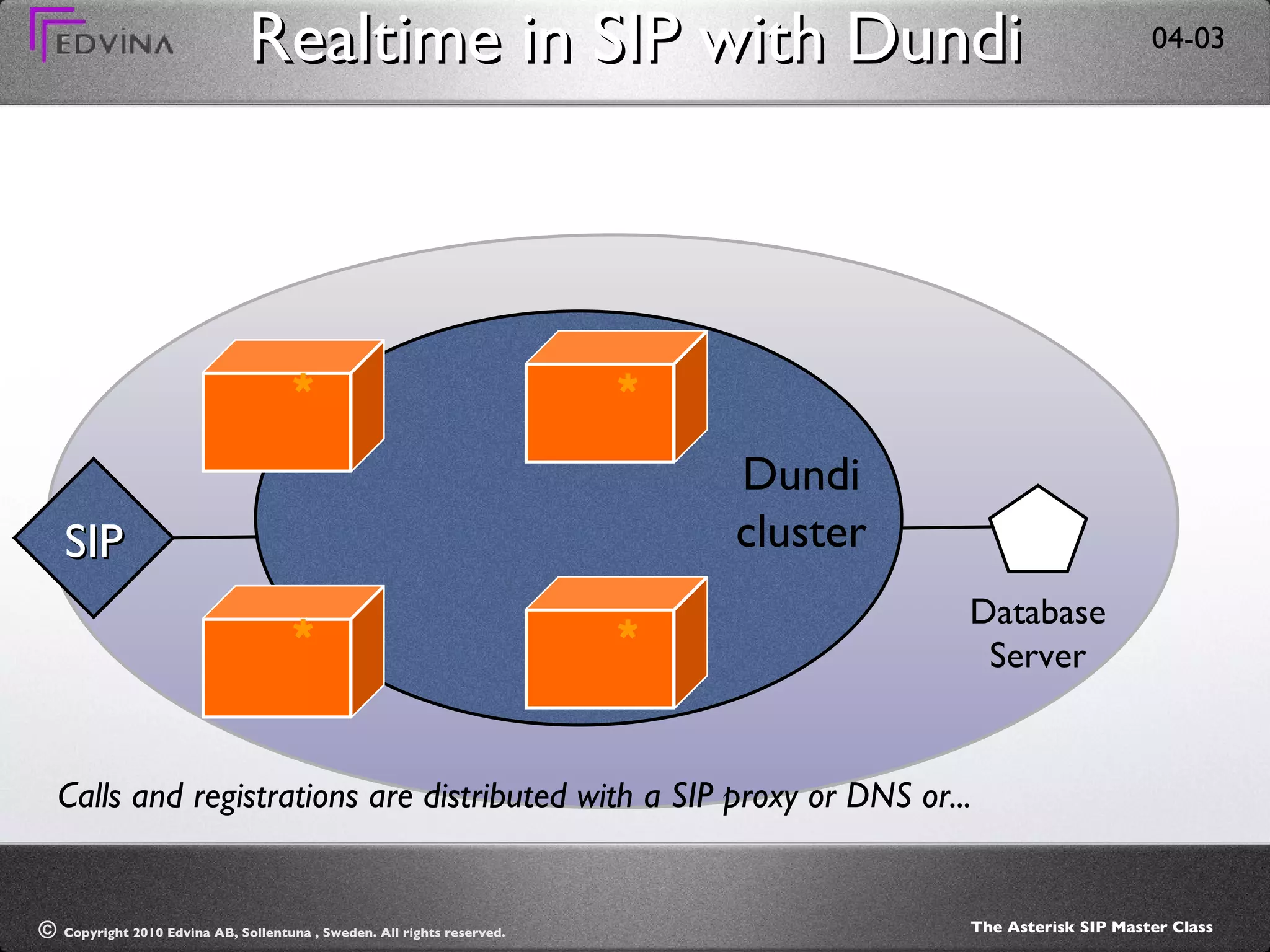

44. Realtime in SIP with Dundi Dundi cluster SIP Database Server Calls and registrations are distributed with a SIP proxy or DNS or... * * * *

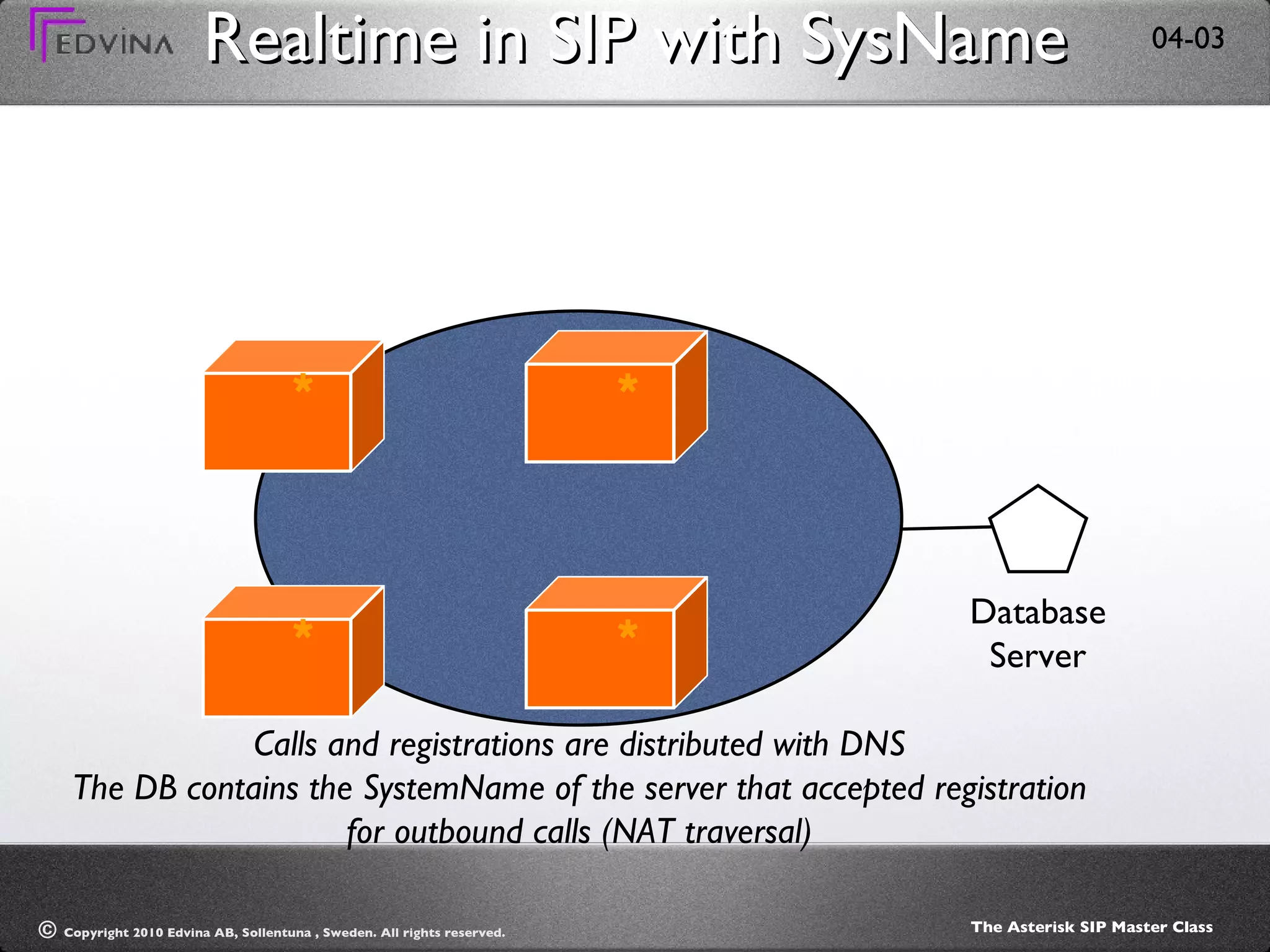

45. Realtime in SIP with SysName Database Server Calls and registrations are distributed with DNS The DB contains the SystemName of the server that accepted registration for outbound calls (NAT traversal) * * * *

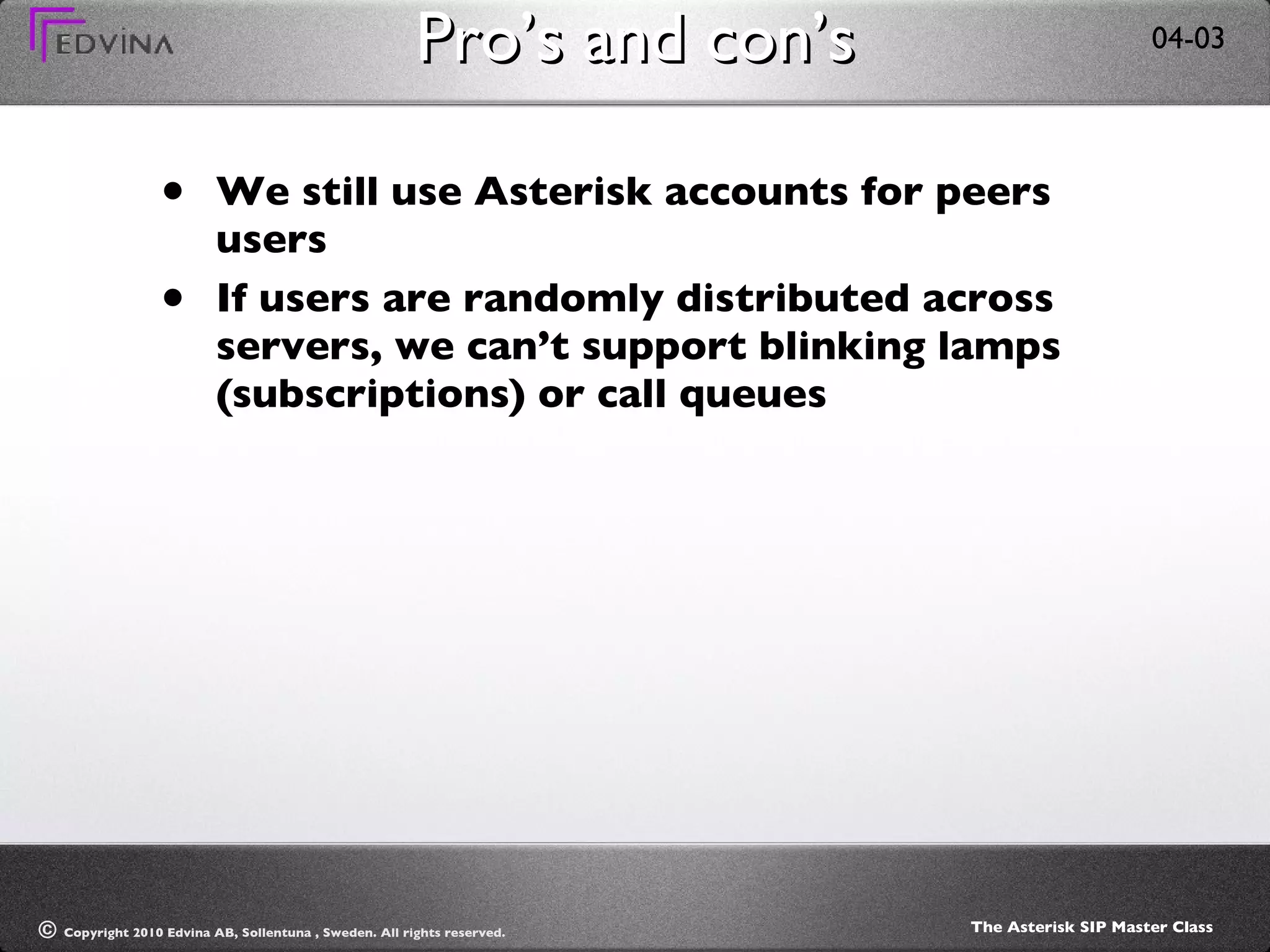

46. Pro’s and con’s We still use Asterisk accounts for peers users If users are randomly distributed across servers, we can’t support blinking lamps (subscriptions) or call queues

47. Realtime hybrid

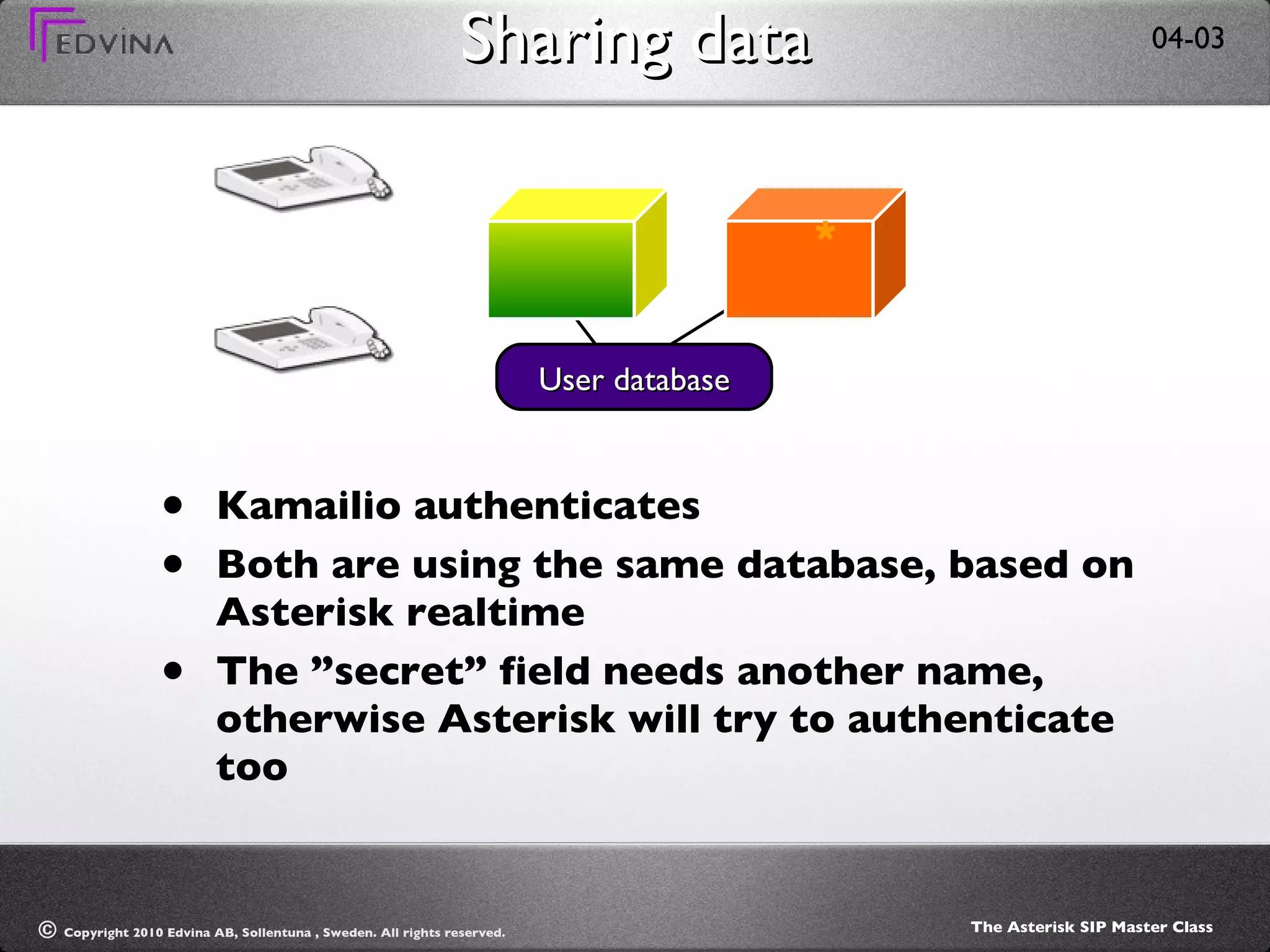

48. Sharing data Kamailio authenticates Both are using the same database, based on Asterisk realtime The ”secret” field needs another name, otherwise Asterisk will try to authenticate too User database *

49. PBX hosting

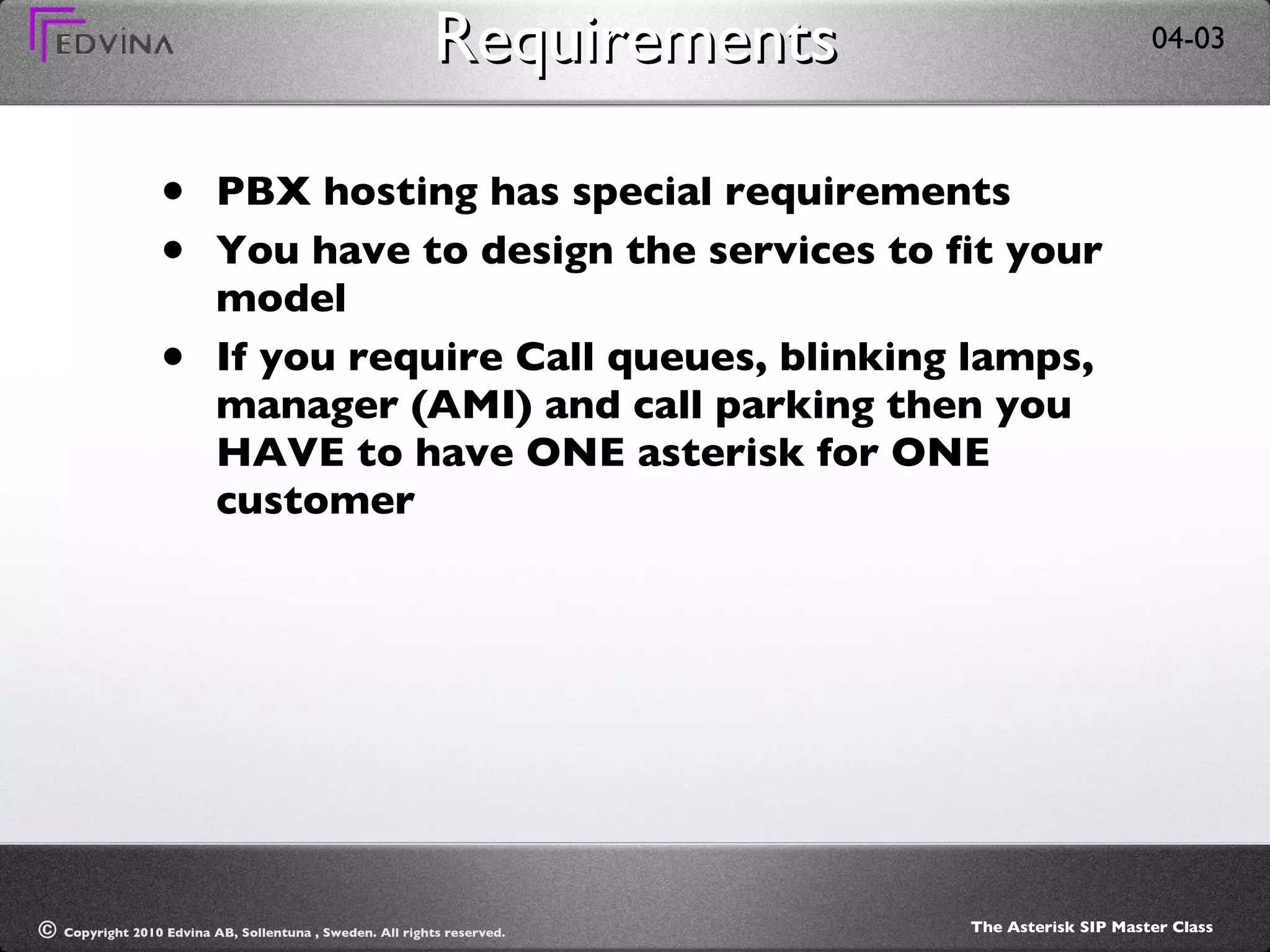

50. Requirements PBX hosting has special requirements You have to design the services to fit your model If you require Call queues, blinking lamps, manager (AMI) and call parking then you HAVE to have ONE asterisk for ONE customer

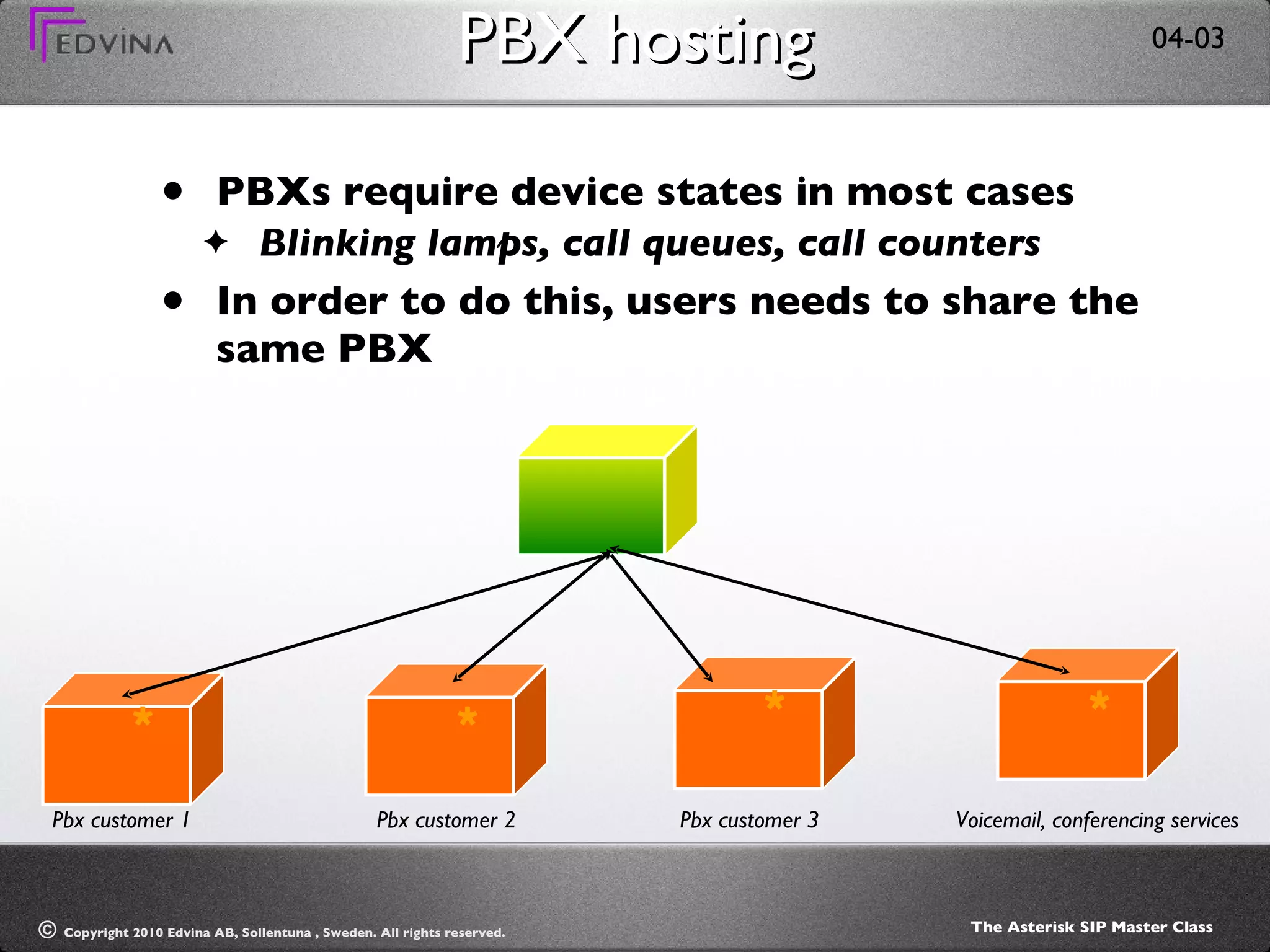

51. PBX hosting PBXs require device states in most cases Blinking lamps, call queues, call counters In order to do this, users needs to share the same PBX Pbx customer 1 Pbx customer 2 Pbx customer 3 Voicemail, conferencing services * * * *

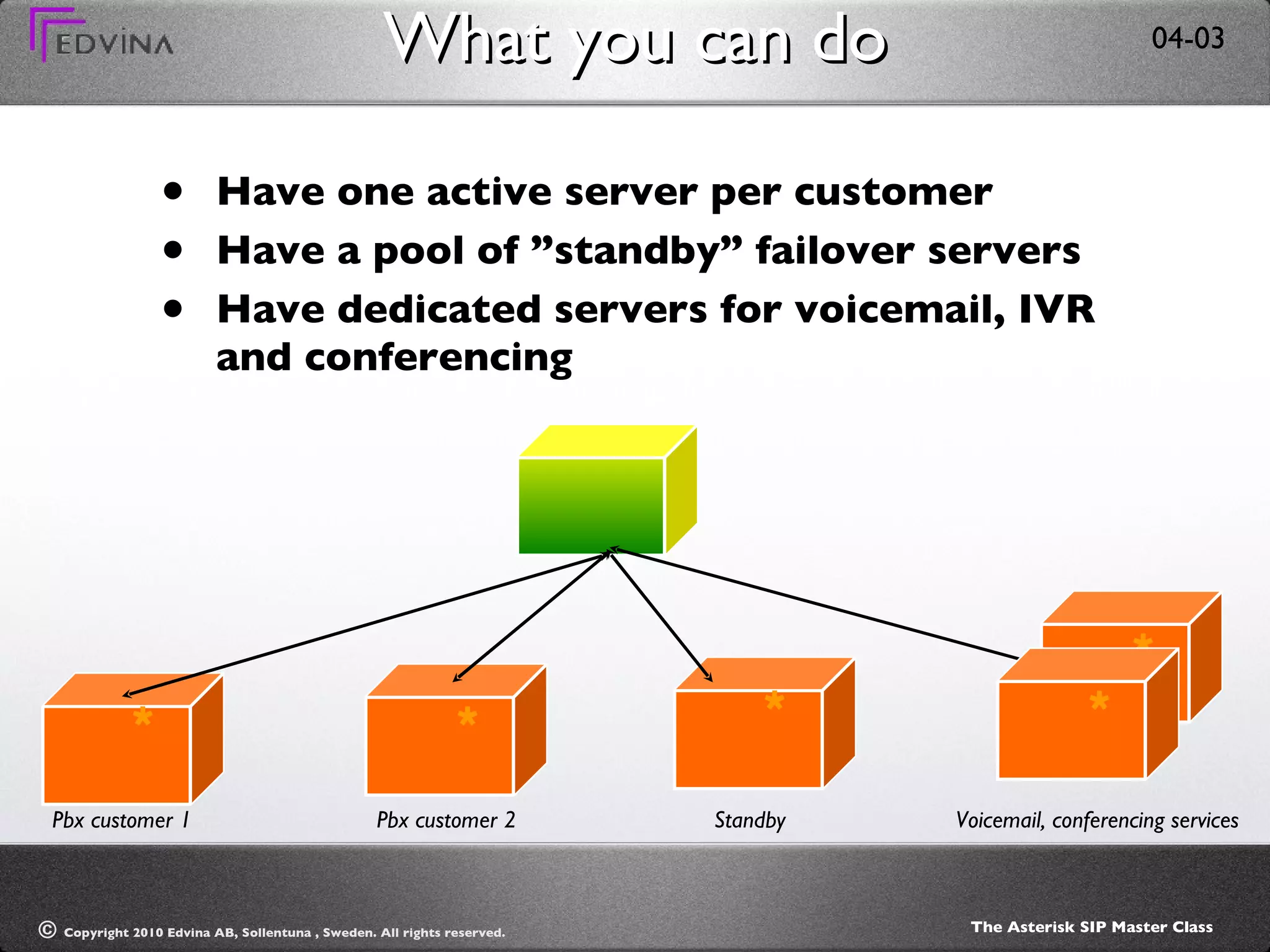

52. What you can do Have one active server per customer Have a pool of ”standby” failover servers Have dedicated servers for voicemail, IVR and conferencing Pbx customer 1 Pbx customer 2 Standby Voicemail, conferencing services * * * * *

53. Configuration

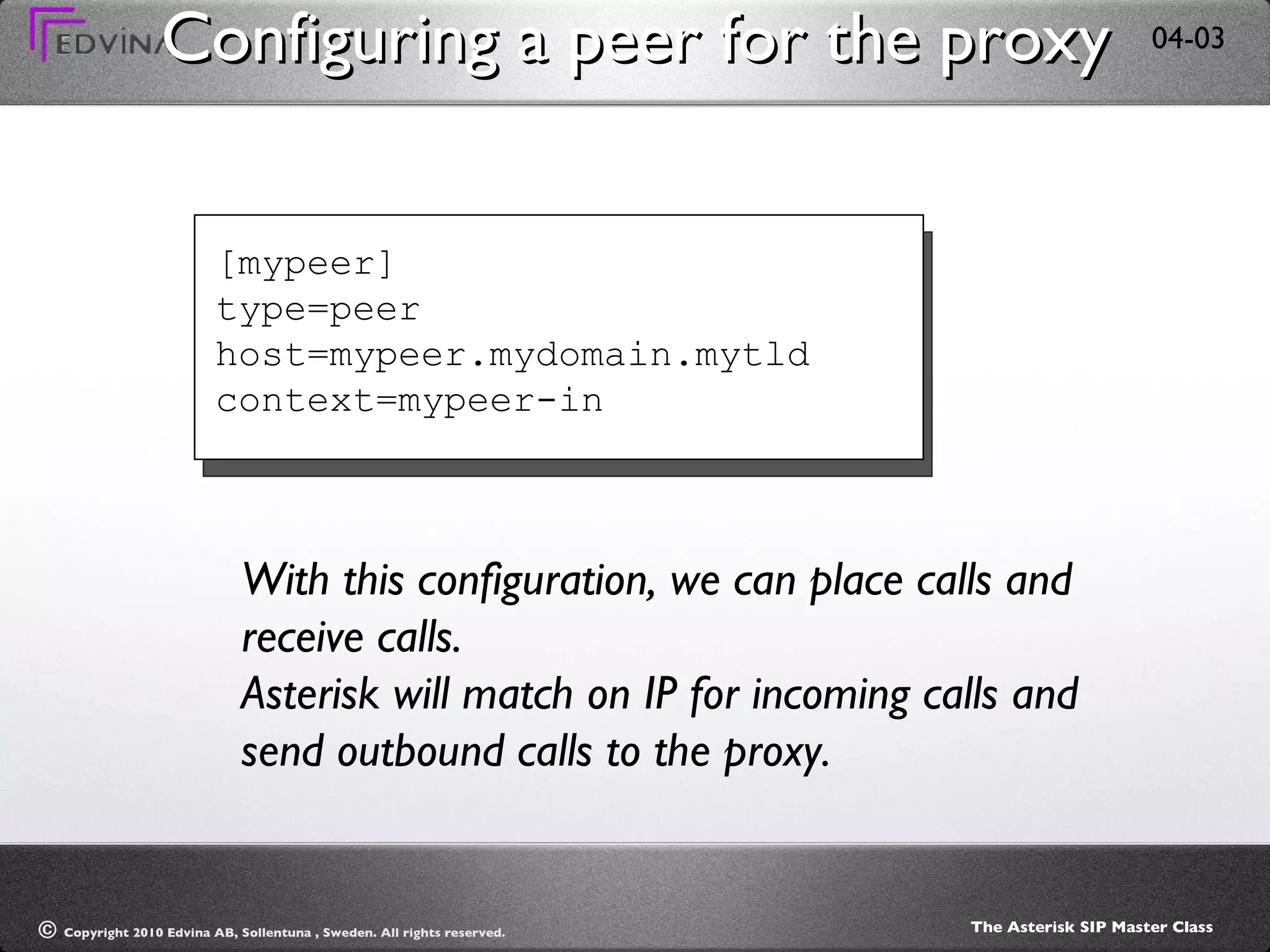

54. Configuring a peer for the proxy [mypeer] type=peer host=mypeer.mydomain.mytld context=mypeer-in With this configuration, we can place calls and receive calls. Asterisk will match on IP for incoming calls and send outbound calls to the proxy.

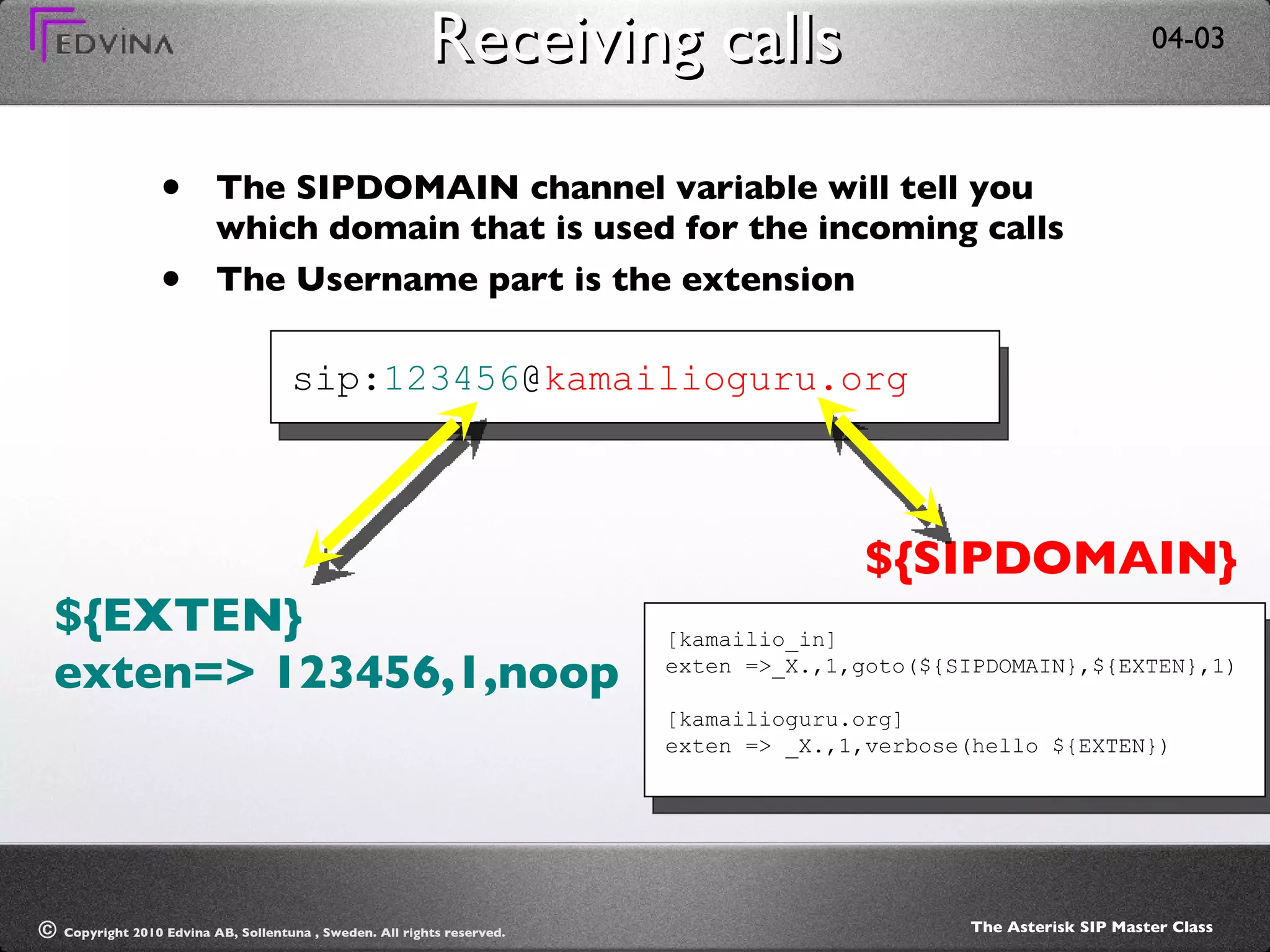

55. Receiving calls The SIPDOMAIN channel variable will tell you which domain that is used for the incoming calls The Username part is the extension sip: 123456 @ kamailioguru.org ${EXTEN} exten=> 123456,1,noop ${SIPDOMAIN} [kamailio_in] exten =>_X.,1,goto(${SIPDOMAIN},${EXTEN},1) [kamailioguru.org] exten => _X.,1,verbose(hello ${EXTEN})

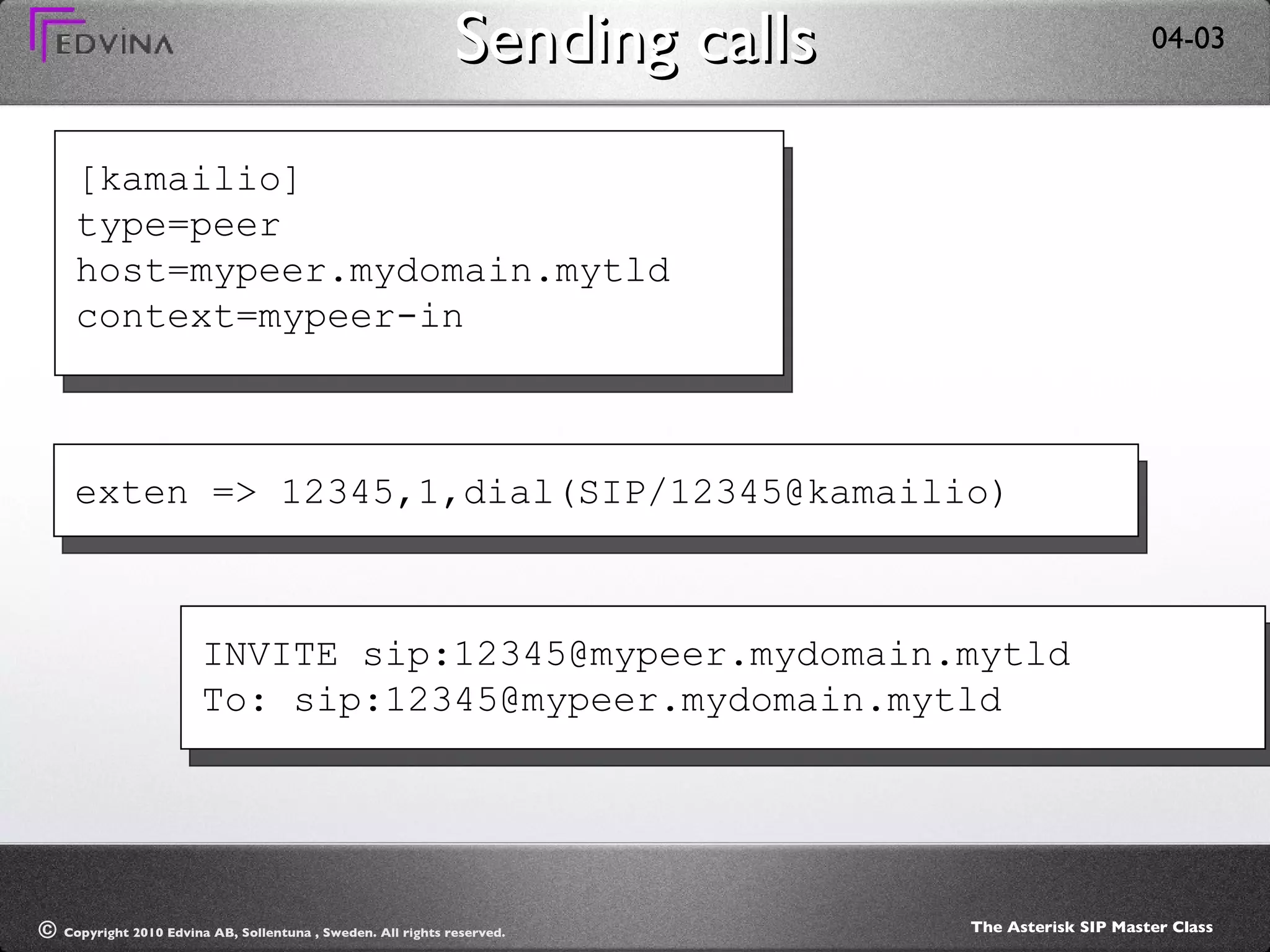

56. Sending calls [kamailio] type=peer host=mypeer.mydomain.mytld context=mypeer-in exten => 12345,1,dial(SIP/12345@kamailio) INVITE sip:12345@mypeer.mydomain.mytld To: sip:12345@mypeer.mydomain.mytld

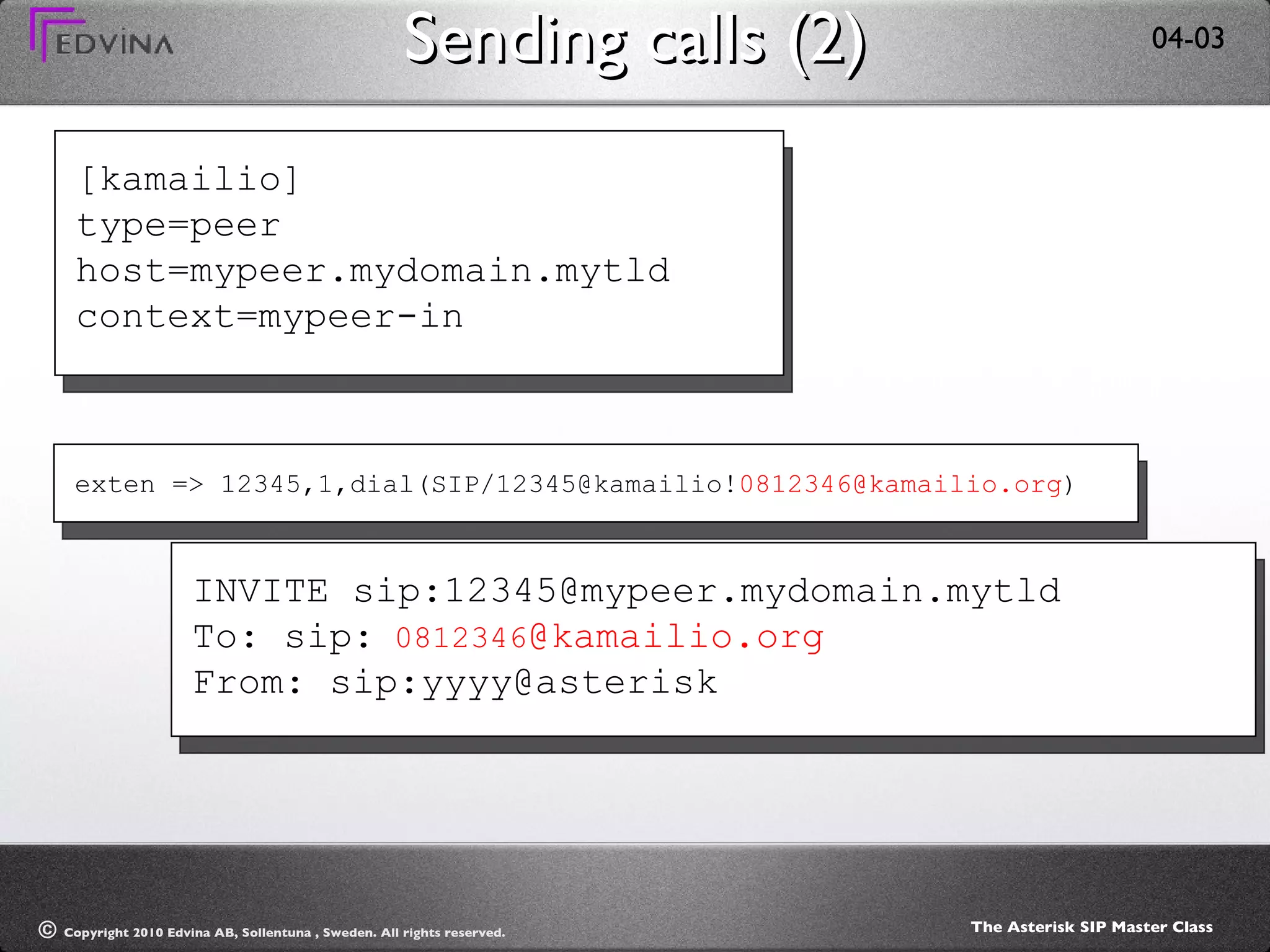

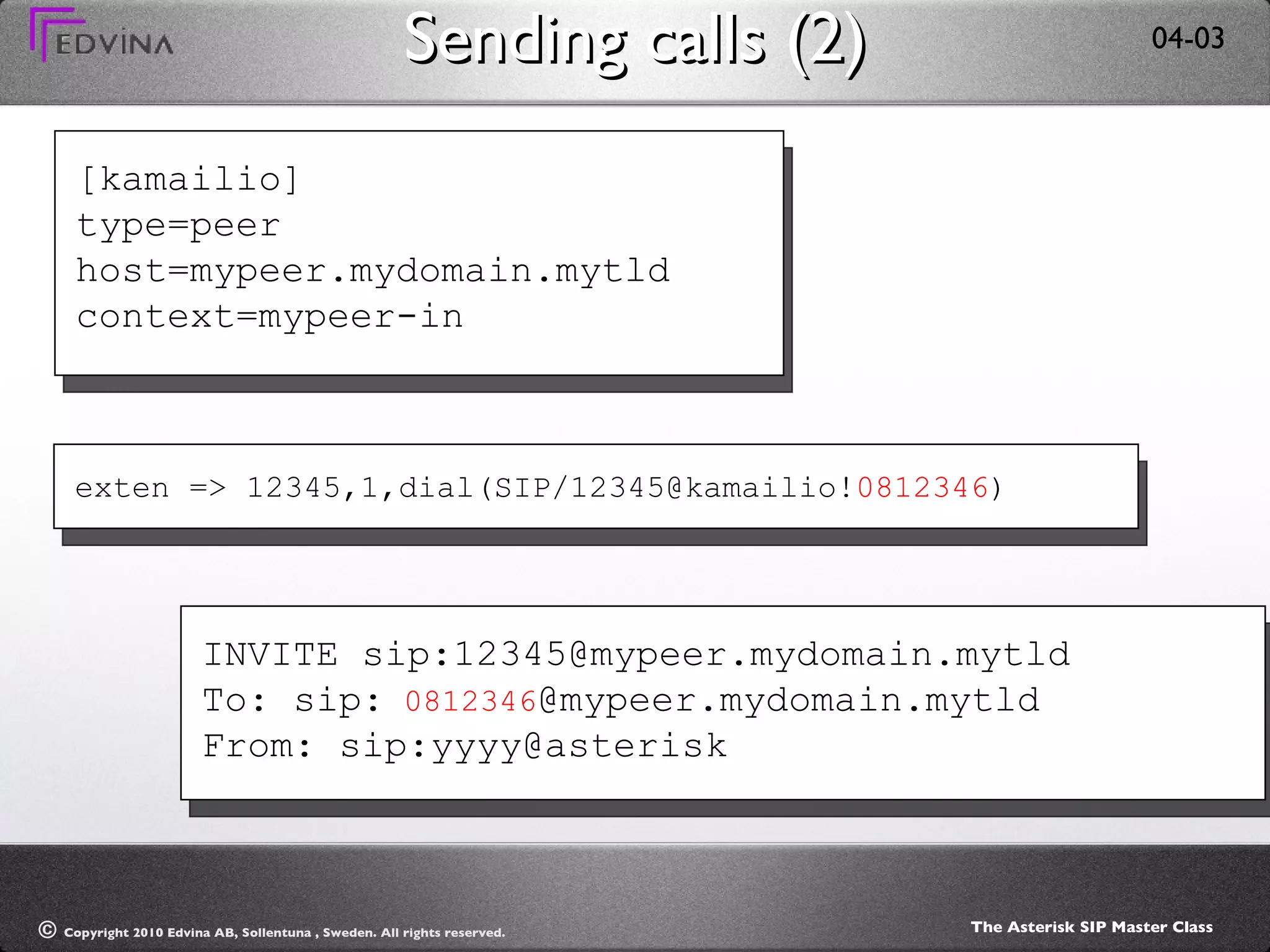

57. Sending calls (2) [kamailio] type=peer host=mypeer.mydomain.mytld context=mypeer-in exten => 12345,1,dial(SIP/12345@kamailio! 0812346 ) INVITE sip:12345@mypeer.mydomain.mytld To: sip: 0812346 @mypeer.mydomain.mytld From: sip:yyyy@asterisk

58. Sending calls (2) [kamailio] type=peer host=mypeer.mydomain.mytld context=mypeer-in exten => 12345,1,dial(SIP/12345@kamailio! [email_address] ) INVITE sip:12345@mypeer.mydomain.mytld To: sip: 0812346 @kamailio.org From: sip:yyyy@asterisk

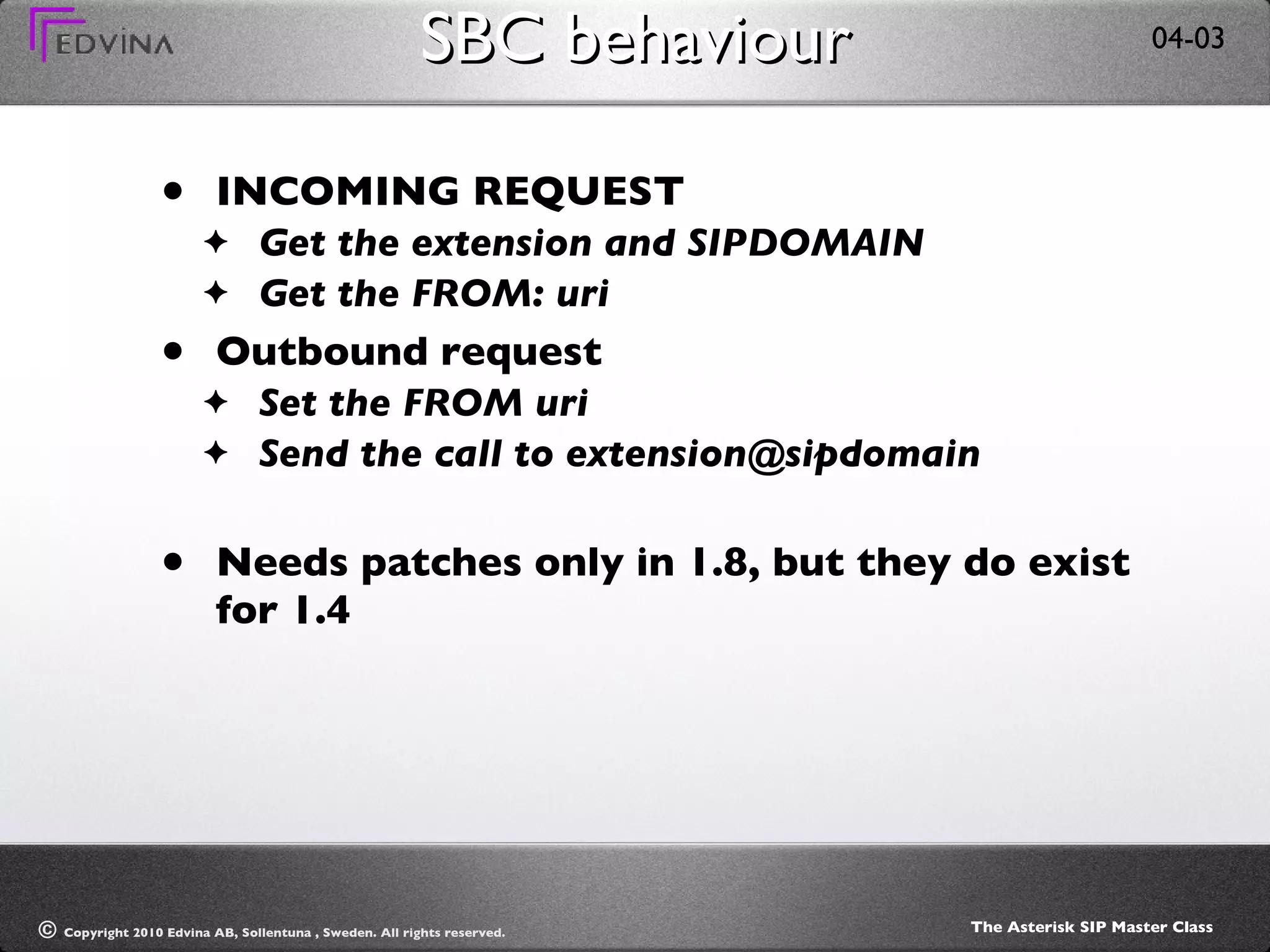

59. SBC behaviour INCOMING REQUEST Get the extension and SIPDOMAIN Get the FROM: uri Outbound request Set the FROM uri Send the call to extension@sipdomain Needs patches only in 1.8, but they do exist for 1.4

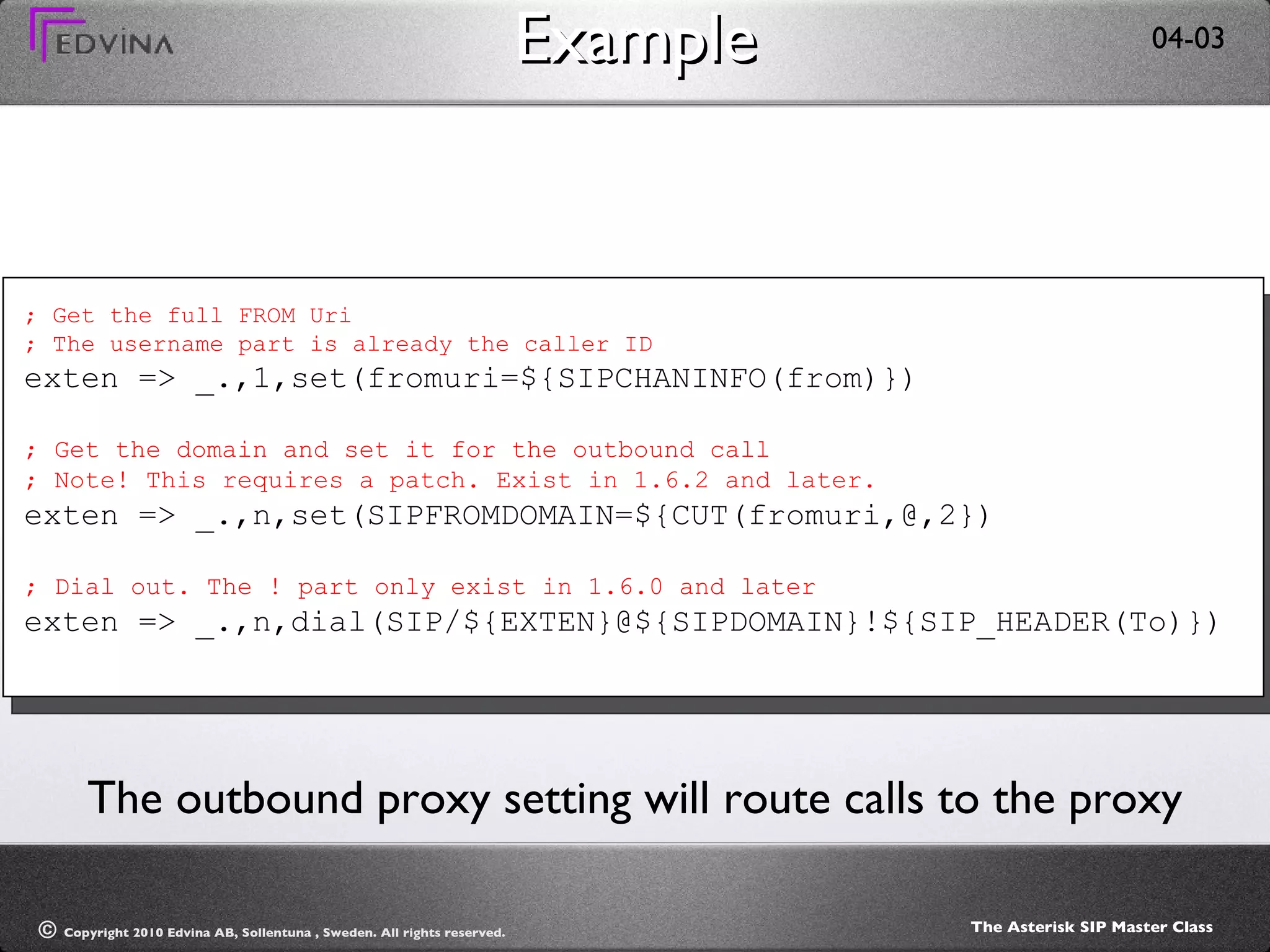

60. Example ; Get the full FROM Uri ; The username part is already the caller ID exten => _.,1,set(fromuri=${SIPCHANINFO(from)}) ; Get the domain and set it for the outbound call ; Note! This requires a patch. Exist in 1.6.2 and later. exten => _.,n,set(SIPFROMDOMAIN=${CUT(fromuri,@,2}) ; Dial out. The ! part only exist in 1.6.0 and later exten => _.,n,dial(SIP/${EXTEN}@${SIPDOMAIN}!${SIP_HEADER(To)}) The outbound proxy setting will route calls to the proxy

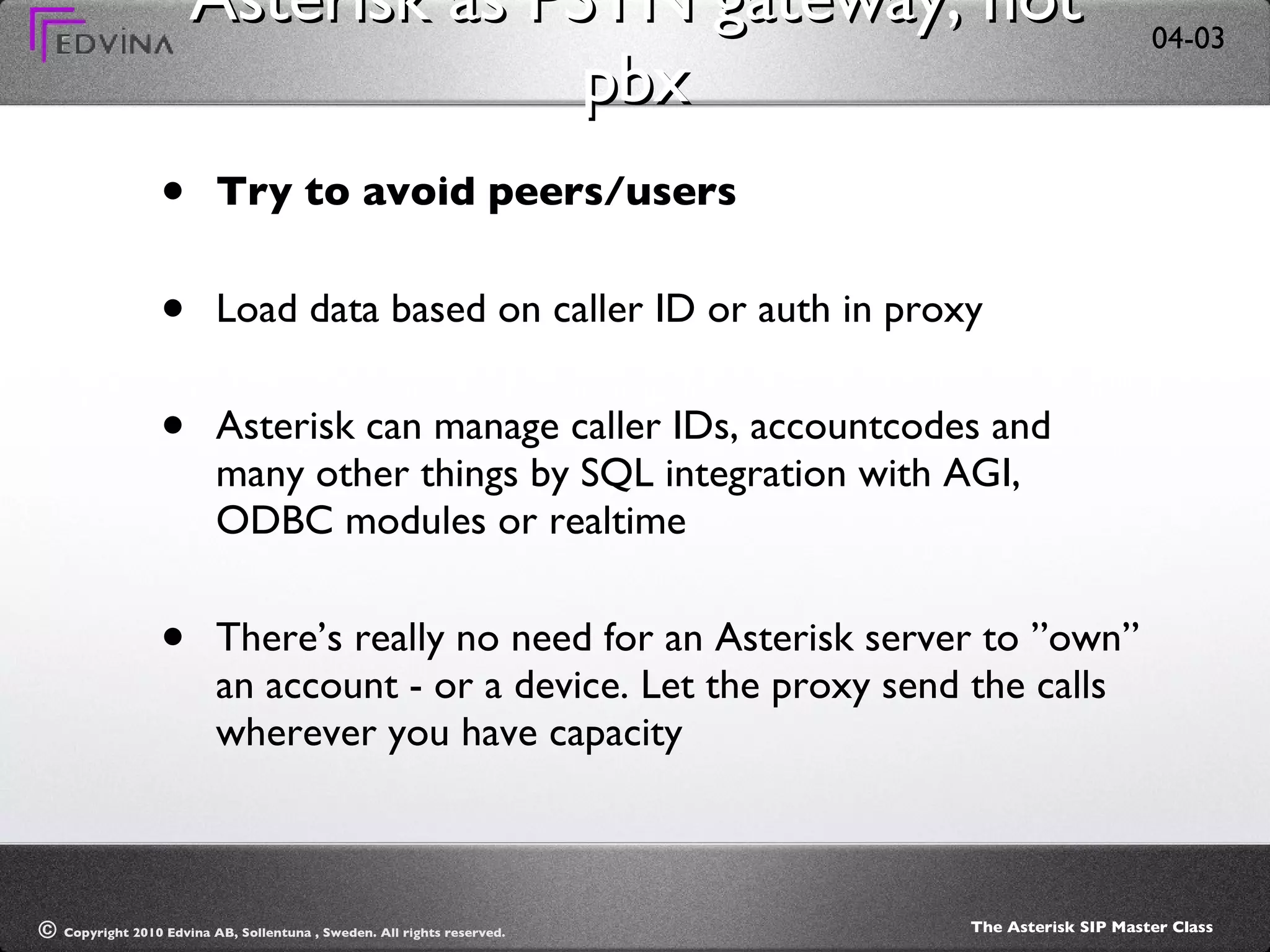

61. Asterisk as PSTN gateway, not pbx Try to avoid peers/users Load data based on caller ID or auth in proxy Asterisk can manage caller IDs, accountcodes and many other things by SQL integration with AGI, ODBC modules or realtime There’s really no need for an Asterisk server to ”own” an account - or a device. Let the proxy send the calls wherever you have capacity

62. Asterisk media server

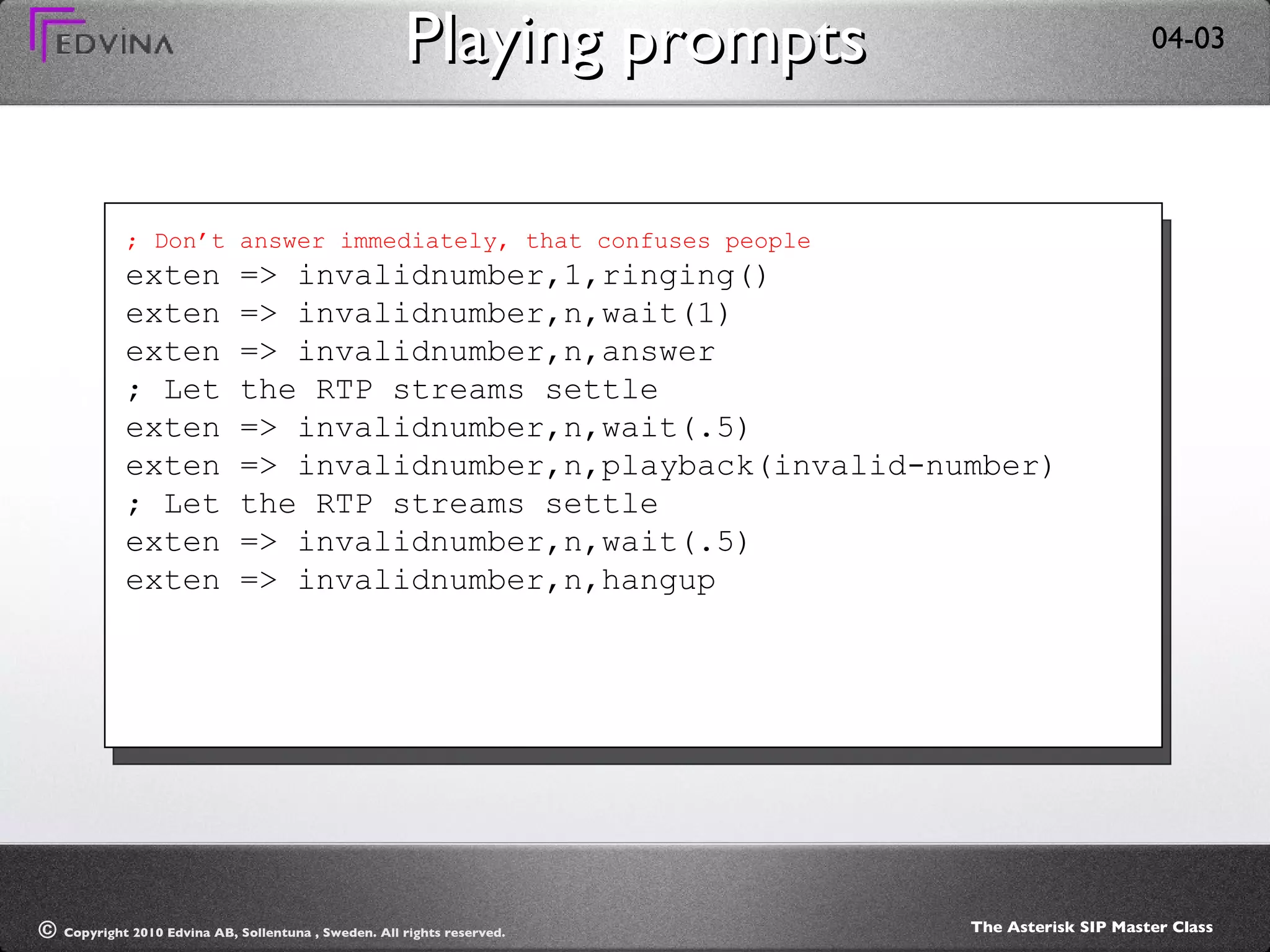

63. Playing prompts ; Don’t answer immediately, that confuses people exten => invalidnumber,1,ringing() exten => invalidnumber,n,wait(1) exten => invalidnumber,n,answer ; Let the RTP streams settle exten => invalidnumber,n,wait(.5) exten => invalidnumber,n,playback(invalid-number) ; Let the RTP streams settle exten => invalidnumber,n,wait(.5) exten => invalidnumber,n,hangup

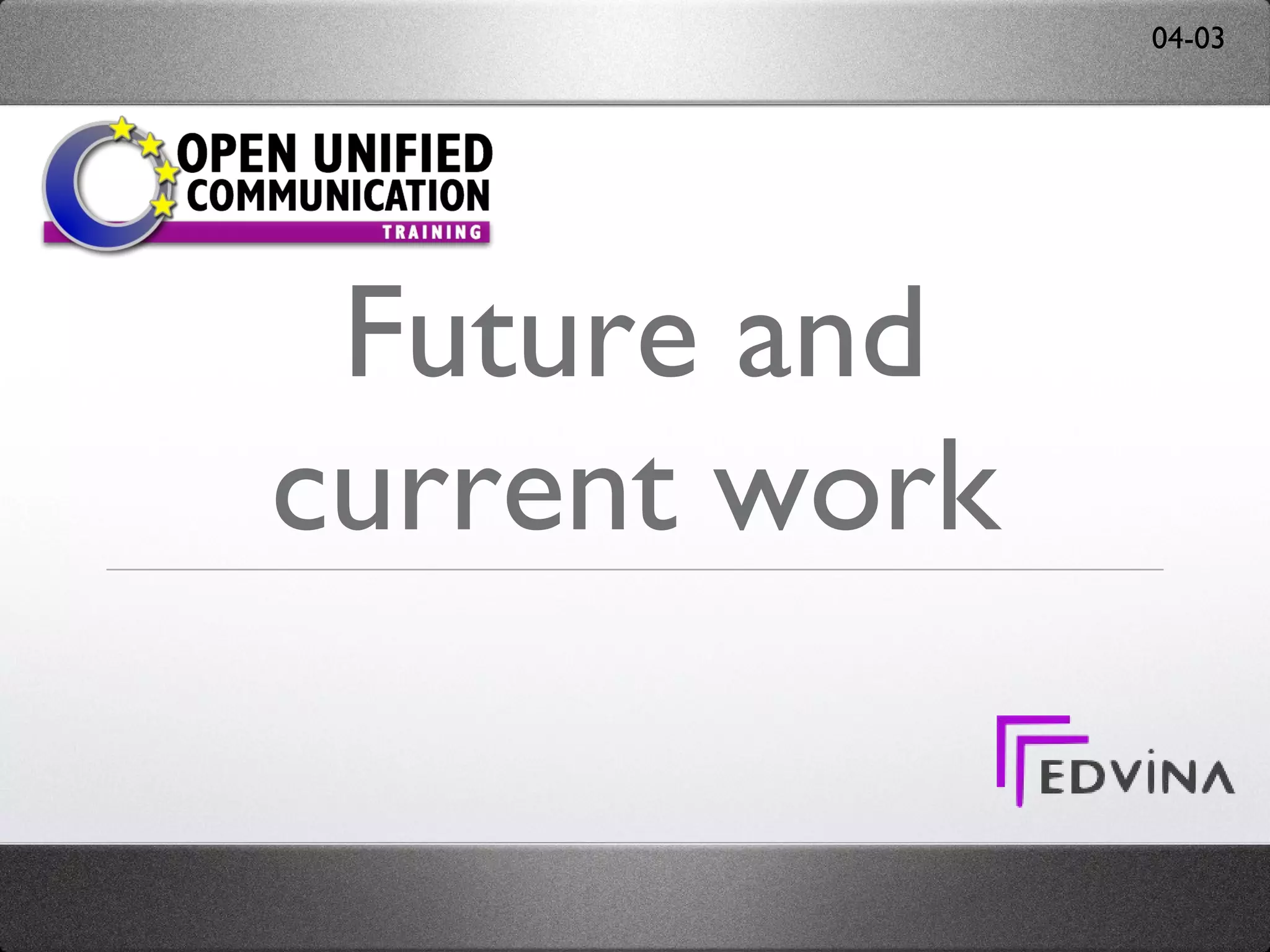

64. Future and current work

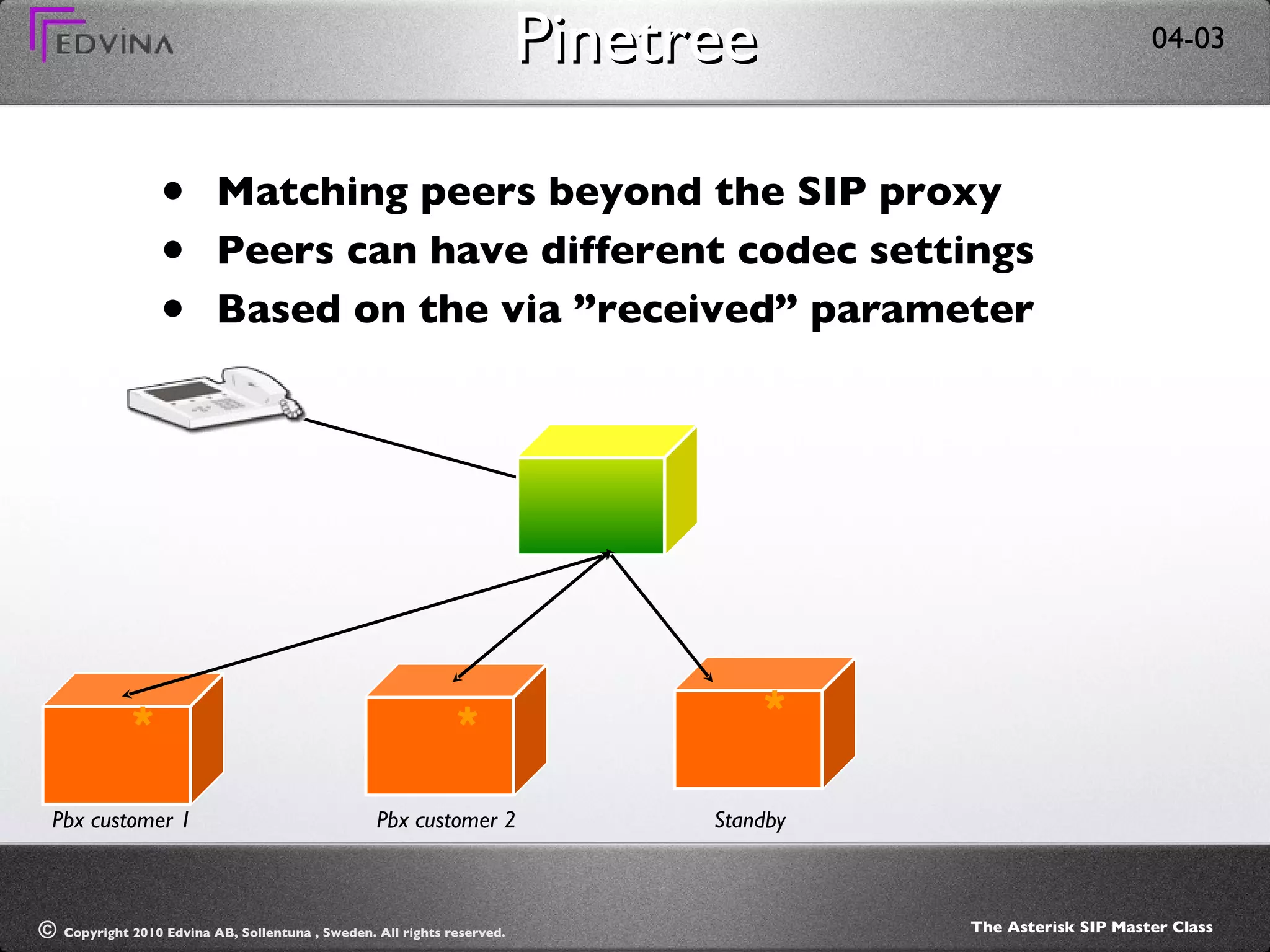

65. Pinetree Matching peers beyond the SIP proxy Peers can have different codec settings Based on the via ”received” parameter Pbx customer 1 Pbx customer 2 Standby * * *

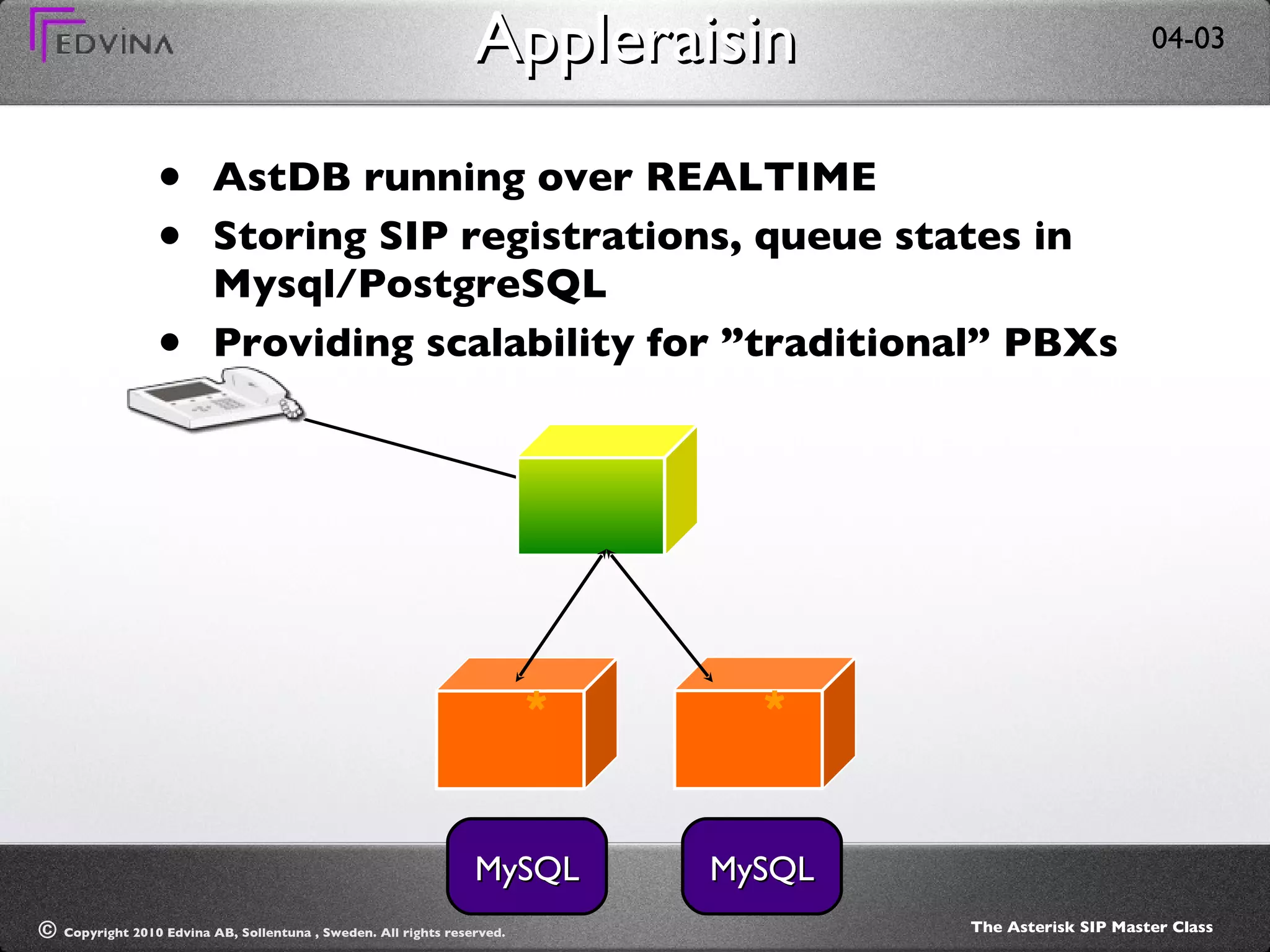

66. Appleraisin AstDB running over REALTIME Storing SIP registrations, queue states in Mysql/PostgreSQL Providing scalability for ”traditional” PBXs MySQL MySQL * *

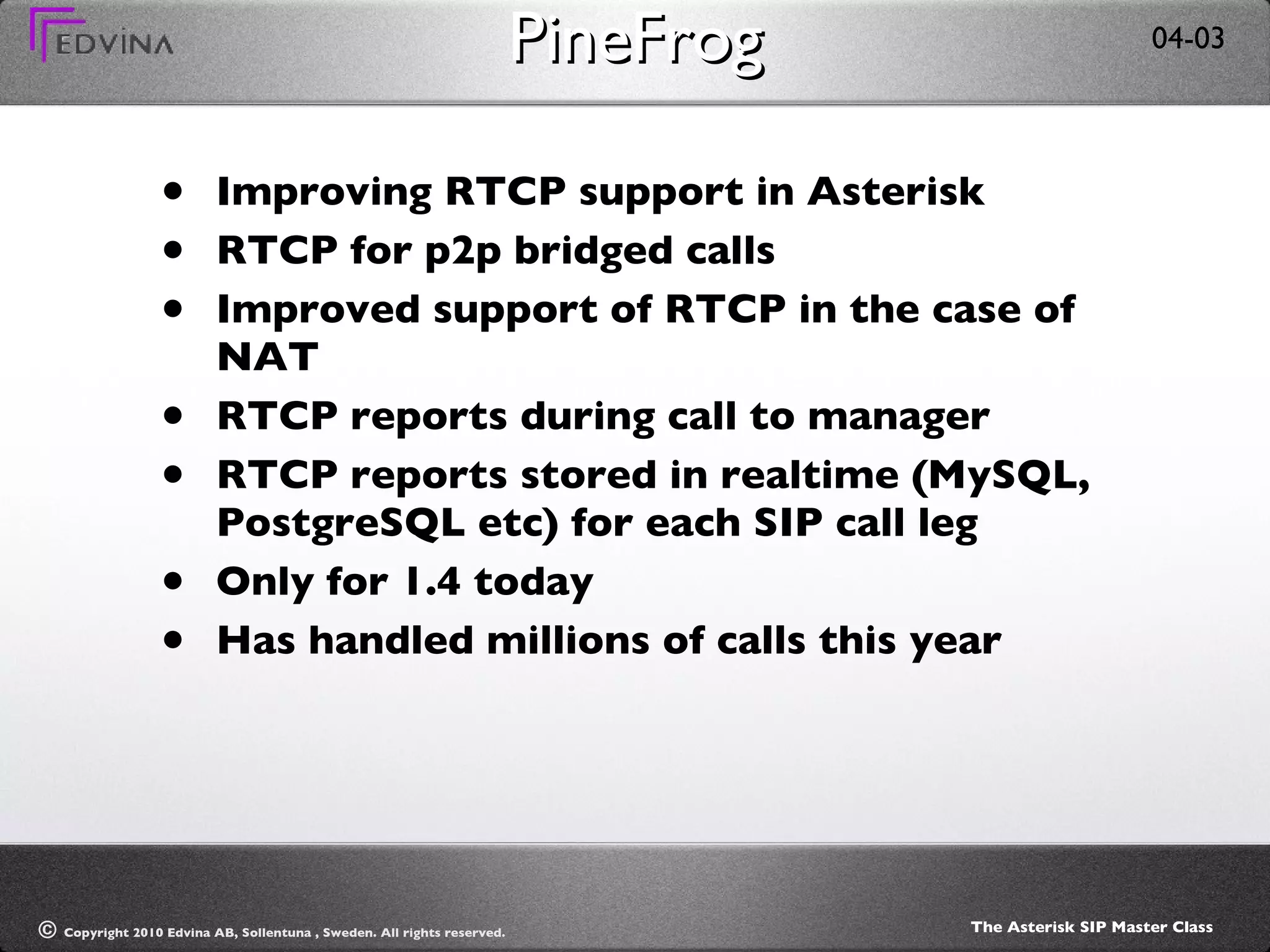

67. PineFrog Improving RTCP support in Asterisk RTCP for p2p bridged calls Improved support of RTCP in the case of NAT RTCP reports during call to manager RTCP reports stored in realtime (MySQL, PostgreSQL etc) for each SIP call leg Only for 1.4 today Has handled millions of calls this year

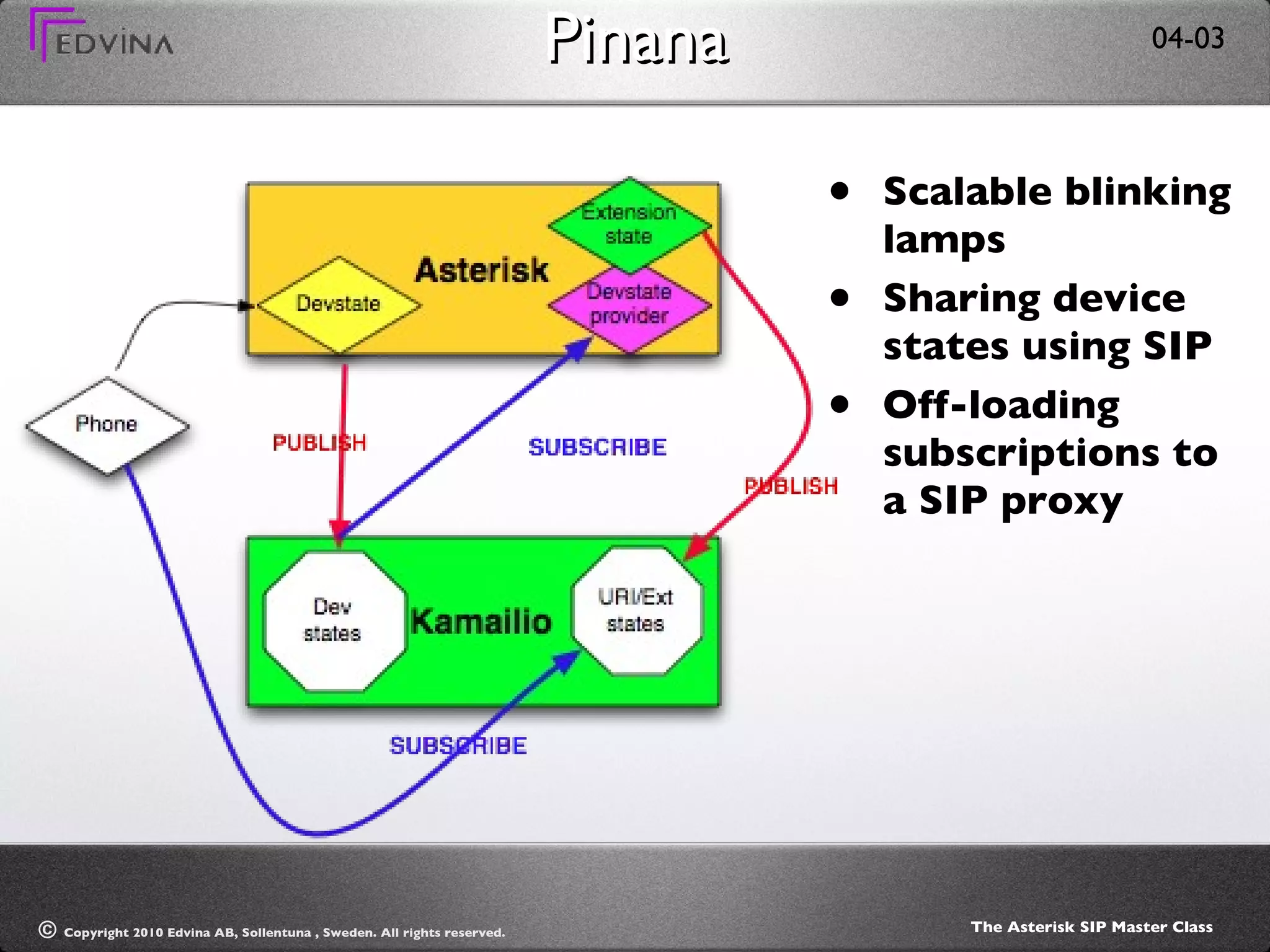

68. Pinana Scalable blinking lamps Sharing device states using SIP Off-loading subscriptions to a SIP proxy

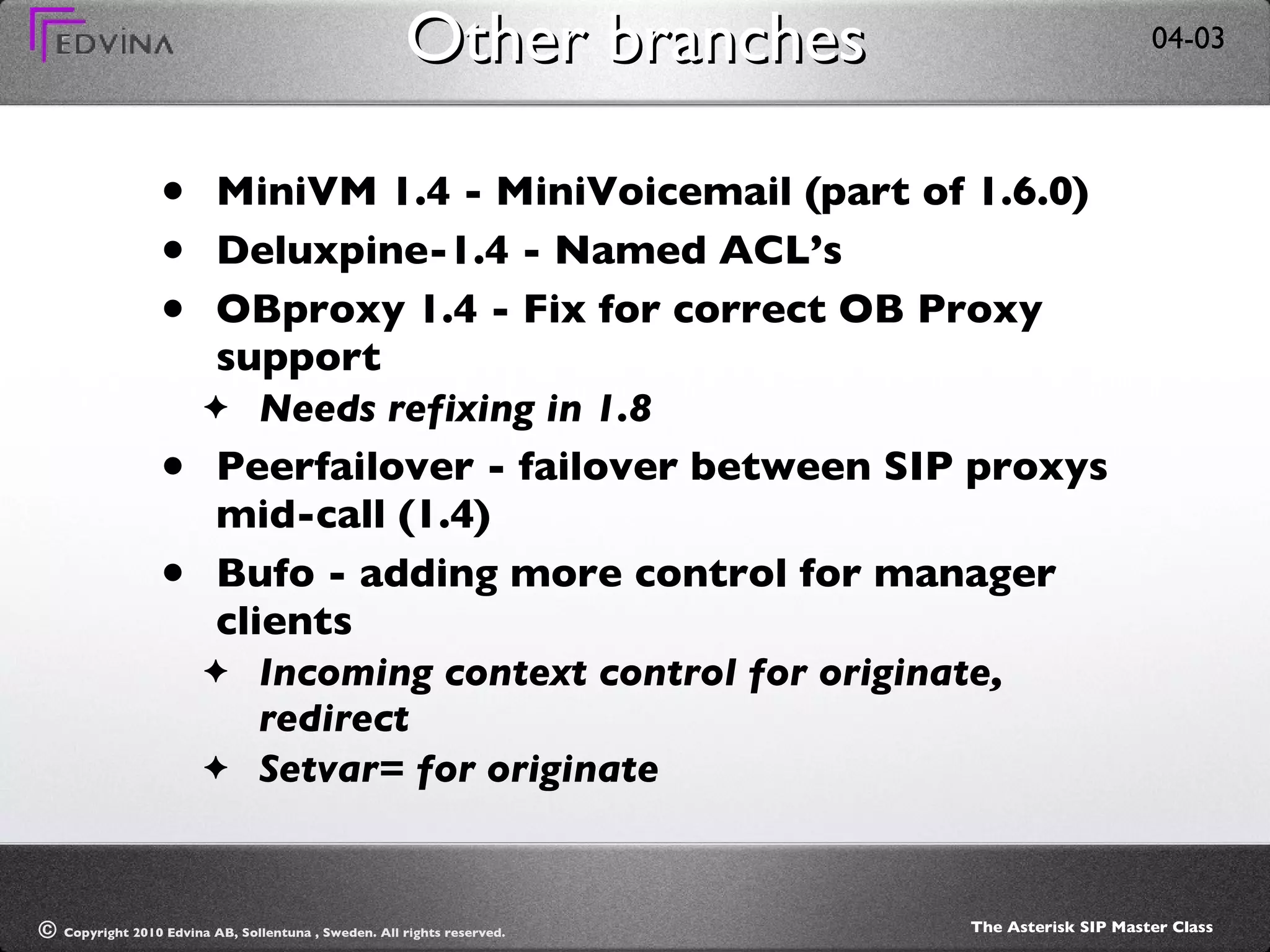

69. Other branches MiniVM 1.4 - MiniVoicemail (part of 1.6.0) Deluxpine-1.4 - Named ACL’s OBproxy 1.4 - Fix for correct OB Proxy support Needs refixing in 1.8 Peerfailover - failover between SIP proxys mid-call (1.4) Bufo - adding more control for manager clients Incoming context control for originate, redirect Setvar= for originate

70. Summary

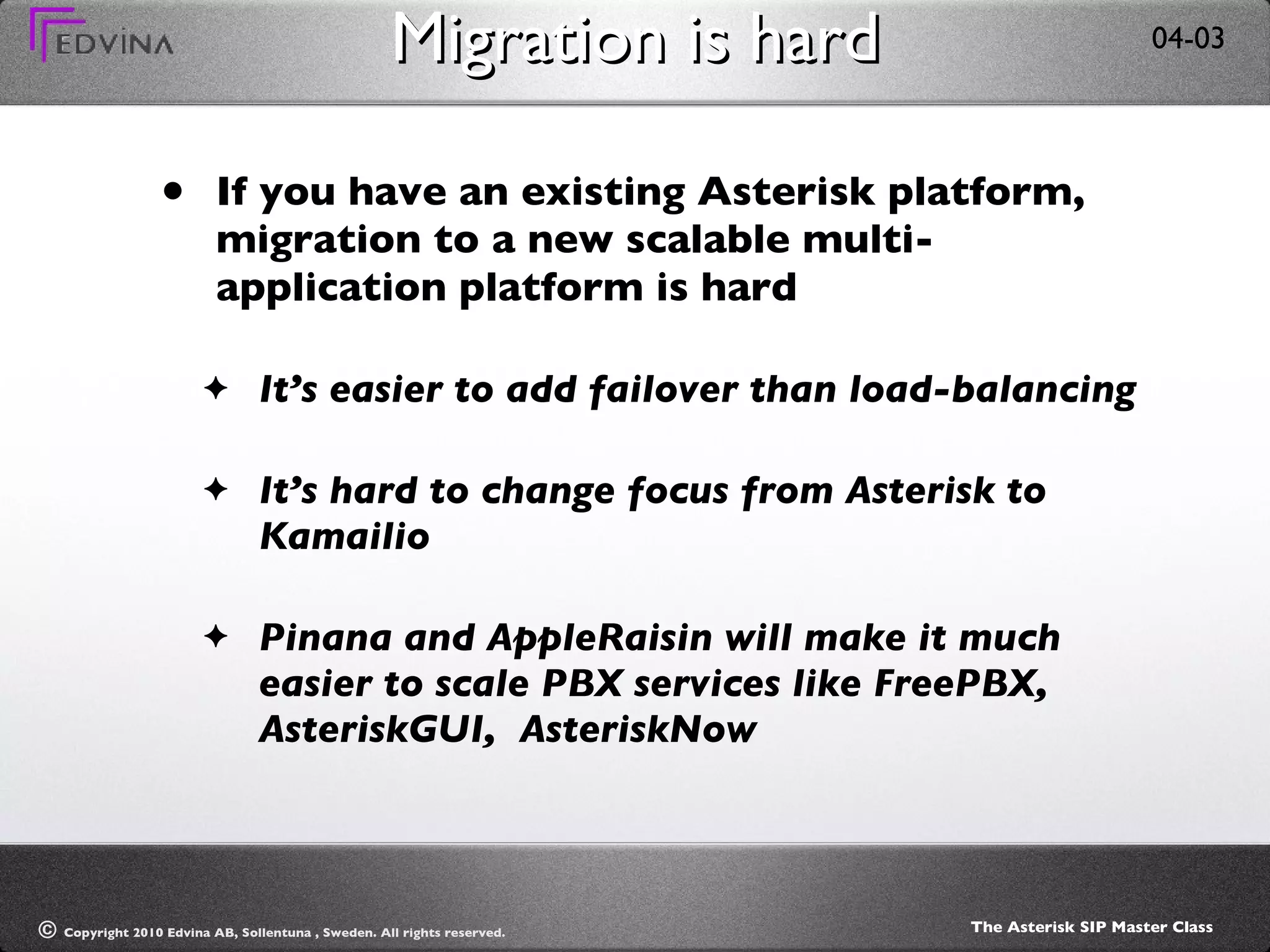

71. Migration is hard If you have an existing Asterisk platform, migration to a new scalable multi-application platform is hard It’s easier to add failover than load-balancing It’s hard to change focus from Asterisk to Kamailio Pinana and AppleRaisin will make it much easier to scale PBX services like FreePBX, AsteriskGUI, AsteriskNow

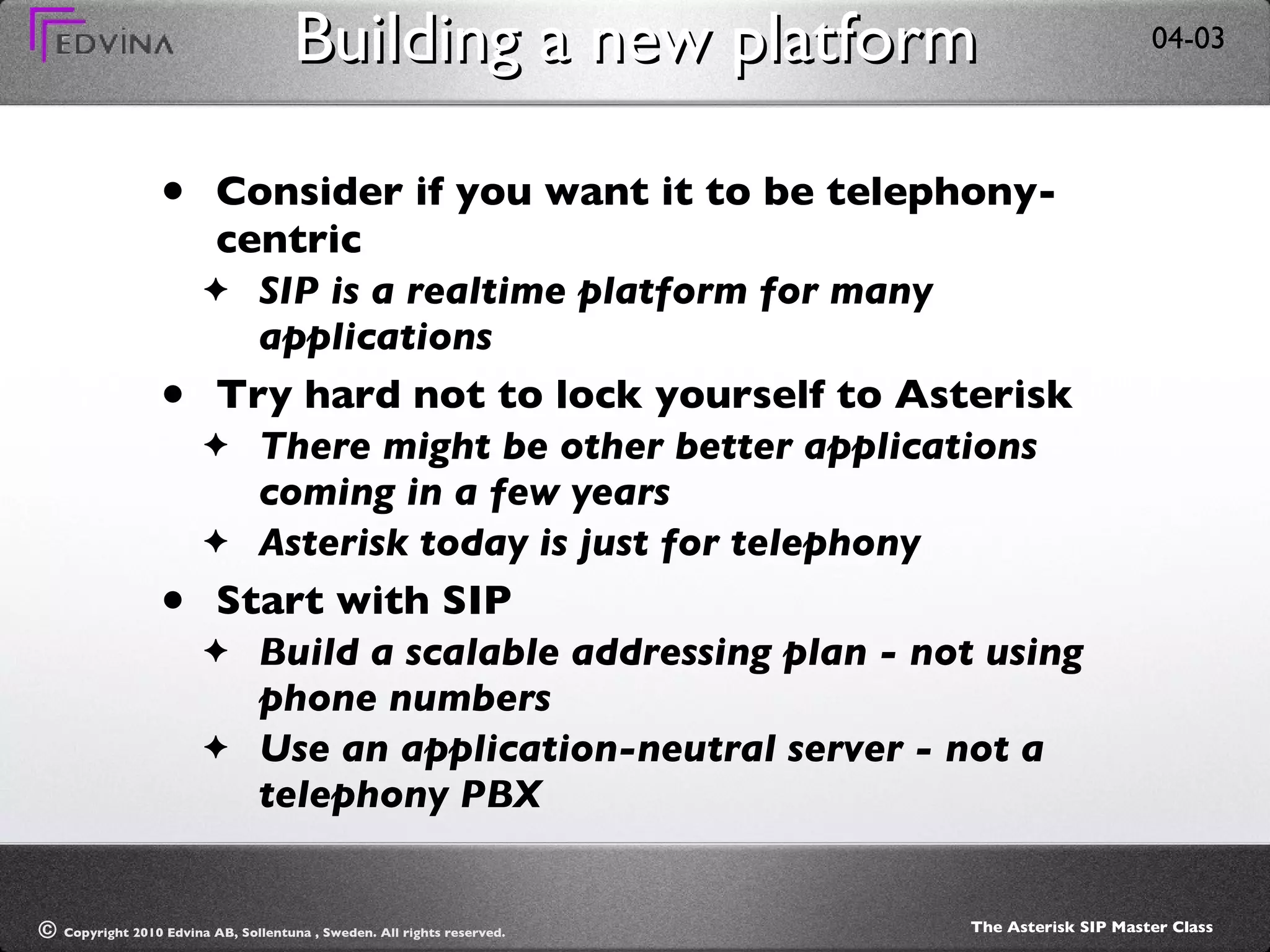

72. Building a new platform Consider if you want it to be telephony-centric SIP is a realtime platform for many applications Try hard not to lock yourself to Asterisk There might be other better applications coming in a few years Asterisk today is just for telephony Start with SIP Build a scalable addressing plan - not using phone numbers Use an application-neutral server - not a telephony PBX

73. One last issue. I just can’t let this go.

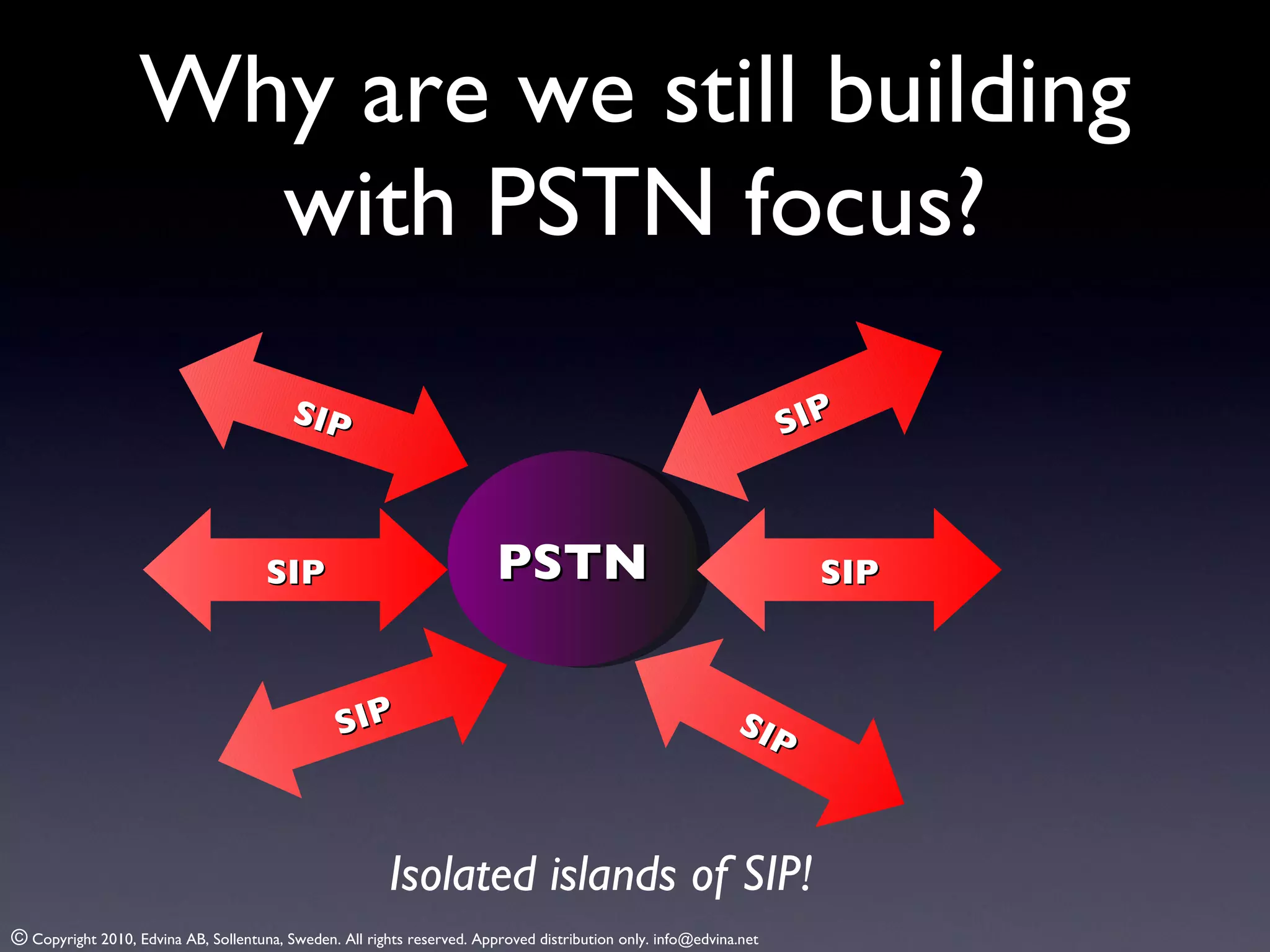

74. Why are we still building with PSTN focus? PSTN SIP SIP SIP SIP SIP SIP Isolated islands of SIP!

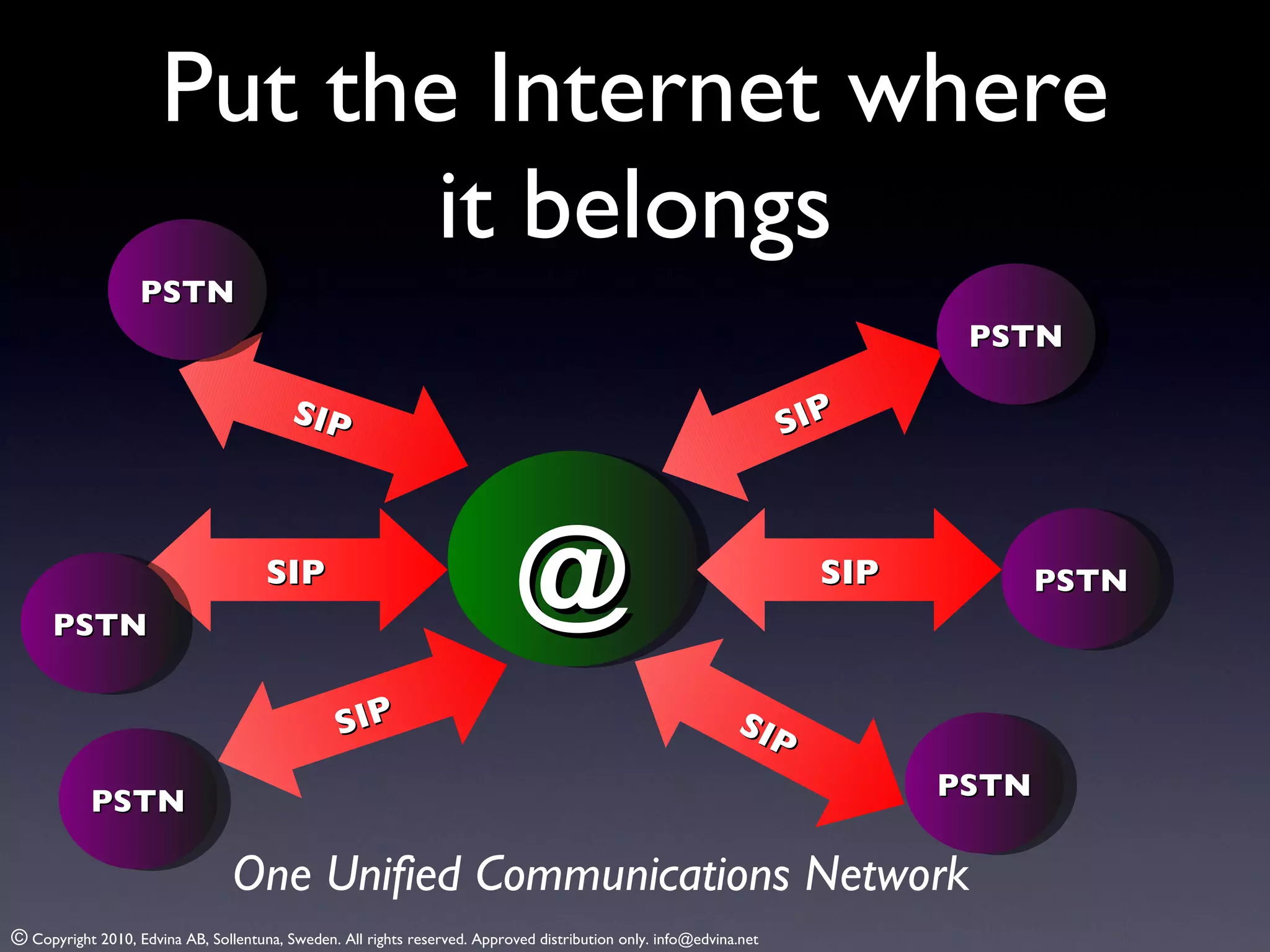

75. Put the Internet where it belongs @ SIP SIP SIP SIP SIP SIP One Unified Communications Network PSTN PSTN PSTN PSTN PSTN PSTN

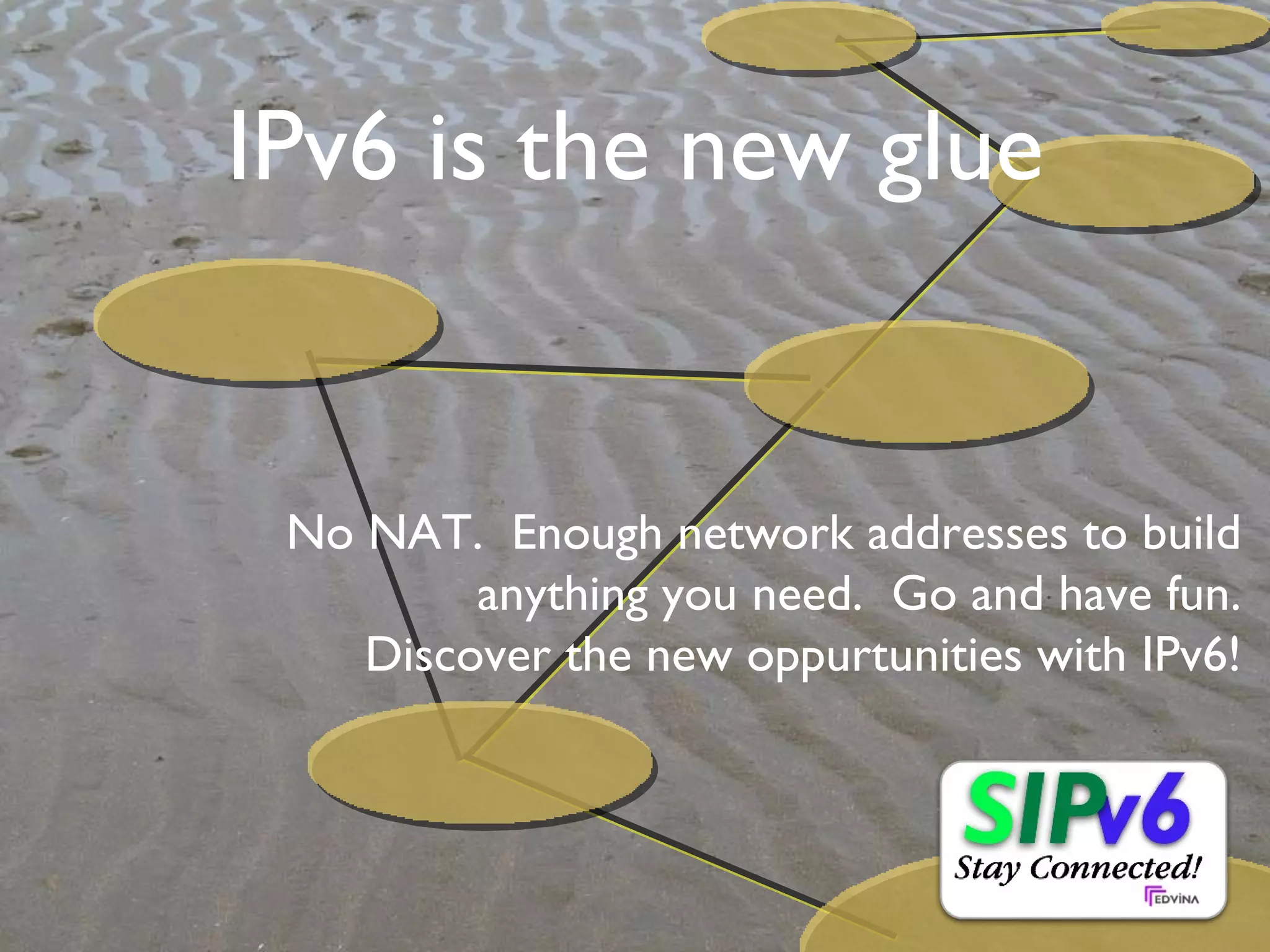

76. IPv6 is the new glue No NAT. Enough network addresses to build anything you need. Go and have fun. Discover the new oppurtunities with IPv6!

77. Questions? ?

78. © Copyright Edvina AB, Sollentuna, Sweden 2010. All rights reserved. Open Unified Communication Connecting Internet Users in real time.
