REST (RESTful) API

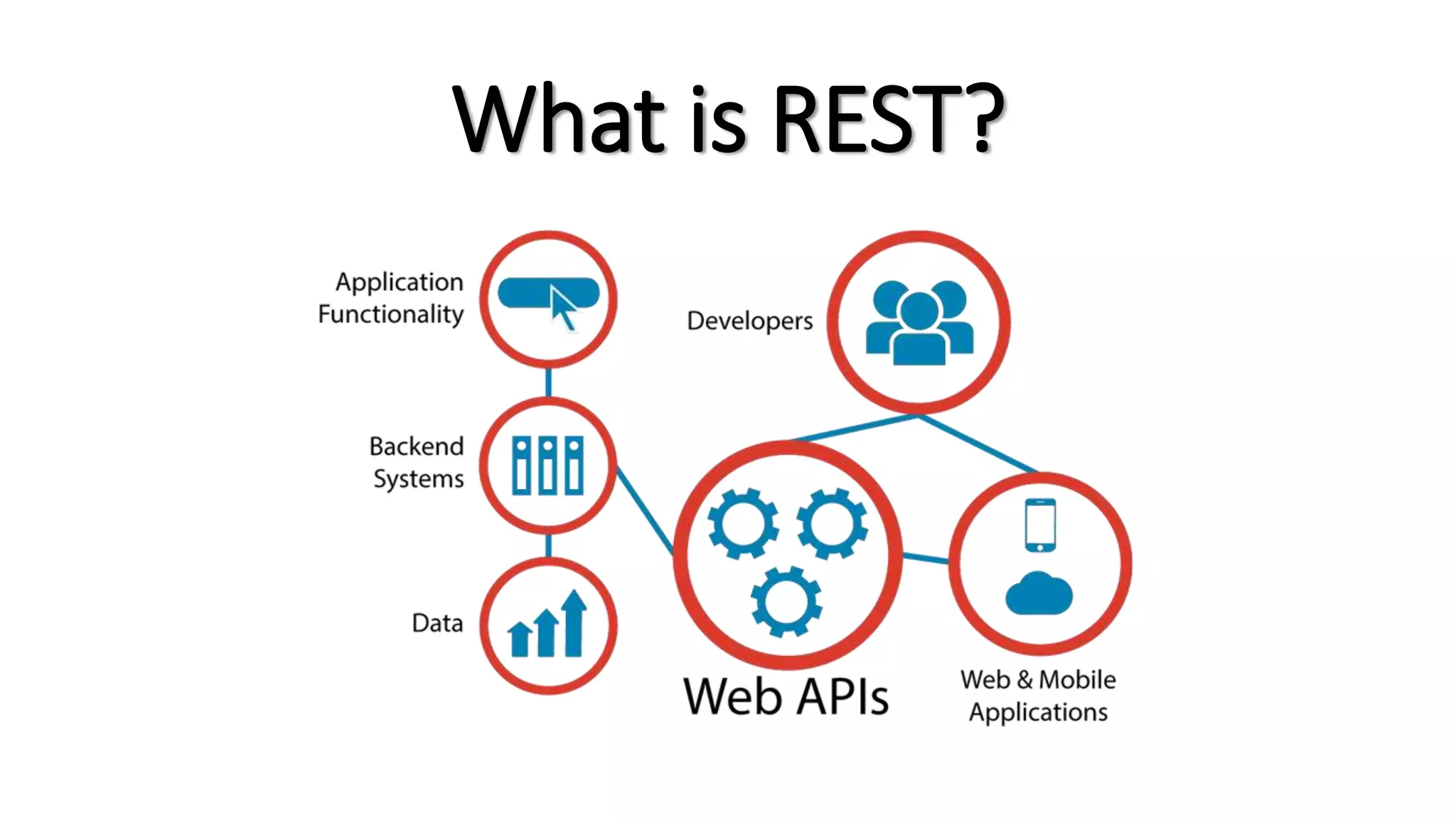

What is REST?

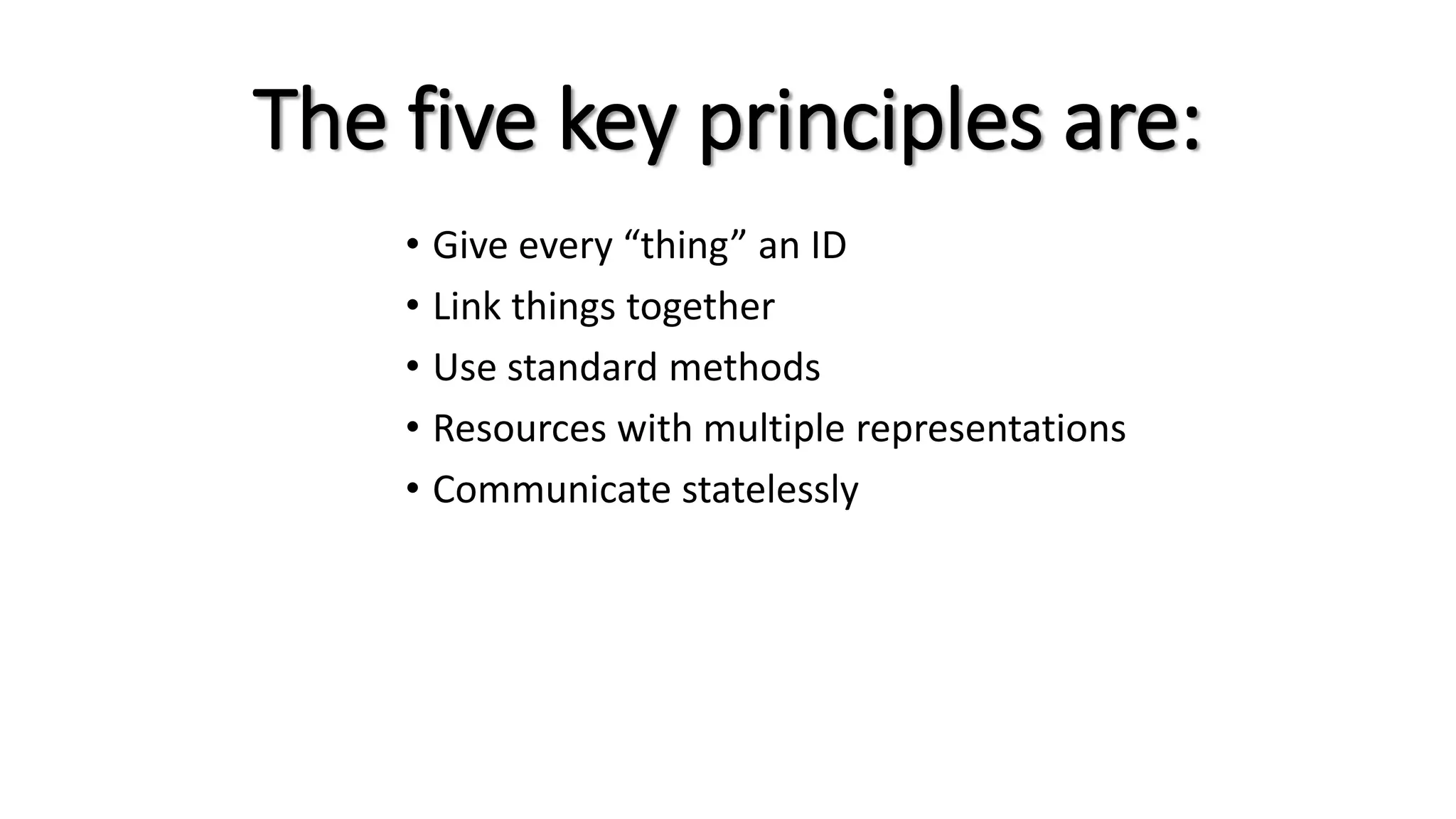

The five key principles are:
• Give every “thing” an ID
• Link things together
• Use standard methods
• Resources with multiple representations
• Communicate statelessly

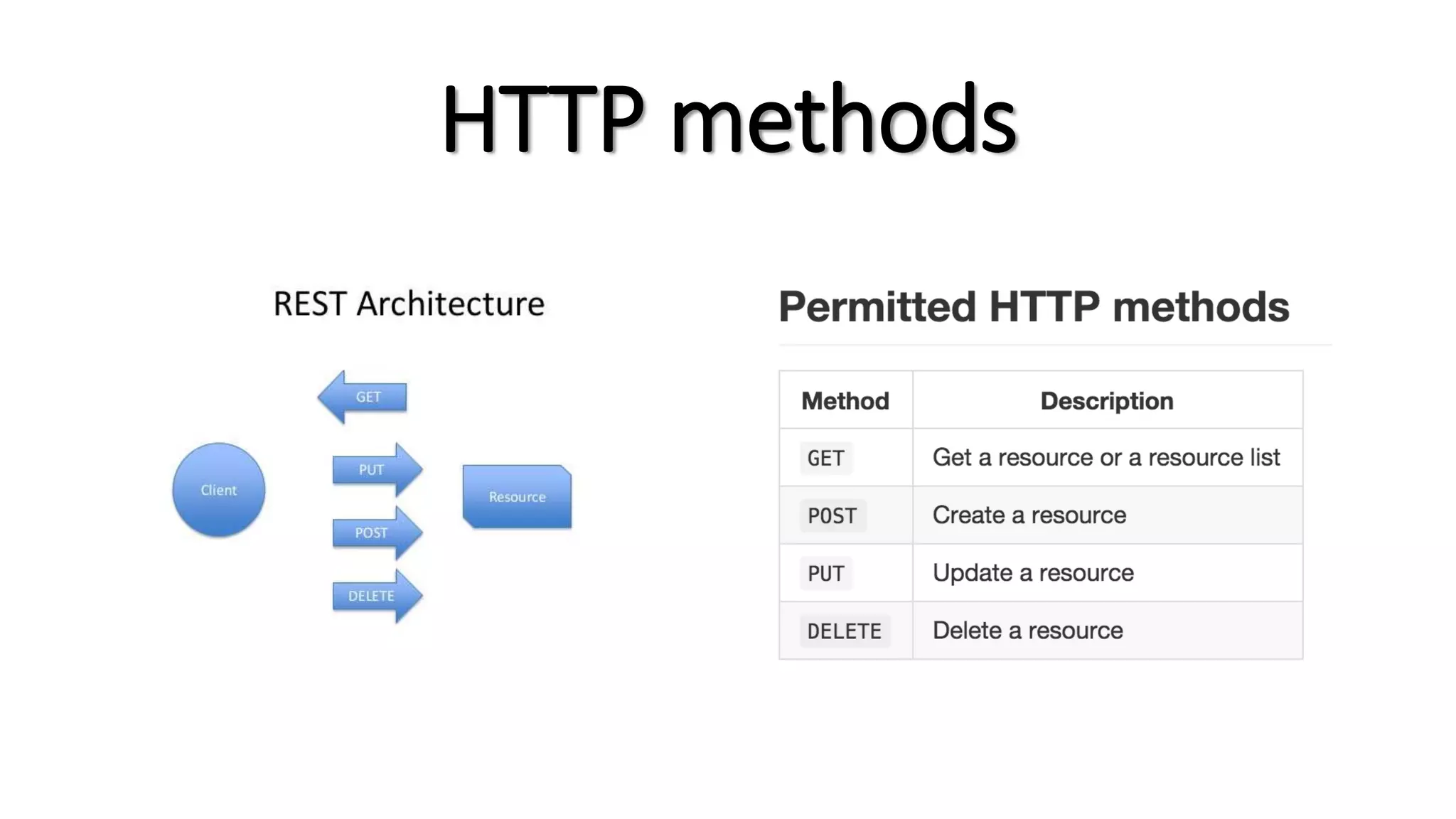

HTTP methods

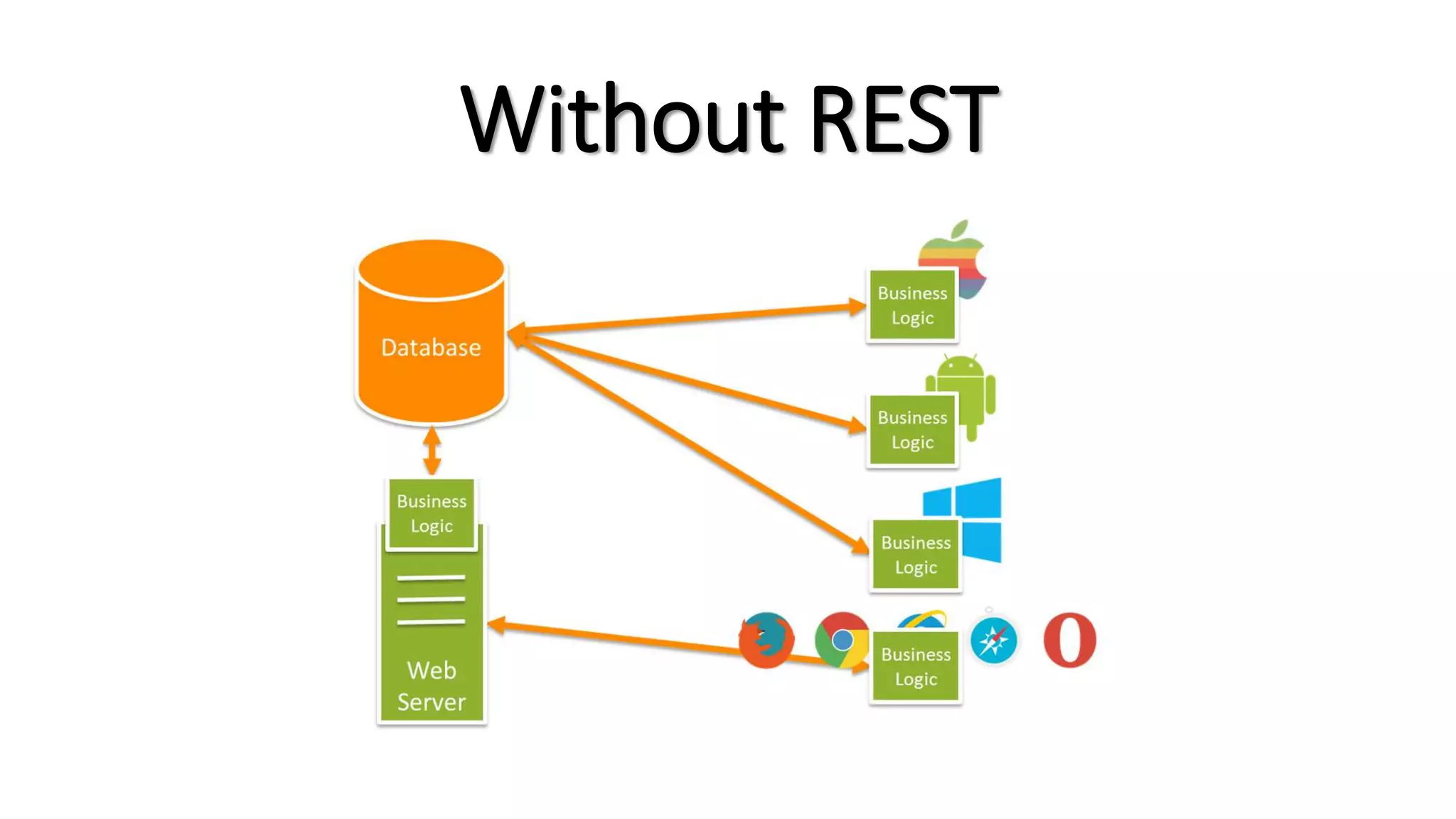

Without REST

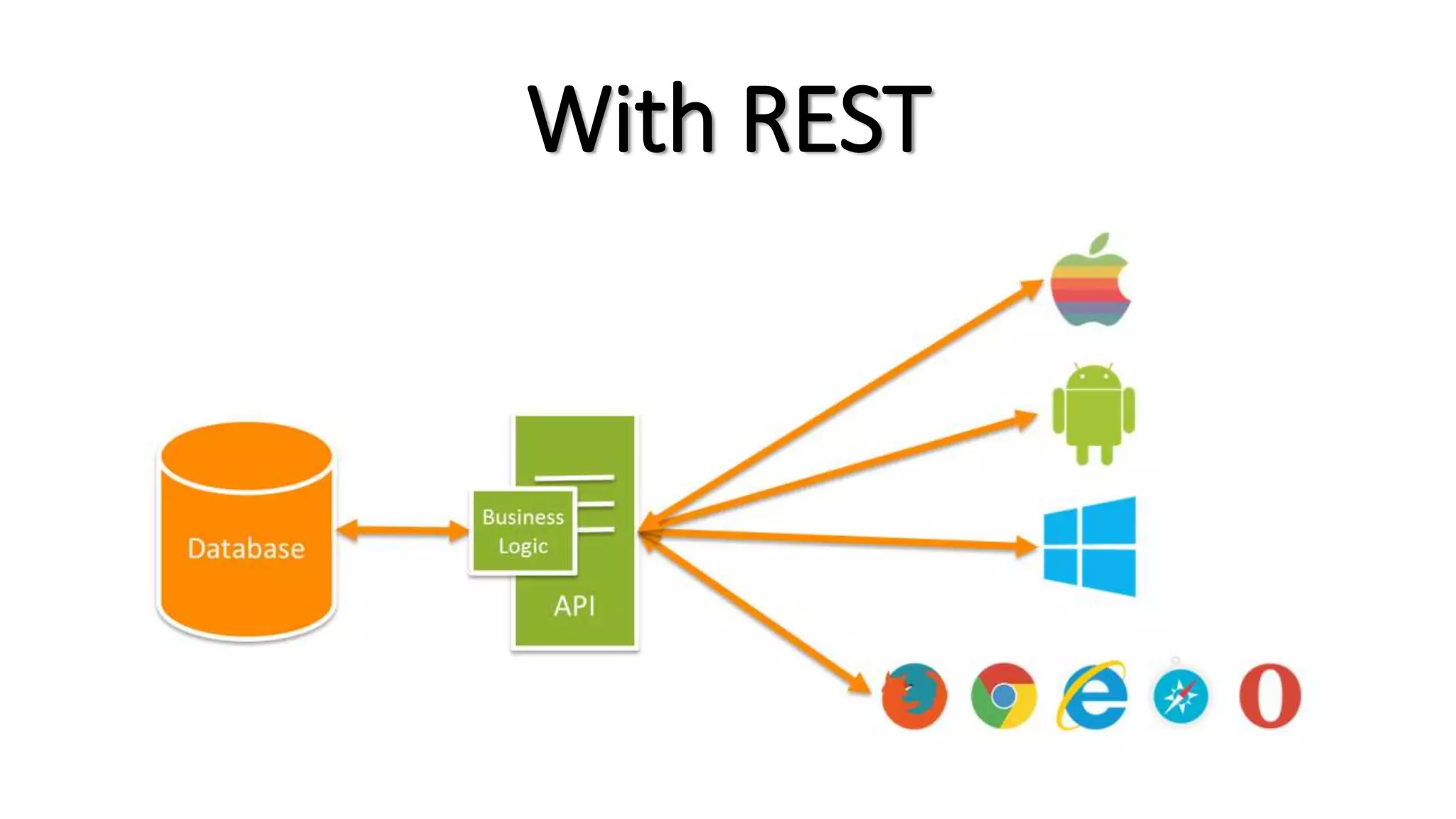

With REST

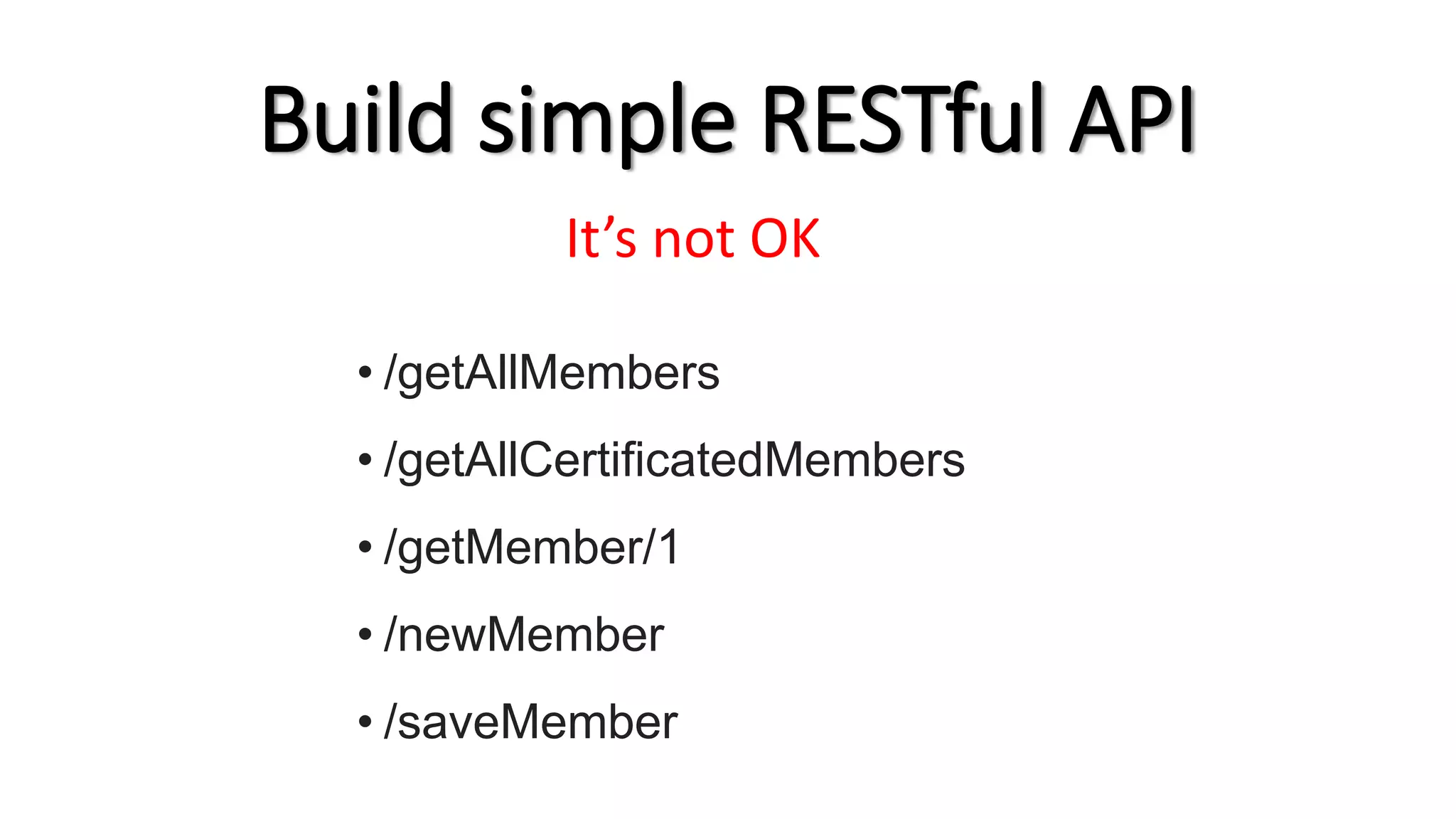

Build simple RESTful API
• /getAllMembers
• /getAllCertificatedMembers
• /getMember/1
• /newMember
• /saveMember
It’s not OK

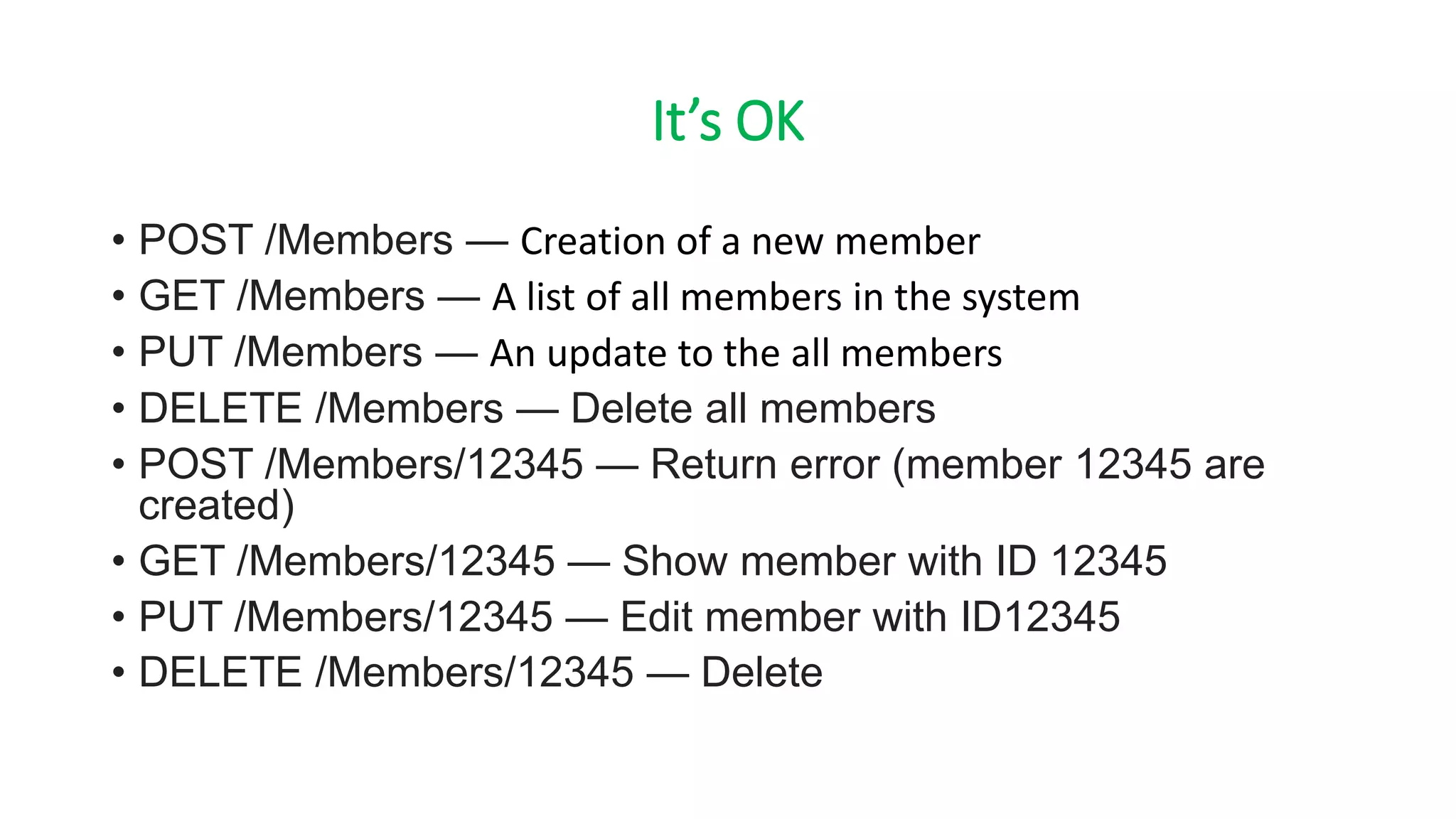

It’s OK
• POST /Members — Creation of a new member
• GET /Members — A list of all members in the system
• PUT /Members — An update to the all members
• DELETE /Members — Delete all members
• POST /Members/12345 — Return error (member 12345 are
created)
• GET /Members/12345 — Show member with ID 12345
• PUT /Members/12345 — Edit member with ID12345
• DELETE /Members/12345 — Delete

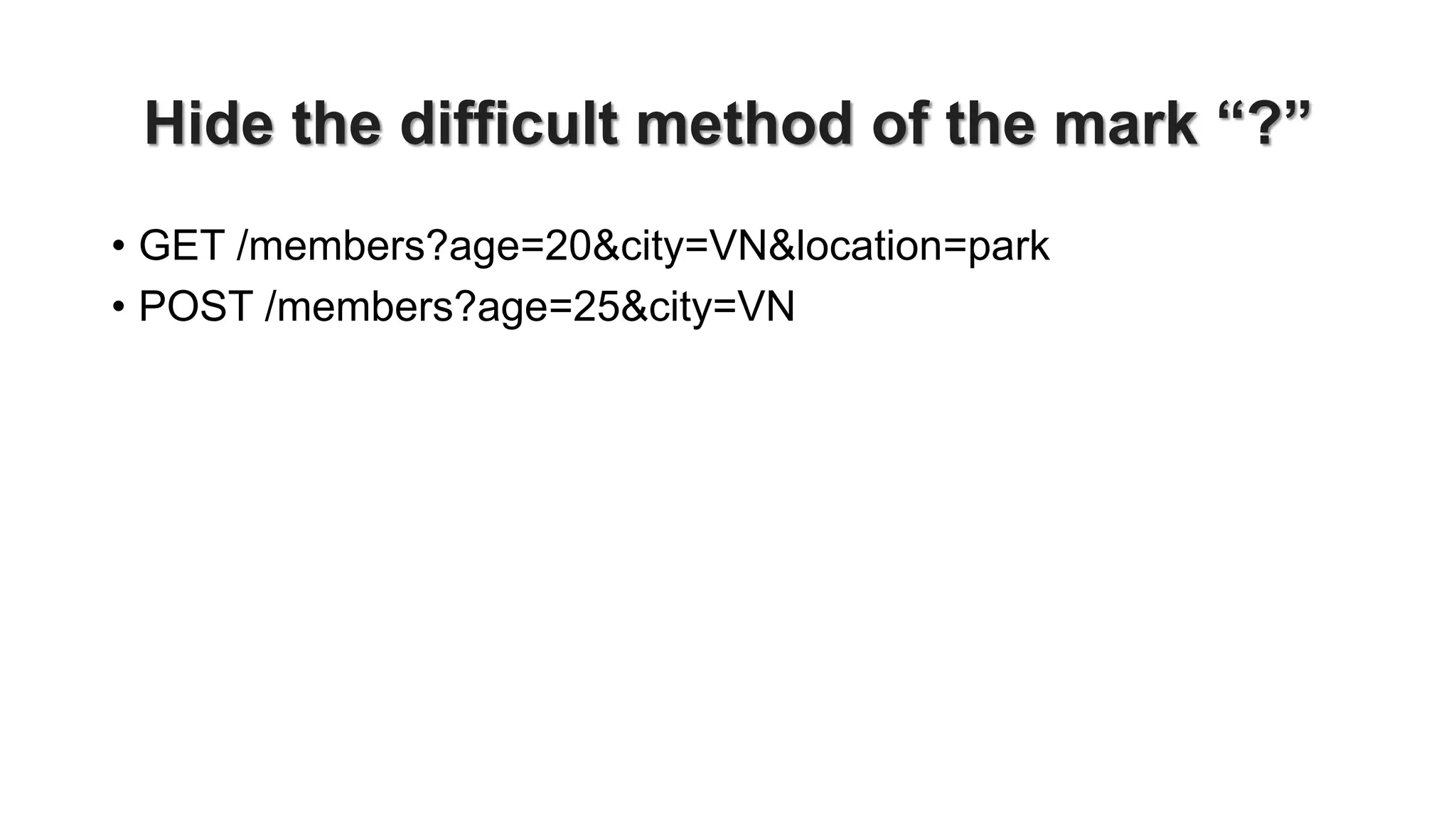

Hide the difficult method of the mark “?”
• GET /members?age=20&city=VN&location=park
• POST /members?age=25&city=VN

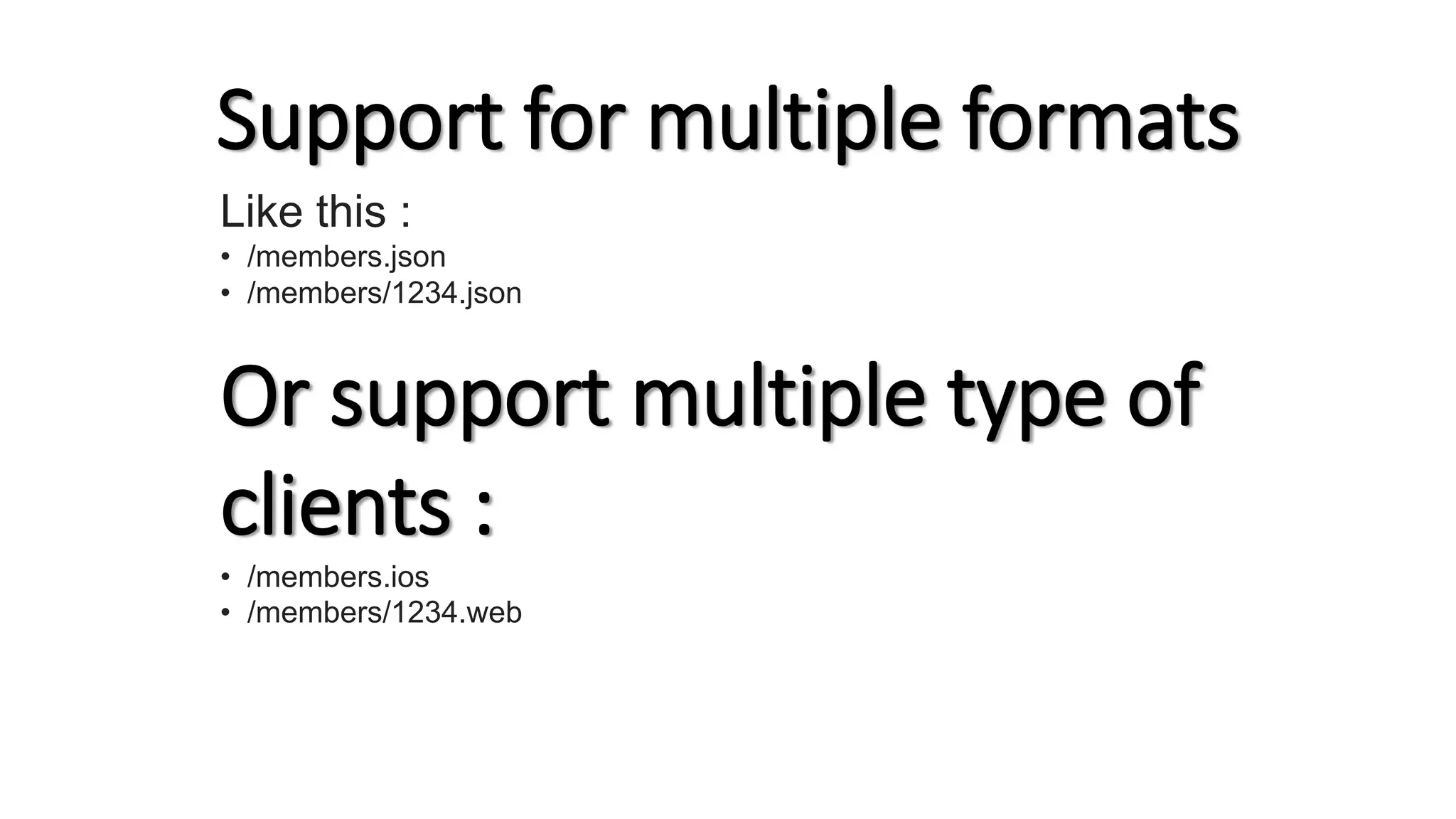

Support for multiple formats
Like this :
• /members.json
• /members/1234.json
Or support multiple type of
clients :
• /members.ios
• /members/1234.web
ASP.NET WEB API

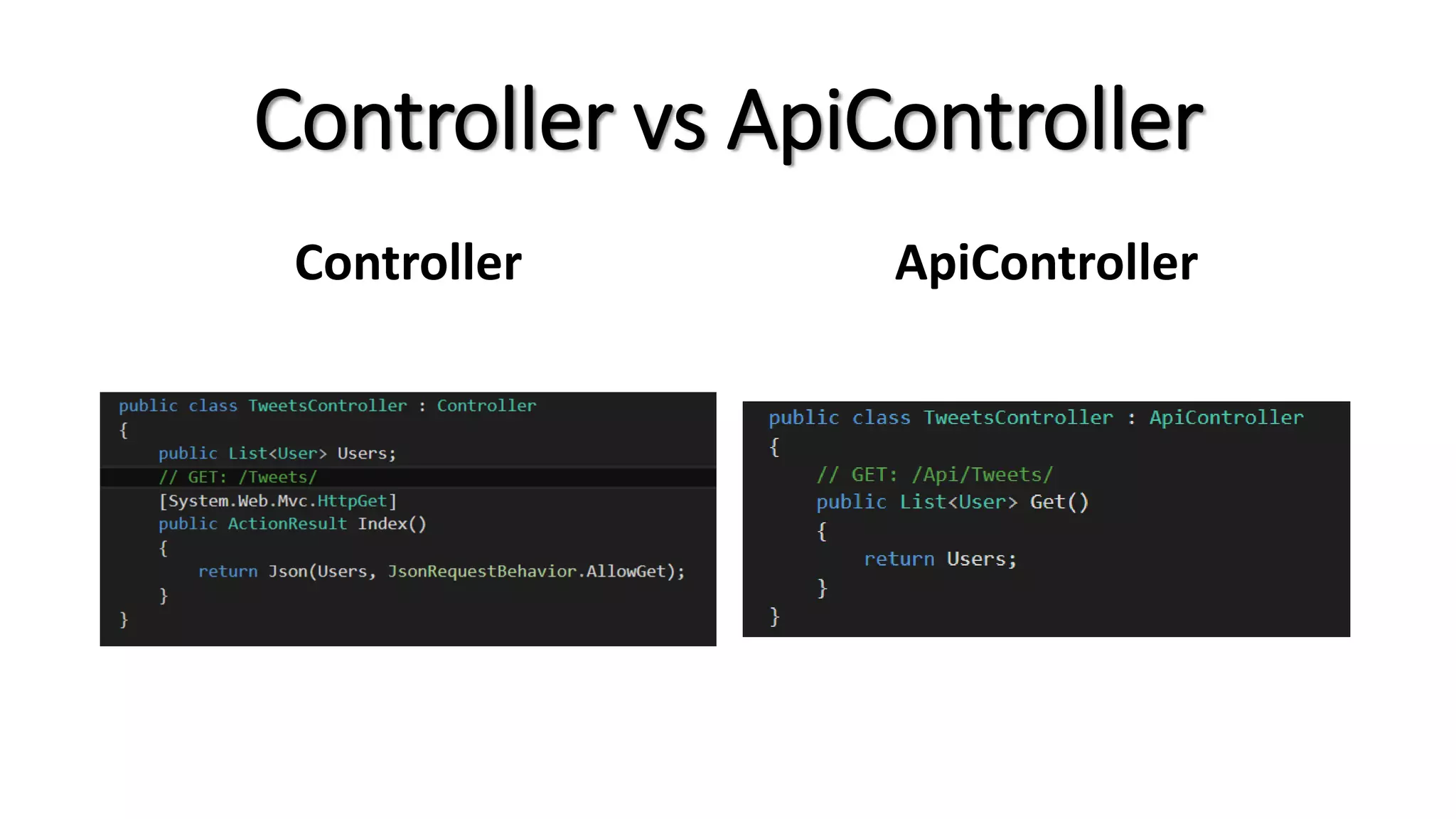

Controller vs ApiController
Controller ApiController

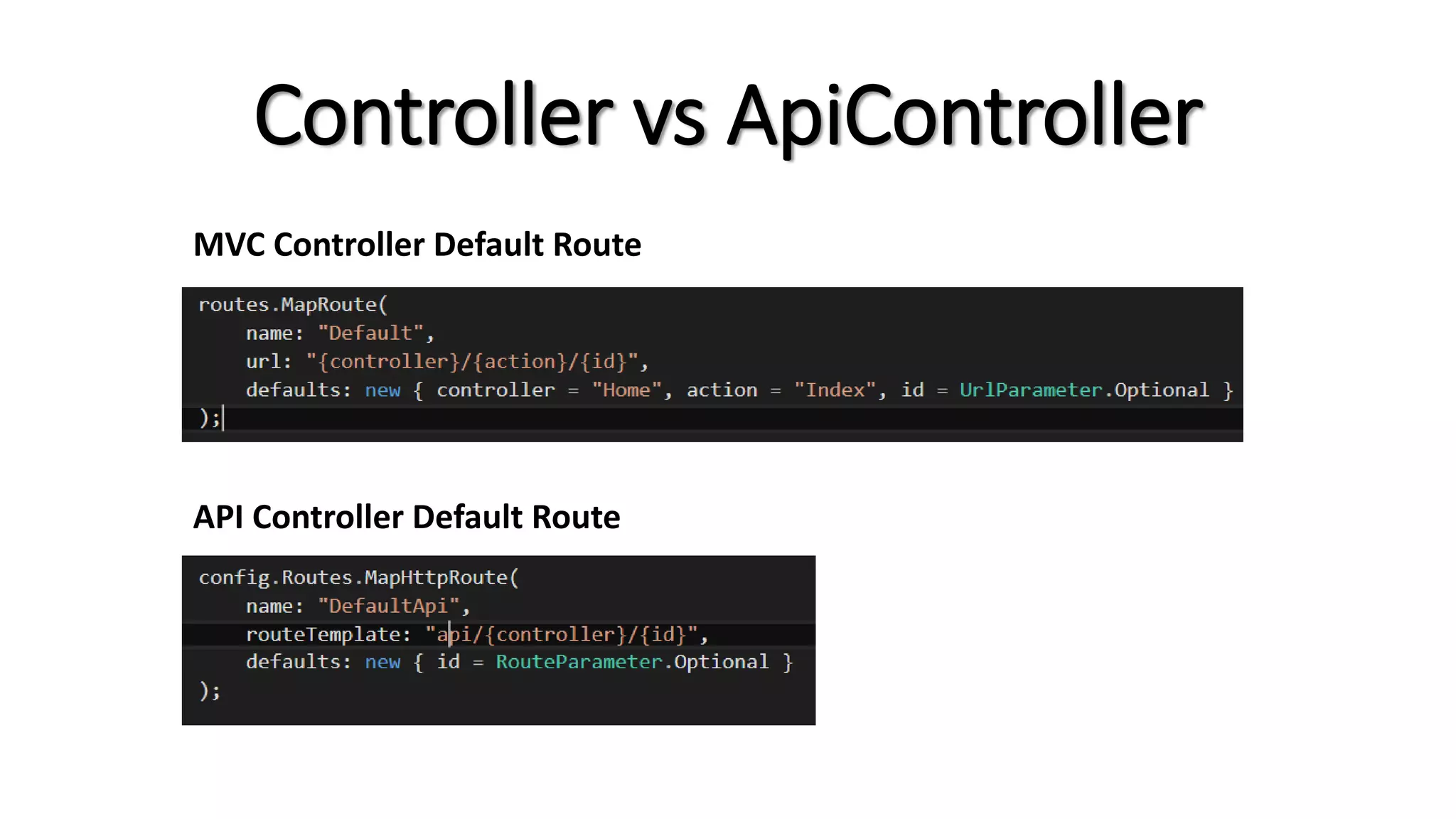

Controller vs ApiController
MVC Controller Default Route
API Controller Default Route

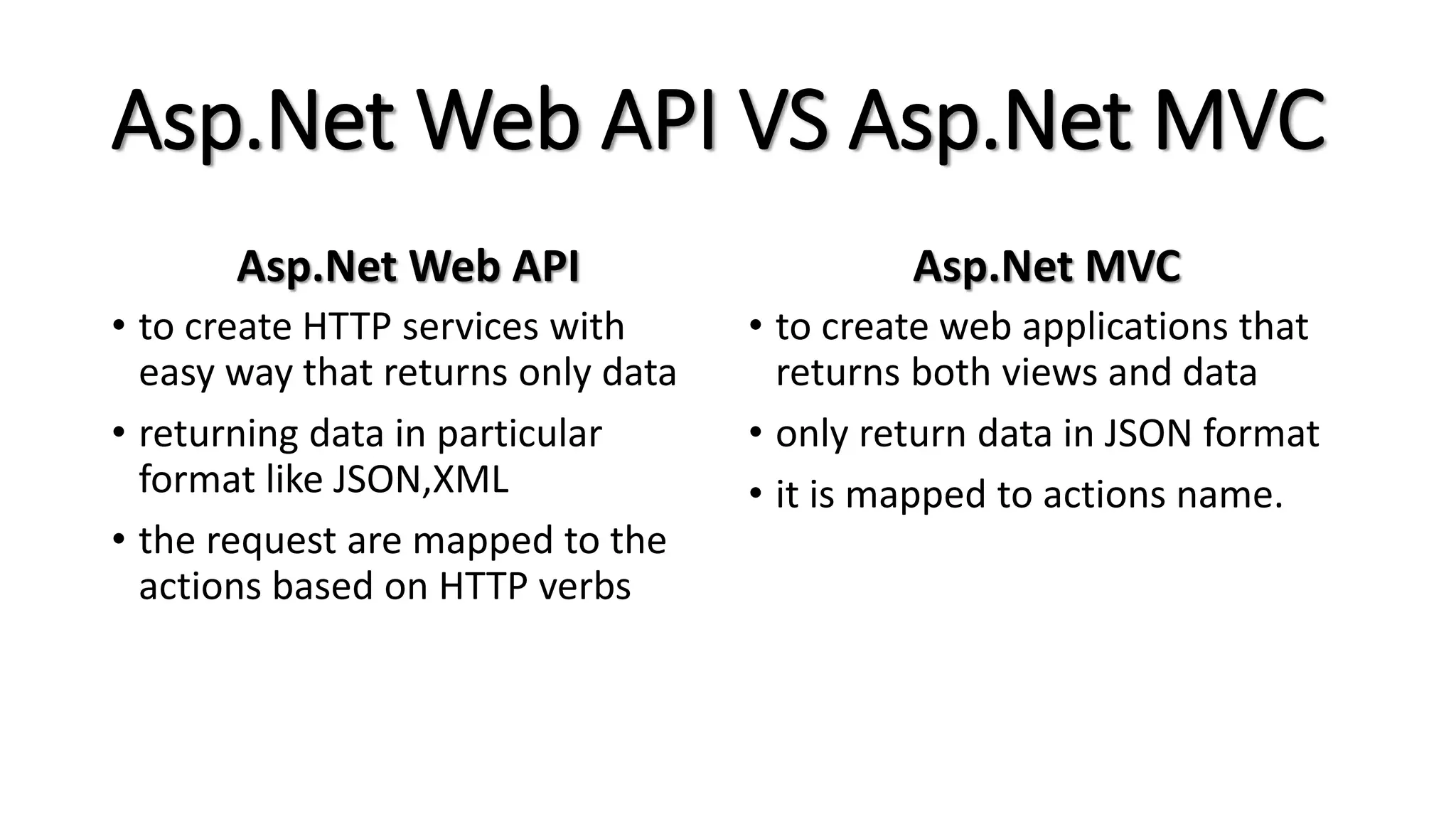

Asp.Net Web API VS Asp.Net MVC
Asp.Net Web API
• to create HTTP services with
easy way that returns only data
• returning data in particular
format like JSON,XML
• the request are mapped to the
actions based on HTTP verbs
Asp.Net MVC
• to create web applications that
returns both views and data
• only return data in JSON format
• it is mapped to actions name.

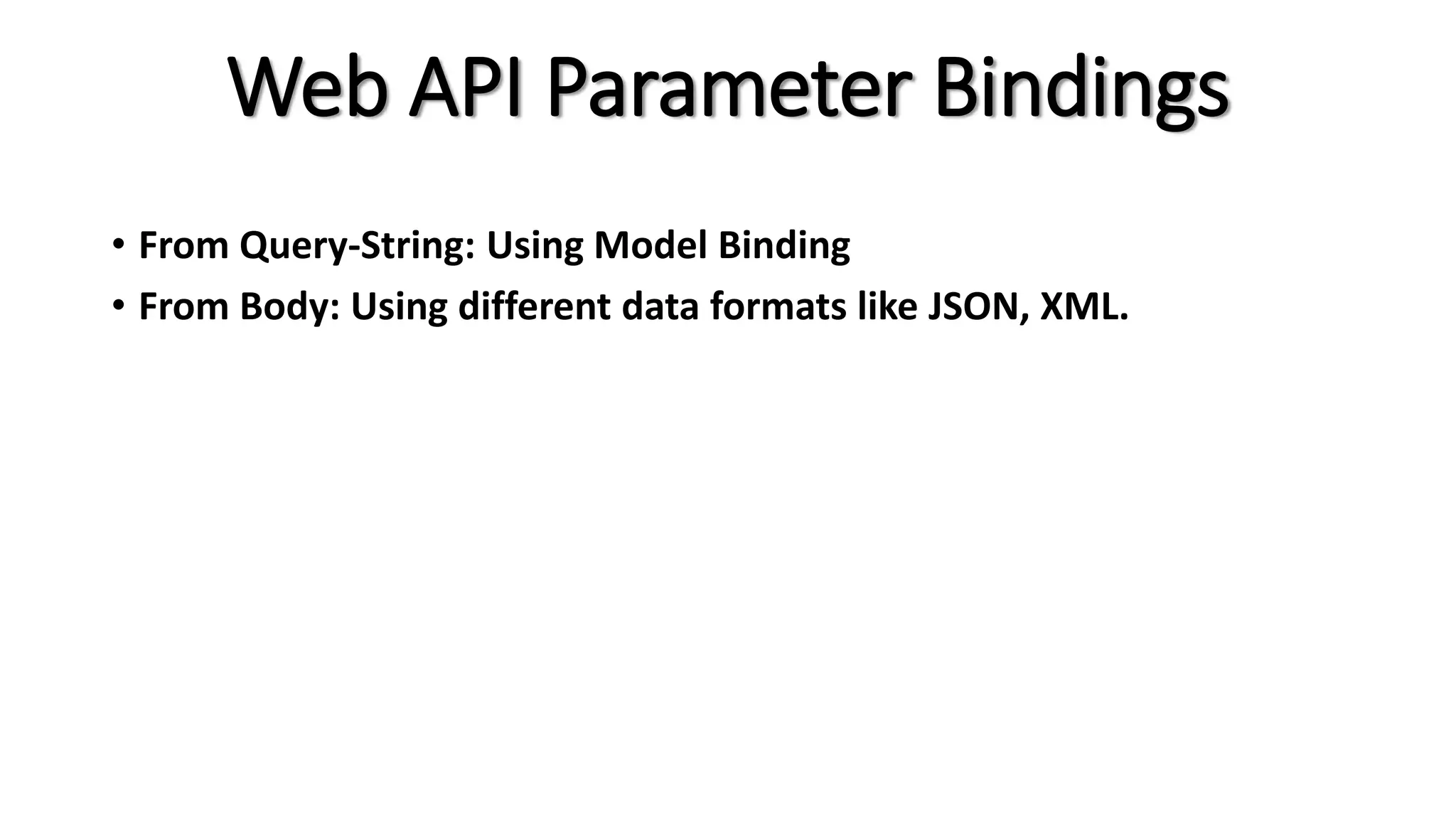

Web API Parameter Bindings
• From Query-String: Using Model Binding
• From Body: Using different data formats like JSON, XML.

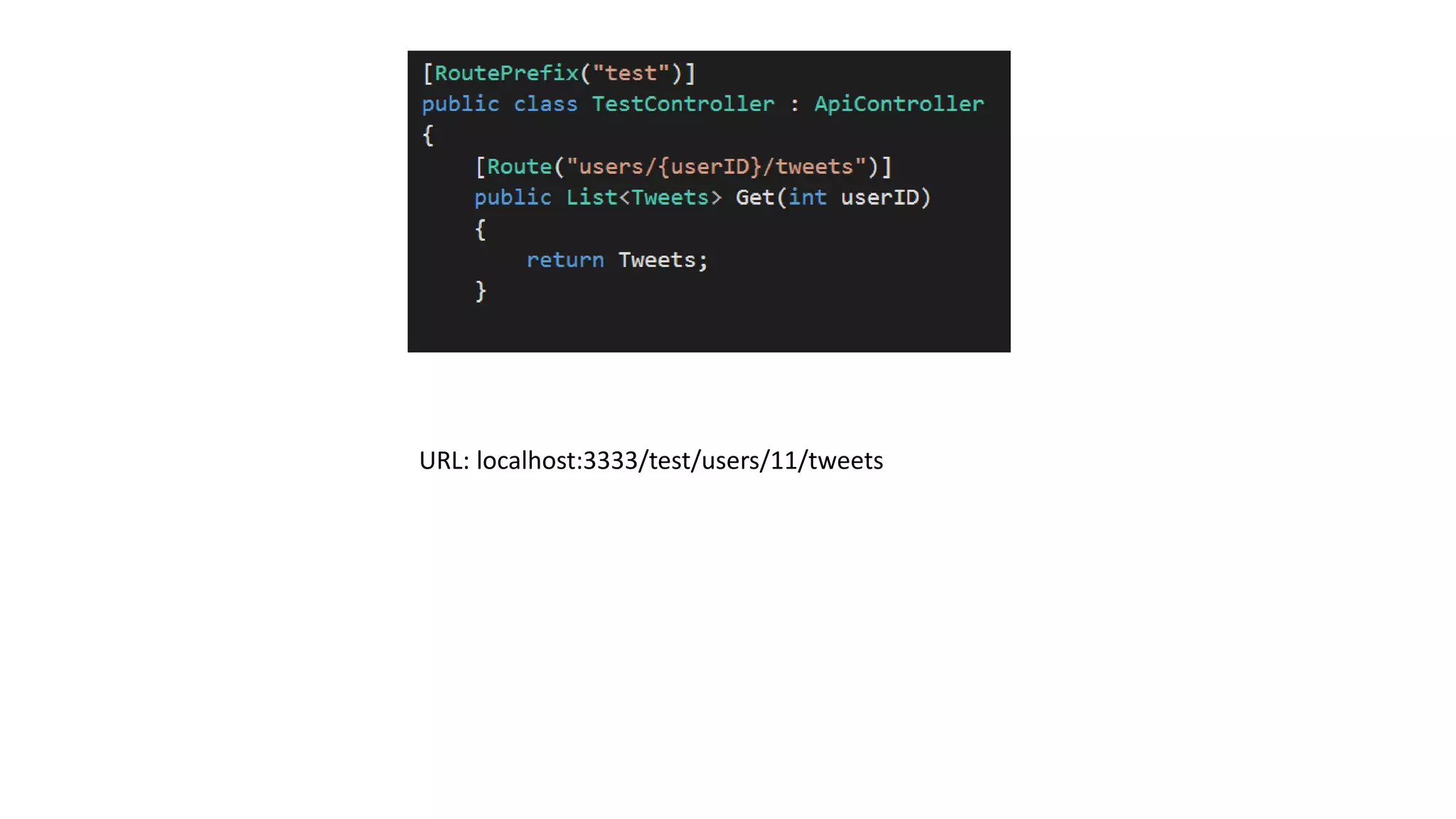

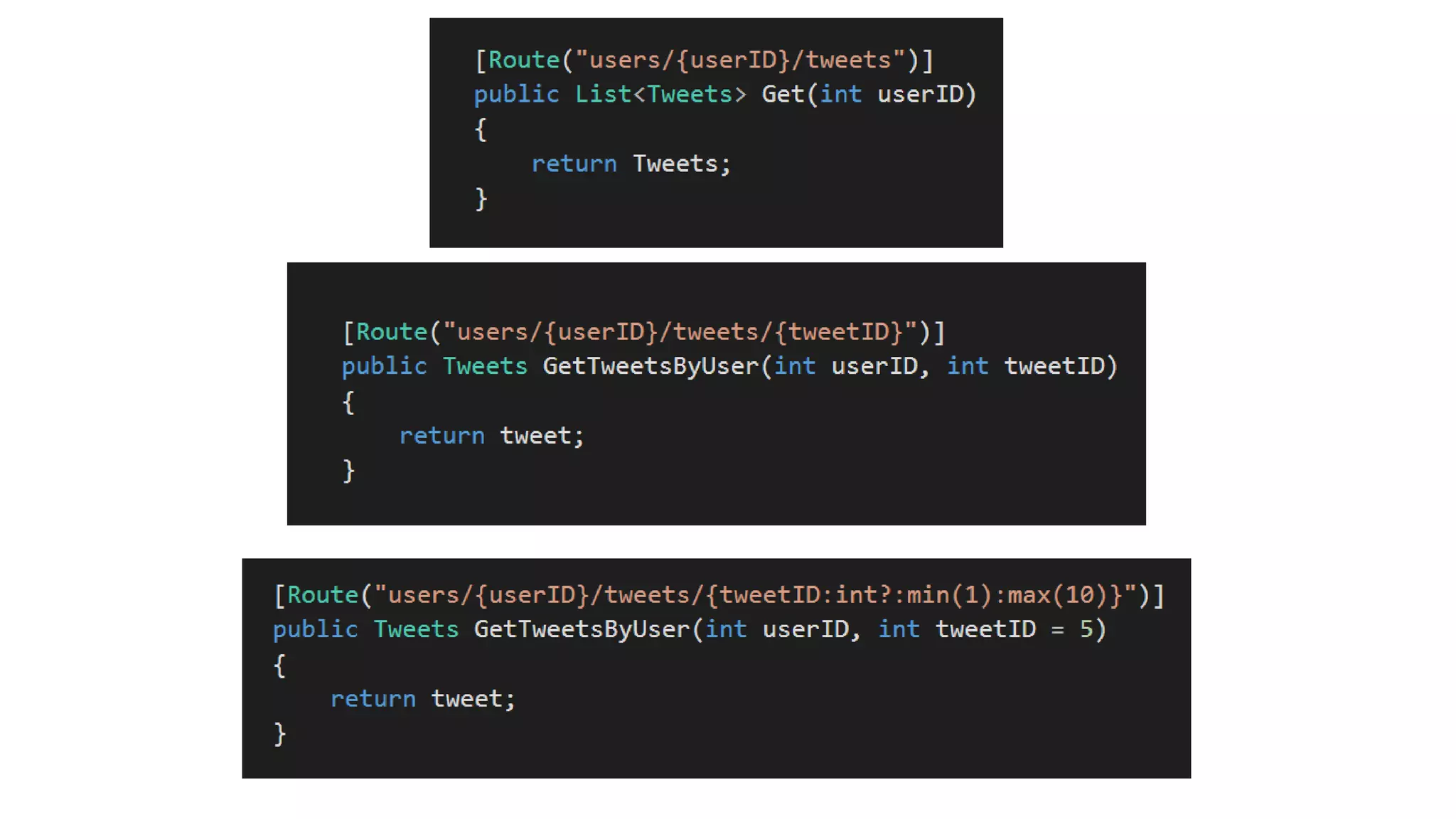

Routing
URL: localhost:3333/test/users/11/tweets

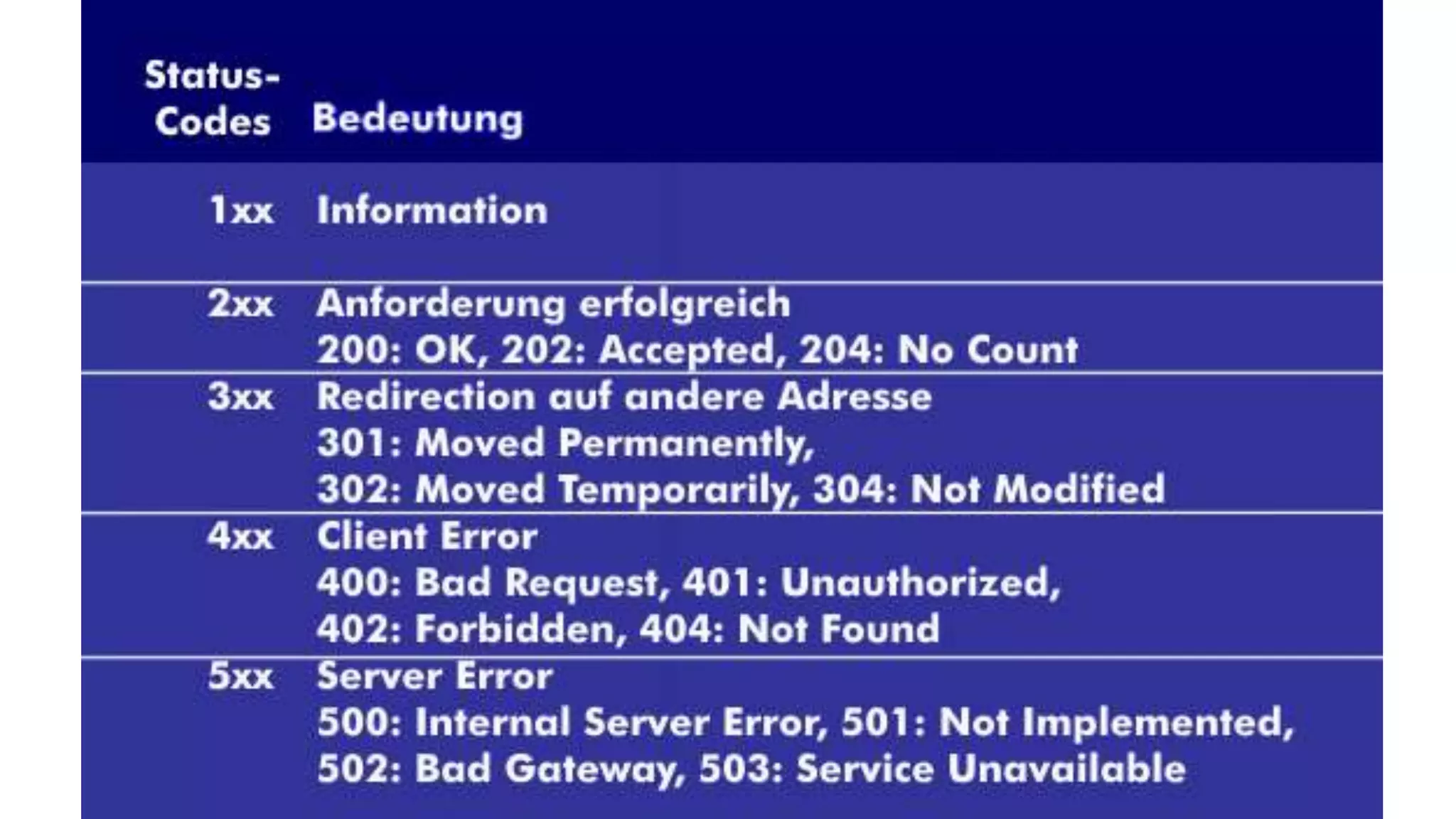

Status Code
RESTful API and ASP.NET
