Downloaded 26 times
![http://www.myserver.com/rest/oracleDB/Contacts?filter=la
stName%20like%20‘jon%’&order=firstName
Server Database
Filter Parameter Other Parameters
Request URL
{
“record”: [
{
“firstName”: “Bob”,
“lastName”: “Jones”,
},
{
“firstName”: “Susan”,
“lastName”: “Jong”,
},
]
}
JSON Response
Table](https://image.slidesharecdn.com/php-international-conference-dreamfactory-150612094530-lva1-app6892/85/REST-Enabling-Enterprise-Data-in-the-Mobile-Era-38-320.jpg)
![{
"record": [
{
"contactId": 100,
"firstName": "Adam",
"lastName": "Ross",
"contactinfos_by_contactId": [
{
"infoId": 298,
"contactId": 100,
"infoType": "Home",
"phone": "415-770-2025"
},
{
"infoId": 299,
"contactId": 100,
"infoType": "Work",
"phone": "650-452-1668"
}
]
}
]
}
General Cases for Relationships
POST / PUT Record and Child Records
https://www.myserver.com/rest/db/contacts?rollback=true](https://image.slidesharecdn.com/php-international-conference-dreamfactory-150612094530-lva1-app6892/85/REST-Enabling-Enterprise-Data-in-the-Mobile-Era-49-320.jpg)
More Related Content
Similar to REST-Enabling Enterprise Data in the Mobile Era
REST-Enabling Enterprise Data in the Mobile Era
- 1. REST-Enabling Enterprise Datain the Mobile Era Ben Busse Product Lead, DreamFactory http://www.dreamfactory.com
- 2. Lessons learned Reusable APIs Mobileuse case examples
- 3. What makes agood REST API for mobile apps?

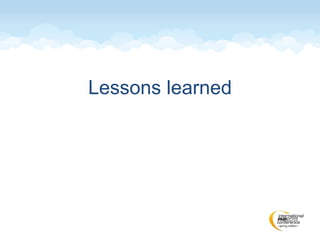

- 4.
- 5. Typical enterprise mobileproject: More than HALF of time spent on backend integration and testing!
- 6. One-off APIs foreach new project slows you down

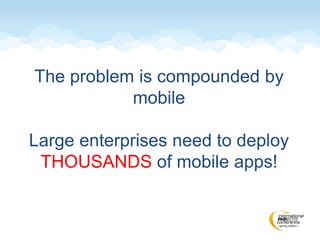

- 7. The problem iscompounded by mobile Large enterprises need to deploy THOUSANDS of mobile apps!
- 8.
- 9.

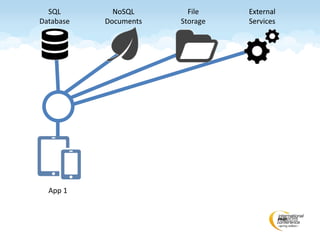

- 10.

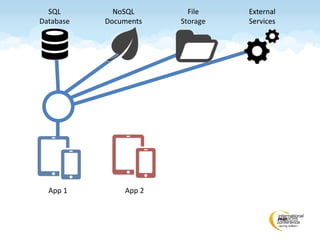

- 11. App 1 App2 File Storage SQL Database NoSQL Documents External Services NoSQL Documents External Services

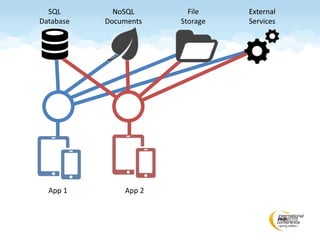

- 12. App 1 App2 File Storage SQL Database NoSQL Documents External Services NoSQL Documents External Services
- 13. App 1 App2 App 3 File Storage SQL Database NoSQL Documents External Services NoSQL Documents External Services

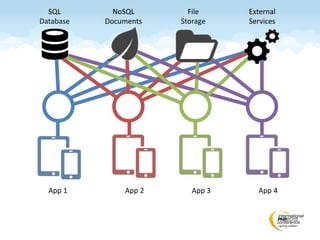

- 14. App 1 App2 App 3 App 4 File Storage SQL Database NoSQL Documents External Services NoSQL Documents External Services
- 15. API Complexity New APIsfor every project Tightly linked to data sources Tightly linked to backend infrastructure Poorly documented Difficult to scale, not portable Many security vulnerabilities Server-side software development Time consuming interface negotiation
- 16.
- 17. App 1 App2 App 3 App 4 File Storage SQL Database NoSQL Documents External Services NoSQL Documents External Services

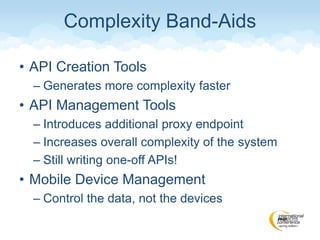

- 18. • API CreationTools – Generates more complexity faster • API Management Tools – Introduces additional proxy endpoint – Increases overall complexity of the system – Still writing one-off APIs! • Mobile Device Management – Control the data, not the devices Complexity Band-Aids
- 19. Reusable APIs foreach new project speeds you up

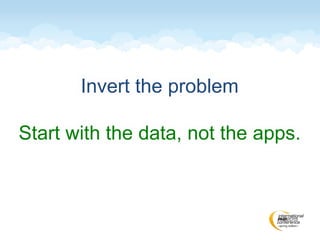

- 20. Invert the problem Startwith the data, not the apps.

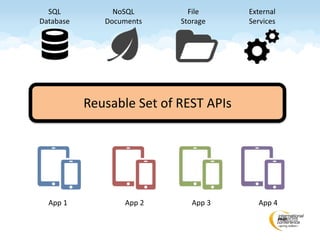

- 21. Reusable Set ofREST APIs App 1 App 2 App 3 App 4 File Storage SQL Database NoSQL Documents External Services

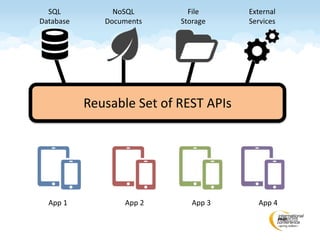

- 22. Reusable Set ofREST APIs App 1 App 2 App 3 App 4 File Storage SQL Database NoSQL Documents External Services

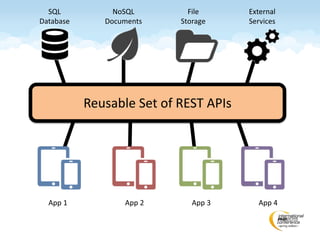

- 23. Reusable Set ofREST APIs App 1 App 2 App 3 App 4 File Storage SQL Database NoSQL Documents External Services

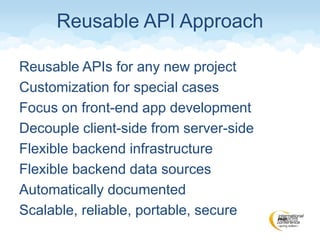

- 24. Reusable APIs forany new project Customization for special cases Focus on front-end app development Decouple client-side from server-side Flexible backend infrastructure Flexible backend data sources Automatically documented Scalable, reliable, portable, secure Reusable API Approach
- 25. Reusable APIs area good thing! Documented Secure Portable Much less integration Much less testing

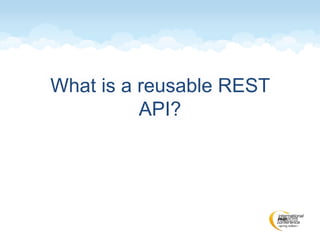

- 26. What is areusable REST API?
- 27.
- 28. Consistently structured for SQL,NoSQL, file stores
- 29. Designed for hightransaction volume
- 30. Support native mobile and webapplications
- 31. Reusable APIs inpractice
- 32. Noun-based endpoints and HTTPverbs work great
- 33.

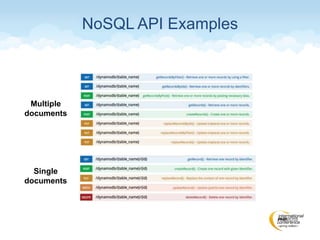

- 34.
- 35.

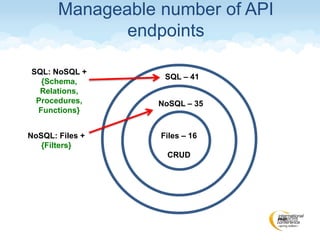

- 36. Manageable number ofAPI endpoints SQL – 41 Files – 16 CRUD NoSQL – 35 SQL: NoSQL + {Schema, Relations, Procedures, Functions} NoSQL: Files + {Filters}
- 37. Append parameters toendpoints Dates Filters Pagination Relationships Files Advanced Use Cases

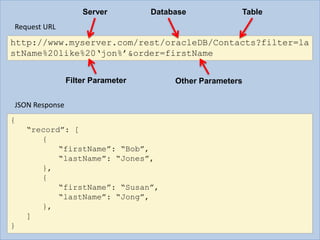

- 38. http://www.myserver.com/rest/oracleDB/Contacts?filter=la stName%20like%20‘jon%’&order=firstName Server Database Filter ParameterOther Parameters Request URL { “record”: [ { “firstName”: “Bob”, “lastName”: “Jones”, }, { “firstName”: “Susan”, “lastName”: “Jong”, }, ] } JSON Response Table
- 39.
- 40.

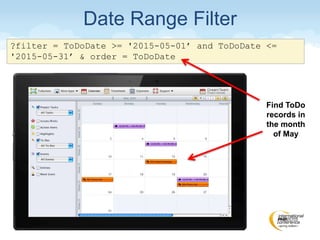

- 41. ?filter = ToDoDate>= '2015-05-01’ and ToDoDate <= '2015-05-31’ & order = ToDoDate Date Range Filter Find ToDo records in the month of May
- 42.

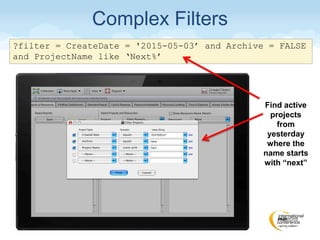

- 43. ?filter = CreateDate= '2015-05-03’ and Archive = FALSE and ProjectName like ‘Next%’ Complex Filters Find active projects from yesterday where the name starts with “next”

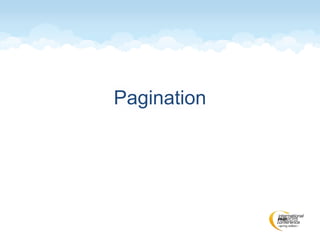

- 44.

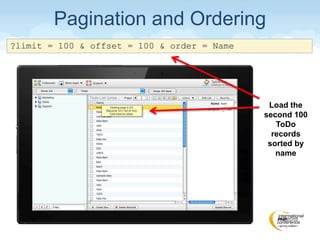

- 45. ?limit = 100& offset = 100 & order = Name Pagination and Ordering Load the second 100 ToDo records sorted by name
- 46.

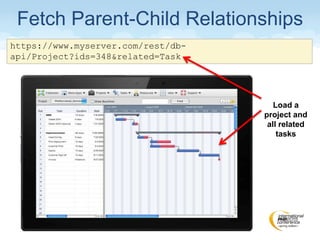

- 47. https://www.myserver.com/rest/db- api/Project?ids=348&related=Task Fetch Parent-Child Relationships Loada project and all related tasks

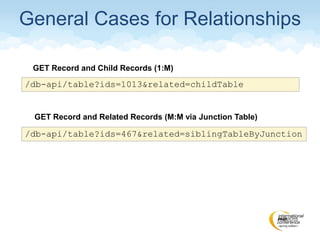

- 48. /db-api/table?ids=1013&related=childTable General Cases forRelationships GET Record and Child Records (1:M) /db-api/table?ids=467&related=siblingTableByJunction GET Record and Related Records (M:M via Junction Table)

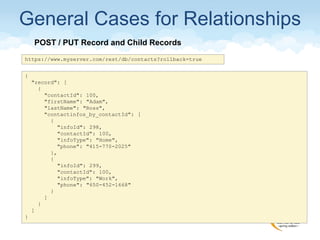

- 49. { "record": [ { "contactId": 100, "firstName":"Adam", "lastName": "Ross", "contactinfos_by_contactId": [ { "infoId": 298, "contactId": 100, "infoType": "Home", "phone": "415-770-2025" }, { "infoId": 299, "contactId": 100, "infoType": "Work", "phone": "650-452-1668" } ] } ] } General Cases for Relationships POST / PUT Record and Child Records https://www.myserver.com/rest/db/contacts?rollback=true
- 50.
- 51.

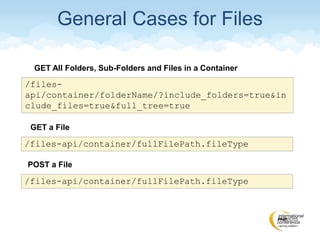

- 52. /files- api/container/folderName/?include_folders=true&in clude_files=true&full_tree=true General Cases forFiles GET All Folders, Sub-Folders and Files in a Container /files-api/container/fullFilePath.fileType GET a File /files-api/container/fullFilePath.fileType POST a File

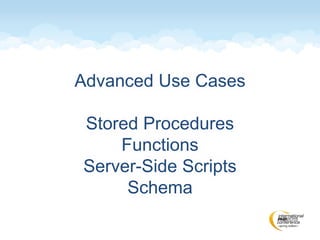

- 53. Advanced Use Cases StoredProcedures Functions Server-Side Scripts Schema
- 54. Stored Procedures Call procedurewith parameters

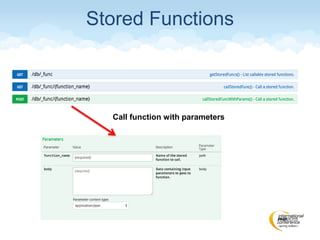

- 55. Stored Functions Call functionwith parameters
- 56. Server-Side Scripts Custom businesslogic Workflow triggers Formula fields Field validation Remote web service orchestration
- 57.

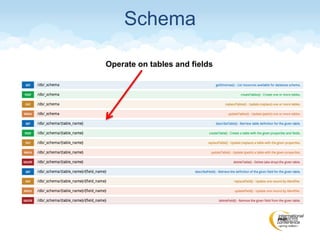

- 58. Schema Operate on tablesand fields
- 59. If you rememberone thing…. Simplify development with reusable APIs!
- 60.
Editor's Notes
- #12 Now you want to build a new app. You didn’t know what app 2 was going to be when you built 1 Now, app 1 is in production. Don’t touch it! Also app 2 might be built by a totally different team of engineers!
- #18 Interface negotiation is slow and difficult Had to build all this server-side software Results were bad And you can’t re-use the backend software for other apps in your company
- #19 API Management Tools are not architected for transactional mobile use case.
- #58 Maybe add end to end data flow
