- 1. tSponsors Michael Stephenson &Oliver Davy Integration MVP An Integration Platform to Support Vision 2025 BizTalk Summit 2015 – London ExCeL London | April 13th & 14th
- 2.
- 7. Everything is an APIESBis old you now need a NoESB SOA solves everything Microservices RULE! JSON is better than XML EAI is better than Batch This time next year we will have a million connected devices You need an ESB
- 8. 2000 2015 Internet ofThings Wearables Microservices Big Data Container Based Deployment API / REST / JSON Mobile Cloud SOAP / Web Services SOA Lightweight Integration XML EAI EDI Mainframes Batch Integration ETL API Economy ESB 20102005 We need a platform that can potentially work with all of this NoESB
- 9. On Premise BizTalk WebServices SQL Server Integration Services Frameworks & Foundation .net WCF WF SOAP XML/XSD XSLT

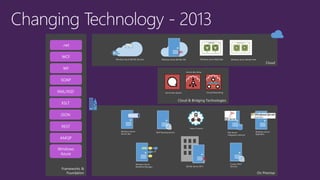

- 10. - 2013 Cloud On Premise Cloud& Bridging Technologies Service Bus Queue Service Bus Relay Virtual Networking Azure Connect Windows Azure BizTalk Services Windows Azure BizTalk VM BizTalk Server 2013 Windows Server AppFabric Windows Server Service Bus Windows Server Workflow Manager SQL Server Integration Services Windows Azure Web Role Windows Azure Worker Role WCF Routing Service Custom WCF Services Frameworks & Foundation .net WCF WF SOAP REST AMQP Windows Azure XML/XSD XSLT JSON
- 11. - 2014 Cloud On Premise Cloud& Bridging Technologies Service Bus MessagingService Bus Relay VPN BizTalk Services EAI Azure BizTalk VM BizTalk Server 2013 R2 Windows Server AppFabric Windows Server Service Bus Windows Server Workflow Manager SQL Server Integration Services WCF Routing Service Custom WCF Services Frameworks & Foundation .net WCF WF SOAP REST AMQP Azure XML/XSD XSLT JSON Traffic Manager BizTalk Services EDI BizTalk Hybrid Connections Express Route BizTalk Adapter Service Azure Active Directory Access Control Service Azure Web Sites Notification Hubs Web & Worker Roles Cache Azure SQL DB Document DB Scheduler Azure Automation Stream Analytics Event Hubs API Management Virtual Network Data Factory WebAPI

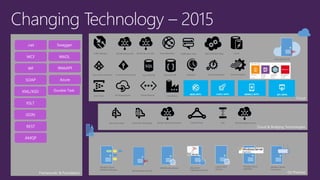

- 12. – 2015 Cloud On Premise Cloud& Bridging Technologies Service Bus MessagingService Bus Relay VPN BizTalk Services EAI Azure BizTalk VM BizTalk Server 2013 R2 Windows Server AppFabric Windows Server Service Bus Windows Server Workflow Manager SQL Server Integration Services WCF Routing Service Custom WCF Services Frameworks & Foundation .net WCF WF SOAP REST AMQP Azure XML/XSD XSLT JSON Traffic Manager BizTalk Services EDI BizTalk Hybrid Connections Express Route BizTalk Adapter Service Azure Active Directory Access Control Service Azure Web Sites Notification Hubs Web & Worker Roles Cache Azure SQL DB Document DB Scheduler Azure Automation Stream Analytics Event Hubs API Management Virtual Network Data Factory Swagger WADL WebAPI Durable Task

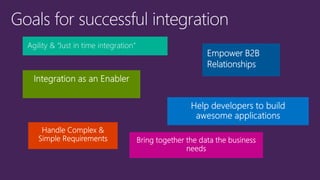

- 14. Agility & “Justin time integration”

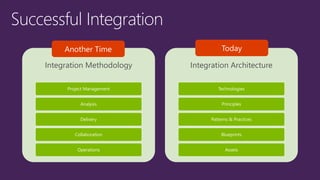

- 15. Integration Methodology Project Management Analysis Delivery Collaboration Operations IntegrationArchitecture Technologies Principles Patterns & Practices Blueprints Assets

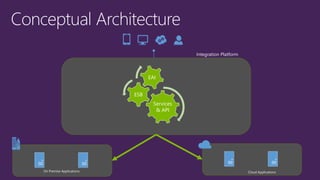

- 16. Integration Platform On PremiseApplications Cloud Applications Services & API ESB EAI

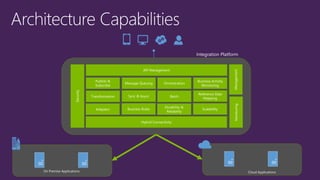

- 17. Publish & Subscribe Transformation API Management Security ManagementMonitoring MessageQueuing Sync & Async Orchestration Batch Business Activity Monitoring Reference Data Mapping Adapters Business Rules Durability & Reliability Scalability Hybrid Connectivity Integration Platform On Premise Applications Cloud Applications

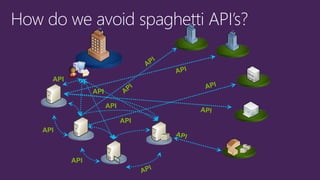

- 18. How does thiswork???? Is this future integration spaghetti?

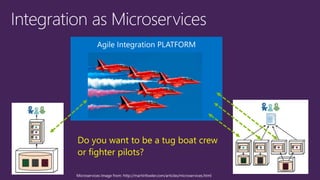

- 21. Do you wantto be a tug boat crew or fighter pilots?

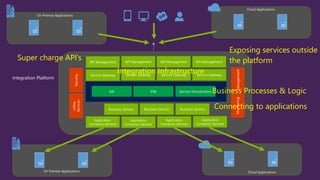

- 23. Service Gateway API Management Security ManagementMonitoring BusinessService Business Service Application Connector Services Integration Platform On Premise Applications Cloud Applications Application Connector Services Application Connector Services Application Connector Services Utility Services Service Gateway API Management Service Gateway API Management Service Gateway API Management On Premise Applications Cloud Applications EAI ESB Service Virtualization Business Service Connecting to applications Business Processes & Logic Integration Infrastructure Exposing services outside the platformSuper charge API’s
- 24. On-Premise & CloudIaaS Cloud PaaS Future additions • IIS Virtual Directory • Windows Service • BizTalk • Azure Website • Azure Web Role • Azure Worker Role • Azure Web Job • Azure Logic App • Azure Web App • Azure API App • Docker
- 26. Core Platform BizTalk Server SQL Server Integration Services Azure ServiceBus Relay Azure Service Bus Queues WCF WebAPI

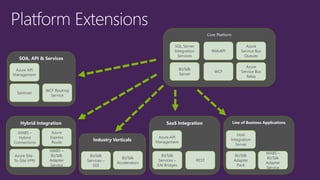

- 27. Core Platform Industry Verticals BizTalk Server SQLServer Integration Services Azure Service Bus Relay BizTalk Services – EDI Azure Service Bus Queues WCF WebAPI BizTalk Accelerators Hybrid Integration MABS – Hybrid Connections Azure Site- To-Site VPN Azure Express Route MABS – BizTalk Adapter Service Line of Business Applications BizTalk Adapter Pack MABS – BizTalk Adapter Service Host Integration Server SOA, API & Services Azure API Management Sentinet WCF Routing Service SaaS Integration BizTalk Services – EAI Bridges REST Azure API Management

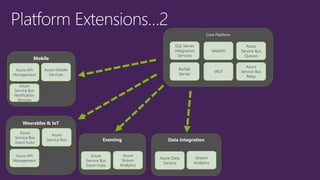

- 28. Core Platform BizTalk Server SQL Server Integration Services Azure ServiceBus Relay Azure Service Bus Queues WCF WebAPI Eventing Azure Service Bus Event Hubs Azure Stream Analytics Wearables & IoT Azure Service Bus Event hubs Azure API Management Azure Service Bus Data Integration Azure Data Factory Stream Analytics Mobile Azure API Management Azure Service Bus Notification Services Azure Mobile Services
- 29. Core Platform BizTalk Server SQL Server Integration Services Azure ServiceBus Relay Azure Service Bus Queues WCF WebAPI Azure Logic App Azure API App Azure App Service

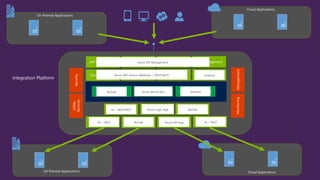

- 31. Service Gateway API Management Security ManagementMonitoring BusinessService Business Service Application Connector Services Integration Platform On Premise Applications Cloud Applications Application Connector Services Application Connector Services Application Connector Services Utility Services Service Gateway API Management Service Gateway API Management Service Gateway API Management On Premise Applications Cloud Applications EAI ESB Service Virtualization Azure API Management Azure APP Service (Websites + REST/WCF) IIS + WCF IIS + REST IIS + WCF/REST Azure API App BizTalk BizTalk BizTalk Azure Service Bus Sentinet Business ServiceAzure Logic App Sentinet

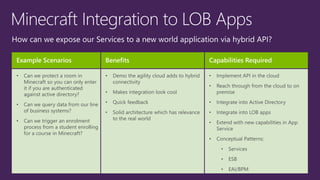

- 34. • Can weprotect a room in Minecraft so you can only enter it if you are authenticated against active directory? • Can we query data from our line of business systems? • Can we trigger an enrolment process from a student enrolling for a course in Minecraft?
- 35. On Premise DataCentre Active Directory Azure Azure Service Bus Relay Azure API Management
- 36. On Premise DataCentre Azure Azure Service Bus Queue Azure API Management Enrolment System Courses System
- 37. On Premise DataCentre Azure Azure Service Bus Queue Azure API Management Enrolment System Courses System
- 39.

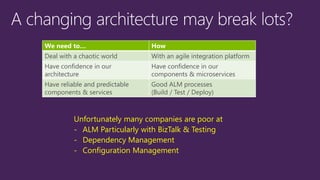

- 41. Unfortunately many companiesare poor at - ALM Particularly with BizTalk & Testing - Dependency Management - Configuration Management We need to… How Deal with a chaotic world With an agile integration platform Have confidence in our architecture Have confidence in our components & microservices Have reliable and predictable components & services Good ALM processes (Build / Test / Deploy)
Editor's Notes

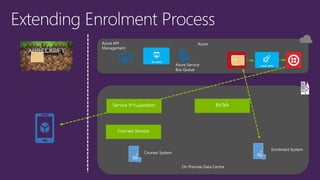

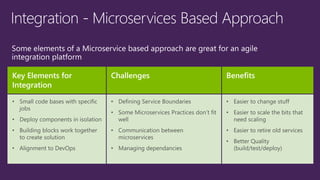

- #19 If we think about the way applications are changing in the way they are build there are some good things happening. There are however some challenges which are not so clearly defined around the communication between microservices and the communication to from microservices to monolithic applications. Saying to just use a queue or HTTP leave a lot of scope for customers to make mistakes and use bad practices resulting in coupled systems. As an integration person we need to think about how we can address these challenges

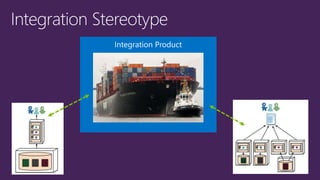

- #21 Application teams used to often see integration teams like the tug boat crew trying to maneuver this huge integration product around which was difficult to get what they wanted and moved slowly
- #22 We still have a solid foundation (aircraft carrier), but the fighter jets represent our microservices within the integration platform for agility and fast response and specific tasks. When we start making our services work together we can create some great solutions.
- #24 Types of Component There are the following types of component: App Connector Services Business Services Infrastructure Services (EAI, ESB, Service Virtualization, Security, Utilities) Service Gateways API Proxies This slide is about illustrating logically building the platform
- #36 We can expose a Minecraft friendly API as a WebAPI on Azure App Service We can use Azure Service Bus Relay to bridge on premise We can use the Microservices architecture and Services Stack to make it easy to integrate with apps
- #37 We could expose an existing enrolment process via the API stack The process in BizTalk can reuse our Services Stack We can integrate into LOB applications with BizTalk We can extend the process with light weight integrations on Azure App Service
- #38 The business have a requirement to change the existing enrolment process and add some notifications to the end of it Rather than change whats there we can implement a simpler solution using App Service and try out the idea with zero change to the existing solution. If it doesn’t work we can bin it If it works well we can keep it or integrate something into existing integration process This fits really well with the idea of 2 speed IT and 2 speed integration
- #40 This is a big concern to me, our principles of separation of messaging and API combined with service virtualization and API management are how we think we will provide governance and management of this. Its important to remember that just stuffing an API Management product in front of your API’s isn’t a silver bullet to this.

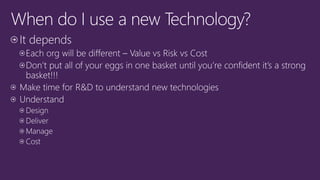

- #41 EG: App Service is new so this is the latest “when do we use what” challenge. WebApps and MobileApps have been out a while so will be lower risk but newer features may be less mature. We will use R&D to evaluate how well they fit into our way of working and how they fit into our patterns and how confident we are in them. This will decide when we are ready to bet on them and by how much. If we wanted to use an immature product in a niche area we might accept a less mature process for using it
