The document discusses the importance of accurate resistance readings using a multimeter in computer servicing. It defines resistance, provides measurements in ohms, and details various resistance scales and their corresponding values. Additionally, it includes examples and a practical activity involving resistor readings with a multimeter.

1. Prayer

5. Why it is important
to get the accurate
reading?

6. Multimeter
Resistance Reading

7. Learning Objectives:
•define resistance;
•Identify the procedure in multimeter resistance
reading;
•apply the resistance reading; and
•appreciate the importance of resistance reading
in computer system servicing.

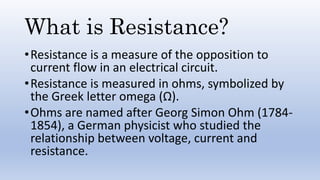

8. What is Resistance?
•Resistance is a measure of the opposition to
current flow in an electrical circuit.
•Resistance is measured in ohms, symbolized by
the Greek letter omega (Ω).
•Ohms are named after Georg Simon Ohm (1784-
1854), a German physicist who studied the
relationship between voltage, current and
resistance.

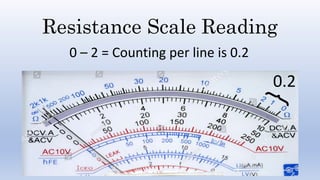

9. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
0.2

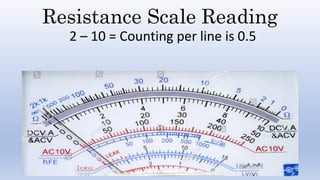

10. Resistance Scale Reading
2 – 10 = Counting per line is 0.5

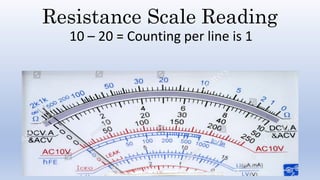

11. Resistance Scale Reading
10 – 20 = Counting per line is 1

12. Resistance Scale Reading
20 – 50 = Counting per line is 2

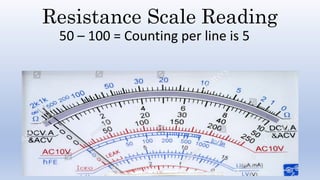

13. Resistance Scale Reading
50 – 100 = Counting per line is 5

14. Resistance Scale Reading
100 – 200 = Counting per line is 20

15. Resistance Scale Reading
200 – 500 = Counting per line is 100

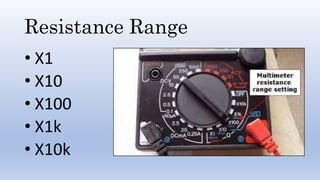

16. Resistance Range
• X1
• X10
• X100
• X1k
• X10k

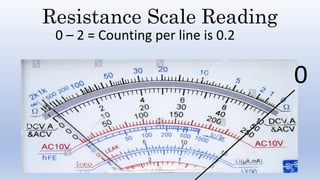

17. Resistance Scale Reading
0
0 – 2 = Counting per line is 0.2

18. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
0.2

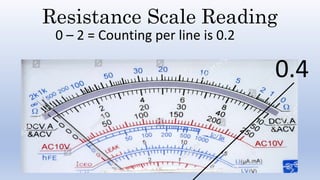

19. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
0.4

20. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
0.6

21. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
0.8

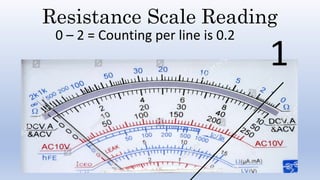

22. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
1

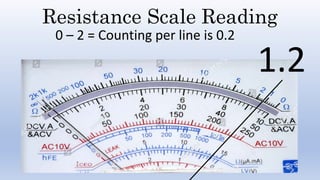

23. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
1.2

24. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
1.4

25. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
1.6

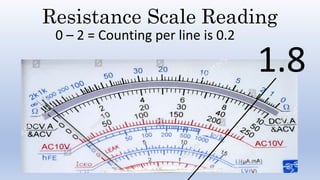

26. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
1.8

27. Resistance Scale Reading
0 – 2 = Counting per line is 0.2
2

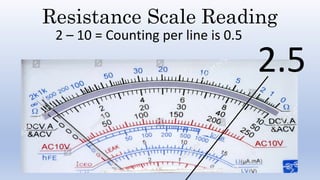

28. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
2.5

29. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
3

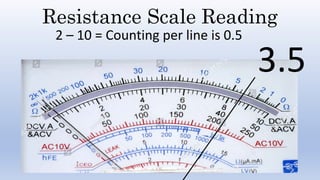

30. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
3.5

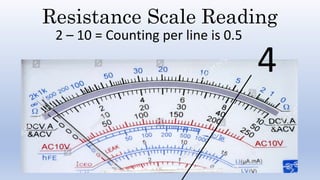

31. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
4

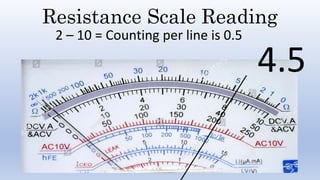

32. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
4.5

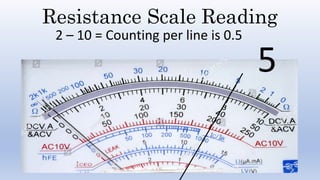

33. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
5

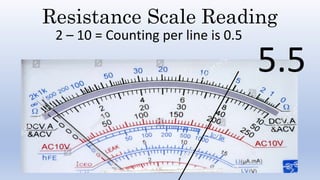

34. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
5.5

35. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
6

36. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
6.5

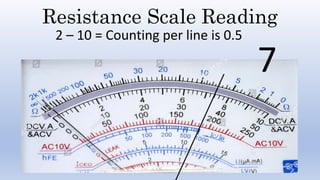

37. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
7

38. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
7.5

39. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
8

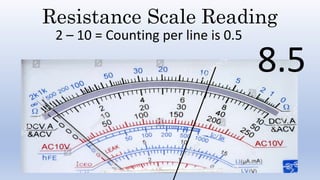

40. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
8.5

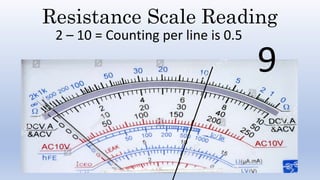

41. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
9

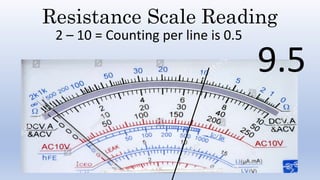

42. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
9.5

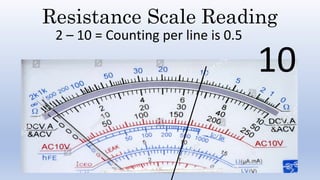

43. Resistance Scale Reading
2 – 10 = Counting per line is 0.5
10

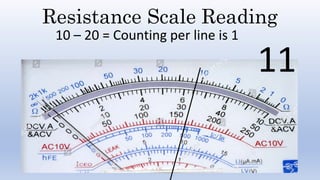

44. Resistance Scale Reading
10 – 20 = Counting per line is 1
11

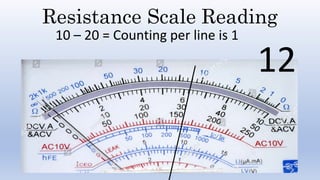

45. Resistance Scale Reading
10 – 20 = Counting per line is 1
12

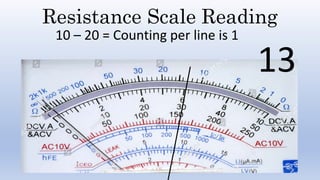

46. Resistance Scale Reading
10 – 20 = Counting per line is 1
13

47. Resistance Scale Reading
10 – 20 = Counting per line is 1
14

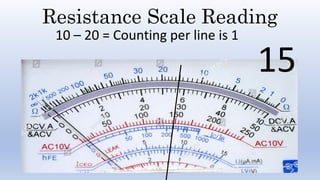

48. Resistance Scale Reading
10 – 20 = Counting per line is 1
15

49. Resistance Scale Reading
10 – 20 = Counting per line is 1
16

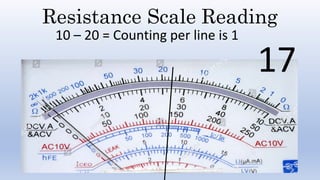

50. Resistance Scale Reading
10 – 20 = Counting per line is 1
17

51. Resistance Scale Reading
10 – 20 = Counting per line is 1
18

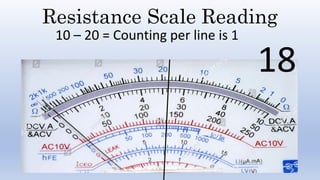

52. Resistance Scale Reading
10 – 20 = Counting per line is 1
19

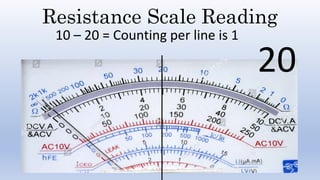

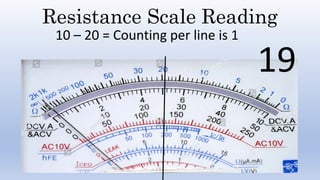

53. Resistance Scale Reading
10 – 20 = Counting per line is 1
20

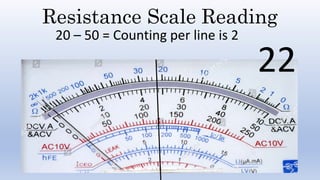

54. Resistance Scale Reading
20 – 50 = Counting per line is 2
22

55. Resistance Scale Reading
20 – 50 = Counting per line is 2
24

56. Resistance Scale Reading
20 – 50 = Counting per line is 2
26

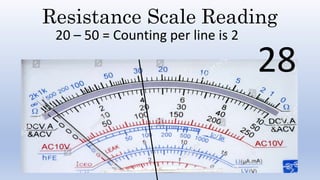

57. Resistance Scale Reading
20 – 50 = Counting per line is 2
28

58. Resistance Scale Reading
20 – 50 = Counting per line is 2
30

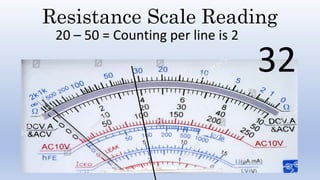

59. Resistance Scale Reading
20 – 50 = Counting per line is 2
32

60. Resistance Scale Reading
20 – 50 = Counting per line is 2
34

61. Resistance Scale Reading
20 – 50 = Counting per line is 2
36

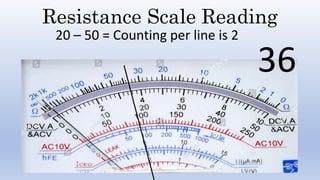

62. Resistance Scale Reading
20 – 50 = Counting per line is 2
38

63. Resistance Scale Reading
20 – 50 = Counting per line is 2
40

64. Resistance Scale Reading
20 – 50 = Counting per line is 2
42

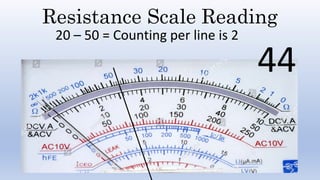

65. Resistance Scale Reading
20 – 50 = Counting per line is 2
44

66. Resistance Scale Reading
20 – 50 = Counting per line is 2
46

67. Resistance Scale Reading
20 – 50 = Counting per line is 2
48

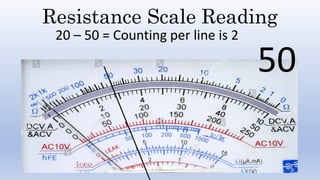

68. Resistance Scale Reading
20 – 50 = Counting per line is 2
50

69. Resistance Scale Reading
50 – 100 = Counting per line is 5
55

70. Resistance Scale Reading
50 – 100 = Counting per line is 5
60

71. Resistance Scale Reading
50 – 100 = Counting per line is 5
65

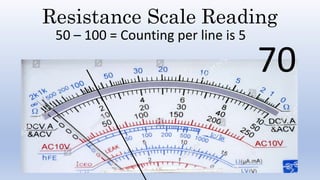

72. Resistance Scale Reading
50 – 100 = Counting per line is 5
70

73. Resistance Scale Reading
50 – 100 = Counting per line is 5
75

74. Resistance Scale Reading
50 – 100 = Counting per line is 5
80

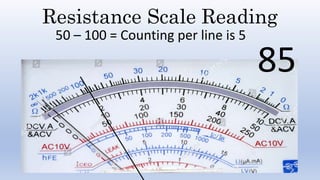

75. Resistance Scale Reading
50 – 100 = Counting per line is 5
85

76. Resistance Scale Reading
50 – 100 = Counting per line is 5
90

77. Resistance Scale Reading
50 – 100 = Counting per line is 5
95

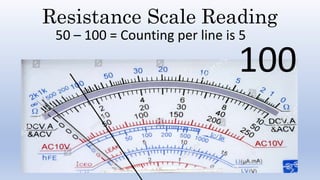

78. Resistance Scale Reading
50 – 100 = Counting per line is 5
100

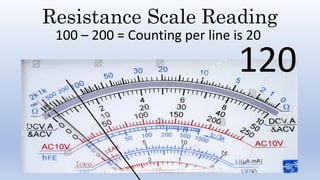

79. Resistance Scale Reading
100 – 200 = Counting per line is 20
120

80. Resistance Scale Reading
100 – 200 = Counting per line is 20
140

81. Resistance Scale Reading
100 – 200 = Counting per line is 20
160

82. Resistance Scale Reading
100 – 200 = Counting per line is 20
180

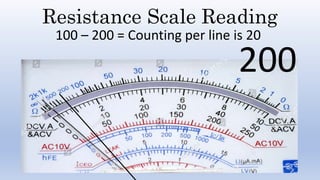

83. Resistance Scale Reading
100 – 200 = Counting per line is 20
200

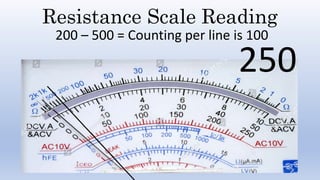

84. Resistance Scale Reading
200 – 500 = Counting per line is 100
250

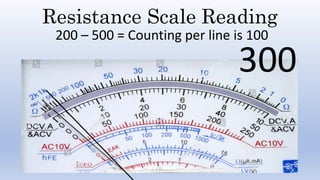

85. Resistance Scale Reading
200 – 500 = Counting per line is 100
300

86. Resistance Scale Reading
200 – 500 = Counting per line is 100
400

87. Resistance Scale Reading
200 – 500 = Counting per line is 100
500

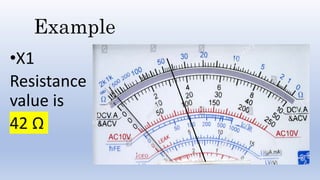

89. Example
•X1
Resistance
value is
42 Ω

90. Example
•X10
Resistance
value is
120Ω

91. Example
•X100
Resistance
value is
1600Ω

92. Example
•X1k
Resistance
value is
8500Ω

93. Example
•X10k
Resistance
value is
25,000Ω

94. Class A
V.S
Class B

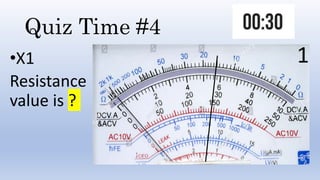

95. Quiz Time #4
•X1
Resistance
value is ?
1

96. Quiz Time #4
•X10
Resistance
value is ?
2

97. Quiz Time #4
•X100
Resistance
value is ?
3

98. Quiz Time #4
•X1k
Resistance
value is ?
4

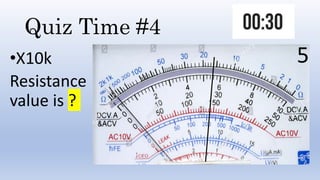

99. Quiz Time #4
•X10k
Resistance
value is ?
5

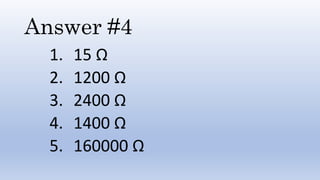

100. Answer #4
1. 15 Ω
2. 1200 Ω
3. 2400 Ω
4. 1400 Ω
5. 160000 Ω

101. Agreement!
•Bring 1 piece any value
of resistor tomorrow for
our activity.

102. Prayer

104. Computer System Servicing
Presented and Discussed by:
Mr. Jomark M. Peduhan

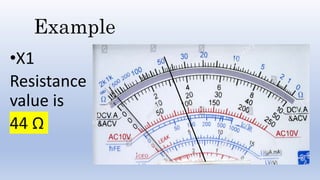

106. Example
•X1
Resistance
value is
44 Ω

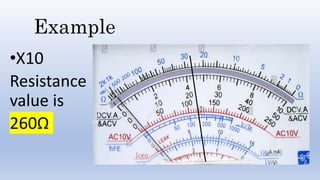

107. Example
•X10
Resistance
value is
260Ω

108. Example
•X100
Resistance
value is
400Ω

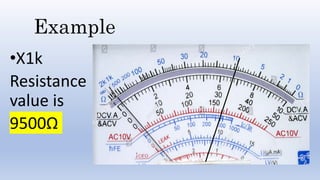

109. Example
•X1k
Resistance
value is
9500Ω

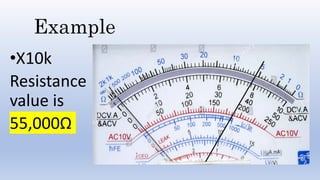

110. Example
•X10k
Resistance
value is
55,000Ω

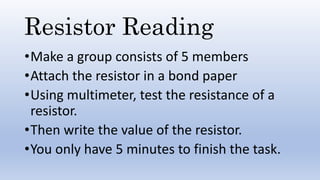

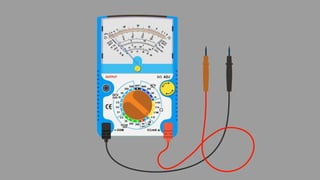

112. Resistor Reading
•Make a group consists of 5 members
•Attach the resistor in a bond paper
•Using multimeter, test the resistance of a
resistor.
•Then write the value of the resistor.
•You only have 5 minutes to finish the task.
