The document discusses new features in Amazon RDS for SQL Server. It provides an overview of infrastructure improvements including new instance types and storage options. It also covers security features like SQL Server audit and SQLAgentOperatorRole. Monitoring capabilities through CloudWatch Logs integration and Performance Insights are reviewed. Migration methods using native backups and restores and Change Data Capture are presented. Additional features such as increased database limits and S3 integration are also summarized.

2. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Deep dive on new features in
Amazon RDS for SQL Server
Prashant Bondada
D A T 3 6 4 - R
Sr. Database Engineer
Amazon Web Services

3. Agenda
• Introduction
• Infrastructure
• Security
• Monitoring
• Migration
• Features

4. Related breakouts
DAT364-R1 – Deep dive on new features in Amazon RDS for SQL Server
DAT311-R – Understanding durability & availability with Amazon RDS for
SQL Server
DAT337 – Running and tuning SQL Server on Amazon RDS

5. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

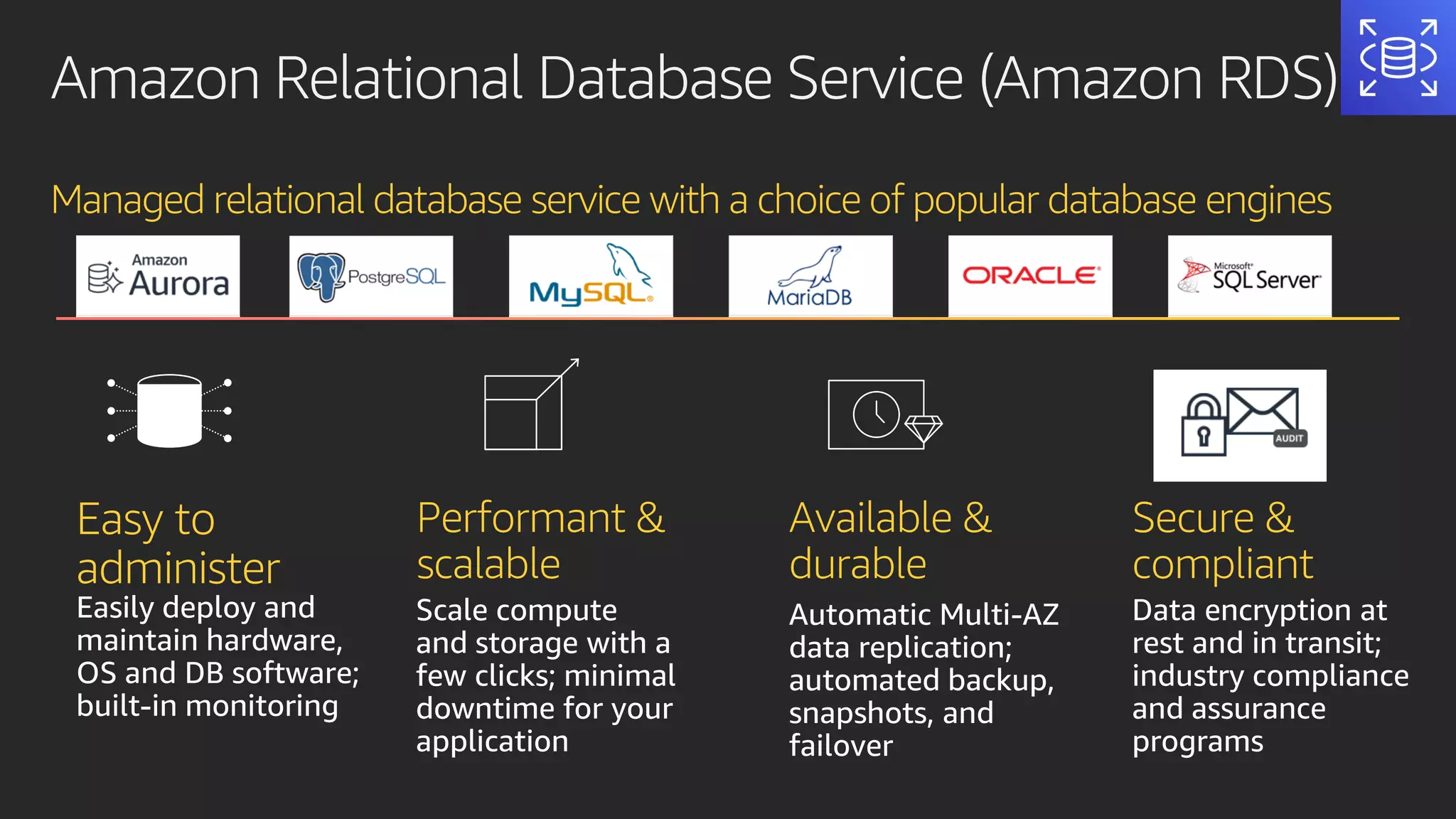

6. Easily deploy and
maintain hardware,
OS and DB software;
built-in monitoring
Scale compute
and storage with a
few clicks; minimal
downtime for your
application
Automatic Multi-AZ
data replication;
automated backup,
snapshots, and
failover
Data encryption at
rest and in transit;
industry compliance
and assurance
programs
Amazon Relational Database Service (Amazon RDS)
Managed relational database service with a choice of popular database engines
Easy to
administer
Performant &
scalable
Available &
durable
Secure &
compliant

7. Introduction: Managed service
What does Amazon RDS manage?
➢
➢
➢
➢
➢
➢

8. Introduction: Configuration
What can you configure?
➢
➢
➢
➢
➢
Deep dive on best practices : https://www.youtube.com/watch?v=4JYS1J5PyHw
➢
➢
➢
➢

9. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

10. Infrastructure: Regions
Available in 23 Regions with 70 Availability Zones
US East (Ohio)
US East (N. Virginia)
US West (N. California)
US West (Oregon)
Asia Pacific (Hong Kong)
Asia Pacific (Mumbai)
Asia Pacific (Osaka-Local)
Asia Pacific (Seoul)
EU (Frankfurt)
EU (Ireland)
EU (London)
EU (Paris)
EU (Stockholm)
Middle East (Bahrain)
South America (Sao Paulo)
AWS GovCloud (US-East)
AWS GovCloud (US-West)
Asia Pacific (Singapore)
Asia Pacific (Sydney)
Asia Pacific (Tokyo)
Canada (Central)
China (Beijing)
China (Ningxia)

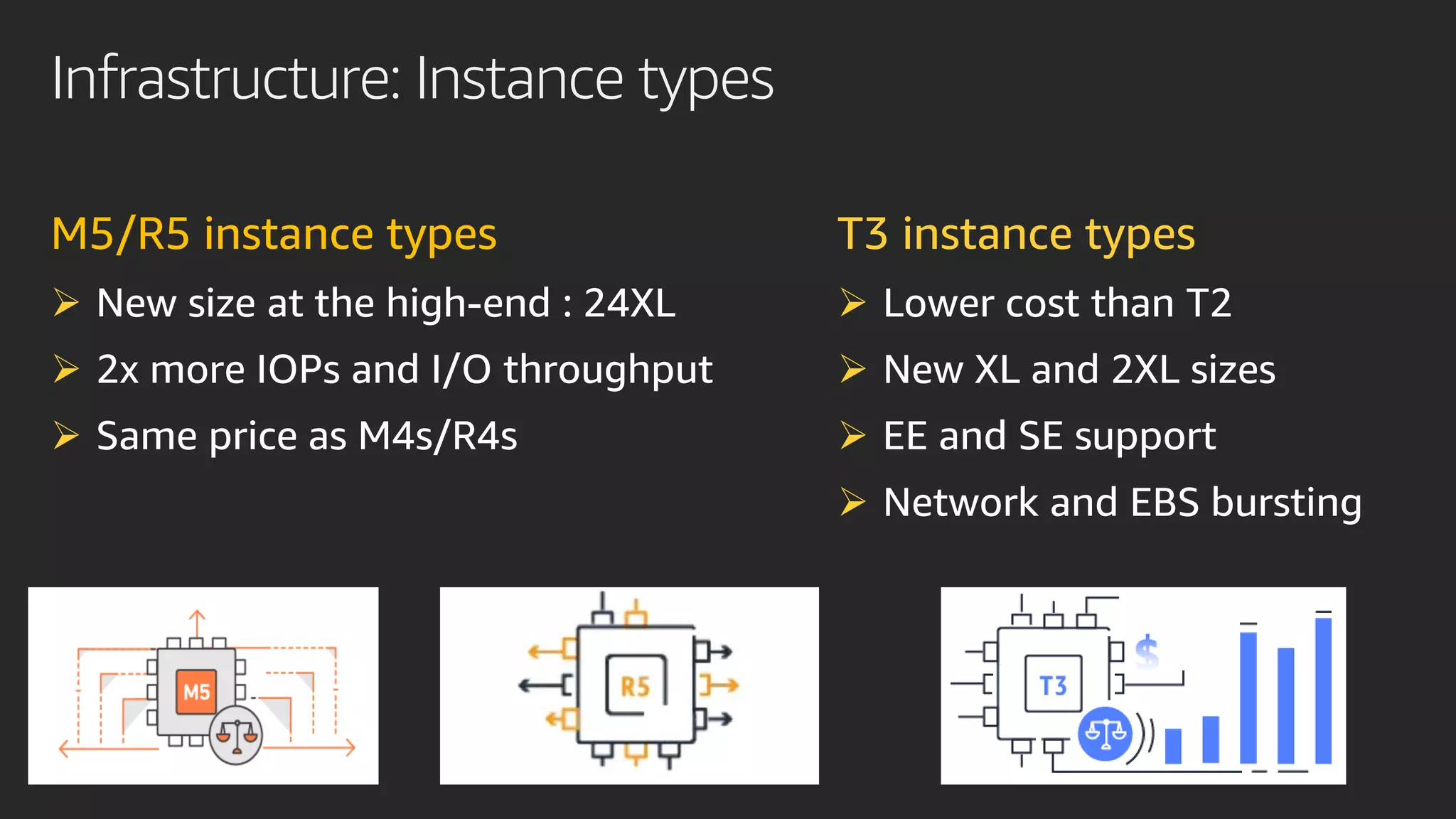

11. Infrastructure: Instance types
M5/R5 instance types
➢ ew size at the high-end : 24XL
➢
➢
T3 instance types
➢ Lower cost than T2
➢ New XL and 2XL sizes
➢
➢ Network and EBS bursting

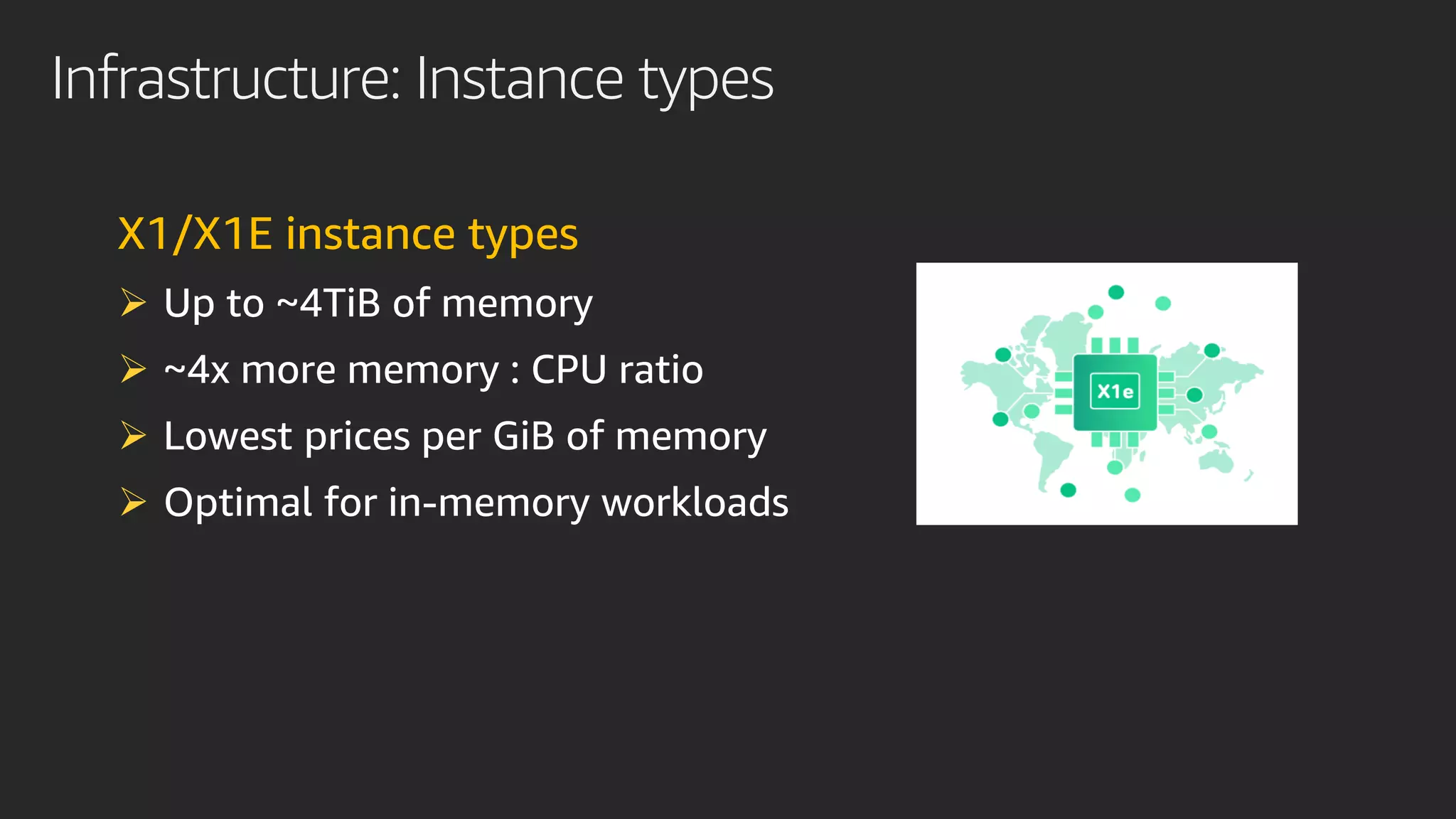

12. Infrastructure: Instance types
X1/X1E instance types
➢ Up to ~4TiB of memory
➢ ~4x more memory : CPU ratio
➢ Lowest prices per GiB of memory
➢ Optimal for in-memory workloads

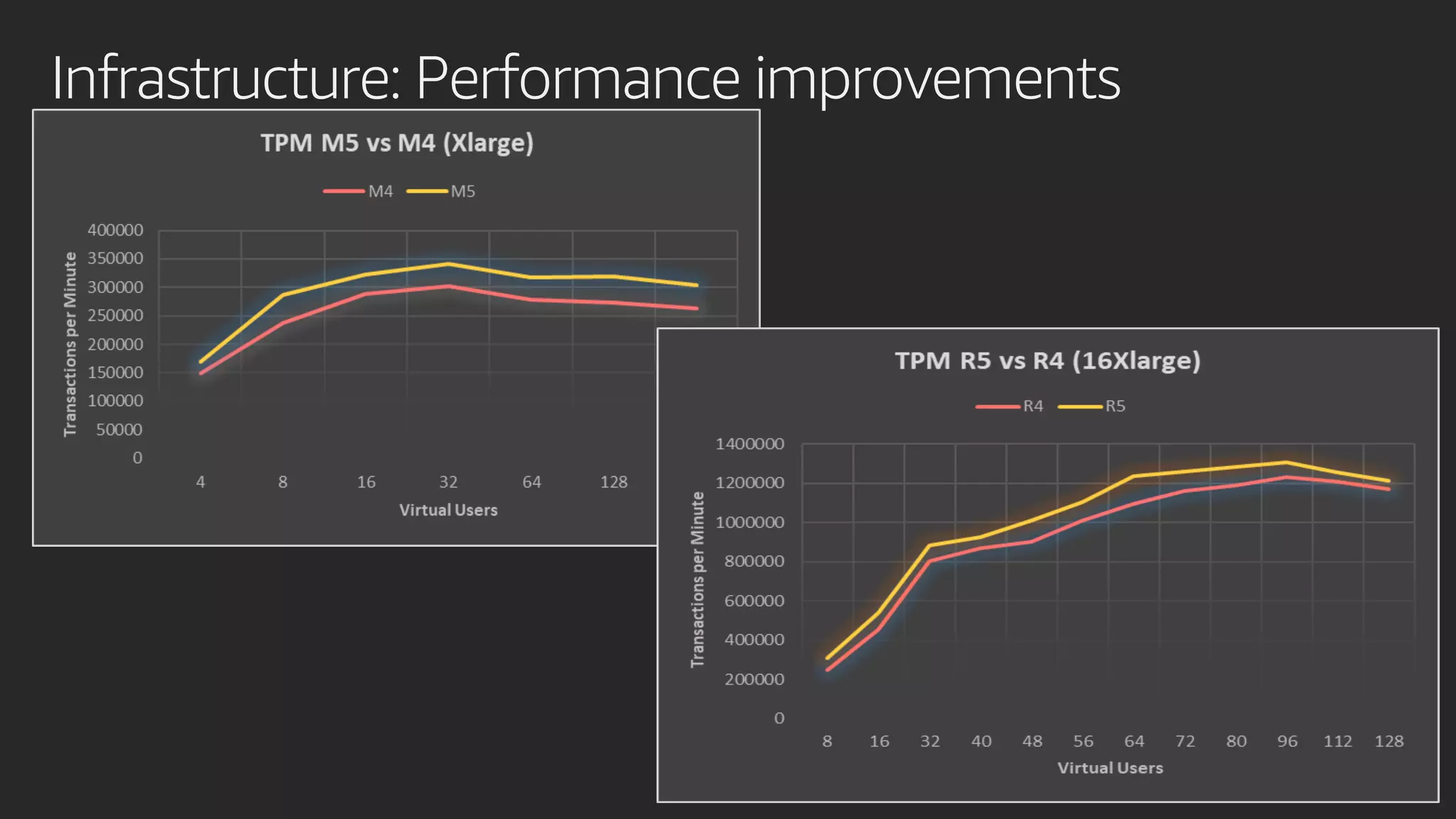

13. Infrastructure: Performance improvements

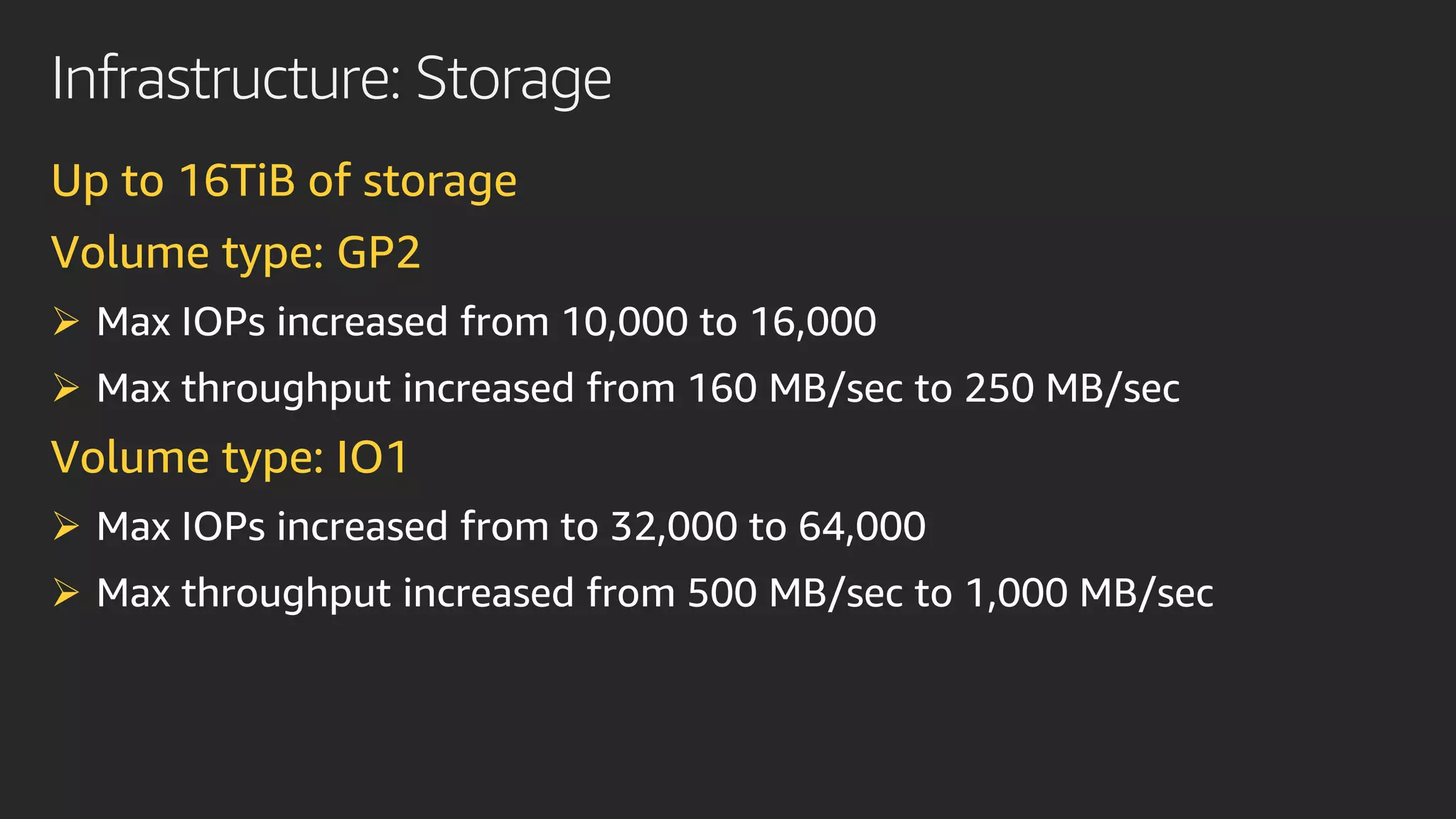

14. Infrastructure: Storage
Up to 16TiB of storage
Volume type: GP2
➢
➢
Volume type: IO1
➢
➢

15. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

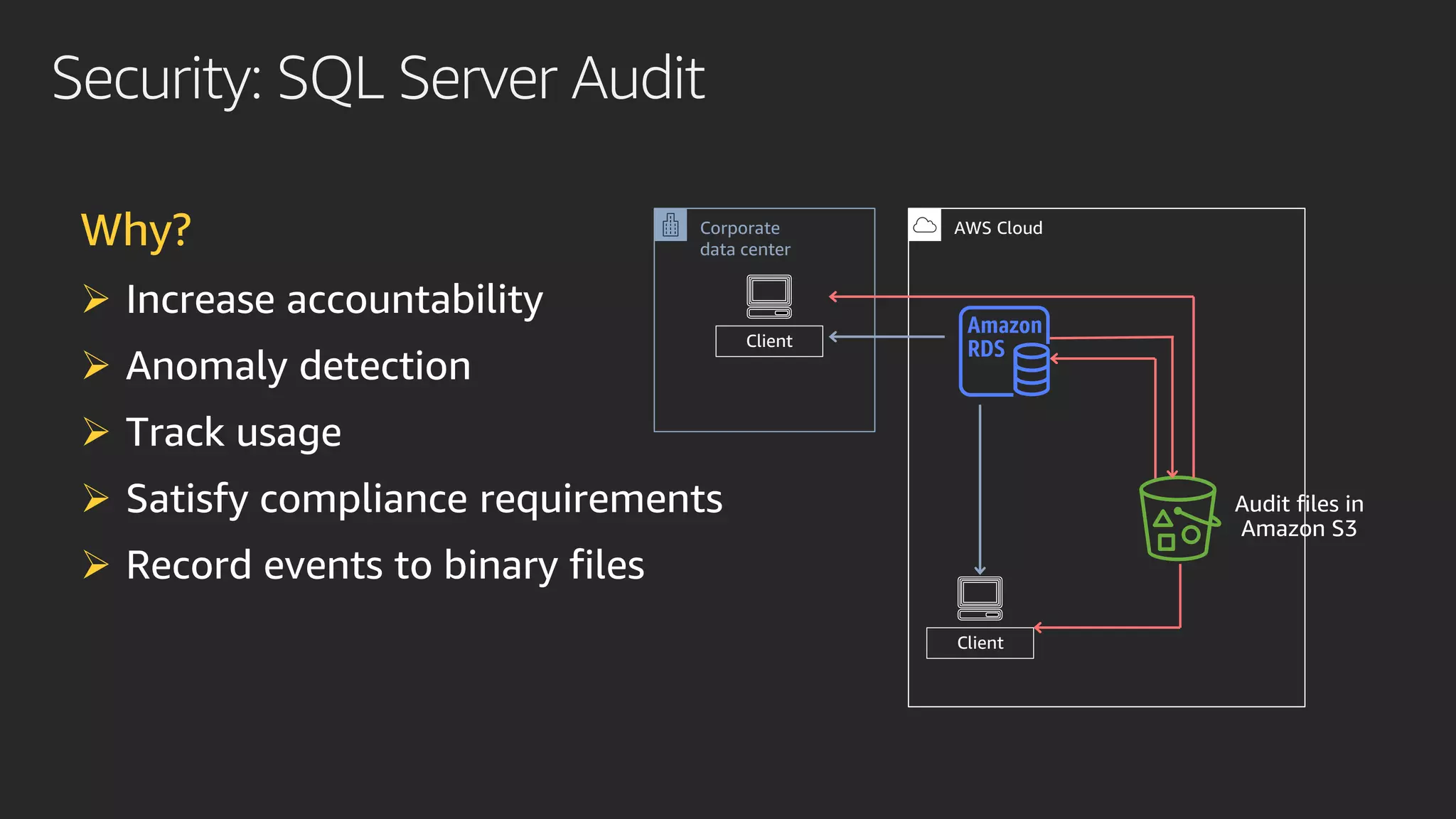

16. Security: SQL Server Audit
AWS Cloud
Client
Why?
➢
➢
➢
➢
➢
Client
Corporate
data center

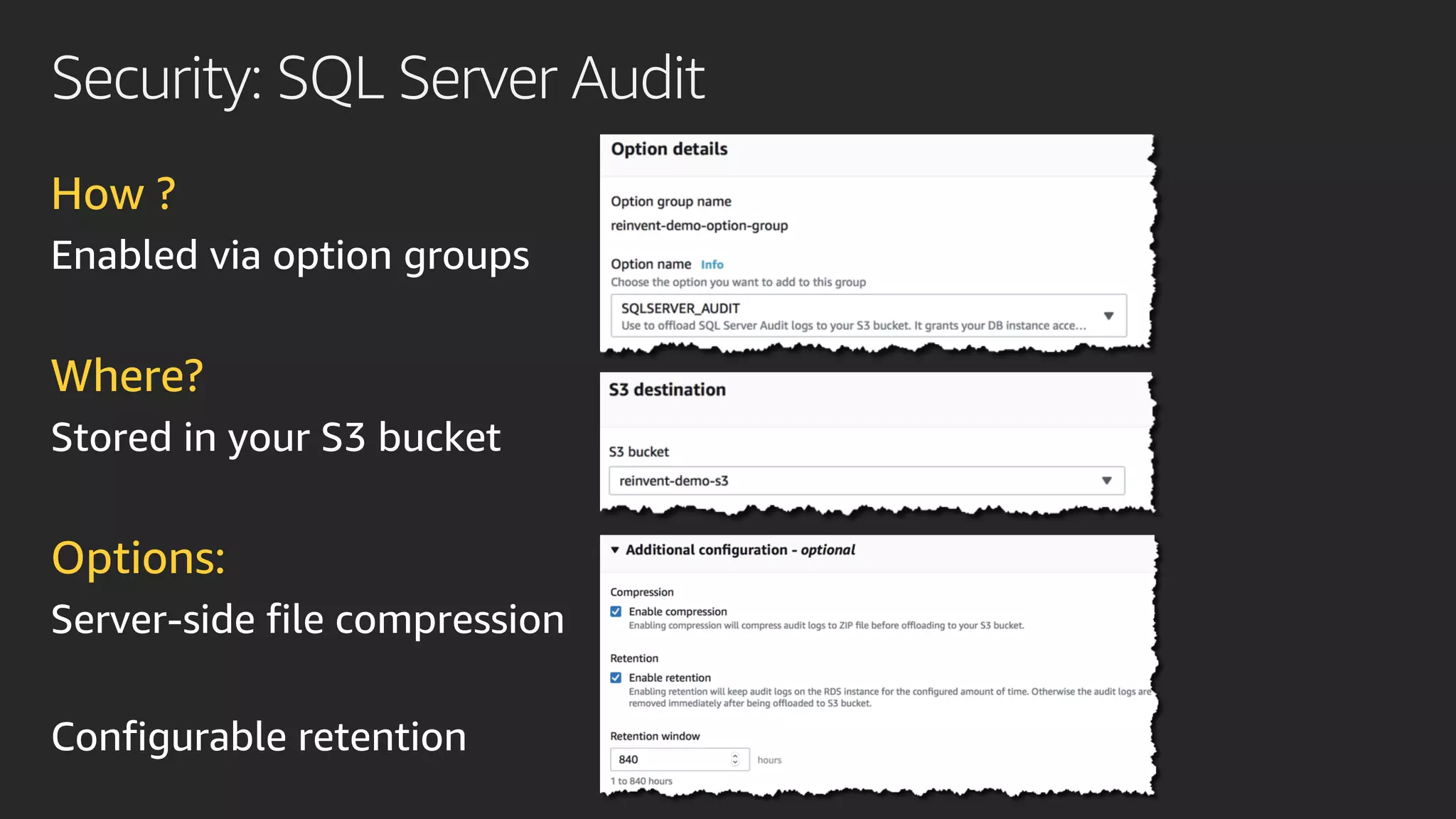

17. Security: SQL Server Audit
How ?

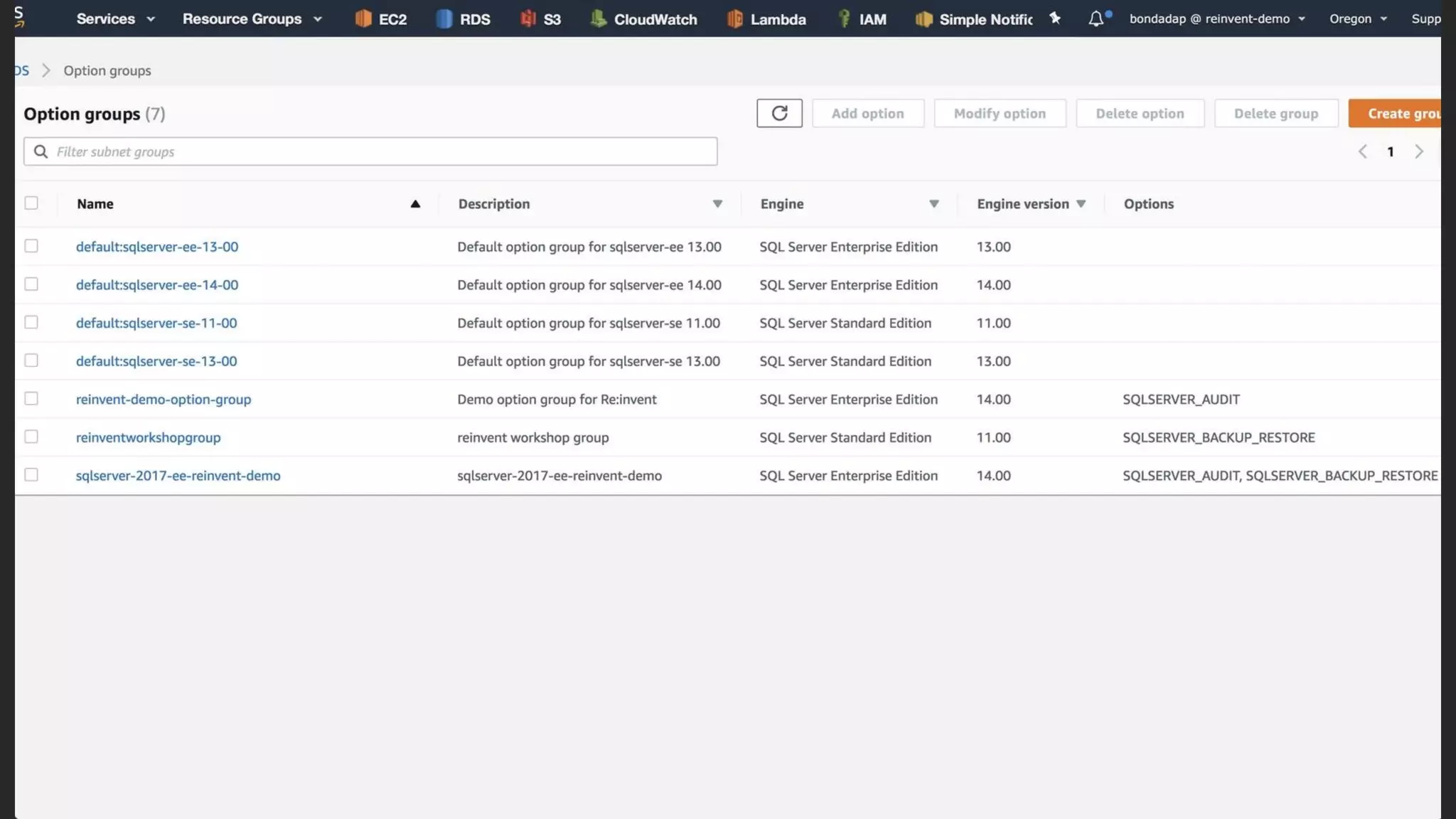

Enabled via option groups
Where?
Stored in your S3 bucket
Options:
Server-side file compression
Configurable retention

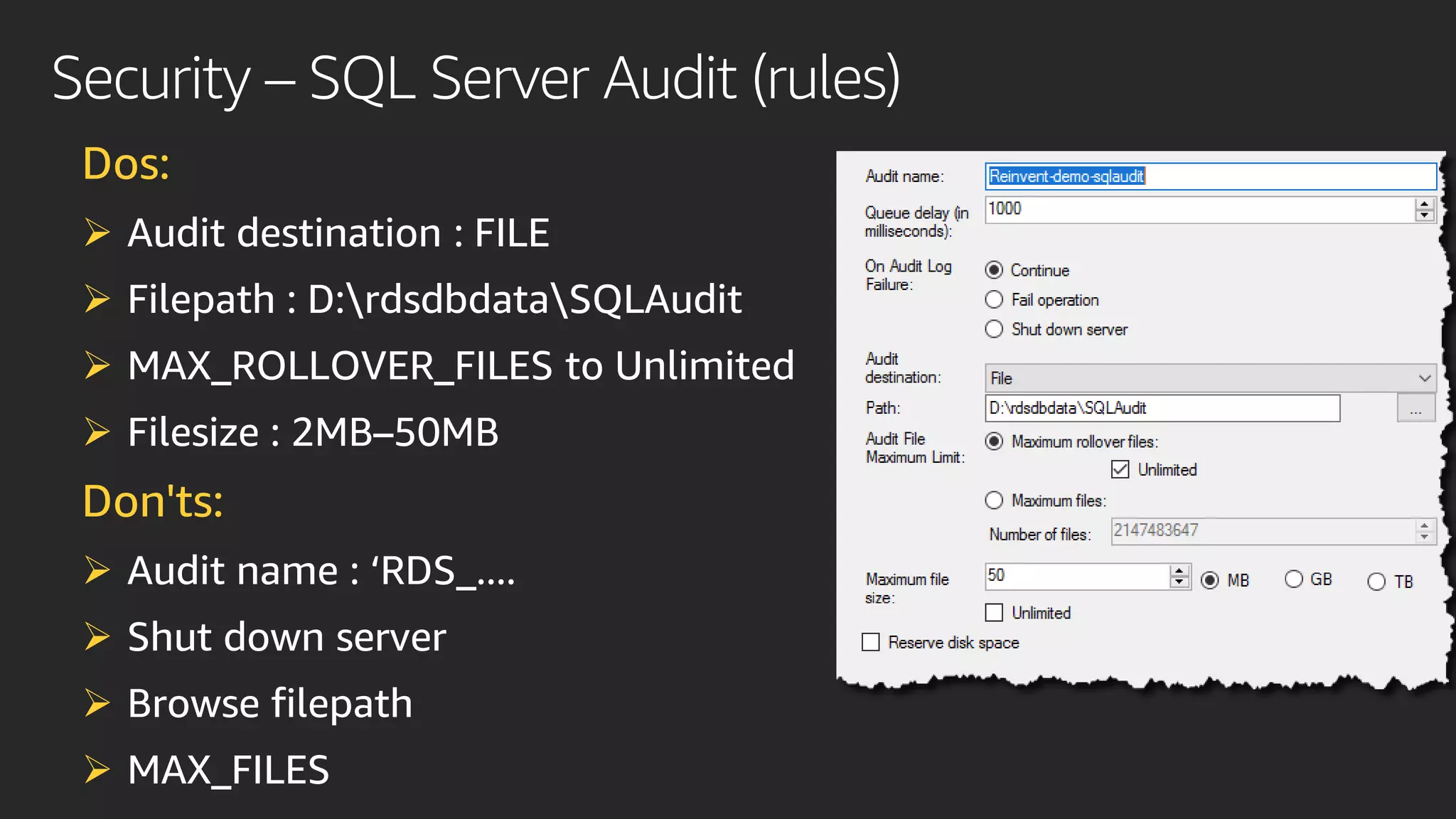

19. Security – SQL Server Audit (rules)
Dos:
➢ Audit destination : FILE
➢ Filepath : D:rdsdbdataSQLAudit
➢ MAX_ROLLOVER_FILES to Unlimited
➢ Filesize : 2MB–50MB
Don'ts:
➢ Audit name : ‘RDS_....
➢ Shut down server
➢ Browse filepath
➢ MAX_FILES

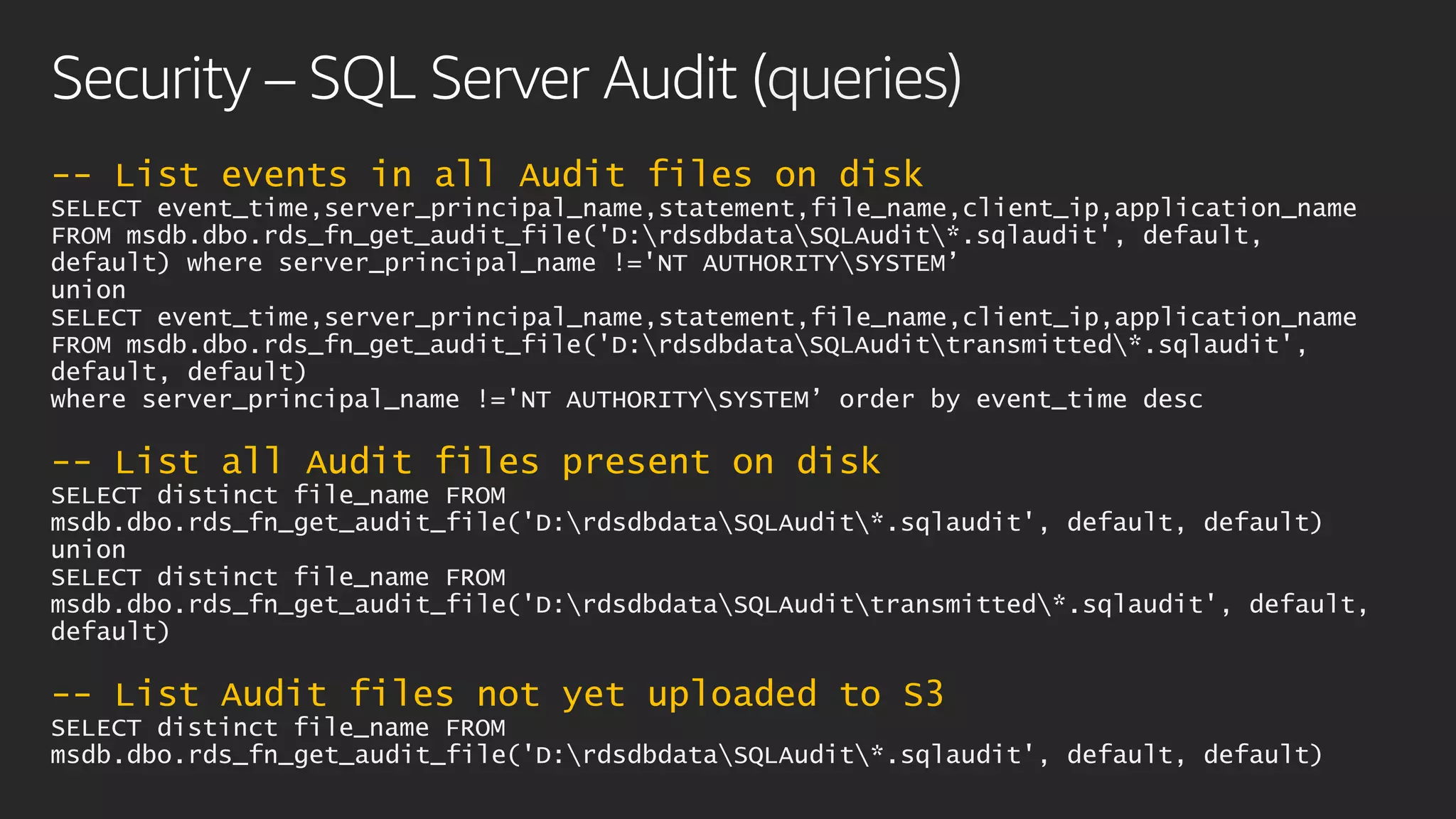

21. Security – SQL Server Audit (queries)
-- List events in all Audit files on disk
SELECT event_time,server_principal_name,statement,file_name,client_ip,application_name
FROM msdb.dbo.rds_fn_get_audit_file('D:rdsdbdataSQLAudit*.sqlaudit', default,
default) where server_principal_name !='NT AUTHORITYSYSTEM’
union
SELECT event_time,server_principal_name,statement,file_name,client_ip,application_name
FROM msdb.dbo.rds_fn_get_audit_file('D:rdsdbdataSQLAudittransmitted*.sqlaudit',
default, default)
where server_principal_name !='NT AUTHORITYSYSTEM’ order by event_time desc
-- List all Audit files present on disk
SELECT distinct file_name FROM
msdb.dbo.rds_fn_get_audit_file('D:rdsdbdataSQLAudit*.sqlaudit', default, default)
union
SELECT distinct file_name FROM
msdb.dbo.rds_fn_get_audit_file('D:rdsdbdataSQLAudittransmitted*.sqlaudit', default,
default)
-- List Audit files not yet uploaded to S3
SELECT distinct file_name FROM
msdb.dbo.rds_fn_get_audit_file('D:rdsdbdataSQLAudit*.sqlaudit', default, default)

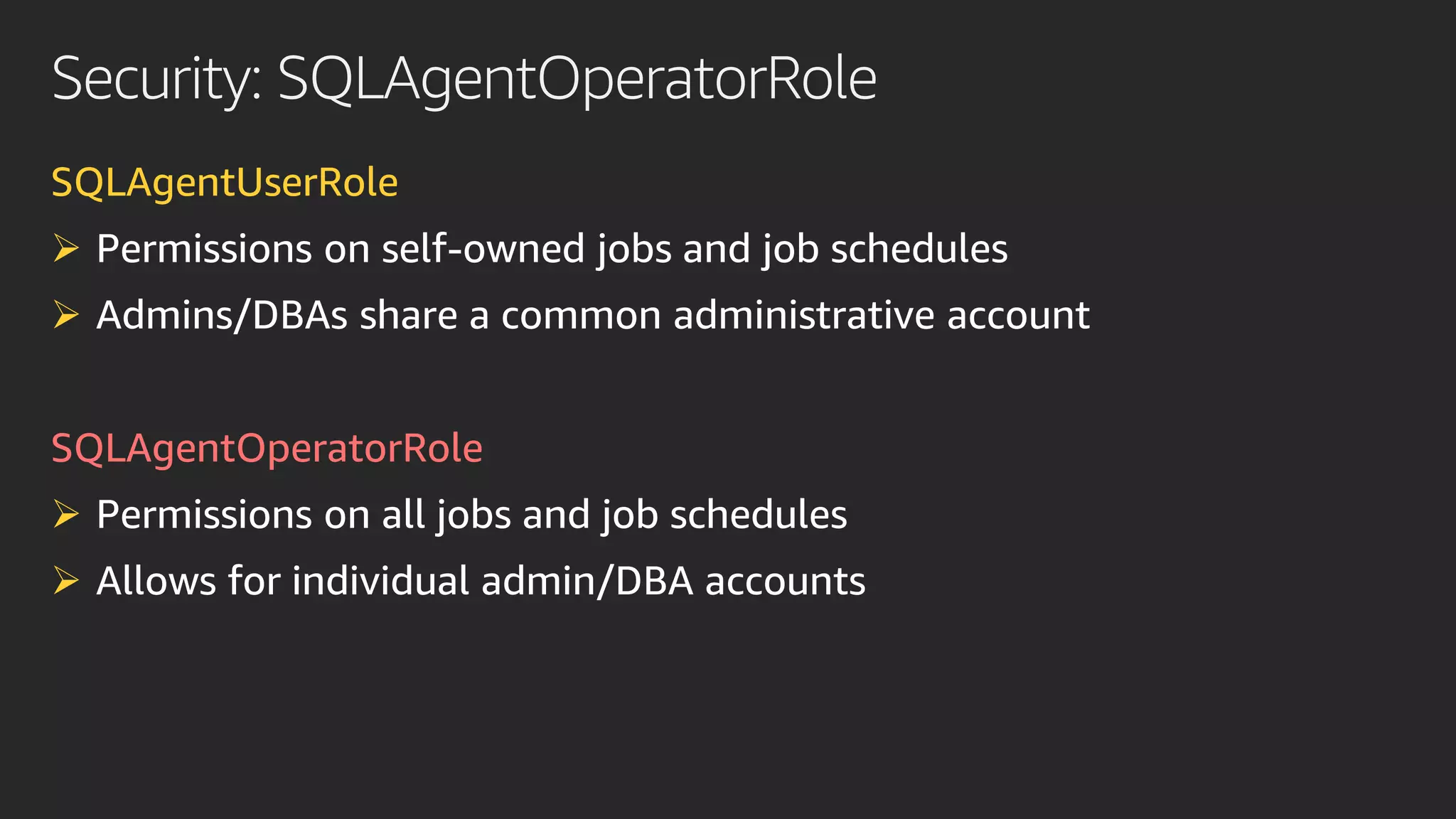

22. Security: SQLAgentOperatorRole
SQLAgentUserRole
➢ Permissions on self-owned jobs and job schedules
➢
SQLAgentOperatorRole
➢ Permissions on all jobs and job schedules
➢ Allows for individual admin/DBA accounts

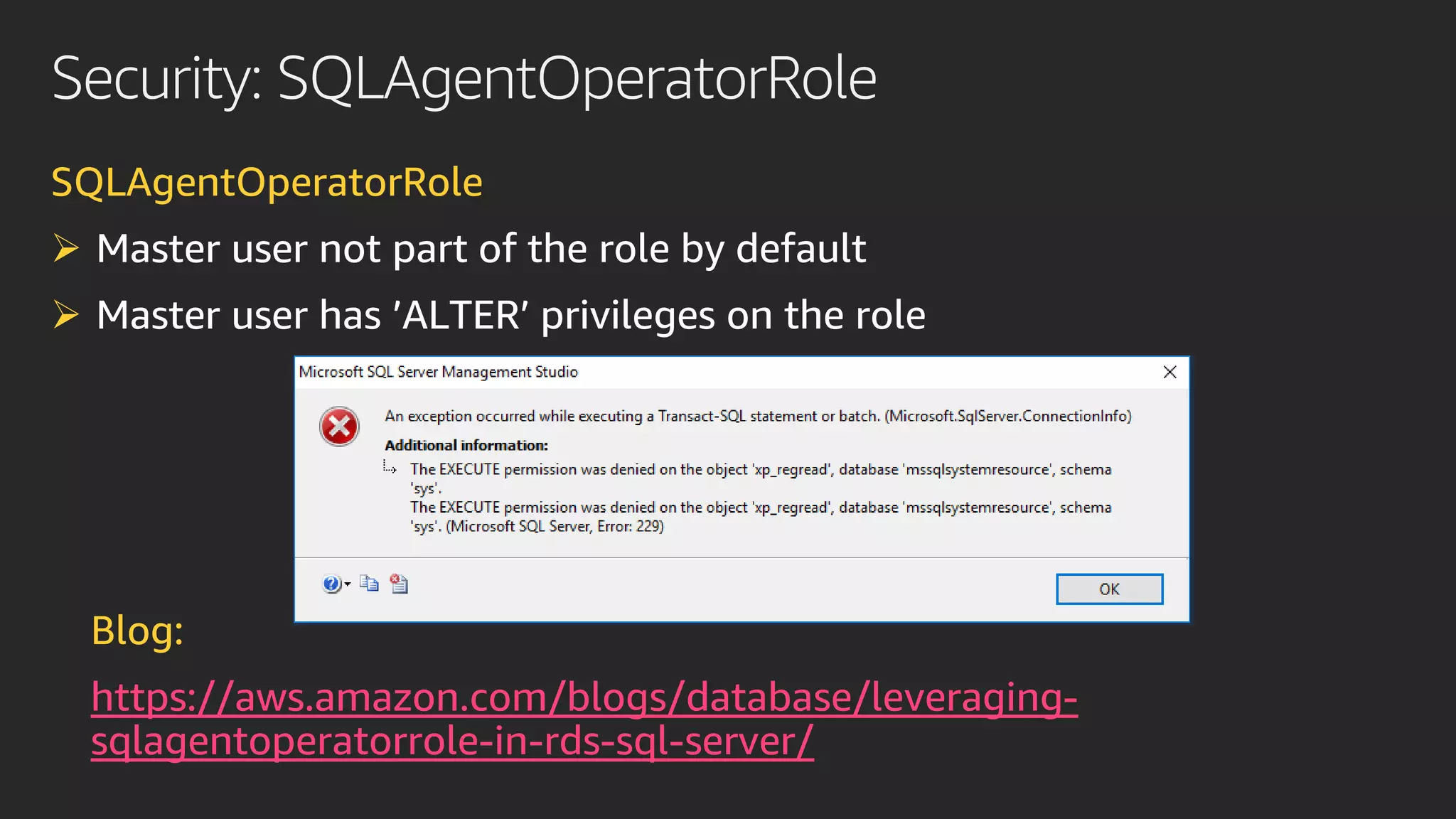

23. Security: SQLAgentOperatorRole
SQLAgentOperatorRole
➢ Master user not part of the role by default
➢ Master user has ’ALTER’ privileges on the role
Blog:
https://aws.amazon.com/blogs/database/leveraging-
sqlagentoperatorrole-in-rds-sql-server/

24. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

25. Monitoring: Amazon CloudWatch Logs integration
Users
Amazon
CloudWatch
Trigger
AWS Lambda
function
EMA L
Amazon Elasticsearch
Service
Export to
Amazon S3
Bucket
Email notification
Amazon Simple
Notification Service
Amazon RDS
for SQL Server

26. Monitoring: Amazon CloudWatch Logs integration
Agent Logs and/or Error Logs in CloudWatch
Near real-time upload
Records node status
UTC time zone
Disabled on restores
/aws/rds/instance/reinvent-cwl-demo/agent
/reinvent-cwl-demo
/aws/rds/instance/reinvent-cwl-demo/error
reinvent-cwl-demo.node1
reinvent-cwl-demo.node1
reinvent-cwl-demo.node2
reinvent-cwl-demo.node2
/aws/rds/instance/reinvent-cwl-demo/rds-events
reinvent-cwl-demo.primary-node-status

28. Monitoring: Amazon CloudWatch Logs integration
Users
Amazon
CloudWatch
Trigger
AWS Lambda
function
EMA L
Amazon Elasticsearch
Service
Export to
Amazon S3
Bucket
Email Notification
Amazon Simple
Notification Service
Amazon RDS
for SQL Server

29. Sample Lambda function
import json
import boto3
import gzip
import base64
def lambda_handler(event, context):
cwl_data = event['awslogs']['data’]
compressed_cwl_data = base64.b64decode(cwl_data)
uncompressed_cwl_data = gzip.decompress(compressed_cwl_data)
cwl_data_json = json.loads(uncompressed_cwl_data)
cwl_events = cwl_data_json['logEvents’]
email_message="”
for cwl_message in cwl_events:
email_message=email_message+" "+cwl_message["message"]
client = boto3.client('sns’)
response = client.publish(
TargetArn="arn:aws:sns:us-west-2:000000000000:bondadap_email",
Message=json.dumps({'default': json.dumps(email_message)}),
MessageStructure='json'
)

30. Monitoring: Performance insights
Easy-to-understand dashboard
Session and system-level monitoring
Wait event information
Free tier
Configurable retention
‘0x’ + SQL D = SQL handle

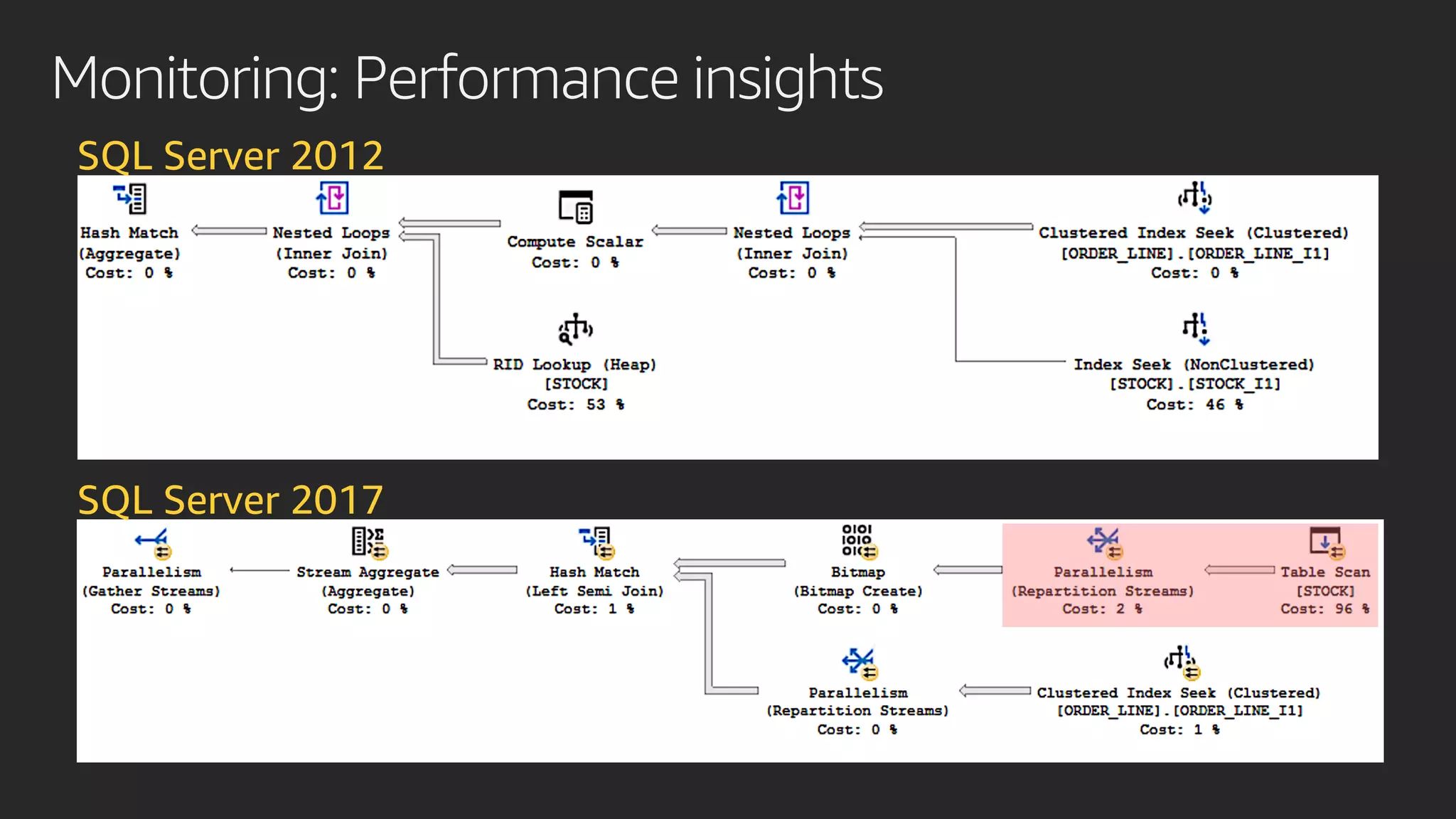

32. Monitoring: Performance insights
SQL Server 2012
SQL Server 2017

33. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

34. Migration: Native backups/restores
Restore databases up to
16TiB
➢ Multiple backup files
➢ Up to 10 files per backup
Reduced downtime
migrations
➢ Differential restores
➢ Log restores
AWS Cloud
Corporate
data center
Microsoft SQL Server
databases

35. 8:25 8:35 8:40 8:45 8:50 8:55 9:00 9:05 9:10 9:15 9:20 9:25 9:30 9:35 9:40 9:45
START
MIGRATION
9:50 9:55
FULL
FULL
FULL
D
I
F
F
D
I
F
F
DIFF
L
O
G
1
L
O
G
1
LOG
1
L
O
G
2
L
O
G
2
RESTORES
UPLOADS
BACKUPS
END
MIGRATION
10:00
L
O
G
2
APP.
DOWN
8:25 8:35 8:40 8:45 8:50 8:55 9:00 9:05 9:10 9:15 9:20 9:25 9:30 9:35 9:40 9:45
START
MIGRATION
9:50 9:55
FULL
FULL
FULL
D
I
F
F
D
I
F
F
DIFF
L
O
G
1
L
O
G
1
LOG
1
L
O
G
2
L
O
G
2
RESTORES
UPLOADS
BACKUPS
END
MIGRATION
10:00
L
O
G
2
APP.
DOWN

36. Migration: Native backups/restores
Full DB
backup
Upload
backup
to
Amazon
S3
Full
restore
onto
Amazon
RDS
Diff. DB
backup
Upload
backup
to
Amazon
S3
Diff.
restore
onto
Amazon
RDS
Log
backup
Upload
backup
to S3
Log
restore
onto
Amazon
RDS
Finish
restore
on
Amazon
RDS

37. Migration: Native backups/restores
Backups
exec msdb.dbo.rds_backup_database @source_db_name=‘database_name’,
@s3_arn_to_backup_to=‘arn:aws:s3:::bucket_name/file_name_and_extension’,
@overwrite_s3_backup_file=1,
@type=‘FULL’; --@type=‘DIFFERENTIAL’
Restores
exec msdb.dbo.rds_restore_database @restore_db_name=‘database_name’,
@s3_arn_to_restore_from=‘arn:aws:s3:::bucket_name/file_name_and_extension’,
@type=‘FULL’, ‘DIFFERENTIAL’
@with_norecovery=1; --@with_norecovery=0
exec msdb.dbo.rds_restore_log
@restore_db_name=‘database_name’,
@s3_arn_to_restore_from=‘arn:aws:s3:::bucket_name/file_name_and_extension’,
@with_norecovery=1; --@with_norecovery=0
exec msdb.dbo.rds_finish_restore @db_name=‘database_name’

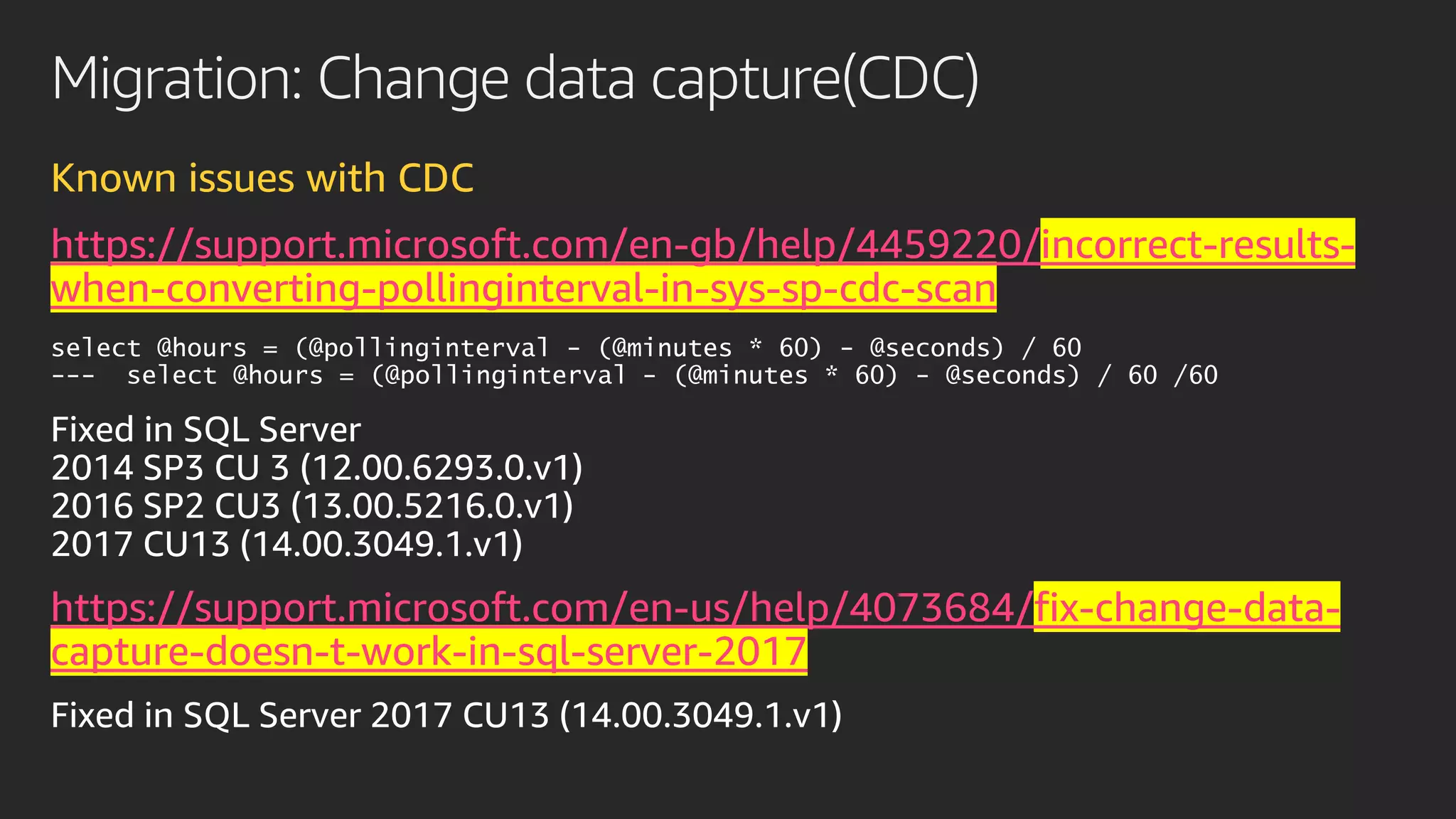

38. Migration: Change data capture(CDC)
Known issues with CDC
https://support.microsoft.com/en-gb/help/4459220/incorrect-results-
when-converting-pollinginterval-in-sys-sp-cdc-scan
select @hours = (@pollinginterval - (@minutes * 60) - @seconds) / 60
--- select @hours = (@pollinginterval - (@minutes * 60) - @seconds) / 60 /60
https://support.microsoft.com/en-us/help/4073684/fix-change-data-
capture-doesn-t-work-in-sql-server-2017

39. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

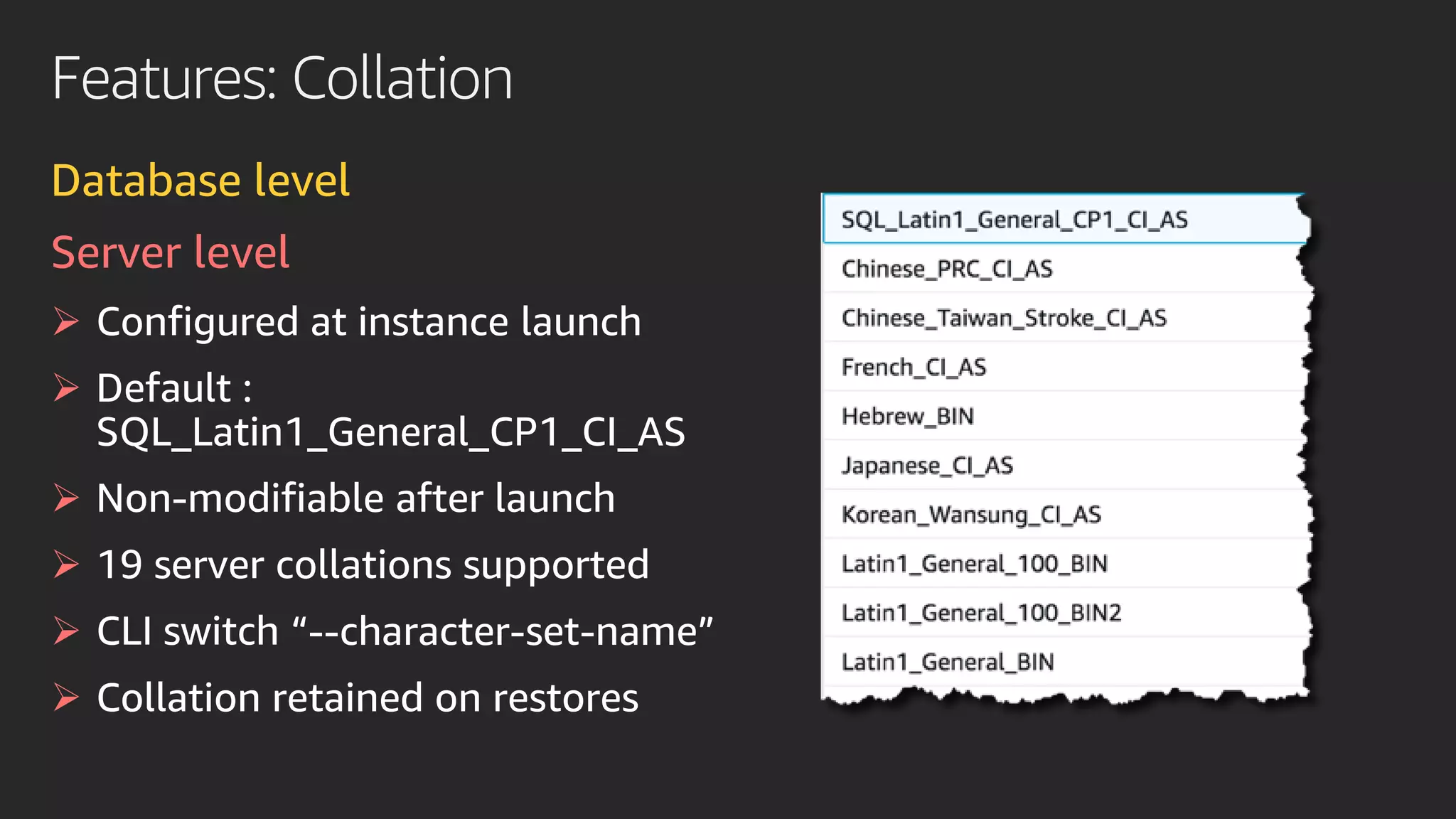

40. Features: Collation
Database level
Server level
➢
➢
SQL_Latin1_General_CP1_CI_AS
➢
➢
➢ --character-set-name”
➢ Collation retained on restores

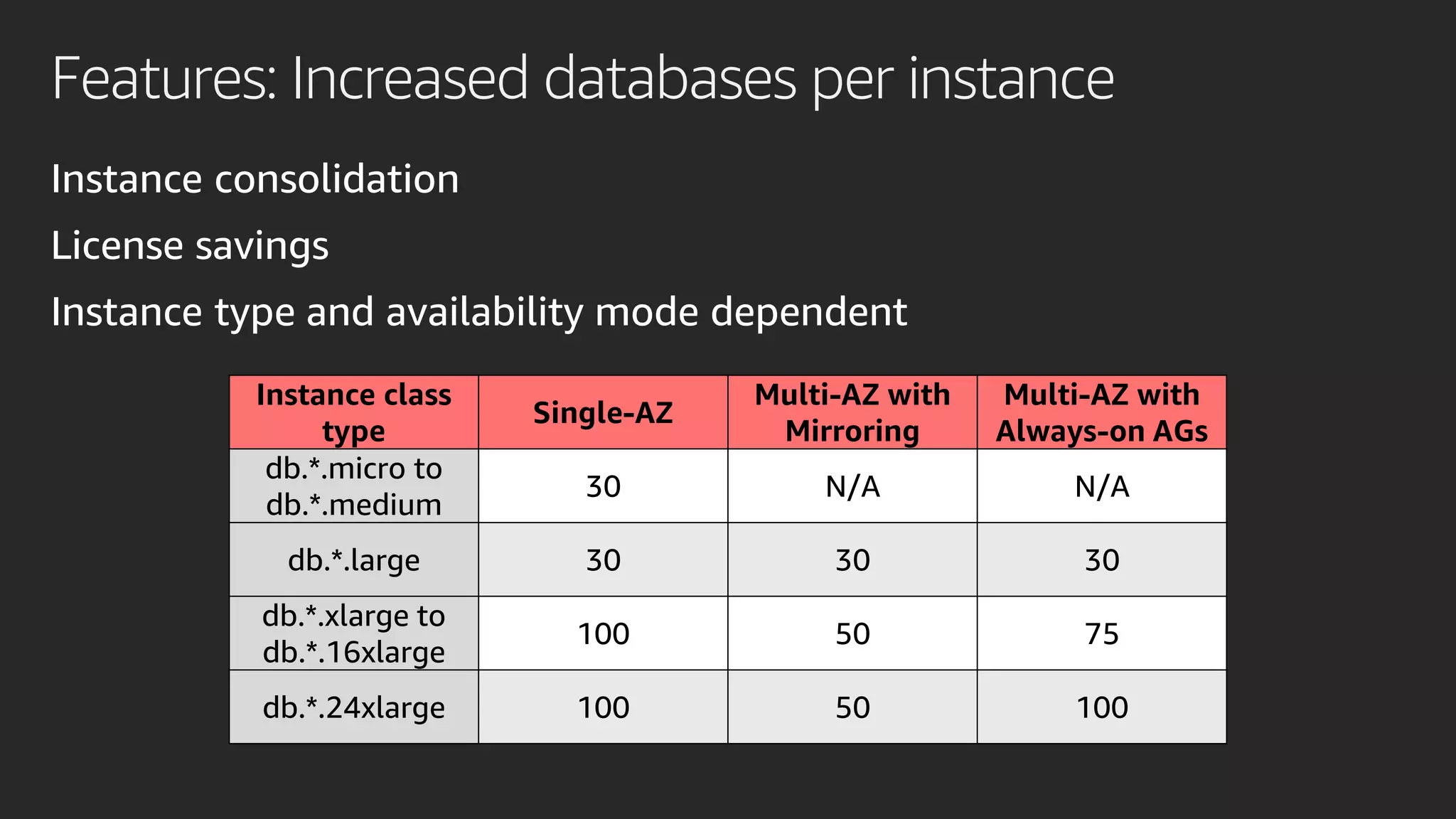

41. Features: Increased databases per instance
Instance class
type
Single-AZ
Multi-AZ with
Mirroring
Multi-AZ with
Always-on AGs
db.*.micro to
db.*.medium
30 N/A N/A
db.*.large 30 30 30
db.*.xlarge to
db.*.16xlarge
100 50 75
db.*.24xlarge 100 50 100
Instance consolidation
License savings
Instance type and availability mode dependent

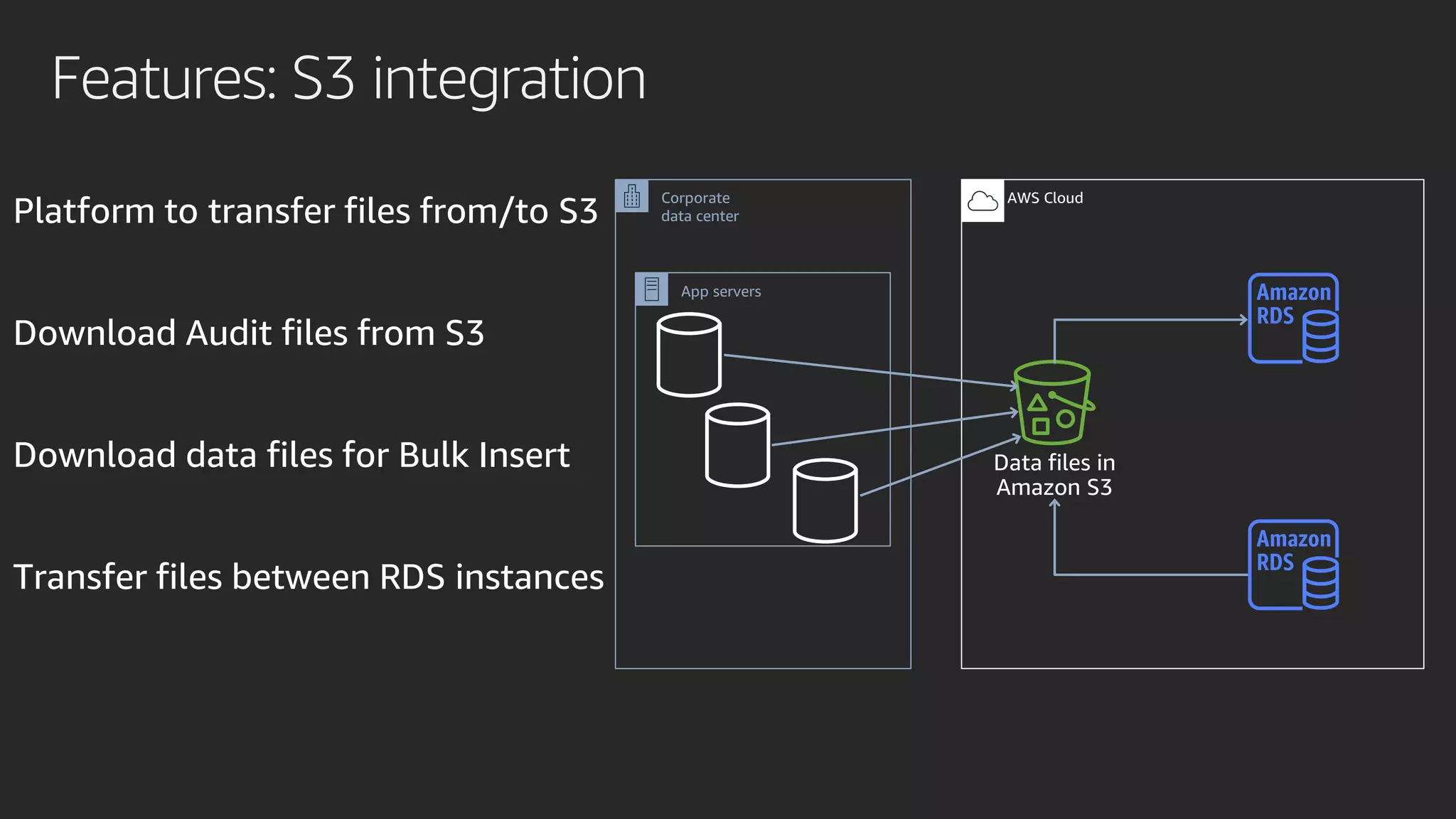

42. Features: S3 integration
Platform to transfer files from/to S3
Download Audit files from S3
Download data files for Bulk Insert
Transfer files between RDS instances
AWS Cloud
Corporate
data center
App servers

43. Features: S3 integration
Configured via instance-level roles
Files downloaded to D:S3
Create folders during download
Delete files after processing
Stored procedures/functions
➢
➢
➢
➢
➢

44. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
25+ free digital training courses cover topics and services
related to databases, including:
Validate expertise with the new AWS Certified Database - Specialty beta
exam
Learn databases with AWS Training and Certification
• Amazon Aurora
• Amazon Neptune
• Amazon DocumentDB
• Amazon DynamoDB
• Amazon ElastiCache
• Amazon Redshift
• Amazon RDS
Visit aws.training
Resources created by the experts at AWS to help you build and validate database skills

45. Thank you!
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Prashant Bondada
