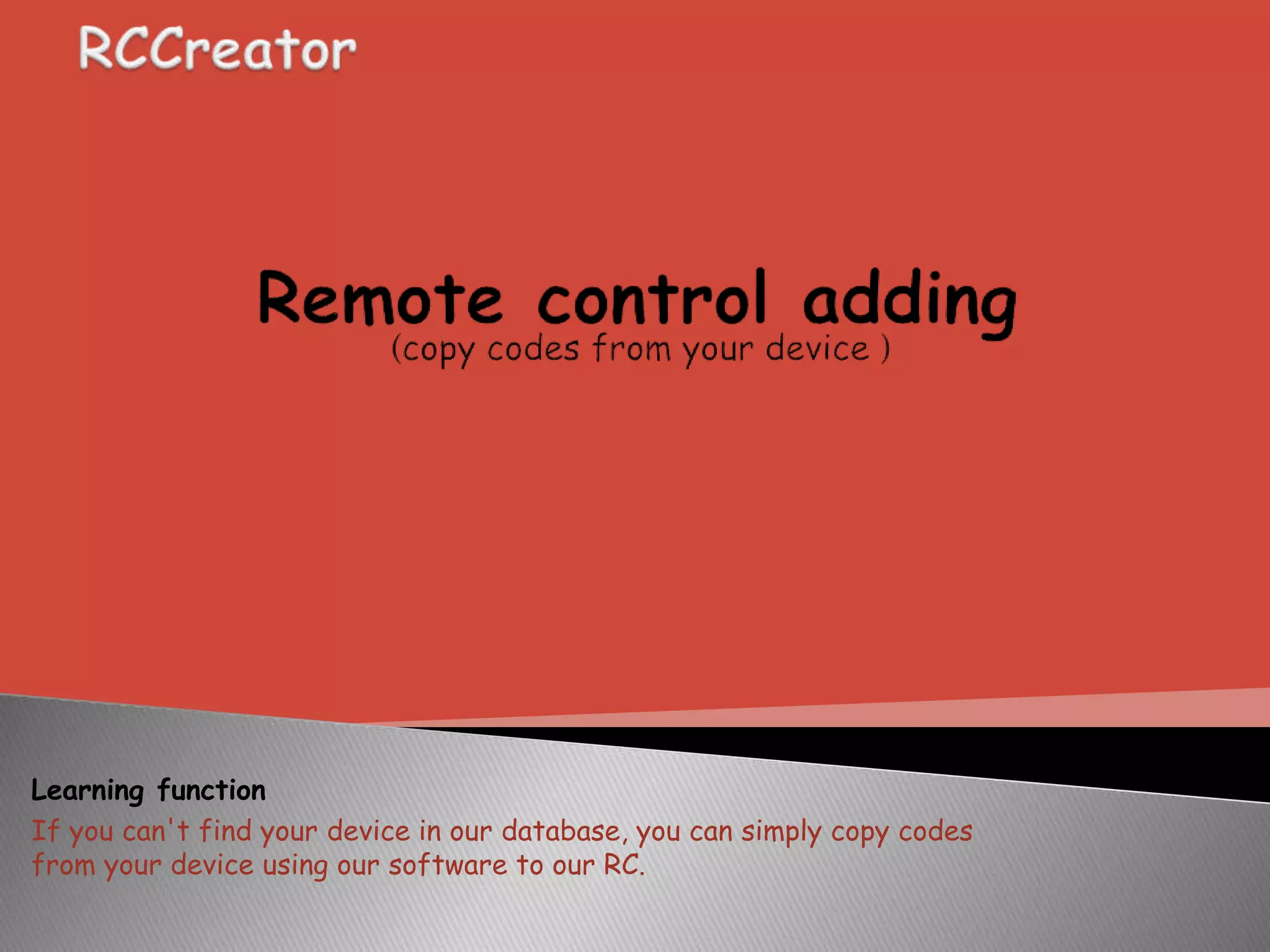

1. Learning function
If you can't find your device in our database, you can simply copy codes
from your device using our software to our RC.

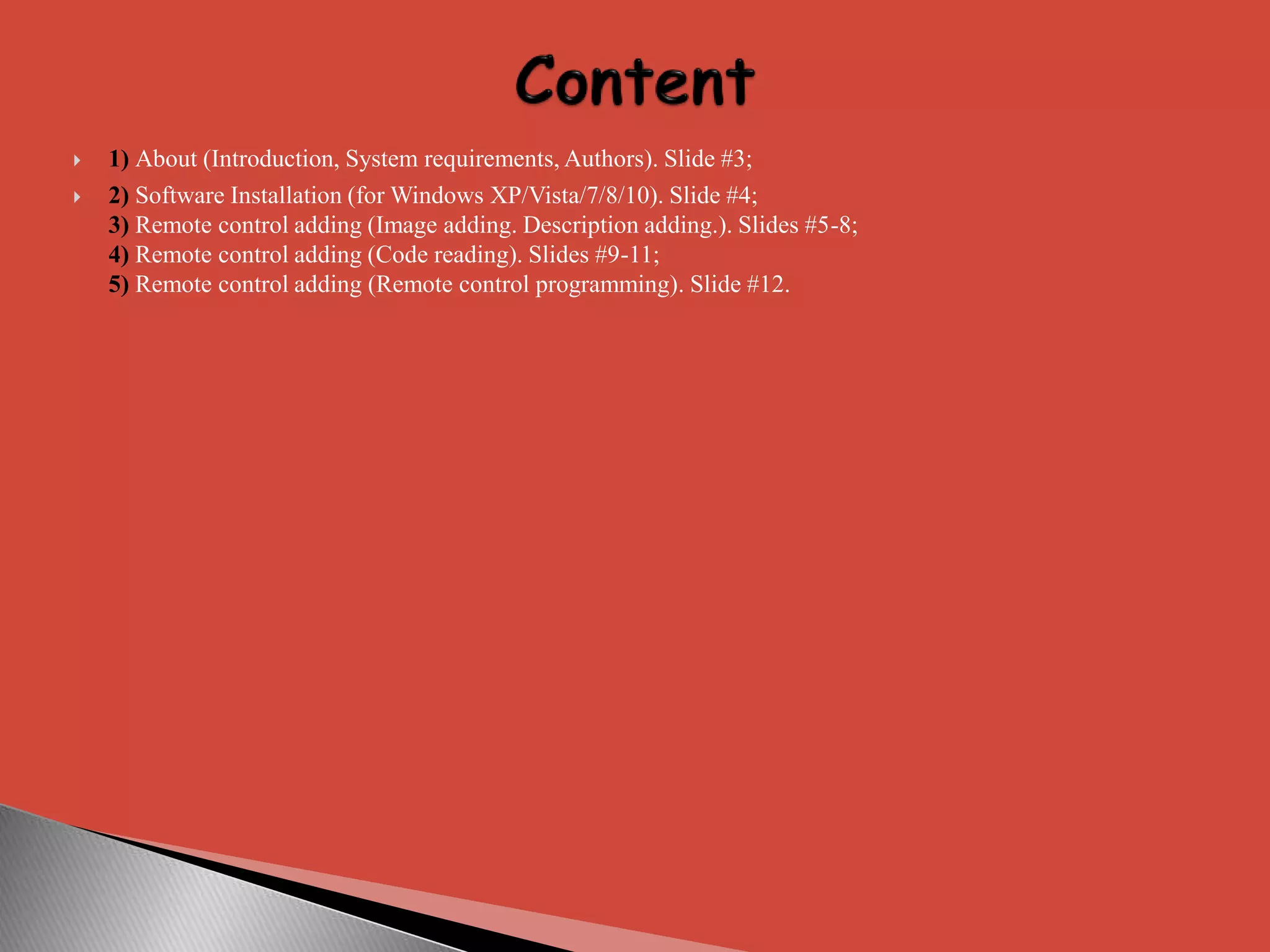

2.  1) About (Introduction, System requirements, Authors). Slide #3;
 2) Software Installation (for Windows XP/Vista/7/8/10). Slide #4;
3) Remote control adding (Image adding. Description adding.). Slides #5-8;
4) Remote control adding (Code reading). Slides #9-11;
5) Remote control adding (Remote control programming). Slide #12.

3.  Introduction
 The RCCreator software is created for reading different remote controls and recording them into
the USB remote control of our production. It also gives an opportunity to manage devices with the
help of computer. Currently our software can work with 98% of all remote controls for TV, DVD,
SAT, AUDIO. If there is any remote control that You can not program, please send this remote control
to our company so we can update the software for You. The database is updating constantly. The main
difference of our software from others of the same type is that You can update it by yourself. The
software is easy to use. You can make a copy of any remote control in short time without any
problem.
 System requirements
 Pentium II or AMD equivalent, 128MB RAM, 200MB HDD, screen display 800х600.
Installed Windows XP, Windows Vista, Windows 7, Windows 8.
 Authors
 Aleksey Batrshyn & Ruslan Batrshyn
 All the rights on the software belong to the authors.
It is illegal to use the software for programming other remote controls
except of the remote controls of our production.

4. 1) Download the file RCCreator-Win.exe from web
(rccreator.com -> tab “SOFTWARE”) and run it.
Select the installation language.
2) Follow step-by-step installation wizard.

5. 1) Prepare USB- programmable remote control and install batteries.
2) Connect the RC to your PC with USB cord. If you connect the RC correctly - it will flash a red light.
3) To open software run the file RCCreator (or double click on the icon RCCreator).
.

6.  4) At the status bar (bottom-left window RCCreator) you will see an inscription in green font on a
connected RC.
5) Click on Full version icon for switching to full RCCreator version. Click on the same button to
come back to simple version.

7.  6) In Full Version, click on icon New remote control in the Menu (File -> New remote control) or Toolbar.
7) The new remote control form will be opened.
Enter the Brand, remote control Type or chose one from the list,
then enter the remote control Name.
Click Add new remote control.

8.  8) You have added the new remote control and the software has automatically navigated cursor bar on it.
Go to the tab Images. Here you may add the remote control images.

9.  1) Go to the Main tab in Full version. Place the original remote control in front USB remote control (diode to diode).
2) Push and hold for few seconds button on the original one, till the software will try to read the code. Start with
POWER button.
 Whereas the code reading was successful the
key identifier appears.

10.  3) With double click of the mouse press the key on the image where you would like to place the code.
Write the name of the button.
4) Enter the name of the sample key then Enter. Those names will be printed in the keys printout.
Do the same for all keys.
You can delete any key by clicking on Delete

11.  5) You can check the correctness of the programmed keys by clicking on the sample remote control. If they are
programmed correctly than red signs on the keys will be encircled with yellow color.
If all the keys were encircled with yellow color, the sample remote control is programmed correctly.

12.  After you've checked that all buttons were copied correctly, do not disconnect the RC, you should program it.
 1) Click Program remote control in the menu bar. The window for remote control programming will open.
2) For programming the remote control, select the location for installation (TV, DVD…) and click Add.
3) Wait few seconds till the button Erase became highlighted again.
 After that - you may disconnect the RC and use it!

13.  Your remote control is successfully
programmed!
Pleasant and easy to use!
