Regulation of Gene expression.pdf
- 1.

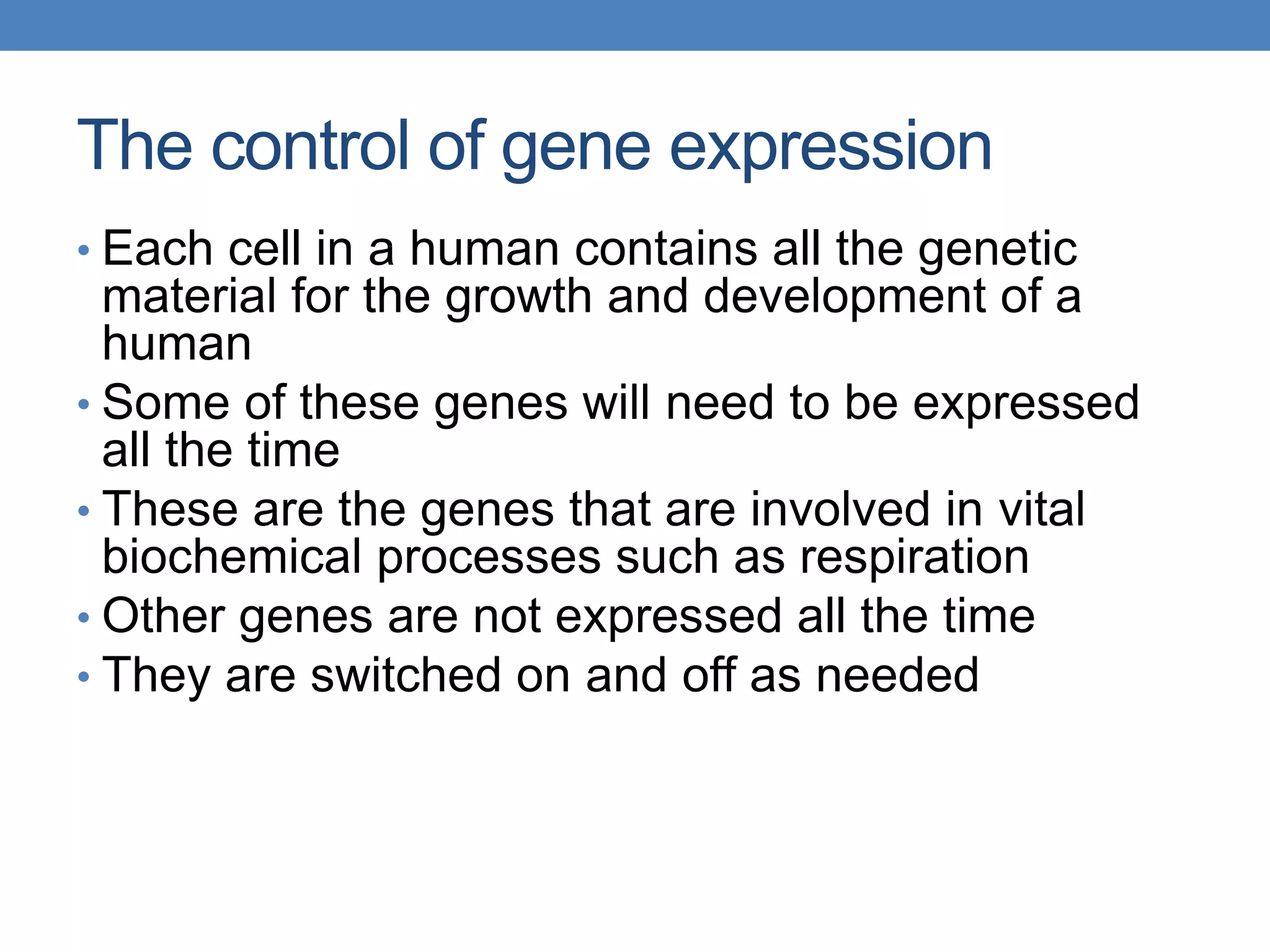

- 2. The control ofgene expression • Each cell in a human contains all the genetic material for the growth and development of a human • Some of these genes will need to be expressed all the time • These are the genes that are involved in vital biochemical processes such as respiration • Other genes are not expressed all the time • They are switched on and off as needed

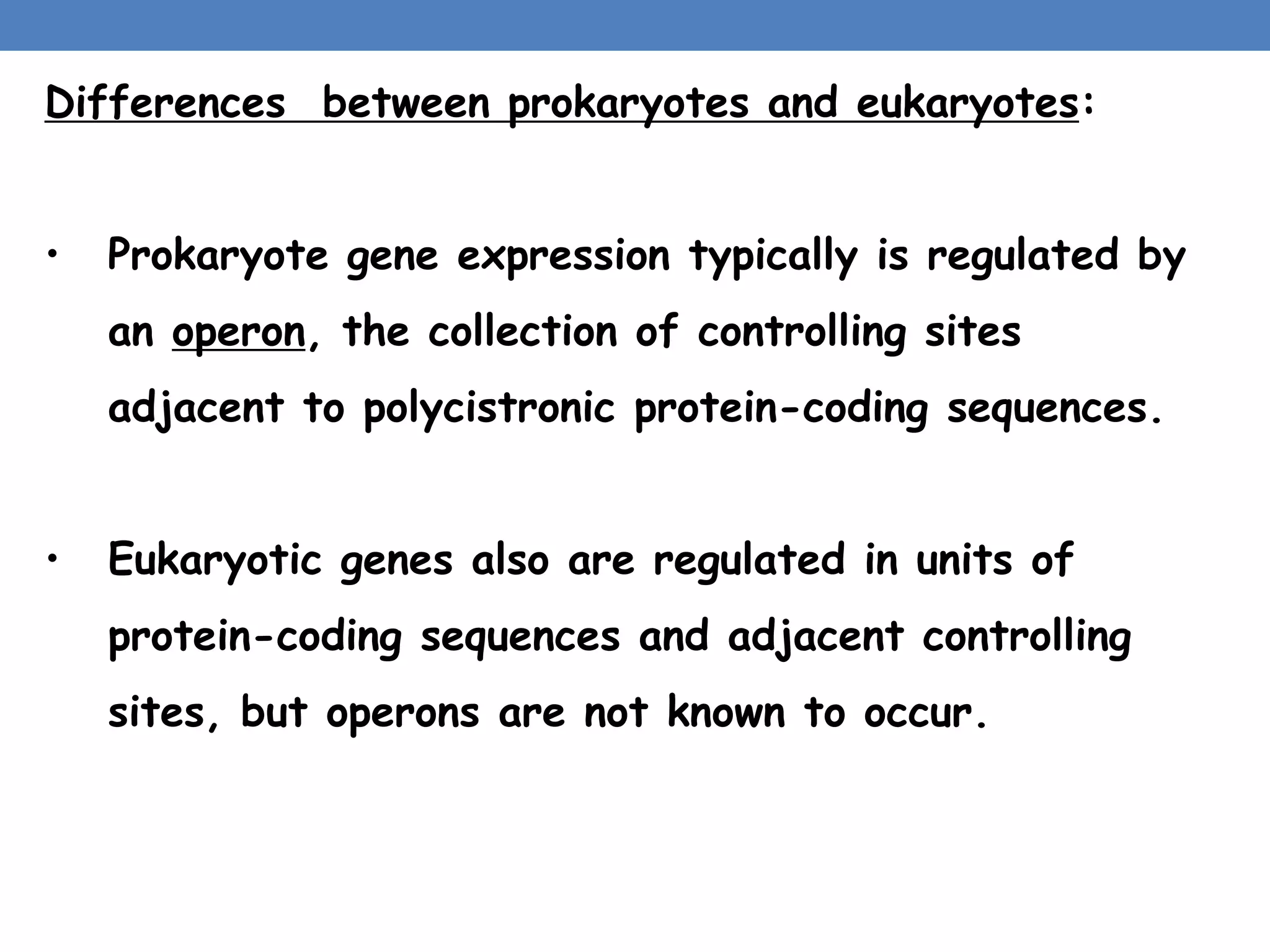

- 3. Differences between prokaryotesand eukaryotes: • Prokaryote gene expression typically is regulated by an operon, the collection of controlling sites adjacent to polycistronic protein-coding sequences. • Eukaryotic genes also are regulated in units of protein-coding sequences and adjacent controlling sites, but operons are not known to occur.

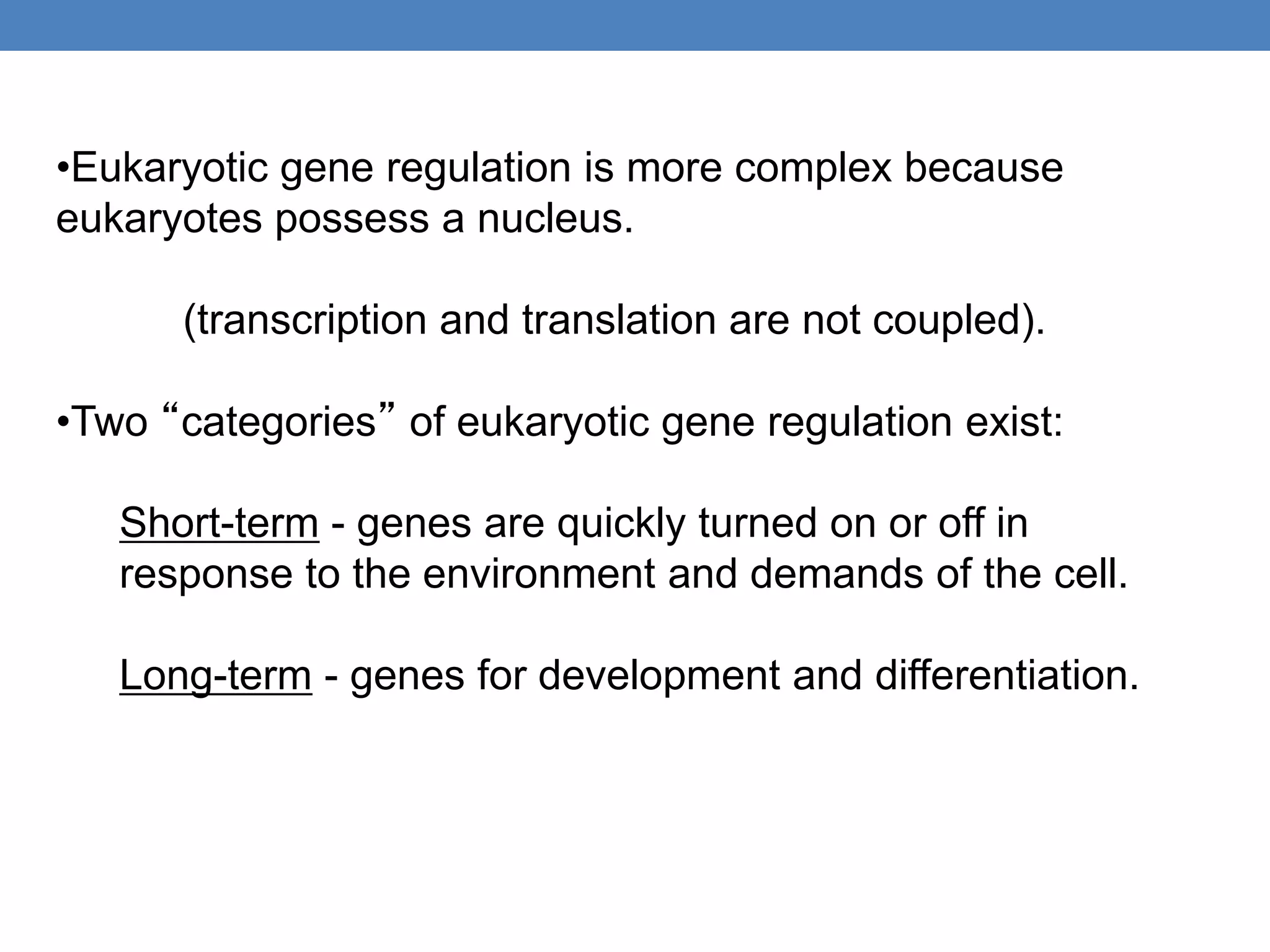

- 4. •Eukaryotic gene regulationis more complex because eukaryotes possess a nucleus. (transcription and translation are not coupled). •Two “categories” of eukaryotic gene regulation exist: Short-term - genes are quickly turned on or off in response to the environment and demands of the cell. Long-term - genes for development and differentiation.

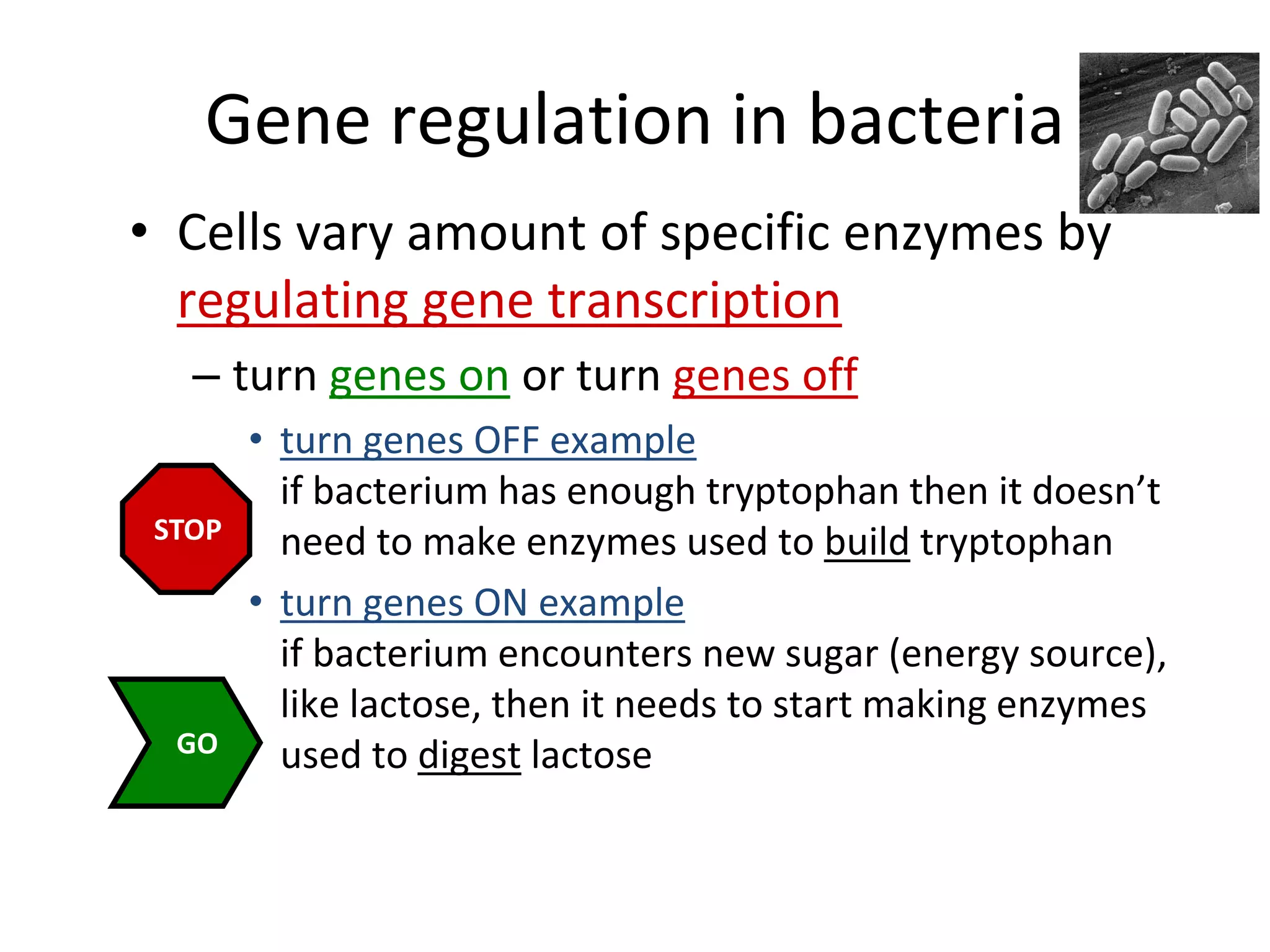

- 5. Gene regulation inbacteria • Cells vary amount of specific enzymes by regulating gene transcription – turn genes on or turn genes off • turn genes OFF example if bacterium has enough tryptophan then it doesn’t need to make enzymes used to build tryptophan • turn genes ON example if bacterium encounters new sugar (energy source), like lactose, then it needs to start making enzymes used to digest lactose STOP GO
- 6. • An operonis a group of genes that are transcribed at the same time. • They usually control an important biochemical process. • They are only found in prokaryotes. Bacteria use “Operons” to regulate gene expression

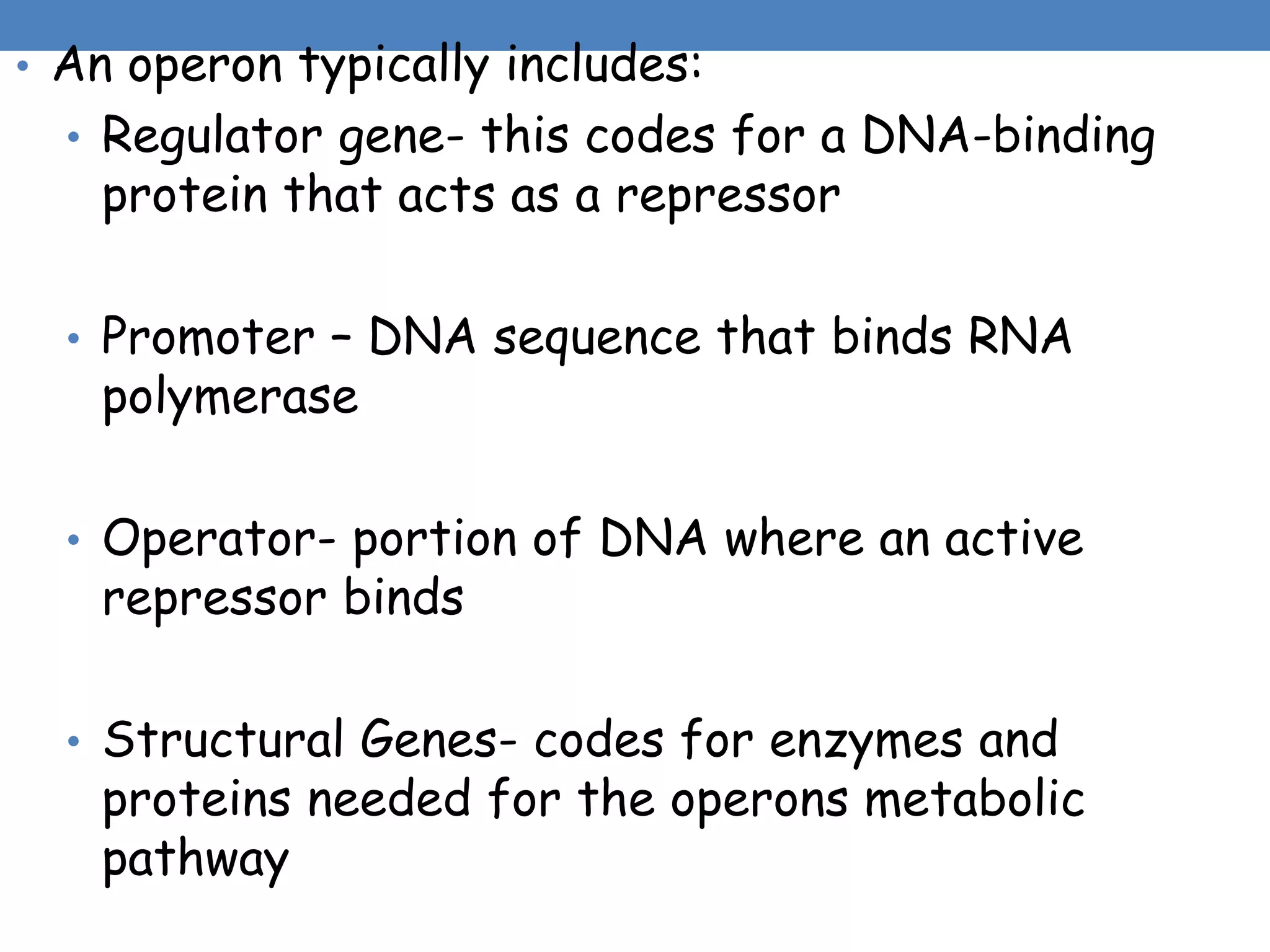

- 7. • An operontypically includes: • Regulator gene- this codes for a DNA-binding protein that acts as a repressor • Promoter – DNA sequence that binds RNA polymerase • Operator- portion of DNA where an active repressor binds • Structural Genes- codes for enzymes and proteins needed for the operons metabolic pathway

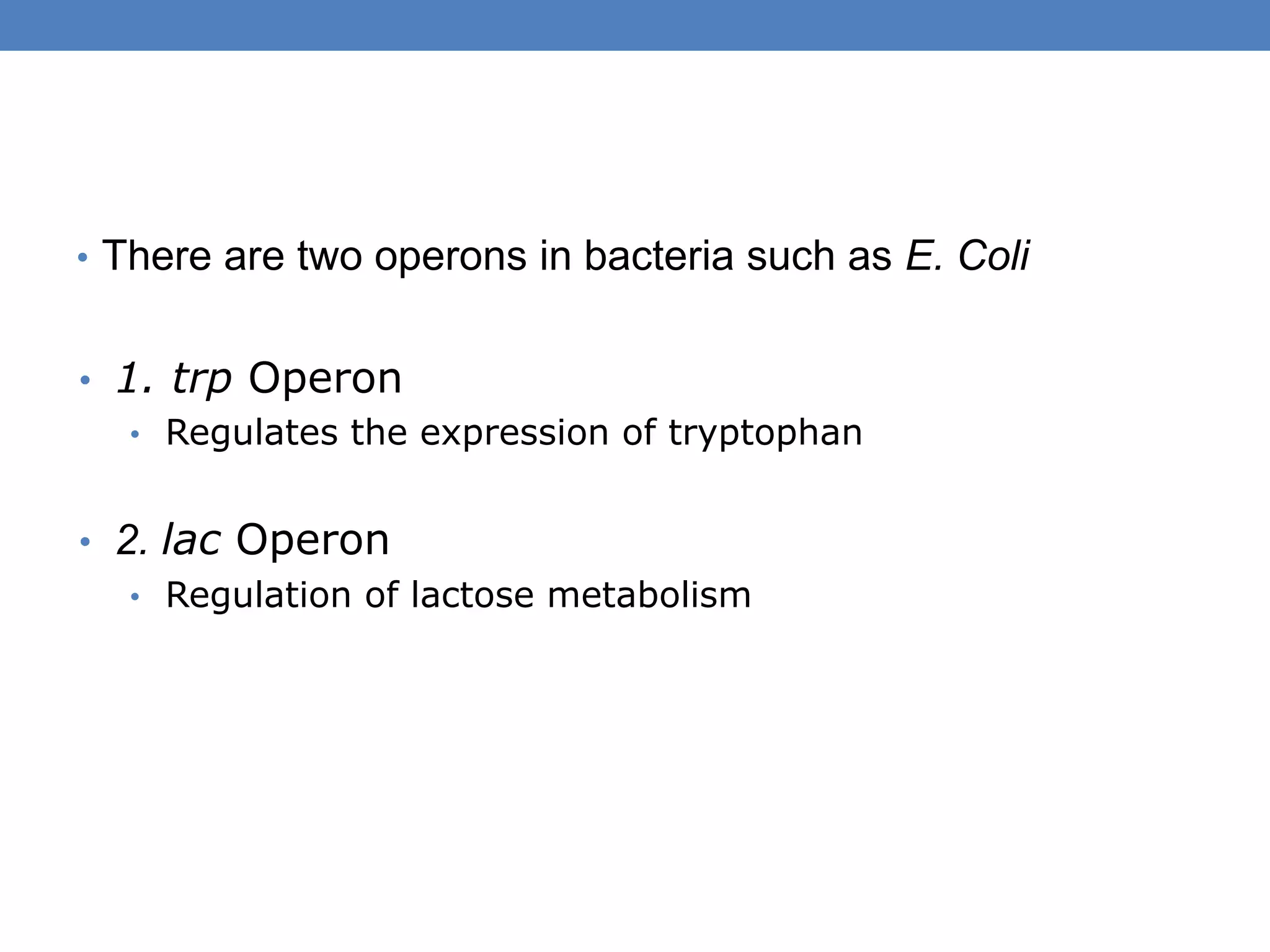

- 8. • There aretwo operons in bacteria such as E. Coli • 1. trp Operon • Regulates the expression of tryptophan • 2. lac Operon • Regulation of lactose metabolism

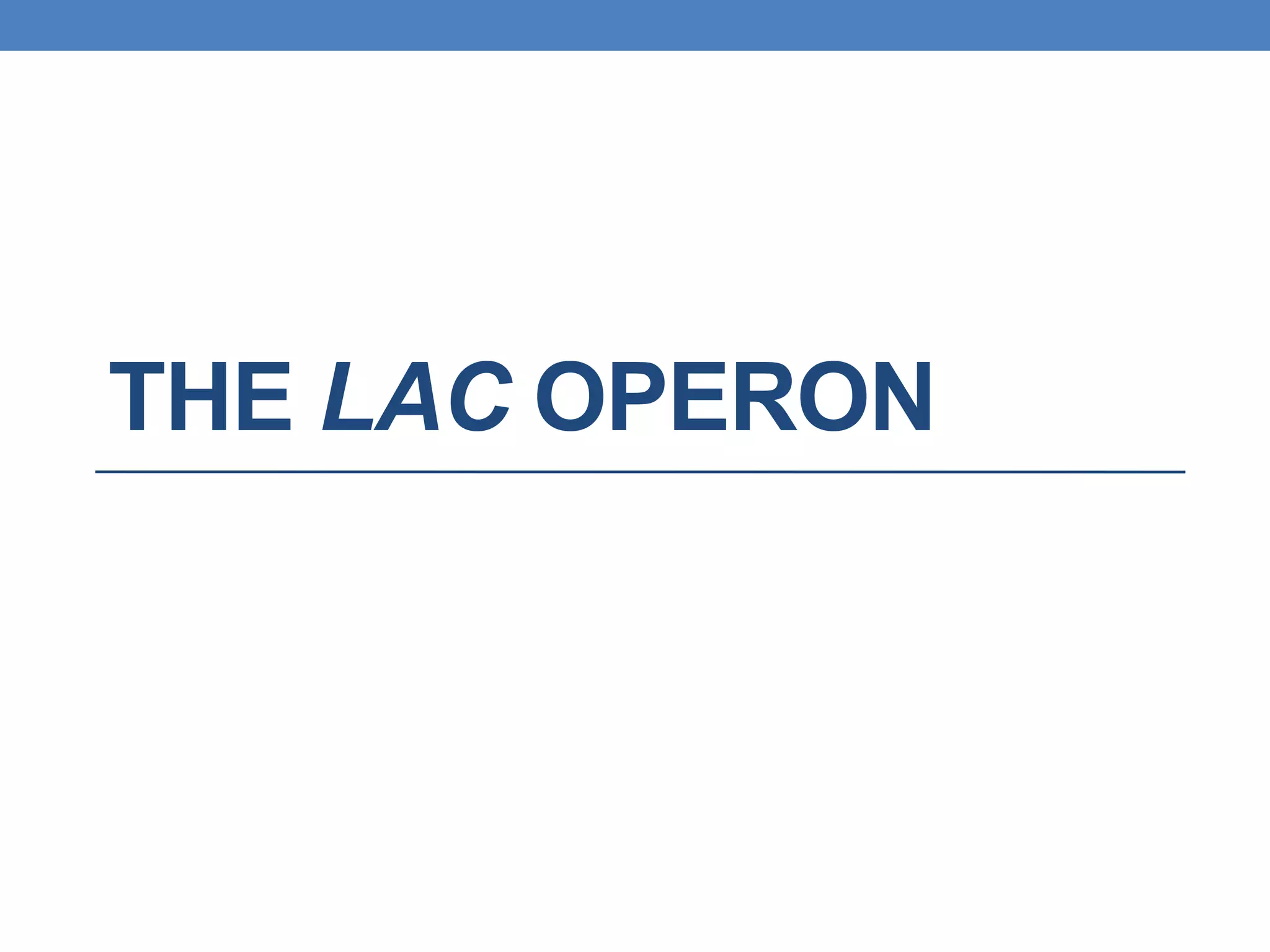

- 9.
- 10. The lac Operon Thelac operon consists of three genes each involved in processing the sugar lactose One of them is the gene for the enzyme β- galactosidase This enzyme hydrolyses lactose into glucose and galactose.

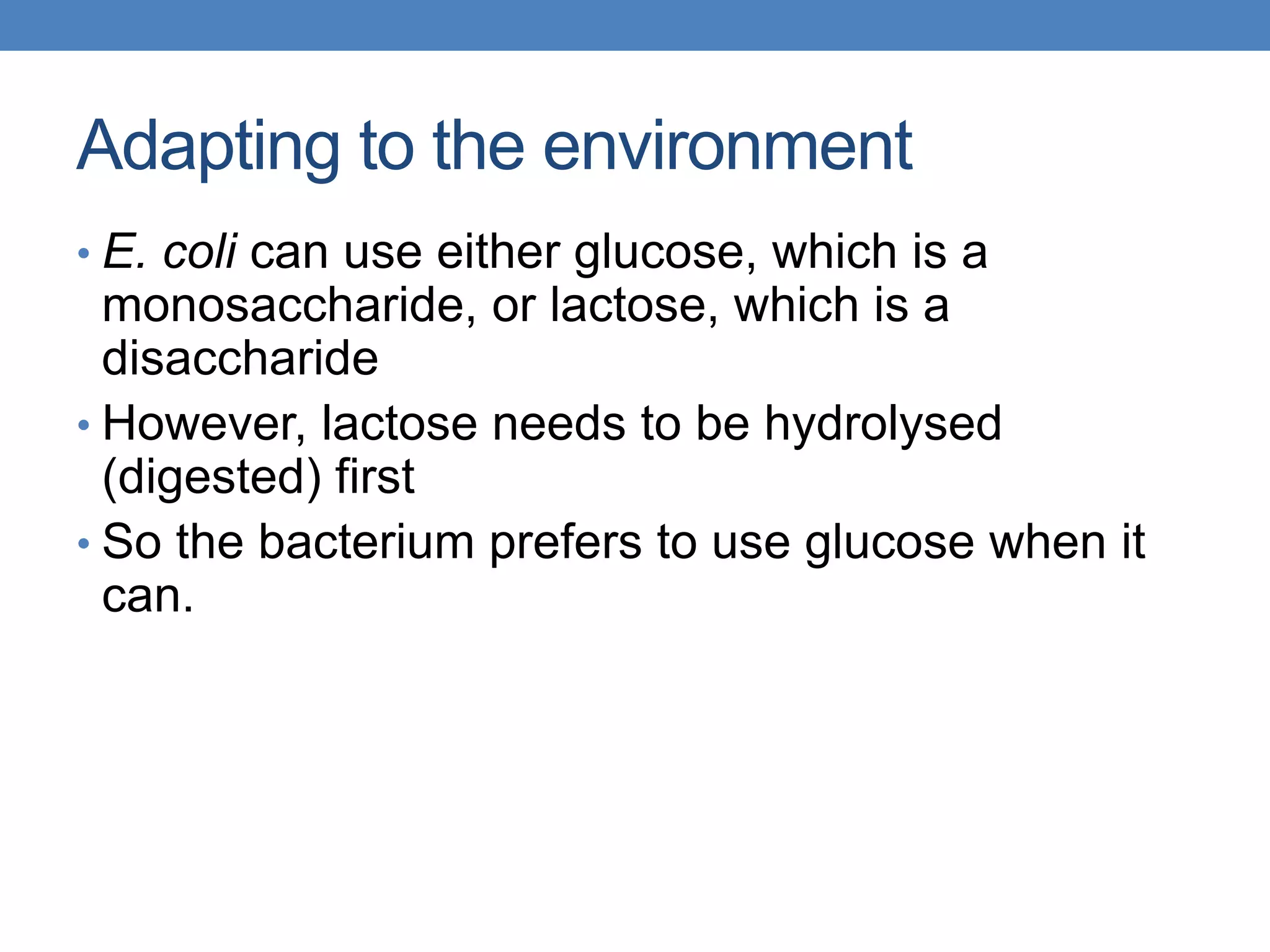

- 11. Adapting to theenvironment • E. coli can use either glucose, which is a monosaccharide, or lactose, which is a disaccharide • However, lactose needs to be hydrolysed (digested) first • So the bacterium prefers to use glucose when it can.

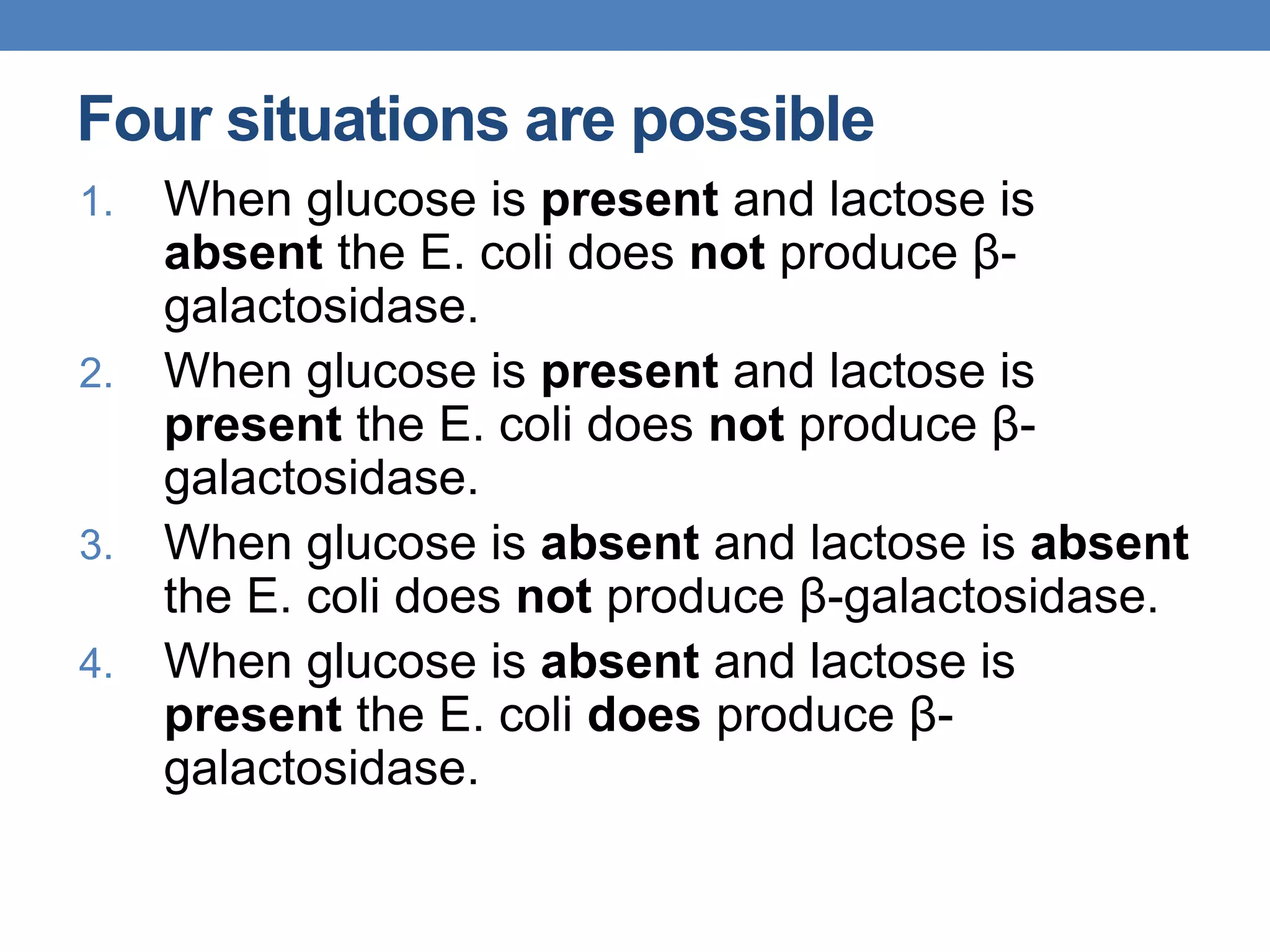

- 12. Four situations arepossible 1. When glucose is present and lactose is absent the E. coli does not produce β- galactosidase. 2. When glucose is present and lactose is present the E. coli does not produce β- galactosidase. 3. When glucose is absent and lactose is absent the E. coli does not produce β-galactosidase. 4. When glucose is absent and lactose is present the E. coli does produce β- galactosidase.

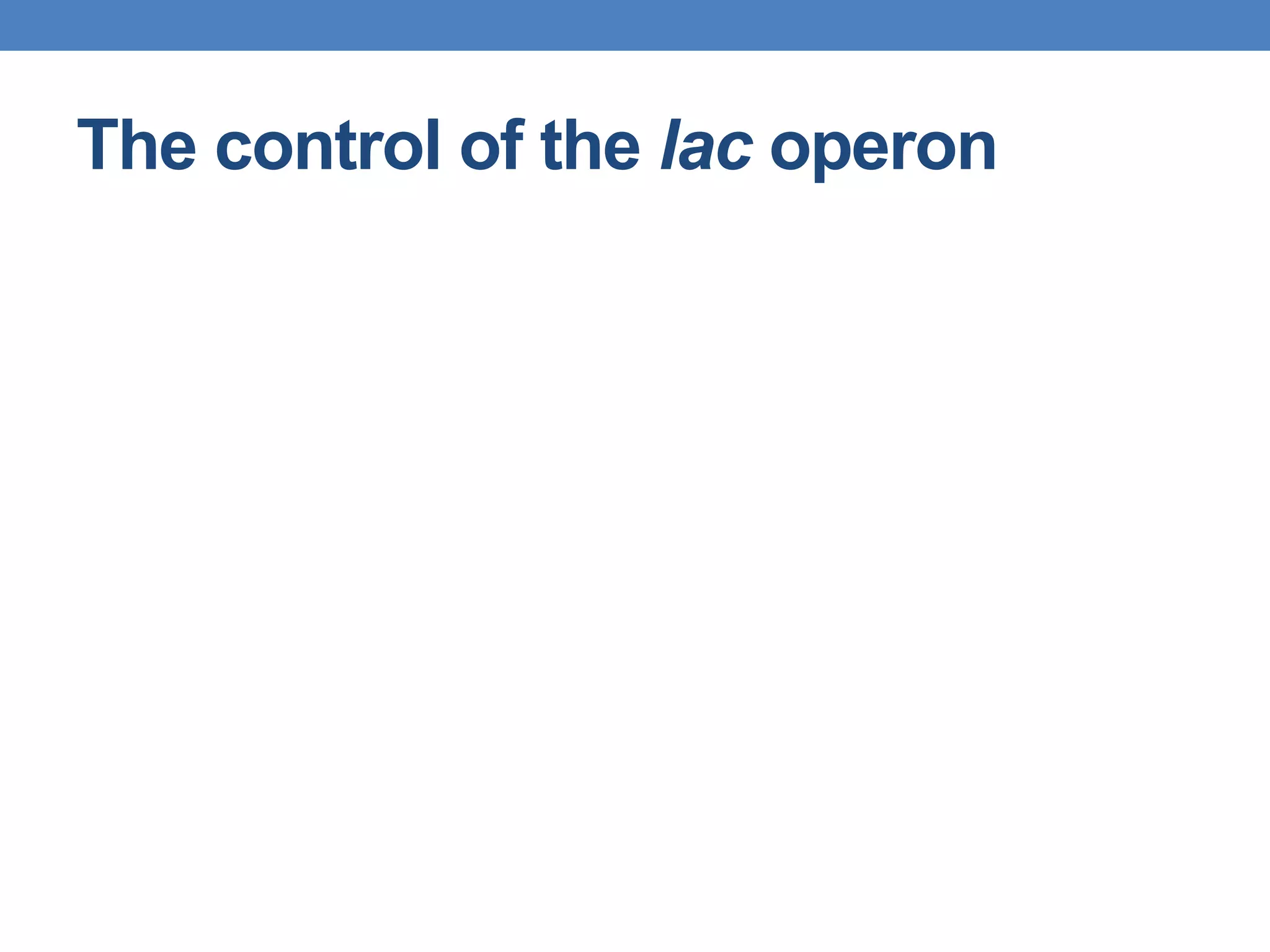

- 13. The control ofthe lac operon

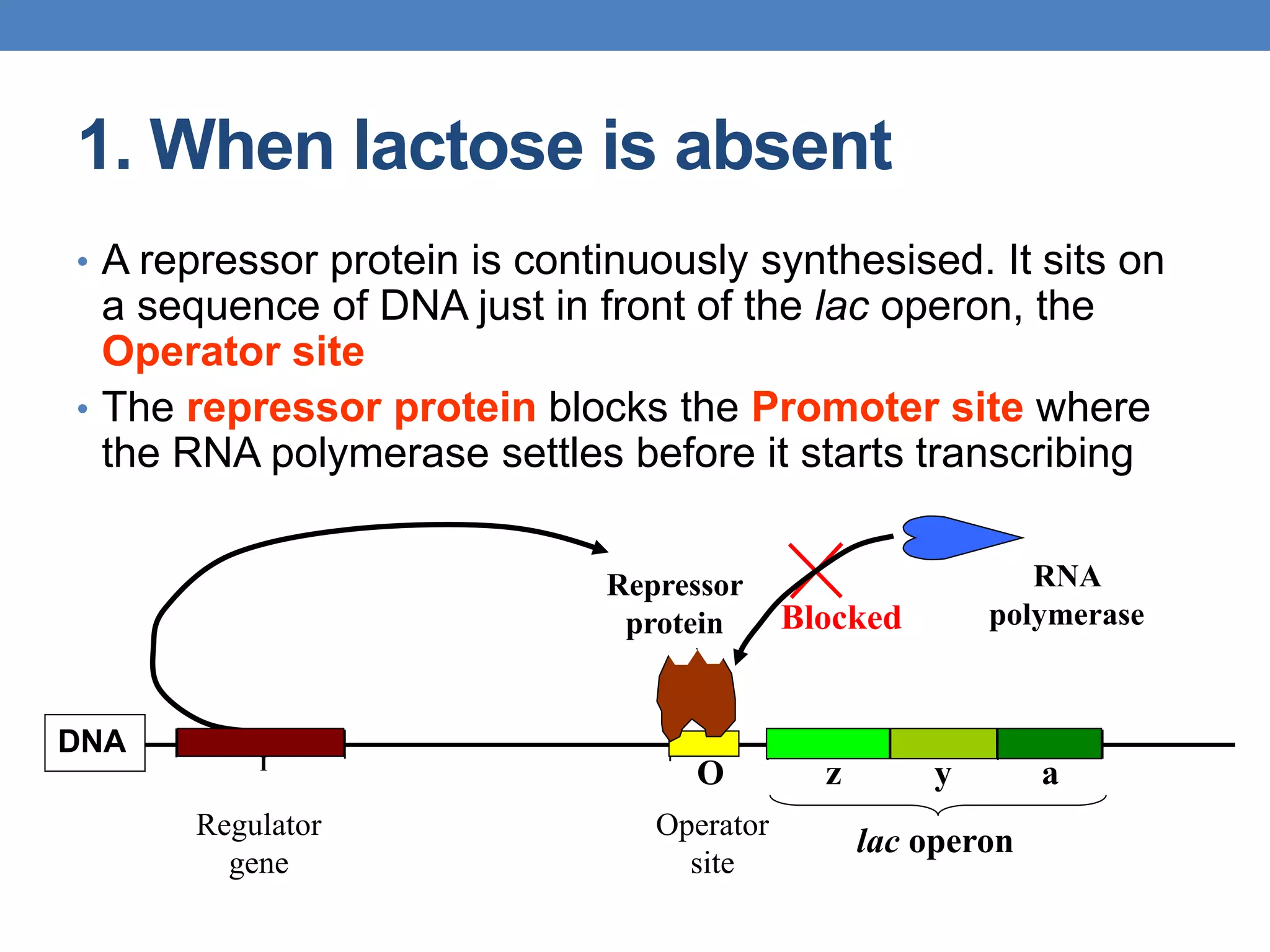

- 14. 1. When lactoseis absent • A repressor protein is continuously synthesised. It sits on a sequence of DNA just in front of the lac operon, the Operator site • The repressor protein blocks the Promoter site where the RNA polymerase settles before it starts transcribing Regulator gene lac operon Operator site z y a DNA I O Repressor protein RNA polymerase Blocked

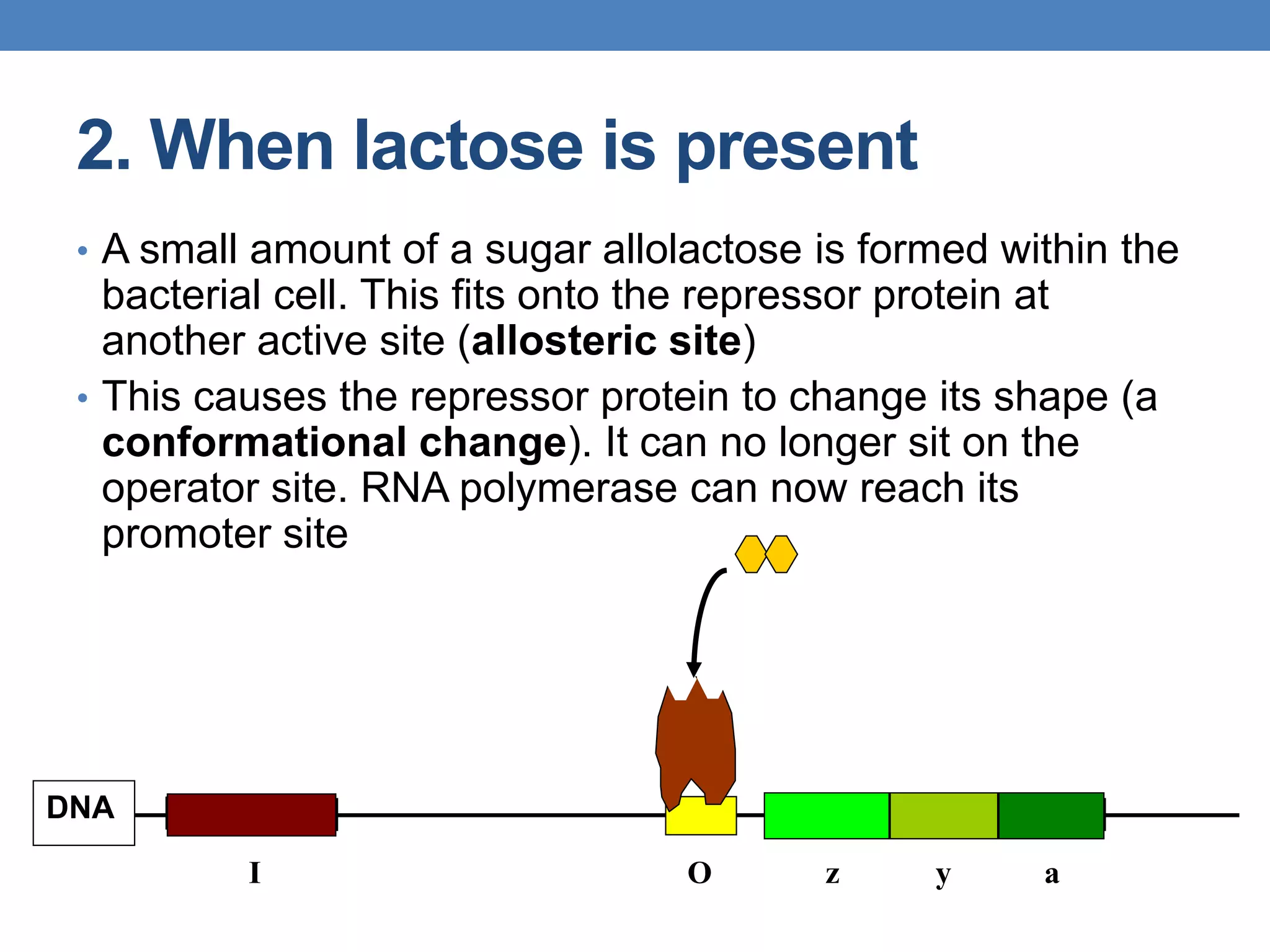

- 15. 2. When lactoseis present • A small amount of a sugar allolactose is formed within the bacterial cell. This fits onto the repressor protein at another active site (allosteric site) • This causes the repressor protein to change its shape (a conformational change). It can no longer sit on the operator site. RNA polymerase can now reach its promoter site z y a DNA I O

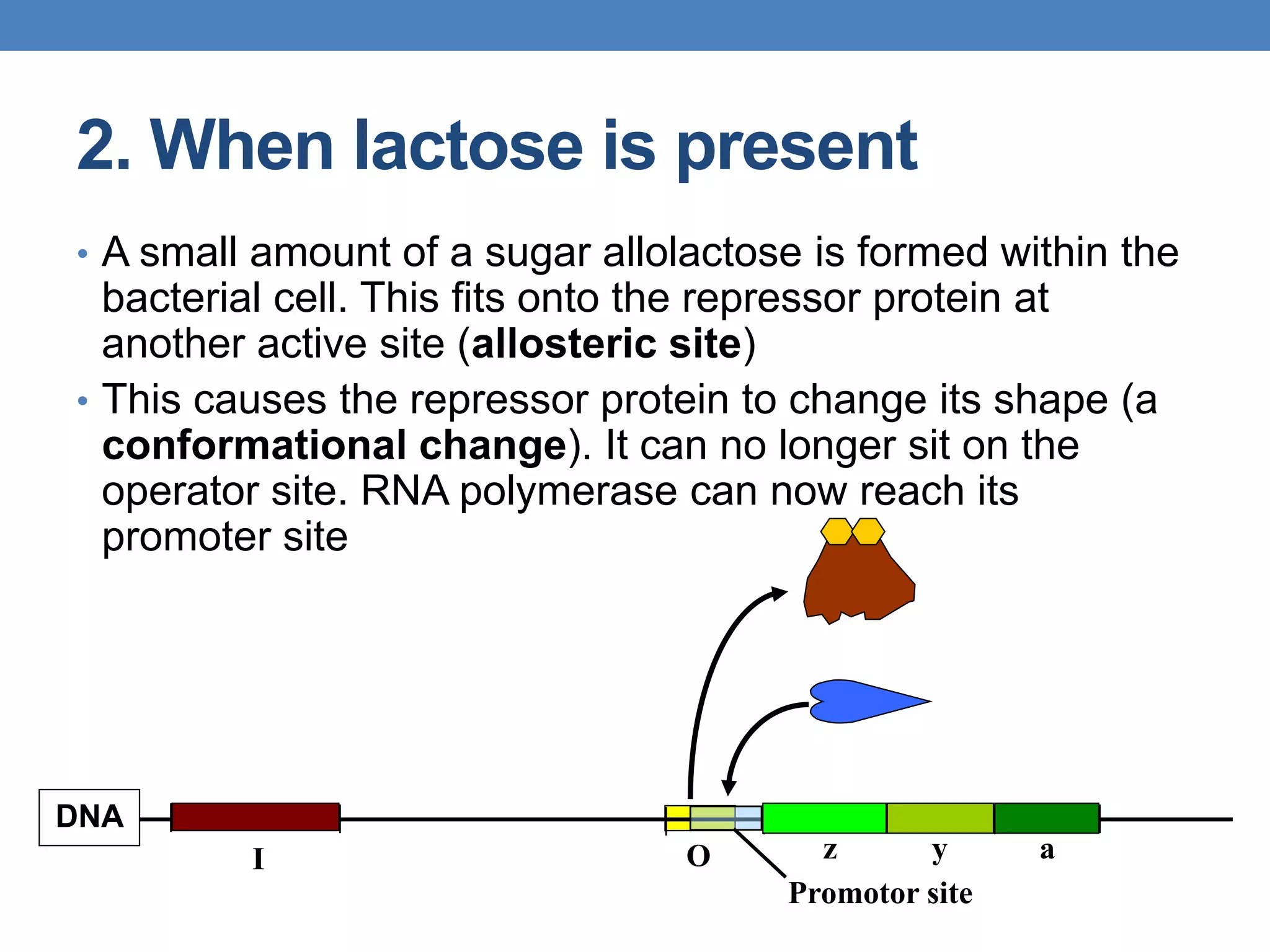

- 16. 2. When lactoseis present • A small amount of a sugar allolactose is formed within the bacterial cell. This fits onto the repressor protein at another active site (allosteric site) • This causes the repressor protein to change its shape (a conformational change). It can no longer sit on the operator site. RNA polymerase can now reach its promoter site Promotor site z y a DNA I O

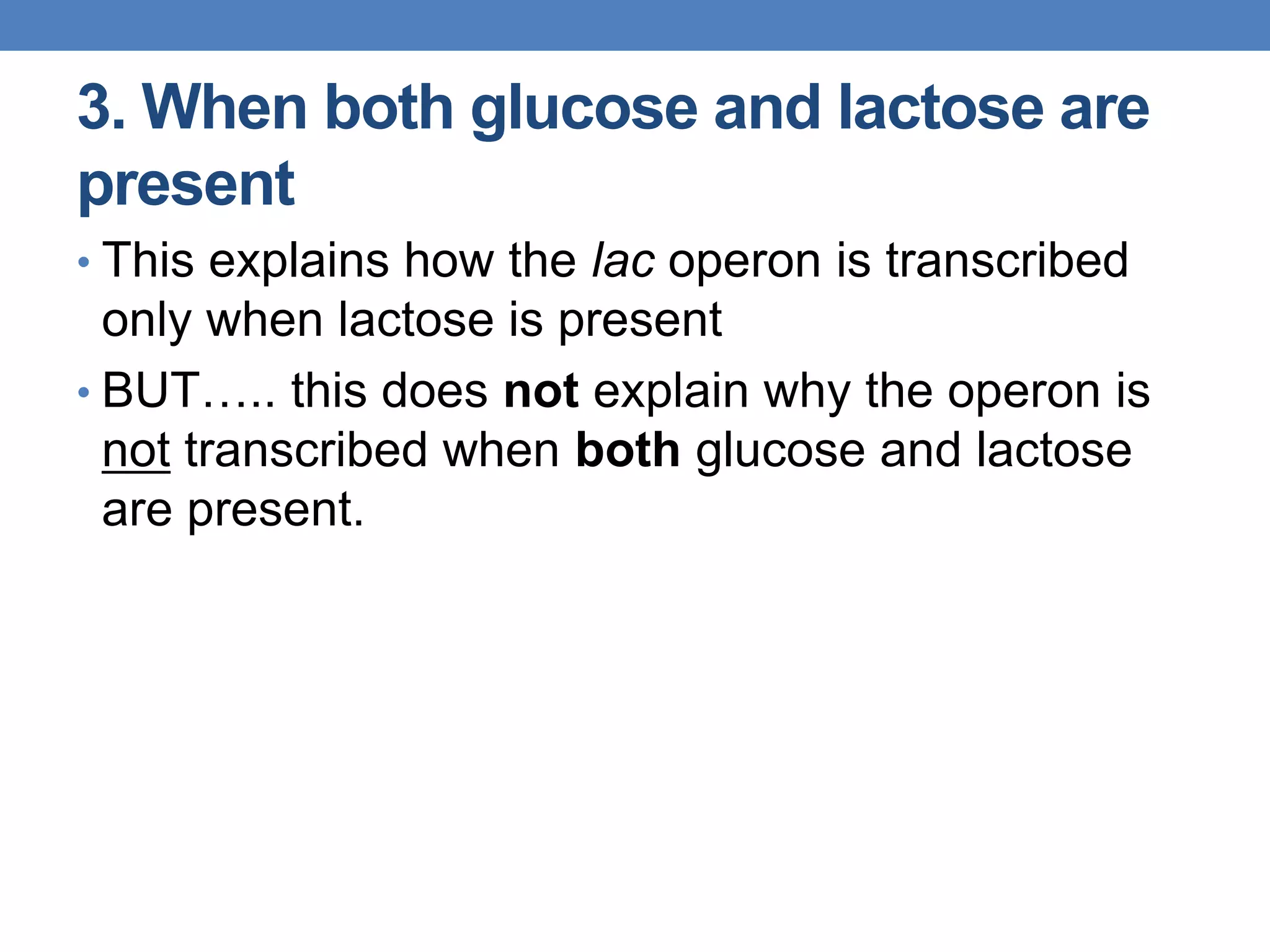

- 17. 3. When bothglucose and lactose are present • This explains how the lac operon is transcribed only when lactose is present • BUT….. this does not explain why the operon is not transcribed when both glucose and lactose are present.

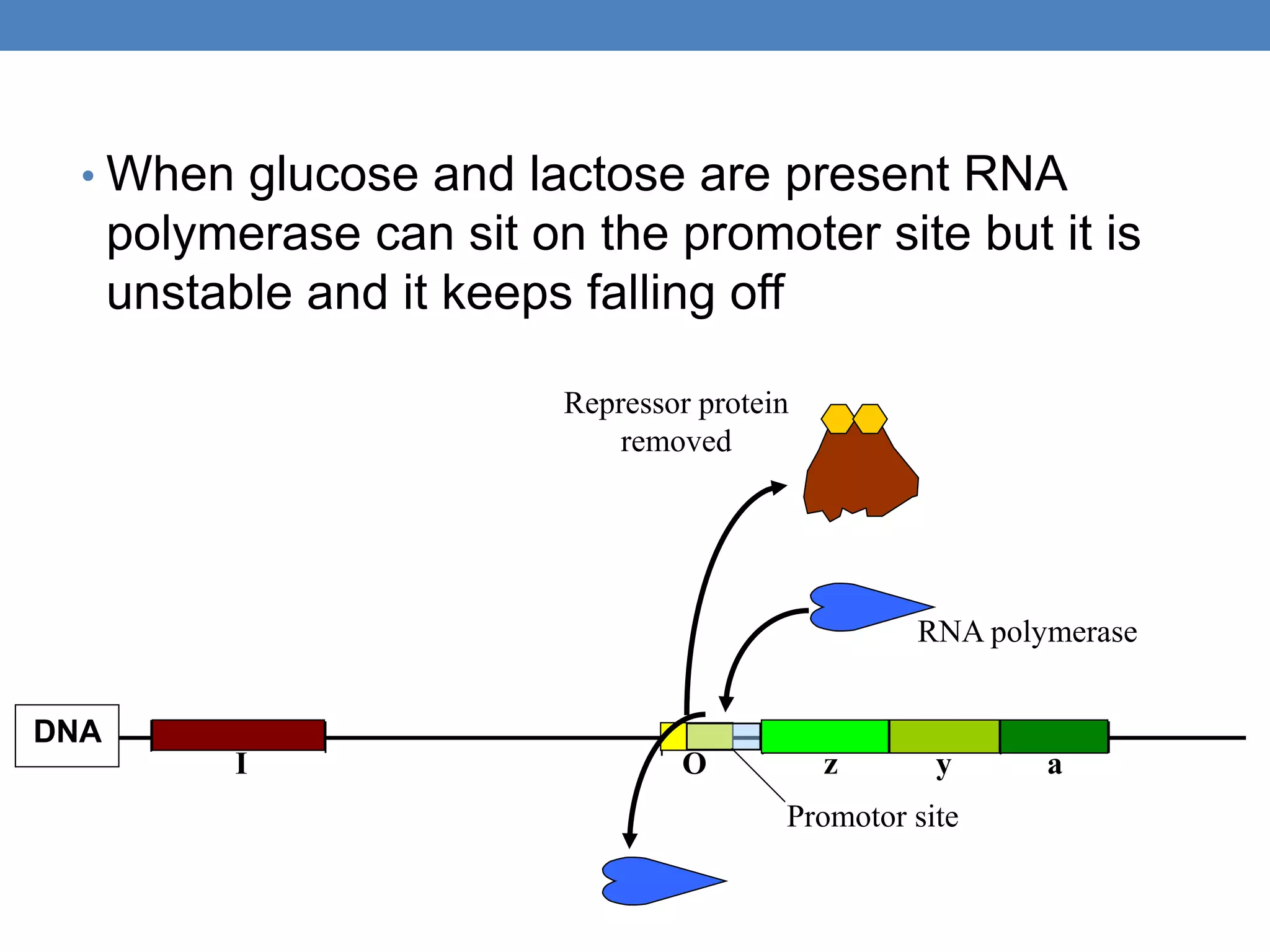

- 18. • When glucoseand lactose are present RNA polymerase can sit on the promoter site but it is unstable and it keeps falling off Promotor site z y a DNA I O Repressor protein removed RNA polymerase

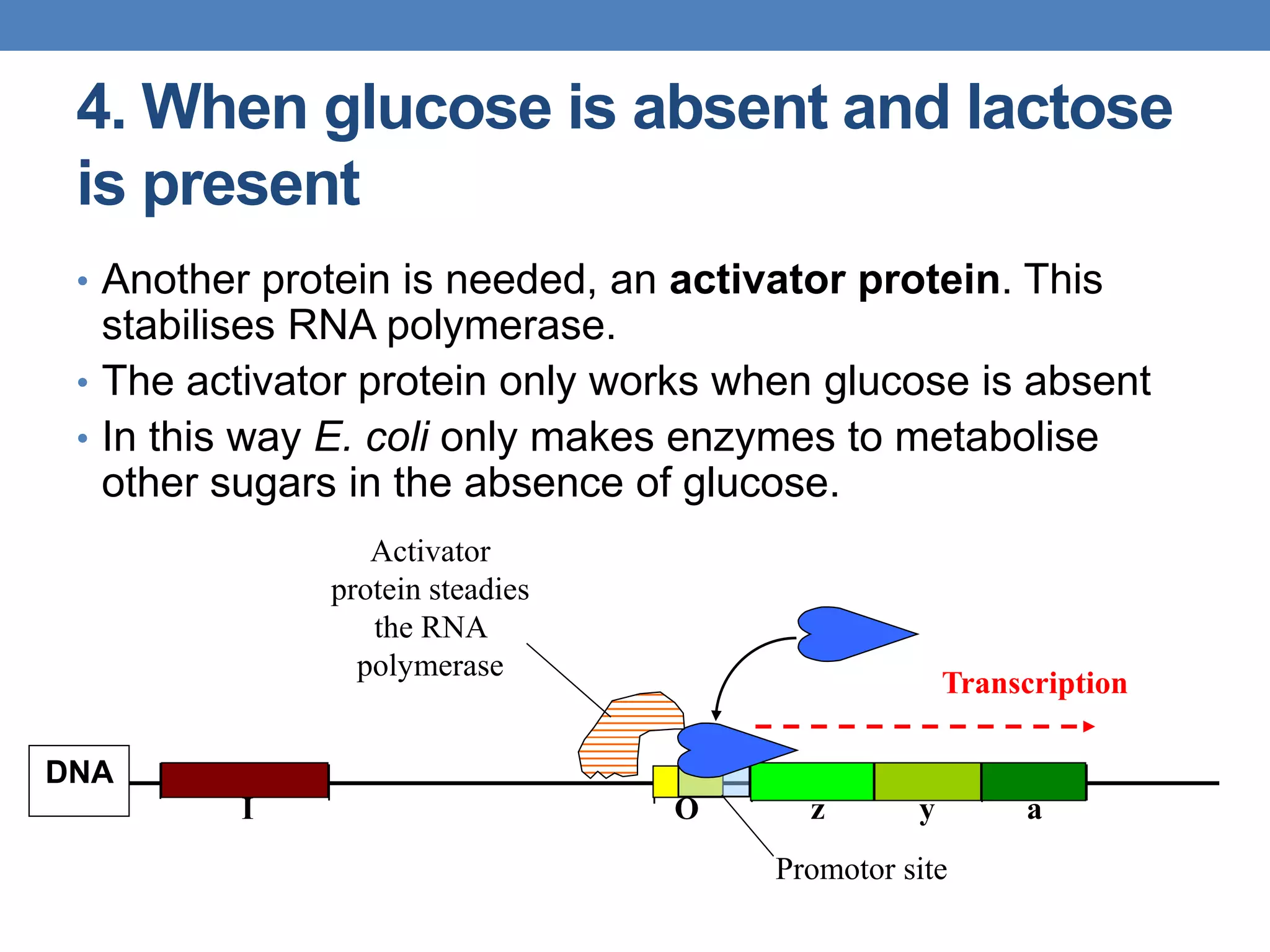

- 19. 4. When glucoseis absent and lactose is present • Another protein is needed, an activator protein. This stabilises RNA polymerase. • The activator protein only works when glucose is absent • In this way E. coli only makes enzymes to metabolise other sugars in the absence of glucose. Promotor site z y a DNA I O Transcription Activator protein steadies the RNA polymerase

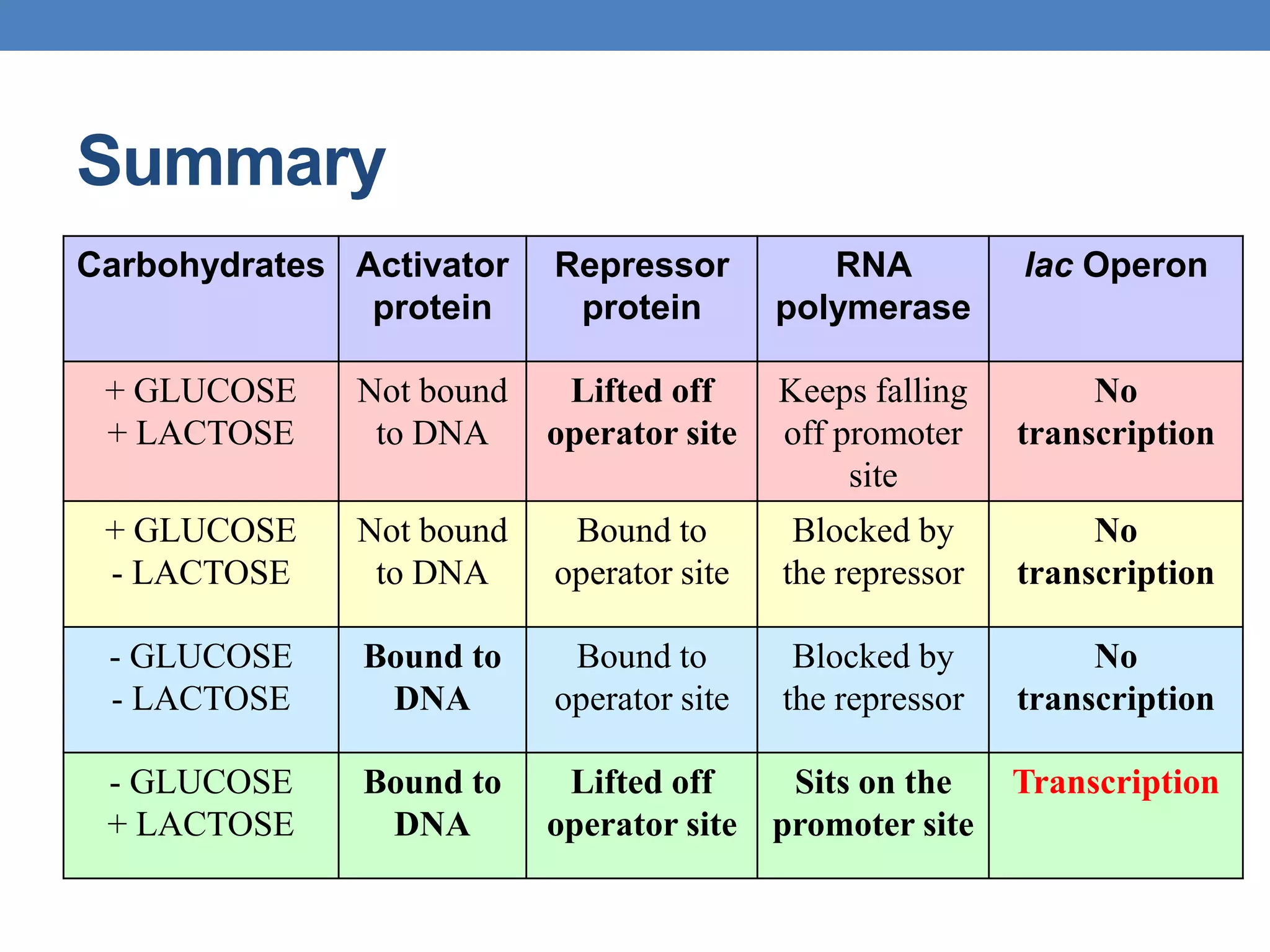

- 20. Summary Carbohydrates Activator protein Repressor protein RNA polymerase lac Operon +GLUCOSE + LACTOSE Not bound to DNA Lifted off operator site Keeps falling off promoter site No transcription + GLUCOSE - LACTOSE Not bound to DNA Bound to operator site Blocked by the repressor No transcription - GLUCOSE - LACTOSE Bound to DNA Bound to operator site Blocked by the repressor No transcription - GLUCOSE + LACTOSE Bound to DNA Lifted off operator site Sits on the promoter site Transcription
