1. Regexes and
Performance Testing
Doug Hellmann
PyATL May 2015

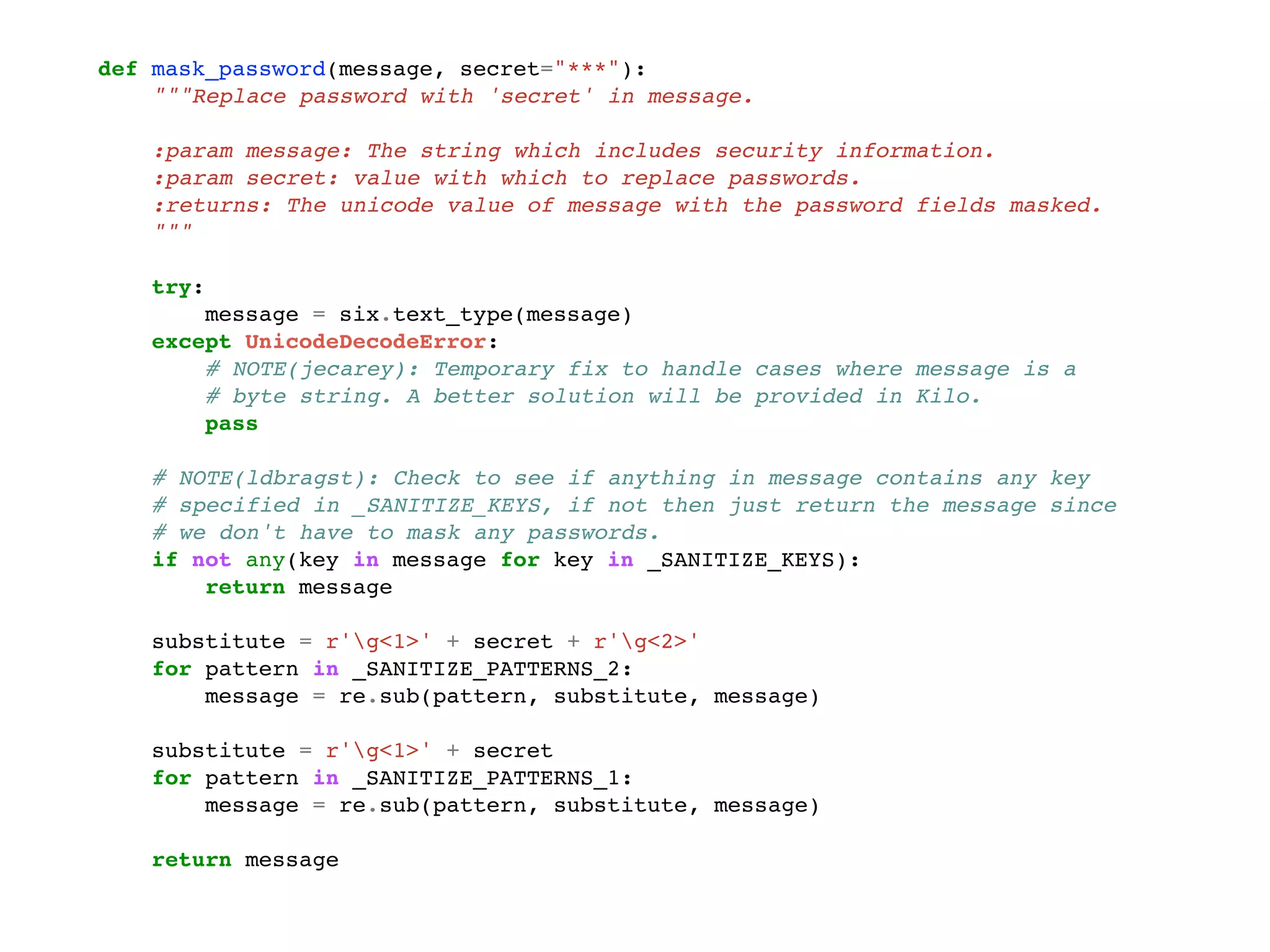

2. def mask_password(message, secret="***"):
"""Replace password with 'secret' in message.
:param message: The string which includes security information.
:param secret: value with which to replace passwords.
:returns: The unicode value of message with the password fields masked.
"""
try:
message = six.text_type(message)
except UnicodeDecodeError:
# NOTE(jecarey): Temporary fix to handle cases where message is a
# byte string. A better solution will be provided in Kilo.
pass
# NOTE(ldbragst): Check to see if anything in message contains any key
# specified in _SANITIZE_KEYS, if not then just return the message since
# we don't have to mask any passwords.
if not any(key in message for key in _SANITIZE_KEYS):
return message
substitute = r'g<1>' + secret + r'g<2>'
for pattern in _SANITIZE_PATTERNS_2:
message = re.sub(pattern, substitute, message)
substitute = r'g<1>' + secret
for pattern in _SANITIZE_PATTERNS_1:
message = re.sub(pattern, substitute, message)
return message

3. > 3000 times faster

4. def mask_password(message, secret="***"):
"""Replace password with 'secret' in message.
:param message: The string which includes security information.
:param secret: value with which to replace passwords.
:returns: The unicode value of message with the password fields masked.
"""
try:
message = six.text_type(message)
except UnicodeDecodeError:
# NOTE(jecarey): Temporary fix to handle cases where message is a
# byte string. A better solution will be provided in Kilo.
pass
# NOTE(ldbragst): Check to see if anything in message contains any key
# specified in _SANITIZE_KEYS, if not then just return the message since
# we don't have to mask any passwords.
if not any(key in message for key in _SANITIZE_KEYS):
return message
substitute = r'g<1>' + secret + r'g<2>'
for pattern in _SANITIZE_PATTERNS_2:
message = re.sub(pattern, substitute, message)
substitute = r'g<1>' + secret
for pattern in _SANITIZE_PATTERNS_1:
message = re.sub(pattern, substitute, message)
return message

5. _SANITIZE_KEYS = ['adminPass', 'admin_pass', 'password', 'admin_password',
'auth_token', 'new_pass', 'auth_password', 'secret_uuid']
# NOTE(ldbragst): Let's build a list of regex objects using the list of
# _SANITIZE_KEYS we already have. This way, we only have to add the new key
# to the list of _SANITIZE_KEYS and we can generate regular expressions
# for XML and JSON automatically.
_SANITIZE_PATTERNS_2 = []
_SANITIZE_PATTERNS_1 = []
# NOTE(amrith): Some regular expressions have only one parameter, some
# have two parameters. Use different lists of patterns here.
_FORMAT_PATTERNS_1 = [r'(%(key)ss*[=]s*)[^s^'^"]+']
_FORMAT_PATTERNS_2 = [r'(%(key)ss*[=]s*["']).*?(["'])',
r'(%(key)ss+["']).*?(["'])',
r'([-]{2}%(key)ss+)[^'^"^=^s]+([s]*)',
r'(<%(key)s>).*?(</%(key)s>)',
r'(["']%(key)s["']s*:s*["']).*?(["'])',
r'(['"].*?%(key)s['"]s*:s*u?['"]).*?(['"])',
r'(['"].*?%(key)s['"]s*,s*'--?[A-z]+'s*,s*u?'
'['"]).*?(['"])',
r'(%(key)ss*--?[A-z]+s*)S+(s*)']
for key in _SANITIZE_KEYS:
for pattern in _FORMAT_PATTERNS_2:
reg_ex = re.compile(pattern % {'key': key}, re.DOTALL)
_SANITIZE_PATTERNS_2.append(reg_ex)
for pattern in _FORMAT_PATTERNS_1:
reg_ex = re.compile(pattern % {'key': key}, re.DOTALL)
_SANITIZE_PATTERNS_1.append(reg_ex)

6. Bottleneck?

7. def mask_password(message, secret="***"):
"""Replace password with 'secret' in message.
:param message: The string which includes security information.
:param secret: value with which to replace passwords.
:returns: The unicode value of message with the password fields masked.
"""
try:
message = six.text_type(message)
except UnicodeDecodeError:
# NOTE(jecarey): Temporary fix to handle cases where message is a
# byte string. A better solution will be provided in Kilo.
pass
# NOTE(ldbragst): Check to see if anything in message contains any key
# specified in _SANITIZE_KEYS, if not then just return the message since
# we don't have to mask any passwords.
if not any(key in message for key in _SANITIZE_KEYS):
return message
substitute = r'g<1>' + secret + r'g<2>'
for pattern in _SANITIZE_PATTERNS_2:
message = re.sub(pattern, substitute, message)
substitute = r'g<1>' + secret
for pattern in _SANITIZE_PATTERNS_1:
message = re.sub(pattern, substitute, message)
return message

8. class timeit.Timer(stmt='pass', setup='pass', timer=<timer function>)
timeit(number=1000000)
t = timeit.Timer(
stmt="re.sub(pattern, r'g<1>***g<2>', payload)",
setup="""
import re
payload = '''%s'''
pattern = re.compile(r'''%s''')
""" % (input_str, pattern.pattern))
result = t.timeit(1)

9. #!/usr/bin/env python
from __future__ import print_function
import timeit
import strutils
# A moderately sized input (~50K) string
# http://paste.openstack.org/raw/155864/
infile = 'sample.json'
with open(infile, 'r') as f:
input_str = f.read()
print('payload has %d bytes' % len(input_str))

10. times = []
for pattern in strutils._SANITIZE_PATTERNS_2:
print('ntesting %s' % pattern.pattern)
t = timeit.Timer(
"re.sub(pattern, r'g<1>***g<2>', payload)",
"""
import re
payload = '''%s'''
pattern = re.compile(r'''%s''')
""" % (input_str, pattern.pattern))
result = t.timeit(1)
print(result)
times.append((result, pattern.pattern))
print('nslowest to fastest:')
times = reversed(sorted(times))
for t in times:
print(‘%s - %s’ % t)
print('ntesting all patterns')
t = timeit.Timer(
"strutils.mask_password('''" + input_str + "''')",
"import strutils",
)
print(t.timeit(1))

11. $ python perf_test_mask_password.py
payload has 50000 bytes
testing (adminPasss*[=]s*["']).*?(["'])
0.000424146652222
testing (adminPasss+["']).*?(["'])
0.000438928604126
testing ([-]{2}adminPasss+)[^'^"^=^s]+([s]*)
0.000957012176514
testing (<adminPass>).*?(</adminPass>)
0.000320911407471
testing (["']adminPass["']s*:s*["']).*?(["'])
0.000932931900024
testing (['"].*?adminPass['"]s*:s*u?['"]).*?(['"])
1.39579486847
testing (['"].*?adminPass['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.38312697411
testing (adminPasss*--?[A-z]+s*)S+(s*)
0.000363111495972
testing (admin_passs*[=]s*["']).*?(["'])
0.000358819961548
testing (admin_passs+["']).*?(["'])
0.000358104705811

12. 1.38247299194 - (['"].*?adminPass['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.36443901062 - (['"].*?auth_password['"]s*:s*u?['"]).*?(['"])
1.36225605011 - (['"].*?auth_token['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.35945916176 - (['"].*?admin_pass['"]s*:s*u?['"]).*?(['"])
1.358741045 - (['"].*?admin_password['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?
(['"])
1.35629177094 - (['"].*?admin_password['"]s*:s*u?['"]).*?(['"])
1.35611796379 - (['"].*?new_pass['"]s*:s*u?['"]).*?(['"])
1.35091495514 - (['"].*?auth_password['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?
(['"])
1.34805893898 - (['"].*?new_pass['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.34525895119 - (['"].*?admin_pass['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.3426618576 - (['"].*?adminPass['"]s*:s*u?['"]).*?(['"])
1.33739089966 - (['"].*?secret_uuid['"]s*:s*u?['"]).*?(['"])
1.31182909012 - (['"].*?secret_uuid['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.30403113365 - (['"].*?auth_token['"]s*:s*u?['"]).*?(['"])
1.29068493843 - (['"].*?password['"]s*:s*u?['"]).*?(['"])
1.28651189804 - (['"].*?password['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
0.00123500823975 - (["']password["']s*:s*["']).*?(["'])
0.00123286247253 - (["']adminPass["']s*:s*["']).*?(["'])

13. $ cat results
1.38247299194 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.36443901062 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.36225605011 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.35945916176 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.358741045 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.35629177094 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.35611796379 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.35091495514 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.34805893898 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.34525895119 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.3426618576 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.33739089966 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.31182909012 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
1.30403113365 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.29068493843 - (['"].*?KEY['"]s*:s*u?['"]).*?(['"])
1.28651189804 - (['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])

14. $ cat results | sed -E 's/^.{16}/ /g'
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])

15. $ cat results | sed -E 's/^.{16}/ /g’ | sort
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])

16. $ cat results | sed -E 's/^.{16}/ /g’ | sort -u
(['"].*?KEY['"]s*,s*'--?[A-z]+'s*,s*u?['"]).*?(['"])
(['"].*?KEY['"]s*:s*u?['"]).*?(['"])

17. ([’"].*?KEY['"]s*:s*u?['"]).*?(['"])
“admin_pass”: “super secret”
“admin_pass”: “***”
( start group
[’”] quote
.*? anything
KEY literal key
[’”] quote
s*:s* colon, maybe with whitespace
u? optional literal u
[’”] quote
) end group
.*? anything
([’"]) group with quote
group 1: “admin_pass”: “
group 2: “

18. ([’"].*?KEY['"]s*:s*u?['"]).*?(['"])
“admin_pass”: “super secret”
“admin_pass”: “***”
( start group
[’”] quote
.*? anything
KEY literal key
[’”] quote
s*:s* colon, maybe with whitespace
u? optional literal u
[’”] quote
) end group
.*? anything
([’"]) group with quote
group 1: “admin_pass”: “
group 2: “

19. (”)(.*?)(”)
“super secret”
“
“s
“su
“sup
“supe
“super
“super
“super s
“super se
“super sec
“super secr
“super secret
“super secret
“super secret”
(“)(.*)(”)
“super secret”
“super secret”
“super secret
“super secret”

20. Change 1:
Be Specific In Patterns

21. ([’"].*?KEY['"]s*:s*u?['"]).*?(['"])
(['"][^"']*KEY['"]s*:s*u?['"])[^"']*(['"])

23. Before:
testing all patterns
22.2821819782
After:
testing all patterns
0.0565450191498
22.28 / 0.0565
= 394.3

24. def mask_password(message, secret="***"):
"""Replace password with 'secret' in message.
:param message: The string which includes security information.
:param secret: value with which to replace passwords.
:returns: The unicode value of message with the password fields masked.
"""
try:
message = six.text_type(message)
except UnicodeDecodeError:
# NOTE(jecarey): Temporary fix to handle cases where message is a
# byte string. A better solution will be provided in Kilo.
pass
# NOTE(ldbragst): Check to see if anything in message contains any key
# specified in _SANITIZE_KEYS, if not then just return the message since
# we don't have to mask any passwords.
if not any(key in message for key in _SANITIZE_KEYS):
return message
substitute = r'g<1>' + secret + r'g<2>'
for pattern in _SANITIZE_PATTERNS_2:
message = re.sub(pattern, substitute, message)
substitute = r'g<1>' + secret
for pattern in _SANITIZE_PATTERNS_1:
message = re.sub(pattern, substitute, message)
return message

25. 8 keys * 10 templates
= 80 patterns

26. #!/usr/bin/env python
from __future__ import print_function
import timeit
infile = 'sample.json'
with open(infile, 'r') as f:
input_str = f.read()
t = timeit.Timer(
"re.sub(pattern, r'g<1>***g<2>', payload)",
"""
import re
payload = '''%s'''
pattern = re.compile(r'admin_pass')
""" % input_str)
print('regex : %10.10f' % t.timeit(5))
t = timeit.Timer(
"'admin_pass' in payload",
"payload = '''%s'''" % input_str,
)
print('literal: %10.10f' % t.timeit(5))

27. $ python literal_vs_regex.py
regex : 0.0003869534
literal: 0.0001130104

28. Change 2:
Look at Fewer Patterns

29. def mask_password(message, secret="***"):
"""Replace password with 'secret' in message.
:param message: The string which includes security information.
:param secret: value with which to replace passwords.
:returns: The unicode value of message with the password fields masked.
"""
try:
message = six.text_type(message)
except UnicodeDecodeError:
# NOTE(jecarey): Temporary fix to handle cases where message is a
# byte string. A better solution will be provided in Kilo.
pass
substitute1 = r'g<1>' + secret
substitute2 = r'g<1>' + secret + r'g<2>'
# NOTE(ldbragst): Check to see if anything in message contains any key
# specified in _SANITIZE_KEYS, if not then just return the message since
# we don't have to mask any passwords.
for key in _SANITIZE_KEYS:
if key in message:
for pattern in _SANITIZE_PATTERNS_2[key]:
message = re.sub(pattern, substitute2, message)
for pattern in _SANITIZE_PATTERNS_1[key]:
message = re.sub(pattern, substitute1, message)
return message

30. # NOTE(ldbragst): Let's build a list of regex objects using the list of
# _SANITIZE_KEYS we already have. This way, we only have to add the new key
# to the list of _SANITIZE_KEYS and we can generate regular expressions
# for XML and JSON automatically.
_SANITIZE_PATTERNS_2 = {}
_SANITIZE_PATTERNS_1 = {}
# NOTE(dhellmann): Keep a separate list of patterns by key so we only
# need to apply the substitutions for keys we find using a quick "in"
# test.
for key in _SANITIZE_KEYS:
_SANITIZE_PATTERNS_1[key] = []
_SANITIZE_PATTERNS_2[key] = []
for pattern in _FORMAT_PATTERNS_2:
reg_ex = re.compile(pattern % {'key': key}, re.DOTALL)
_SANITIZE_PATTERNS_2[key].append(reg_ex)
for pattern in _FORMAT_PATTERNS_1:
reg_ex = re.compile(pattern % {'key': key}, re.DOTALL)
_SANITIZE_PATTERNS_1[key].append(reg_ex)

31. >>> import strutils
>>> strutils._SANITIZE_PATTERNS_2
{'admin_pass': [<_sre.SRE_Pattern object at 0x7fbf4361d9b0>, <_sre.SRE_Pattern
object at 0x7fbf43620660>, <_sre.SRE_Pattern object at 0x7fbf43621200>,
<_sre.SRE_Pattern object at 0x7fbf43621ac0>, <_sre.SRE_Pattern object at
0x7fbf43627e70>, <_sre.SRE_Pattern object at 0x7fbf43629a30>, <_sre.SRE_Pattern
object at 0x7fbf4362a3f0>, <_sre.SRE_Pattern object at 0x7fbf43629fc0>],
'auth_password': [<_sre.SRE_Pattern object at 0x7fbf436322d0>, <_sre.SRE_Pattern
object at 0x7fbf436324a0>, <_sre.SRE_Pattern object at 0x7fbf43632640>,
<_sre.SRE_Pattern object at 0x7fbf43632800>, <_sre.SRE_Pattern object at
0x7fbf43631d60>, <_sre.SRE_Pattern object at 0x7fbf43633200>, <_sre.SRE_Pattern
object at 0x7fbf43633690>, <_sre.SRE_Pattern object at 0x7fbf43633e90>], …}
>>> strutils._SANITIZE_PATTERNS_2.keys()
['admin_pass', 'auth_password', 'adminPass', 'auth_token', 'secret_uuid',
'admin_password', 'new_pass', ‘password']
>>> strutils._SANITIZE_PATTERNS_2[‘admin_pass’]
[<_sre.SRE_Pattern object at 0x7fbf4361d9b0>, …]

32. times = []
for pattern in strutils._SANITIZE_PATTERNS_2['admin_pass']:
print('ntesting %s' % pattern.pattern)
t = timeit.Timer(
"re.sub(pattern, r'g<1>***g<2>', payload)",
"""
import re
payload = '''%s'''
pattern = re.compile(r'''%s''')
""" % (input_str, pattern.pattern))
result = t.timeit(1)
print(result)
times.append((result, pattern.pattern))
print('nslowest to fastest:')
times = reversed(sorted(times))
for t in times:
print('%s - %s ' % t)
print('ntesting all patterns')
t = timeit.Timer(
"strutils.mask_password('''" + input_str + "''')",
"import strutils",
)
print(t.timeit(1))

33. $ python ./perf_test_mask_password.py
payload has 50000 bytes
testing (admin_passs*[=]s*["'])[^"']*(["'])
0.000396966934204
testing (admin_passs+["'])[^"']*(["'])
0.000360012054443
testing ([-]{2}admin_passs+)[^'^"^=^s]+([s]*)
0.00097393989563
testing (<admin_pass>)[^<]*(</admin_pass>)
0.00052809715271
testing (["']admin_pass["']s*:s*["'])[^"']*(["'])
0.00141596794128
testing (['"][^"']*admin_pass['"]s*:s*u?['"])[^"']*(['"])
0.00194191932678
testing (['"][^'"]*admin_pass['"]s*,s*'--?[A-z]+'s*,s*u?['"])
[^"']*(['"])
0.00175809860229
testing (admin_passs*--?[A-z]+s*)S+(s*)
0.000356912612915

34. slowest to fastest:
0.00194191932678 - (['"][^"']*admin_pass['"]s*:s*u?['"])[^"']*(['"])
0.00175809860229 - (['"][^'"]*admin_pass['"]s*,s*'--?[A-z]+'s*,s*u?
['"])[^"']*(['"])
0.00141596794128 - (["']admin_pass["']s*:s*["'])[^"']*(["'])
0.00097393989563 - ([-]{2}admin_passs+)[^'^"^=^s]+([s]*)
0.00052809715271 - (<admin_pass>)[^<]*(</admin_pass>)
0.000396966934204 - (admin_passs*[=]s*["'])[^"']*(["'])
0.000360012054443 - (admin_passs+["'])[^"']*(["'])
0.000356912612915 - (admin_passs*--?[A-z]+s*)S+(s*)
testing all patterns
0.00732088088989

35. 22.28 / 0.0073 = 3052

36. References
• https://github.com/dhellmann/pyatl-regex-performance
• https://review.openstack.org/#/c/145562/
• http://git.openstack.org/cgit/openstack/oslo.utils/tree/oslo_utils/
strutils.py
• https://docs.python.org/2.7/library/re.html
• https://docs.python.org/2/howto/regex.html#greedy-versus-non-
greedy
• https://docs.python.org/2.7/library/timeit.html
• Mastering Regular Expressions, Jeffrey E.F. Friedl
