1. Real World Haskell:
Lecture 6
Bryan O’Sullivan
2009-11-11

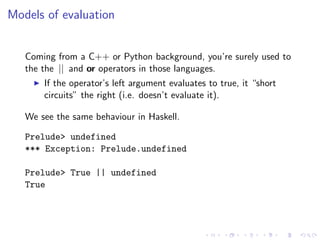

2. Models of evaluation
Coming from a C++ or Python background, you’re surely used to
the the || and or operators in those languages.
If the operator’s left argument evaluates to true, it “short
circuits” the right (i.e. doesn’t evaluate it).
We see the same behaviour in Haskell.
Prelude> undefined
*** Exception: Prelude.undefined
Prelude> True || undefined
True

3. Eager, or strict, evaluation
In most languages, the usual model of is of strict evaluation: a
function’s arguments are fully evaluated before the evaluation of
the function’s body begins.
def inc(x):
return x + 1
def bar(a):
b = 5 if a % 2 else 8
return inc(a + 3) * inc(inc(b))
For example, if we run bar(1) then:
The local variable b gets the value 5.
The two calls to inc are fully evaluated before we invoke * on
5 and 7, respectively.

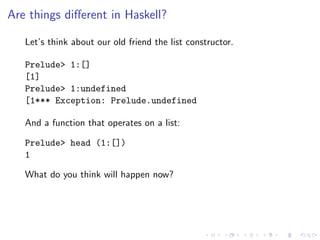

4. Are things different in Haskell?
Let’s think about our old friend the list constructor.
Prelude> 1:[]
[1]
Prelude> 1:undefined
[1*** Exception: Prelude.undefined
And a function that operates on a list:
Prelude> head (1:[])
1
What do you think will happen now?

5. Are things different in Haskell?
Let’s think about our old friend the list constructor.
Prelude> 1:[]
[1]
Prelude> 1:undefined
[1*** Exception: Prelude.undefined
And a function that operates on a list:
Prelude> head (1:[])
1
What do you think will happen now?
Prelude> head (1:undefined)
1

6. Was that a special case?
Well, uh, perhaps lists are special in Haskell. Riiight?
−− d e f i n e d i n Data . Maybe
i s J u s t ( Just ) = True
isJust = False
Let’s see how the Maybe type fares.
Prelude Data.Maybe> Just undefined
Just *** Exception: Prelude.undefined
Prelude Data.Maybe> isJust (Just undefined)
True

7. What else should we expect?
Here’s a slightly different function:
i s J u s t O n e ( Just a ) | a == 1 = True
isJustOne = False
How will it behave?
*Main> isJustOne (Just 2)
False
Okay, we expected that. What if we follow the same pattern as
before, and package up an undefined value?

8. What else should we expect?
Here’s a slightly different function:
i s J u s t O n e ( Just a ) | a == 1 = True
isJustOne = False
How will it behave?
*Main> isJustOne (Just 2)
False
Okay, we expected that. What if we follow the same pattern as
before, and package up an undefined value?
*Main> isJustOne (Just undefined)
*** Exception: Prelude.undefined

9. Haskell’s evaluation model
Haskell follows a semantic model called non-strict evaluation:
expressions are not evaluated unless (and usually until) their values
are used.
Perhaps you’ve heard of lazy evaluation: this is a specific kind of
non-strict semantics.
Haskell compilers go further, using call by need as an
implementation strategy.
Call by need: evaluate an expression when needed, then overwrite
the location of the expression with the evaluated result
(i.e. memoize it), in case it is needed again.

10. What does this mean in practice?
Consider the isJust function again.
i s J u s t ( Just ) = True
isJust = False
It only evaluates its argument to the point of seeing whether it was
constructed with a Just or Nothing constructor.
Notably, the function does not inspect the argument of the Just
constructor.
When we try isJust (Just undefined) in ghci, the value
undefined is never evaluated.

11. And our other example, revisited
Who can explain why this code crashes when presented with
Just undefined?
i s J u s t O n e ( Just a ) | a == 1 = True
isJustOne = False

12. A classic example
Here is the infinite list of Fibonacci numbers in Haskell:
f i b s = 0 : 1 : zipWith (+) f i b s ( t a i l f i b s )
Even though this list is conceptually infinite, its components only
get generated on demand.
*Main> head (drop 256 fibs)
141693817714056513234709965875411919657707794958199867

13. Traversing lists
What do these functions have in common?
map f [ ] = []
map f ( x : x s ) = f x : map f x s
bunzip [ ] = ([] ,[])
b u n z i p ( ( a , b ) : x s ) = l e t ( as , b s ) = b u n z i p x s
i n ( a : as , b : b s )
*Main> map succ "button"
"cvuupo"
*Main> bunzip [(1,’a’),(3,’b’),(5,’c’)]
([1,3,5],"abc")

14. What does map do?
If you think about what map does to the structure of a list, it
replaces every (:) constructor with a new (:) constructor that has
a transformed version of its arguments.
map succ ( 1 : 2 : [])
== ( succ 1 : succ 2 : [ ] )

15. And bunzip?
Thinking structurally, bunzip performs the same kind of operation
as map.
bunzip ((1 , ’ a ’ ) : (2 , ’ b ’ ) : [ ] )
== ((1 : 2 : [ ] ) , ( ’ a ’ : ’b ’ : [ ] ) )
This time, the pattern is much harder to see, but it’s still there:
Every time we see a (:) constructor, we replace it with a
transformed piece of data.
In this case, the transformed data is the head pair pulled apart
and grafted onto the heads of a pair of lists.

16. Abstraction! Abstraction! Abstraction!
If we have two functions that do essentially the same thing, don’t
we have a design pattern?
In Haskell, we can usually do better than waffle about design
patterns: we can reify them into code! To wit:
foldr f z [ ] = z
fol dr f z ( x : xs ) = f x ( fold r f z xs )

17. The right fold (no, really)
The foldr function is called a right fold, because it associates to
the right. What do I mean by this?
f o l d r (+) 1 [ 2 , 3 , 4 ]
== f o l d r (+) 1 ( 2 : 3 : 4 : [ ] )
== f o l d r (+) 1 ( 2 : ( 3 : ( 4 : [ ] ) ) )
== 2 + (3 + (4 + 1))
Notice a few things:
We replaced the empty list with the “empty” value.
We replaced each non-empty constructor with an addition
operator.
That’s our structural transformation in a nutshell!

18. map as a right fold
Because map follows the same pattern as foldr, we can actually
write map in terms of foldr!
bmap : : ( a −> b ) −> [ a ] −> [ b ]
bmap f x s = f o l d r g [ ] x s
where g y y s = f y : y s
Since we can write a map as a fold, this implies that a fold is
somehow more primitive than a map.

19. unzip as a right fold
And here’s our unzip-like function as a fold:
b u n z i p : : [ ( a , b ) ] −> ( [ a ] , [ b ] )
bunzip xs = fold r g ( [ ] , [ ] ) xs
where g ( x , y ) ( xs , y s ) = ( x : xs , y : y s )
In fact, I’d suggest that bunzip-in-terms-of-foldr is actually easier
to understand than the original definition.
Many other common list functions can be expressed as right folds,
too!

20. Function composition (I)
Remember your high school algebra?
f ◦ g (x) ≡ f (g (x))
f ◦ g ≡ λx → f (g x)
Taking the above notation and writing it in Haskell, we get this:
f . g = x −> f ( g x )
The backslash is Haskell ASCII art for λ, and introduces an
anonymous function. Between the backslash and the ASCII arrow
are the function’s arguments, and following the arrow is its body.

21. Function composition (II)
f . g = x −> f ( g x )
The result of f . g is a function that accepts one argument,
applied f to it, then applies g to the result.
So the expression succ . succ adds two to a number, for instance.
Why care about this? Well, here’s our old definition of
map-as-foldr.
bmap f x s = f o l d r g [ ] x s
where g y y s = f y : y s
And here’s a more succinct version.
bmap f x s = f o l d r ( ( : ) . f ) [ ] x s

22. The left fold
So we’ve seen folds that associate to the right:
1 + (2 + (3 + 4))
What about folds that associate to the left?
((1 + 2) + 3) + 4
Not surprisingly, the left fold does indeed exist, and is named foldl .
foldl f z [] = z
f o l d l f z ( x : xs ) = f o l d l f ( f z x ) xs

23. The right fold in pictures

24. The left fold in pictures

25. Folds and laziness
Which of these definitions for adding up the elements of a list is
better?
sum1 x s = f o l d r (+) 0 x s
sum2 x s = f o l d l (+) 0 x s
That’s a hard question to approach without a sense of what lazy
evaluation will cause to happen.
Suppose an oracle generates the list [1..1000] for us at a rate of
one element per second.

26. Sum as right fold
In the first second, we see the partial expression
1 : ( . . . ) {− can ’ t s e e a n y t h i n g more y e t −}
But we want to know the result as soon as possible, so we
generate a partial result:
1 + ( . . . ) {− can ’ t make any more p r o g r e s s y e t −}

27. Second number two
In the second second, we now have the partial expression
1 : ( 2 : . . . ) {− can ’ t s e e a n y t h i n g more y e t −}
We thus construct a little more of our eventual result:
1 + ( 2 + ( . . . ) ) {− s t i l l no f u r t h e r p r o g r e s s −}
Because we’re constructing a right-associative expression (that’s
what a right fold is for), we can’t create an intermediate result of
the-sum-so-far at any point.
In other words, we’re creating a big expression containing 1000
nested applications of (+), which we’ll only be able to fully
evaluate at the end of the list!

28. What happens in practice?
On casual inspection, it’s not clear that this right fold business
really matters.
Prelude> foldr (+) 0 [0..100000]
5000050000
But if we try to sum a longer list, we get a problem:
Prelude> foldr (+) 0 [0..1000000]
*** Exception: stack overflow
The GHC runtime imposes a limit on the size of a deferred
expression to reduce the likelihood of us shooting ourselves in the
foot. Or at least to make the foot-shooting happen early enough
that it won’t be a serious problem.

29. Left folds are better . . . uh, right?
Obviously, a left fold can’t tell us the sum before we reach the end
of a list, but it has a promising property.
Given a list like this:
1 : 2 : 3 : ...
Then our sum-via- foldl will produce a result like this:
((1 + 2) + 3) + . . .
This is left associative, so we could potentially evaluate the
leftmost portion on the fly: add 1 + 2 to give 3, then add 3 to
give 6, and so on, keeping a single Int as the rolling sum-so-far.

30. Are we out of the woods?
So we know that this will fail:
Prelude> foldr (+) 0 [0..1000000]
*** Exception: stack overflow
But what about this?
Prelude> foldl (+) 0 [0..1000000]
*** Exception: stack overflow
Hey! Shouldn’t the left fold have saved our bacon?

31. Why did foldl not help?
Alas, consider the definition of foldl :
f o l d l : : ( a −> b −> a ) −> a −> [ b ] −> a
foldl f z [] = z
f o l d l f z ( x : xs ) = f o l d l f ( f z x ) xs
Because foldl is polymorphic, there is no way it can inspect the
result of f z x.
And since the intermediate result of each f z x can’t be evaluated,
a huge unevaluated expression piles up until we reach the end of
the list, just as with foldr!

32. Tracing evaluation
How can we even get a sense of what pure Haskell code is actually
doing?
import Debug . T r a c e
f o l d l T : : (Show a ) = >
( a −> b −> a ) −> a −> [ b ] −> a
foldlT f z [] = z
f o l d l T f z ( x : xs ) =
let i = f z x
i n t r a c e ( ”now ” ++ show i ) f o l d l T f i x s

33. What does trace do?
The trace function is a magical function of sin: it prints its first
argument on stderr, then returns its second argument.
The expression trace (”now ”++ show i) foldlT prints
something, then returns foldT.
If you have the patience, run this in ghci:
Prelude> foldlT (+) 0 [0..1000000]
now 0
now 1
now 3
...blah blah blah...
500000500000
Whoa! It eventually prints a result, where plain foldl failed!

34. What’s going on?
In order to print an intermediate result, trace must evaluate it
first.
Haskell’s call-by-need evaluation ensures that an unevaluated
expression will be overwritten with the evaluated result.
Instead of a constantly-growing expression, we thus have a
single primitive value as the running sum at each iteration
through the loop.

35. Is a debugging hack the answer to our problem?
Clearly, using trace seems like an incredibly lame solution to the
problem of evaluating intermediate results, although it’s very useful
for debugging.
(Actually, it’s the only Haskell debugger I use.)
The real solution to our problem lies in a function named seq.
seq : : a −> t −> t
This function is a rather magical hack; all it does is evaluate its
first argument until it reaches a constructor, then return its second
argument.

36. Folding with seq
The Data.List module defines the following function for us:
f o l d l ’ : : ( a −> b −> a ) −> a −> [ b ] −> a
foldl ’ f z [ ] = z
foldl ’ f z ( x : xs ) = l e t i = f z x
in i ‘ seq ‘ f o l d l ’ f i x s
Let’s compare the two in practice:
Prelude> foldl (+) 0 [0..1000000]
*** Exception: stack overflow
Prelude> import Data.List
Prelude> foldl’ (+) 0 [0..1000000]
500000500000

37. Rules of thumb for folds
If you can generate your result lazily and incrementally, e.g. as
map does, use foldr.
If you are generating what is conceptually a single result (e.g. one
number), use foldl ’, because it will evaluate those tricky
intermediate results strictly.
Never use plain old foldl without the little tick at the end.

38. Homework
For each of the following, choose the appropriate fold for the kind
of result you are returning. You can find the type signature for
each function using ghci.
Write concat using a fold.
Write length using a fold.
Write (++) using a fold.
Write and using a fold.
Write unwords using a fold.
Write () from Data.List using a fold.
For super duper bonus points:
Write either foldr or foldl in terms of the other. (Hint 1:
only one is actually possible. Hint 2: the answer is highly
non-obvious, and involves higher order functions.)
