After explaining what problem Reactive Programming solves I will give an introduction to one implementation: RxJava. I show how to compose Observable without concurrency first and then with Scheduler. I finish the talk by showing examples of flow control and draw backs. Inspired from https://www.infoq.com/presentations/rxjava-reactor and https://www.infoq.com/presentations/rx-service-architecture Code: https://github.com/toff63/Sandbox/tree/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx

1. Christophe Marchal
Reactive programming with RxJava

2. christophe.marchal@ilegra.com
http://github.com/toff63
@toff63
http://francesbagual.net
About me

3. MOTIVATION

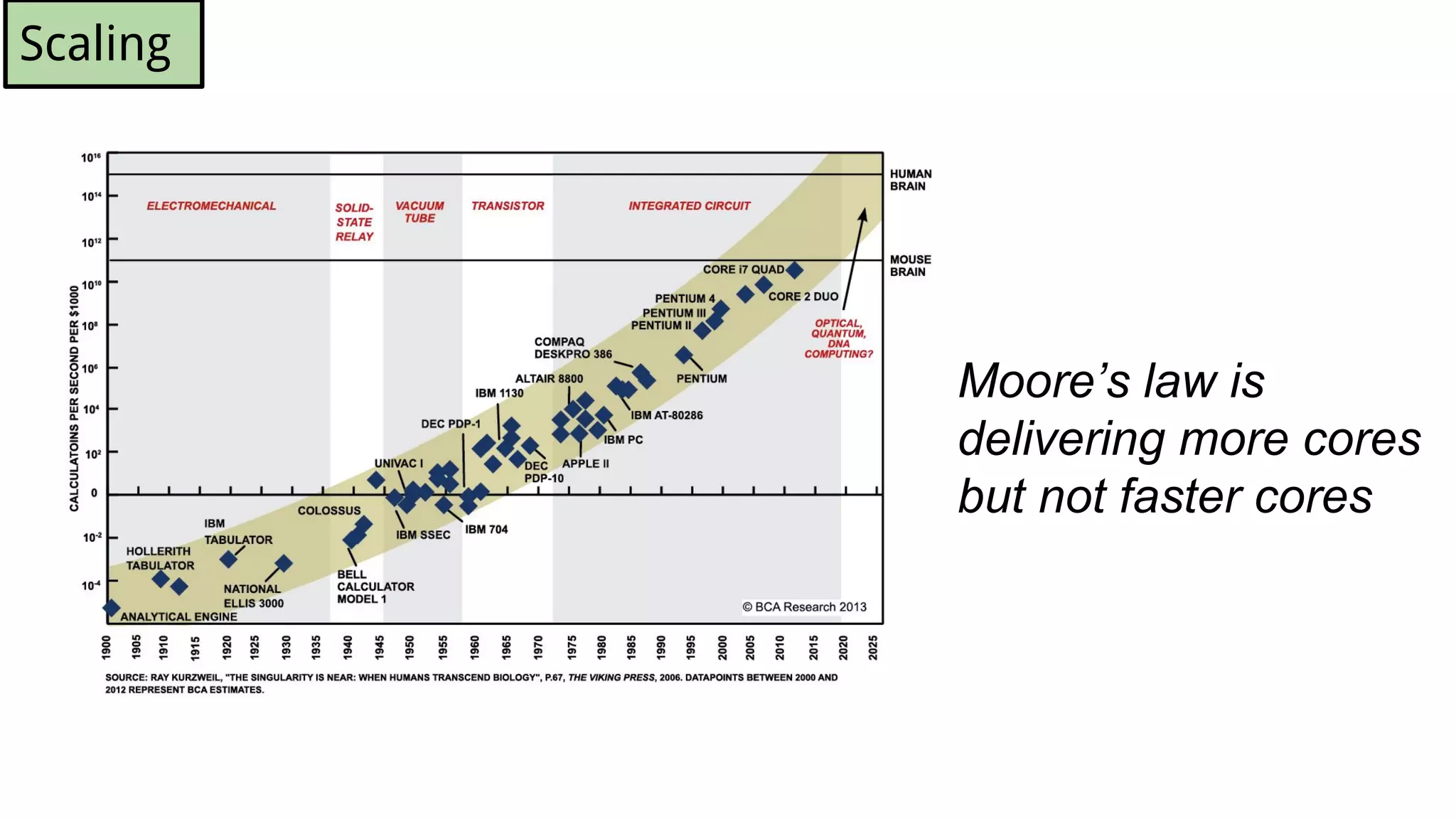

4. Scaling
Moore’s law is
delivering more cores
but not faster cores

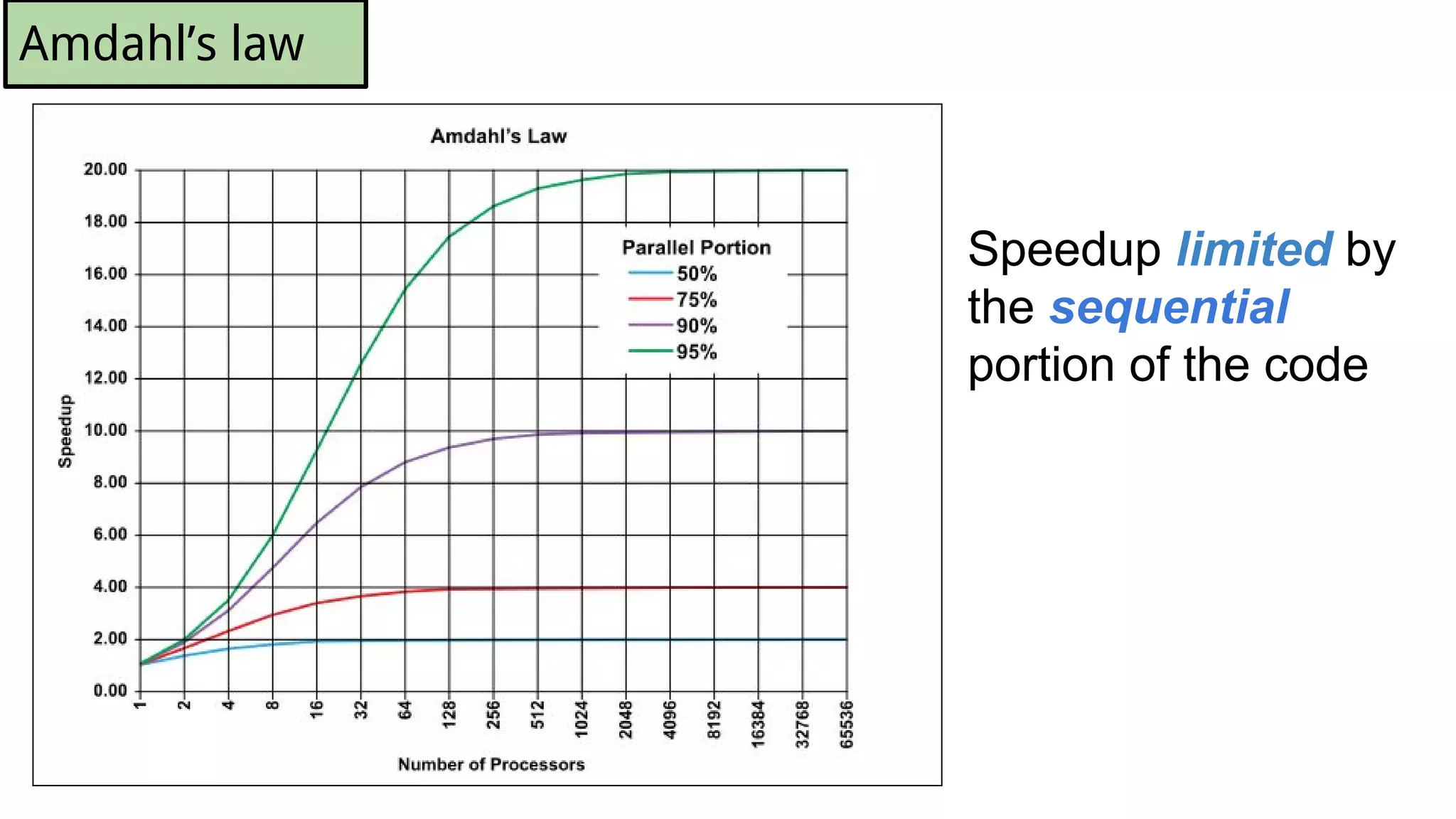

5. Amdahl’s law
Speedup limited by
the sequential
portion of the code

6. In other words,
parallelize your
code to scale

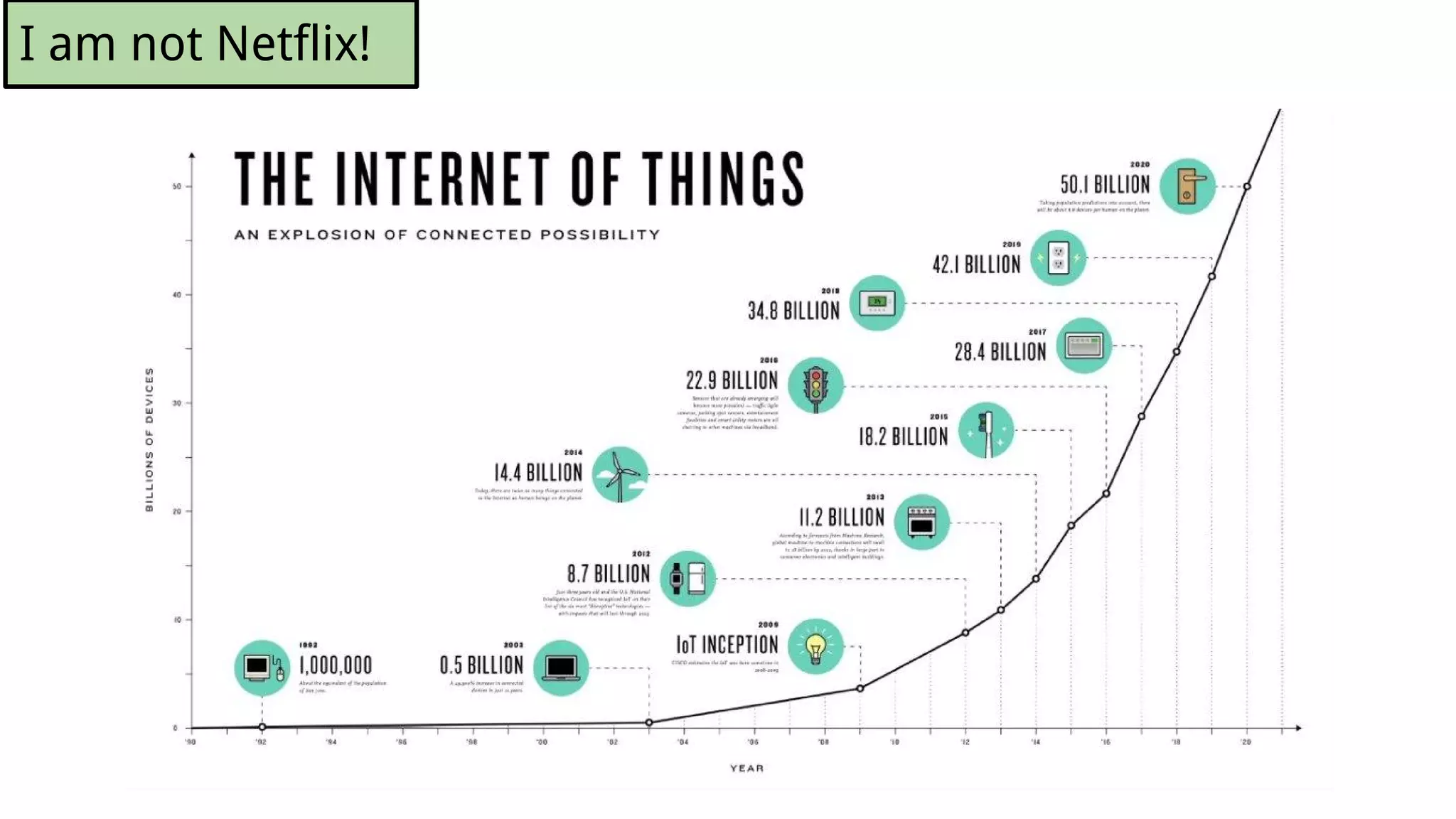

7. I am not Netflix!

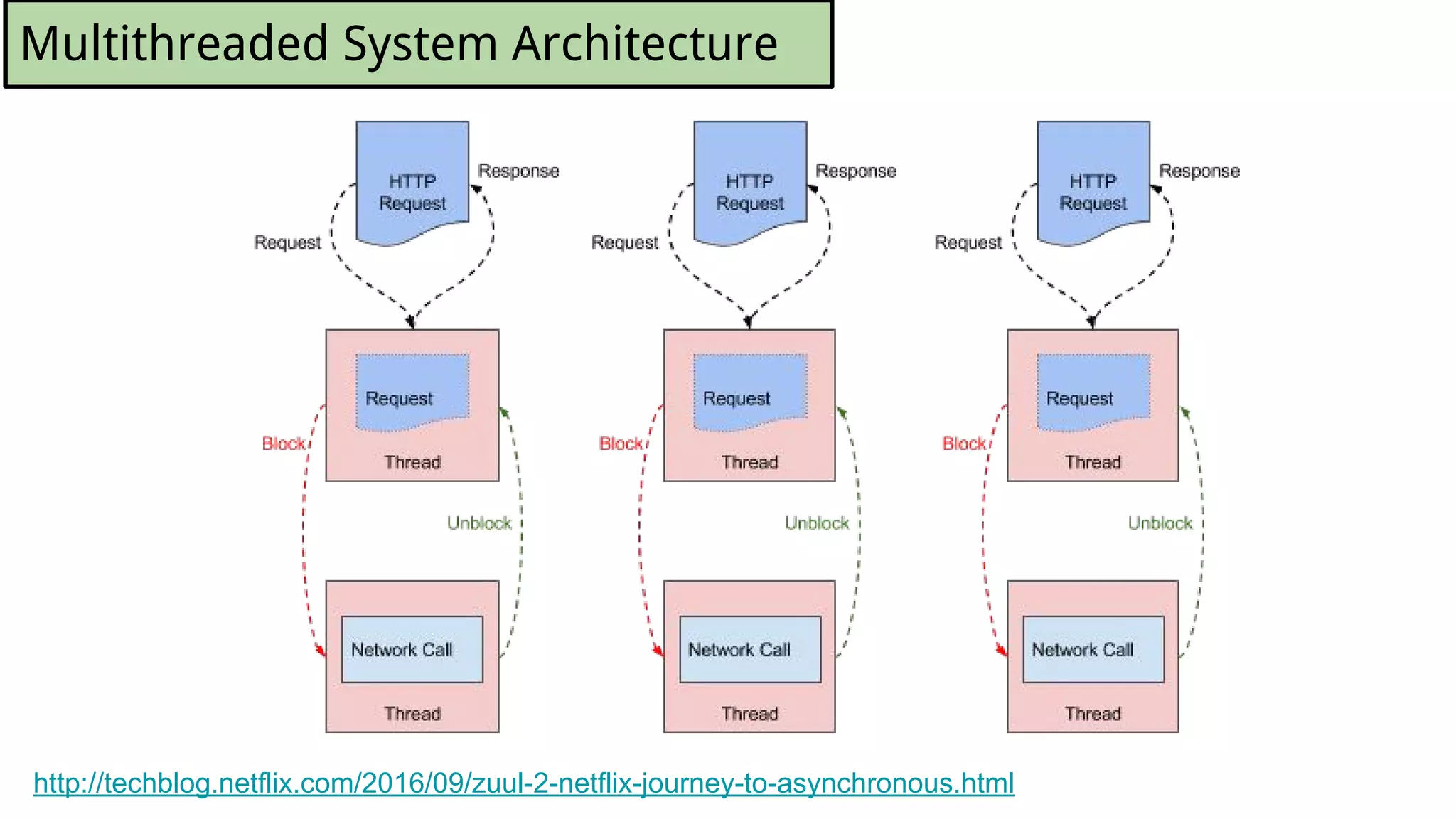

8. http://techblog.netflix.com/2016/09/zuul-2-netflix-journey-to-asynchronous.html
Multithreaded System Architecture

9. Efficient use of resources
● CPU efficient
● Memory efficient
● Hard Drive efficient
● Network efficient

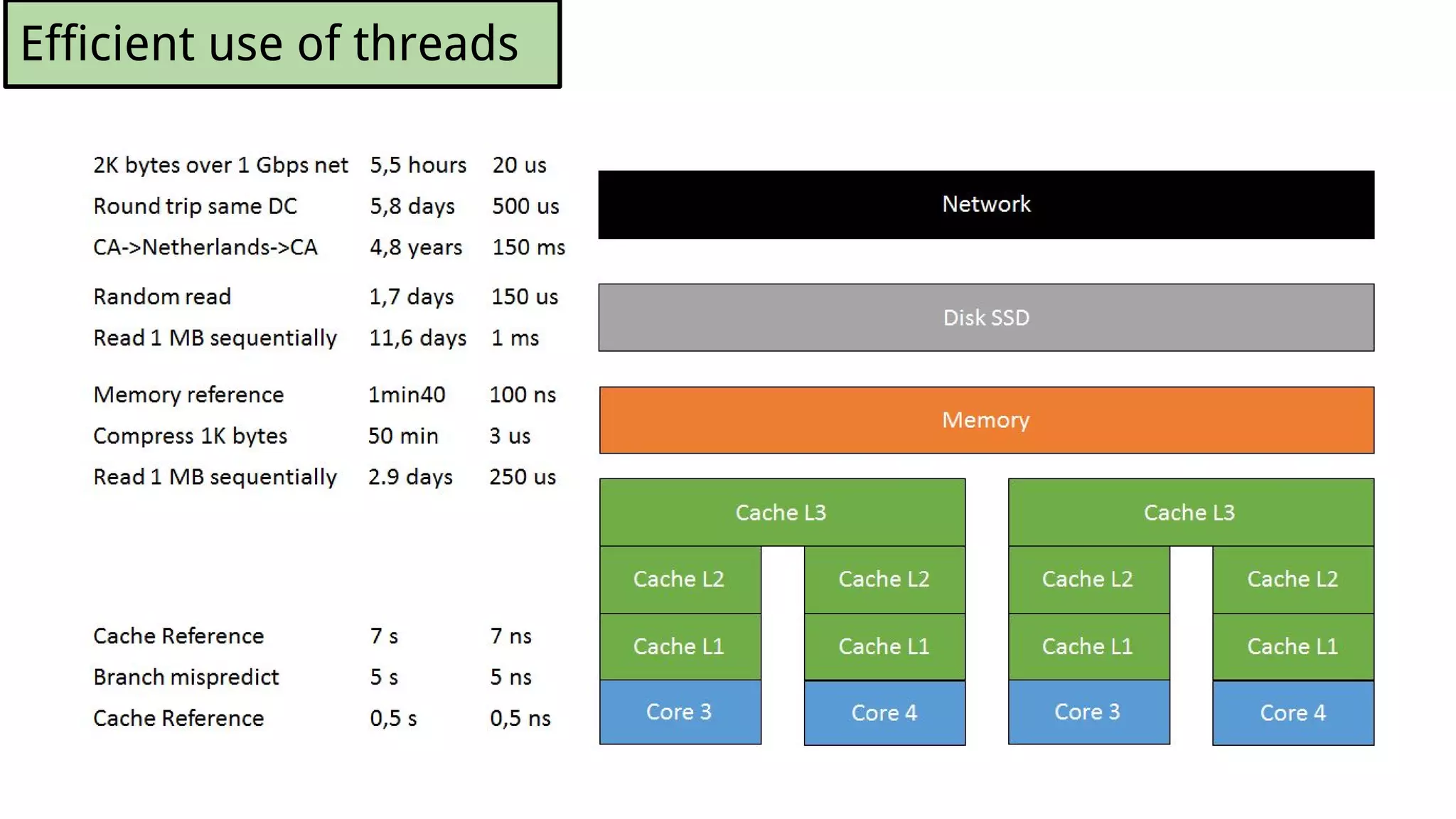

10. Efficient use of threads

11. Non-Blocking
architecture

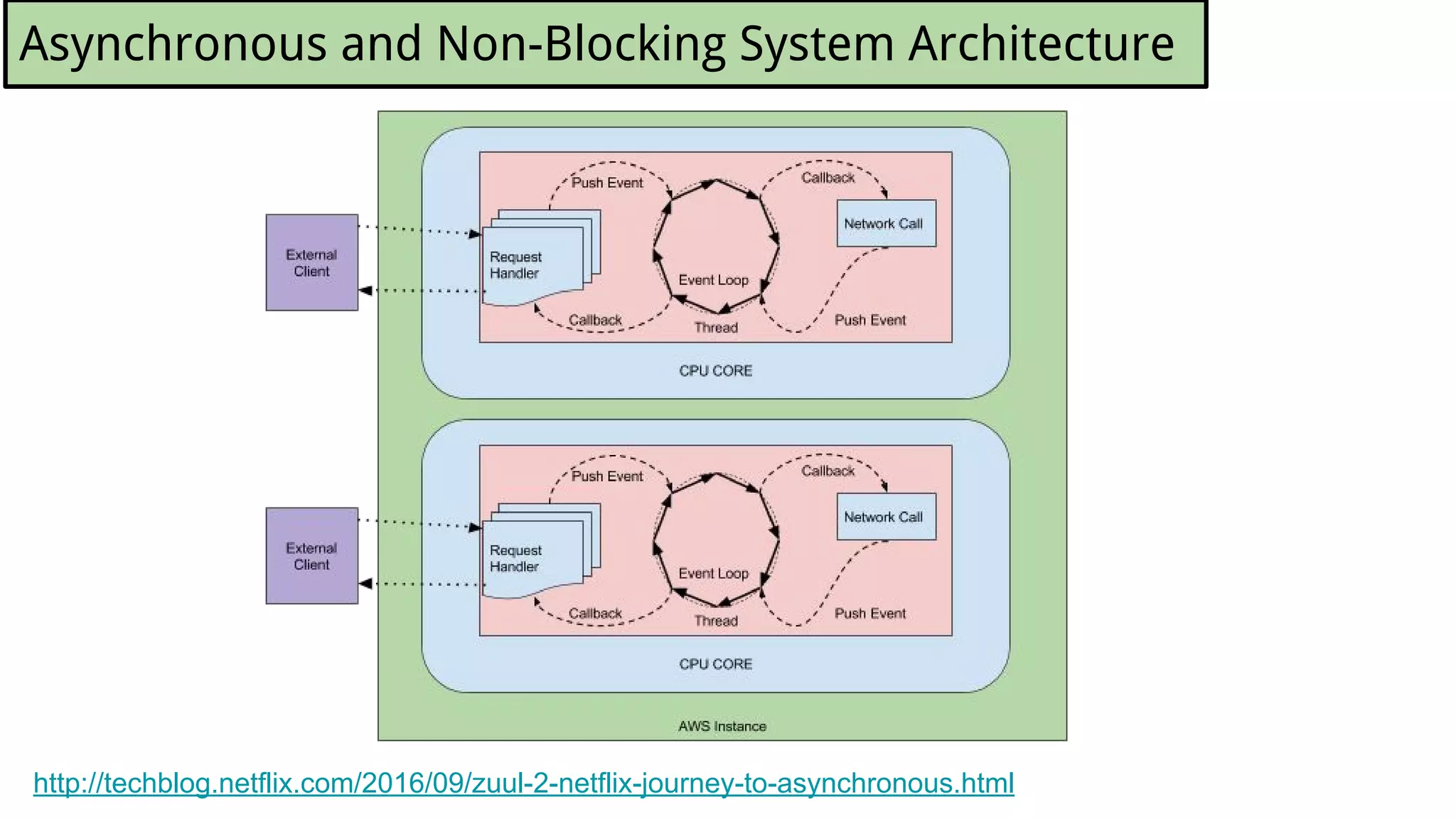

12. http://techblog.netflix.com/2016/09/zuul-2-netflix-journey-to-asynchronous.html
Asynchronous and Non-Blocking System Architecture

13. Challenges
● listeners / callback
● force functional code
● exception handling
● Everything becomes a
Stream

14. RxJava for the win!

15. Challenges

16. Erik Meijer
Origins

17. Reactive eXtension

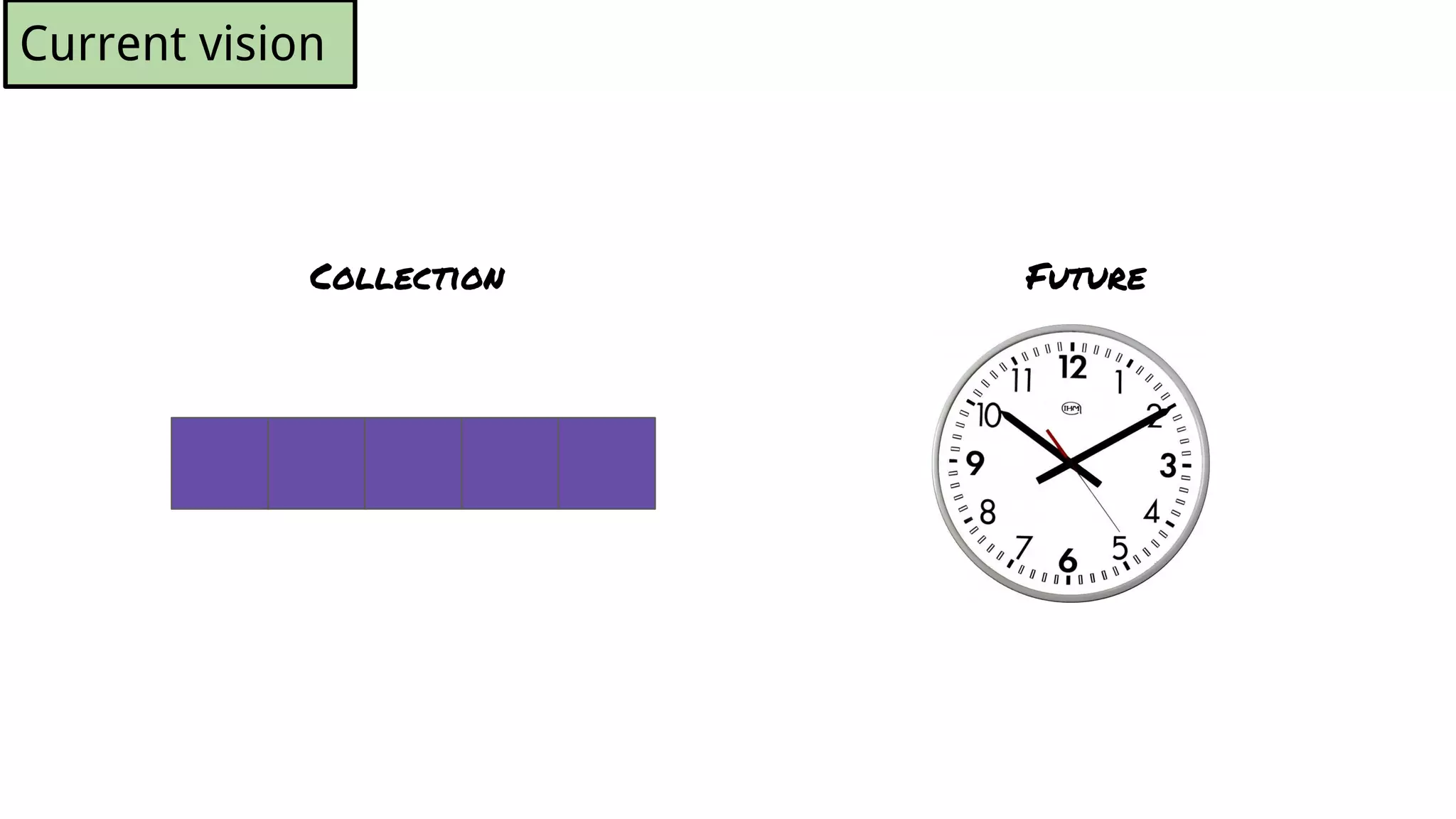

18. Collection Future
Current vision

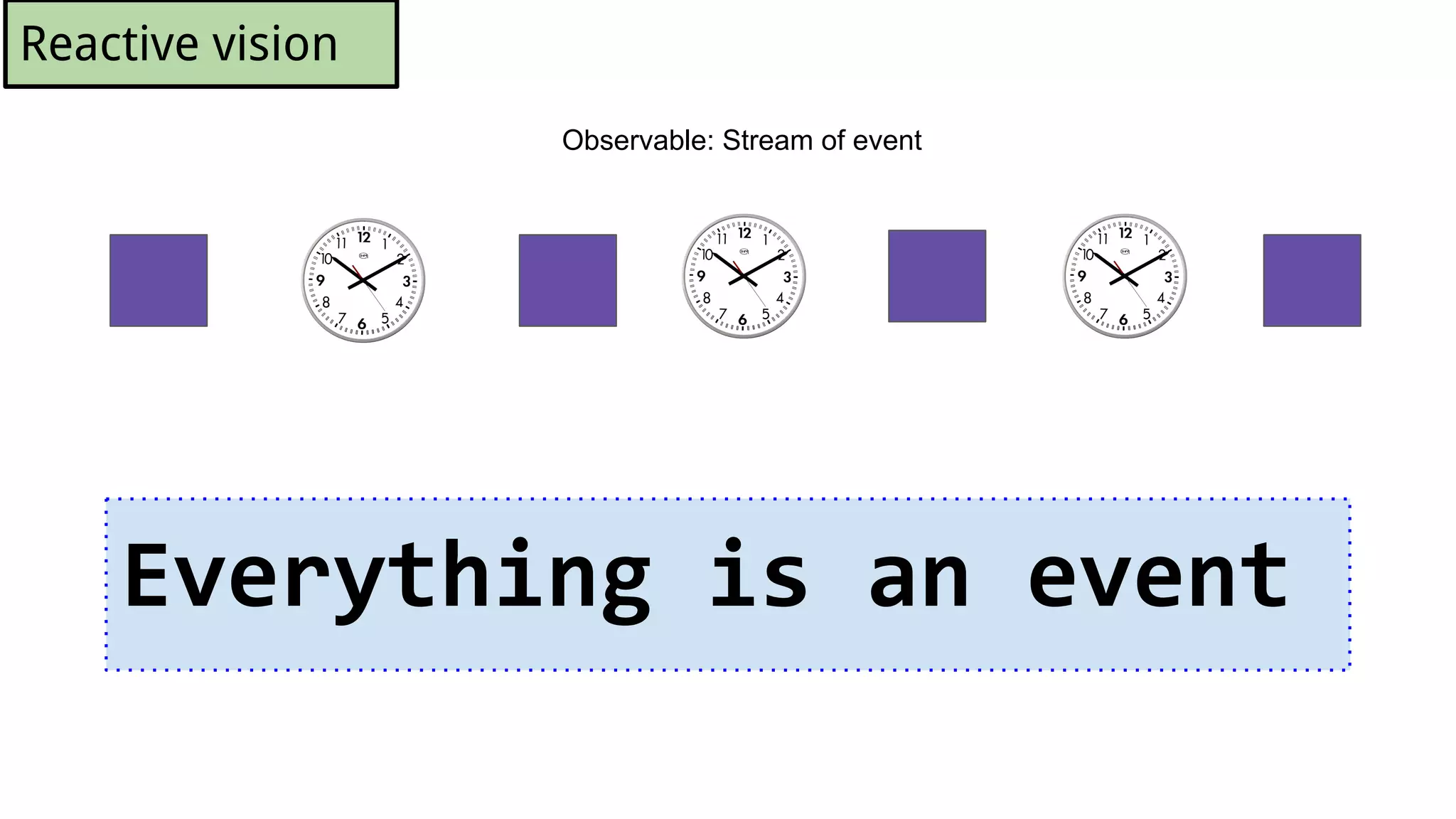

19. Observable: Stream of event
Reactive vision
Everything is an event

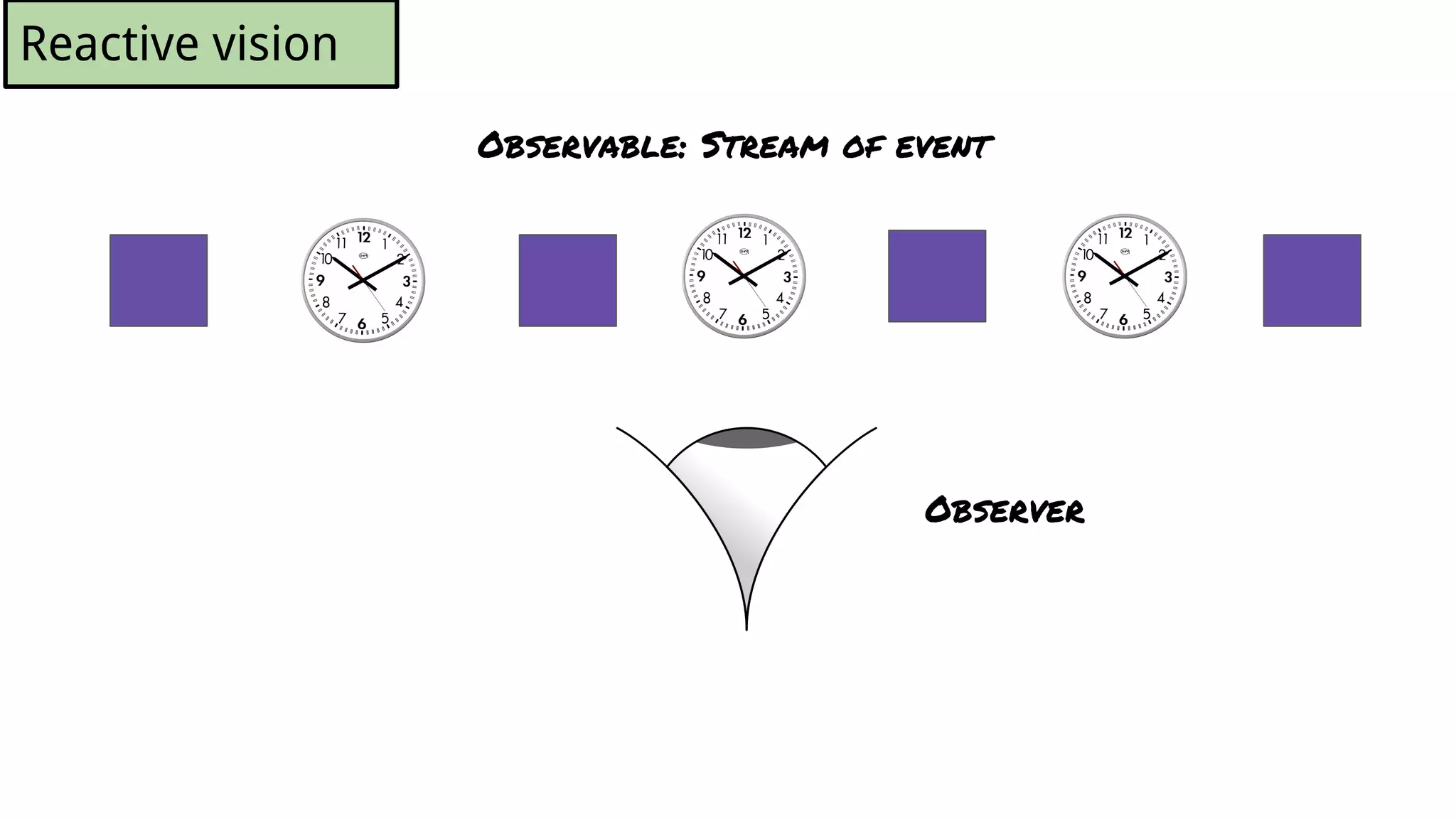

20. Observable: Stream of event
Observer
Reactive vision

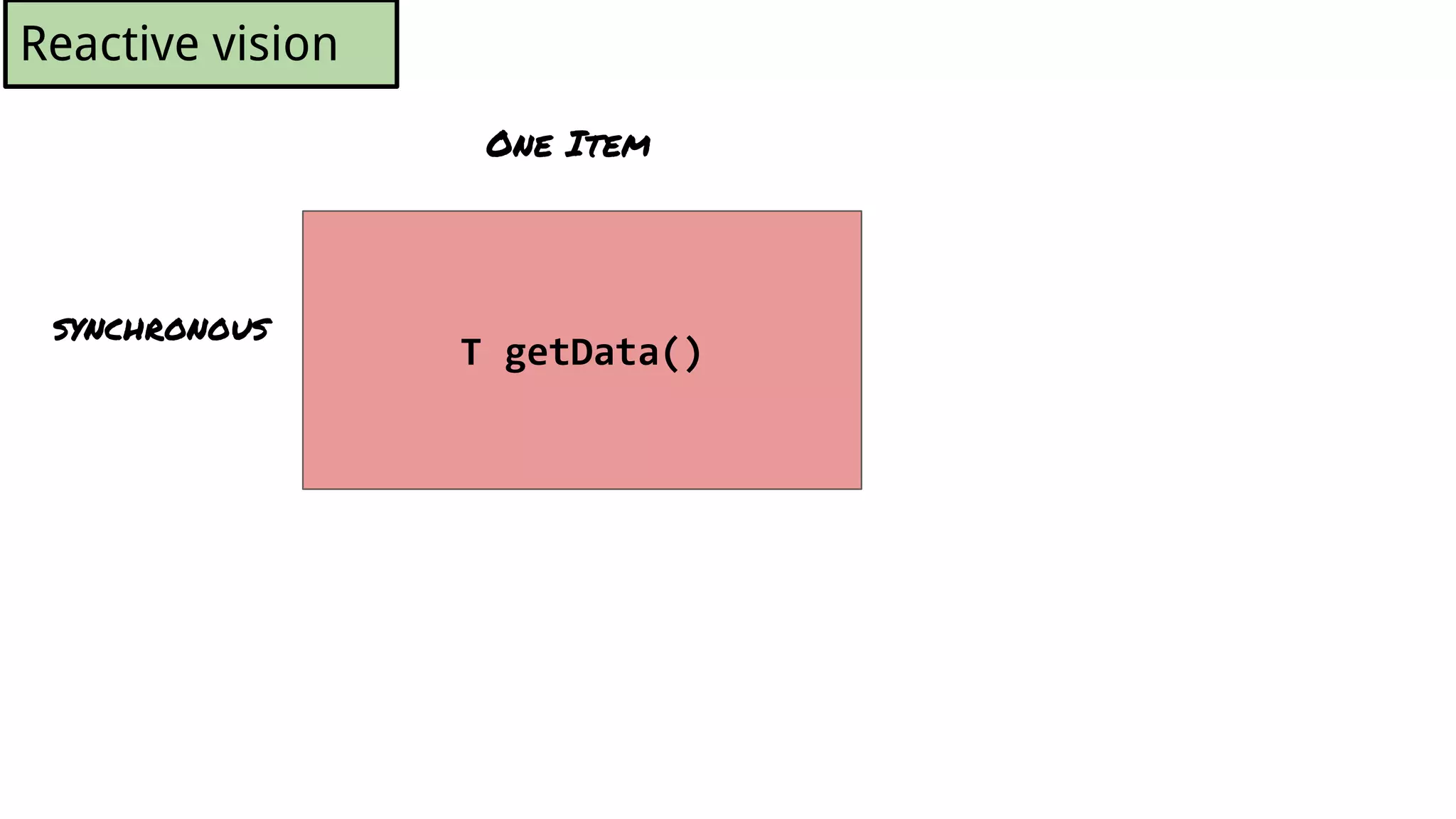

21. Reactive vision
T getData()
One Item
synchronous

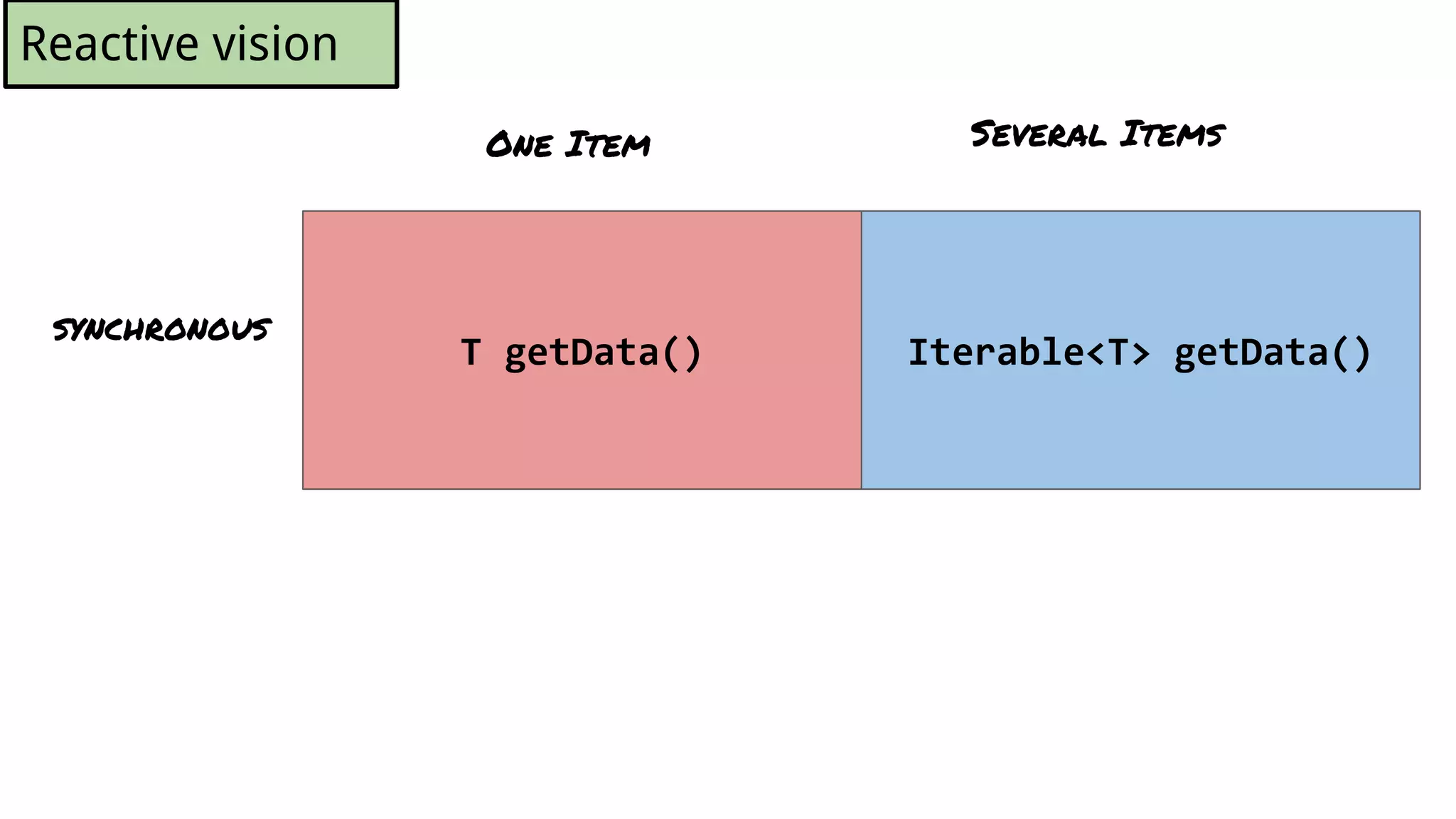

22. Reactive vision
Iterable<T> getData()T getData()
One Item Several Items
synchronous

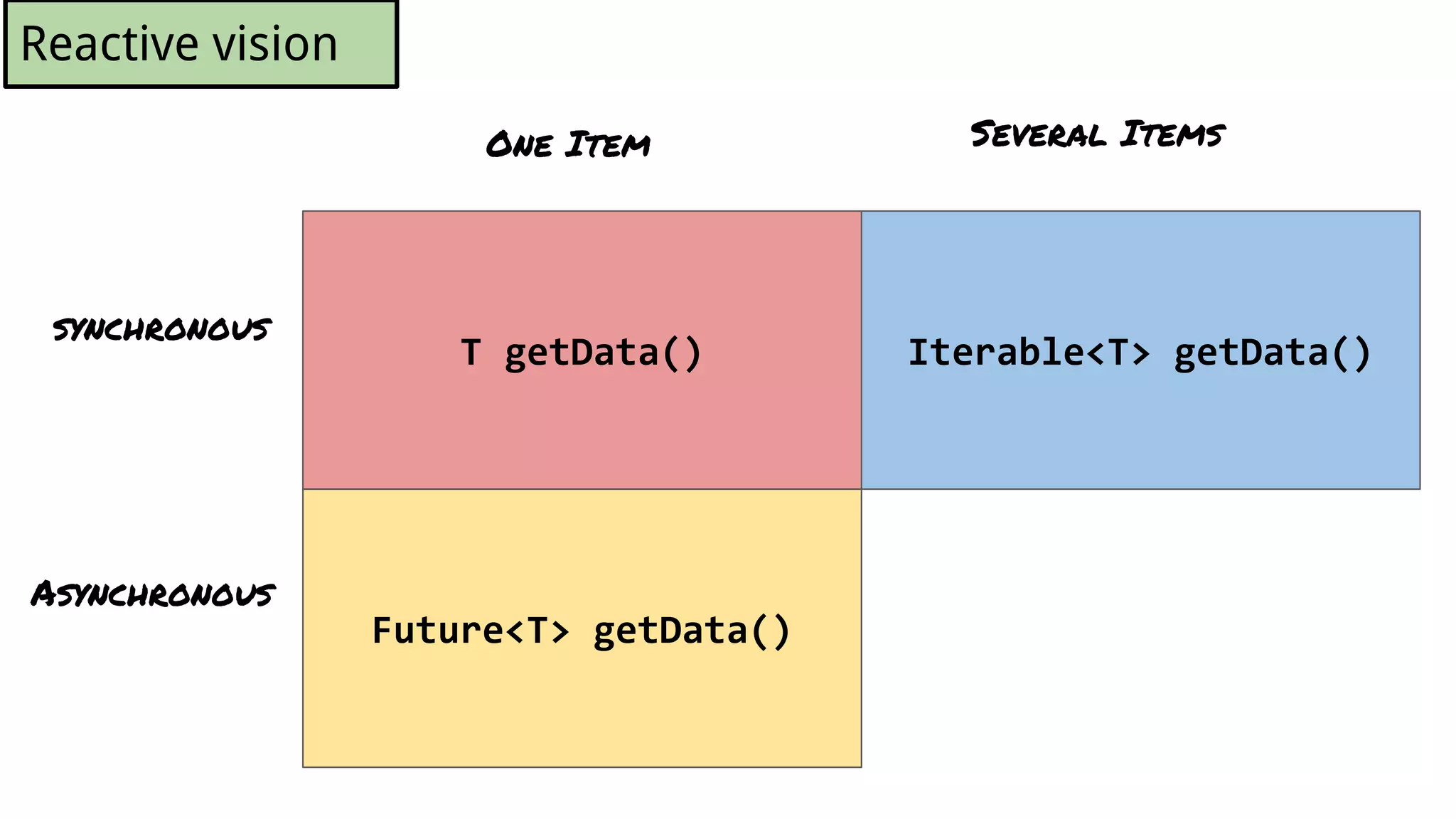

23. Reactive vision
Iterable<T> getData()T getData()
Future<T> getData()
One Item Several Items
synchronous
Asynchronous

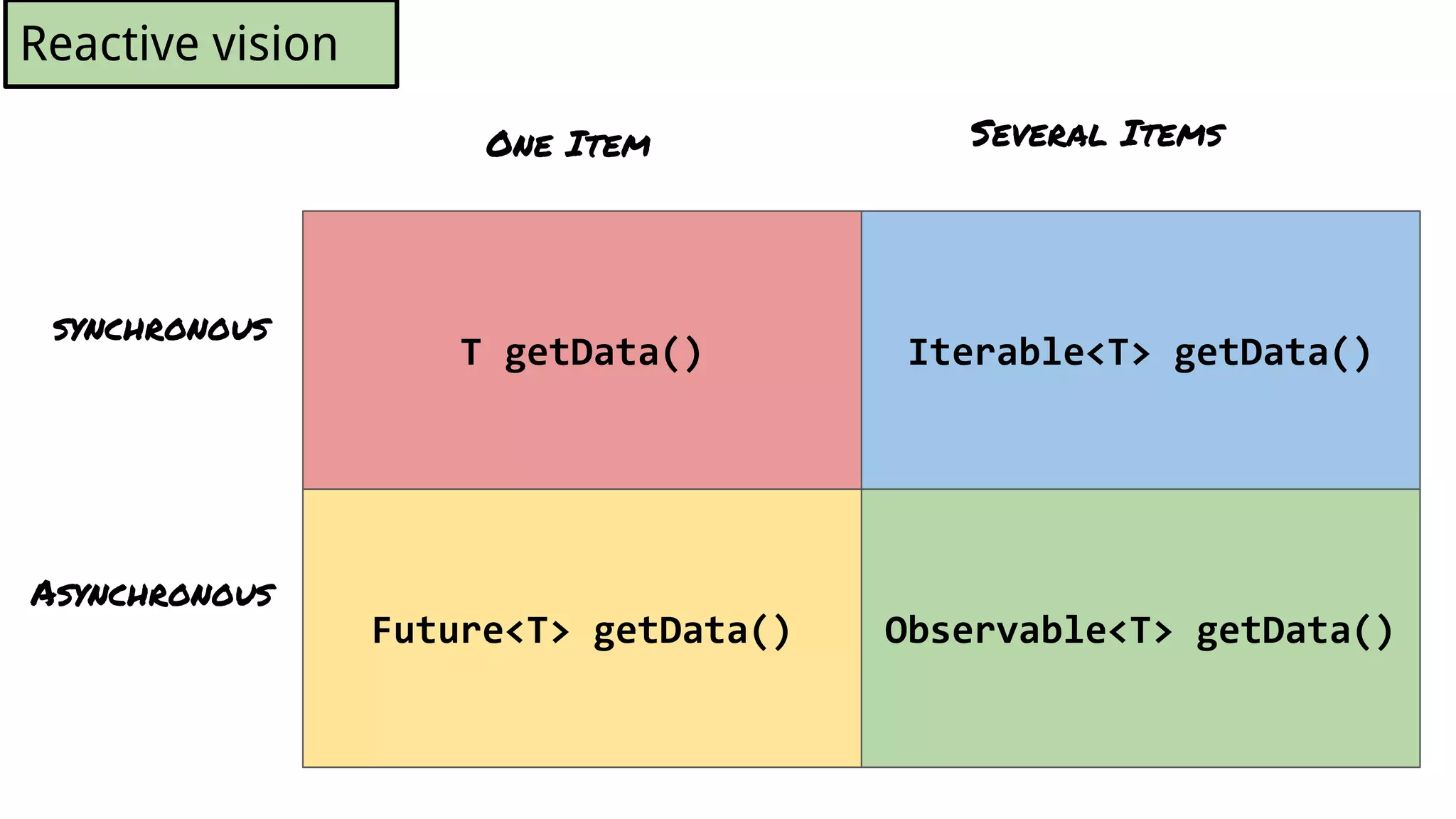

24. Reactive vision
Iterable<T> getData()
Observable<T> getData()
T getData()
Future<T> getData()
One Item Several Items
synchronous
Asynchronous

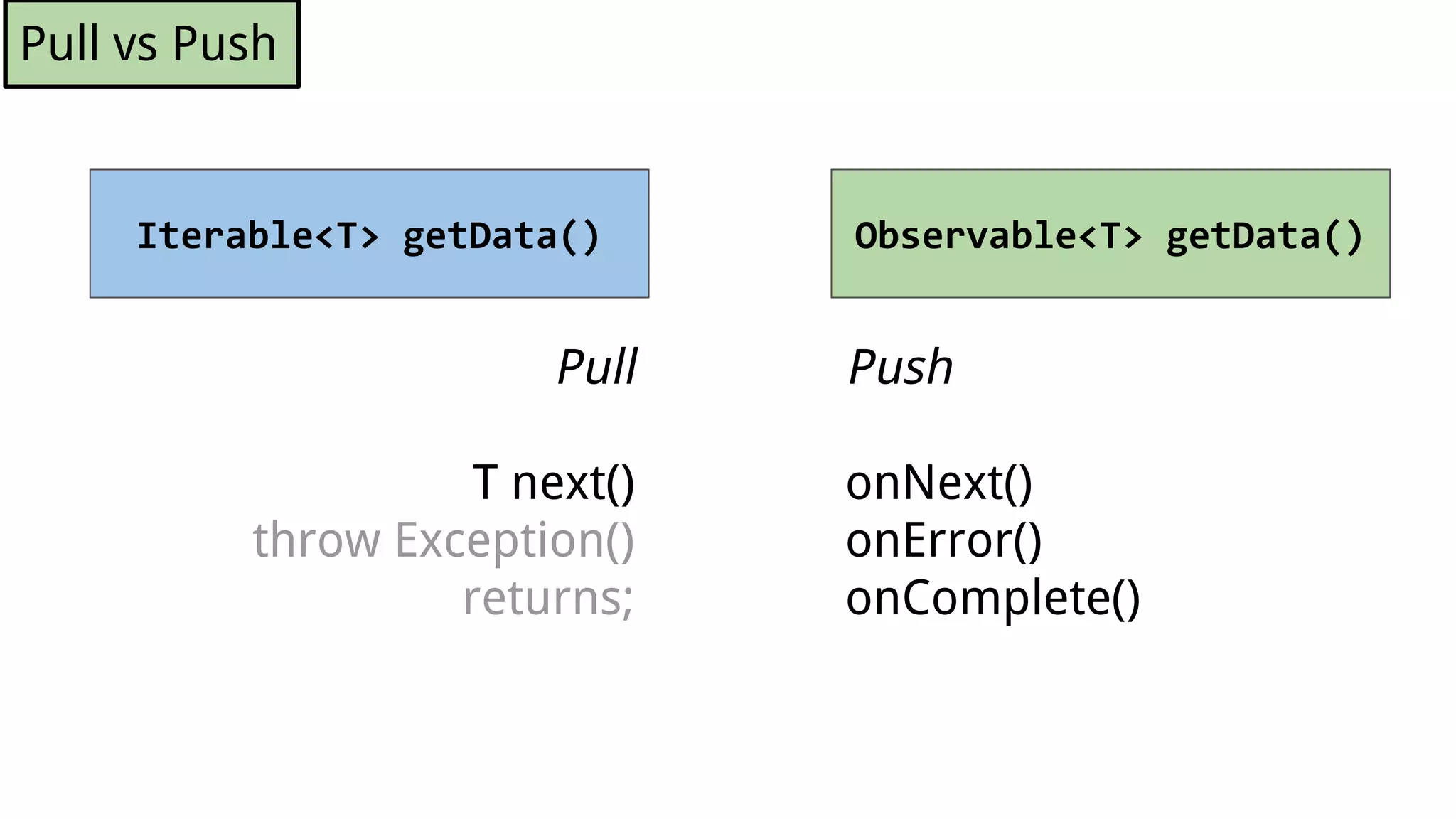

25. Pull vs Push
Iterable<T> getData() Observable<T> getData()
Pull
T next()
throw Exception()
returns;
Push
onNext()
onError()
onComplete()

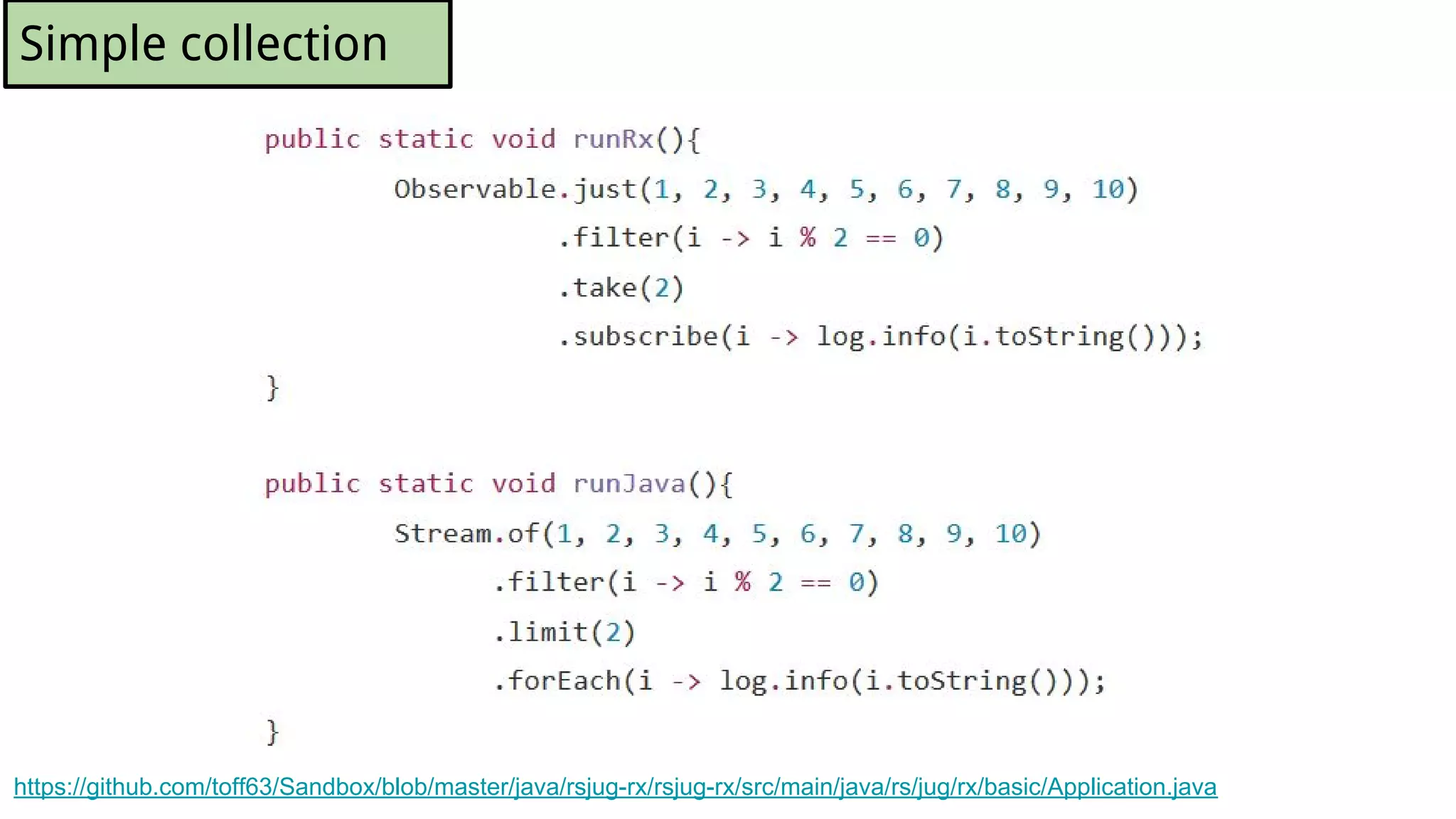

26. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/basic/Application.java
Simple collection

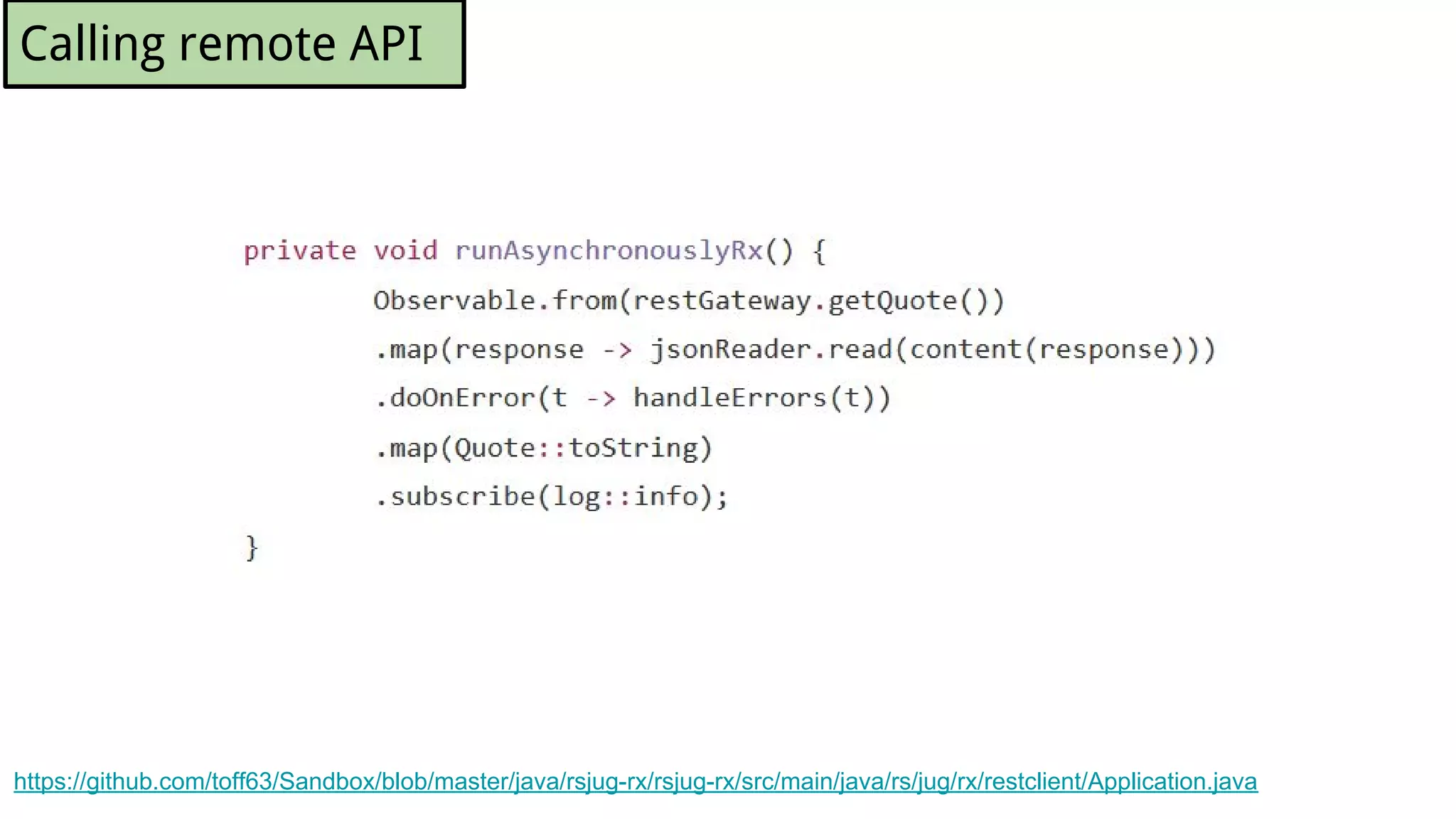

27. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/restclient/Application.java
Calling remote API

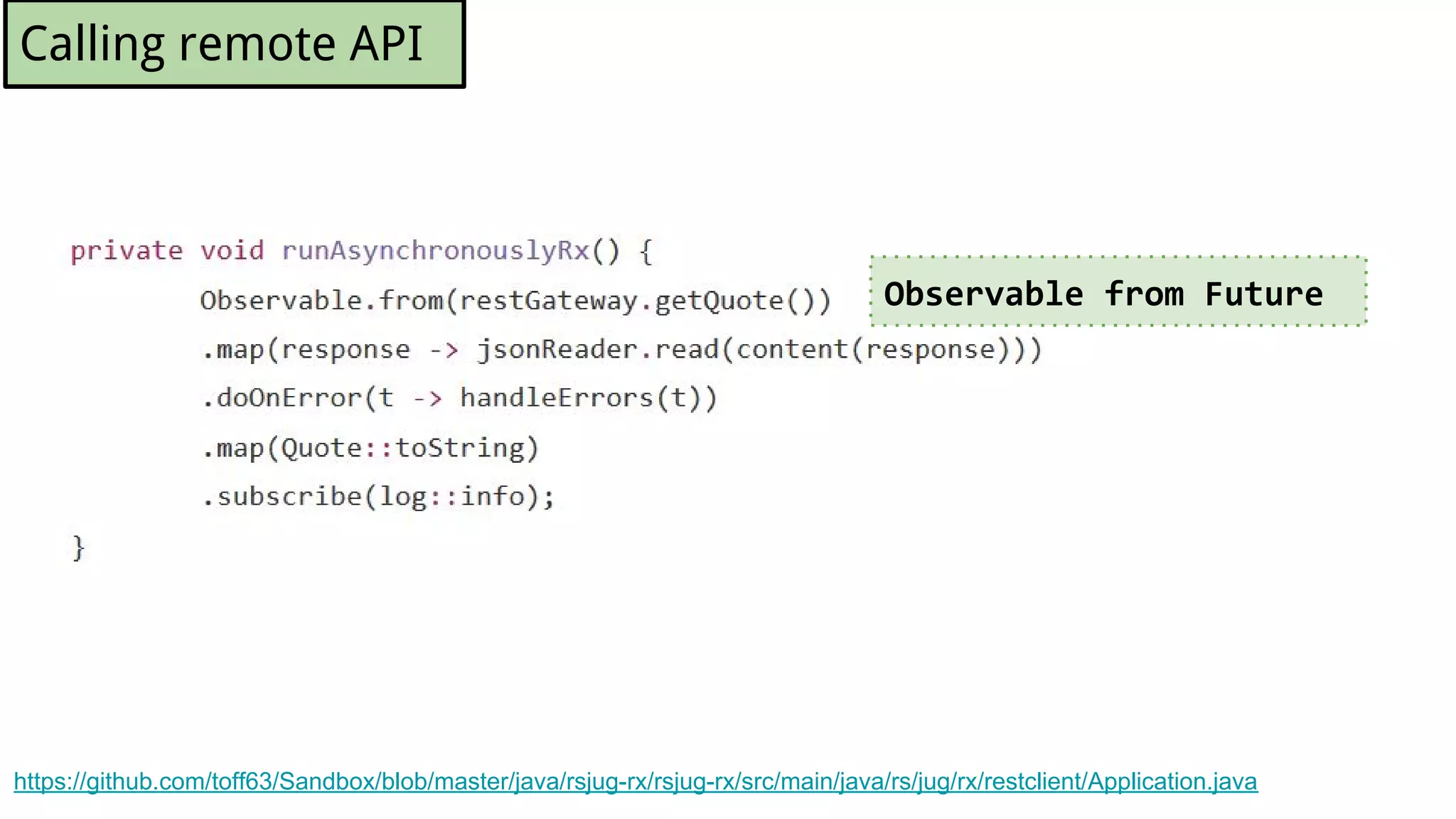

28. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/restclient/Application.java
Calling remote API
Observable from Future

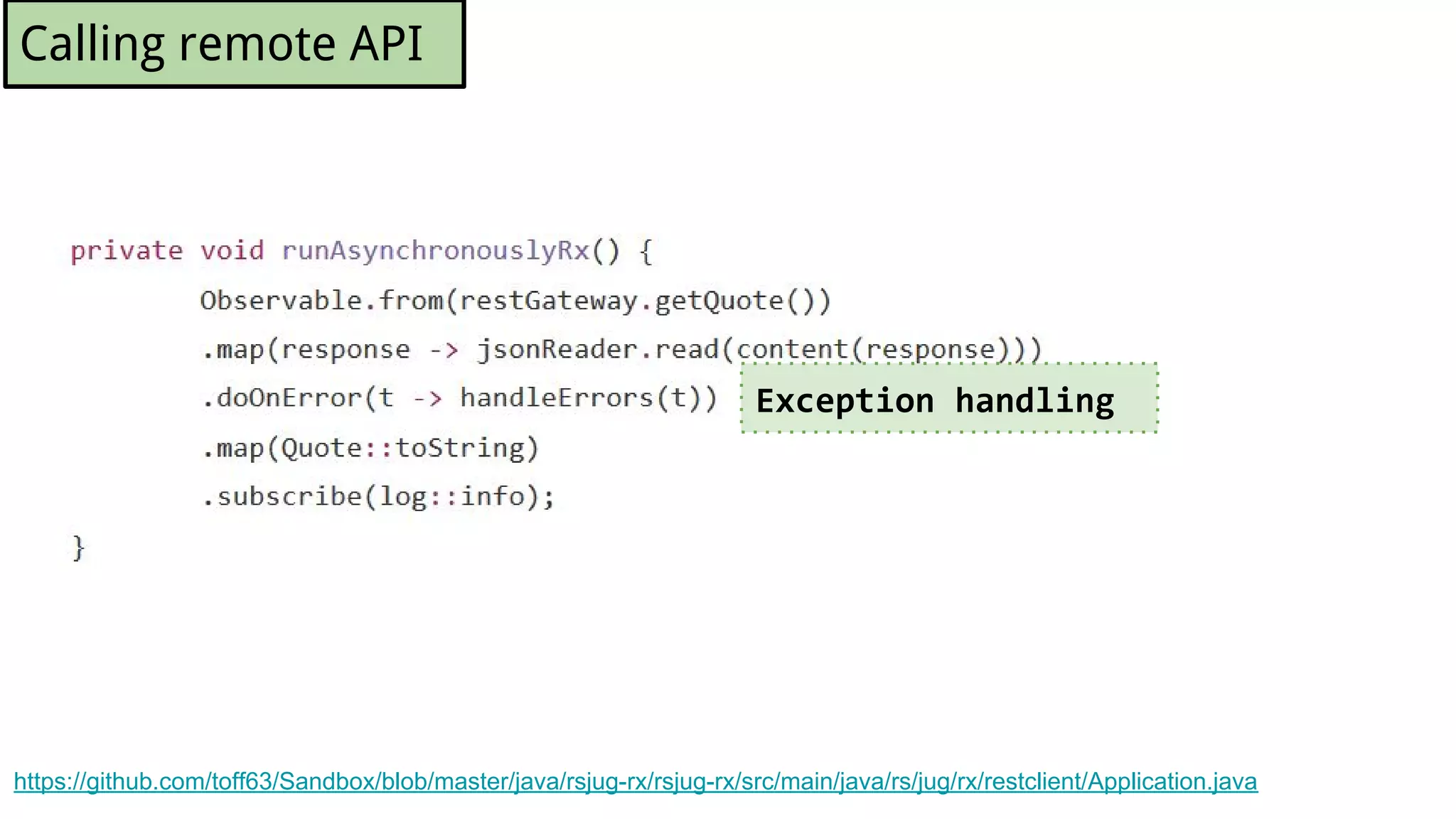

29. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/restclient/Application.java
Calling remote API
Exception handling

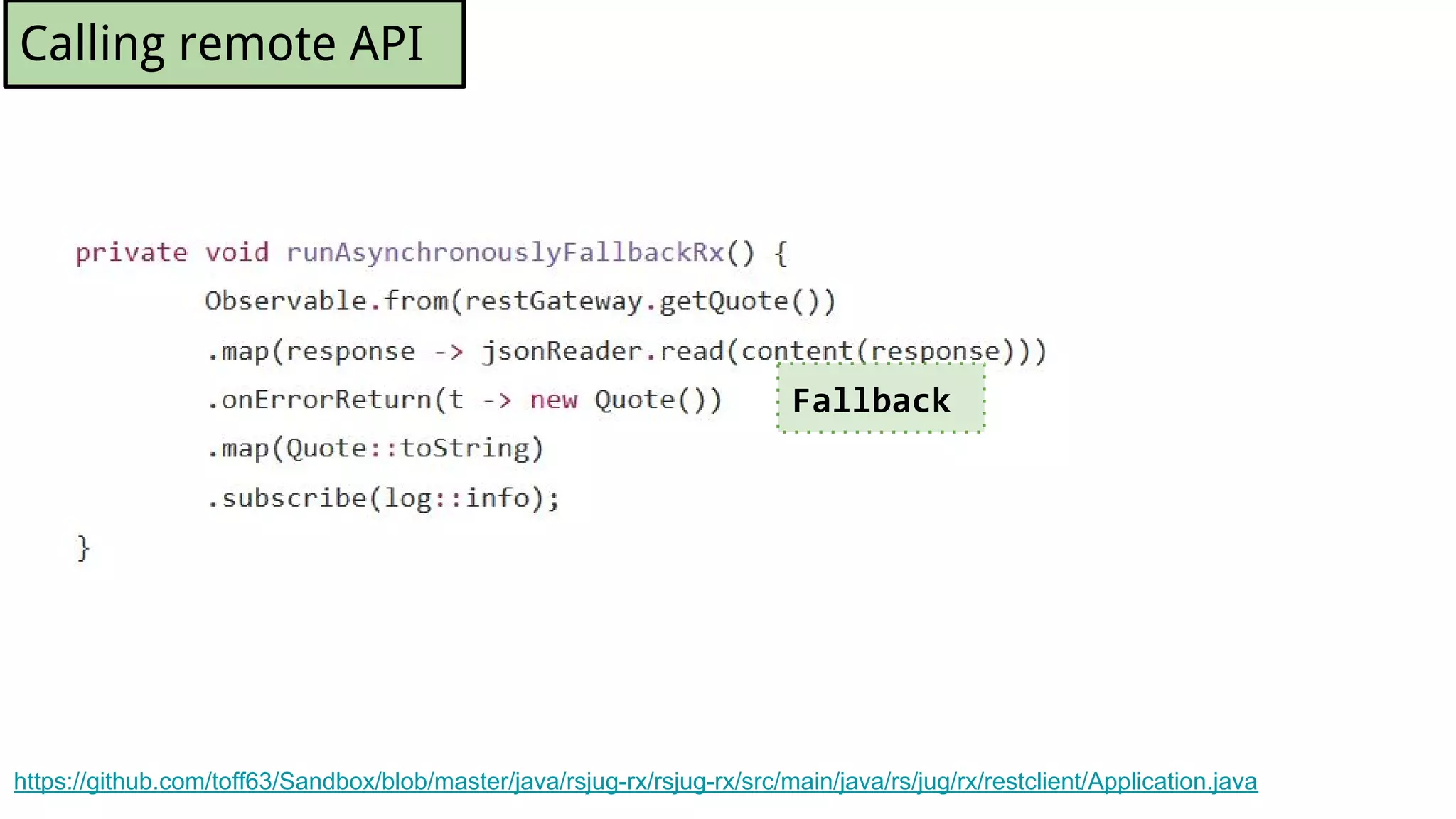

30. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/restclient/Application.java
Calling remote API
Fallback

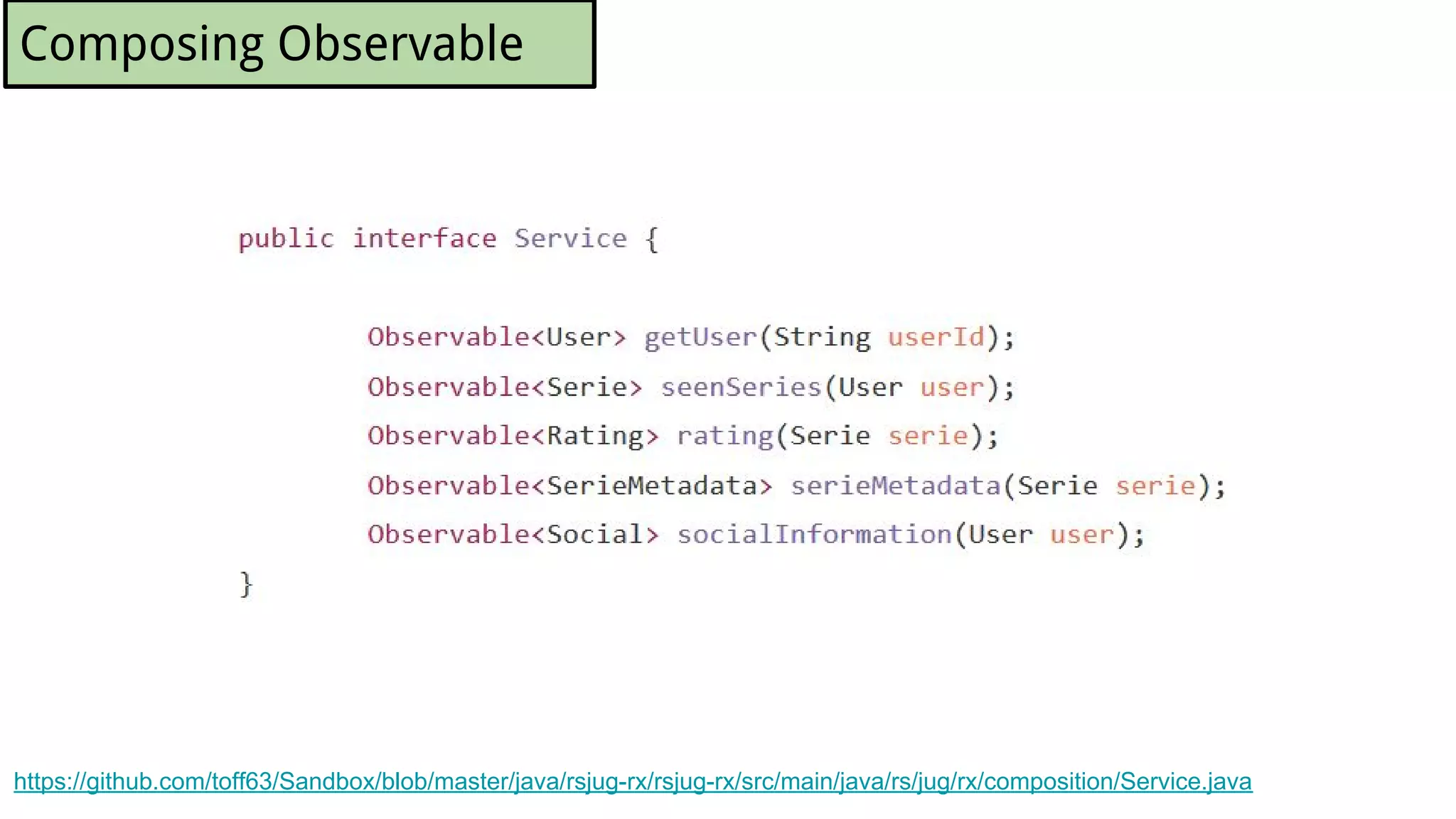

31. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/composition/Service.java
Composing Observable

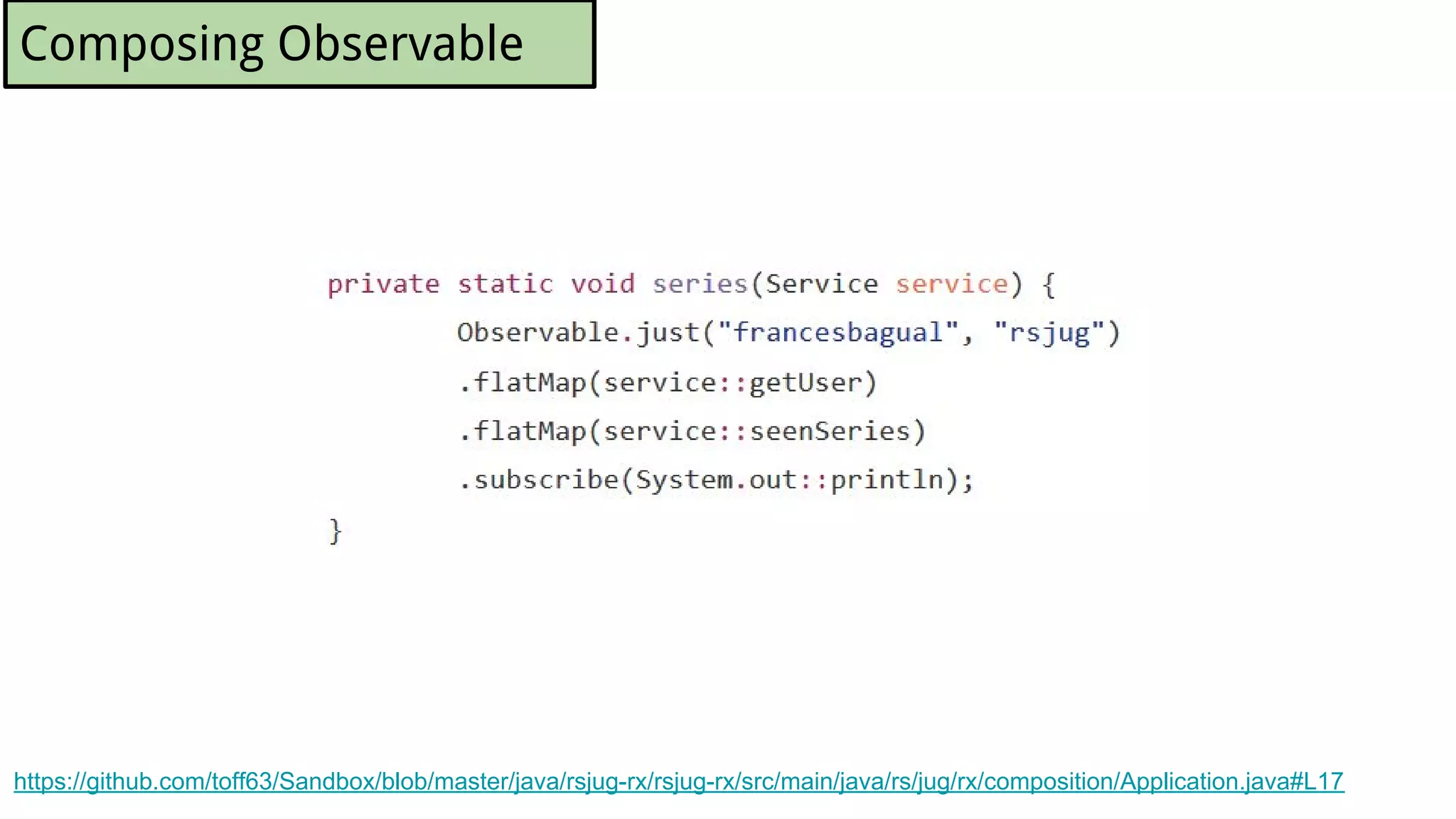

32. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/composition/Application.java#L17
Composing Observable

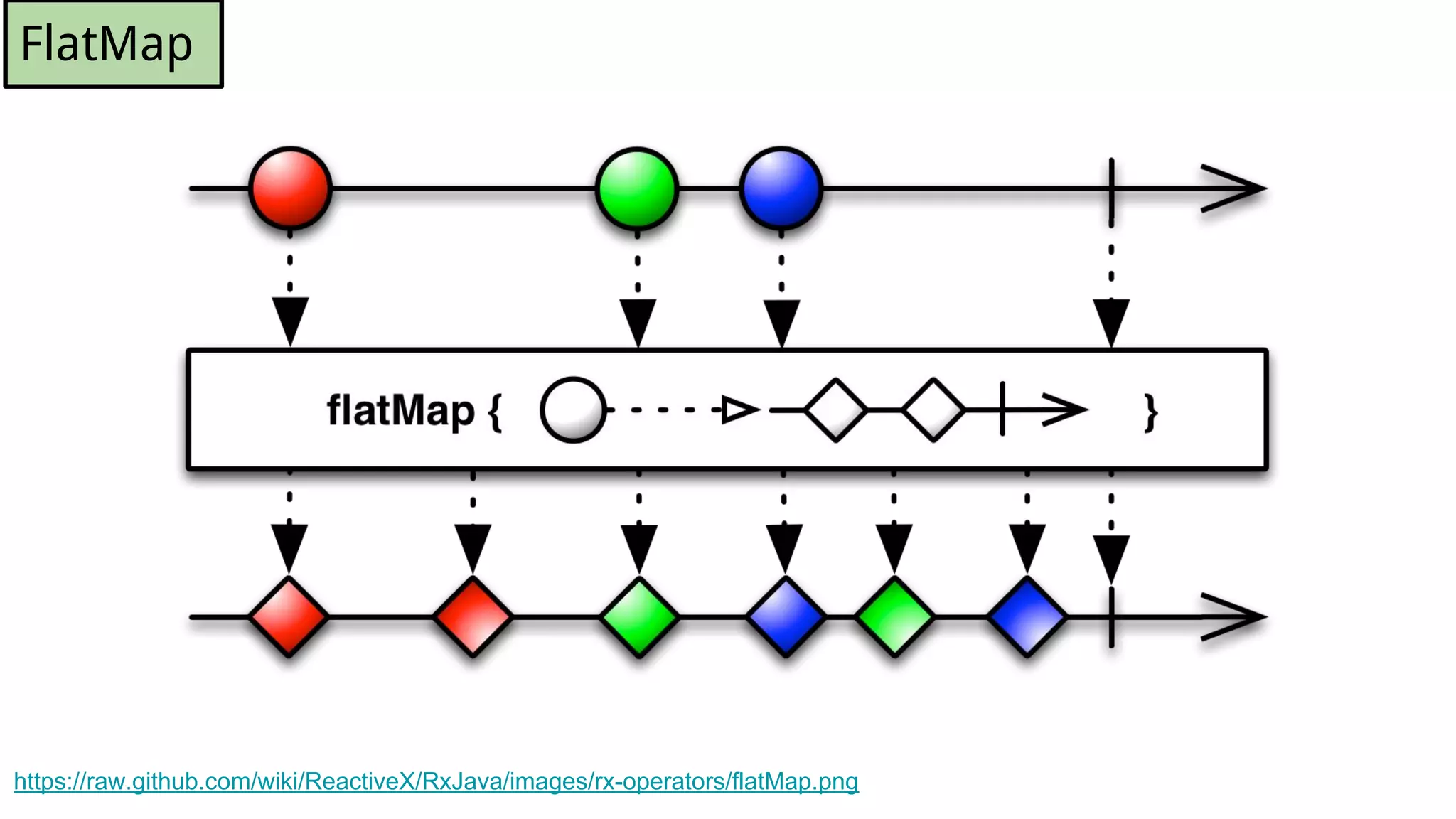

33. https://raw.github.com/wiki/ReactiveX/RxJava/images/rx-operators/flatMap.png
FlatMap

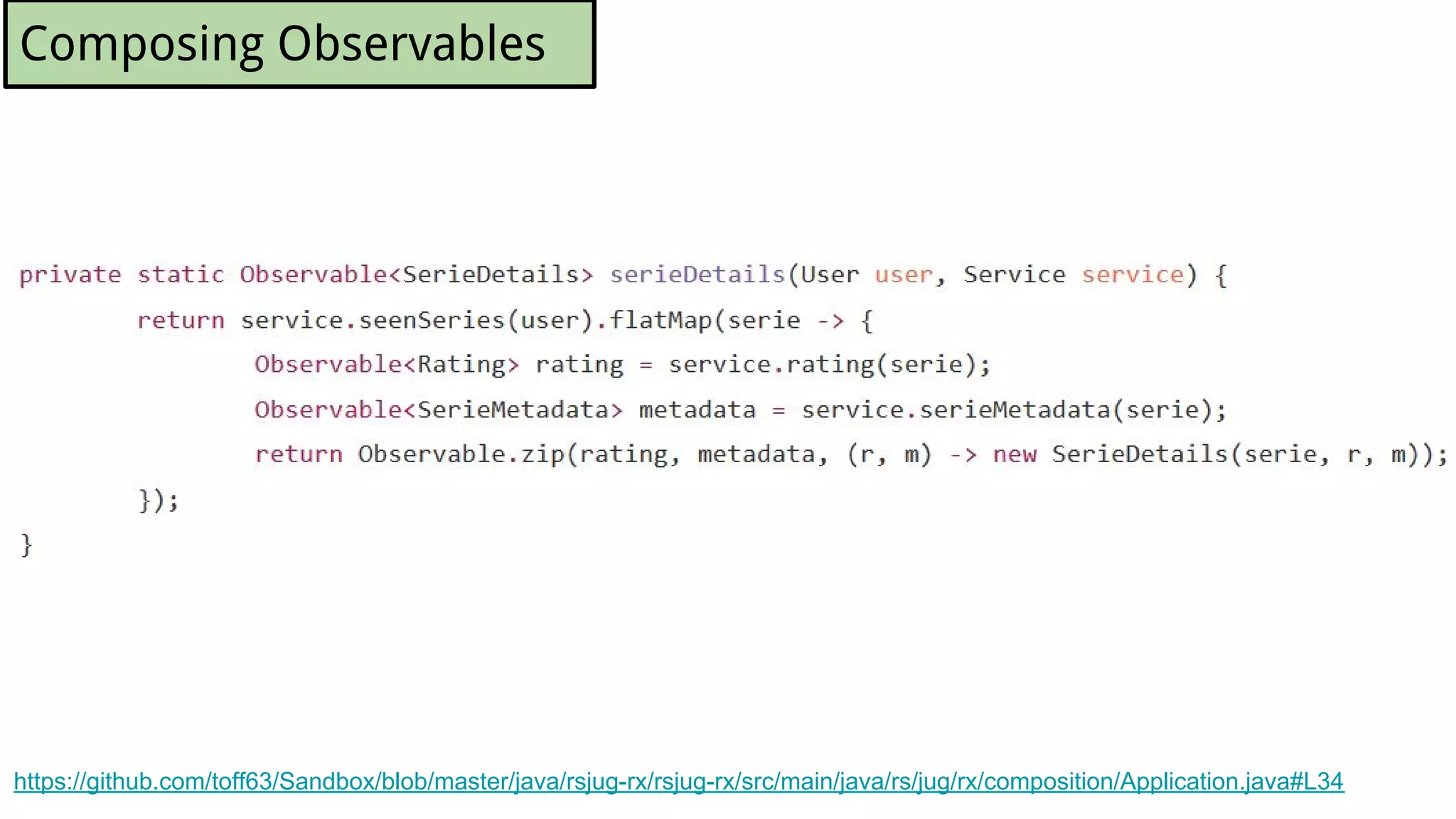

34. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/composition/Application.java#L34
Composing Observables

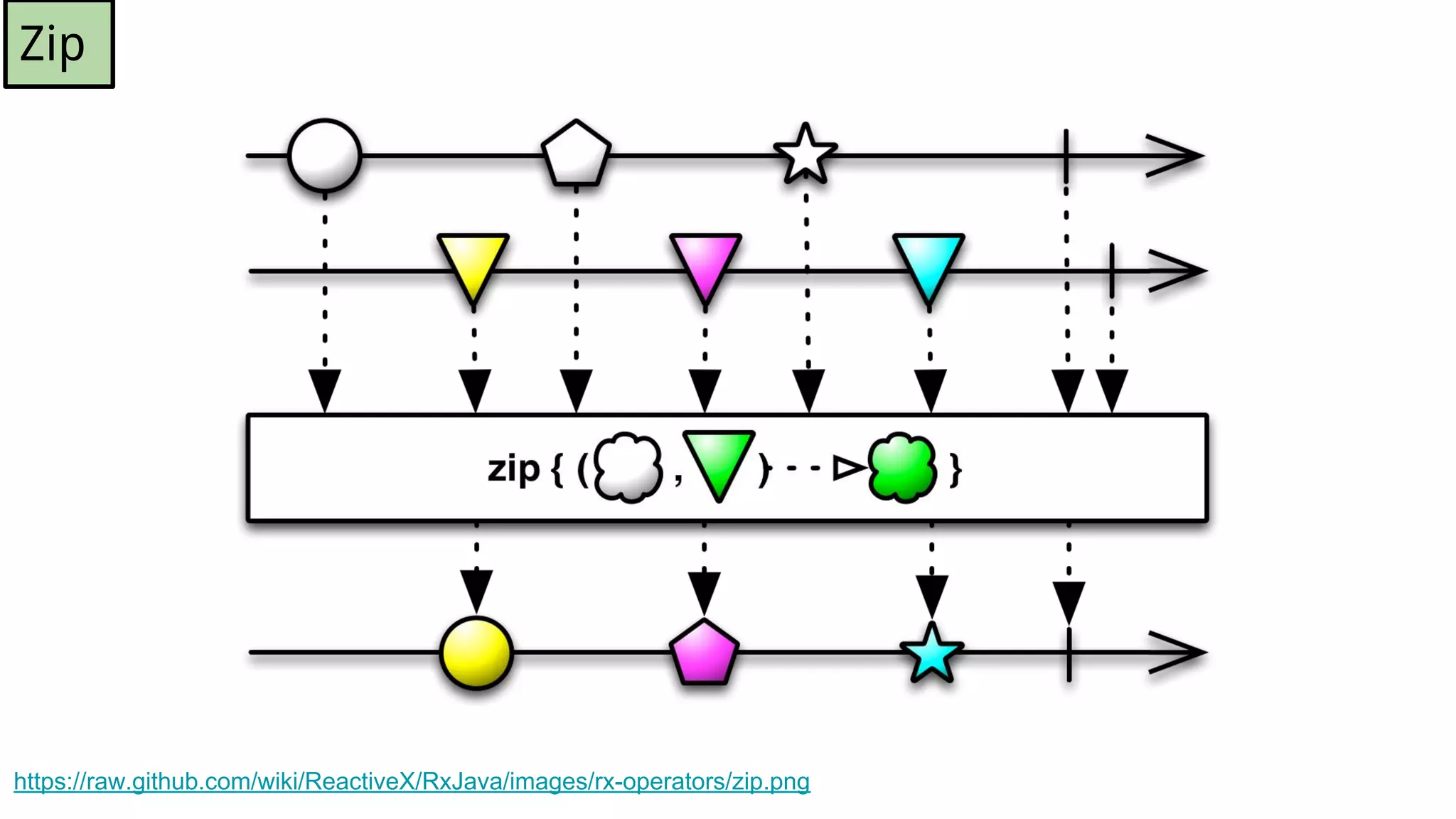

35. https://raw.github.com/wiki/ReactiveX/RxJava/images/rx-operators/zip.png
Zip

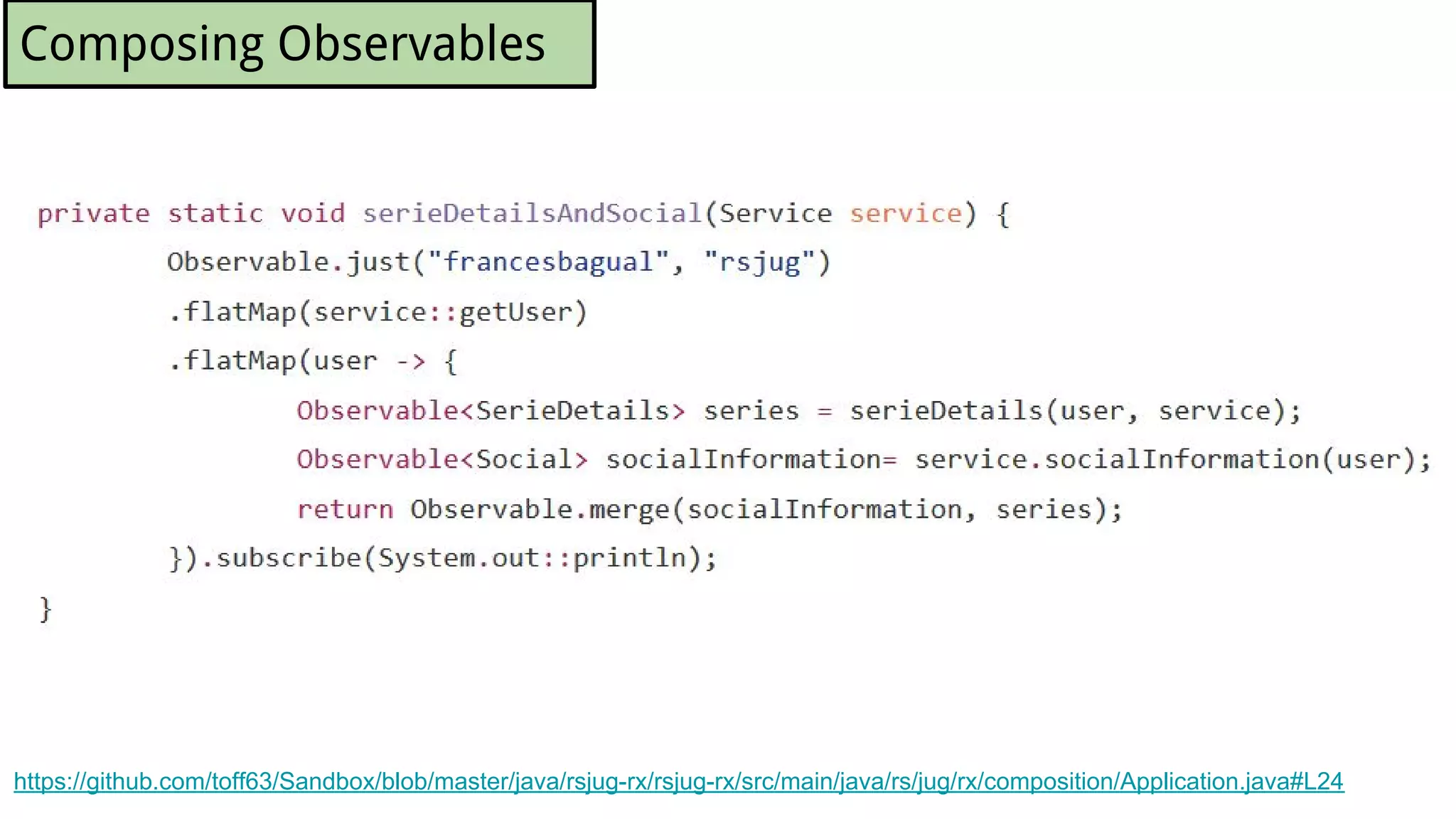

36. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/composition/Application.java#L24
Composing Observables

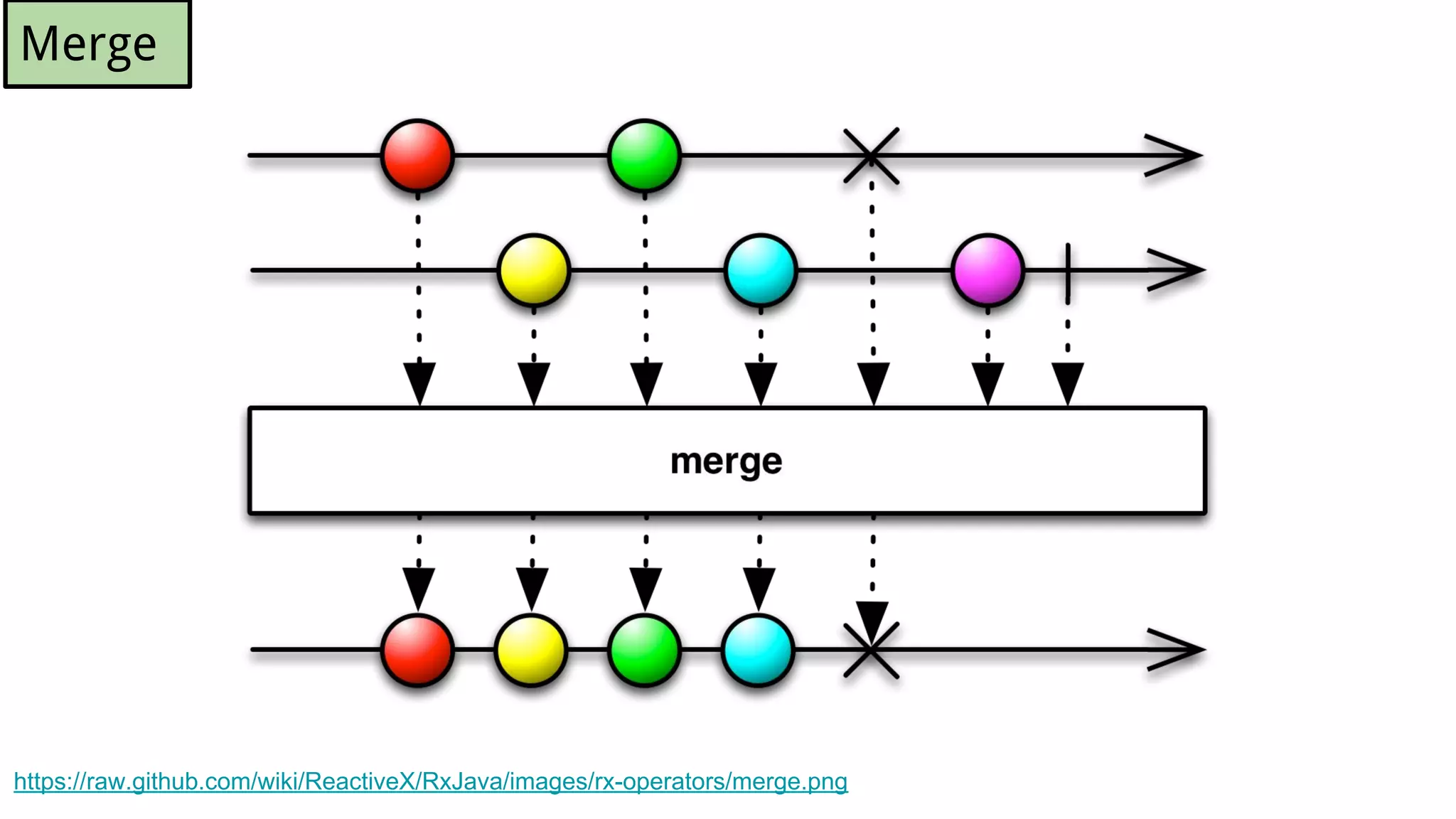

37. https://raw.github.com/wiki/ReactiveX/RxJava/images/rx-operators/merge.png
Merge

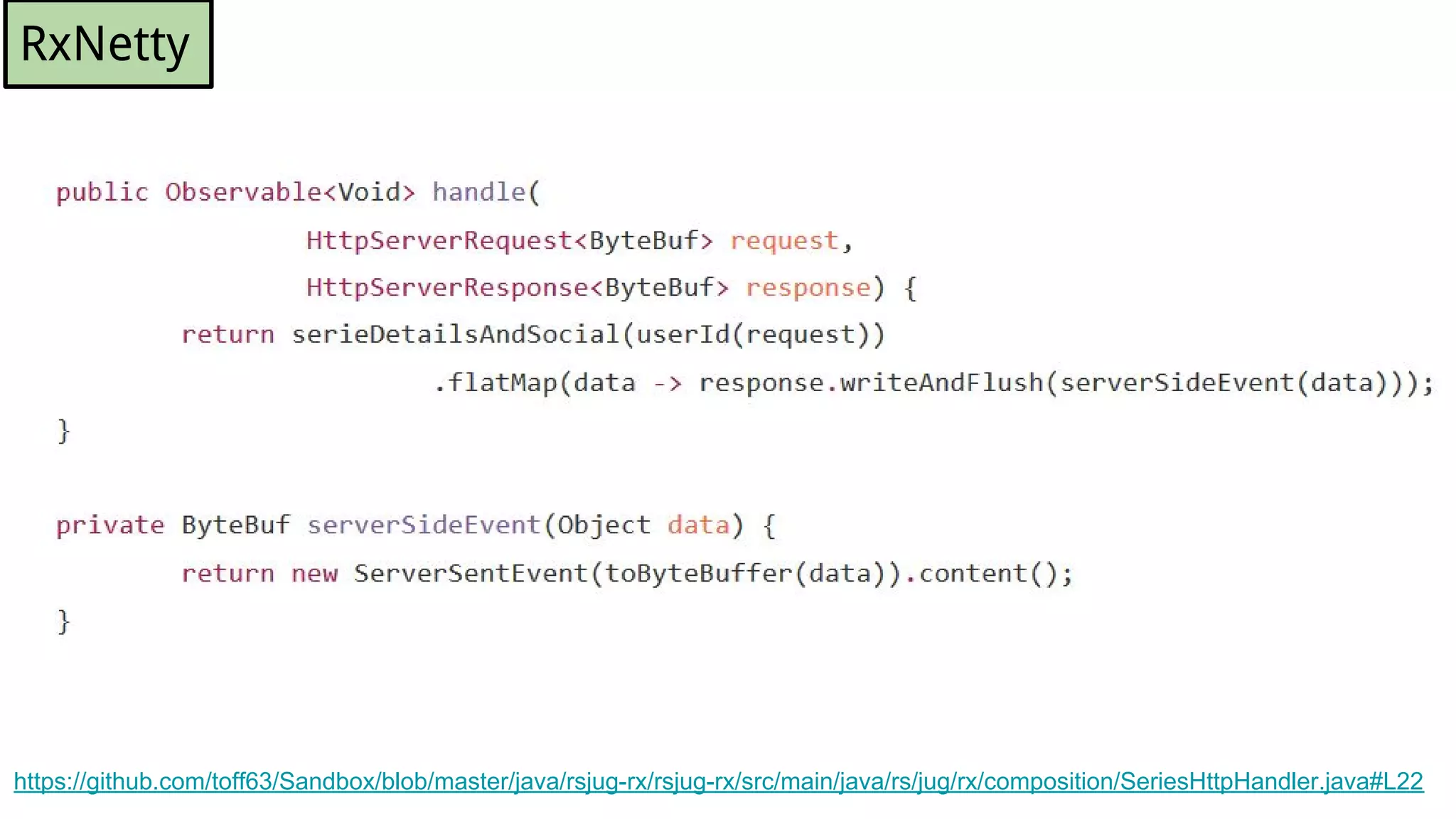

38. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/composition/SeriesHttpHandler.java#L22
RxNetty

39. Demo

40. Concurrency

41. Observable is sequential
Scheduling and Combining
Observables enable Concurrency

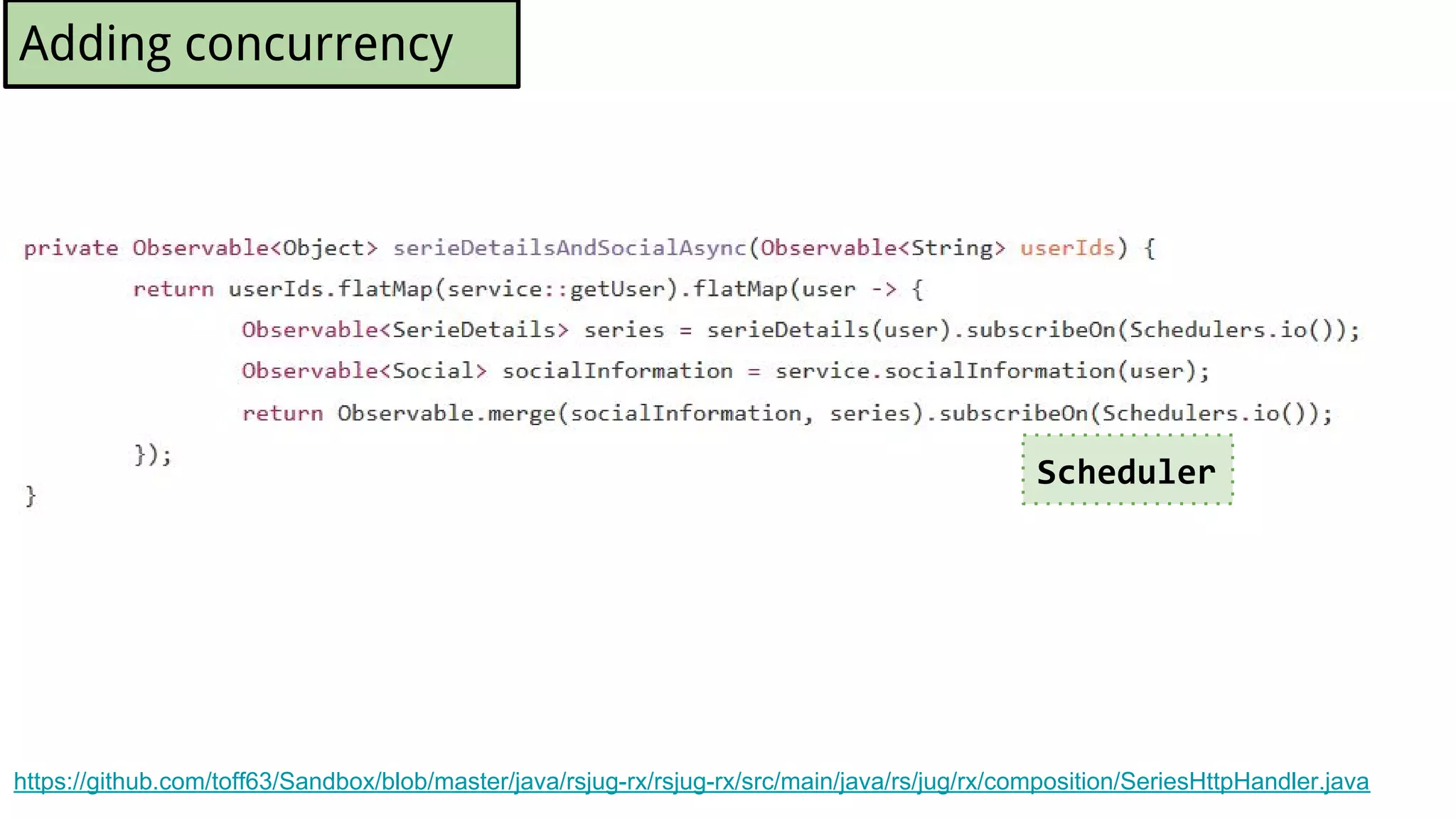

42. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/composition/SeriesHttpHandler.java
Adding concurrency
Scheduler

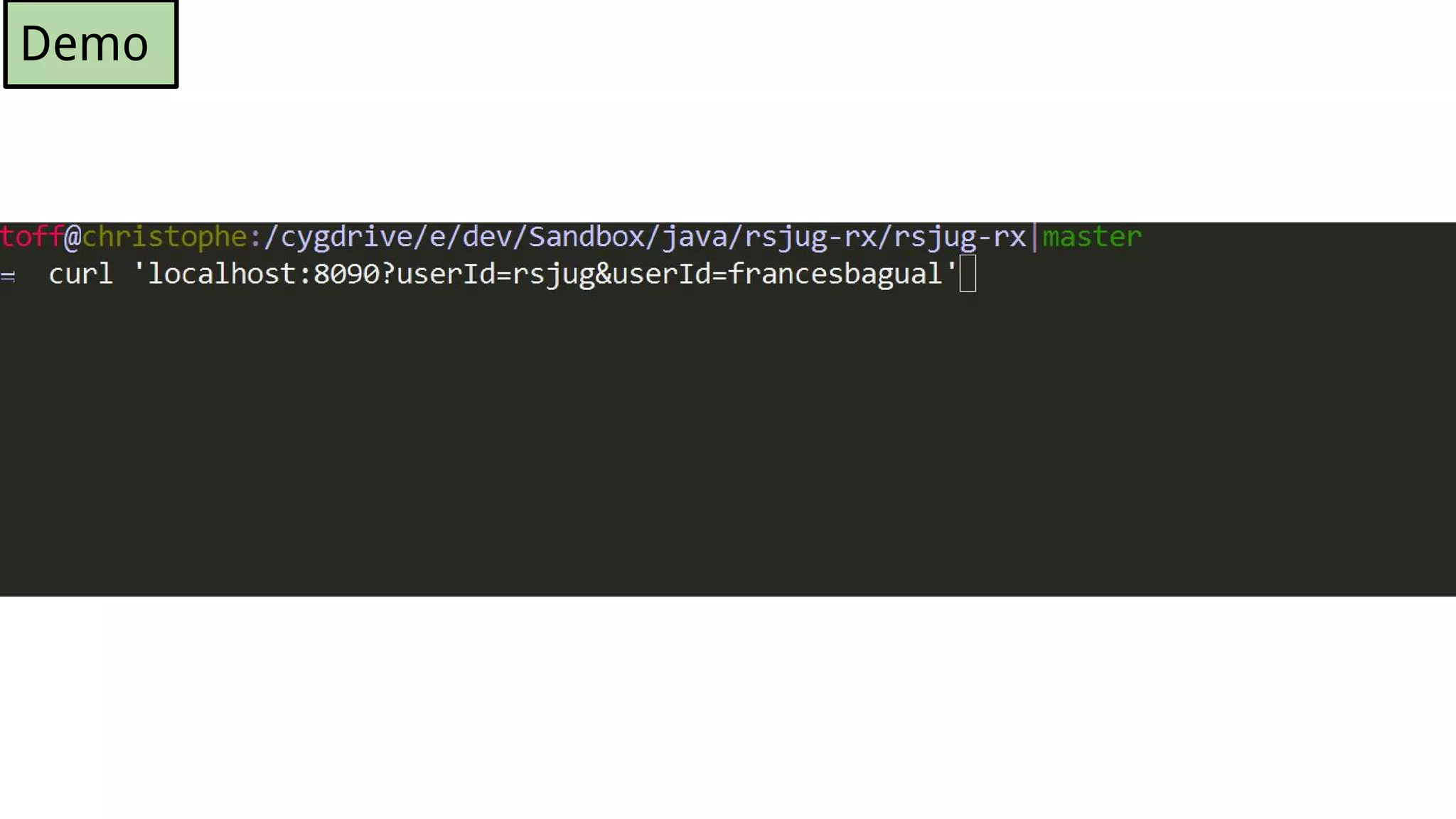

43. Demo

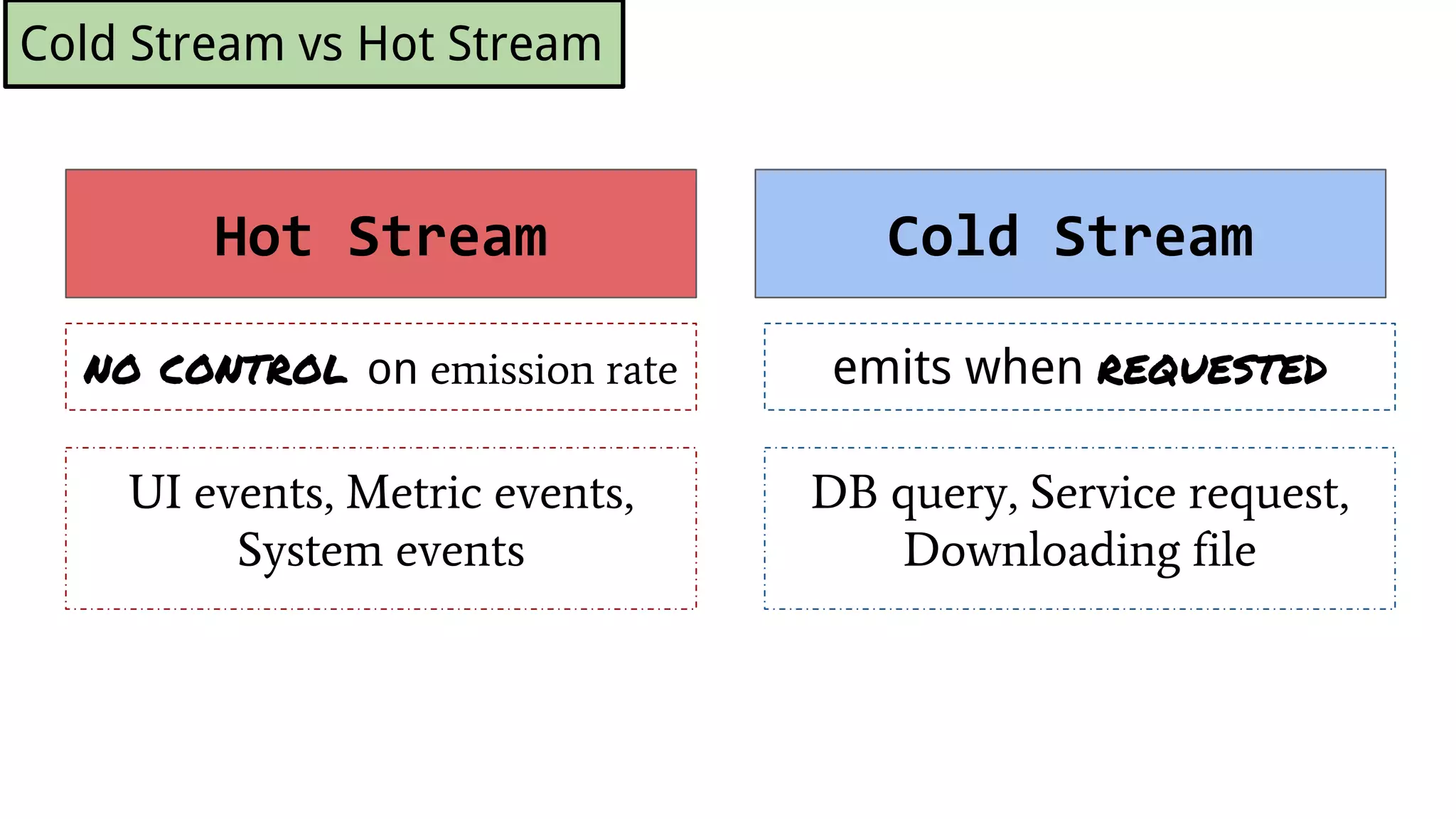

44. Cold Stream vs Hot Stream
Hot Stream Cold Stream
no control on emission rate emits when requested
UI events, Metric events,
System events
DB query, Service request,
Downloading file

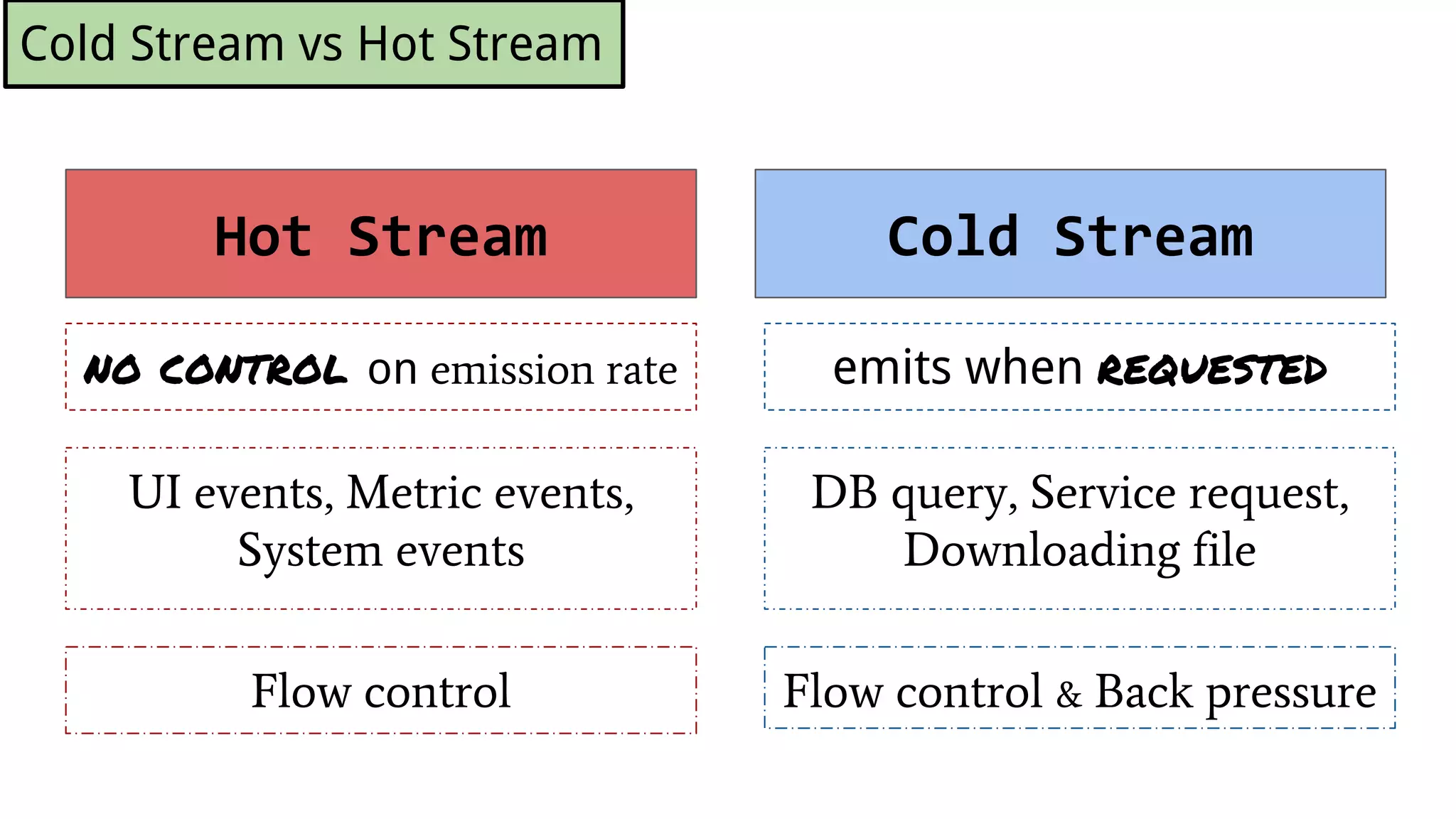

45. Cold Stream vs Hot Stream
Hot Stream Cold Stream
no control on emission rate emits when requested
UI events, Metric events,
System events
DB query, Service request,
Downloading file
Flow control Flow control & Back pressure

46. Flow Control

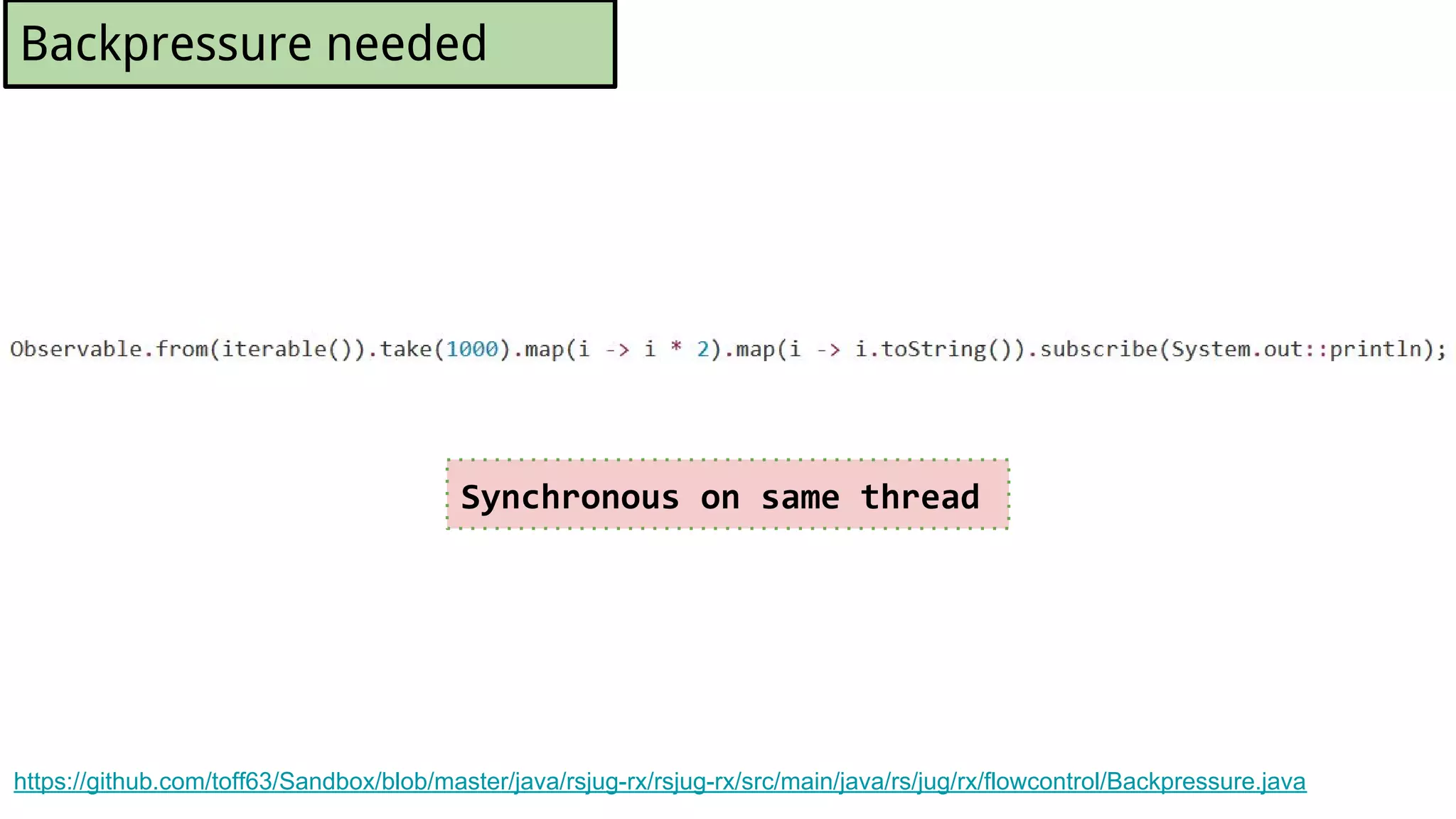

47. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
Backpressure needed
Synchronous on same thread

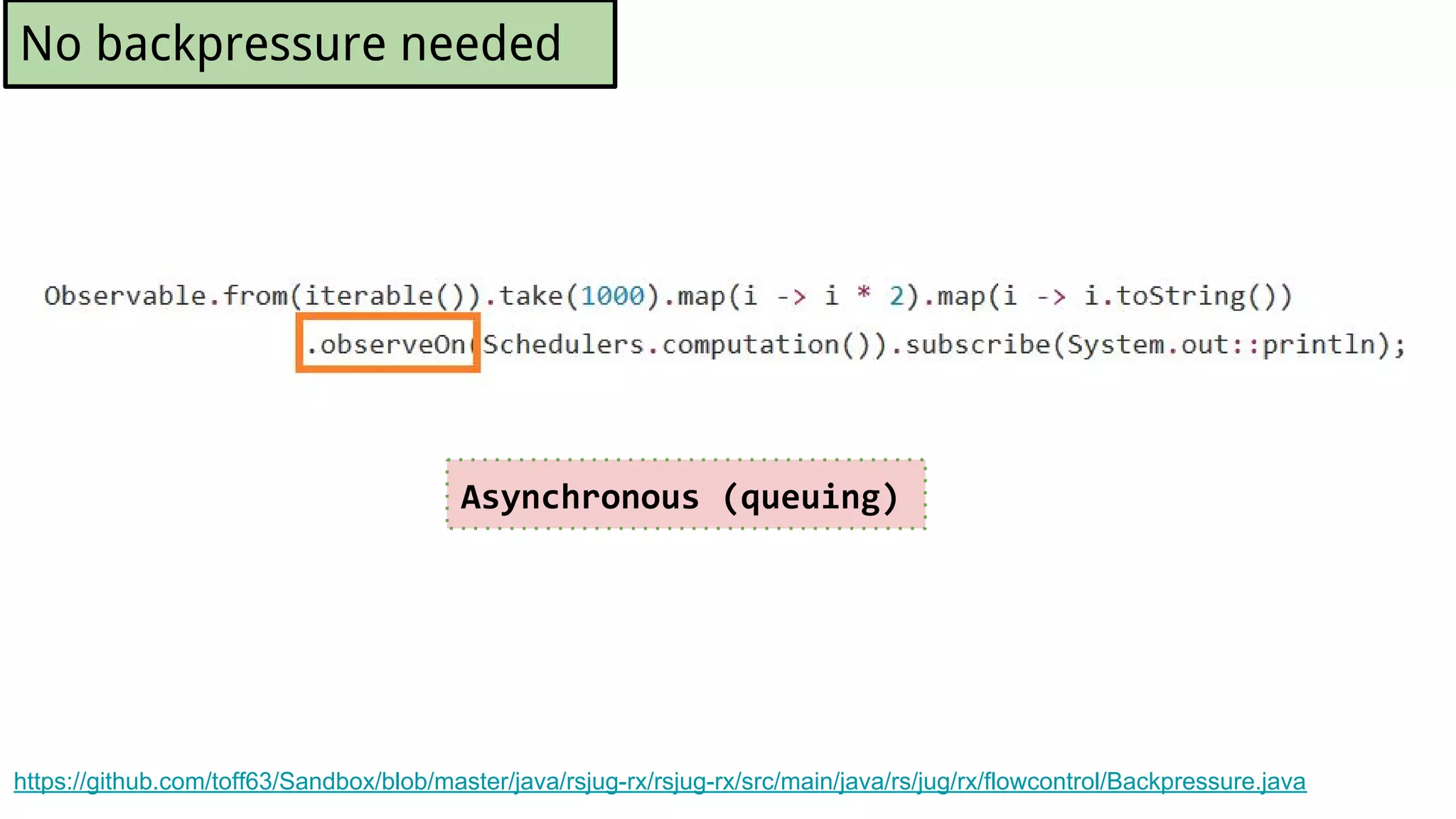

48. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
No backpressure needed
Asynchronous (queuing)

49. Block Operator
Hot Stream Cold Stream

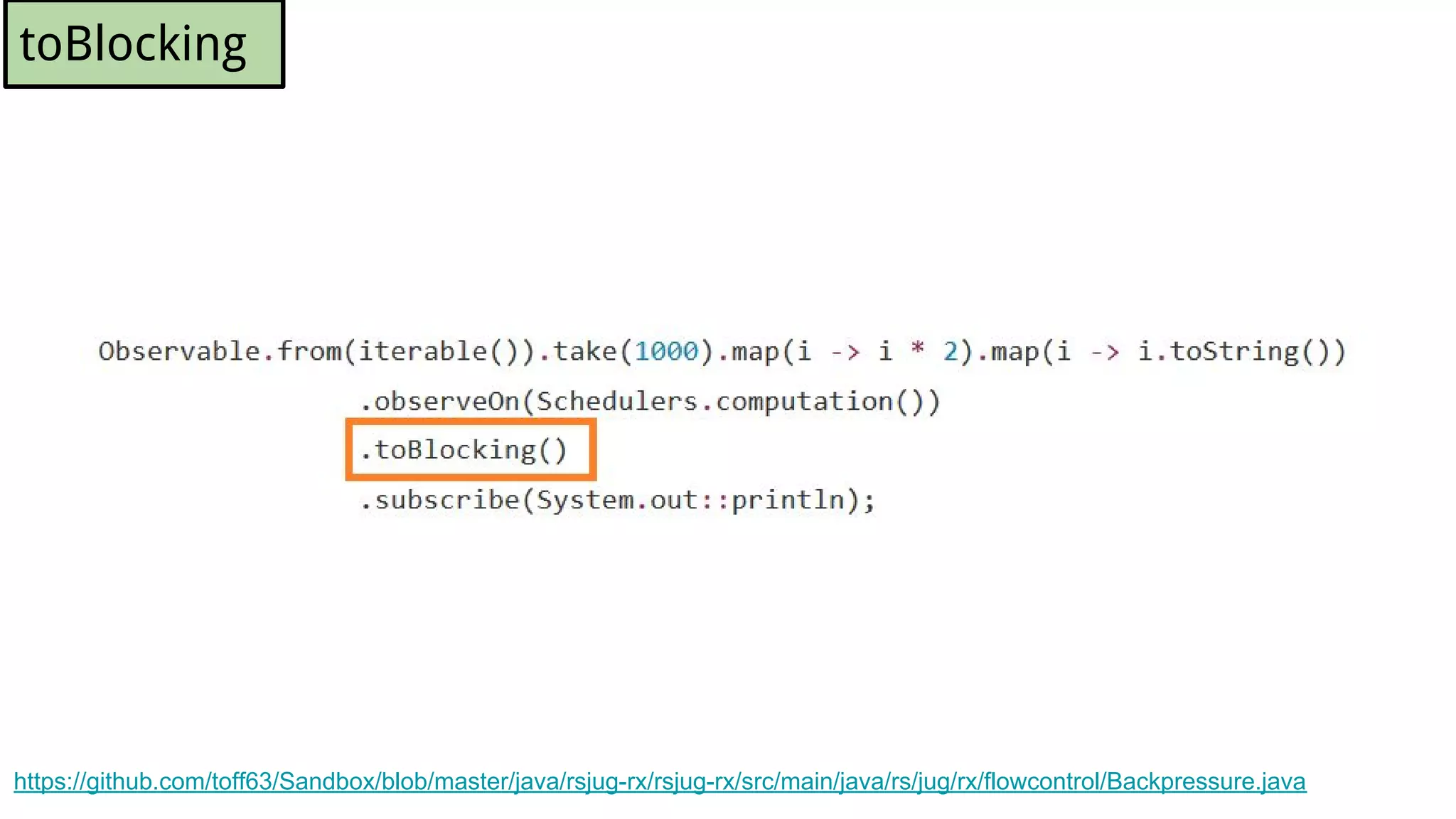

50. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
toBlocking

51. Temporal Operators
Hot Stream

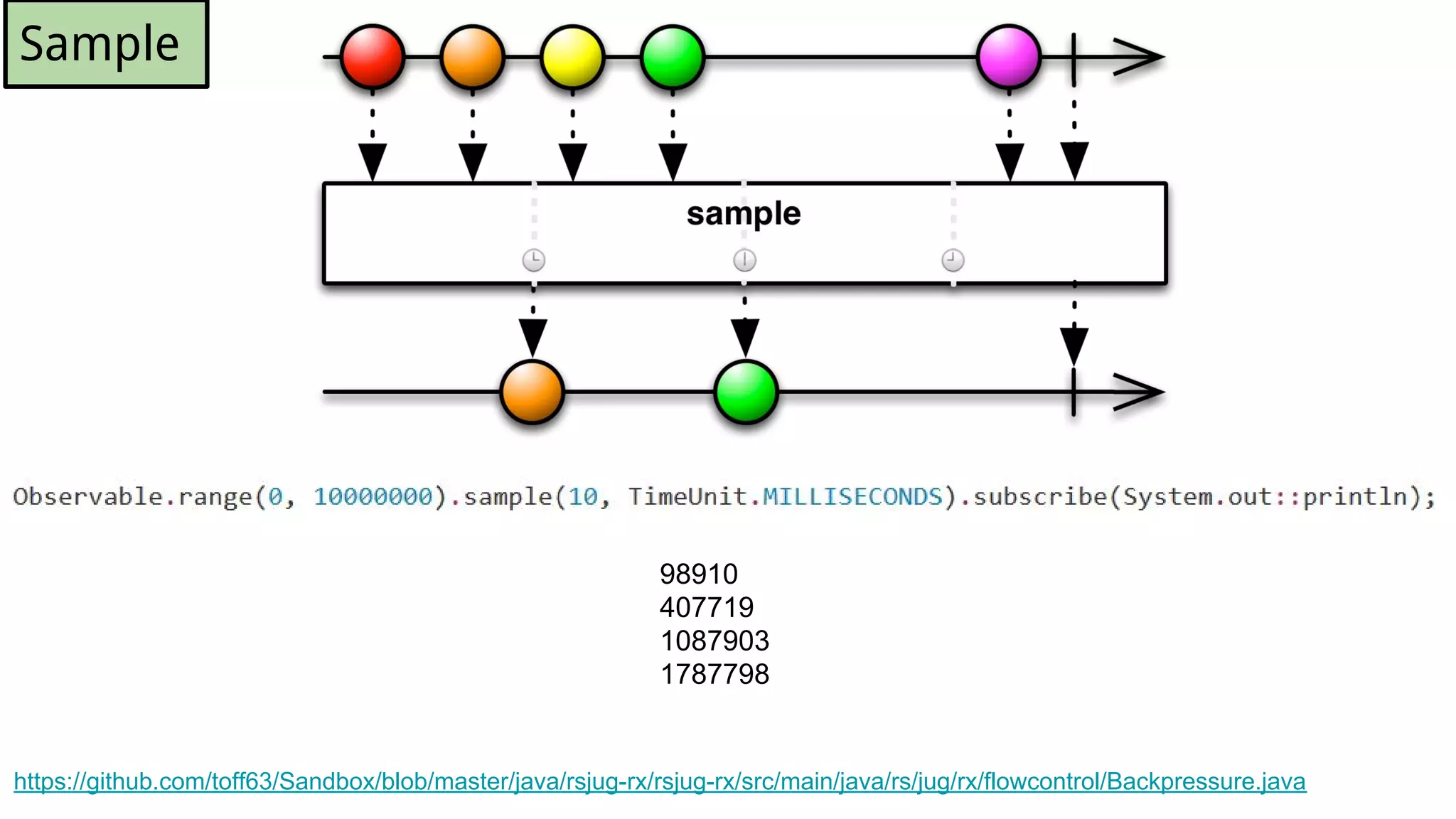

52. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
Sample
98910
407719
1087903
1787798

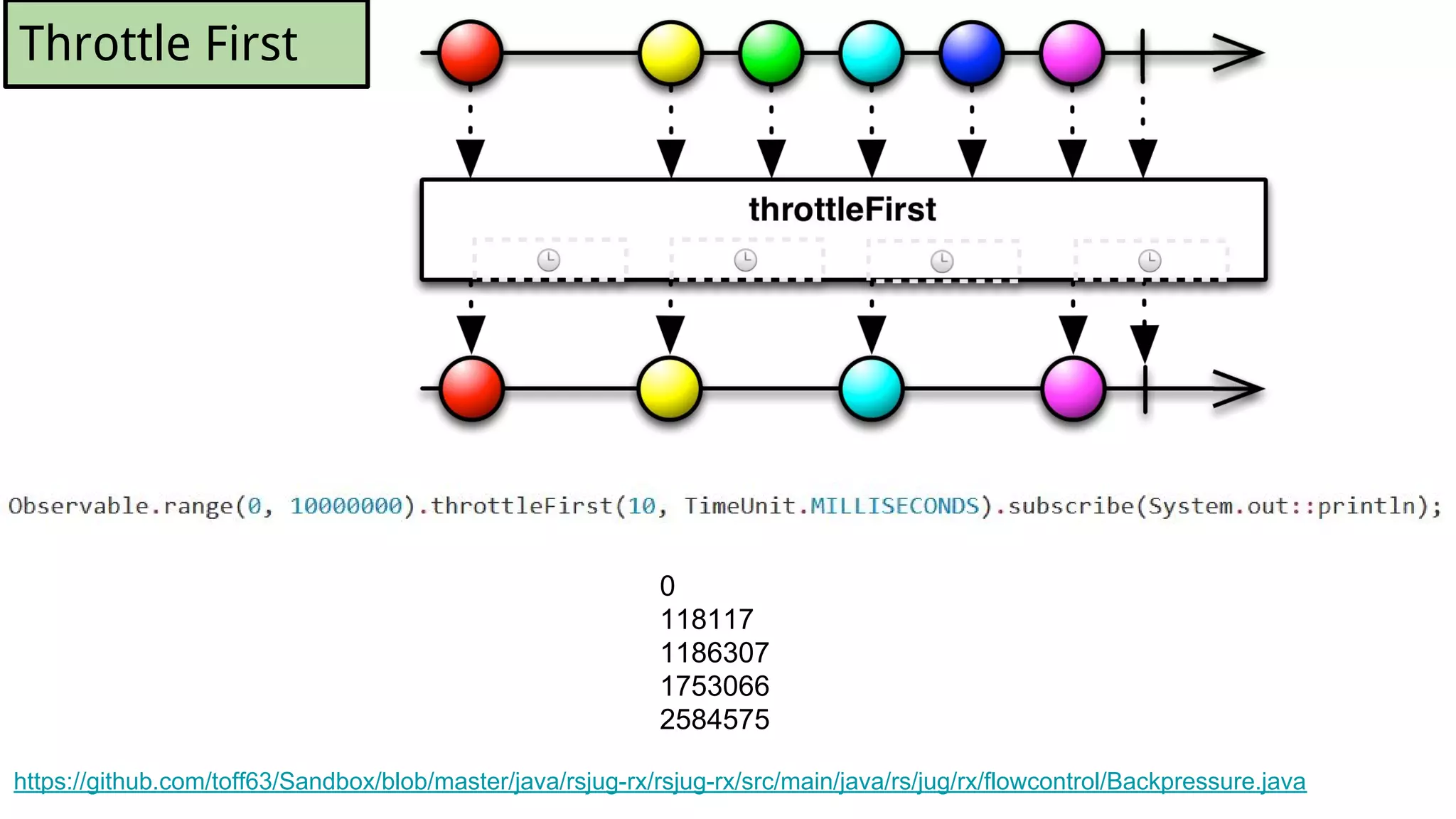

53. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
Throttle First
0
118117
1186307
1753066
2584575

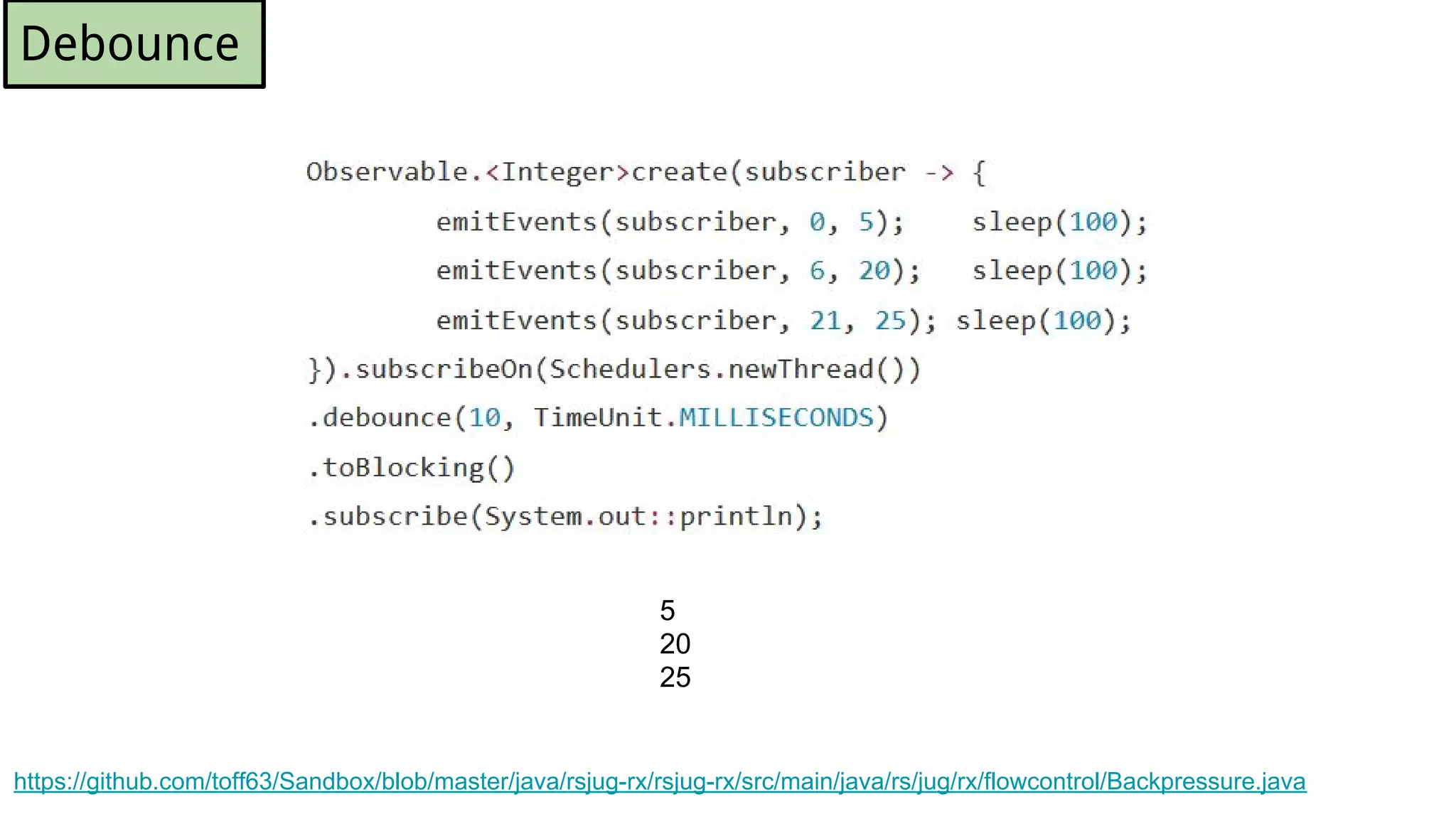

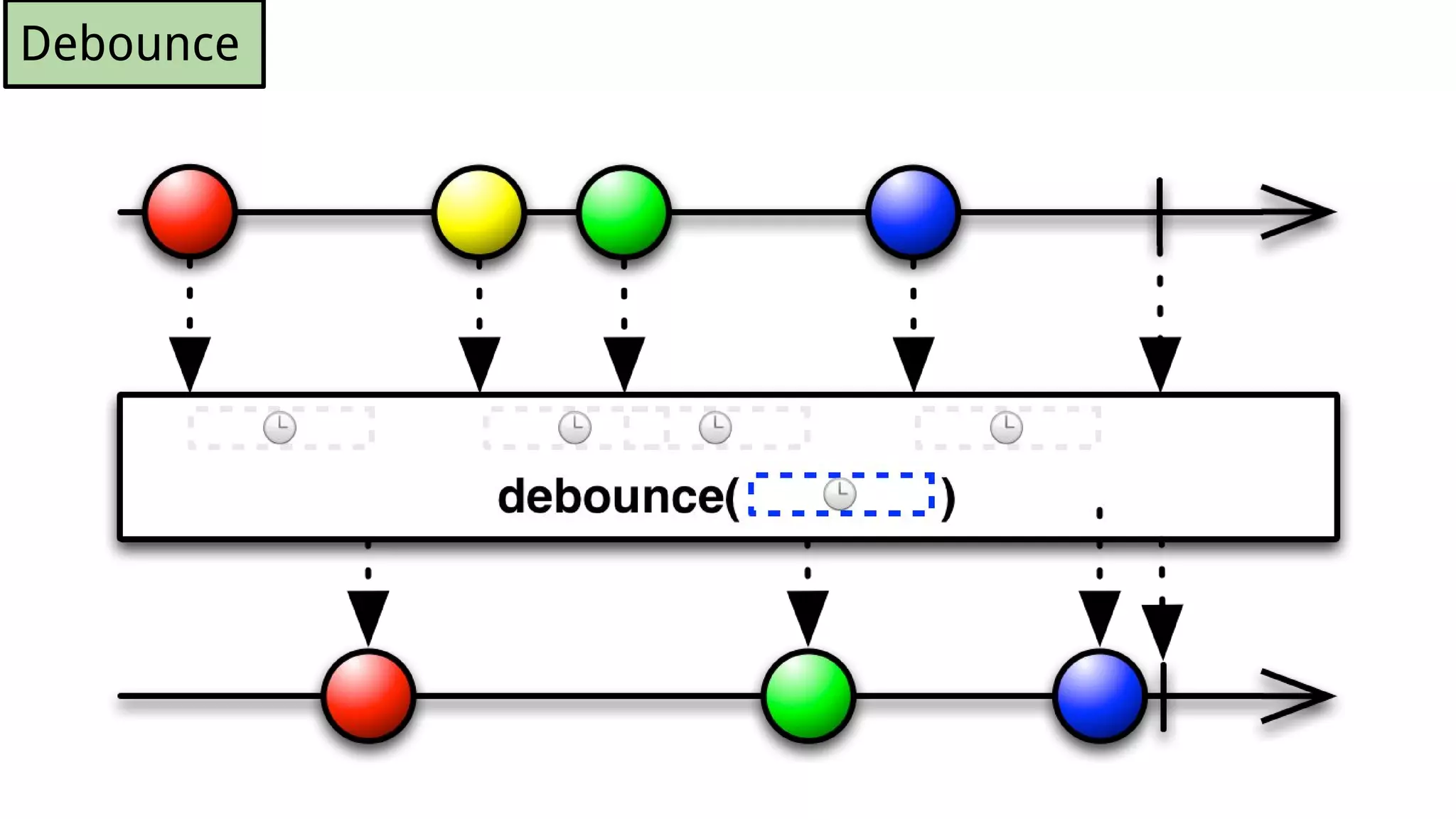

54. Debounce

55. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
Debounce
5
20
25

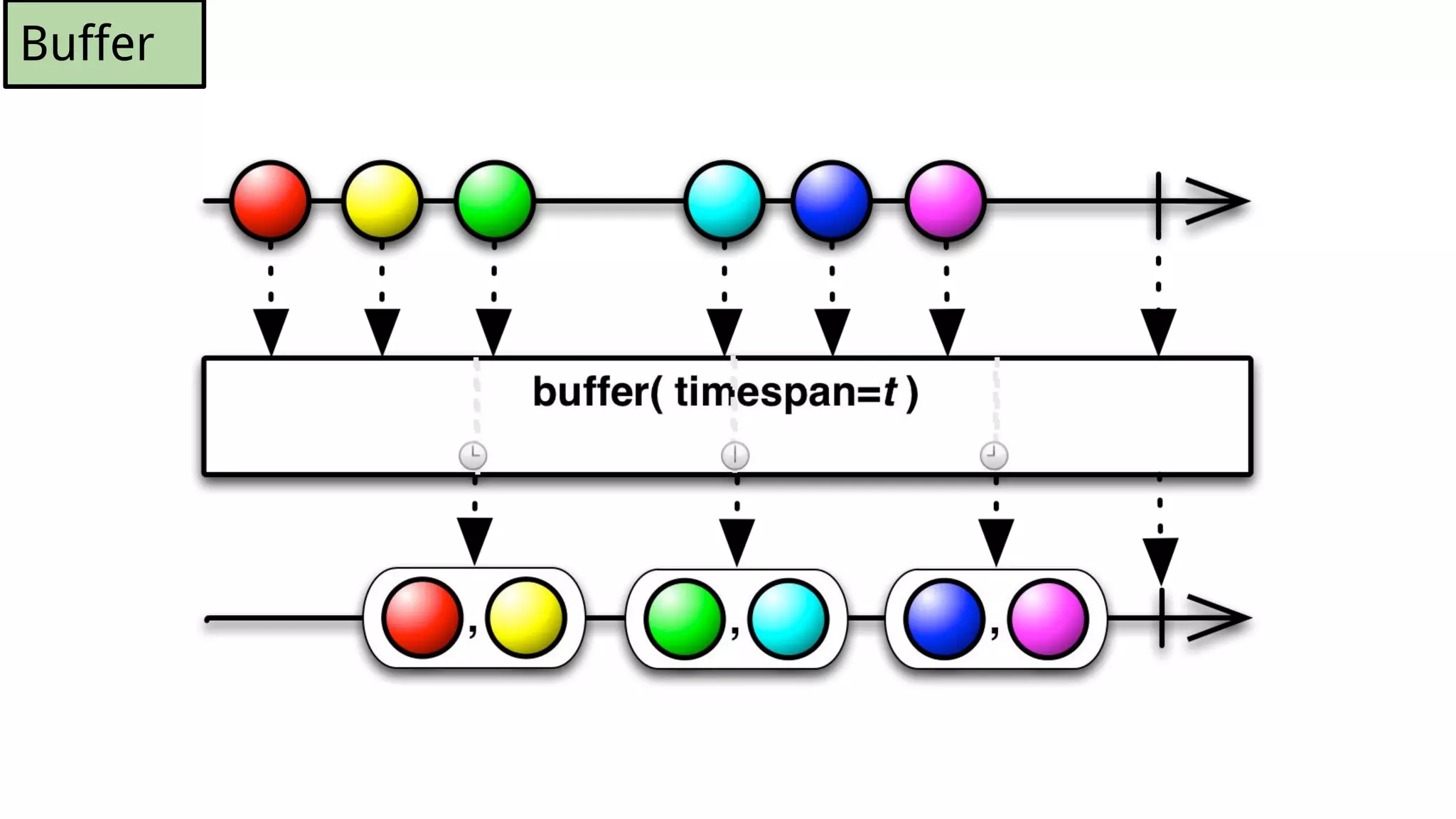

56. Buffer

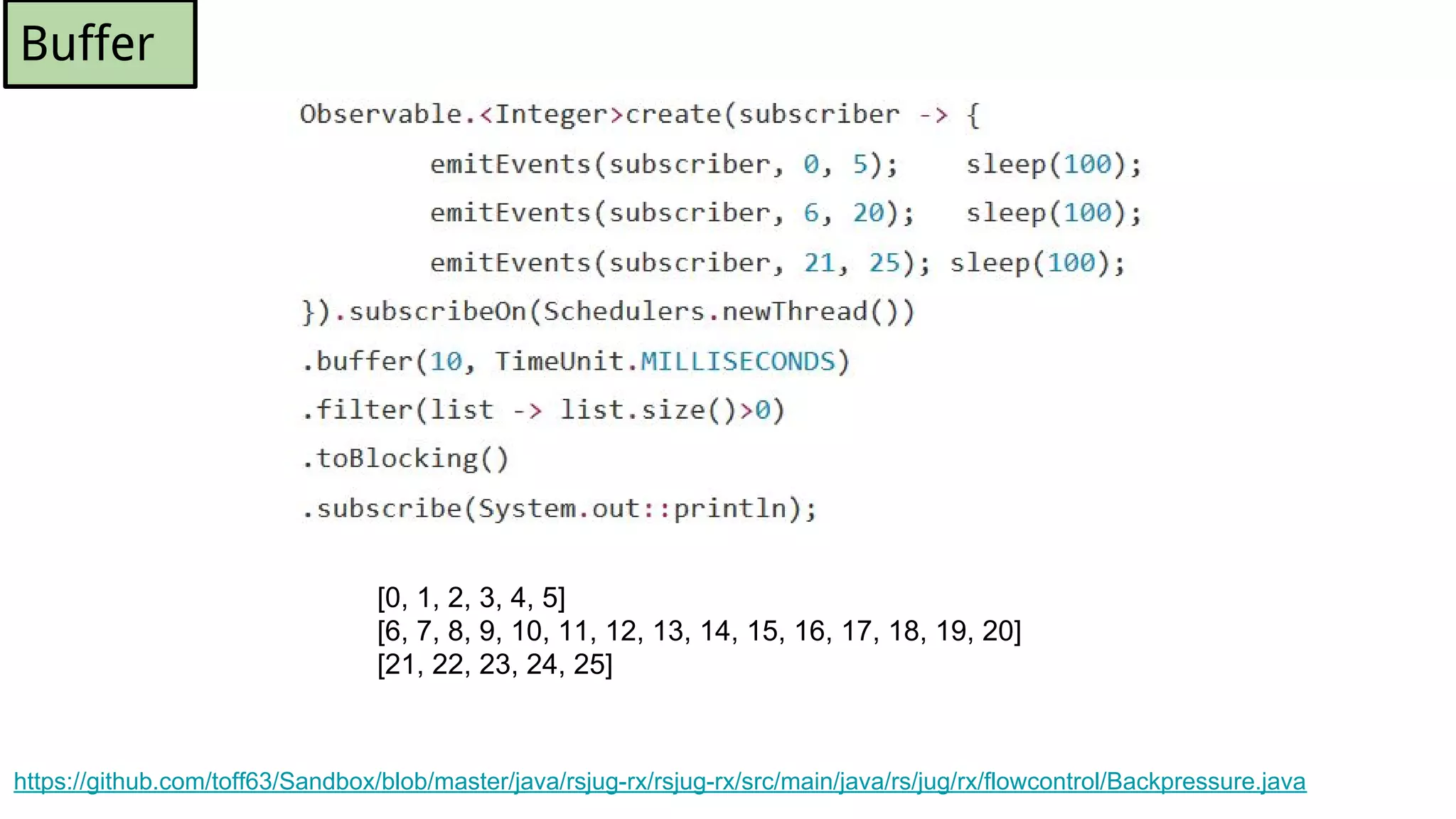

57. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
Buffer
[0, 1, 2, 3, 4, 5]
[6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20]
[21, 22, 23, 24, 25]

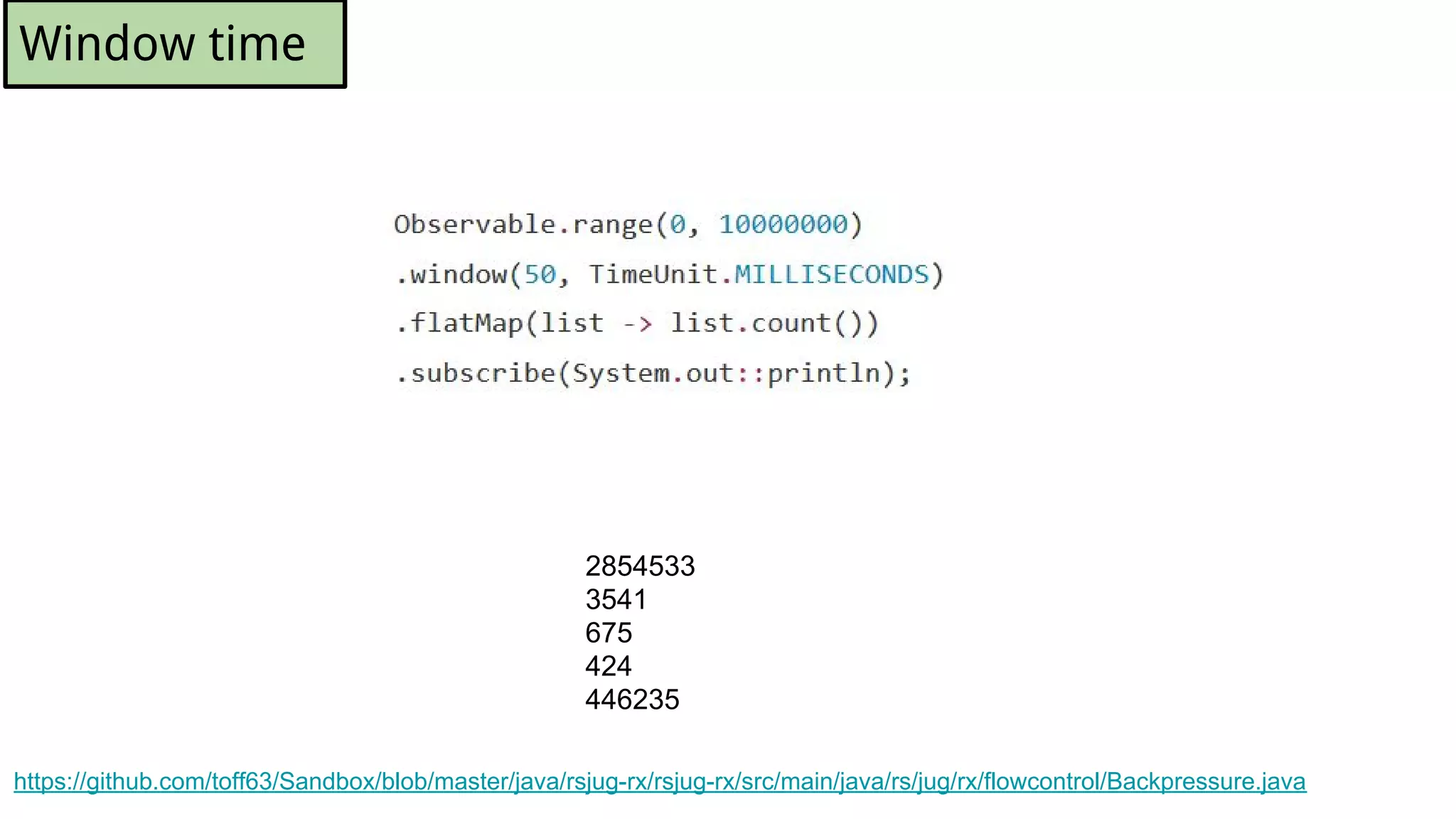

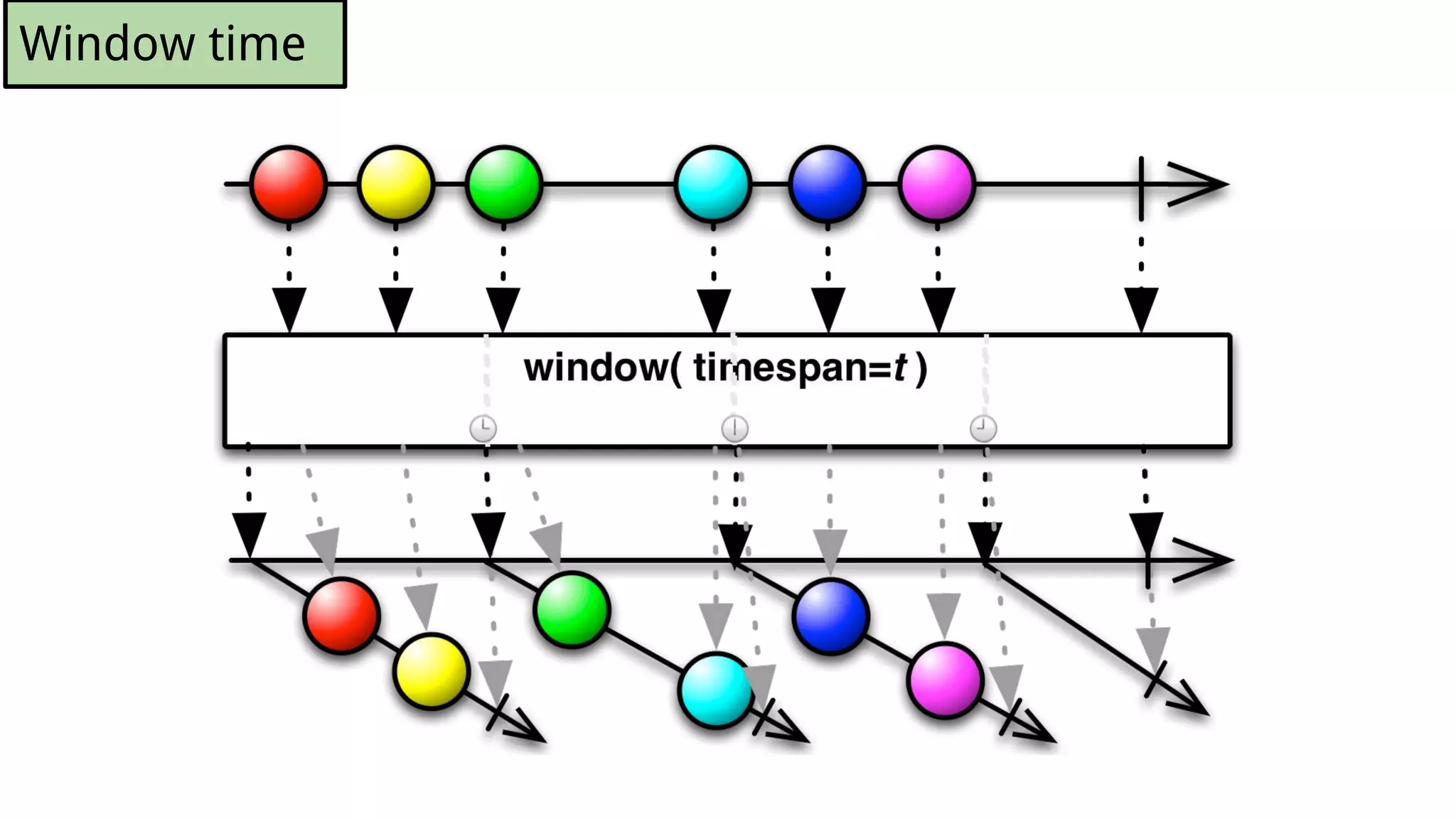

58. Window time

59. https://github.com/toff63/Sandbox/blob/master/java/rsjug-rx/rsjug-rx/src/main/java/rs/jug/rx/flowcontrol/Backpressure.java
2854533
3541
675
424
446235
Window time

60. Reactive Stream

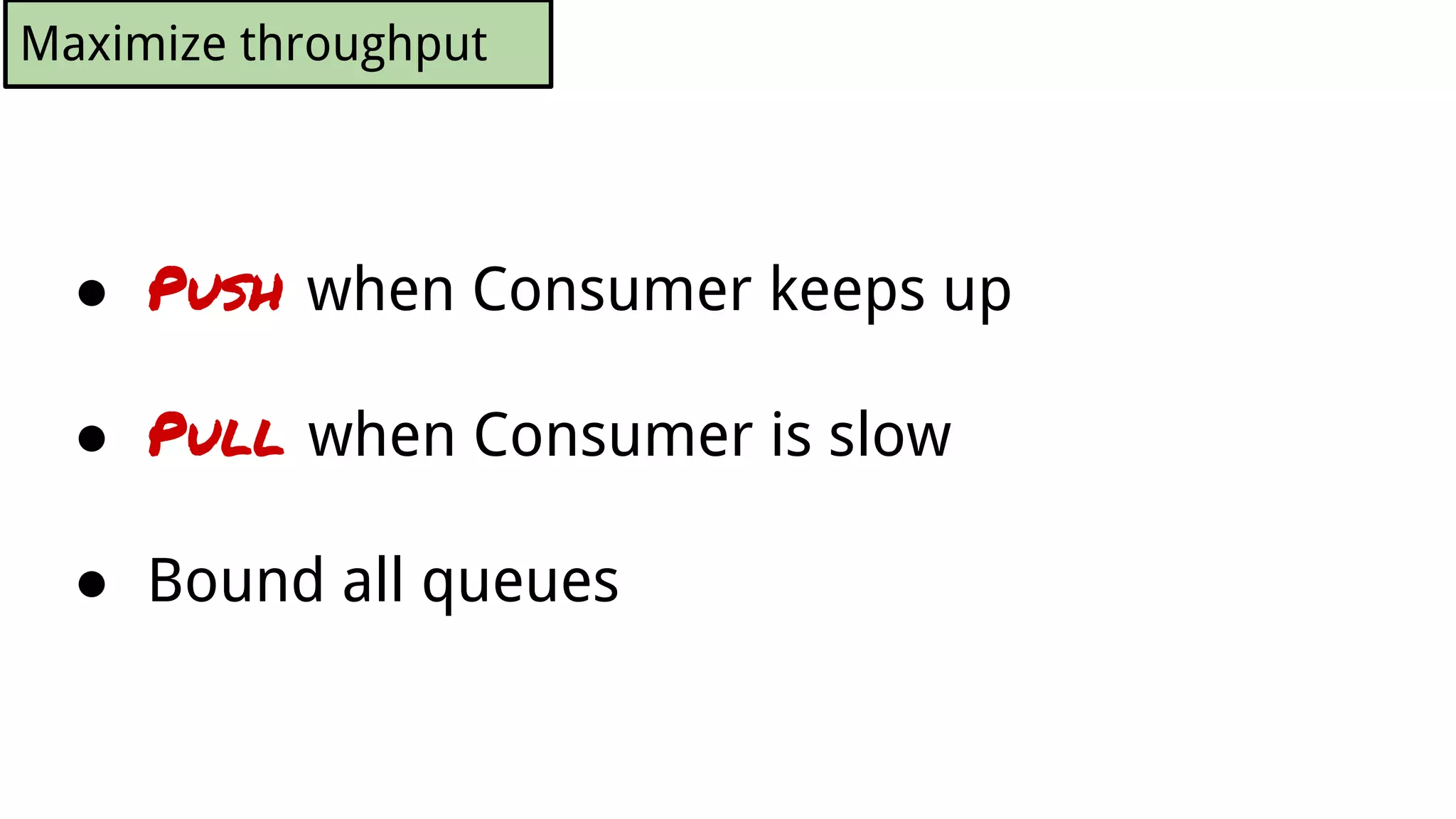

61. ● Push when Consumer keeps up
● Pull when Consumer is slow
● Bound all queues
Maximize throughput

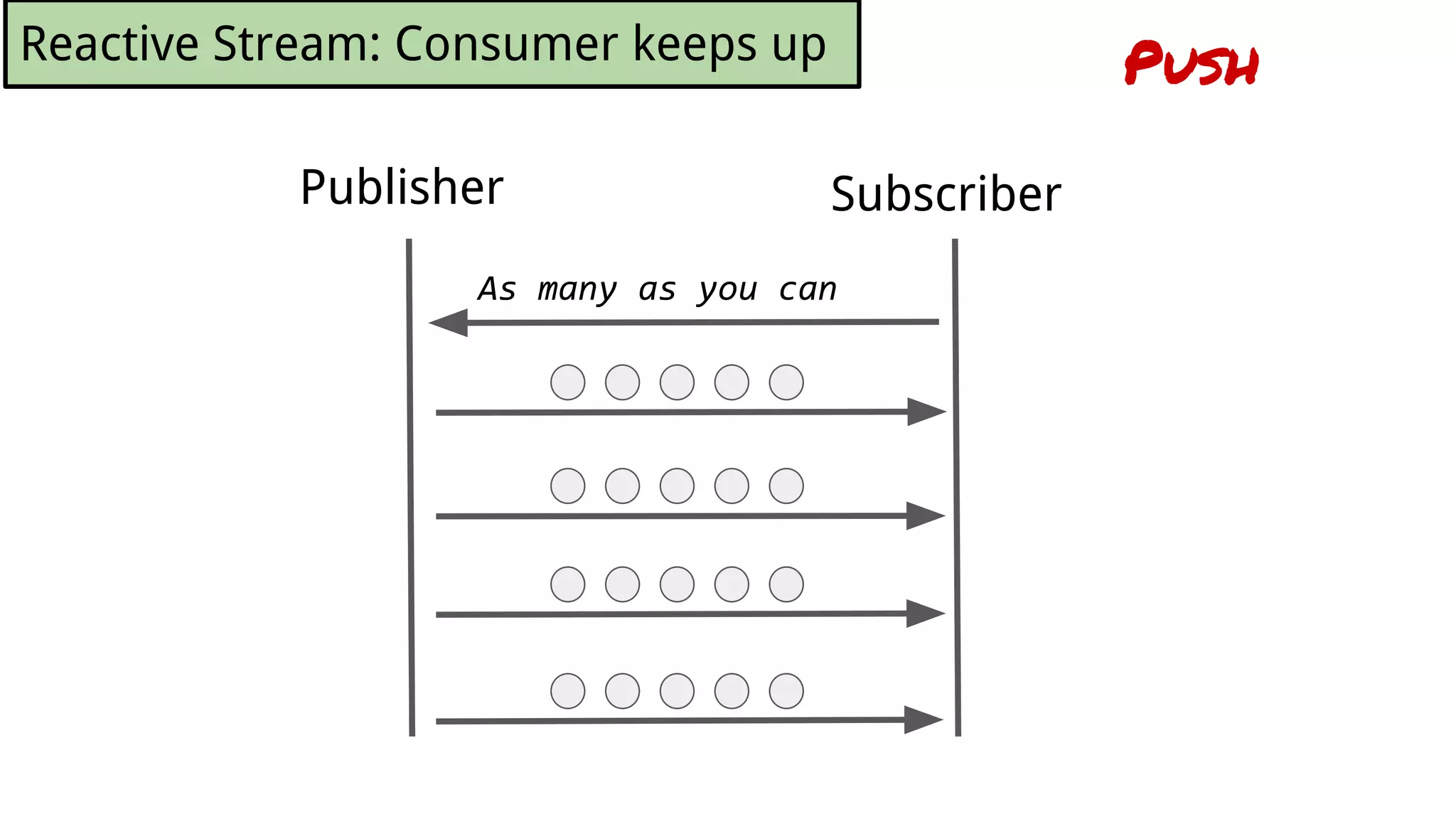

62. Reactive Stream: Consumer keeps up
Publisher Subscriber
As many as you can
Push

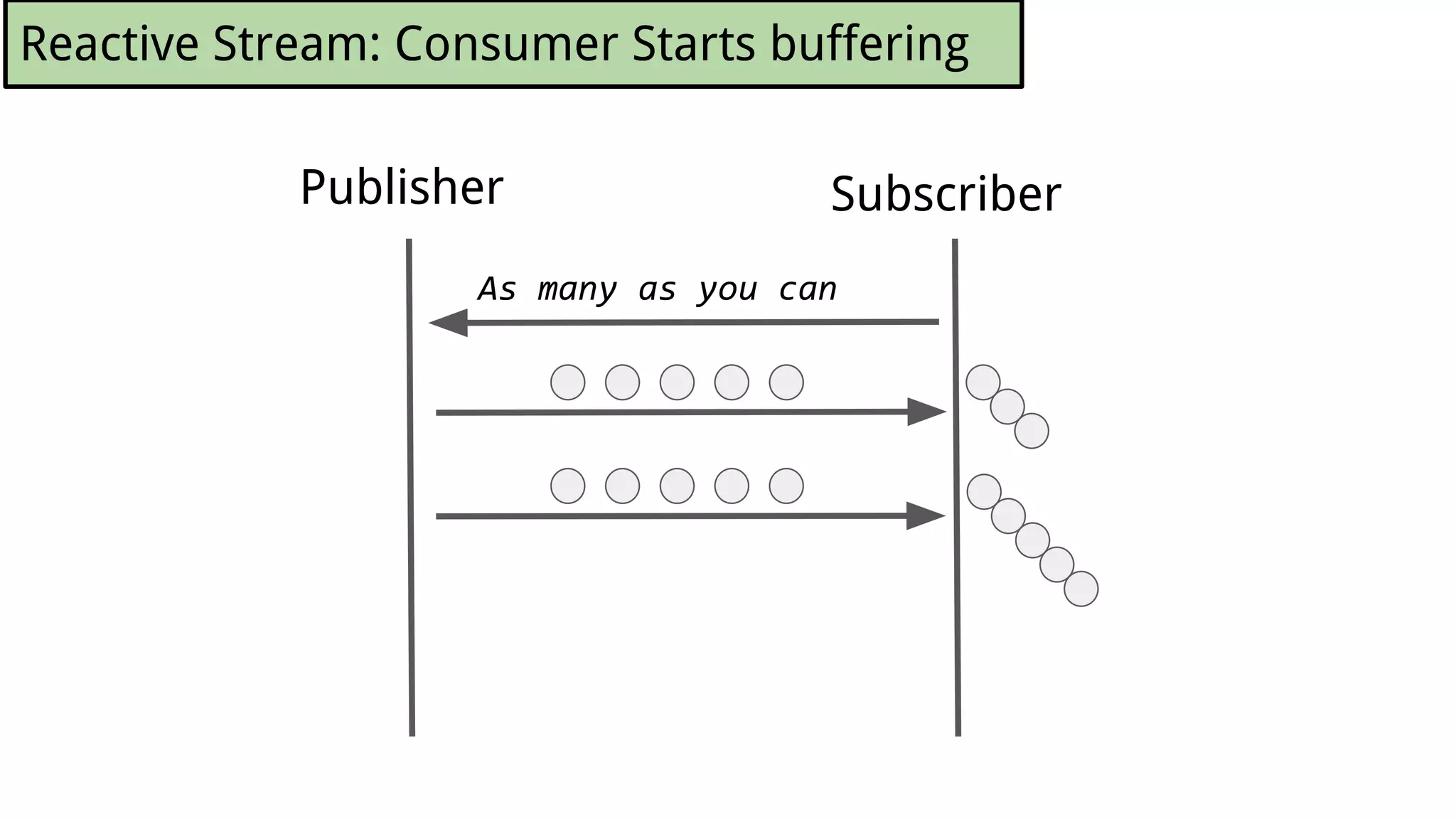

63. Reactive Stream: Consumer Starts buffering
Publisher Subscriber
As many as you can

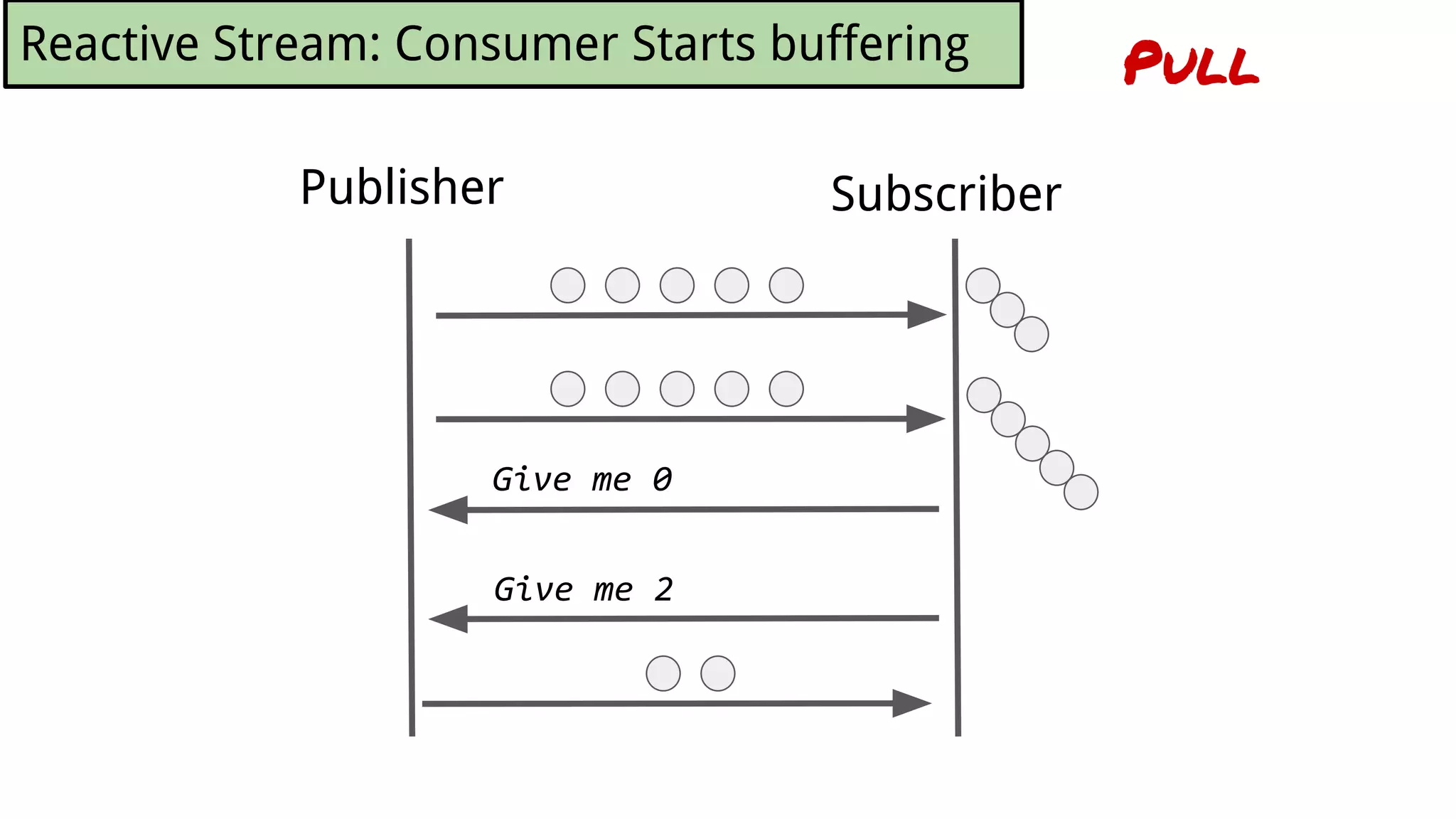

64. Reactive Stream: Consumer Starts buffering
Publisher Subscriber
Give me 0
Give me 2
Pull

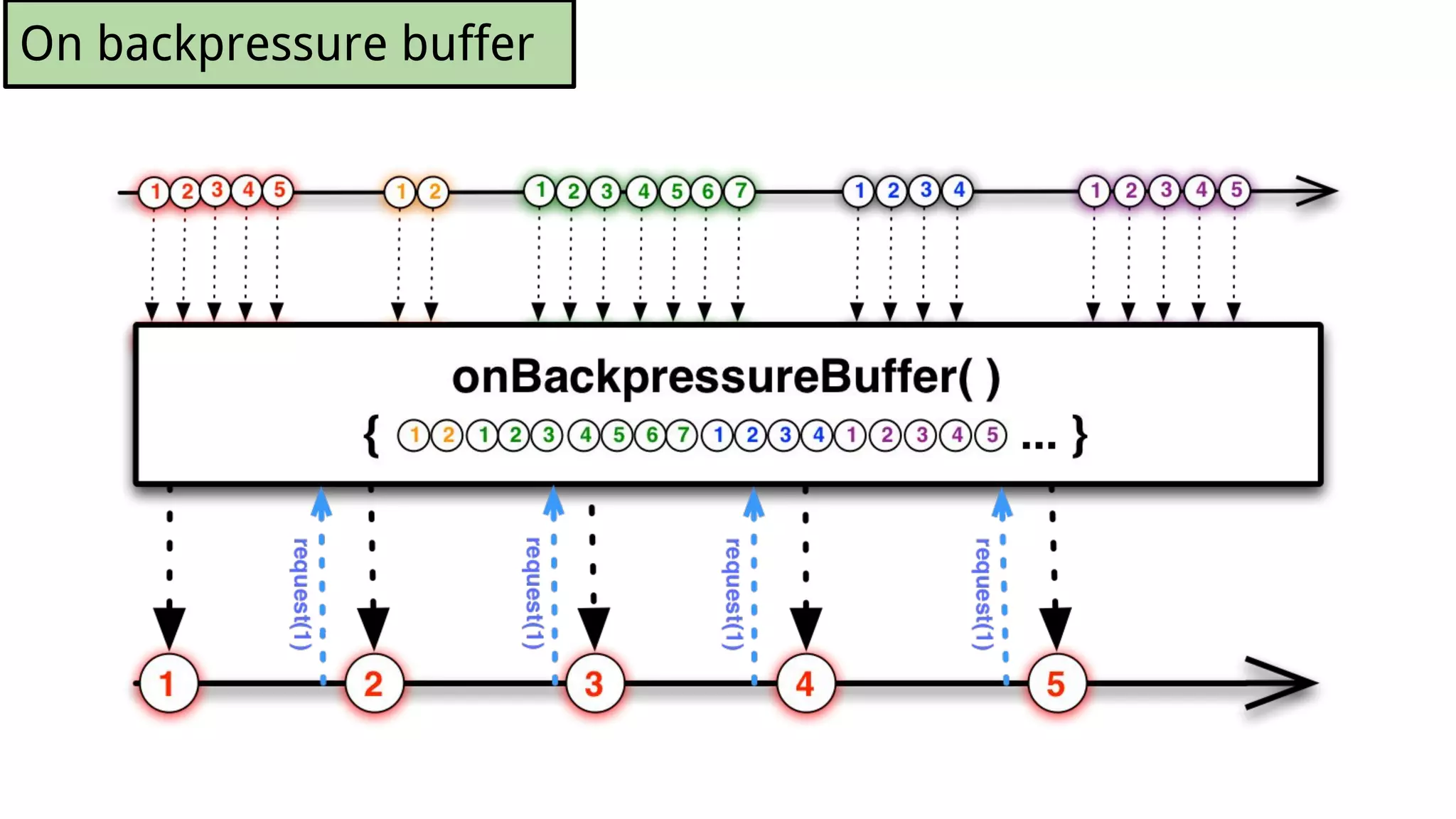

65. On backpressure buffer

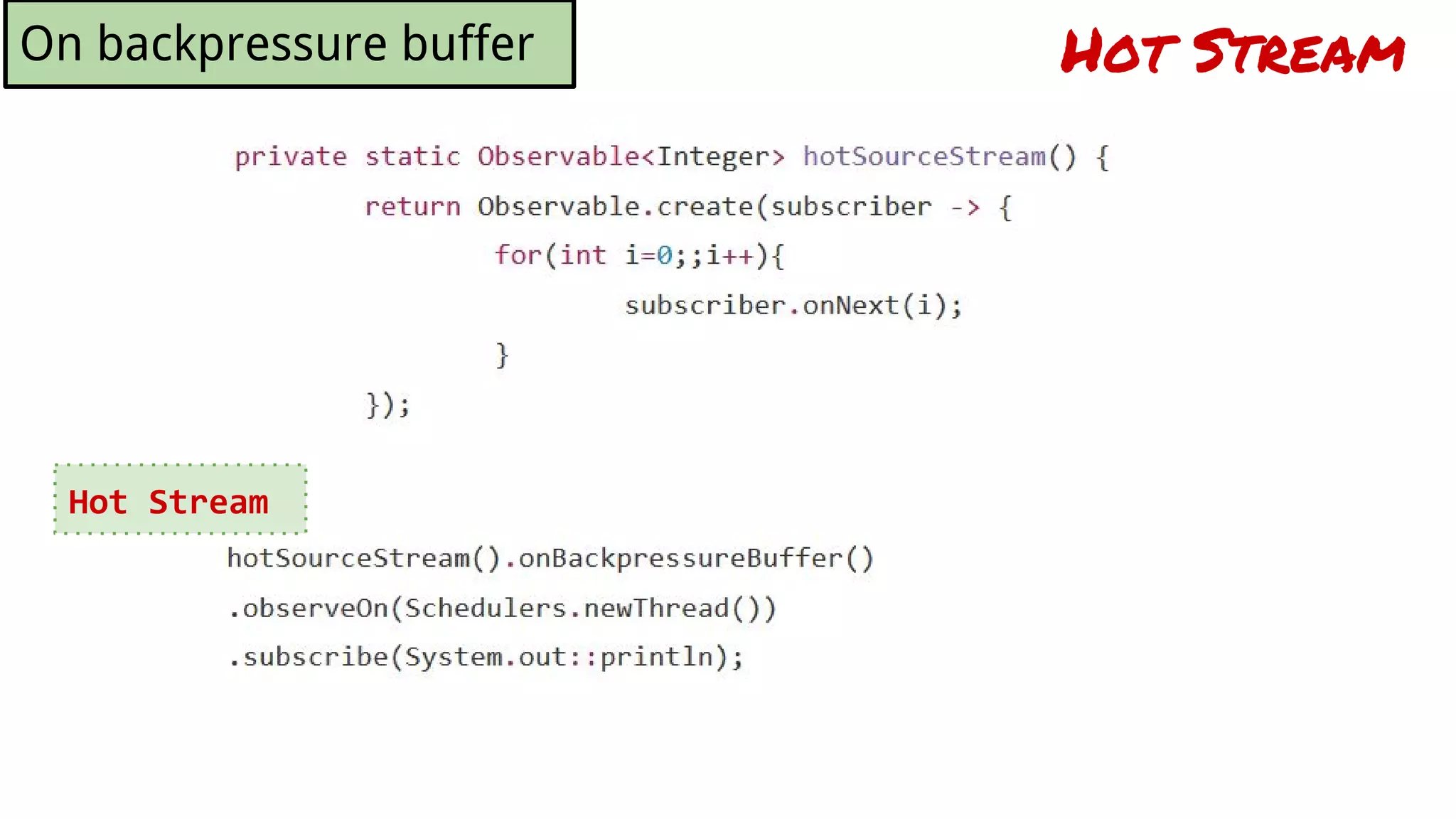

66. On backpressure buffer Hot Stream
Hot Stream

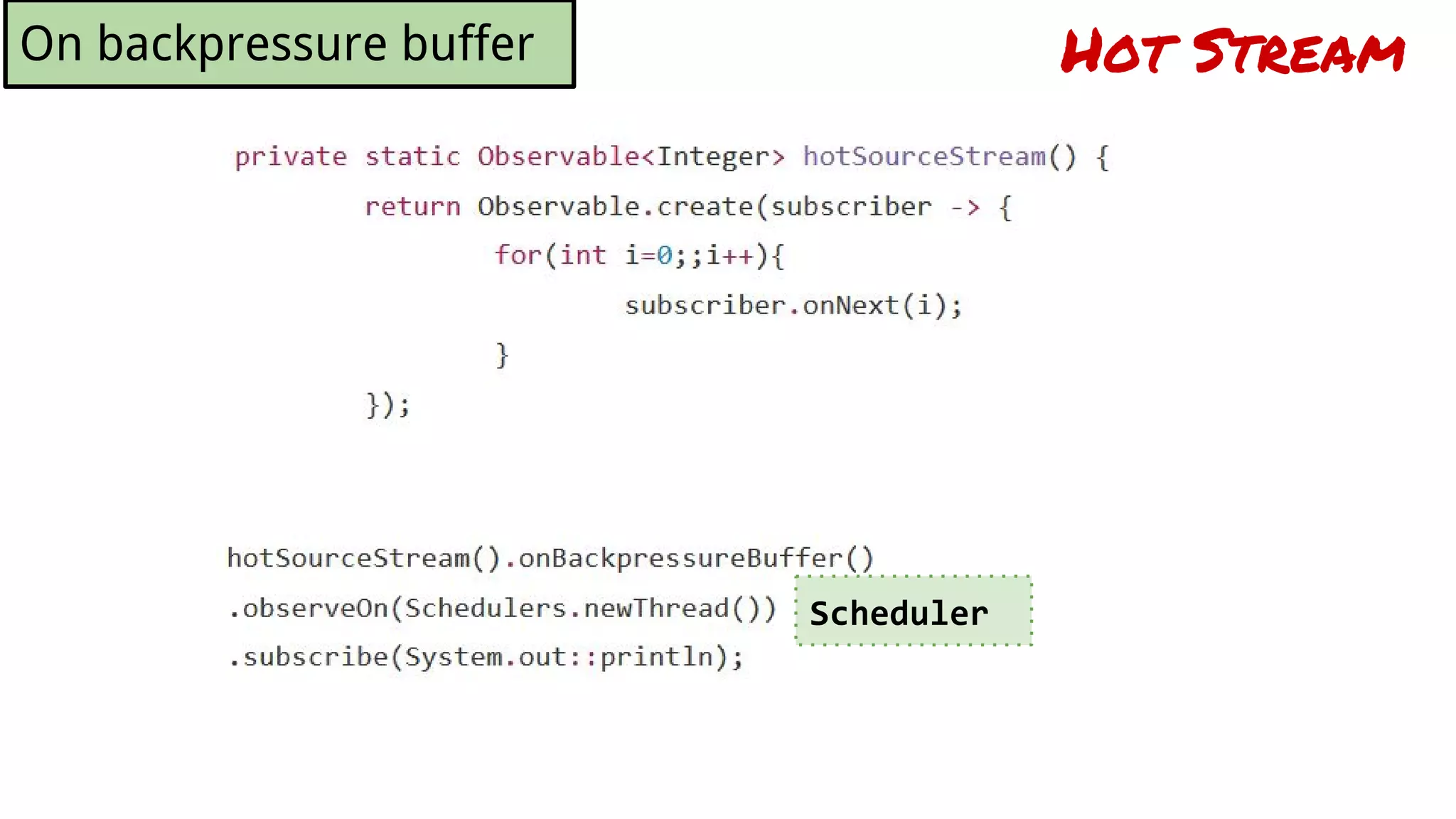

67. On backpressure buffer
Scheduler
Hot Stream

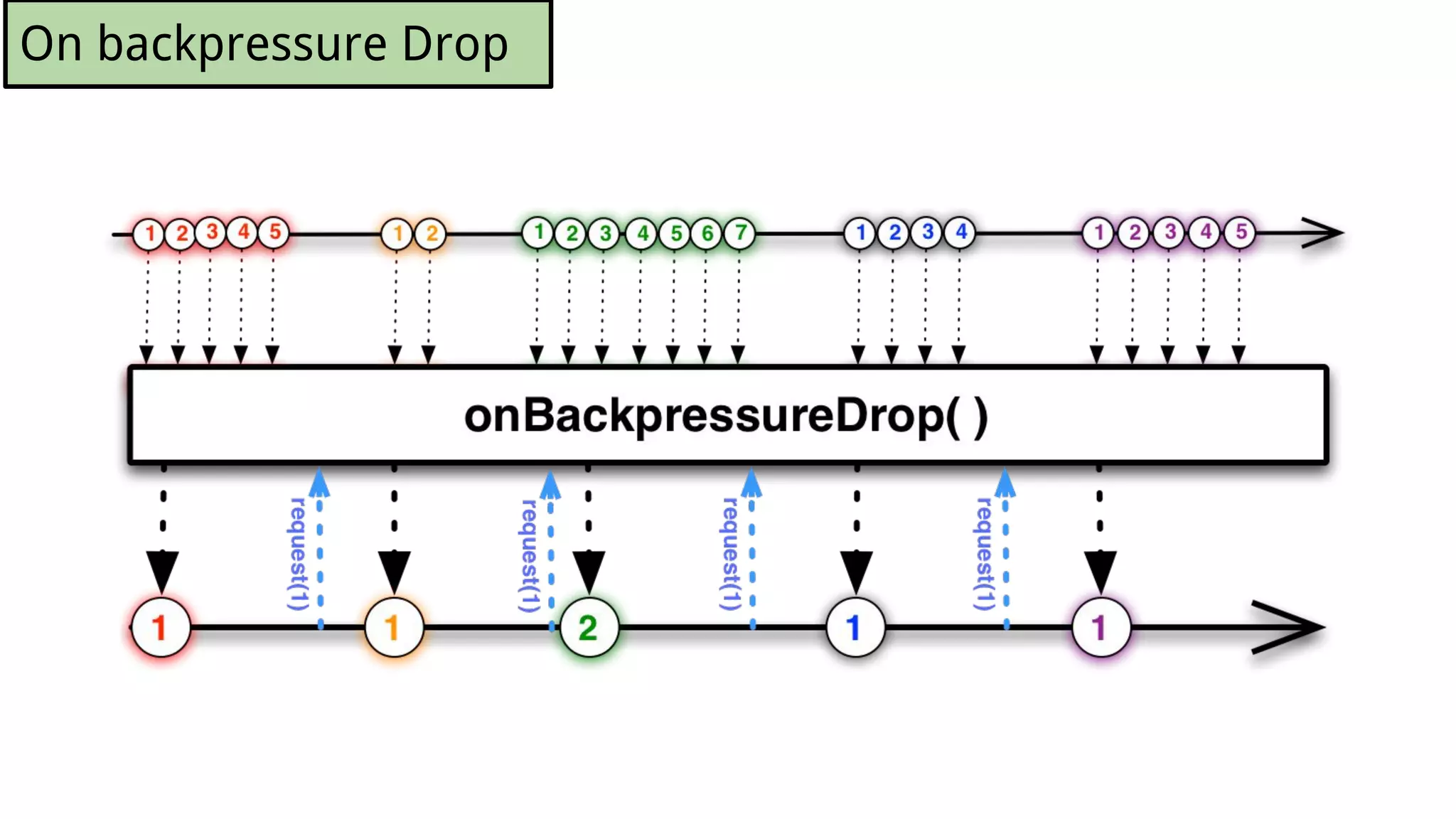

68. On backpressure Drop

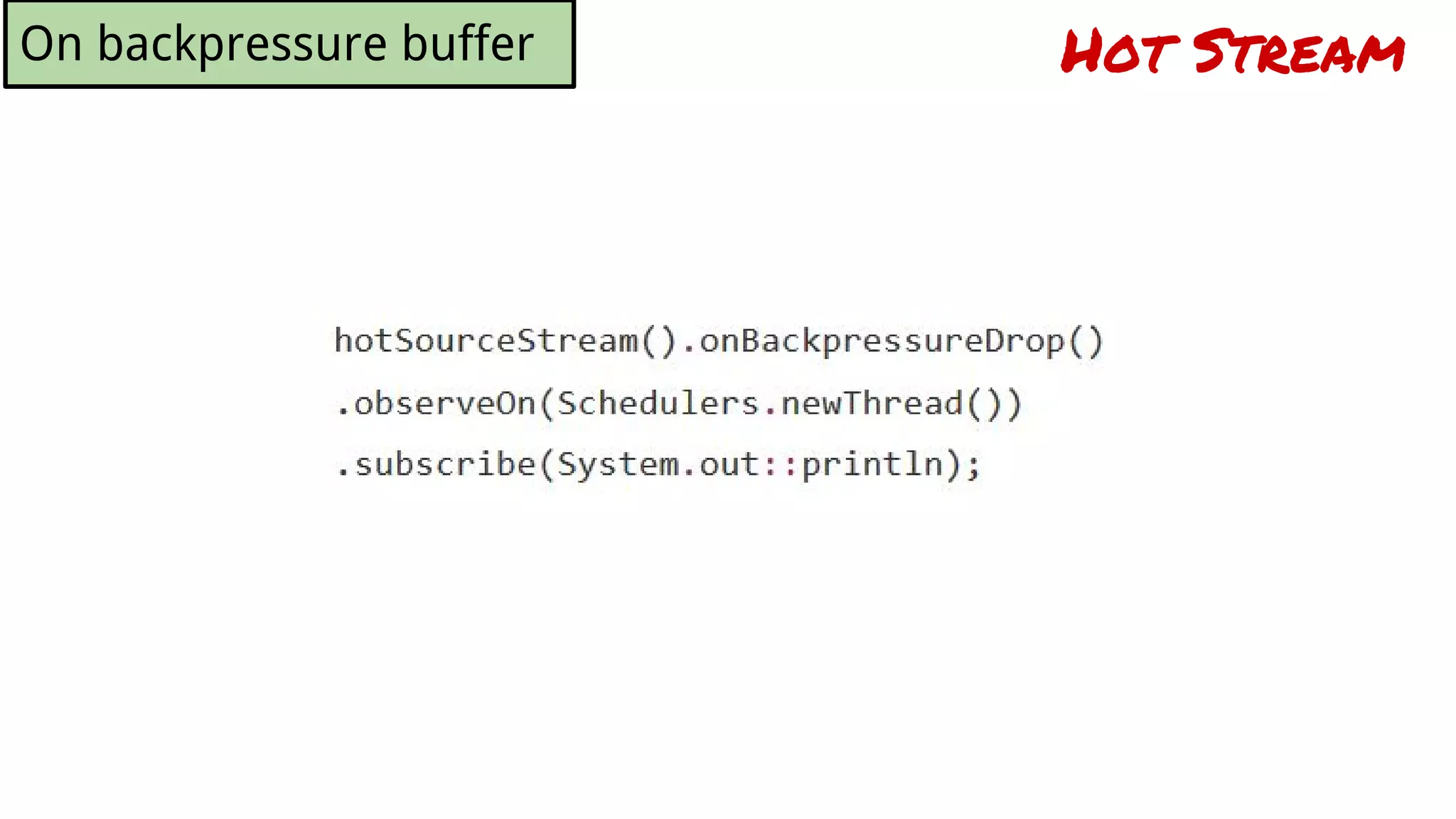

69. On backpressure buffer Hot Stream

70. And lots and lots
of other operators

71. Rx Ports

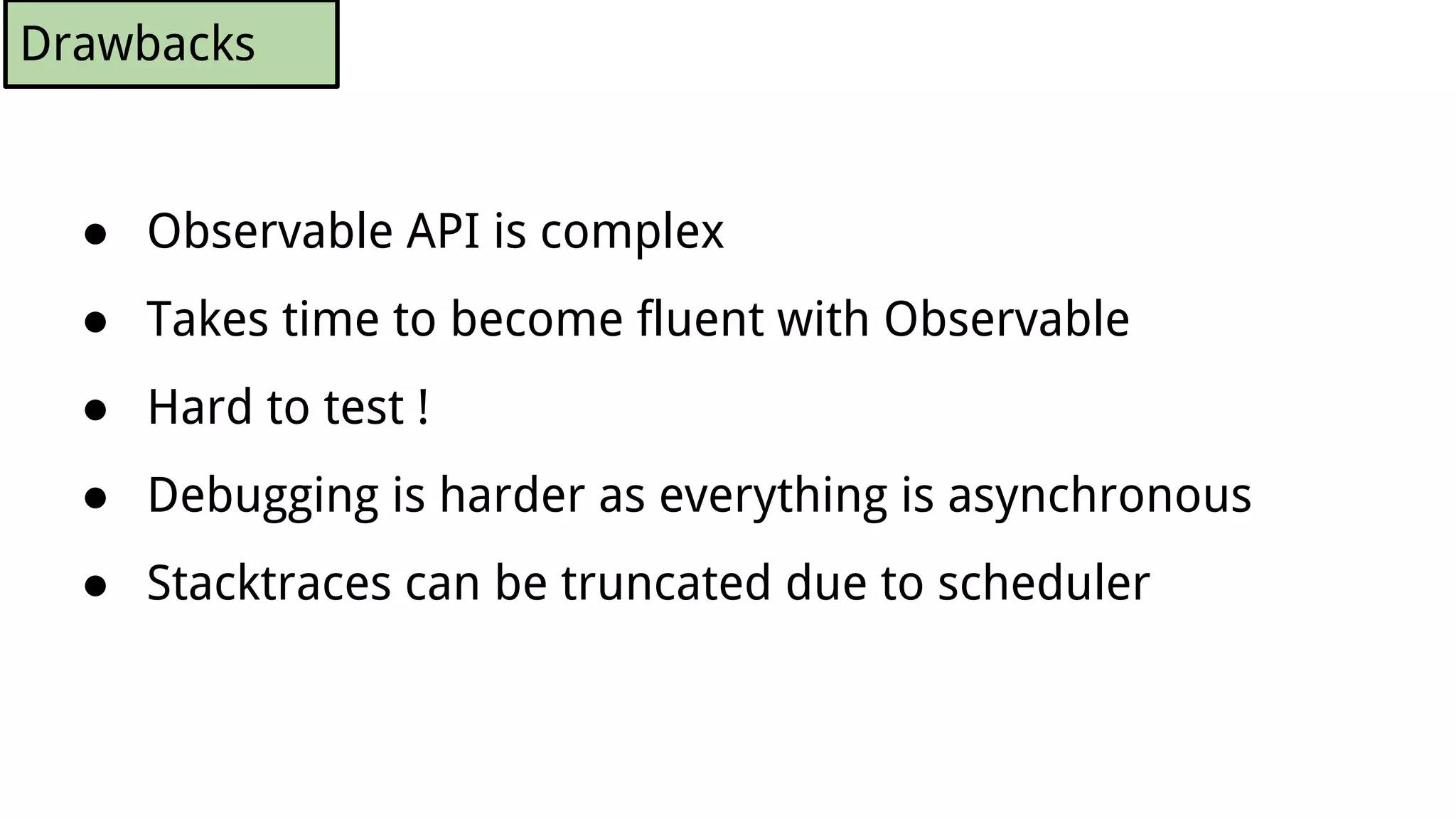

72. ● Observable API is complex
● Takes time to become fluent with Observable
● Hard to test !
● Debugging is harder as everything is asynchronous
● Stacktraces can be truncated due to scheduler
Drawbacks

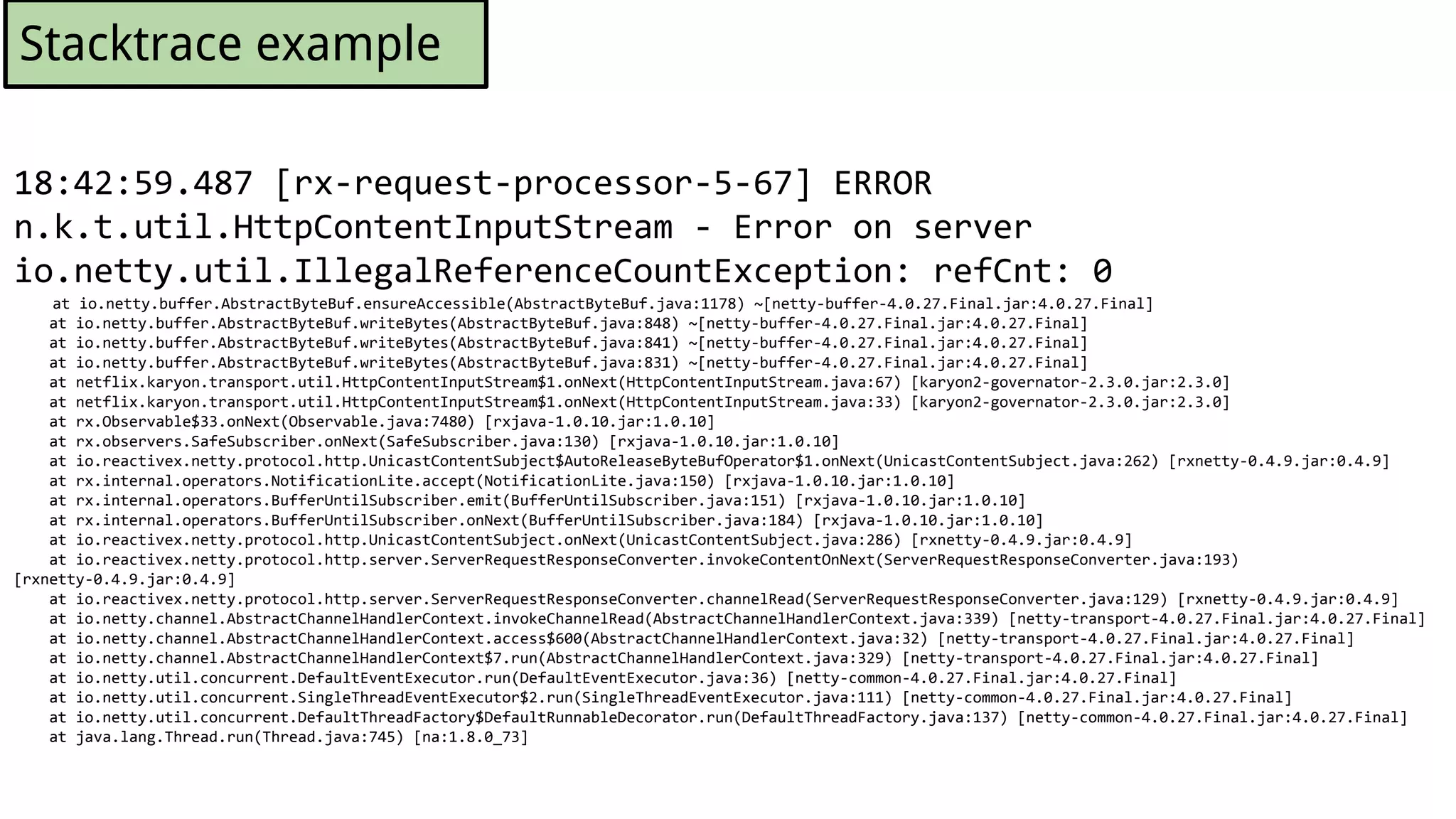

73. Stacktrace example
18:42:59.487 [rx-request-processor-5-67] ERROR
n.k.t.util.HttpContentInputStream - Error on server
io.netty.util.IllegalReferenceCountException: refCnt: 0
at io.netty.buffer.AbstractByteBuf.ensureAccessible(AbstractByteBuf.java:1178) ~[netty-buffer-4.0.27.Final.jar:4.0.27.Final]
at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:848) ~[netty-buffer-4.0.27.Final.jar:4.0.27.Final]
at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:841) ~[netty-buffer-4.0.27.Final.jar:4.0.27.Final]
at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:831) ~[netty-buffer-4.0.27.Final.jar:4.0.27.Final]
at netflix.karyon.transport.util.HttpContentInputStream$1.onNext(HttpContentInputStream.java:67) [karyon2-governator-2.3.0.jar:2.3.0]
at netflix.karyon.transport.util.HttpContentInputStream$1.onNext(HttpContentInputStream.java:33) [karyon2-governator-2.3.0.jar:2.3.0]
at rx.Observable$33.onNext(Observable.java:7480) [rxjava-1.0.10.jar:1.0.10]
at rx.observers.SafeSubscriber.onNext(SafeSubscriber.java:130) [rxjava-1.0.10.jar:1.0.10]
at io.reactivex.netty.protocol.http.UnicastContentSubject$AutoReleaseByteBufOperator$1.onNext(UnicastContentSubject.java:262) [rxnetty-0.4.9.jar:0.4.9]
at rx.internal.operators.NotificationLite.accept(NotificationLite.java:150) [rxjava-1.0.10.jar:1.0.10]
at rx.internal.operators.BufferUntilSubscriber.emit(BufferUntilSubscriber.java:151) [rxjava-1.0.10.jar:1.0.10]
at rx.internal.operators.BufferUntilSubscriber.onNext(BufferUntilSubscriber.java:184) [rxjava-1.0.10.jar:1.0.10]
at io.reactivex.netty.protocol.http.UnicastContentSubject.onNext(UnicastContentSubject.java:286) [rxnetty-0.4.9.jar:0.4.9]
at io.reactivex.netty.protocol.http.server.ServerRequestResponseConverter.invokeContentOnNext(ServerRequestResponseConverter.java:193)
[rxnetty-0.4.9.jar:0.4.9]
at io.reactivex.netty.protocol.http.server.ServerRequestResponseConverter.channelRead(ServerRequestResponseConverter.java:129) [rxnetty-0.4.9.jar:0.4.9]
at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:339) [netty-transport-4.0.27.Final.jar:4.0.27.Final]
at io.netty.channel.AbstractChannelHandlerContext.access$600(AbstractChannelHandlerContext.java:32) [netty-transport-4.0.27.Final.jar:4.0.27.Final]
at io.netty.channel.AbstractChannelHandlerContext$7.run(AbstractChannelHandlerContext.java:329) [netty-transport-4.0.27.Final.jar:4.0.27.Final]
at io.netty.util.concurrent.DefaultEventExecutor.run(DefaultEventExecutor.java:36) [netty-common-4.0.27.Final.jar:4.0.27.Final]
at io.netty.util.concurrent.SingleThreadEventExecutor$2.run(SingleThreadEventExecutor.java:111) [netty-common-4.0.27.Final.jar:4.0.27.Final]
at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:137) [netty-common-4.0.27.Final.jar:4.0.27.Final]
at java.lang.Thread.run(Thread.java:745) [na:1.8.0_73]

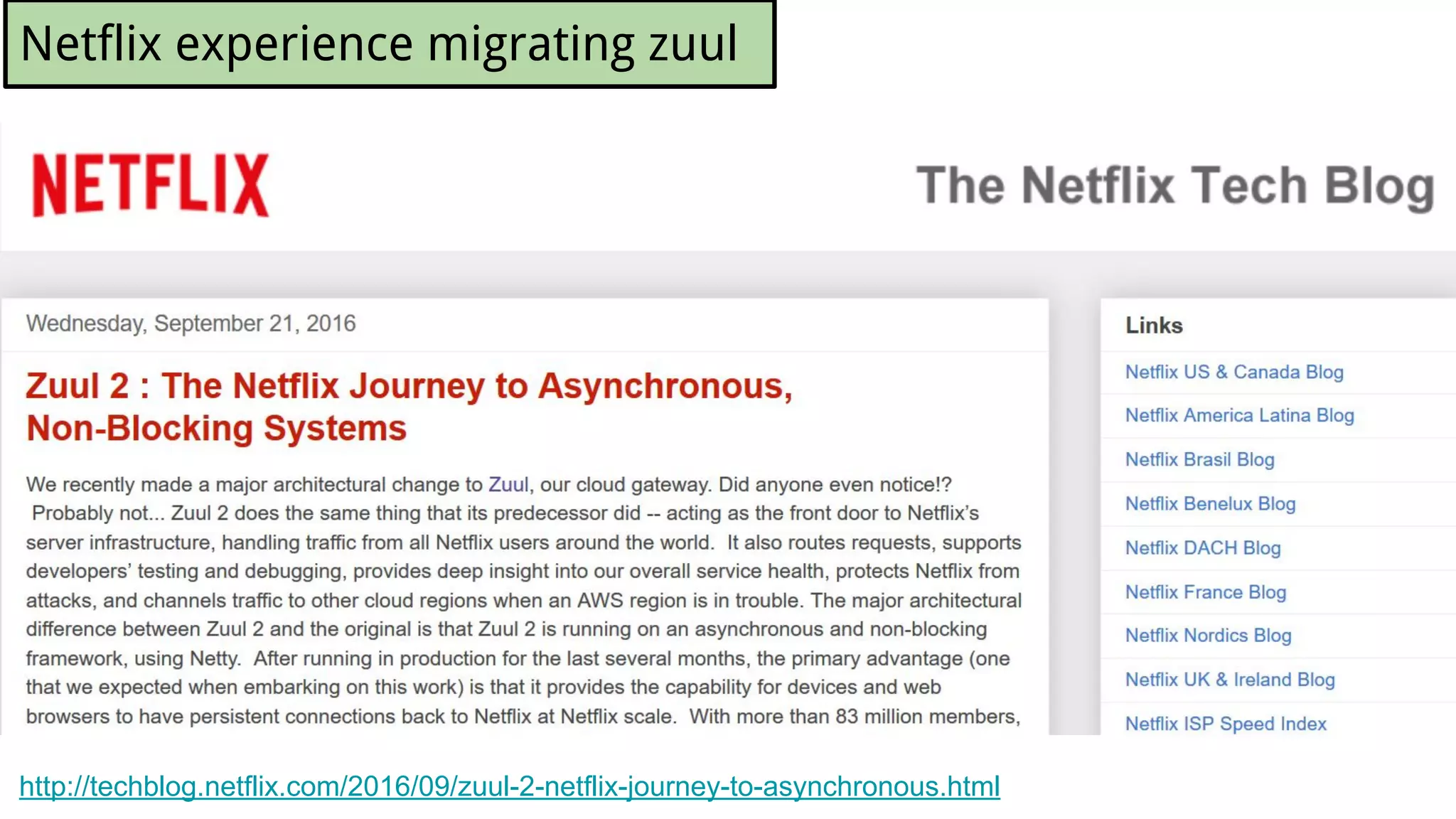

74. Netflix experience migrating zuul
http://techblog.netflix.com/2016/09/zuul-2-netflix-journey-to-asynchronous.html

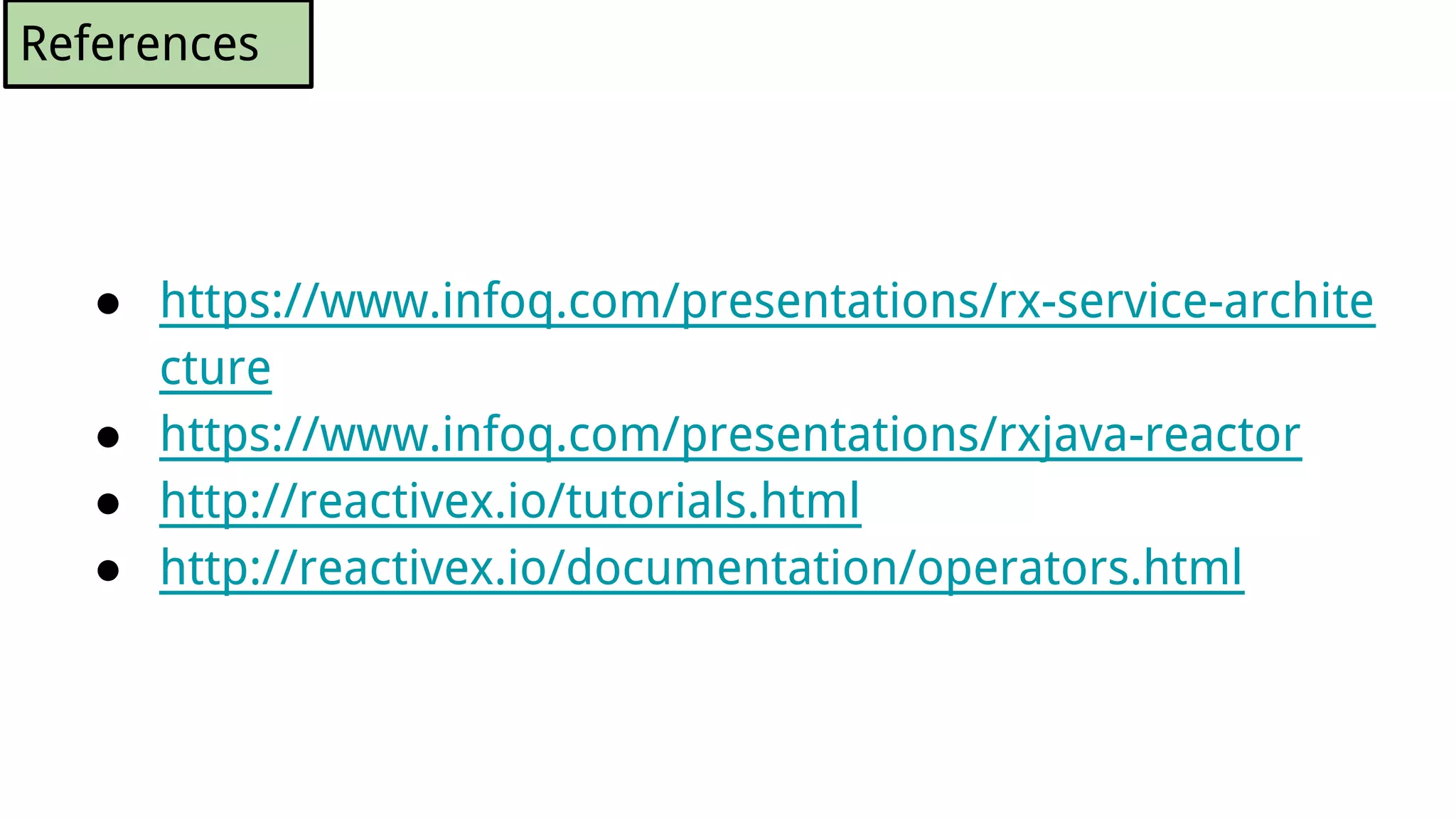

75. References
● https://www.infoq.com/presentations/rx-service-archite
cture
● https://www.infoq.com/presentations/rxjava-reactor
● http://reactivex.io/tutorials.html
● http://reactivex.io/documentation/operators.html

76. Christophe Marchal
Thank you !
Questions?
