Ray Tracing Software and Emulation Platform

1. SOFTWARE SIMULATION
EGLA COMMUNICATIONS in collaboration sith S.O.L LLC provides an integrated software solution for MobileCAD
and a state of the art “RayTracing” software and technology. This software permits a whole city map to be loaded,
antenna placement, coherence BW estimates, RMS-delay calculation, CIR and CFR models, and
instantaneous RX power simulation.
Our software can be licensed in a per cloud-instance or in its entirety with source code. The
simulation software integrates with MobileCAD recreating an entire emulation environment.
`The software simulation tools runs in a Windows environment and is fully customizable.
MobileCAD is covered under US Patent: 7,231,330 and licensed by Mobility Workx, LLC
Simulation using
Deterministic Models
The deterministic model is based on Geo-
metrical Optics, providing advantages over
statistical and empirical models:
Maps directly with Field Testing
Generation of CIR (Channel Input
Response) and CFR (Channel Frequency
Response) with great ease
Full MIMO simulation, and many more

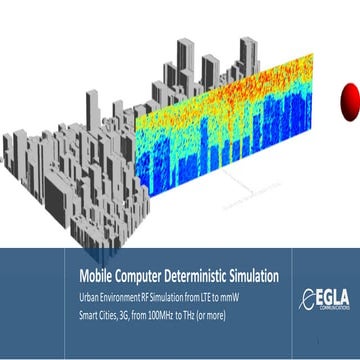

Ray Tracing Simulation
mobilityWORK
Simulation

2. Emulation Environment

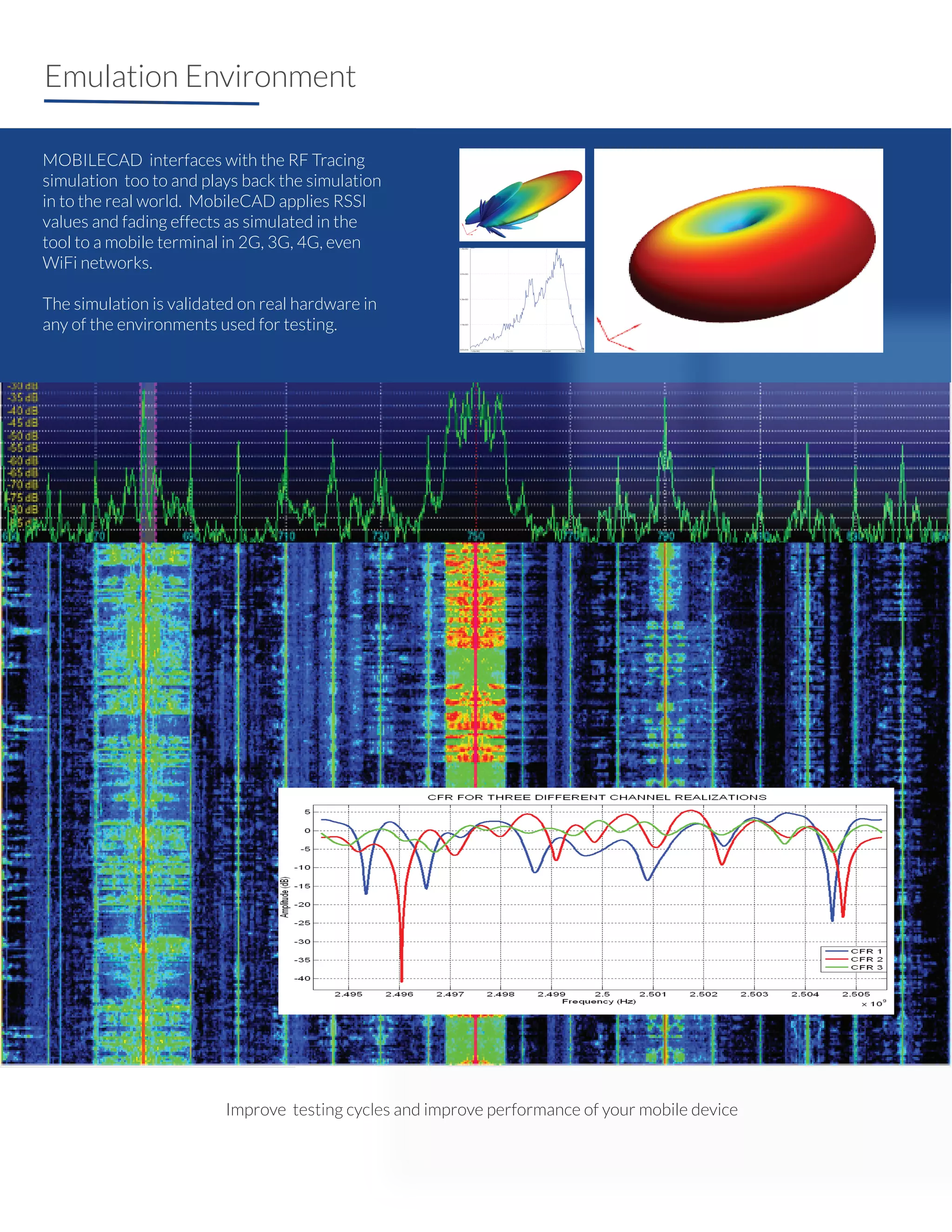

MOBILECAD interfaces with the RF Tracing
simulation too to and plays back the simulation
in to the real world. MobileCAD applies RSSI
values and fading effects as simulated in the
tool to a mobile terminal in 2G, 3G, 4G, even
WiFi networks.
The simulation is validated on real hardware in
any of the environments used for testing.
Improve testing cycles and improve performance of your mobile device

3. Mobile Terminal Testing (iOT, 4G, and 5G)
Usage Scenarios
Ray tracing simulations are created on top
of a realiostic map with buildings or
mountains. Building information comes
from Google Earth and additional
information on density of materials for
each buliding is fed into the model.
RF conditions can be changed and mapped
accordingly, creating receivers at any
location. Mobile performance can be tested
at a static position or moving incluidng
software applications, ,video streaming,
gaming, or even battery life.
MobileCAD Interaction
Once a simulation model is createdin our
cloud, the data can be fed into MobileCAD
Emulator . MobileCAD will apply the
required path loss calculated in the
simulation and apply the RF fading to any
receiver or device being tested.
Mobile performance can be played back to a
real world scenario at no time and using
different mobile terminal configurations.
MobileCAD automation can be played
while RF parameters are changed according
tothe model.
RF Ray Tracing Model MobileCAD Emulator Mobile Terminal
2G/3G/4G/WiFi

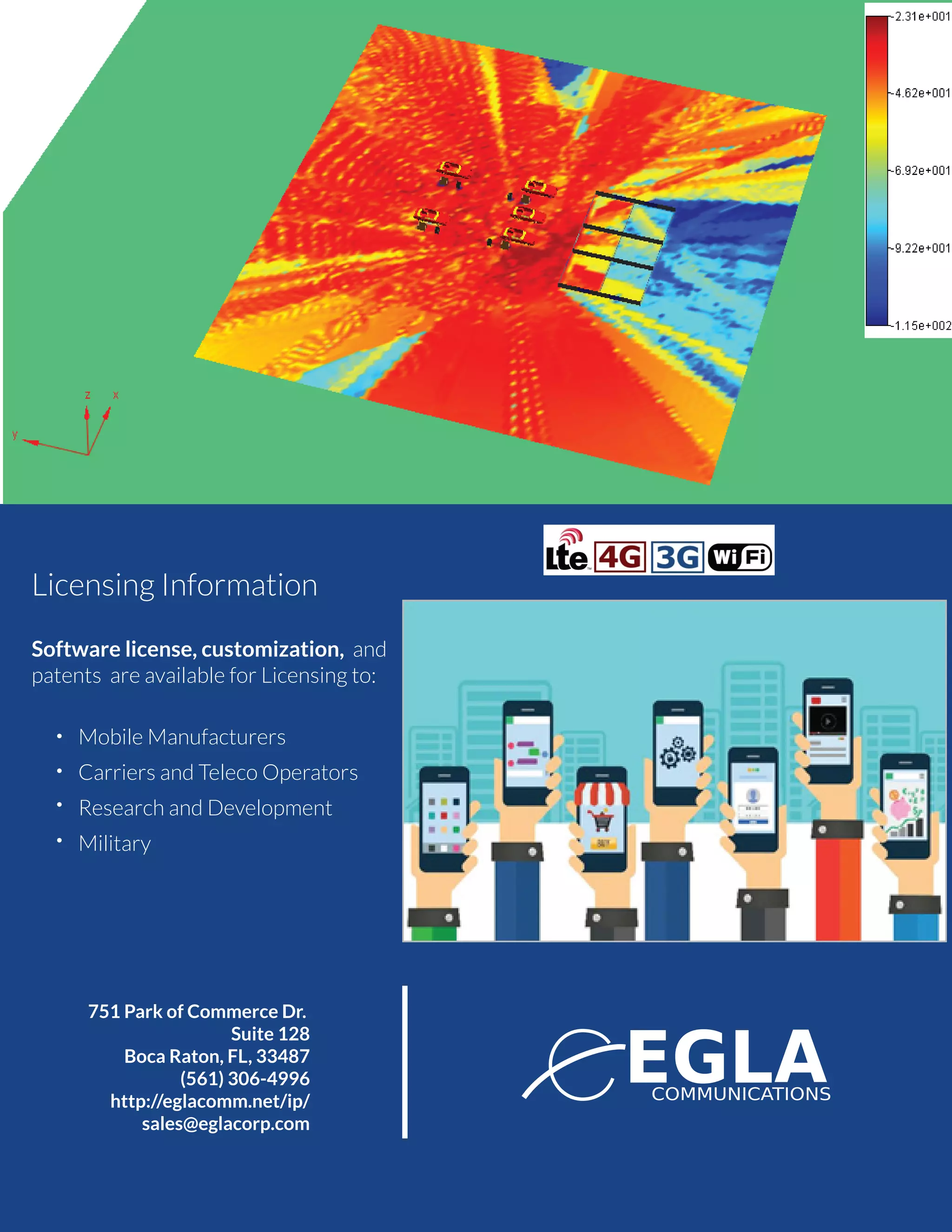

4. Licensing Information
Software license, customization, and
patents are available for Licensing to:
Mobile Manufacturers
Carriers and Teleco Operators
Research and Development
Military
