Raspberry Pi with Java 8 + Pi4J
Robert Savage
Software Architect, MTS
Harman International
#DV14 #pi4j @savageautomate

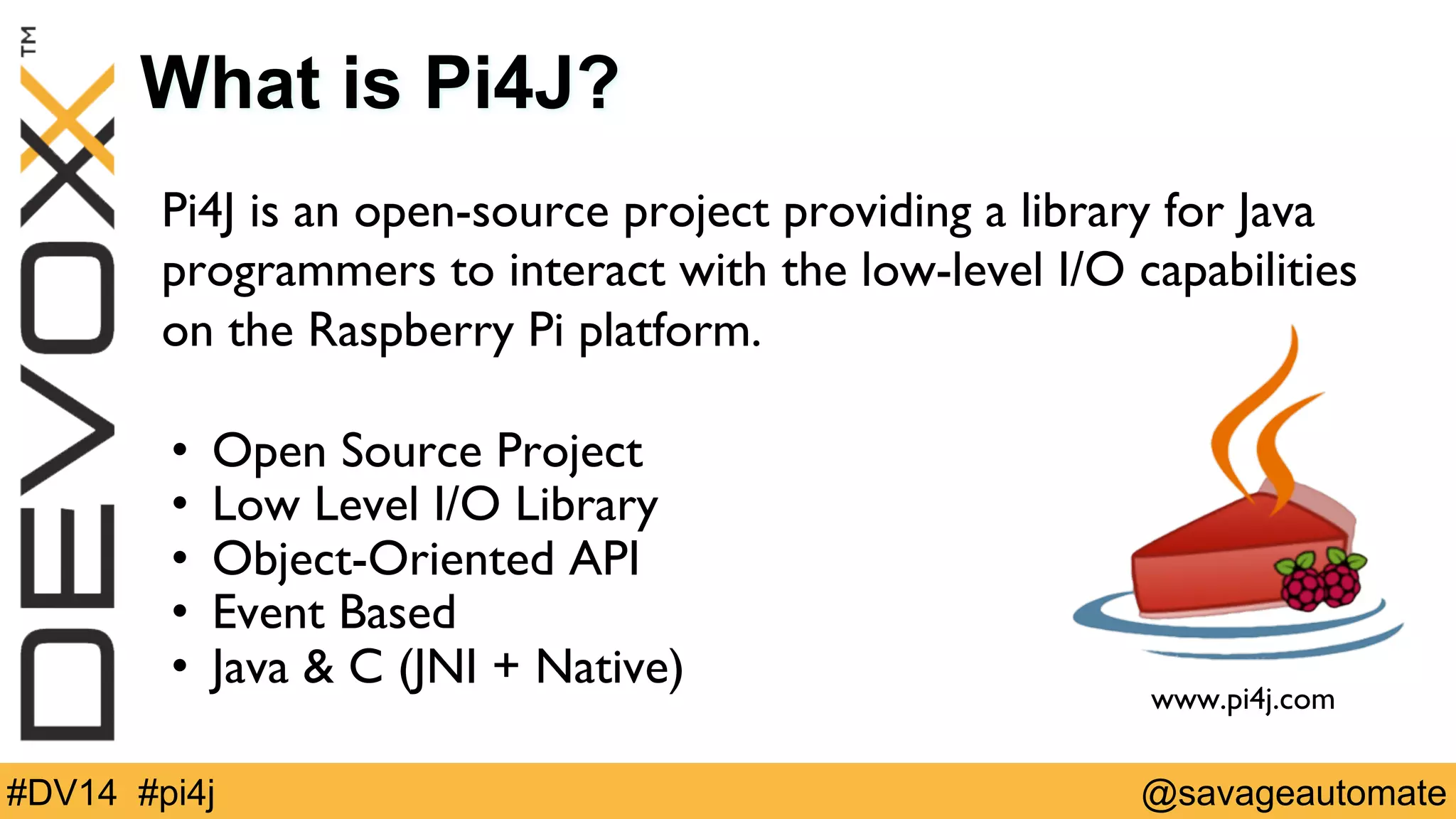

What is Pi4J?
Pi4J is an open-source project providing a library for Java
programmers to interact with the low-level I/O capabilities
on the Raspberry Pi platform.
www.pi4j.com
• Open Source Project
• Low Level I/O Library
• Object-Oriented API
• Event Based
• Java & C (JNI + Native)
#DV14 #pi4j @savageautomate
Pi4J Supported I/O
Digital Interfaces
• GPIO
(General Purpose Input/Output)
Data Interfaces
• UART, SERIAL
(Universal Asynchronous Receiver/Transmitter)
• SPI
(Serial Peripheral Interface)
• I2C
(Inter-Integrated Circuit)
Analog Interfaces*
#DV14 #pi4j @savageautomate

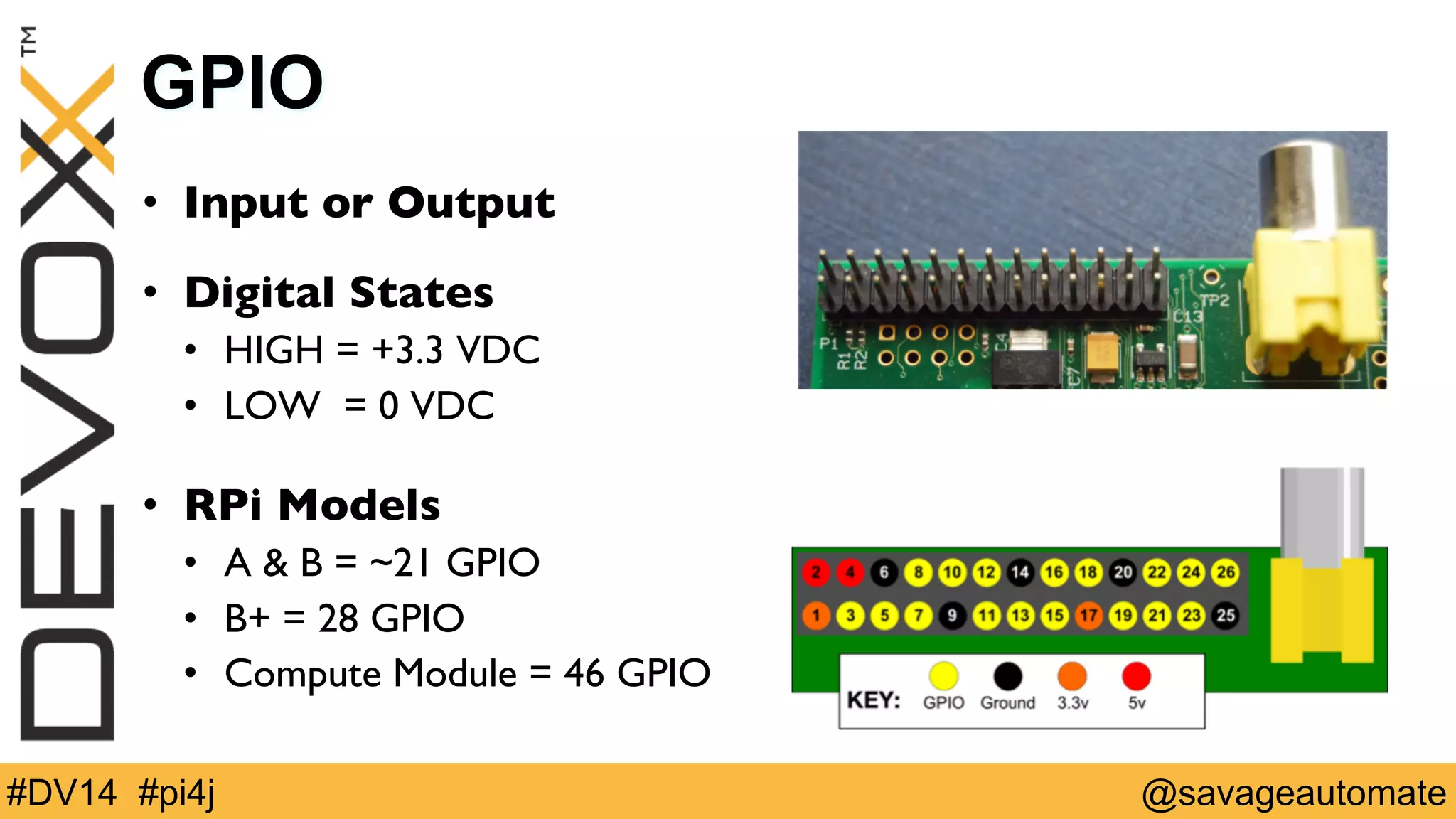

GPIO
• Input or Output
• Digital States
• HIGH = +3.3 VDC
• LOW = 0 VDC
• RPi Models
• A  B = ~21 GPIO
• B+ = 28 GPIO
• Compute Module = 46 GPIO
#DV14 #pi4j @savageautomate

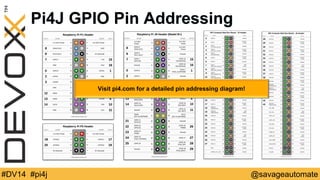

Pi4J GPIO Pin Addressing
Visit pi4.com for a detailed pin addressing diagram!
#DV14 #pi4j @savageautomate

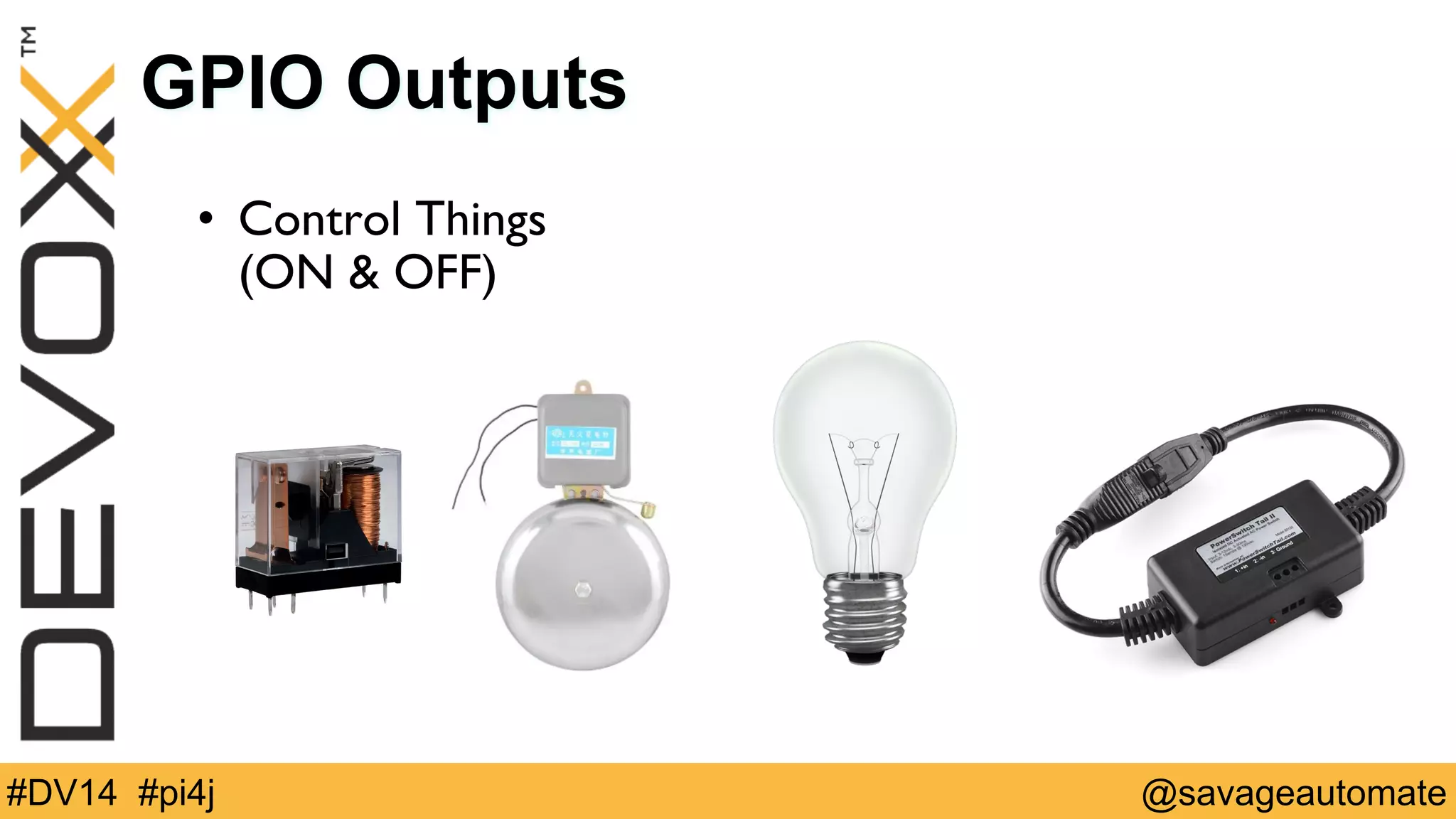

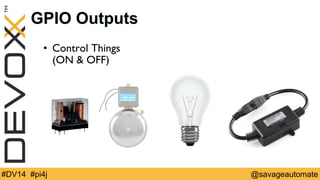

GPIO Outputs
• Control Things
(ON  OFF)
#DV14 #pi4j @savageautomate
GPIO Output Circuit
#DV14 #pi4j @savageautomate

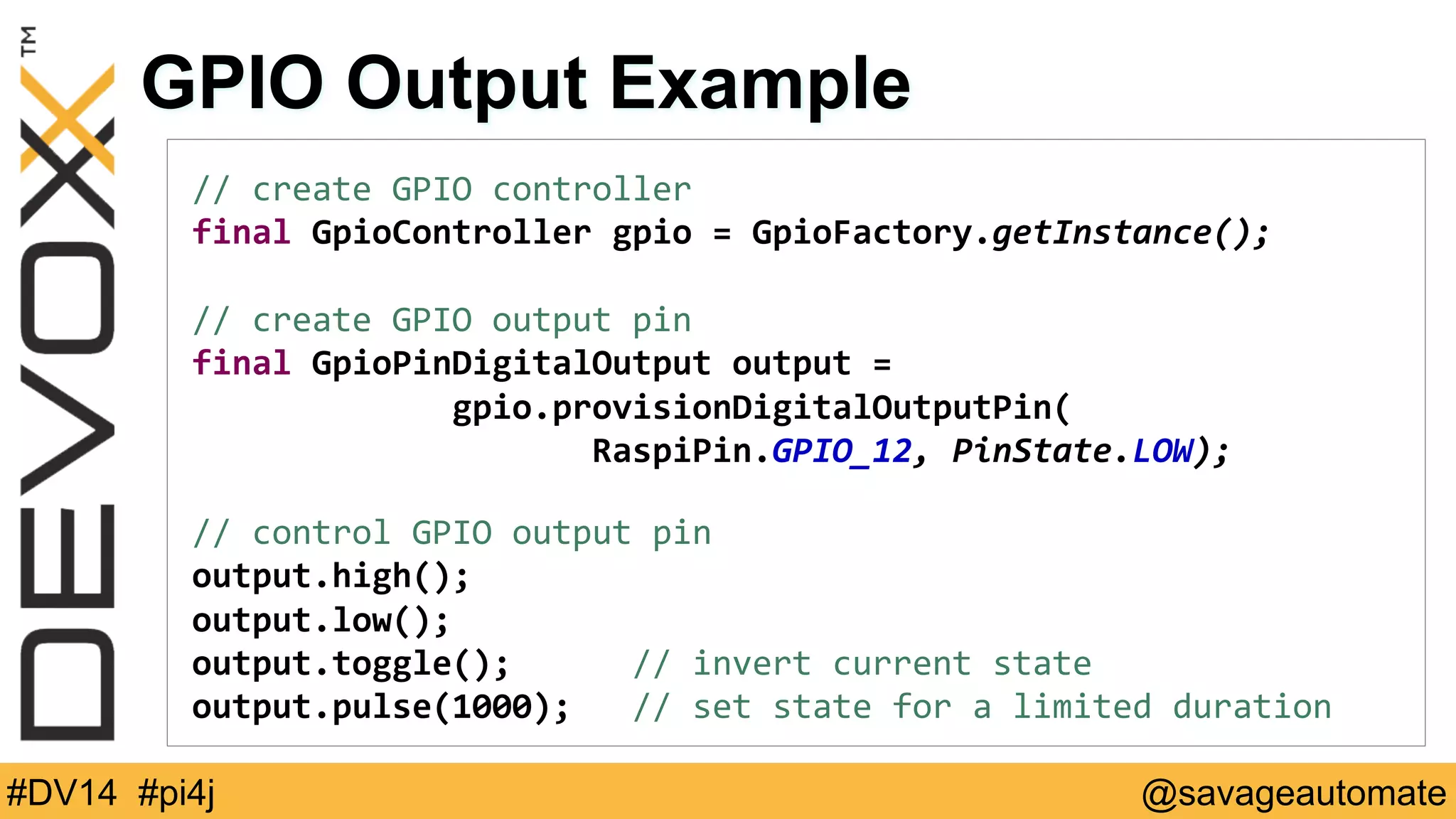

GPIO Output Example
//
create
GPIO
controller
final
GpioController
gpio
=
GpioFactory.getInstance();
//
create
GPIO
output
pin
final
GpioPinDigitalOutput
output
=
gpio.provisionDigitalOutputPin(
RaspiPin.GPIO_12,
PinState.LOW);
//
control
GPIO
output
pin
output.high();
output.low();
output.toggle();
//
invert
current
state
output.pulse(1000);
//
set
state
for
a
limited
duration
#DV14 #pi4j @savageautomate

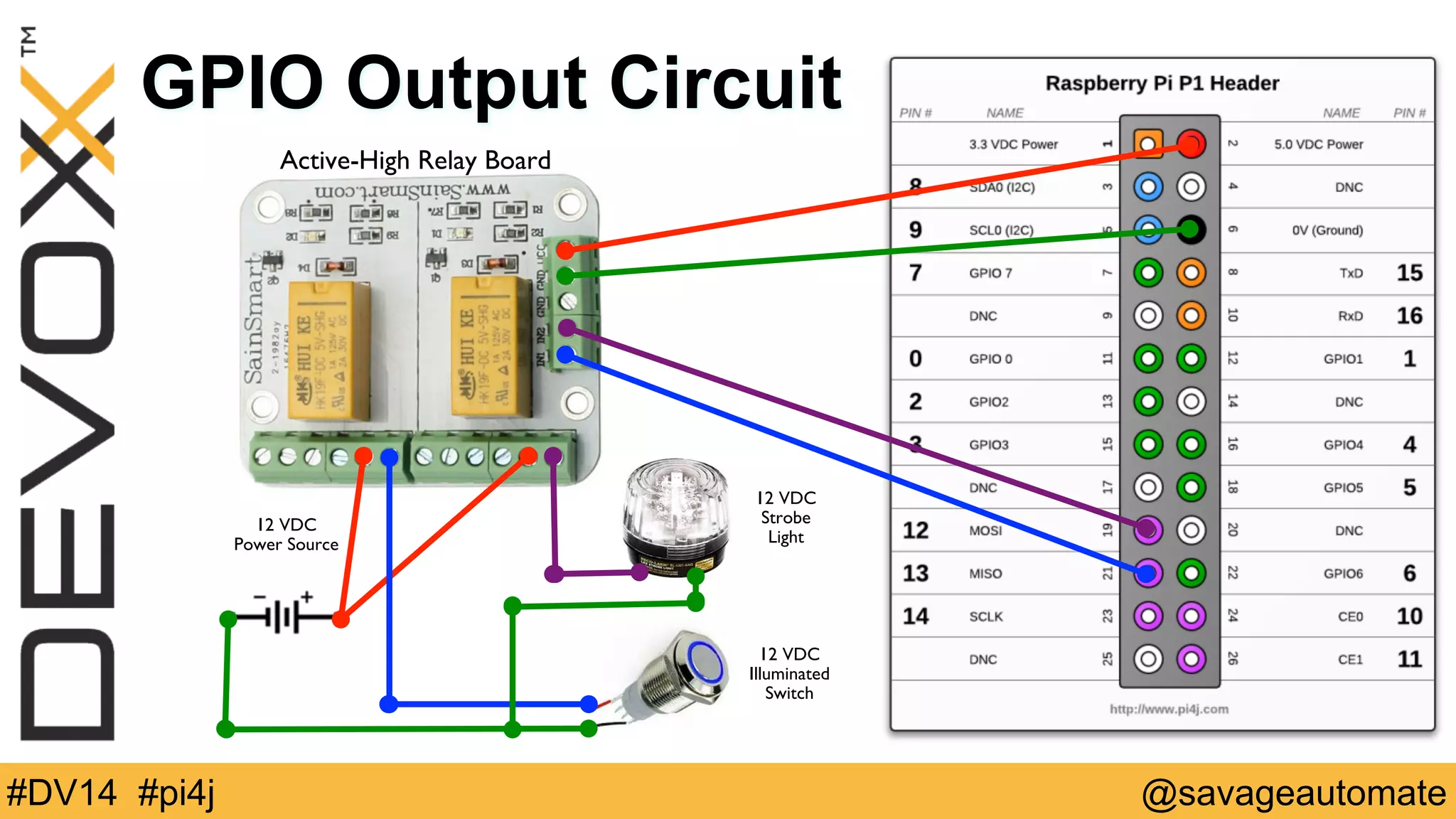

GPIO Output Circuit
Active-High Relay Board
12 VDC
Strobe
Light
12 VDC
Illuminated
Switch
12 VDC
Power Source
#DV14 #pi4j @savageautomate

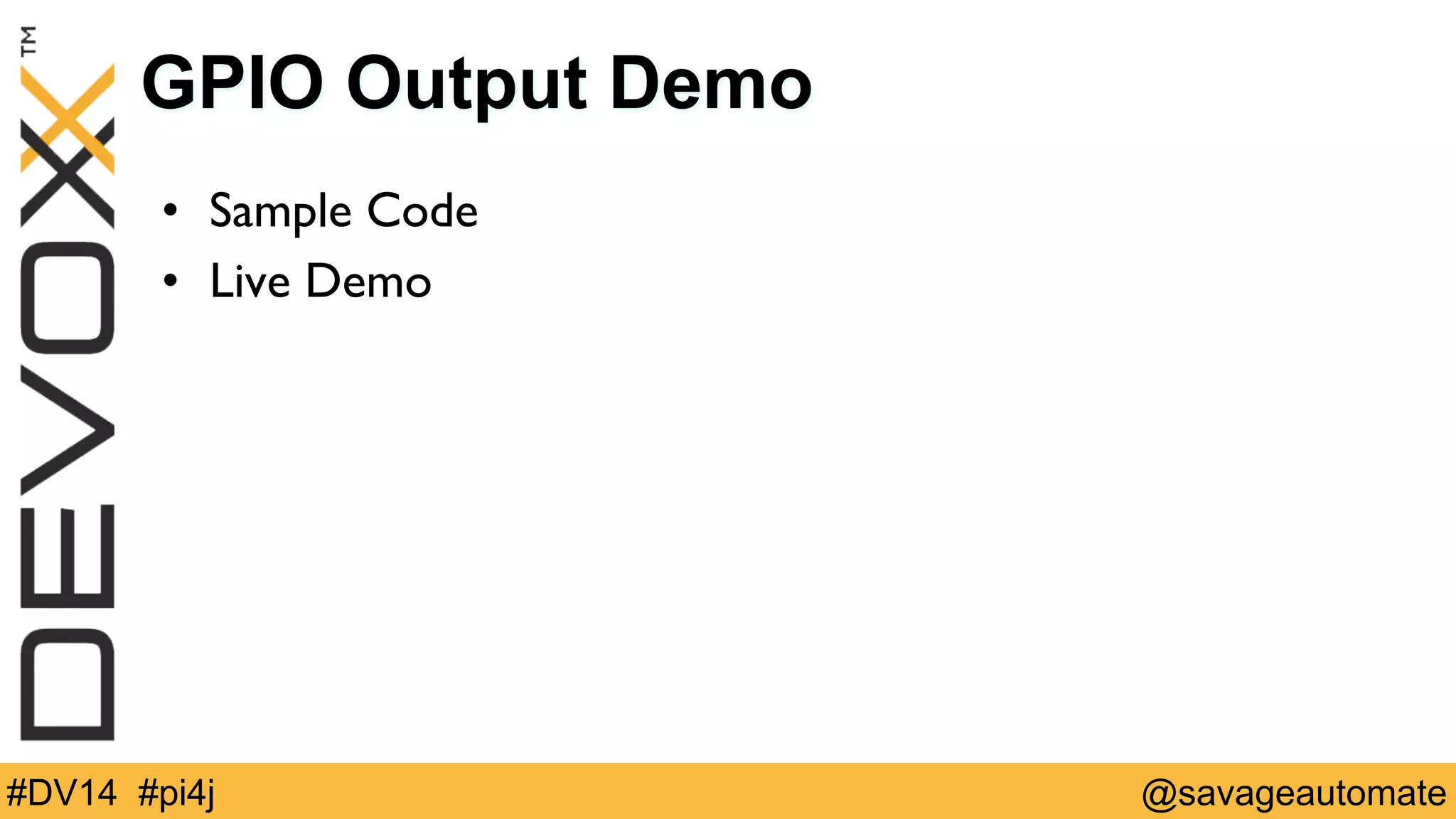

GPIO Output Demo
• Sample Code
• Live Demo
#DV14 #pi4j @savageautomate

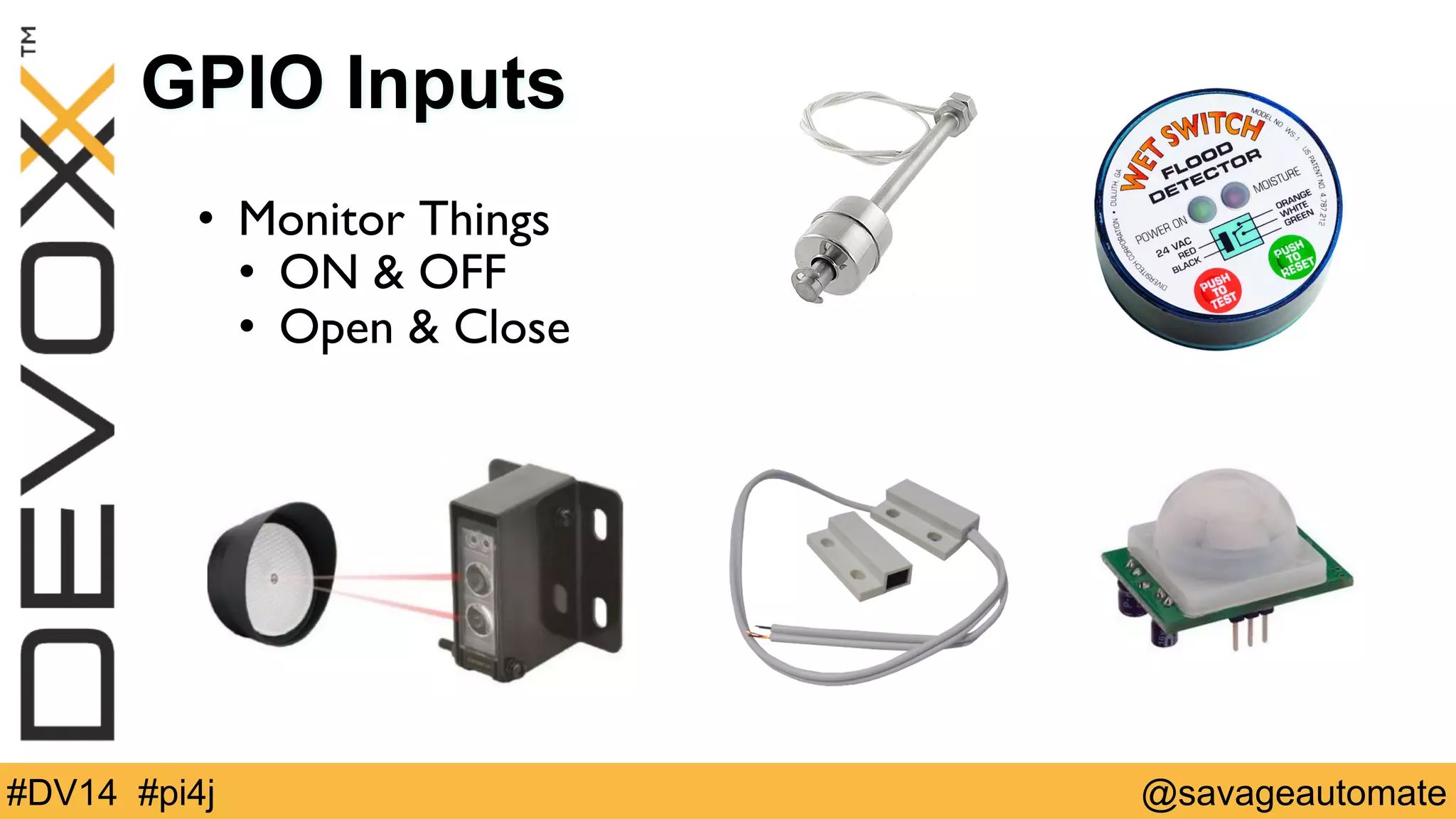

GPIO Inputs
• Monitor Things
• ON  OFF
• Open  Close
#DV14 #pi4j @savageautomate

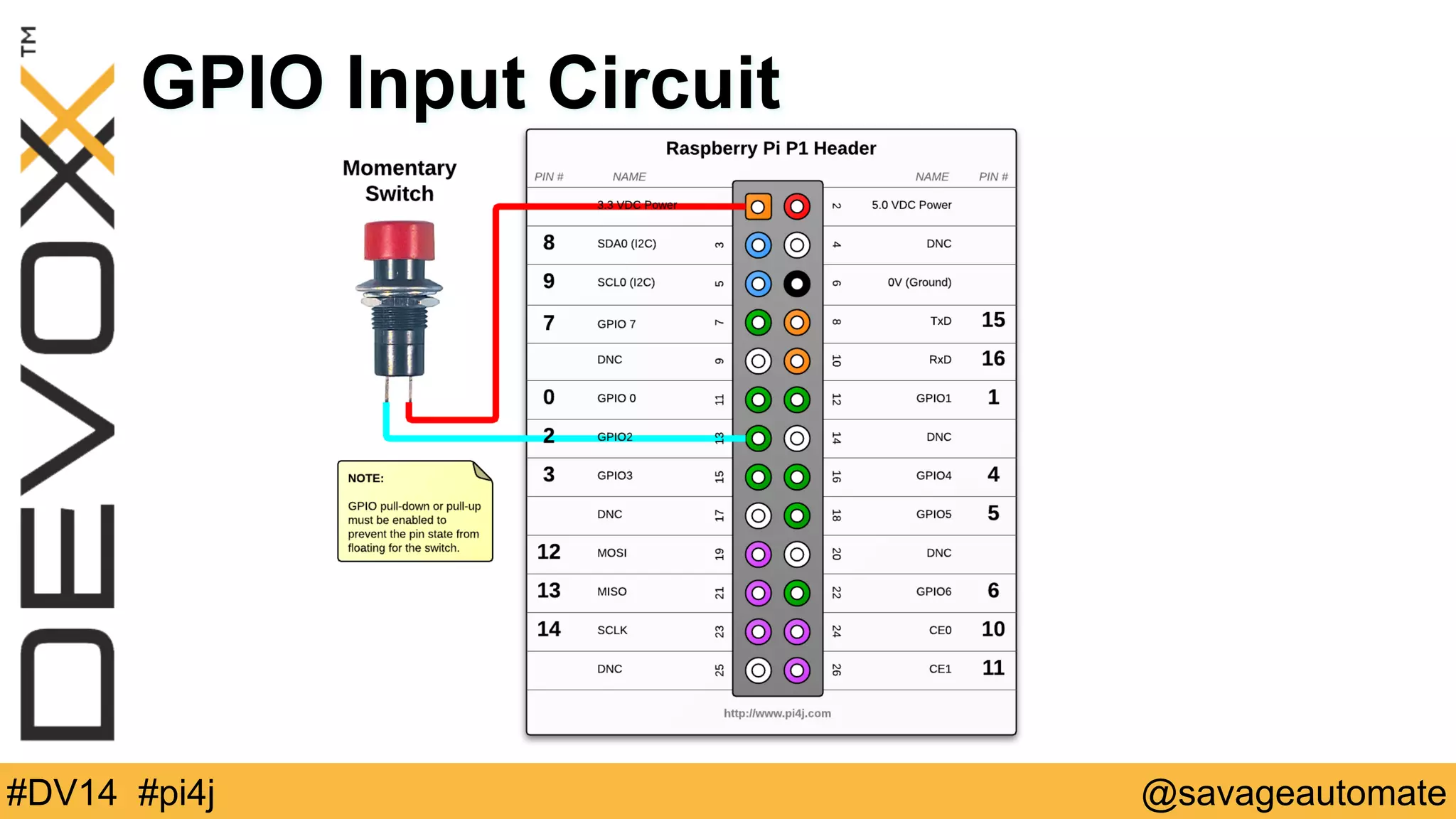

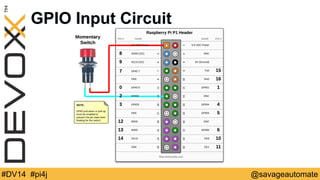

GPIO Input Circuit
#DV14 #pi4j @savageautomate

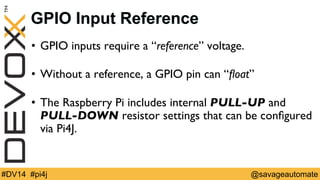

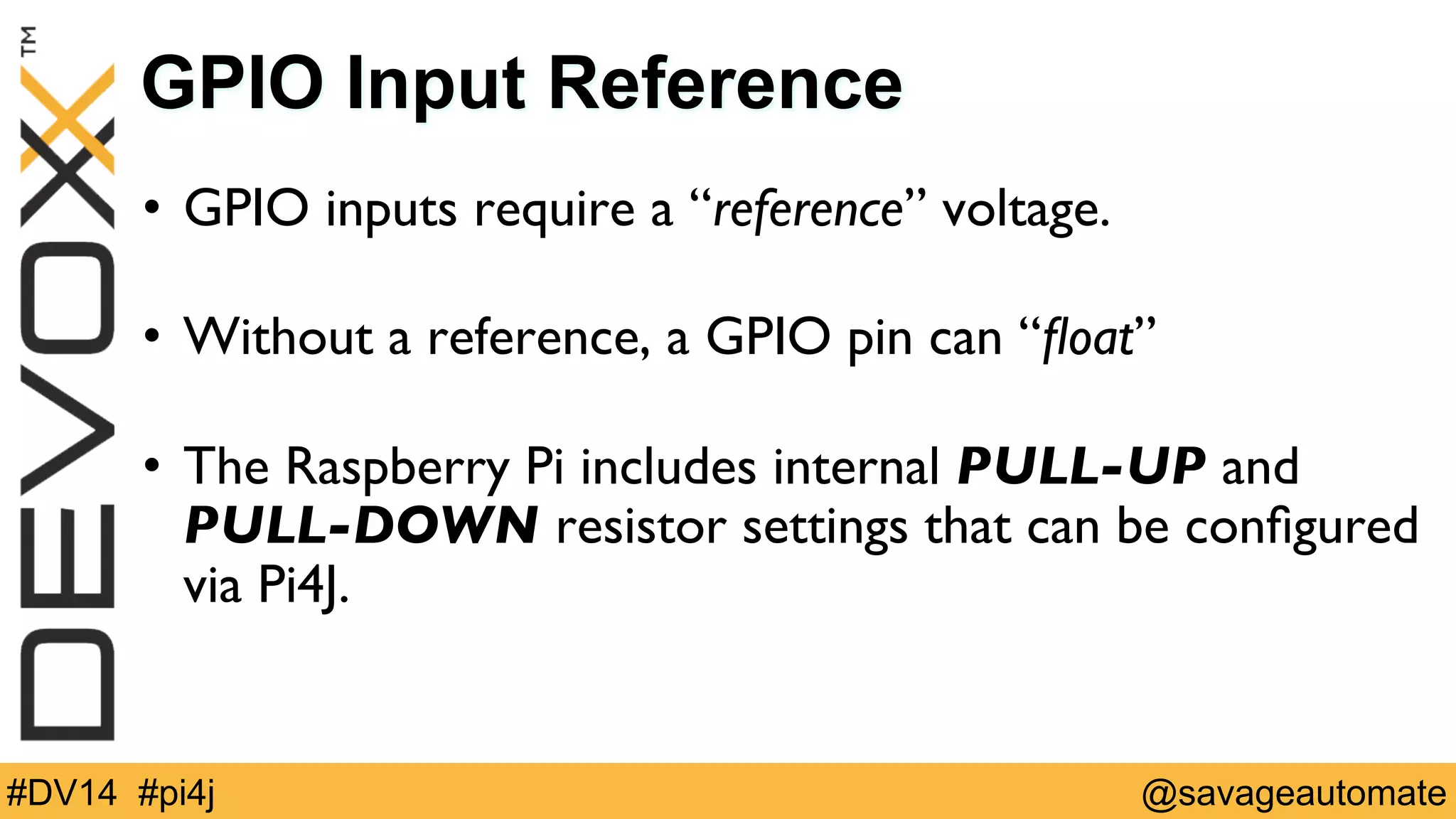

GPIO Input Reference
• GPIO inputs require a “reference” voltage.
• Without a reference, a GPIO pin can “float”
• The Raspberry Pi includes internal PULL-UP and
PULL-DOWN resistor settings that can be configured
via Pi4J.
#DV14 #pi4j @savageautomate

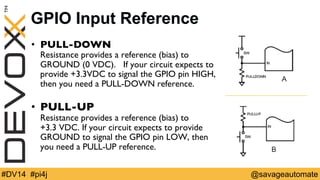

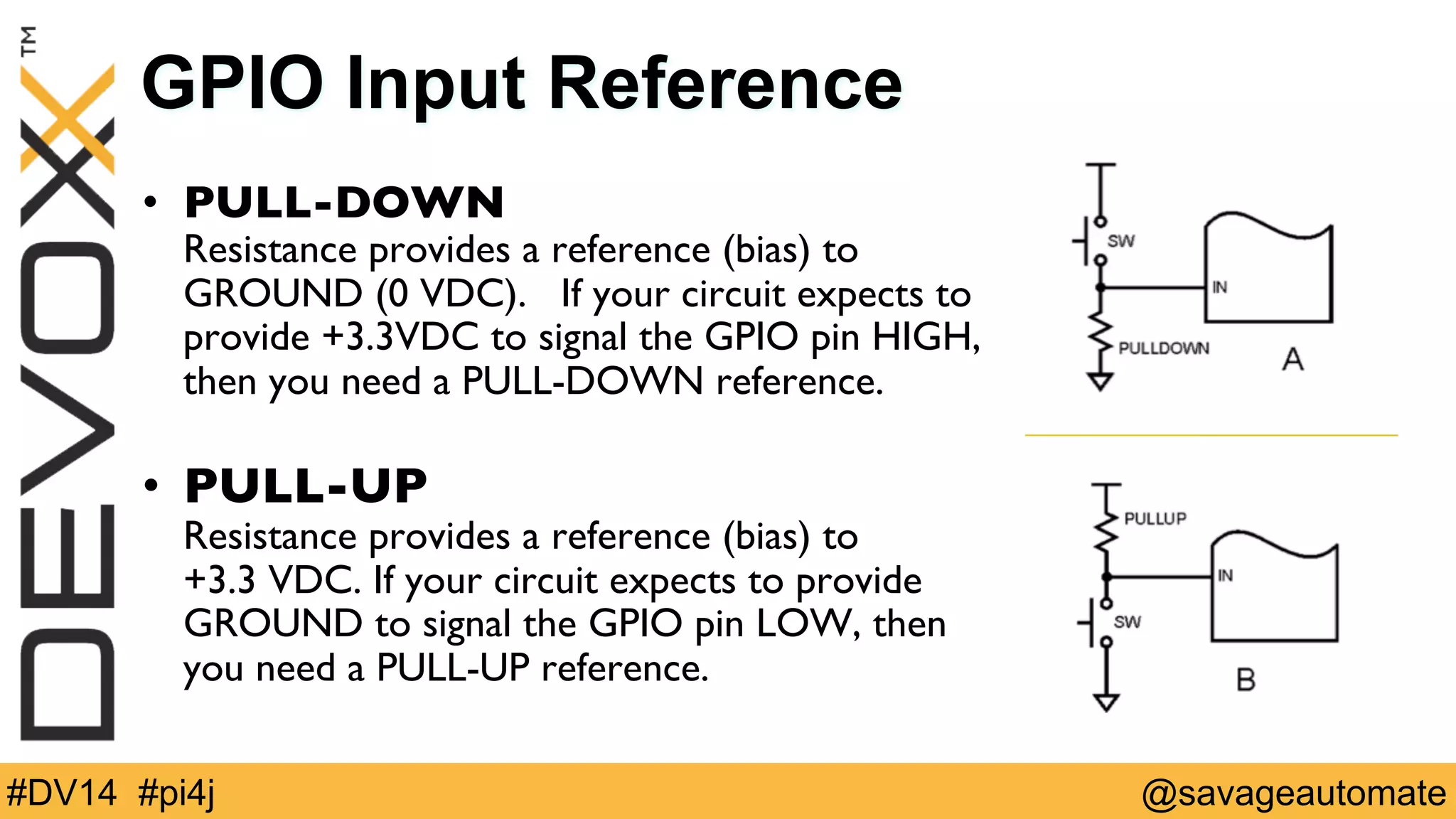

GPIO Input Reference
• PULL-DOWN
Resistance provides a reference (bias) to
GROUND (0 VDC). If your circuit expects to
provide +3.3VDC to signal the GPIO pin HIGH,
then you need a PULL-DOWN reference.
• PULL-UP
Resistance provides a reference (bias) to
+3.3 VDC. If your circuit expects to provide
GROUND to signal the GPIO pin LOW, then
you need a PULL-UP reference.
#DV14 #pi4j @savageautomate

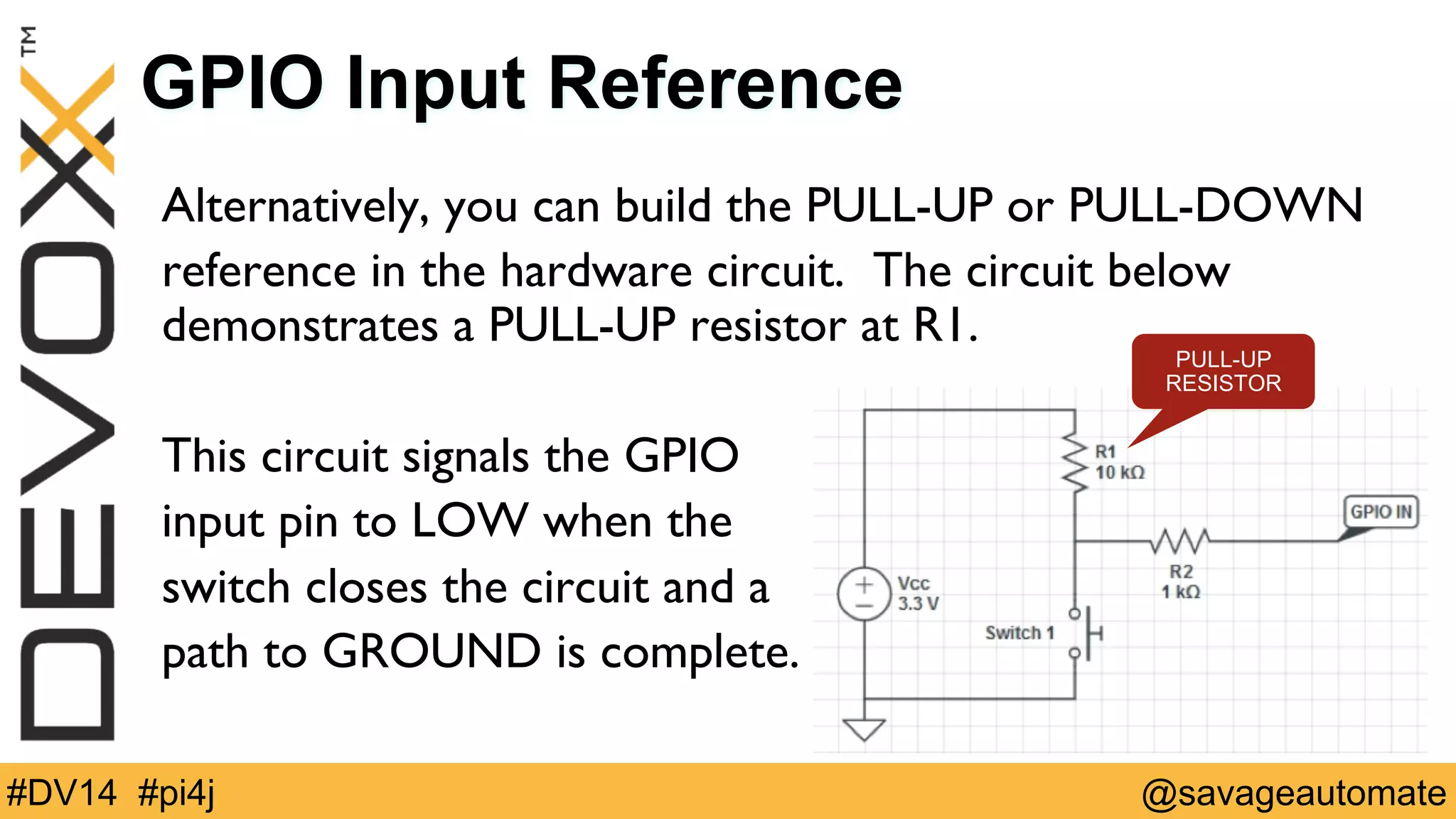

GPIO Input Reference
Alternatively, you can build the PULL-UP or PULL-DOWN
reference in the hardware circuit. The circuit below
demonstrates a PULL-UP resistor at R1.
This circuit signals the GPIO
input pin to LOW when the
switch closes the circuit and a
path to GROUND is complete.
PULL-UP
RESISTOR
#DV14 #pi4j @savageautomate

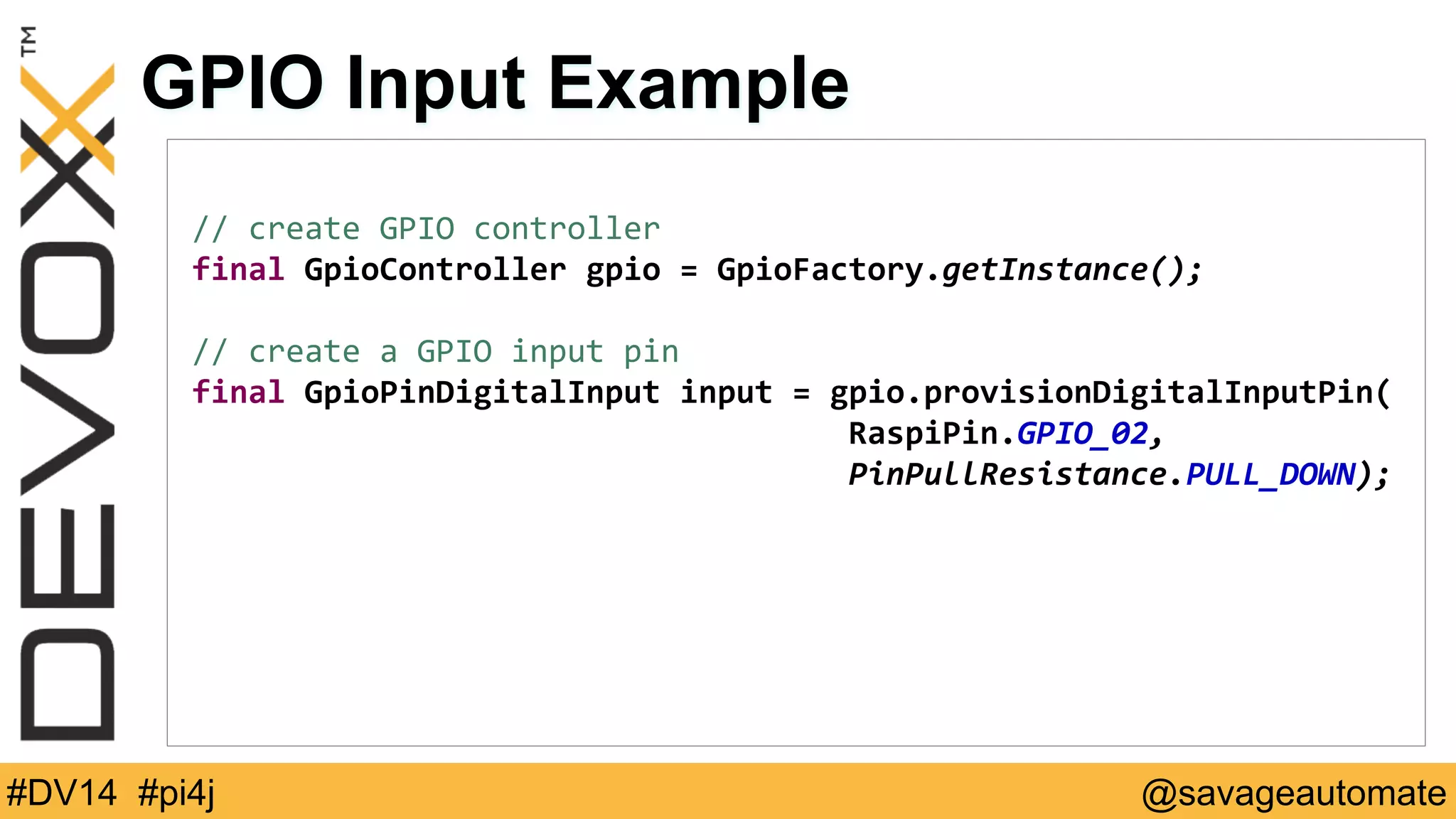

GPIO Input Example
//
create
GPIO
controller
final
GpioController
gpio
=
GpioFactory.getInstance();
//
create
a
GPIO
input
pin
final
GpioPinDigitalInput
input
=
gpio.provisionDigitalInputPin(
RaspiPin.GPIO_02,
PinPullResistance.PULL_DOWN);
#DV14 #pi4j @savageautomate

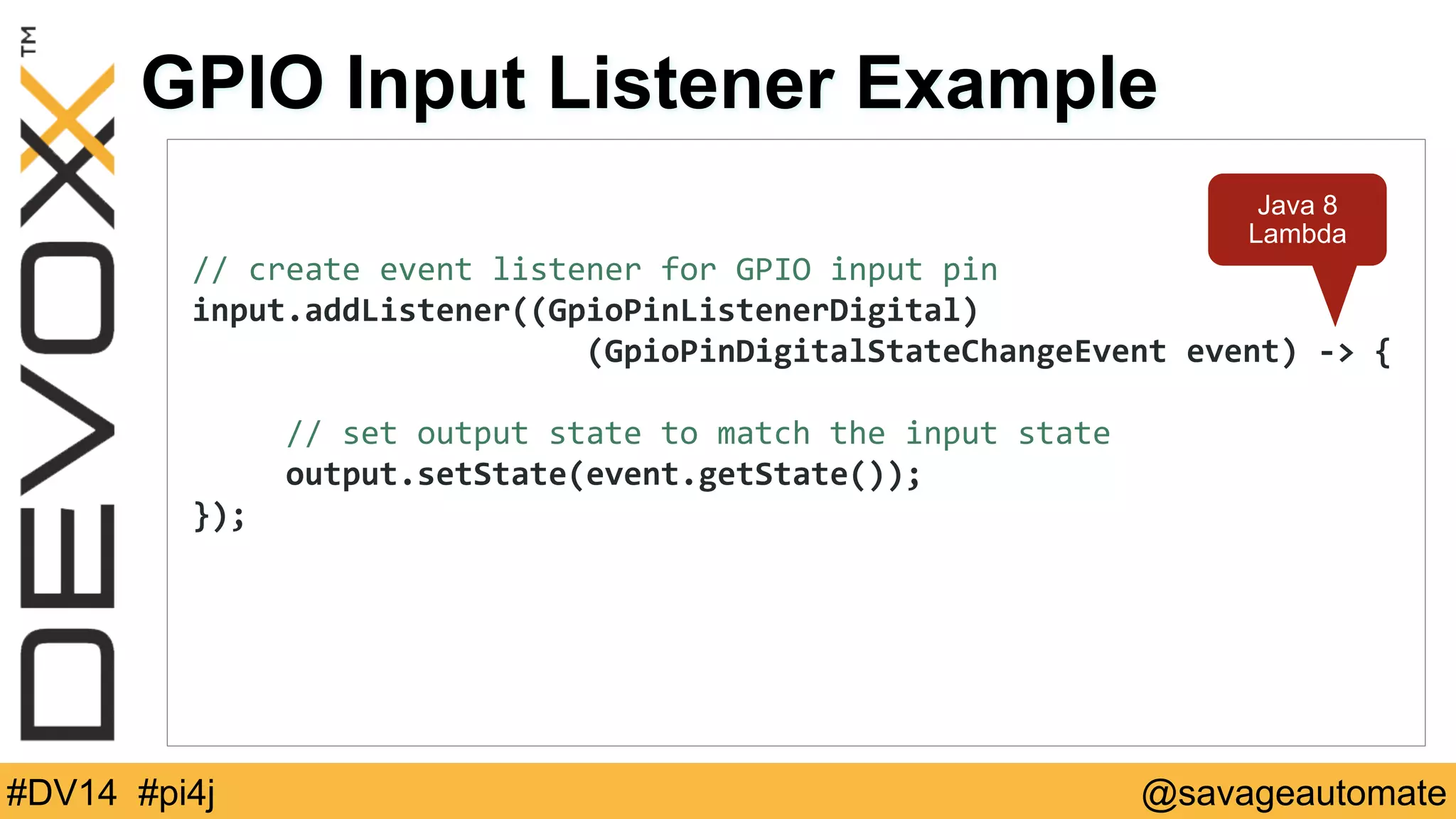

GPIO Input Listener Example
//
create
event
listener
for
GPIO
input
pin
input.addListener((GpioPinListenerDigital)
Java 8
Lambda
(GpioPinDigitalStateChangeEvent
event)
-­‐
{
//
set
output
state
to
match
the
input
state
output.setState(event.getState());
});
#DV14 #pi4j @savageautomate

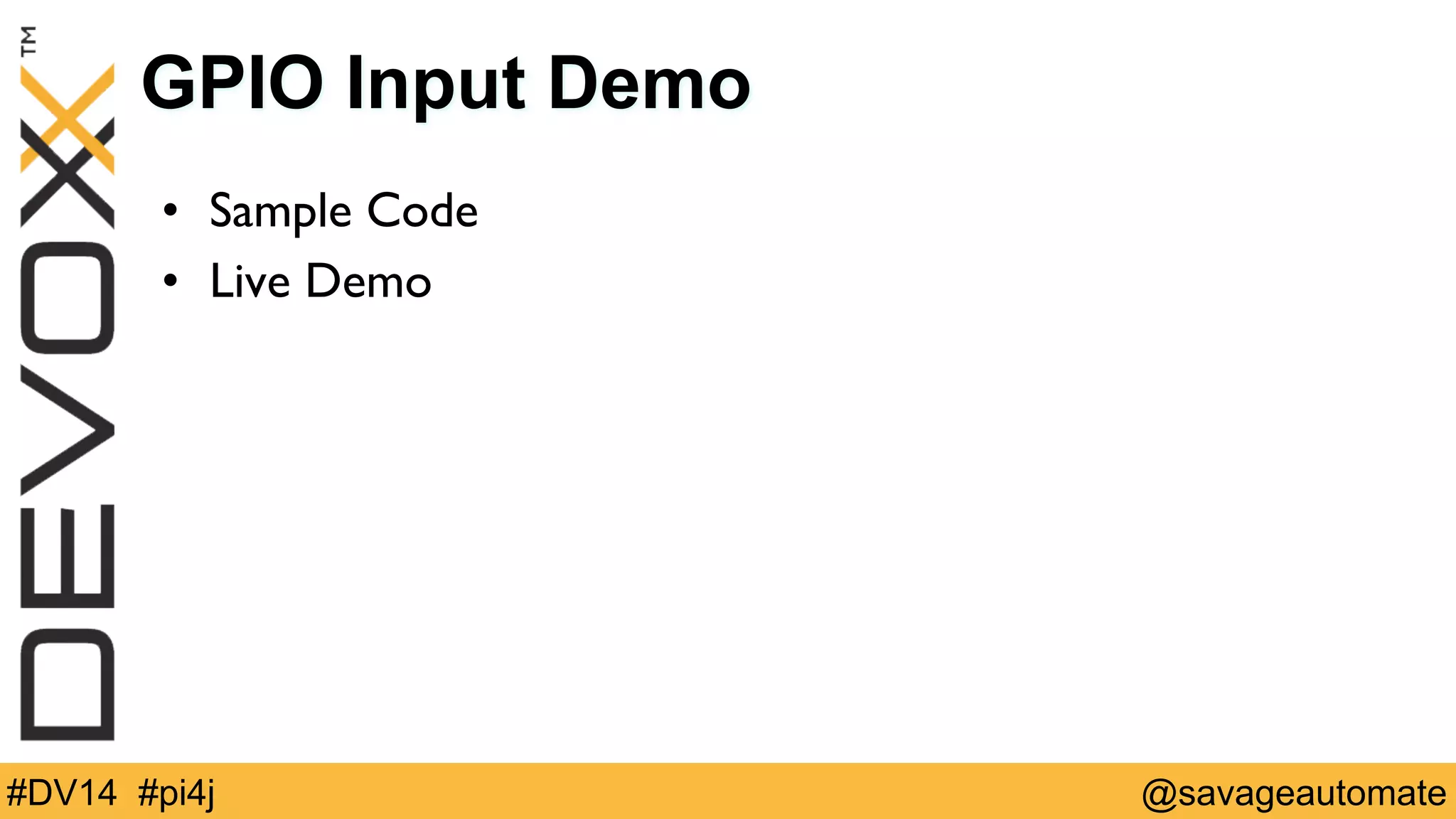

GPIO Input Demo
• Sample Code
• Live Demo
#DV14 #pi4j @savageautomate

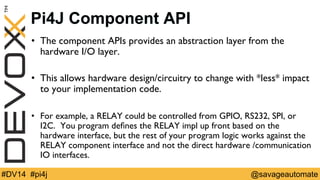

Pi4J Component API
• The component APIs provides an abstraction layer from the
hardware I/O layer.
• This allows hardware design/circuitry to change with *less* impact
to your implementation code.
• For example, a RELAY could be controlled from GPIO, RS232, SPI, or
I2C. You program defines the RELAY impl up front based on the
hardware interface, but the rest of your program logic works against the
RELAY component interface and not the direct hardware /communication
IO interfaces.
#DV14 #pi4j @savageautomate

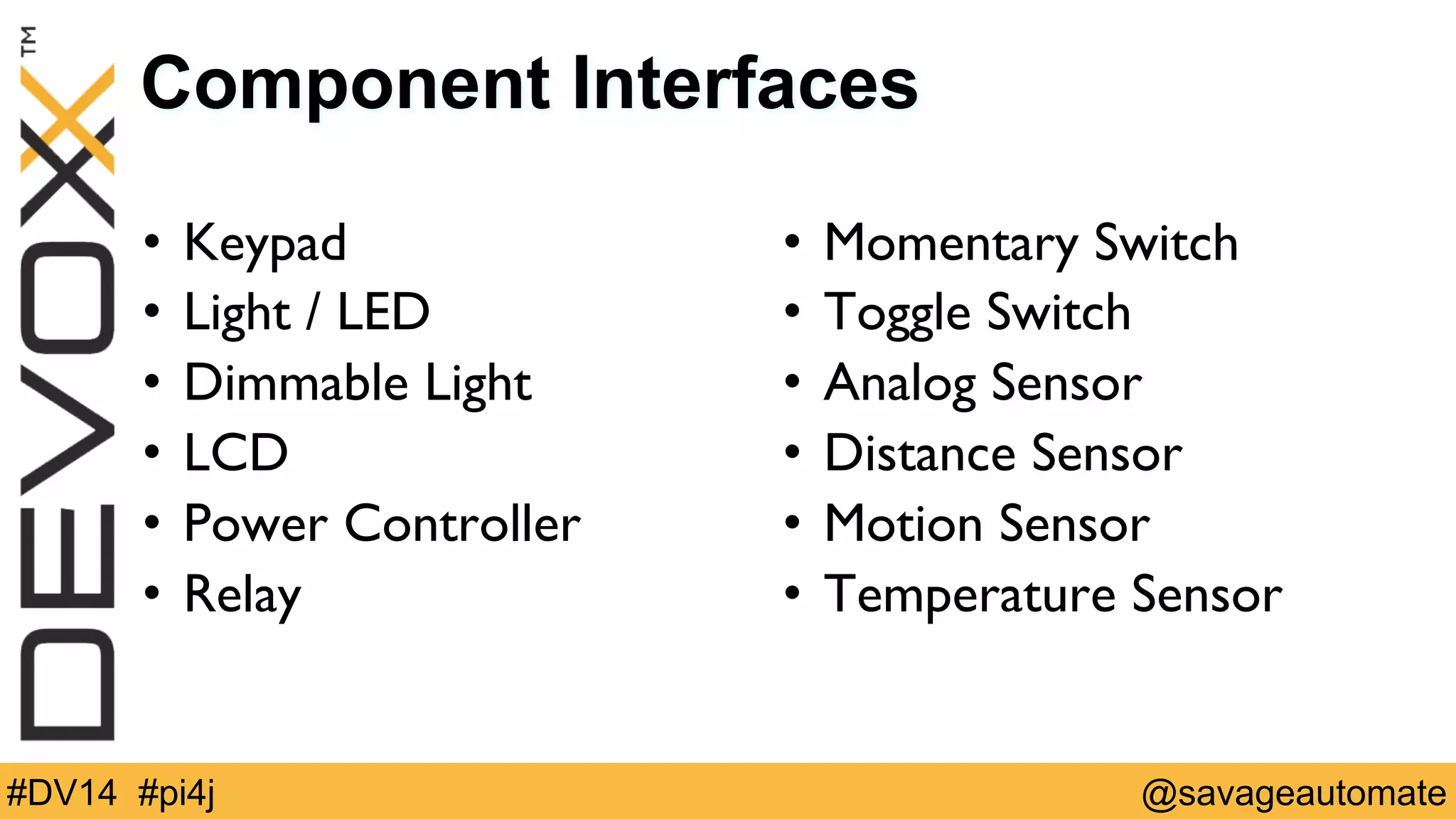

Component Interfaces
• Keypad
• Light / LED
• Dimmable Light
• LCD
• Power Controller
• Relay
• Momentary Switch
• Toggle Switch
• Analog Sensor
• Distance Sensor
• Motion Sensor
• Temperature Sensor
#DV14 #pi4j @savageautomate

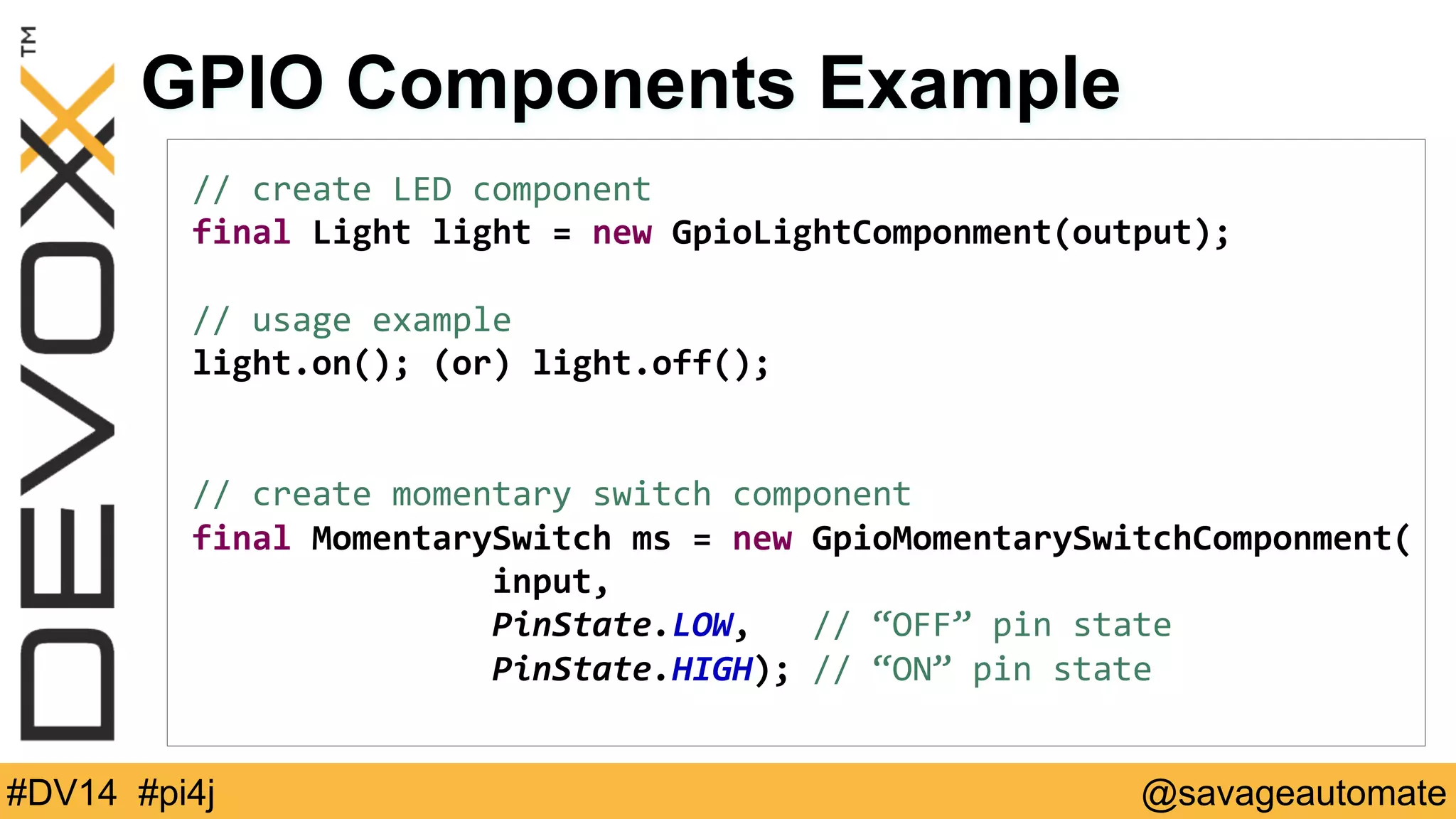

GPIO Components Example
//
create
LED
component
final
Light
light
=
new
GpioLightComponment(output);
//
usage
example
light.on();
(or)
light.off();
//
create
momentary
switch
component
final
MomentarySwitch
ms
=
new
GpioMomentarySwitchComponment(
input,
PinState.LOW,
//
“OFF”
pin
state
PinState.HIGH);
//
“ON”
pin
state
#DV14 #pi4j @savageautomate

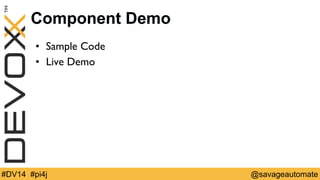

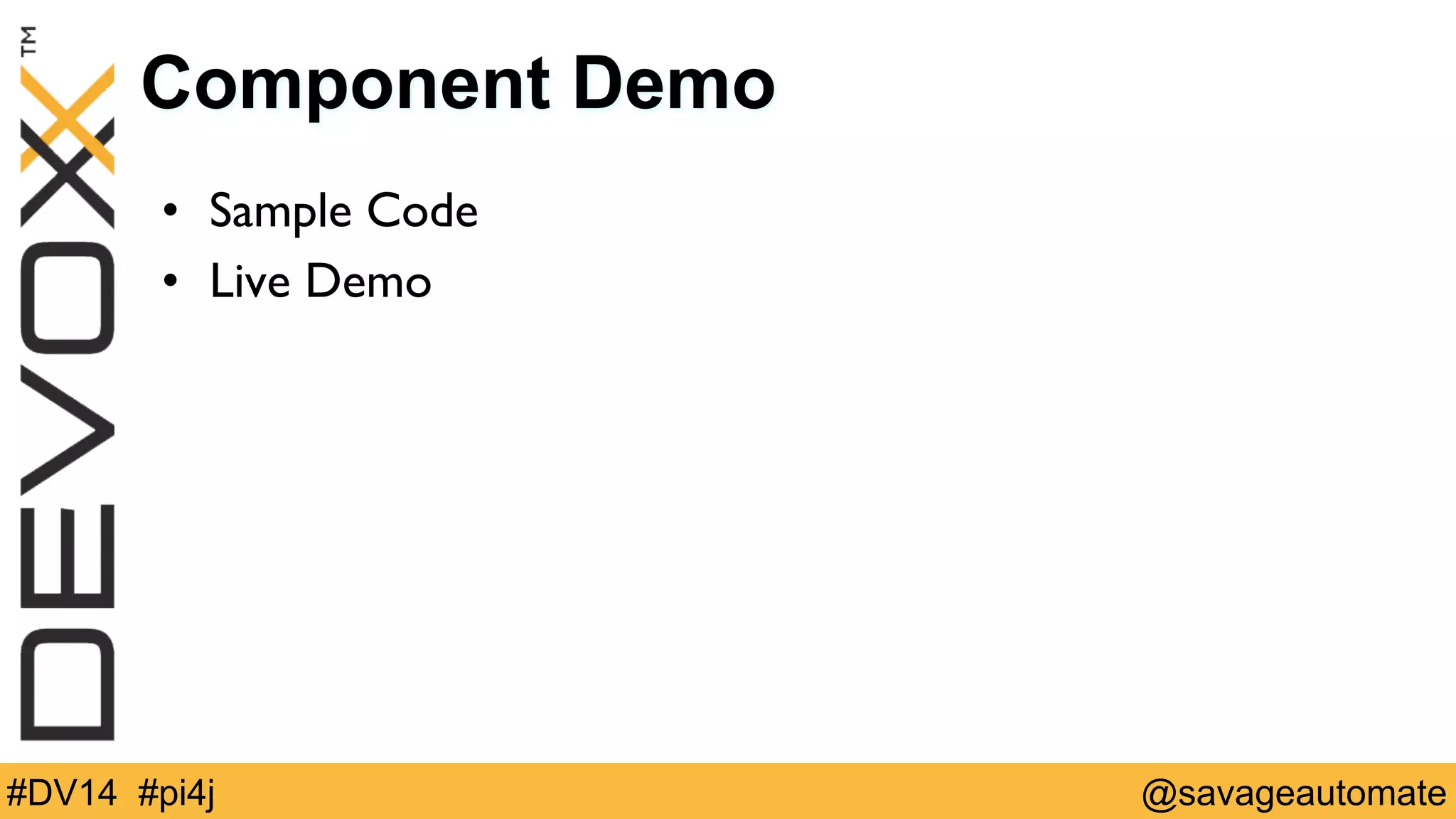

Component Demo
• Sample Code
• Live Demo
#DV14 #pi4j @savageautomate

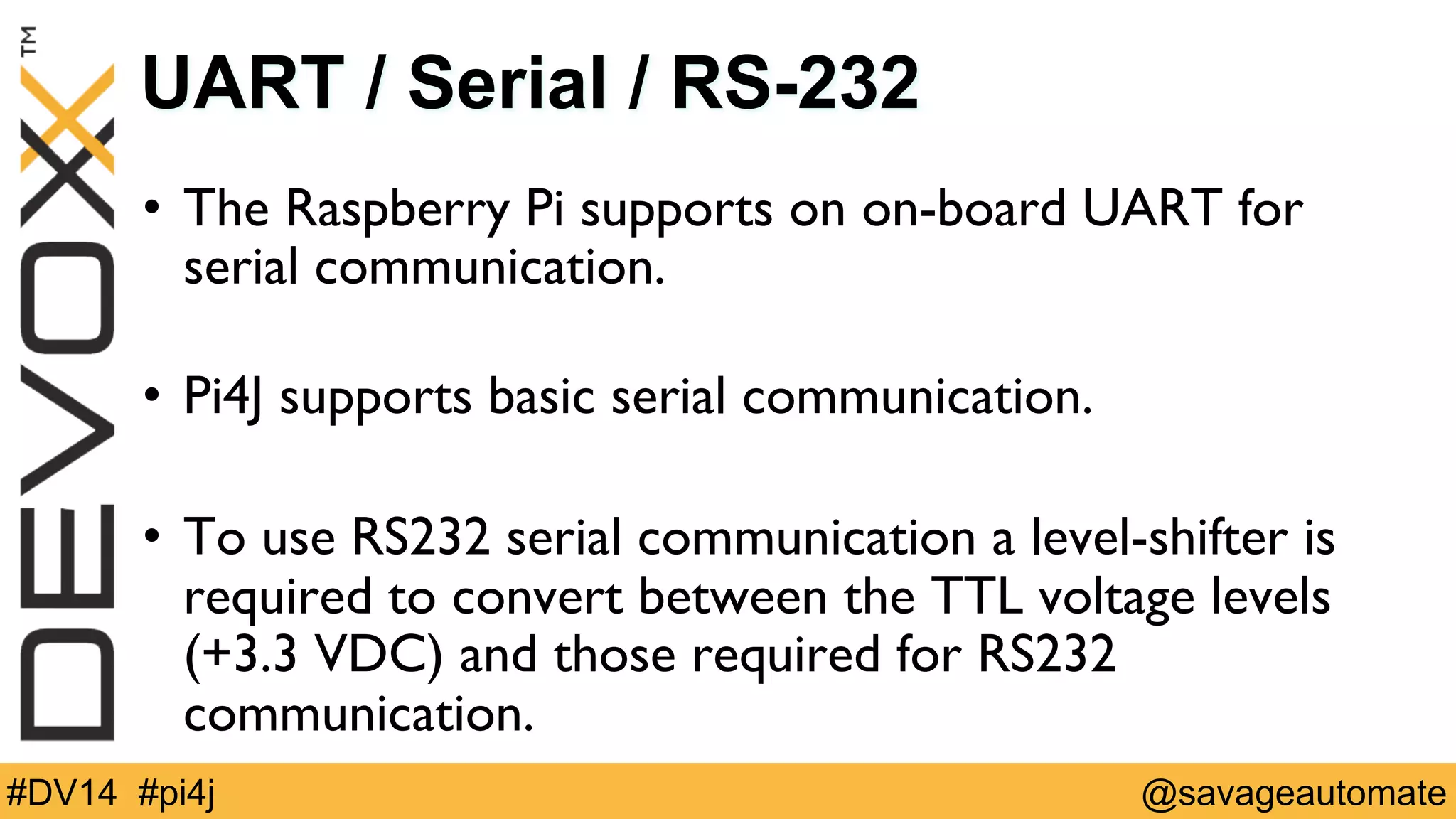

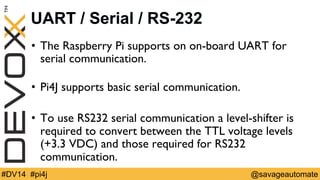

UART / Serial / RS-232
• The Raspberry Pi supports on on-board UART for
serial communication.
• Pi4J supports basic serial communication.
• To use RS232 serial communication a level-shifter is
required to convert between the TTL voltage levels
(+3.3 VDC) and those required for RS232
communication.
#DV14 #pi4j @savageautomate

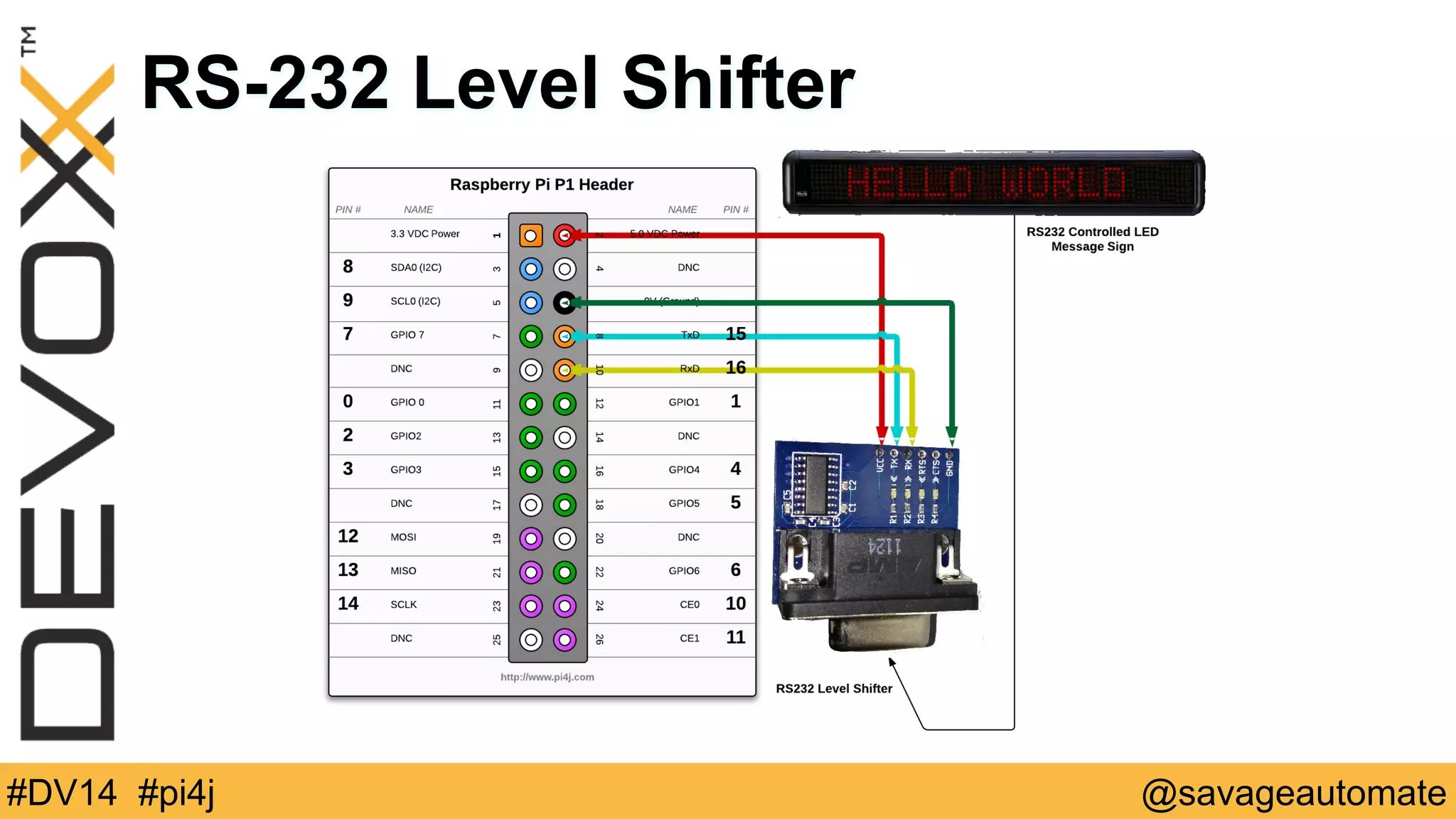

RS-232 Level Shifter
#DV14 #pi4j @savageautomate

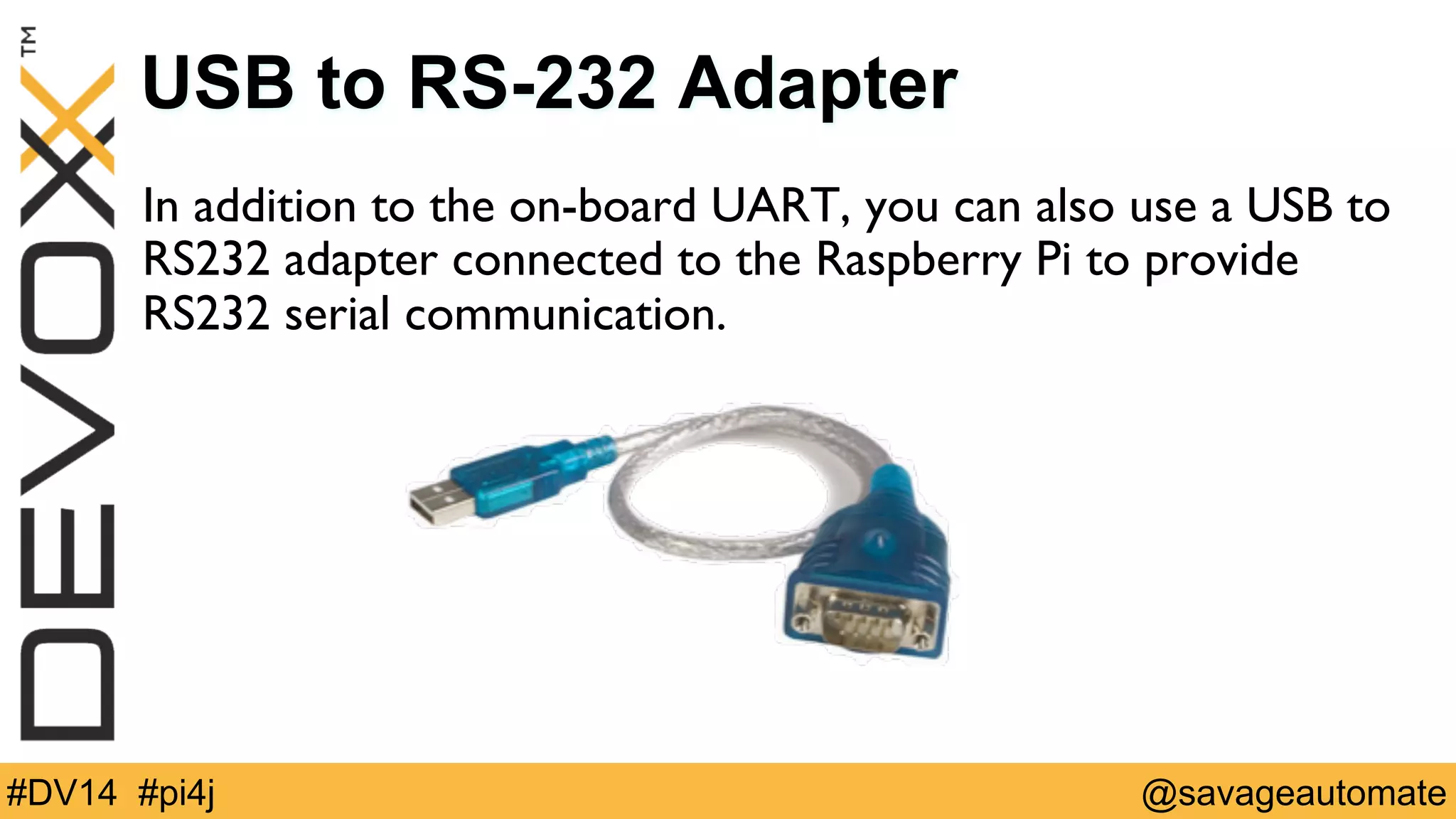

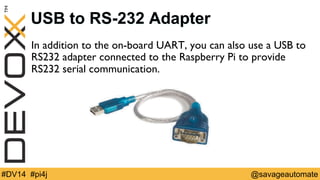

USB to RS-232 Adapter
In addition to the on-board UART, you can also use a USB to
RS232 adapter connected to the Raspberry Pi to provide
RS232 serial communication.
#DV14 #pi4j @savageautomate

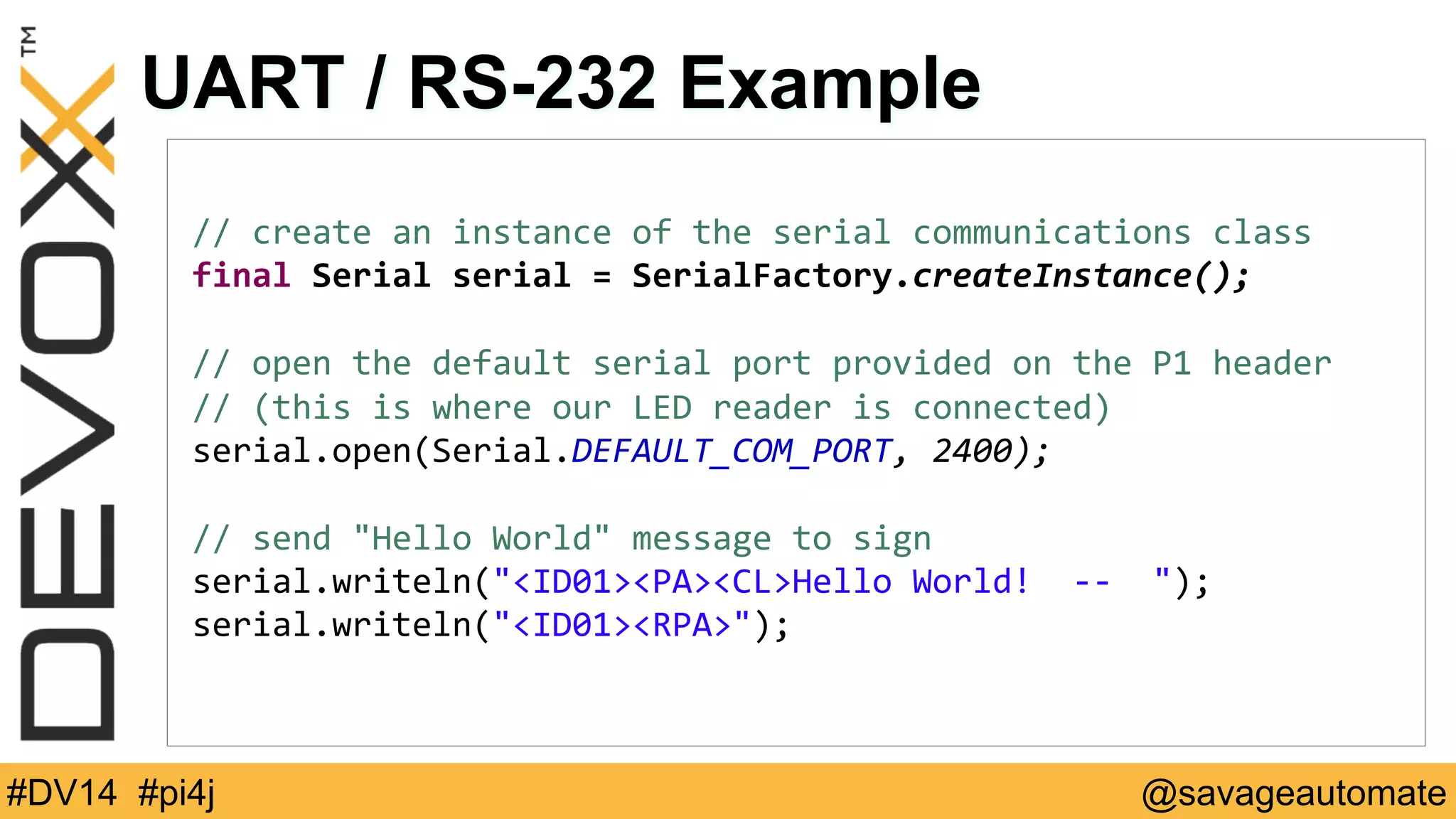

UART / RS-232 Example
//
create
an
instance
of
the
serial
communications
class
final
Serial
serial
=
SerialFactory.createInstance();
//
open
the
default
serial
port
provided
on
the
P1
header
//
(this
is
where
our
LED
reader
is
connected)
serial.open(Serial.DEFAULT_COM_PORT,
2400);
//
send
Hello
World
message
to
sign
serial.writeln(ID01PACLHello
World!
-­‐-­‐
);
serial.writeln(ID01RPA);
#DV14 #pi4j @savageautomate

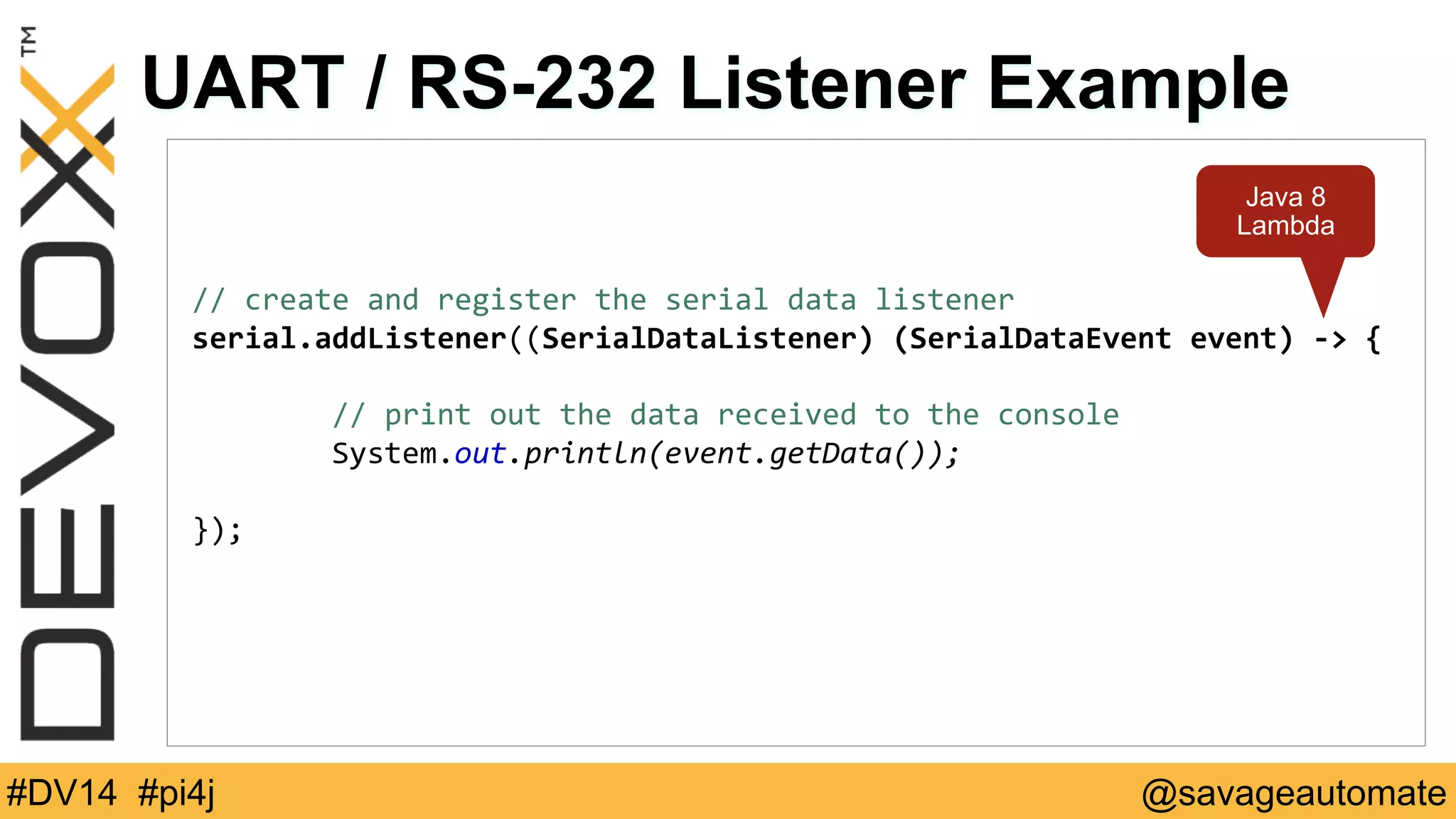

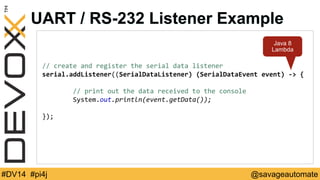

UART / RS-232 Listener Example
//
create
and
register
the
serial
data
listener
serial.addListener((SerialDataListener)
Java 8
Lambda
(SerialDataEvent
event)
-­‐
{
//
print
out
the
data
received
to
the
console
System.out.println(event.getData());
});
#DV14 #pi4j @savageautomate

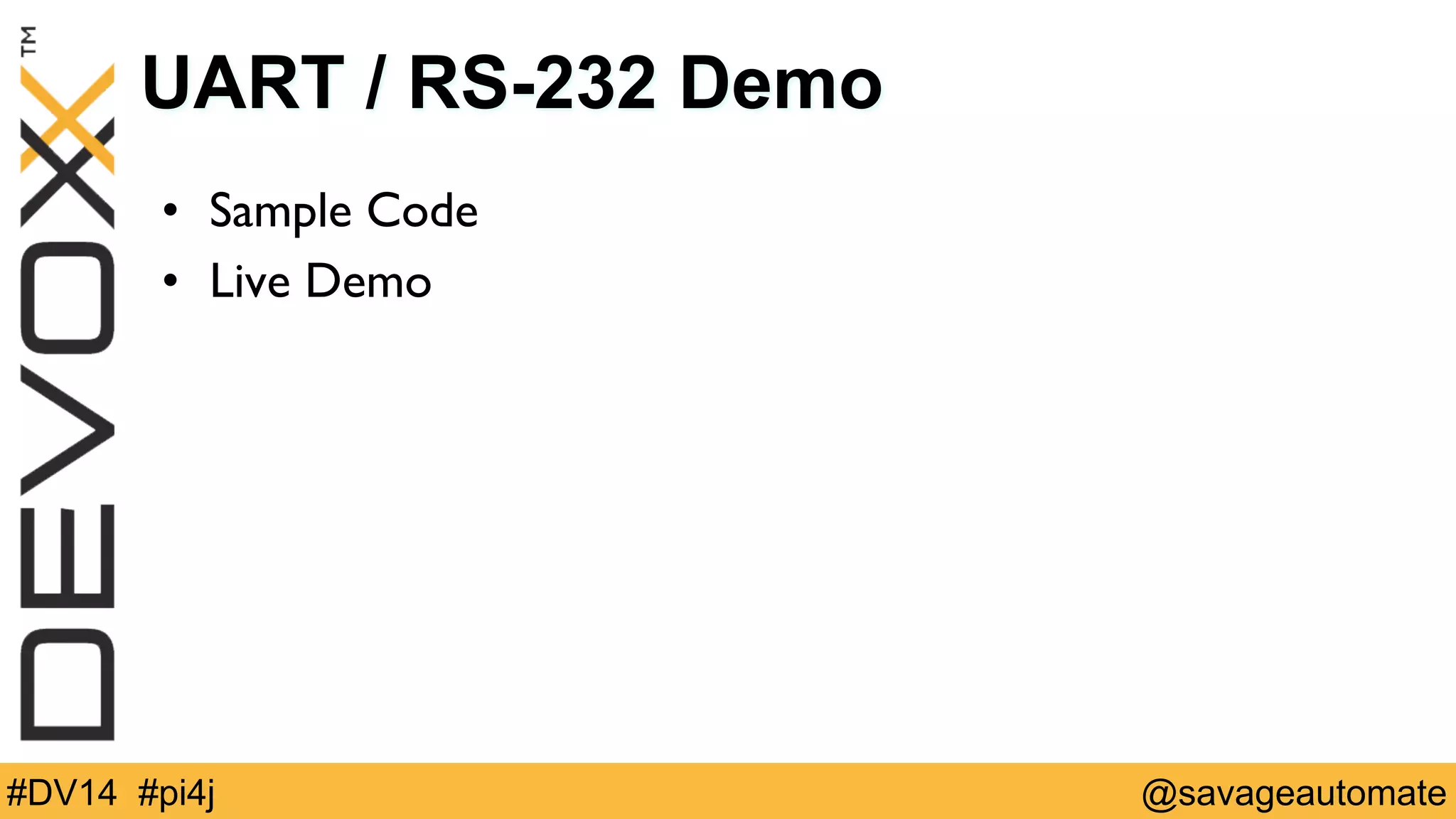

UART / RS-232 Demo
• Sample Code
• Live Demo
#DV14 #pi4j @savageautomate

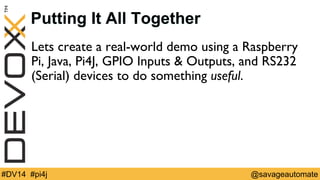

Putting It All Together
Lets create a real-world demo using a Raspberry
Pi, Java, Pi4J, GPIO Inputs  Outputs, and RS232
(Serial) devices to do something useful.
#DV14 #pi4j @savageautomate

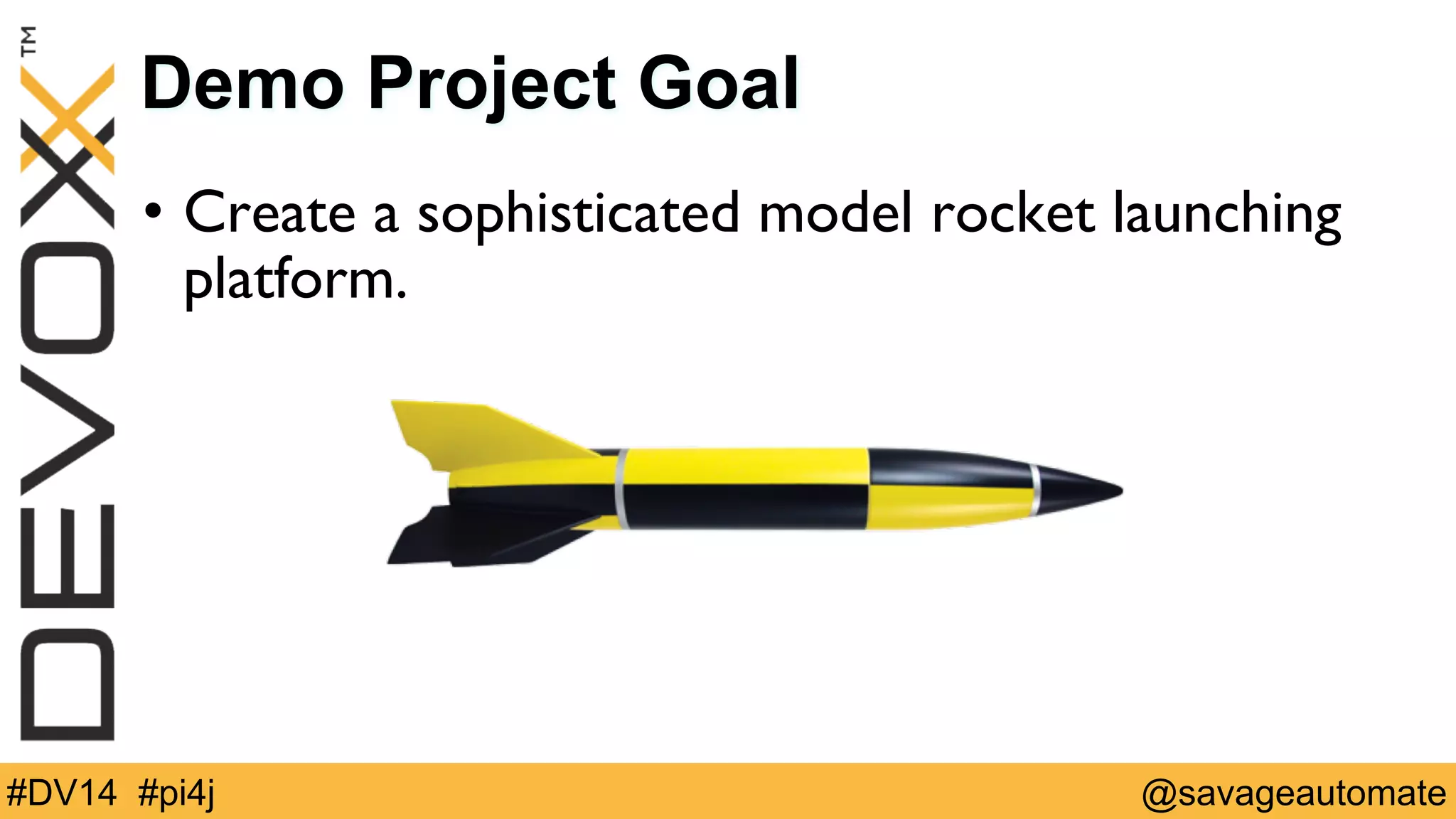

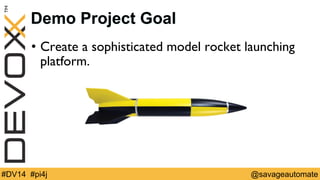

Demo Project Goal
• Create a sophisticated model rocket launching
platform.
#DV14 #pi4j @savageautomate

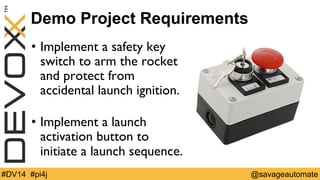

Demo Project Requirements
• Implement a safety key
switch to arm the rocket
and protect from
accidental launch ignition.
• Implement a launch
activation button to
initiate a launch sequence.
#DV14 #pi4j @savageautomate

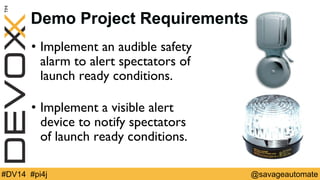

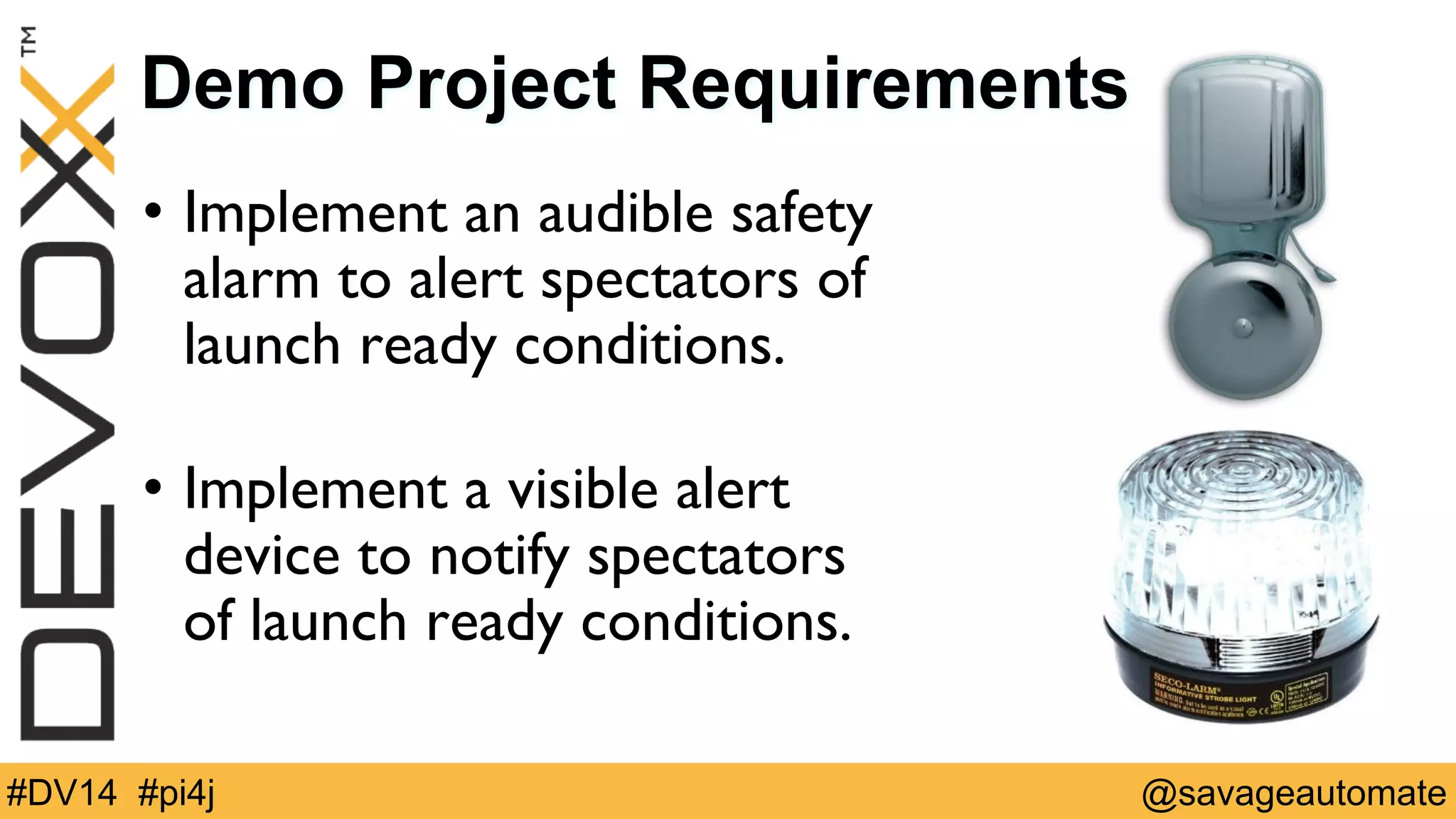

Demo Project Requirements
• Implement an audible safety
alarm to alert spectators of
launch ready conditions.
• Implement a visible alert
device to notify spectators
of launch ready conditions.
#DV14 #pi4j @savageautomate

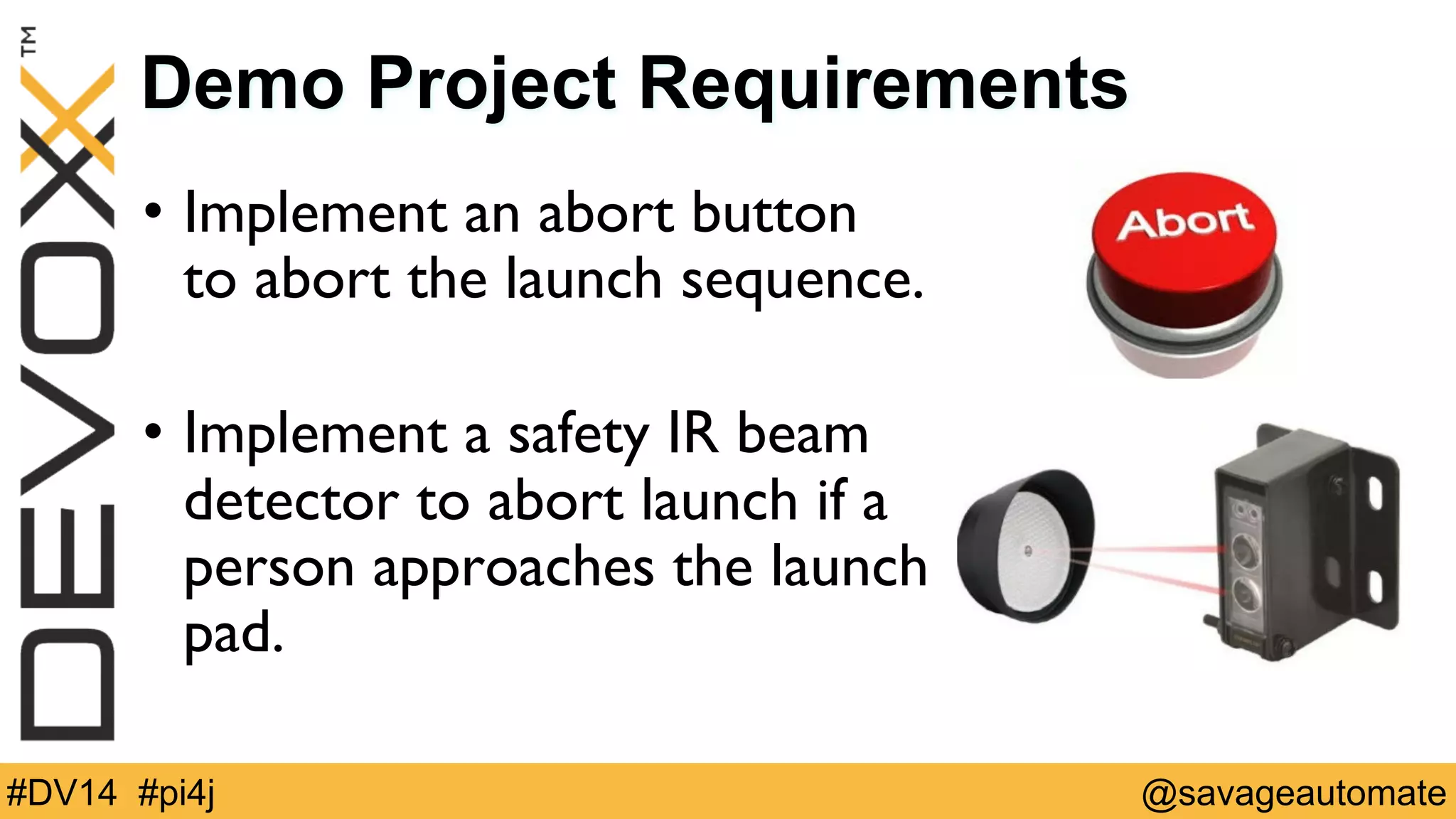

Demo Project Requirements
• Implement an abort button
to abort the launch sequence.
• Implement a safety IR beam
detector to abort launch if a
person approaches the launch
pad.
#DV14 #pi4j @savageautomate

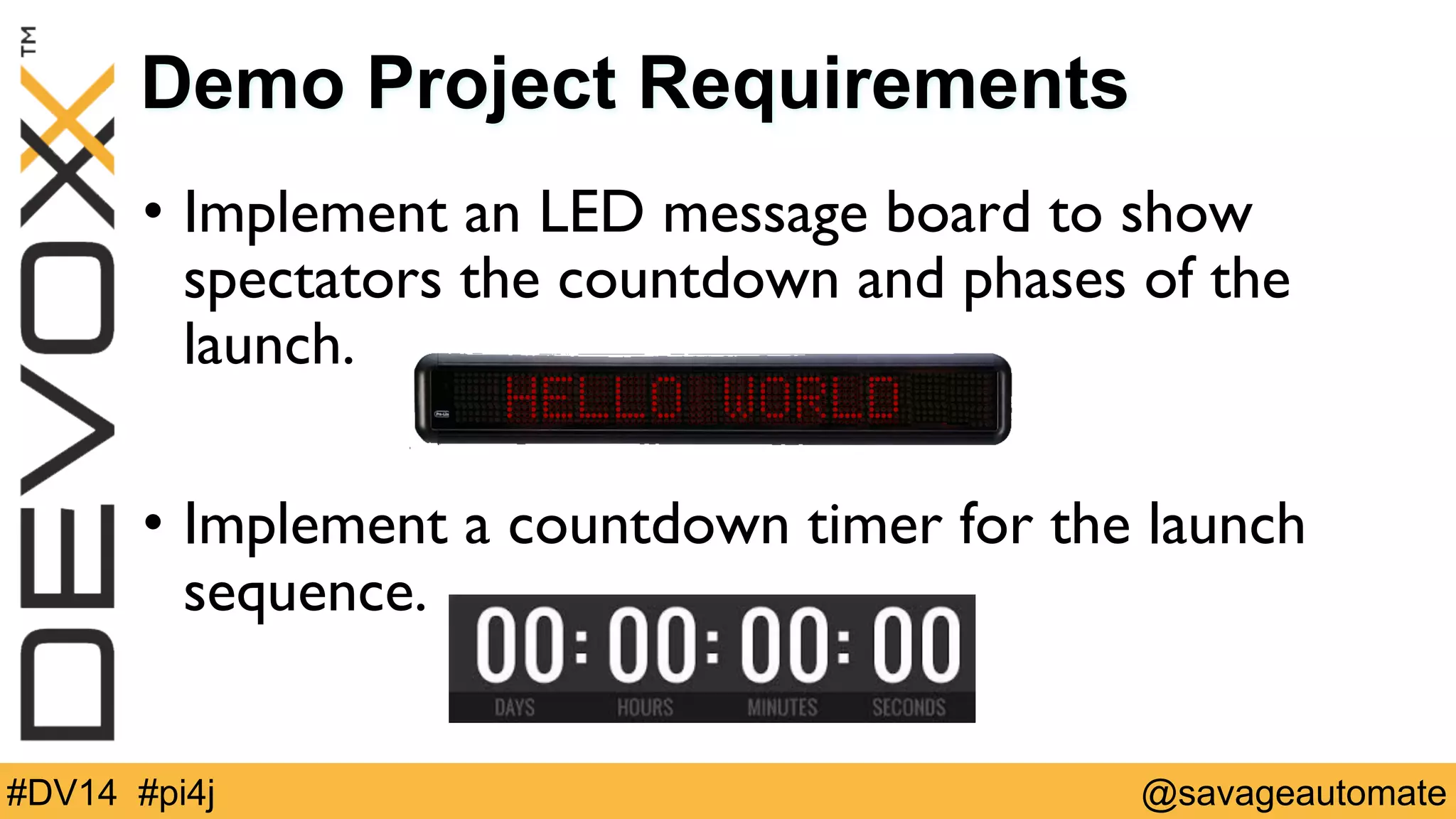

Demo Project Requirements
• Implement an LED message board to show
spectators the countdown and phases of the
launch.
• Implement a countdown timer for the launch
sequence.
#DV14 #pi4j @savageautomate

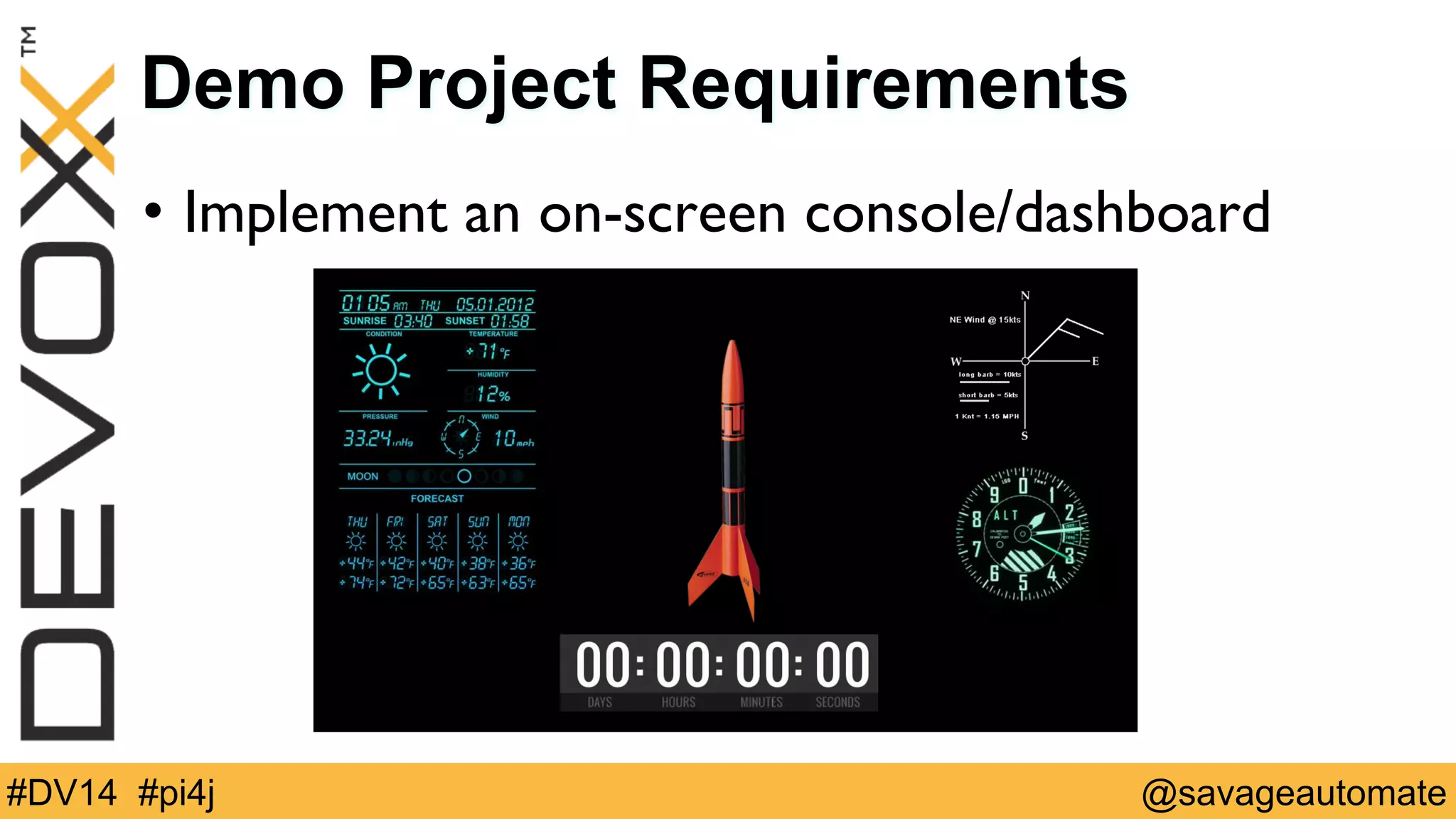

Demo Project Requirements
• Implement an on-screen console/dashboard
#DV14 #pi4j @savageautomate

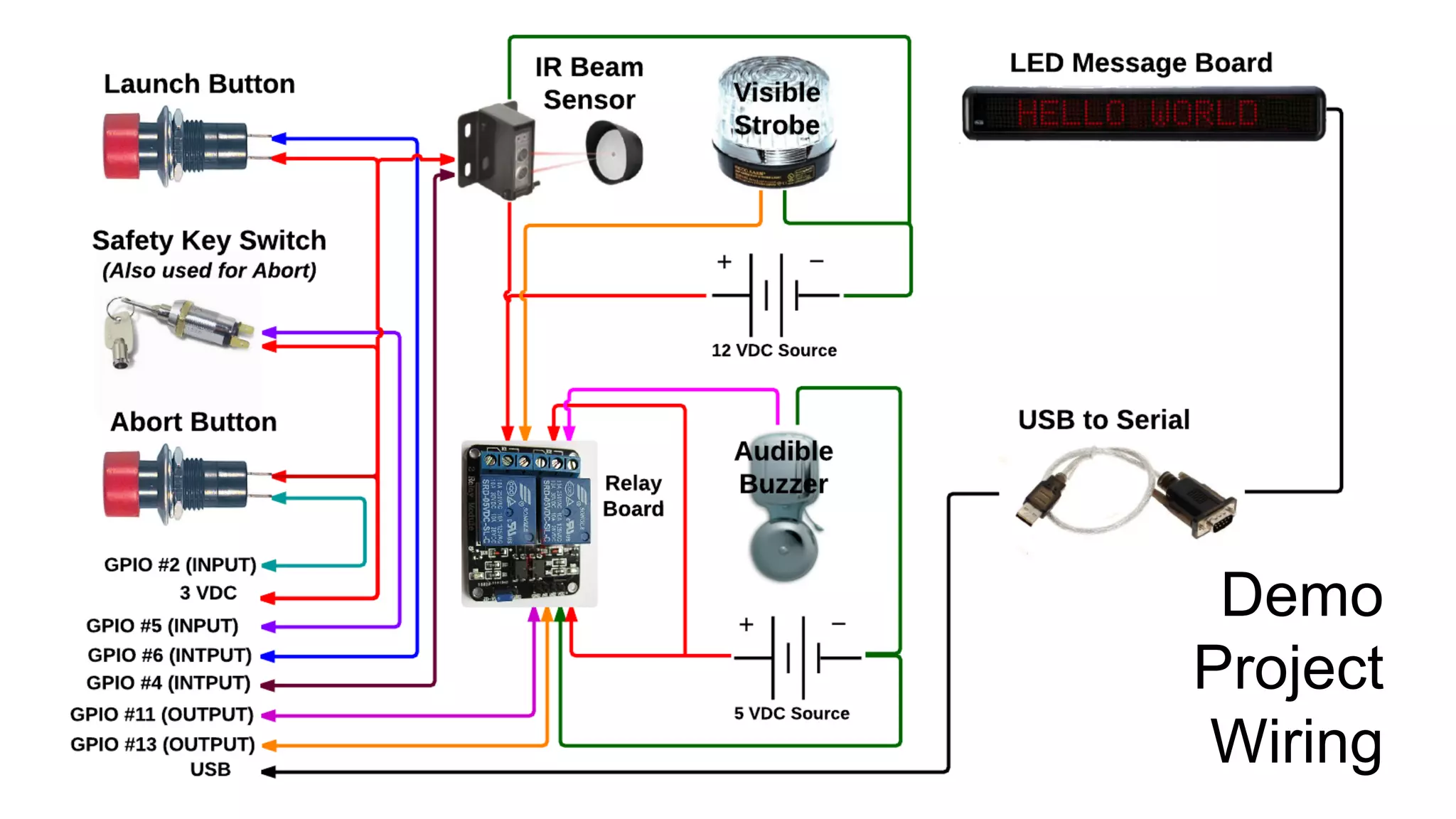

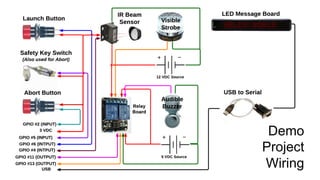

Demo
Project
Wiring

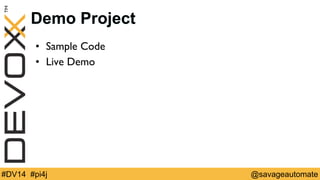

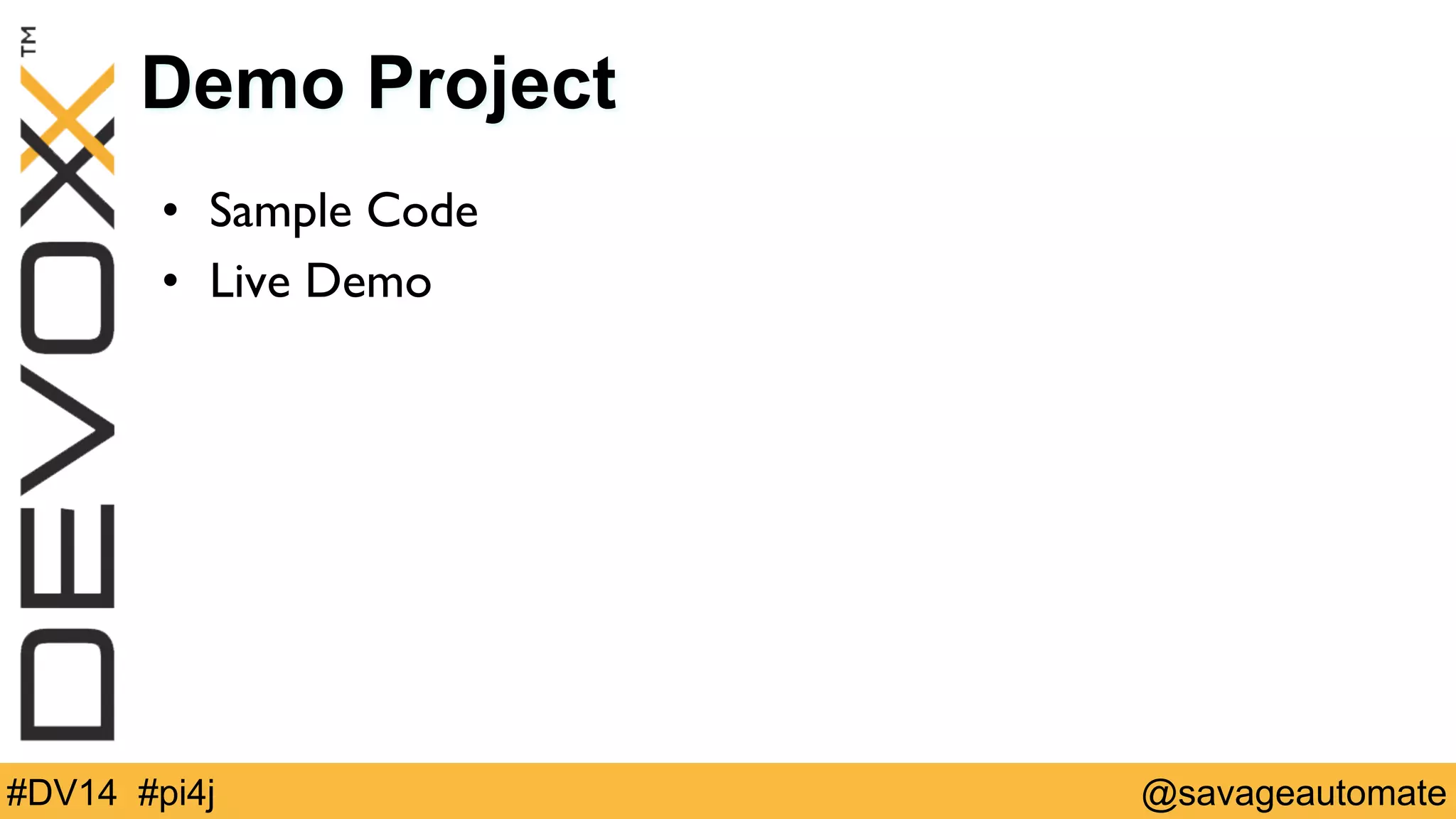

Demo Project
• Sample Code
• Live Demo
#DV14 #pi4j @savageautomate

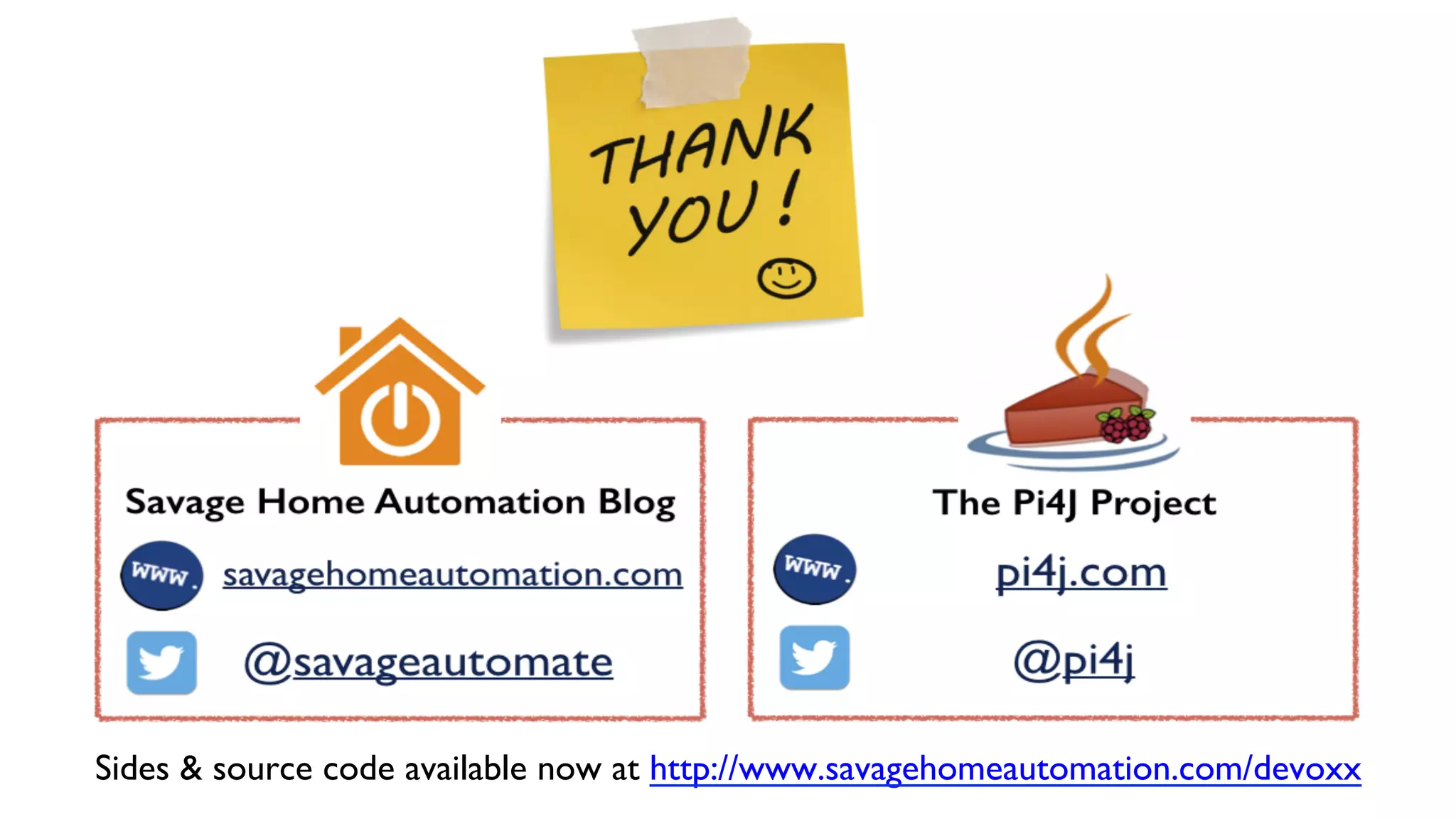

Sides  source code available now at http://www.savagehomeautomation.com/devoxx

More Related Content

What's hot

Vlsi es-lab-manual
Vlsi es-lab-manualVlsi es-lab-manual
Vlsi es-lab-manual
twinkleratna

MG3130 gesture recognition kit
MG3130 gesture recognition kitMG3130 gesture recognition kit
MG3130 gesture recognition kit
Pantech ProLabs India Pvt Ltd

Wireless Temperature Measurement with LabVIEW and Spartan3E
Wireless Temperature Measurement with LabVIEW and Spartan3EWireless Temperature Measurement with LabVIEW and Spartan3E
Wireless Temperature Measurement with LabVIEW and Spartan3E
Vincent Claes

[5]投影片 futurewad樹莓派研習會 141218
[5]投影片 futurewad樹莓派研習會 141218[5]投影片 futurewad樹莓派研習會 141218
[5]投影片 futurewad樹莓派研習會 141218
CAVEDU Education

Embedded system lab work
Embedded system lab workEmbedded system lab work
Embedded system lab work
JIGAR MAKHIJA

Intel galileo
Intel galileoIntel galileo
Intel galileo
Sofian Hadiwijaya

Micrcontroller iv sem lab manual
Micrcontroller iv sem lab manualMicrcontroller iv sem lab manual
Micrcontroller iv sem lab manual
RohiniHM2

AT89C52 Data sheet
AT89C52 Data sheetAT89C52 Data sheet
AT89C52 Data sheet
Microtech Solutions

Android Things Linux Day 2017
Android Things Linux Day 2017 Android Things Linux Day 2017
Android Things Linux Day 2017
Stefano Sanna

Building your own RC Car with Raspberry Pi
Building your own RC Car with Raspberry PiBuilding your own RC Car with Raspberry Pi
Building your own RC Car with Raspberry Pi
Jeff Prestes

Introduction to the rockwell automation library of process objects
Introduction to the rockwell automation library of process objectsIntroduction to the rockwell automation library of process objects
Introduction to the rockwell automation library of process objects
IntelligentManufacturingInstitute

Dsd lab Practical File
Dsd lab Practical FileDsd lab Practical File
Dsd lab Practical File
Soumya Behera

IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...
IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...
IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...
David Fowler

Programming with PIC microcontroller
Programming with PIC microcontroller Programming with PIC microcontroller
Programming with PIC microcontroller
Raghav Shetty

Part-1 : Mastering microcontroller with embedded driver development
Part-1 : Mastering microcontroller with embedded driver development Part-1 : Mastering microcontroller with embedded driver development
Part-1 : Mastering microcontroller with embedded driver development
FastBit Embedded Brain Academy

Intel galileo gen 2
Intel galileo gen 2Intel galileo gen 2
Intel galileo gen 2
srknec

Tae technologies powers up with reliable control system
Tae technologies powers up with reliable control systemTae technologies powers up with reliable control system
Tae technologies powers up with reliable control system
IntelligentManufacturingInstitute

Experiment write-vhdl-code-for-realize-all-logic-gates
Experiment write-vhdl-code-for-realize-all-logic-gatesExperiment write-vhdl-code-for-realize-all-logic-gates
Experiment write-vhdl-code-for-realize-all-logic-gates
Ricardo Castro

VHDL Practical Exam Guide
VHDL Practical Exam GuideVHDL Practical Exam Guide
VHDL Practical Exam Guide
Eslam Mohammed

Device Abstraction in OSGi Based Embedded Systems - Dimitar Valtchev
Device Abstraction in OSGi Based Embedded Systems - Dimitar ValtchevDevice Abstraction in OSGi Based Embedded Systems - Dimitar Valtchev
Device Abstraction in OSGi Based Embedded Systems - Dimitar Valtchev
mfrancis


What's hot (20)

Vlsi es-lab-manual
Vlsi es-lab-manualVlsi es-lab-manual
Vlsi es-lab-manual

MG3130 gesture recognition kit
MG3130 gesture recognition kitMG3130 gesture recognition kit
MG3130 gesture recognition kit

Wireless Temperature Measurement with LabVIEW and Spartan3E
Wireless Temperature Measurement with LabVIEW and Spartan3EWireless Temperature Measurement with LabVIEW and Spartan3E
Wireless Temperature Measurement with LabVIEW and Spartan3E

[5]投影片 futurewad樹莓派研習會 141218
[5]投影片 futurewad樹莓派研習會 141218[5]投影片 futurewad樹莓派研習會 141218
[5]投影片 futurewad樹莓派研習會 141218

Embedded system lab work
Embedded system lab workEmbedded system lab work
Embedded system lab work

Intel galileo
Intel galileoIntel galileo
Intel galileo

Micrcontroller iv sem lab manual
Micrcontroller iv sem lab manualMicrcontroller iv sem lab manual
Micrcontroller iv sem lab manual

AT89C52 Data sheet
AT89C52 Data sheetAT89C52 Data sheet
AT89C52 Data sheet

Android Things Linux Day 2017
Android Things Linux Day 2017 Android Things Linux Day 2017
Android Things Linux Day 2017

Building your own RC Car with Raspberry Pi
Building your own RC Car with Raspberry PiBuilding your own RC Car with Raspberry Pi
Building your own RC Car with Raspberry Pi

Introduction to the rockwell automation library of process objects
Introduction to the rockwell automation library of process objectsIntroduction to the rockwell automation library of process objects
Introduction to the rockwell automation library of process objects

Dsd lab Practical File
Dsd lab Practical FileDsd lab Practical File
Dsd lab Practical File

IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...
IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...
IoT simple with the ESP8266 - presented at the July 2015 Austin IoT Hardware ...

Programming with PIC microcontroller
Programming with PIC microcontroller Programming with PIC microcontroller
Programming with PIC microcontroller

Part-1 : Mastering microcontroller with embedded driver development
Part-1 : Mastering microcontroller with embedded driver development Part-1 : Mastering microcontroller with embedded driver development
Part-1 : Mastering microcontroller with embedded driver development

Intel galileo gen 2
Intel galileo gen 2Intel galileo gen 2
Intel galileo gen 2

Tae technologies powers up with reliable control system
Tae technologies powers up with reliable control systemTae technologies powers up with reliable control system
Tae technologies powers up with reliable control system

Experiment write-vhdl-code-for-realize-all-logic-gates
Experiment write-vhdl-code-for-realize-all-logic-gatesExperiment write-vhdl-code-for-realize-all-logic-gates
Experiment write-vhdl-code-for-realize-all-logic-gates

VHDL Practical Exam Guide
VHDL Practical Exam GuideVHDL Practical Exam Guide
VHDL Practical Exam Guide

Device Abstraction in OSGi Based Embedded Systems - Dimitar Valtchev
Device Abstraction in OSGi Based Embedded Systems - Dimitar ValtchevDevice Abstraction in OSGi Based Embedded Systems - Dimitar Valtchev
Device Abstraction in OSGi Based Embedded Systems - Dimitar Valtchev


Similar to RASPBERRY PI WITH JAVA 8 + Pi4J (Devoxx 2014)

Java Webinar #9: “Raspberry Pi Platform for Java Programmers”
Java Webinar #9: “Raspberry Pi Platform for Java Programmers”Java Webinar #9: “Raspberry Pi Platform for Java Programmers”
Java Webinar #9: “Raspberry Pi Platform for Java Programmers”
GlobalLogic Ukraine

Building the Internet of Things with Raspberry Pi
Building the Internet of Things with Raspberry PiBuilding the Internet of Things with Raspberry Pi
Building the Internet of Things with Raspberry Pi
Neil Broers

Raspberry pi and pi4j
Raspberry pi and pi4jRaspberry pi and pi4j
Raspberry pi and pi4j
Narendran Solai Sridharan

Raspberry Pi GPIO Tutorial - Make Your Own Game Console
Raspberry Pi GPIO Tutorial - Make Your Own Game ConsoleRaspberry Pi GPIO Tutorial - Make Your Own Game Console
Raspberry Pi GPIO Tutorial - Make Your Own Game Console
RICELEEIO

Scottish Ruby Conference 2010 Arduino, Ruby RAD
Scottish Ruby Conference 2010 Arduino, Ruby RADScottish Ruby Conference 2010 Arduino, Ruby RAD
Scottish Ruby Conference 2010 Arduino, Ruby RAD
lostcaggy

Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...
Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...
Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...
Anne Nicolas

1032 practical linux system administration
1032 practical linux system administration1032 practical linux system administration
1032 practical linux system administration
Noel Ng

PPT+.pdf
PPT+.pdfPPT+.pdf
Introduction to Arduino Microcontroller
Introduction to Arduino MicrocontrollerIntroduction to Arduino Microcontroller
Introduction to Arduino Microcontroller
Mujahid Hussain

Internet of Things With PHP
Internet of Things With PHPInternet of Things With PHP
Internet of Things With PHP
Adam Englander

Scratch pcduino
Scratch pcduinoScratch pcduino
Scratch pcduino
Jingfeng Liu

Switch & LED using TMS320C6745 DSP
Switch & LED using TMS320C6745 DSPSwitch & LED using TMS320C6745 DSP
Switch & LED using TMS320C6745 DSP
Pantech ProLabs India Pvt Ltd

Getting Started With Raspberry Pi - UCSD 2013
Getting Started With Raspberry Pi - UCSD 2013Getting Started With Raspberry Pi - UCSD 2013
Getting Started With Raspberry Pi - UCSD 2013
Tom Paulus

Exploring Raspberry Pi
Exploring Raspberry PiExploring Raspberry Pi
Exploring Raspberry Pi
Lentin Joseph

Build a Java and Raspberry Pi weather station
Build a Java and Raspberry Pi weather station Build a Java and Raspberry Pi weather station
Build a Java and Raspberry Pi weather station
Marco Pirruccio

02 Raspberry Pi GPIO Interface on Node-RED (Some correction)
02 Raspberry Pi GPIO Interface on Node-RED (Some correction)02 Raspberry Pi GPIO Interface on Node-RED (Some correction)
02 Raspberry Pi GPIO Interface on Node-RED (Some correction)
Mr.Nukoon Phimsen

Introducing the Arduino
Introducing the ArduinoIntroducing the Arduino
Introducing the Arduino
Charles A B Jr

Raspberry Pi - HW/SW Application Development
Raspberry Pi - HW/SW Application DevelopmentRaspberry Pi - HW/SW Application Development
Raspberry Pi - HW/SW Application Development
Corley S.r.l.

Arduino for Beginners
Arduino for BeginnersArduino for Beginners
Arduino for Beginners
Sarwan Singh

Introduction to Arduino and Circuits
Introduction to Arduino and CircuitsIntroduction to Arduino and Circuits
Introduction to Arduino and Circuits
Jason Griffey


Similar to RASPBERRY PI WITH JAVA 8 + Pi4J (Devoxx 2014) (20)

Java Webinar #9: “Raspberry Pi Platform for Java Programmers”
Java Webinar #9: “Raspberry Pi Platform for Java Programmers”Java Webinar #9: “Raspberry Pi Platform for Java Programmers”
Java Webinar #9: “Raspberry Pi Platform for Java Programmers”

Building the Internet of Things with Raspberry Pi
Building the Internet of Things with Raspberry PiBuilding the Internet of Things with Raspberry Pi
Building the Internet of Things with Raspberry Pi

Raspberry pi and pi4j
Raspberry pi and pi4jRaspberry pi and pi4j
Raspberry pi and pi4j

Raspberry Pi GPIO Tutorial - Make Your Own Game Console
Raspberry Pi GPIO Tutorial - Make Your Own Game ConsoleRaspberry Pi GPIO Tutorial - Make Your Own Game Console
Raspberry Pi GPIO Tutorial - Make Your Own Game Console

Scottish Ruby Conference 2010 Arduino, Ruby RAD
Scottish Ruby Conference 2010 Arduino, Ruby RADScottish Ruby Conference 2010 Arduino, Ruby RAD
Scottish Ruby Conference 2010 Arduino, Ruby RAD

Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...
Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...
Kernel Recipes 2018 - New GPIO interface for linux user space - Bartosz Golas...

1032 practical linux system administration
1032 practical linux system administration1032 practical linux system administration
1032 practical linux system administration

PPT+.pdf
PPT+.pdfPPT+.pdf
PPT+.pdf

Introduction to Arduino Microcontroller
Introduction to Arduino MicrocontrollerIntroduction to Arduino Microcontroller
Introduction to Arduino Microcontroller

Internet of Things With PHP
Internet of Things With PHPInternet of Things With PHP
Internet of Things With PHP

Scratch pcduino
Scratch pcduinoScratch pcduino
Scratch pcduino

Switch & LED using TMS320C6745 DSP
Switch & LED using TMS320C6745 DSPSwitch & LED using TMS320C6745 DSP
Switch & LED using TMS320C6745 DSP

Getting Started With Raspberry Pi - UCSD 2013
Getting Started With Raspberry Pi - UCSD 2013Getting Started With Raspberry Pi - UCSD 2013
Getting Started With Raspberry Pi - UCSD 2013

Exploring Raspberry Pi
Exploring Raspberry PiExploring Raspberry Pi
Exploring Raspberry Pi

Build a Java and Raspberry Pi weather station
Build a Java and Raspberry Pi weather station Build a Java and Raspberry Pi weather station
Build a Java and Raspberry Pi weather station

02 Raspberry Pi GPIO Interface on Node-RED (Some correction)
02 Raspberry Pi GPIO Interface on Node-RED (Some correction)02 Raspberry Pi GPIO Interface on Node-RED (Some correction)
02 Raspberry Pi GPIO Interface on Node-RED (Some correction)

Introducing the Arduino
Introducing the ArduinoIntroducing the Arduino
Introducing the Arduino

Raspberry Pi - HW/SW Application Development
Raspberry Pi - HW/SW Application DevelopmentRaspberry Pi - HW/SW Application Development
Raspberry Pi - HW/SW Application Development

Arduino for Beginners
Arduino for BeginnersArduino for Beginners
Arduino for Beginners

Introduction to Arduino and Circuits
Introduction to Arduino and CircuitsIntroduction to Arduino and Circuits
Introduction to Arduino and Circuits


Recently uploaded

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid

Trailhead Talks_ Journey of an All-Star Ranger .pptx
Trailhead Talks_ Journey of an All-Star Ranger .pptxTrailhead Talks_ Journey of an All-Star Ranger .pptx
Trailhead Talks_ Journey of an All-Star Ranger .pptx
ImtiazBinMohiuddin

Best Practices & Tips for a Successful Odoo ERP Implementation
Best Practices & Tips for a Successful Odoo ERP ImplementationBest Practices & Tips for a Successful Odoo ERP Implementation
Best Practices & Tips for a Successful Odoo ERP Implementation
Envertis Software Solutions

The Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdfThe Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdf
kalichargn70th171

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf
kalichargn70th171

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
Tier1 app

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps
Jhone kinadey

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
campbellclarkson

Building the Ideal CI-CD Pipeline_ Achieving Visual Perfection
Building the Ideal CI-CD Pipeline_ Achieving Visual PerfectionBuilding the Ideal CI-CD Pipeline_ Achieving Visual Perfection
Building the Ideal CI-CD Pipeline_ Achieving Visual Perfection
Applitools

Hands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion StepsHands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion Steps
servicesNitor

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx
Reetu63

Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)
alowpalsadig

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Paul Brebner

TheFutureIsDynamic-BoxLang-CFCamp2024.pdf
TheFutureIsDynamic-BoxLang-CFCamp2024.pdfTheFutureIsDynamic-BoxLang-CFCamp2024.pdf
TheFutureIsDynamic-BoxLang-CFCamp2024.pdf
Ortus Solutions, Corp

Refactoring legacy systems using events commands and bubble contexts
Refactoring legacy systems using events commands and bubble contextsRefactoring legacy systems using events commands and bubble contexts
Refactoring legacy systems using events commands and bubble contexts
Michał Kurzeja

Cost-Effective Strategies For iOS App Development
Cost-Effective Strategies For iOS App DevelopmentCost-Effective Strategies For iOS App Development
Cost-Effective Strategies For iOS App Development
Softradix Technologies

How GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdfHow GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdf
Zycus

Folding Cheat Sheet #5 - fifth in a series
Folding Cheat Sheet #5 - fifth in a seriesFolding Cheat Sheet #5 - fifth in a series
Folding Cheat Sheet #5 - fifth in a series
Philip Schwarz

A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
kalichargn70th171

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
The Third Creative Media


Recently uploaded (20)

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf

Trailhead Talks_ Journey of an All-Star Ranger .pptx
Trailhead Talks_ Journey of an All-Star Ranger .pptxTrailhead Talks_ Journey of an All-Star Ranger .pptx
Trailhead Talks_ Journey of an All-Star Ranger .pptx

Best Practices & Tips for a Successful Odoo ERP Implementation
Best Practices & Tips for a Successful Odoo ERP ImplementationBest Practices & Tips for a Successful Odoo ERP Implementation
Best Practices & Tips for a Successful Odoo ERP Implementation

The Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdfThe Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdf

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻

Building the Ideal CI-CD Pipeline_ Achieving Visual Perfection
Building the Ideal CI-CD Pipeline_ Achieving Visual PerfectionBuilding the Ideal CI-CD Pipeline_ Achieving Visual Perfection
Building the Ideal CI-CD Pipeline_ Achieving Visual Perfection

Hands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion StepsHands-on with Apache Druid: Installation & Data Ingestion Steps
Hands-on with Apache Druid: Installation & Data Ingestion Steps

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx

Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...

TheFutureIsDynamic-BoxLang-CFCamp2024.pdf
TheFutureIsDynamic-BoxLang-CFCamp2024.pdfTheFutureIsDynamic-BoxLang-CFCamp2024.pdf
TheFutureIsDynamic-BoxLang-CFCamp2024.pdf

Refactoring legacy systems using events commands and bubble contexts
Refactoring legacy systems using events commands and bubble contextsRefactoring legacy systems using events commands and bubble contexts
Refactoring legacy systems using events commands and bubble contexts

Cost-Effective Strategies For iOS App Development
Cost-Effective Strategies For iOS App DevelopmentCost-Effective Strategies For iOS App Development
Cost-Effective Strategies For iOS App Development

How GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdfHow GenAI Can Improve Supplier Performance Management.pdf
How GenAI Can Improve Supplier Performance Management.pdf

Folding Cheat Sheet #5 - fifth in a series
Folding Cheat Sheet #5 - fifth in a seriesFolding Cheat Sheet #5 - fifth in a series
Folding Cheat Sheet #5 - fifth in a series

A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...
A Comprehensive Guide on Implementing Real-World Mobile Testing Strategies fo...

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...


RASPBERRY PI WITH JAVA 8 + Pi4J (Devoxx 2014)

  • 1. Raspberry Pi with Java 8 + Pi4J Robert Savage Software Architect, MTS Harman International #DV14 #pi4j @savageautomate
  • 2. What is Pi4J? Pi4J is an open-source project providing a library for Java programmers to interact with the low-level I/O capabilities on the Raspberry Pi platform. www.pi4j.com • Open Source Project • Low Level I/O Library • Object-Oriented API • Event Based • Java & C (JNI + Native) #DV14 #pi4j @savageautomate
  • 3. Pi4J Supported I/O Digital Interfaces • GPIO (General Purpose Input/Output) Data Interfaces • UART, SERIAL (Universal Asynchronous Receiver/Transmitter) • SPI (Serial Peripheral Interface) • I2C (Inter-Integrated Circuit) Analog Interfaces* #DV14 #pi4j @savageautomate
  • 4. GPIO • Input or Output • Digital States • HIGH = +3.3 VDC • LOW = 0 VDC • RPi Models • A B = ~21 GPIO • B+ = 28 GPIO • Compute Module = 46 GPIO #DV14 #pi4j @savageautomate
  • 5. Pi4J GPIO Pin Addressing Visit pi4.com for a detailed pin addressing diagram! #DV14 #pi4j @savageautomate
  • 6. GPIO Outputs • Control Things (ON OFF) #DV14 #pi4j @savageautomate
  • 7. GPIO Output Circuit #DV14 #pi4j @savageautomate
  • 8. GPIO Output Example // create GPIO controller final GpioController gpio = GpioFactory.getInstance(); // create GPIO output pin final GpioPinDigitalOutput output = gpio.provisionDigitalOutputPin( RaspiPin.GPIO_12, PinState.LOW); // control GPIO output pin output.high(); output.low(); output.toggle(); // invert current state output.pulse(1000); // set state for a limited duration #DV14 #pi4j @savageautomate
  • 9. GPIO Output Circuit Active-High Relay Board 12 VDC Strobe Light 12 VDC Illuminated Switch 12 VDC Power Source #DV14 #pi4j @savageautomate
  • 10. GPIO Output Demo • Sample Code • Live Demo #DV14 #pi4j @savageautomate
  • 11. GPIO Inputs • Monitor Things • ON OFF • Open Close #DV14 #pi4j @savageautomate
  • 12. GPIO Input Circuit #DV14 #pi4j @savageautomate
  • 13. GPIO Input Reference • GPIO inputs require a “reference” voltage. • Without a reference, a GPIO pin can “float” • The Raspberry Pi includes internal PULL-UP and PULL-DOWN resistor settings that can be configured via Pi4J. #DV14 #pi4j @savageautomate
  • 14. GPIO Input Reference • PULL-DOWN Resistance provides a reference (bias) to GROUND (0 VDC). If your circuit expects to provide +3.3VDC to signal the GPIO pin HIGH, then you need a PULL-DOWN reference. • PULL-UP Resistance provides a reference (bias) to +3.3 VDC. If your circuit expects to provide GROUND to signal the GPIO pin LOW, then you need a PULL-UP reference. #DV14 #pi4j @savageautomate
  • 15. GPIO Input Reference Alternatively, you can build the PULL-UP or PULL-DOWN reference in the hardware circuit. The circuit below demonstrates a PULL-UP resistor at R1. This circuit signals the GPIO input pin to LOW when the switch closes the circuit and a path to GROUND is complete. PULL-UP RESISTOR #DV14 #pi4j @savageautomate
  • 16. GPIO Input Example // create GPIO controller final GpioController gpio = GpioFactory.getInstance(); // create a GPIO input pin final GpioPinDigitalInput input = gpio.provisionDigitalInputPin( RaspiPin.GPIO_02, PinPullResistance.PULL_DOWN); #DV14 #pi4j @savageautomate
  • 17. GPIO Input Listener Example // create event listener for GPIO input pin input.addListener((GpioPinListenerDigital) Java 8 Lambda (GpioPinDigitalStateChangeEvent event) -­‐ { // set output state to match the input state output.setState(event.getState()); }); #DV14 #pi4j @savageautomate
  • 18. GPIO Input Demo • Sample Code • Live Demo #DV14 #pi4j @savageautomate
  • 19. Pi4J Component API • The component APIs provides an abstraction layer from the hardware I/O layer. • This allows hardware design/circuitry to change with *less* impact to your implementation code. • For example, a RELAY could be controlled from GPIO, RS232, SPI, or I2C. You program defines the RELAY impl up front based on the hardware interface, but the rest of your program logic works against the RELAY component interface and not the direct hardware /communication IO interfaces. #DV14 #pi4j @savageautomate
  • 20. Component Interfaces • Keypad • Light / LED • Dimmable Light • LCD • Power Controller • Relay • Momentary Switch • Toggle Switch • Analog Sensor • Distance Sensor • Motion Sensor • Temperature Sensor #DV14 #pi4j @savageautomate
  • 21. GPIO Components Example // create LED component final Light light = new GpioLightComponment(output); // usage example light.on(); (or) light.off(); // create momentary switch component final MomentarySwitch ms = new GpioMomentarySwitchComponment( input, PinState.LOW, // “OFF” pin state PinState.HIGH); // “ON” pin state #DV14 #pi4j @savageautomate
  • 22. Component Demo • Sample Code • Live Demo #DV14 #pi4j @savageautomate
  • 23. UART / Serial / RS-232 • The Raspberry Pi supports on on-board UART for serial communication. • Pi4J supports basic serial communication. • To use RS232 serial communication a level-shifter is required to convert between the TTL voltage levels (+3.3 VDC) and those required for RS232 communication. #DV14 #pi4j @savageautomate
  • 24. RS-232 Level Shifter #DV14 #pi4j @savageautomate
  • 25. USB to RS-232 Adapter In addition to the on-board UART, you can also use a USB to RS232 adapter connected to the Raspberry Pi to provide RS232 serial communication. #DV14 #pi4j @savageautomate
  • 26. UART / RS-232 Example // create an instance of the serial communications class final Serial serial = SerialFactory.createInstance(); // open the default serial port provided on the P1 header // (this is where our LED reader is connected) serial.open(Serial.DEFAULT_COM_PORT, 2400); // send Hello World message to sign serial.writeln(ID01PACLHello World! -­‐-­‐ ); serial.writeln(ID01RPA); #DV14 #pi4j @savageautomate
  • 27. UART / RS-232 Listener Example // create and register the serial data listener serial.addListener((SerialDataListener) Java 8 Lambda (SerialDataEvent event) -­‐ { // print out the data received to the console System.out.println(event.getData()); }); #DV14 #pi4j @savageautomate
  • 28. UART / RS-232 Demo • Sample Code • Live Demo #DV14 #pi4j @savageautomate
  • 29. Putting It All Together Lets create a real-world demo using a Raspberry Pi, Java, Pi4J, GPIO Inputs Outputs, and RS232 (Serial) devices to do something useful. #DV14 #pi4j @savageautomate
  • 30. Demo Project Goal • Create a sophisticated model rocket launching platform. #DV14 #pi4j @savageautomate
  • 31. Demo Project Requirements • Implement a safety key switch to arm the rocket and protect from accidental launch ignition. • Implement a launch activation button to initiate a launch sequence. #DV14 #pi4j @savageautomate
  • 32. Demo Project Requirements • Implement an audible safety alarm to alert spectators of launch ready conditions. • Implement a visible alert device to notify spectators of launch ready conditions. #DV14 #pi4j @savageautomate
  • 33. Demo Project Requirements • Implement an abort button to abort the launch sequence. • Implement a safety IR beam detector to abort launch if a person approaches the launch pad. #DV14 #pi4j @savageautomate
  • 34. Demo Project Requirements • Implement an LED message board to show spectators the countdown and phases of the launch. • Implement a countdown timer for the launch sequence. #DV14 #pi4j @savageautomate
  • 35. Demo Project Requirements • Implement an on-screen console/dashboard #DV14 #pi4j @savageautomate
  • 37. Demo Project • Sample Code • Live Demo #DV14 #pi4j @savageautomate
  • 38. Sides source code available now at http://www.savagehomeautomation.com/devoxx
