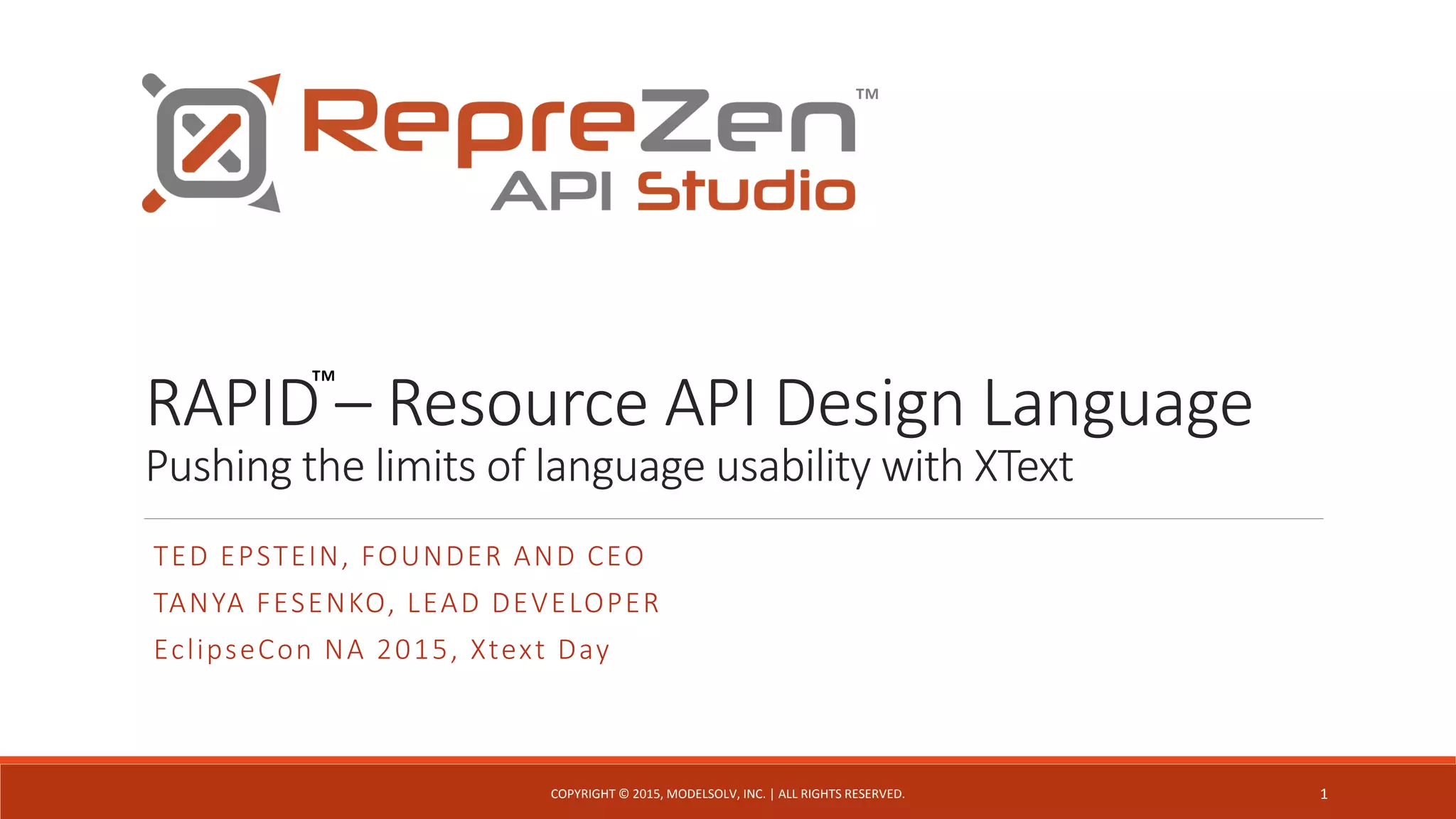

The challenge: Create a highly readable, user-friendly design language for REST APIs, suitable for use by cross-functional enterprise teams. The toolkit: XText language framework for Eclipse IDE. The result: RAPID -- the Resource API Design language, used in RepreZen API Studio. In this presentation, RepreZen's Tanya Fesenko and Ted Epstein show why they decided to create a new API language in this already crowded space, and how they differentiated by raising the bar on usability. This presentation demonstrates to XText language developers some of the techniques required to build this kind of language.

1. RAPID – Resource API Design Language
Pushing the limits of language usability with XText
TED EPSTEIN, FOUNDER AND CEO
TANYA FESENKO, LEAD DEVELOPER
EclipseCon NA 2015, Xtext Day
1COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED.
™
™

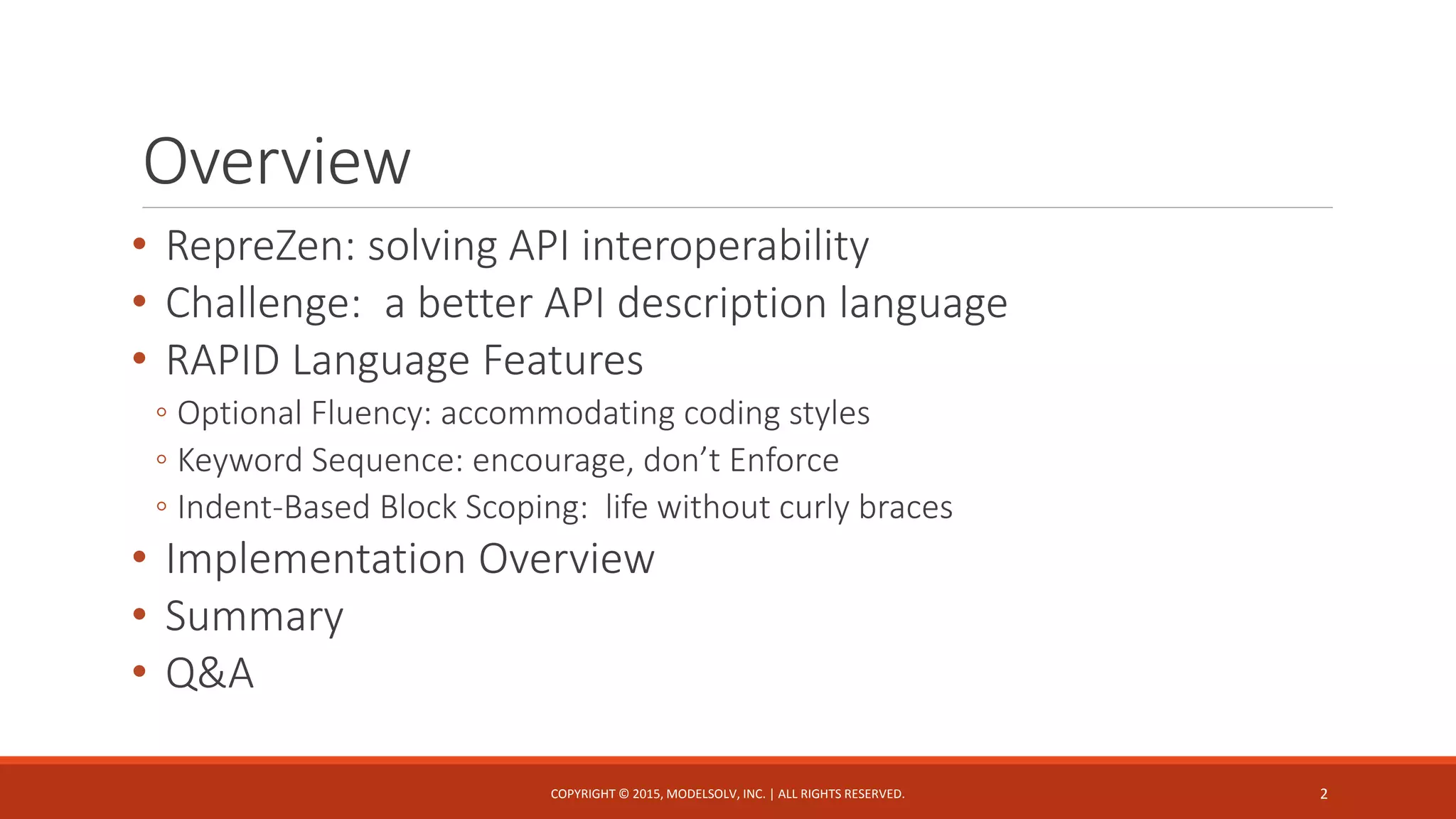

2. Overview
• RepreZen: solving API interoperability
• Challenge: a better API description language
• RAPID Language Features
◦ Optional Fluency: accommodating coding styles
◦ Keyword Sequence: encourage, don’t Enforce
◦ Indent-Based Block Scoping: life without curly braces
• Implementation Overview
• Summary
• Q&A
2COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED.

3. COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 3
/ Unify Data Models
/ Federate APIs
/ Integrate Faster
The Elevator Pitch

4. The Elevator Pitch
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 4
Make Canonical
Data Models
Practical
Enable Highly
Interoperable
APIs
Significantly
Lower Long-
Term Integration
Cost
• Frequently recommended, hard to implement
• Current reality: much easier to build from
scratch than to reuse existing data models
• We want to change that!

5. COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 5
Make Canonical
Data Models
Practical
Enable Highly
Interoperable
APIs
Significantly
Lower Long-
Term Integration
Cost
• Frequently recommended, hard to implement
• Current reality: much easier to build from
scratch than to reuse existing data models
• We want to change that!
• Reusable data models: business-oriented,
technology-independent, semantically rich
• Allow variability through realization
• Message payloads still conform to canonical model
Property Subsets Perspective
<party dataSource=“MSDB”>
<partyId>123</partyId>
<partyName xsi:nil=“true” nullValue=“Not Available” />
<accounts>
<account dataSource=“A2” transType=“insert”>
<accountId>XYZ</accountId>
<balance xsi:nil=“true” isRestricted=“true” />
</account>
</accounts>
</party>
Metadata Contextual Constraints
The Elevator Pitch

6. COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 6
Make Canonical
Data Models
Practical
Enable Highly
Interoperable
APIs
Significantly
Lower Long-
Term Integration
Cost
• Frequently recommended, hard to implement
• Current reality: much easier to build from
scratch than to reuse existing data models
• We want to change that!
• Reusable data models: business-oriented, technology-
independent, semantically rich
• Allow variability through realization
• Message payloads still conform to canonical model
• Service APIs speak the same language
• Clients can work with multiple APIs, without multiple DTOs,
SDKs, etc.
• Stop runaway spending on remedial integration technology

7. Changing the way we build APIs
Message
Schema
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 7
Business
Domain
Model
Realization
• Subset
• Perspective
• Constraints
• Metadata
Resource
Data
Model
Representation
• Media Type
• Format
• Conventions
• Hyperlinks
This needs to be
built into the API
modeling language.

8. Yet Another API Description Language?
YAADL? YAAPIDL?
There are at least four of these...
“The nice thing about standards is
that you have so many to chose from.”
- Andrew Tanenbaum
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 8
… and they’re pretty good.
◦ Web-based editors
◦ API Documentation with integrated
sandbox
◦ Syntax based on YAML or Markdown
◦ Interesting language-level reuse
◦ REST patterns built in
If we have to
build an API
modeling language,
it has to be good.
… any
ideas?

9. Who’s going to model these APIs?
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 9
…andDevelopers!
Developers!
Developers!
Business Analysts
Subject Matter Experts
Data Professionals
Enterprise Architects
Make it accessible,
readable, versatile.
What
she
said.

10. Demo – RAPID Usability Features
• Indent Syntax:
◦ Python-like block syntax, no curly braces
◦ Advanced highlighting to visualize structure
• Order Assist:
◦ Flexible sequence for declarations
◦ Reset to standard sequence using QuickFix or auto-format
• Optional Fluency
◦ Support terse and fluent syntax with optional keywords
◦ Semantic highlighting to distinguish optional vs. required keywords
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 10

11. 11
Indent-Based Syntax
Structural Highlighting -
editbox.sourceforge.net
New Syntax –
indents define block scope
Previous Syntax –
braces for block scoping

12. Order Assist
12

13. Optional Fluency
13
Fluent
Terse

14. Implementation
Walkthrough
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 14

15. 15
Work with Xtext
Xtext
Grammar
(*.xtext file)

16. 16
Work with Xtext
Xtext
Grammar
(*.xtext file)
Generated code (Parser and UI)

17. 17
Work with Xtext
The rest
(customized from generated code)
Lexer Formatter Content assist
Code
Templates
Prefs
Cross-
reference
Scope
Code
highlighter
Validation/
Quickfix
Outline …
Xtext
Grammar
(*.xtext file)
Generated code (Parser and UI)

18. Description Grammar
Code
Customization
for (each feature):
18
Three features

19. Feature 1:
Automate canonical ordering
19

20. Order Assist
20
methods

21. 21
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code

22. 22
Allow arbitrary order in grammar

23. 23
Allow arbitrary order in grammar

24. 24
Allow arbitrary order in grammar
Disable code-assist and add
validator for duplicate single-
valued properties to prevent
overriding

25. 25
Sort List< INode>
Compare INodes:
• Using sorting rules
• Preserving:
• List delimiters
• Whitespaces
• Attached symbols (*, +)
• Order of elements of the same
kind
Grammar Tree
Sorting rule:
Sequence<GrammarElement>

26. 26
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Validation

27. Validation
27
MyJavaValidator #
checkMyElement(SemanticElement)

28. Validation
28
Semantic
Element
Syntax
Tree Node
getIncorrectly
OrderedChildren()
Incorrectly
ordered
Nodes
NodeModelUtils::getNode()
MyJavaValidator #
checkMyElement(SemanticElement)

29. 29
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Formatter

30. 30
FormatterDefaultNodeModelFormatter#format():

31. 31
FormatterDefaultNodeModelFormatter#format():

32. 32
FormatterDefaultNodeModelFormatter#format():
INode:
• offset
• text
• length
• grammarElement
• semanticElement

33. 33
FormatterDefaultNodeModelFormatter#format():
Writes tokens
to character
stream and
then flushes it
The write
methods create
formatted
LineEntries with
use of formatter
configuration
(ElementLocators)

34. 34
FormatterDefaultNodeModelFormatter#format():
TextRegion –
offset and
length in the
char stream
populated in
the write
methods

35. 35
FormatterDefaultNodeModelFormatter#format():
Place for
customization

36. 36
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Preferences
page

37. Usability: Preferences
37

38. 38
Testing
1
2
3
4
5
How many
permutations for five
elements ?
5!=120

39. 39
Testing
Xtend Active Annotations
120 green
tests!

40. 40
Changes: Automate Canonical Ordering
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Preferences
pageFormatterValidation
Enable
arbitrary order

41. 41
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Preferences
pageFormatterValidation
• Errors for single-value
property override
• Warnings for
"incorrect" order
Changes: Automate Canonical Ordering

42. 42
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Preferences
pageFormatterValidation
Restore
canonical order
Changes: Automate Canonical Ordering

43. 43
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Preferences
pageFormatterValidation
enable/disable
validation,
reordering in
formatter
Changes: Automate Canonical Ordering

44. Feature 2:
Optional fluency
44

45. What is Optional Fluency?
45
Fluent
Terse

46. 46
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code

47. Implementation
47

48. 48
Implementation

49. 49
Changes: Optional Fluency
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Optional
fluency

50. Feature 3:
Indent-based block scoping in
Xtext
50

51. 51
Indent-based block scoping in Xtext
Python-like notation
With curly braces

52. 52
Indent-based block scoping in Xtext
Highlighting of boxes-
editbox.sourceforge.net

53. 53
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code

54. 54
Grammar
NL - newline
WS – whitespace
BEGIN – indent
END - outdent

55. 55
Grammar NL: not
hidden
NL - newline
WS – whitespace
BEGIN – indent
END - outdent

56. 56
Grammar NL: not
hidden
NL - newline
WS – whitespace
BEGIN – indent
END - outdent

57. 57
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Lexer

58. 58
Custom Lexer
Custom
code
Generated /
Xtext code
Indent-based Syntax in Xtext -
tinyurl.com/pgcowct
Insert BEGIN and
END token

59. 59
Content assist

60. 60
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Content
Assist

61. 61
Custom Lexers
Plural now
Custom code
Generated /
Xtext code
Content-assist
needs its own lexer

62. Custom Lexers
62
Custom
code
Generated /
Xtext code

63. Content Assist
63
Also see “Enhancing
Content Assist” from
XtextCON 2015 -
tinyurl.com/onou2hu

64. Content Assist
64
Also see “Enhancing
Content Assist” from
XtextCON 2015 -
tinyurl.com/onou2hu

65. Content Assist
65
Also see “Enhancing
Content Assist” from
XtextCON 2015 -
tinyurl.com/onou2hu

66. Content Assist
66
Place for
customization

67. Content-Assist Context Factory
67
Initialize data
Analyze data to
create content
assist contexts
Content
Assist
Contexts

68. Content-Assist Context Factory
68
Initialize data
Analyze data to
create content
assist contexts
Content
Assist
Contexts
Syntax tree nodes –
lastCompleteNode,
lastVisibleNode, currentNode,
datatypeNode
Semantic model - current model

69. Initialize data
Analyze data to
create content
assist contexts
Content
Assist
Contexts
Content-Assist Context Factory
69
Start a new token, complete
current one, collect
available alternatives, etc…

70. Initialize data
Analyze data to
create content
assist contexts
Content
Assist
Contexts
Content-Assist Context Factory
70
Customize to
respect indents

71. 71
Implementation: Grammar
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
Formatter

72. Formatter
72
Assign correct value to
FormattingConfigBasedStream
#indentationLevel
No spaces around “invisible”
rules – synthetic (BEGIN and
END) and NL (newline)
No line wraps should be
introduced by formatter – line
wraps change structure of
Python-like models

73. 73
Changes: Indent-based Syntax
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
FormatterContent
AssistLexer
Add BEGIN and
END terminal
rules

74. 74
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
FormatterContent
AssistLexer
Synthesize
BEGIN and END
tokens
Changes: Indent-based Syntax

75. 75
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
FormatterContent
AssistLexer
Show proposals
according to
indent level
Changes: Indent-based Syntax

76. 76
The rest
(customized from generated code)
Xtext
Grammar
(*.xtext file)
Generated code
FormatterContent
AssistLexer
Preserve NLs
and indents
Changes: Indent-based Syntax

77. Summary
• Still an ongoing experiment
◦ Early feedback from users has been very positive.
◦ We welcome your feedback!
• Register for Early Access program at
get.reprezen.com
• Contacts:
◦ ted.epstein@reprezen.com
◦ tatiana.fesenko@reprezen.com
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 77

78. Questions
THANK YOU!
COPYRIGHT © 2015, MODELSOLV, INC. | ALL RIGHTS RESERVED. 78
