1. NATIONAL INSTITUTE OF TEXTILE ENGINEERING &
RESEARCH (NITER)
Industrial Tour
At
Rahimafrooz Batteries LTD
Zirani Bazar, Zirani Kashimpur Road,1439

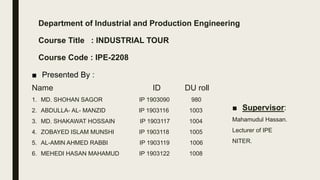

2. Department of Industrial and Production Engineering
Course Title : INDUSTRIAL TOUR
Course Code : IPE-2208
■ Presented By :
Name ID DU roll
1. MD. SHOHAN SAGOR IP 1903090 980
2. ABDULLA- AL- MANZID IP 1903116 1003
3. MD. SHAKAWAT HOSSAIN IP 1903117 1004
4. ZOBAYED ISLAM MUNSHI IP 1903118 1005
5. AL-AMIN AHMED RABBI IP 1903119 1006
6. MEHEDI HASAN MAHAMUD IP 1903122 1008
■ Supervisor:
Mahamudul Hassan.
Lecturer of IPE
NITER.

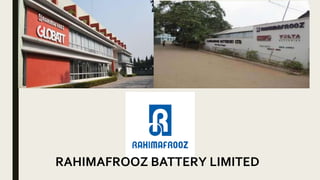

3. RAHIMAFROOZ BATTERY LIMITED

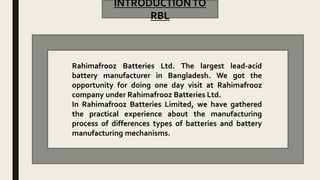

4. INTRODUCTIONTO
RBL
Rahimafrooz Batteries Ltd. The largest lead-acid
battery manufacturer in Bangladesh. We got the
opportunity for doing one day visit at Rahimafrooz
company under Rahimafrooz Batteries Ltd.
In Rahimafrooz Batteries Limited, we have gathered
the practical experience about the manufacturing
process of differences types of batteries and battery
manufacturing mechanisms.

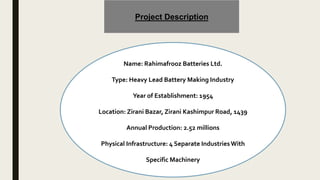

5. Project Description
Name: Rahimafrooz Batteries Ltd.
Type: Heavy Lead Battery Making Industry
Year of Establishment: 1954
Location: Zirani Bazar, Zirani Kashimpur Road, 1439
Annual Production: 2.52 millions
Physical Infrastructure: 4 Separate IndustriesWith
Specific Machinery

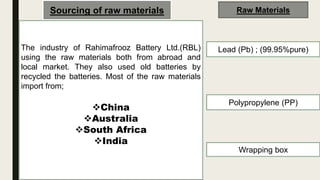

6. Sourcing of raw materials
The industry of Rahimafrooz Battery Ltd.(RBL)
using the raw materials both from abroad and
local market. They also used old batteries by
recycled the batteries. Most of the raw materials
import from;
China
Australia
South Africa
India
Raw Materials
Lead (Pb) ; (99.95%pure)
Polypropylene (PP)
Wrapping box

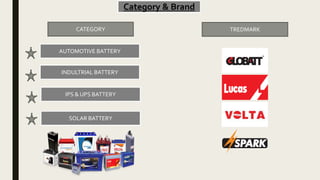

7. Category & Brand
AUTOMOTIVE BATTERY
INDULTRIAL BATTERY
IPS & UPS BATTERY
SOLAR BATTERY
CATEGORY TREDMARK

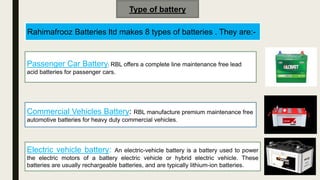

8. Type of battery
Rahimafrooz Batteries ltd makes 8 types of batteries . They are:-
Passenger Car Battery: RBL offers a complete line maintenance free lead
acid batteries for passenger cars.
Commercial Vehicles Battery: RBL manufacture premium maintenance free
automotive batteries for heavy duty commercial vehicles.
Electric vehicle battery: An electric-vehicle battery is a battery used to power
the electric motors of a battery electric vehicle or hybrid electric vehicle. These
batteries are usually rechargeable batteries, and are typically lithium-ion batteries.

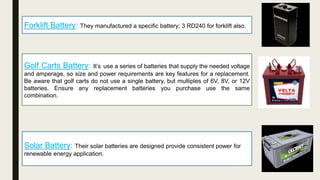

9. Forklift Battery: They manufactured a specific battery; 3 RD240 for forklift also.
Golf Carts Battery: It’s use a series of batteries that supply the needed voltage
and amperage, so size and power requirements are key features for a replacement.
Be aware that golf carts do not use a single battery, but multiples of 6V, 8V, or 12V
batteries. Ensure any replacement batteries you purchase use the same
combination.
Solar Battery: Their solar batteries are designed provide consistent power for
renewable energy application.

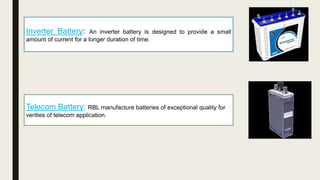

10. Inverter Battery: An inverter battery is designed to provide a small
amount of current for a longer duration of time.
Telecom Battery: RBL manufacture batteries of exceptional quality for
verities of telecom application.

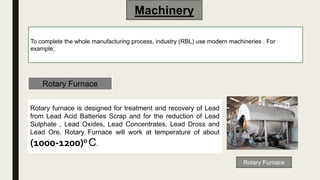

11. Machinery
To complete the whole manufacturing process, industry (RBL) use modern machineries . For
example;
Rotary Furnace
Rotary Furnace
Rotary furnace is designed for treatment and recovery of Lead
from Lead Acid Batteries Scrap and for the reduction of Lead
Sulphate , Lead Oxides, Lead Concentrates, Lead Dross and
Lead Ore. Rotary Furnace will work at temperature of about
(1000-1200)0 C.

12. Grid Machine
UPVC Injection
Molding Machine
UPVC Injection Molding Machine
This machine manufacture various types of battery box through
the injection molding process. Polypropylene is used to prepare
the plastic cover. This machine takes only few seconds to prepare
one box.
Different sizes and types of grids are prepared in grid casting
machine. Different quantities of antimony lead are used to prepare
the grid. Grid casting machine has different parts where lead alloy
is melted first then it is poured in the mold part where grids are
formed. Then it is sent to the cutter to cut the scrap part.
Grid Machine

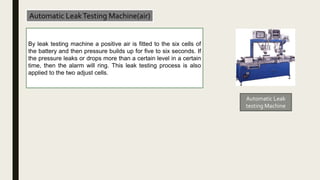

13. Automatic LeakTesting Machine(air)
By leak testing machine a positive air is fitted to the six cells of
the battery and then pressure builds up for five to six seconds. If
the pressure leaks or drops more than a certain level in a certain
time, then the alarm will ring. This leak testing process is also
applied to the two adjust cells.
Automatic Leak
testing Machine

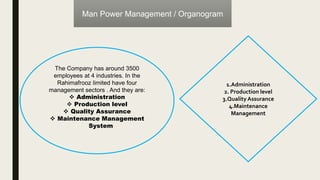

14. Man Power Management / Organogram
The Company has around 3500
employees at 4 industries. In the
Rahimafrooz limited have four
management sectors . And they are:
 Administration
 Production level
 Quality Assurance
 Maintenance Management
System
1.Administration
2. Production level
3.Quality Assurance
4.Maintenance
Management

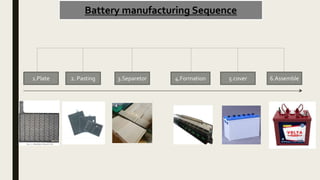

15. Battery manufacturing Sequence
1.Plate 2. Pasting 3.Separetor 4.Formation 5.cover 6.Assemble

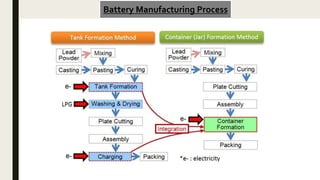

16. Battery Manufacturing Process

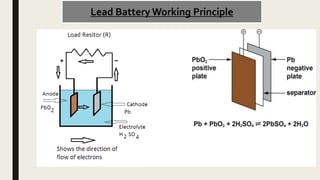

17. Lead Battery Working Principle

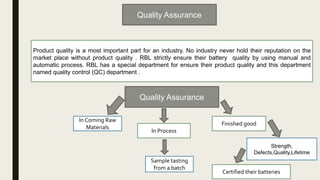

18. Quality Assurance
Product quality is a most important part for an industry. No industry never hold their reputation on the
market place without product quality . RBL strictly ensure their battery quality by using manual and
automatic process. RBL has a special department for ensure their product quality and this department
named quality control (QC) department .
Quality Assurance
In Coming Raw
Materials
In Process
Finished good
Sample tasting
from a batch
Strength,
Defects,Quality,Lifetime
Certified their batteries

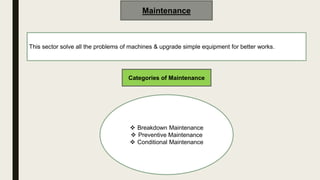

19. Maintenance
This sector solve all the problems of machines & upgrade simple equipment for better works.
Categories of Maintenance
 Breakdown Maintenance
 Preventive Maintenance
 Conditional Maintenance

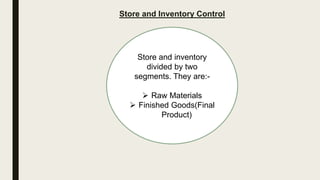

20. Store and Inventory Control
Store and inventory
divided by two
segments. They are:-
 Raw Materials
 Finished Goods(Final
Product)

21. Waste Management
As we know this is a battery industry and the company makes Lead (Pb) battery.
So there is a huge demand of lead .Rahimafrooz have a waste management plant.
Waste of lead.
Recycle plant
Manufacturing level.

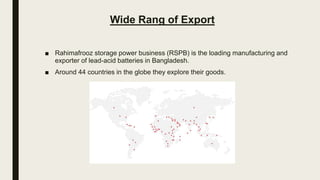

22. Wide Rang of Export
■ Rahimafrooz storage power business (RSPB) is the loading manufacturing and
exporter of lead-acid batteries in Bangladesh.
■ Around 44 countries in the globe they explore their goods.

23. MILSTON OF RBL

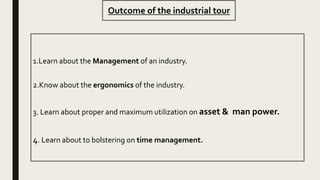

24. Outcome of the industrial tour
1.Learn about the Management of an industry.
2.Know about the ergonomics of the industry.
3. Learn about proper and maximum utilization on asset & man power.
4. Learn about to bolstering on time management.

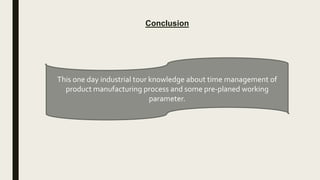

25. Conclusion
This one day industrial tour knowledge about time management of
product manufacturing process and some pre-planed working
parameter.

26. THANKS TO ALL
