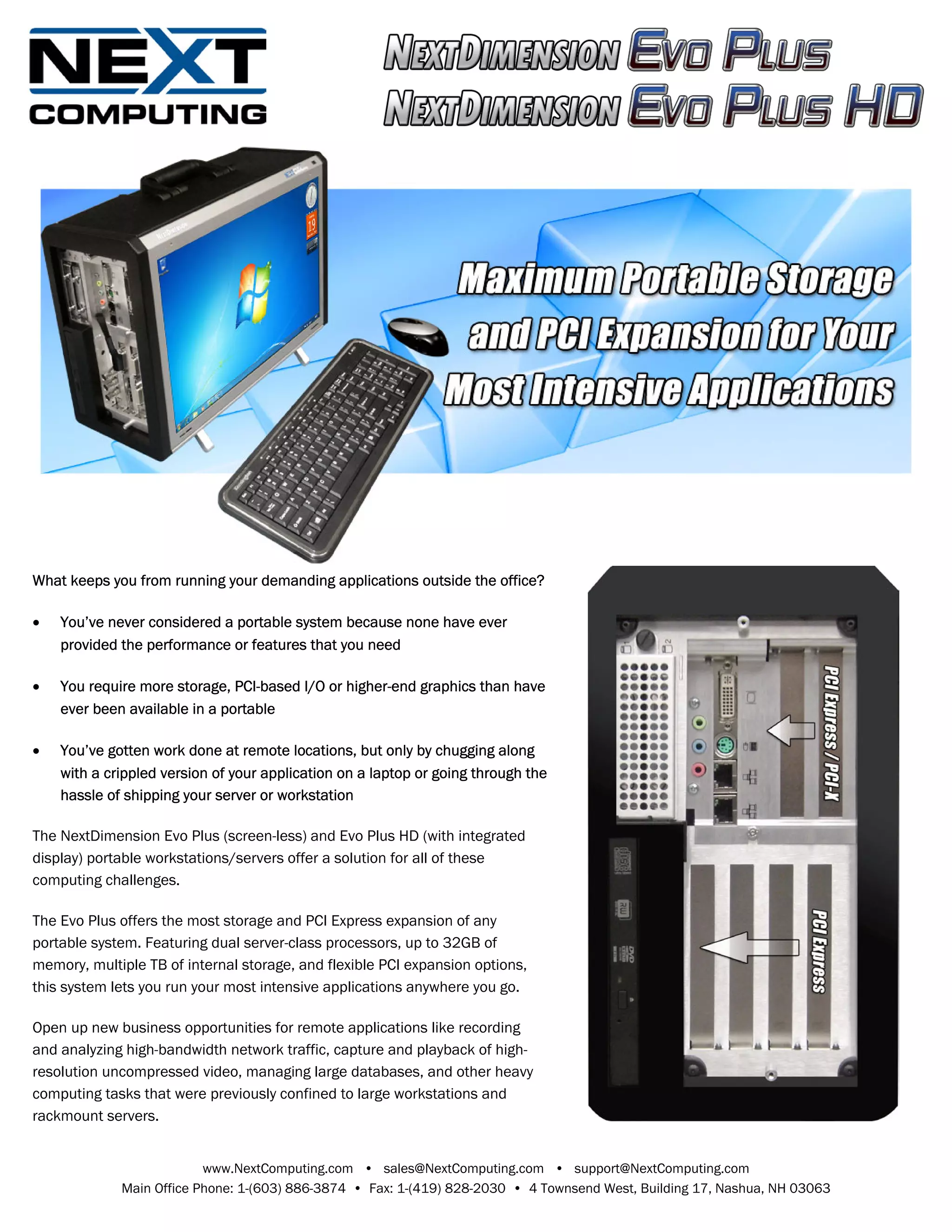

1. What keeps you from running your demanding applications outside the office?
• You’ve never considered a portable system because none have ever
provided the performance or features that you need
• You require more storage, PCI-based I/O or higher-end graphics than have
ever been available in a portable
• You’ve gotten work done at remote locations, but only by chugging along
with a crippled version of your application on a laptop or going through the
hassle of shipping your server or workstation
The NextDimension Evo Plus (screen-less) and Evo Plus HD (with integrated
display) portable workstations/servers offer a solution for all of these
computing challenges.
The Evo Plus offers the most storage and PCI Express expansion of any
portable system. Featuring dual server-class processors, up to 32GB of
memory, multiple TB of internal storage, and flexible PCI expansion options,
this system lets you run your most intensive applications anywhere you go.
Open up new business opportunities for remote applications like recording
and analyzing high-bandwidth network traffic, capture and playback of high-
resolution uncompressed video, managing large databases, and other heavy
computing tasks that were previously confined to large workstations and
rackmount servers.
www.NextComputing.com • sales@NextComputing.com • support@NextComputing.com
Main Office Phone: 1-(603) 886-3874 • Fax: 1-(419) 828-2030 • 4 Townsend West, Building 17, Nashua, NH 03063

2. /
Modular Processing Options Graphics Input Devices
Intel® Xeon® 5400-Series: • Optional ATI Radeon™ E2400 MXM-II Module • Support for external USB keyboard and mouse
• (1) or (2) L5240 Dual-Core 3.0GHz, 6MB L2
• Support for PCI Express graphics cards • Optional wireless keyboard and mouse available
cache, 1333MHz FSB
Note: to view all available PCI slot configurations, via external hub
• (1) or (2) L5420 Quad-Core 2.5GHz, 12MB L2
please consult the “PCI & Storage Configurations”
cache, 1333MHz FSB
datasheet Operating System Support (32–/64-bit)
• (1) or (2) L5430 Quad-Core 2.66GHz, 12MB L2
• Microsoft Windows
cache, 1333MHz FSB
Removable Storage
• SuSe Linux
• Up to (4) hot-swappable and bootable 2.5” SATA
Memory drives (up to 500GB 7200 RPM ea) -or- • Red Hat Enterprise Linux
• Up to 32GB DDR2 RAM (ECC) up to (4) 2.5” SAS (600GB/10K RPM or • Fedora Linux
147GB/15K RPM)
• CentOS Linux
Display Options
Fixed Internal Storage • Solaris 10 x86 (64-bit only)
• NextDimension Evo Plus HD features integrated
17” WUXGA+ LCD up to 1920x1200 With 4-slot Midplane • Dual boot environments and virtualization with
• Lower access bay houses up to (16) 2.5" SATA VMware (including ESXi), VirtualBox, or Xen
• Both models support external displays drives (up to 500GB 7200 RPM ea) –or– up to
• Optional high-resolution capacitive touchscreen (12) SAS (600GB/10K RPM or 147GB/15K
RPM) Power Sub-System
• Processor bay houses up to (9) SATA drives –or– • 460W or 700W internal—110/220V 50/60Hz
Standard I/O auto-switching power supply
up to (3) SAS drives
• (2) Gigabit-Ethernet ports
With 6-slot Midplane • 300W internal—~24V DC power supply
• (4) USB 2.0 ports • Lower access bay houses up to (10) 2.5" SATA • 300W external—AC/DC switching w/ 20V DC
drives (up to 500GB 7200 RPM ea) –or– up to output
• (1) DVI port
(8) SAS (600GB/10K RPM or 147GB/15K RPM)
• Firewire 1394a, 400Mbps, 3-port Physical Layer
• Processor bay houses up to (6) SATA drives –or– Environmental
• Audio line-in / line-out / mic-in (AC97) up to (2) SAS drives
Operating:
• (2) external SATA ports and (2) RS-232 ports • 5°C–45°C, 41°F–113°F (16GB RAM)
(with optional external RS-422/485 adaptor) Note: Storage configurations are dependent on PCI
-or- (4) external SATA ports card length and locations. To view all configurations, • 5°C–40°C / 41°F–104°F (24GB RAM)
-or- (2) multi-lane SAS Quad ports please consult the “PCI & Storage Configurations”
• Relative humidity (5-95%) non-condensing
datasheet
Non-Operating:
Optical Drive RAID Options • -40°C–65°C, -40°F–149°F
• Internal DVD R/RW or Blu-Ray R/RE (or up to (2) • On-board RAID 0 / 1 / 0+1 SAS/SATA controller • Relative humidity (5-95%) non-condensing
SATA or IDE HDDs) with up to (8) ports plus on-board SAS/SATA
controller with up to (6) ports
Regulations & Physical Dimensions
• Optional 6G RAID controller (8) or (16) ports.
Support for 600GB/10K RPM SAS, 147GB/15K • FCC Class A, and CE. Certified TUV
RPM SAS, or 500GB/7200RPM SATA • 6.69" (D) x 11.44" (H) x 16.8" (W)
• Basic configuration ~ 19 lbs
• Optional rack-mount kit.
Carrying Case
Includes soft carrying case. Optional rolling soft
case or hard case.
This document is for informational purposes only. Updates and changes can occur
without notice. All logos, trademarks, and service marks are the property of their
respective owners. Copyright © 2010 NextComputing all rights reserved.
Rev 1.2 – 07/10
