Kong
- 1. KONG

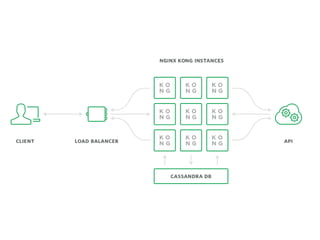

- 2. Kong is a scalable, open source API Layer (also known as a API Gateway, or API Middleware). Kong runs in front of any RESTful API and is extended through Plugins, which provide extra functionalities and services beyond the core platform.

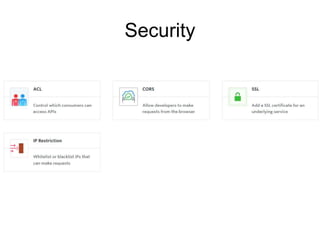

- 8. Security

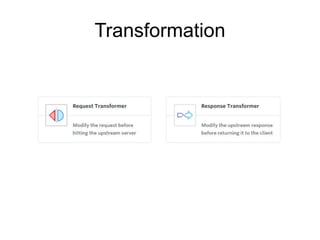

- 10. Transformation
- 11. Logging

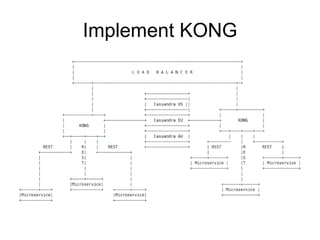

- 12. Implement KONG

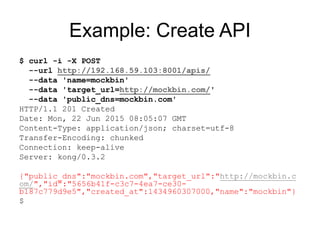

- 13. Example: Create API $ curl -i -X POST --url http://192.168.59.103:8001/apis/ --data 'name=mockbin' --data 'target_url=http://mockbin.com/' --data 'public_dns=mockbin.com' HTTP/1.1 201 Created Date: Mon, 22 Jun 2015 08:05:07 GMT Content-Type: application/json; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Server: kong/0.3.2 {"public_dns":"mockbin.com","target_url":"http://mockbin.c om/","id":"5656b41f-c3c7-4ea7-ce30- b187c779d9e5","created_at":1434960307000,"name":"mockbin"} $

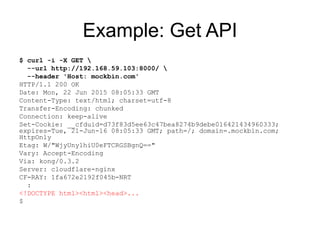

- 14. Example: Get API $ curl -i -X GET --url http://192.168.59.103:8000/ --header 'Host: mockbin.com' HTTP/1.1 200 OK Date: Mon, 22 Jun 2015 08:05:33 GMT Content-Type: text/html; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Set-Cookie: __cfduid=d73f83d5ee63c47bea8274b9debe016421434960333; expires=Tue, 21-Jun-16 08:05:33 GMT; path=/; domain=.mockbin.com; HttpOnly Etag: W/"WjyUny1hiU0eFTCRGSBgnQ==" Vary: Accept-Encoding Via: kong/0.3.2 Server: cloudflare-nginx CF-RAY: 1fa672e2192f045b-NRT : <!DOCTYPE html><html><head>... $

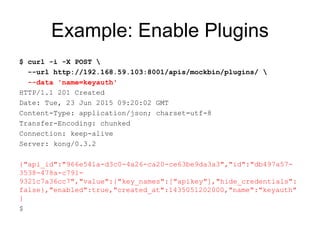

- 15. Example: Enable Plugins $ curl -i -X POST --url http://192.168.59.103:8001/apis/mockbin/plugins/ --data 'name=keyauth' HTTP/1.1 201 Created Date: Tue, 23 Jun 2015 09:20:02 GMT Content-Type: application/json; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Server: kong/0.3.2 {"api_id":"966e541a-d3c0-4a26-ca20-ce63be9da3a3","id":"db497a57- 3538-478a-c791- 9321c7a36cc7","value":{"key_names":["apikey"],"hide_credentials": false},"enabled":true,"created_at":1435051202000,"name":"keyauth" } $

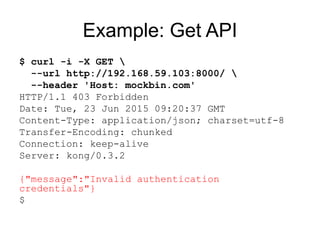

- 16. Example: Get API $ curl -i -X GET --url http://192.168.59.103:8000/ --header 'Host: mockbin.com' HTTP/1.1 403 Forbidden Date: Tue, 23 Jun 2015 09:20:37 GMT Content-Type: application/json; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Server: kong/0.3.2 {"message":"Invalid authentication credentials"} $

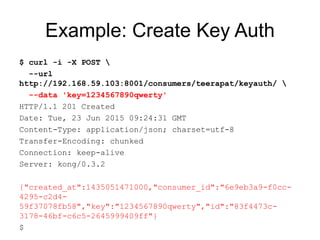

- 17. Example: Create Key Auth $ curl -i -X POST --url http://192.168.59.103:8001/consumers/teerapat/keyauth/ --data 'key=1234567890qwerty' HTTP/1.1 201 Created Date: Tue, 23 Jun 2015 09:24:31 GMT Content-Type: application/json; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Server: kong/0.3.2 {"created_at":1435051471000,"consumer_id":"6e9eb3a9-f0cc- 4295-c2d4- 59f37078fb58","key":"1234567890qwerty","id":"83f4473c- 3178-46bf-c6c5-2645999409ff"} $

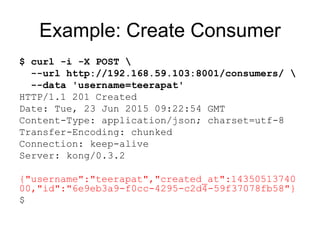

- 18. Example: Create Consumer $ curl -i -X POST --url http://192.168.59.103:8001/consumers/ --data 'username=teerapat' HTTP/1.1 201 Created Date: Tue, 23 Jun 2015 09:22:54 GMT Content-Type: application/json; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Server: kong/0.3.2 {"username":"teerapat","created_at":14350513740 00,"id":"6e9eb3a9-f0cc-4295-c2d4-59f37078fb58"} $

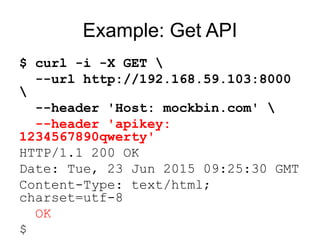

- 19. Example: Get API $ curl -i -X GET --url http://192.168.59.103:8000 --header 'Host: mockbin.com' --header 'apikey: 1234567890qwerty' HTTP/1.1 200 OK Date: Tue, 23 Jun 2015 09:25:30 GMT Content-Type: text/html; charset=utf-8 OK $
- 20. Example: Get API (wrong key) $ curl -i -X GET --url http://192.168.59.103:8000 --header 'Host: mockbin.com' --header 'apikey: 1234567890qwert' HTTP/1.1 403 Forbidden Date: Tue, 23 Jun 2015 14:02:08 GMT Content-Type: application/json; charset=utf-8 Transfer-Encoding: chunked Connection: keep-alive Server: kong/0.3.2 {"message":"Invalid authentication credentials"} $
- 21. KONG
