This document summarizes the history and benefits of QuickFrames, an adjustable bolt-on roof framing system invented by Jay Soyko in 2001. Some key points: - QuickFrames were invented in 2001 after Soyko had an accident with a traditional welded frame. The system received a patent in 2004 and Soyko Industries LLC was formed in 2011. - The frames are bolt-on, patented, adjustable and pre-engineered to support roof openings like skylights, drains and exhaust fans. They provide benefits like lower costs, faster installation, reduced risk of fire, and increased productivity over traditional welded frames. - Over 2,500 frames were sold by 2012 and QuickFrames have become

4. 






Waiting for location & sizing
Wrong locations & wrong size
Re-work
Difficult installations (welding/fire)
Forgotten frames (roof drains, etc.)
Expensive and takes too long
Roof frames are a pain in the ___!

5. 
2001: Jay Soyko creates a
frame due to accident

2004: US Patent

2011: Soyko Industries LLC
Jay Soyko & Friends

Family of Inventors

2012: Reaches over
2,500 frames sold!
2013: Becoming the
Industry Standard

6. 




Bolt-on
Patented
Adjustable
Pre-engineered
Roof Opening Frame

7. 




RUT’S
Sky lights
Roof drains
Exhaust fans
Anything that needs
sub-desk support

8. 




Commercial buildings
Pre-engineered buildings
New construction
Tenant improvement
Panelized wood roof system

9. 







Lower cost = lower bids & more savings
Eliminates the need for detailing
Avoids risk of fire in the roof or below
Faster install time by 4.5 times
Adjusts to site conditions
Increased productivity – after the deck
Reduce project delays
No welding = no inspections & no skilled labor

10. 
Laboratory tested and approved for use by
◦ Phoenix National Laboratories
◦ Caruso Turley Scott Structural Engineers

Engineering for nearly everywhere in US
◦ CTS will provide specific engineering as needed

When specific engineering is required,
QuickFrames will provide for order over three
frames

11. 12 ga Frame x 48”
 6’ – 6040 lbs.
 8’ – 2760 lbs.
 10’ – 2060 lbs.
16 ga Frame x 48”
 6’ – 1588 lbs.
 8’ – 740 lbs.
 10’ – 200 lbs.
*Weights based on equally distributed loading.

Seismic Load Category B – Snow Load 20 PSF – Dead/Live Load 10 PSF/ 20 PSF (roof
structure bearing on frame)

Wind Load 90 mph, exposure C

For Areas with code design greater than what our engineering states CTS can provide
site specific design.

12. ADJUSTABILITY
Cross Rail Chart
Joist
Rail Size
Opening Size
Adjustability
4’
35”
51"-60"
13” <48> 12” = total 25”
5’
40”
61"-70"
20” <60> 10” = total 30”
6’
45”
71"-80"
27” <72> 8” = total 35”
8’
60”
81"-110"
36” <96> 14” = total 50”
10’
75”
111"-135"
45” <120> 15” = total 60”
15”
15"-20"
5”
20”
21"-30"
10”
25”
31"-40"
15”
30”
41"-50"
20”
35”
51"-60"
25”
40”
61"-70"
30”
45”
71"-80"
35”
60”
81"-110"
50”
75”
111"-135"
60”

14. 500 Frames per Truckload

16. 



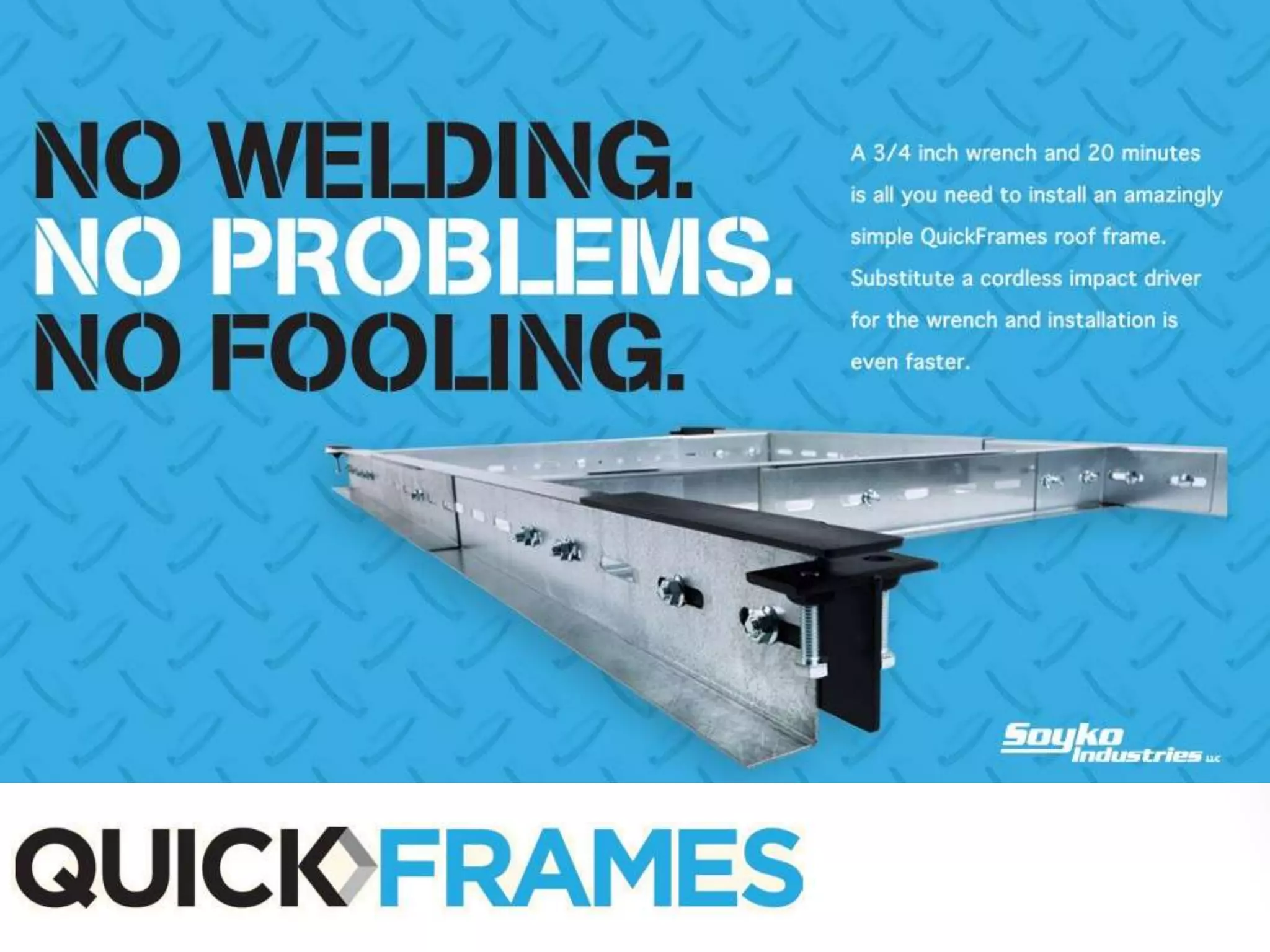

The only tool required
is a ¾” wrench
We recommend a
cordless impact driver
Typical install takes
roughly 20-30 mins

17. 






Do you know the cost of a average welded
roof frame?
$500 - $1,500 depending on region
QuickFrames is between $195 -$325
Skylights $130 - $185
No special inspections
No welding / TI
Pick-up the same day

19. 
Wrong Orientation
◦ 376 Skylights

Missed Frames
◦ 80 Rood Drains/RTU’s

Wrong Locations
◦ 20+

Cost Savings in Excess of
$675,000

20. Mark Fultz VP of Operations
Able Steel Fabricators
“On our recent project of a 1.3 million square
foot warehouse, utilizing QuickFrames
allowed us to exceed the initial schedule by 4
weeks. When you’re talking minutes as
opposed to hours to install a frame that has
adjustment capabilities if there is a problem,
[it] was an easy decision for us. We will never
go back to the old way.”

21. Nikki Wood, Project Estimator
Bell Steel
“The entire process with QuickFrames was smooth and
easy. I called them and they immediately were on top of
handling my order. They personally came to our location to
get the information on what we needed, took the time to
confirm the details were accurate, and got it ordered. The
project went quickly and QuickFrames was able to
accommodate everything we asked for, even up to last
minute changes. By using QuickFrames, a ton of my shop
time was freed up, and the end result looks great. The
frames blend into the roof seamlessly and if I need to move
them, I can do so in a snap.
I will choose QuickFrames every time over traditional
frames.”

22. 





Website
DWG Files
Full Engineering Report
Submittals
Installation Videos
Written Spec
