FAE Training ETX=BT formfactor for industrial automation
- 1. Building Forward Together1 1 Building Forward Together ETX Roadmap Q3, 2016

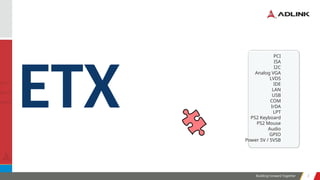

- 2. Building Forward Together2 2 ETX PCI ISA I2C Analog VGA LVDS IDE LAN USB COM IrDA LPT PS2 Keyboard PS2 Mouse Audio GPIO Power 5V / 5VSB

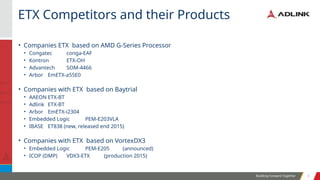

- 3. Building Forward Together3 3 • Companies ETX based on AMD G-Series Processor • Congatec conga-EAF • Kontron ETX-OH • Advantech SOM-4466 • Arbor EmETX-a55E0 • Companies with ETX based on Baytrial • AAEON ETX-BT • Adlink ETX-BT • Arbor EmETX-i2304 • Embedded Logic PEM-E203VLA • IBASE ET838 (new, released end 2015) • Companies with ETX based on VortexDX3 • Embedded Logic PEM-E205 (announced) • ICOP (DMP) VDX3-ETX (production 2015) ETX Competitors and their Products

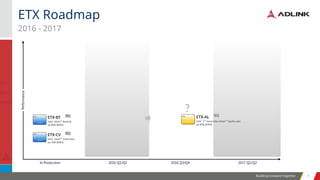

- 4. Building Forward Together4 4 2016 - 2017 ETX Roadmap -Performance- In Production 2016 Q1/Q2 2016 Q3/Q4 2017 Q1/Q2 ETX-BT Intel® Atom™ Baytrial up 8GB DDR3L ETX rev 3.02 ETX-CV Intel® Atom™ Cedarview up 4GB DDR3L ETX rev 3.02 ETX-AL Intel® 5th Generation Atom™ Apollo Lake up 8GB DDR3L ETX rev 3.02 ?

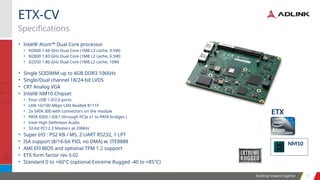

- 5. Building Forward Together5 5 • Intel® Atom™ Dual Core processor • N2600 1.66 GHz Dual Core (1MB L2 cache, 3.5W) • N2800 1.83 GHz Dual Core (1MB L2 cache, 6.5W) • D2550 1.86 GHz Dual Core (1MB L2 cache, 10W) • Single SODIMM up to 4GB DDR3 1066Hz • Single/Dual channel 18/24-bit LVDS • CRT Analog VGA • Intel® NM10 Chipset • Four USB 1.0/2.0 ports • LAN 10/100 Mbps LAN Realtek 8111F • 2x SATA 300 with connectors on the module • PATA IDE0 / IDE1 (through PCIe x1 to PATA bridges ) • Intel High Definition Audio • 32-bit PCI 2.3 Masters at 33MHz • Super I/O : PS2 KB / MS, 2 UART RS232, 1 LPT • ISA support (8/16-bit PIO, no DMA) w. ITE8888 • AMI EFI BIOS and optional TPM 1.2 support • ETX form factor rev 3.02 • Standard 0 to +60°C (optional Extreme Rugged -40 to +85°C) Specifications ETX-CV NM10 ETX

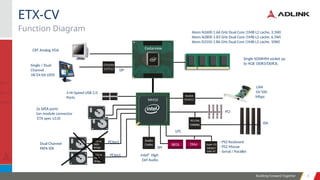

- 6. Building Forward Together6 6 Function Diagram ETX-CV Single SODIMM socket up to 4GB DDR3/DDR3L Single / Dual Channel 18/24-bit LVDS 4 Hi-Speed USB 2.0 Ports Intel® High Def Audio PCI ISA PCI/ISA IT8888G LAN 10/100 Mbps Audio Codec - PS2 Keyboard - PS2 Mouse - Serial / Parallel Realtek RTL8111 BIOS LPC TPM SPI Cedarview 2x SATA ports (on module connector ETX spec v3.0) Dual Channel PATA IDE PCIe to PATA Bridge PCIex1 NM10 Chrontel CH7511 CRT Analog VGA PCIex1 Cedarview DP Super I/O W83627 DHG-PT Atom N2600 1.66 GHz Dual Core (1MB L2 cache, 3.5W) Atom N2800 1.83 GHz Dual Core (1MB L2 cache, 6.5W) Atom D2550 1.86 GHz Dual Core (1MB L2 cache, 10W) PCIe to PATA Bridge

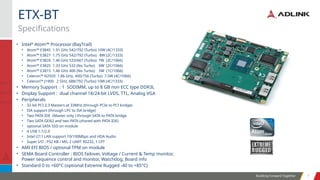

- 7. Building Forward Together7 7 • Intel® Atom™ Processor (BayTrail) • Atom™ E3845 1.91 GHz 542/792 (Turbo) 10W (4C/1333) • Atom™ E3827 1.75 GHz 542/792 (Turbo) 8W (2C/1333) • Atom™ E3826 1.46 GHz 533/667 (Turbo) 7W (2C/1066) • Atom™ E3825 1.33 GHz 533 (No Turbo) 6W (2C/1066) • Atom™ E3815 1.46 GHz 400 (No Turbo) 5W (1C/1066) • Celeron™ N2920 1.86 GHz, 400/756 (Turbo) 7.5W (4C/1066) • Celeron™ J1900 2 GHz, 688/792 (Turbo) 10W (4C/1333) • Memory Support : 1 SODIMM, up to 8 GB non ECC type DDR3L • Display Support : dual channel 18/24-bit LVDS, TTL, Analog VGA • Peripherals • 32-bit PCI 2.3 Masters at 33MHz (through PCIe to PCI bridge) • ISA support (through LPC to ISA bridge) • Two PATA IDE (Master only ) through SATA to PATA bridge • Two SATA GEN2 and two PATA (shared with PATA IDE) • optional SATA SSD on module • 4 USB 1.1/2.0 • Intel i211 LAN support 10/100Mbps and HDA Audio • Super I/O : PS2 KB / MS, 2 UART RS232, 1 LPT • AMI EFI BIOS / optional TPM on module • SEMA Board Controller : BIOS failover, Voltage / Current & Temp monitor, Power sequence control and monitor, Watchdog, Board info • Standard 0 to +60°C (optional Extreme Rugged -40 to +85°C) Specifications ETX-BT
- 8. Building Forward Together8 8 Function Diagram ETX-BT 4 ports USB 1.1/2.0 High Def Audio TPM SPI BIOS LPC SMB 2 SATA Master Baytrail BIOS Analog VGA LVDS 18/24-bit DDI0 2 PATA (Master only) through SATA to PATA bridge (loose SATA) PCIe to PCI Intel MAC/PHY BMC Baytrail Intel GbE LAN i211/i210 PCI 2.3 32 bit / 33MHz eDP to LVDS SODIMM max 8GB DDR3L DDR3L-1067/1333 non ECC PCI to ISA ISA 8/16-bit PIO, no DMA SIO Board Controller Dual BIOS failover, Voltage / Temp monitor, Power Sequence Control / Status Monitor, LCD panel Control, Watchdog, Boardinfo. PS2 Keyboard PS2 Mouse Serial / Parallel option SATA SSD Optional SATA SSD up to 64GB

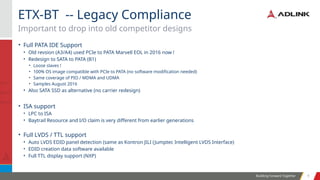

- 9. Building Forward Together9 9 • Full PATA IDE Support • Old revsion (A3/A4) used PCIe to PATA Marvell EOL in 2016 now ! • Redesign to SATA to PATA (B1) • Loose slaves ! • 100% OS image compatible with PCIe to PATA (no software modification needed) • Same coverage of PIO / MDMA and UDMA • Samples August 2016 • Also SATA SSD as alternative (no carrier redesign) • ISA support • LPC to ISA • Baytrail Resource and I/O claim is very different from earlier generations • Full LVDS / TTL support • Auto LVDS EDID panel detection (same as Kontron JILI (Jumptec Intelligent LVDS Interface) • EDID creation data software available • Full TTL display support (NXP) Important to drop into old competitor designs ETX-BT -- Legacy Compliance

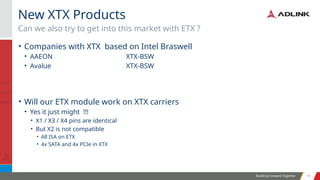

- 10. Building Forward Together10 10 • Companies with XTX based on Intel Braswell • AAEON XTX-BSW • Avalue XTX-BSW • Will our ETX module work on XTX carriers • Yes it just might !!! • X1 / X3 / X4 pins are identical • But X2 is not compatible • All ISA on ETX • 4x SATA and 4x PCIe in XTX Can we also try to get into this market with ETX ? New XTX Products
