2. Automation Architect - Instruct
Miguel Di Ciurcio Filho - miguel@instruct.com.br

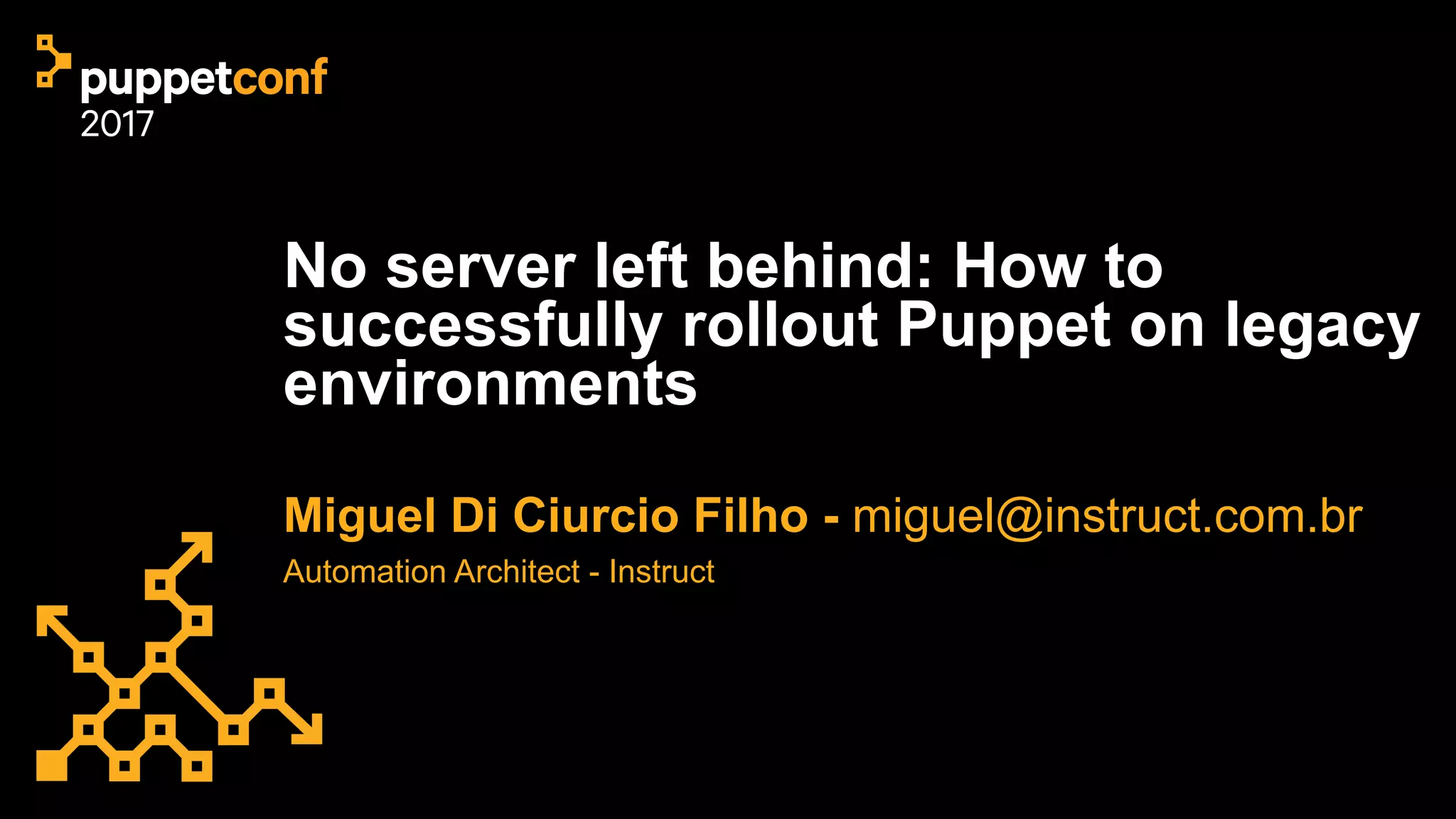

No server left behind: How to
successfully rollout Puppet on legacy
environments

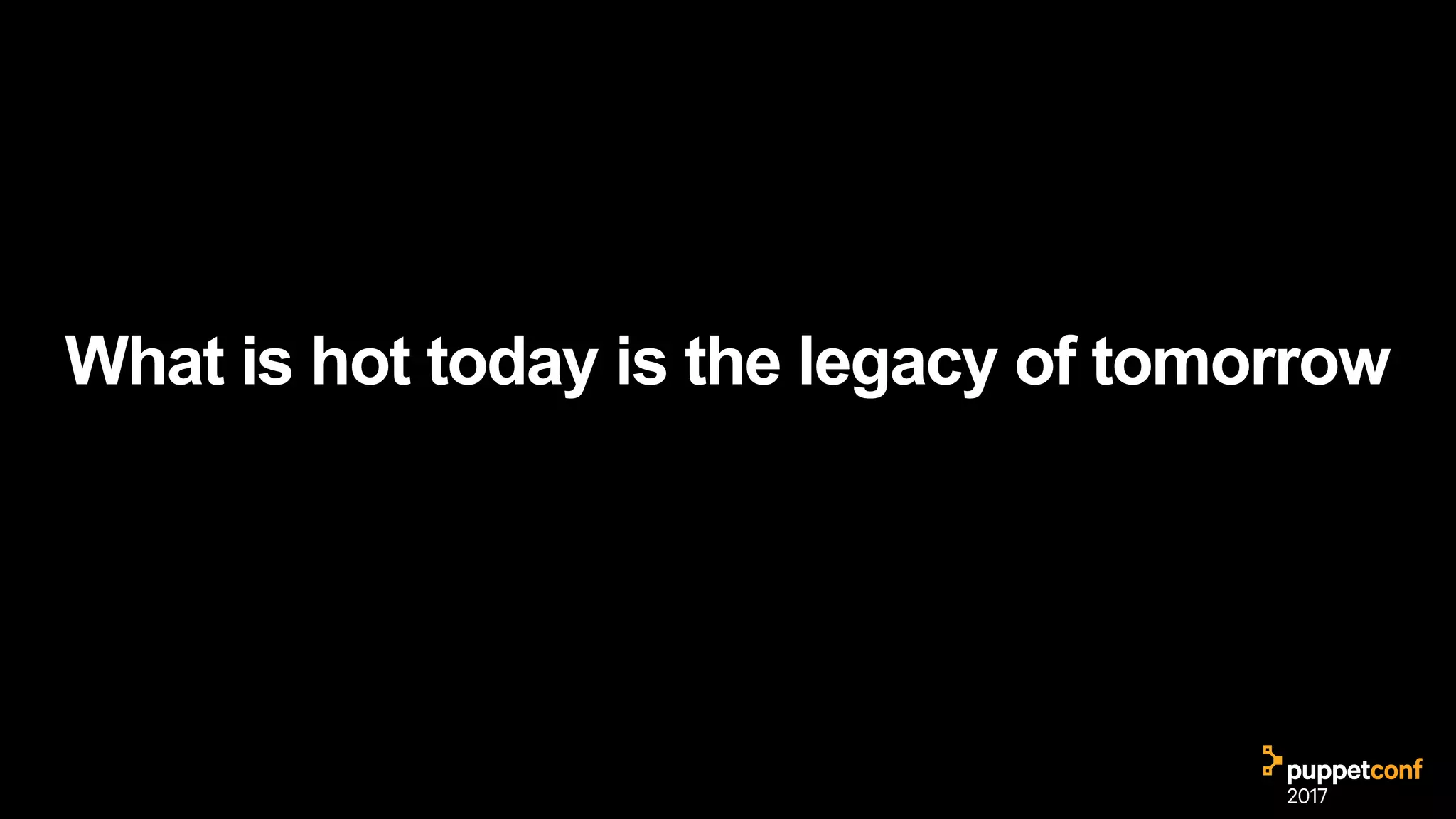

3. What is hot today is the legacy of tomorrow

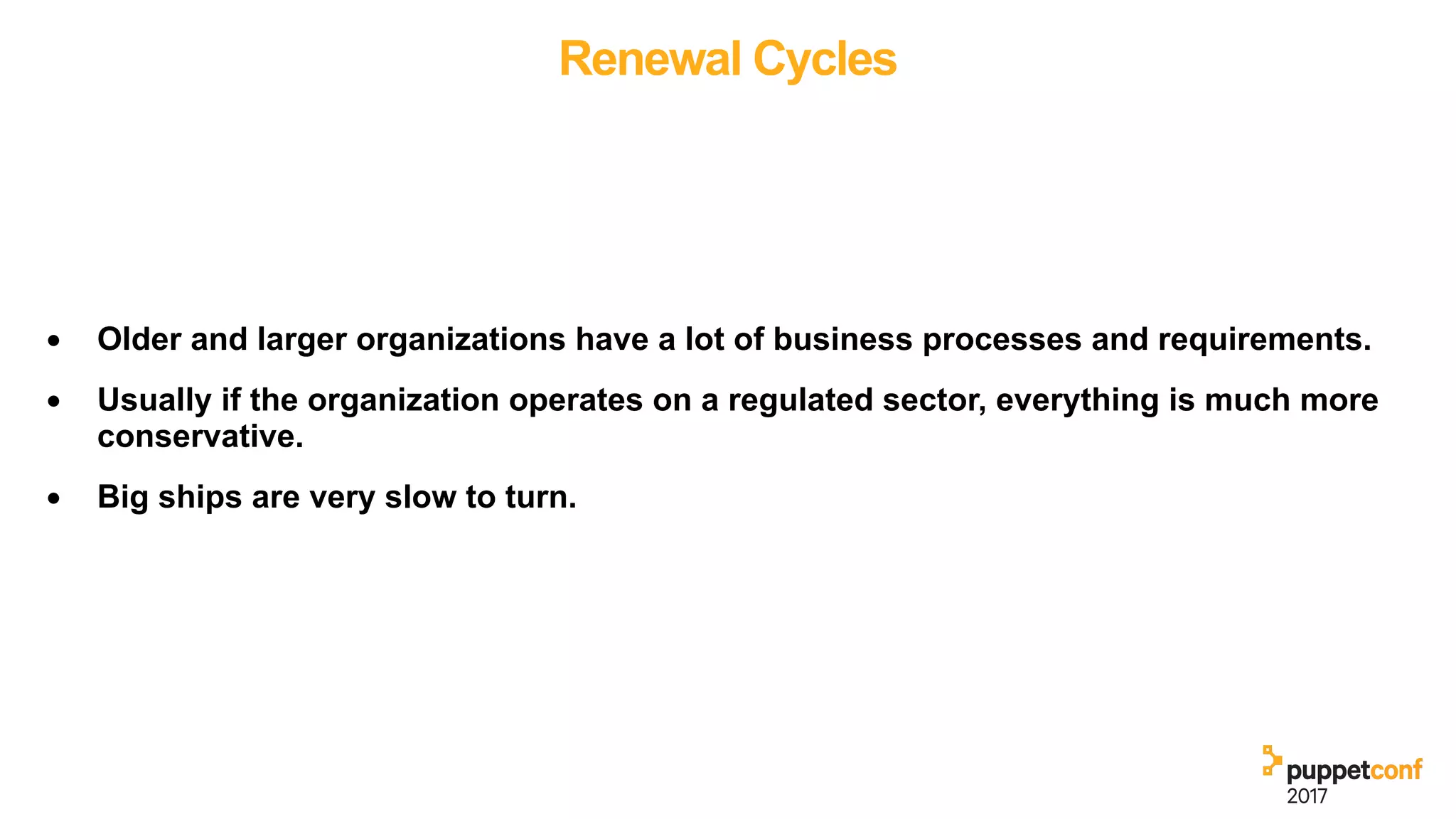

4. Renewal Cycles
• Older and larger organizations have a lot of business processes and requirements.
• Usually if the organization operates on a regulated sector, everything is much more
conservative.
• Big ships are very slow to turn.

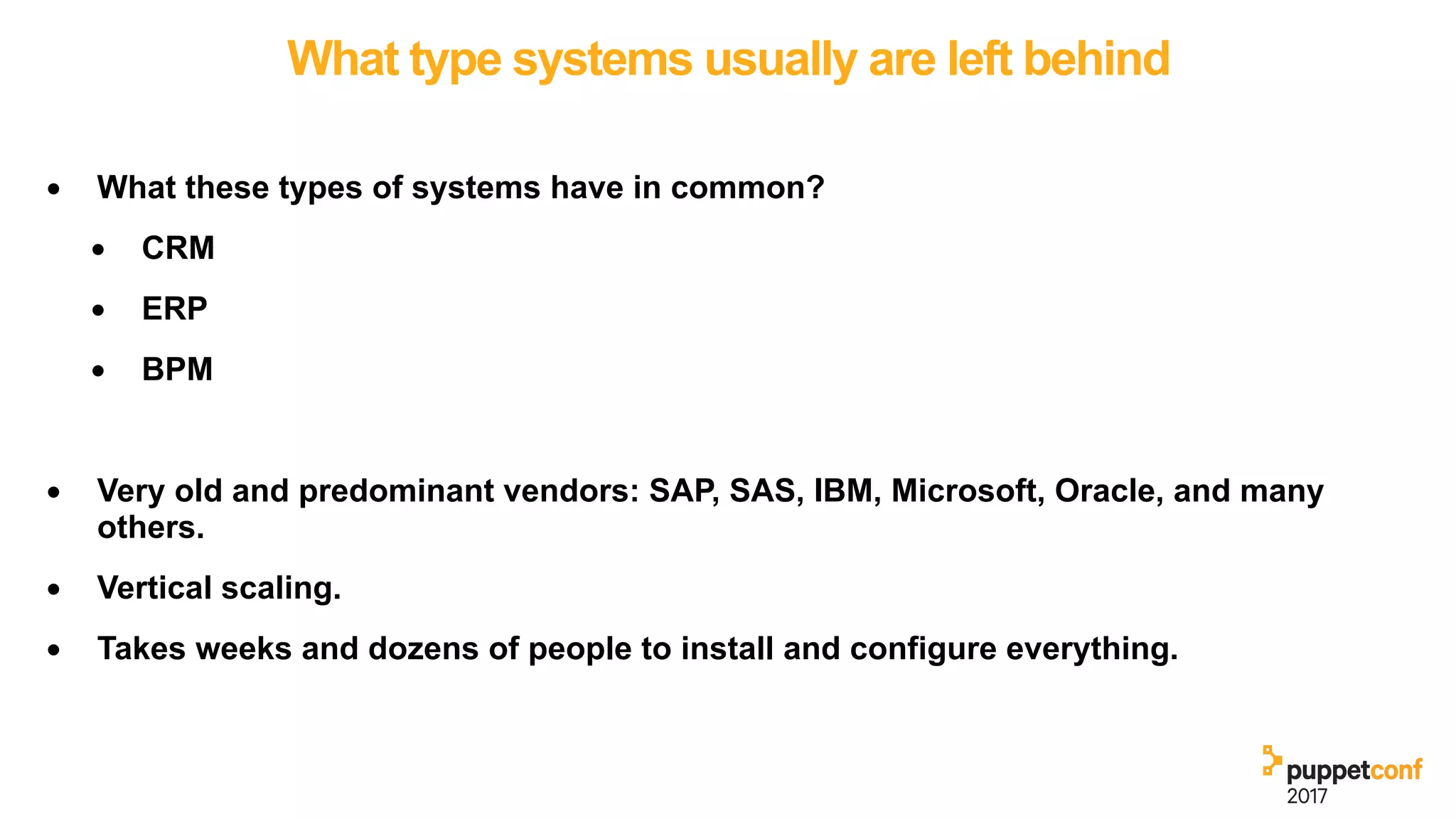

5. What type systems usually are left behind
• What these types of systems have in common?
• CRM
• ERP
• BPM
• Very old and predominant vendors: SAP, SAS, IBM, Microsoft, Oracle, and many
others.
• Vertical scaling.
• Takes weeks and dozens of people to install and configure everything.

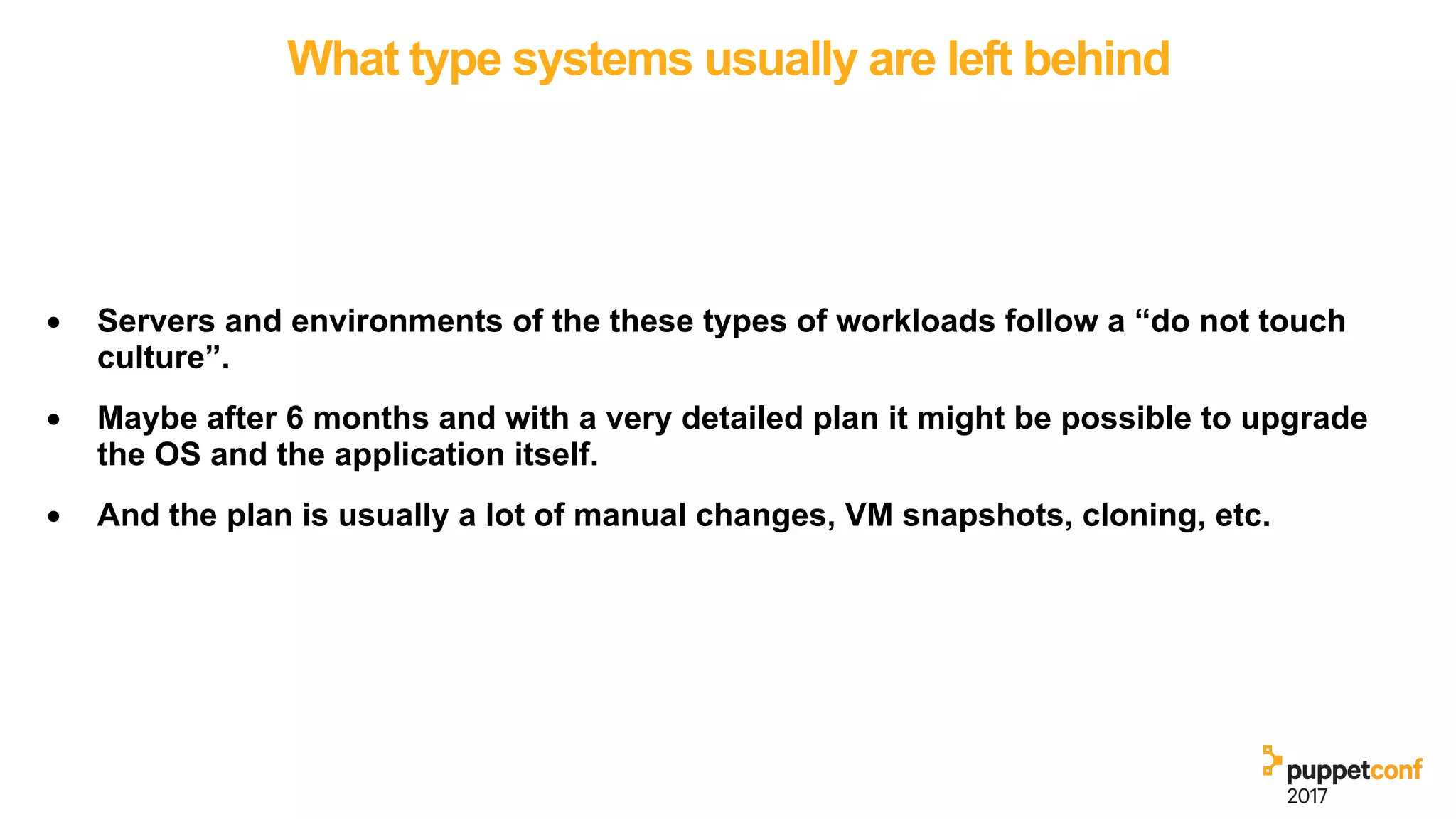

6. What type systems usually are left behind
• Servers and environments of the these types of workloads follow a “do not touch
culture”.
• Maybe after 6 months and with a very detailed plan it might be possible to upgrade
the OS and the application itself.
• And the plan is usually a lot of manual changes, VM snapshots, cloning, etc.

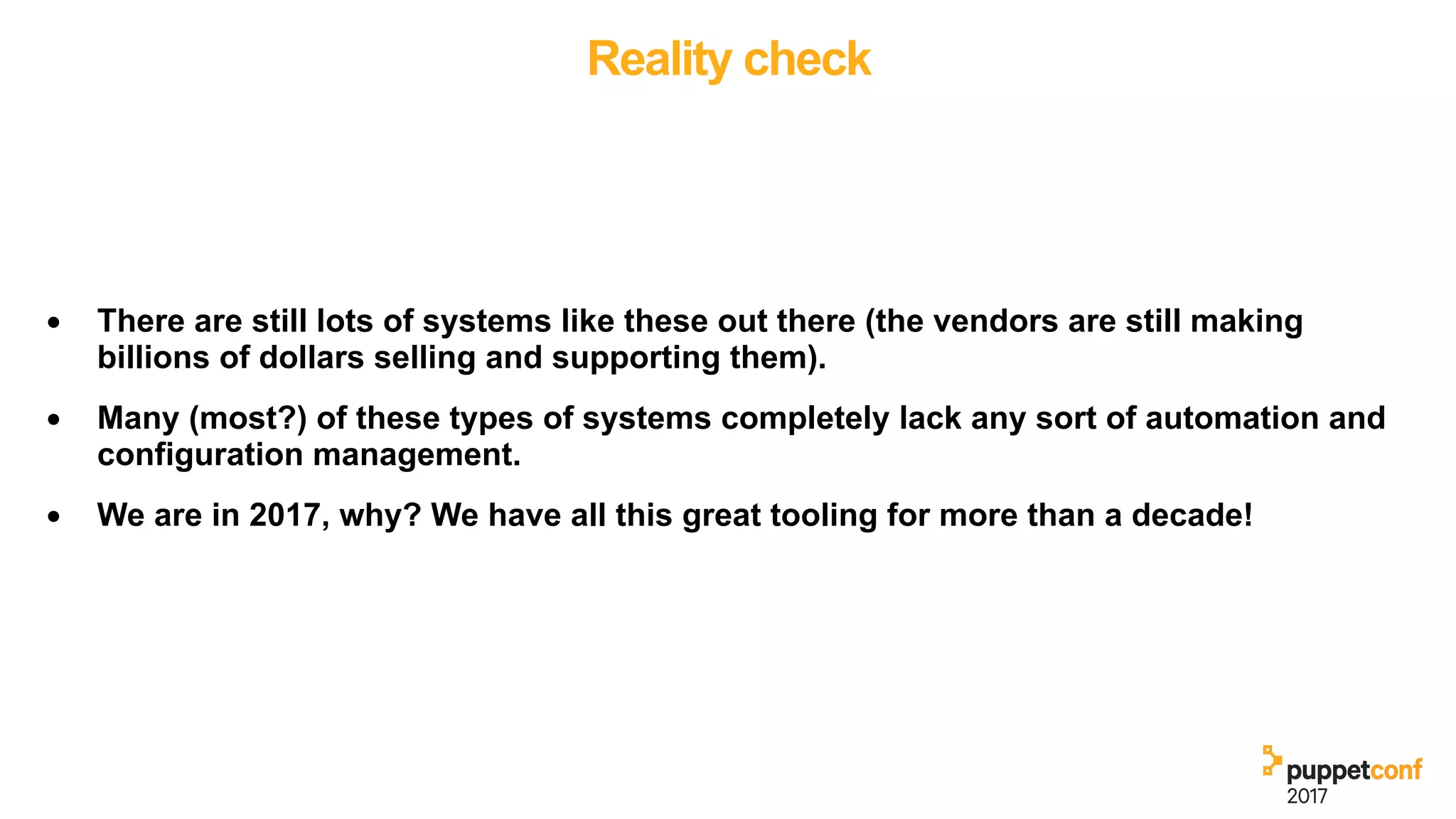

7. Reality check
• There are still lots of systems like these out there (the vendors are still making
billions of dollars selling and supporting them).
• Many (most?) of these types of systems completely lack any sort of automation and
configuration management.
• We are in 2017, why? We have all this great tooling for more than a decade!

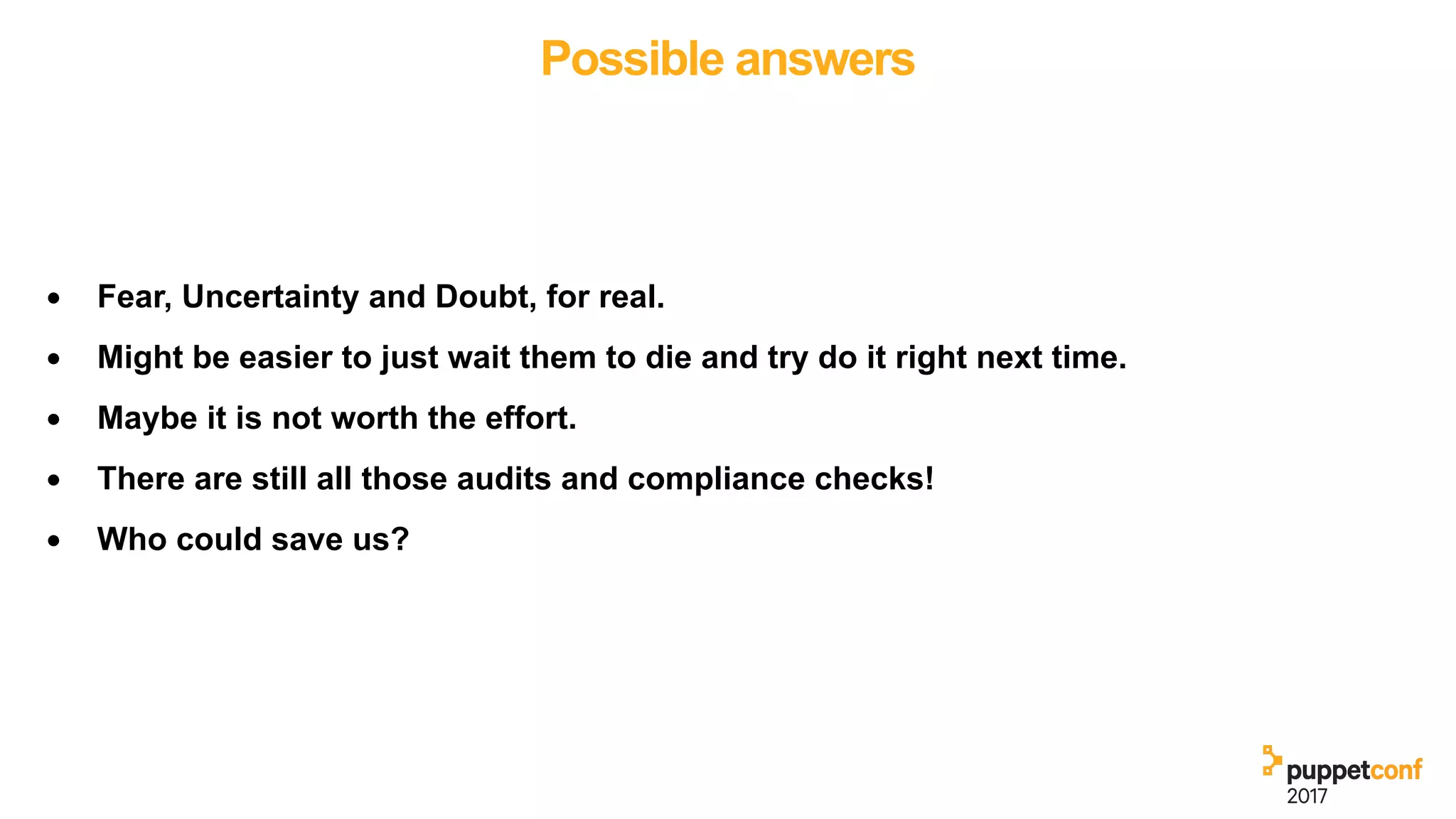

8. Possible answers
• Fear, Uncertainty and Doubt, for real.
• Might be easier to just wait them to die and try do it right next time.
• Maybe it is not worth the effort.
• There are still all those audits and compliance checks!
• Who could save us?

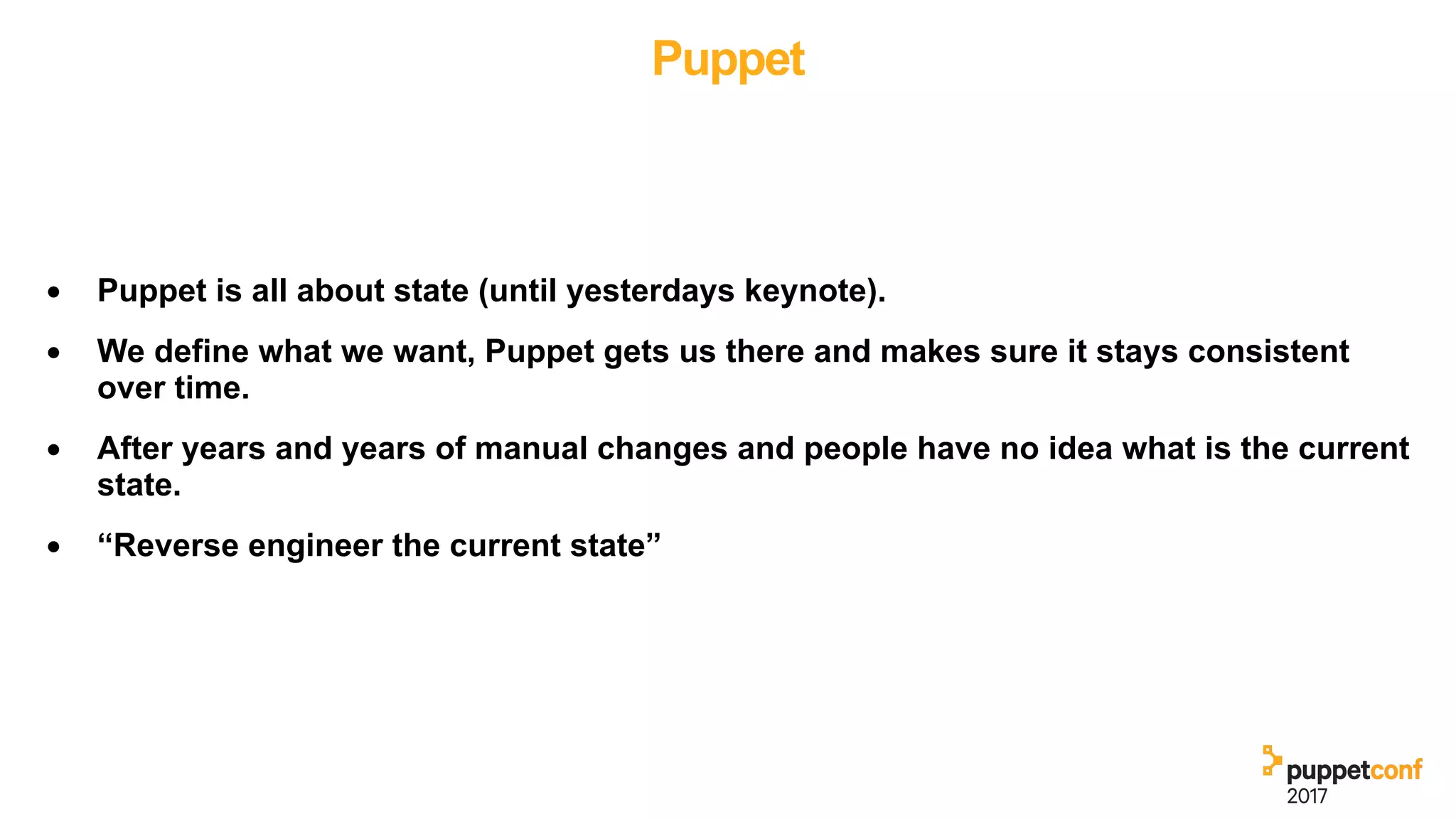

9. Puppet
• Puppet is all about state (until yesterdays keynote).
• We define what we want, Puppet gets us there and makes sure it stays consistent
over time.
• After years and years of manual changes and people have no idea what is the current
state.
• “Reverse engineer the current state”

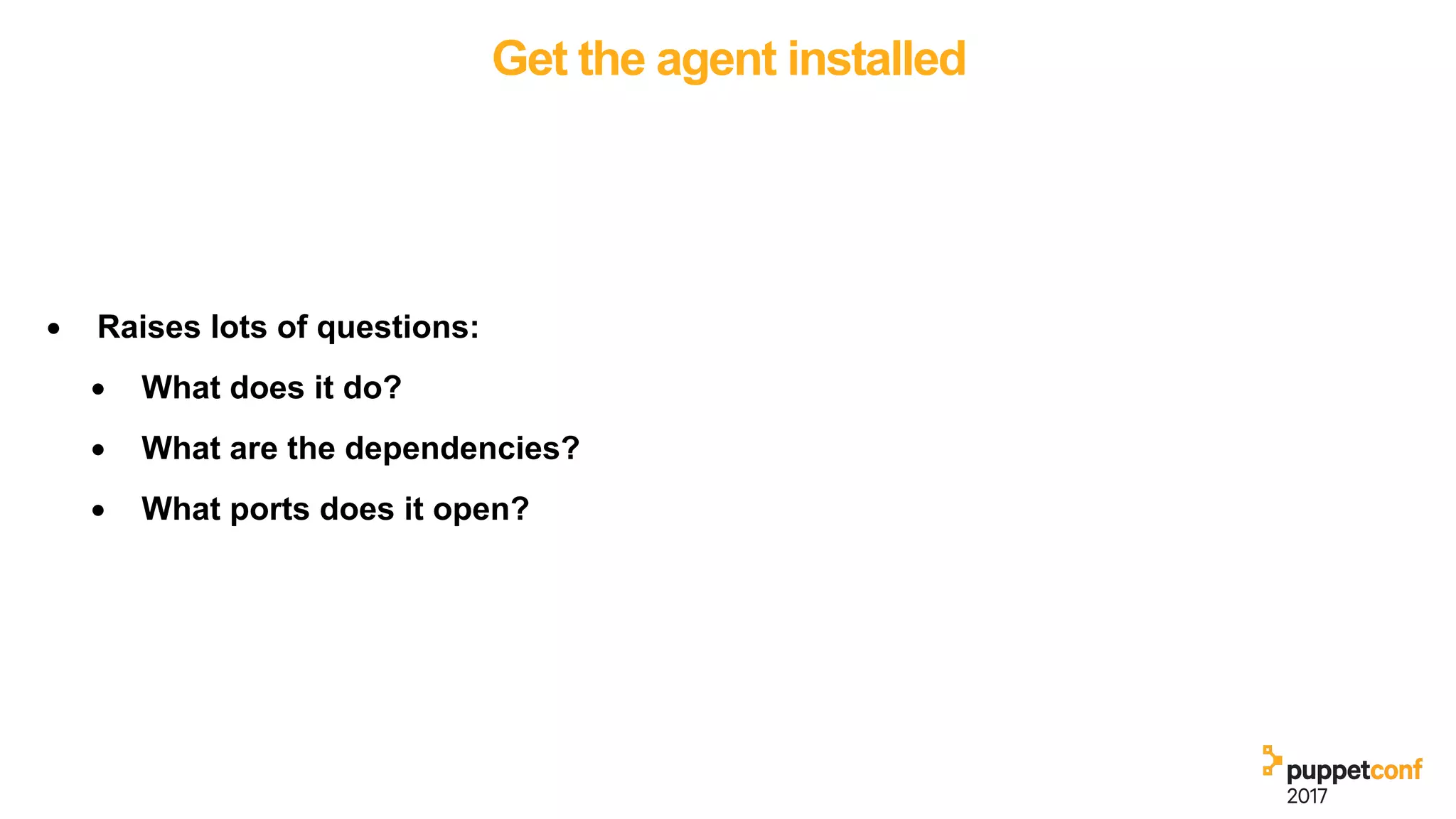

10. Get the agent installed
• Raises lots of questions:
• What does it do?
• What are the dependencies?
• What ports does it open?

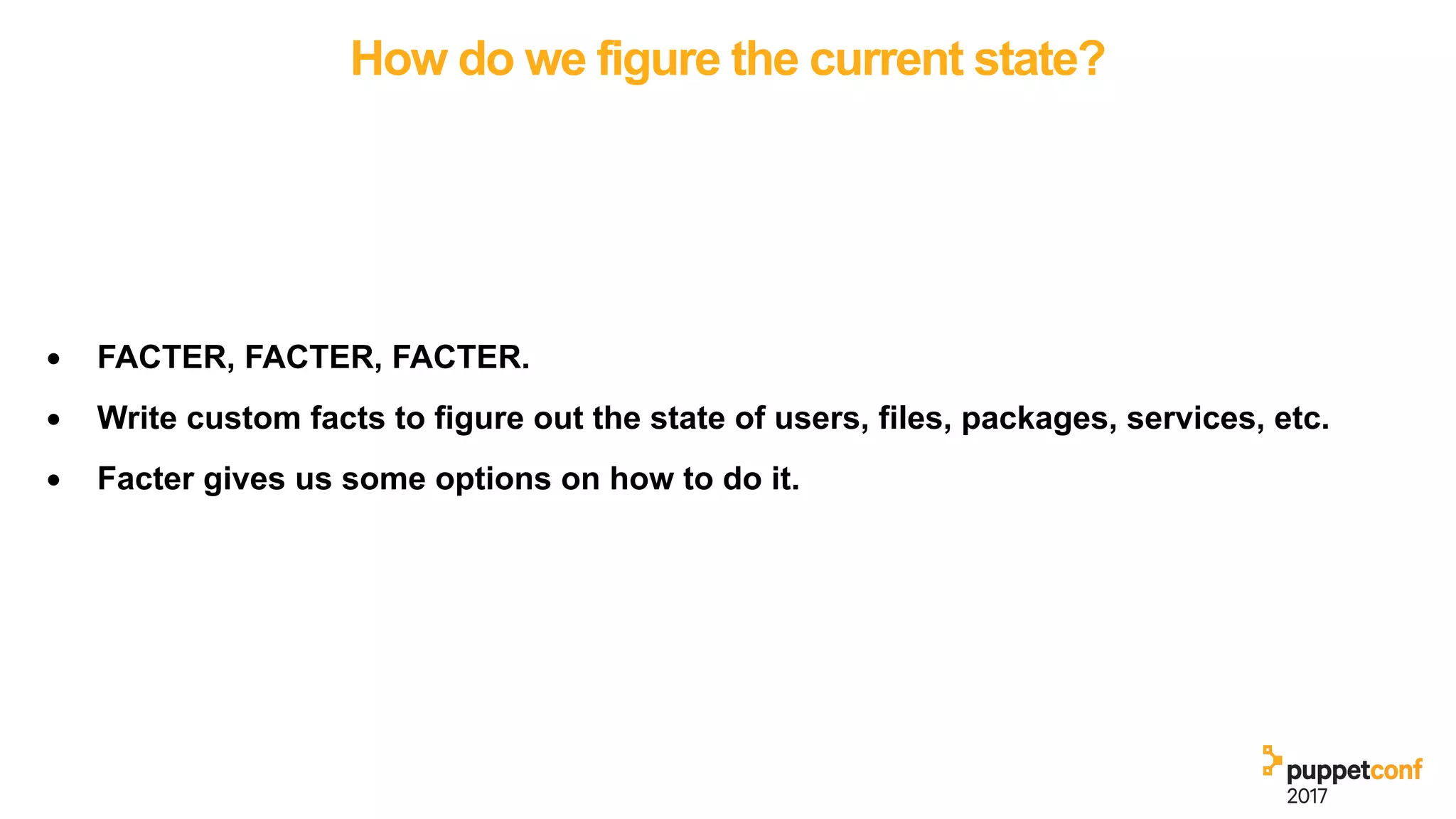

11. How do we figure the current state?
• FACTER, FACTER, FACTER.
• Write custom facts to figure out the state of users, files, packages, services, etc.
• Facter gives us some options on how to do it.

12. FACTER DEMO

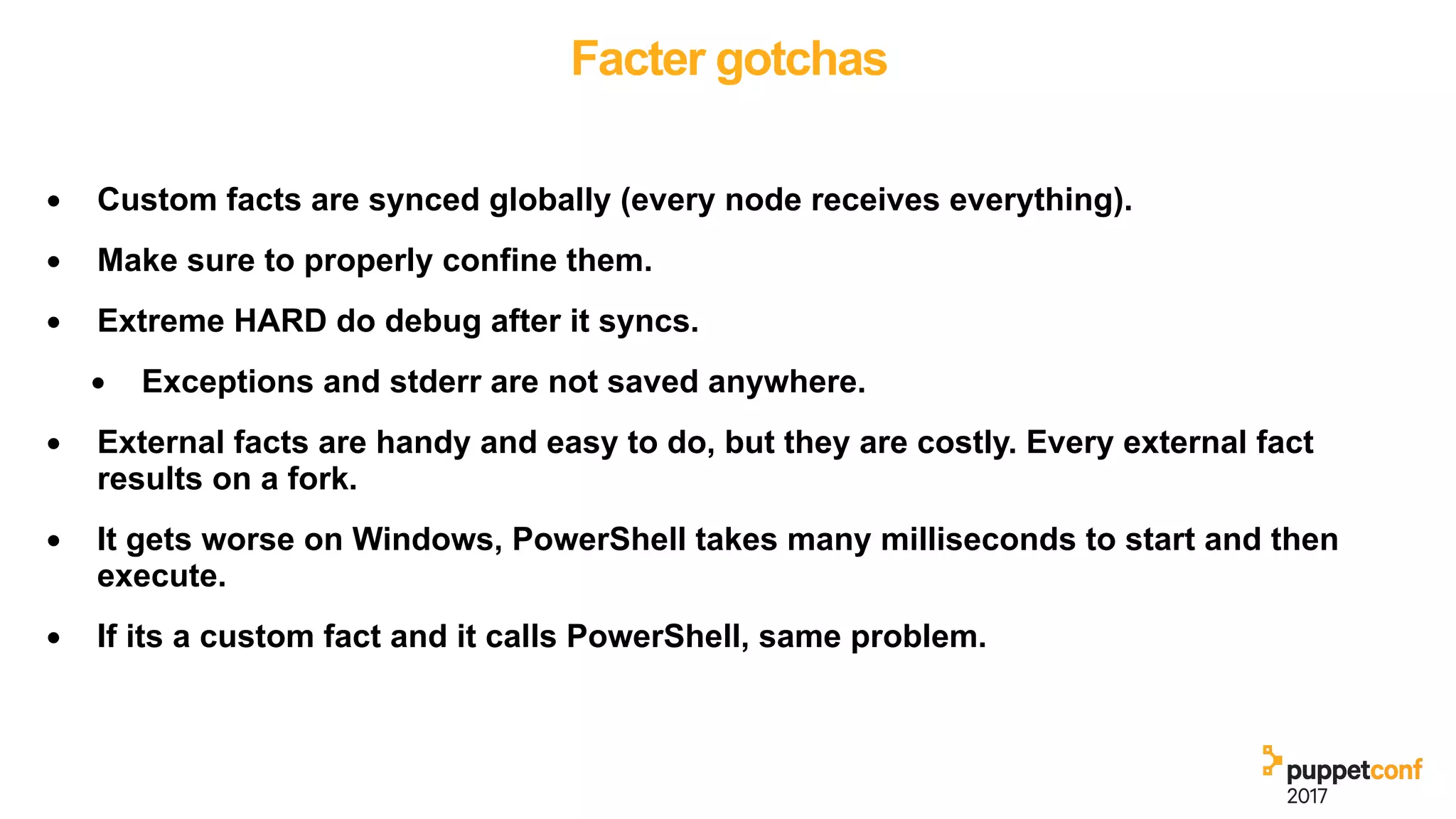

13. Facter gotchas
• Custom facts are synced globally (every node receives everything).
• Make sure to properly confine them.
• Extreme HARD do debug after it syncs.
• Exceptions and stderr are not saved anywhere.
• External facts are handy and easy to do, but they are costly. Every external fact
results on a fork.
• It gets worse on Windows, PowerShell takes many milliseconds to start and then
execute.
• If its a custom fact and it calls PowerShell, same problem.

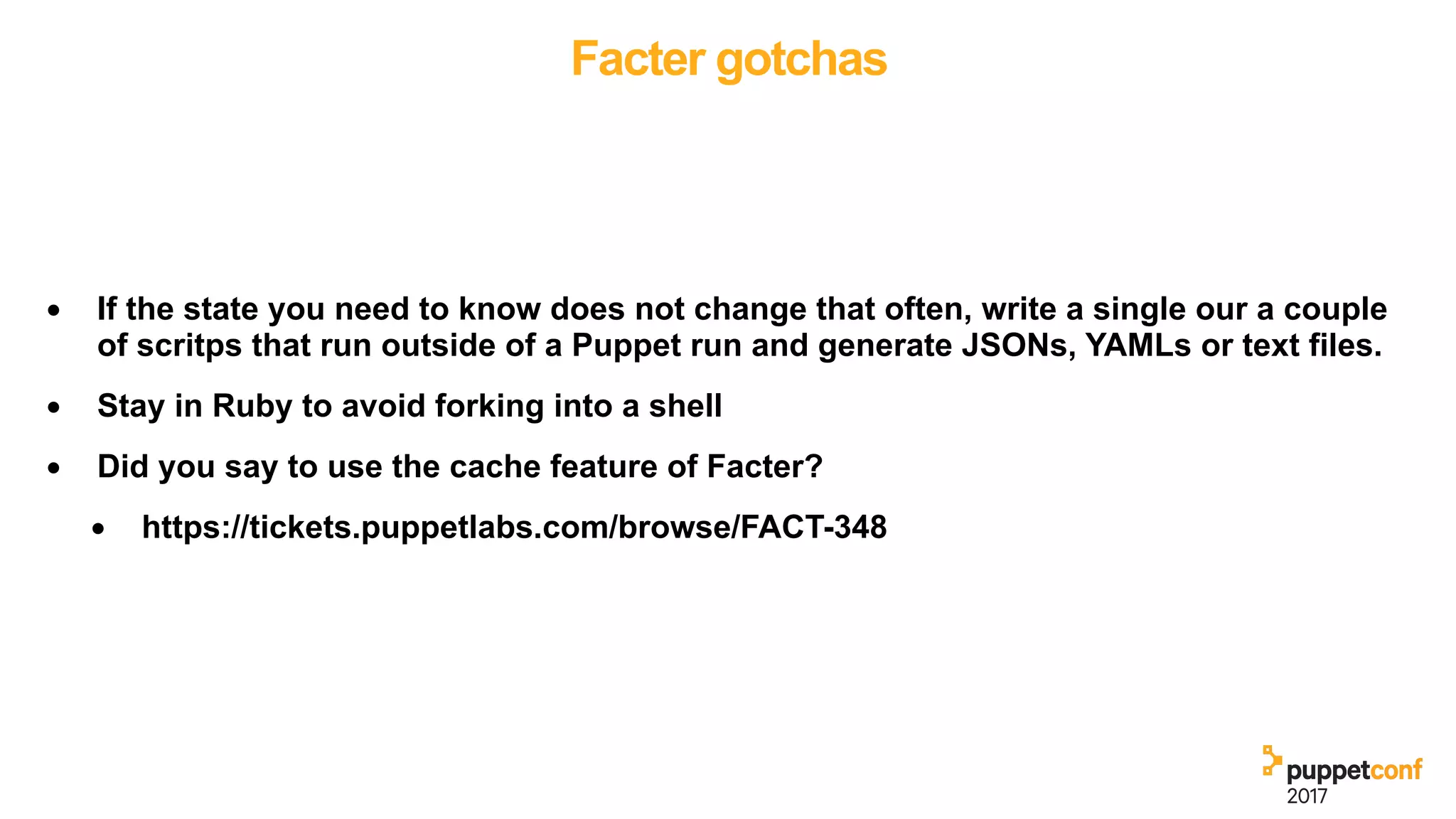

14. Facter gotchas
• If the state you need to know does not change that often, write a single our a couple
of scritps that run outside of a Puppet run and generate JSONs, YAMLs or text files.
• Stay in Ruby to avoid forking into a shell
• Did you say to use the cache feature of Facter?
• https://tickets.puppetlabs.com/browse/FACT-348

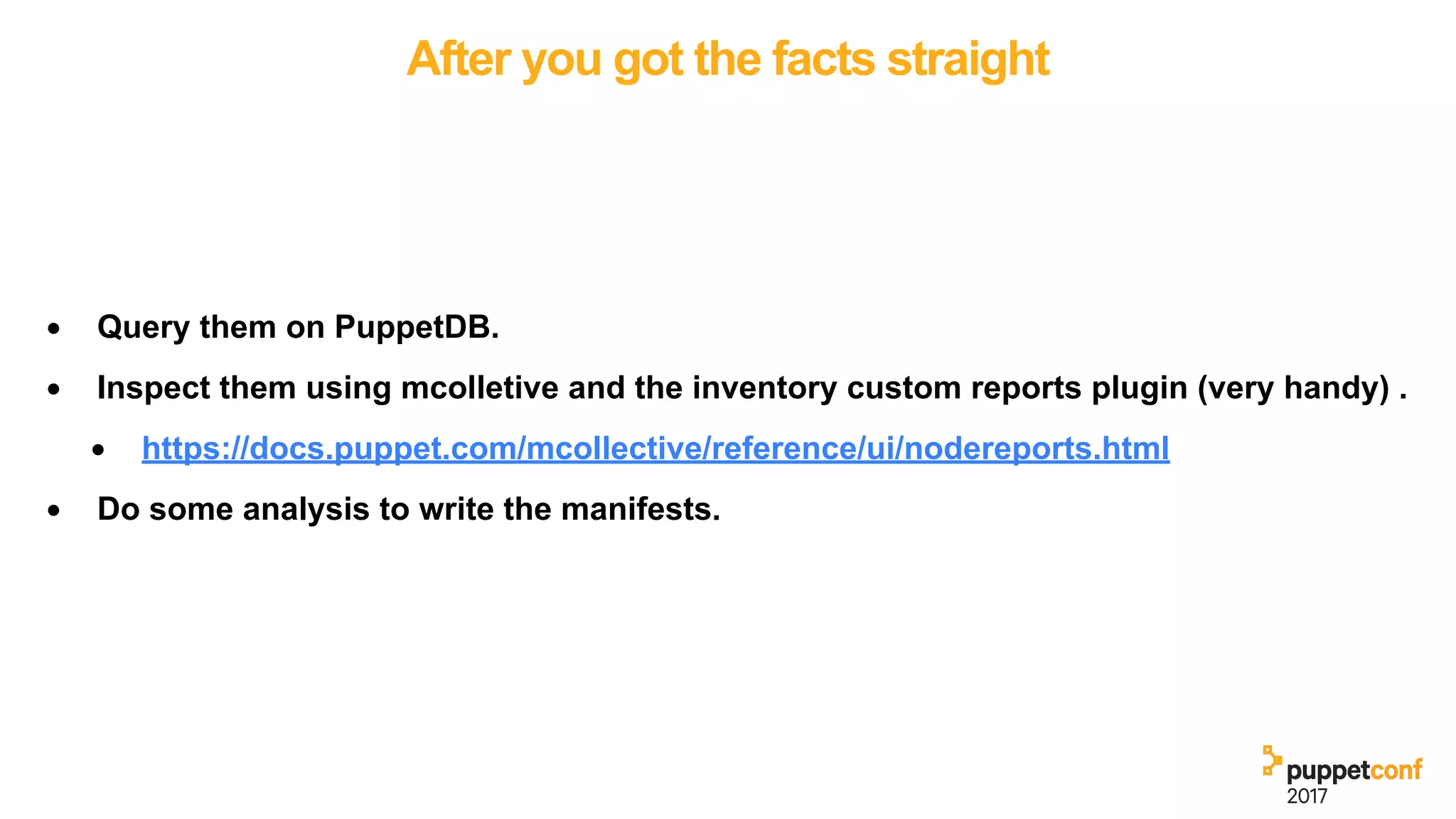

15. After you got the facts straight
• Query them on PuppetDB.
• Inspect them using mcolletive and the inventory custom reports plugin (very handy) .
• https://docs.puppet.com/mcollective/reference/ui/nodereports.html
• Do some analysis to write the manifests.

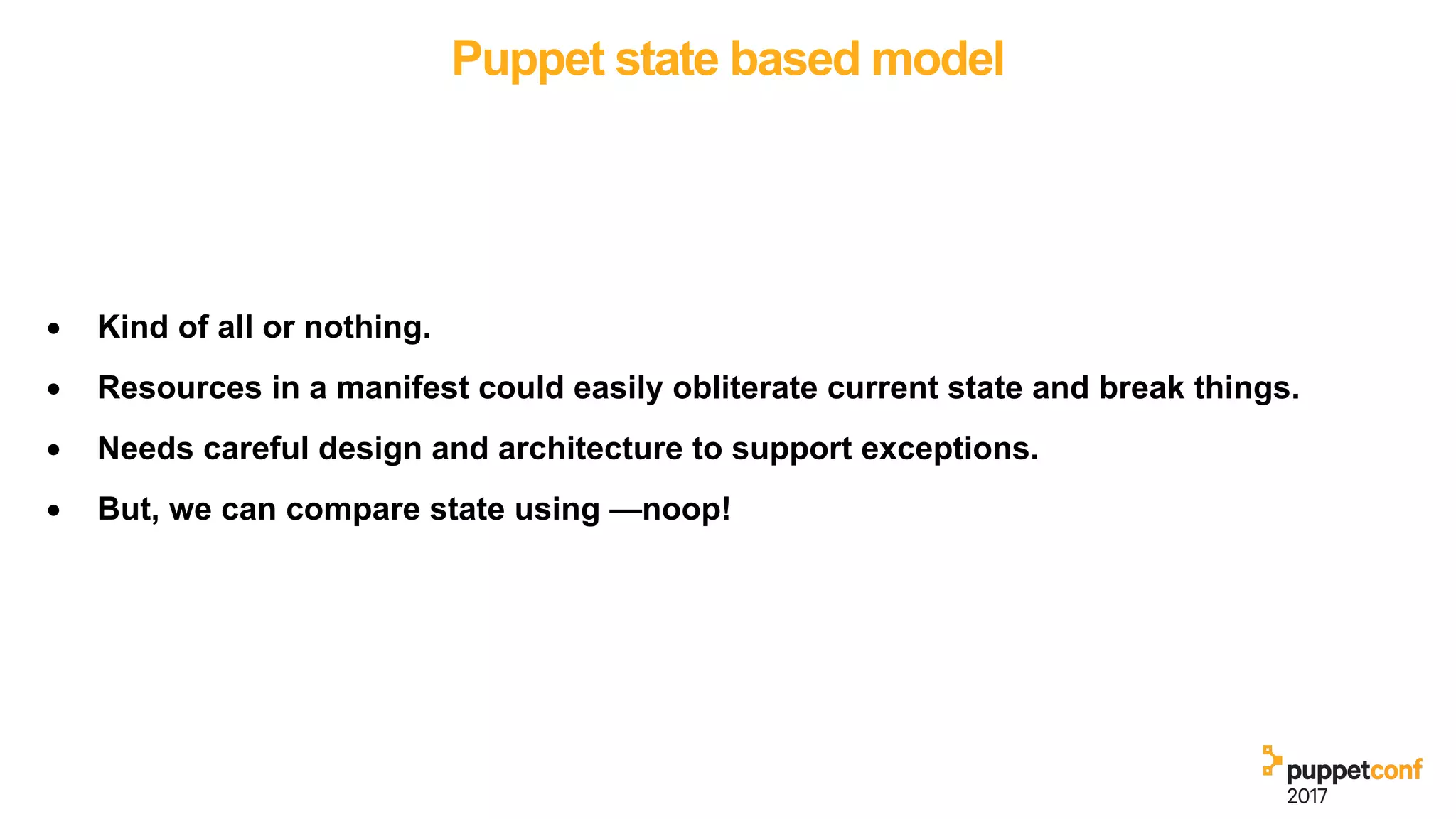

16. Puppet state based model
• Kind of all or nothing.
• Resources in a manifest could easily obliterate current state and break things.
• Needs careful design and architecture to support exceptions.
• But, we can compare state using —noop!

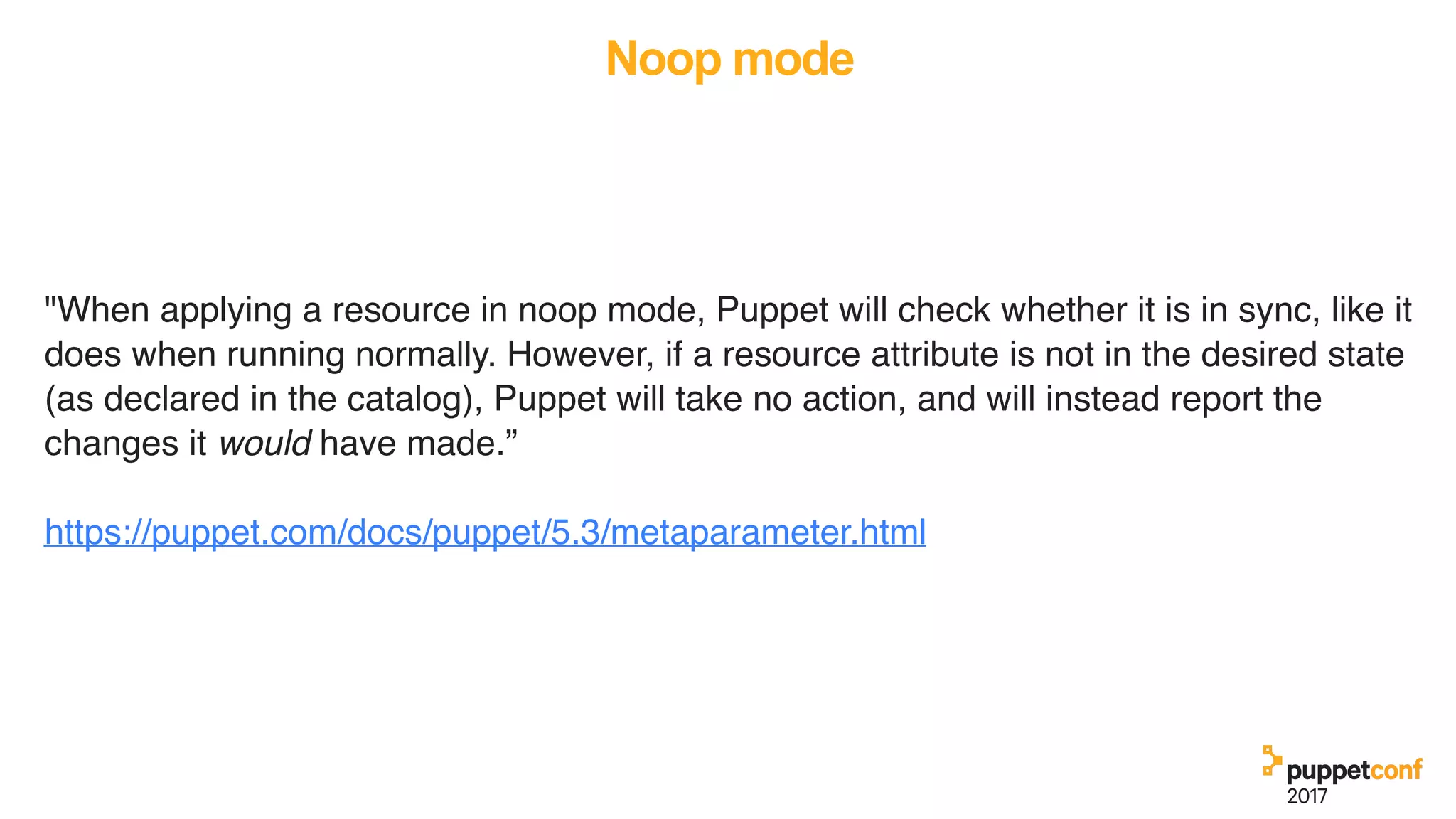

17. Noop mode
"When applying a resource in noop mode, Puppet will check whether it is in sync, like it
does when running normally. However, if a resource attribute is not in the desired state
(as declared in the catalog), Puppet will take no action, and will instead report the
changes it would have made.”
https://puppet.com/docs/puppet/5.3/metaparameter.html

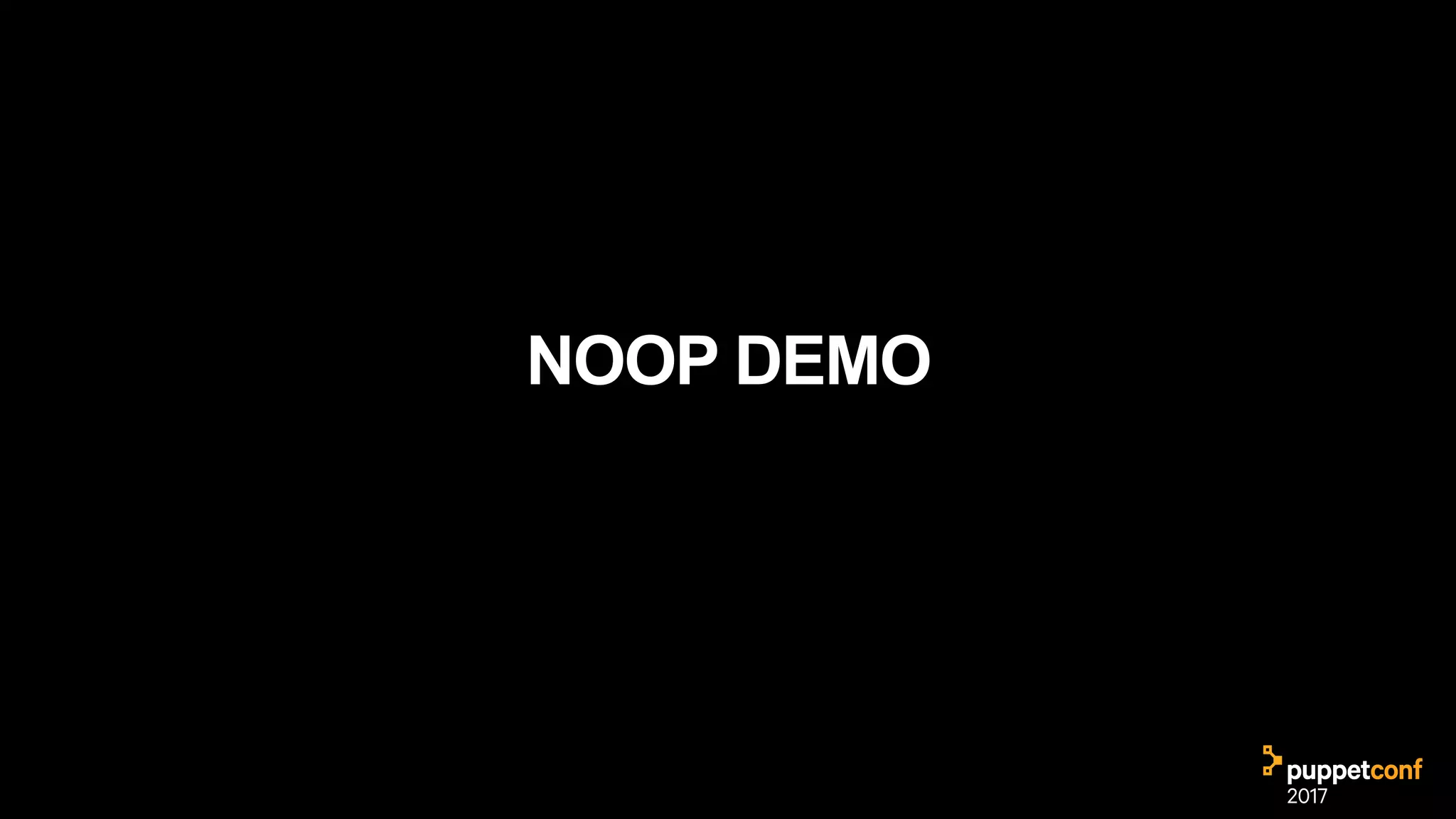

18. NOOP DEMO

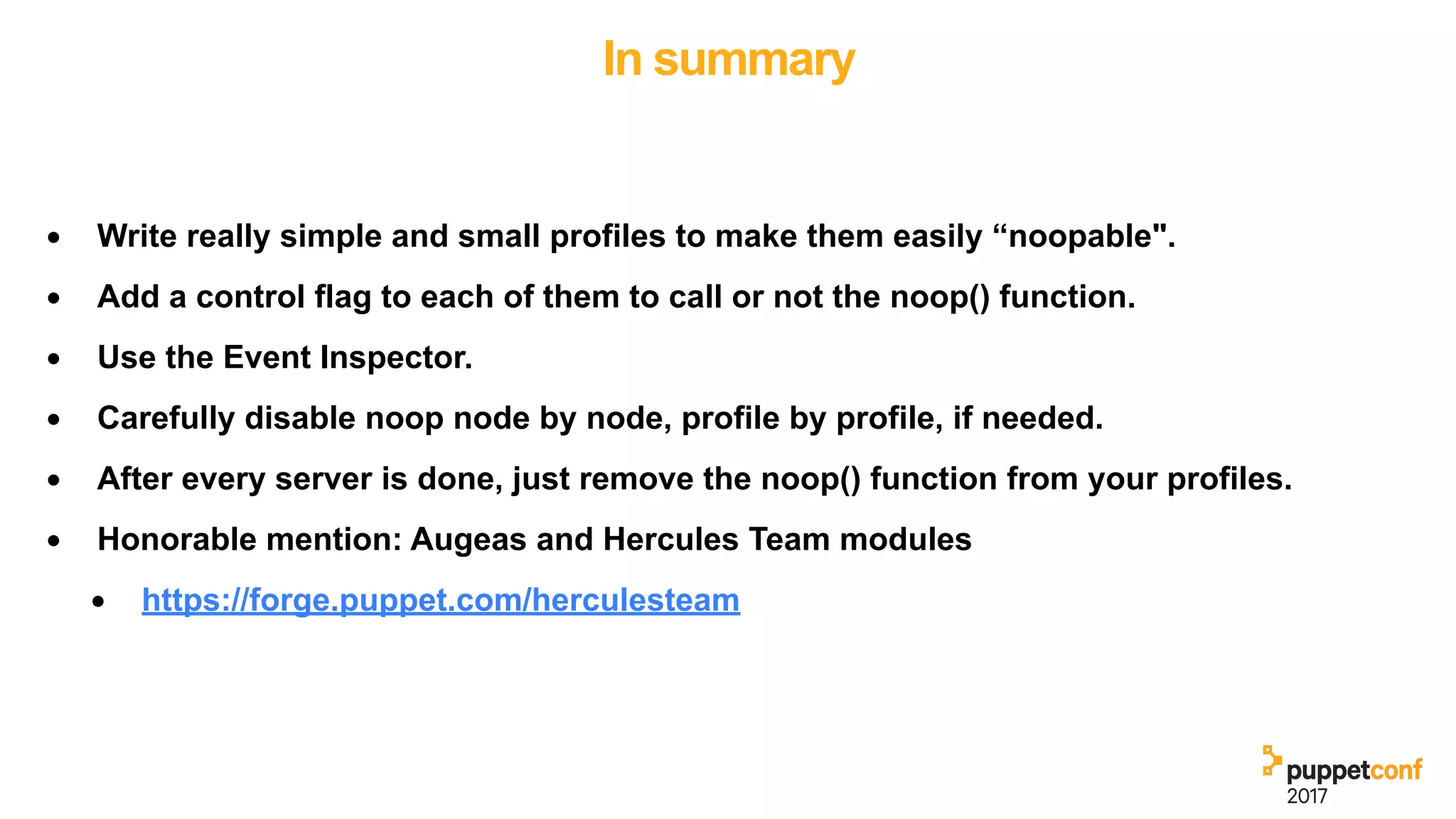

19. In summary
• Write really simple and small profiles to make them easily “noopable".
• Add a control flag to each of them to call or not the noop() function.
• Use the Event Inspector.
• Carefully disable noop node by node, profile by profile, if needed.
• After every server is done, just remove the noop() function from your profiles.
• Honorable mention: Augeas and Hercules Team modules
• https://forge.puppet.com/herculesteam

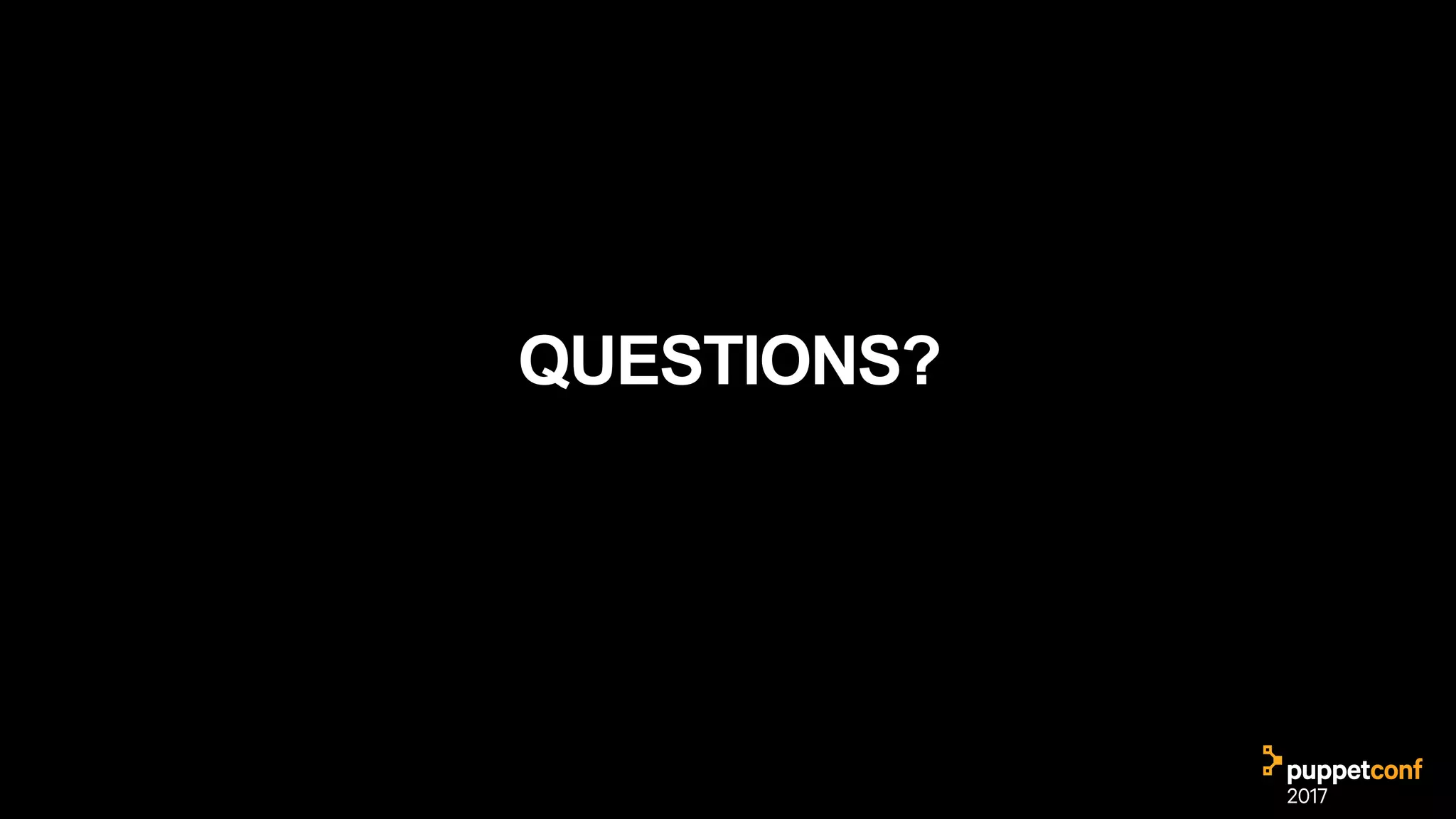

20. QUESTIONS?
