A Whirlwind Tour of Etsy's Monitoring Stack
- 1. A Whirlwind Tour of Etsy's Monitoring Stack Daniel Schauenberg dschauenberg@etsy.com @mrtazz
- 3. @mrtazz
- 4. @mrtazz
- 6. How comfortable are you deploying a change right now?
- 7. “If this is your first day at Etsy, you deploy the site”

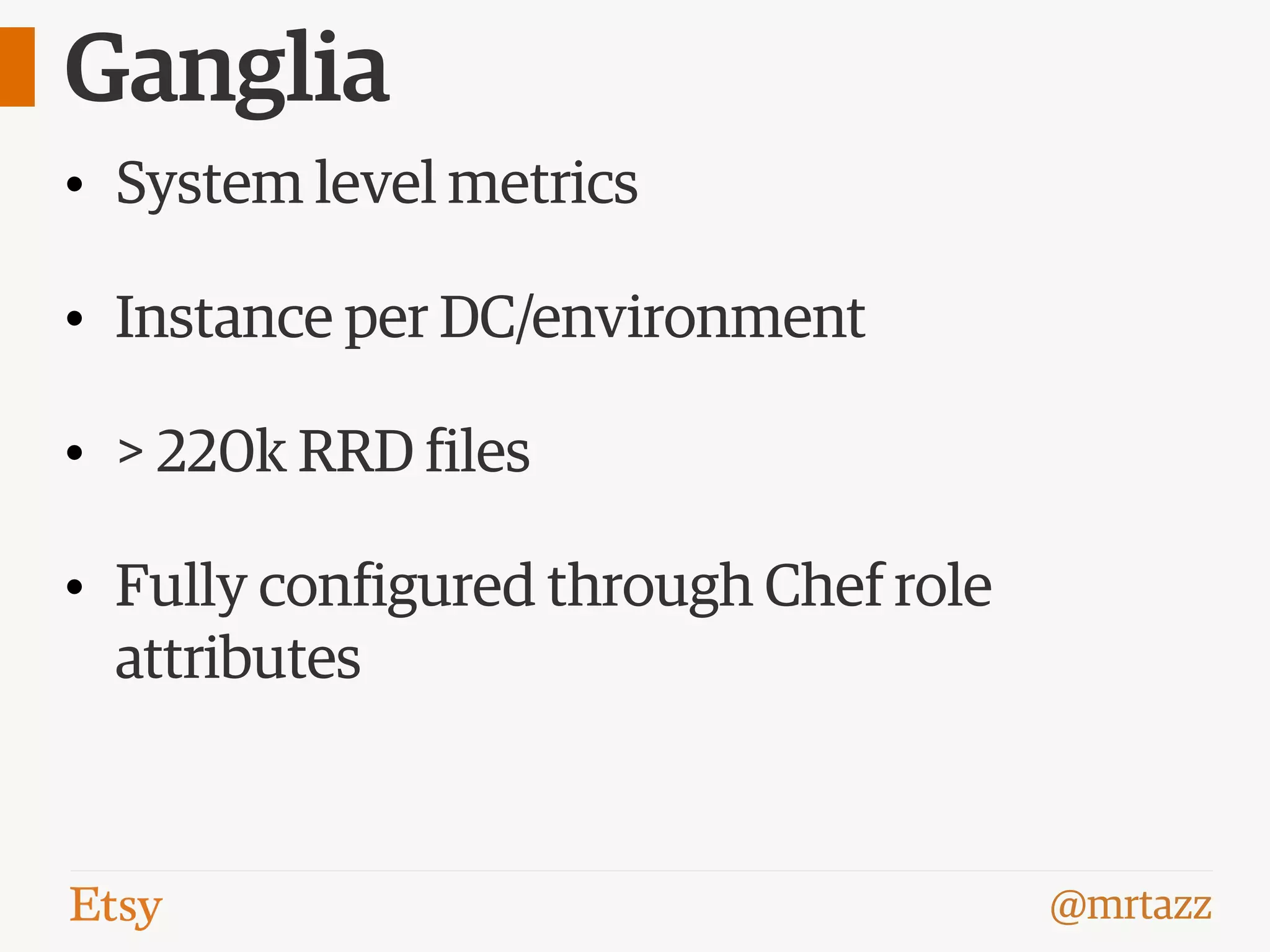

- 10. @mrtazz Ganglia • System level metrics • Instance per DC/environment • > 220k RRD files • Fully configured through Chef role attributes

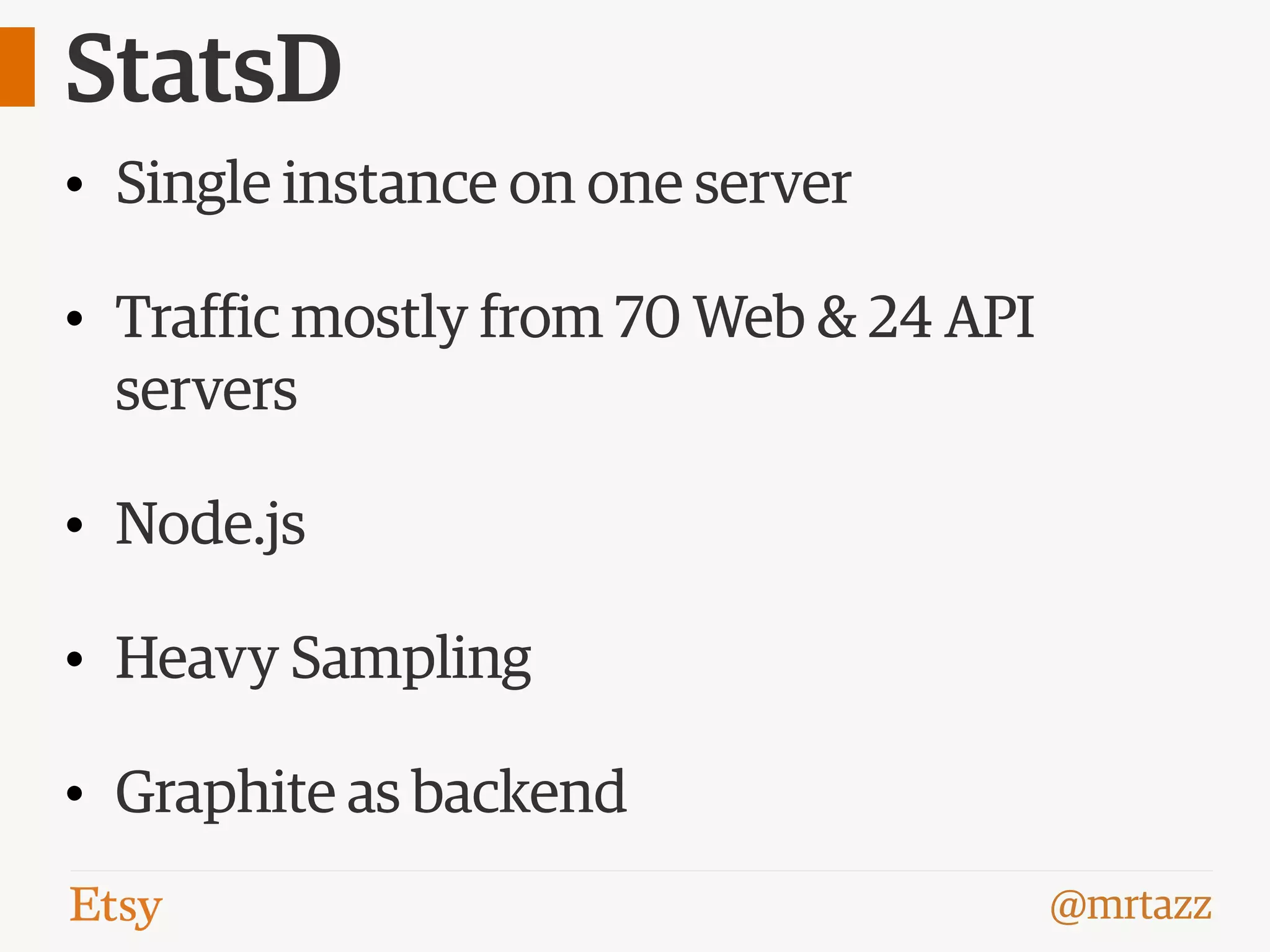

- 12. @mrtazz StatsD • Single instance on one server • Traffic mostly from 70 Web & 24 API servers • Node.js • Heavy Sampling • Graphite as backend

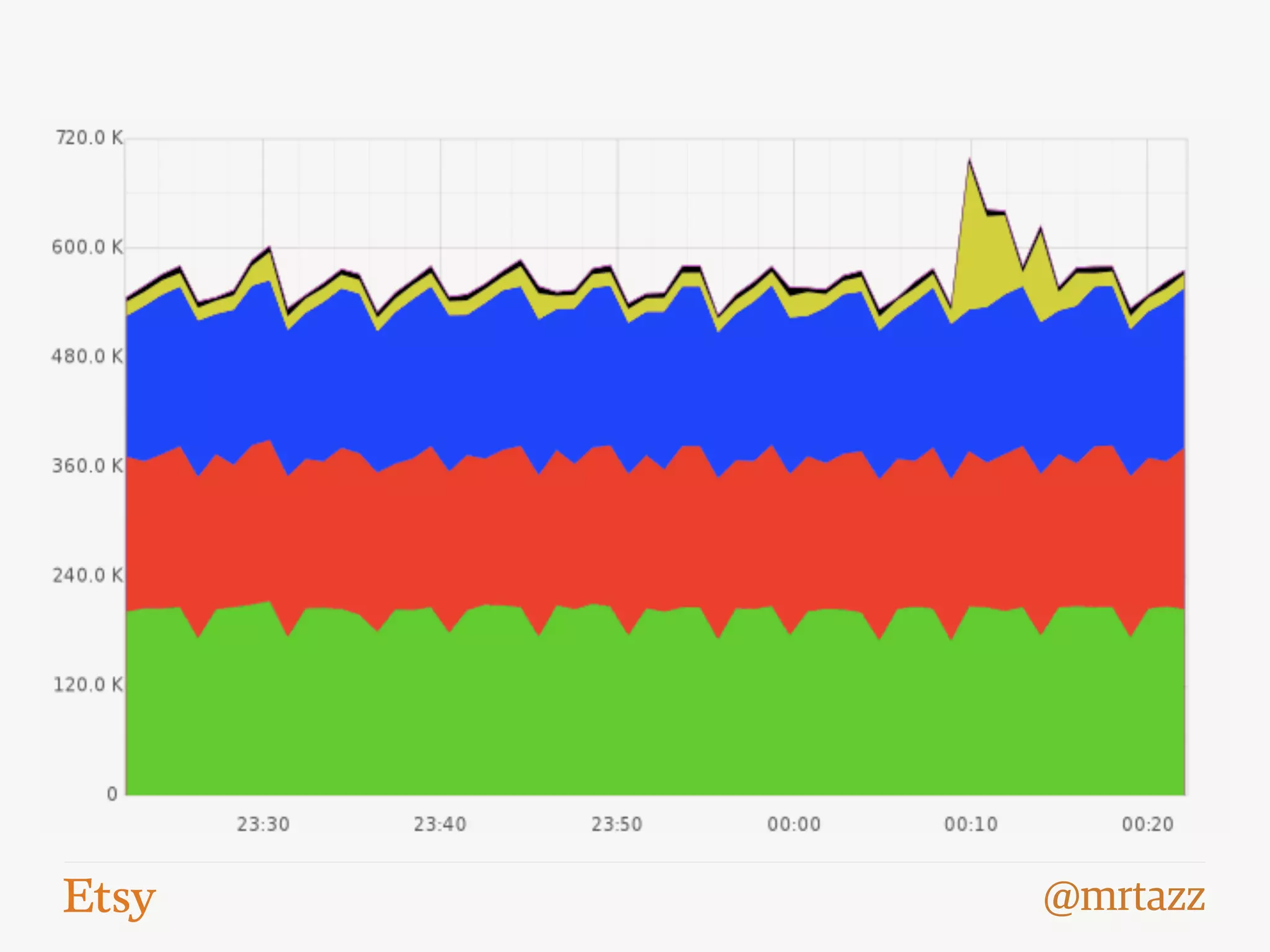

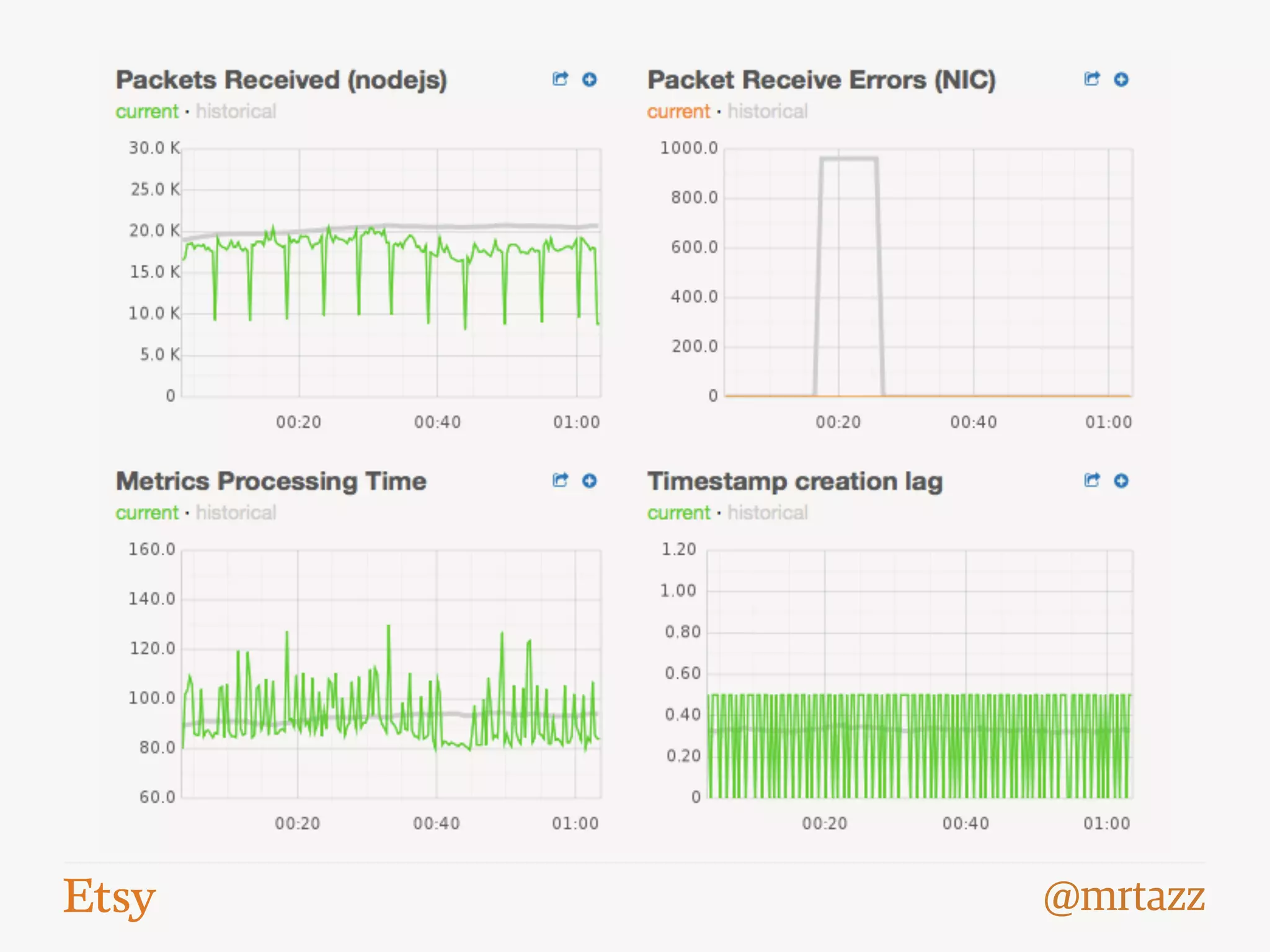

- 13. @mrtazz

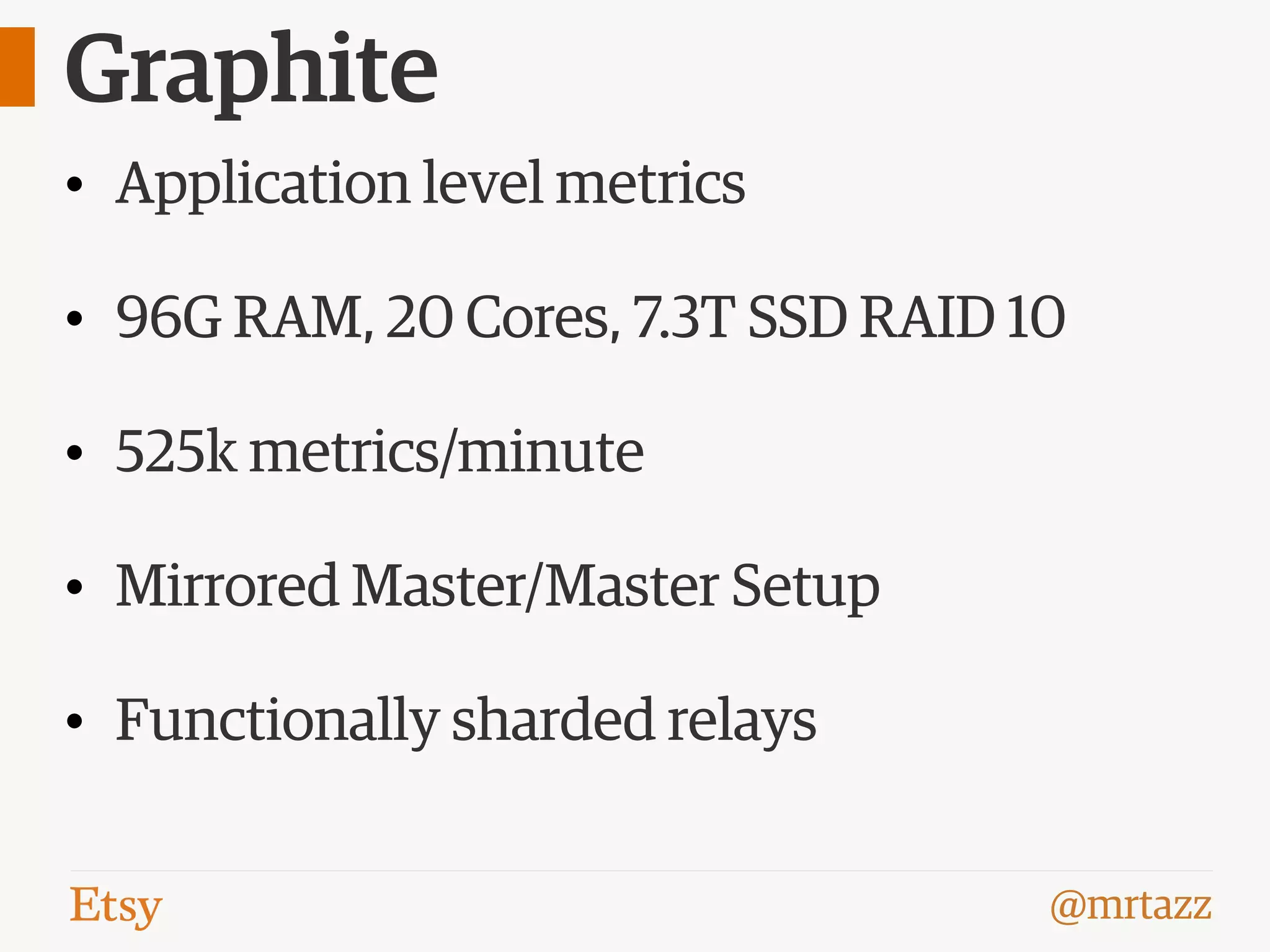

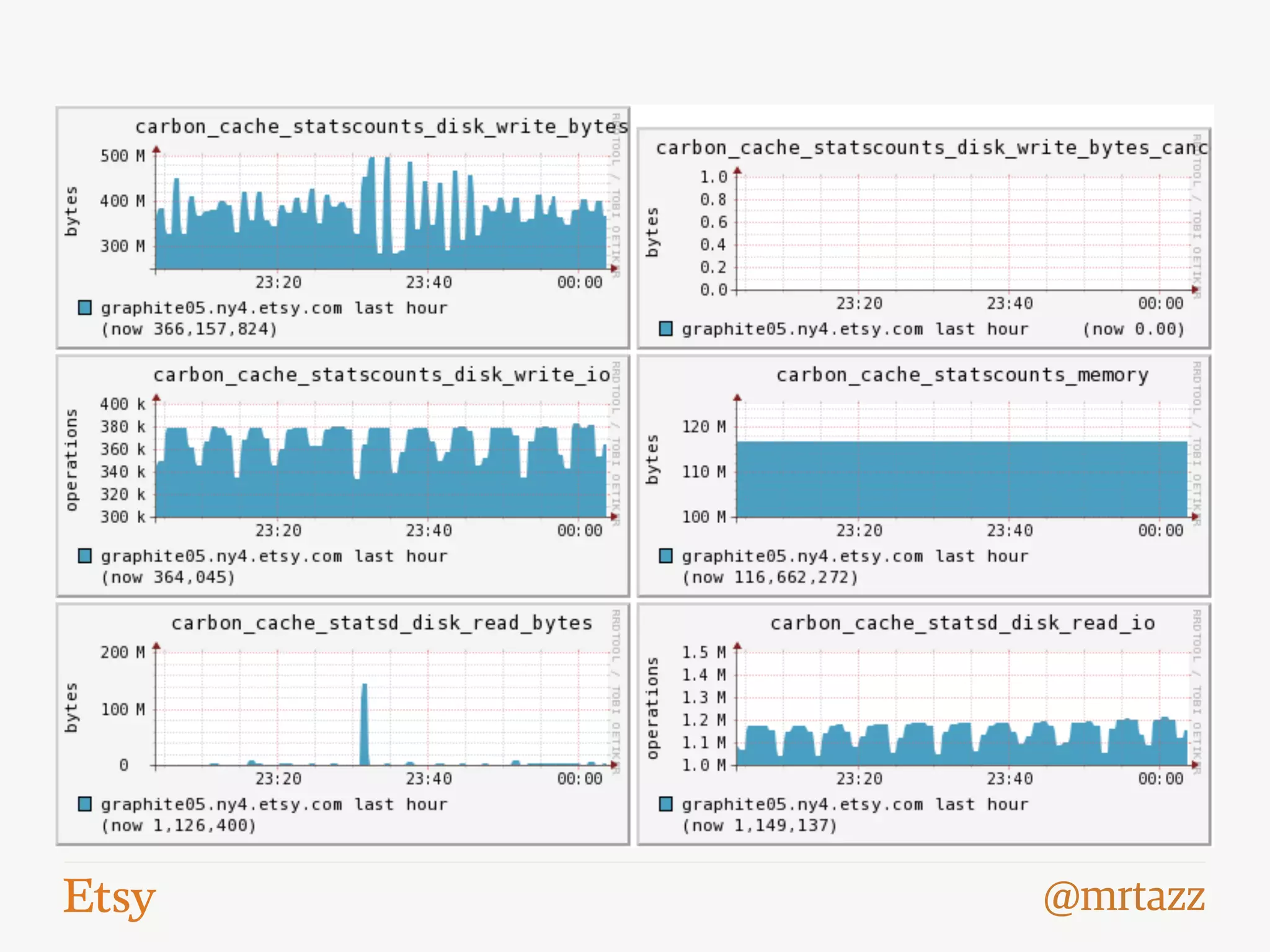

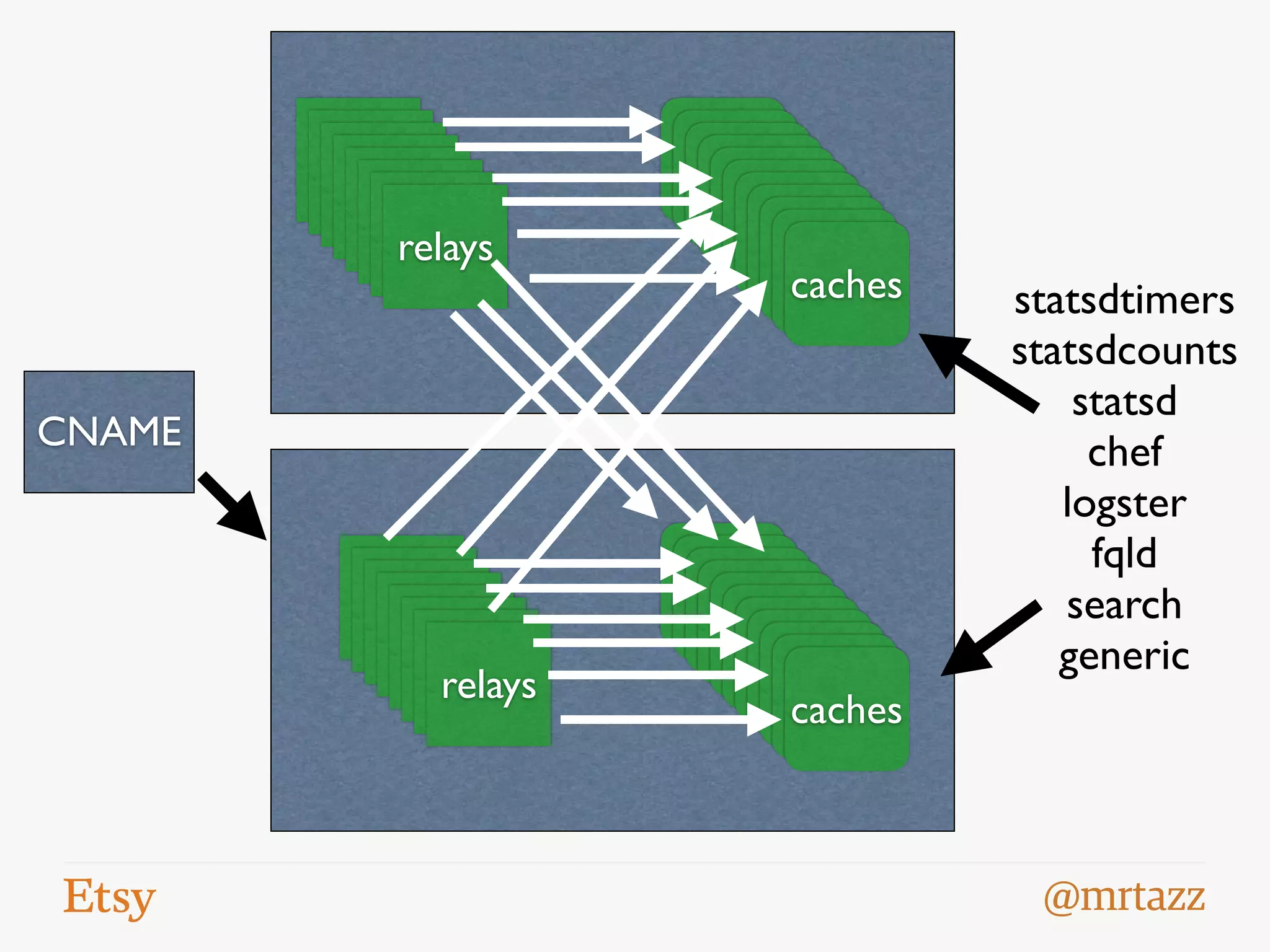

- 14. @mrtazz Graphite • Application level metrics • 96G RAM, 20 Cores, 7.3T SSD RAID 10 • 525k metrics/minute • Mirrored Master/Master Setup • Functionally sharded relays
- 16. @mrtazz
- 17. @mrtazz

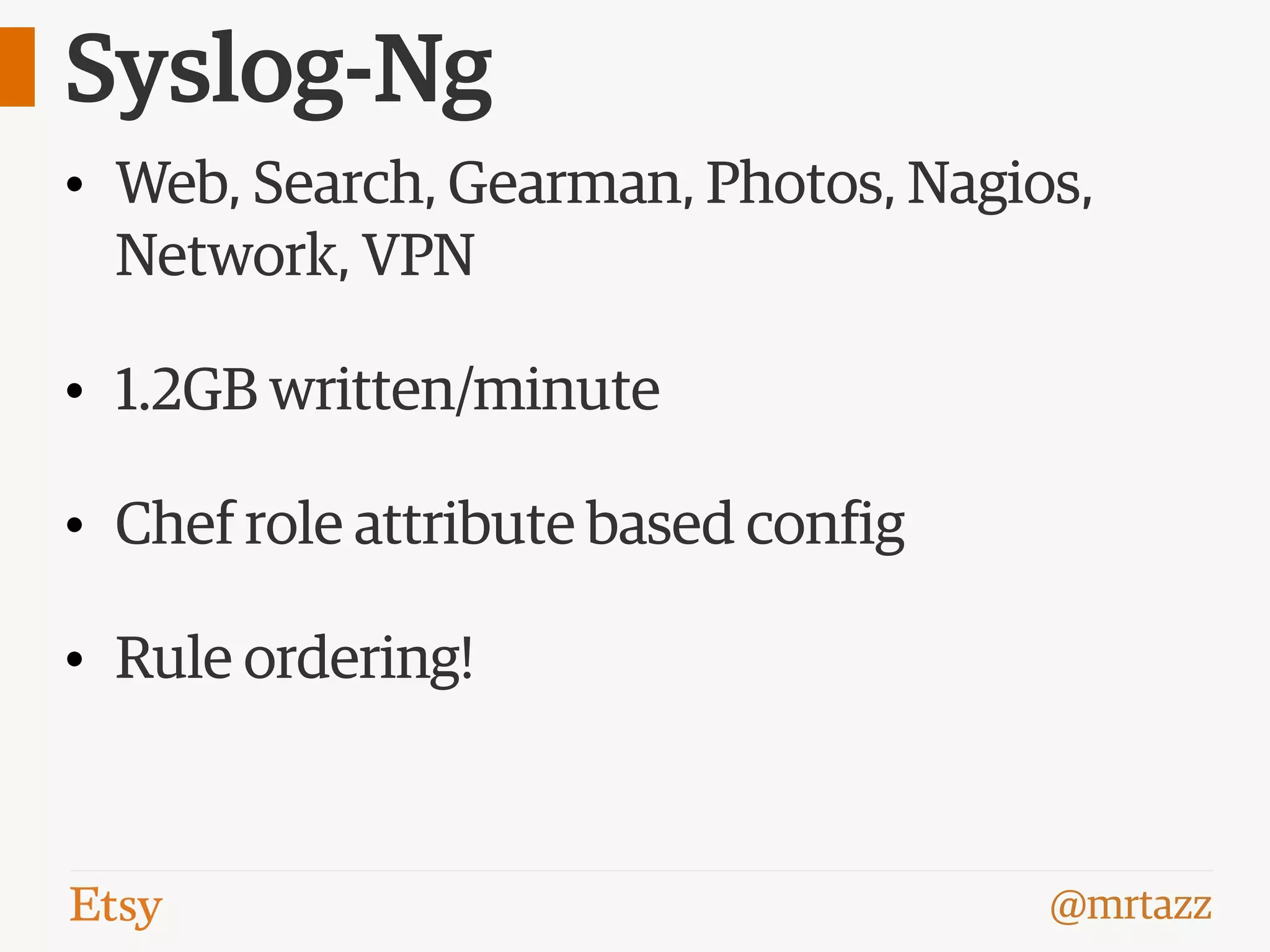

- 18. @mrtazz Syslog-Ng • Web, Search, Gearman, Photos, Nagios, Network, VPN • 1.2GB written/minute • Chef role attribute based config • Rule ordering!

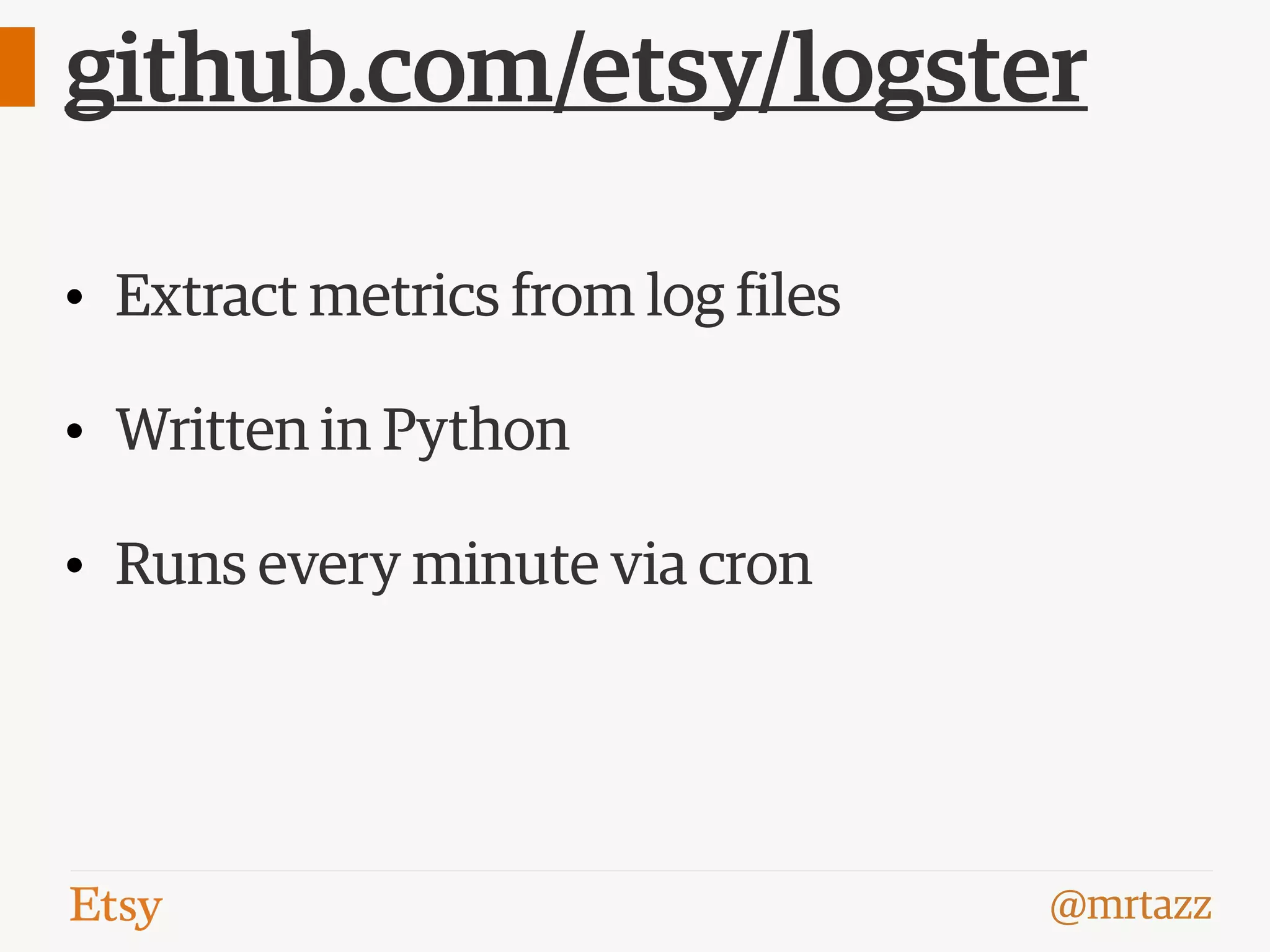

- 20. @mrtazz github.com/etsy/logster • Extract metrics from log files • Written in Python • Runs every minute via cron

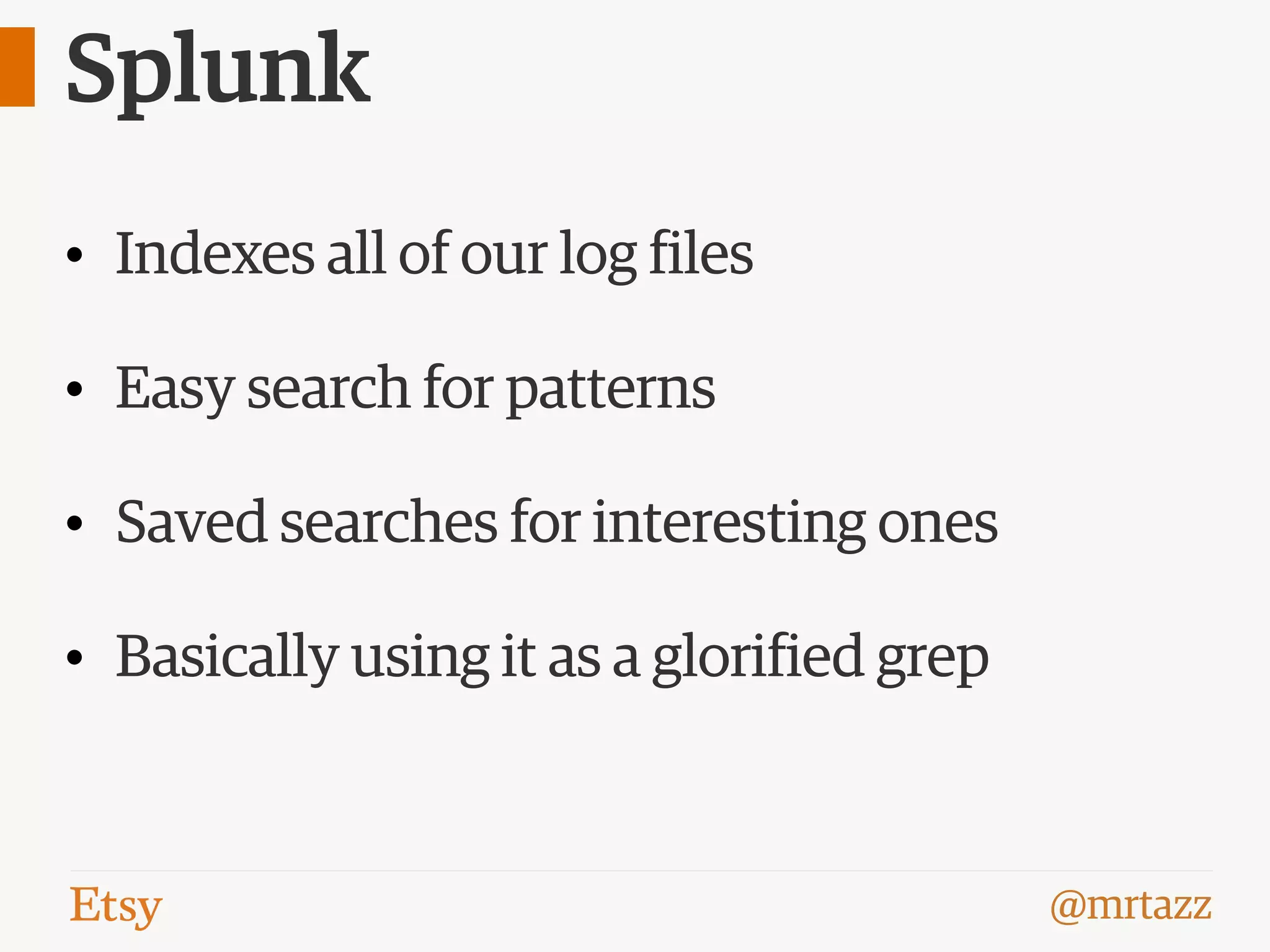

- 21. @mrtazz Splunk • Indexes all of our log files • Easy search for patterns • Saved searches for interesting ones • Basically using it as a glorified grep

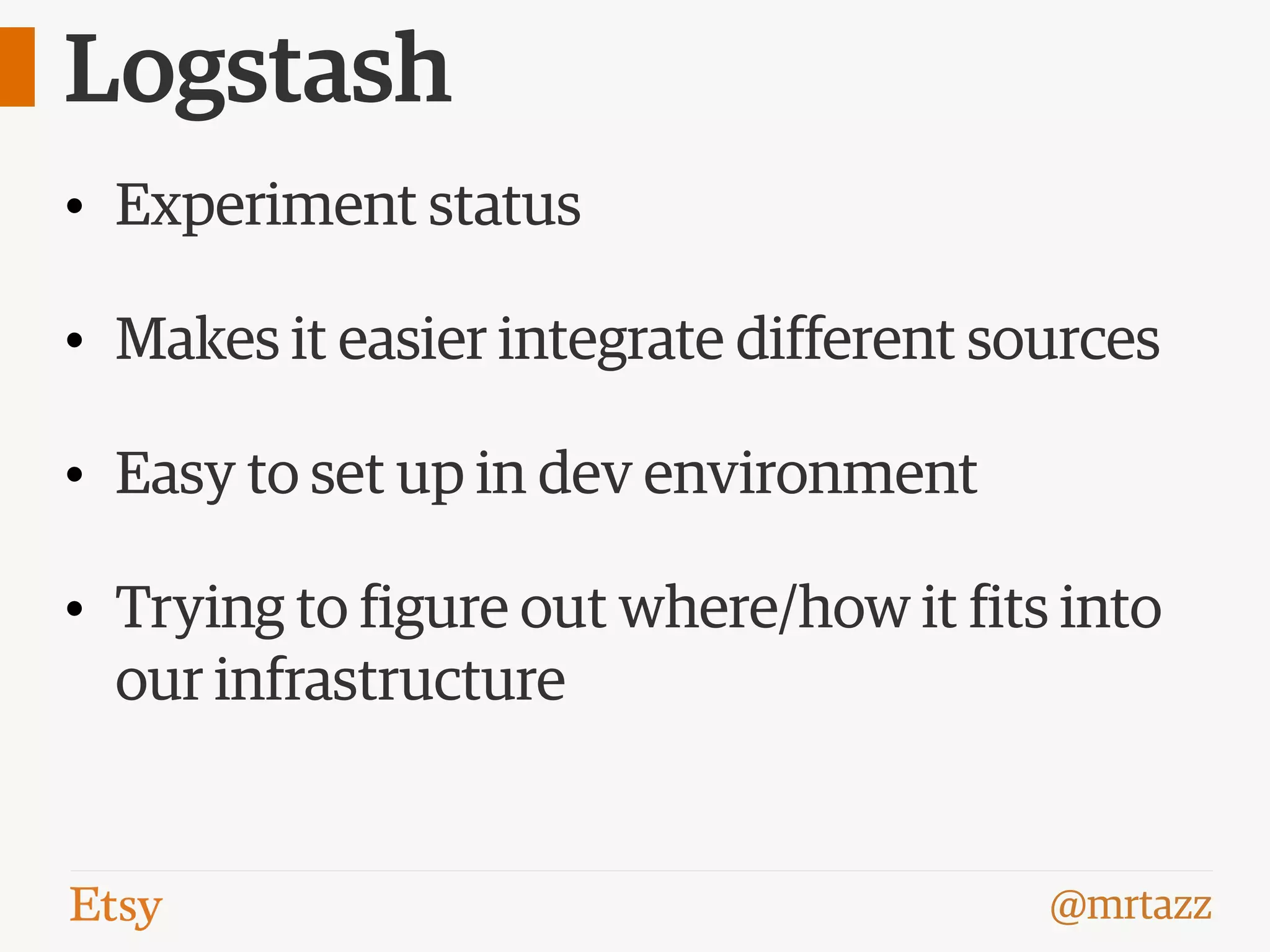

- 22. @mrtazz Logstash • Experiment status • Makes it easier integrate different sources • Easy to set up in dev environment • Trying to figure out where/how it fits into our infrastructure

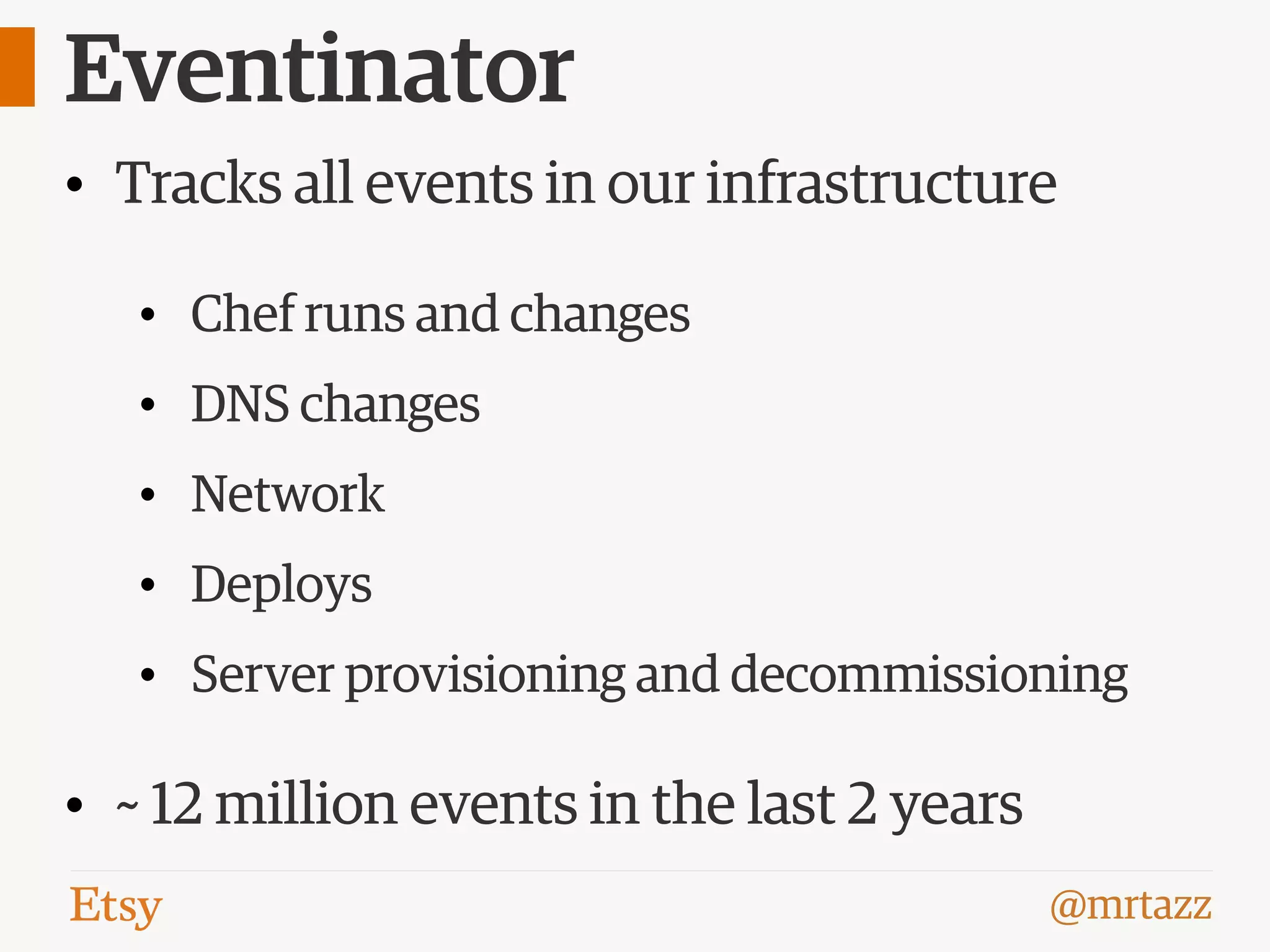

- 23. @mrtazz Eventinator • Tracks all events in our infrastructure • Chef runs and changes • DNS changes • Network • Deploys • Server provisioning and decommissioning • ~ 12 million events in the last 2 years

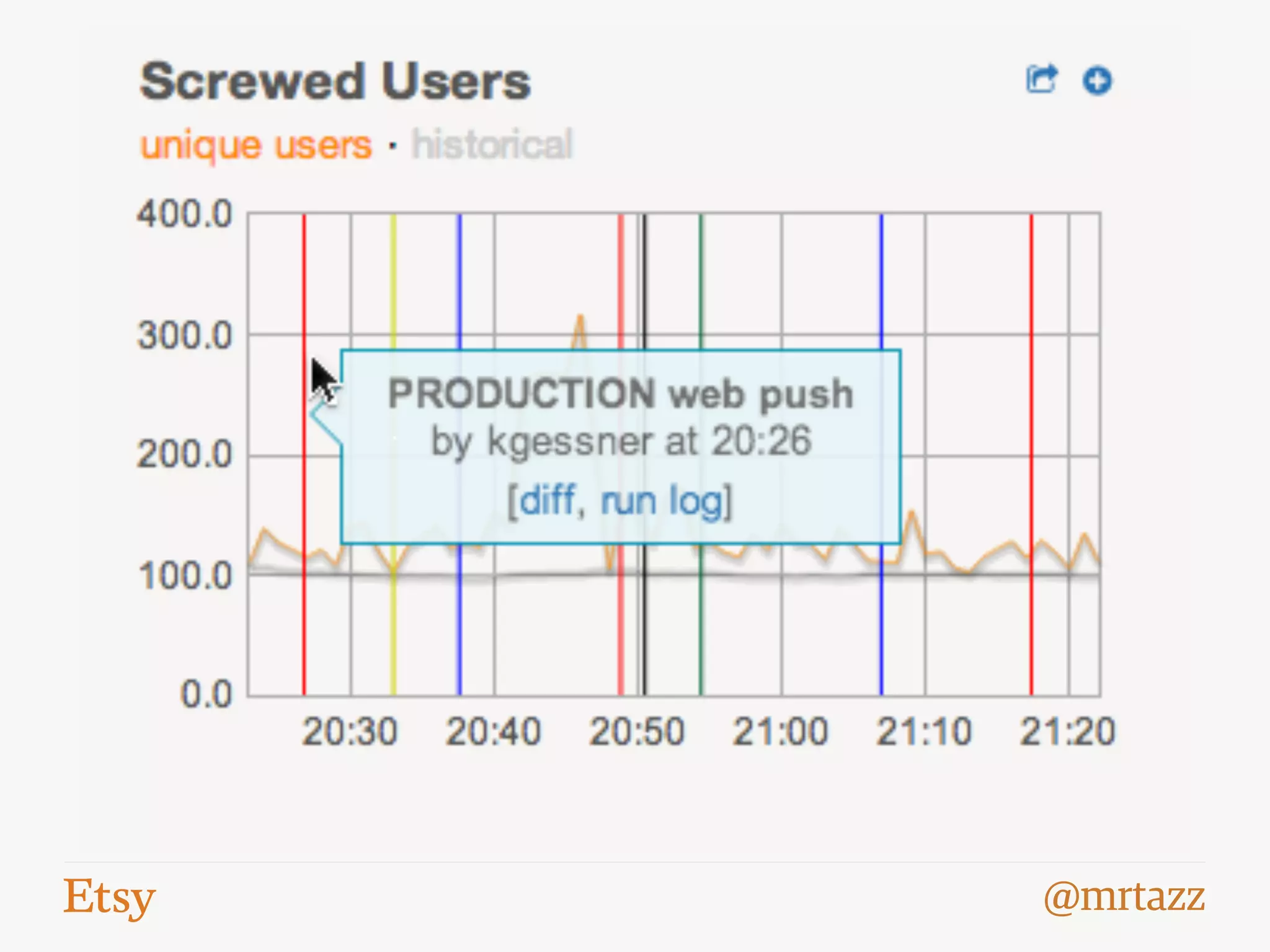

- 24. @mrtazz

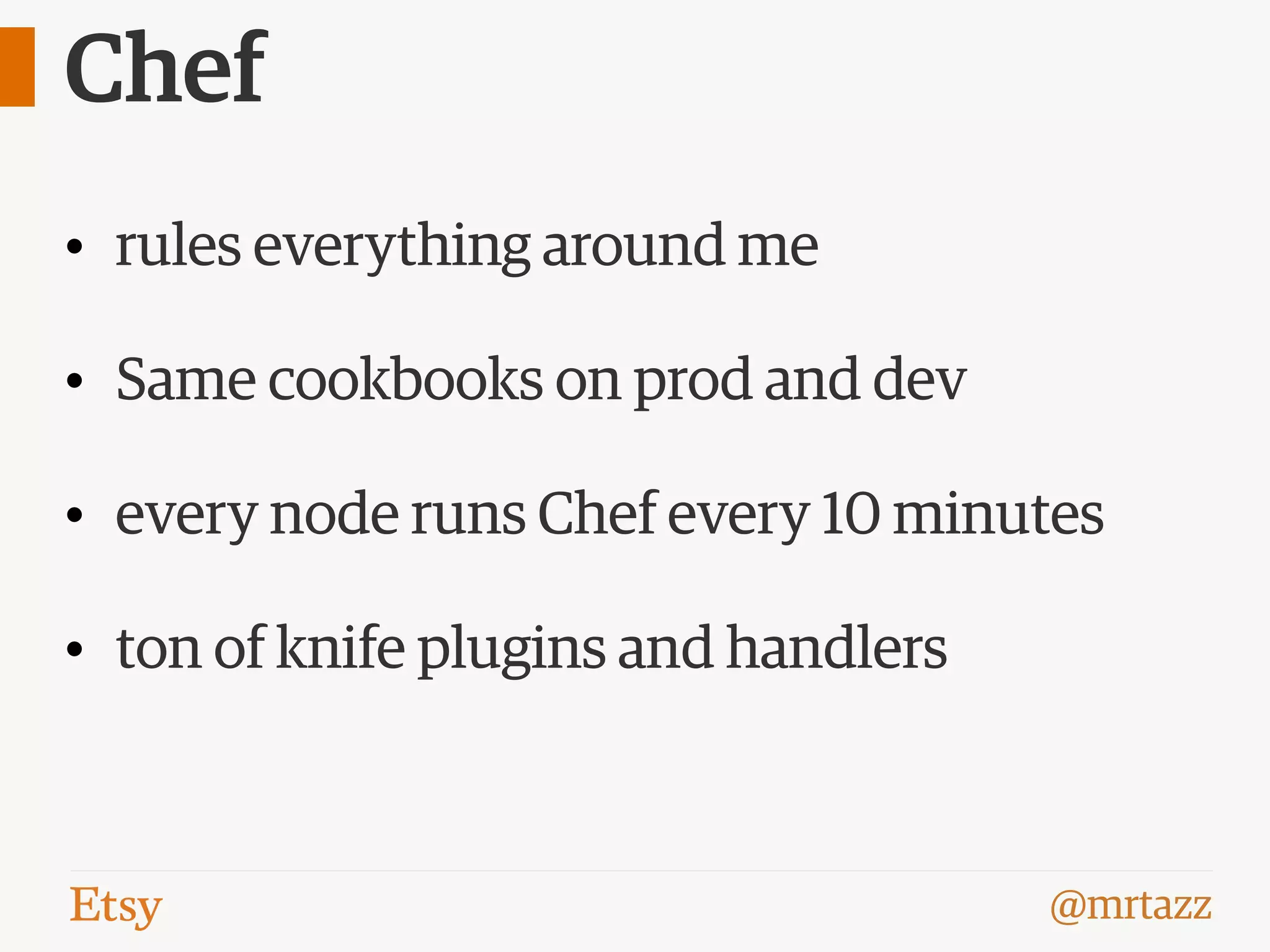

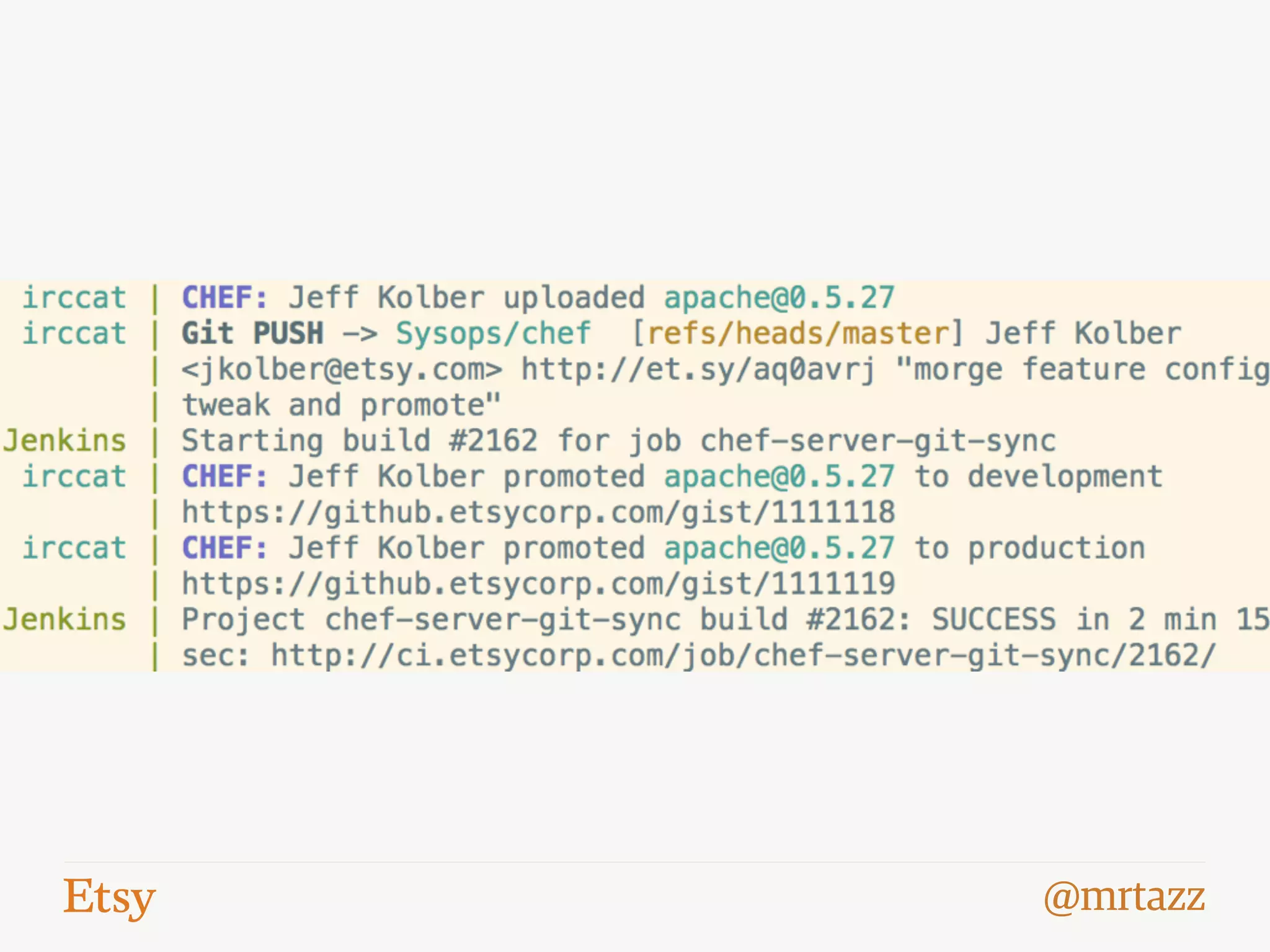

- 25. @mrtazz Chef • rules everything around me • Same cookbooks on prod and dev • every node runs Chef every 10 minutes • ton of knife plugins and handlers

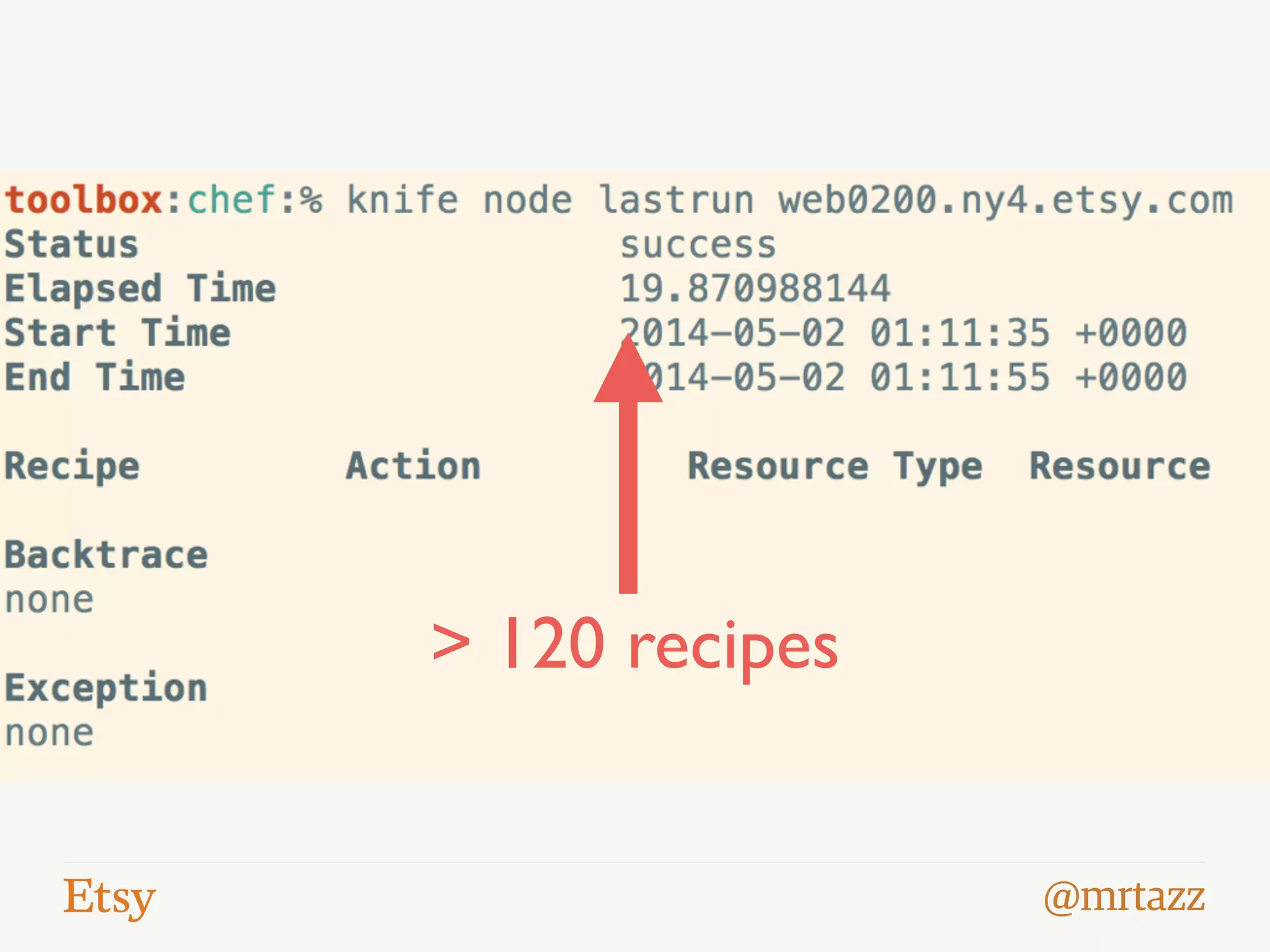

- 26. @mrtazz

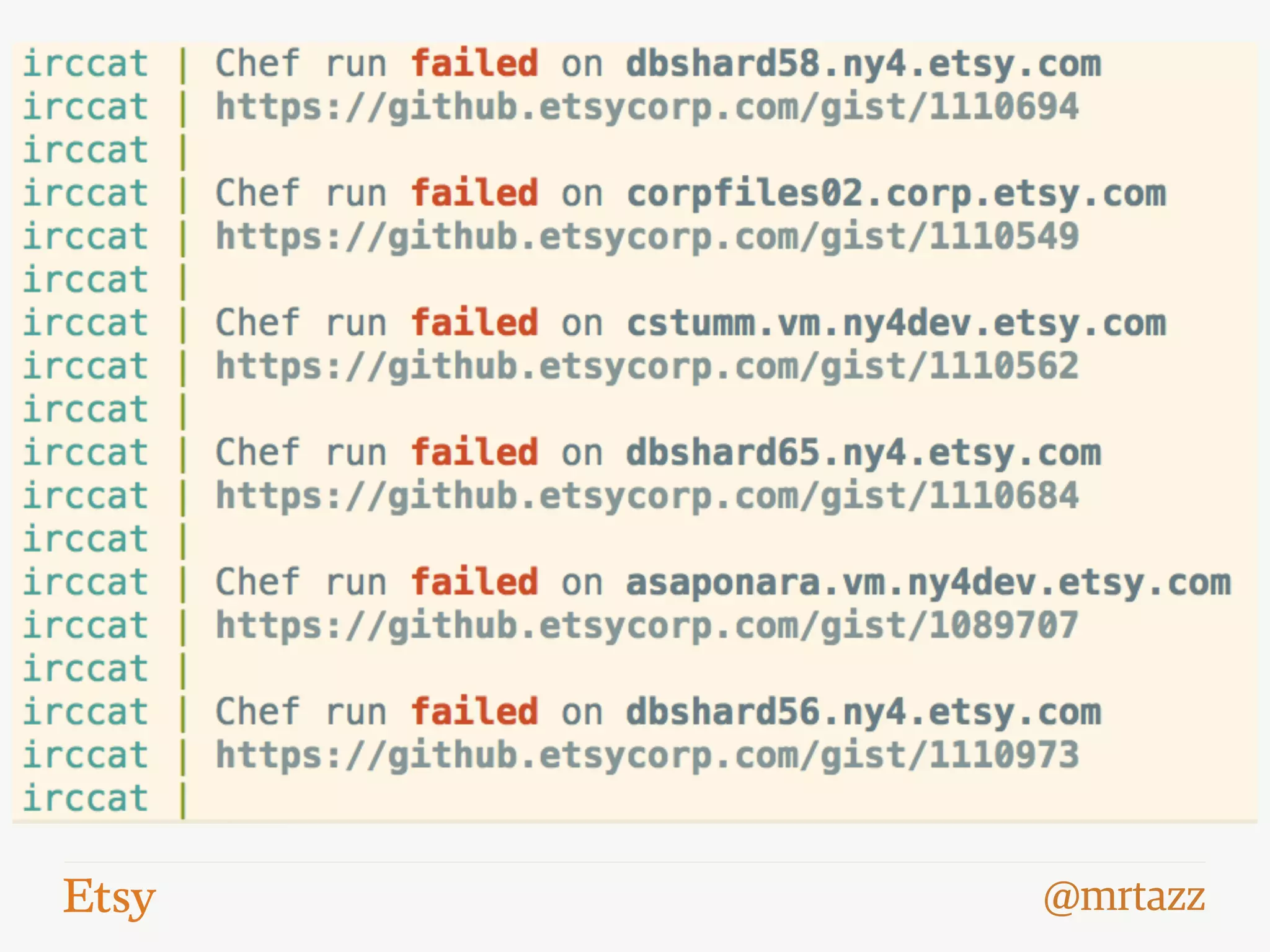

- 28. @mrtazz

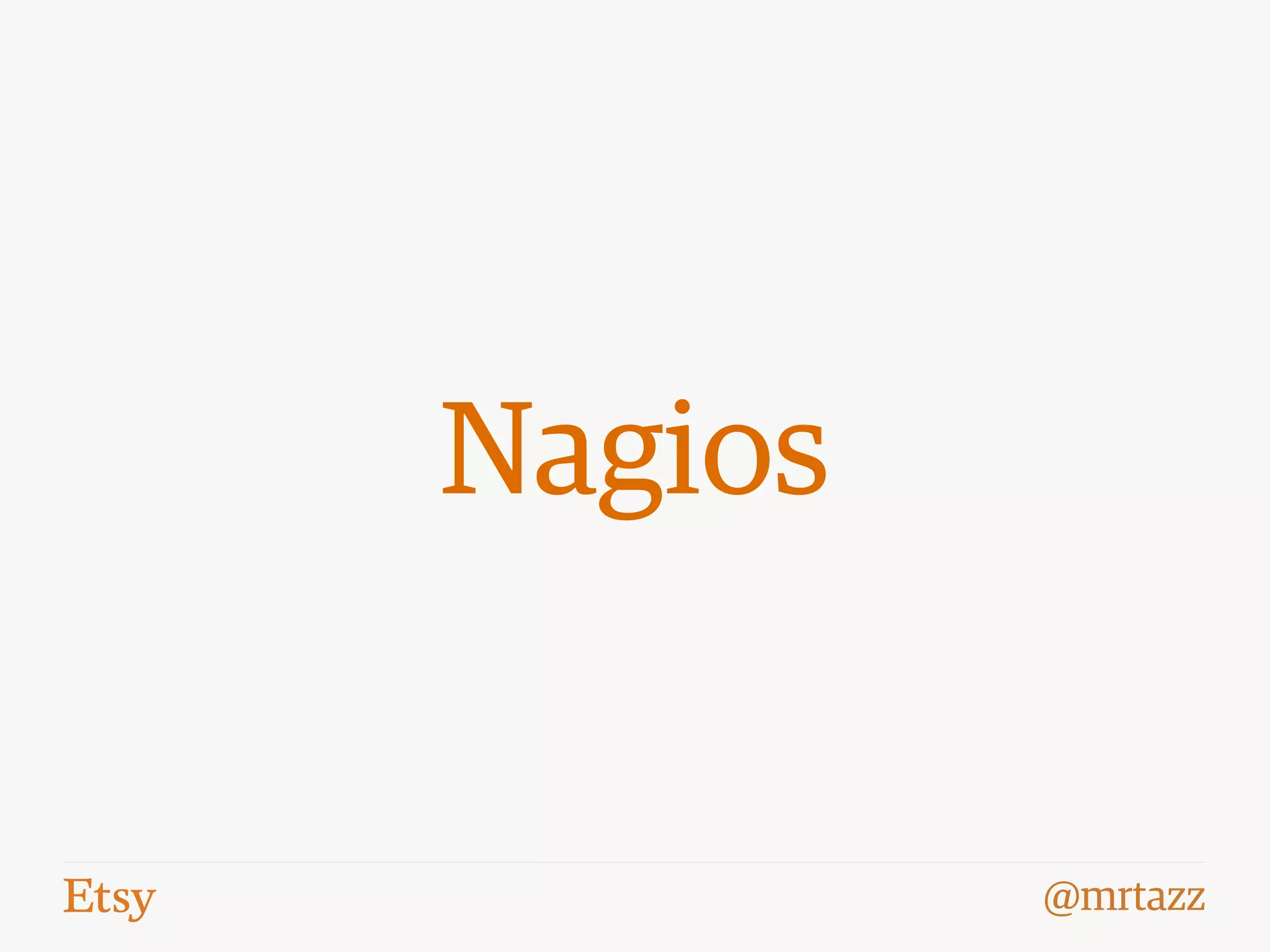

- 29. @mrtazz Nagios

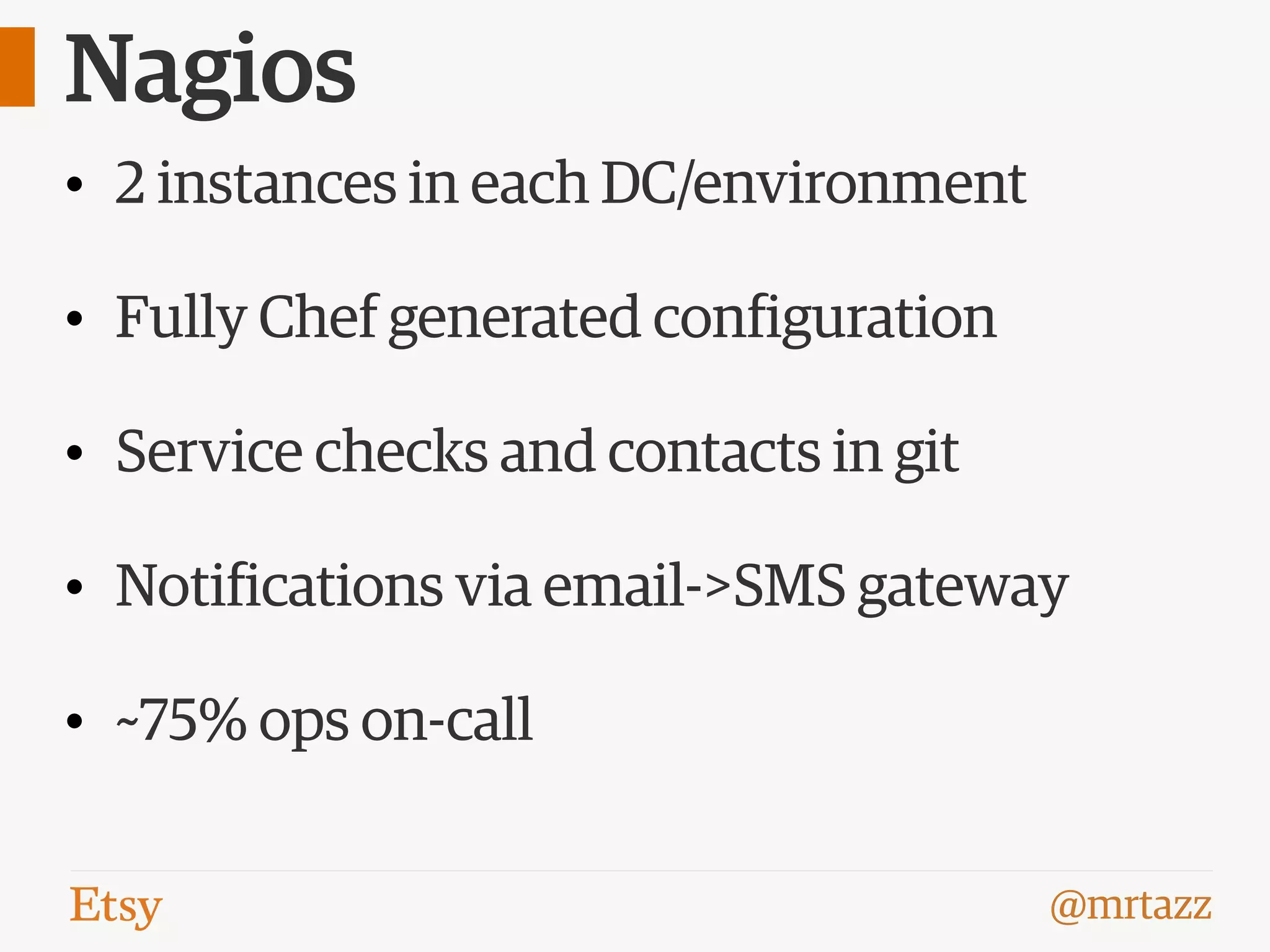

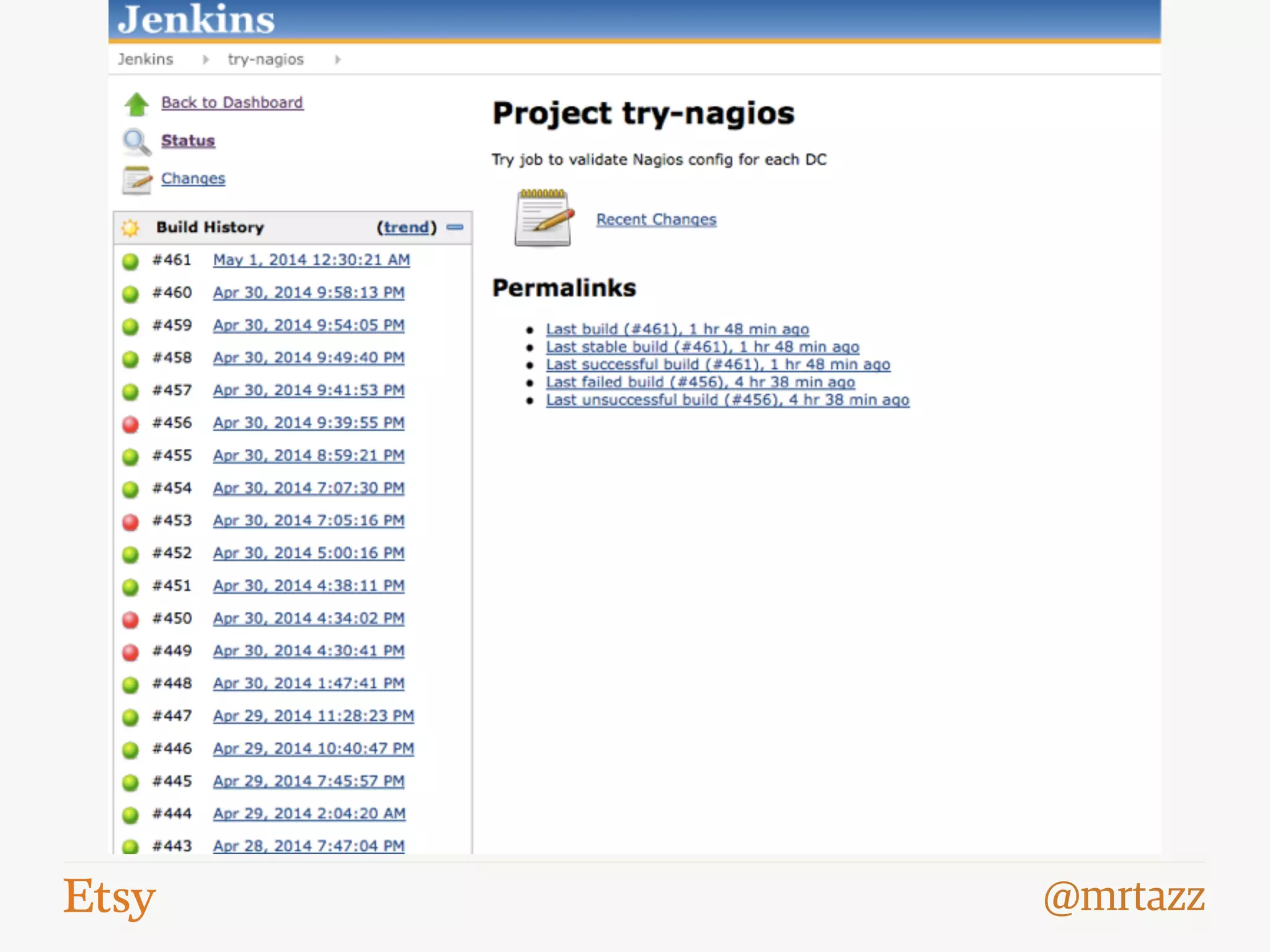

- 30. @mrtazz Nagios • 2 instances in each DC/environment • Fully Chef generated configuration • Service checks and contacts in git • Notifications via email->SMS gateway • ~75% ops on-call

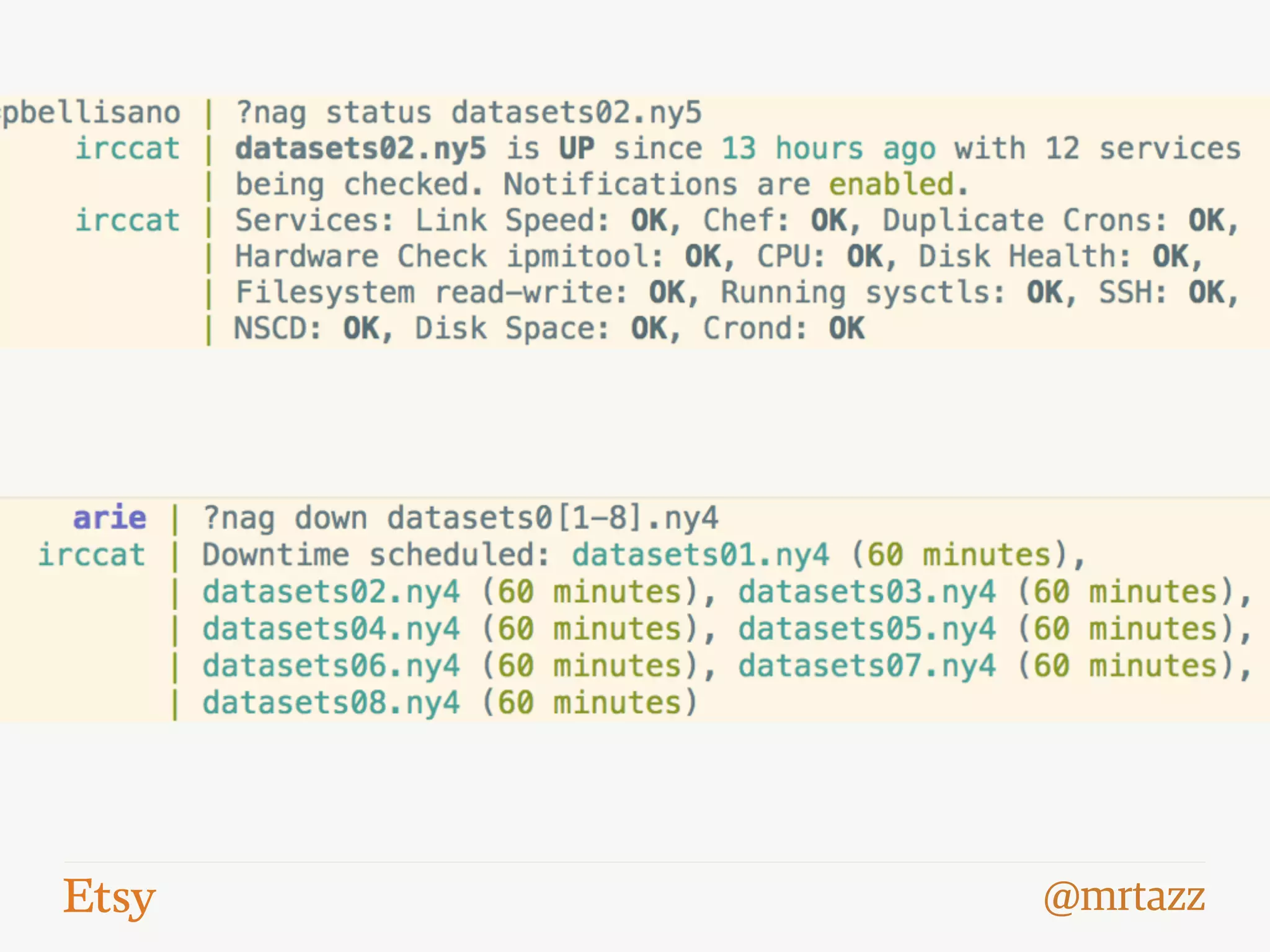

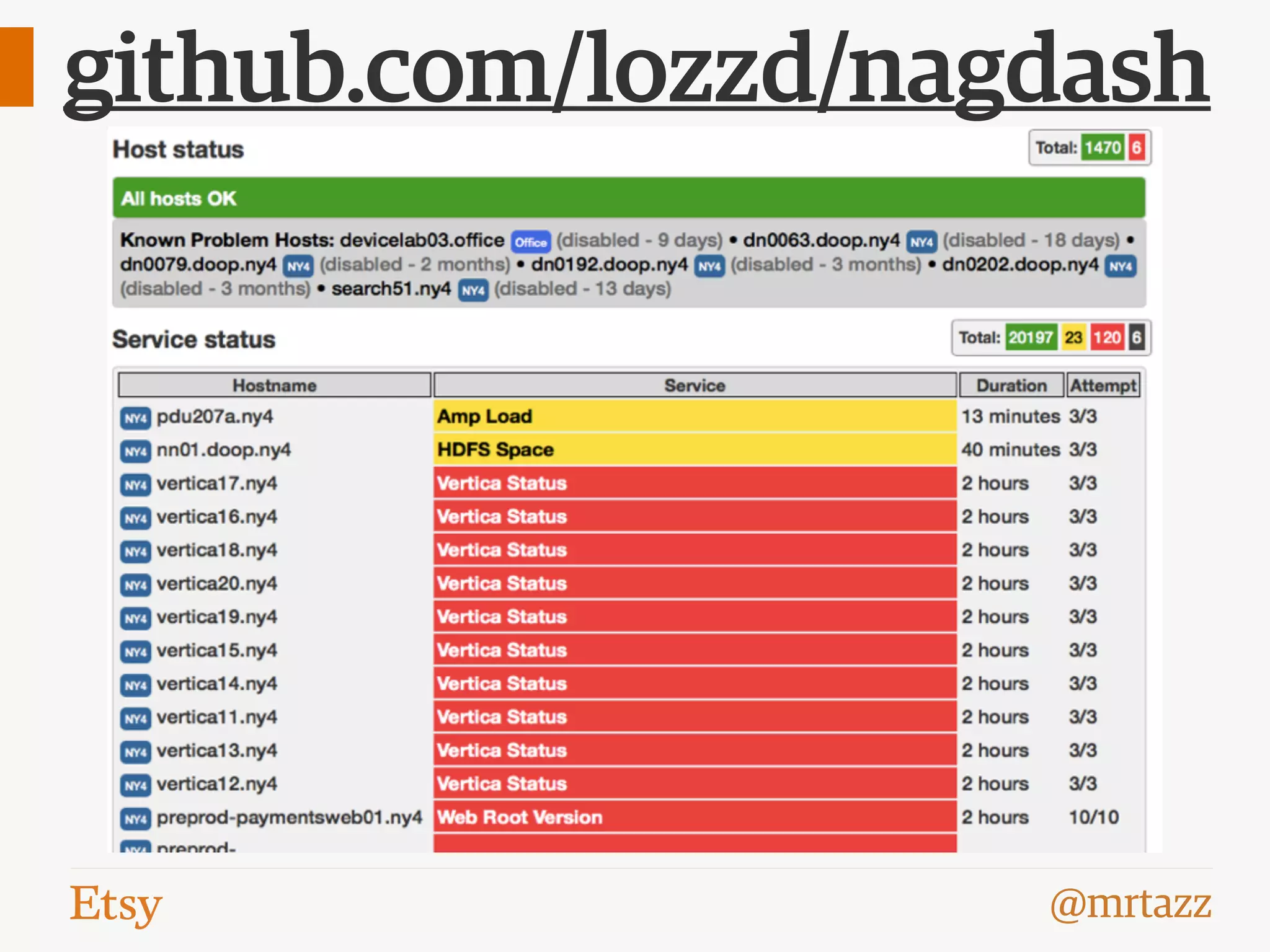

- 32. @mrtazz

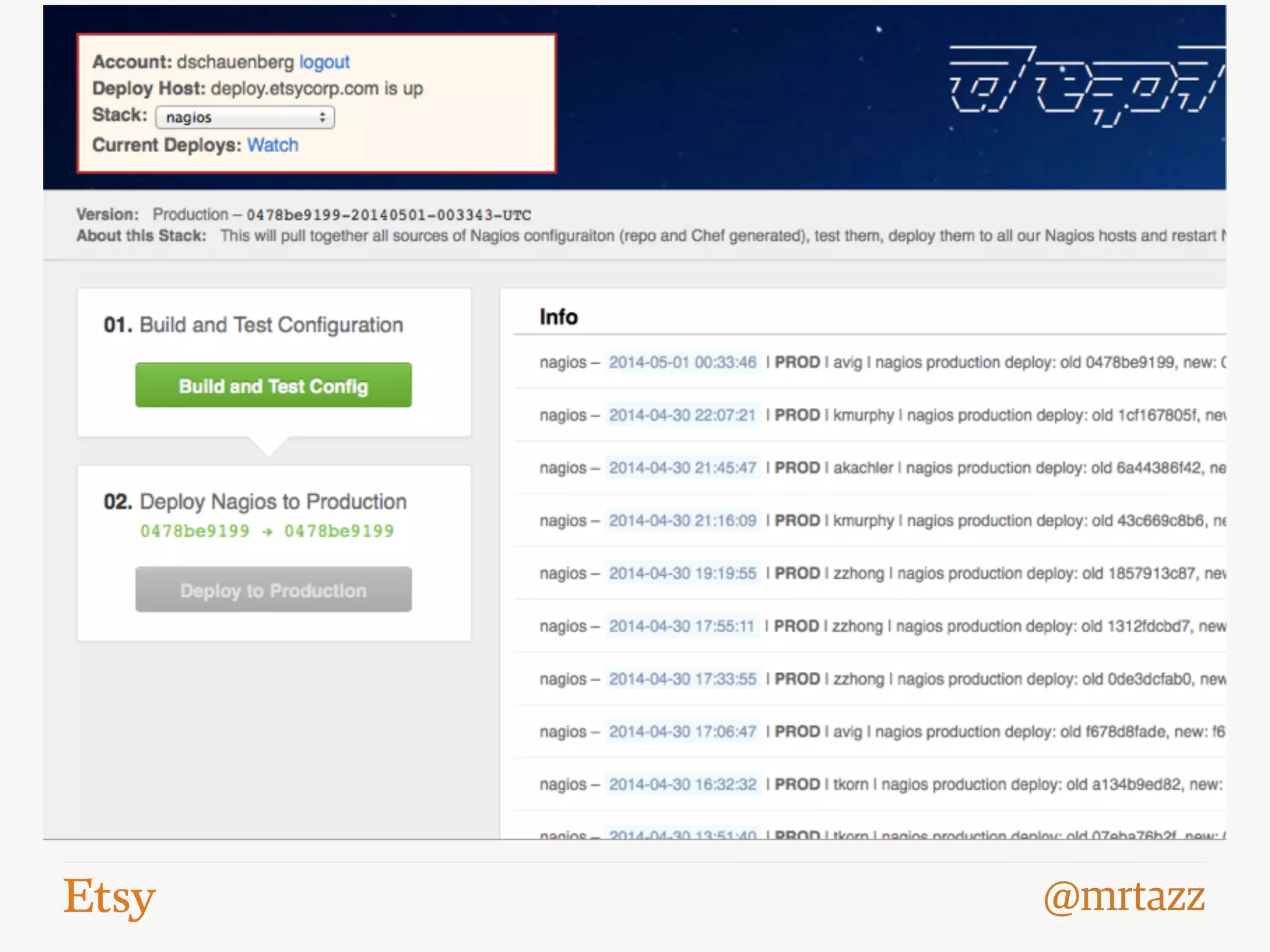

- 33. @mrtazz
- 34. @mrtazz

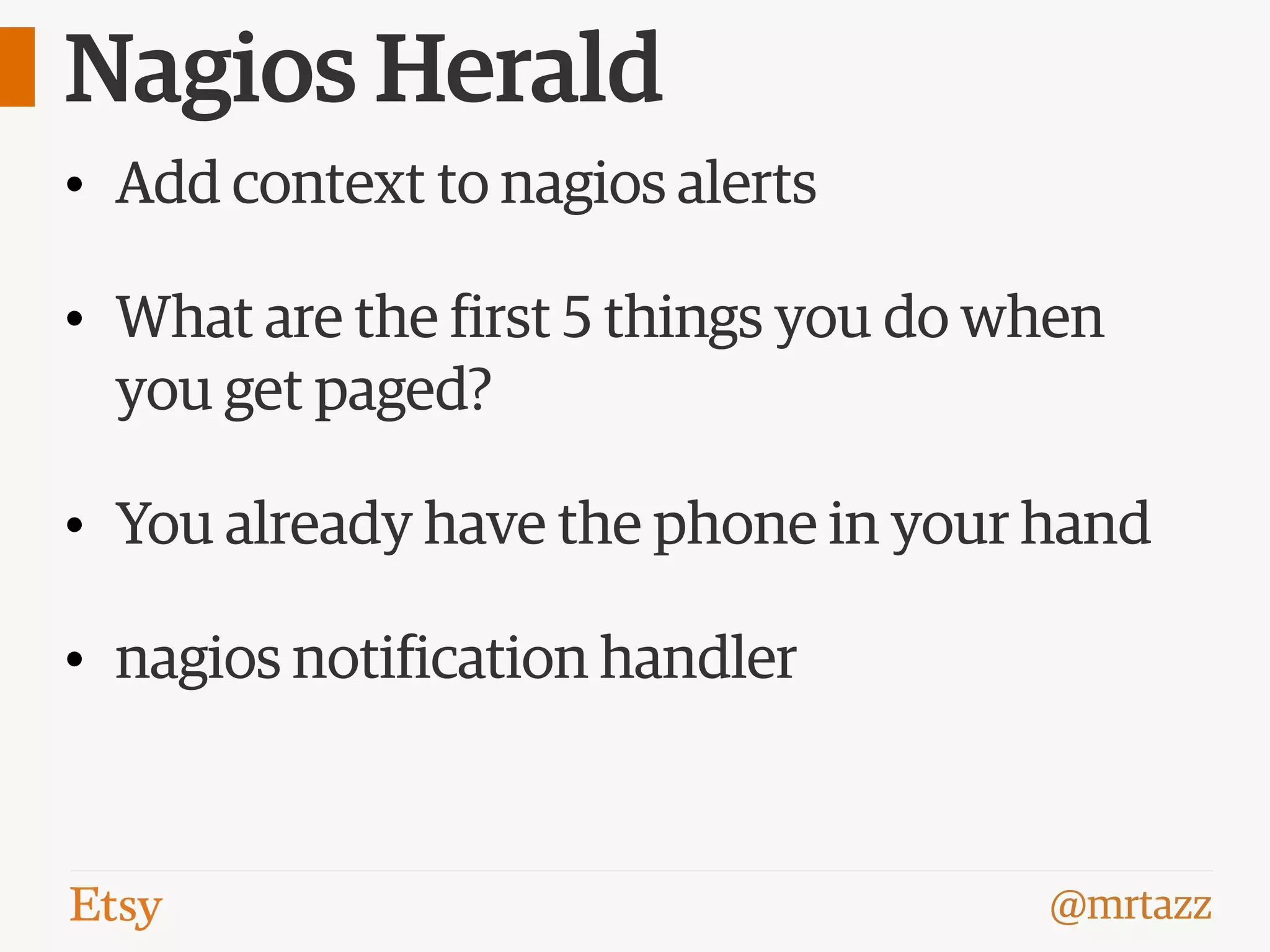

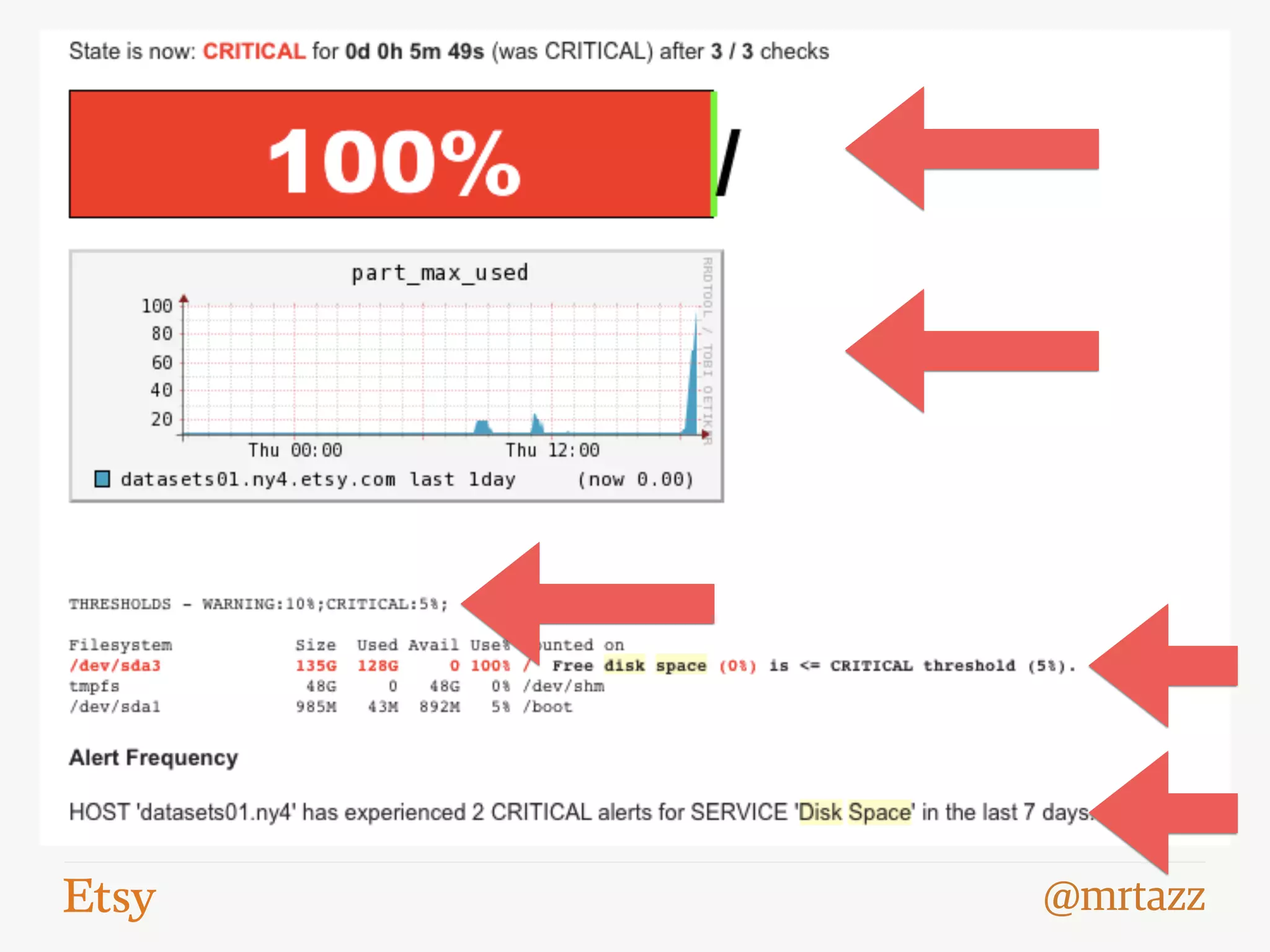

- 35. @mrtazz Nagios Herald • Add context to nagios alerts • What are the first 5 things you do when you get paged? • You already have the phone in your hand • nagios notification handler
- 36. @mrtazz
- 37. @mrtazz The Toys are real
- 38. @mrtazz There’s another side of heaven

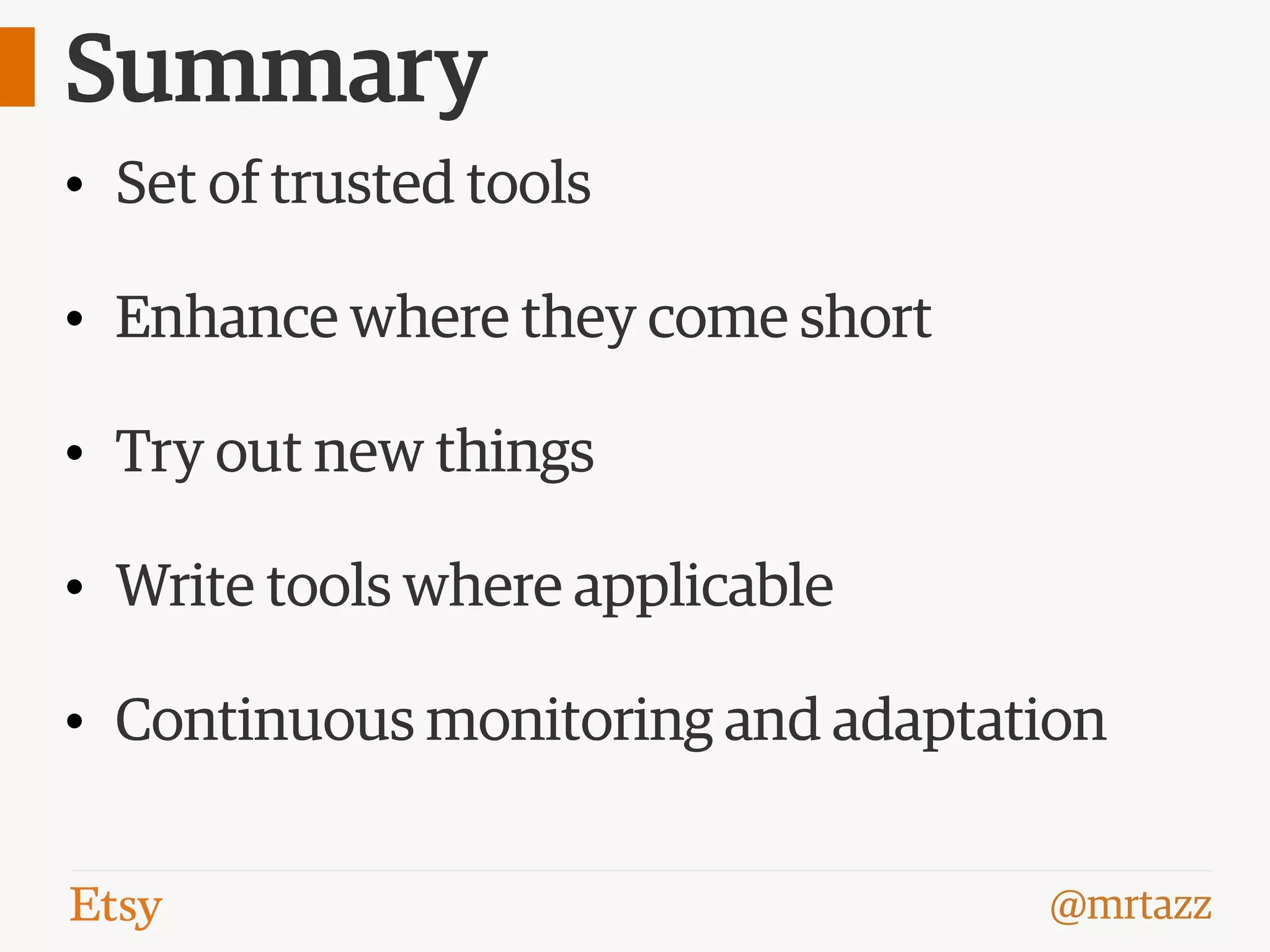

- 41. @mrtazz Summary • Set of trusted tools • Enhance where they come short • Try out new things • Write tools where applicable • Continuous monitoring and adaptation
- 44. A Whirlwind Tour of Etsy's Monitoring Stack Daniel Schauenberg dschauenberg@etsy.com @mrtazz
